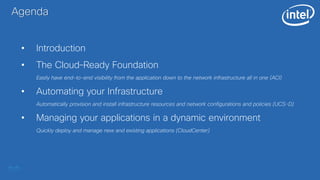

2. Agenda
• Introduction
• The Cloud–Ready Foundation
Easily have end-to-end visibility from the application down to the network infrastructure all in one (ACI)
• Automating your Infrastructure
Automatically provision and install infrastructure resources and network configurations and policies (UCS-D)
• Managing your applications in a dynamic environment
Quickly deploy and manage new and existing applications (CloudCenter)

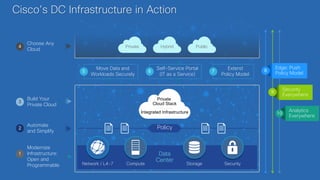

3. 3
Build Your
Private Cloud
Private
Cloud Stack
Integrated Infrastructure
Hybrid PublicPrivate4
Choose Any
Cloud
Self-Service Portal
(IT as a Service)
6
Extend
Policy Model
7
Move Data and
Workloads Securely
5
Edge: Push
Policy Model
8
Security
Everywhere
9
Analytics
Everywhere
10
Network / L4-7 Compute Security
1
Modernize
Infrastructure:
Open and
Programmable
Data
Center
Storage
Policy2
Automate
and Simplify
Cisco’s DC Infrastructure in Action

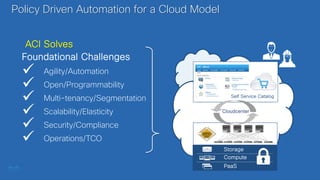

4. IT as a Service
IaaS | PaaS | SaaS | XaaS
Flexible Consumption Models
Foundational Challenges
• Agility/Automation
• Open/Programmability
• Multi-tenancy/Segmentation
• Scalability/Elasticity
• Security/Compliance
• Operations/TCO
FOUNDATION
ORCHESTRATION
SELF SERVICE






ACI Solves
Storage
Compute
PaaS
Self Service Catalog
Cloudcenter
Policy Driven Automation for a Cloud Model

5. Application Centric Infrastructure
VM
Any workload
Anywhere
Single Point of
Control
Network
Services
Policy Based
Secure
Whitelist
Highly Efficient
Fabric

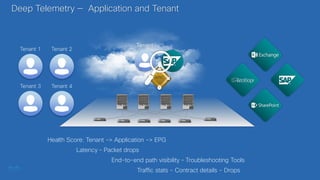

6. Deep Telemetry — Application and Tenant
APIC
Tenant
Tenant 1 Tenant 2
Tenant 3 Tenant 4
Health Score: Tenant -> Application -> EPG
Latency – Packet drops
End-to-end path visibility – Troubleshooting Tools
Traffic stats - Contract details - Drops

7. Automating your
infrastructure

8. Challenges:
• Manual processes
• Complex handoffs between
teams and domains
• Static resource allocation
Result:
• Days/weeks/months to
deploy IT services
• High operational cost
• Rigid silos
• Infrastructure inefficiency and under utilization

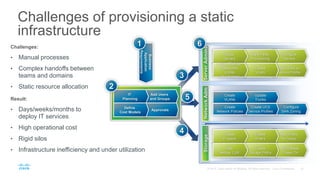

Challenges of provisioning a static
infrastructure
NetworkAdm
Update
Trunks
Create
VLANs
Configure
SAN Zoning
Create UCS
Service Profiles
Create
Network Policies
ServerAdmins
Configure
Servers
Bare metal
Provisioning
Setup
Servers
Add VLAN to
Service Profile
Create
VLAN
Create Storage
Resources
(LUNs
and Volumes)
Storage
Add vFilers
to Group
Create
vFilers
Create
IP space
UCS Blade
Power On
Create
Storage Policy
Map
NetApp LUN
Add Users
and Groups
IT
Planning
Approvals
Define
Cost Models
Business
Application
Requirements
1
2
3
4
5
6

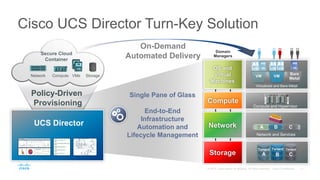

9. Cisco UCS Director Turn-Key Solution
On-Demand
Automated Delivery
Policy-Driven
Provisioning
Secure Cloud
Container
VMsComputeNetwork Storage
UCS Director
Domain
Managers
OS and
Virtual
Machines
Storage
Network
Compute
Tenant
B
Tenant
C
Tenant
A
Virtualized and Bare-Metal
Compute and Hypervisor
B CA
Network and Services
VM VM
Bare
Metal
Single Pane of Glass
End-to-End
Infrastructure
Automation and
Lifecycle Management

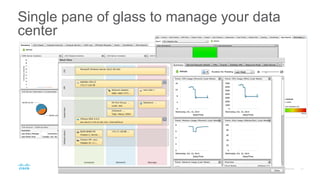

10. Single pane of glass to manage your data
center

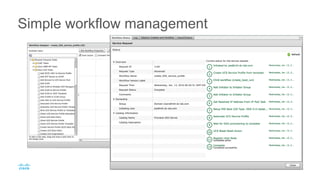

11. Simple workflow management

12. Managing your applications
in a dynamic environment

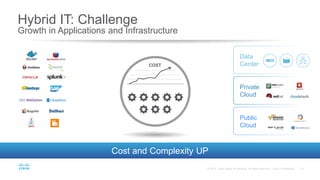

13. Hybrid IT: Challenge
Growth in Applications and Infrastructure
Cost and Complexity UP
Public
Cloud
COST
Data
Center
Private
Cloud

14. CloudCenter Provides Unique Value
Model Once. Deploy and Manage Anywhere.
• Single Application Profile
• Graphical Modeler
• Broad Application Support
• Broad Cloud Support
• Enterprise Ready
Data
Center
DEPLOY
MANAGE
MODEL
Public
Cloud
Private
Cloud

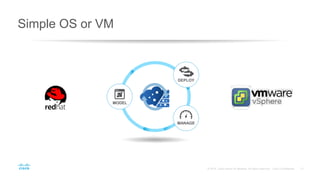

15. Simple OS or VM
DEPLOY
MANAGE
MODEL

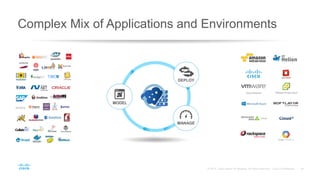

16. Complex Mix of Applications and Environments
DEPLOY
MANAGE
MODEL

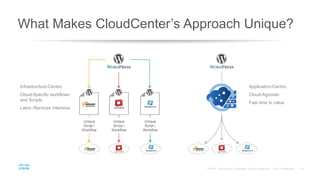

17. What Makes CloudCenter’s Approach Unique?
Infrastructure-Centric
Cloud-Specific workflows
and Scripts
Labor /Services Intensive
Unique
Script /
Workflow
Application-Centric
Cloud-Agnostic
Fast time to value
Unique
Script /
Workflow
Unique
Script /
Workflow

18. Portal
User – Model, deploy, manage
Admin – Visibility and control
accounts, user groups, policies
Manager

19. Defines Application Deployment
and Management Requirements
Cloud Agnostic
Portable
Five Key Components
Application topology
Infrastructure resources
Deployable Artifacts
Orchestration
Policies
Application
Profile
JSON and XML file
Graphical Modeler
“One Click” Deploy

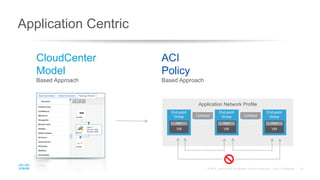

20. Application Centric
CloudCenter
Model
Based Approach
ACI
Policy
Based Approach
Application Network Profile
Contract Contract
End-point
Group
End-point
Group
End-point
Group
VMVMVM
Tier3Tier2Tier1

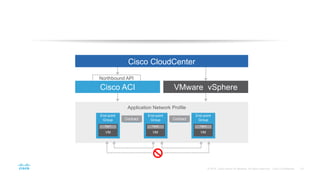

21. Cisco CloudCenter
Northbound API
Cisco ACI
Application Network Profile
Contract Contract
End-point
Group
End-point
Group
End-point
Group
VMVMVM
Tier3Tier2Tier1
VMware vSphere

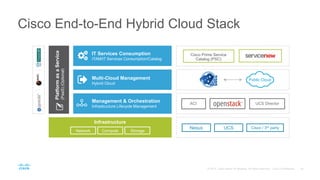

22. Cisco End-to-End Hybrid Cloud Stack
Infrastructure
Management & Orchestration
Infrastructure Lifecycle Management
Multi-Cloud Management
Hybrid Cloud
PlatformasaService
(PaaS)(Optional)
IT Services Consumption
ITAM/IT Services Consumption/Catalog
Cisco Prime Service
Catalog (PSC)
Nexus UCS Cisco / 3rd party
UCS DirectorACI
Network Compute Storage
Public Cloud
