This document provides study material on high voltage engineering for AMIE and recruitment exams. It includes an example problem involving calculating the wavefront and wavetail times of an impulse wave generated by a ten-stage impulse generator. The problem is analyzed by modeling the generator and load as circuits that can be used to derive equations for the wavefront and wavetail times in terms of the circuit components. These equations are then applied to the given values to calculate the wavefront and wavetail times.

1. STUDY MATERIAL FOR AMIE & RECRUITMENT EXAMS
HIGH VOLTAGE ENGINEERING
AMIE(I) STUDY CIRCLE(REGD.)
AMIESTUDYCIRCLE.com
Example (AMIE S14, 14 marks)
A ten-stage impulse generator has 0.25 F
capacitance. The wavefront and wavetail resistances
are 75 ohm and 2600 ohm, respectively. If the load
capacitance is 2.5 nF, determine the wavefront and
wavetail times accurately of the impulse wave.

2. STUDY MATERIAL FOR AMIE & RECRUITMENT EXAMS
HIGH VOLTAGE ENGINEERING
AMIE(I) STUDY CIRCLE(REGD.)
AMIESTUDYCIRCLE.com

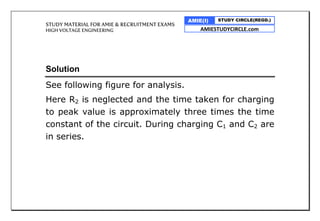

Solution
See following figure for analysis.
Here R2 is neglected and the time taken for charging
to peak value is approximately three times the time
constant of the circuit. During charging C1 and C2 are
in series.

3. STUDY MATERIAL FOR AMIE & RECRUITMENT EXAMS
HIGH VOLTAGE ENGINEERING
AMIE(I) STUDY CIRCLE(REGD.)
AMIESTUDYCIRCLE.com

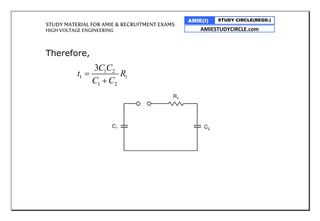

Therefore,
1 2
1 1
1 2
3C C
t R
C C



4. STUDY MATERIAL FOR AMIE & RECRUITMENT EXAMS
HIGH VOLTAGE ENGINEERING
AMIE(I) STUDY CIRCLE(REGD.)
AMIESTUDYCIRCLE.com

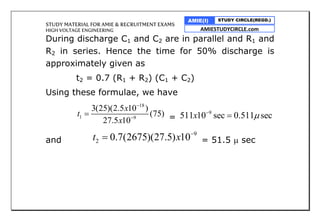

During discharge C1 and C2 are in parallel and R1 and
R2 in series. Hence the time for 50% discharge is
approximately given as
t2 = 0.7 (R1 + R2) (C1 + C2)
Using these formulae, we have
18
1 9
3(25)(2.5 10 )
(75)
27.5 10
x
t
x


 =
9
511 10 sec 0.511 secx 

and
9
2 0.7(2675)(27.5) 10t x 
 = 51.5  sec
