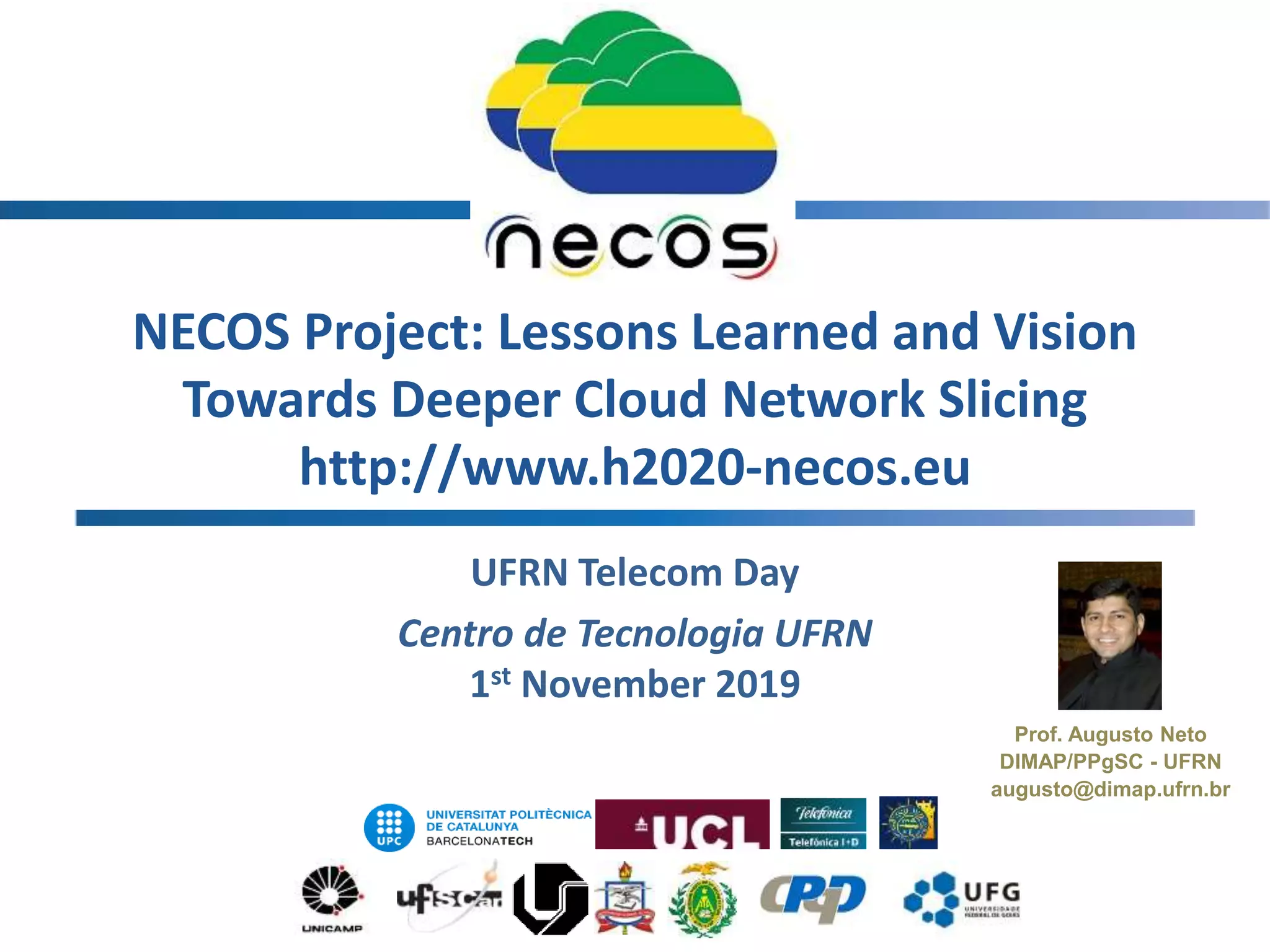

NECOS Project: Lessons Learned and Vision Towards Deeper Cloud Network Slicing http://www.h2020-necos.eu UFRN Telecom Day Centro de Tecnologia UFRN 1st November 2019 1 Prof. Augusto Neto DIMAP/PPgSC - UFRN augusto@dimap.ufrn.br

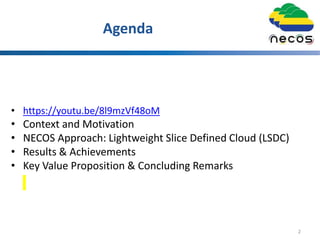

Agenda • https://youtu.be/8l9mzVf48oM • Context and Motivation • NECOS Approach: Lightweight Slice Defined Cloud (LSDC) • Results & Achievements • Key Value Proposition & Concluding Remarks 2

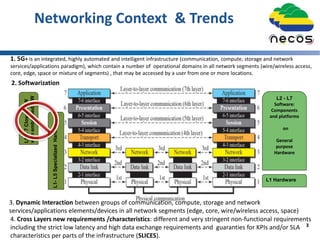

Networking Context & Trends 3 L1-L5SpecializedHardware L5-L7ClosedH/W withembeddedS/W L2 - L7 Software: Components and platforms on General purpose Hardware L1 Hardware 2. Softwarization 3. Dynamic Interaction between groups of communication, compute, storage and network services/applications elements/devices in all network segments (edge, core, wire/wireless access, space) 4. Cross Layers new requirements /characteristics: different and very stringent non-functional requirements including the strict low latency and high data exchange requirements and guaranties for KPIs and/or SLA characteristics per parts of the infrastructure (SLICES). 1. 5G+ is an integrated, highly automated and intelligent infrastructure (communication, compute, storage and network services/applications paradigm), which contain a number of operational domains in all network segments (wire/wireless access, core, edge, space or mixture of segments) , that may be accessed by a user from one or more locations.

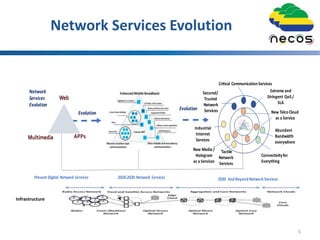

Network Services Evolution 4 • Delivery of stringent KPIs / SLAs per service (e.g. Gbps Tbps, less than 20 ms for round trip latency) • Guarantees and monitor mission critical services; • New Telco Precision Service Cloud, Industrial Internet Services, Hologram as a Service, New Secure Network Services • Integration at Hyper Scale of elements for service de livery (i.e. network devices, network (virtual) functions, edge elements and digital objects) • Agility & Programmability (service functional change on demand) • Anonymity and security support for all service operations
5 Infrastructure Web Multimedia APPs Connectivityfor Everything Abundant Bandwidth everywhere Critical CommunicationServices Extreme and Stringent QoS/ SLA Secured/ Trusted Network Services Industrial Internet Services New Media / Hologram as a Services New TelcoCloud as a Service Present Digital Network Services 2020-2030 Network Services 2030 AndBeyondNetworkServices Network Services Evolution Evolution Evolution `Tactile Network Services Network Services Evolution
6 Academia ONF 3GPP MEF ETSI IETF What is a Slice?

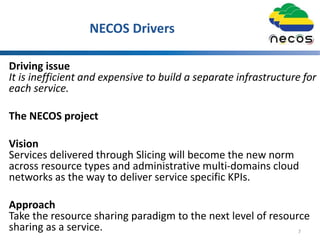

NECOS Drivers Driving issue It is inefficient and expensive to build a separate infrastructure for each service. The NECOS project Vision Services delivered through Slicing will become the new norm across resource types and administrative multi-domains cloud networks as the way to deliver service specific KPIs. Approach Take the resource sharing paradigm to the next level of resource sharing as a service. 7

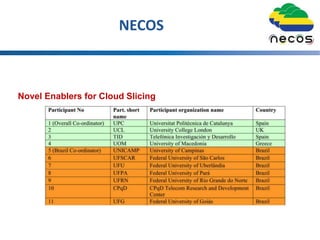

Novel Enablers for Cloud Slicing NECOS
Novel Enablers for Cloud Slicing NECOS

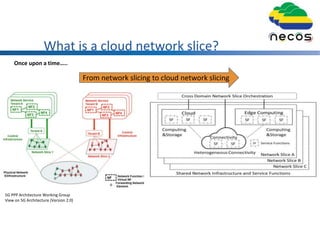

What is a cloud network slice? Once upon a time….. 5G PPP Architecture Working Group View on 5G Architecture (Version 2.0) From network slicing to cloud network slicing
Net App Net App NFs Net App Net App L7 Apps Network Resources NIM Slicing Application Services Vertical Use Case i Control & Management plane Infrastructure Business (Application & Service) plane Slicing Compute Resources VIM Slicing MonitoringMonitoringMonitoring VIM-independent Slicing [Mode 0] [Infrastructure Slice aaS] (“Bare-metal”) VIM-dependent Slicing [Mode 1] [Resource Slice aaS] (R) Orchestration Service-based Slicing [Mode 3] [Service Slice aaS] Network Service Orchestration MANO-based Slicing [Mode 2] [NFV aaS] Slicing S Vertical S Service iS Slicing Models & Approaches

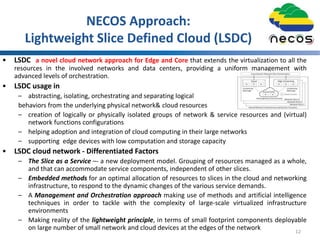

NECOS Approach: Lightweight Slice Defined Cloud (LSDC) • LSDC a novel cloud network approach for Edge and Core that extends the virtualization to all the resources in the involved networks and data centers, providing a uniform management with advanced levels of orchestration. • LSDC usage in – abstracting, isolating, orchestrating and separating logical behaviors from the underlying physical network& cloud resources – creation of logically or physically isolated groups of network & service resources and (virtual) network functions configurations – helping adoption and integration of cloud computing in their large networks – supporting edge devices with low computation and storage capacity • LSDC cloud network - Differentiated Factors – The Slice as a Service –- a new deployment model. Grouping of resources managed as a whole, and that can accommodate service components, independent of other slices. – Embedded methods for an optimal allocation of resources to slices in the cloud and networking infrastructure, to respond to the dynamic changes of the various service demands. – A Management and Orchestration approach making use of methods and artificial intelligence techniques in order to tackle with the complexity of large-scale virtualized infrastructure environments – Making reality of the lightweight principle, in terms of small footprint components deployable on large number of small network and cloud devices at the edges of the network 12

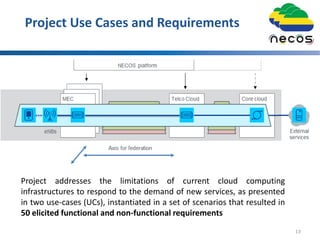

Project Use Cases and Requirements 13 Project addresses the limitations of current cloud computing infrastructures to respond to the demand of new services, as presented in two use-cases (UCs), instantiated in a set of scenarios that resulted in 50 elicited functional and non-functional requirements

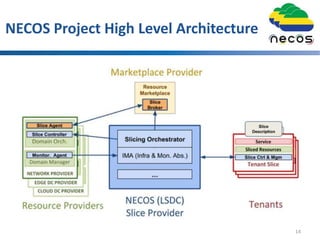

NECOS Project High Level Architecture 14
NECOS Architecture and Interfaces Defining a set of functional components and their interactions.

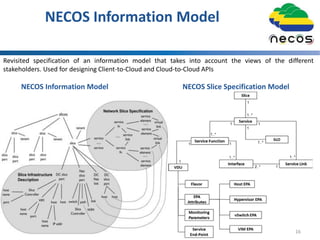

NECOS Information Model 16 Revisited specification of an information model that takes into account the views of the different stakeholders. Used for designing Client-to-Cloud and Cloud-to-Cloud APIs NECOS Slice Specification ModelNECOS Information Model
NECOS Slice-as-a-Service Model Slice as a Service Interface Specification: • the Slice Request Interface • provides the mechanisms to initiate the instantiation of a Slice • the Slice Marketplace Interface • for interaction between marketplace actors to implement mechanisms for the propagation of resource offerings between resource domains. • the Slice Instantiation Interface • used to allocate resources for each single Slice Part of the Slice. • the Slice Runtime Interface • provides functionalities to dynamically modify the resource allocation and to perform lifecycle operation on a Slice.

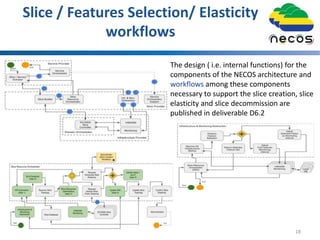

Slice / Features Selection/ Elasticity workflows 18 The design ( i.e. internal functions) for the components of the NECOS architecture and workflows among these components necessary to support the slice creation, slice elasticity and slice decommission are published in deliverable D6.2
90 secs Video 19

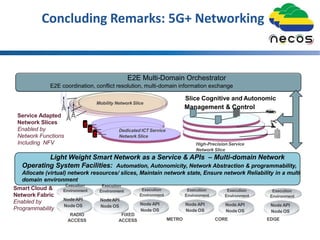

Concluding Remarks: 5G+ Networking Service Adapted Network Slices Enabled by Network Functions Including NFV Dedicated ICT Service Network Slice High-Precision Service Network Slice Mobility Network Slice Light Weight Smart Network as a Service & APIs – Multi-domain Network Operating System Facilities: Automation, Autonomicity, Network Abstraction & programmability, Allocate (virtual) network resources/ slices, Maintain network state, Ensure network Reliability in a multi domain environment Management & Control CORE Smart Cloud & Network Fabric Enabled by Programmability EDGEMETRO Execution Environment Node API Node OS RADIO ACCESS Execution Environment Node API Node OS FIXED ACCESS Execution Environment Node API Node OS Node API Node OS Execution Environment Execution Environment Node API Node OS Execution Environment Node API Node OS E2E Multi-Domain Orchestrator E2E coordination, conflict resolution, multi-domain information exchange Slice Cognitive and Autonomic
Q&A 22
What do we mean by Cloud Network Slices? Cloud Network Slice – A set of infrastructure (network, cloud, data center) components/network functions, infrastructure resources (i.e., managed connectivity, compute, storage resources) and service functions that have attributes specifically designed to meet the needs of an industry vertical or a service. A Network/Cloud Slice is a managed group of subsets of resources, network and service functions at the data, control, management/orchestration, and service planes at any given time. The behaviour of the slice is realized via infrastructure slice instances (i.e. activated infrastructure slices, dynamically and non-disruptively re-provisioned). – An infrastructure slice is programmable and has the ability to expose its capabilities. – An end-to-end logical network/cloud running on a common underlying (physical or virtual) infrastructure, mutually isolated, with independent control and management that can be created on demand. – A network slice may consist of cross-domain components from separate domains in the same or different administrations, or components applicable to the access network, transport network, core network, edge networks and clouds. 34

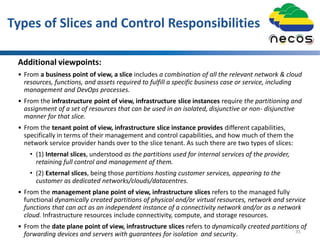

Types of Slices and Control Responsibilities Additional viewpoints: • From a business point of view, a slice includes a combination of all the relevant network & cloud resources, functions, and assets required to fulfill a specific business case or service, including management and DevOps processes. • From the infrastructure point of view, infrastructure slice instances require the partitioning and assignment of a set of resources that can be used in an isolated, disjunctive or non- disjunctive manner for that slice. • From the tenant point of view, infrastructure slice instance provides different capabilities, specifically in terms of their management and control capabilities, and how much of them the network service provider hands over to the slice tenant. As such there are two types of slices: • (1) Internal slices, understood as the partitions used for internal services of the provider, retaining full control and management of them. • (2) External slices, being those partitions hosting customer services, appearing to the customer as dedicated networks/clouds/datacentres. • From the management plane point of view, infrastructure slices refers to the managed fully functional dynamically created partitions of physical and/or virtual resources, network and service functions that can act as an independent instance of a connectivity network and/or as a network cloud. Infrastructure resources include connectivity, compute, and storage resources. • From the date plane point of view, infrastructure slices refers to dynamically created partitions of forwarding devices and servers with guarantees for isolation and security. 35

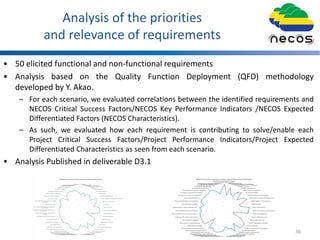

Analysis of the priorities and relevance of requirements 36 • 50 elicited functional and non-functional requirements • Analysis based on the Quality Function Deployment (QFD) methodology developed by Y. Akao. – For each scenario, we evaluated correlations between the identified requirements and NECOS Critical Success Factors/NECOS Key Performance Indicators /NECOS Expected Differentiated Factors (NECOS Characteristics). – As such, we evaluated how each requirement is contributing to solve/enable each Project Critical Success Factors/Project Performance Indicators/Project Expected Differentiated Characteristics as seen from each scenario. • Analysis Published in deliverable D3.1 0 50 100 150 200 250 300 RF.vRAN.1-Service Level Agreement RF.vRAN.2-AccountabilityRF.vRAN.3-On-demand slice provisioning RF.vRAN.34-Isolation of slice provisioning RN.vRAN.5 -Fairness RN.vRAN.6 -Fault detection RF.5G.1-Service Level Agreement RF.5G.2-Accountability RF.5G.3-On-demand slice provisioning RF.5G.4-External control and management of… RN.5G.5-Isolation of slice resources RN.5G.6-Fairness RN.5G.7-Fault detection RF.vCPE.1-On-demand slice provisioning RF.vCPE.2-Manageable slice RF.vCPE.3-VIM-independence RF.vCPE.4-Bare-metal slice RF.vCPE.5-Lightweight virtualization RF.vCPE.6-Elasticity RF.vCPE.7-Zero touch service provisioning RF.vCPE.8-Fault detection RN.vCPE.9-Isolation of slice resources RN.vCPE.10-SLA monitoring (QoS) RN.vCPE.11-Low latency RN.vCPE.12-High throughputRN.vCPE.13-High availabilityRF.Touristic(CD).1-Slice and slice-resource…RF.Touristic(CD).2-Automated Virtual Machine… RF.Touristic(CD).3-Traffic load-balancingfor… RF.Touristic(CD).4-Slice resource and service… RF.Touristic(CD).5-Service planning RN.Touristic(CD).6-Transparent end-user… RN.Touristic(CD).7-Heterogeneity handling RN.Touristic(CD).8-Elasticity RN.Touristic(CD).9-Resource-efficiency RN.Touristic(CD).10-Scalability RF.Touristic(APP).1 Service function chain… RF.Touristic(APP).2 Resource and user-demand… RF.Touristic(APP).3 Resource offloading… RF.Touristic(APP).4 Resource federation and… RF.Touristic(APP).5 Scalability RF.Touristic(APP).6 Efficient next-generation… RF.Touristic(APP).7 Elasticity RF.emergency.1 Dynamic slice management RF.emergency.2 Dynamic service definition RF.emergency.3 Timely slice management RF.emergency.4 Orchestration RF.emergency.5 High Reliability RF.emergency.6 High Availability RF.emergency.7 High SurvivabilityAverage Score per Aggregated Requirement NECOS Requirements - Importance in realising Expected DifferentiatedCharacteristics based on Combining All Scenarios 0 50 100 150 200 250 RF.vRAN.1-Service Level Agreement RF.vRAN.2-Accountability RF.vRAN.3-On-demand slice provisioning RF.vRAN.34-Isolation of slice provisioning RN.vRAN.5 -Fairness RN.vRAN.6 -Fault detection RF.5G.1-Service Level Agreement RF.5G.2-Accountability RF.5G.3-On-demand slice provisioning RF.5G.4-External control and management of the offered slices RN.5G.5-Isolation of slice resources RN.5G.6-Fairness RN.5G.7-Fault detection RF.vCPE.1-On-demand slice provisioning RF.vCPE.2-Manageable slice RF.vCPE.3-VIM-independence RF.vCPE.4-Bare-metal slice RF.vCPE.5-Lightweight virtualization RF.vCPE.6-Elasticity RF.vCPE.7-Zero touch service provisioning RF.vCPE.8-Fault detection RN.vCPE.9-Isolation of slice resources RN.vCPE.10-SLA monitoring (QoS) RN.vCPE.11-Low latency RN.vCPE.12-High throughputRN.vCPE.13-High availabilityRF.Touristic(CD).1-Slice and slice-resource managementRF.Touristic(CD).2-Automated Virtual Machine deployment RF.Touristic(CD).3-Traffic load-balancingfor content delivery RF.Touristic(CD).4-Slice resource and service monitoring RF.Touristic(CD).5-Service planning RN.Touristic(CD).6-Transparent end-user performance RN.Touristic(CD).7-Heterogeneity handling RN.Touristic(CD).8-Elasticity RN.Touristic(CD).9-Resource-efficiency RN.Touristic(CD).10-Scalability RF.Touristic(APP).1 Service function chain orchestration RF.Touristic(APP).2 Resource and user-demand prediction capabilities RF.Touristic(APP).3 Resource offloading between edge, core clouds and cloud providers RF.Touristic(APP).4 Resource federation and intelligent multi- domain orchestration RF.Touristic(APP).5 Scalability RF.Touristic(APP).6 Efficient next-generation touristicapplication performance RF.Touristic(APP).7 Elasticity RF.emergency.1 Dynamic slice management RF.emergency.2 Dynamic service definition RF.emergency.3 Timely slice management RF.emergency.4 Orchestration RF.emergency.5 High Reliability RF.emergency.6 High Availability RF.emergency.7 High Survivability Average Score per NECOS Requirement NECOS Requirements- Importance in realising Critical Success Factors based on Combining All Scenarios

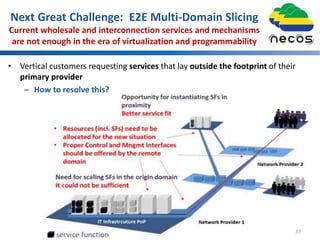

Next Great Challenge: E2E Multi-Domain Slicing Current wholesale and interconnection services and mechanisms are not enough in the era of virtualization and programmability • Vertical customers requesting services that lay outside the footprint of their primary provider – How to resolve this? 37

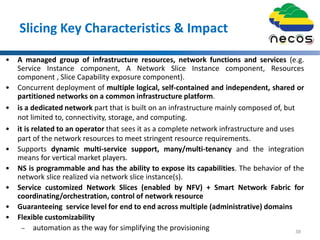

Slicing Key Characteristics & Impact • A managed group of infrastructure resources, network functions and services (e.g. Service Instance component, A Network Slice Instance component, Resources component , Slice Capability exposure component). • Concurrent deployment of multiple logical, self-contained and independent, shared or partitioned networks on a common infrastructure platform. • is a dedicated network part that is built on an infrastructure mainly composed of, but not limited to, connectivity, storage, and computing. • it is related to an operator that sees it as a complete network infrastructure and uses part of the network resources to meet stringent resource requirements. • Supports dynamic multi-service support, many/multi-tenancy and the integration means for vertical market players. • NS is programmable and has the ability to expose its capabilities. The behavior of the network slice realized via network slice instance(s). • Service customized Network Slices (enabled by NFV) + Smart Network Fabric for coordinating/orchestration, control of network resource • Guaranteeing service level for end to end across multiple (administrative) domains • Flexible customizability – automation as the way for simplifying the provisioning 38

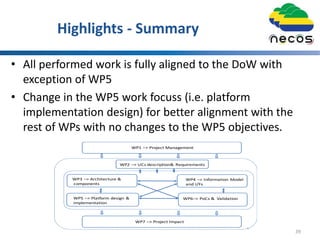

Highlights - Summary • All performed work is fully aligned to the DoW with exception of WP5 • Change in the WP5 work focuss (i.e. platform implementation design) for better alignment with the rest of WPs with no changes to the WP5 objectives. 39 5 WP1 –> Project Management WP7 –> Project Impact WP3 –> Architecture & components WP4 –> Information Model and I/Fs WP2 –> UCs description& Requirements WP5 –> Platform design & implementation WP6–> PoCs & Validation

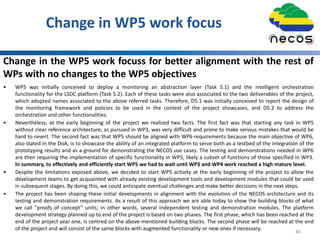

Change in WP5 work focus 40 Change in the WP5 work focuss for better alignment with the rest of WPs with no changes to the WP5 objectives • WP5 was initially conceived to deploy a monitoring an abstraction layer (Task 5.1) and the intelligent orchestration functionality for the LSDC platform (Task 5.2). Each of these tasks were also associated to the two deliverables of the project, which adopted names associated to the above referred tasks. Therefore, D5.1 was initially conceived to report the design of the monitoring framework and policies to be used in the context of the project showcases, and D5.2 to address the orchestration and other functionalities. • Nevertheless, at the early beginning of the project we realized two facts. The first fact was that starting any task in WP5 without clear reference architecture, as pursued in WP3, was very difficult and prone to make serious mistakes that would be hard to revert. The second fact was that WP5 should be aligned with WP6 requirements because the main objective of WP6, also stated in the DoA, is to showcase the ability of an integrated platform to serve both as a testbed of the integration of the prototyping results and as a ground for demonstrating the NECOS use cases. The testing and demonstrations needed in WP6 are then requiring the implementation of specific functionality in WP5, likely a subset of functions of those specified in WP3. In summary, to effectively and efficiently start WP5 we had to wait until WP3 and WP4 work reached a high mature level. • Despite the limitations exposed above, we decided to start WP5 activity at the early beginning of the project to allow the development teams to get acquainted with already existing development tools and development modules that could be used in subsequent stages. By doing this, we could anticipate eventual challenges and make better decisions in the next steps. • The project has been shaping these initial developments in alignment with the evolution of the NECOS architecture and its testing and demonstration requirements. As a result of this approach we are able today to show the building blocks of what we call “proofs of concept” units; in other words, several independent testing and demonstration modules. The platform development strategy planned up to end of the project is based on two phases. The first phase, which has been reached at the end of the project year one, is centred on the above-mentioned building blocks. The second phase will be reached at the end of the project and will consist of the same blocks with augmented functionality or new ones if necessary.

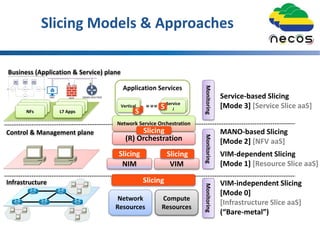

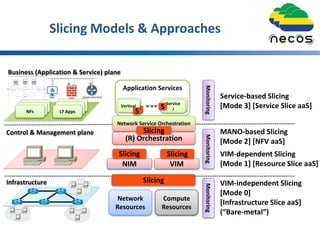

Slicing Models & Approaches Net App Net App NFs Net App Net App L7 Apps Network Resources NIM Slicing Application Services Vertical Use Case i Control & Management plane Infrastructure Business (Application & Service) plane Slicing Compute Resources VIM Slicing MonitoringMonitoringMonitoring VIM-independent Slicing [Mode 0] [Infrastructure Slice aaS] (“Bare-metal”) VIM-dependent Slicing [Mode 1] [Resource Slice aaS] (R) Orchestration Service-based Slicing [Mode 3] [Service Slice aaS] Network Service Orchestration MANO-based Slicing [Mode 2] [NFV aaS] Slicing S Vertical S Service iS

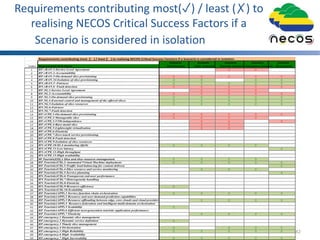

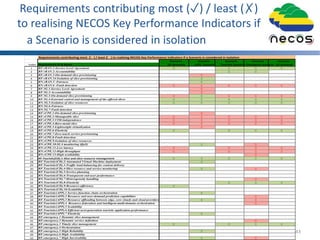

Requirements contributing most(✓) / least (✗) to realising NECOS Critical Success Factors if a Scenario is considered in isolation 42 Requirements contributing most (✓ ) / least (✓ ) to realising NECOS Critical Success Fanctors if a Scenario is considered in isolation Scenario Scenario Scenario Scenario Scenario Index Requirement ID & Name 5G Networks vCPE Scenario Touristic Scenario Emergency Scenario All Scenaros 1 RF.vRAN.1-Service Level Agreement ✗ ✗ 2 RF.vRAN.2-Accountability 3 RF.vRAN.3-On-demand slice provisioning ✗ ✗ ✗ ✗ ✗ 4 RF.vRAN.34-Isolation of slice provisioning ✗ ✗ ✗ ✗ 5 RN.vRAN.5 -Fairness ✗ ✗ ✗ ✗ ✗ 6 RN.vRAN.6 -Fault detection ✗ ✗ ✗ ✗ ✗ 7 RF.5G.1-Service Level Agreement ✗ ✗ ✗ 8 RF.5G.2-Accountability ✗ ✗ ✗ ✗ ✗ 9 RF.5G.3-On-demand slice provisioning ✗ ✗ ✗ ✗ ✗ 10 RF.5G.4-External control and management of the offered slices ✗ ✗ ✗ ✗ ✗ 11 RN.5G.5-Isolation of slice resources ✗ ✗ ✗ ✗ ✗ 12 RN.5G.6-Fairness 13 RN.5G.7-Fault detection 14 RF.vCPE.1-On-demand slice provisioning ✗ ✗ ✗ ✗ ✗ 15 RF.vCPE.2-Manageable slice ✗ ✗ ✗ ✗ 16 RF.vCPE.3-VIM-independence ✗ ✗ ✗ 17 RF.vCPE.4-Bare-metal slice ✗ ✗ 18 RF.vCPE.5-Lightweight virtualization ✗ ✗ 19 RF.vCPE.6-Elasticity 20 RF.vCPE.7-Zero touch service provisioning 21 RF.vCPE.8-Fault detection 22 RN.vCPE.9-Isolation of slice resources 23 RN.vCPE.10-SLA monitoring (QoS) ✗ ✗ ✗ ✗ 24 RN.vCPE.11-Low latency ✗ 25 RN.vCPE.12-High throughput 26 RN.vCPE.13-High availability 27 RF.Touristic(CD).1-Slice and slice-resource management ✗ ✗ ✗ ✗ 28 RF.Touristic(CD).2-Automated Virtual Machine deployment ✗ ✗ ✗ ✗ ✗ 29 RF.Touristic(CD).3-Traffic load-balancing for content delivery ✗ 30 RF.Touristic(CD).4-Slice resource and service monitoring ✗ ✗ ✗ 31 RF.Touristic(CD).5-Service planning ✗ 32 RN.Touristic(CD).6-Transparent end-user performance 33 RN.Touristic(CD).7-Heterogeneity handling 34 RN.Touristic(CD).8-Elasticity 35 RN.Touristic(CD).9-Resource-efficiency ✗ 36 RN.Touristic(CD).10-Scalability 37 RF.Touristic(APP).1 Service function chain orchestration ✗ ✗ ✗ ✗ ✗ 38 RF.Touristic(APP).2 Resource and user-demand prediction capabilities 39 RF.Touristic(APP).3 Resource offloading between edge, core clouds and cloud providers ✗ ✗ ✗ ✗ 40 RF.Touristic(APP).4 Resource federation and intelligent multi-domain orchestration 41 RF.Touristic(APP).5 Scalability ✗ 42 RF.Touristic(APP).6 Efficient next-generation touristic application performance 43 RF.Touristic(APP).7 Elasticity ✗ ✗ ✗ ✗ 44 RF.emergency.1 Dynamic slice management 45 RF.emergency.2 Dynamic service definition ✗ 46 RF.emergency.3 Timely slice management 47 RF.emergency.4 Orchestration ✗ ✗ ✗ ✗ 48 RF.emergency.5 High Reliability ✗ ✗ ✗ ✗ ✗ 49 RF.emergency.6 High Availability 50 RF.emergency.7 High Survivability ✗ ✗ ✗ ✗ ✗
Requirements contributing most (✓) / least (✗) to realising NECOS Key Performance Indicators if a Scenario is considered in isolation 43 Requirements contributing most (✓ ) / least (✓ ) to realising NECOS Key Performance Indicators if a Scenario is considered in isolation Scenario Scenario Scenario Scenario Scenario Index Requirement ID & Name 5G Networks vCPE Scenario Touristic Scenario Emergency Scenario All Scenaros 1 RF.vRAN.1-Service Level Agreement ✗ ✗ ✗ ✗ 2 RF.vRAN.2-Accountability ✗ ✗ 3 RF.vRAN.3-On-demand slice provisioning ✗ 4 RF.vRAN.34-Isolation of slice provisioning ✗ 5 RN.vRAN.5 -Fairness ✗ 6 RN.vRAN.6 -Fault detection ✗ ✗ ✗ ✗ ✗ 7 RF.5G.1-Service Level Agreement ✗ 8 RF.5G.2-Accountability ✗ 9 RF.5G.3-On-demand slice provisioning ✗ ✗ ✗ ✗ ✗ 10 RF.5G.4-External control and management of the offered slices ✗ ✗ ✗ ✗ ✗ 11 RN.5G.5-Isolation of slice resources ✗ ✗ ✗ ✗ ✗ 12 RN.5G.6-Fairness 13 RN.5G.7-Fault detection 14 RF.vCPE.1-On-demand slice provisioning ✗ 15 RF.vCPE.2-Manageable slice ✗ ✗ ✗ ✗ ✗ 16 RF.vCPE.3-VIM-independence ✗ ✗ ✗ ✗ ✗ 17 RF.vCPE.4-Bare-metal slice ✗ ✗ ✗ ✗ ✗ 18 RF.vCPE.5-Lightweight virtualization ✗ 19 RF.vCPE.6-Elasticity ✗ ✗ ✗ ✗ 20 RF.vCPE.7-Zero touch service provisioning 21 RF.vCPE.8-Fault detection 22 RN.vCPE.9-Isolation of slice resources 23 RN.vCPE.10-SLA monitoring (QoS) ✗ ✗ 24 RN.vCPE.11-Low latency ✗ ✗ ✗ ✗ 25 RN.vCPE.12-High throughput ✗ ✗ ✗ ✗ 26 RN.vCPE.13-High availability ✗ 27 RF.Touristic(CD).1-Slice and slice-resource management ✗ ✗ ✗ ✗ ✗ 28 RF.Touristic(CD).2-Automated Virtual Machine deployment ✗ 29 RF.Touristic(CD).3-Traffic load-balancing for content delivery 30 RF.Touristic(CD).4-Slice resource and service monitoring ✗ ✗ 31 RF.Touristic(CD).5-Service planning 32 RN.Touristic(CD).6-Transparent end-user performance 33 RN.Touristic(CD).7-Heterogeneity handling ✗ 34 RN.Touristic(CD).8-Elasticity ✗ ✗ ✗ 35 RN.Touristic(CD).9-Resource-efficiency ✗ 36 RN.Touristic(CD).10-Scalability 37 RF.Touristic(APP).1 Service function chain orchestration ✗ 38 RF.Touristic(APP).2 Resource and user-demand prediction capabilities ✗ 39 RF.Touristic(APP).3 Resource offloading between edge, core clouds and cloud providers ✗ ✗ 40 RF.Touristic(APP).4 Resource federation and intelligent multi-domain orchestration ✗ 41 RF.Touristic(APP).5 Scalability 42 RF.Touristic(APP).6 Efficient next-generation touristic application performance 43 RF.Touristic(APP).7 Elasticity ✗ 44 RF.emergency.1 Dynamic slice management 45 RF.emergency.2 Dynamic service definition ✗ 46 RF.emergency.3 Timely slice management ✗ ✗ ✗ ✗ 47 RF.emergency.4 Orchestration 48 RF.emergency.5 High Reliability ✗ 49 RF.emergency.6 High Availability 50 RF.emergency.7 High Survivability ✗ ✗
Requirements contributing most (✓) / least (✗) to realising NECOS Expected Differentiated Factors if a Scenario is considered in isolation 44 Requirements contributing most (✓ ) / least (✓ ) to realising NECOS Expected Differentiated Fanctors if a Scenario is considered in isolation Scenario Scenario Scenario Scenario Scenario Index Requirement ID & Name 5G Networks vCPE Scenario Touristic Scenario Emergency Scenario All Scenaros 1 RF.vRAN.1-Service Level Agreement ✗ ✗ ✗ ✗ ✗ 2 RF.vRAN.2-Accountability 3 RF.vRAN.3-On-demand slice provisioning 4 RF.vRAN.34-Isolation of slice provisioning 5 RN.vRAN.5 -Fairness 6 RN.vRAN.6 -Fault detection ✗ ✗ ✗ ✗ ✗ 7 RF.5G.1-Service Level Agreement ✗ 8 RF.5G.2-Accountability ✗ ✗ ✗ 9 RF.5G.3-On-demand slice provisioning ✗ ✗ ✗ ✗ ✗ 10 RF.5G.4-External control and management of the offered slices ✗ ✗ 11 RN.5G.5-Isolation of slice resources ✗ ✗ ✗ ✗ 12 RN.5G.6-Fairness ✗ ✗ ✗ ✗ 13 RN.5G.7-Fault detection ✗ ✗ ✗ ✗ 14 RF.vCPE.1-On-demand slice provisioning ✗ ✗ ✗ ✗ 15 RF.vCPE.2-Manageable slice ✗ ✗ ✗ ✗ ✗ 16 RF.vCPE.3-VIM-independence ✗ ✗ 17 RF.vCPE.4-Bare-metal slice ✗ ✗ ✗ ✗ 18 RF.vCPE.5-Lightweight virtualization ✗ ✗ ✗ ✗ 19 RF.vCPE.6-Elasticity ✗ ✗ ✗ ✗ ✗ 20 RF.vCPE.7-Zero touch service provisioning ✗ 21 RF.vCPE.8-Fault detection 22 RN.vCPE.9-Isolation of slice resources 23 RN.vCPE.10-SLA monitoring (QoS) ✗ ✗ ✗ 24 RN.vCPE.11-Low latency ✗ ✗ ✗ ✗ 25 RN.vCPE.12-High throughput ✗ ✗ ✗ ✗ 26 RN.vCPE.13-High availability ✗ ✗ 27 RF.Touristic(CD).1-Slice and slice-resource management 28 RF.Touristic(CD).2-Automated Virtual Machine deployment ✗ 29 RF.Touristic(CD).3-Traffic load-balancing for content delivery ✗ ✗ ✗ 30 RF.Touristic(CD).4-Slice resource and service monitoring ✗ 31 RF.Touristic(CD).5-Service planning 32 RN.Touristic(CD).6-Transparent end-user performance ✗ ✗ ✗ 33 RN.Touristic(CD).7-Heterogeneity handling ✗ ✗ ✗ ✗ 34 RN.Touristic(CD).8-Elasticity ✗ ✗ ✗ ✗ ✗ 35 RN.Touristic(CD).9-Resource-efficiency ✗ 36 RN.Touristic(CD).10-Scalability 37 RF.Touristic(APP).1 Service function chain orchestration 38 RF.Touristic(APP).2 Resource and user-demand prediction capabilities ✗ ✗ ✗ 39 RF.Touristic(APP).3 Resource offloading between edge, core clouds and cloud providers 40 RF.Touristic(APP).4 Resource federation and intelligent multi-domain orchestration 41 RF.Touristic(APP).5 Scalability ✗ ✗ ✗ ✗ 42 RF.Touristic(APP).6 Efficient next-generation touristic application performance ✗ ✗ ✗ ✗ 43 RF.Touristic(APP).7 Elasticity 44 RF.emergency.1 Dynamic slice management ✗ ✗ ✗ ✗ 45 RF.emergency.2 Dynamic service definition ✗ ✗ ✗ ✗ 46 RF.emergency.3 Timely slice management ✗ 47 RF.emergency.4 Orchestration 48 RF.emergency.5 High Reliability 49 RF.emergency.6 High Availability ✗ ✗ ✗ ✗ 50 RF.emergency.7 High Survivability ✗ ✗ ✗ ✗

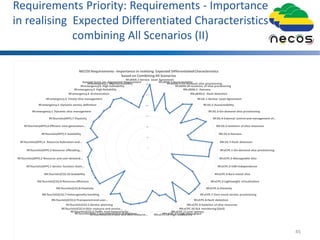

Requirements Priority: Requirements - Importance in realising Expected Differentiated Characteristics combining All Scenarios (II) 45 0 50 100 150 200 250 300 RF.vRAN.1-Service Level Agreement RF.vRAN.2-AccountabilityRF.vRAN.3-On-demand slice provisioning RF.vRAN.34-Isolation of slice provisioning RN.vRAN.5 -Fairness RN.vRAN.6 -Fault detection RF.5G.1-Service Level Agreement RF.5G.2-Accountability RF.5G.3-On-demand slice provisioning RF.5G.4-External control and management of… RN.5G.5-Isolation of slice resources RN.5G.6-Fairness RN.5G.7-Fault detection RF.vCPE.1-On-demand slice provisioning RF.vCPE.2-Manageable slice RF.vCPE.3-VIM-independence RF.vCPE.4-Bare-metal slice RF.vCPE.5-Lightweight virtualization RF.vCPE.6-Elasticity RF.vCPE.7-Zero touch service provisioning RF.vCPE.8-Fault detection RN.vCPE.9-Isolation of slice resources RN.vCPE.10-SLA monitoring (QoS) RN.vCPE.11-Low latency RN.vCPE.12-High throughputRN.vCPE.13-High availabilityRF.Touristic(CD).1-Slice and slice-resource…RF.Touristic(CD).2-Automated Virtual Machine… RF.Touristic(CD).3-Traffic load-balancingfor… RF.Touristic(CD).4-Slice resource and service… RF.Touristic(CD).5-Service planning RN.Touristic(CD).6-Transparent end-user… RN.Touristic(CD).7-Heterogeneity handling RN.Touristic(CD).8-Elasticity RN.Touristic(CD).9-Resource-efficiency RN.Touristic(CD).10-Scalability RF.Touristic(APP).1 Service function chain… RF.Touristic(APP).2 Resource and user-demand… RF.Touristic(APP).3 Resource offloading… RF.Touristic(APP).4 Resource federation and… RF.Touristic(APP).5 Scalability RF.Touristic(APP).6 Efficient next-generation… RF.Touristic(APP).7 Elasticity RF.emergency.1 Dynamic slice management RF.emergency.2 Dynamic service definition RF.emergency.3 Timely slice management RF.emergency.4 Orchestration RF.emergency.5 High Reliability RF.emergency.6 High Availability RF.emergency.7 High SurvivabilityAverage Score per Aggregated Requirement NECOS Requirements - Importance in realising Expected DifferentiatedCharacteristics based on Combining All Scenarios

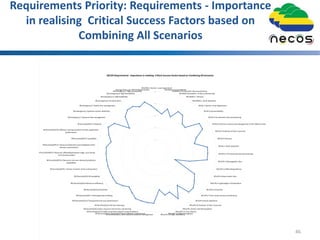

Requirements Priority: Requirements - Importance in realising Critical Success Factors based on Combining All Scenarios 46 0 50 100 150 200 250 RF.vRAN.1-Service Level Agreement RF.vRAN.2-Accountability RF.vRAN.3-On-demand slice provisioning RF.vRAN.34-Isolation of slice provisioning RN.vRAN.5 -Fairness RN.vRAN.6 -Fault detection RF.5G.1-Service Level Agreement RF.5G.2-Accountability RF.5G.3-On-demand slice provisioning RF.5G.4-External control and management of the offered slices RN.5G.5-Isolation of slice resources RN.5G.6-Fairness RN.5G.7-Fault detection RF.vCPE.1-On-demand slice provisioning RF.vCPE.2-Manageable slice RF.vCPE.3-VIM-independence RF.vCPE.4-Bare-metal slice RF.vCPE.5-Lightweight virtualization RF.vCPE.6-Elasticity RF.vCPE.7-Zero touch service provisioning RF.vCPE.8-Fault detection RN.vCPE.9-Isolation of slice resources RN.vCPE.10-SLA monitoring (QoS) RN.vCPE.11-Low latency RN.vCPE.12-High throughputRN.vCPE.13-High availabilityRF.Touristic(CD).1-Slice and slice-resource managementRF.Touristic(CD).2-Automated Virtual Machine deployment RF.Touristic(CD).3-Traffic load-balancingfor content delivery RF.Touristic(CD).4-Slice resource and service monitoring RF.Touristic(CD).5-Service planning RN.Touristic(CD).6-Transparent end-user performance RN.Touristic(CD).7-Heterogeneity handling RN.Touristic(CD).8-Elasticity RN.Touristic(CD).9-Resource-efficiency RN.Touristic(CD).10-Scalability RF.Touristic(APP).1 Service function chain orchestration RF.Touristic(APP).2 Resource and user-demand prediction capabilities RF.Touristic(APP).3 Resource offloading between edge, core clouds and cloud providers RF.Touristic(APP).4 Resource federation and intelligent multi- domain orchestration RF.Touristic(APP).5 Scalability RF.Touristic(APP).6 Efficient next-generation touristicapplication performance RF.Touristic(APP).7 Elasticity RF.emergency.1 Dynamic slice management RF.emergency.2 Dynamic service definition RF.emergency.3 Timely slice management RF.emergency.4 Orchestration RF.emergency.5 High Reliability RF.emergency.6 High Availability RF.emergency.7 High Survivability Average Score per NECOS Requirement NECOS Requirements- Importance in realising Critical Success Factors based on Combining All Scenarios
Concepts (VI) Network Slice Representation Forwarding Network Element Network Slice 1 Tenant A Control Infrastructure Tenant B Control Infrastructure Network Slice 2 NF Network Function / Virtual NF NF1 NF2 NF4NF3 Network Service Tenant A NF1 NF2 NF4NF3 Network Service Tenant B Physical Network EInfrastructure 47
Early Definitions of Network Slicing & References(II) ITU-T Slicing (2011) as defined in [ITU-T Y.3011- http://www.itu.int/rec/T-REC- Y.3001-201105-I] is the basic concept of the connectivity and compute Softwarization. Slicing allows logically isolated network partitions (LINP) with a slice being considered as a unit of programmable resources such as network, computation and storage. Slice capabilities (2009) “Management and Service-aware Networking Architectures (MANA) for Future Internet” – A. Galis et all - Invited paper IEEE 2009 Fourth International Conference on Communications and Networking in China (ChinaCom09) 26-28 August 2009, Xi'an, China, http://www.chinacom.org/2009/index.html 3 Slices Capabilities – “Resource allocation to virtual infrastructures or slices of virtual infrastructure.” – “Dynamic creation and management of virtual infrastructures/slices of virtual infrastructure across diverse resources.” – “Dynamic mapping and deployment of a service on a virtual infrastructure/slices of virtual infrastructure.” 17 Orchestration capabilities 19 Self-functionality mechanisms 14 Self-functionality infrastructure capabilities 48
Early Definitions of Network Slicing & References (III) NGMN Slice capabilities (2016) - consist of 3 layers: 1) Service Instance Layer, 2) Network Slice Instance Layer, and 3) Resource layer. • The Service Instance Layer represents the services (end-user service or business services) which are to be supported. Each service is represented by a Service Instance. Typically services can be provided by the network operator or by 3rd parties. • A Network Slice Instance provides the network characteristics which are required by a Service Instance A Network Slice Instance may also be shared across multiple Service Instances provided by the network operator. • The Network Slice Instance may be composed by none, one or more Sub-network Instances, which may be shared by another Network Slice Instance. 3GPP TR23.799 Study Item “Network Slicing’ 2016 ONF Recommendation TR-526 “Applying SDN architecture to Network Slicing” 2016 EU 5GPPP • 30 Large Scale Research projects – all based on Network Slicing (https://5g-ppp.eu) (2015- 2018+) • White Papers on 5G Architecture centered on network slicing (mark 1 - https://5g-ppp.eu/wp- content/uploads/2014/02/5G-PPP-5G-Architecture-WP-July-2016.pdf) (2016) (mark 2 https://5g- ppp.eu/wp-content/uploads/2018/01/5G-PPP-5G-Architecture-White-Paper-Jan-2018-v2.0.pdf) (2018) 49

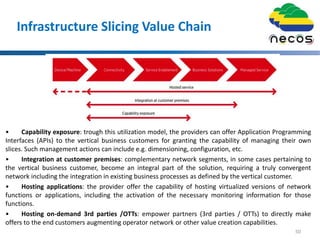

Infrastructure Slicing Value Chain • Capability exposure: trough this utilization model, the providers can offer Application Programming Interfaces (APIs) to the vertical business customers for granting the capability of managing their own slices. Such management actions can include e.g. dimensioning, configuration, etc. • Integration at customer premises: complementary network segments, in some cases pertaining to the vertical business customer, become an integral part of the solution, requiring a truly convergent network including the integration in existing business processes as defined by the vertical customer. • Hosting applications: the provider offer the capability of hosting virtualized versions of network functions or applications, including the activation of the necessary monitoring information for those functions. • Hosting on-demand 3rd parties /OTTs: empower partners (3rd parties / OTTs) to directly make offers to the end customers augmenting operator network or other value creation capabilities. 50
