Heart Rate Variability (HRV) Analysis and HRV4Training
1. 18 January 2021
HEART RATE VARIABILITY ANALYSIS
AND HRV4Training
Marco Altini, PhD
@altini_marco
2. 2
Marco Altini
• PhD cum laude in Machine Learning
• MSc cum laude in Computer Science
Engineering
• MSc cum laude in Human Movement
Sciences, High Performance
Coaching
• Founder of HRV4Training
• Data Science Advisor at Oura
• Guest Lecturer at VU Amsterdam
• 50+ publications at the intersection
between technology, health and
performance

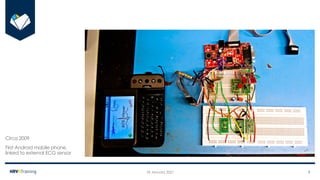

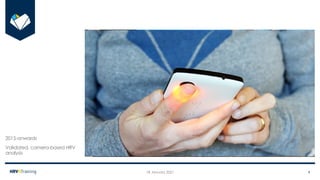

5. 518 January 2021 518 January 2021

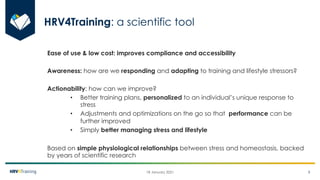

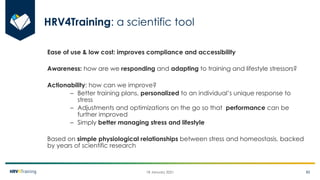

HRV4Training: a scientific tool
Ease of use & low cost: improves compliance and accessibility
Awareness: how are we responding and adapting to training and lifestyle stressors?
Actionability: how can we improve?
• Better training plans, personalized to an individual’s unique response to
stress
• Adjustments and optimizations on the go so that performance can be
further improved
• Simply better managing stress and lifestyle
Based on simple physiological relationships between stress and homeostasis, backed
by years of scientific research
6. 6

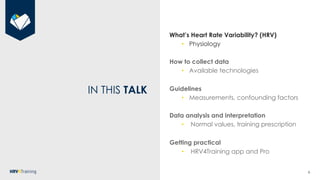

IN THIS TALK
What’s Heart Rate Variability? (HRV)
• Physiology
How to collect data
• Available technologies
Guidelines
• Measurements, confounding factors
Data analysis and interpretation
• Normal values, training prescription
Getting practical
• HRV4Training app and Pro
10. 10

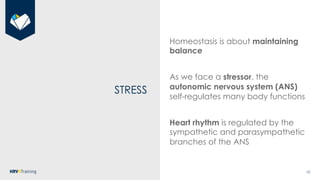

STRESS
Homeostasis is about maintaining
balance
As we face a stressor, the
autonomic nervous system (ANS)
self-regulates many body functions
Heart rhythm is regulated by the
sympathetic and parasympathetic
branches of the ANS

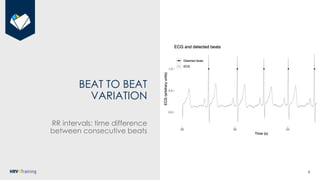

11. 11
HRV AS INTERNAL LOAD
Facing a stressor triggers a specific
response, typically consisting of
increased sympathetic activity
(flight or flight) and reduced
parasympathetic activity
Parasympathetic activity increases
HRV and can be measured in a
very short timeframe (e.g. 1
minute). A suppression, is typically
associated to high(her) stress
12. 12
HRV AS INTERNAL LOAD

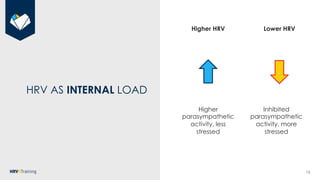

Higher HRV
Higher
parasympathetic
activity, less
stressed
Lower HRV
Inhibited
parasympathetic
activity, more
stressed
14. 14
ACUTE STRESSORS
Acute stressors are typically
quite strong, transitory events
and can be detected even
when analyzed in isolation
However, we should remember
that all of these factors (and
many others) act simultaneously
on the ANS (-> collect
contextual data, training,
subjective metrics, etc.)

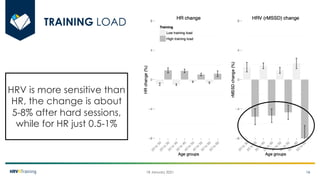

16. 1618 January 2021 1618 January 2021
TRAINING LOAD
HRV is more sensitive than
HR, the change is about
5-8% after hard sessions,
while for HR just 0.5-1%

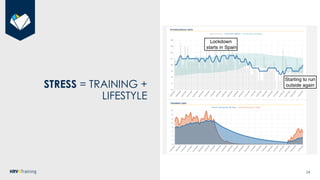

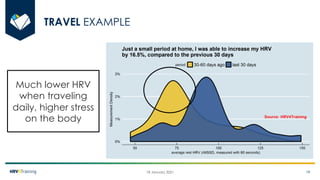

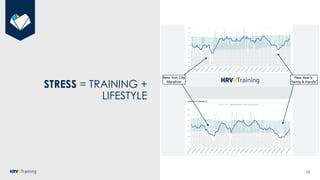

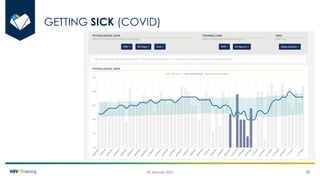

25. STRESS COMES FROM DIFFERENT
SOURCES AND OUR CAPACITY TO
HANDLE STRESS IS LIMITED
26. 26
IN THIS TALK
What’s Heart Rate Variability? (HRV)
• Physiology
How to collect data
• Available technologies
Guidelines
• Measurements, confounding factors
Data analysis and interpretation
• Normal values, training prescription
Getting practical
• HRV4Training app and Pro
28. 2818 January 2021 2818 January 2021

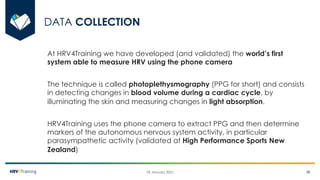

DATA COLLECTION

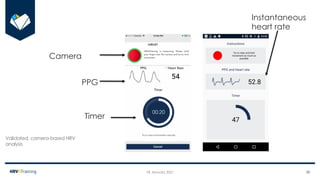

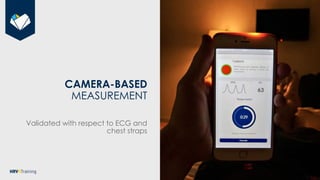

At HRV4Training we have developed (and validated) the world’s first
system able to measure HRV using the phone camera
The technique is called photoplethysmography (PPG for short) and consists
in detecting changes in blood volume during a cardiac cycle, by
illuminating the skin and measuring changes in light absorption.
HRV4Training uses the phone camera to extract PPG and then determine
markers of the autonomous nervous system activity, in particular
parasympathetic activity (validated at High Performance Sports New
Zealand)
31. 3118 January 2021

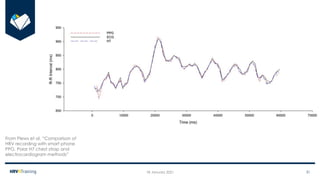

From Plews et al. “Comparison of
HRV recording with smart phone
PPG, Polar H7 chest strap and
electrocardiogram methods”
32. 3218 January 2021 3218 January 2021

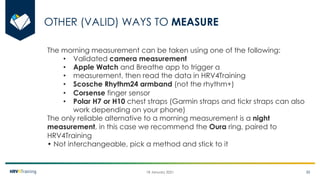

OTHER (VALID) WAYS TO MEASURE
The morning measurement can be taken using one of the following:
• Validated camera measurement
• Apple Watch and Breathe app to trigger a
• measurement, then read the data in HRV4Training
• Scosche Rhythm24 armband (not the rhythm+)
• Corsense finger sensor
• Polar H7 or H10 chest straps (Garmin straps and tickr straps can also
work depending on your phone)
The only reliable alternative to a morning measurement is a night
measurement, in this case we recommend the Oura ring, paired to
HRV4Training
• Not interchangeable, pick a method and stick to it
33. 3318 January 2021 3318 January 2021

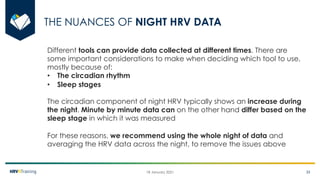

THE NUANCES OF NIGHT HRV DATA
Different tools can provide data collected at different times. There are
some important considerations to make when deciding which tool to use,
mostly because of:
• The circadian rhythm
• Sleep stages
The circadian component of night HRV typically shows an increase during
the night. Minute by minute data can on the other hand differ based on the
sleep stage in which it was measured
For these reasons, we recommend using the whole night of data and
averaging the HRV data across the night, to remove the issues above
34. 3418 January 2021 3418 January 2021
CIRCADIAN RHYTHM

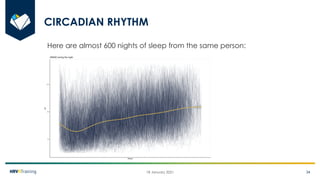

Here are almost 600 nights of sleep from the same person:
35. 3518 January 2021 3518 January 2021
CIRCADIAN RHYTHM
Here are almost 600 nights of sleep from the same person:

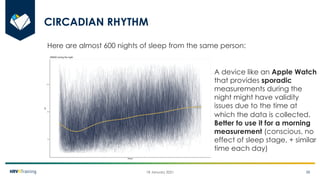

A device like an Apple Watch
that provides sporadic
measurements during the
night might have validity
issues due to the time at
which the data is collected.
Better to use it for a morning
measurement (conscious, no
effect of sleep stage, + similar
time each day)
36. 3618 January 2021 3618 January 2021

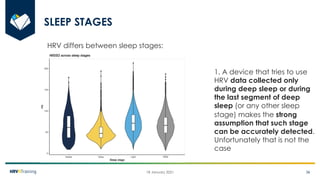

SLEEP STAGES
HRV differs between sleep stages:
1. A device that tries to use
HRV data collected only
during deep sleep or during
the last segment of deep
sleep (or any other sleep
stage) makes the strong
assumption that such stage
can be accurately detected.
Unfortunately that is not the
case
37. 3718 January 2021 3718 January 2021

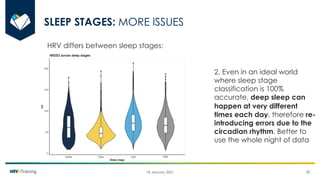

SLEEP STAGES: MORE ISSUES
HRV differs between sleep stages:
2. Even in an ideal world
where sleep stage
classification is 100%
accurate, deep sleep can
happen at very different
times each day, therefore re-
introducing errors due to the
circadian rhythm. Better to
use the whole night of data
38. 38
IN THIS TALK
What’s Heart Rate Variability? (HRV)
• Physiology
How to collect data
• Available technologies
Guidelines
• Measurements, confounding factors
Data analysis and interpretation
• Normal values, training prescription
Getting practical
• HRV4Training app and Pro
40. 4018 January 2021 4018 January 2021

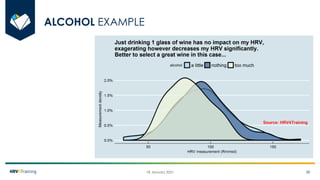

CONFOUNDING FACTORS
Due to the very nature of what we are measuring (parasympathetic
activity, or the ANS response to stress while trying to maintain homeostasis),
there are many confounding factors that can influence the data.
Physical exercise, nicotine, caffeine, meds, circadian rhythm, alcohol
intake, age, digestion, sickness, etc.
41. 4118 January 2021 4118 January 2021

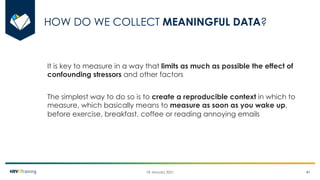

HOW DO WE COLLECT MEANINGFUL DATA?
It is key to measure in a way that limits as much as possible the effect of
confounding stressors and other factors
The simplest way to do so is to create a reproducible context in which to
measure, which basically means to measure as soon as you wake up,
before exercise, breakfast, coffee or reading annoying emails
42. 42

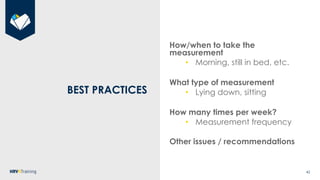

BEST PRACTICES
How/when to take the
measurement
• Morning, still in bed, etc.
What type of measurement
• Lying down, sitting
How many times per week?
• Measurement frequency
Other issues / recommendations

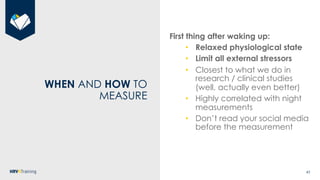

43. 43
WHEN AND HOW TO
MEASURE
First thing after waking up:
• Relaxed physiological state
• Limit all external stressors
• Closest to what we do in
research / clinical studies
(well, actually even better)
• Highly correlated with night
measurements
• Don’t read your social media
before the measurement

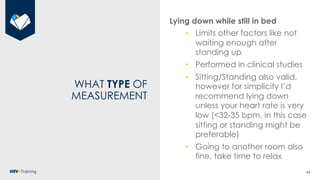

44. 44
WHAT TYPE OF
MEASUREMENT
Lying down while still in bed
• Limits other factors like not
waiting enough after
standing up
• Performed in clinical studies
• Sitting/Standing also valid,
however for simplicity I’d
recommend lying down
unless your heart rate is very
low (<32-35 bpm, in this case
sitting or standing might be
preferable)
• Going to another room also
fine, take time to relax
45. 45
MEASUREMENT
FREQUENCY
• 4-5 times/week will get you a
reliable baseline
• The more the better, easier to
make it a routine and do it daily
• Wait at least 4 weeks before
implementing any changes
(determine an athlete’s normal
values)
46. 46
IN THIS TALK
What’s Heart Rate Variability? (HRV)
• Physiology
How to collect data
• Available technologies
Guidelines
• Measurements, confounding factors
Data analysis and interpretation
• Normal values, training prescription
Getting practical
• HRV4Training app and Pro
48. 4818 January 2021 4818 January 2021

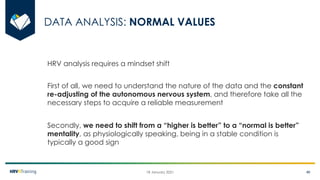

DATA ANALYSIS: NORMAL VALUES
HRV analysis requires a mindset shift
First of all, we need to understand the nature of the data and the constant
re-adjusting of the autonomous nervous system, and therefore take all the
necessary steps to acquire a reliable measurement
Secondly, we need to shift from a “higher is better” to a “normal is better”
mentality, as physiologically speaking, being in a stable condition is
typically a good sign

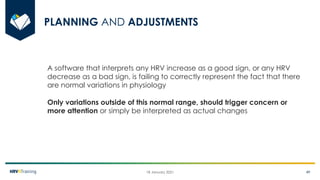

49. 4918 January 2021 4918 January 2021
PLANNING AND ADJUSTMENTS
A software that interprets any HRV increase as a good sign, or any HRV
decrease as a bad sign, is failing to correctly represent the fact that there
are normal variations in physiology
Only variations outside of this normal range, should trigger concern or
more attention or simply be interpreted as actual changes
50. NORMAL IS GOOD
HRV IS ABOUT CONTINUOUS
FEEDBACK. WHAT YOU OPTIMIZE IS
PERFORMANCE, NOT HRV ITSELF
51. 5118 January 2021 5118 January 2021

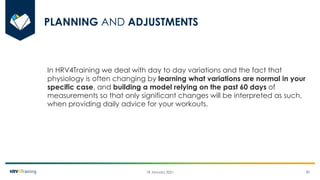

PLANNING AND ADJUSTMENTS
In HRV4Training we deal with day to day variations and the fact that
physiology is often changing by learning what variations are normal in your
specific case, and building a model relying on the past 60 days of
measurements so that only significant changes will be interpreted as such,
when providing daily advice for your workouts.
53. 5318 January 2021

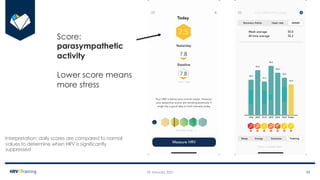

Interpretation: daily scores are compared to normal
values to determine when HRV is significantly
suppressed
Score:
parasympathetic
activity
Lower score means
more stress

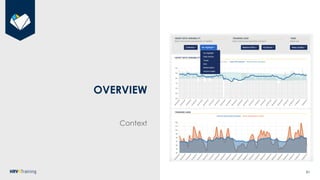

55. 5518 January 2021

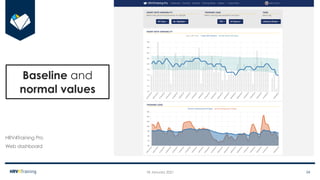

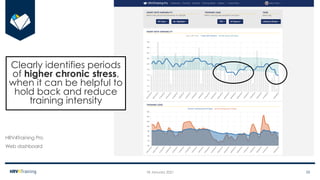

HRV4Training Pro
Web dashboard
Clearly identifies periods
of higher chronic stress,
when it can be helpful to
hold back and reduce
training intensity

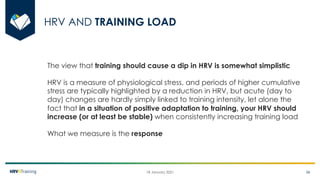

56. 5618 January 2021 5618 January 2021
HRV AND TRAINING LOAD
The view that training should cause a dip in HRV is somewhat simplistic
HRV is a measure of physiological stress, and periods of higher cumulative
stress are typically highlighted by a reduction in HRV, but acute (day to
day) changes are hardly simply linked to training intensity, let alone the
fact that in a situation of positive adaptation to training, your HRV should
increase (or at least be stable) when consistently increasing training load
What we measure is the response
57. 57

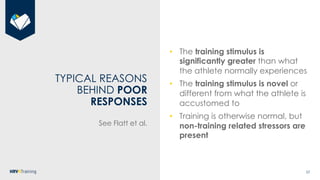

TYPICAL REASONS
BEHIND POOR
RESPONSES
See Flatt et al.
• The training stimulus is
significantly greater than what
the athlete normally experiences
• The training stimulus is novel or
different from what the athlete is
accustomed to
• Training is otherwise normal, but
non-training related stressors are
present
59. 5918 January 2021 5918 January 2021
CONTEXT: POSITIVE ADAPTATION TO INCREASED
LOAD

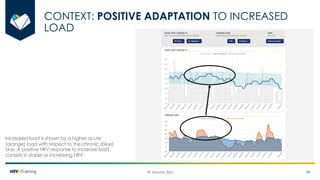

Increased load is shown by a higher acute
(orange) load with respect to the chronic (blue)
one. A positive HRV response to increase load
consists in stable or increasing HRV
60. 6018 January 2021 6018 January 2021
CONTEXT: POOR (LONG TERM) RESPONSE TO BAD
SLEEP

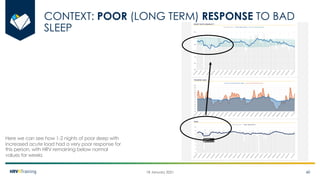

Here we can see how 1-2 nights of poor sleep with
increased acute load had a very poor response for
this person, with HRV remaining below normal
values for weeks
61. 6118 January 2021 6118 January 2021
TRIATHLON TRAINING AND LIFE EVENTS

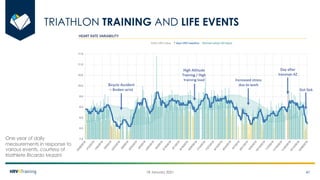

One year of daily
measurements in response to
various events, courtesy of
triathlete Ricardo Mazzini
63. 6318 January 2021 6318 January 2021
START A CONVERSATION

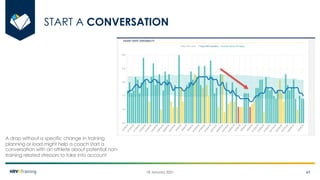

A drop without a specific change in training
planning or load might help a coach start a
conversation with an athlete about potential non-
training related stressors to take into account
64. 6418 January 2021 6418 January 2021
LIFESTYLE STRESS

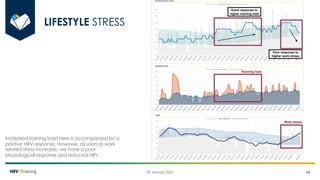

Increased training load here is accompanied by a
positive HRV response. However, as soon as work
related stress increases, we have a poor
physiological response and reduced HRV
65. 6518 January 2021 6518 January 2021
LIFESTYLE STRESS

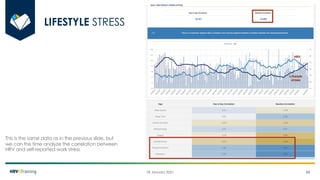

This is the same data as in the previous slide, but
we can this time analyze the correlation between
HRV and self-reported work stress

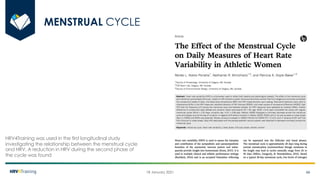

66. 6618 January 2021 6618 January 2021
MENSTRUAL CYCLE
HRV4Training was used in the first longitudinal study
investigating the relationship between the menstrual cycle
and HRV. A reduction in HRV during the second phase of
the cycle was found
67. 6718 January 2021 6718 January 2021
MENSTRUAL CYCLE

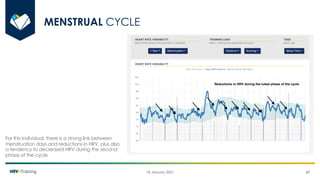

For this individual, there is a strong link between
menstruation days and reductions in HRV, plus also
a tendency to decreased HRV during the second
phase of the cycle

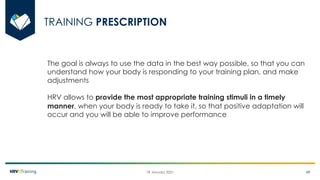

69. 6918 January 2021 6918 January 2021
TRAINING PRESCRIPTION
The goal is always to use the data in the best way possible, so that you can
understand how your body is responding to your training plan, and make
adjustments
HRV allows to provide the most appropriate training stimuli in a timely
manner, when your body is ready to take it, so that positive adaptation will
occur and you will be able to improve performance

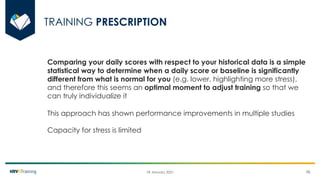

70. 7018 January 2021 7018 January 2021
TRAINING PRESCRIPTION
Comparing your daily scores with respect to your historical data is a simple
statistical way to determine when a daily score or baseline is significantly
different from what is normal for you (e.g. lower, highlighting more stress),
and therefore this seems an optimal moment to adjust training so that we
can truly individualize it
This approach has shown performance improvements in multiple studies
Capacity for stress is limited
71. 7118 January 2021 7118 January 2021
TRAINING PRESCRIPTION
In this study, HRV4Training and Pro were used for
data collection. The approach used to build
normal values is similar to the one covered in this
presentation
72. 7218 January 2021 7218 January 2021
TRAINING PRESCRIPTION

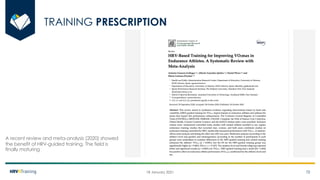

A recent review and meta-analysis (2020) showed
the benefit of HRV-guided training. The field is
finally maturing
73. 7318 January 2021 7318 January 2021

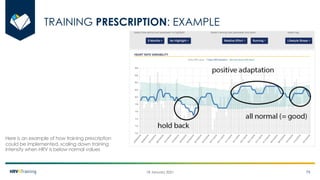

TRAINING PRESCRIPTION: EXAMPLE
Here is an example of how training prescription
could be implemented, scaling down training
intensity when HRV is below normal values

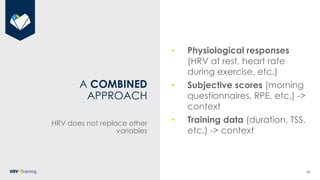

74. 74
A COMBINED
APPROACH
• Physiological responses
(HRV at rest, heart rate
during exercise, etc.)
• Subjective scores (morning
questionnaires, RPE, etc.) ->
context
• Training data (duration, TSS,
etc.) -> context
HRV does not replace other
variables
75. 75
IN THIS TALK
What’s Heart Rate Variability? (HRV)
• Physiology
How to collect data
• Available technologies
Guidelines
• Measurements, confounding factors
Data analysis and interpretation
• Normal values, training prescription
Getting practical
• HRV4Training app and Pro
77. 77

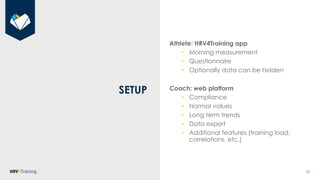

SETUP
Athlete: HRV4Training app
• Morning measurement
• Questionnaire
• Optionally data can be hidden
Coach: web platform
• Compliance
• Normal values
• Long term trends
• Data export
• Additional features (training load,
correlations, etc.)
78. 78
COACH PANEL

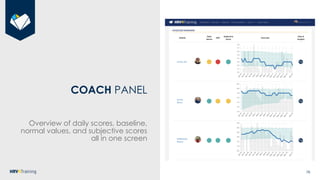

Overview of daily scores, baseline,
normal values, and subjective scores
all in one screen

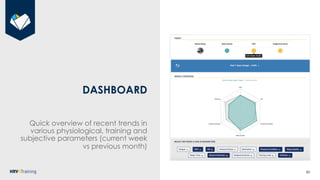

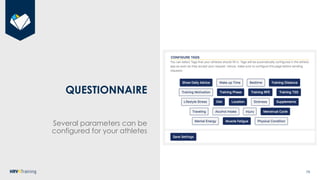

82. 8218 January 2021 8218 January 2021
HRV4Training: a scientific tool
Ease of use & low cost: improves compliance and accessibility
Awareness: how are we responding and adapting to training and lifestyle stressors?
Actionability: how can we improve?
– Better training plans, personalized to an individual’s unique response to
stress
– Adjustments and optimizations on the go so that performance can be
further improved
– Simply better managing stress and lifestyle
Based on simple physiological relationships between stress and homeostasis, backed
by years of scientific research
83. 18 January 2021
HEART RATE VARIABILITY ANALYSIS
AND HRV4Training
Marco Altini, PhD
@altini_marco
