1. HealthKit
Busra Deniz
SWE-551, Fall 2015

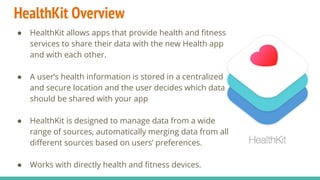

2. HealthKit Overview
● HealthKit allows apps that provide health and fitness
services to share their data with the new Health app
and with each other.
● A user’s health information is stored in a centralized
and secure location and the user decides which data
should be shared with your app
● HealthKit is designed to manage data from a wide
range of sources, automatically merging data from all
different sources based on users’ preferences.
● Works with directly health and fitness devices.

3. HealthKit Overview
● Provides an app to help manage
users’ health data.
● View, add, delete and manage health
and fitness data using this app
● Edit sharing permissions for each
data type
● Both HealthKit and Health app are
unavailable on iPad
● The HealthKit framework cannot be
used in an app extension

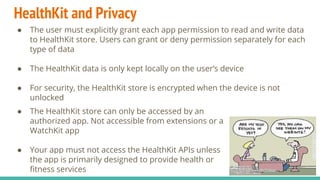

4. HealthKit and Privacy
● The user must explicitly grant each app permission to read and write data
to HealthKit store. Users can grant or deny permission separately for each
type of data
● The HealthKit data is only kept locally on the user’s device
● For security, the HealthKit store is encrypted when the device is not
unlocked
● The HealthKit store can only be accessed by an
authorized app. Not accessible from extensions or a
WatchKit app
● Your app must not access the HealthKit APIs unless
the app is primarily designed to provide health or
fitness services

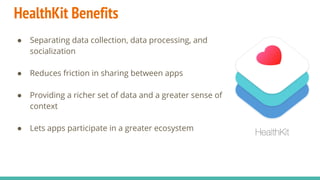

5. HealthKit Benefits
● Separating data collection, data processing, and
socialization
● Reduces friction in sharing between apps
● Providing a richer set of data and a greater sense of
context
● Lets apps participate in a greater ecosystem

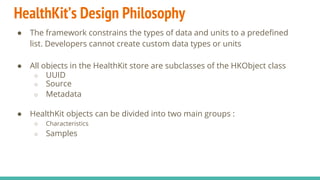

6. HealthKit’s Design Philosophy
● The framework constrains the types of data and units to a predefined
list. Developers cannot create custom data types or units
● All objects in the HealthKit store are subclasses of the HKObject class
○ UUID
○ Source
○ Metadata
● HealthKit objects can be divided into two main groups :
○ Characteristics
○ Samples

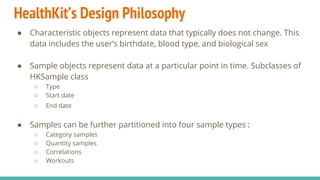

7. HealthKit’s Design Philosophy
● Characteristic objects represent data that typically does not change. This
data includes the user’s birthdate, blood type, and biological sex
● Sample objects represent data at a particular point in time. Subclasses of
HKSample class
○ Type
○ Start date
○ End date
● Samples can be further partitioned into four sample types :
○ Category samples
○ Quantity samples
○ Correlations
○ Workouts

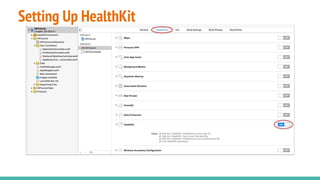

8. Setting Up HealthKit

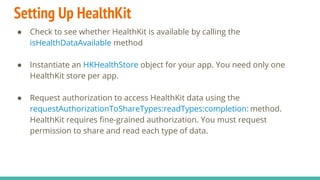

9. Setting Up HealthKit
● Check to see whether HealthKit is available by calling the
isHealthDataAvailable method
● Instantiate an HKHealthStore object for your app. You need only one
HealthKit store per app.
● Request authorization to access HealthKit data using the
requestAuthorizationToShareTypes:readTypes:completion: method.
HealthKit requires fine-grained authorization. You must request
permission to share and read each type of data.

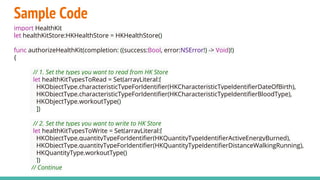

10. Sample Code
import HealthKit
let healthKitStore:HKHealthStore = HKHealthStore()
func authorizeHealthKit(completion: ((success:Bool, error:NSError!) -> Void)!)
{
// 1. Set the types you want to read from HK Store
let healthKitTypesToRead = Set(arrayLiteral:[
HKObjectType.characteristicTypeForIdentifier(HKCharacteristicTypeIdentifierDateOfBirth),
HKObjectType.characteristicTypeForIdentifier(HKCharacteristicTypeIdentifierBloodType),
HKObjectType.workoutType()
])
// 2. Set the types you want to write to HK Store
let healthKitTypesToWrite = Set(arrayLiteral:[
HKObjectType.quantityTypeForIdentifier(HKQuantityTypeIdentifierActiveEnergyBurned),
HKObjectType.quantityTypeForIdentifier(HKQuantityTypeIdentifierDistanceWalkingRunning),
HKQuantityType.workoutType()
])
// Continue

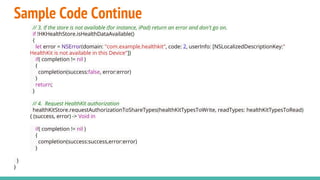

11. Sample Code Continue
// 3. If the store is not available (for instance, iPad) return an error and don't go on.
if !HKHealthStore.isHealthDataAvailable()
{
let error = NSError(domain: "com.example.healthkit", code: 2, userInfo: [NSLocalizedDescriptionKey:"
HealthKit is not available in this Device"])
if( completion != nil )
{
completion(success:false, error:error)
}
return;
}
// 4. Request HealthKit authorization
healthKitStore.requestAuthorizationToShareTypes(healthKitTypesToWrite, readTypes: healthKitTypesToRead)
{ (success, error) -> Void in
if( completion != nil )
{
completion(success:success,error:error)
}
}
}

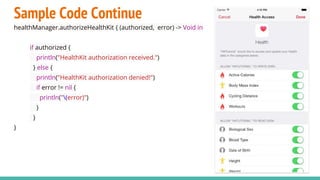

12. Sample Code Continue
healthManager.authorizeHealthKit { (authorized, error) -> Void in
if authorized {
println("HealthKit authorization received.")
} else {
println("HealthKit authorization denied!")
if error != nil {
println("(error)")
}
}
}

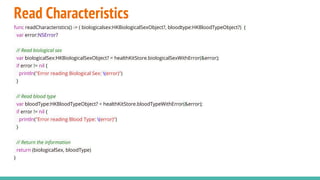

13. Read Characteristics
func readCharacteristics() -> ( biologicalsex:HKBiologicalSexObject?, bloodtype:HKBloodTypeObject?) {
var error:NSError?
// Read biological sex
var biologicalSex:HKBiologicalSexObject? = healthKitStore.biologicalSexWithError(&error);
if error != nil {
println("Error reading Biological Sex: (error)")
}
// Read blood type
var bloodType:HKBloodTypeObject? = healthKitStore.bloodTypeWithError(&error);
if error != nil {
println("Error reading Blood Type: (error)")
}
// Return the information
return (biologicalSex, bloodType)
}

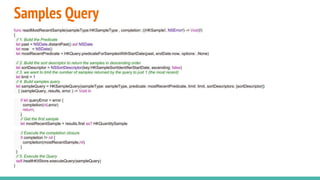

14. Samples Query
func readMostRecentSample(sampleType:HKSampleType , completion: ((HKSample!, NSError!) -> Void)!)
{
// 1. Build the Predicate
let past = NSDate.distantPast() as! NSDate
let now = NSDate()
let mostRecentPredicate = HKQuery.predicateForSamplesWithStartDate(past, endDate:now, options: .None)
// 2. Build the sort descriptor to return the samples in descending order
let sortDescriptor = NSSortDescriptor(key:HKSampleSortIdentifierStartDate, ascending: false)
// 3. we want to limit the number of samples returned by the query to just 1 (the most recent)
let limit = 1
// 4. Build samples query
let sampleQuery = HKSampleQuery(sampleType: sampleType, predicate: mostRecentPredicate, limit: limit, sortDescriptors: [sortDescriptor])
{ (sampleQuery, results, error ) -> Void in
if let queryError = error {
completion(nil,error)
return;
}
// Get the first sample
let mostRecentSample = results.first as? HKQuantitySample
// Execute the completion closure
if completion != nil {
completion(mostRecentSample,nil)
}
}
// 5. Execute the Query
self.healthKitStore.executeQuery(sampleQuery)
}

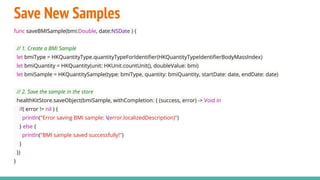

15. Save New Samples
func saveBMISample(bmi:Double, date:NSDate ) {
// 1. Create a BMI Sample
let bmiType = HKQuantityType.quantityTypeForIdentifier(HKQuantityTypeIdentifierBodyMassIndex)
let bmiQuantity = HKQuantity(unit: HKUnit.countUnit(), doubleValue: bmi)
let bmiSample = HKQuantitySample(type: bmiType, quantity: bmiQuantity, startDate: date, endDate: date)
// 2. Save the sample in the store
healthKitStore.saveObject(bmiSample, withCompletion: { (success, error) -> Void in
if( error != nil ) {
println("Error saving BMI sample: (error.localizedDescription)")
} else {
println("BMI sample saved successfully!")
}
})
}

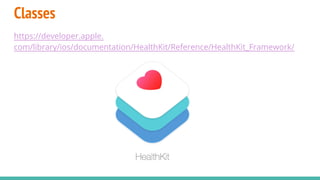

16. Classes
https://developer.apple.
com/library/ios/documentation/HealthKit/Reference/HealthKit_Framework/

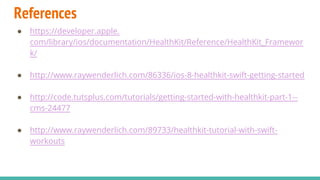

17. References
● https://developer.apple.
com/library/ios/documentation/HealthKit/Reference/HealthKit_Framewor
k/
● http://www.raywenderlich.com/86336/ios-8-healthkit-swift-getting-started
● http://code.tutsplus.com/tutorials/getting-started-with-healthkit-part-1--
cms-24477
● http://www.raywenderlich.com/89733/healthkit-tutorial-with-swift-
workouts
