This document introduces CardioMerkari Inc. and their Cardio health kit wrapper library. Cardio is an open source Swift library that provides a simple interface for accessing HealthKit functionality related to workouts. It handles authorization, reading workout data from sensors, and saving workout data to HealthKit. The document provides information on using Cardio such as initializing it with a context, setting up authorization, starting and ending workout sessions, handling sensor updates, and saving workout data.

1. INTRODUCING CARDIOMERCARI INC.
@KITASUKE

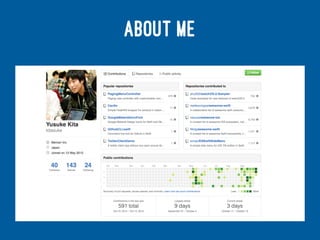

2. ABOUT ME

3. MY FUTURE TALKS
> Search APIs and Universal Links in practice
@iOS9 bootcamp
> Introducing new features for watchOS 2
@MOSA software meeting

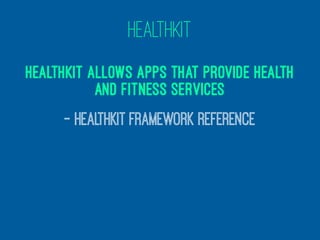

4. HEALTHKIT
HealthKit allows apps that provide health
and fitness services
— HealthKit Framework Reference

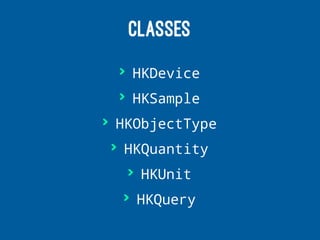

5. CLASSES
> HKDevice
> HKSample
> HKObjectType
> HKQuantity
> HKUnit
> HKQuery

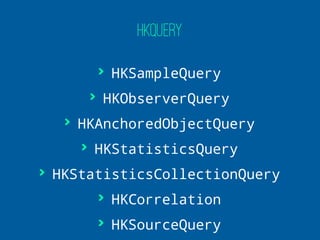

6. HKQUERY
> HKSampleQuery
> HKObserverQuery
> HKAnchoredObjectQuery
> HKStatisticsQuery
> HKStatisticsCollectionQuery
> HKCorrelation
> HKSourceQuery

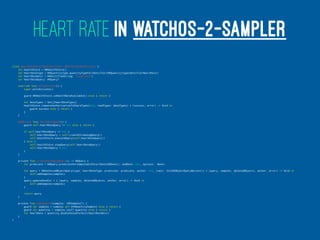

7. HEART RATE IN WATCHOS-2-SAMPLER
class HeartRateInterfaceController: WKInterfaceController {
let healthStore = HKHealthStore()
let heartRateType = HKQuantityType.quantityTypeForIdentifier(HKQuantityTypeIdentifierHeartRate)!
let heartRateUnit = HKUnit(fromString: "count/min")
var heartRateQuery: HKQuery?
override func willActivate() {
super.willActivate()
guard HKHealthStore.isHealthDataAvailable() else { return }
let dataTypes = Set([heartRateType])
healthStore.requestAuthorizationToShareTypes(nil, readTypes: dataTypes) { (success, error) -> Void in
guard success else { return }
}
}
@IBAction func fetchBtnTapped() {
guard self.heartRateQuery == nil else { return }
if self.heartRateQuery == nil {
self.heartRateQuery = self.createStreamingQuery()
self.healthStore.executeQuery(self.heartRateQuery!)
} else {
self.healthStore.stopQuery(self.heartRateQuery!)
self.heartRateQuery = nil
}
}
private func createStreamingQuery() -> HKQuery {
let predicate = HKQuery.predicateForSamplesWithStartDate(NSDate(), endDate: nil, options: .None)
let query = HKAnchoredObjectQuery(type: heartRateType, predicate: predicate, anchor: nil, limit: Int(HKObjectQueryNoLimit)) { (query, samples, deletedObjects, anchor, error) -> Void in
self.addSamples(samples)
}
query.updateHandler = { (query, samples, deletedObjects, anchor, error) -> Void in
self.addSamples(samples)
}
return query
}
private func addSamples(samples: [HKSample]?) {
guard let samples = samples as? [HKQuantitySample] else { return }
guard let quantity = samples.last?.quantity else { return }
let heartRate = quantity.doubleValueForUnit(heartRateUnit)
}
}

8. !

9. CARDIO!HTTPS://GITHUB.COM/KITASUKE/CARDIO

10. HEALTHKIT WRAPPER
SPECIALIZED FOR
WORKOUT

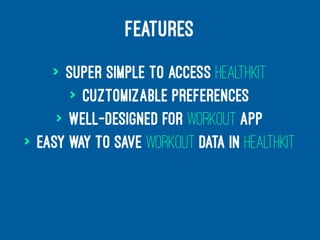

11. FEATURES
> Super simple to access HealthKit
> Cuztomizable preferences
> Well-designed for workout app
> Easy way to save workout data in HealthKit

12. REQUIREMENTS
> watchOS 2.0+
> Swift 2.0+

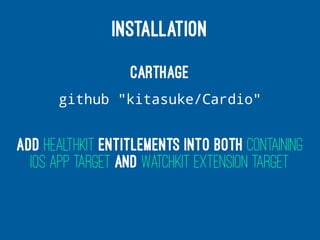

13. INSTALLATION
Carthage
github "kitasuke/Cardio"
Add HealthKit entitlements into both containing
iOS app target and WatchKit Extension target

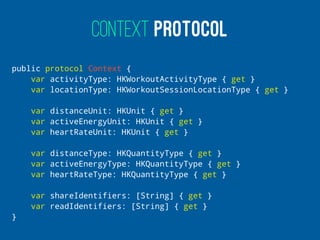

14. CONTEXT PROTOCOL
public protocol Context {
var activityType: HKWorkoutActivityType { get }
var locationType: HKWorkoutSessionLocationType { get }
var distanceUnit: HKUnit { get }
var activeEnergyUnit: HKUnit { get }
var heartRateUnit: HKUnit { get }
var distanceType: HKQuantityType { get }
var activeEnergyType: HKQuantityType { get }
var heartRateType: HKQuantityType { get }
var shareIdentifiers: [String] { get }
var readIdentifiers: [String] { get }
}

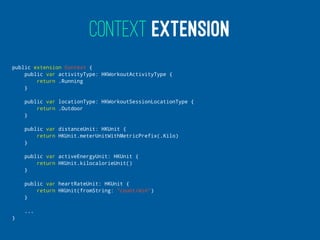

15. CONTEXT EXTENSION
public extension Context {
public var activityType: HKWorkoutActivityType {
return .Running
}
public var locationType: HKWorkoutSessionLocationType {
return .Outdoor
}
public var distanceUnit: HKUnit {
return HKUnit.meterUnitWithMetricPrefix(.Kilo)
}
public var activeEnergyUnit: HKUnit {
return HKUnit.kilocalorieUnit()
}
public var heartRateUnit: HKUnit {
return HKUnit(fromString: "count/min")
}
...
}

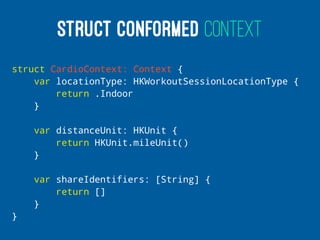

16. STRUCT CONFORMED CONTEXT
struct CardioContext: Context {
var locationType: HKWorkoutSessionLocationType {
return .Indoor
}
var distanceUnit: HKUnit {
return HKUnit.mileUnit()
}
var shareIdentifiers: [String] {
return []
}
}

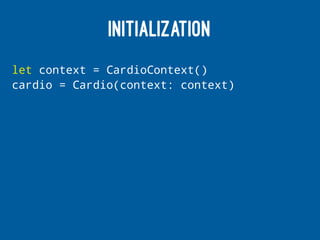

17. INITIALIZATION
let context = CardioContext()
cardio = Cardio(context: context)

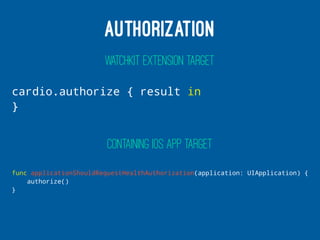

18. AUTHORIZATION
WATCHKIT EXTENSION TARGET
cardio.authorize { result in
}
CONTAINING IOS APP TARGET
func applicationShouldRequestHealthAuthorization(application: UIApplication) {
authorize()
}

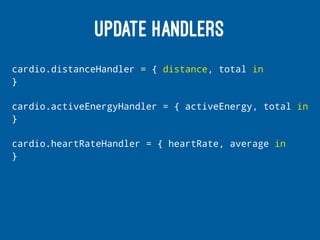

19. UPDATE HANDLERS
cardio.distanceHandler = { distance, total in
}
cardio.activeEnergyHandler = { activeEnergy, total in
}
cardio.heartRateHandler = { heartRate, average in
}

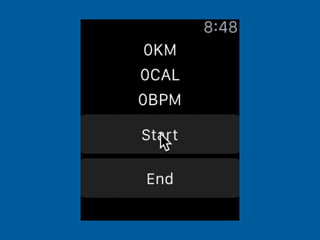

20. WORKOUT SESSION
cardio.start { result in
}
cardio.end { result in
}

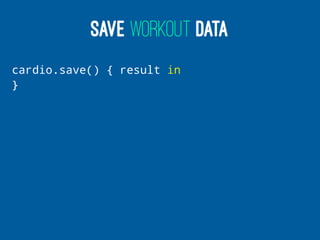

21. SAVE WORKOUT DATA
cardio.save() { result in
}

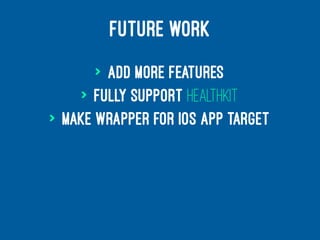

24. FUTURE WORK
> Add more features
> Fully support HealthKit
> Make wrapper for iOS app target

25. WELCOME YOUR
FEEDBACK &
THOUGHTS !

26. ANY QUESTIONS?
