Mqtt presentation

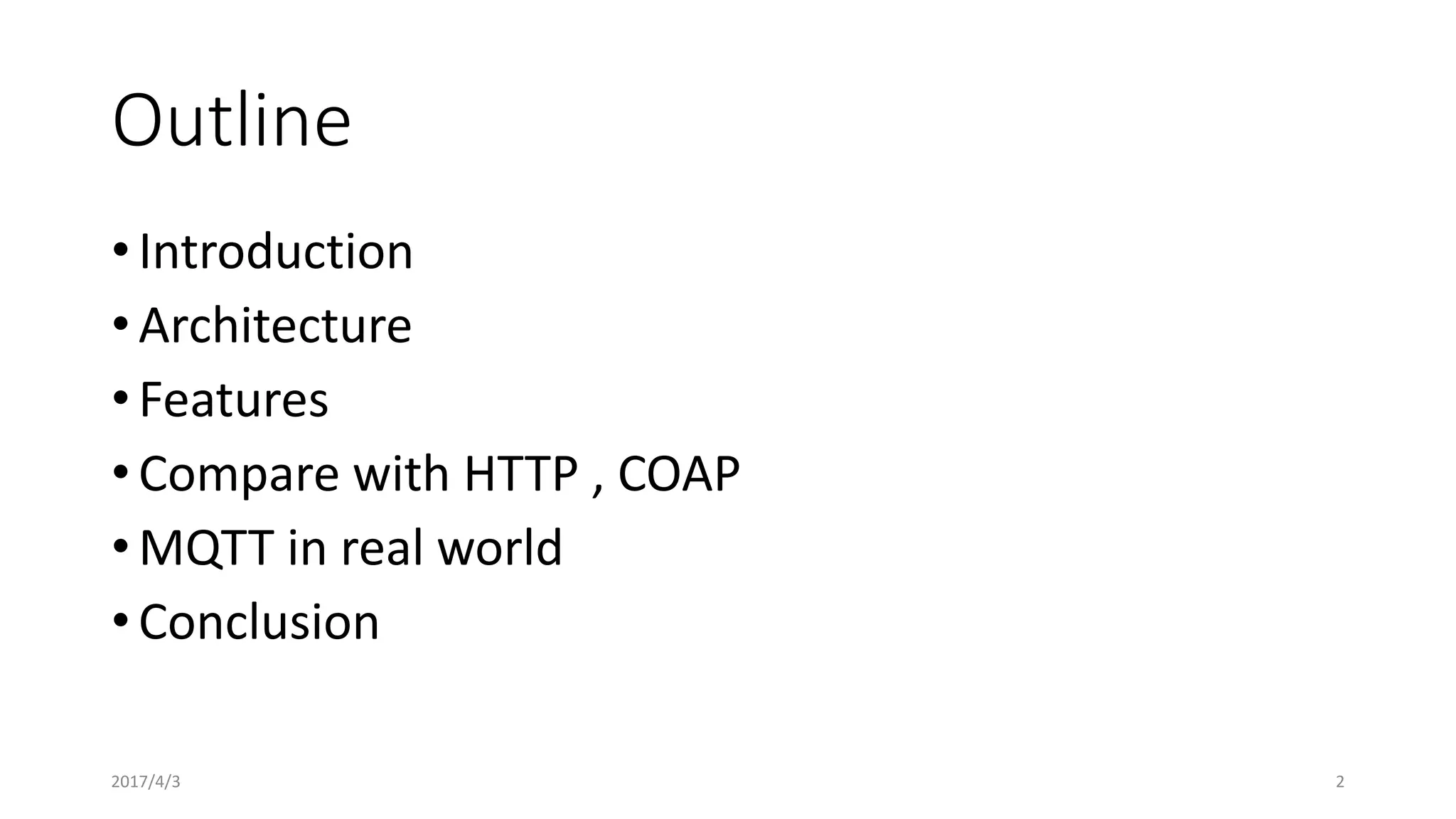

- 2. Outline • Introduction • Architecture • Features • Compare with HTTP , COAP • MQTT in real world • Conclusion 2017/4/3 2
- 3. Outline • Introduction • Architecture • Features • Compare with HTTP , COAP • MQTT in real world • Conclusion 2017/4/3 3
- 4. MQTT Introduction • MQTT(Message Queue Telemetry Tranport) • IBM and Eurotech are responsible for the maintainance • ISO standard(ISO/IEC PRF 20922) • Lightweight broker-based publish/subscribe message protocol • Smallest packet can be 2 bytes(header) • TCP/IP based • Three QoS service assure reliable transportation • Will Topic : A mechanism to notifty abnormal disconnection • Specification : IBM announced MQTT spcification 2017/4/3 4
- 5. Outline • Introduction • Architecture • Features • Compare with HTTP , COAP • MQTT in real world • Conclusion 2017/4/3 5
- 7. Outline • Introduction • Architecture • Features • Compare with HTTP , COAP • MQTT in real world • Conclusion 2017/4/3 7
- 8. MQTT Features – packet format 2017/4/3 8
- 9. MQTT – packet format • Fixed Header (Apply to all message type) 2017/4/3 9
- 10. MQTT – packet format • Variable Header (may differ from different message type) 2017/4/3 10
- 11. MQTT – packet format • Payload (may differ from different message type) 2017/4/3 11
- 12. MQTT – QoS (Quality of Services) 2017/4/3 12 QoS 1 - At most one delivery (FIRE AND FORGET)
- 13. QoS 2 – At least one delivery 2017/4/3 13
- 14. QoS 3 – Exactly one delivery 2017/4/3 14
- 15. MQTT – some flags description • DUP flag (Duplicate flag) • In Fixed header (1 bit) • QoS level must >0 • Should be a hint of whether this message have been sent or not • Keep alive flag • In Variable header(2 byte) • Broker server will check client alive or not • MAX_TIMEOUT would be 65536 seconds(approximately 18 hours) • Will flag • In Variable header (1 bit) • Compound with “Will topic” • Triggered by abnormal disconnection 2017/4/3 15
- 16. Outline • Introduction • Architecture • Features • Compare with HTTP , COAP • MQTT in real world • Conclusion 2017/4/3 16
- 17. MQTT Compare with HTTP • Advantage • Lower packet size • Lower battery consumption • Polling and long polling vs Event based • ASCII code parse • Have a middleware integration (Broker server) • Disadvantage • Much physical machine to deploy • Not easy to implement 2017/4/3 17
- 18. HTTP Packet size 2017/4/3 18
- 19. MQTT Compare with CoAP • Advantages • Secure message delivering (TCP VS UDP) • Keep alive flag • Disadvantages • Higher packet size • Not supporting RESTful “CoAP://machine.address:5683/sensors/temperature” 2017/4/3 19
- 20. Outline • Introduction • Architecture • Features • Compare with HTTP , COAP • MQTT in real world • Conclusion 2017/4/3 20
- 21. MQTT In Real World • Facebook messenger • https://www.facebook.com/notes/facebook-engineering/building-facebook- messenger/10150259350998920 • One of the problems we experienced was long latency when sending a message. The method we were using to send was reliable but slow, and there were limitations on how much we could improve it. (Lucy Zhang , FaceBook software engineer , 2011) • MQTT is specifically designed for applications like sending telemetry data to and from space probes, so it is designed to use bandwidth and batteries sparingly. By maintaining an MQTT connection and routing messages through our chat pipeline, we were able to often achieve phone-to-phone delivery in the hundreds of milliseconds, rather than multiple seconds. (Lucy Zhang , FaceBook software engineer , 2011) 2017/4/3 21
- 22. Outline • Introduction • Architecture • Features • Compare with HTTP , COAP • MQTT in real world • Conclusion 2017/4/3 22
- 23. Conclusion • No protocol is better than the others , all depends on scenario. • Large scale system can use more than one protocols 2017/4/3 23
- 24. References • mqtt.org • http://public.dhe.ibm.com/software/dw/webservices/ws-mqtt/mqtt- v3r1.html • https://www.slideshare.net/paolopat/mqtt-iot-protocols-comparison • http://blog.maxkit.com.tw/2014/01/mqtt.html 2017/4/3 24
- 25. THANK YOU FOR YOUR ATTENTION ！ 2017/4/3 25
Editor's Notes
- Position: byte 1, bit 0. This flag is only used on PUBLISH messages. When a client sends a PUBLISH to a server, if the Retain flag is set (1), the server should hold on to the message after it has been delivered to the current subscribers. When a new subscription is established on a topic, the last retained message on that topic should be sent to the subscriber with the Retain flag set. If there is no retained message, nothing is sent This is useful where publishers send messages on a "report by exception" basis, where it might be some time between messages. This allows new subscribers to instantly receive data with the retained, or Last Known Good, value. When a server sends a PUBLISH to a client as a result of a subscription that already existed when the original PUBLISH arrived, the Retain flag should not be set, regardless of the Retain flag of the original PUBLISH. This allows a client to distinguish messages that are being received because they were retained and those that are being received "live". Retained messages should be kept over restarts of the server. A server may delete a retained message if it receives a message with a zero-length payload and the Retain flag set on the same topic. If have more time , can describe the “keep alive flag”
