1. 11033545 - Darran Mottershead
Individual Report!

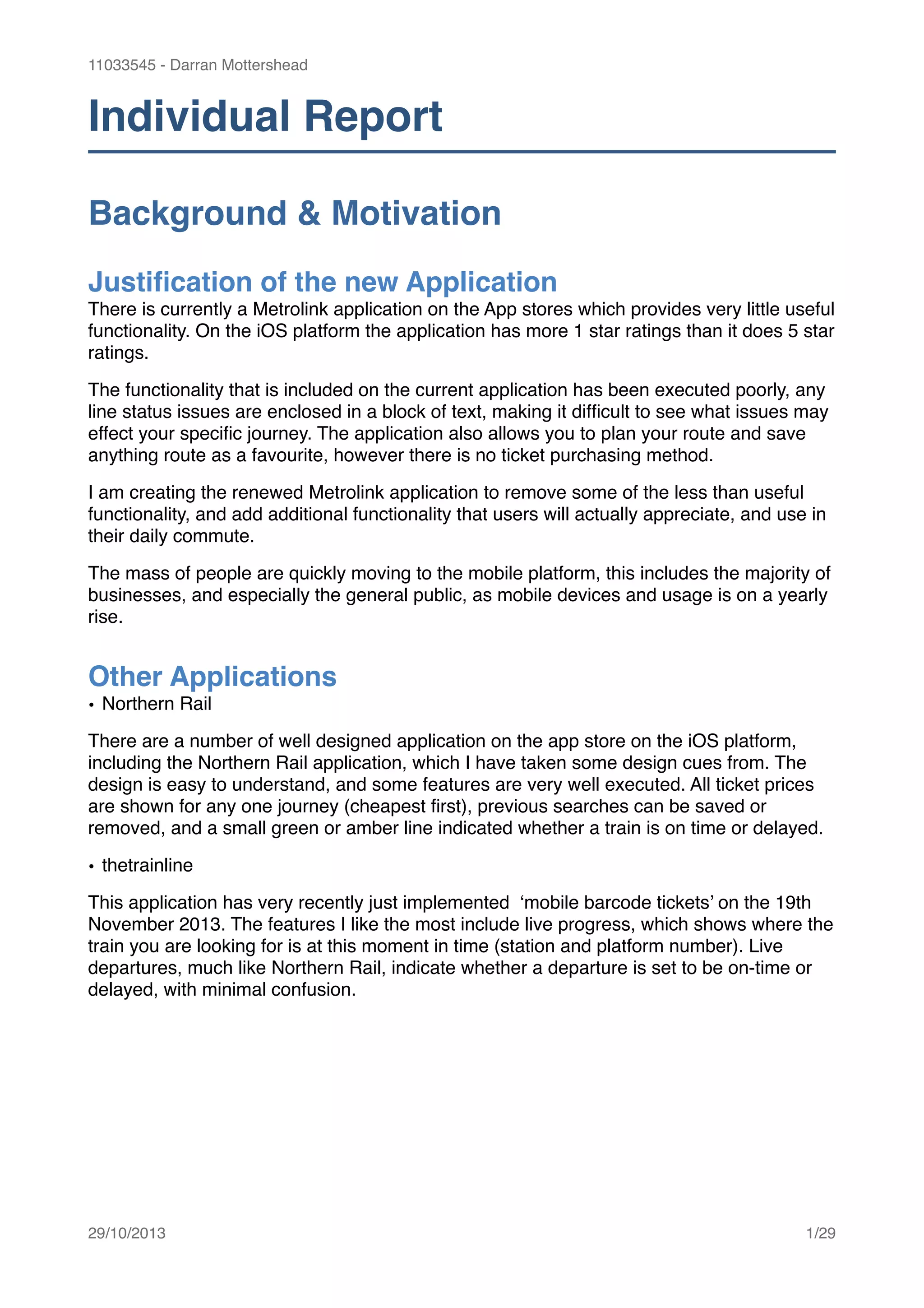

Background & Motivation!
Justification of the new Application!
There is currently a Metrolink application on the App stores which provides very little useful
functionality. On the iOS platform the application has more 1 star ratings than it does 5 star
ratings.!
The functionality that is included on the current application has been executed poorly, any
line status issues are enclosed in a block of text, making it difficult to see what issues may
effect your specific journey. The application also allows you to plan your route and save
anything route as a favourite, however there is no ticket purchasing method.!
I am creating the renewed Metrolink application to remove some of the less than useful
functionality, and add additional functionality that users will actually appreciate, and use in
their daily commute.!
The mass of people are quickly moving to the mobile platform, this includes the majority of
businesses, and especially the general public, as mobile devices and usage is on a yearly
rise.!
Other Applications!
• Northern Rail!
There are a number of well designed application on the app store on the iOS platform,
including the Northern Rail application, which I have taken some design cues from. The
design is easy to understand, and some features are very well executed. All ticket prices
are shown for any one journey (cheapest first), previous searches can be saved or
removed, and a small green or amber line indicated whether a train is on time or delayed.!
• thetrainline!
This application has very recently just implemented ‘mobile barcode tickets’ on the 19th
November 2013. The features I like the most include live progress, which shows where the
train you are looking for is at this moment in time (station and platform number). Live
departures, much like Northern Rail, indicate whether a departure is set to be on-time or
delayed, with minimal confusion.!
!
29/10/2013! /1 29

2. 11033545 - Darran Mottershead

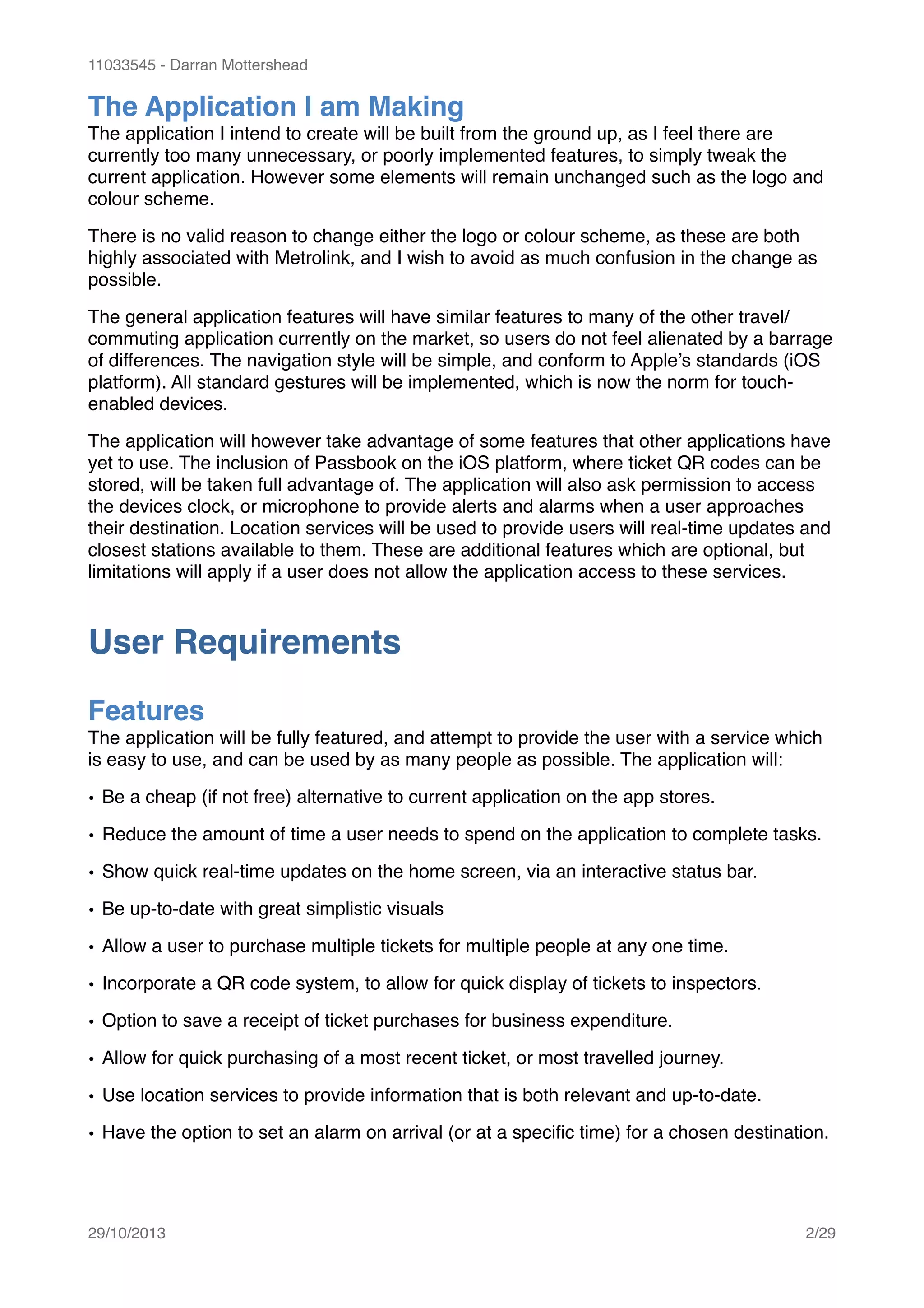

The Application I am Making!
The application I intend to create will be built from the ground up, as I feel there are
currently too many unnecessary, or poorly implemented features, to simply tweak the
current application. However some elements will remain unchanged such as the logo and
colour scheme.!
There is no valid reason to change either the logo or colour scheme, as these are both
highly associated with Metrolink, and I wish to avoid as much confusion in the change as
possible.!
The general application features will have similar features to many of the other travel/
commuting application currently on the market, so users do not feel alienated by a barrage
of differences. The navigation style will be simple, and conform to Apple’s standards (iOS
platform). All standard gestures will be implemented, which is now the norm for touch-
enabled devices.!
The application will however take advantage of some features that other applications have
yet to use. The inclusion of Passbook on the iOS platform, where ticket QR codes can be
stored, will be taken full advantage of. The application will also ask permission to access
the devices clock, or microphone to provide alerts and alarms when a user approaches
their destination. Location services will be used to provide users will real-time updates and
closest stations available to them. These are additional features which are optional, but
limitations will apply if a user does not allow the application access to these services.!
User Requirements!
Features!
The application will be fully featured, and attempt to provide the user with a service which
is easy to use, and can be used by as many people as possible. The application will:!
• Be a cheap (if not free) alternative to current application on the app stores.!
• Reduce the amount of time a user needs to spend on the application to complete tasks.!
• Show quick real-time updates on the home screen, via an interactive status bar.!
• Be up-to-date with great simplistic visuals !
• Allow a user to purchase multiple tickets for multiple people at any one time.!
• Incorporate a QR code system, to allow for quick display of tickets to inspectors.!
• Option to save a receipt of ticket purchases for business expenditure.!
• Allow for quick purchasing of a most recent ticket, or most travelled journey.!
• Use location services to provide information that is both relevant and up-to-date.!
• Have the option to set an alarm on arrival (or at a specific time) for a chosen destination.!
29/10/2013! /2 29

3. 11033545 - Darran Mottershead
Purpose of Features!
All of the featured that I have listed above will be included to enhance the ease of use for
any user. Their inclusion can easily be justified.!
• Price!
The price of an application can easily sway a user’s decision in their purchase. Many
applications have a starting point of £0.69, with the inclusion of in-app purchases. As there
are already applications on the market which claim to provide an easy Metrolink usage
experience, people are more inclined to test out a free application, more than a paid one.!
The free price tag of the new Metrolink application, will increase the amount of daily users,
and therefore increase ticket sales in the long run.!
• Time spent on the application!
If an application is cumbersome to use, or it takes too long to complete a specific task,
which users expect to be simple, users will begin to search for alternative applications.!
By reducing the time a user has to spend on the Metrolink application, they will be more
inclined to keep the application, as they know they can plan their daily or weekly journeys,
very quickly and on the go.!
• Real-time updates!
It is especially important with travelling applications, that a user should be able to know at
all times, their journeys progression. If their expected arrival time for a destination is
delayed, or even on-time, a user should be able to find this out to tell family or friends, who
may be waiting for them on arrival.!
This feature will also allow for a busy schedule, and give plenty of time for a user to make
new arrangements if there are any delays.!
Visuals also help to quickly indicate the status of a journey, usually green for on-time and
amber/red for delayed. This, with a specific number for time delay, is more helpful than a
block of text explaining the current issue, as generally people do not care about the nature
of their delay.!
• Multiple ticket purchasing!
If a user wishes to purchase numerous tickets (the same ticket, or different) there should
be an option to do so. A feature I will name ‘recurring ticket purchases’ allows a user to
purchase the same ticket for 5 (week) days, this is perfect for an employment situation,
where destination and timing is consistent.!
Another feature called ‘week plan’ will allow a user to purchase 5 tickets (again, week days
only), this would be more helpful for someone such as a student, where journey times
differ on a daily basis.!
!
29/10/2013! /3 29

4. 11033545 - Darran Mottershead

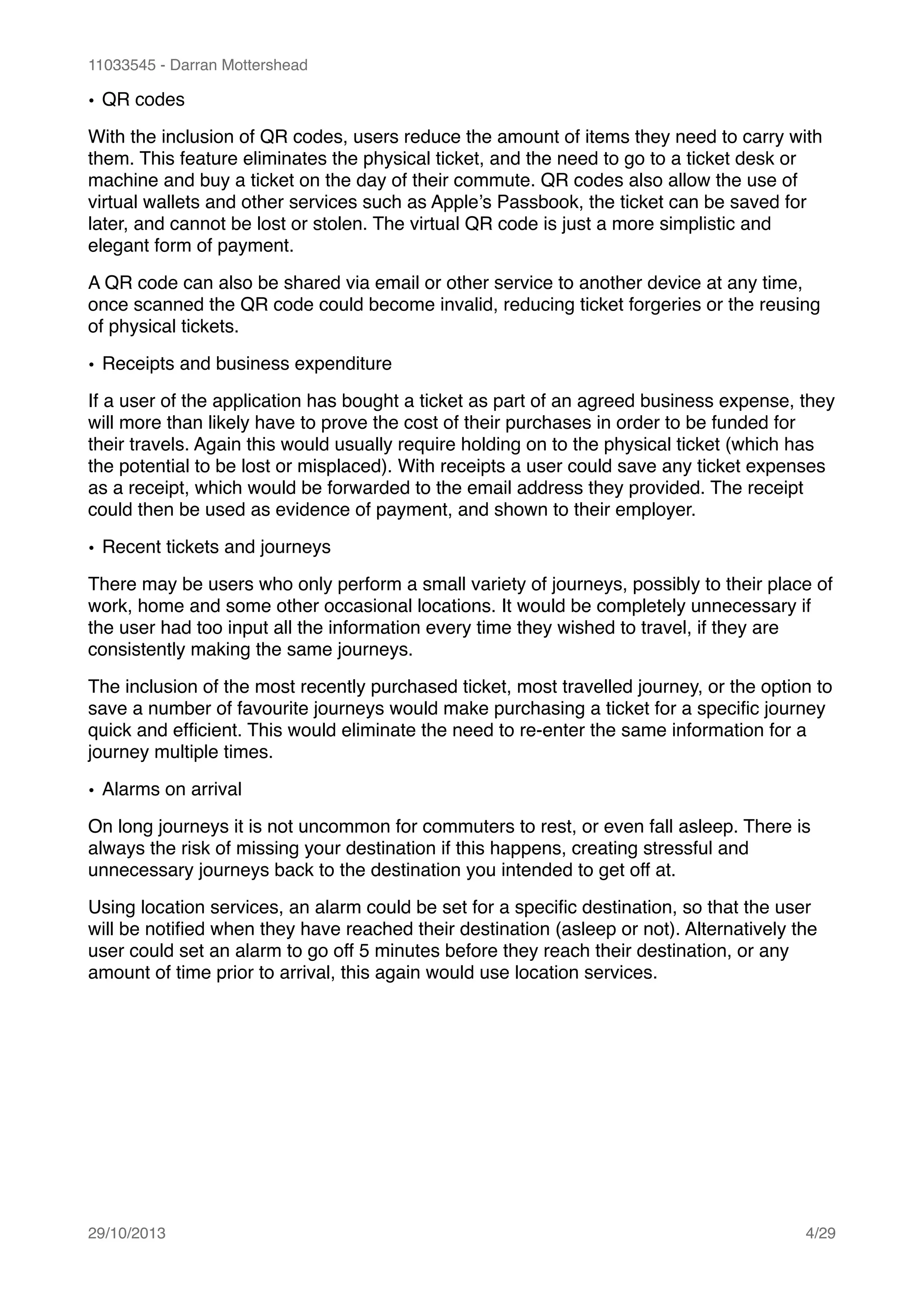

• QR codes!
With the inclusion of QR codes, users reduce the amount of items they need to carry with
them. This feature eliminates the physical ticket, and the need to go to a ticket desk or
machine and buy a ticket on the day of their commute. QR codes also allow the use of
virtual wallets and other services such as Apple’s Passbook, the ticket can be saved for
later, and cannot be lost or stolen. The virtual QR code is just a more simplistic and
elegant form of payment.!
A QR code can also be shared via email or other service to another device at any time,
once scanned the QR code could become invalid, reducing ticket forgeries or the reusing
of physical tickets.!
• Receipts and business expenditure!
If a user of the application has bought a ticket as part of an agreed business expense, they
will more than likely have to prove the cost of their purchases in order to be funded for
their travels. Again this would usually require holding on to the physical ticket (which has
the potential to be lost or misplaced). With receipts a user could save any ticket expenses
as a receipt, which would be forwarded to the email address they provided. The receipt
could then be used as evidence of payment, and shown to their employer.!
• Recent tickets and journeys!
There may be users who only perform a small variety of journeys, possibly to their place of
work, home and some other occasional locations. It would be completely unnecessary if
the user had too input all the information every time they wished to travel, if they are
consistently making the same journeys.!
The inclusion of the most recently purchased ticket, most travelled journey, or the option to
save a number of favourite journeys would make purchasing a ticket for a specific journey
quick and efficient. This would eliminate the need to re-enter the same information for a
journey multiple times.!
• Alarms on arrival!
On long journeys it is not uncommon for commuters to rest, or even fall asleep. There is
always the risk of missing your destination if this happens, creating stressful and
unnecessary journeys back to the destination you intended to get off at.!
Using location services, an alarm could be set for a specific destination, so that the user
will be notified when they have reached their destination (asleep or not). Alternatively the
user could set an alarm to go off 5 minutes before they reach their destination, or any
amount of time prior to arrival, this again would use location services.!
!
29/10/2013! /4 29

5. 11033545 - Darran Mottershead

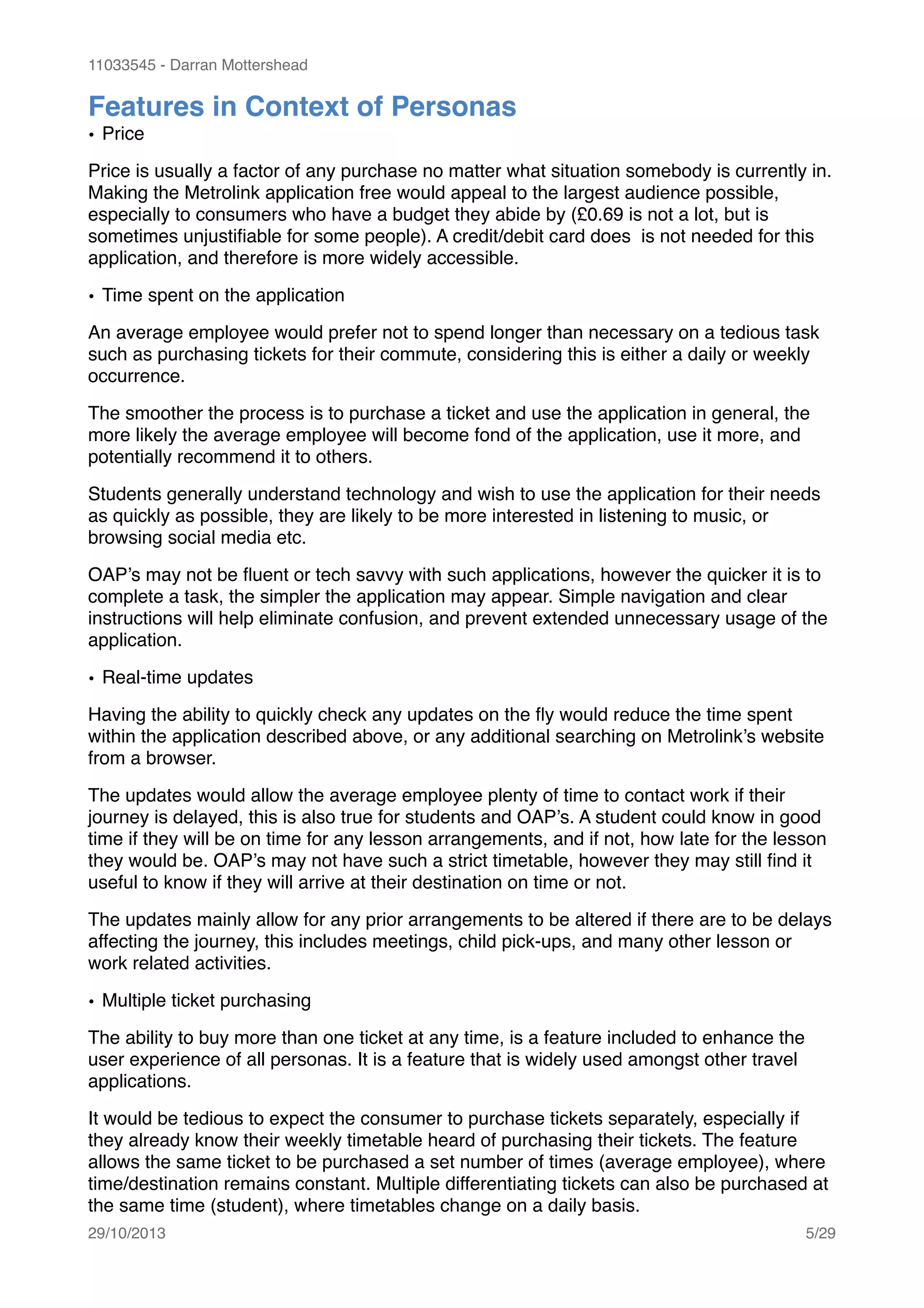

Features in Context of Personas!
• Price!
Price is usually a factor of any purchase no matter what situation somebody is currently in.
Making the Metrolink application free would appeal to the largest audience possible,
especially to consumers who have a budget they abide by (£0.69 is not a lot, but is
sometimes unjustifiable for some people). A credit/debit card does is not needed for this
application, and therefore is more widely accessible.!
• Time spent on the application!
An average employee would prefer not to spend longer than necessary on a tedious task
such as purchasing tickets for their commute, considering this is either a daily or weekly
occurrence.!
The smoother the process is to purchase a ticket and use the application in general, the
more likely the average employee will become fond of the application, use it more, and
potentially recommend it to others.!
Students generally understand technology and wish to use the application for their needs
as quickly as possible, they are likely to be more interested in listening to music, or
browsing social media etc.!
OAP’s may not be fluent or tech savvy with such applications, however the quicker it is to
complete a task, the simpler the application may appear. Simple navigation and clear
instructions will help eliminate confusion, and prevent extended unnecessary usage of the
application. !
• Real-time updates!
Having the ability to quickly check any updates on the fly would reduce the time spent
within the application described above, or any additional searching on Metrolink’s website
from a browser.!
The updates would allow the average employee plenty of time to contact work if their
journey is delayed, this is also true for students and OAP’s. A student could know in good
time if they will be on time for any lesson arrangements, and if not, how late for the lesson
they would be. OAP’s may not have such a strict timetable, however they may still find it
useful to know if they will arrive at their destination on time or not.!
The updates mainly allow for any prior arrangements to be altered if there are to be delays
affecting the journey, this includes meetings, child pick-ups, and many other lesson or
work related activities.!
• Multiple ticket purchasing!
The ability to buy more than one ticket at any time, is a feature included to enhance the
user experience of all personas. It is a feature that is widely used amongst other travel
applications.!
It would be tedious to expect the consumer to purchase tickets separately, especially if
they already know their weekly timetable heard of purchasing their tickets. The feature
allows the same ticket to be purchased a set number of times (average employee), where
time/destination remains constant. Multiple differentiating tickets can also be purchased at
the same time (student), where timetables change on a daily basis. !
29/10/2013! /5 29

6. 11033545 - Darran Mottershead

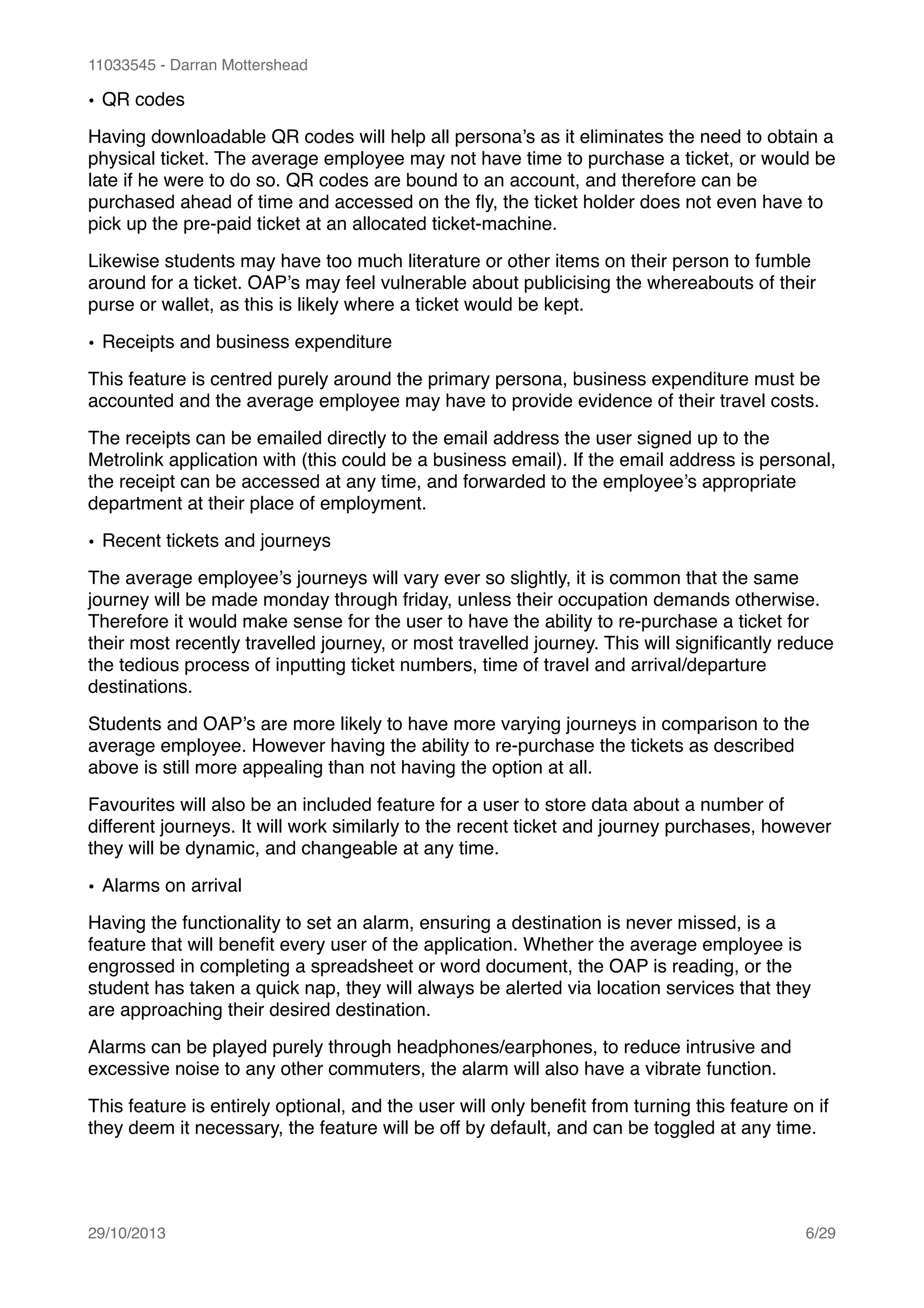

• QR codes!
Having downloadable QR codes will help all persona’s as it eliminates the need to obtain a
physical ticket. The average employee may not have time to purchase a ticket, or would be
late if he were to do so. QR codes are bound to an account, and therefore can be
purchased ahead of time and accessed on the fly, the ticket holder does not even have to
pick up the pre-paid ticket at an allocated ticket-machine.!
Likewise students may have too much literature or other items on their person to fumble
around for a ticket. OAP’s may feel vulnerable about publicising the whereabouts of their
purse or wallet, as this is likely where a ticket would be kept.!
• Receipts and business expenditure!
This feature is centred purely around the primary persona, business expenditure must be
accounted and the average employee may have to provide evidence of their travel costs.!
The receipts can be emailed directly to the email address the user signed up to the
Metrolink application with (this could be a business email). If the email address is personal,
the receipt can be accessed at any time, and forwarded to the employee’s appropriate
department at their place of employment.!
• Recent tickets and journeys!
The average employee’s journeys will vary ever so slightly, it is common that the same
journey will be made monday through friday, unless their occupation demands otherwise.
Therefore it would make sense for the user to have the ability to re-purchase a ticket for
their most recently travelled journey, or most travelled journey. This will significantly reduce
the tedious process of inputting ticket numbers, time of travel and arrival/departure
destinations.!
Students and OAP’s are more likely to have more varying journeys in comparison to the
average employee. However having the ability to re-purchase the tickets as described
above is still more appealing than not having the option at all. !
Favourites will also be an included feature for a user to store data about a number of
different journeys. It will work similarly to the recent ticket and journey purchases, however
they will be dynamic, and changeable at any time.!
• Alarms on arrival!
Having the functionality to set an alarm, ensuring a destination is never missed, is a
feature that will benefit every user of the application. Whether the average employee is
engrossed in completing a spreadsheet or word document, the OAP is reading, or the
student has taken a quick nap, they will always be alerted via location services that they
are approaching their desired destination.!
Alarms can be played purely through headphones/earphones, to reduce intrusive and
excessive noise to any other commuters, the alarm will also have a vibrate function.!
This feature is entirely optional, and the user will only benefit from turning this feature on if
they deem it necessary, the feature will be off by default, and can be toggled at any time.
29/10/2013! /6 29

7. 11033545 - Darran Mottershead

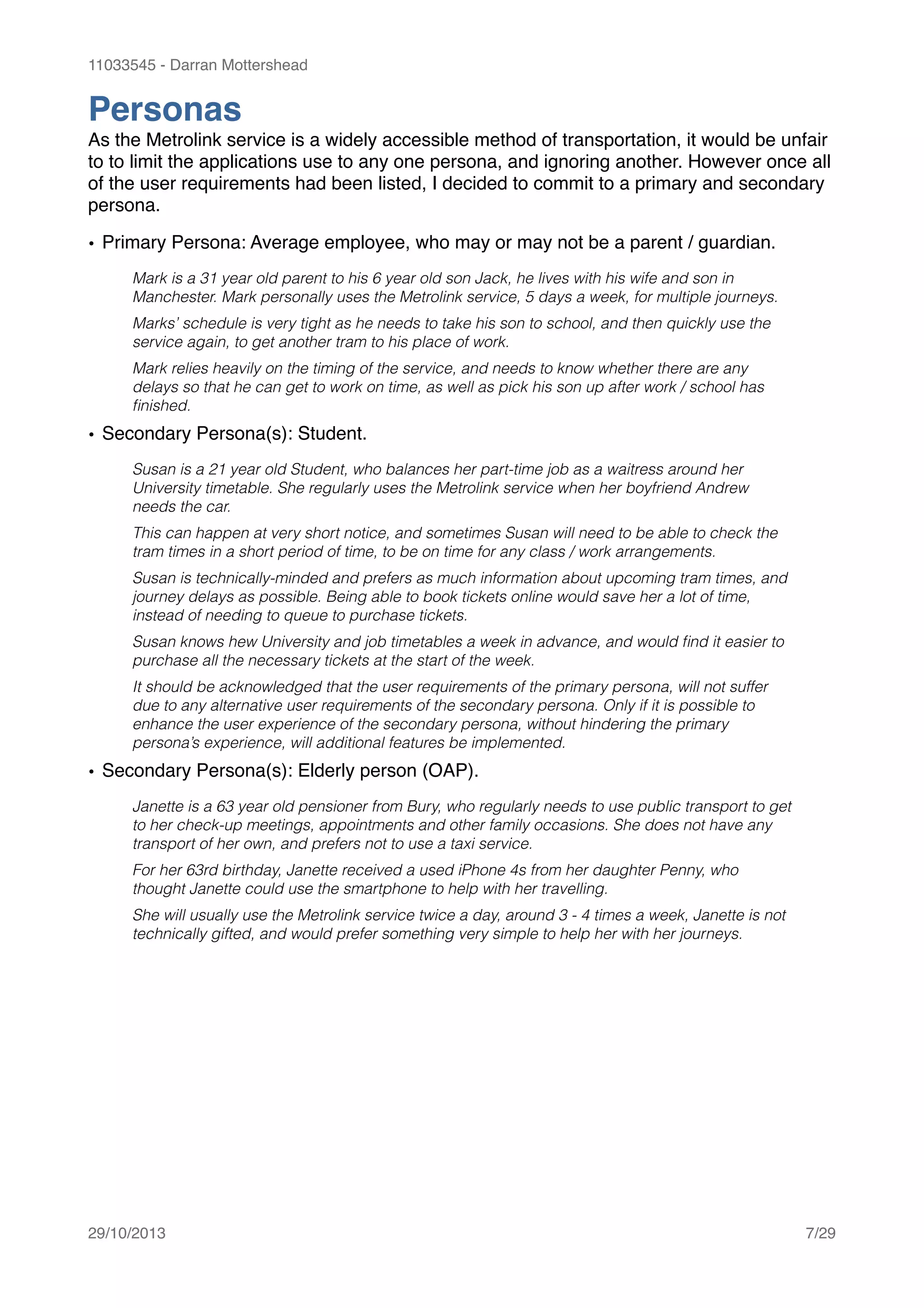

Personas!
As the Metrolink service is a widely accessible method of transportation, it would be unfair
to to limit the applications use to any one persona, and ignoring another. However once all
of the user requirements had been listed, I decided to commit to a primary and secondary
persona. !
• Primary Persona: Average employee, who may or may not be a parent / guardian.!
Mark is a 31 year old parent to his 6 year old son Jack, he lives with his wife and son in
Manchester. Mark personally uses the Metrolink service, 5 days a week, for multiple journeys.
Marks’ schedule is very tight as he needs to take his son to school, and then quickly use the
service again, to get another tram to his place of work.
Mark relies heavily on the timing of the service, and needs to know whether there are any
delays so that he can get to work on time, as well as pick his son up after work / school has
finished.
• Secondary Persona(s): Student.!
Susan is a 21 year old Student, who balances her part-time job as a waitress around her
University timetable. She regularly uses the Metrolink service when her boyfriend Andrew
needs the car.
This can happen at very short notice, and sometimes Susan will need to be able to check the
tram times in a short period of time, to be on time for any class / work arrangements.
Susan is technically-minded and prefers as much information about upcoming tram times, and
journey delays as possible. Being able to book tickets online would save her a lot of time,
instead of needing to queue to purchase tickets.
Susan knows hew University and job timetables a week in advance, and would find it easier to
purchase all the necessary tickets at the start of the week.
It should be acknowledged that the user requirements of the primary persona, will not suffer
due to any alternative user requirements of the secondary persona. Only if it is possible to
enhance the user experience of the secondary persona, without hindering the primary
persona’s experience, will additional features be implemented.
• Secondary Persona(s): Elderly person (OAP).!
Janette is a 63 year old pensioner from Bury, who regularly needs to use public transport to get
to her check-up meetings, appointments and other family occasions. She does not have any
transport of her own, and prefers not to use a taxi service.
For her 63rd birthday, Janette received a used iPhone 4s from her daughter Penny, who
thought Janette could use the smartphone to help with her travelling.
She will usually use the Metrolink service twice a day, around 3 - 4 times a week, Janette is not
technically gifted, and would prefer something very simple to help her with her journeys.
!
29/10/2013! /7 29

8. 11033545 - Darran Mottershead

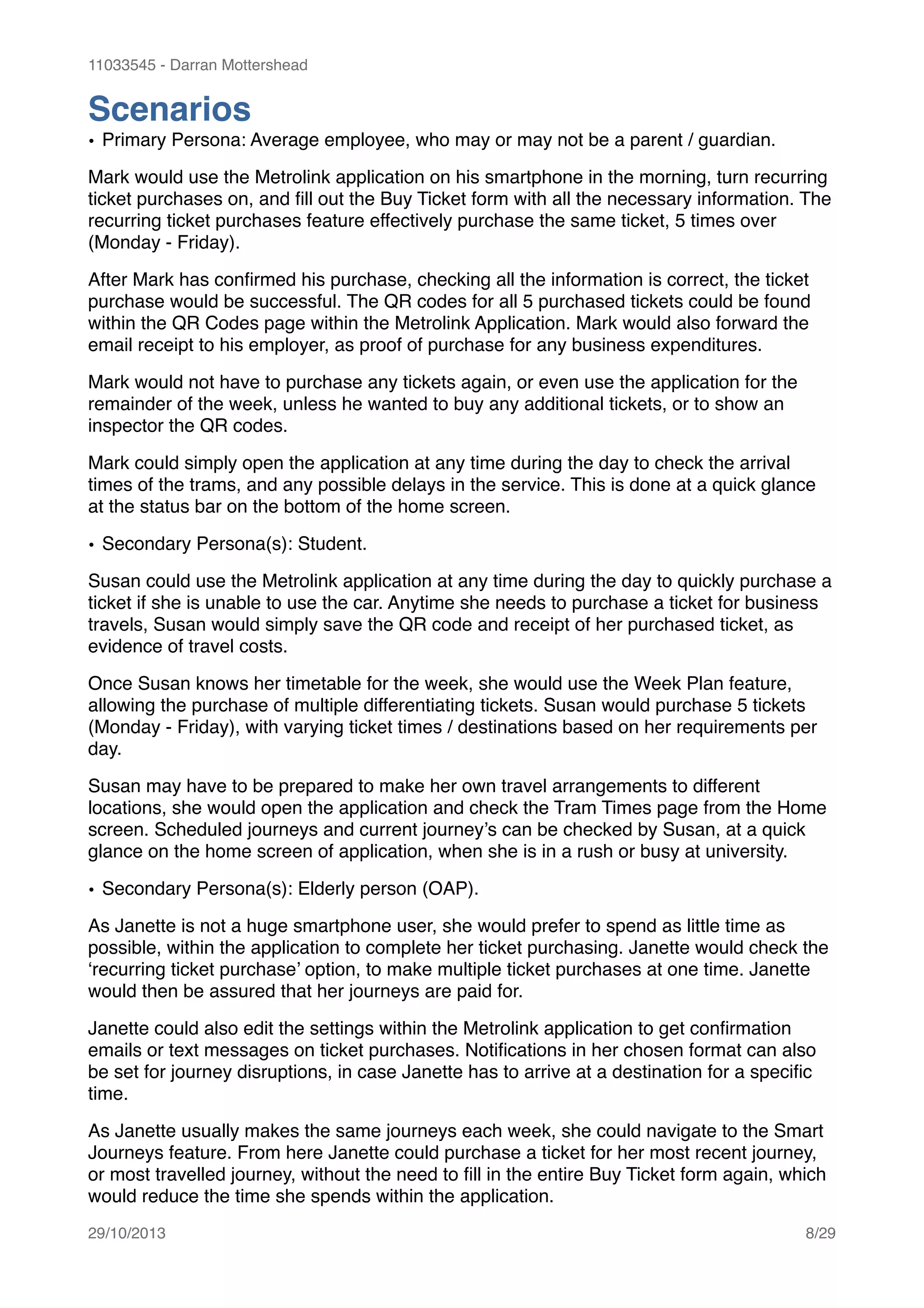

Scenarios!
• Primary Persona: Average employee, who may or may not be a parent / guardian.!
Mark would use the Metrolink application on his smartphone in the morning, turn recurring
ticket purchases on, and fill out the Buy Ticket form with all the necessary information. The
recurring ticket purchases feature effectively purchase the same ticket, 5 times over
(Monday - Friday).!
After Mark has confirmed his purchase, checking all the information is correct, the ticket
purchase would be successful. The QR codes for all 5 purchased tickets could be found
within the QR Codes page within the Metrolink Application. Mark would also forward the
email receipt to his employer, as proof of purchase for any business expenditures.!
Mark would not have to purchase any tickets again, or even use the application for the
remainder of the week, unless he wanted to buy any additional tickets, or to show an
inspector the QR codes.!
Mark could simply open the application at any time during the day to check the arrival
times of the trams, and any possible delays in the service. This is done at a quick glance
at the status bar on the bottom of the home screen.!
• Secondary Persona(s): Student.!
Susan could use the Metrolink application at any time during the day to quickly purchase a
ticket if she is unable to use the car. Anytime she needs to purchase a ticket for business
travels, Susan would simply save the QR code and receipt of her purchased ticket, as
evidence of travel costs.!
Once Susan knows her timetable for the week, she would use the Week Plan feature,
allowing the purchase of multiple differentiating tickets. Susan would purchase 5 tickets
(Monday - Friday), with varying ticket times / destinations based on her requirements per
day.!
Susan may have to be prepared to make her own travel arrangements to different
locations, she would open the application and check the Tram Times page from the Home
screen. Scheduled journeys and current journey’s can be checked by Susan, at a quick
glance on the home screen of application, when she is in a rush or busy at university.!
• Secondary Persona(s): Elderly person (OAP).!
As Janette is not a huge smartphone user, she would prefer to spend as little time as
possible, within the application to complete her ticket purchasing. Janette would check the
‘recurring ticket purchase’ option, to make multiple ticket purchases at one time. Janette
would then be assured that her journeys are paid for.!
Janette could also edit the settings within the Metrolink application to get confirmation
emails or text messages on ticket purchases. Notifications in her chosen format can also
be set for journey disruptions, in case Janette has to arrive at a destination for a specific
time.!
As Janette usually makes the same journeys each week, she could navigate to the Smart
Journeys feature. From here Janette could purchase a ticket for her most recent journey,
or most travelled journey, without the need to fill in the entire Buy Ticket form again, which
would reduce the time she spends within the application.
29/10/2013! /8 29

9. 11033545 - Darran Mottershead
Storyboards!
• Navigation Diagram!

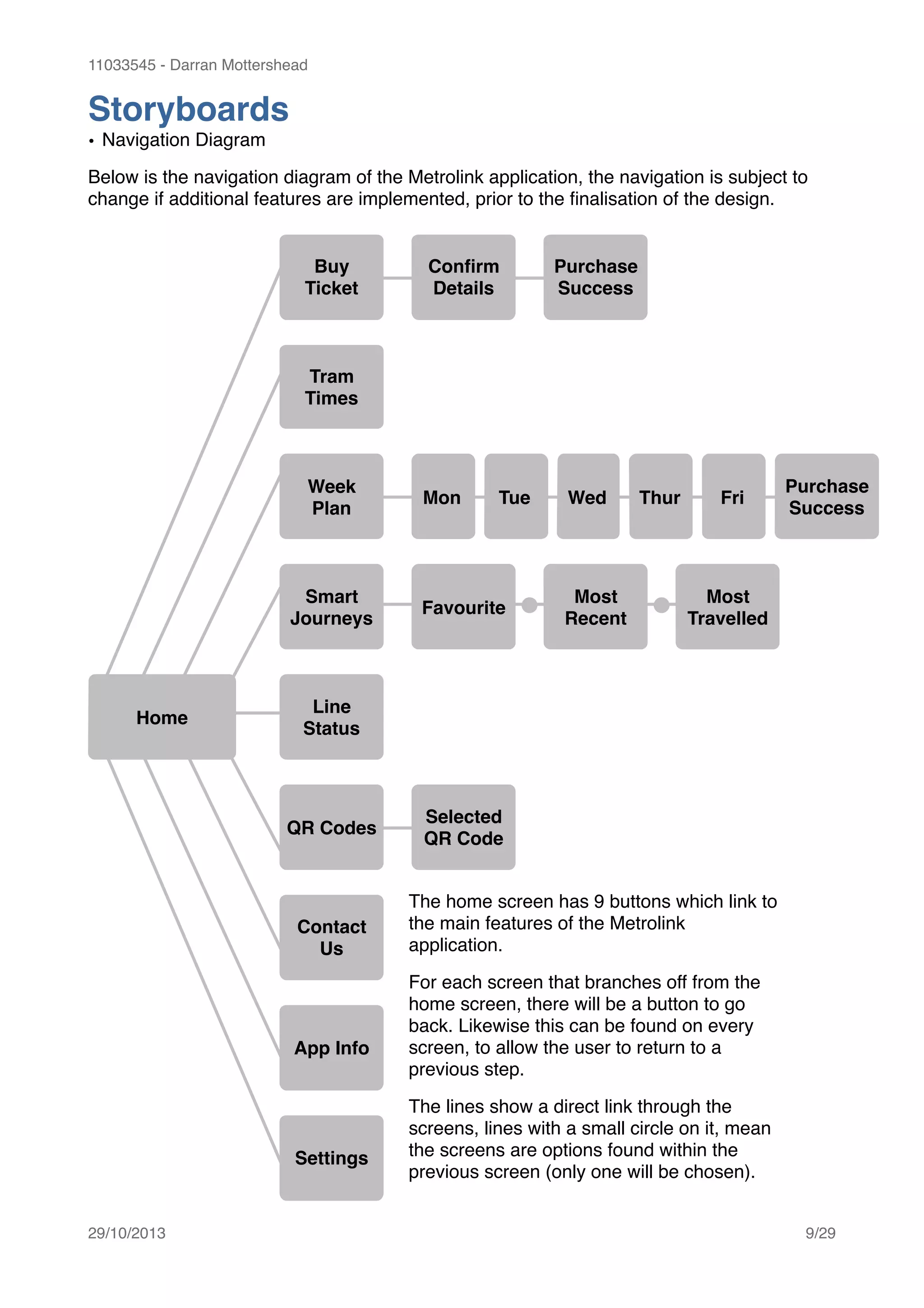

Below is the navigation diagram of the Metrolink application, the navigation is subject to
change if additional features are implemented, prior to the finalisation of the design.
29/10/2013! /9 29
Home
Tram
Times
Week
Plan
Smart
Journeys
Line
Status
Buy
Ticket
Contact
Us
App Info
Settings
QR Codes
Confirm
Details
Mon Tue Wed Thur Fri
Purchase
Success
Favourite
Most
Recent
Most
Travelled
Selected
QR Code
The home screen has 9 buttons which link to
the main features of the Metrolink
application.!
For each screen that branches off from the
home screen, there will be a button to go
back. Likewise this can be found on every
screen, to allow the user to return to a
previous step.!
The lines show a direct link through the
screens, lines with a small circle on it, mean
the screens are options found within the
previous screen (only one will be chosen).
Purchase
Success

10. 11033545 - Darran Mottershead
• Screen Design Concepts!

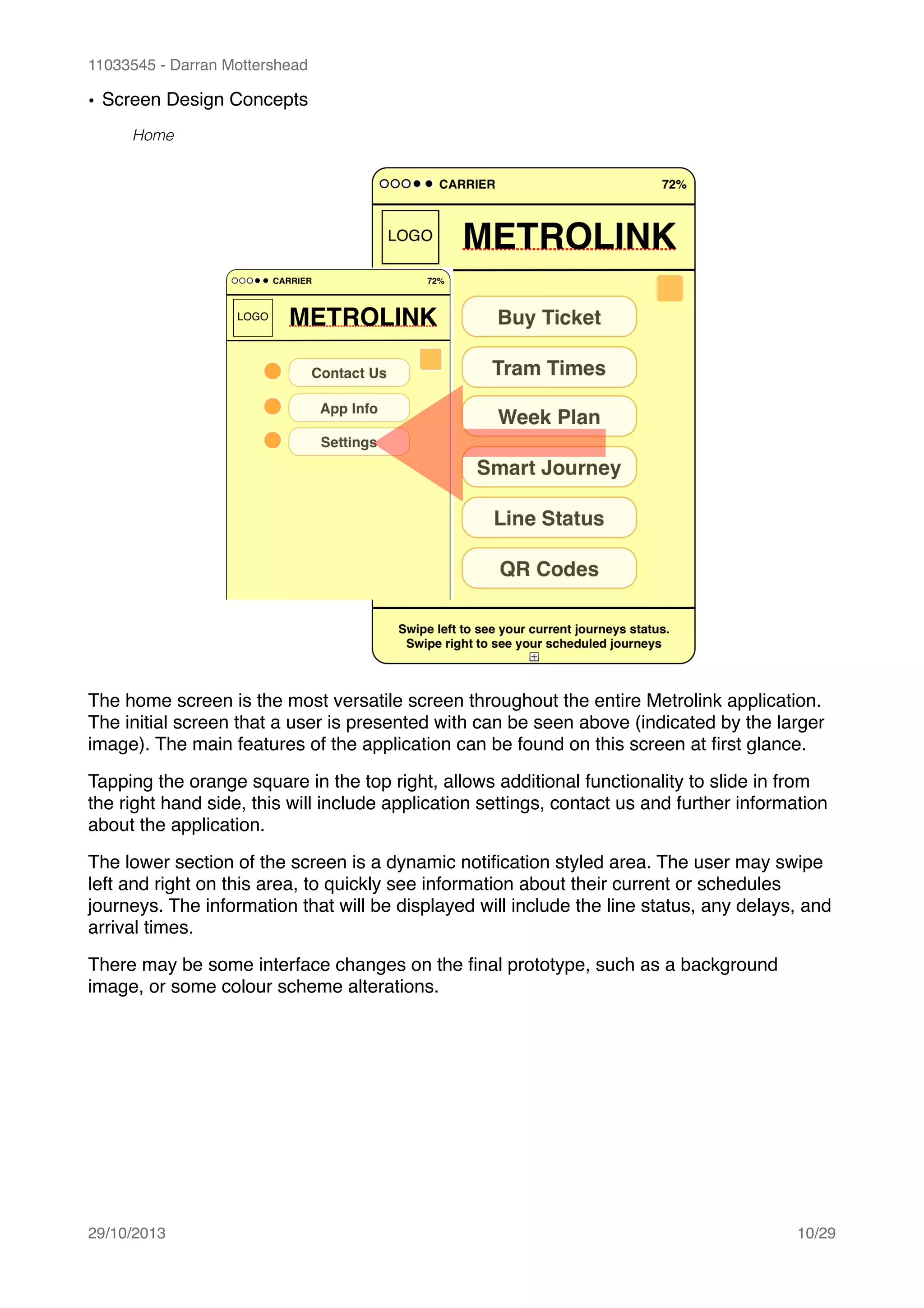

Home
The home screen is the most versatile screen throughout the entire Metrolink application.
The initial screen that a user is presented with can be seen above (indicated by the larger
image). The main features of the application can be found on this screen at first glance. !
Tapping the orange square in the top right, allows additional functionality to slide in from
the right hand side, this will include application settings, contact us and further information
about the application.!
The lower section of the screen is a dynamic notification styled area. The user may swipe
left and right on this area, to quickly see information about their current or schedules
journeys. The information that will be displayed will include the line status, any delays, and
arrival times.!
There may be some interface changes on the final prototype, such as a background
image, or some colour scheme alterations.
29/10/2013! /10 29

11. 11033545 - Darran Mottershead

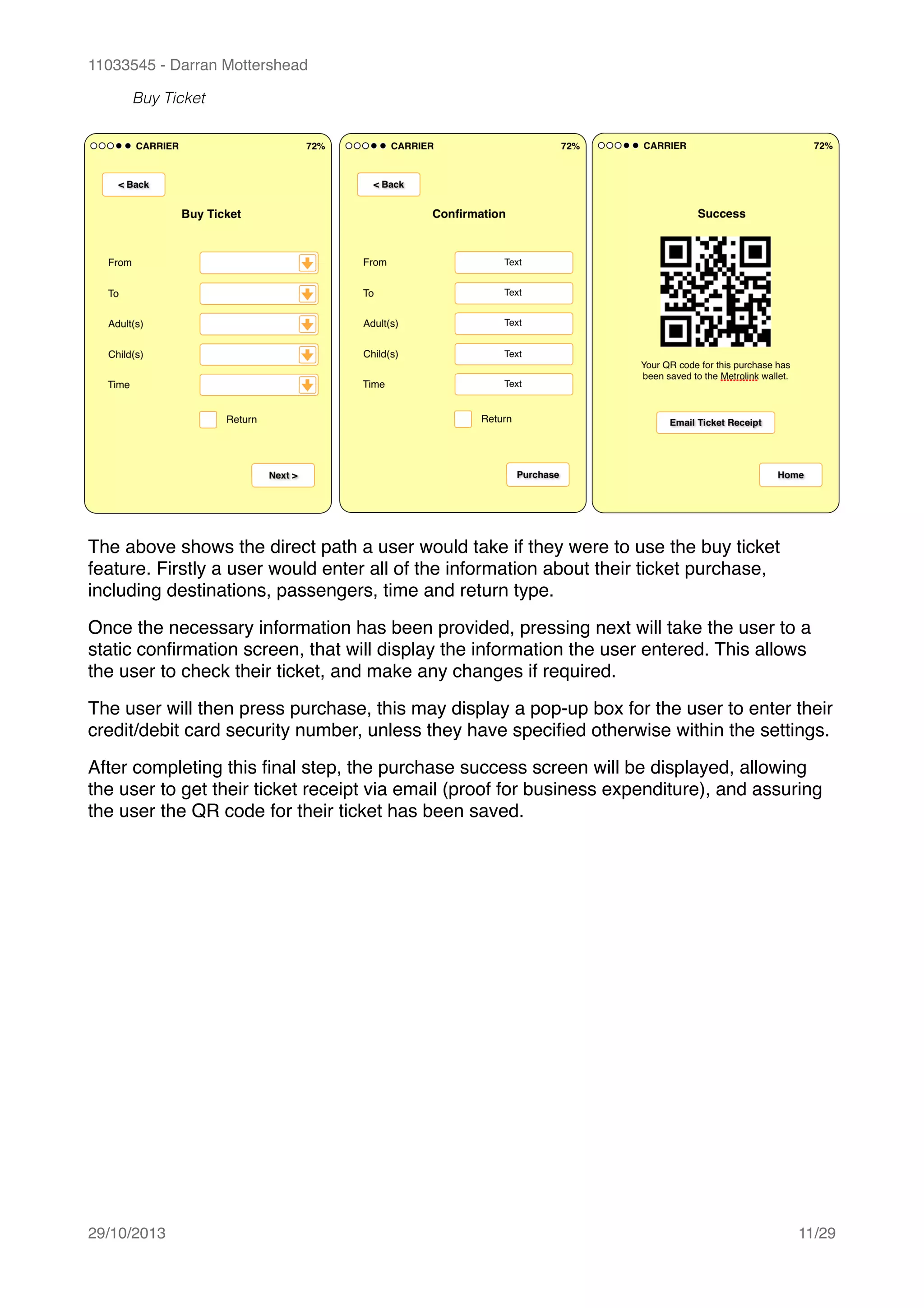

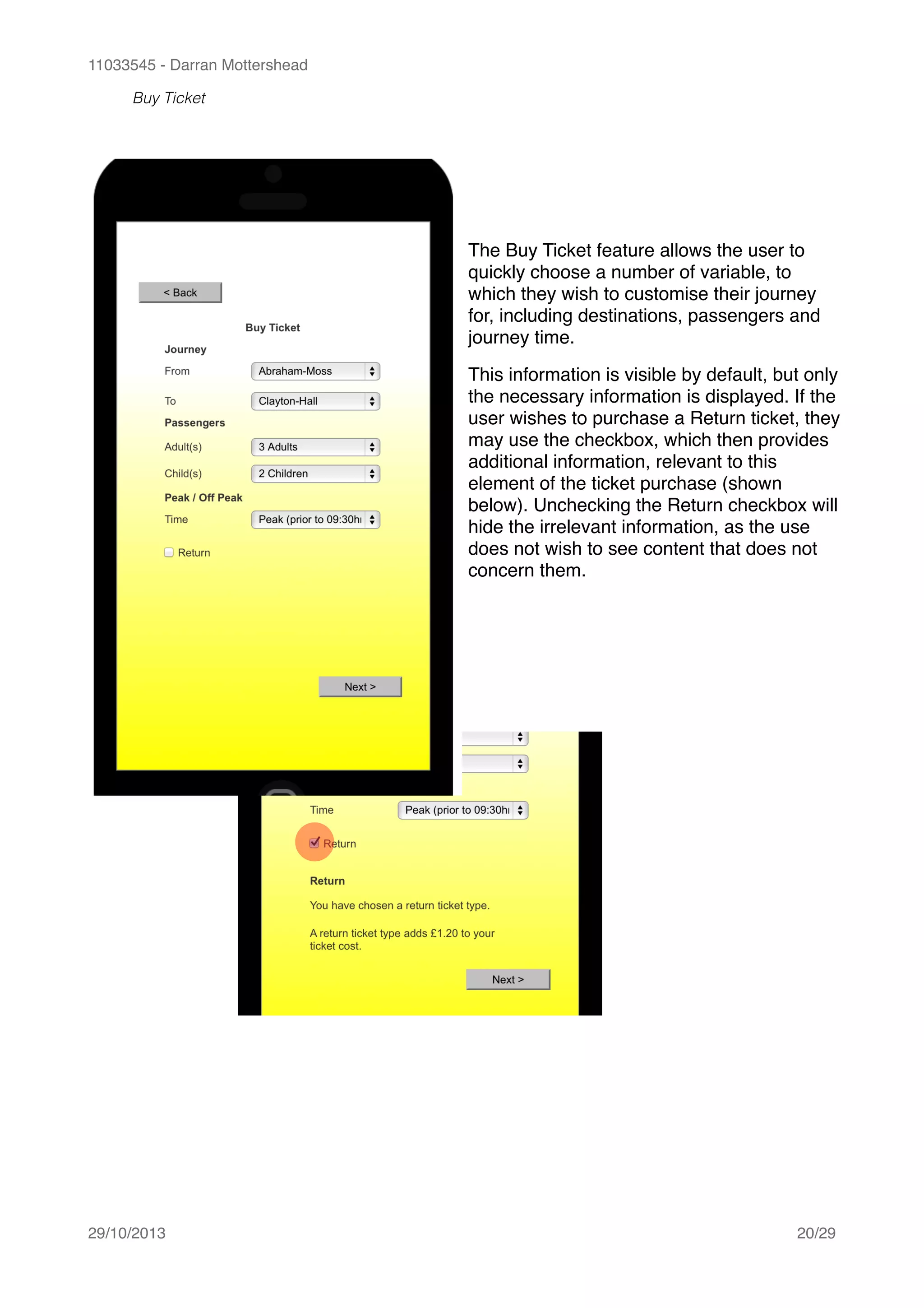

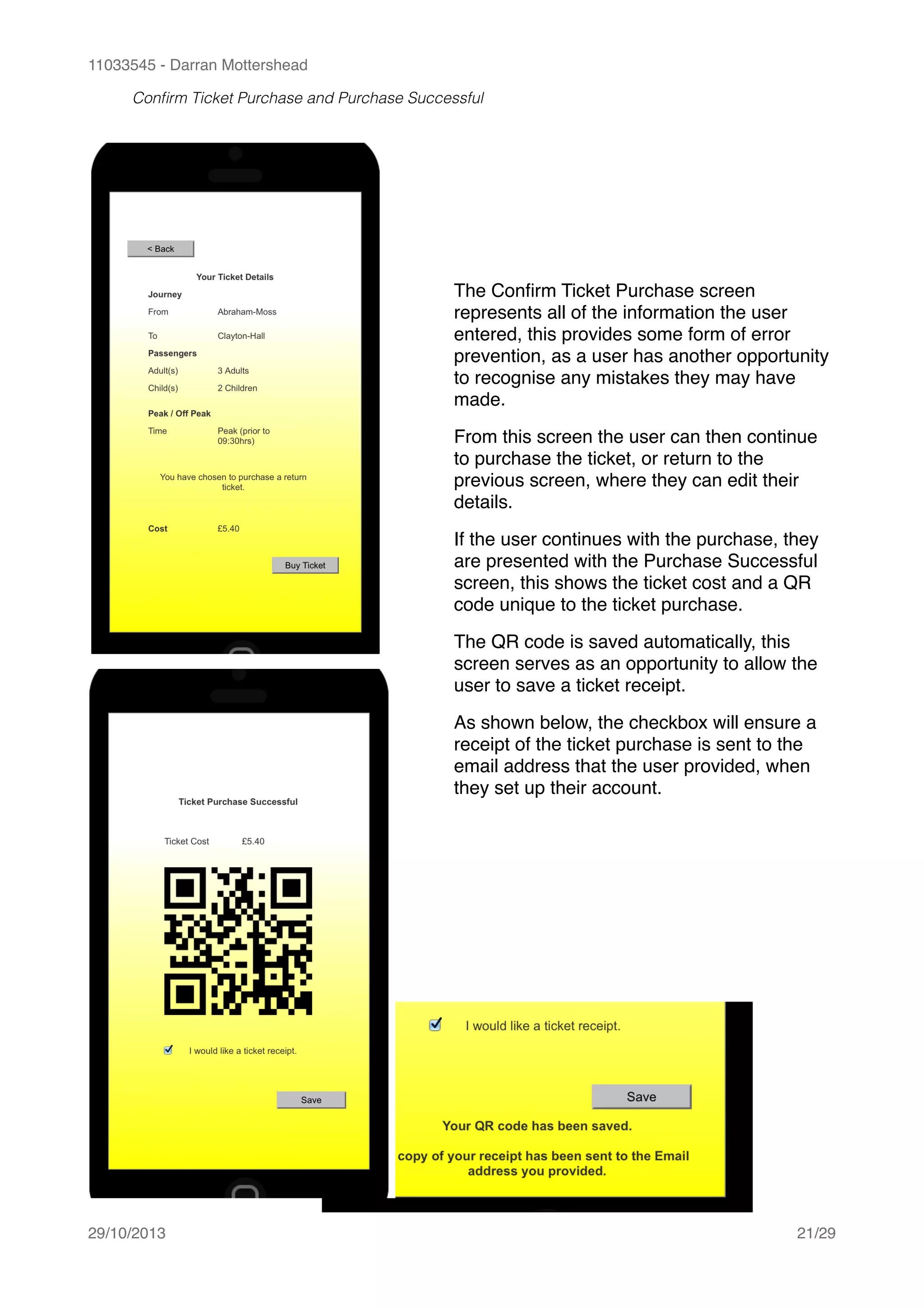

Buy Ticket
The above shows the direct path a user would take if they were to use the buy ticket
feature. Firstly a user would enter all of the information about their ticket purchase,
including destinations, passengers, time and return type.!
Once the necessary information has been provided, pressing next will take the user to a
static confirmation screen, that will display the information the user entered. This allows
the user to check their ticket, and make any changes if required.!
The user will then press purchase, this may display a pop-up box for the user to enter their
credit/debit card security number, unless they have specified otherwise within the settings.!
After completing this final step, the purchase success screen will be displayed, allowing
the user to get their ticket receipt via email (proof for business expenditure), and assuring
the user the QR code for their ticket has been saved.
29/10/2013! /11 29

12. 11033545 - Darran Mottershead

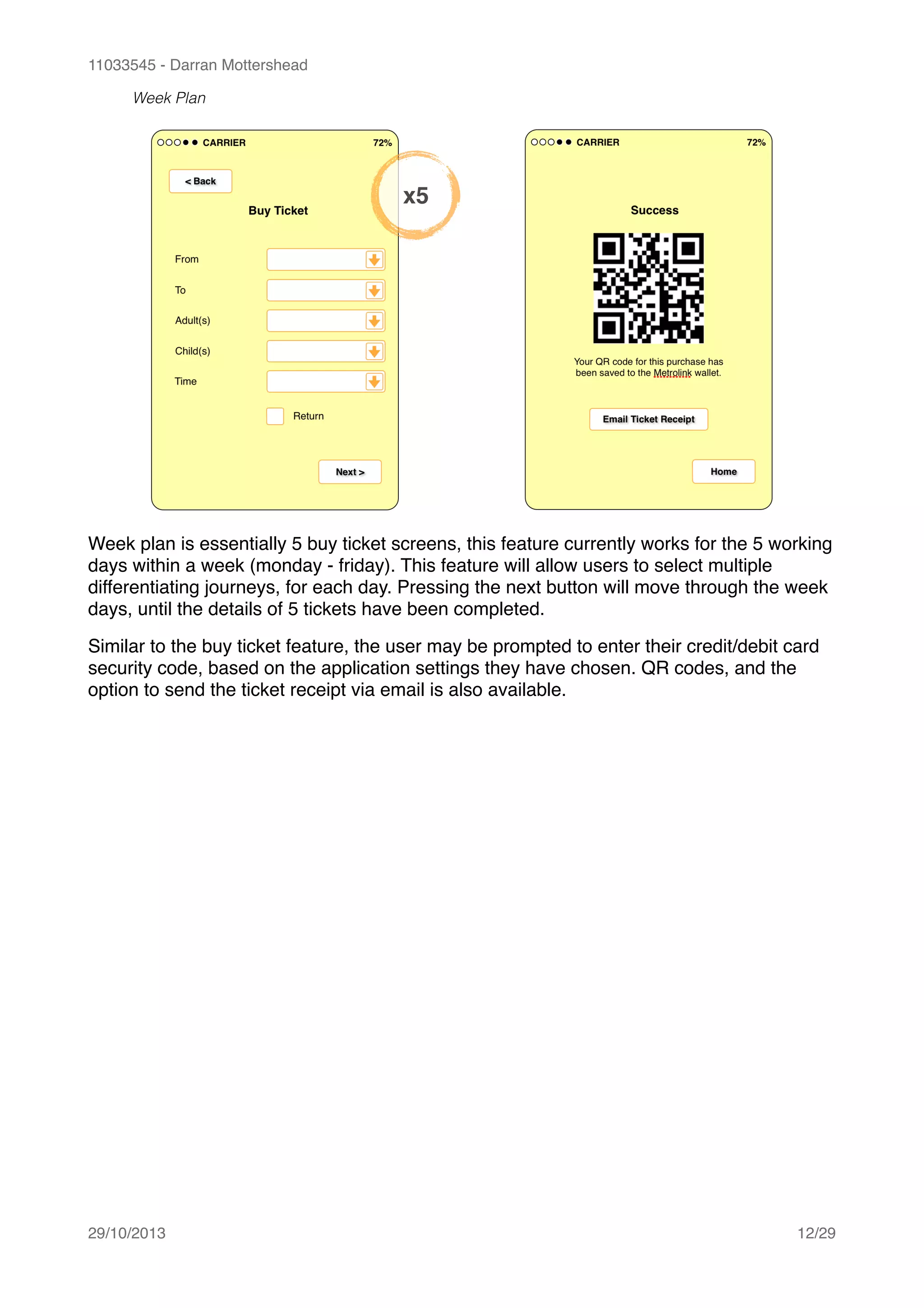

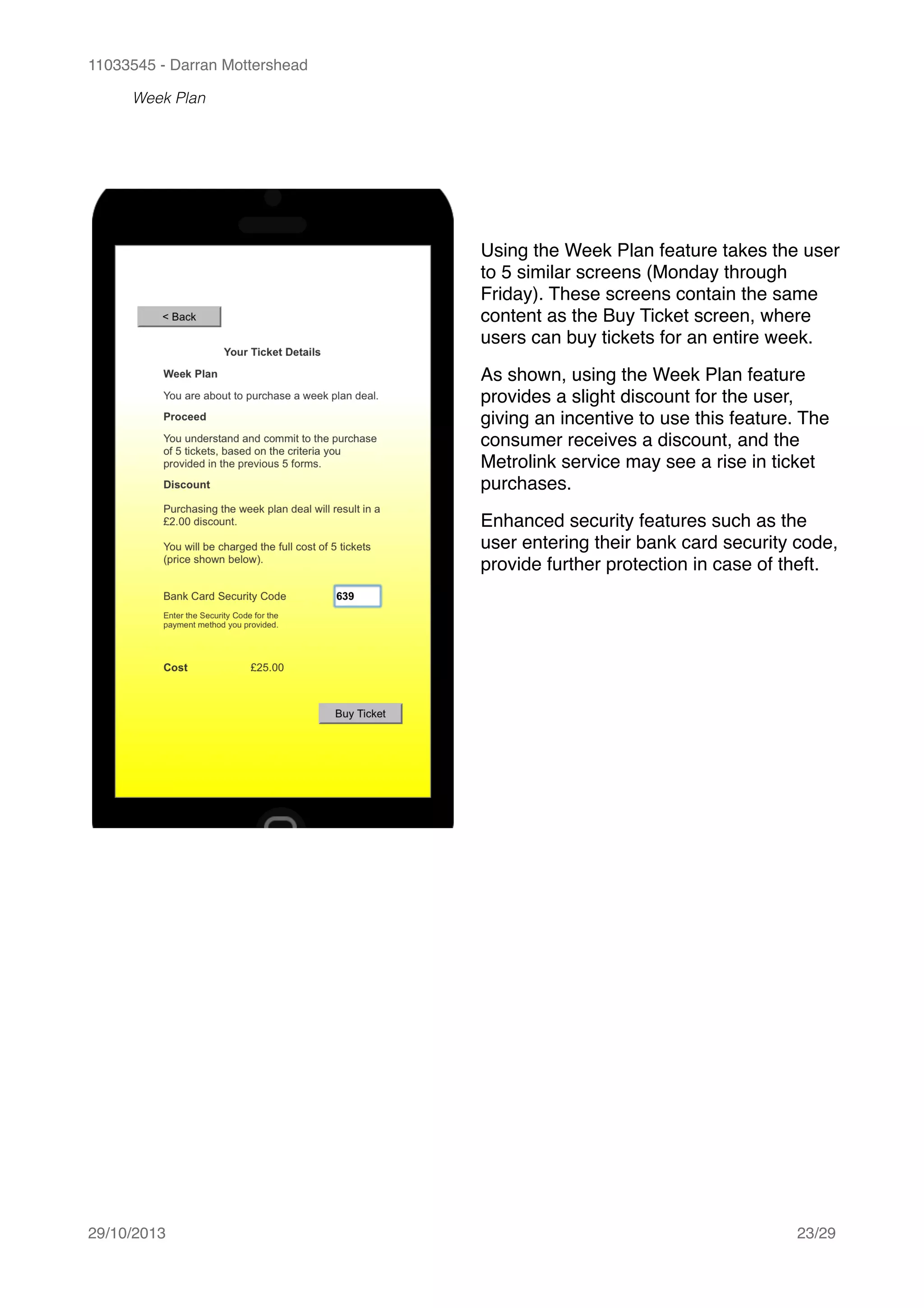

Week Plan
Week plan is essentially 5 buy ticket screens, this feature currently works for the 5 working
days within a week (monday - friday). This feature will allow users to select multiple
differentiating journeys, for each day. Pressing the next button will move through the week
days, until the details of 5 tickets have been completed.!
Similar to the buy ticket feature, the user may be prompted to enter their credit/debit card
security code, based on the application settings they have chosen. QR codes, and the
option to send the ticket receipt via email is also available.
29/10/2013! /12 29
x5

13. 11033545 - Darran Mottershead

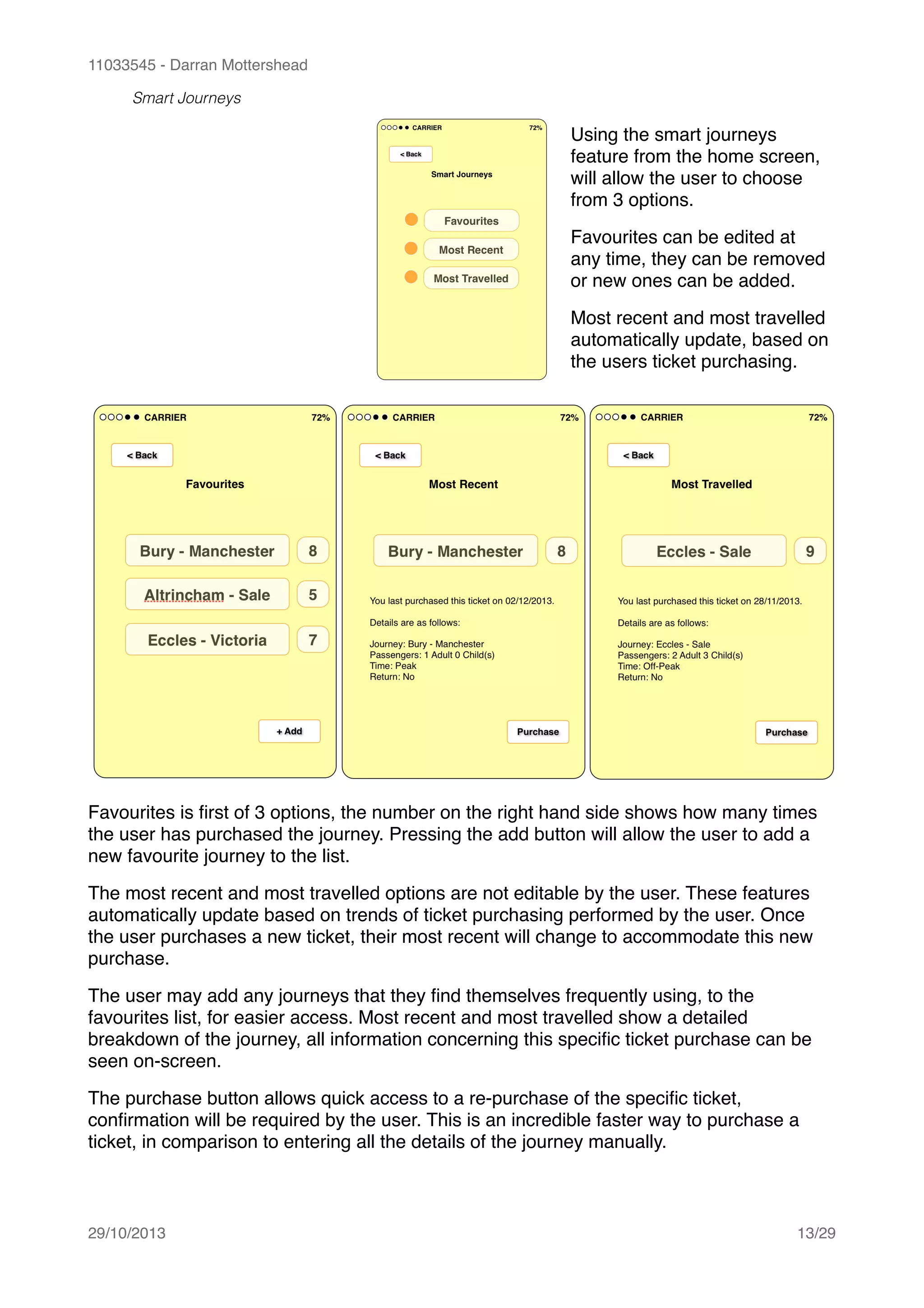

Smart Journeys
!
!
!
!
!
!
!
!
!
!
Favourites is first of 3 options, the number on the right hand side shows how many times
the user has purchased the journey. Pressing the add button will allow the user to add a
new favourite journey to the list.!
The most recent and most travelled options are not editable by the user. These features
automatically update based on trends of ticket purchasing performed by the user. Once
the user purchases a new ticket, their most recent will change to accommodate this new
purchase.!
The user may add any journeys that they find themselves frequently using, to the
favourites list, for easier access. Most recent and most travelled show a detailed
breakdown of the journey, all information concerning this specific ticket purchase can be
seen on-screen.!
The purchase button allows quick access to a re-purchase of the specific ticket,
confirmation will be required by the user. This is an incredible faster way to purchase a
ticket, in comparison to entering all the details of the journey manually.
29/10/2013! /13 29
Using the smart journeys
feature from the home screen,
will allow the user to choose
from 3 options.!
Favourites can be edited at
any time, they can be removed
or new ones can be added.!
Most recent and most travelled
automatically update, based on
the users ticket purchasing.

14. 11033545 - Darran Mottershead

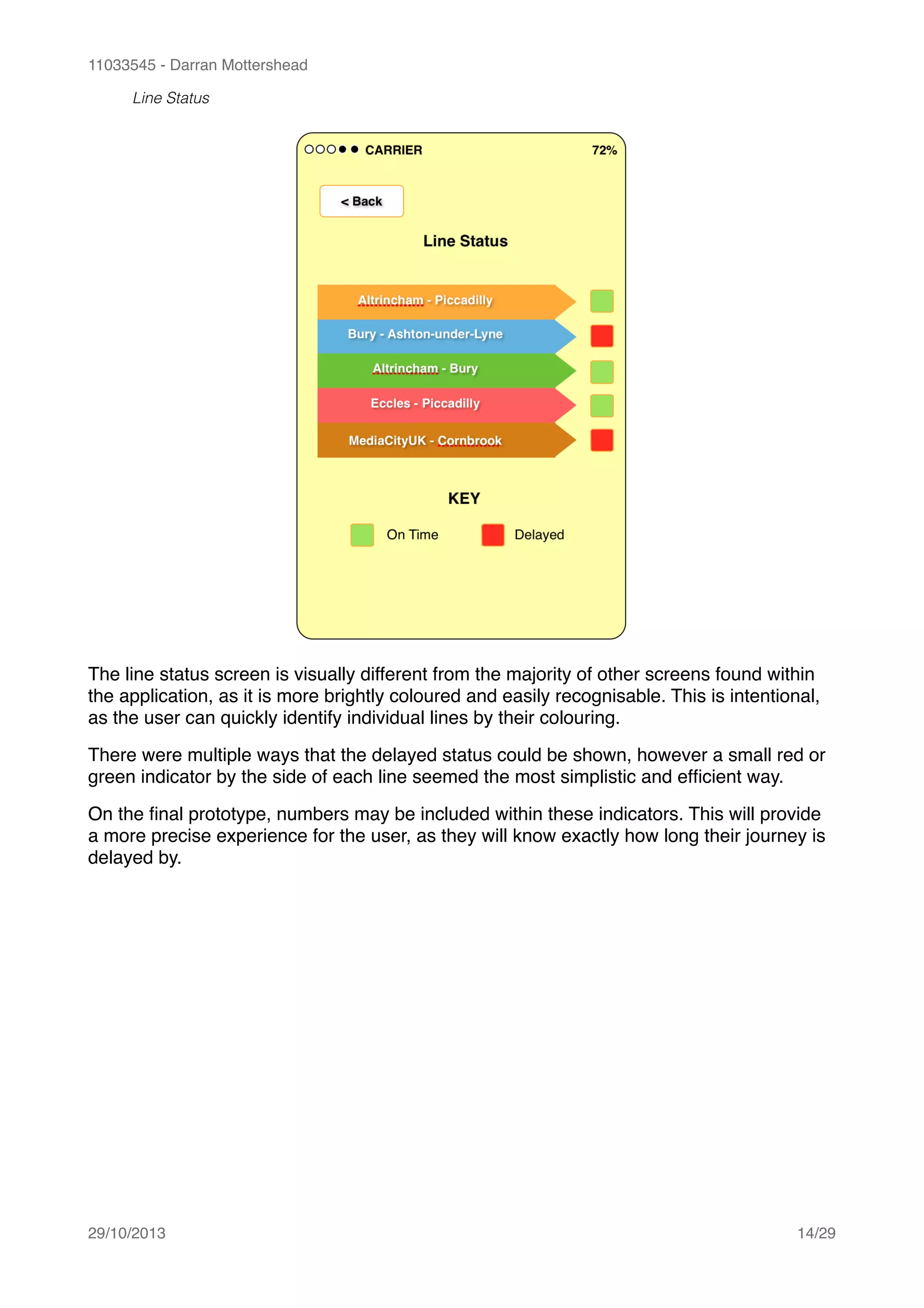

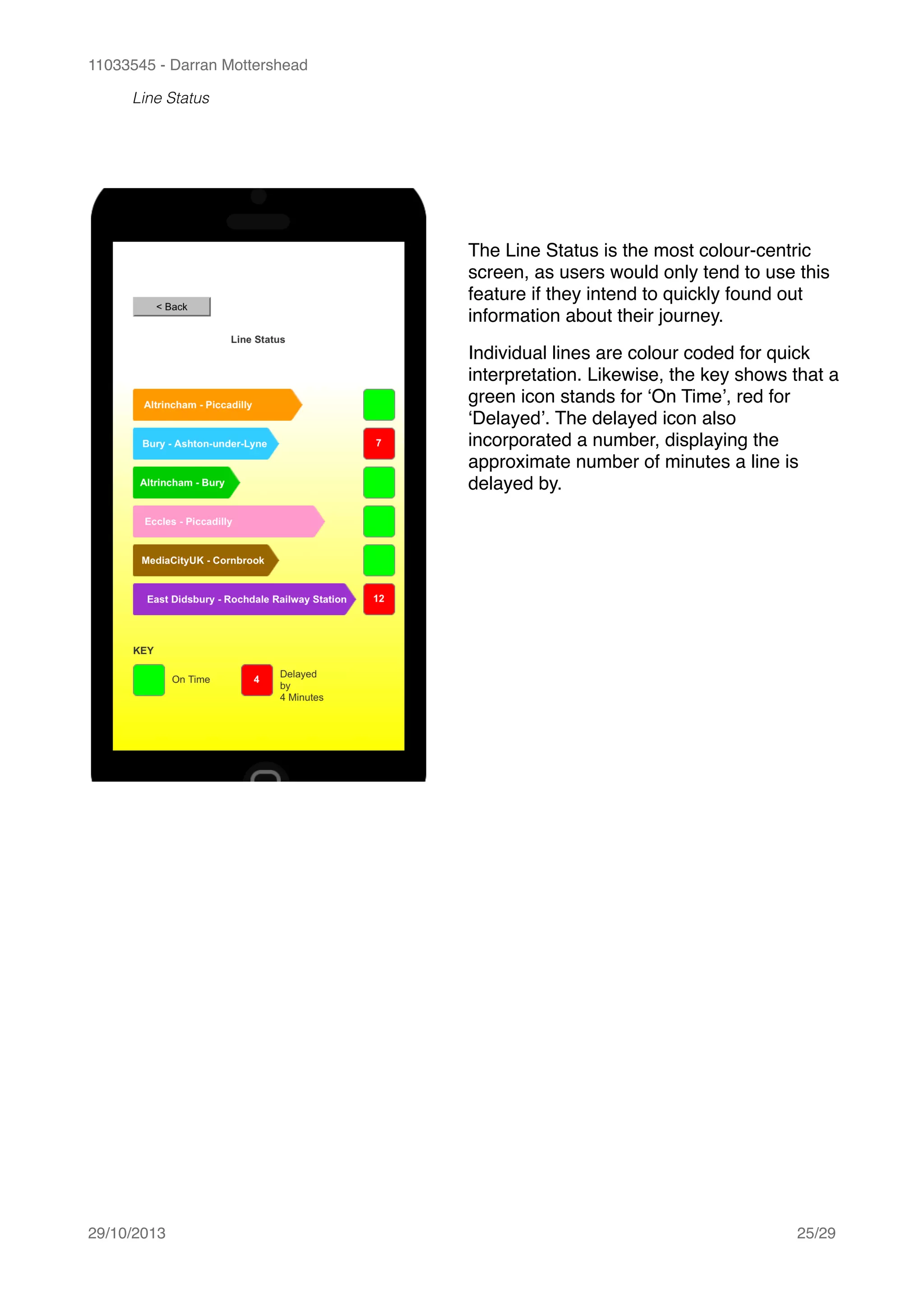

Line Status
The line status screen is visually different from the majority of other screens found within
the application, as it is more brightly coloured and easily recognisable. This is intentional,
as the user can quickly identify individual lines by their colouring.!
There were multiple ways that the delayed status could be shown, however a small red or
green indicator by the side of each line seemed the most simplistic and efficient way.!
On the final prototype, numbers may be included within these indicators. This will provide
a more precise experience for the user, as they will know exactly how long their journey is
delayed by.
29/10/2013! /14 29

15. 11033545 - Darran Mottershead
QR Codes

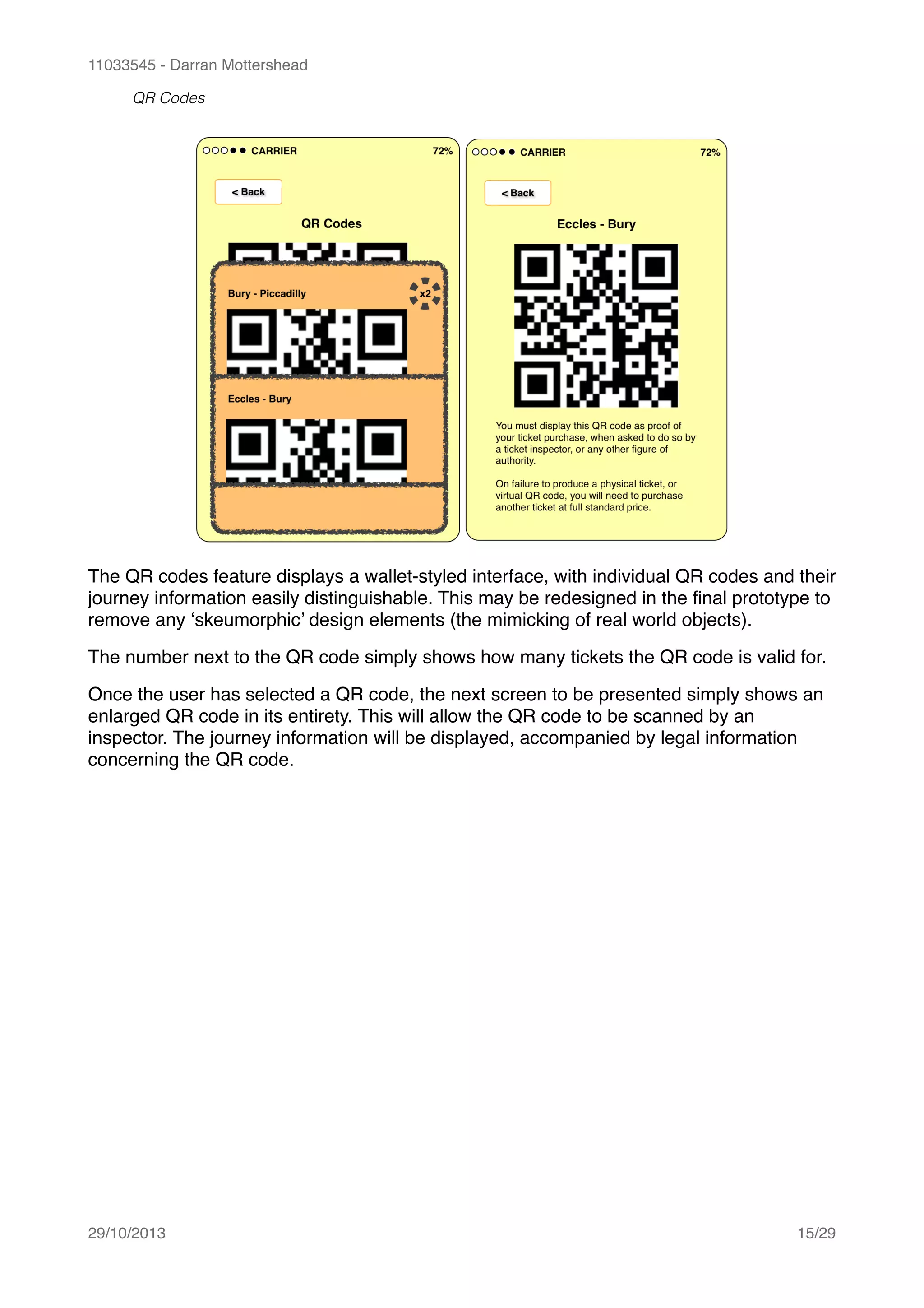

The QR codes feature displays a wallet-styled interface, with individual QR codes and their
journey information easily distinguishable. This may be redesigned in the final prototype to
remove any ‘skeumorphic’ design elements (the mimicking of real world objects).!
The number next to the QR code simply shows how many tickets the QR code is valid for.!
Once the user has selected a QR code, the next screen to be presented simply shows an
enlarged QR code in its entirety. This will allow the QR code to be scanned by an
inspector. The journey information will be displayed, accompanied by legal information
concerning the QR code.
29/10/2013! /15 29

16. 11033545 - Darran Mottershead
Contact Us
Application Information
!
29/10/2013! /16 29
The contact us screen allows users to quickly
view all of the information about Metrolink, if
they wish to get in touch for any emergency
issues, complaints, or improvement
suggestions.!
Quick links to Facebook and Twitter allow for
an alternate source of updates about
Metrolink, and any line status issues.!
As many users may generally not be
interested in contacting Metrolink, this screen
will be located within the sub-menu on the
home screen. The sub-menu slides in from
the right hand side when the user taps the list
icon.!
The application information screen is simply
a tool a user might use, if they are unsure of
how to complete a specific task within the
application.!
The application has been designed to be
very simplistic, yet highly efficient. It is
unlikely that a user would even need to view
this screen, however it has been included
just in case.!
As many users may generally not be
interested in the application information, this
screen will be located within the sub-menu
on the home screen. The sub-menu slides in
from the right hand side when the user taps
the list icon.!

17. 11033545 - Darran Mottershead
Settings

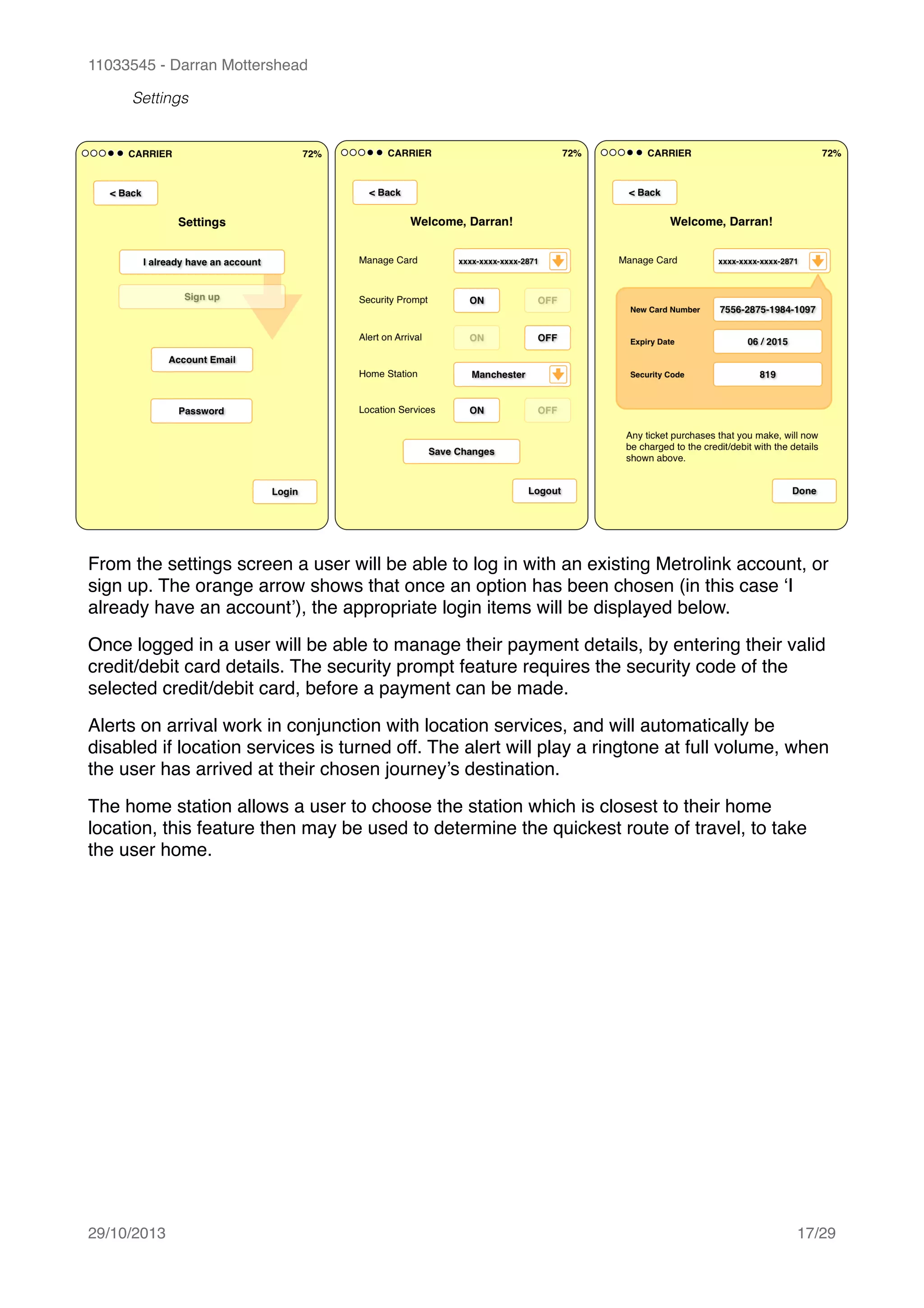

From the settings screen a user will be able to log in with an existing Metrolink account, or
sign up. The orange arrow shows that once an option has been chosen (in this case ‘I
already have an account’), the appropriate login items will be displayed below.!
Once logged in a user will be able to manage their payment details, by entering their valid
credit/debit card details. The security prompt feature requires the security code of the
selected credit/debit card, before a payment can be made.!
Alerts on arrival work in conjunction with location services, and will automatically be
disabled if location services is turned off. The alert will play a ringtone at full volume, when
the user has arrived at their chosen journey’s destination.!
The home station allows a user to choose the station which is closest to their home
location, this feature then may be used to determine the quickest route of travel, to take
the user home.
29/10/2013! /17 29

18. 11033545 - Darran Mottershead
Final Prototype!

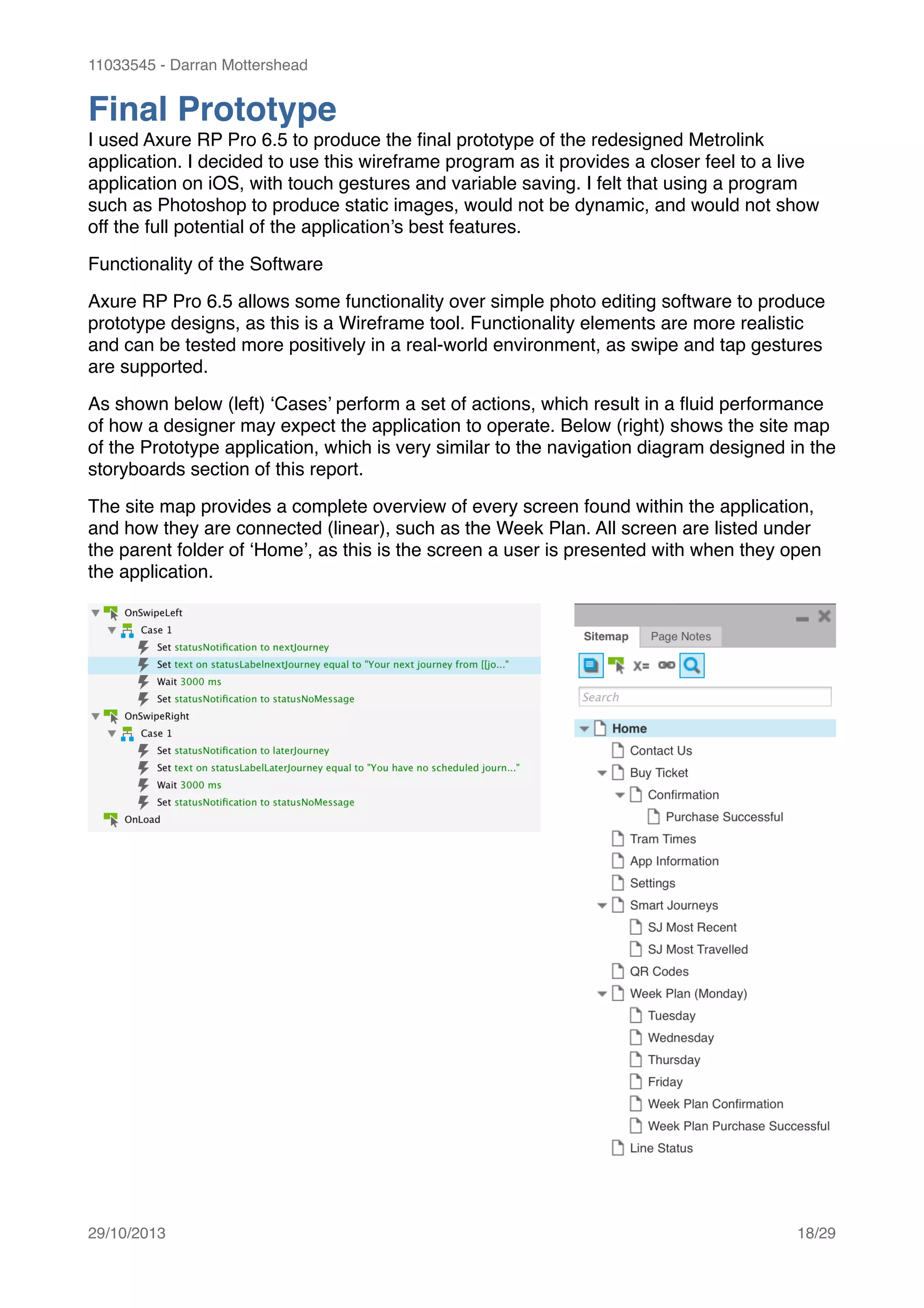

I used Axure RP Pro 6.5 to produce the final prototype of the redesigned Metrolink
application. I decided to use this wireframe program as it provides a closer feel to a live
application on iOS, with touch gestures and variable saving. I felt that using a program
such as Photoshop to produce static images, would not be dynamic, and would not show
off the full potential of the application’s best features.!
Functionality of the Software!
Axure RP Pro 6.5 allows some functionality over simple photo editing software to produce
prototype designs, as this is a Wireframe tool. Functionality elements are more realistic
and can be tested more positively in a real-world environment, as swipe and tap gestures
are supported.!
As shown below (left) ‘Cases’ perform a set of actions, which result in a fluid performance
of how a designer may expect the application to operate. Below (right) shows the site map
of the Prototype application, which is very similar to the navigation diagram designed in the
storyboards section of this report.!
The site map provides a complete overview of every screen found within the application,
and how they are connected (linear), such as the Week Plan. All screen are listed under
the parent folder of ‘Home’, as this is the screen a user is presented with when they open
the application.
29/10/2013! /18 29

19. 11033545 - Darran Mottershead
Home
29/10/2013! /19 29

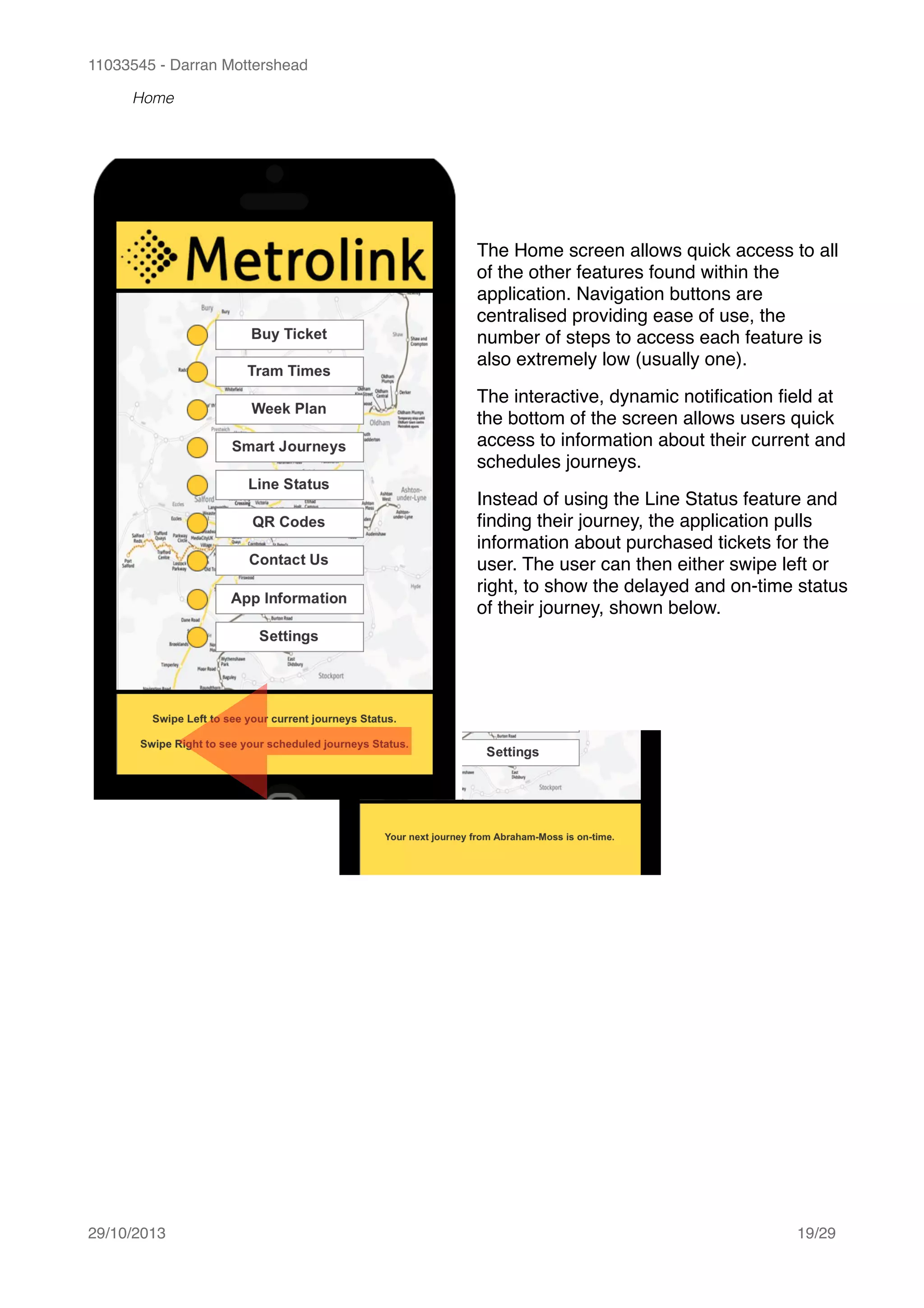

The Home screen allows quick access to all
of the other features found within the
application. Navigation buttons are
centralised providing ease of use, the
number of steps to access each feature is
also extremely low (usually one).!
The interactive, dynamic notification field at
the bottom of the screen allows users quick
access to information about their current and
schedules journeys.!
Instead of using the Line Status feature and
finding their journey, the application pulls
information about purchased tickets for the
user. The user can then either swipe left or
right, to show the delayed and on-time status
of their journey, shown below.

20. 11033545 - Darran Mottershead
Buy Ticket
29/10/2013! /20 29
The Buy Ticket feature allows the user to
quickly choose a number of variable, to
which they wish to customise their journey
for, including destinations, passengers and
journey time.!
This information is visible by default, but only
the necessary information is displayed. If the
user wishes to purchase a Return ticket, they
may use the checkbox, which then provides
additional information, relevant to this
element of the ticket purchase (shown
below). Unchecking the Return checkbox will
hide the irrelevant information, as the use
does not wish to see content that does not
concern them.

21. 11033545 - Darran Mottershead
Confirm Ticket Purchase and Purchase Successful
29/10/2013! /21 29
The Confirm Ticket Purchase screen
represents all of the information the user
entered, this provides some form of error
prevention, as a user has another opportunity
to recognise any mistakes they may have
made.!
From this screen the user can then continue
to purchase the ticket, or return to the
previous screen, where they can edit their
details.!
If the user continues with the purchase, they
are presented with the Purchase Successful
screen, this shows the ticket cost and a QR
code unique to the ticket purchase.!
The QR code is saved automatically, this
screen serves as an opportunity to allow the
user to save a ticket receipt.!
As shown below, the checkbox will ensure a
receipt of the ticket purchase is sent to the
email address that the user provided, when
they set up their account.

22. 11033545 - Darran Mottershead
Tram Times
29/10/2013! /22 29

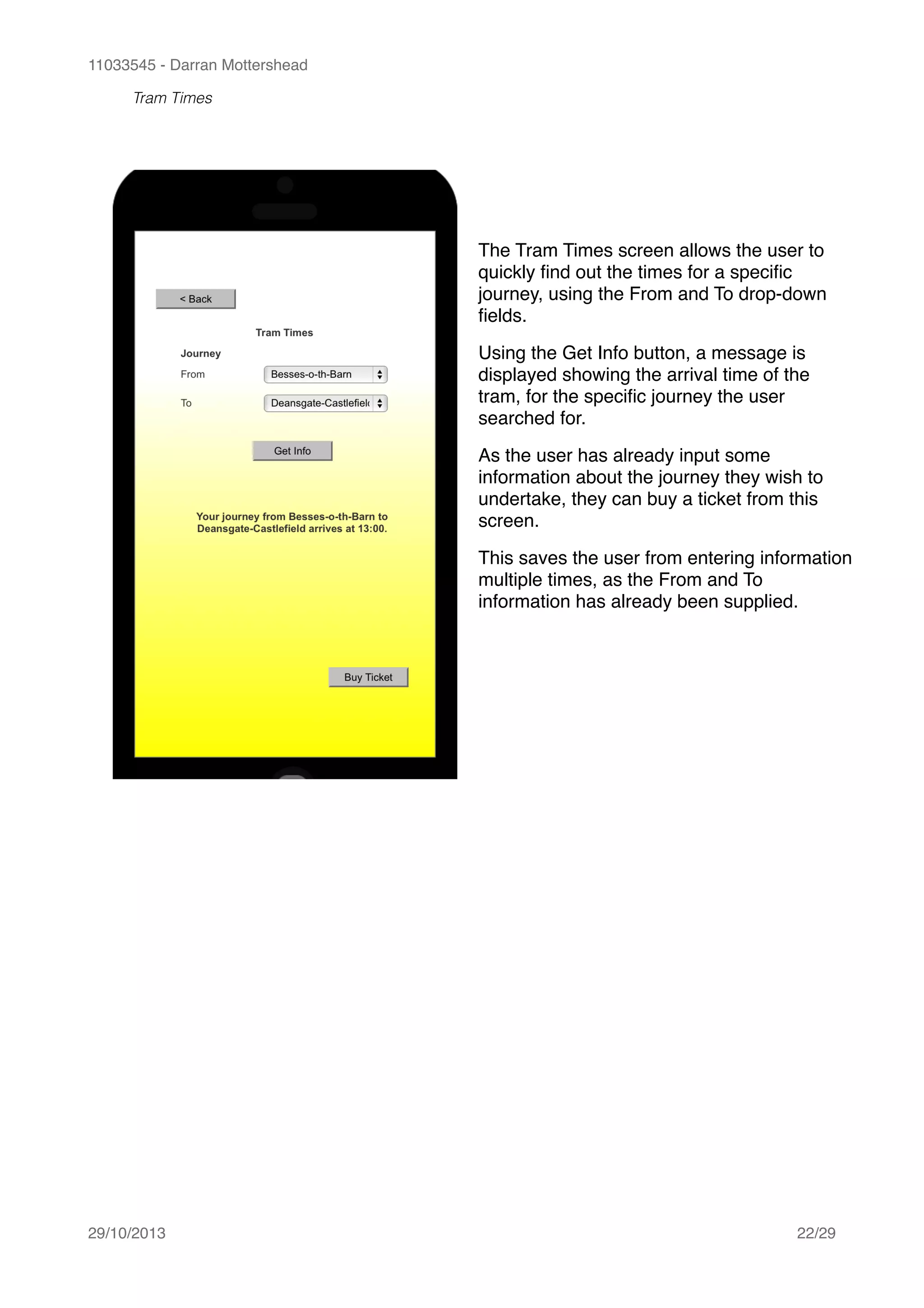

The Tram Times screen allows the user to
quickly find out the times for a specific
journey, using the From and To drop-down
fields.!
Using the Get Info button, a message is
displayed showing the arrival time of the
tram, for the specific journey the user
searched for.!
As the user has already input some
information about the journey they wish to
undertake, they can buy a ticket from this
screen.!
This saves the user from entering information
multiple times, as the From and To
information has already been supplied.

23. 11033545 - Darran Mottershead
Week Plan
29/10/2013! /23 29
Using the Week Plan feature takes the user
to 5 similar screens (Monday through
Friday). These screens contain the same
content as the Buy Ticket screen, where
users can buy tickets for an entire week.!
As shown, using the Week Plan feature
provides a slight discount for the user,
giving an incentive to use this feature. The
consumer receives a discount, and the
Metrolink service may see a rise in ticket
purchases.!
Enhanced security features such as the
user entering their bank card security code,
provide further protection in case of theft.

24. 11033545 - Darran Mottershead
Smart Journeys
29/10/2013! /24 29
The Smart Journeys screen is quite dynamic,
as the journeys it shows are relevant to the
user’s ticket purchasing habits.!
The Most Recent journey will change
whenever the user purchases a new ticket,
as the user may wish to make this journey
again.!
The Most Travelled journey will change
depending on how often a user makes the
same journey. This feature essentially shows
the most popular journey travelled by the
user.!
Below are the screens a user will be
presented with once they view the details on
either feature. !
Additional security features such as bank
card security code, ensure the user cannot
accidentally purchase a ticket. The security
feature also aids the user if their smartphone
is lost or stolen.

25. 11033545 - Darran Mottershead
Line Status
29/10/2013! /25 29
The Line Status is the most colour-centric
screen, as users would only tend to use this
feature if they intend to quickly found out
information about their journey.!
Individual lines are colour coded for quick
interpretation. Likewise, the key shows that a
green icon stands for ‘On Time’, red for
‘Delayed’. The delayed icon also
incorporated a number, displaying the
approximate number of minutes a line is
delayed by.

26. 11033545 - Darran Mottershead
QR Codes
29/10/2013! /26 29
The QR Codes screen holds all of the QR
codes for tickets purchased by the user. Out
of date purchases are automatically
removed, and the QR codes for any newly
purchased tickets can be found within this
screen.!
Each QR code provides some detail about
the ticket purchase, such as the date it is
valid for, the travel route and the number of
tickets (passengers).!
Tapping an individual QR code will bring up a
full screen QR code, that can easily be
scanned by a ticket inspector

27. 11033545 - Darran Mottershead
Contact Us
29/10/2013! /27 29

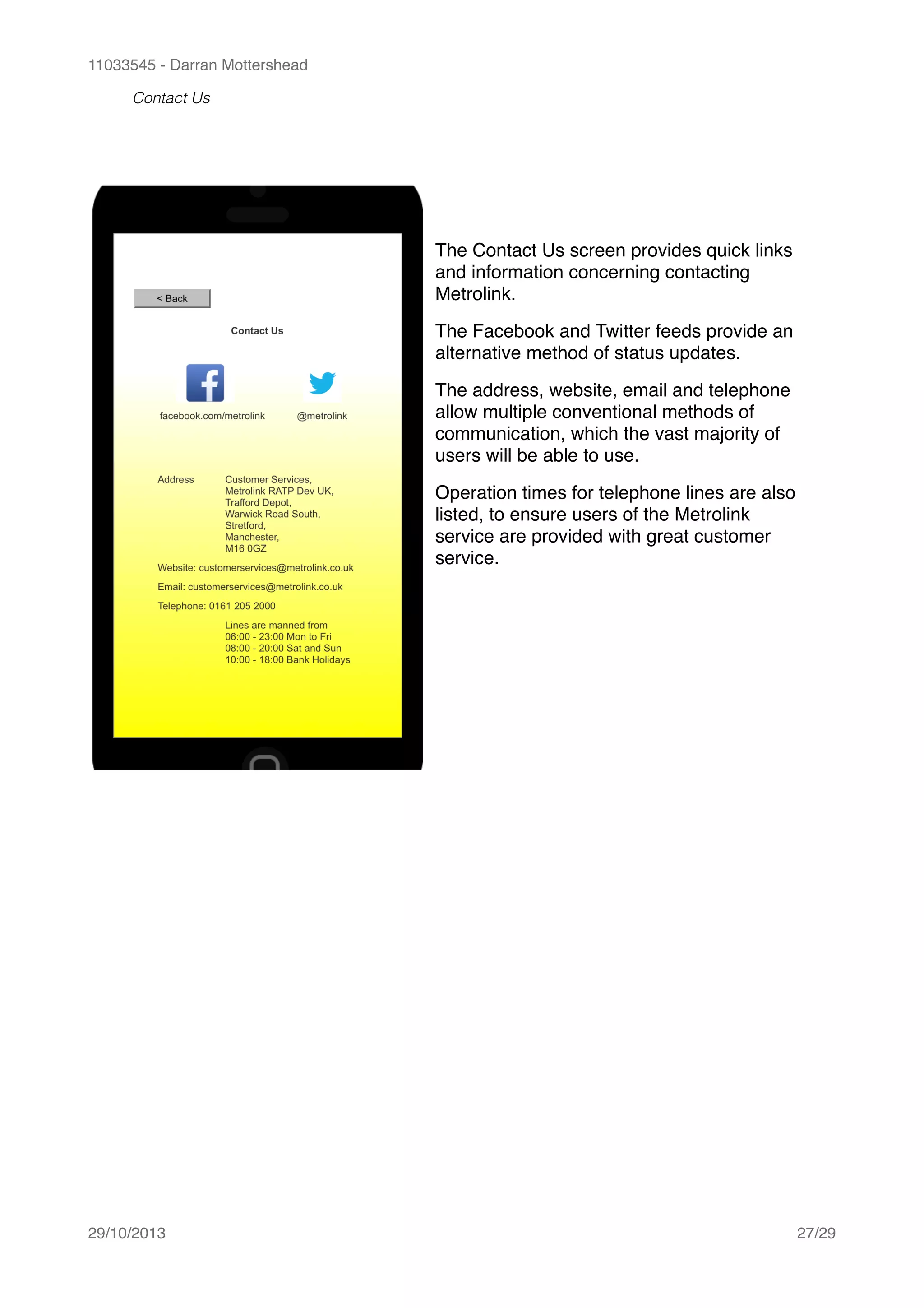

The Contact Us screen provides quick links
and information concerning contacting
Metrolink.!
The Facebook and Twitter feeds provide an
alternative method of status updates.!
The address, website, email and telephone
allow multiple conventional methods of
communication, which the vast majority of
users will be able to use.!
Operation times for telephone lines are also
listed, to ensure users of the Metrolink
service are provided with great customer
service.

28. 11033545 - Darran Mottershead
App Information
29/10/2013! /28 29

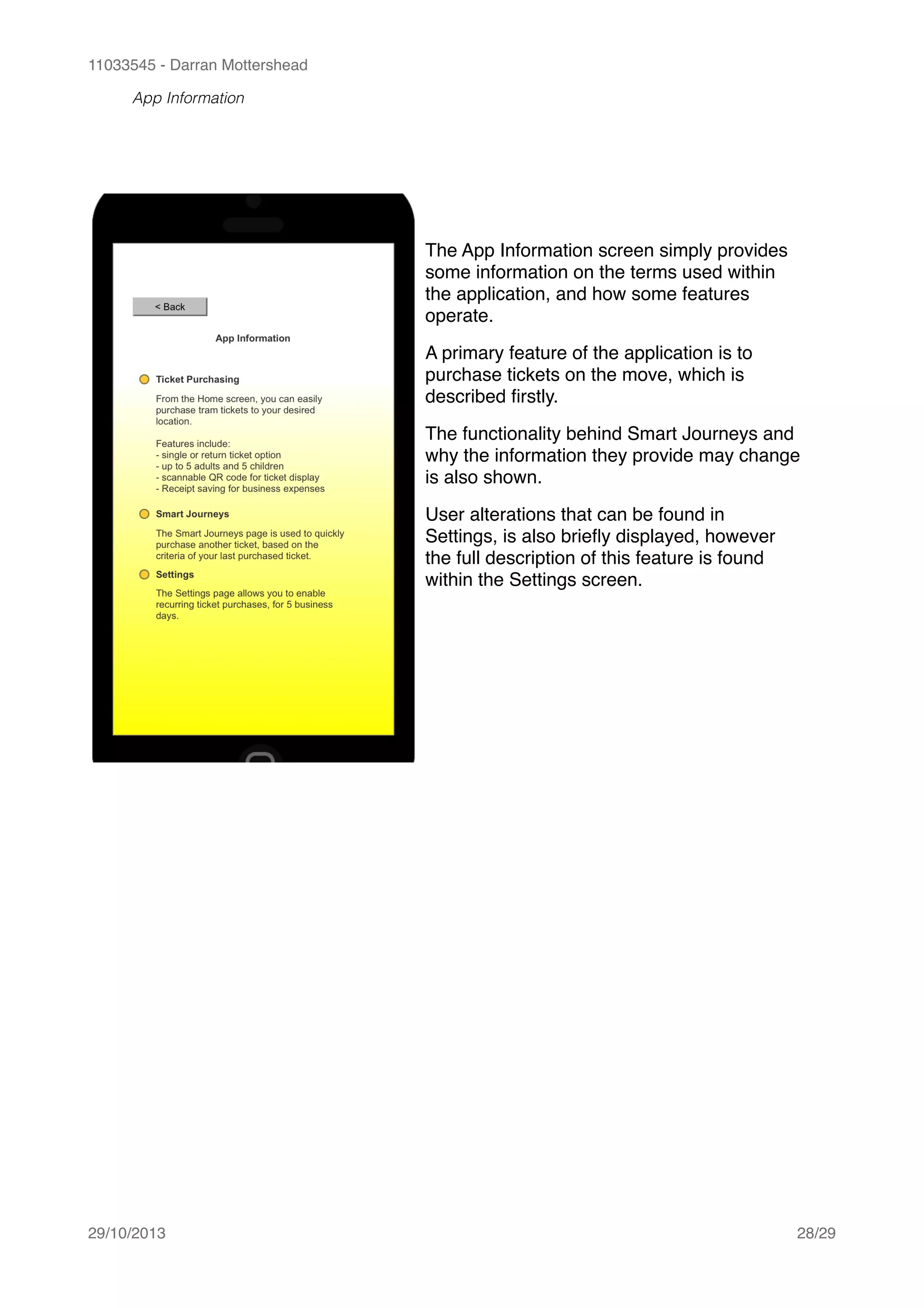

The App Information screen simply provides
some information on the terms used within
the application, and how some features
operate.!
A primary feature of the application is to
purchase tickets on the move, which is
described firstly.!
The functionality behind Smart Journeys and
why the information they provide may change
is also shown.!
User alterations that can be found in
Settings, is also briefly displayed, however
the full description of this feature is found
within the Settings screen.

29. 11033545 - Darran Mottershead
Settings
29/10/2013! /29 29

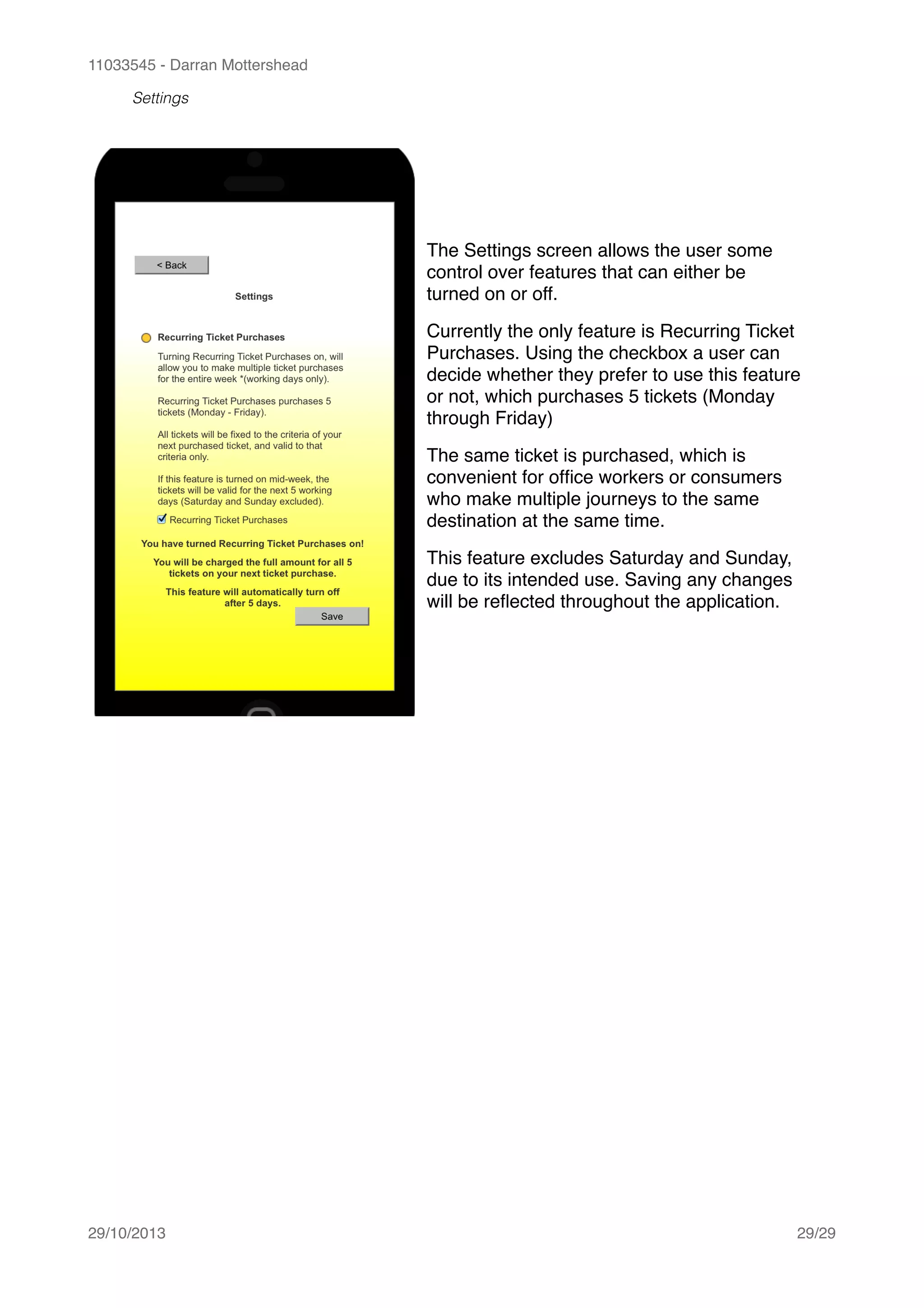

The Settings screen allows the user some
control over features that can either be
turned on or off.!
Currently the only feature is Recurring Ticket
Purchases. Using the checkbox a user can
decide whether they prefer to use this feature
or not, which purchases 5 tickets (Monday
through Friday)!
The same ticket is purchased, which is
convenient for office workers or consumers
who make multiple journeys to the same
destination at the same time.!
This feature excludes Saturday and Sunday,
due to its intended use. Saving any changes
will be reflected throughout the application.
