1. Hashes
A GUIDE TO HASHES (AND SALTED HASHES) IN IT SECURITY
CLARE JOHNSON

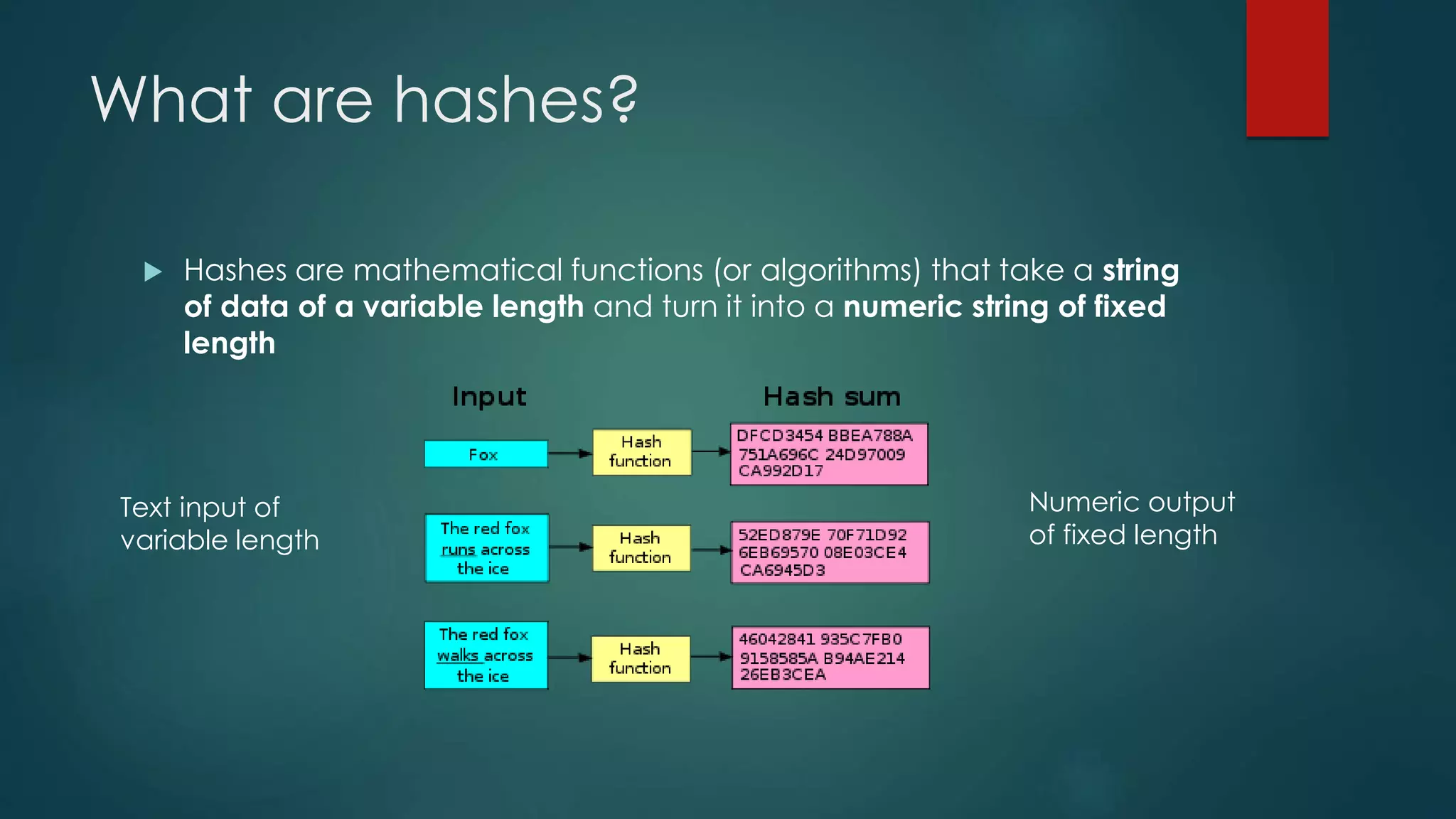

2. What are hashes?
Hashes are mathematical functions (or algorithms) that take a string
of data of a variable length and turn it into a numeric string of fixed
length
Text input of
variable length
Numeric output
of fixed length

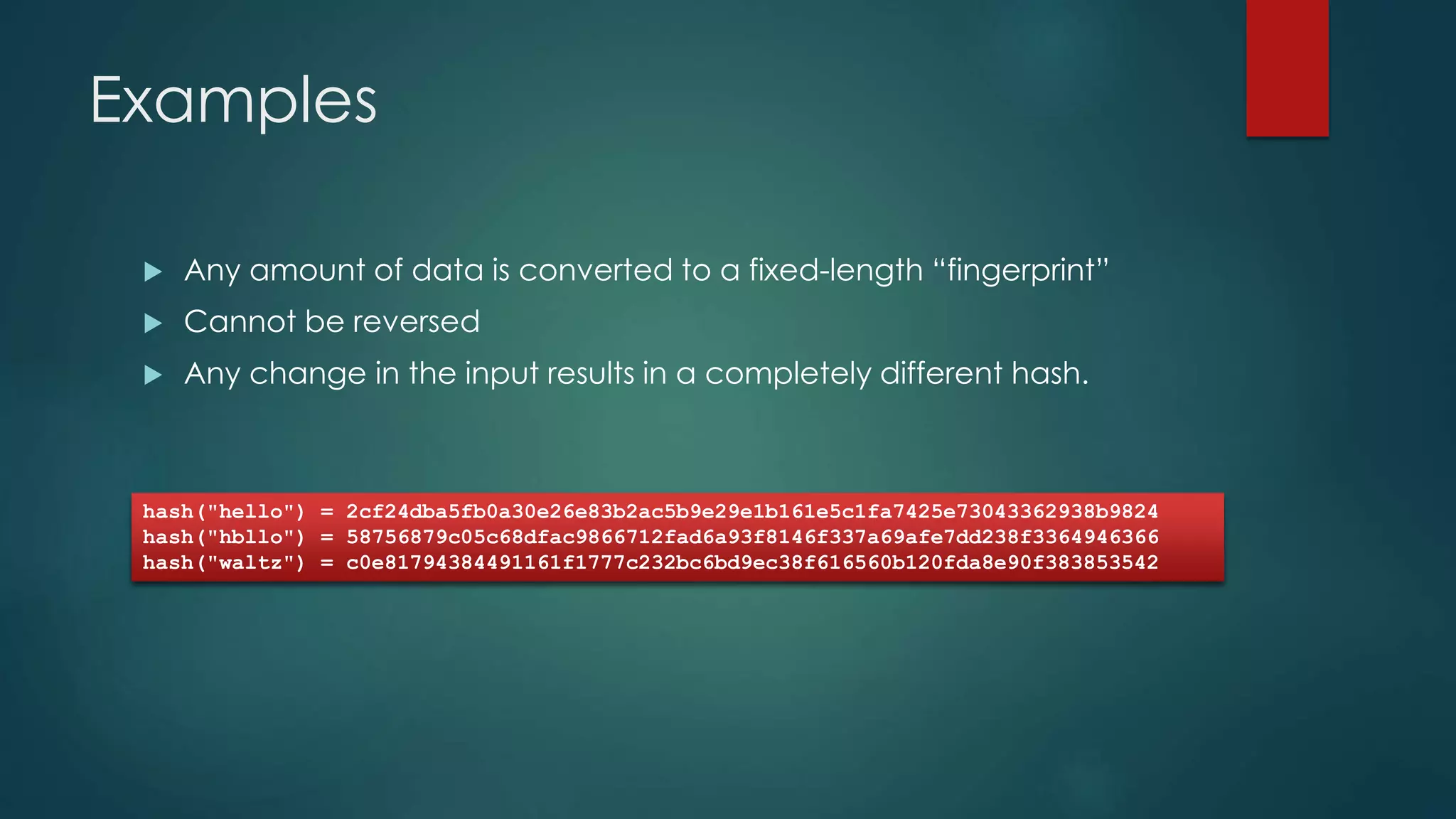

3. Examples
Any amount of data is converted to a fixed-length “fingerprint”
Cannot be reversed
Any change in the input results in a completely different hash.
hash("hello") = 2cf24dba5fb0a30e26e83b2ac5b9e29e1b161e5c1fa7425e73043362938b9824
hash("hbllo") = 58756879c05c68dfac9866712fad6a93f8146f337a69afe7dd238f3364946366
hash("waltz") = c0e81794384491161f1777c232bc6bd9ec38f616560b120fda8e90f383853542

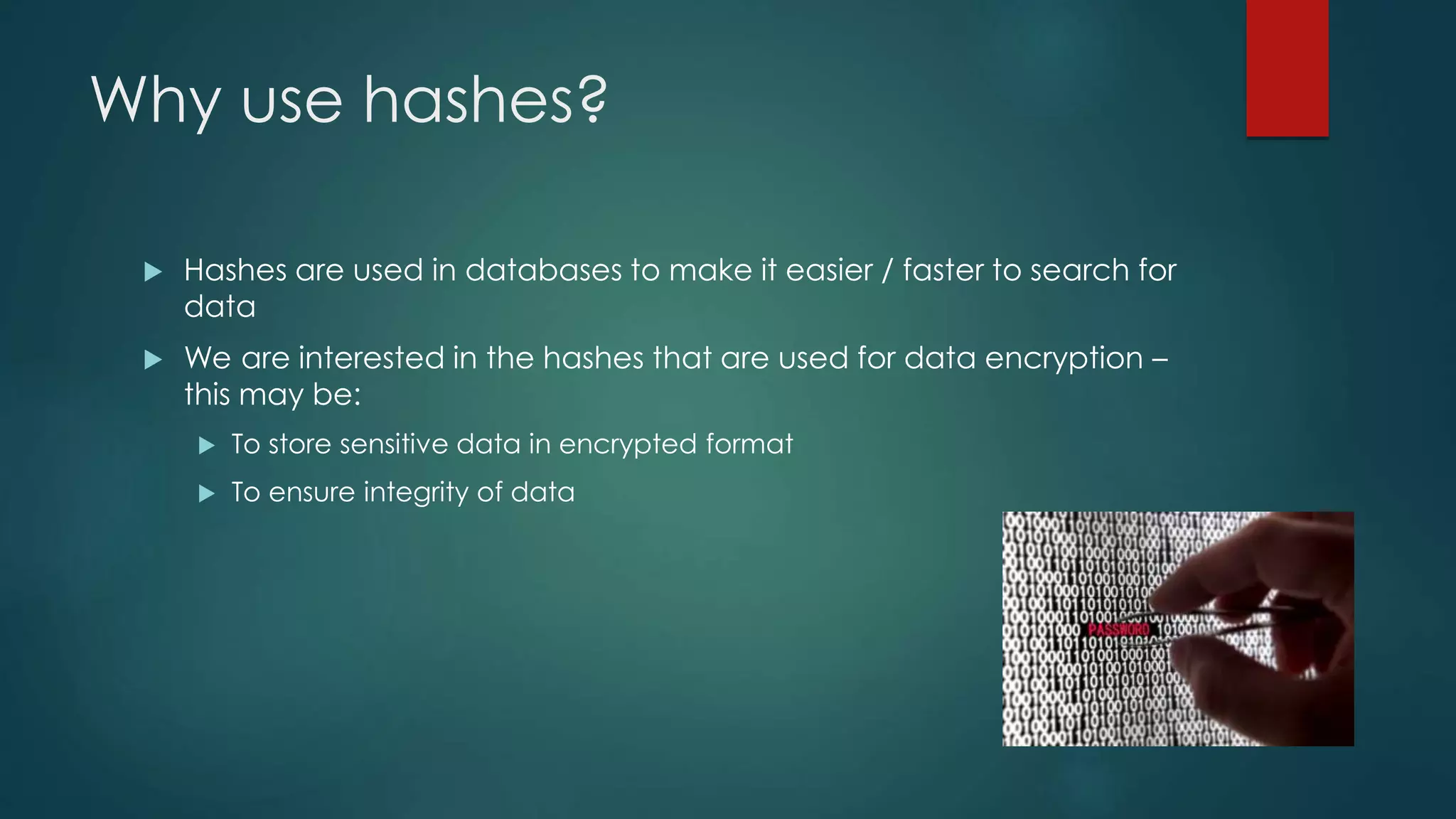

4. Why use hashes?
Hashes are used in databases to make it easier / faster to search for
data
We are interested in the hashes that are used for data encryption –
this may be:
To store sensitive data in encrypted format
To ensure integrity of data

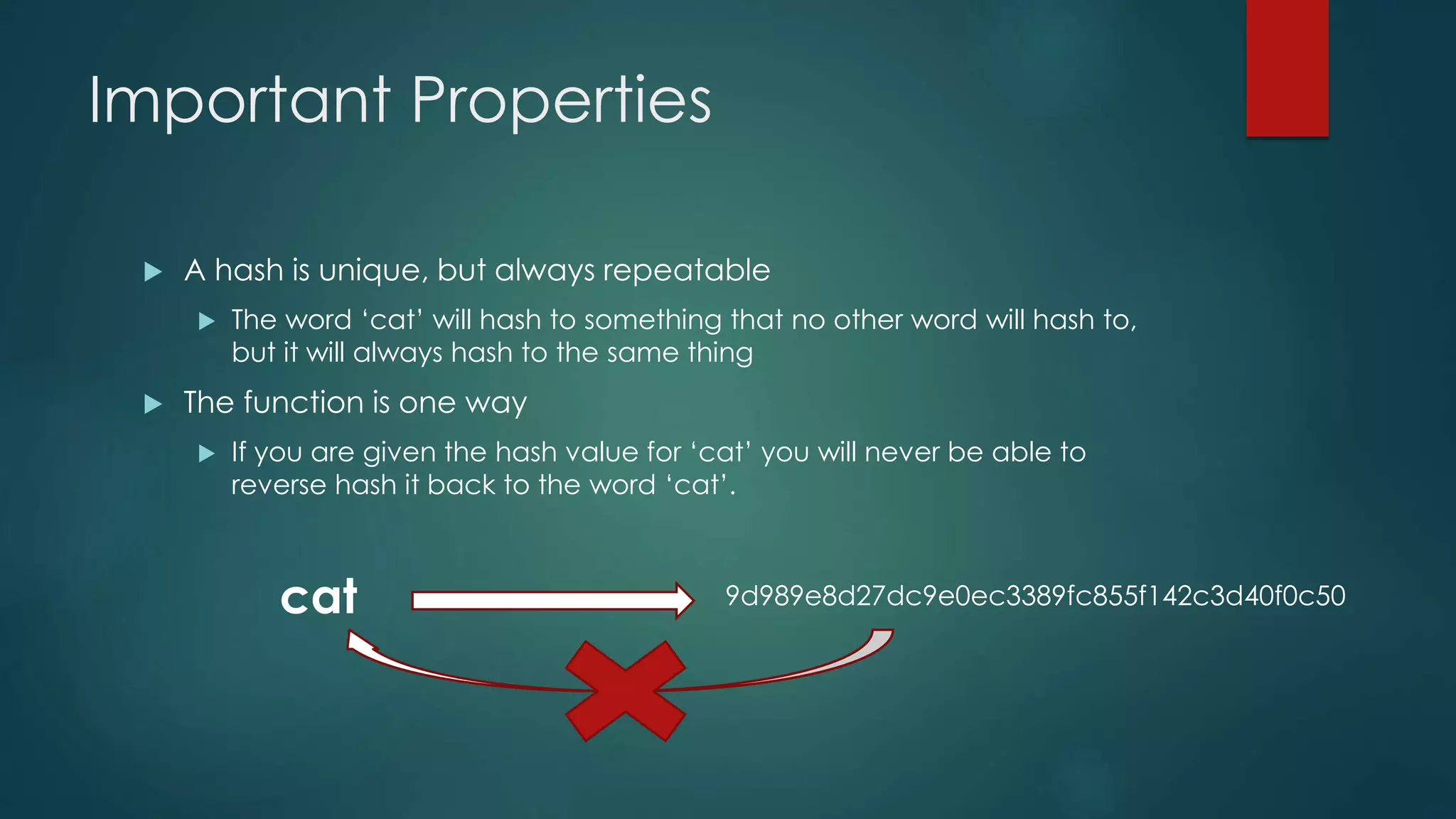

5. Important Properties
A hash is unique, but always repeatable
The word ‘cat’ will hash to something that no other word will hash to,
but it will always hash to the same thing
The function is one way
If you are given the hash value for ‘cat’ you will never be able to
reverse hash it back to the word ‘cat’.
cat 9d989e8d27dc9e0ec3389fc855f142c3d40f0c50

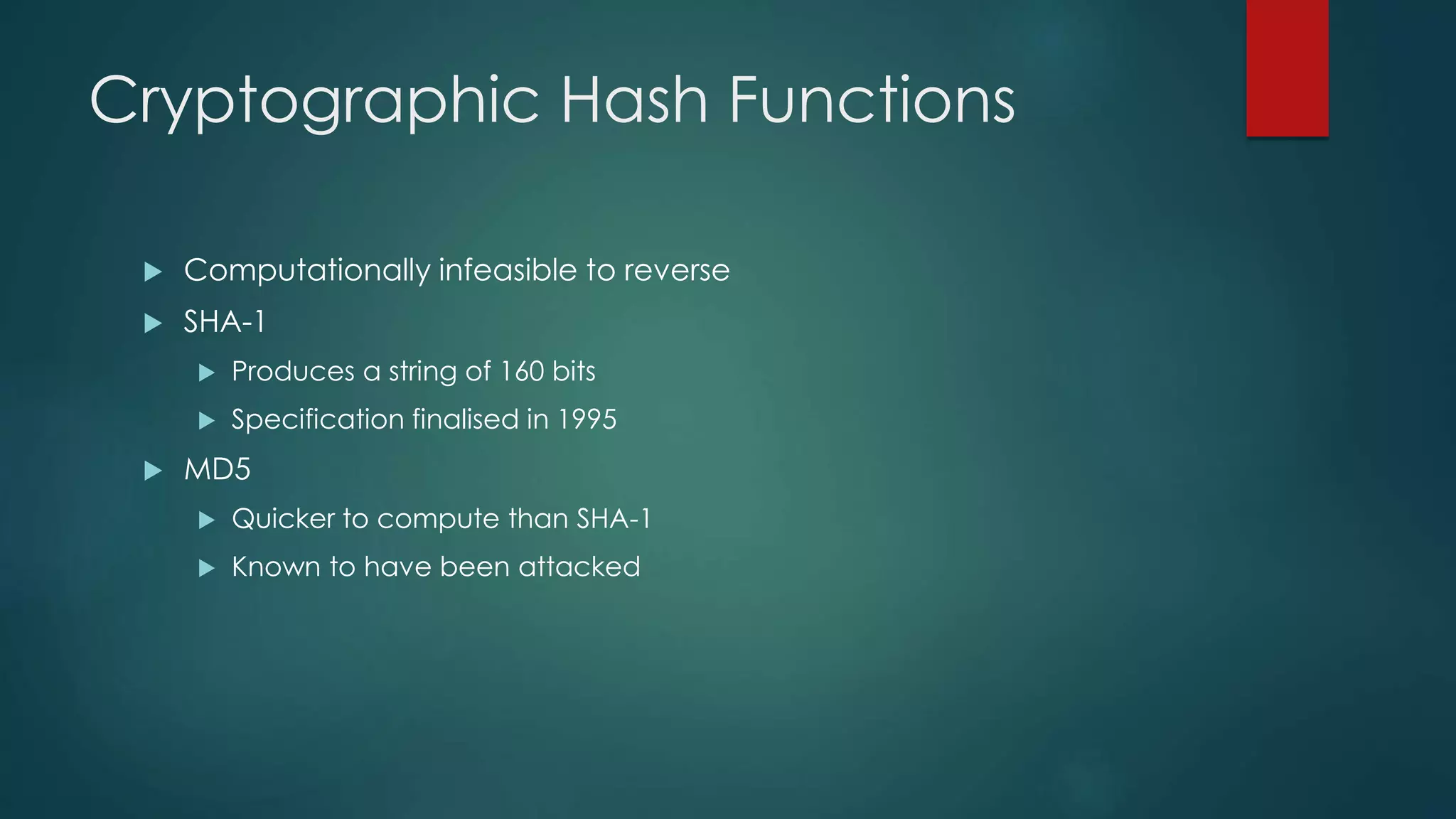

6. Cryptographic Hash Functions
Computationally infeasible to reverse
SHA-1
Produces a string of 160 bits
Specification finalised in 1995
MD5
Quicker to compute than SHA-1
Known to have been attacked

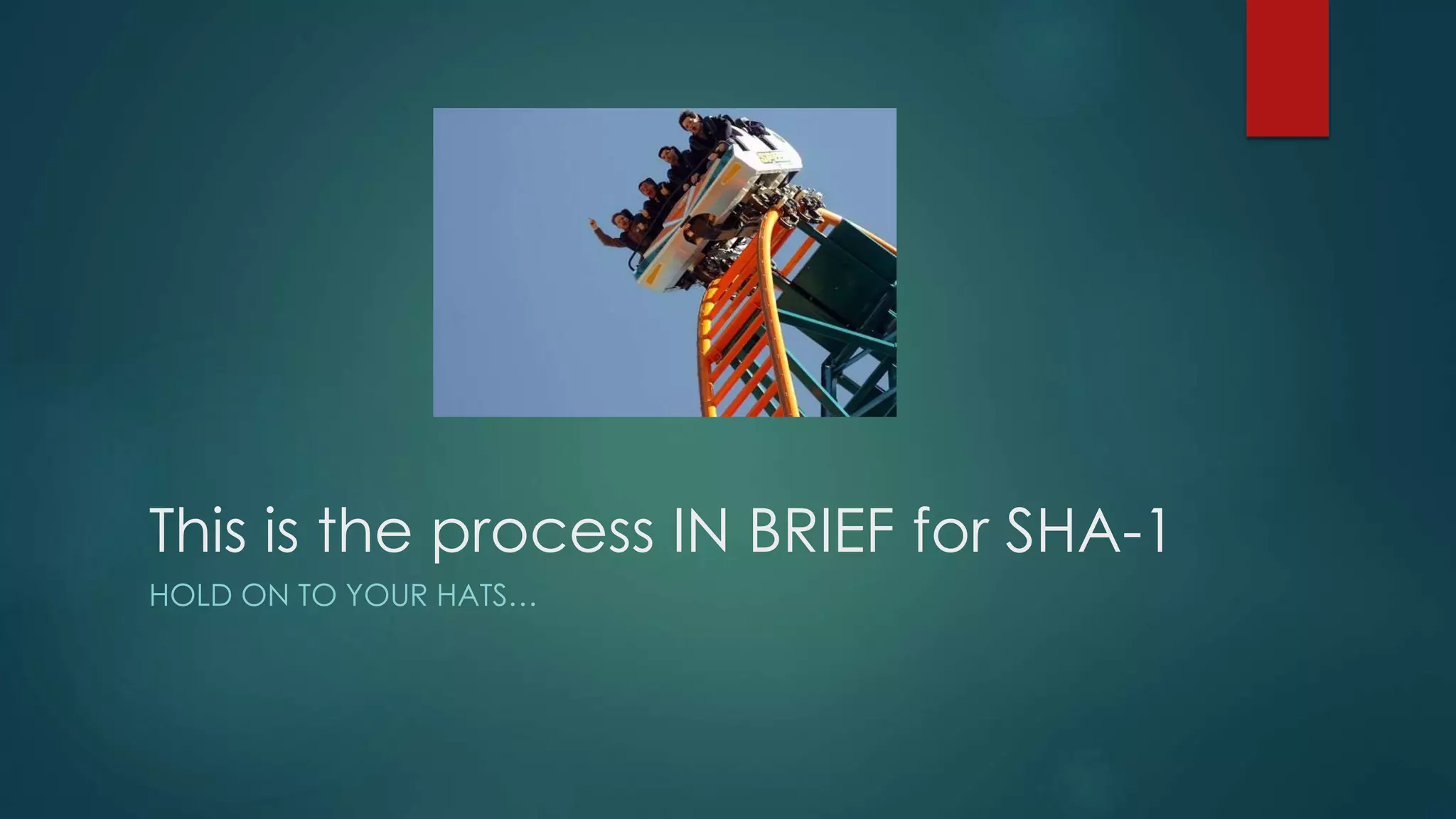

7. This is the process IN BRIEF for SHA-1
HOLD ON TO YOUR HATS…

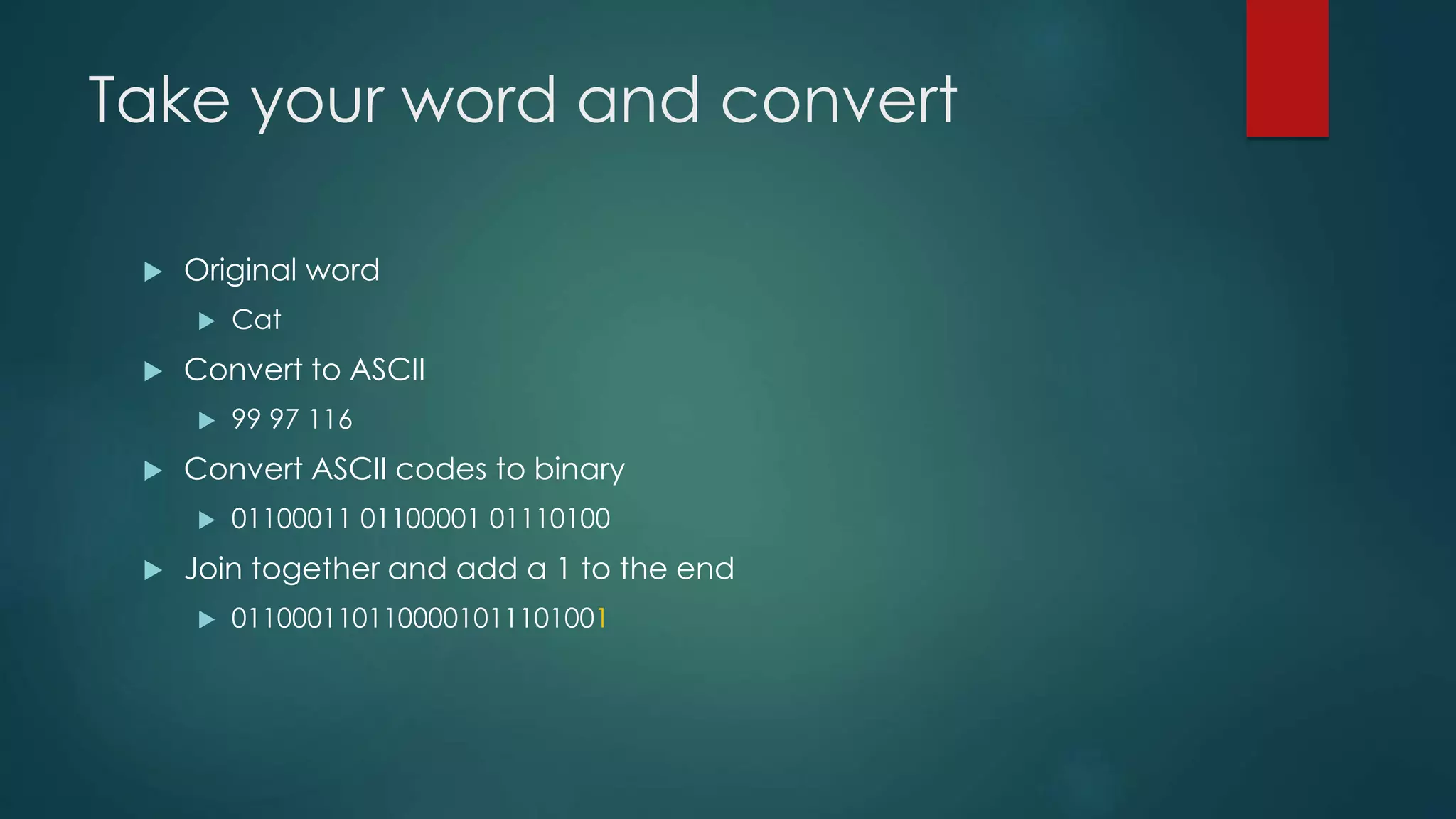

8. Take your word and convert
Original word
Cat
Convert to ASCII
99 97 116
Convert ASCII codes to binary
01100011 01100001 01110100
Join together and add a 1 to the end
0110001101100001011101001

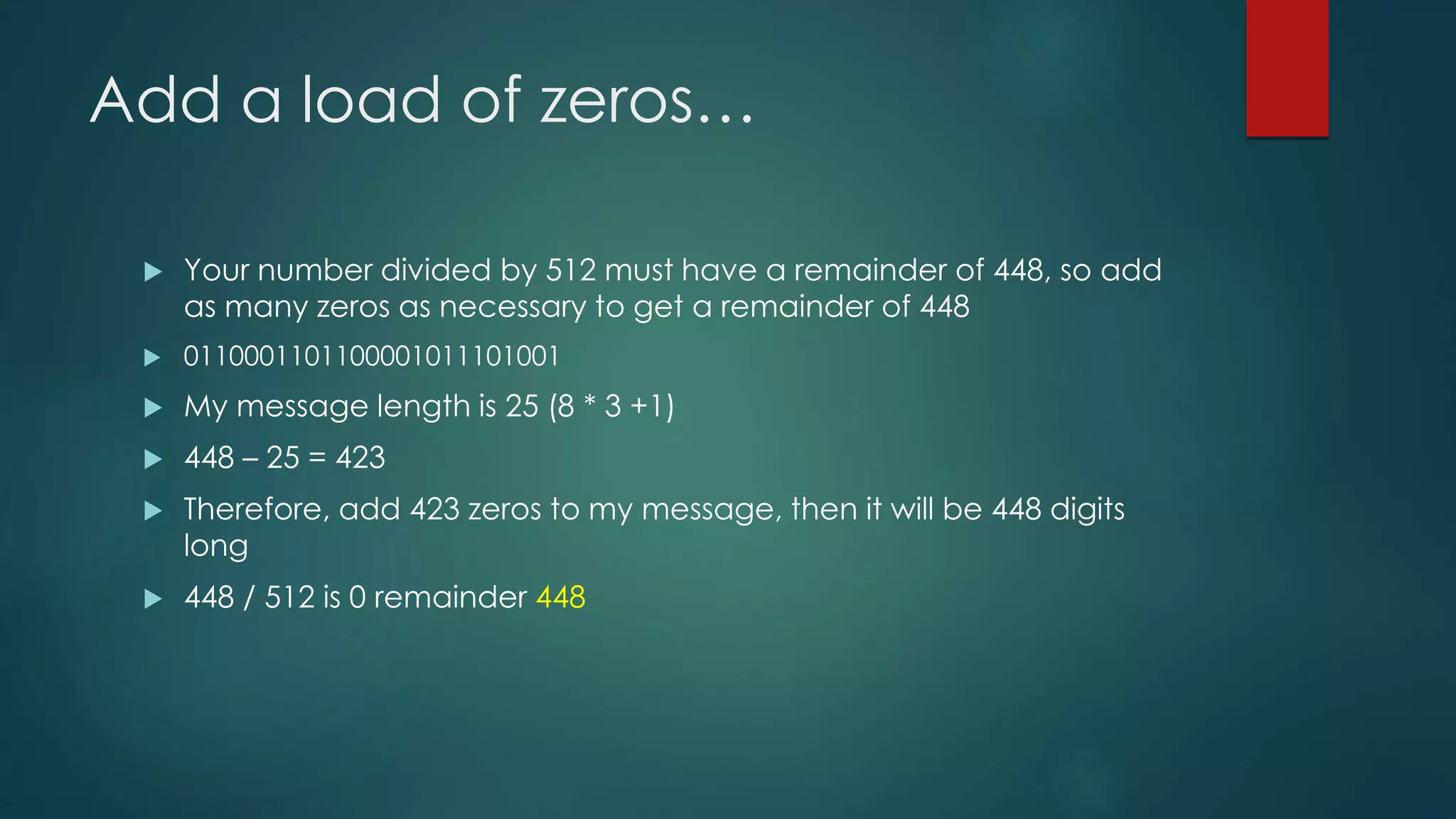

9. Add a load of zeros…
Your number divided by 512 must have a remainder of 448, so add
as many zeros as necessary to get a remainder of 448
0110001101100001011101001
My message length is 25 (8 * 3 +1)
448 – 25 = 423
Therefore, add 423 zeros to my message, then it will be 448 digits
long
448 / 512 is 0 remainder 448

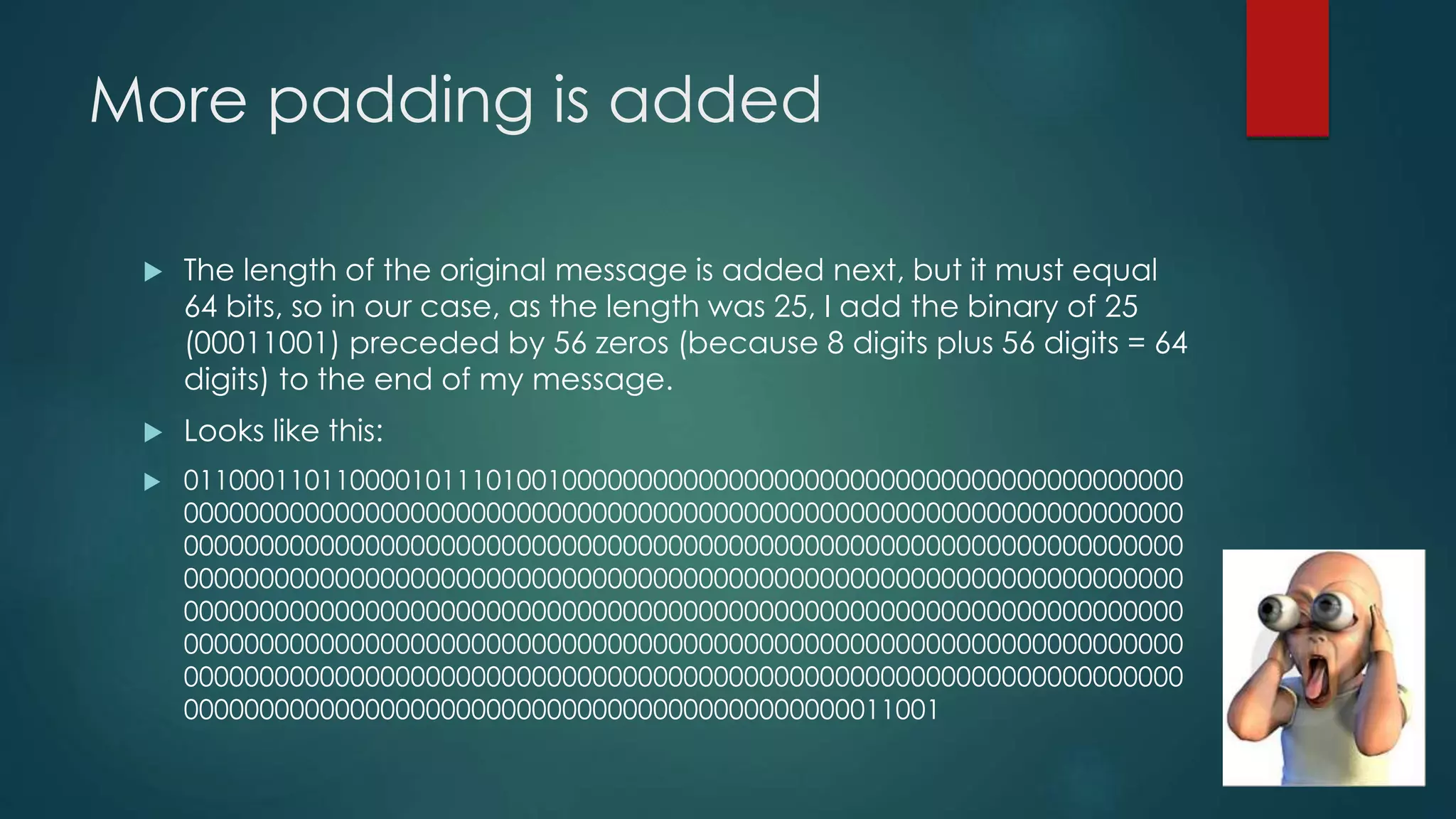

10. More padding is added
The length of the original message is added next, but it must equal
64 bits, so in our case, as the length was 25, I add the binary of 25
(00011001) preceded by 56 zeros (because 8 digits plus 56 digits = 64
digits) to the end of my message.
Looks like this:
011000110110000101110100100000000000000000000000000000000000000000
000000000000000000000000000000000000000000000000000000000000000000
000000000000000000000000000000000000000000000000000000000000000000
000000000000000000000000000000000000000000000000000000000000000000
000000000000000000000000000000000000000000000000000000000000000000
000000000000000000000000000000000000000000000000000000000000000000
000000000000000000000000000000000000000000000000000000000000000000
00000000000000000000000000000000000000000000011001

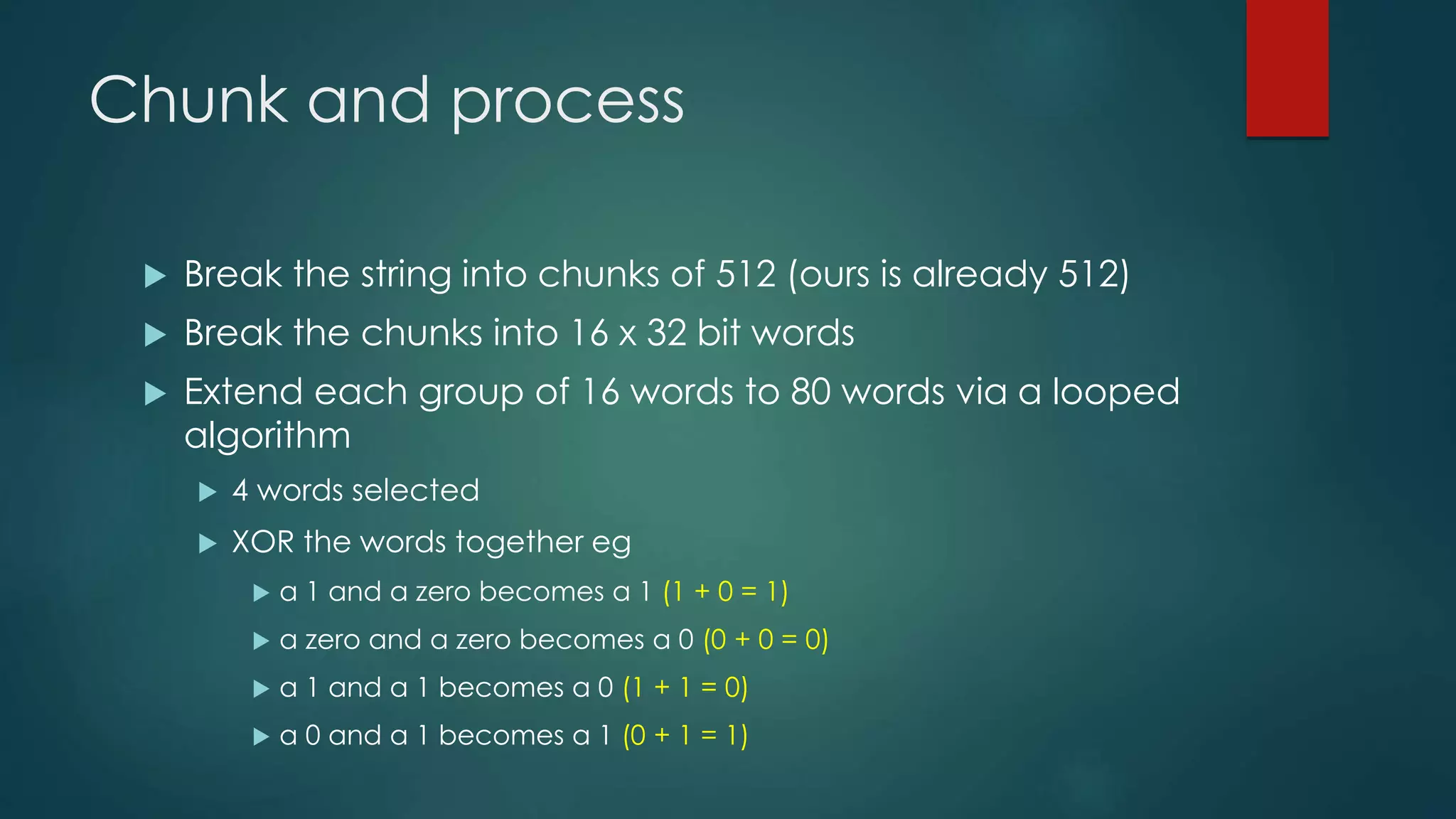

11. Chunk and process
Break the string into chunks of 512 (ours is already 512)
Break the chunks into 16 x 32 bit words
Extend each group of 16 words to 80 words via a looped
algorithm
4 words selected
XOR the words together eg
a 1 and a zero becomes a 1 (1 + 0 = 1)
a zero and a zero becomes a 0 (0 + 0 = 0)
a 1 and a 1 becomes a 0 (1 + 1 = 0)
a 0 and a 1 becomes a 1 (0 + 1 = 1)

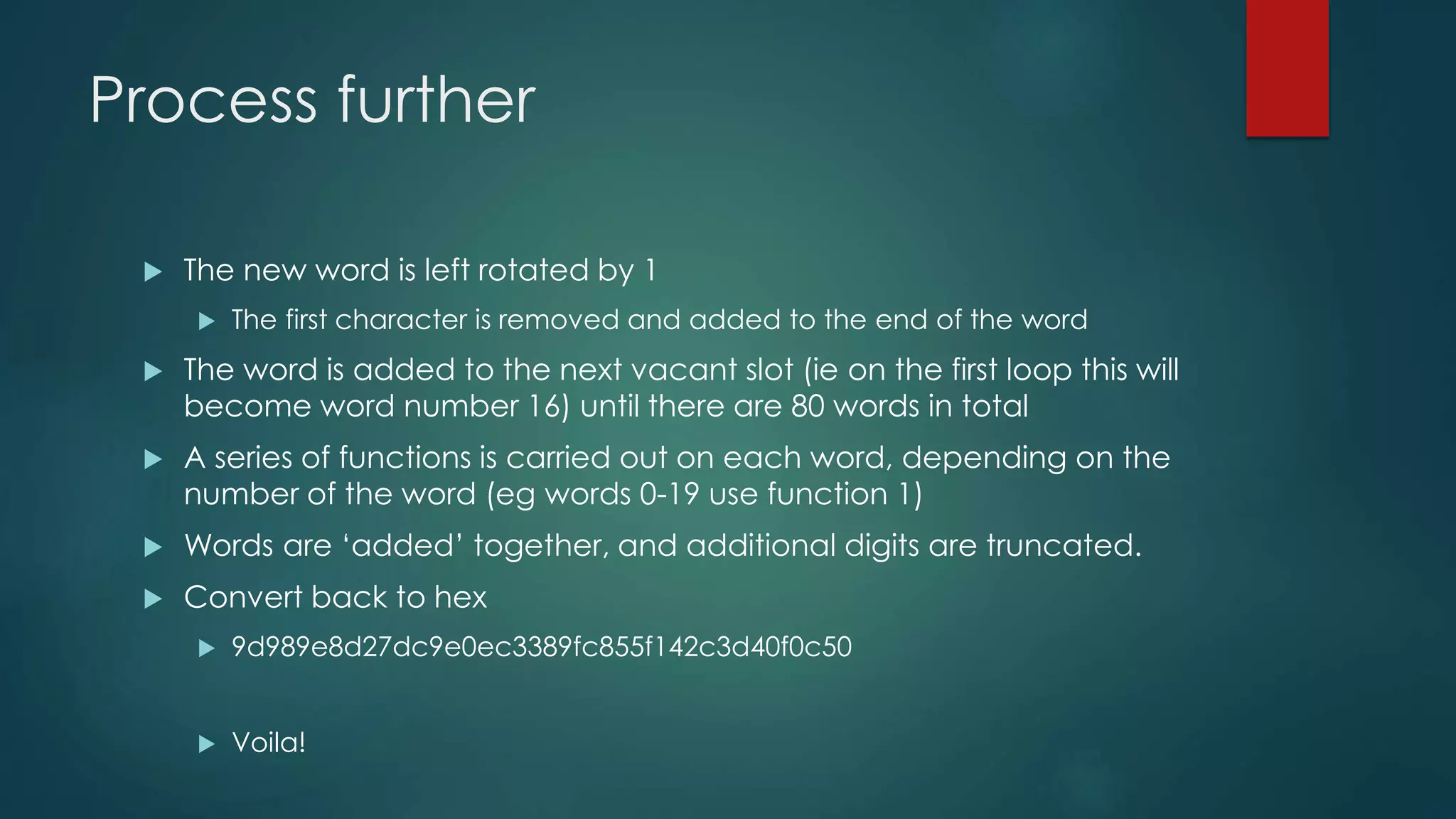

12. Process further
The new word is left rotated by 1
The first character is removed and added to the end of the word
The word is added to the next vacant slot (ie on the first loop this will
become word number 16) until there are 80 words in total
A series of functions is carried out on each word, depending on the
number of the word (eg words 0-19 use function 1)
Words are ‘added’ together, and additional digits are truncated.
Convert back to hex
9d989e8d27dc9e0ec3389fc855f142c3d40f0c50
Voila!

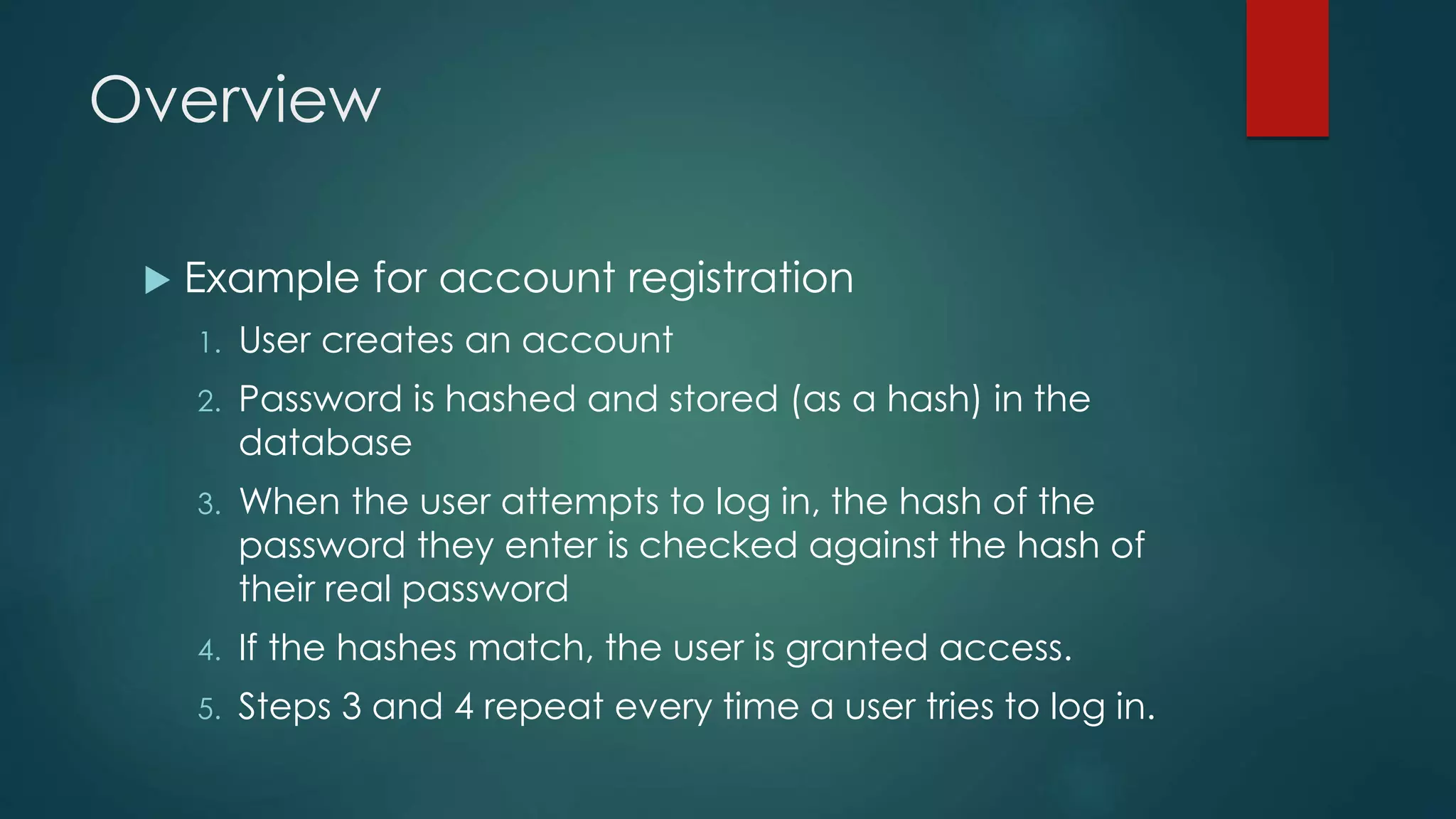

13. Overview
Example for account registration
1. User creates an account
2. Password is hashed and stored (as a hash) in the
database
3. When the user attempts to log in, the hash of the
password they enter is checked against the hash of
their real password
4. If the hashes match, the user is granted access.
5. Steps 3 and 4 repeat every time a user tries to log in.

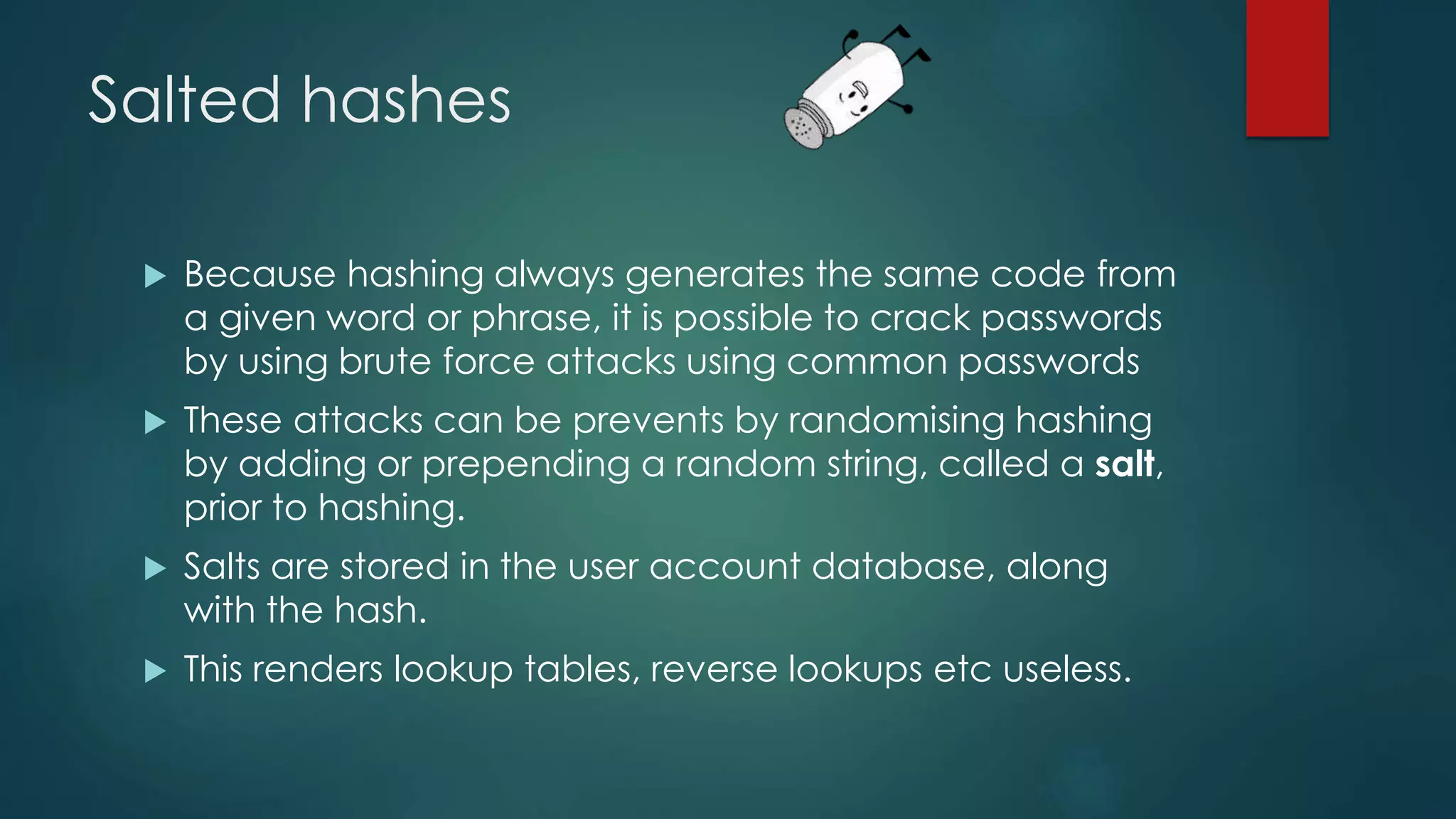

14. Salted hashes
Because hashing always generates the same code from
a given word or phrase, it is possible to crack passwords
by using brute force attacks using common passwords
These attacks can be prevents by randomising hashing
by adding or prepending a random string, called a salt,
prior to hashing.
Salts are stored in the user account database, along
with the hash.
This renders lookup tables, reverse lookups etc useless.

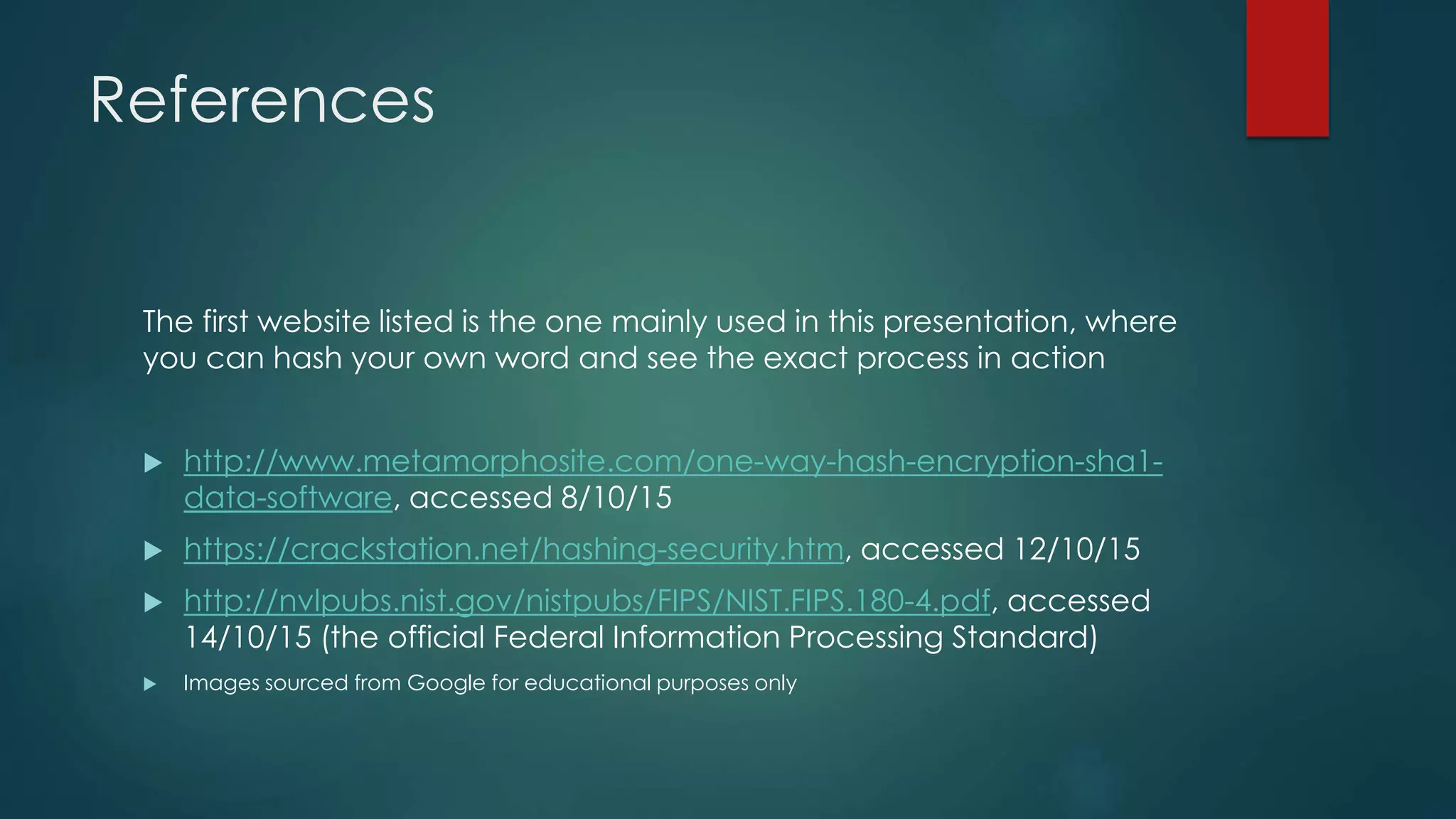

15. References
The first website listed is the one mainly used in this presentation, where
you can hash your own word and see the exact process in action
http://www.metamorphosite.com/one-way-hash-encryption-sha1-
data-software, accessed 8/10/15
https://crackstation.net/hashing-security.htm, accessed 12/10/15
http://nvlpubs.nist.gov/nistpubs/FIPS/NIST.FIPS.180-4.pdf, accessed
14/10/15 (the official Federal Information Processing Standard)
Images sourced from Google for educational purposes only
Editor's Notes
Please note that some of the steps in this walkthrough are deliberately vague – the aim of this presentation is to give an overview into the process, rather than to provide explicit instructions on how to process a hash algorithm. The presentation is aimed at Level 4 / Level 5 Foundation Degree students. References to websites consulted are provided at the end.
