Hands On Approach To Networking

Hands-on Approach to Networking

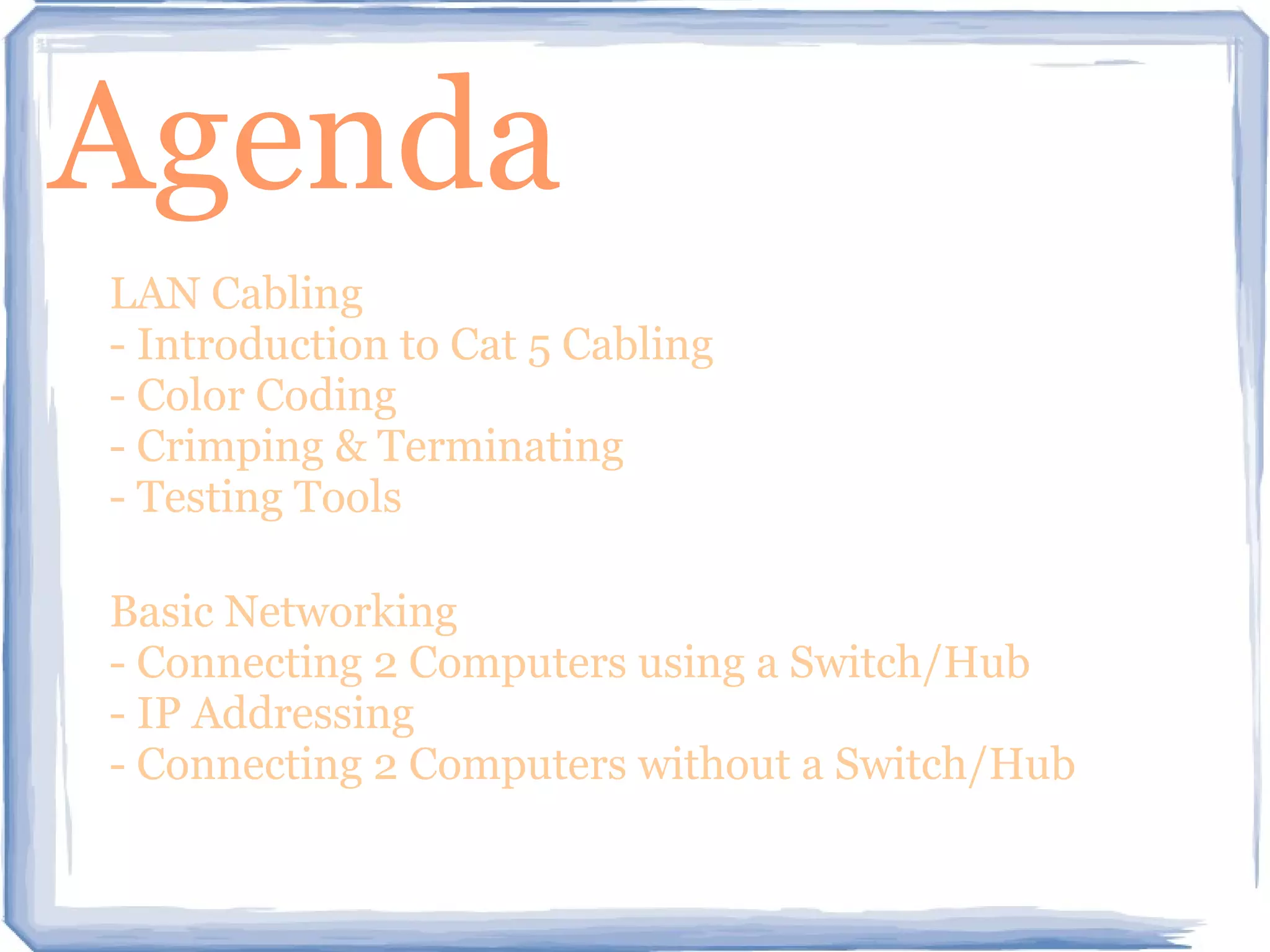

Agenda ,[object Object],[object Object]

Categories of UTP Cables ,[object Object],Category 1 ― the lowest quality, only good for voice, mainly found in very old buildings, not recommended now Category 2 ― good for voice and low data rates (up to 4Mbps for low-speed token ring networks) Category 3 ― at least 3 twists per foot, for up to 10 Mbps (common in phone networks in residential buildings) Category 4 ― up to 16 Mbps (mainly for token rings) Category 5 (or 5e ) ― up to 100 Mbps (common for networks targeted for high-speed data communications) Category 6 ― more twists than Cat 5, up to 1 Gbps

Testing Tools-FLUKE CableIQ™ Qualification Tester sting Tools

Connecting 2 Computers using A Switch/Hub

IP Addressing IANA Reserved Private Network Ranges Start of range End of range Total addresses 24-bit Block (/8 prefix, 1 x A) 10.0.0.0 10.255.255.255 16,777,216 20-bit Block (/12 prefix, 16 x B) 172.16.0.0 172.31.255.255 1,048,576 16-bit Block (/16 prefix, 256 x C) 192.168.0.0 192.168.255.255 65,536

Connecting 2 Computers without a Switch/Hub

Thank you Sohan de Silva [email_address]
