Presentation GS-4112, Mantle: Empowering 3D Graphics Innovation, by Guennadi Riguer and Brian Bennett, at the AMD Developer Summit (APU13) November 11-13, 2013.

1. MANTLE: EMPOWERING 3D GRAPHICS
INNOVATION
GUENNADI RIGUER – MANTLE CHIEF ARCHITECT
BRIAN BENNETT – MANTLE ARCHITECT

2. What Is Mantle?
Mantle is innovation
Just the right abstraction level
Feature set for modern GPUs
2 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

3. Why Mantle?
Developers want it
Performance and control
Excitement and innovation
3 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

4. Mantle isn’t for Everyone
Do you care about performance?
Do you want control?
Do you care about bridging multiple platforms?
4 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

5. Solutions for Performance
Designed for GPU efficiency
Unlocking new performance features
“Small batch” problem is history
5 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

6. “Small batch” Today
3-5K
6 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

7. Amazing Developers
3-5K
7 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL
10K

8. Mantle Target
100K
10K
8 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

9. Current Issues
API overhead
Lack of proper threading
Memory management
Lack of direct GPU control
9 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

10. Design Philosophy
Performance
Simplicity
10 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL
Features

11. API Design Fundamentals
Pre-build and reuse data
Control memory management
Control command generation and execution
Application controls rendering
11 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

12. Putting Developer in the Driver Seat
12 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

13. Image courtesy of Brian Bennett
… or in the Driver Developer Seat 
13 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

14. Mantle Core
Features

15. Execution Model
Graphics
Compute
DMA
...
GPU
15 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

16. Execution Model
Graphics
Compute
DMA
...
Queues
16 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL
GPU

17. Execution Model
App thread
App thread
Graphics
App thread
Compute
App thread
DMA
...
App thread
Queues
Application
17 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL
GPU

18. Decoupled GPU Memory
Other APIs
Mantle
Memory
Memory
State
State
API object
API object
18 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

19. Memory Management
Application controls memory
… both GPU and CPU
Leverages GPU Memory Virtualization
Much more general than other APIs
19 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

20. GPU Page Table Remapping
GPU Virtual Address space
Page N
“Virtual”
allocation
“Real”
allocation
Page 1
Page 0
20 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL
Remapping table

21. Monolithic Pipelines
Pipeline state
DB
IA
VS
HS
DS
GS
RS
PS
CB
Tessellator
Index Data
Resources
Dynamic state
Graphics pipeline example
21 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL
Targets

22. Generalized Resources
Other APIs
Index buffers
Vertex buffers
Constant buffers
Staging resources
Textures
Texture Arrays
UAVs
...
22 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL
Mantle
Memory
Images

23. New Binding Model
Pipeline
Memory
Memory
Best of traditional and bindless paradigms
23 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

24. Resource Preparation
Application manages resource/memory state
Application manages hazards (e.g. RAW, WAW)
Represents translation of usage model
24 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

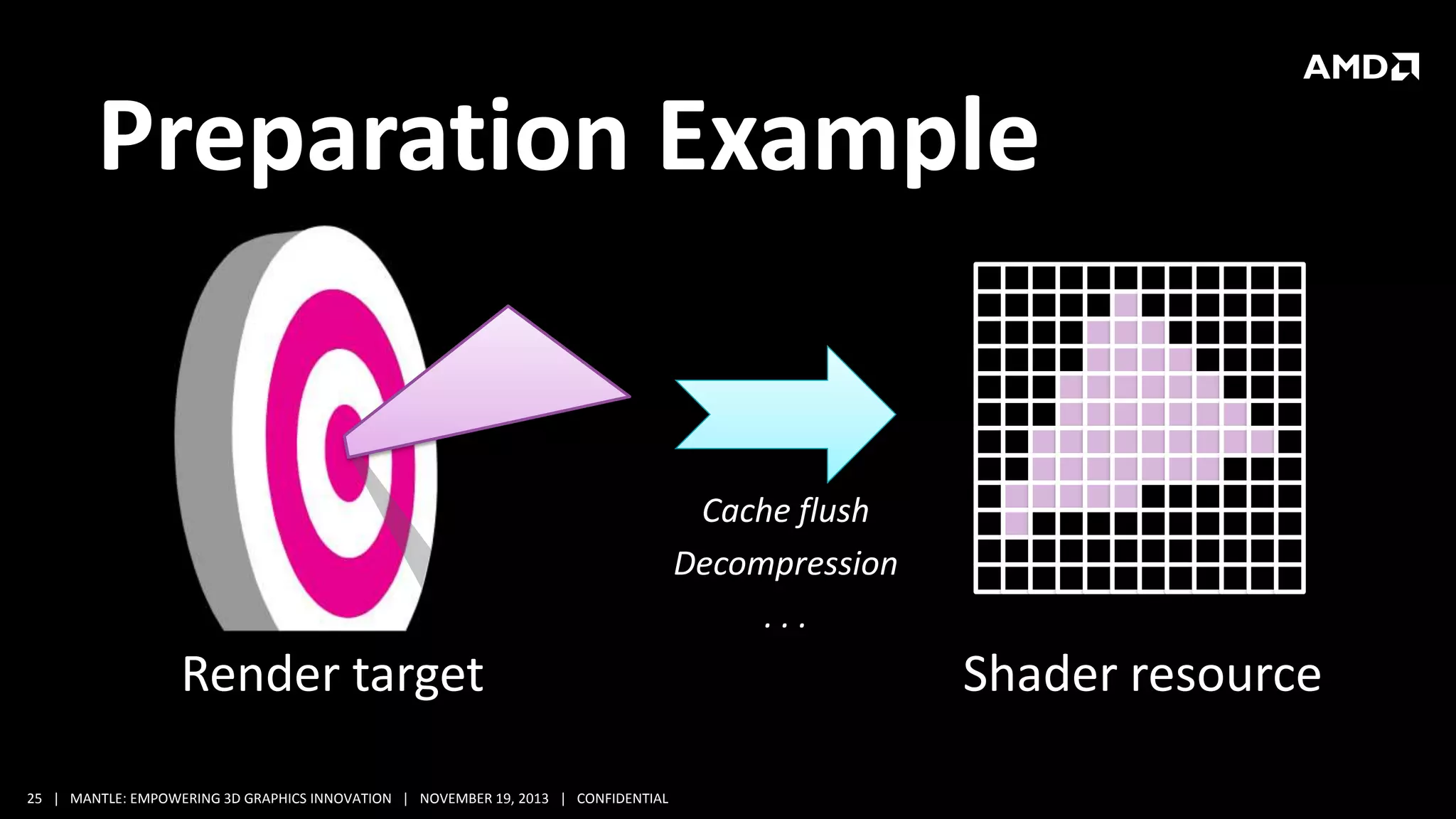

25. Preparation Example
Cache flush
Decompression
...
Render target
25 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL
Shader resource

26. … and Much More
Pipeline
serialization
Advanced MSAA
features
26 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL
Advanced
control flow

27. Wait,
There Is
More…

28. Multi-device
App thread
App thread
Graphics
App thread
Compute
App thread
DMA
App thread
...
Application
28 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL
GPU

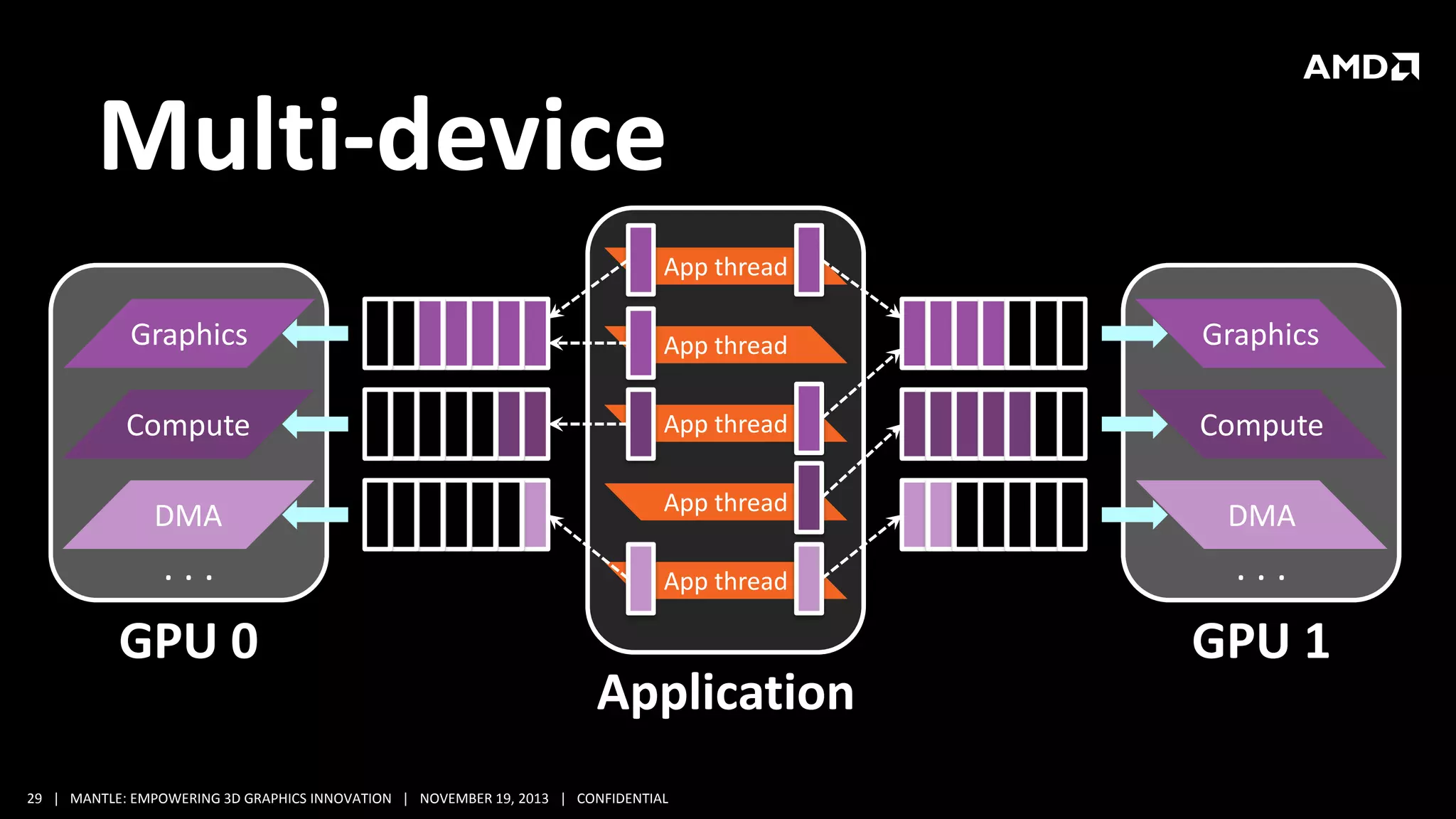

29. Multi-device
App thread
Graphics
App thread
Graphics
Compute
App thread
Compute
DMA
App thread
DMA
...
App thread
...
GPU 0
Application
29 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL
GPU 1

30. CrossFire Unleashed
Going beyond AFR rendering
Flexible workload scaling and partitioning
Asymmetric configurations (APU+dGPU)
Unlocking novel usage scenarios
30 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

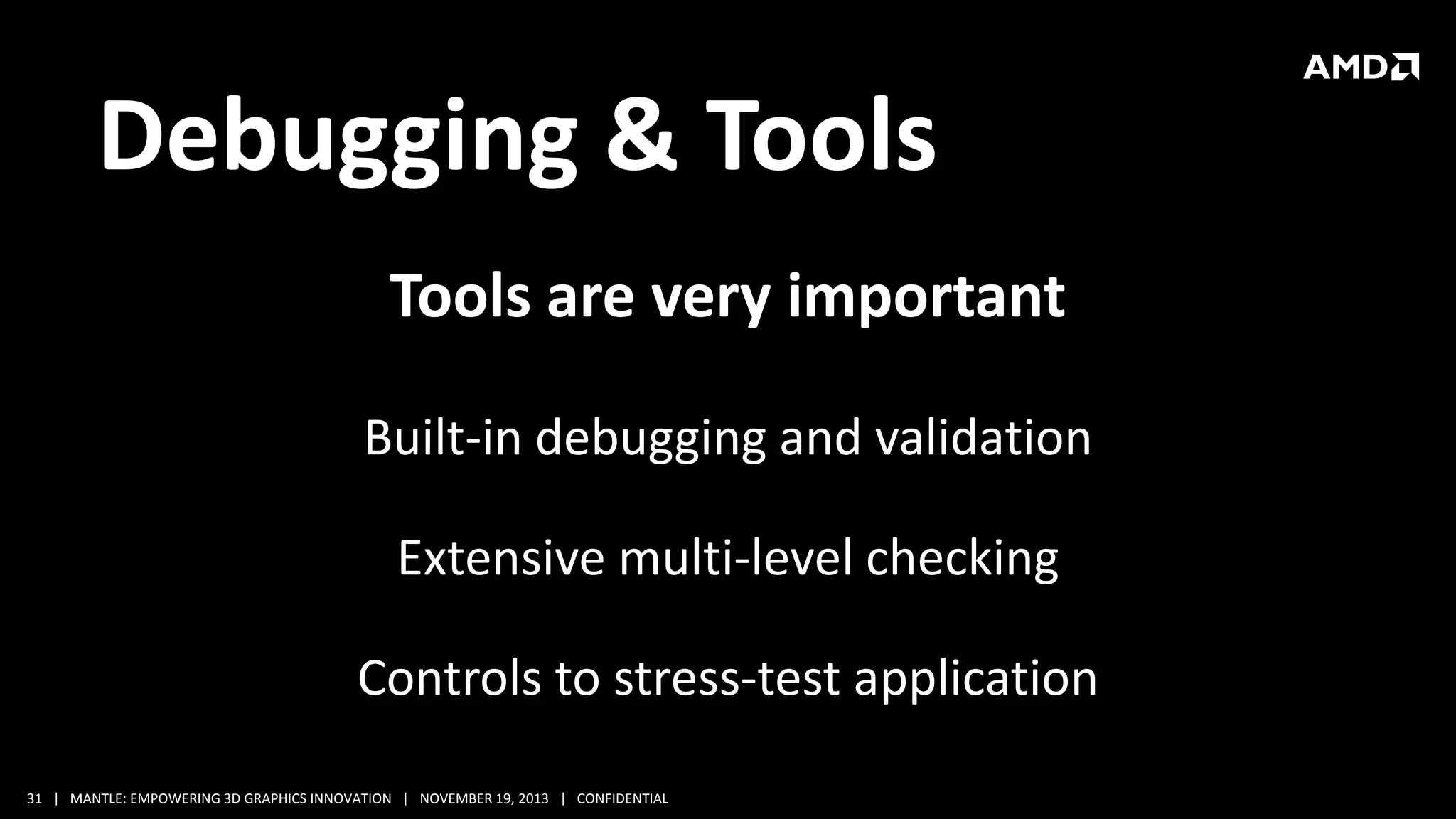

31. Debugging & Tools
Tools are very important
Built-in debugging and validation
Extensive multi-level checking
Controls to stress-test application
31 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

32. Summary of Benefits
Empowering lower spec systems
More predictable performance and behavior
Sharing PC optimizations with next gen consoles
Opportunity for novel techniques
32 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

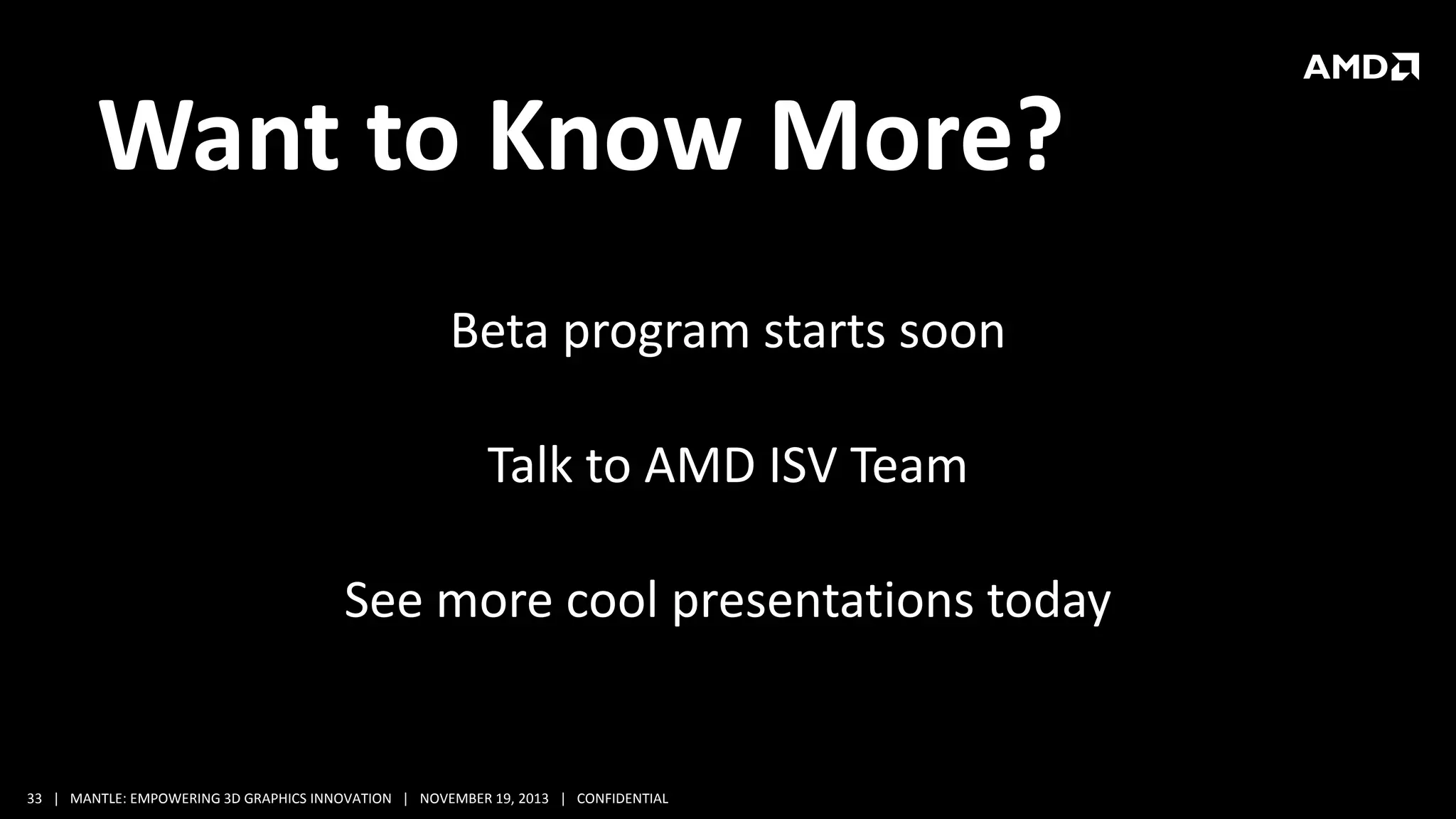

33. Want to Know More?
Beta program starts soon
Talk to AMD ISV Team
See more cool presentations today
33 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

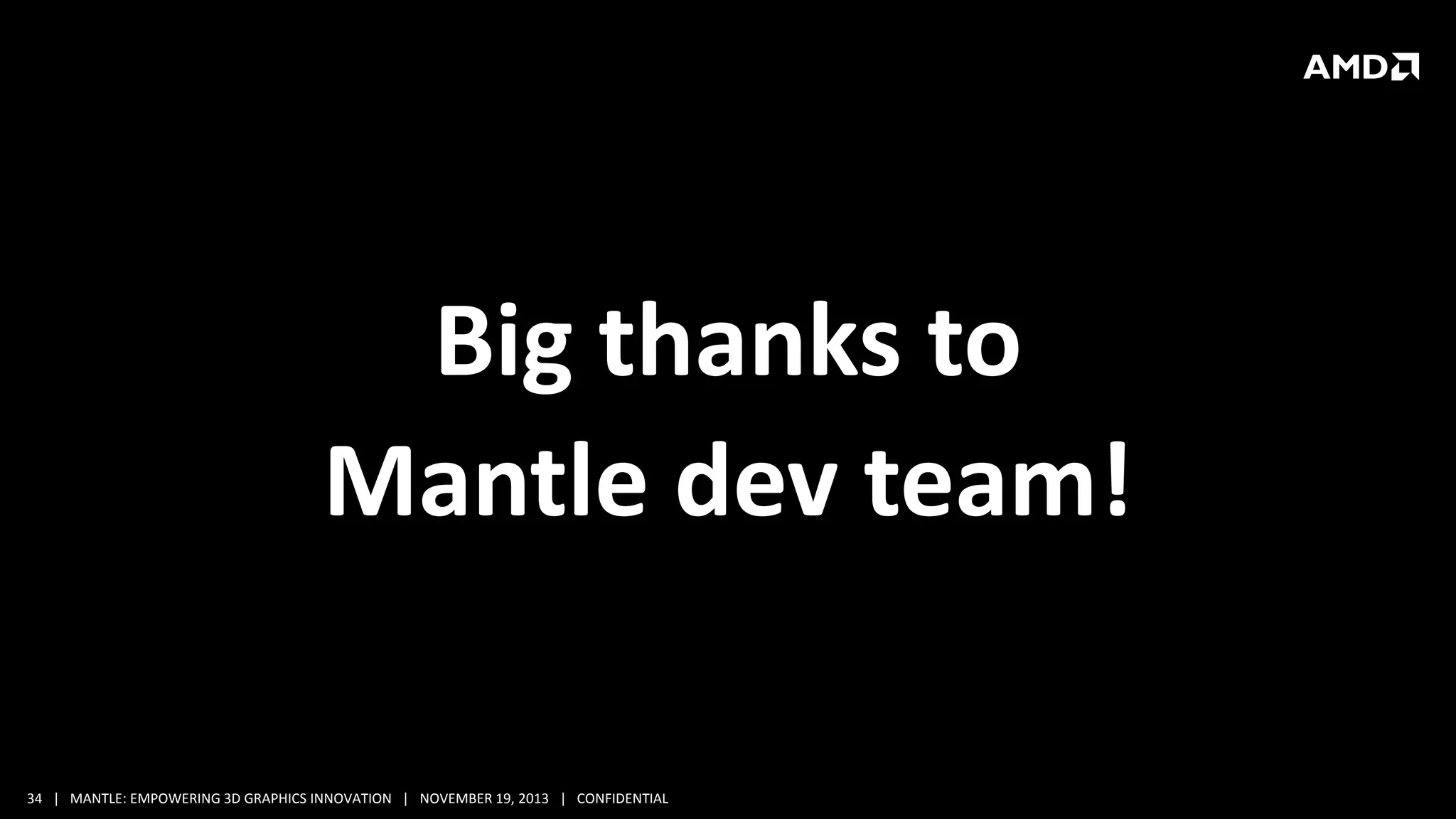

34. Big thanks to
Mantle dev team!
34 | MANTLE: EMPOWERING 3D GRAPHICS INNOVATION | NOVEMBER 19, 2013 | CONFIDENTIAL

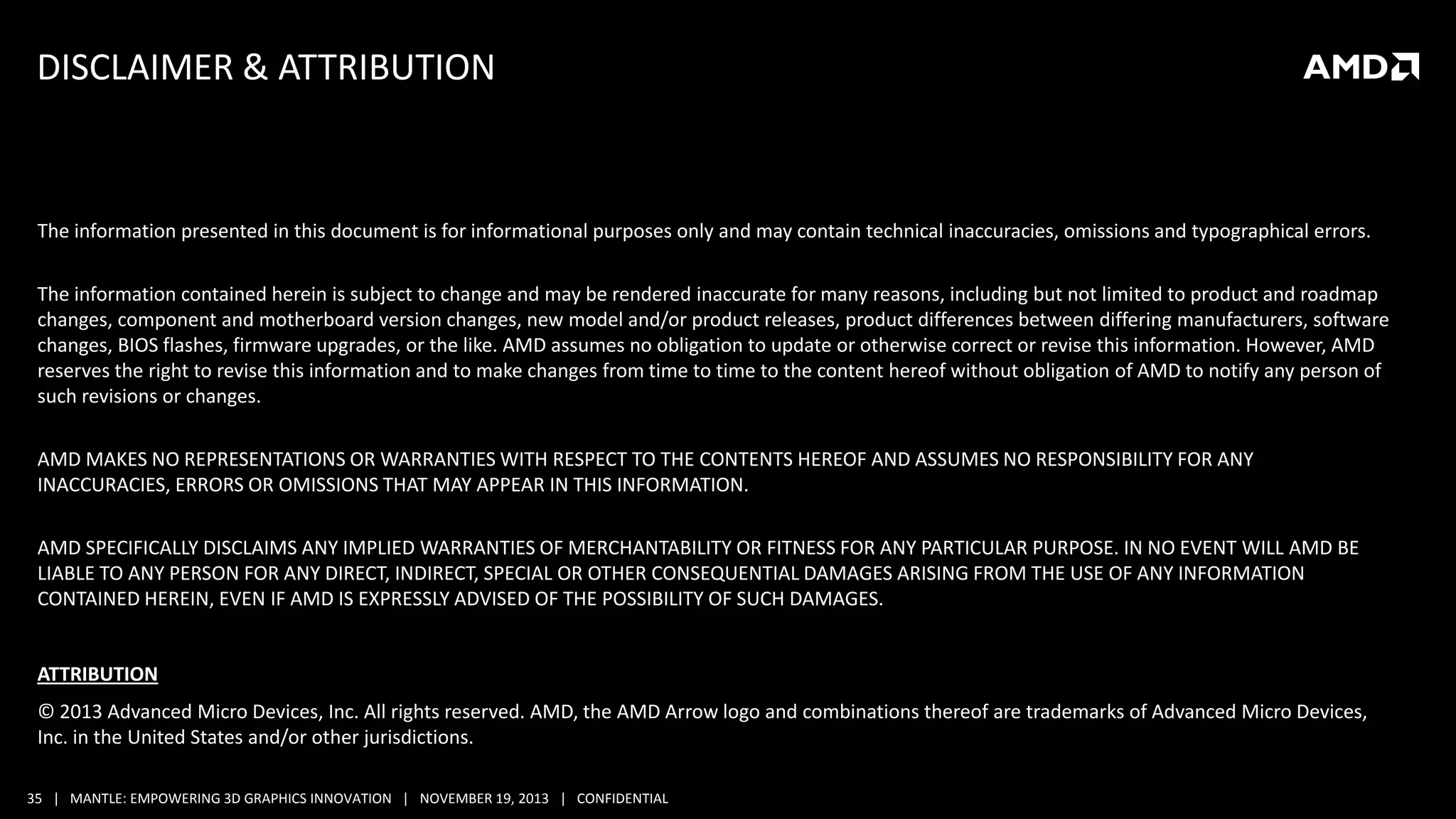

35. DISCLAIMER & ATTRIBUTION
