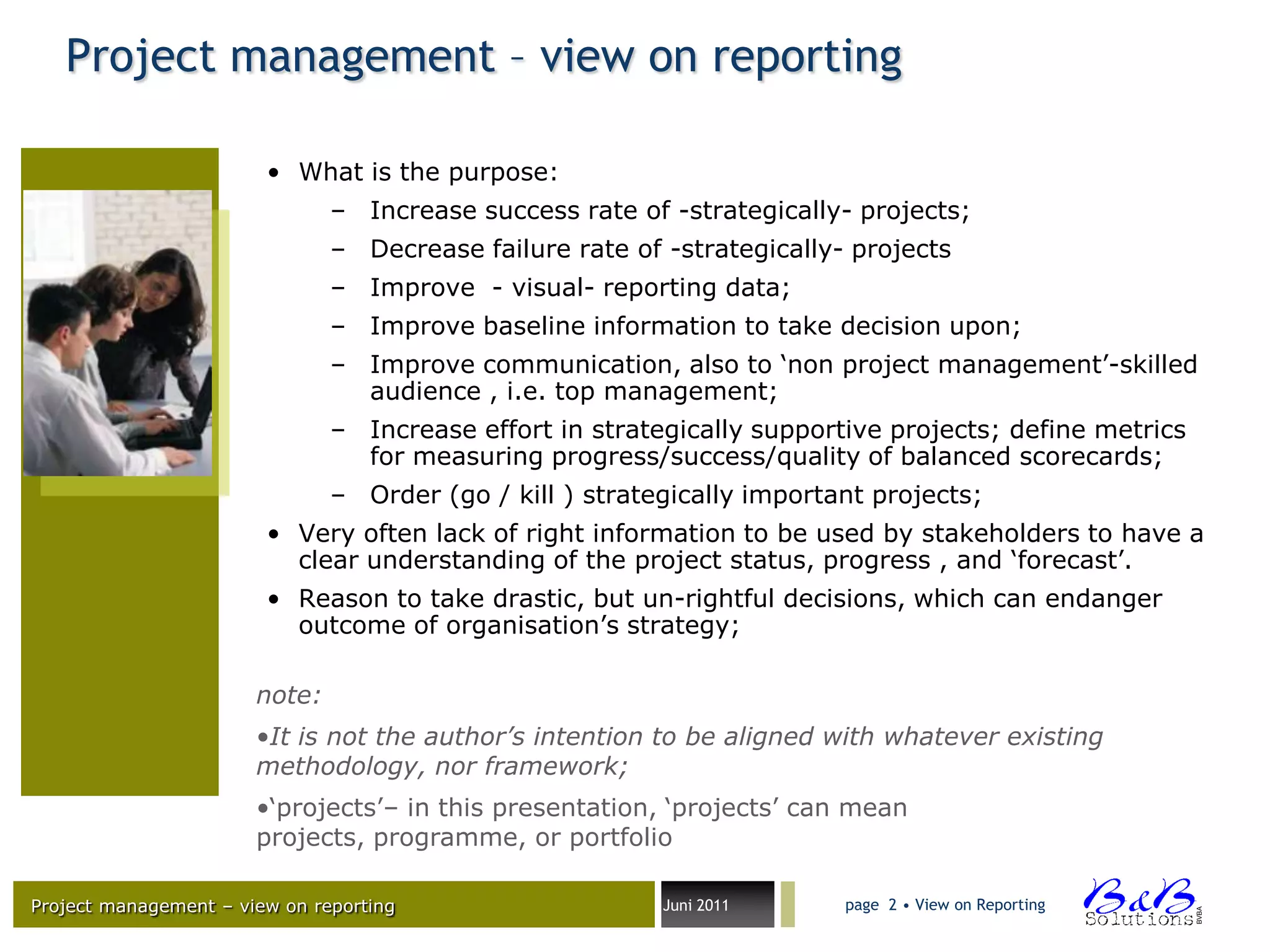

Project management – view on reporting

• What is the purpose:
– Increase success rate of -strategically- projects;
– Decrease failure rate of -strategically- projects
– Improve - visual- reporting data;
– Improve baseline information to take decision upon;
– Improve communication, also to „non project management‟-skilled
audience , i.e. top management;
– Increase effort in strategically supportive projects; define metrics
for measuring progress/success/quality of balanced scorecards;
– Order (go / kill ) strategically important projects;
• Very often lack of right information to be used by stakeholders to have a
clear understanding of the project status, progress , and „forecast‟.
• Reason to take drastic, but un-rightful decisions, which can endanger
outcome of organisation‟s strategy;

note:
•It is not the author’s intention to be aligned with whatever existing
methodology, nor framework;
•„projects‟– in this presentation, „projects‟ can mean
projects, programme, or portfolio

Project management – view on reporting Juni 2011 page 2 • View on Reporting

BVBA

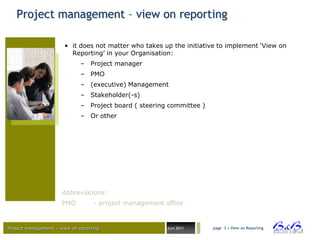

• it does not matter who takes up the initiative to implement „View on
Reporting‟ in your Organisation:
– Project manager
– PMO
– (executive) Management
– Stakeholder(-s)
– Project board ( steering committee )
– Or other

Abbreviations:
PMO - project management office


BVBA


• Remarkable observations (after + 20 years of professional project
experiences):
– Quality of project planning is very poor.
– Project planning is a specialty!
– Reporting and PM-„understanding‟ is very poor;
– Risk management:
• less loss of effort;
• Less loss of time;
• Less loss of money;
• Less loss of missed deadlines;
• Less loss of window opportunities;
• Improve awareness of ECV of project;
– Aligning (more) all initiatives (programmes, projects):
• Compose a roadmap with all required investment data

Abbreviations:
ECV - expected commercial value


BVBA

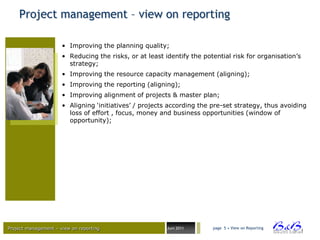

• Improving the planning quality;
• Reducing the risks, or at least identify the potential risk for organisation‟s
strategy;
• Improving the resource capacity management (aligning);
• Improving the reporting (aligning);
• Improving alignment of projects & master plan;
• Aligning „initiatives‟ / projects according the pre-set strategy, thus avoiding
loss of effort , focus, money and business opportunities (window of
opportunity);


BVBA


• Inform all stakeholders (e.g. operations, management, team leads, pm‟s,
business, PMO,…);
• Obtain better mutual understanding of „needs‟:
– business leads the projects, IT is a service provider!;
• Planning:
– approach & policy;
– naming conventions, other;
– capacity (specialised staff)
– quality;
– tool;
• Project process flow
– use of PM-tool, or „manual‟- processes?;
• Information / instructions:
– written instructions, information, education;
• And lots of “Good-willing”.


BVBA

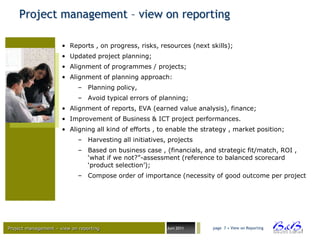

• Reports , on progress, risks, resources (next skills);
• Updated project planning;
• Alignment of programmes / projects;
• Alignment of planning approach:
– Planning policy,
– Avoid typical errors of planning;
• Alignment of reports, EVA (earned value analysis), finance;
• Improvement of Business & ICT project performances.
• Aligning all kind of efforts , to enable the strategy , market position;
– Harvesting all initiatives, projects
– Based on business case , (financials, and strategic fit/match, ROI ,
„what if we not?”-assessment (reference to balanced scorecard
„product selection‟);
– Compose order of importance (necessity of good outcome per project


BVBA

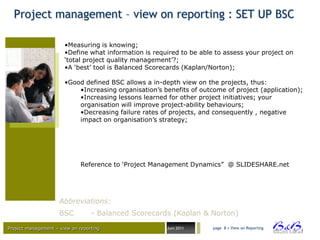

Project management – view on reporting : SET UP BSC

•Measuring is knowing;
•Define what information is required to be able to assess your project on
„total project quality management‟?;
•A „best‟ tool is Balanced Scorecards (Kaplan/Norton);

•Good defined BSC allows a in-depth view on the projects, thus:
•Increasing organisation‟s benefits of outcome of project (application);
•Increasing lessons learned for other project initiatives; your
organisation will improve project-ability behaviours;
•Decreasing failure rates of projects, and consequently , negative
impact on organisation‟s strategy;

Reference to „Project Management Dynamics” @ SLIDESHARE.net

Abbreviations:
BSC - Balanced Scorecards (Kaplan & Norton)


BVBA

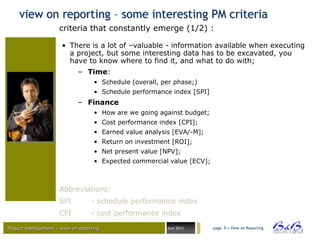

view on reporting – some interesting PM criteria
criteria that constantly emerge (1/2) :

• There is a lot of –valuable - information available when executing
a project, but some interesting data has to be excavated, you
have to know where to find it, and what to do with;
– Time:
• Schedule (overall, per phase;)
• Schedule performance index [SPI]
– Finance
• How are we going against budget;
• Cost performance index [CPI];
• Earned value analysis [EVA/-M];
• Return on investment [ROI];
• Net present value [NPV];
• Expected commercial value [ECV];

Abbreviations:
SPI - schedule performance index
CPI - cost performance index


BVBA

view on reporting – some interesting PM criteria
criteria that constantly emerge (2/2) :

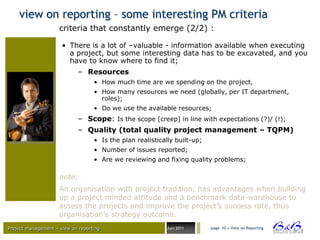

• There is a lot of –valuable - information available when executing
a project, but some interesting data has to be excavated, and you
have to know where to find it;
– Resources
• How much time are we spending on the project,
• How many resources we need (globally, per IT department,
roles);
• Do we use the available resources;
– Scope: Is the scope [creep] in line with expectations (?)/ (!);
– Quality (total quality project management – TQPM)
• Is the plan realistically built-up;
• Number of issues reported;
• Are we reviewing and fixing quality problems;

note:
An organisation with project tradition, has advantages when building
up a project minded attitude and a benchmark data-warehouse to
assess the projects and improve the project‟s success rate, thus
organisation‟s strategy outcome.

BVBA

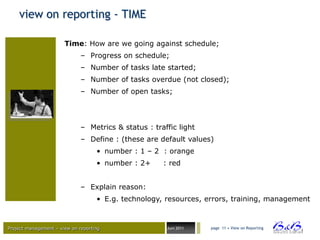

view on reporting - TIME

Time: How are we going against schedule;
– Progress on schedule;
– Number of tasks late started;
– Number of tasks overdue (not closed);
– Number of open tasks;

– Metrics & status : traffic light
– Define : (these are default values)
• number : 1 – 2 : orange
• number : 2+ : red

– Explain reason:
• E.g. technology, resources, errors, training, management


BVBA

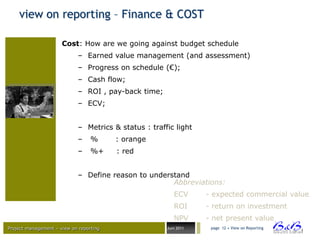

view on reporting – Finance & COST

Cost: How are we going against budget schedule
– Earned value management (and assessment)
– Progress on schedule (€);
– Cash flow;
– ROI , pay-back time;
– ECV;

– Metrics & status : traffic light
– % : orange
– %+ : red

– Define reason to understand
Abbreviations:
ECV - expected commercial value
ROI - return on investment
NPV - net present value

BVBA

view on reporting – SCHEDULE : SPI
“How is schedule against schedule”

• Indication for quality of
schedule / planning
delta CPI %
CPI & SPI
delta SPI %
10
SPI = BCWP / BCWS
5

• Metrics & status :

variance CPI
0
-25 -15 -5 5 15 25
SPI value should be 1 -5
SPI <1 means project is behind
schedule -10

-15
variance SPI
index of 1.0 or greater is on/above target and considered satisfactory

• Define reason (e.g. over-/
Note:
under-estimated tasks, wrong
schedule techniques, Figure is a combined graphic, both CPI and SPI

Abbreviations:
SPI - schedule performance index
BCWP - budgeted cost of work performed
BCWS - budgeted cost of work scheduled

BVBA

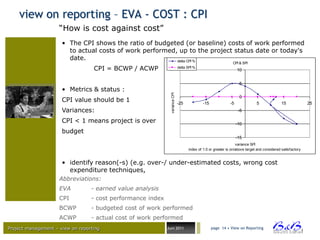

view on reporting – EVA - COST : CPI
“How is cost against cost”
• The CPI shows the ratio of budgeted (or baseline) costs of work performed
to actual costs of work performed, up to the project status date or today's
date. delta CPI %
CPI & SPI
CPI = BCWP / ACWP delta SPI %
10

5

variance CPI
0
CPI value should be 1 -25 -15 -5 5 15 25
Variances: -5

CPI < 1 means project is over -10
budget
-15
variance SPI

• identify reason(-s) (e.g. over-/ under-estimated costs, wrong cost
expenditure techniques,
Abbreviations:
EVA - earned value analysis
CPI - cost performance index
ACWP - actual cost of work performed

BVBA

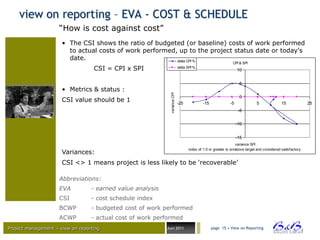

view on reporting – EVA - COST & SCHEDULE
“How is cost against cost”
• The CSI shows the ratio of budgeted (or baseline) costs of work performed
to actual costs of work performed, up to the project status date or today's
date. delta CPI %
CPI & SPI
CSI = CPI x SPI delta SPI %
10

5

variance CPI
0
CSI value should be 1 -25 -15 -5 5 15 25
-5

-10

-15
variance SPI

Variances:

CSI <> 1 means project is less likely to be „recoverable‟

Abbreviations:
EVA - earned value analysis
CSI - cost schedule index
ACWP - actual cost of work performed

BVBA

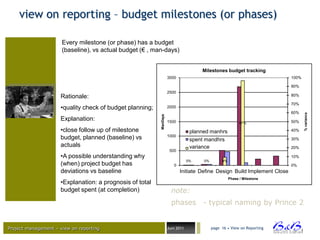

view on reporting – budget milestones (or phases)

Every milestone (or phase) has a budget
(baseline), vs actual budget (€ , man-days)

Milestones budget tracking
3000 100%

90%
2500
Rationale: 80%

70%
•quality check of budget planning; 2000
60%

% variance
ManDays
Explanation: 1500 50%
97%

•close follow up of milestone planned manhrs 40%
1000
budget, planned (baseline) vs spent mandhrs 30%
actuals variance 20%
500
•A possible understanding why 10%
0% 0% 9%
(when) project budget has 0 0%
deviations vs baseline Initiate Define Design Build Implement Close
Phase / Milestone
•Explanation: a prognosis of total
budget spent (at completion) note:
phases - typical naming by Prince 2


BVBA

view on reporting – budget man-days vs man-days
Baseline planned man-days vs actual man-days
project progress : mandays

10

number staff

5 project progress : mandays

10

0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
reporting cycle

%
baseline (abs) 5

0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
Rationale: baseline (abs)
reporting cycle
actual (abs)

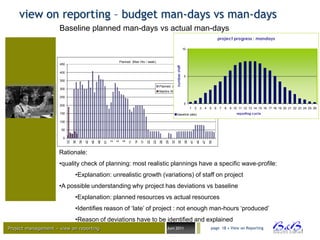

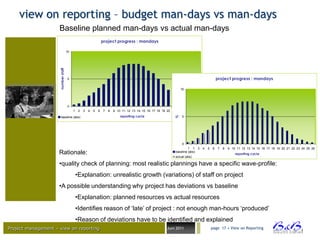

•quality check of planning: most realistic plannings have a specific wave-profile:
•Explanation: unrealistic growth (variations) of staff on project
•A possible understanding why project has deviations vs baseline
•Explanation: planned resources vs actual resources
•Identifies reason of „late‟ of project : not enough man-hours „produced‟
•Reason of deviations have to be identified and explained

BVBA

view on reporting – budget man-days vs man-days
Baseline planned man-days vs actual man-days

10

Planned (Man Hrs / week)
450

number staff
400
5
350
Planned (Man Hrs)
300
Manhrs Week
250

0
200
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
150 baseline (abs) reporting cycle

100

50

0
2
5
8
33
36
39
42
45
48
51

11
14
17
20
23

26
29
32
35
38
41
44
47

50
Rationale:
•quality check of planning: most realistic plannings have a specific wave-profile:
•Explanation: unrealistic growth (variations) of staff on project
•A possible understanding why project has deviations vs baseline
•Explanation: planned resources vs actual resources
•Identifies reason of „late‟ of project : not enough man-hours „produced‟
•Reason of deviations have to be identified and explained

BVBA

view on reporting – budget milestones (or phases)
Baseline budget (€ or man-days) vs actual value (cumulated , %)

project progress : mandays (cumulative)

100
90
80
70
60
%

50
40
30
20
10
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
baseline
reporting cycle
actual

Rationale:
Tracking of progress (man-days, % complete, €, and other) vs baseline
Explanation: visual follow up, easy to understand, and to communicate;
A possible understanding why project has deviations vs baseline
Explanation: using other tools, understand why project has deviations


BVBA

Metric – cost / schedule variance trends
Cost / schedule variance trends

€


BVBA

Metric – total quality project management: open tasks
Follow up the planned activities vs the actual started activities;
Follow up open / non finished tasks, time that these tasks stays un-finished/ open;

Description:
activities started

• Activities too early started (according baseline
actual this w eek
schedule);
activities 0 5 10 15 20 25
• Activities started, prior to closing predecessor started

tasks;
• Activities started but unfinished (stays “open”/
<100% work complete)
Open tasks
Graphical view on number of tasks
10
started on time, late, or still open
after due date (according planning)
8

Rationale: # open tasks (late)
6
closed (ETC=0)
quality check of project open (0<actuals>100%)
progress and project 4 not started (late)
management
2
Explanation:
0
typically, in a troubled project,
mrt/11 apr/11 mei/11 jun/11 jul/11 aug/11 sep/11 okt/11
tasks start, without finishing reporting cycle
predecessor / prior tasks;


BVBA

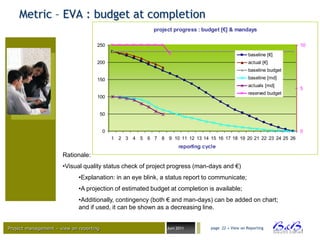

Metric – EVA : budget at completion
project progress : budget [€] & mandays

250 10

baseline [€]
200 actual [€]
baseline budget
150 baseline [md]
actuals [md]
5
reserved budget
100

50

0 0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
reporting cycle
Rationale:
•Visual quality status check of project progress (man-days and €)
•Explanation: in an eye blink, a status report to communicate;
•A projection of estimated budget at completion is available;
•Additionally, contingency (both € and man-days) can be added on chart;
and if used, it can be shown as a decreasing line.


BVBA

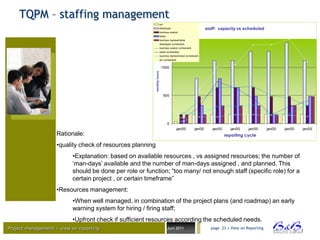

TQPM – staffing management
pm
developper staff: capacity vs scheduled
business analyst
tester
1500
business representative
developper (scheduled)
business analyst (scheduled)
tester (scheduled)
business representative (scheduled)
pm (scheduled)

1000

monthly hours
500

0
jan/00 jan/00 jan/00 jan/00 jan/00 jan/00 jan/00 jan/00
Rationale: reporting cycle

•quality check of resources planning
•Explanation: based on available resources , vs assigned resources; the number of
„man-days‟ available and the number of man-days assigned , and planned. This
should be done per role or function; “too many/ not enough staff (specific role) for a
certain project , or certain timeframe”
•Resources management:
•When well managed, in combination of the project plans (and roadmap) an early
warning system for hiring / firing staff;
•Upfront check if sufficient resources according the scheduled needs.

BVBA

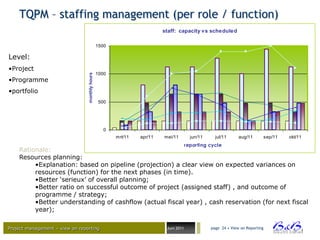

TQPM – staffing management (per role / function)
staff: capacity vs scheduled

1500

Level:
•Project
1000

monthly hours
•Programme
•portfolio
500

0
reporting cycle
Rationale:
Resources planning:
•Explanation: based on pipeline (projection) a clear view on expected variances on
resources (function) for the next phases (in time).
•Better „serieux‟ of overall planning;
•Better ratio on successful outcome of project (assigned staff) , and outcome of
programme / strategy;
•Better understanding of cashflow (actual fiscal year) , cash reservation (for next fiscal
year);


BVBA

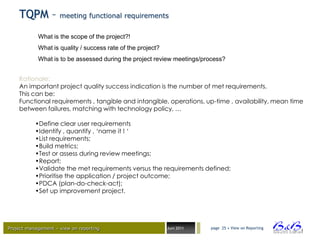

TQPM – meeting functional requirements
What is the scope of the project?!
What is quality / success rate of the project?
What is to be assessed during the project review meetings/process?

Rationale:
An important project quality success indication is the number of met requirements.
This can be:
Functional requirements , tangible and intangible, operations, up-time , availability, mean time
between failures, matching with technology policy, …

•Define clear user requirements
•Identify , quantify , ‘name it ! ‘
•List requirements;
•Build metrics;
•Test or assess during review meetings;
•Report;
•Validate the met requirements versus the requirements defined;
•Prioritise the application / project outcome;
•PDCA (plan-do-check-act);
•Set up improvement project.


BVBA

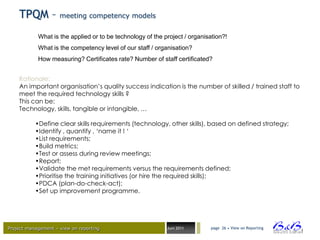

TPQM – meeting competency models
What is the applied or to be technology of the project / organisation?!
What is the competency level of our staff / organisation?
How measuring? Certificates rate? Number of staff certificated?

Rationale:
An important organisation’s quality success indication is the number of skilled / trained staff to
meet the required technology skills ?
This can be:
Technology, skills, tangible or intangible, …

•Define clear skills requirements (technology, other skills), based on defined strategy;
•Identify , quantify , ‘name it ! ‘
•List requirements;
•Build metrics;
•Test or assess during review meetings;
•Report;
•Validate the met requirements versus the requirements defined;
•Prioritise the training initiatives (or hire the required skills);
•PDCA (plan-do-check-act);
•Set up improvement programme.


BVBA

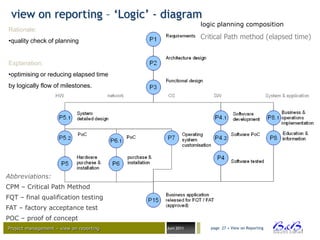

view on reporting – ‘Logic’ - diagram
logic planning composition
Rationale:
Critical Path method (elapsed time)
•quality check of planning

Explanation:
•optimising or reducing elapsed time
by logically flow of milestones.

Abbreviations:
CPM – Critical Path Method
FQT – final qualification testing
FAT – factory acceptance test
POC – proof of concept

BVBA

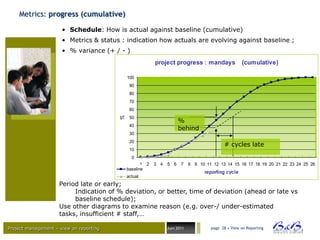

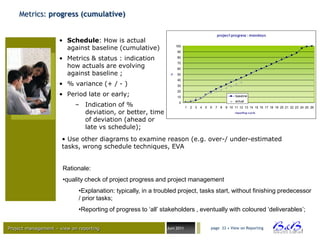

Metrics: progress (cumulative)

• Schedule: How is actual against baseline (cumulative)
• Metrics & status : indication how actuals are evolving against baseline ;
• % variance (+ / - )
project progress : mandays (cumulative)

100
90
80
70
60

%
50
%
40
behind
30
20
# cycles late
10
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
baseline
reporting cycle
actual
Period late or early;
Indication of % deviation, or better, time of deviation (ahead or late vs
baseline schedule);
Use other diagrams to examine reason (e.g. over-/ under-estimated
tasks, insufficient # staff,…


BVBA




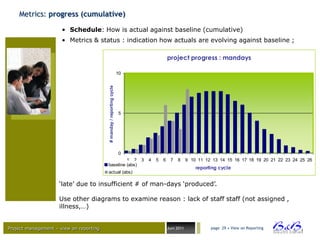

10

# manday / reporting cycle 5

0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
baseline (abs)
reporting cycle
actual (abs)

„late‟ due to insufficient # of man-days „produced‟.

Use other diagrams to examine reason : lack of staff staff (not assigned ,
illness,…)


BVBA

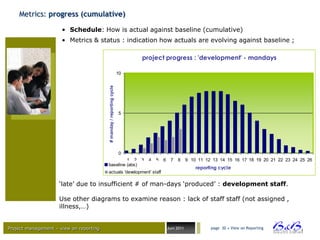

project progress : 'development' - mandays

10

# manday / reporting cycle 5

0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
baseline (abs)
reporting cycle
actuals 'development' staff

„late‟ due to insufficient # of man-days „produced‟ : development staff.

illness,…)


BVBA

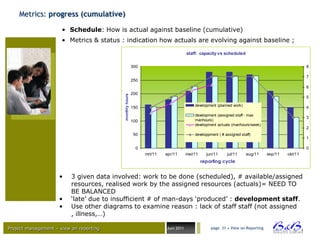

staff: capacity vs scheduled

300 8

7
250
6
200

monthly hours
5
development (planned work)
150 4
development (assigned staff - max
3
100 manhours)
development actuals (manhours/week)
2
50 developpment ( # assigned staff)
1

0 0
reporting cycle

• 3 given data involved: work to be done (scheduled), # available/assigned
resources, realised work by the assigned resources (actuals)= NEED TO
BE BALANCED
• „late‟ due to insufficient # of man-days „produced‟ : development staff.
• Use other diagrams to examine reason : lack of staff staff (not assigned
, illness,…)


BVBA



project progress : 'functional analyst' - mandays

10

# manday / reporting cycle
5

0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
baseline (abs)
reporting cycle
actuals 'functional analyst' staff

„late‟ due to insufficient # of mandays „produced‟ : functional analyst.

illness,…)


BVBA


• Schedule: How is actual
against baseline (cumulative) 100
90

• Metrics & status : indication 80

how actuals are evolving
70
60
against baseline ;

%
50
40
• % variance (+ / - ) 30

• Period late or early;
20
10 baseline
actual
– Indication of % 0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
deviation, or better, time reporting cycle

of deviation (ahead or
late vs schedule);
• Use other diagrams to examine reason (e.g. over-/ under-estimated
tasks, wrong schedule techniques, EVA

Rationale:
•quality check of project progress and project management
•Explanation: typically, in a troubled project, tasks start, without finishing predecessor
/ prior tasks;
•Reporting of progress to „all‟ stakeholders , eventually with coloured „deliverables‟;


BVBA

TQPM – Finance / ROI

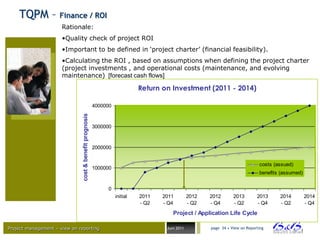

Rationale:
•Quality check of project ROI
•Important to be defined in „project charter‟ (financial feasibility).
•Calculating the ROI , based on assumptions when defining the project charter
(project investments , and operational costs (maintenance, and evolving
maintenance) [forecast cash flows]

Return on Investment (2011 - 2014)

4000000
cost & benefit prognosis

3000000

2000000

costs (assued)
1000000
benefits (assumed)

0
initial 2011 2011 2012 2012 2013 2013 2014 2014
- Q2 - Q4 - Q2 - Q4 - Q2 - Q4 - Q2 - Q4

Project / Application Life Cycle


BVBA

TQPM – Finance / ROI
Rationale:

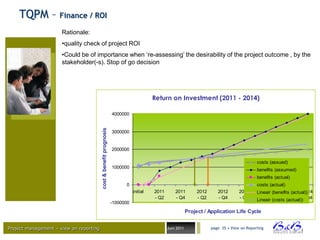

•quality check of project ROI
•Could be of importance when „re-assessing‟ the desirability of the project outcome , by the
stakeholder(-s). Stop of go decision

Return on Investment (2011 - 2014)

4000000
cost & benefit prognosis

3000000

2000000

costs (assued)
1000000
benefits (assumed)
benefits (actual)
0 costs (actual)
initial 2011 2011 2012 2012 2013 2013 2014 2014
Lineair (benefits (actual))
- Q2 - Q4 - Q2 - Q4 - Q2 Lineair (costs Q2
- Q4 - (actual)) - Q4
-1000000
Project / Application Life Cycle


BVBA

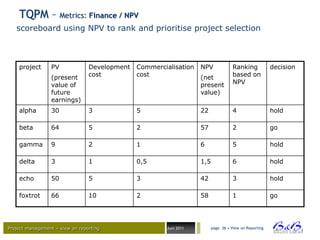

TQPM – Metrics: Finance / NPV
scoreboard using NPV to rank and prioritise project selection

project PV Development Commercialisation NPV Ranking decision
(present cost cost (net based on
value of present NPV
future value)
earnings)
alpha 30 3 5 22 4 hold

beta 64 5 2 57 2 go

gamma 9 2 1 6 5 hold

delta 3 1 0,5 1,5 6 hold

echo 50 5 3 42 3 hold

foxtrot 66 10 2 58 1 go


BVBA

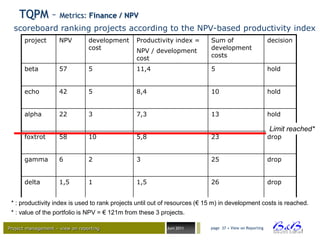

TQPM – Metrics: Finance / NPV
scoreboard ranking projects according to the NPV-based productivity index
project NPV development Productivity index = Sum of decision
cost NPV / development development
cost costs

beta 57 5 11,4 5 hold

echo 42 5 8,4 10 hold

alpha 22 3 7,3 13 hold

Limit reached*
foxtrot 58 10 5,8 23 drop

gamma 6 2 3 25 drop

delta 1,5 1 1,5 26 drop

* : productivity index is used to rank projects until out of resources (€ 15 m) in development costs is reached.
* : value of the portfolio is NPV = € 121m from these 3 projects.


BVBA

TQPM – Metrics: Finance / ECV – determining the expected commercial value of a
project

Abbreviations:
ECV – Expected Commercial Value


BVBA

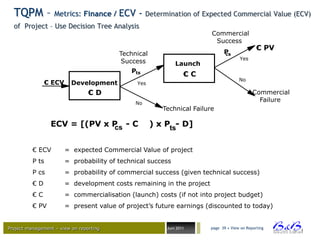

TQPM – Metrics: Finance / ECV - Determination of Expected Commercial Value (ECV)
of Project – Use Decision Tree Analysis
Commercial
Success
€ PV
Technical P
cs
Yes
Success Launch
Pts
€C
No
€ ECV Development Yes

€D Commercial
No
Failure
Technical Failure

ECV = [(PV x P - C
cs ) x Pts- D]

€ ECV = expected Commercial Value of project
P ts = probability of technical success
P cs = probability of commercial success (given technical success)
€D = development costs remaining in the project
€C = commercialisation (launch) costs (if not into project budget)
€ PV = present value of project‟s future earnings (discounted to today)


BVBA

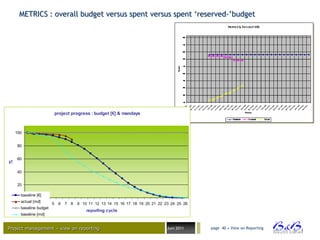

METRICS : overall budget versus spent versus spent ‘reserved-’budget

project progress : budget [€] & mandays

100

80

60
%

40

20

baseline [€]
0
actual [md]
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
baseline budget
reporting cycle
baseline [md]


BVBA

METRICS : financial - EVA

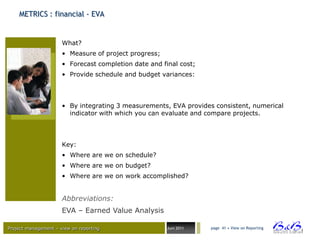

What?
• Measure of project progress;
• Forecast completion date and final cost;
• Provide schedule and budget variances:

• By integrating 3 measurements, EVA provides consistent, numerical
indicator with which you can evaluate and compare projects.

Key:
• Where are we on schedule?
• Where are we on budget?
• Where are we on work accomplished?

Abbreviations:
EVA – Earned Value Analysis


BVBA

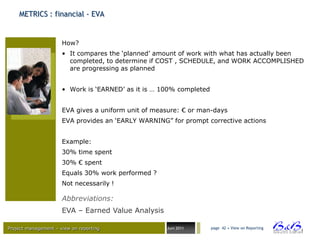

How?
• It compares the „planned‟ amount of work with what has actually been
completed, to determine if COST , SCHEDULE, and WORK ACCOMPLISHED
are progressing as planned

• Work is „EARNED‟ as it is … 100% completed

EVA gives a uniform unit of measure: € or man-days
EVA provides an „EARLY WARNING” for prompt corrective actions

Example:
30% time spent
30% € spent
Equals 30% work performed ?
Not necessarily !

Abbreviations:


BVBA

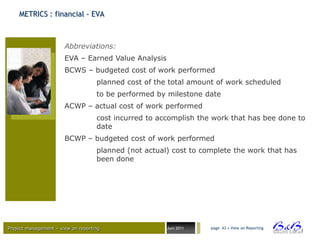

Abbreviations:
BCWS – budgeted cost of work performed
planned cost of the total amount of work scheduled
to be performed by milestone date
ACWP – actual cost of work performed
cost incurred to accomplish the work that has bee done to
date
BCWP – budgeted cost of work performed
planned (not actual) cost to complete the work that has
been done


BVBA


Some more abbreviations:
SV - Schedule Variance (BCWP – BCWS)
comparison of amount of work performed during a given
period of time to what was scheduled to be performed
Negative variance means that the project is behind
schedule

CV – Cost Variance (BCWP – ACWP)
comparison of the budgeted cost of work performed with
actual cost
negative variance means that the project is over budget

Example:
Schedule Variance = BCWP – BCWS
Cost Variance = BCWP - ACWP

BVBA

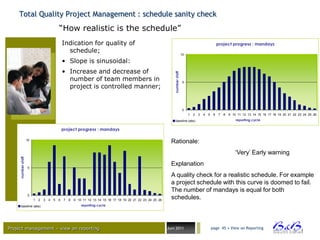

Total Quality Project Management : schedule sanity check
“How realistic is the schedule”
Indication for quality of project progress : mandays
schedule; 10

• Slope is sinusoidal:
• Increase and decrease of

number staff
number of team members in 5
project is controlled manner;

0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
baseline (abs) reporting cycle


10
Rationale:
„Very‟ Early warning
number staff

Explanation
5

A quality check for a realistic schedule. For example
a project schedule with this curve is doomed to fail.
The number of mandays is equal for both
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
schedules.
baseline (abs) reporting cycle


BVBA

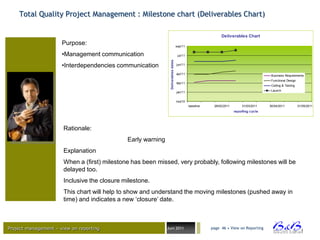

Total Quality Project Management : Milestone chart (Deliverables Chart)

Deliverables Chart
Purpose: sep/11

•Management communication jul/11

Deliverables dates
•Interdependencies communication jun/11

apr/11
Business Requirements
Functional Design
feb/11
Coding & Testing
Launch
jan/11

nov/10
baseline 28/02/2011 31/03/2011 30/04/2011 31/05/2011
reporting cycle

Rationale:
Early warning
Explanation
When a (first) milestone has been missed, very probably, following milestones will be
delayed too.
Inclusive the closure milestone.
This chart will help to show and understand the moving milestones (pushed away in
time) and indicates a new „closure‟ date.


BVBA

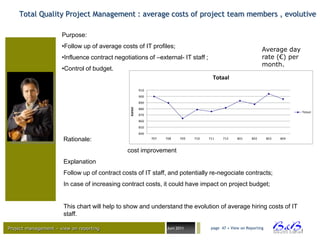

Total Quality Project Management : average costs of project team members , evolutive

Purpose:
•Follow up of average costs of IT profiles;
Average day
•Influence contract negotiations of –external- IT staff ; rate (€) per
month.
•Control of budget.
Totaal
910
900
890

Astitel
880
Totaal
870
860
850
840
Rationale: 707 708 709 710 711 712 801 802 803 804

cost improvement
Explanation
Follow up of contract costs of IT staff, and potentially re-negociate contracts;
In case of increasing contract costs, it could have impact on project budget;

This chart will help to show and understand the evolution of average hiring costs of IT
staff.


BVBA

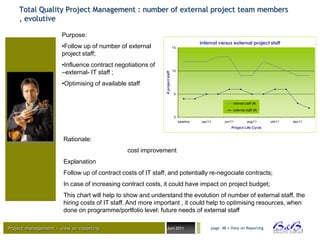

Total Quality Project Management : number of external project team members
, evolutive

Purpose:
internal versus external project staff
•Follow up of number of external 15

project staff;
•Influence contract negotiations of
–external- IT staff ; 10

# project staff
•Optimising of available staff
5

internal staff (#)

external staff (#)

0
baseline apr/11 jun/11 aug/11 okt/11 dec/11
Project Life Cycle

Rationale:
cost improvement
Explanation
Follow up of contract costs of IT staff, and potentially re-negociate contracts;
In case of increasing contract costs, it could have impact on project budget;
This chart will help to show and understand the evolution of number of external staff, the
hiring costs of IT staff. And more important , it could help to optimising resources, when
done on programme/portfolio level: future needs of external staff


BVBA

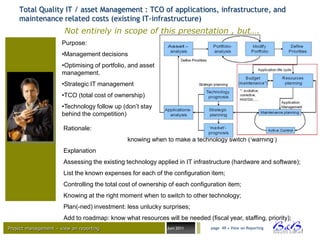

Total Quality IT / asset Management : TCO of applications, infrastructure, and
maintenance related costs (existing IT-infrastructure)
Not entirely in scope of this presentation , but….
Purpose:
•Management decisions
•Optimising of portfolio, and asset
management.
•Strategic IT management
•TCO (total cost of ownership)
•Technology follow up (don‟t stay
behind the competition)

Rationale:
knowing when to make a technology switch („warning‟)
Explanation
Assessing the existing technology applied in IT infrastructure (hardware and software);
List the known expenses for each of the configuration item;
Controlling the total cost of ownership of each configuration item;
Knowing at the right moment when to switch to other technology;
Plan(-ned) investment: less unlucky surprises;
Add to roadmap: know what resources will be needed (fiscal year, staffing, priority);

BVBA

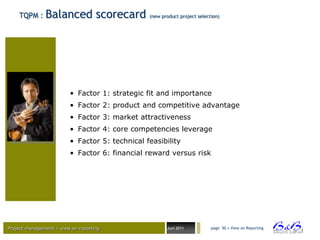

TQPM : Balanced scorecard (new product project selection)

• Factor 1: strategic fit and importance
• Factor 2: product and competitive advantage
• Factor 3: market attractiveness
• Factor 4: core competencies leverage
• Factor 5: technical feasibility
• Factor 6: financial reward versus risk


BVBA

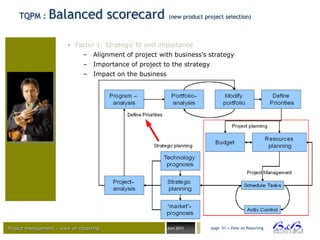

• Factor 1: Strategic fit and importance
– Alignment of project with business‟s strategy
– Importance of project to the strategy
– Impact on the business


BVBA

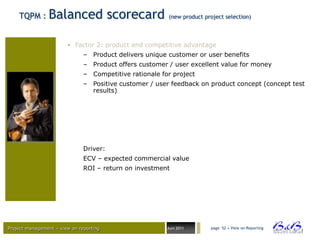

• Factor 2: product and competitive advantage
– Product delivers unique customer or user benefits
– Product offers customer / user excellent value for money
– Competitive rationale for project
– Positive customer / user feedback on product concept (concept test
results)

Driver:
ECV – expected commercial value
ROI – return on investment


BVBA

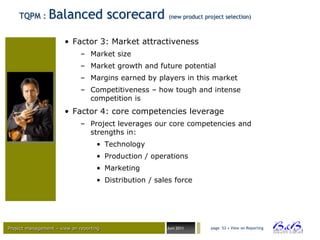

• Factor 3: Market attractiveness
– Market size
– Market growth and future potential
– Margins earned by players in this market
– Competitiveness – how tough and intense
competition is
• Factor 4: core competencies leverage
– Project leverages our core competencies and
strengths in:
• Technology
• Production / operations
• Marketing
• Distribution / sales force


BVBA


• Factor 5: Technical feasibility
– Size of technical gap
– Familiarity of technology to our business
– Newness of technology (base to embryonic)
– Technical complexity
– Technical results to date (proof of concept)

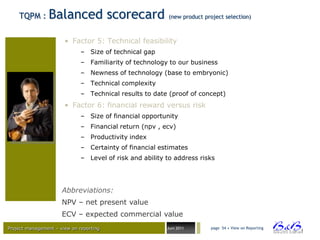

• Factor 6: financial reward versus risk
– Size of financial opportunity
– Financial return (npv , ecv)
– Productivity index
– Certainty of financial estimates
– Level of risk and ability to address risks

Abbreviations:
NPV – net present value
ECV – expected commercial value

BVBA

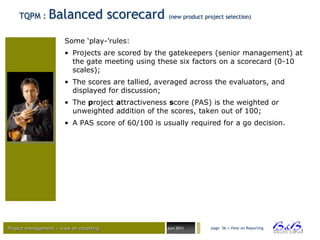

Some „play-‟rules:
• Projects are scored by the gatekeepers (senior management) at
the gate meeting using these six factors on a scorecard (0-10
scales);
• The scores are tallied, averaged across the evaluators, and
displayed for discussion;
• The project attractiveness score (PAS) is the weighted or un-
weighted addition of the scores, taken out of 100;
• A PAS score of 60/100 is usually required for a go decision.


BVBA


Some „play-‟rules:
• Projects are scored by the gatekeepers (senior management) at
the gate meeting using these six factors on a scorecard (0-10
scales);
• The scores are tallied, averaged across the evaluators, and
displayed for discussion;
• The project attractiveness score (PAS) is the weighted or
unweighted addition of the scores, taken out of 100;
• A PAS score of 60/100 is usually required for a go decision.


BVBA

What is needed , what is to understand

• For all the shown graphical support tools, a proper planning is
required, according to some applied planning guidelines;
• For all the shown graphical support tools, a proper follow up
(progress capturing, man-days, financial data) is required;
• And proper project management (skills);

BUT:
• It is not necessary to have all these graphical analysis tools, use
what is needed to execute your project, programme, portfolio.


BVBA

Time is up. Much more to talk about this interesting topic….

Questions ?

? ? ?? ??? ? ?

Linkedin Jan Biets - Jan_biets@hotmail.com - +32(0)477 329011


BVBA

Graphical project reporting-v1-0

More Related Content

What's hot

Similar to Graphical project reporting-v1-0

More from Jan Biets [jan_biets@hotmail.com]

Recently uploaded

Graphical project reporting-v1-0
