GRAILS LAUNCHPAD
from Ground Zero to Orbit

ABOUT ME
• Zachary Klein
• Based in St Louis, MO
• GrailsTeam at OCI
• Developing with Grails since 2010
• Grails Proﬁle, plugin, documentation
author

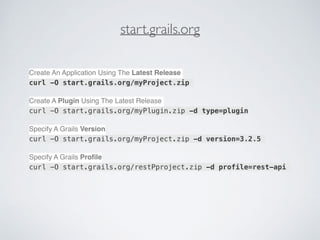

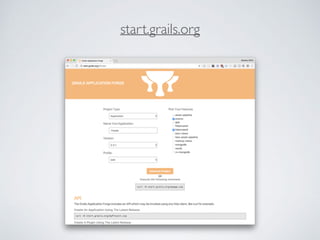

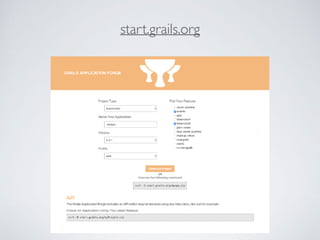

start.grails.org
Create An Application Using The Latest Release
curl -O start.grails.org/myProject.zip
Create A Plugin Using The Latest Release
curl -O start.grails.org/myPlugin.zip -d type=plugin
Specify A Grails Version
curl -O start.grails.org/myProject.zip -d version=3.2.5
Specify A Grails Proﬁle
curl -O start.grails.org/restPproject.zip -d profile=rest-api

HISTORY
• Created in 2005
• Grails 3, based on Spring Boot, released in 2015
• Sponsored by OCI since 2015
• Grails 3.3 released in 2017

WHAT IS GRAILS?
• Java web application framework
• Based on Spring Boot
• Follows Model-View-Controller
pattern
• Leverages proven technology
• Convention-over-conﬁguration
• Modular plugin-based architecture
• Prioritizes developer productivity

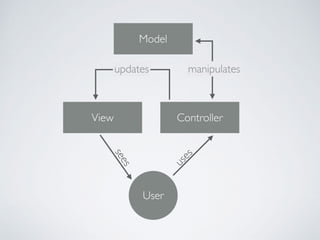

Model
ControllerView
User
uses
manipulatesupdates
sees

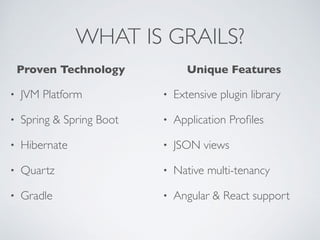

• Extensive plugin library
• Application Proﬁles
• JSON views

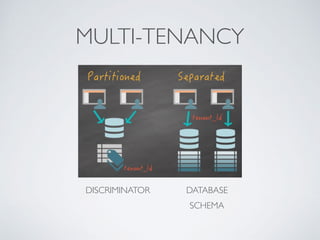

• Native multi-tenancy
• Angular & React support
WHAT IS GRAILS?
Unique Features
• JVM Platform
• Spring & Spring Boot
• Hibernate
• Quartz
• Gradle
Proven Technology

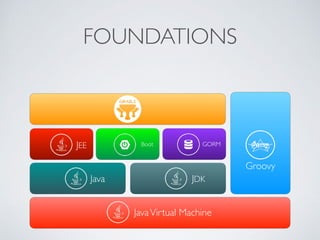

FOUNDATIONS
JavaVirtual Machine
Java JDK
Groovy
JEE GORMBoot

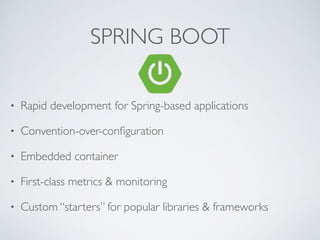

SPRING BOOT
• Rapid development for Spring-based applications
• Convention-over-conﬁguration
• Embedded container
• First-class metrics & monitoring
• Custom “starters” for popular libraries & frameworks

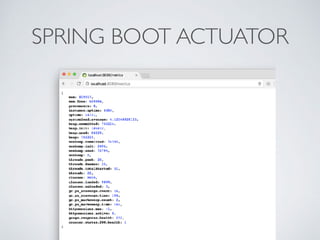

SPRING BOOT ACTUATOR
DEMO
http://mrhaki.blogspot.com/2015/04/grails-goodness-adding-health-check.html
https://objectpartners.com/2016/08/30/monitoring-grails-applications-the-easy-way/

GRAILS & SPRING BOOT
Grails 3 for Spring Developers Screencast

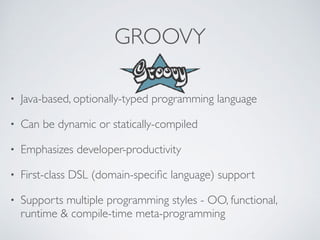

GROOVY
• Java-based, optionally-typed programming language
• Can be dynamic or statically-compiled
• Emphasizes developer-productivity
• First-class DSL (domain-speciﬁc language) support
• Supports multiple programming styles - OO, functional,
runtime & compile-time meta-programming

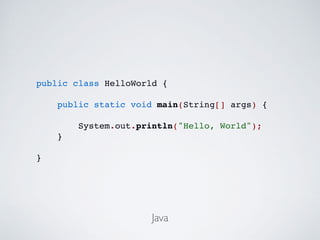

public class HelloWorld {
public static void main(String[] args) {
System.out.println("Hello, World");
}
}
Java

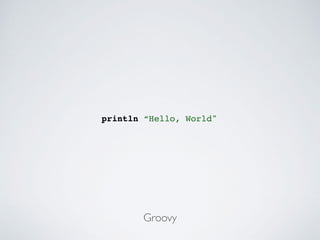

println “Hello, World"
Groovy

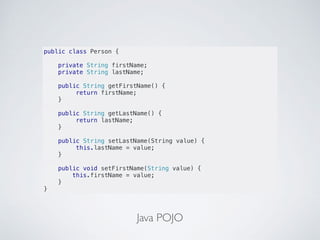

Java POJO
public class Person {
private String firstName;
private String lastName;
public String getFirstName() {
return firstName;
}
public String getLastName() {
return lastName;
}
public String setLastName(String value) {
this.lastName = value;
}
public void setFirstName(String value) {
this.firstName = value;
}
}

Groovy POGO
class Person {
String firstName
String lastName
}

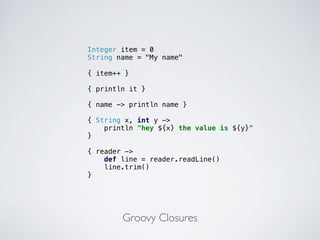

Groovy Closures
Integer item = 0
String name = "My name"
{ item++ }
{ println it }
{ name -> println name }
{ String x, int y ->
println "hey ${x} the value is ${y}"
}
{ reader ->
def line = reader.readLine()
line.trim()
}

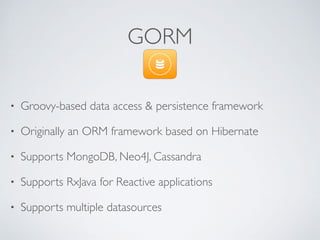

GORM
• Groovy-based data access & persistence framework
• Originally an ORM framework based on Hibernate
• Supports MongoDB, Neo4J, Cassandra
• Supports RxJava for Reactive applications
• Supports multiple datasources

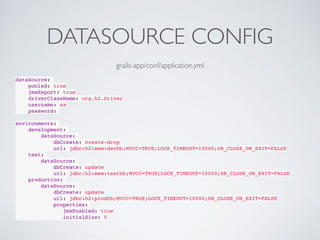

DATASOURCE CONFIG
dataSource:
pooled: true
jmxExport: true
driverClassName: org.h2.Driver
username: sa
password:
environments:
development:
dataSource:
dbCreate: create-drop
url: jdbc:h2:mem:devDb;MVCC=TRUE;LOCK_TIMEOUT=10000;DB_CLOSE_ON_EXIT=FALSE
test:
dataSource:
dbCreate: update
url: jdbc:h2:mem:testDb;MVCC=TRUE;LOCK_TIMEOUT=10000;DB_CLOSE_ON_EXIT=FALSE
production:
dataSource:
dbCreate: update
url: jdbc:h2:prodDb;MVCC=TRUE;LOCK_TIMEOUT=10000;DB_CLOSE_ON_EXIT=FALSE
properties:
jmxEnabled: true
initialSize: 5
grails-app/conf/application.yml

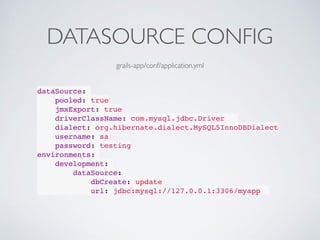

DATASOURCE CONFIG
dataSource:
pooled: true
jmxExport: true
driverClassName: com.mysql.jdbc.Driver
dialect: org.hibernate.dialect.MySQL5InnoDBDialect
username: sa
password: testing
environments:
development:
dataSource:
dbCreate: update
url: jdbc:mysql://127.0.0.1:3306/myapp

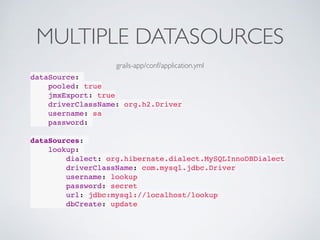

MULTIPLE DATASOURCES
dataSource:
pooled: true
jmxExport: true
driverClassName: org.h2.Driver
username: sa
password:
dataSources:
lookup:
dialect: org.hibernate.dialect.MySQLInnoDBDialect
driverClassName: com.mysql.jdbc.Driver
username: lookup
password: secret
url: jdbc:mysql://localhost/lookup
dbCreate: update

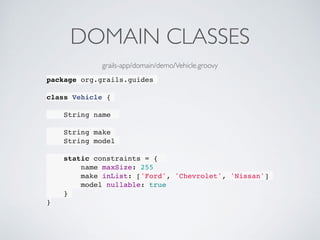

DOMAIN CLASSES
package org.grails.guides
class Vehicle {
String name
String make
String model
static constraints = {
name maxSize: 255
make inList: ['Ford', 'Chevrolet', 'Nissan']
model nullable: true
}
}
grails-app/domain/demo/Vehicle.groovy

CONSTRAINTS
Constraint Description Example
blank Validates that a String value is not blank login(blank:false)
creditCard Validates that a String value is a valid credit card number cardNumber(creditCard: true)
email Validates that a String value is a valid email address. homeEmail(email: true)
inList Validates that a value is within a range or collection of constrained values. name(inList: ["Joe"])
matches Validates that a String value matches a given regular expression. login(matches: "[a-zA-Z]+")
max Validates that a value does not exceed the given maximum value. age(max: new Date()) price(max:
999F)
maxSize Validates that a value’s size does not exceed the given maximum value. children(maxSize: 25)
min Validates that a value does not fall below the given minimum value. age(min: new Date()) price(min:
0F)
minSize Validates that a value’s size does not fall below the given minimum value. children(minSize: 25)
notEqual Validates that that a property is not equal to the specified value login(notEqual: "Bob")
nullable Allows a property to be set to null - defaults to false. age(nullable: true)
range Uses a Groovy range to ensure that a property’s value occurs within a specified range age(range: 18..65)
scale Set to the desired scale for floating point numbers (i.e. the number of digits to the right of the salary(scale: 2)
http://gorm.grails.org/latest/hibernate/manual/index.html#constraints

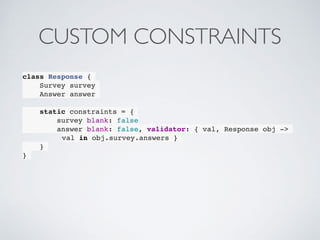

CUSTOM CONSTRAINTS
class Response {
Survey survey
Answer answer
survey blank: false
answer blank: false, validator: { val, Response obj ->
val in obj.survey.answers }
}
}

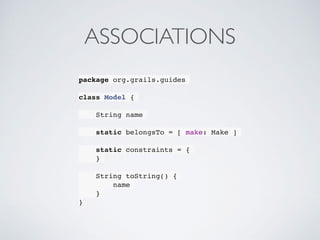

ASSOCIATIONS
class Model {
String name
static belongsTo = [ make: Make ]
}
String toString() {
name
}
}

ASSOCIATIONS
class Make {
String name
static hasMany = [ cars: Car ]
}
}

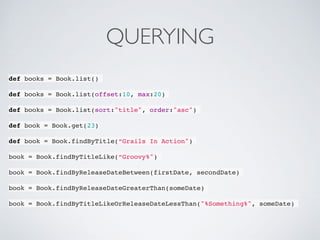

QUERYING
def books = Book.list()
def books = Book.list(offset:10, max:20)
def books = Book.list(sort:"title", order:"asc")
def book = Book.get(23)
def book = Book.findByTitle(“Grails In Action")
book = Book.findByTitleLike(“Groovy%")
book = Book.findByReleaseDateBetween(firstDate, secondDate)
book = Book.findByReleaseDateGreaterThan(someDate)
book = Book.findByTitleLikeOrReleaseDateLessThan("%Something%", someDate)

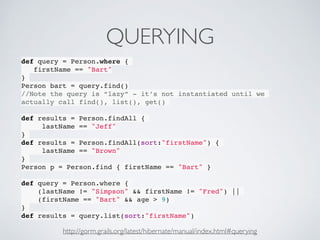

QUERYING
def query = Person.where {
firstName == "Bart"
}
Person bart = query.find()
//Note the query is “lazy” - it’s not instantiated until we
actually call find(), list(), get()
def results = Person.findAll {
lastName == "Jeff"
}
def results = Person.findAll(sort:"firstName") {
lastName == "Brown"
}
Person p = Person.find { firstName == "Bart" }
def query = Person.where {
(lastName != "Simpson" && firstName != "Fred") ||
(firstName == "Bart" && age > 9)
}
def results = query.list(sort:"firstName")
http://gorm.grails.org/latest/hibernate/manual/index.html#querying

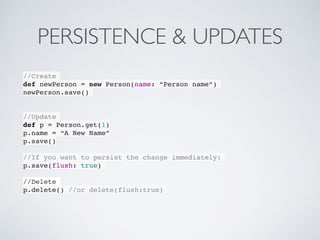

PERSISTENCE & UPDATES
//Create
def newPerson = new Person(name: “Person name”)
newPerson.save()
//Update
def p = Person.get(1)
p.name = “A New Name”
p.save()
//If you want to persist the change immediately:
p.save(flush: true)
//Delete
p.delete() //or delete(flush:true)

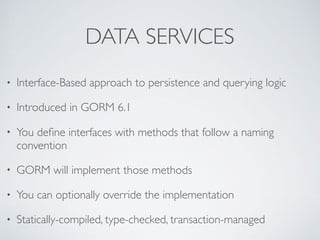

DATA SERVICES
• Interface-Based approach to persistence and querying logic
• Introduced in GORM 6.1
• You deﬁne interfaces with methods that follow a naming
convention
• GORM will implement those methods
• You can optionally override the implementation
• Statically-compiled, type-checked, transaction-managed

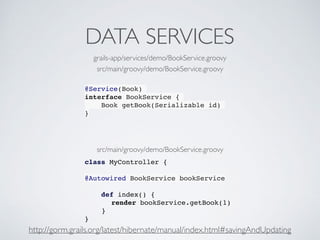

DATA SERVICES
@Service(Book)
interface BookService {
Book getBook(Serializable id)
}
class MyController {
@Autowired BookService bookService
def index() {
render bookService.getBook(1)
}
}
grails-app/services/demo/BookService.groovy
src/main/groovy/demo/BookService.groovy
http://gorm.grails.org/latest/hibernate/manual/index.html#savingAndUpdating

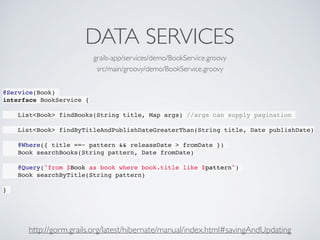

DATA SERVICES
@Service(Book)
List<Book> findBooks(String title, Map args) //args can supply pagination
List<Book> findByTitleAndPublishDateGreaterThan(String title, Date publishDate)
@Where({ title ==~ pattern && releaseDate > fromDate })
Book searchBooks(String pattern, Date fromDate)
@Query("from $Book as book where book.title like $pattern")
Book searchByTitle(String pattern)
}

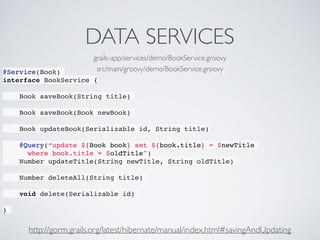

DATA SERVICES
@Service(Book)
Book saveBook(String title)
Book saveBook(Book newBook)
Book updateBook(Serializable id, String title)
@Query(“update ${Book book} set ${book.title} = $newTitle
where book.title = $oldTitle")
Number updateTitle(String newTitle, String oldTitle)
Number deleteAll(String title)
void delete(Serializable id)
}

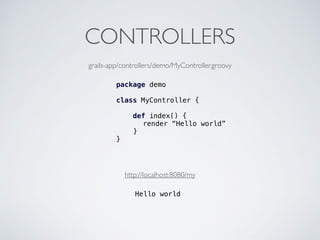

CONTROLLERS
package demo
def index() {
render “Hello world”
}
}
grails-app/controllers/demo/MyController.groovy
http://localhost:8080/my
Hello world

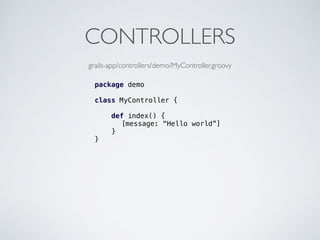

CONTROLLERS
package demo
def index() {
[message: “Hello world”]
}
}
grails-app/controllers/demo/MyController.groovy

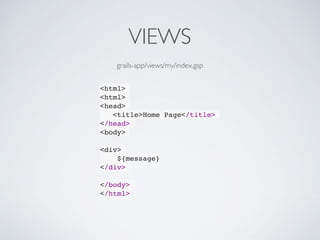

VIEWS
<html>
<html>
<head>
<title>Home Page</title>
</head>
<body>
<div>
${message}
</div>
</body>
</html>
grails-app/views/my/index.gsp

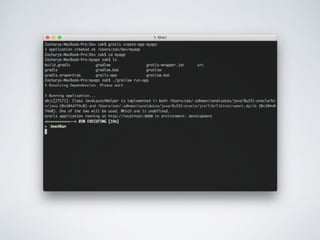

BUILDYOUR
FIRST GRAILS
APP
http://guides.grails.org/
creating-your-ﬁrst-grails-app

INTERCEPTORS
• Interceptors allow you to add logic before/after a targeted
request
• Allow blocking or redirecting of a request
• By default, interceptors will target requests made a controller
of the same name
• You can implement custom request “matching” in the
constructor
https://objectcomputing.com/resources/publications/sett/september-2015-grails-3-interceptors/

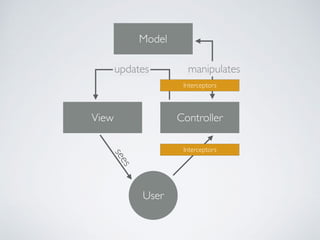

Model
ControllerView
User
sees
manipulatesupdates
Interceptors
Interceptors

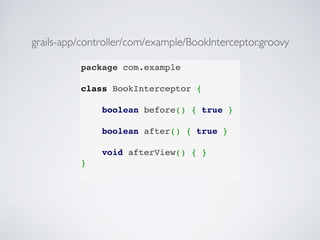

package com.example
class BookInterceptor {

boolean before() { true }

boolean after() { true }

void afterView() { }
}
grails-app/controller/com/example/BookInterceptor.groovy

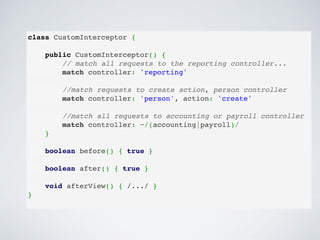

class CustomInterceptor {

public CustomInterceptor() {
// match all requests to the reporting controller...
match controller: 'reporting'

//match requests to create action, person controller
match controller: 'person', action: 'create'

//match all requests to accounting or payroll controller
match controller: ~/(accounting|payroll)/
}


void afterView() { /.../ }
}

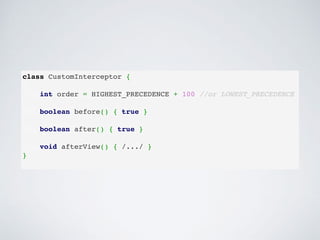

class CustomInterceptor {

int order = HIGHEST_PRECEDENCE + 100 //or LOWEST_PRECEDENCE


void afterView() { /.../ }
}

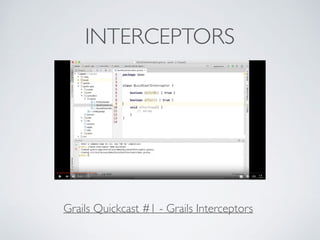

INTERCEPTORS
Grails Quickcast #1 - Grails Interceptors

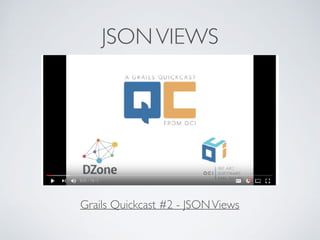

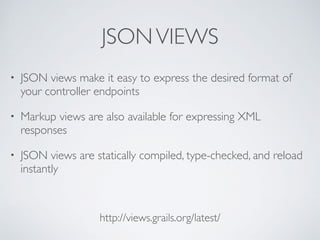

JSONVIEWS
http://views.grails.org/latest/
• JSON views make it easy to express the desired format of
your controller endpoints
• Markup views are also available for expressing XML
responses
• JSON views are statically compiled, type-checked, and reload
instantly

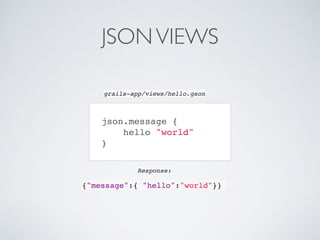

JSONVIEWS
json.message {
hello "world"
}
{"message":{ "hello":"world"}}
grails-app/views/hello.gson
Response:

JSONVIEWS
model {
Person person
}
json {
name person.name
age person.age
}
{“name": “John Doe”, “age”: 34}
grails-app/views/person/_person.gson
Response:

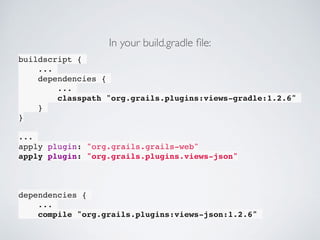

buildscript {
...
dependencies {
...
classpath "org.grails.plugins:views-gradle:1.2.6"
}
}
...
apply plugin: "org.grails.grails-web"
apply plugin: "org.grails.plugins.views-json"
dependencies {
...
compile "org.grails.plugins:views-json:1.2.6"
In your build.gradle ﬁle:

model {
Person person
}
json tmpl.person(person)
grails-app/views/person/show.gson
model {
Person person
}
json {
name person.name
age person.age
}

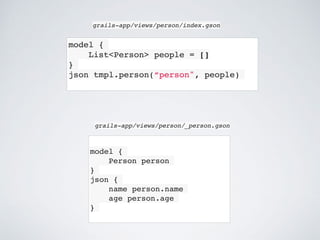

model {
List<Person> people = []
}
json tmpl.person(“person", people)
grails-app/views/person/index.gson
model {
Person person
}
json {
name person.name
age person.age
}

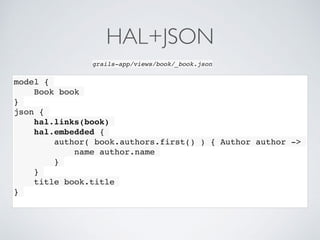

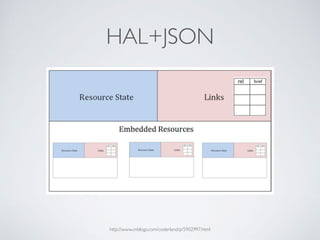

HAL+JSON
http://www.cnblogs.com/coderland/p/5902997.html

model {
Book book
}
json {
hal.links(book)
hal.embedded {
author( book.authors.first() ) { Author author ->
name author.name
}
}
title book.title
}
grails-app/views/book/_book.json

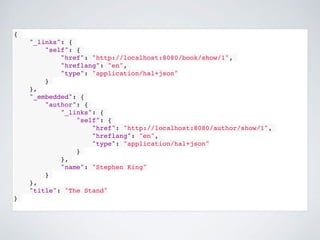

HAL+JSON

{
"_links": {
"self": {
"href": "http://localhost:8080/book/show/1",
"hreflang": "en",
"type": "application/hal+json"
}
},
"_embedded": {
"author": {
"_links": {
"self": {
"href": "http://localhost:8080/author/show/1",
"hreflang": "en",
"type": "application/hal+json"
}
},
"name": "Stephen King"
}
},
"title": "The Stand"
}

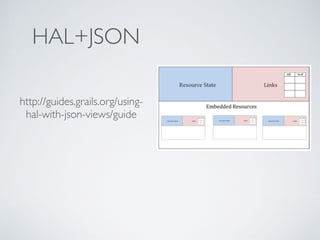

HAL+JSON
http://guides.grails.org/using-
hal-with-json-views/guide

JSONVIEWS
Grails Quickcast #2 - JSONViews

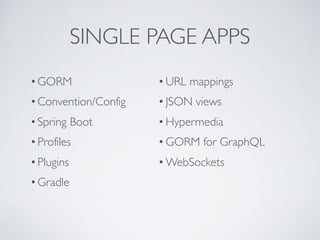

SINGLE PAGE APPS
•GORM
•Convention/Config
•Spring Boot
•Profiles
•Plugins
•Gradle
•URL mappings
•JSON views
•Hypermedia
•GORM for GraphQL
•WebSockets

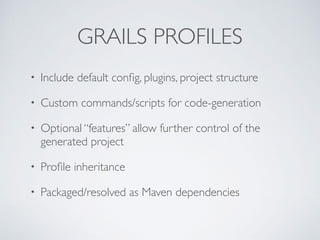

GRAILS PROFILES
• Include default conﬁg, plugins, project structure
• Custom commands/scripts for code-generation
• Optional “features” allow further control of the
generated project
• Proﬁle inheritance
• Packaged/resolved as Maven dependencies

SPA GRAILS PROFILES
angularjs Angular 1.x https://grails-profiles.github.io/angularjs/latest/
guide/index.html
angular Angular 2+ https://grails-profiles.github.io/angular/latest/guide/
index.html
react React 16.x https://grails-profiles.github.io/react/latest/guide/
index.html
react-webpack React 16.x, using
Webpack
https://grails-profiles.github.io/react-webpack/
latest/guide/index.html
webpack `Webpack 2.x, no
JavaScript framework
https://grails-profiles.github.io/webpack/latest/
guide/index.html

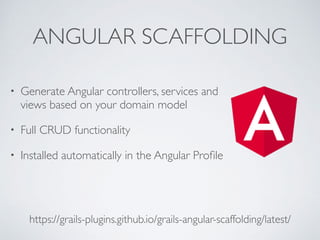

ANGULAR SCAFFOLDING
https://grails-plugins.github.io/grails-angular-scaffolding/latest/
• Generate Angular controllers, services and
views based on your domain model
• Full CRUD functionality
• Installed automatically in the Angular Proﬁle

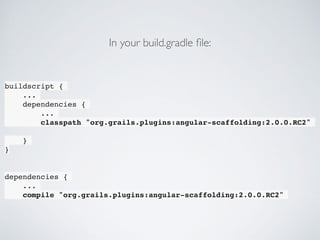

buildscript {
...
dependencies {
...
classpath "org.grails.plugins:angular-scaffolding:2.0.0.RC2"
}
}
dependencies {
...
compile "org.grails.plugins:angular-scaffolding:2.0.0.RC2"

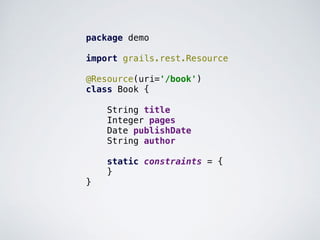

package demo
import grails.rest.Resource
@Resource(uri='/book')
class Book {
String title
Integer pages
Date publishDate
String author
}
}

grails ng-generate-all demo.Book
Rendered template service.ts to destination /client/src/app/book/book.service.ts
Rendered template domain.ts to destination /client/src/app/book/book.ts
Rendered template module.ts to destination /client/src/app/book/book.module.ts
Rendered template routing.module.ts to destination /client/src/app/book/book-routing.module.ts
Rendered template persist.component.ts to destination /client/src/app/book/book-persist.component.ts
Rendered template persist.component.html to destination/client/src/app/book/book-persist.component.html
Rendered template list.component.ts to destination /client/src/app/book/book-list.component.ts
Rendered template list.component.html to destination /client/src/app/book/book-list.component.html
Rendered template show.component.ts to destination /client/src/app/book/book-show.component.ts
Rendered template show.component.html to destination /client/src/app/book/book-show.component.html
Added Book as a dependency to your bootstrap module

ANGULAR SCAFFOLDING
https://grails-plugins.github.io/grails-angular-scaffolding/latest/
Grails Quickcast #4 - AngularJS Scaffolding With Grails 3
DEMO

ANGULAR SCAFFOLDING
Grails Quickcast #4 - AngularJS Scaffolding With Grails 3

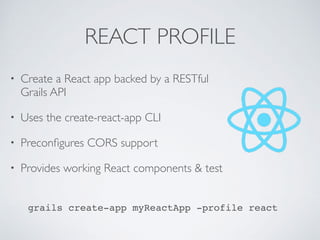

REACT PROFILE
• Create a React app backed by a RESTful
Grails API
• Uses the create-react-app CLI
• Preconﬁgures CORS support
• Provides working React components & test
grails create-app myReactApp -profile react

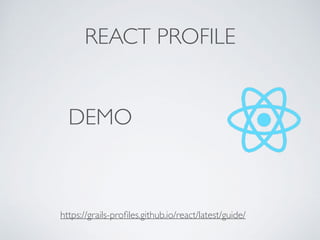

REACT PROFILE
https://grails-proﬁles.github.io/react/latest/guide/
DEMO

REACT PROFILE
Grails Quickcast #8 - Grails React Proﬁle

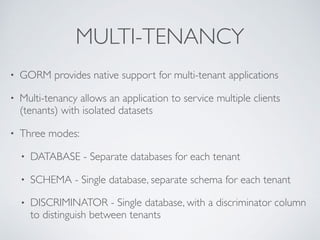

MULTI-TENANCY
• GORM provides native support for multi-tenant applications
• Multi-tenancy allows an application to service multiple clients
(tenants) with isolated datasets
• Three modes:
• DATABASE - Separate databases for each tenant
• SCHEMA - Single database, separate schema for each tenant
• DISCRIMINATOR - Single database, with a discriminator column
to distinguish between tenants

MULTI-TENANCY
DATABASE
SCHEMA
DISCRIMINATOR

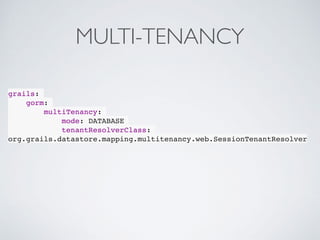

MULTI-TENANCY
grails:
gorm:
multiTenancy:
mode: DATABASE
tenantResolverClass:
org.grails.datastore.mapping.multitenancy.web.SessionTenantResolver

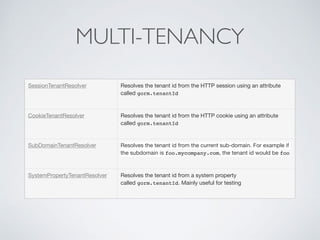

MULTI-TENANCY
SessionTenantResolver Resolves the tenant id from the HTTP session using an attribute
called gorm.tenantId
CookieTenantResolver Resolves the tenant id from the HTTP cookie using an attribute
called gorm.tenantId
SubDomainTenantResolver Resolves the tenant id from the current sub-domain. For example if
the subdomain is foo.mycompany.com, the tenant id would be foo
SystemPropertyTenantResolver Resolves the tenant id from a system property
called gorm.tenantId. Mainly useful for testing

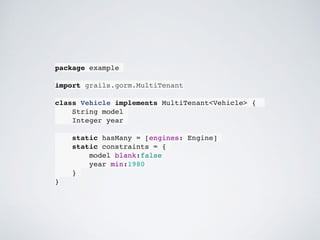

package example
import grails.gorm.MultiTenant
class Vehicle implements MultiTenant<Vehicle> {
String model
Integer year
static hasMany = [engines: Engine]
model blank:false
year min:1980
}
}

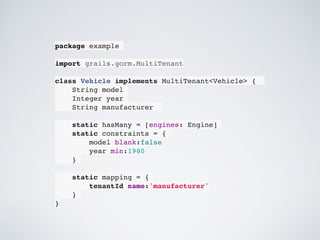

package example
import grails.gorm.MultiTenant
class Vehicle implements MultiTenant<Vehicle> {
String model
Integer year
String manufacturer
static hasMany = [engines: Engine]
model blank:false
year min:1980
}
static mapping = {
tenantId name:'manufacturer'
}
}

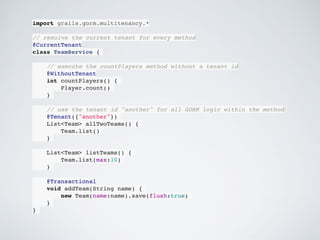

import grails.gorm.multitenancy.*
// resolve the current tenant for every method
@CurrentTenant
class TeamService {
// execute the countPlayers method without a tenant id
@WithoutTenant
int countPlayers() {
Player.count()
}
// use the tenant id "another" for all GORM logic within the method
@Tenant({"another"})
List<Team> allTwoTeams() {
Team.list()
}
List<Team> listTeams() {
Team.list(max:10)
}
@Transactional
void addTeam(String name) {
new Team(name:name).save(flush:true)
}
}

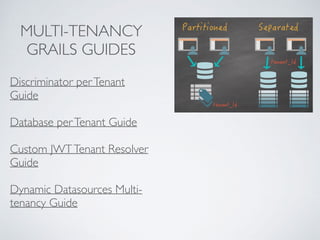

MULTI-TENANCY
GRAILS GUIDES
Discriminator perTenant
Guide
Database perTenant Guide
Custom JWTTenant Resolver
Guide
Dynamic Datasources Multi-
tenancy Guide

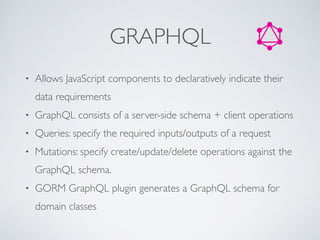

GRAPHQL
• Allows JavaScript components to declaratively indicate their
data requirements
• GraphQL consists of a server-side schema + client operations
• Queries: specify the required inputs/outputs of a request
• Mutations: specify create/update/delete operations against the
GraphQL schema.
• GORM GraphQL plugin generates a GraphQL schema for
domain classes

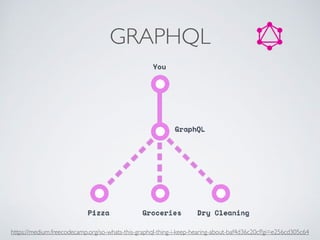

GRAPHQL
https://medium.freecodecamp.org/so-whats-this-graphql-thing-i-keep-hearing-about-baf4d36c20cf?gi=e256cd305c64

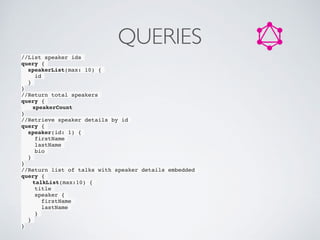

QUERIES
//List speaker ids
query {
speakerList(max: 10) {
id
}
}
//Return total speakers
query {
speakerCount
}
//Retrieve speaker details by id
query {
speaker(id: 1) {
firstName
lastName
bio
}
}
//Return list of talks with speaker details embedded
query {
talkList(max:10) {
title
speaker {
firstName
lastName
}
}
}

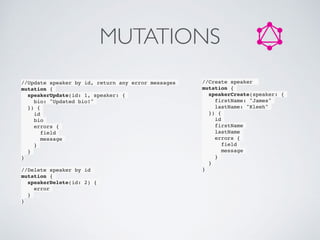

MUTATIONS
//Update speaker by id, return any error messages
mutation {
speakerUpdate(id: 1, speaker: {
bio: "Updated bio!"
}) {
id
bio
errors {
field
message
}
}
}
//Delete speaker by id
mutation {
speakerDelete(id: 2) {
error
}
}
//Create speaker
mutation {
speakerCreate(speaker: {
firstName: "James"
lastName: "Kleeh"
}) {
id
firstName
lastName
errors {
field
message
}
}
}

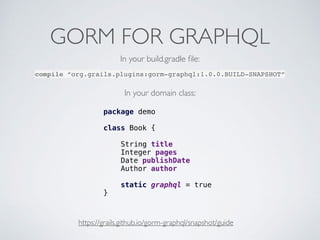

GORM FOR GRAPHQL
https://grails.github.io/gorm-graphql/snapshot/guide
compile “org.grails.plugins:gorm-graphql:1.0.0.BUILD-SNAPSHOT”
package demo
class Book {
String title
Integer pages
Date publishDate
Author author
static graphql = true
}
In your domain class:

GORM, GRAPHQL,
REACT & APOLLO GUIDE
https://tinyurl.com/GormGraphQLReact
Step-by-step guide to building a GraphQL
backend using Grails, with a React frontend
Soon to be published at: http://guides.grails.org/gorm-graphql-with-react-and-apollo/guide

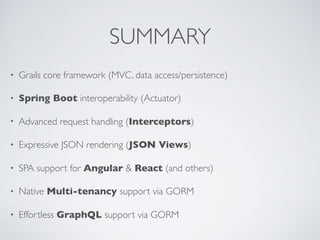

SUMMARY
• Grails core framework (MVC, data access/persistence)
• Spring Boot interoperability (Actuator)
• Advanced request handling (Interceptors)
• Expressive JSON rendering (JSON Views)
• SPA support for Angular & React (and others)
• Native Multi-tenancy support via GORM
• Effortless GraphQL support via GORM

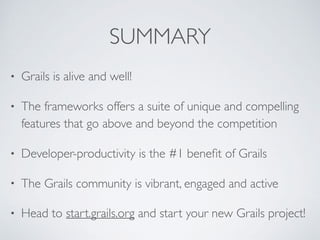

SUMMARY
• Grails is alive and well!
• The frameworks offers a suite of unique and compelling
features that go above and beyond the competition
• Developer-productivity is the #1 beneﬁt of Grails
• The Grails community is vibrant, engaged and active
• Head to start.grails.org and start your new Grails project!

THANKYOU
kleinz@objectcomputing.com

Grails Launchpad - From Ground Zero to Orbit

More Related Content

What's hot

Similar to Grails Launchpad - From Ground Zero to Orbit

More from Zachary Klein

Recently uploaded

Grails Launchpad - From Ground Zero to Orbit
