The document discusses web components, a set of features by W3C that enable the creation of reusable widgets for web applications. It covers various aspects such as component lifecycle, shadow DOM, and encapsulated styling with CSS. Additionally, it highlights the challenges of dynamic content management and provides examples of custom elements and their implementation.

1. Web components
Time to shine?
Tudor Barbu - June 2018

2. Web Components are a set of features currently being added by the W3C to the
HTML and DOM specifications that allow for the creation of reusable widgets or
components in web documents and web applications.

4. ...and many, many, MANY others!

5. <input type="text" id="datepicker">
$('#datepicker').datepicker({
showOtherMonths: true,
selectOtherMonths: true
})
● lack of semantics in the markup
● separated HTML and JS
● configuration is stored at a different
location
● the JS needs to run every time a new
calendar element is added

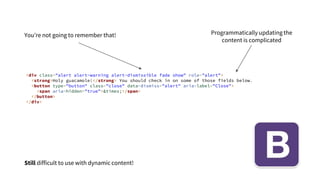

6. <div class="alert alert-warning alert-dismissible fade show" role="alert">
<strong>Holy guacamole!</strong> You should check in on some of those fields below.
<button type="button" class="close" data-dismiss="alert" aria-label="Close">
<span aria-hidden="true">&times;</span>
</button>
</div>
You’re not going to remember that! Programmatically updating the
content is complicated
Still difficult to use with dynamic content!

7. <calendar
start-date="06/06/2018"
show-day-of-week="true"></calendar>
<notification
type="danger"
title="Warning"
content="Neah, just testing!"
id="primary-alert"></notification>
const notification = document.getElementById('primary-alert')
notification.setAttribute(
'content',
'Wait, it is actually happening! Please panic!!!'
)

8. class MyCustomElement extends HTMLElement {
constructor () {
super()
// do not update the DOM here
}
/**
* the element is added to the DOM
*/
connectedCallback () {
}
/**
* the element is removed from the DOM
*/
disconnectedCallback () {
}
/**
* the element is moved to a new document
*/
adoptedCallback () {
}
/**
* a watched attribute changed value
*/
attributeChangedCallback (name, current, previous) {
}
}
Easy peasy :)

9. window.customElements.define(
'my-custom-element',
MyCustomElement
)
HTML tag
class extending HTMLElement
The TA-DA moment!

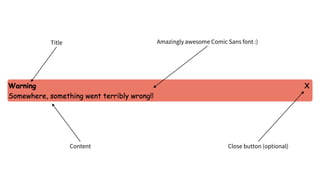

10. Title Amazingly awesome Comic Sans font :)
Content Close button (optional)

11. <cstm-notification
title="Warning"
content="Somewhere, something went terribly wrong!!!"
type="danger"
disposable="true">
</cstm-notification>
It’s a good idea to namespace
your components

12. class Notification extends HTMLElement {
/* ... */
connectedCallback () {
this._render()
}
_render () {
const title = document.createElement('strong')
const content = document.createElement('p')
title.innerHTML = this.getAttribute('title')
content.innerHTML = this.getAttribute('content')
this.appendChild(title)
this.appendChild(content)
if (this.getAttribute('disposable')) {
const close = document.createElement('span')
close.classList.add('close')
close.innerHTML = 'X'
close.addEventListener('click', () => {
this.parentNode.removeChild(this)
})
this.appendChild(close)
}
}
}

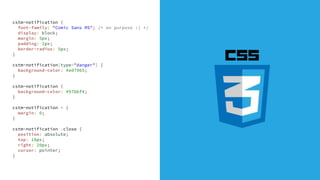

13. cstm-notification {
font-family: "Comic Sans MS"; /* on purpose :) */
display: block;
margin: 5px;
padding: 2px;
border-radius: 5px;
}
cstm-notification[type="danger"] {
background-color: #ed7965;
}
cstm-notification {
background-color: #97bbf4;
}
cstm-notification * {
margin: 0;
}
cstm-notification .close {
position: absolute;
top: 10px;
right: 20px;
cursor: pointer;
}

15. class Notification extends HTMLElement {
static get observedAttributes () {
return ['title', 'content', 'disposable']
}
attributeChangedCallback (name, current, prev) {
this._render()
}
// ...
}
The attributeChangedCallback
● is only fired for observedAttributes
● is fired for each attribute in the
observedAttributes array!!!

16. class Notification extends HTMLElement {
// ...
disconnectedCallback () {
const event = new CustomEvent(
'notification-removed',
{
detail: {
title: this.getAttribute('title'),
content: this.getAttribute('content')
}
}
)
this.dispatchEvent(event)
}
}
const notify = document.querySelector('.some-notification')
notify.addEventListener('notification-removed', (event) => {
console.log(event.type)
console.log(event.detail)
})
standard event flow

17. Encapsulation

18. A component specific DOM subtree included in
the rendering of a document, outside the main
DOM tree

19. class Notification extends HTMLElement {
constructor () {
super()
this._shadow = this.attachShadow({ mode: 'open' })
}
// ...
_render () {
// ...
this._shadow.appendChild(title)
this._shadow.appendChild(content)
if (this.getAttribute('disposable')) {
// ...
this._shadow.appendChild(close)
}
const style = document.createElement('style')
style.setAttribute('type', 'text/css')
style.innerHTML = CSS_STYLE
this._shadow.appendChild(style)
}
}
Attach all other elements to the
shadow DOM
Attach a shadow DOM to the
web component
CSS is scoped for the
component

20. * {
margin: 0;
}
:host {
font-family: "Comic Sans MS"; /* on purpose :) */
display: block;
margin: 5px;
padding: 2px;
border-radius: 5px;
background-color: #97bbf4;
}
:host([type="danger"]) {
background-color: #ed7965;
}
.close {
position: absolute;
top: 10px;
right: 20px;
cursor: pointer;
}
the :host selected references
the shadow root
can also be used to match attributes on
the custom element

21. Global CSS rules *do not* cascade inside the
shadow DOM

22. Yes No
● fonts
● colors
● other “themeable” properties
● position of internal elements
● hide / show

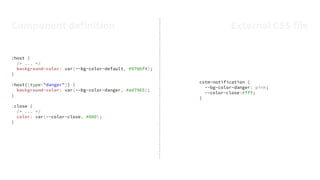

23. :host {
/* ... */
background-color: var(--bg-color-default, #97bbf4);
}
:host([type="danger"]) {
background-color: var(--bg-color-danger, #ed7965);
}
.close {
/* ... */
color: var(--color-close, #000);
}
cstm-notification {
--bg-color-danger: pink;
--color-close:#fff;
}
Component definition External CSS file

24. ...ish!
But there are some amazing polyfills and frameworks!
Browser support?

25. https://www.polymer-project.org/ http://slimjs.com http://x-tag.github.io

26. ● update the DOM based on changes in a data model
● suitable for complex applications
● reusable web widgets
● suitable for UI/UX libraries
Frameworks Web components

27. Thank you!
Fancy working with web components?
jobs.schibsted.com
Tudor Barbu
@motanelu
bytes.schibsted.com / @Schibsted_Eng
