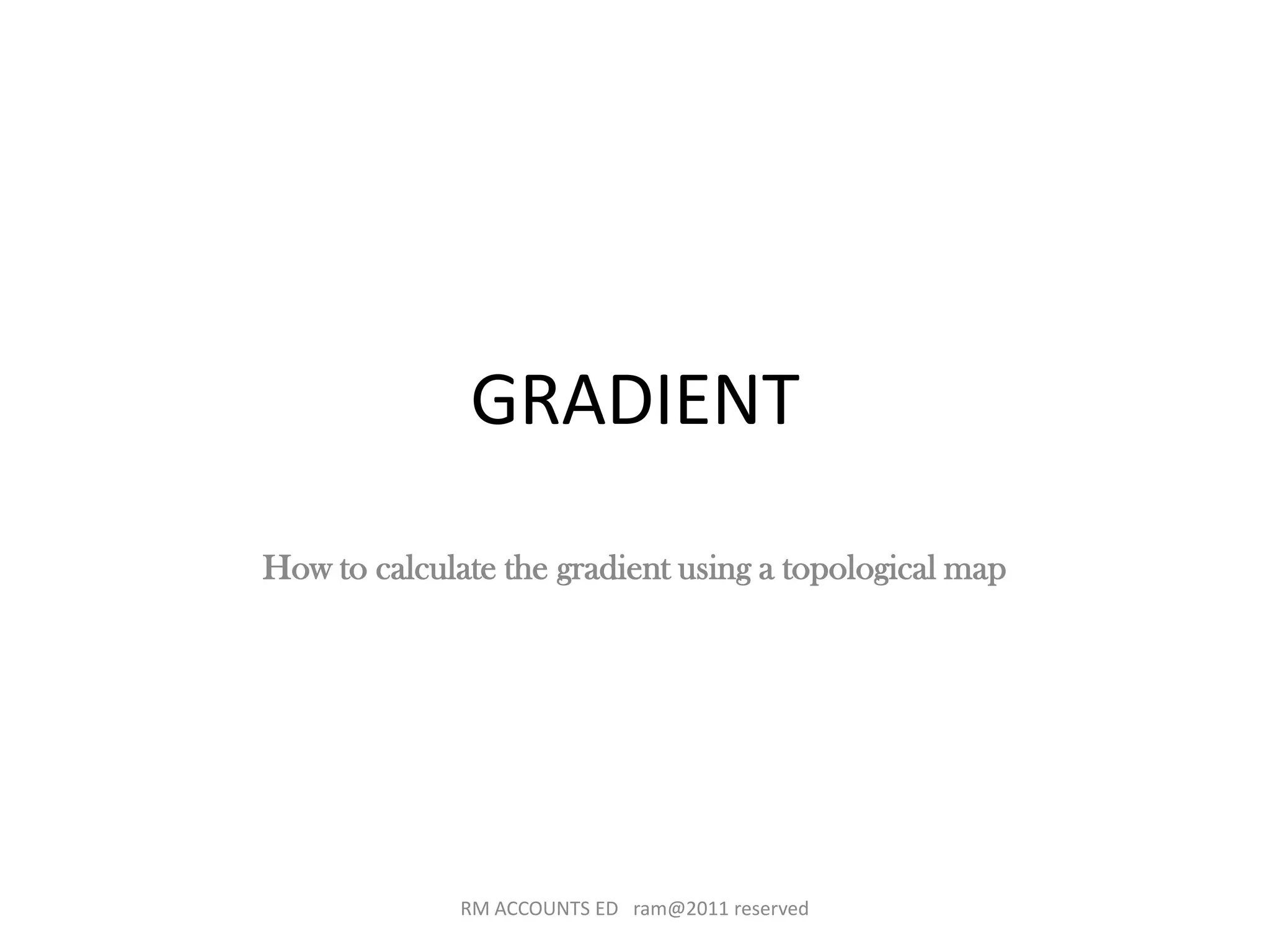

1. GRADIENT
How to calculate the gradient using a topological map
RM ACCOUNTS ED ram@2011 reserved

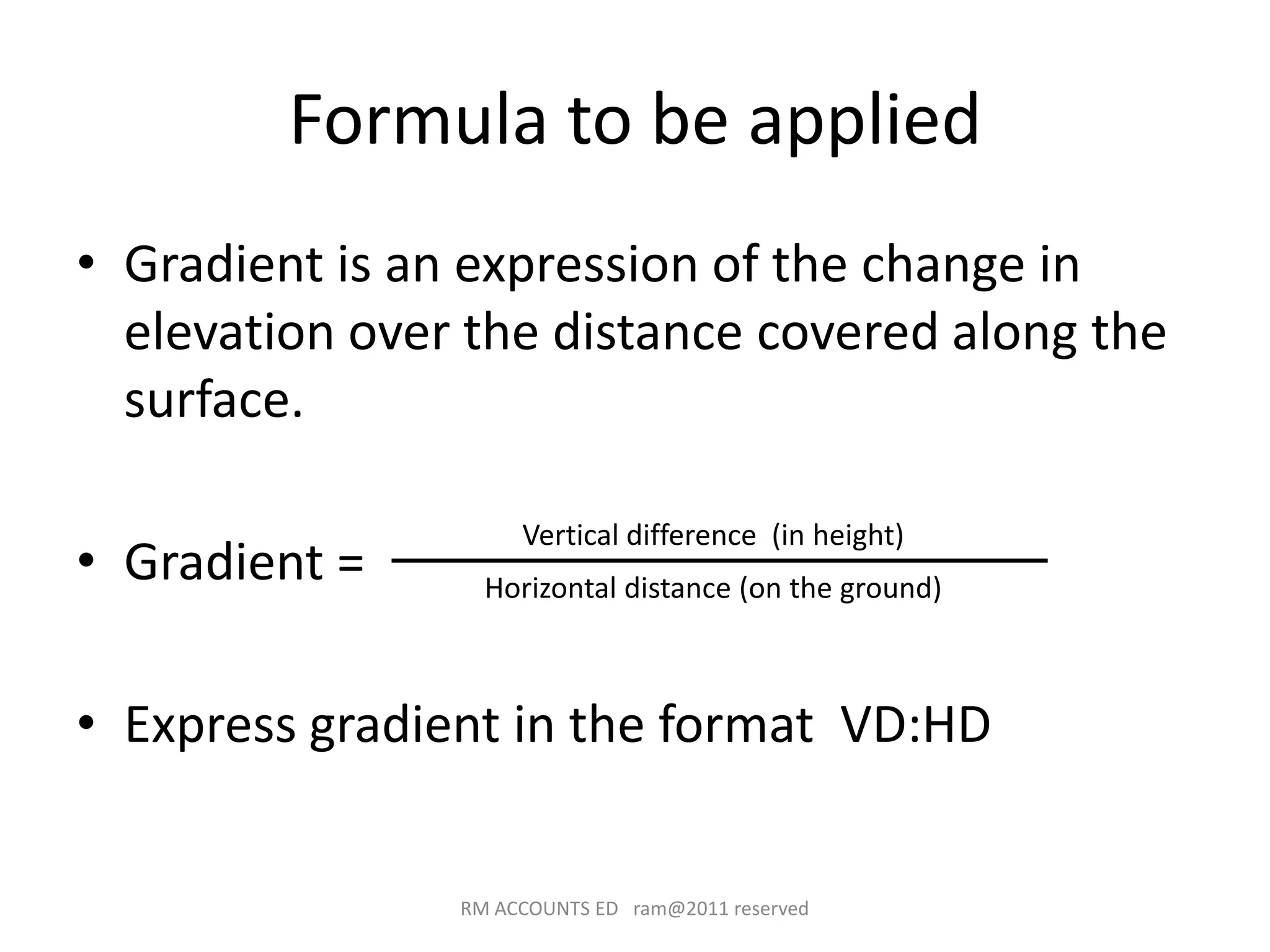

2. Formula to be applied
• Gradient is an expression of the change in
elevation over the distance covered along the
surface.
• Gradient =
Vertical difference (in height)
Horizontal distance (on the ground)
• Express gradient in the format VD:HD
RM ACCOUNTS ED ram@2011 reserved

3. example
Calculate the gradient of the road
from the bridge at Cocoa Estate to
the junction near the radio mast on
the coast.
(adapted from CSEC 2012 Geography CXC May/June – Qn 1(v))
RM ACCOUNTS ED ram@2011 reserved

4. Dominica (Lesser Antilles)
Examine the contour lines that pass through each point for
the heights; and use the scale to ascertain the distance
RM ACCOUNTS ED ram@2011 reserved

5. Steps to take
• Identify the heights of the two locations
• Measure the distance in a straight line between the
two points.
• OR if specified, along the route identified (e.g the road,
or river, etc)
• Ensure that both the height and the distance have
been expressed in the same units (i.e metres or feet)
RM ACCOUNTS ED ram@2011 reserved

6. What do we now know?
• The height of the bridge is
65 metres
• The height of the junction is 5 metres
• The measurement of the distance between
the bridge and the junction is 3000 metres
RM ACCOUNTS ED ram@2011 reserved

7. Applying the formula
•
Vertical difference (in height)
Horizontal distance (on the ground)
65 - 5
3000
•
therefore the gradient VD:HD
(60: 3000) is 1: 50
RM ACCOUNTS ED ram@2011 reserved

8. sketched
For every fifty metres (in distance) you advanced from the
bridge towards the junction you would have descended one
metre (in height)
