The document discusses Google Web Toolkit (GWT), a tool for developing AJAX-enabled rich web applications in Java. GWT compiles Java code to JavaScript that runs in browsers. It allows developing applications in Java with full IDE support and debugging while targeting browsers. GWT includes a widget library, internationalization support, and ways to integrate with existing web applications and Google App Engine. It also describes how to create user interfaces, handle client-server communication asynchronously, and use advanced features like UI binder and Speed Tracer.

1. Google Web Toolkit Greece -GTUG Athens, 2011/03/22 Christos Stathis

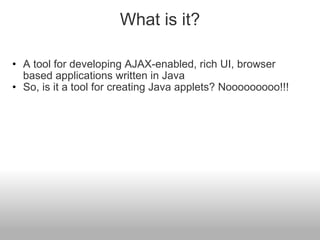

2. What is it? A tool for developing AJAX-enabled, rich UI, browser based applications written in Java So, is it a tool for creating Java applets? Nooooooooo!!!

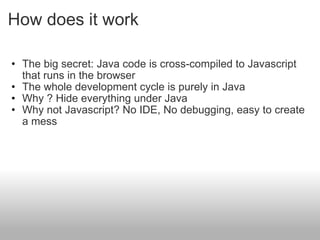

3. How does it work The big secret: Java code is cross-compiled to Javascript that runs in the browser The whole development cycle is purely in Java Why ? Hide everything under Java Why not Javascript? No IDE, No debugging, easy to create a mess

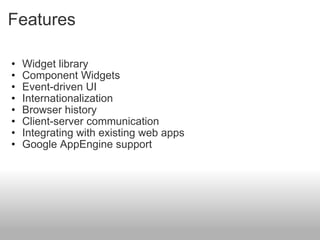

4. Features Widget library Component Widgets Event-driven UI Internationalization Browser history Client-server communication Integrating with existing web apps Google AppEngine support

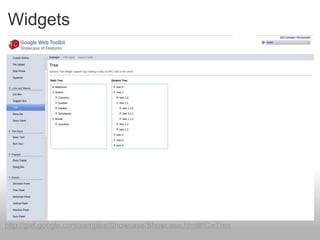

5. Widgets http://gwt.google.com/samples/Showcase/Showcase.html#!CwTree

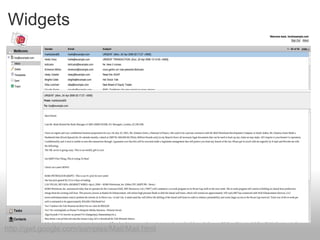

6. Widgets http://gwt.google.com/samples/Mail/Mail.html

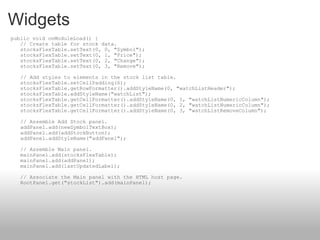

7. Widgets public void onModuleLoad() { // Create table for stock data. stocksFlexTable.setText(0, 0, "Symbol"); stocksFlexTable.setText(0, 1, "Price"); stocksFlexTable.setText(0, 2, "Change"); stocksFlexTable.setText(0, 3, "Remove"); // Add styles to elements in the stock list table. stocksFlexTable.setCellPadding(6); stocksFlexTable.getRowFormatter().addStyleName(0, "watchListHeader"); stocksFlexTable.addStyleName("watchList"); stocksFlexTable.getCellFormatter().addStyleName(0, 1, "watchListNumericColumn"); stocksFlexTable.getCellFormatter().addStyleName(0, 2, "watchListNumericColumn"); stocksFlexTable.getCellFormatter().addStyleName(0, 3, "watchListRemoveColumn"); // Assemble Add Stock panel. addPanel.add(newSymbolTextBox); addPanel.add(addStockButton); addPanel.addStyleName("addPanel"); // Assemble Main panel. mainPanel.add(stocksFlexTable); mainPanel.add(addPanel); mainPanel.add(lastUpdatedLabel); // Associate the Main panel with the HTML host page. RootPanel.get("stockList").add(mainPanel);

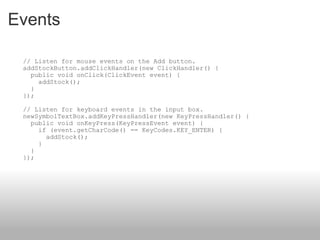

8. Events // Listen for mouse events on the Add button. addStockButton.addClickHandler(new ClickHandler() { public void onClick(ClickEvent event) { addStock(); } }); // Listen for keyboard events in the input box. newSymbolTextBox.addKeyPressHandler(new KeyPressHandler() { public void onKeyPress(KeyPressEvent event) { if (event.getCharCode() == KeyCodes.KEY_ENTER) { addStock(); } } });

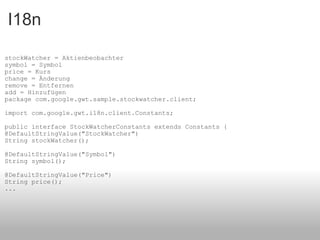

9. I18n stockWatcher = Aktienbeobachter symbol = Symbol price = Kurs change = Änderung remove = Entfernen add = Hinzufügen package com.google.gwt.sample.stockwatcher.client; import com.google.gwt.i18n.client.Constants; public interface StockWatcherConstants extends Constants { @DefaultStringValue("StockWatcher") String stockWatcher(); @DefaultStringValue("Symbol") String symbol(); @DefaultStringValue("Price") String price(); ...

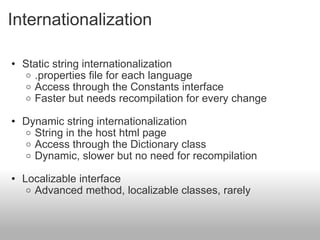

10. Internationalization Static string internationalization .properties file for each language Access through the Constants interface Faster but needs recompilation for every change Dynamic string internationalization String in the host html page Access through the Dictionary class Dynamic, slower but no need for recompilation Localizable interface Advanced method, localizable classes, rarely

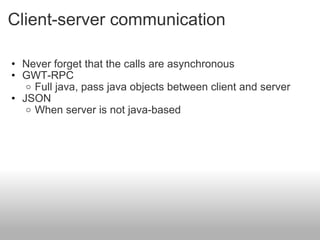

11. Client-server communication Never forget that the calls are asynchronous GWT-RPC Full java, pass java objects between client and server JSON When server is not java-based

12. Client-server support @RemoteServiceRelativePath("stockPrices") public interface StockPriceService extends RemoteService { StockPrice[] getPrices(String[] symbols); } The client-side

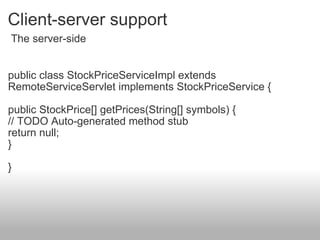

13. Client-server support public class StockPriceServiceImpl extends RemoteServiceServlet implements StockPriceService { public StockPrice[] getPrices(String[] symbols) { // TODO Auto-generated method stub return null; } } The server-side

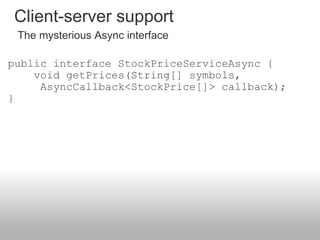

14. public interface StockPriceServiceAsync { void getPrices(String[] symbols, AsyncCallback<StockPrice[]> callback); } Client-server support The mysterious Async interface

15. Client-server support stockPriceSvc.getPrices(stocks.toArray(new String[0]), new AsyncCallback<StockPrice[]> () { public void onFailure(Throwable caught) { // TODO: Do something with errors. } public void onSuccess(StockPrice[] result) { updateTable(result); } }); } The RPC call

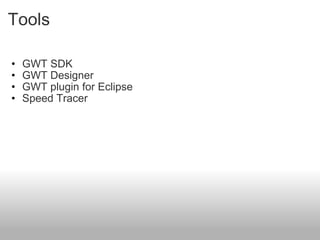

16. Tools GWT SDK GWT Designer GWT plugin for Eclipse Speed Tracer

17. Project structure The module xml file The CSS The Host page The java code

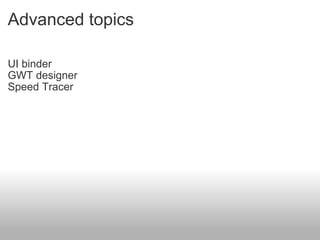

18. Advanced topics UI binder GWT designer Speed Tracer

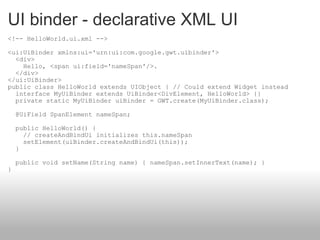

19. UI binder - declarative XML UI <!-- HelloWorld.ui.xml --> <ui:UiBinder xmlns:ui='urn:ui:com.google.gwt.uibinder'> <div> Hello, <span ui:field='nameSpan'/>. </div> </ui:UiBinder> public class HelloWorld extends UIObject { // Could extend Widget instead interface MyUiBinder extends UiBinder<DivElement, HelloWorld> {} private static MyUiBinder uiBinder = GWT.create(MyUiBinder.class); @UiField SpanElement nameSpan; public HelloWorld() { // createAndBindUi initializes this.nameSpan setElement(uiBinder.createAndBindUi(this)); } public void setName(String name) { nameSpan.setInnerText(name); } }

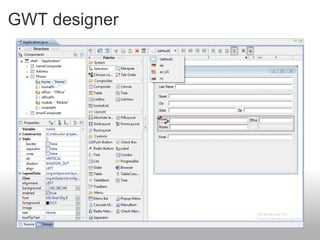

20. GWT designer

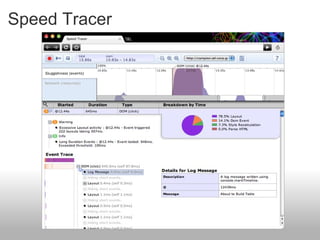

21. Speed Tracer

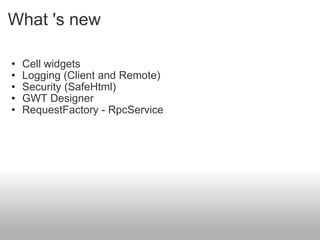

22. What 's new Cell widgets Logging (Client and Remote) Security (SafeHtml) GWT Designer RequestFactory - RpcService
