Nowadays, there are many tips how start your project following the "Offline First" principle. But how add a support offline mode for applications that have already been released? What tactics and architectural approaches are used? What technologies and libraries are looking for? What storages are needed for implementation of pull/push strategies?

1. 1

2. Some statistics
2

3. Auto #2: Lada
http://www.belstat.gov.by
3

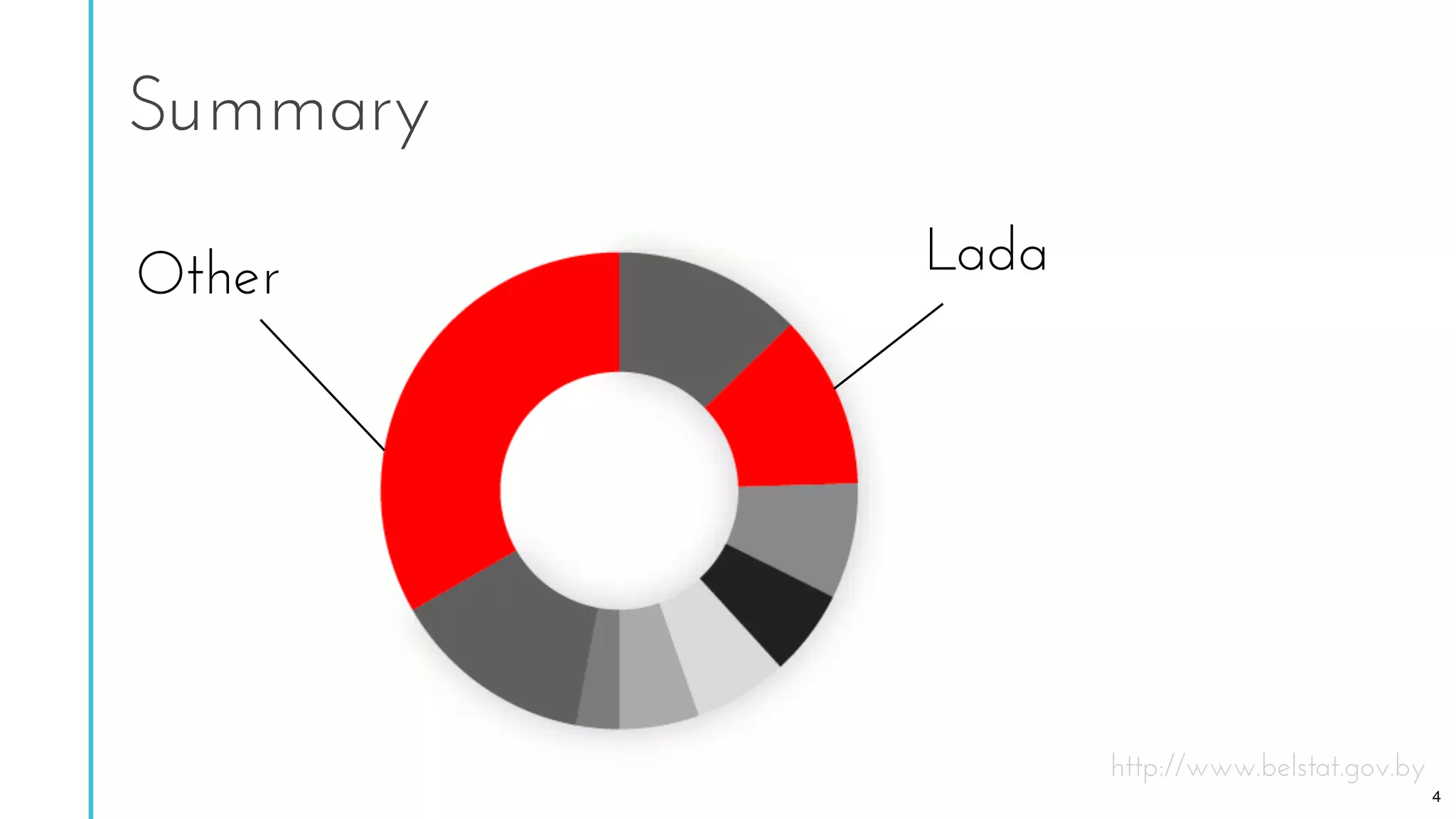

4. Summary
http://www.belstat.gov.by
LadaOther
4

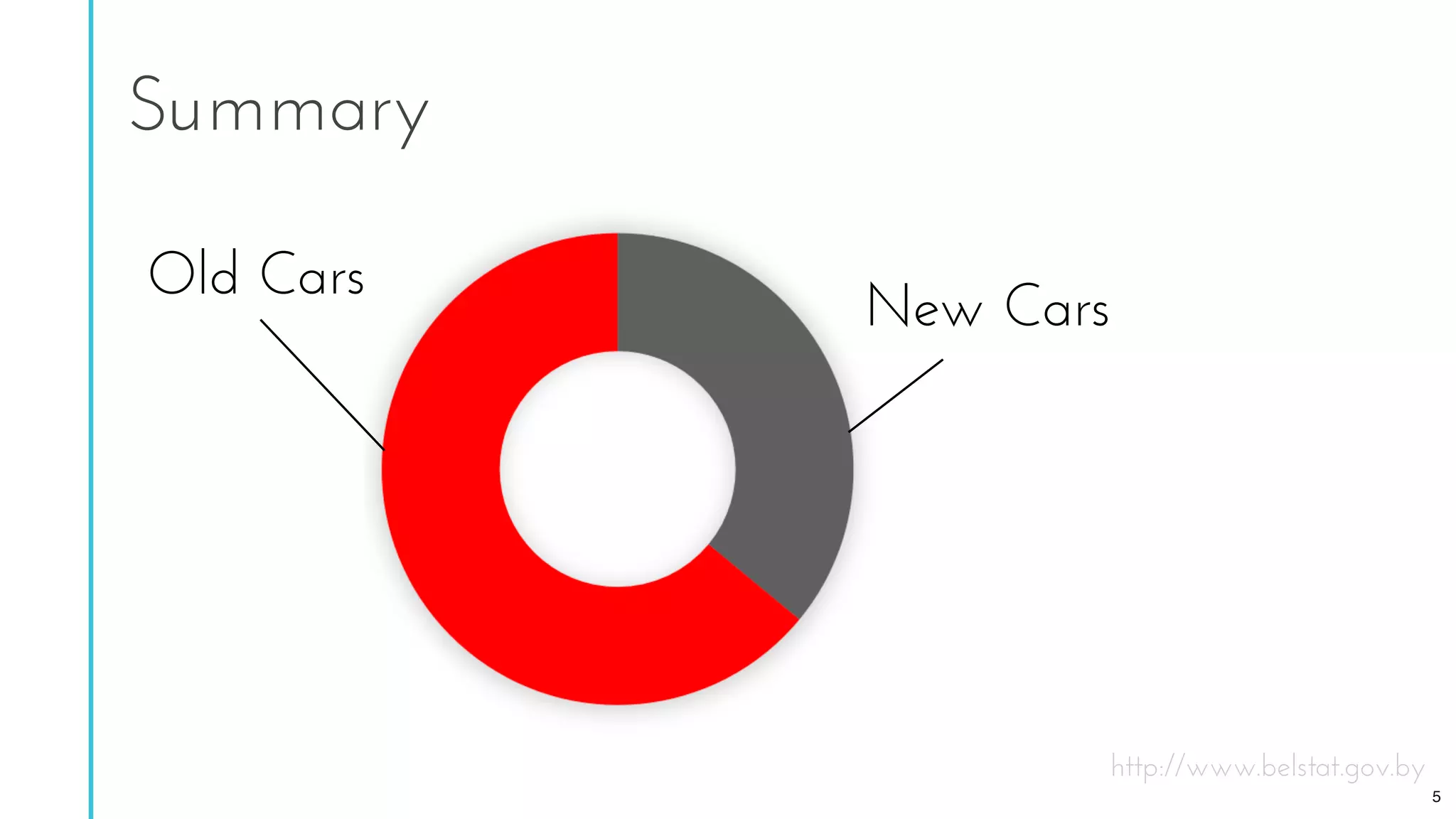

5. Summary
http://www.belstat.gov.by
New Cars
Old Cars
5

6. Upgrades
6

7. Some more statistics
7

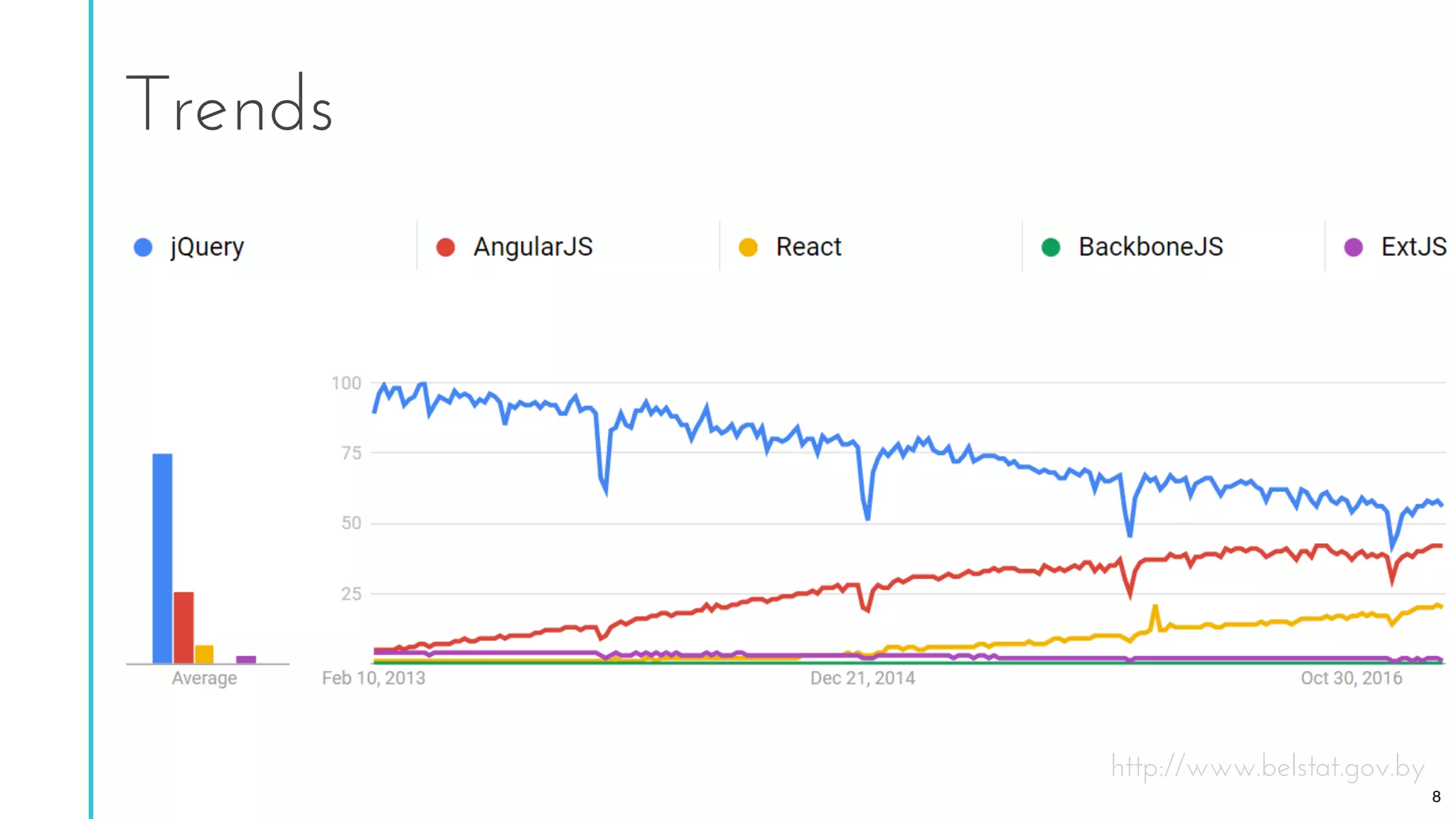

8. Trends
http://www.belstat.gov.by
8

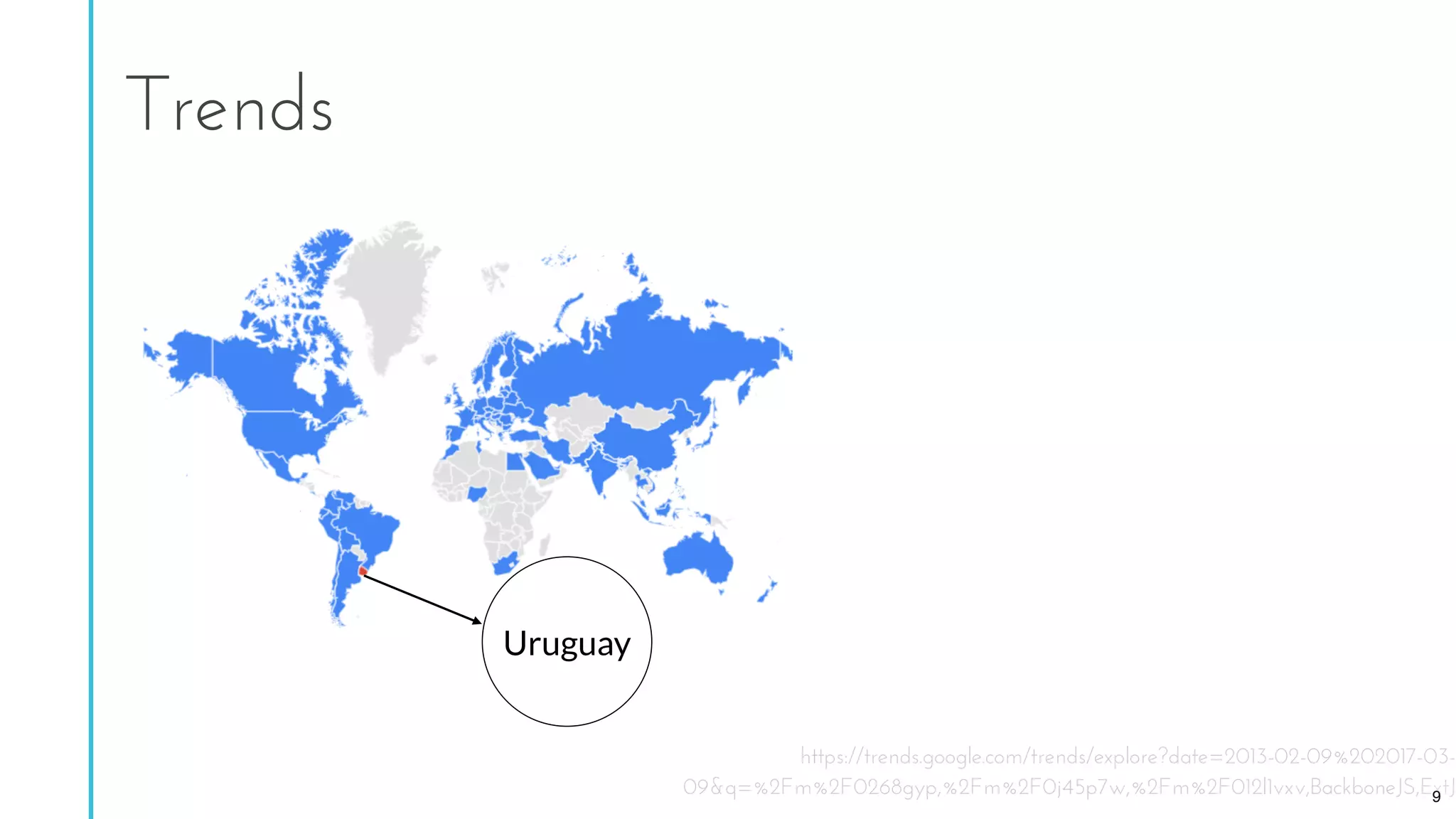

9. Trends
https://trends.google.com/trends/explore?date=2013-02-09%202017-03-
09&q=%2Fm%2F0268gyp,%2Fm%2F0j45p7w,%2Fm%2F012l1vxv,BackboneJS,ExtJ
Uruguay
9

10. Garther Hype Cycle
10

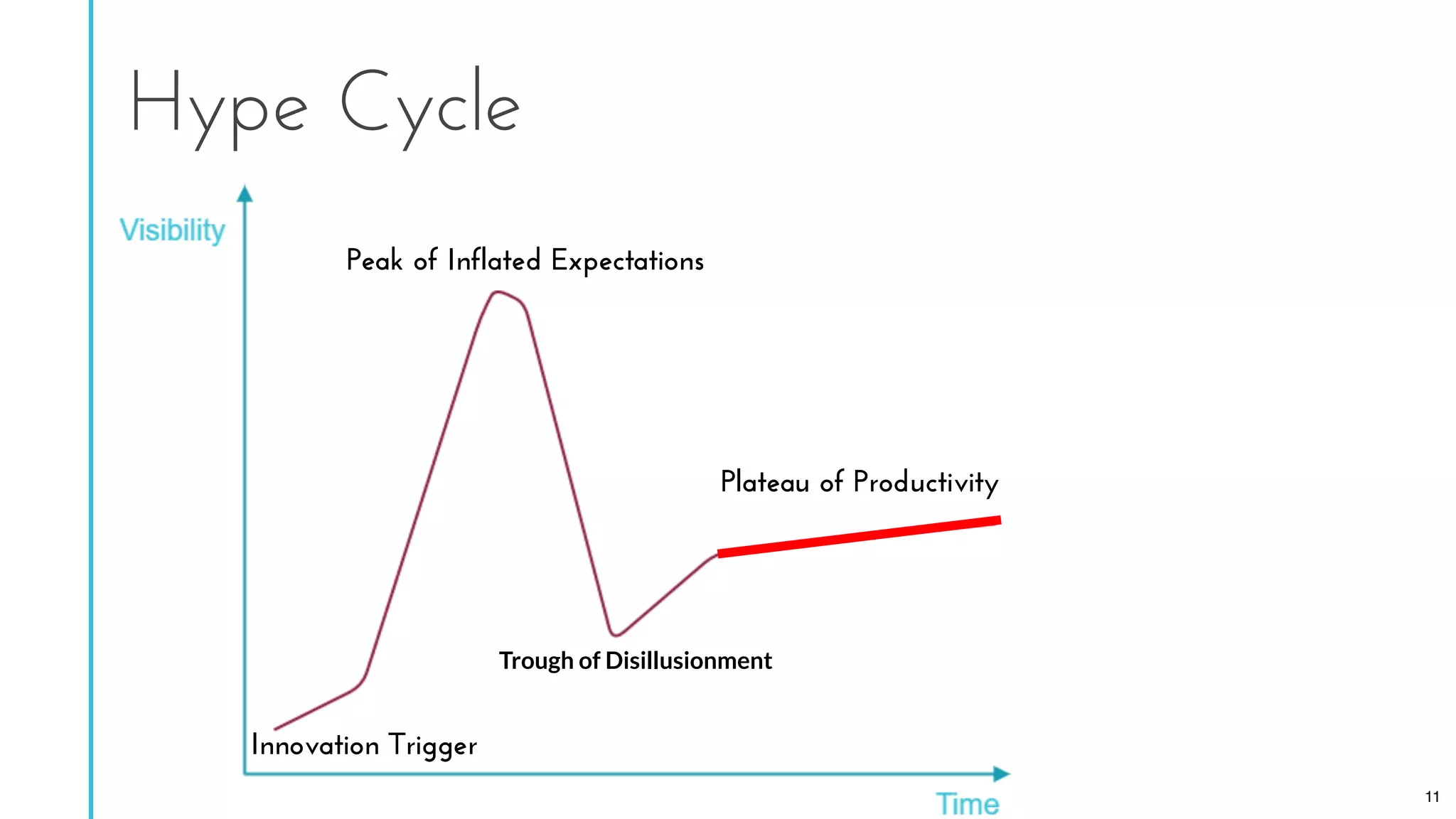

11. Hype Cycle
Peak of Inflated Expectations
Trough of Disillusionment
Plateau of Productivity
Innovation Trigger
11

12. Customer & Offline Second
12

13. Insurance Domain
13

14. Customer's Clients
14

15. Belarus
15

16. USA
16

17. Reality
17

18. Reality
18

19. Offline
19

20. Avoid application crashes or errors
Allow users to keep working, seamlessly
Avoid multiple changes
Time Limit
Conserns
20

21. Step 0: rules
21

22. Focus on your goals
Do not refresh libraries
Do not touch lint or style guides
Do not touch working code
Do not refactor anything
Rules
22

23. Step 1: detect offline
23

24. function updateOnlineStatus(event) {
let condition = navigator.onLine ? 'online' : 'offline';
console.log('Do smth.');
}
window.addEventListener('online', updateOnlineStatus);
window.addEventListener('offline', updateOnlineStatus);
Detect Status
24

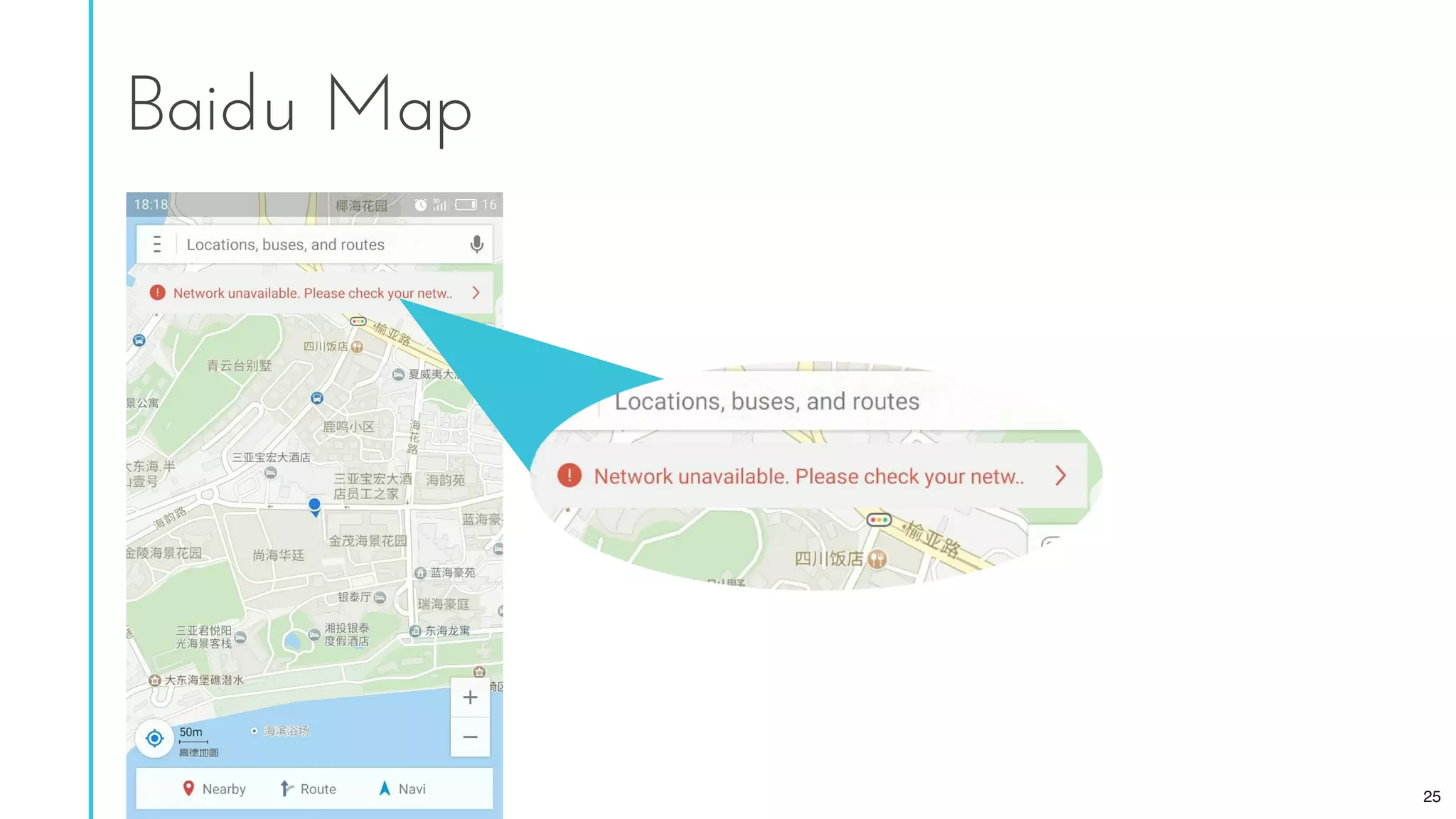

25. Baidu Map
25

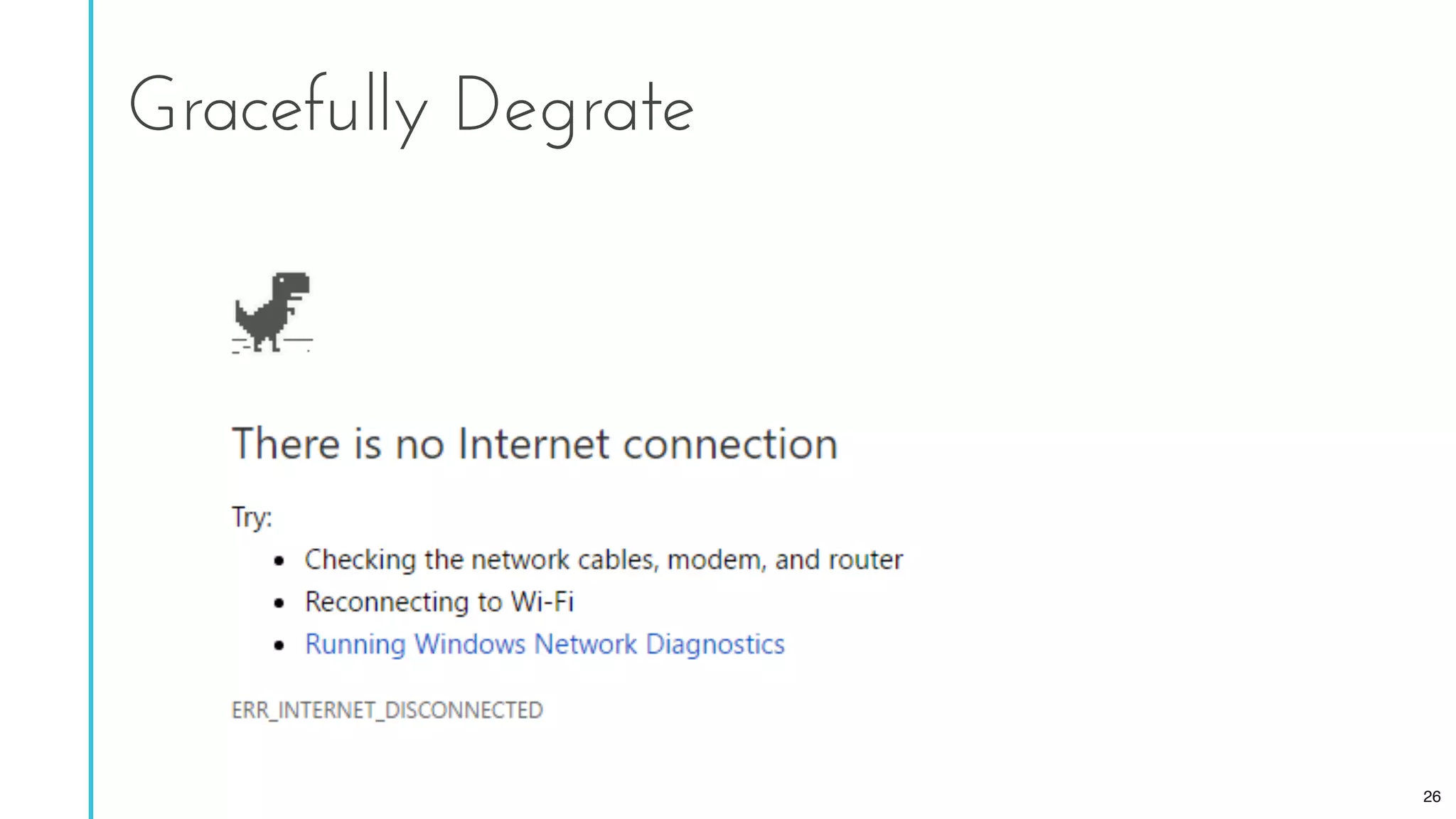

26. Gracefully Degrate
26

27. Step 2: Requests
27

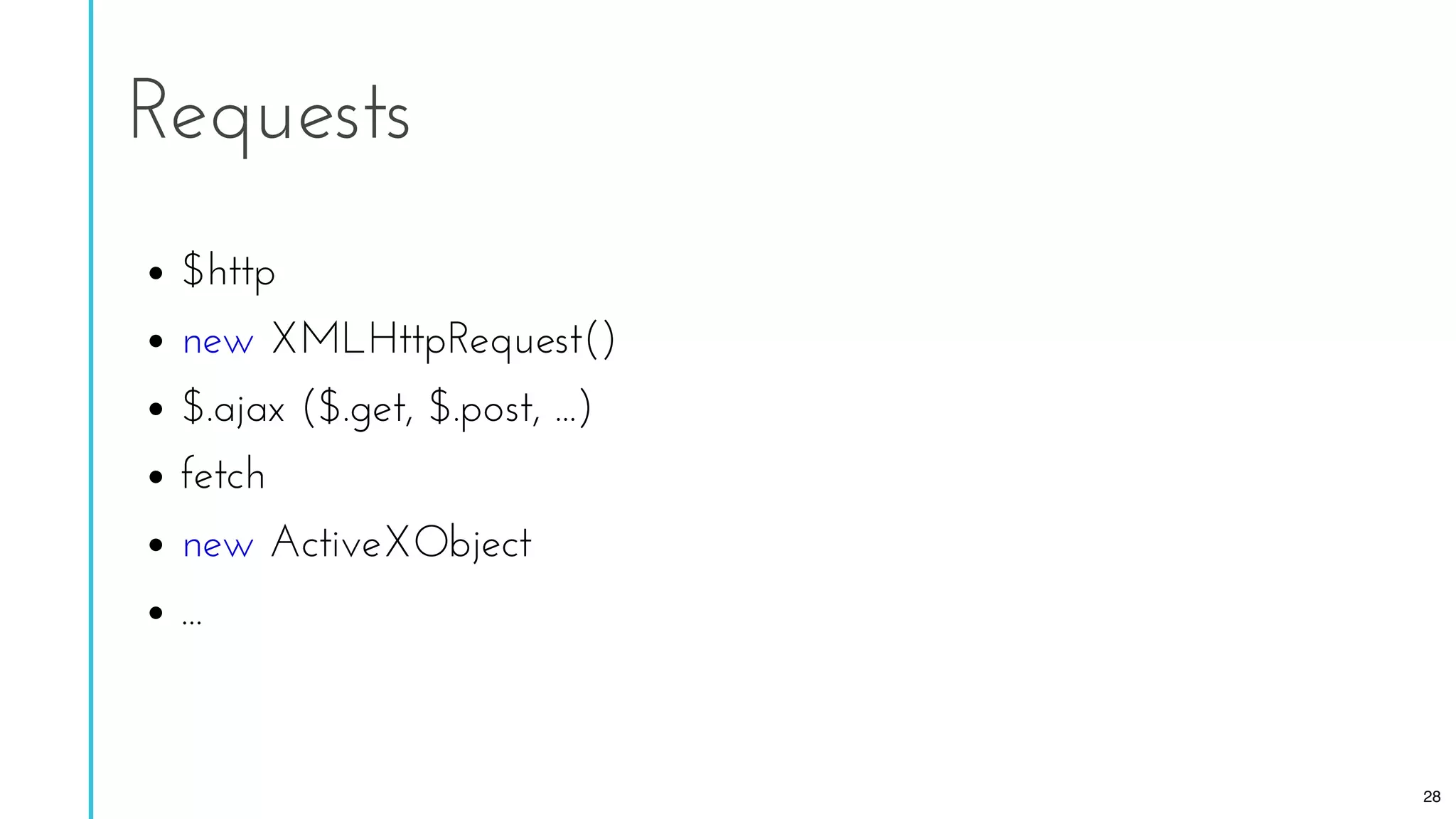

28. $http
new XMLHttpRequest()
$.ajax ($.get, $.post, ...)
fetch
new ActiveXObject
...
Requests
28

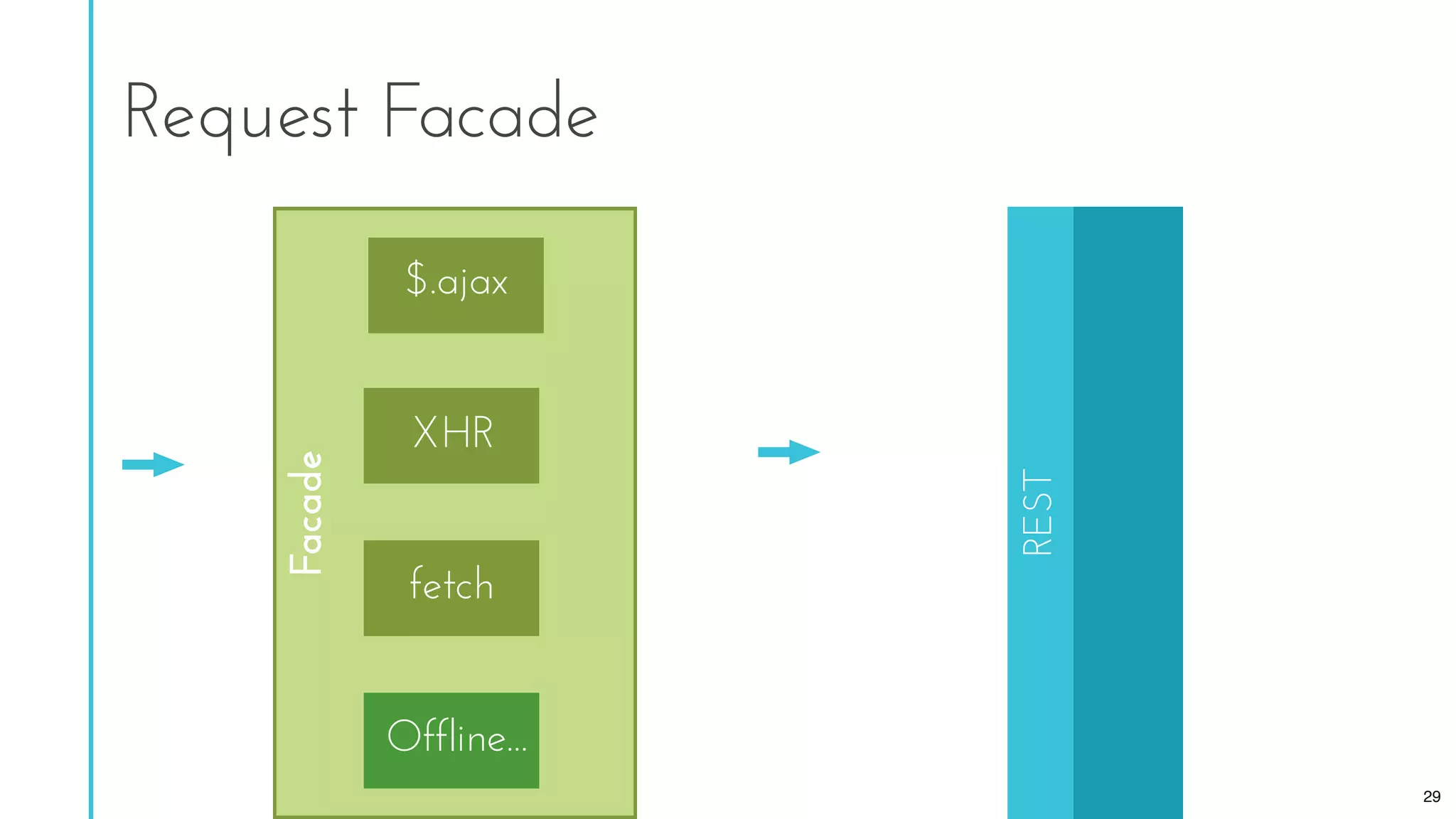

29. Request Facade
REST
$.ajax
XHR
fetch
Offline...
Facade
29

30. Step 3: Detect Slow...
30

31. Online or Offline?
31

32. Slow or intermittent internet
Slow or intermittent WiFi
Avoid HTTP Timeouts
Detect slow connection
32

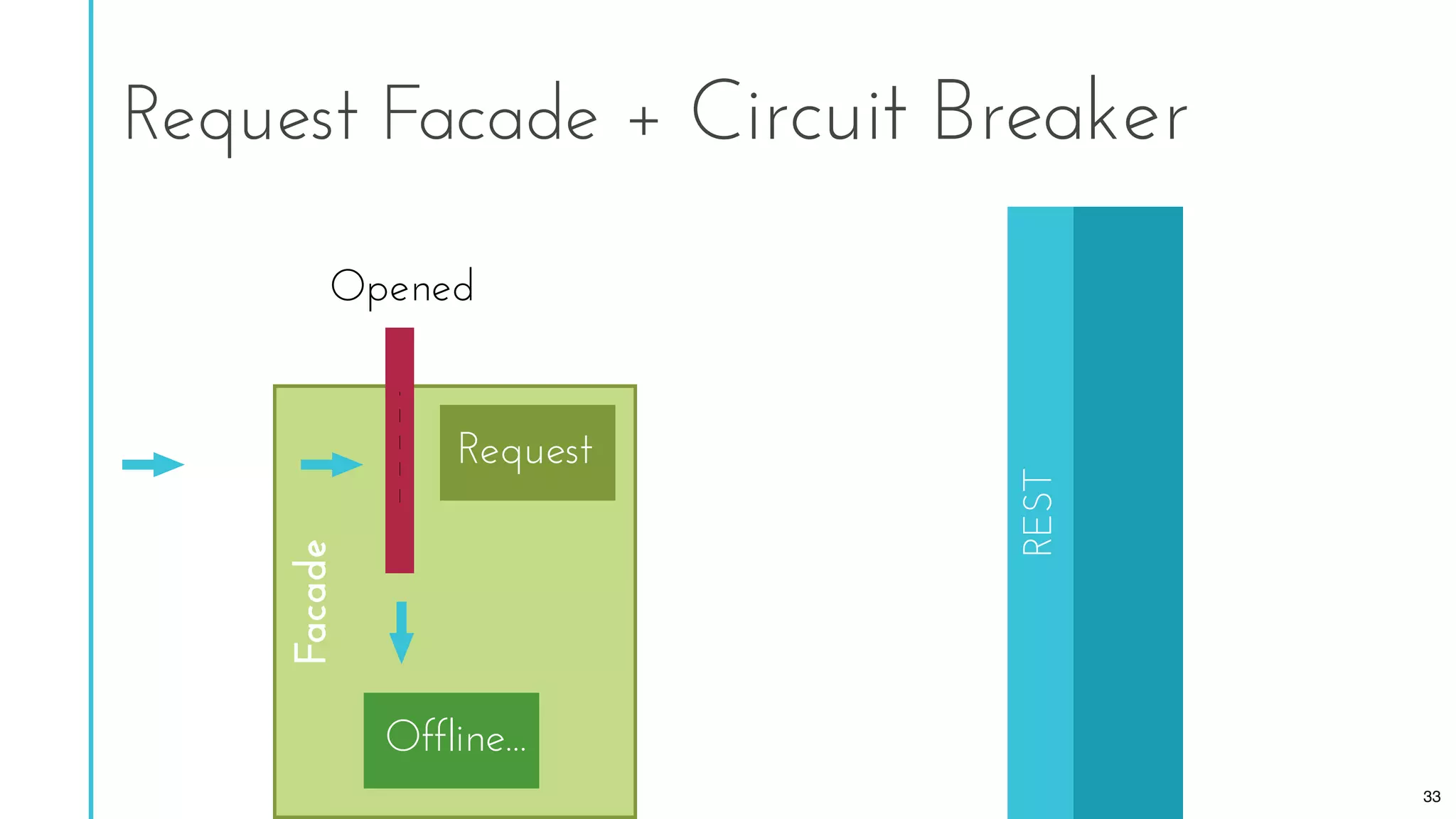

33. Request Facade + Circuit Breaker
REST
Request
Offline...
Facade
Opened
33

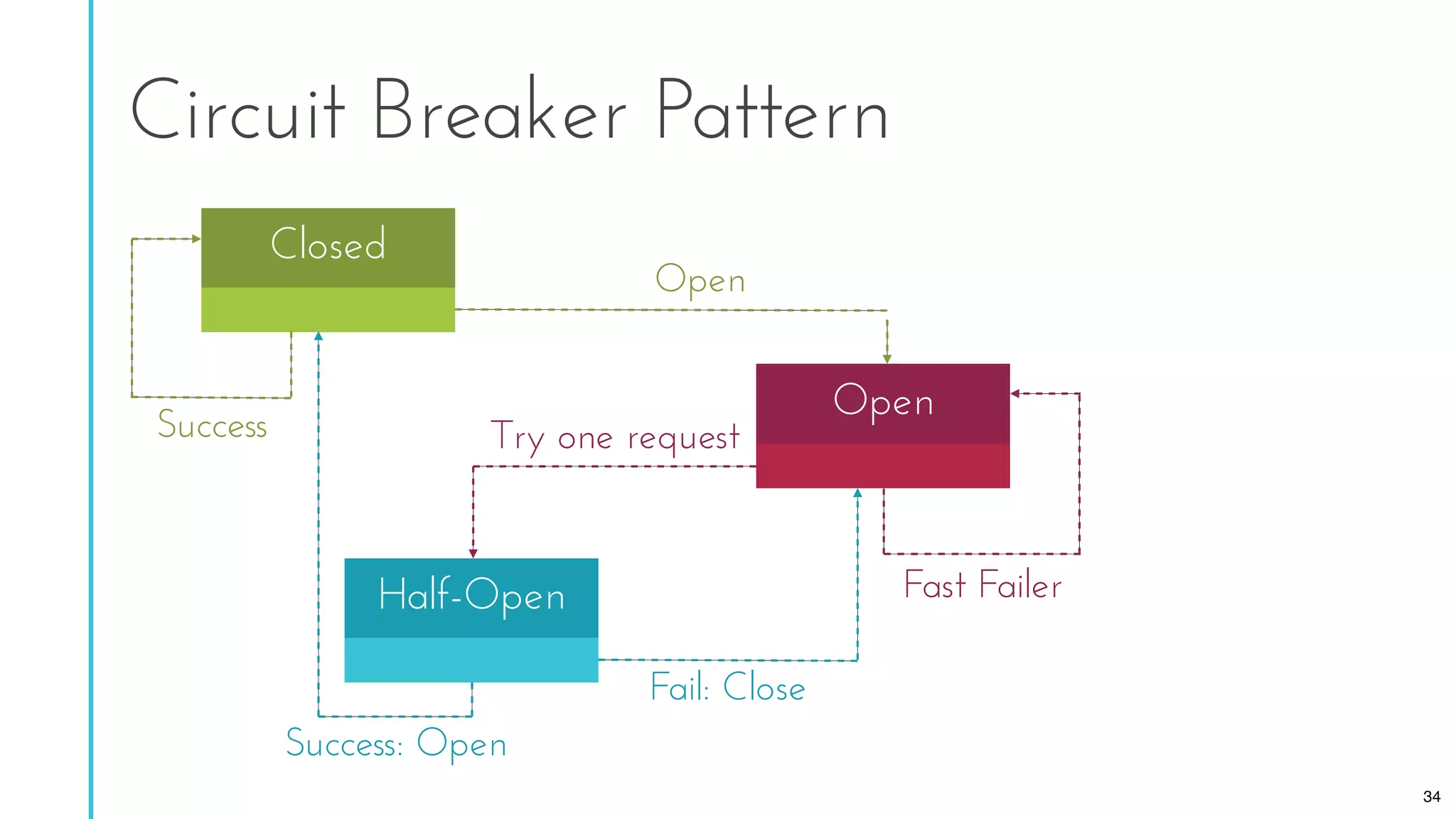

34. Closed
Success
Open
Fast Failer
Open
34
Half-Open
Success: Open
Try one request
Fail: Close
Circuit Breaker Pattern

35. https://github.com/HubSpot/offline
Offline.js
35

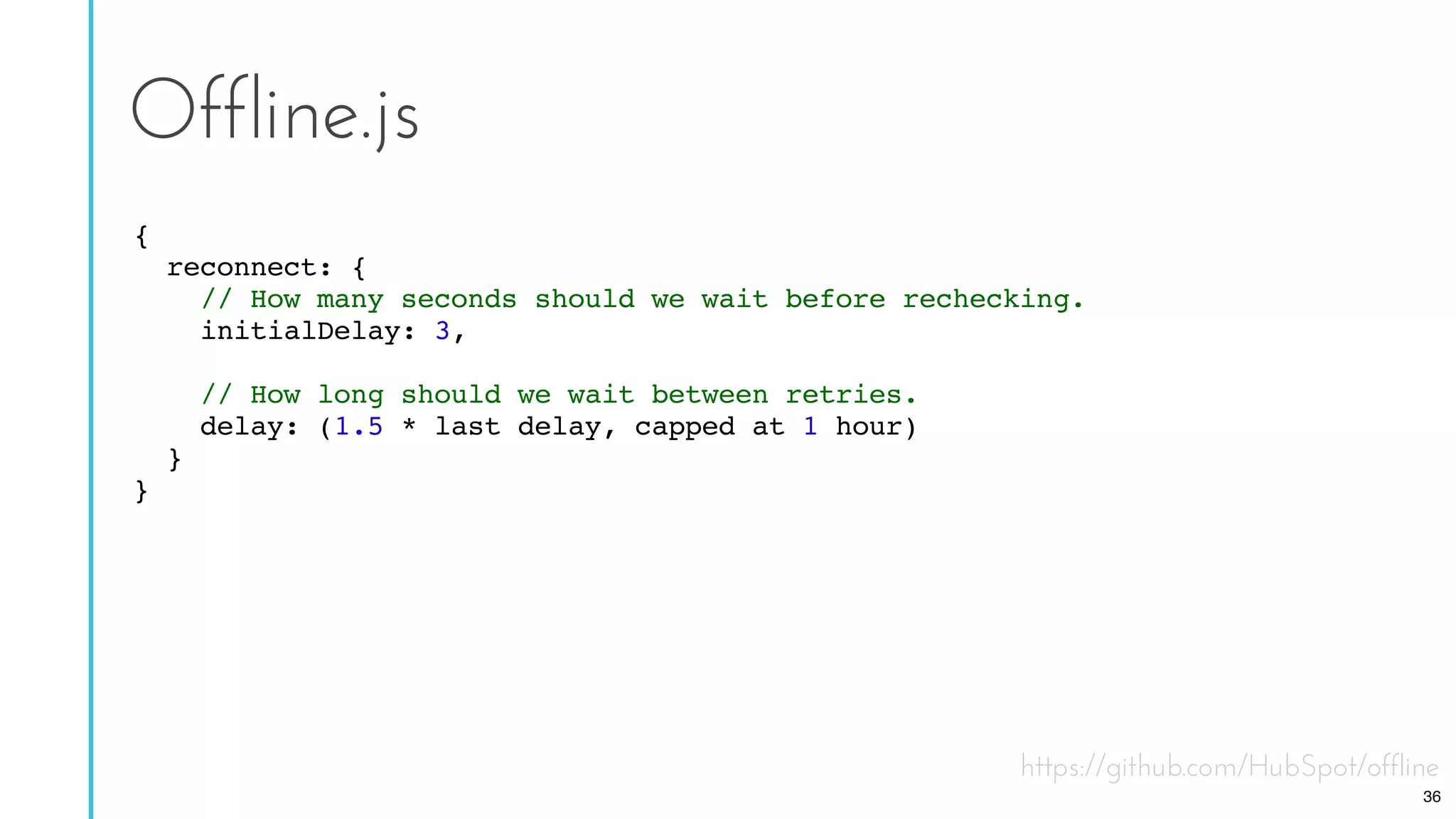

36. https://github.com/HubSpot/offline
Offline.js
{
reconnect: {
// How many seconds should we wait before rechecking.
initialDelay: 3,
// How long should we wait between retries.
delay: (1.5 * last delay, capped at 1 hour)
}
}
36

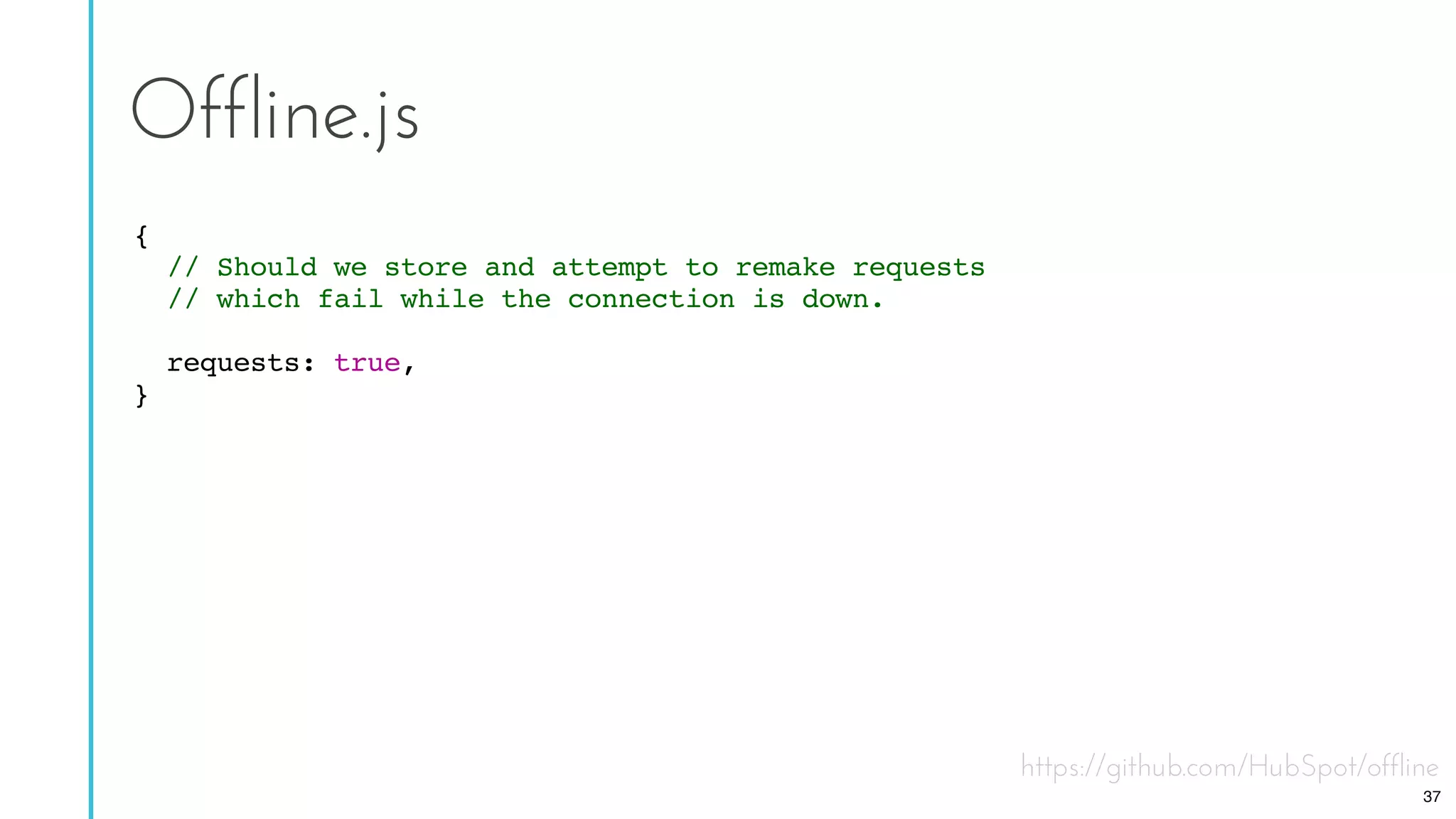

37. https://github.com/HubSpot/offline
Offline.js
{
// Should we store and attempt to remake requests
// which fail while the connection is down.
requests: true,
}
37

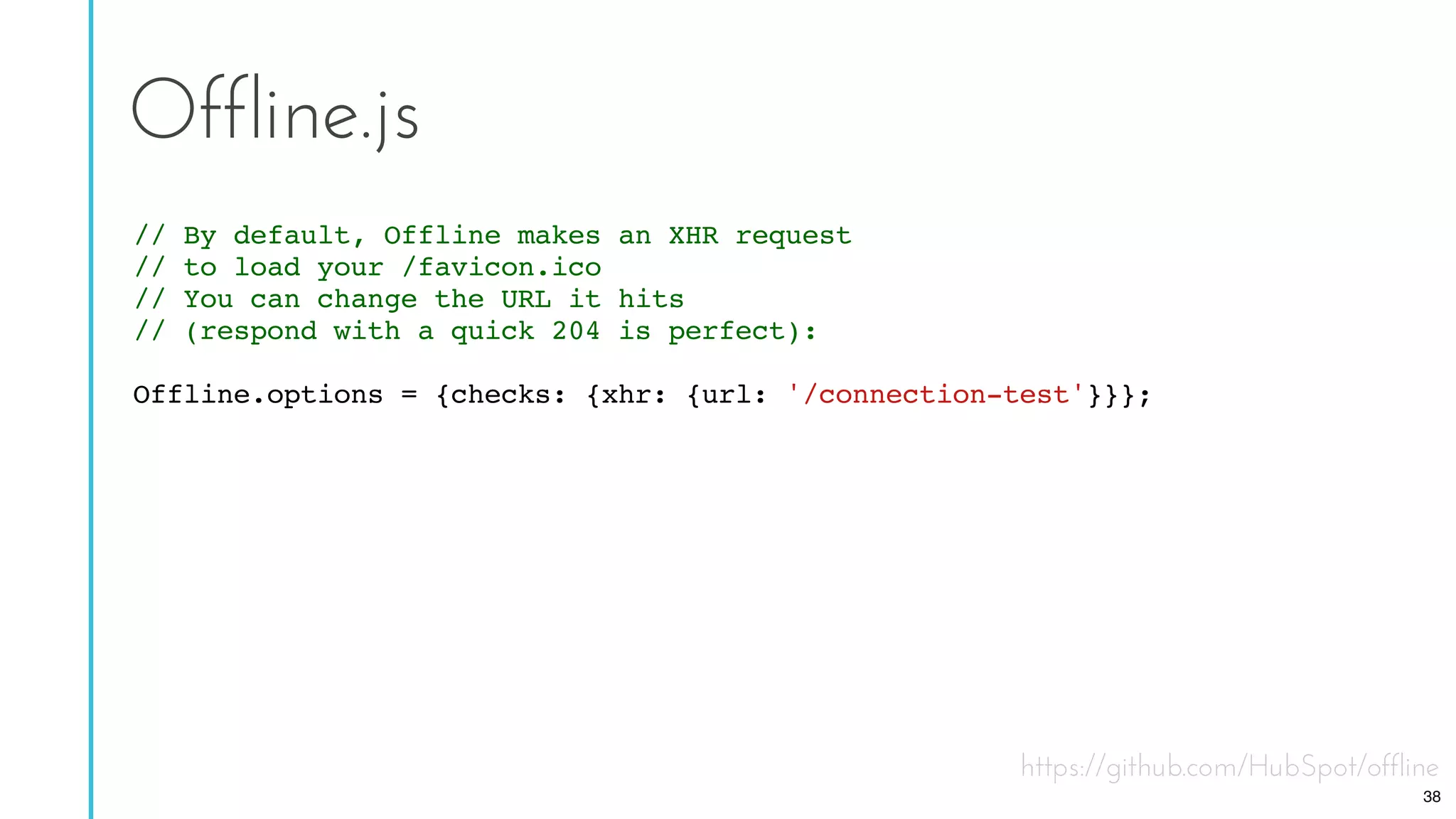

38. https://github.com/HubSpot/offline
Offline.js
// By default, Offline makes an XHR request
// to load your /favicon.ico
// You can change the URL it hits
// (respond with a quick 204 is perfect):
Offline.options = {checks: {xhr: {url: '/connection-test'}}};
38

39. Online OnlineOffline
Restart
Browser
Intermittent Offline
39

40. Step 4: Reload Page
40

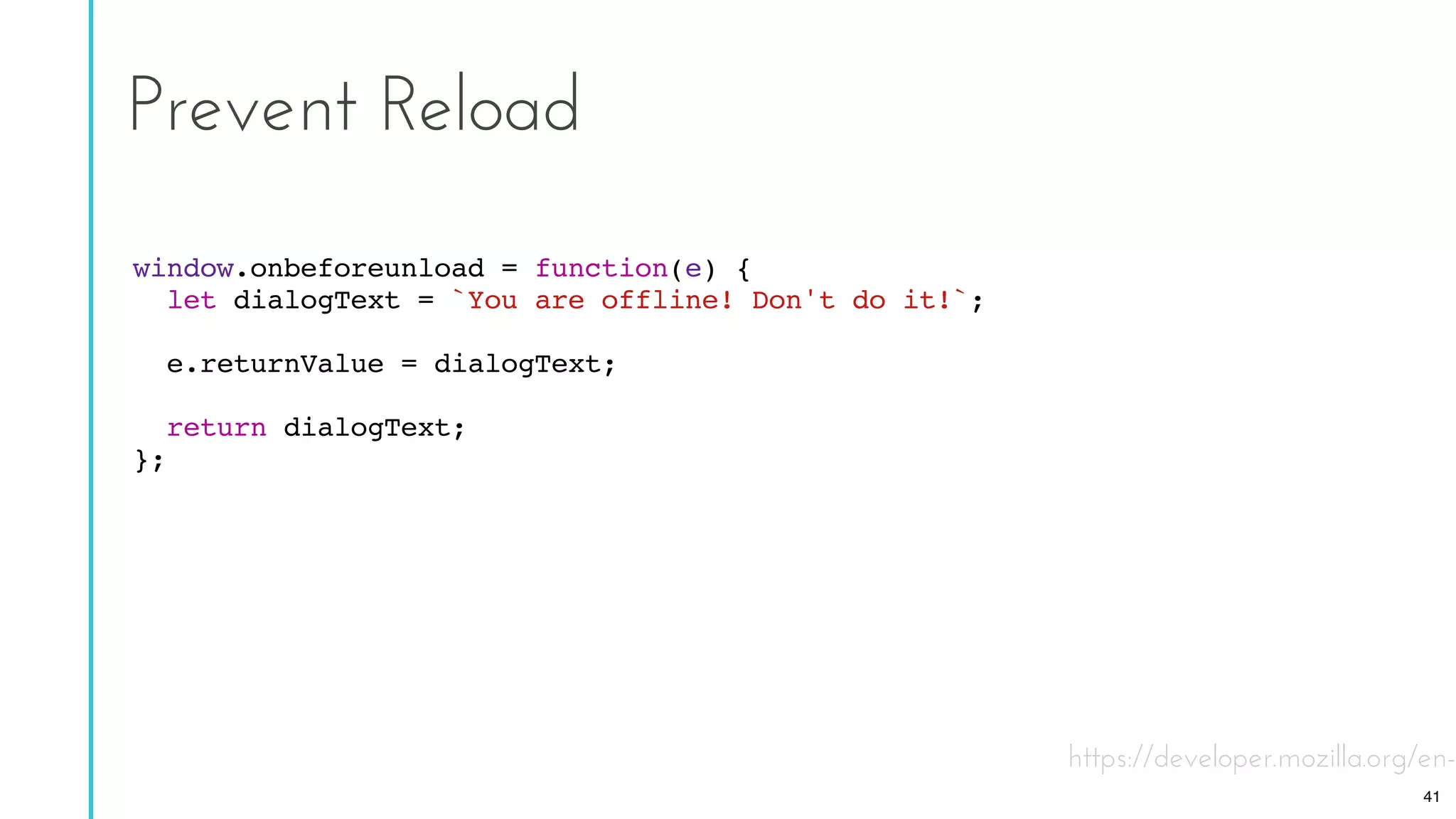

41. Prevent Reload
window.onbeforeunload = function(e) {
let dialogText = `You are offline! Don't do it!`;
e.returnValue = dialogText;
return dialogText;
};
https://developer.mozilla.org/en-
41

42. Service Workers in 2 slides
42

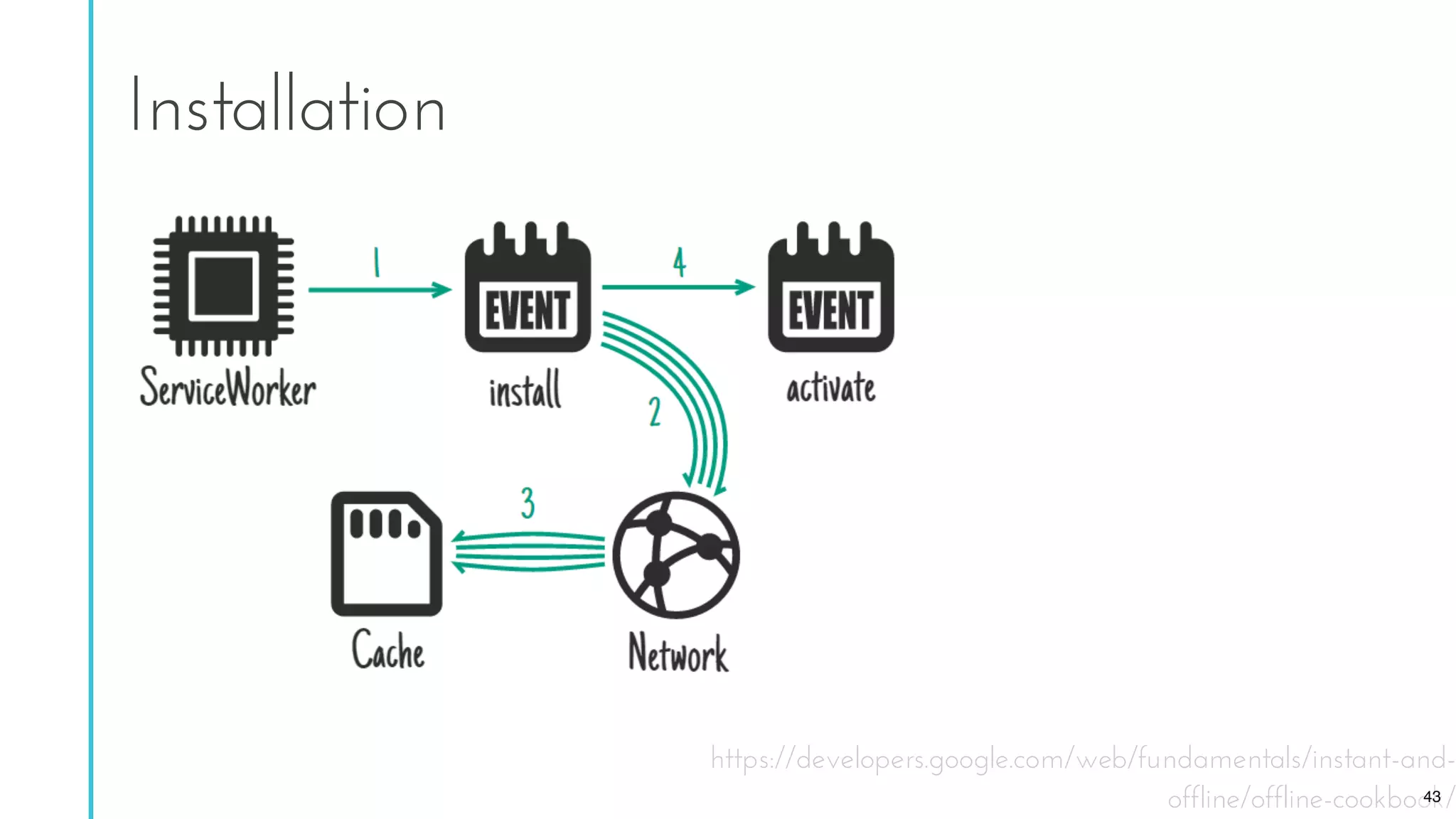

43. Installation
https://developers.google.com/web/fundamentals/instant-and-
offline/offline-cookbook/43

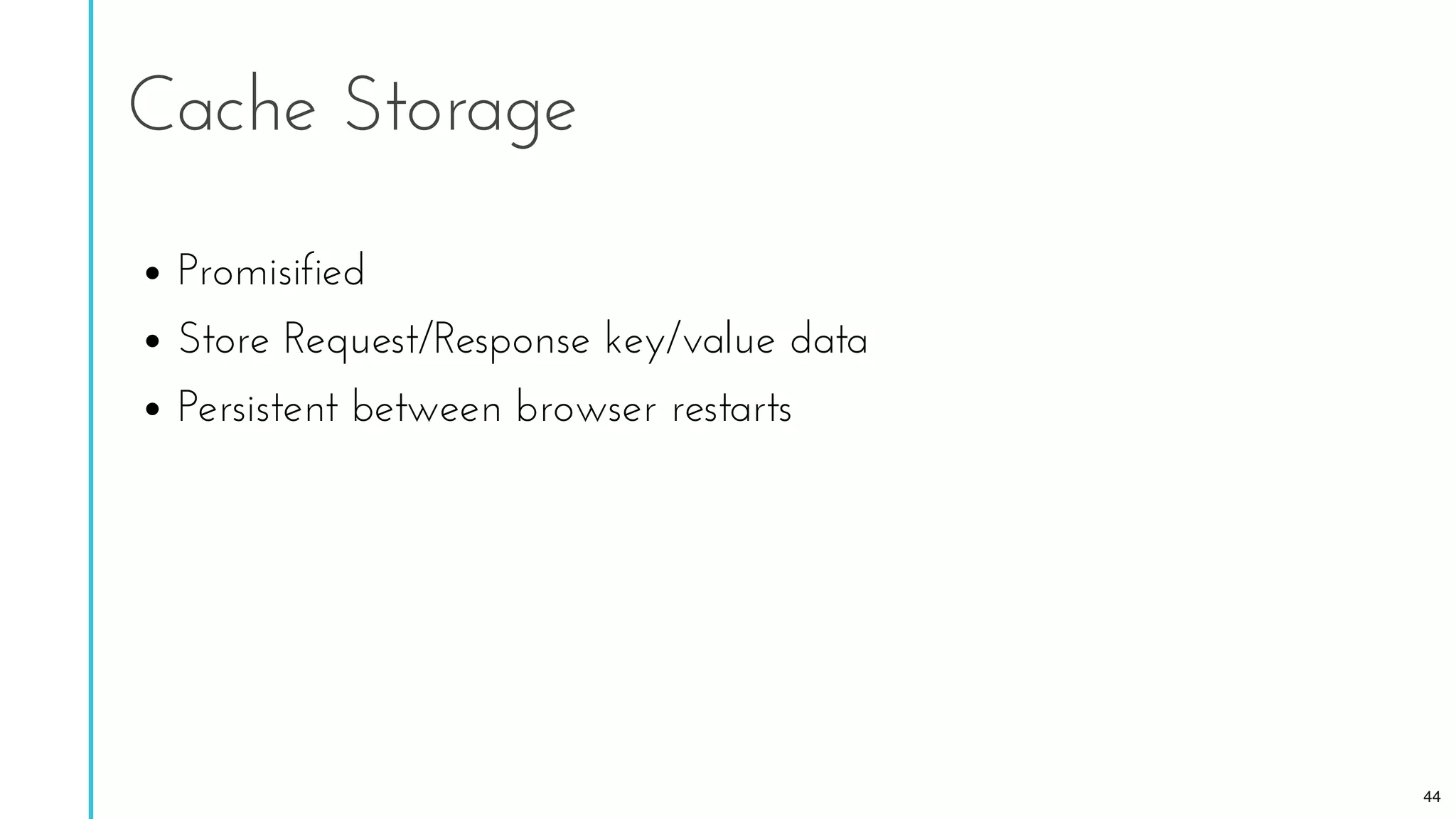

44. Cache Storage
Promisified
Store Request/Response key/value data
Persistent between browser restarts
44

45. Work with Service Workers
45

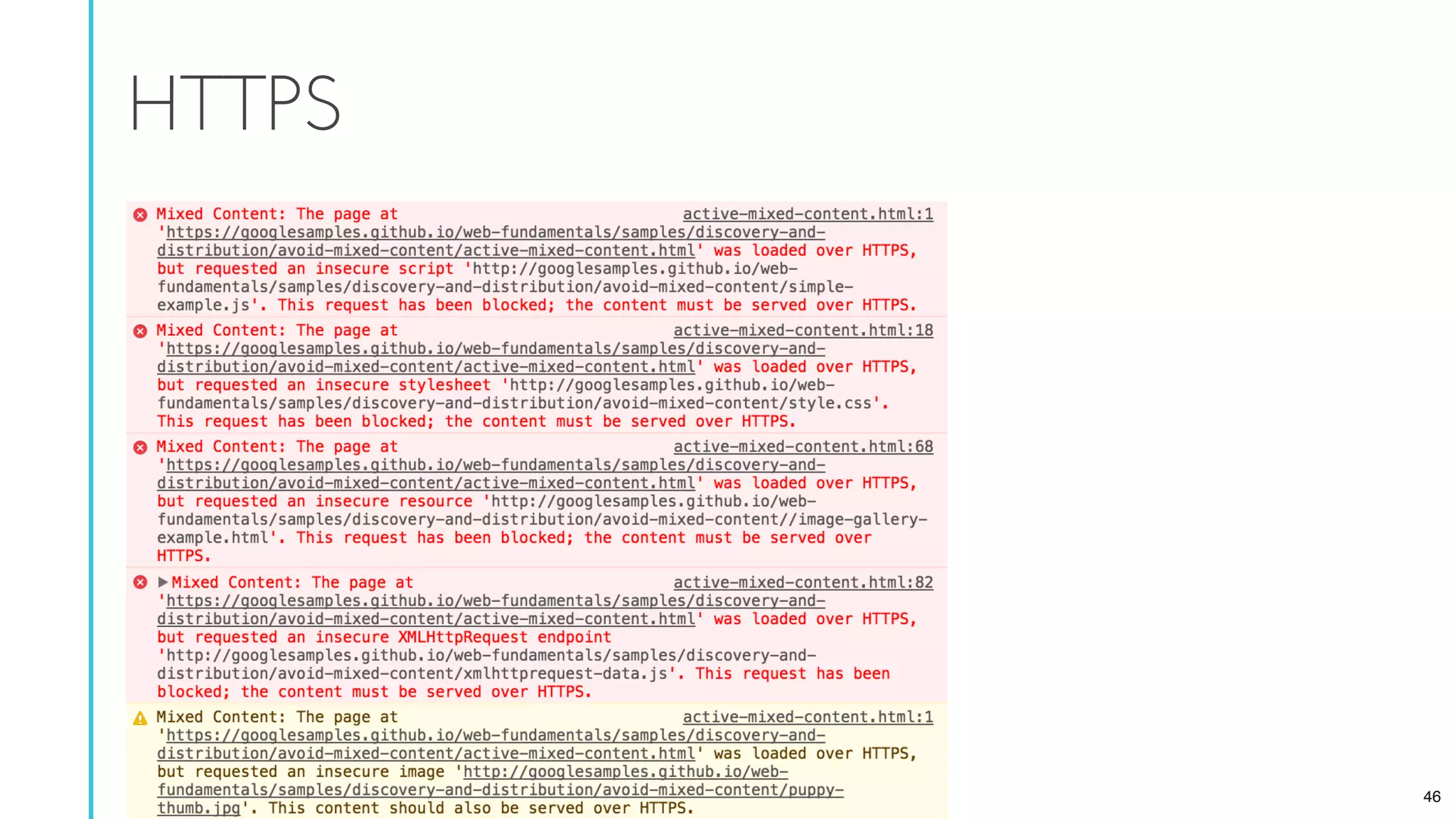

46. HTTPS
46

47. HTTPS
<script src="http://example.com/jquery.js"></script>
<link rel="stylesheet" href="http://assets.example.com/style.css"/>
<img src="http://img.example.com/logo.png"/>;
<p>Read this nice <a href="http://example.com/2014/12/24/">
new post on cats!</a></p>
47

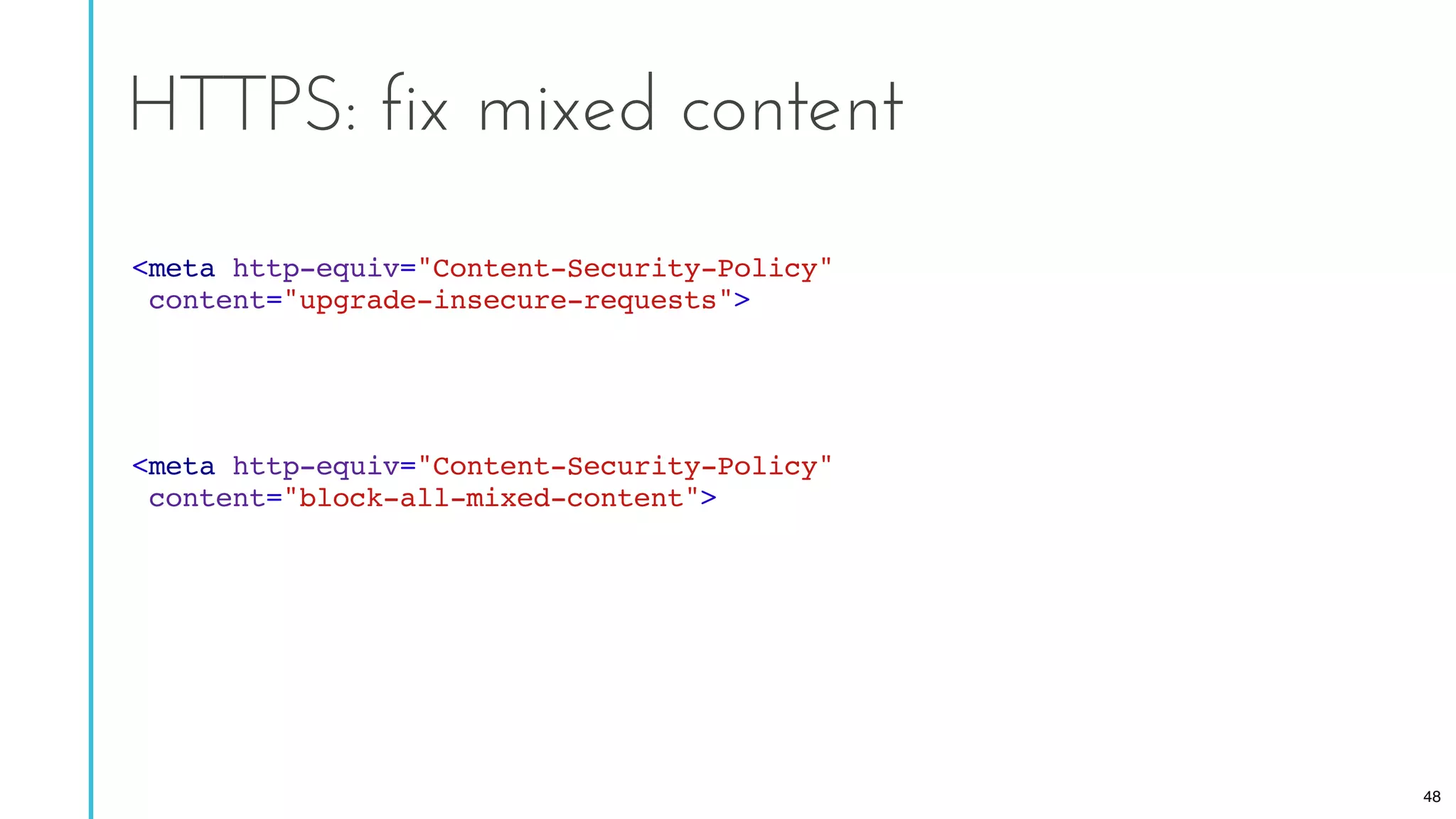

48. HTTPS: fix mixed content
<meta http-equiv="Content-Security-Policy"
content="upgrade-insecure-requests">
<meta http-equiv="Content-Security-Policy"
content="block-all-mixed-content">
48

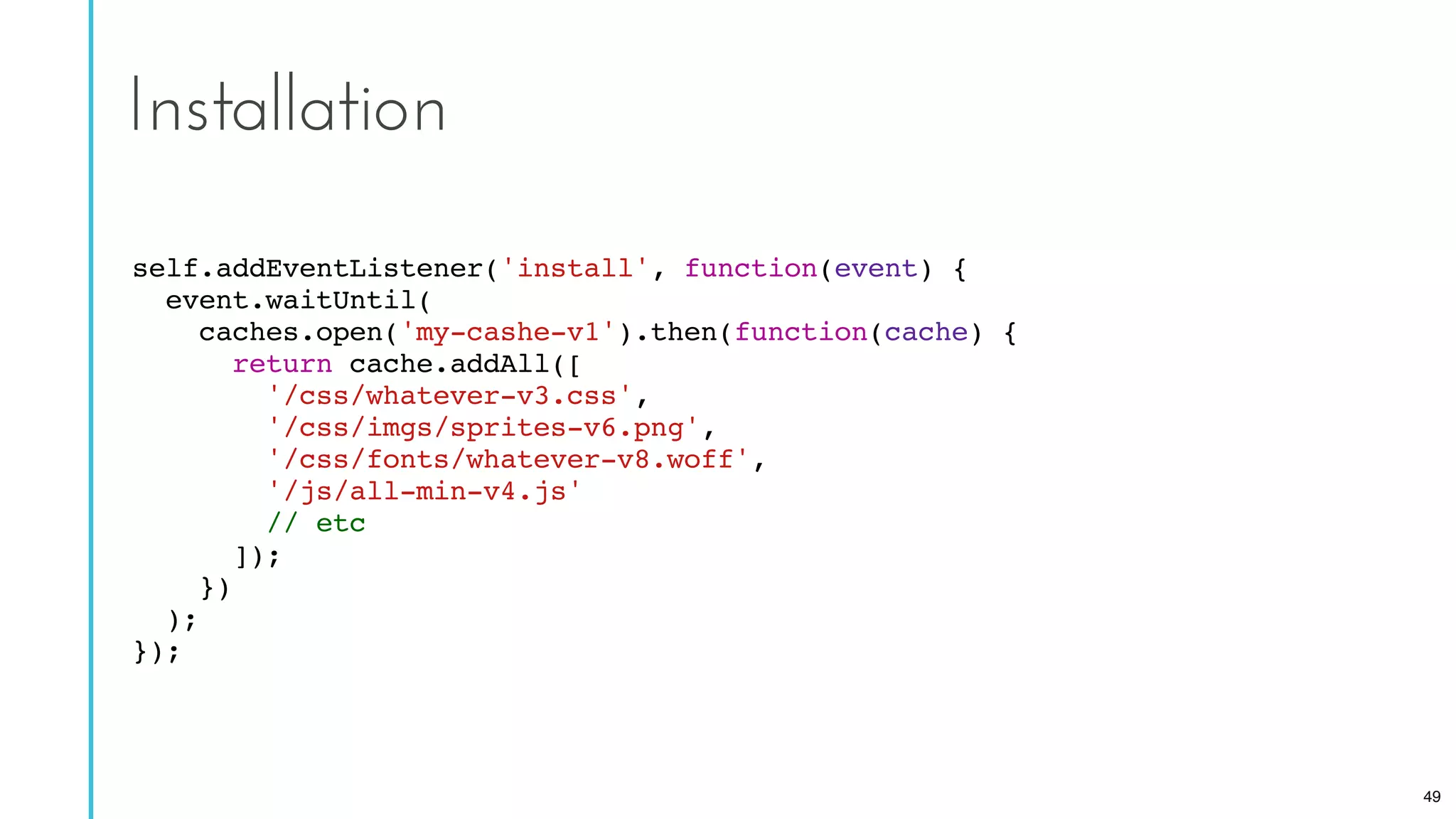

49. self.addEventListener('install', function(event) {
event.waitUntil(
caches.open('my-cashe-v1').then(function(cache) {
return cache.addAll([
'/css/whatever-v3.css',
'/css/imgs/sprites-v6.png',
'/css/fonts/whatever-v8.woff',
'/js/all-min-v4.js'
// etc
]);
})
);
});
Installation
49

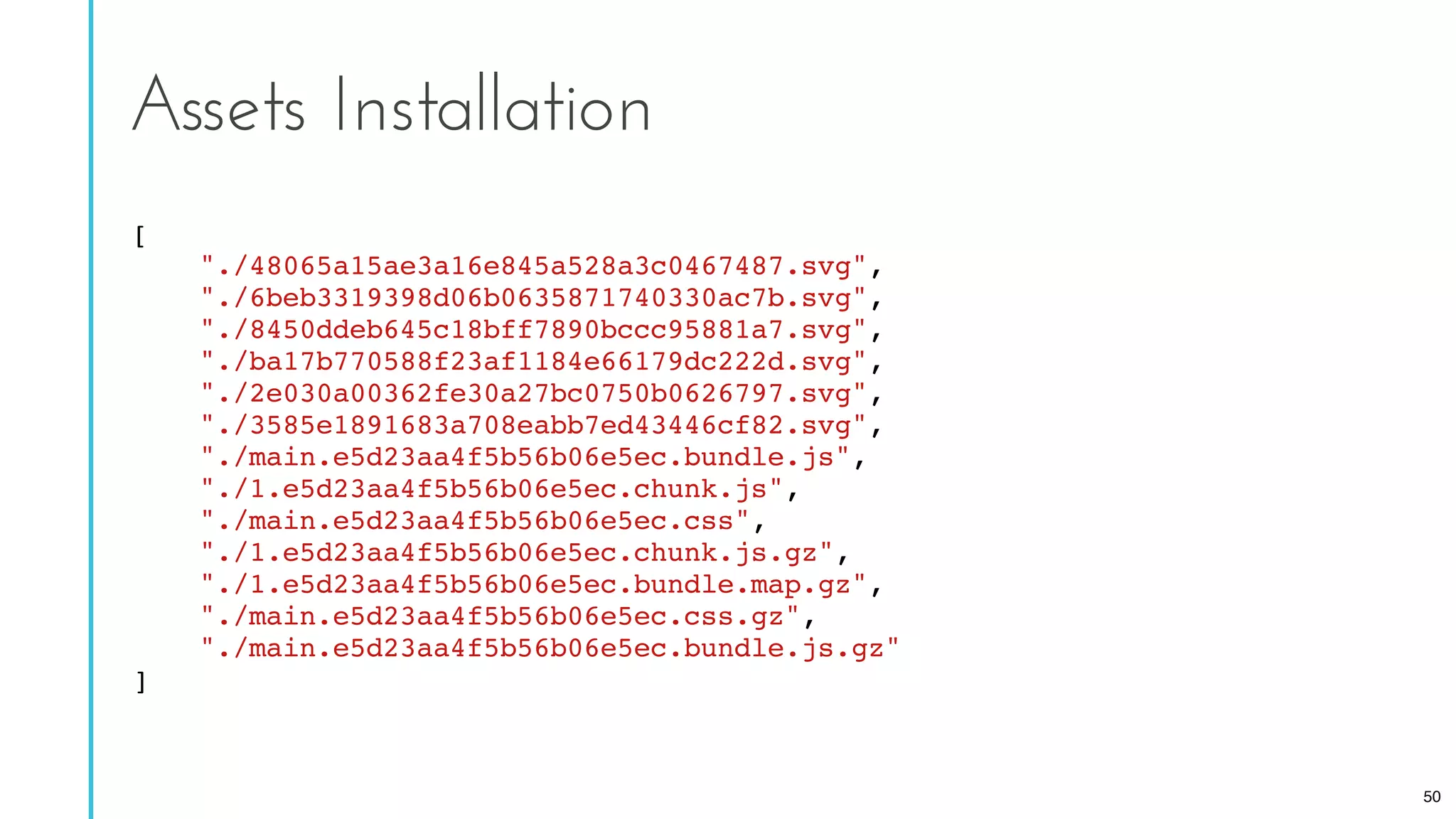

50. [
"./48065a15ae3a16e845a528a3c0467487.svg",
"./6beb3319398d06b0635871740330ac7b.svg",
"./8450ddeb645c18bff7890bccc95881a7.svg",
"./ba17b770588f23af1184e66179dc222d.svg",
"./2e030a00362fe30a27bc0750b0626797.svg",
"./3585e1891683a708eabb7ed43446cf82.svg",
"./main.e5d23aa4f5b56b06e5ec.bundle.js",
"./1.e5d23aa4f5b56b06e5ec.chunk.js",
"./main.e5d23aa4f5b56b06e5ec.css",
"./1.e5d23aa4f5b56b06e5ec.chunk.js.gz",
"./1.e5d23aa4f5b56b06e5ec.bundle.map.gz",
"./main.e5d23aa4f5b56b06e5ec.css.gz",
"./main.e5d23aa4f5b56b06e5ec.bundle.js.gz"
]
Assets Installation
50

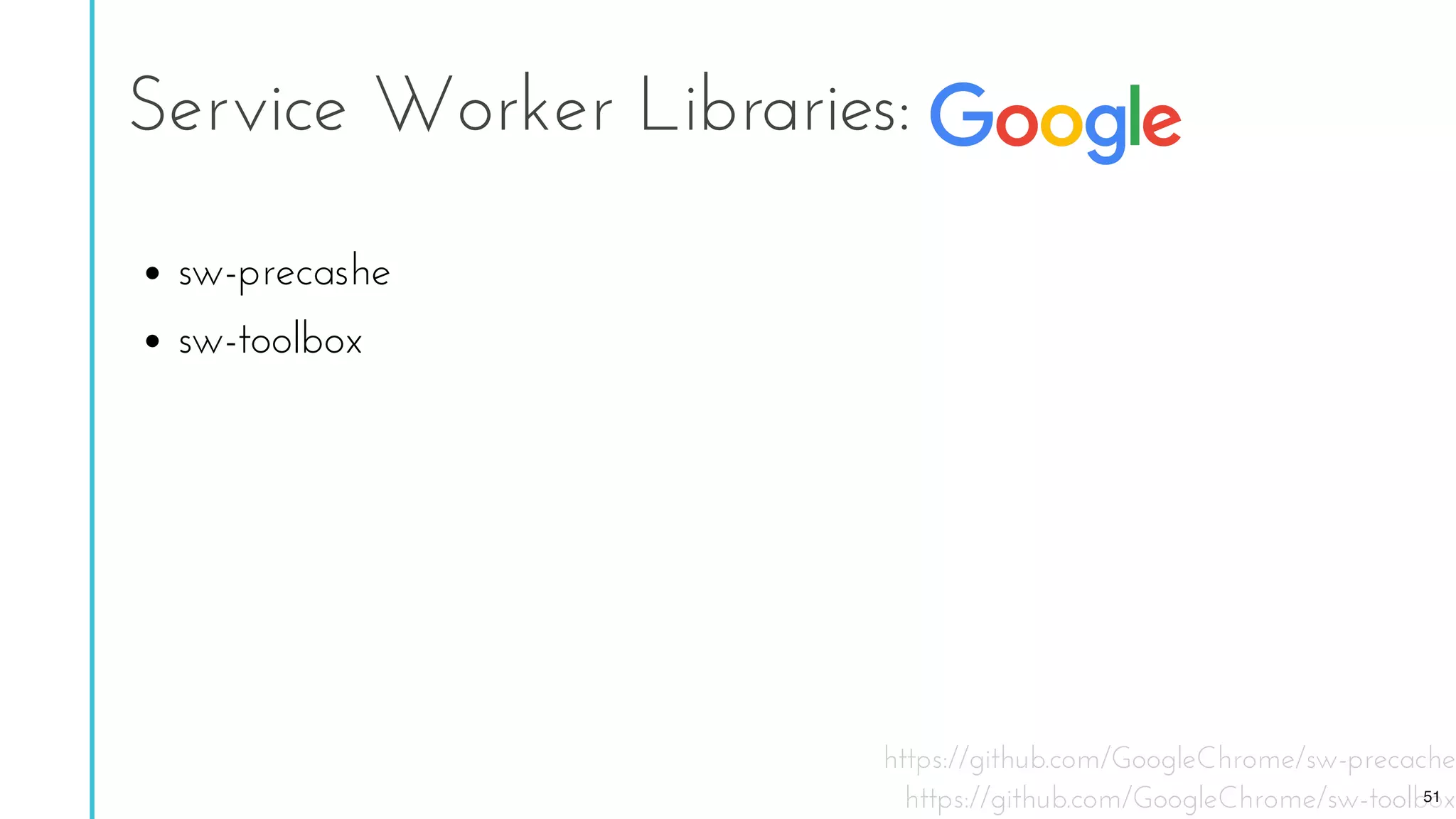

51. https://github.com/GoogleChrome/sw-precache
https://github.com/GoogleChrome/sw-toolbox
Service Worker Libraries:
sw-precashe
sw-toolbox
51

52. https://github.com/GoogleChrome/sw-toolbox
Service Worker Library: sw-toolbox
toolbox.router.get(/urlPattern/, handler, options);
Matches requests using the GET, POST, PUT, DELETE or
Matches requests using the GET, POST, PUT, DELETE or
Matches requests using the GET, POST, PUT, DELETE or
HEAD HTTP methods respectively.
HEAD HTTP methods respectively.
HEAD HTTP methods respectively.
52

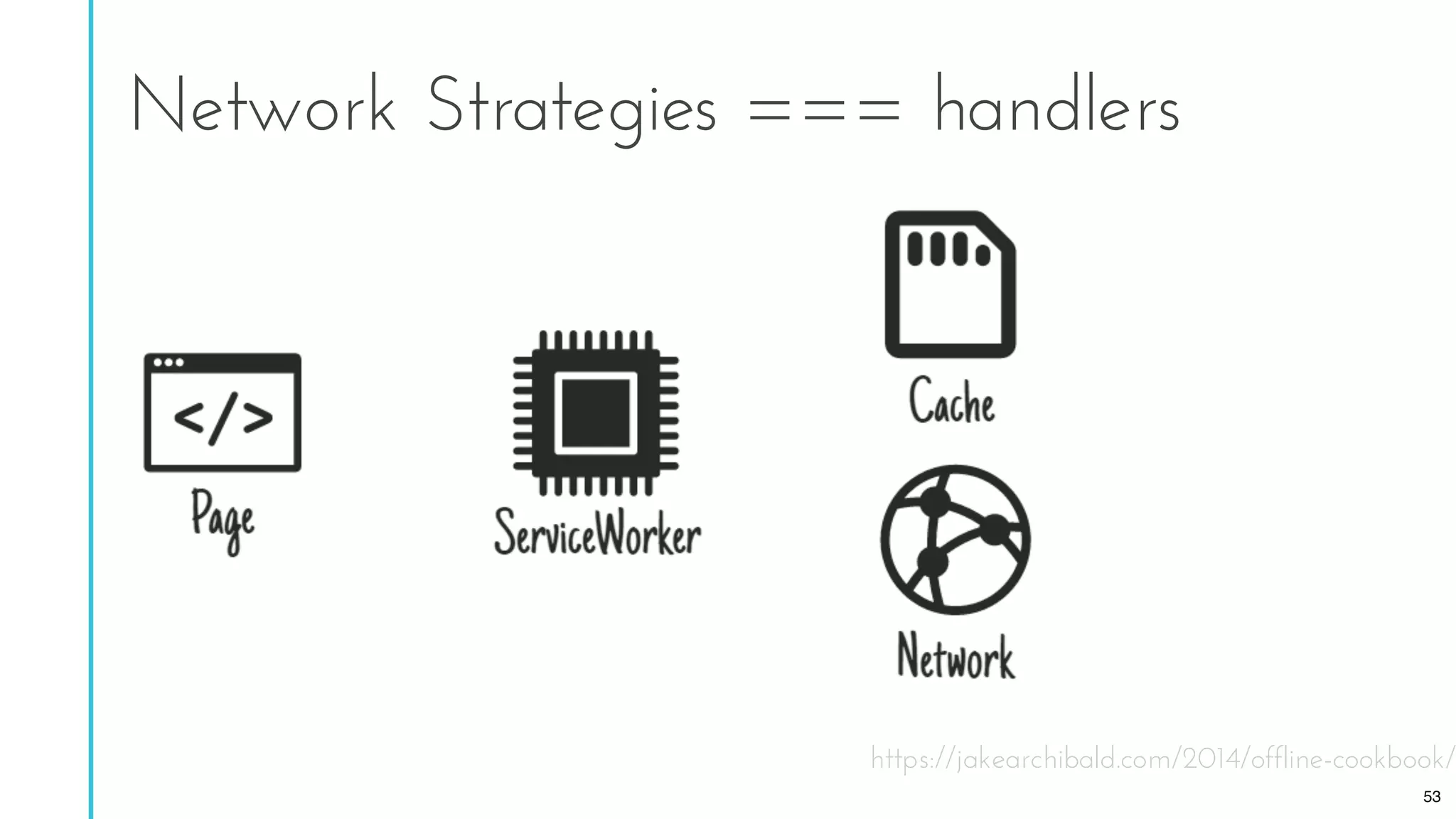

53. https://jakearchibald.com/2014/offline-cookbook/
Network Strategies === handlers
53

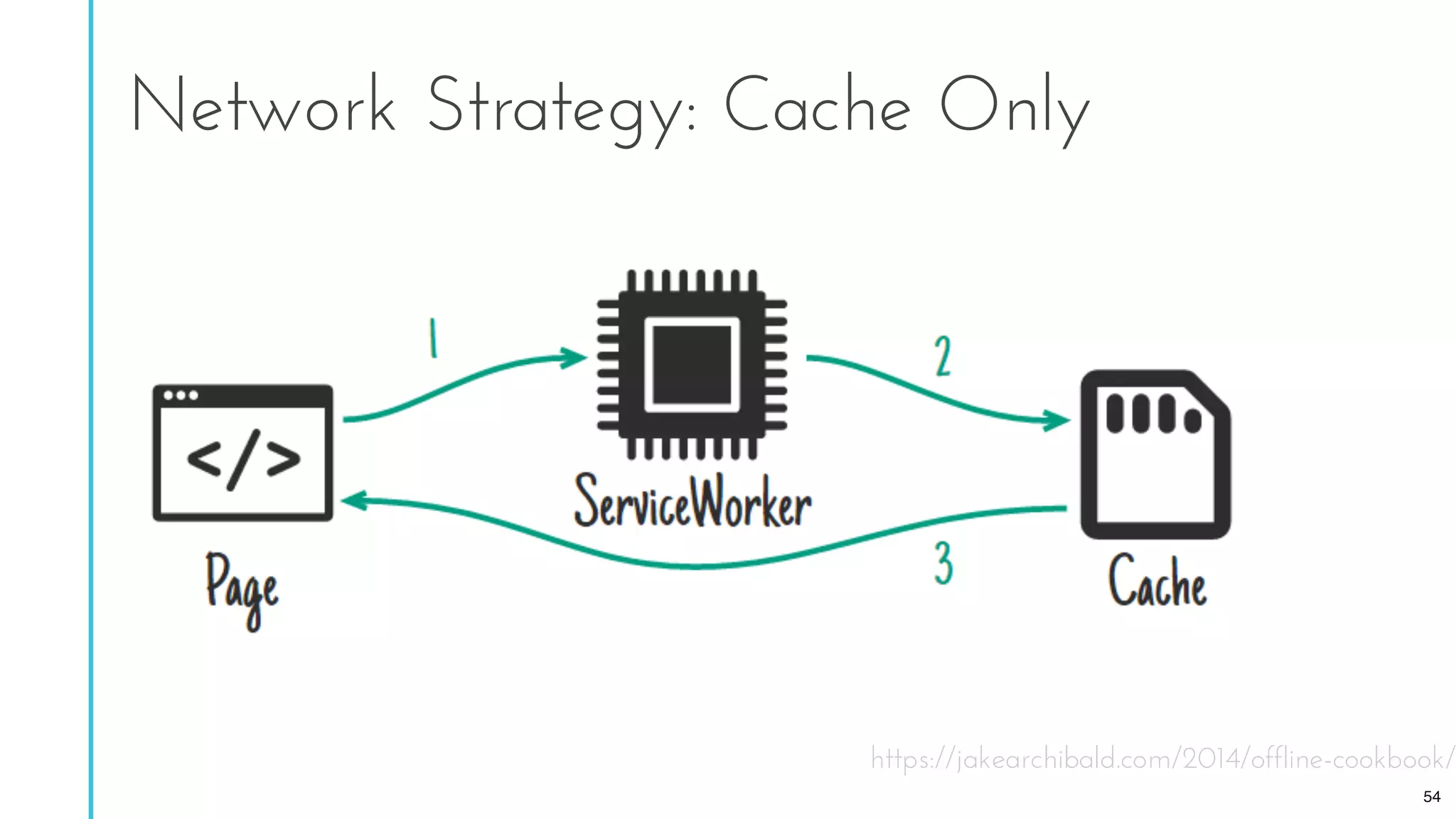

54. https://jakearchibald.com/2014/offline-cookbook/
Network Strategy: Cache Only
54

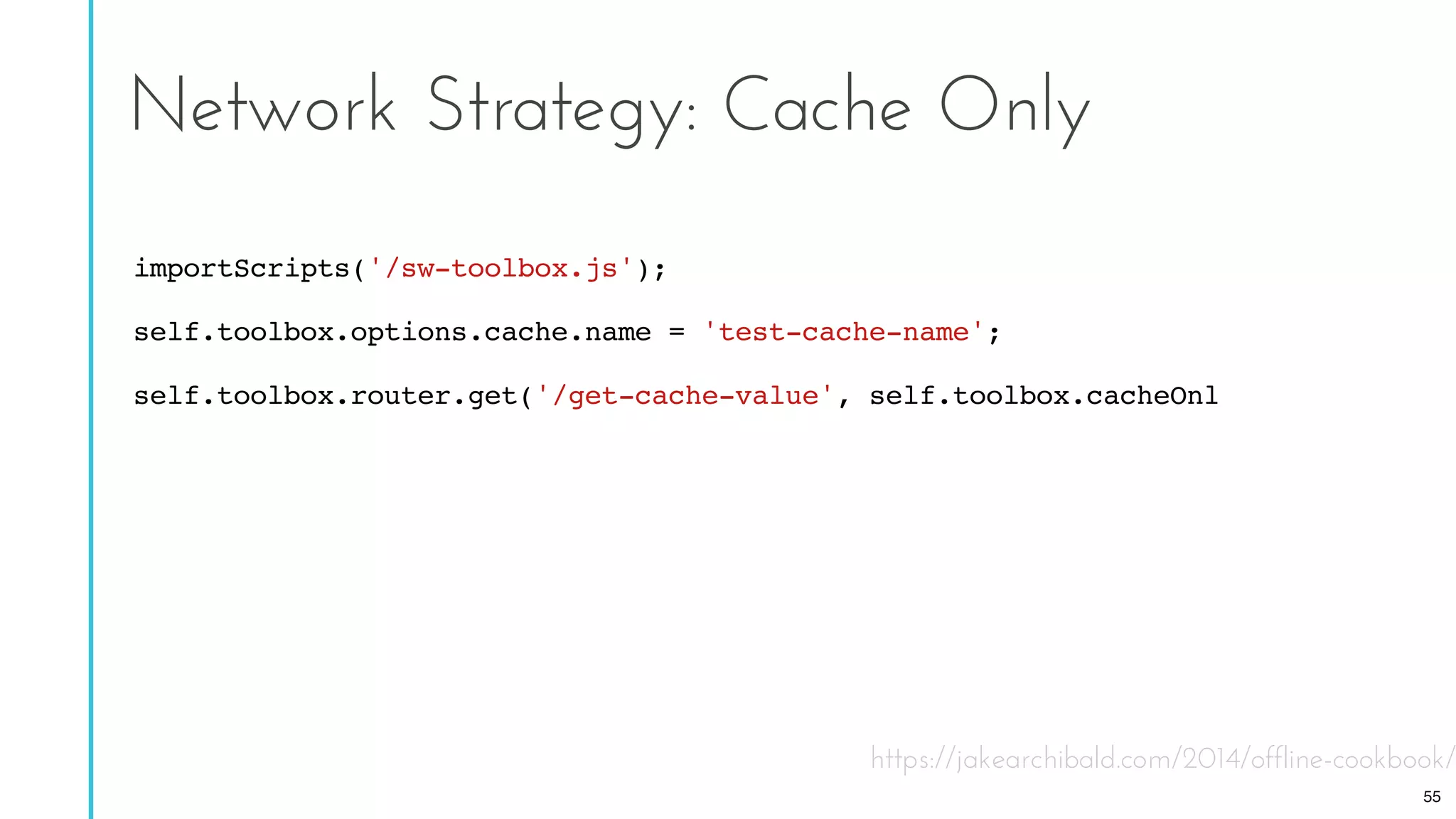

55. https://jakearchibald.com/2014/offline-cookbook/
Network Strategy: Cache Only
importScripts('/sw-toolbox.js');
self.toolbox.options.cache.name = 'test-cache-name';
self.toolbox.router.get('/get-cache-value', self.toolbox.cacheOnly);
55

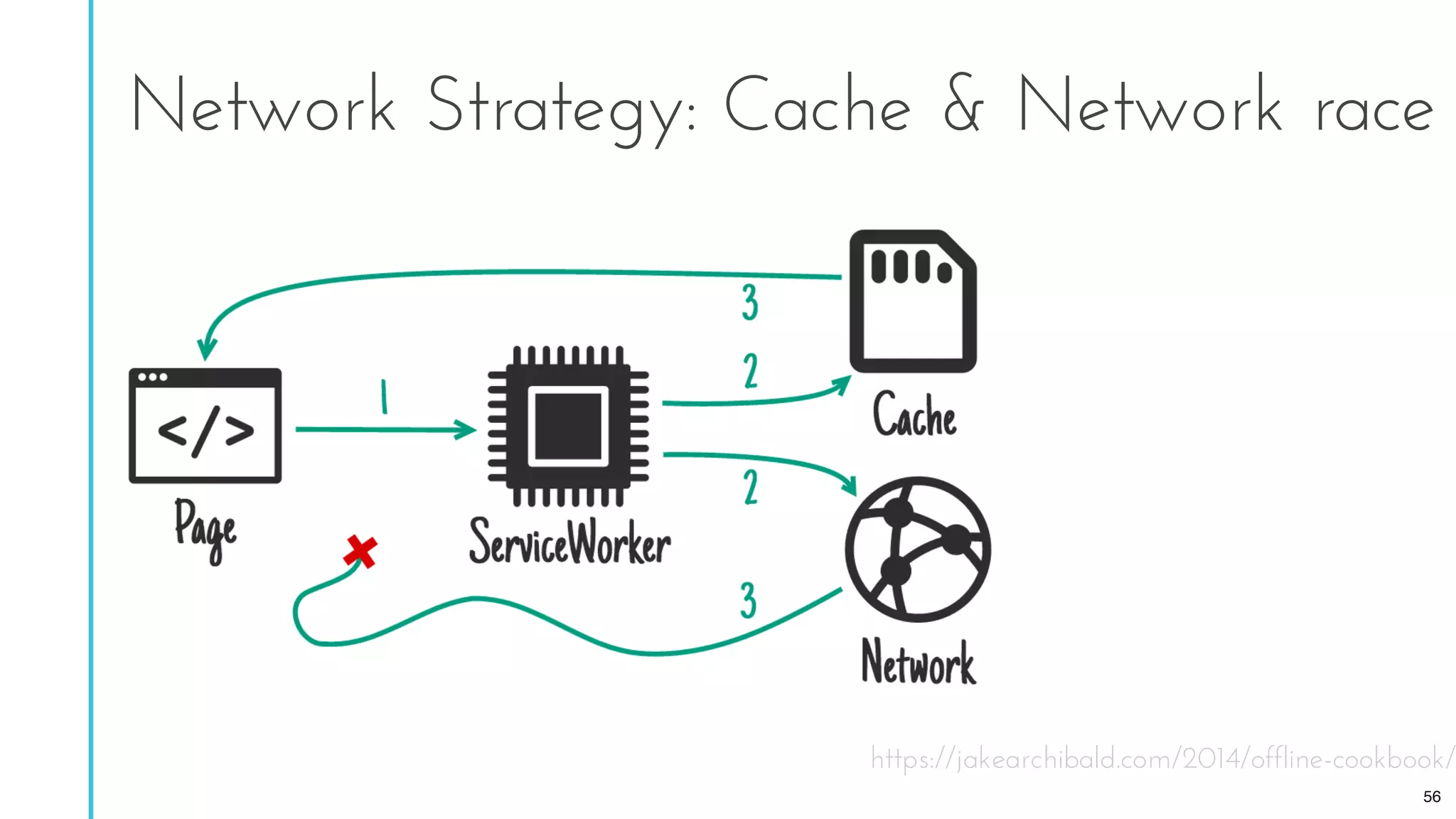

56. Network Strategy: Cache & Network race
https://jakearchibald.com/2014/offline-cookbook/
56

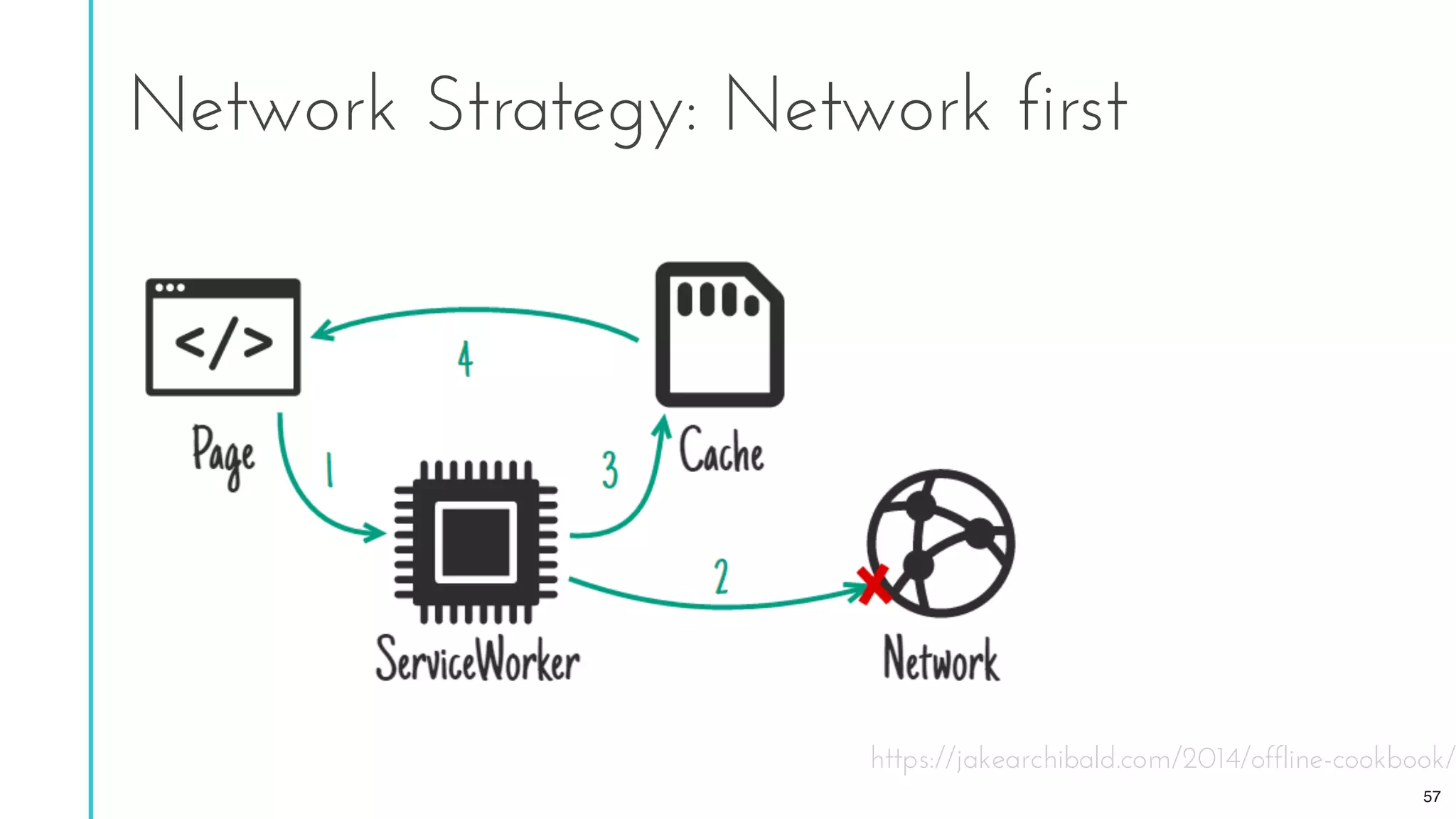

57. Network Strategy: Network first
https://jakearchibald.com/2014/offline-cookbook/
57

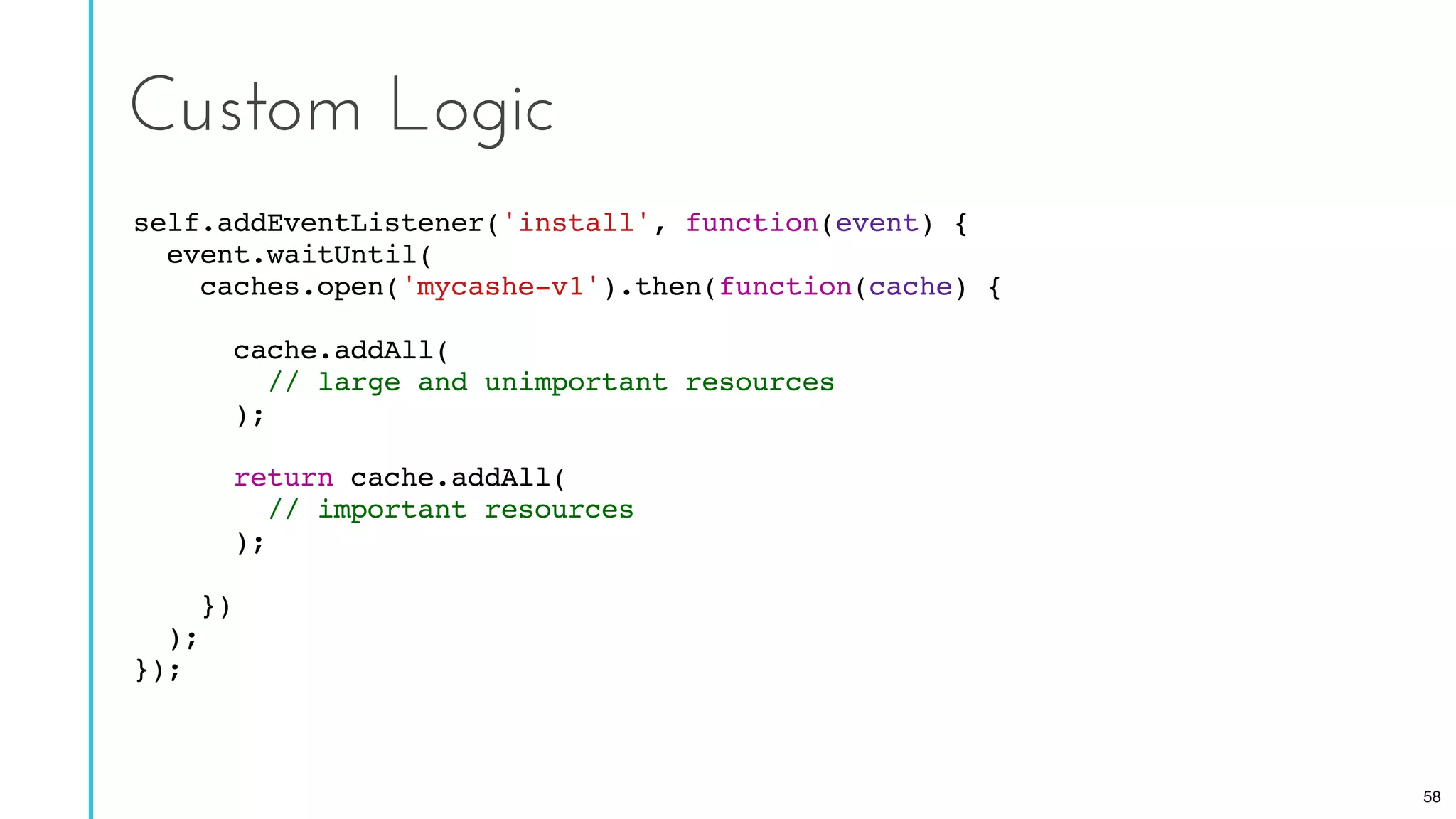

58. self.addEventListener('install', function(event) {
event.waitUntil(
caches.open('mycashe-v1').then(function(cache) {
cache.addAll(
// large and unimportant resources
);
return cache.addAll(
// important resources
);
})
);
});
Custom Logic
58

59. https://github.com/NekR/offline-plugin
+ AppCache
+ Manifest
SW Libraries: Webpack Offline Plugin
59

60. Step 5: Storages
60

61. Storage Size
30-40 Mb~
61

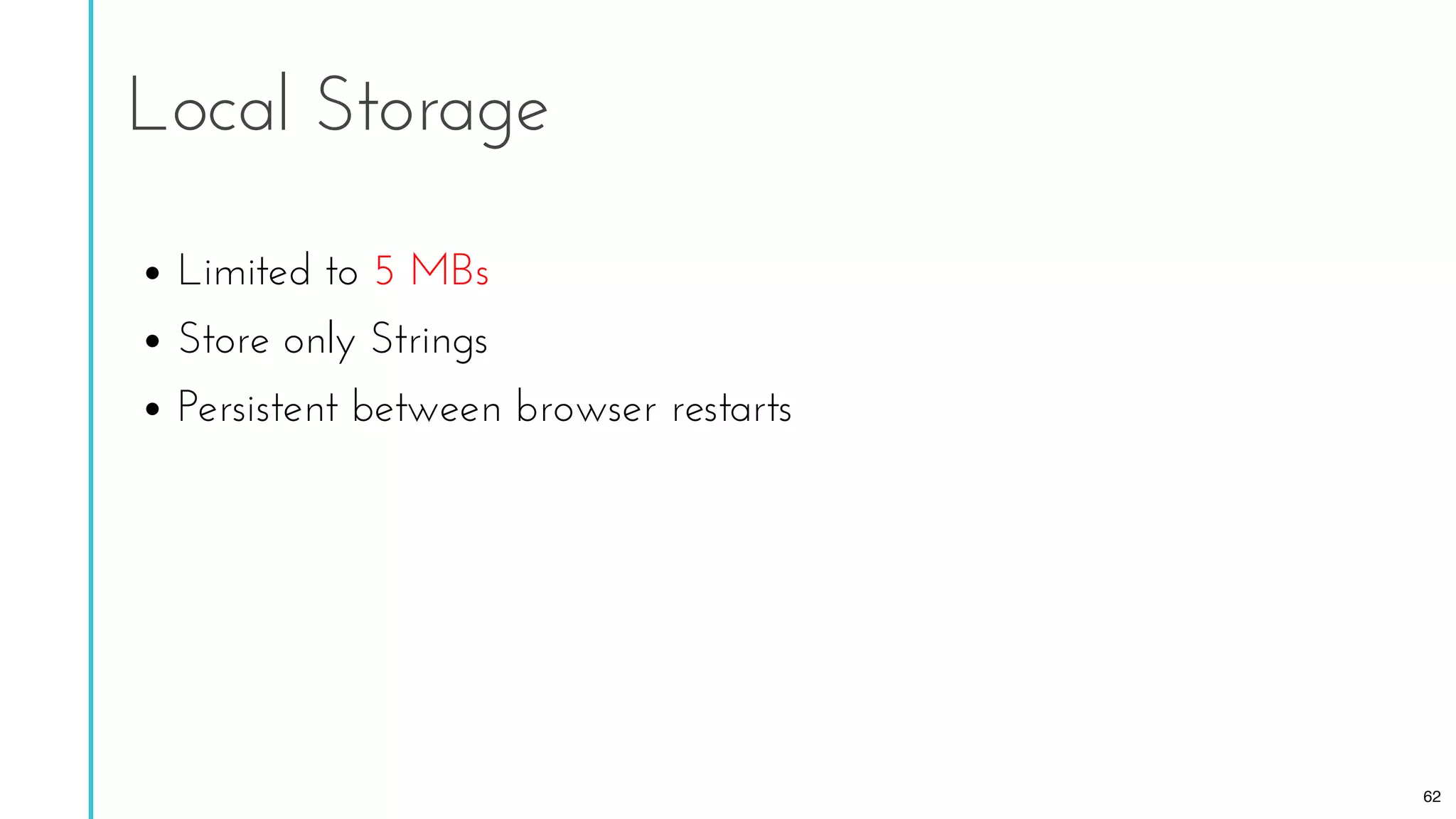

62. Limited to 5 MBs
Store only Strings
Persistent between browser restarts
Local Storage
62

63. Web SQL
63

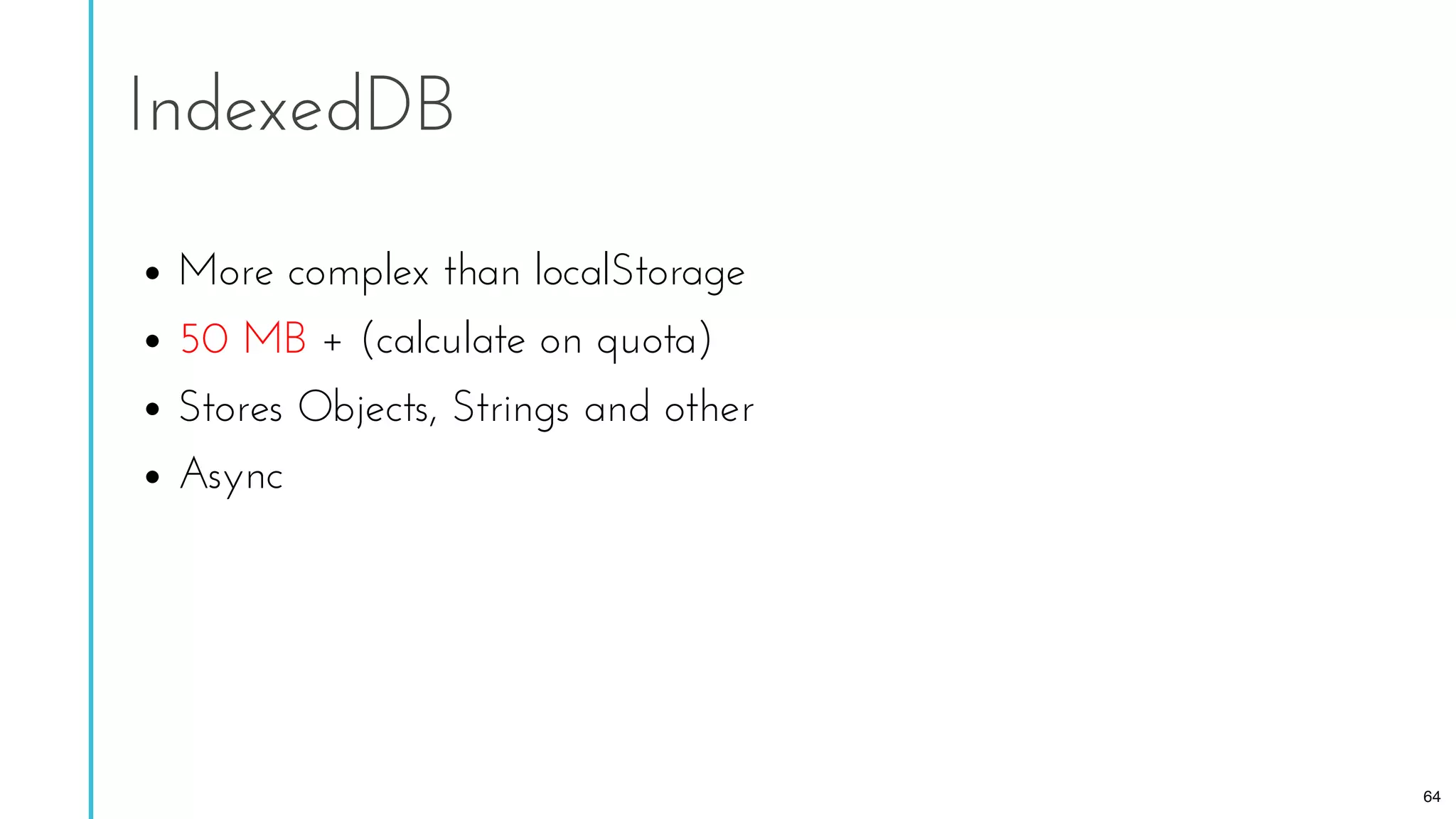

64. More complex than localStorage
50 MB + (calculate on quota)
Stores Objects, Strings and other
Async
IndexedDB
64

65. https://nolanlawson.com/2015/09/29/indexeddb-websql-
localstorage-what-blocks-the-dom/

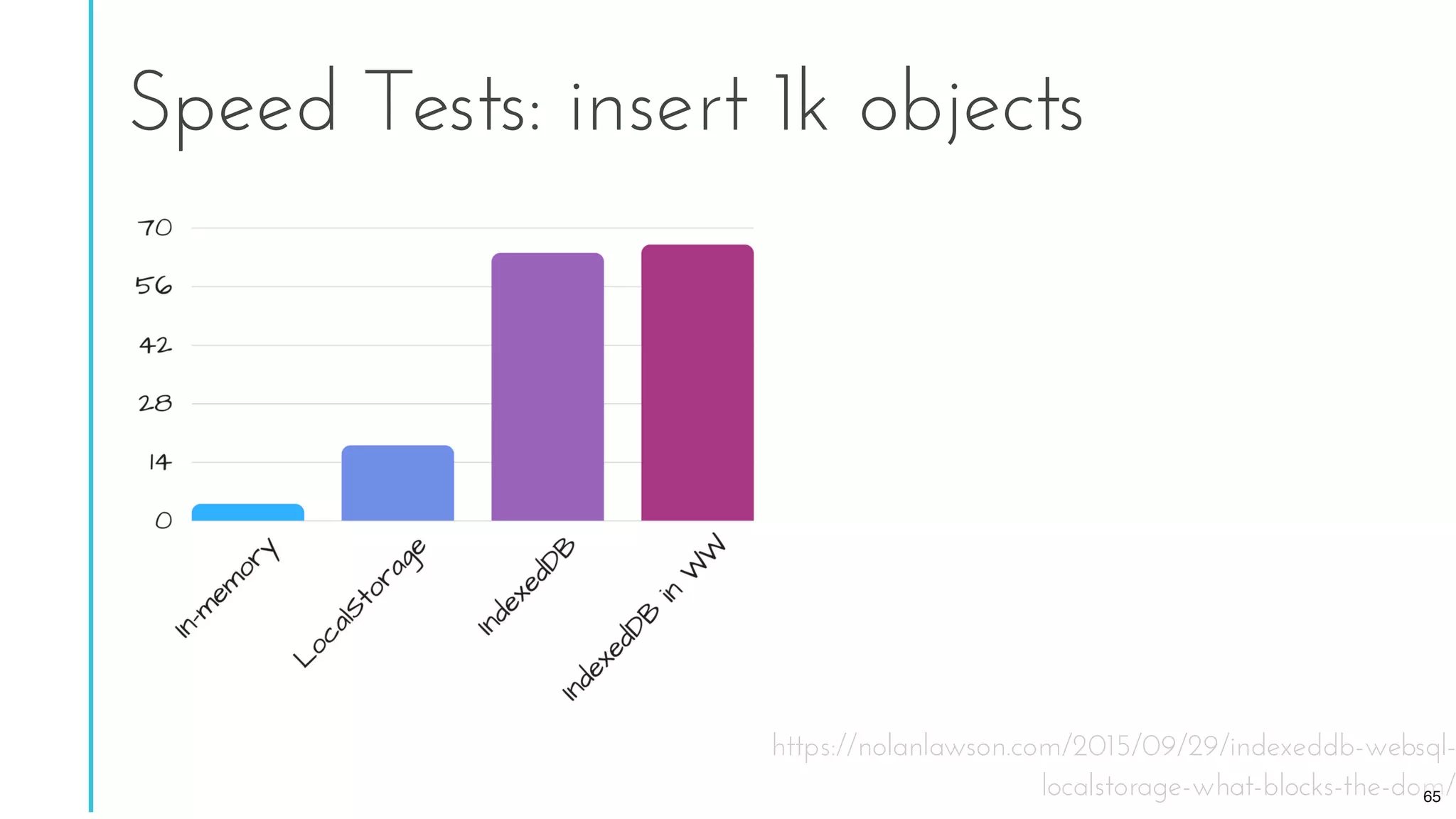

Speed Tests: insert 1k objects
65

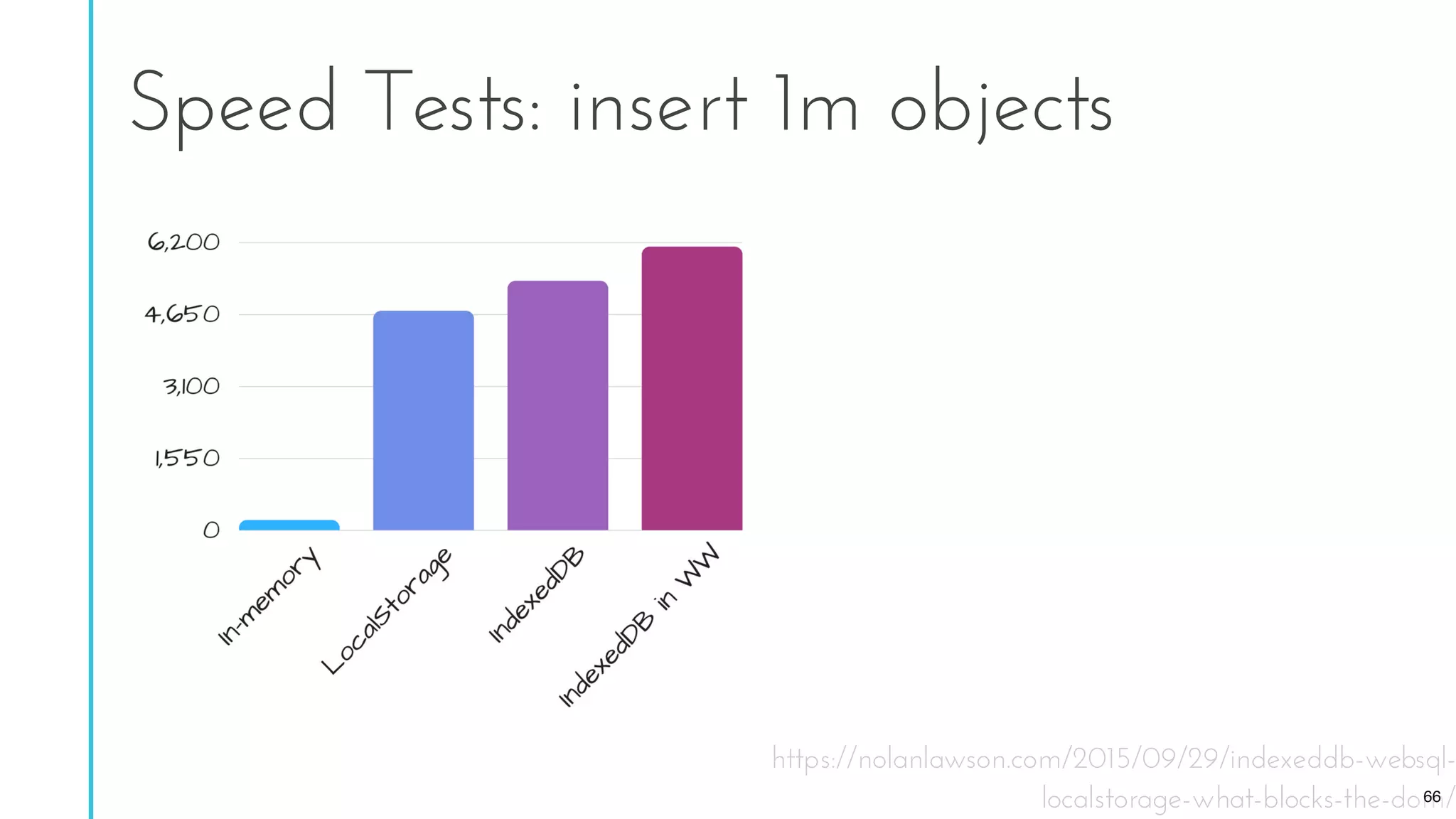

66. https://nolanlawson.com/2015/09/29/indexeddb-websql-
localstorage-what-blocks-the-dom/
Speed Tests: insert 1m objects
66

67. https://nolanlawson.github.io/html5workertest/
Storages Support in Service Workers
67

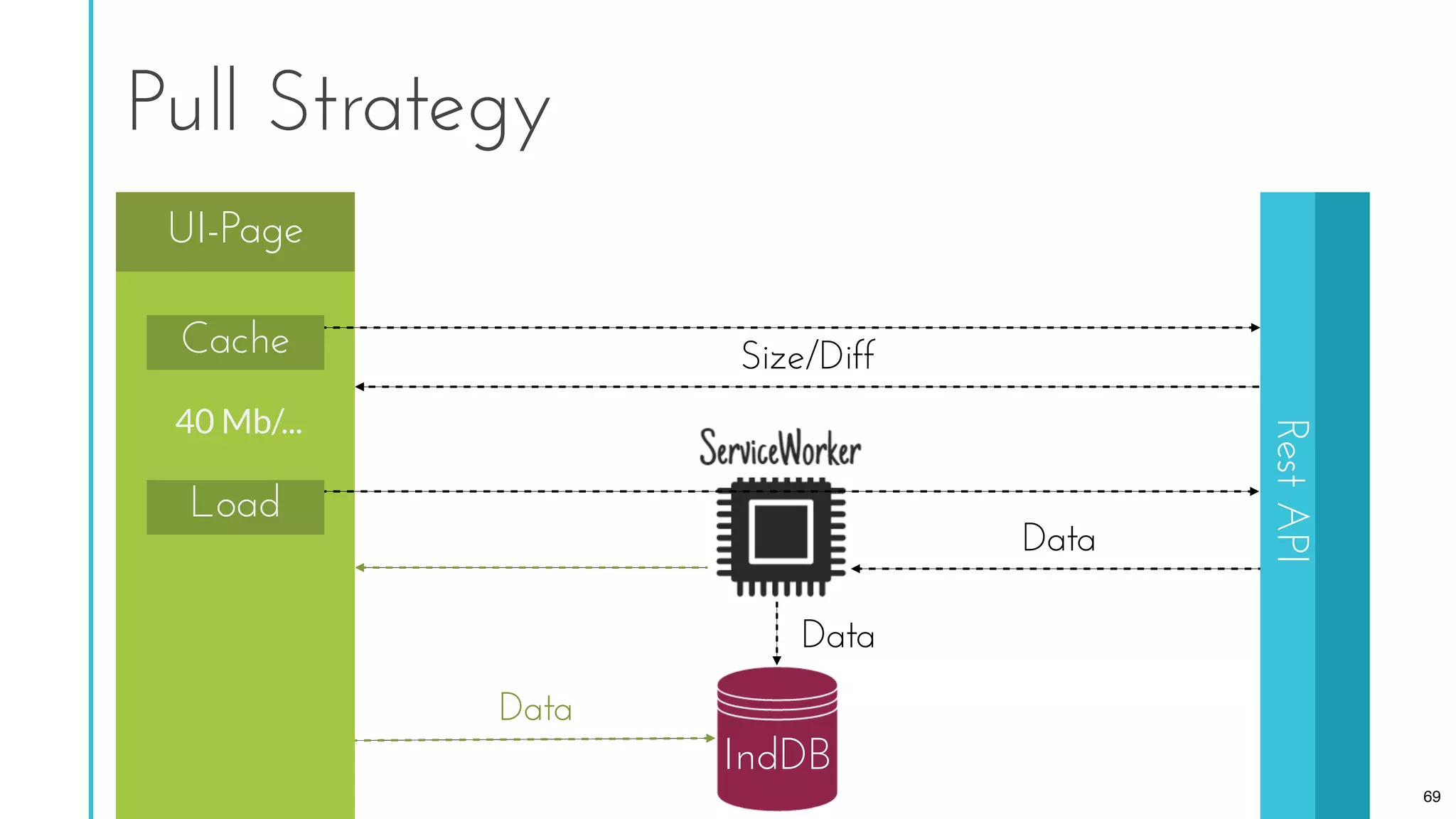

68. Pull Stategy
68

69. RestAPI
Data
UI-Page
Data
Size/Diff
IndDB
Cache
Load
69
Data
40 Mb/...
Pull Strategy

70. Step 6: Isomorphism
70

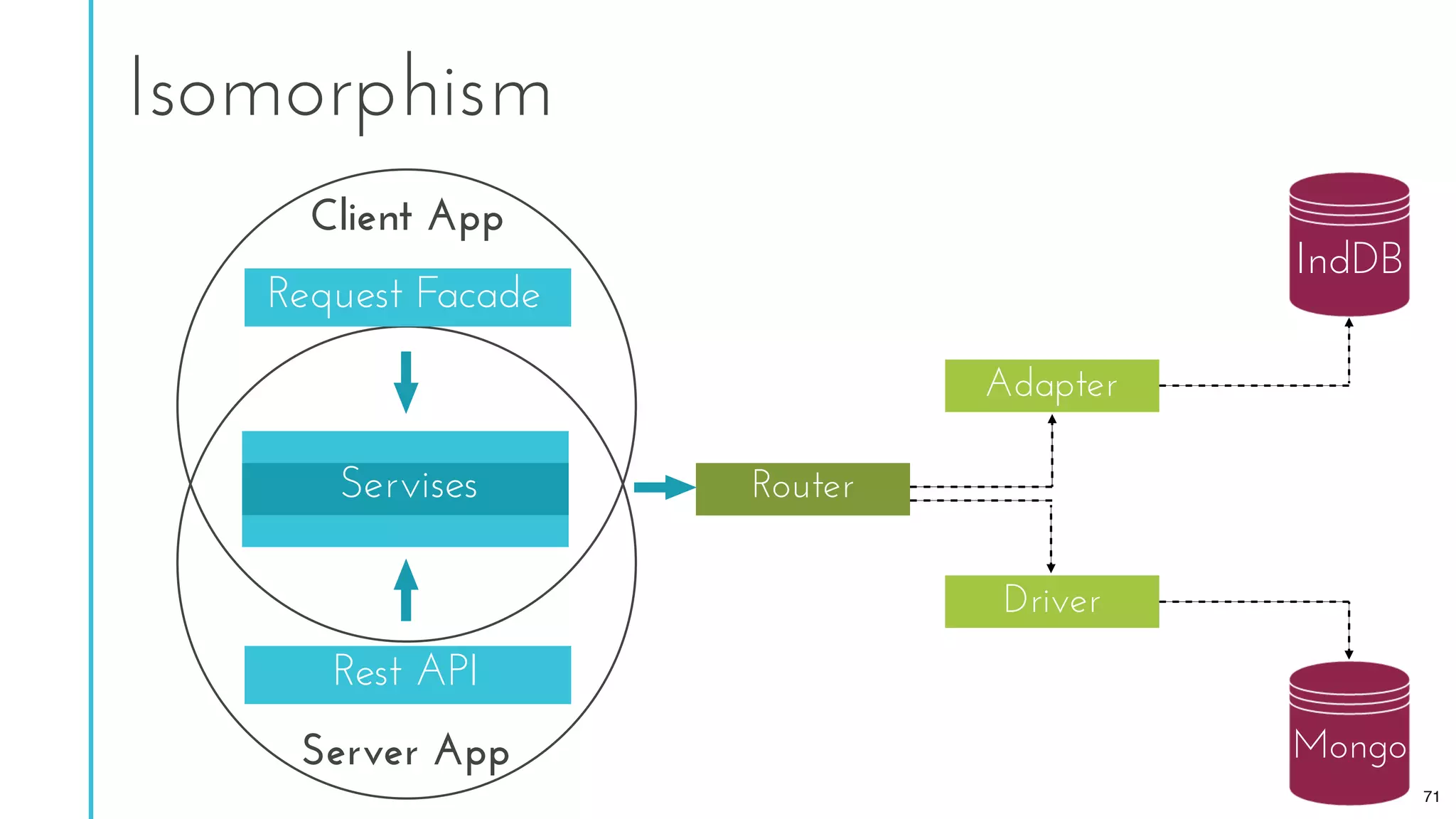

71. Client App
Server App
Request Facade
Servises
Rest API
IndDB
Mongo
71
Isomorphism
Router
Adapter
Driver

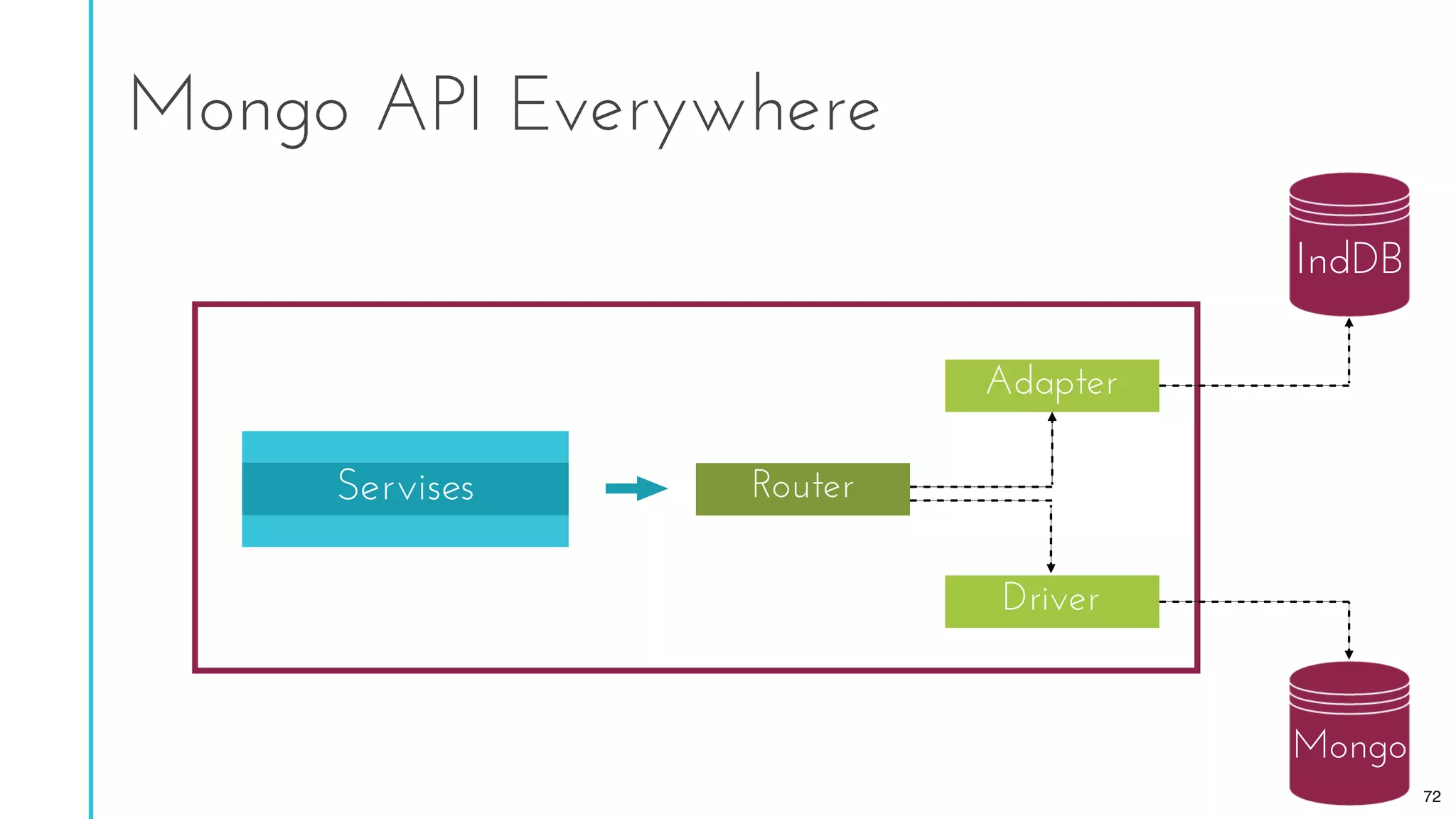

72. Mongo API Everywhere
IndDB
Mongo
Router
Adapter
Driver
72
Servises
IndDB
Mongo

73. Step 7: Adapters
73

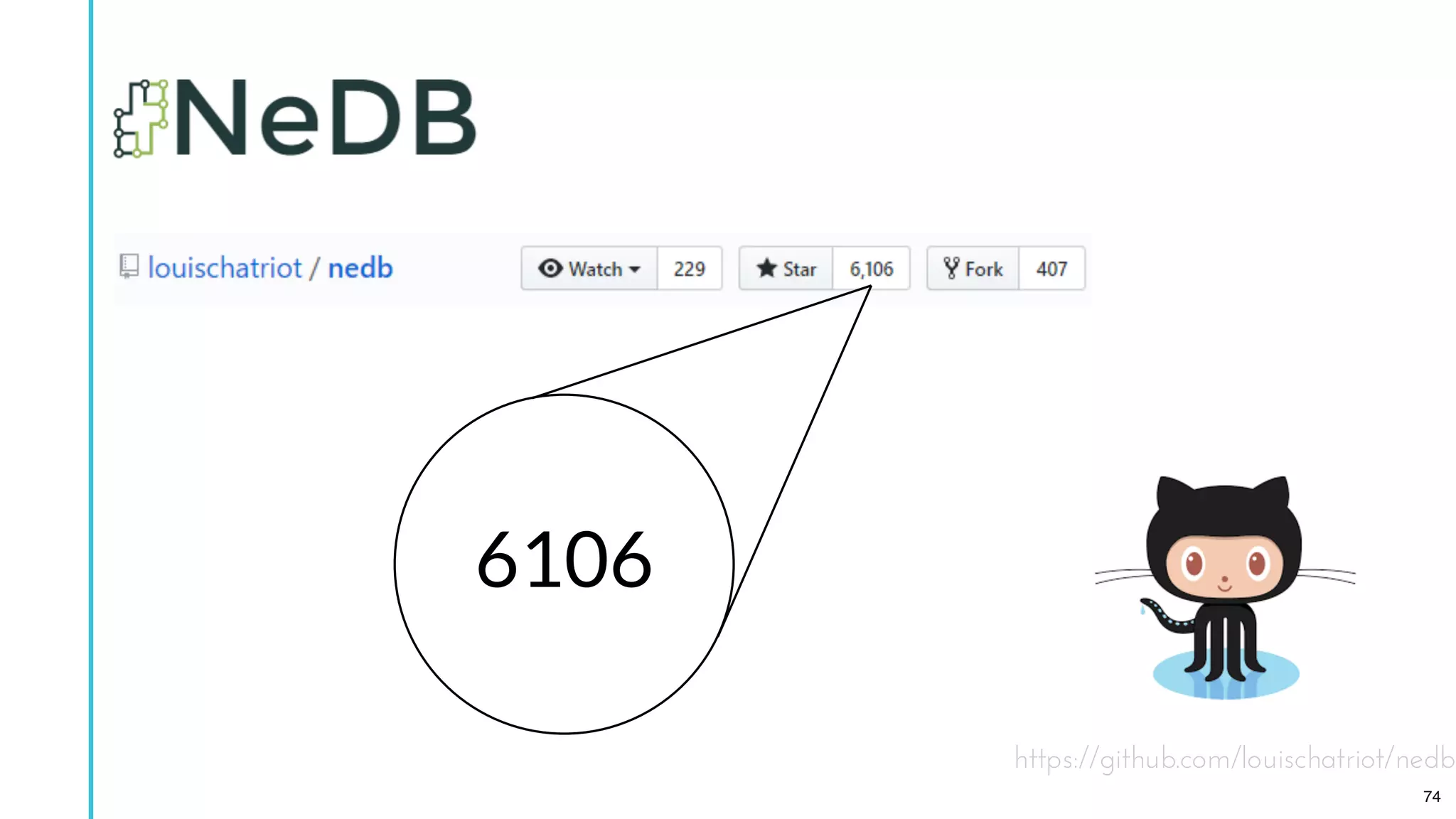

74. 6106
https://github.com/louischatriot/nedb
74

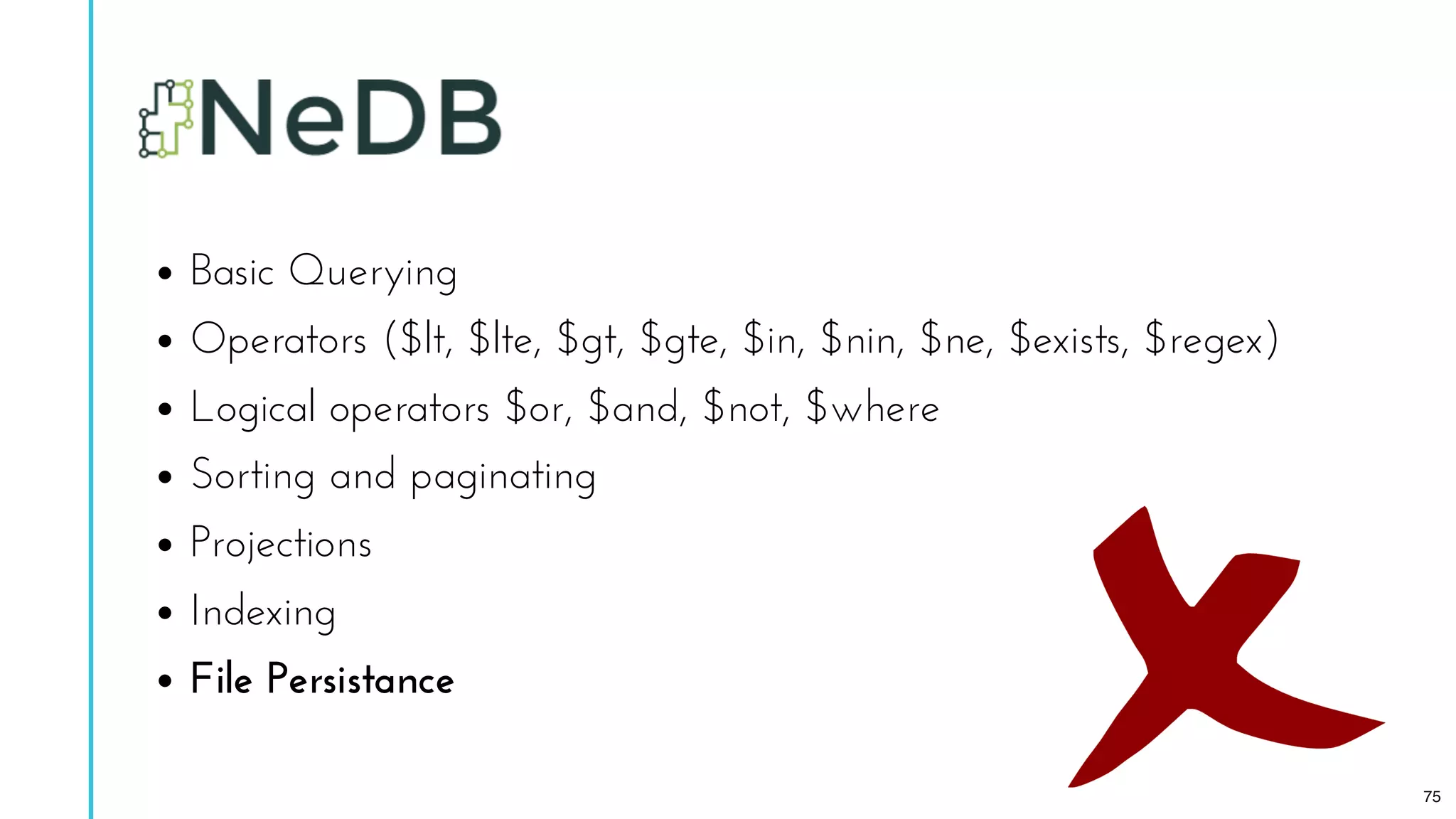

75. Basic Querying
Operators ($lt, $lte, $gt, $gte, $in, $nin, $ne, $exists, $regex)
Logical operators $or, $and, $not, $where
Sorting and paginating
Projections
Indexing
File Persistance
75

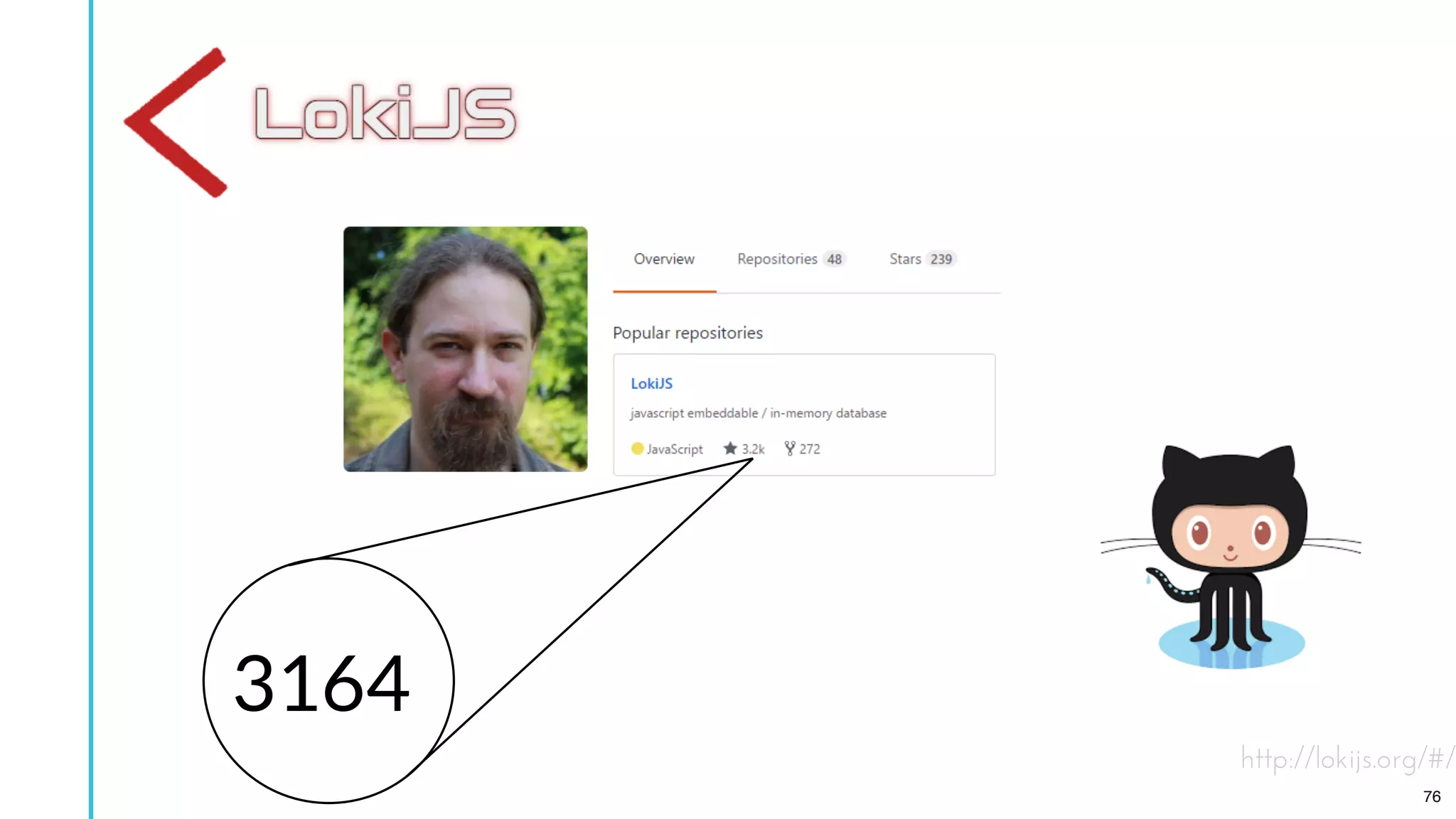

76. 3164
http://lokijs.org/#/
76

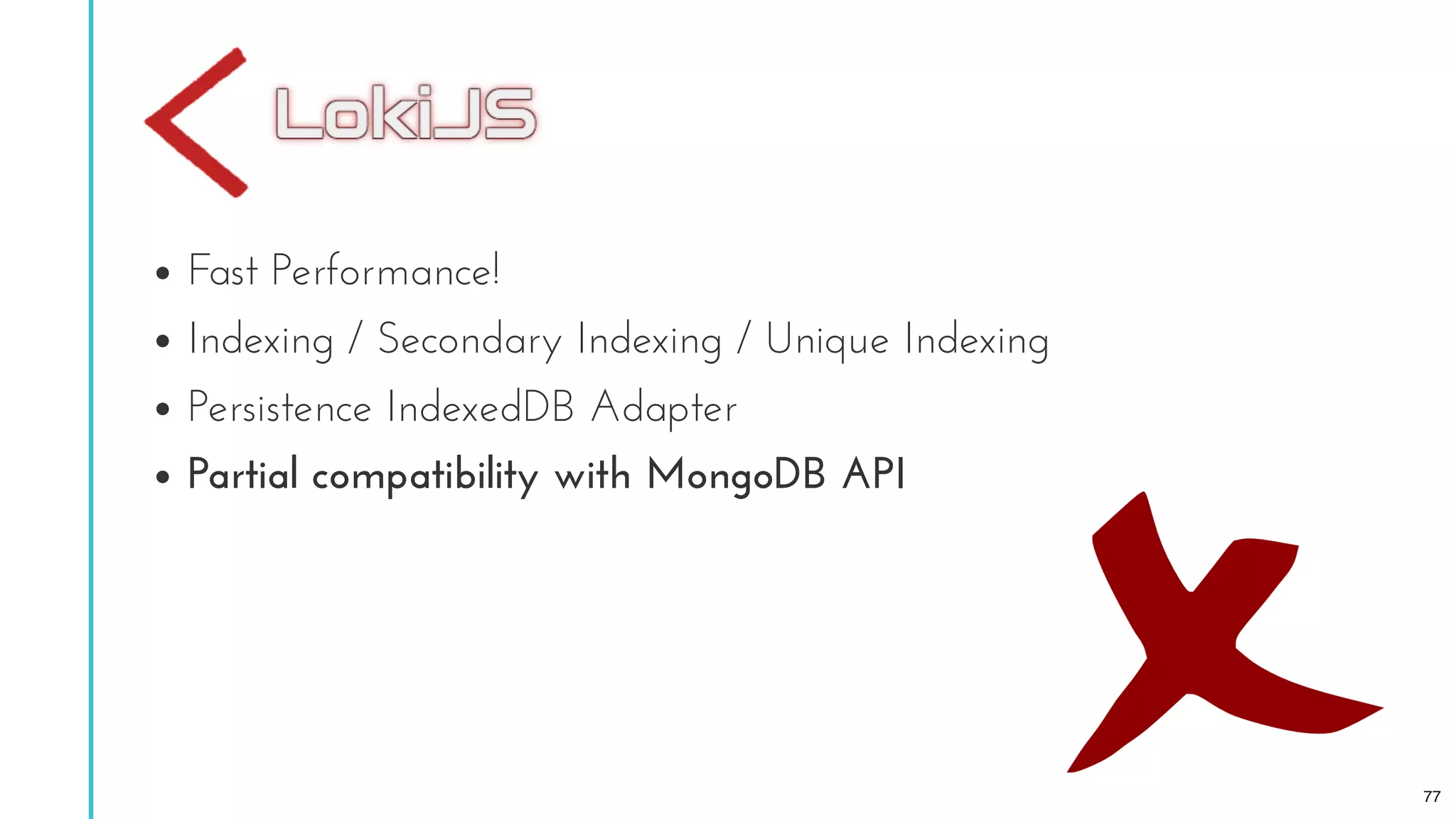

77. Fast Performance!
Indexing / Secondary Indexing / Unique Indexing
Persistence IndexedDB Adapter
Partial compatibility with MongoDB API
77

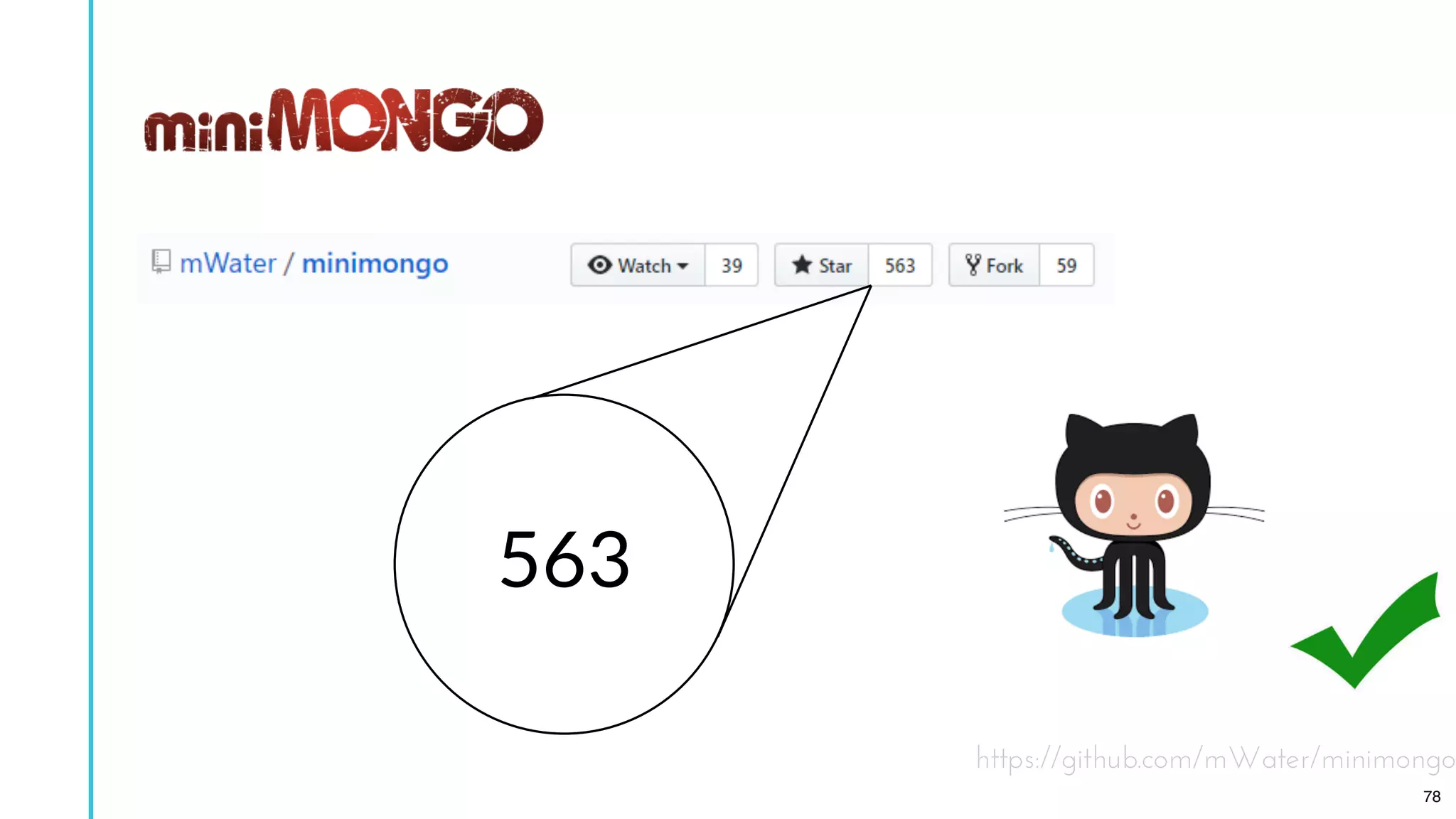

78. 563
https://github.com/mWater/minimongo
78

79. Happy end
but ...?
79

80. Push Strategy?
80

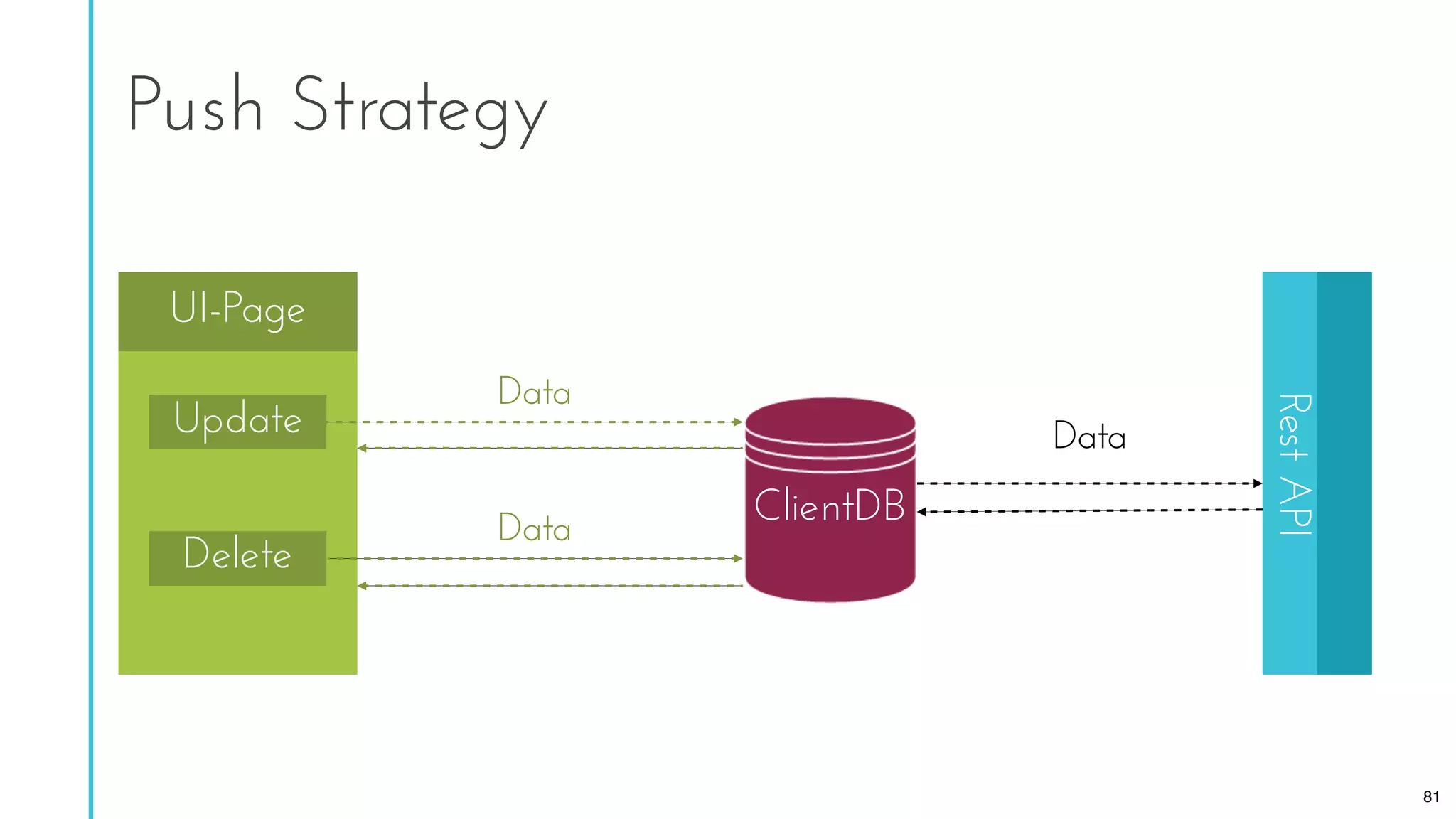

81. Push Strategy
RestAPI
Data
UI-Page
ClientDB
Delete
Update
81
Data
Data

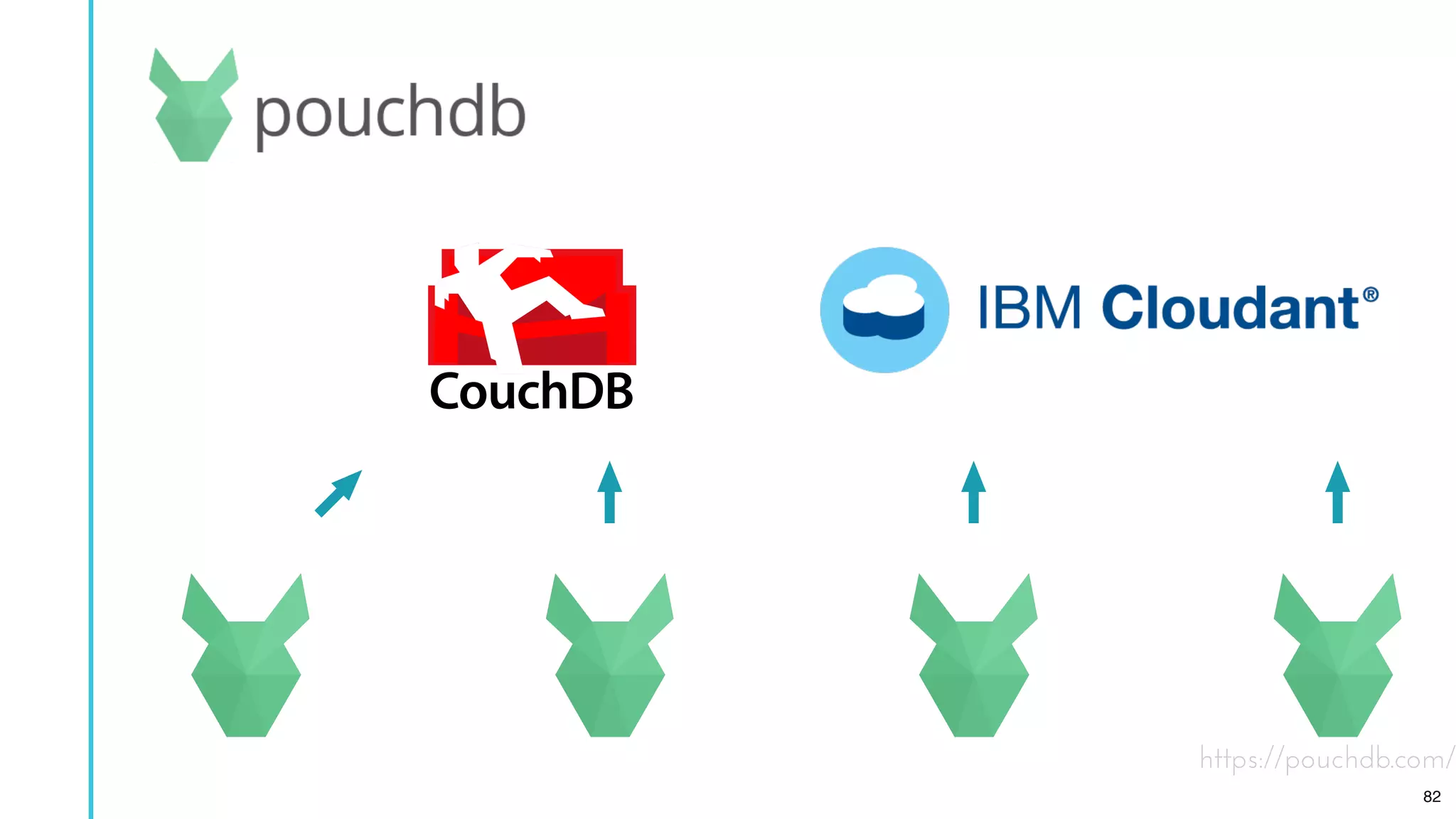

82. https://pouchdb.com/
82

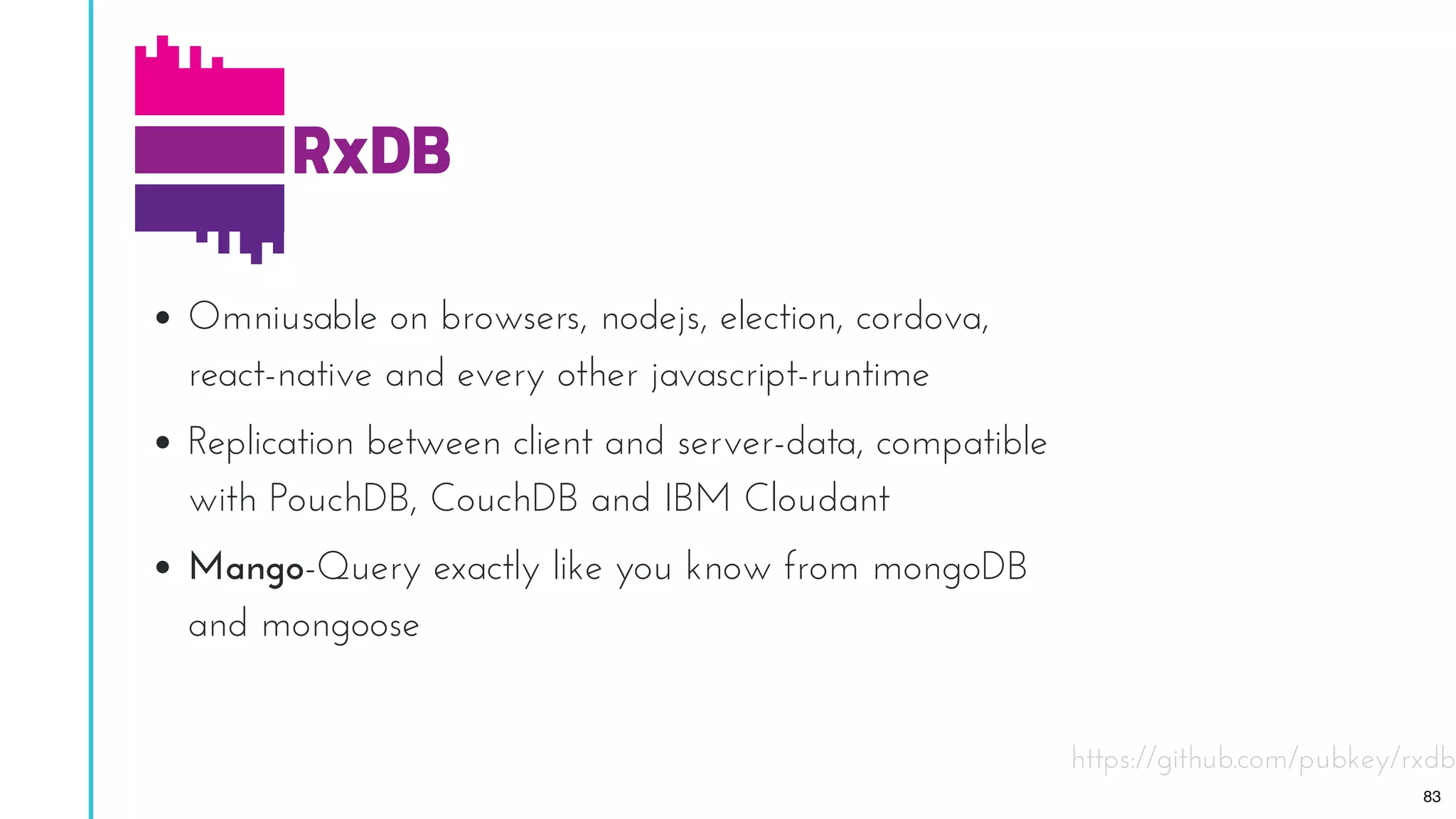

83. Omniusable on browsers, nodejs, election, cordova,
react-native and every other javascript-runtime
Replication between client and server-data, compatible
with PouchDB, CouchDB and IBM Cloudant
Mango-Query exactly like you know from mongoDB
and mongoose
https://github.com/pubkey/rxdb
83

84. https://www.meteor.com/
84

85. https://www.rethinkdb.com/
85

86. Horizon is a realtime, open-source
backend for JavaScript apps
https://horizon.io/
86

87. What else?
https://loopback.io/
https://github.com/gritzko/swarm87

88. Thank you!
Questions?
88
