This document describes Vente-Exclusive's use of Google Cloud Platform technologies like Google Cloud Storage, Cloud DataProc, BigQuery, Cloud Pub/Sub, Cloud DataFlow and App Engine for their big data analytics processes. It discusses how they leverage these services for ETL, batch and stream processing of user behavior and transactional data to power analytics dashboards and optimize various business metrics like reducing returns, improving customer insights and forecasting.

1. GCP at Vente-Exclusive
Big Data on Google Cloud

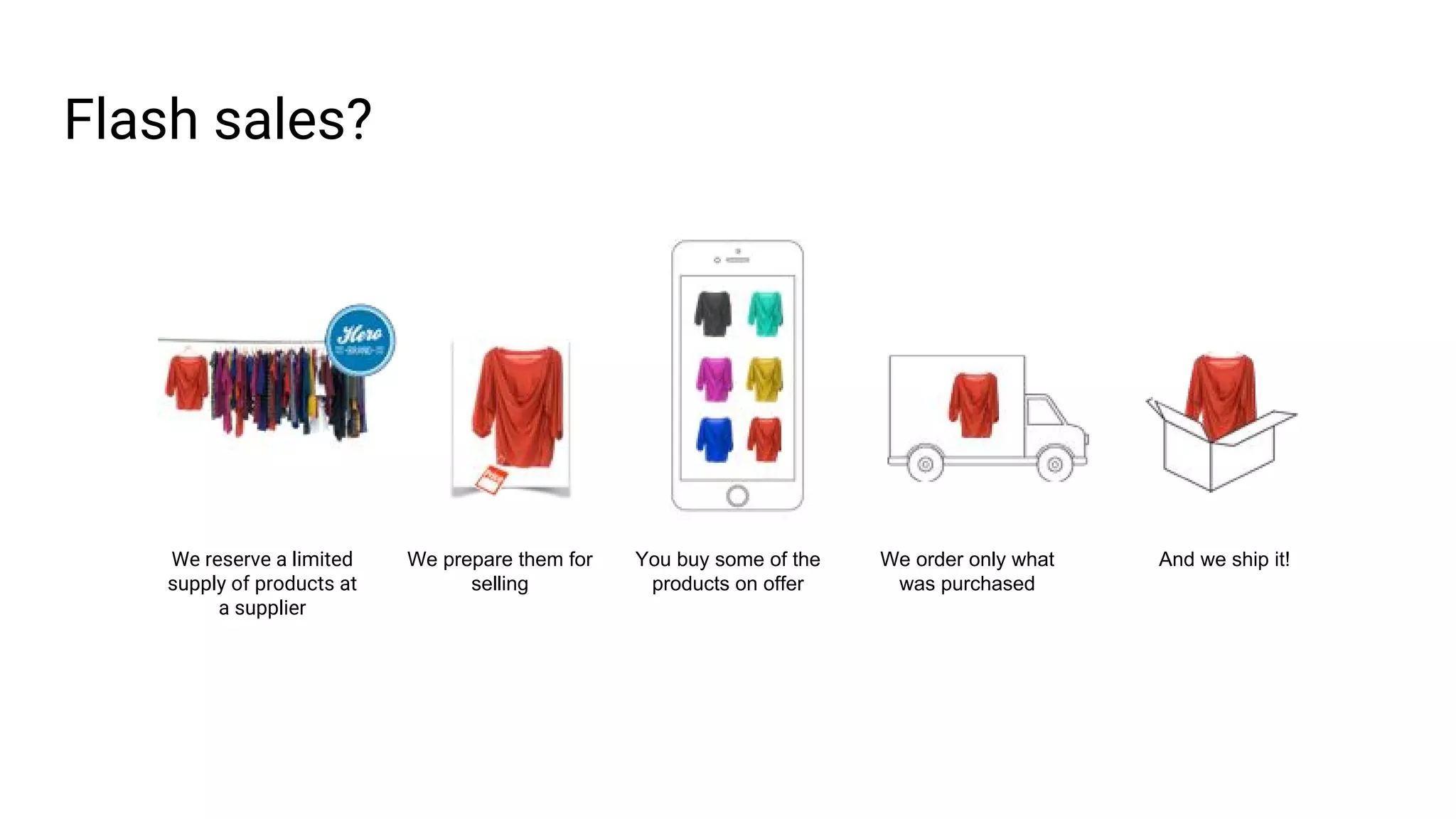

2. Flash sales?
We reserve a limited
supply of products at
a supplier
We prepare them for
selling
You buy some of the
products on offer
We order only what
was purchased
And we ship it!

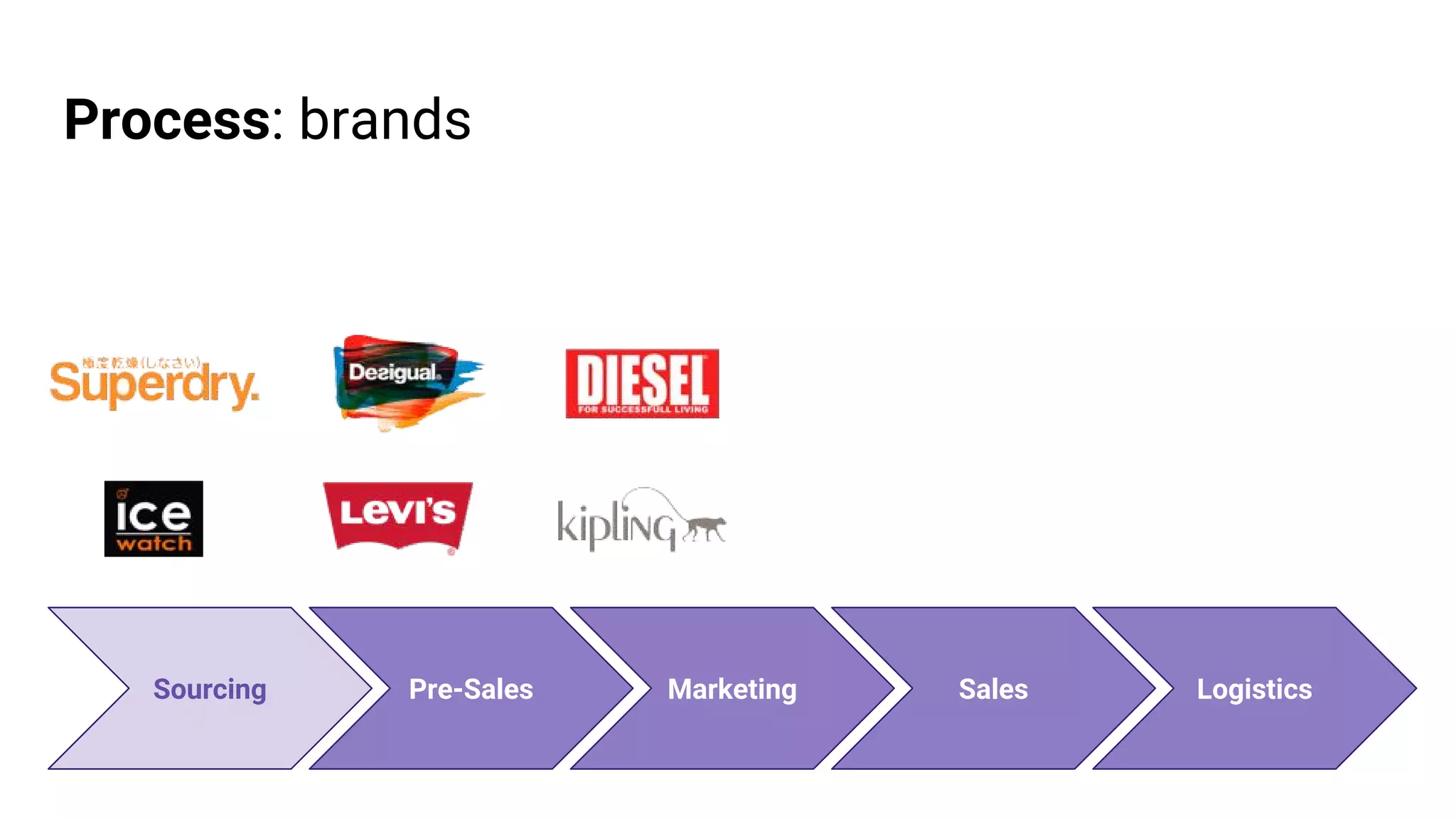

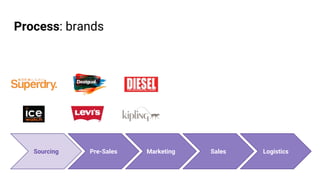

3. Process: brands
Pre-Sales Marketing Sales LogisticsSourcing

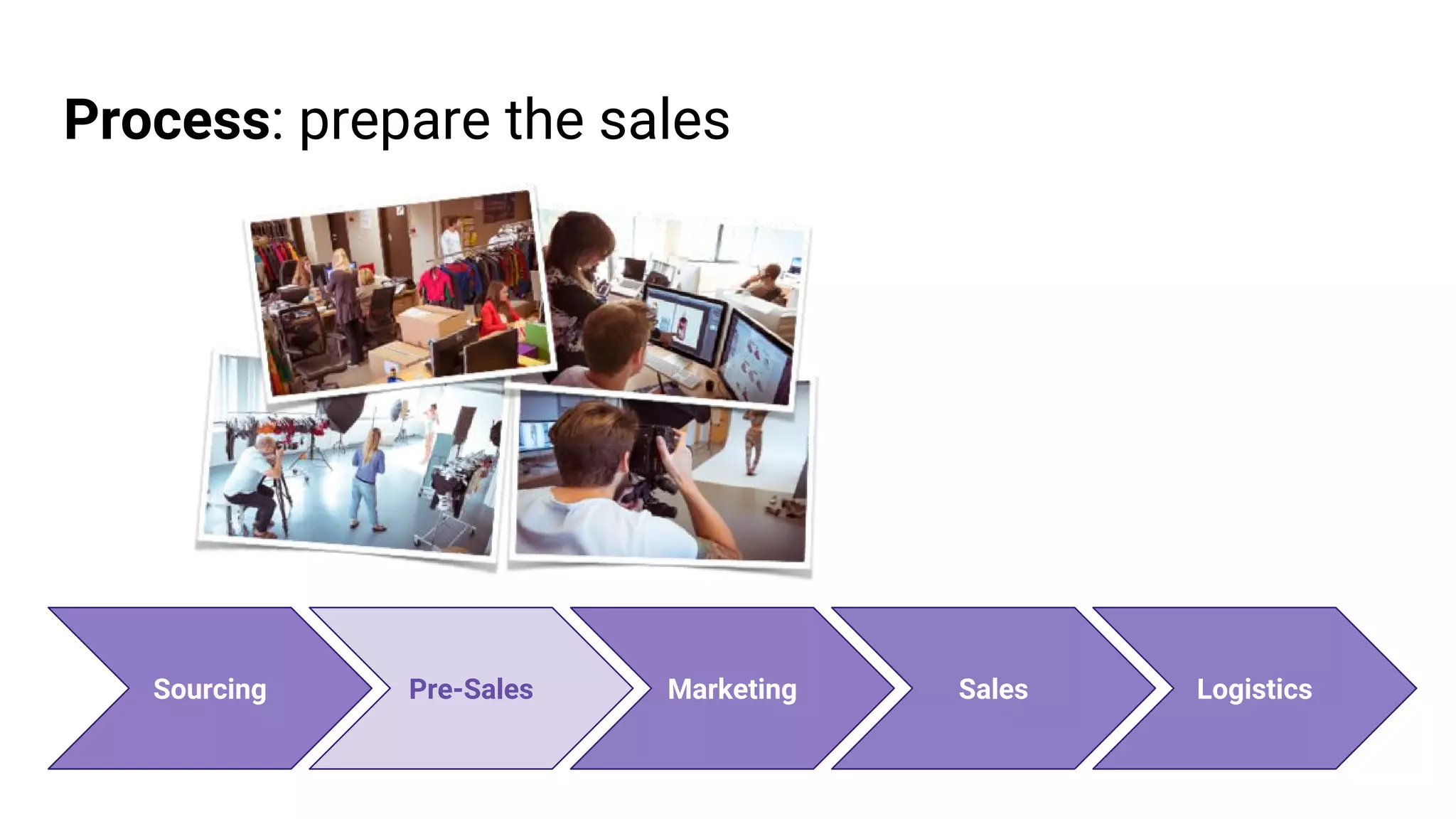

4. Process: prepare the sales
Pre-Sales Marketing Sales LogisticsSourcing

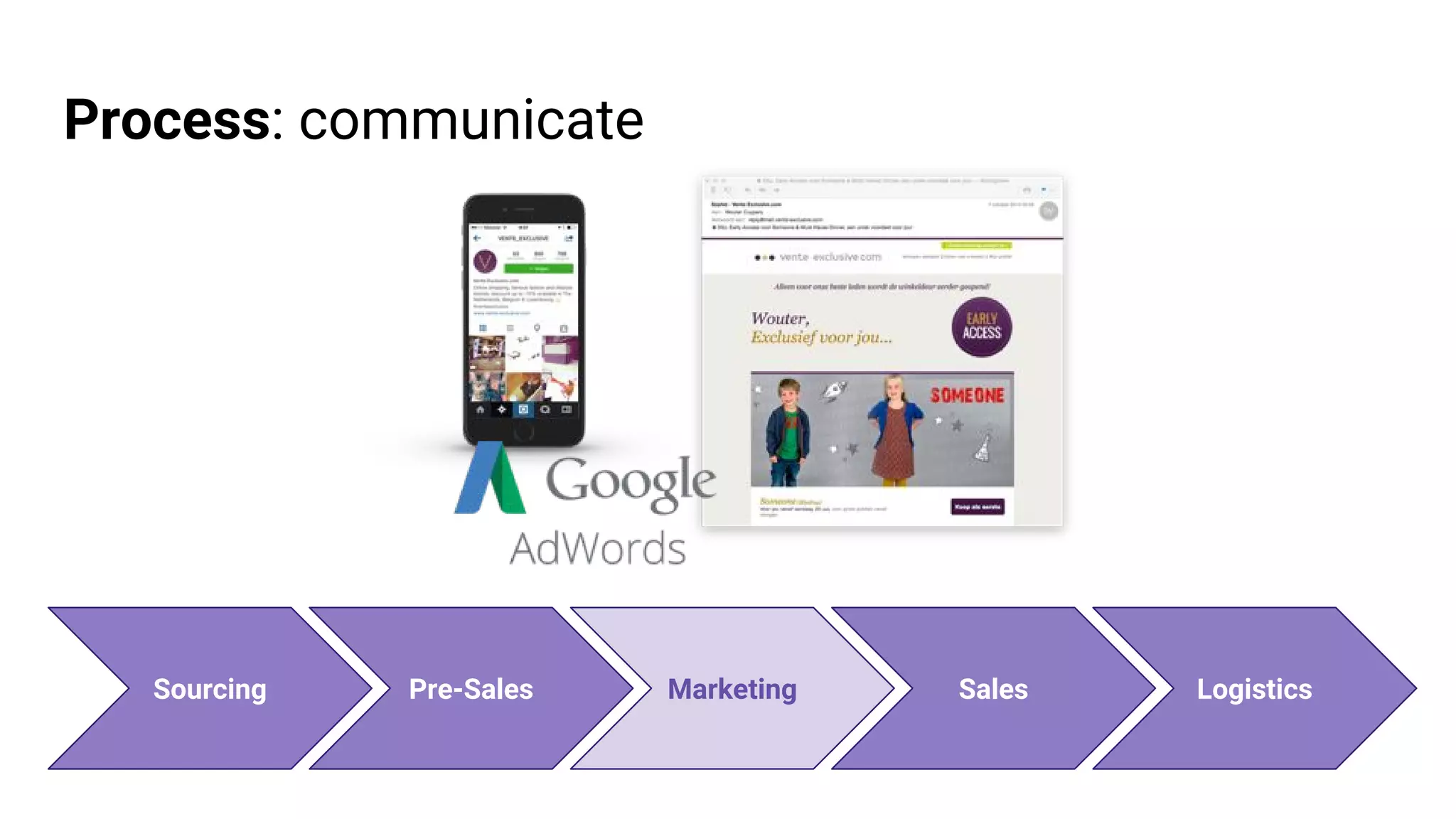

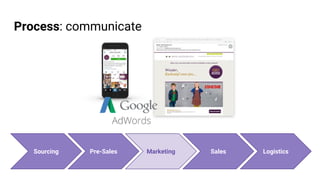

5. Process: communicate
Pre-Sales Marketing Sales LogisticsSourcing

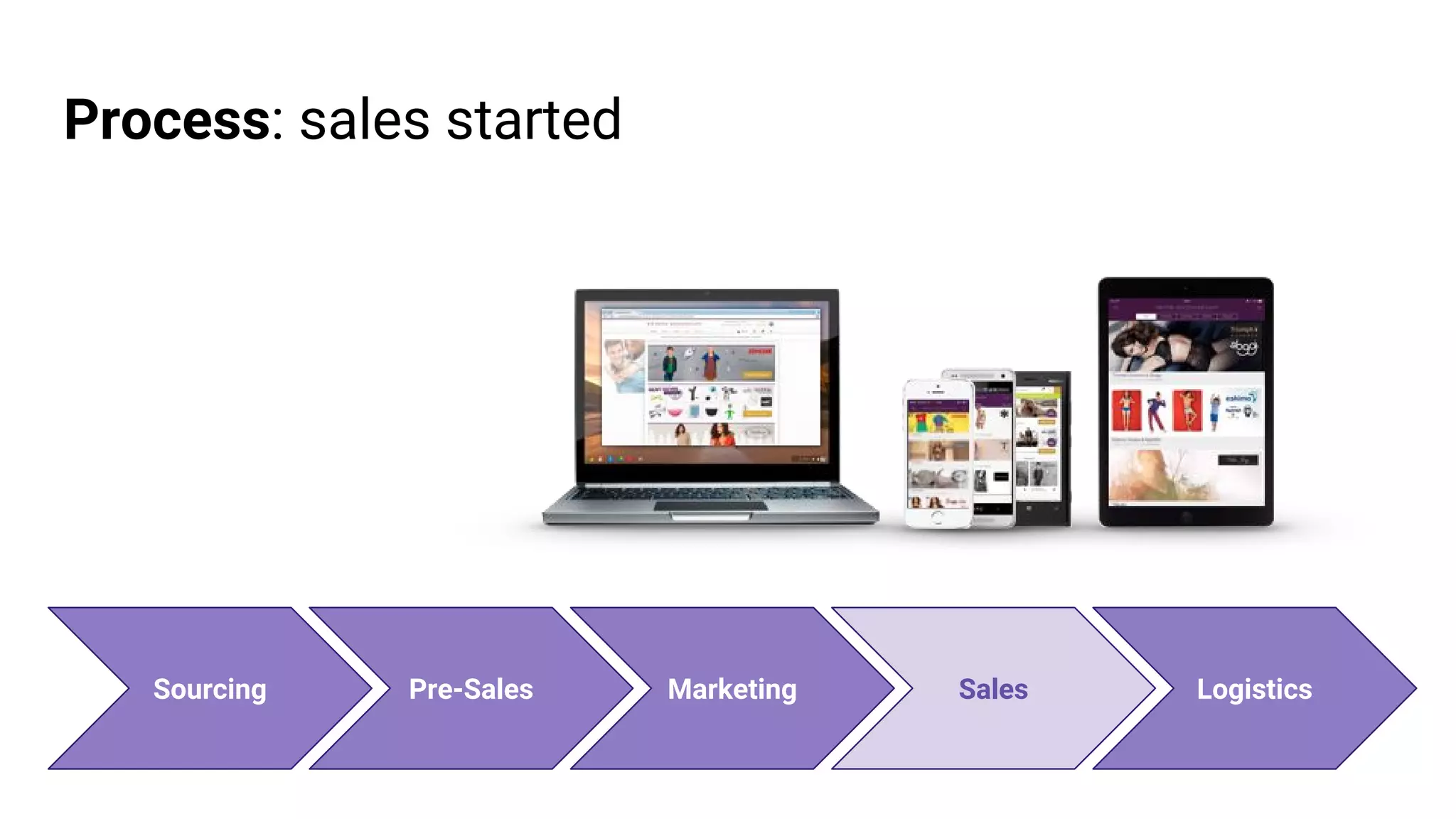

6. Process: sales started
Pre-Sales Marketing Sales LogisticsSourcing

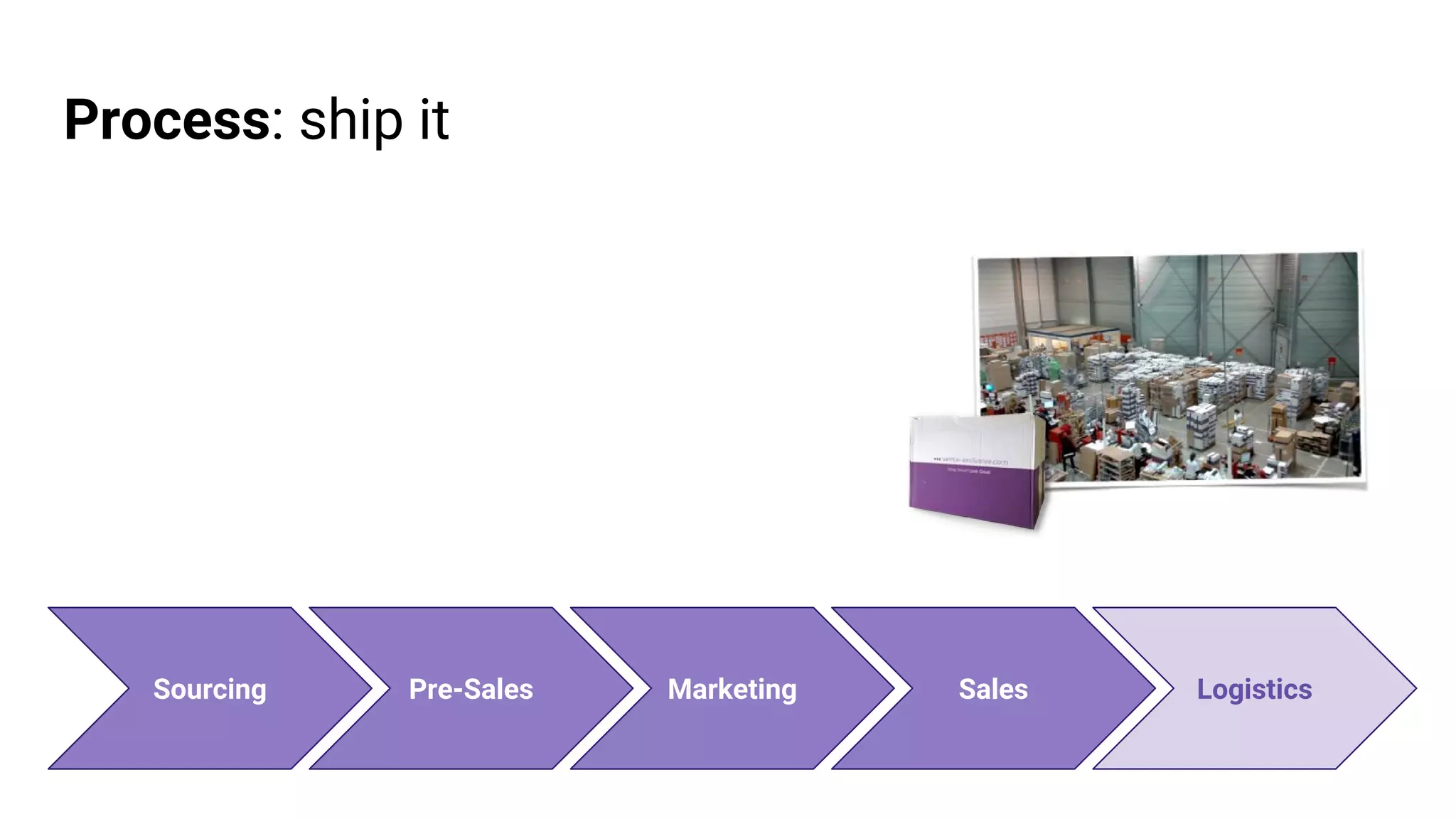

7. Process: ship it
Pre-Sales Marketing Sales LogisticsSourcing

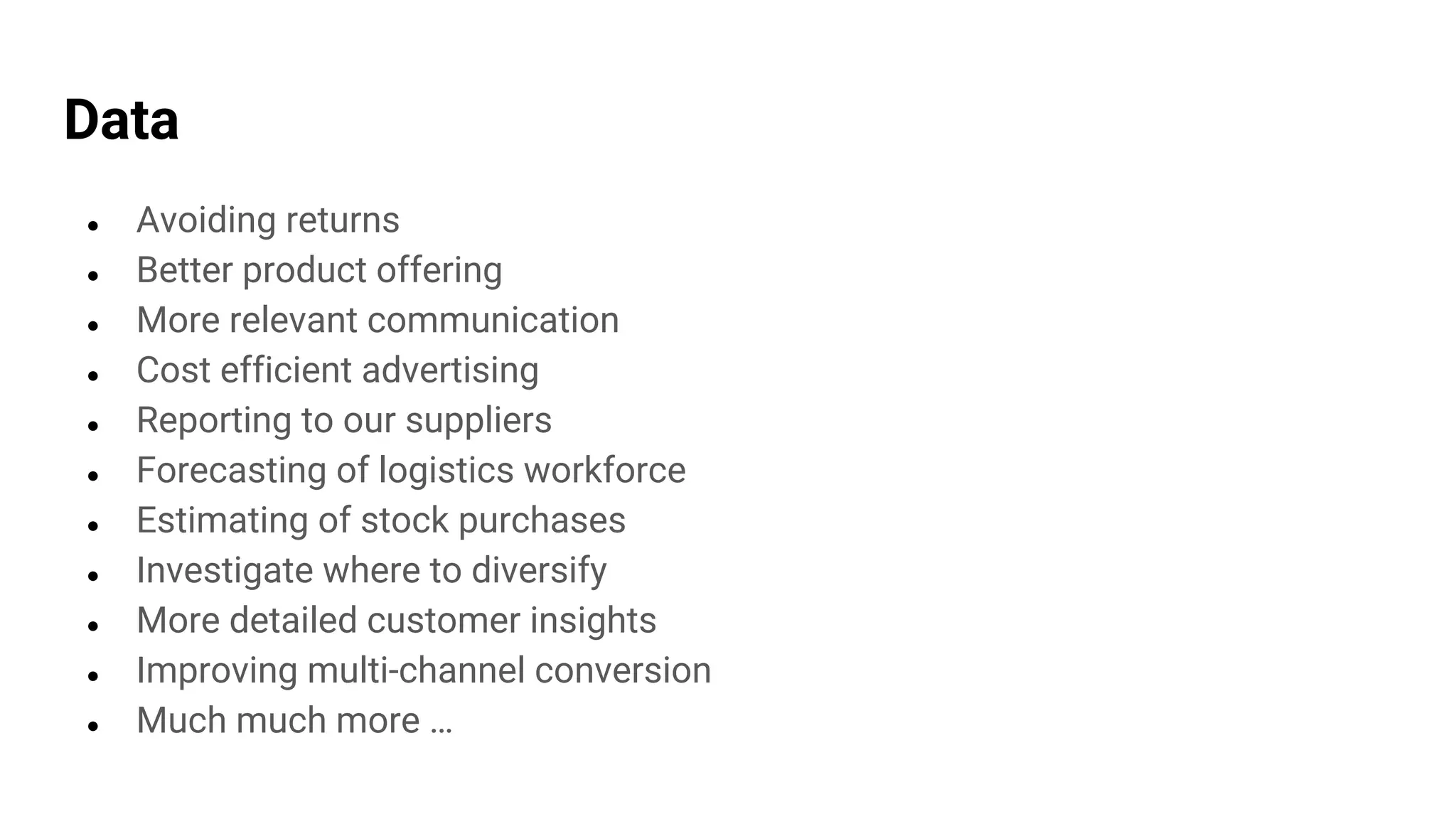

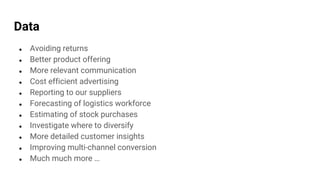

8. Data
● Avoiding returns
● Better product offering
● More relevant communication
● Cost efficient advertising
● Reporting to our suppliers
● Forecasting of logistics workforce
● Estimating of stock purchases
● Investigate where to diversify
● More detailed customer insights
● Improving multi-channel conversion
● Much much more …

9. Crunching Power
Dark Ages

10. Hadoop rollout

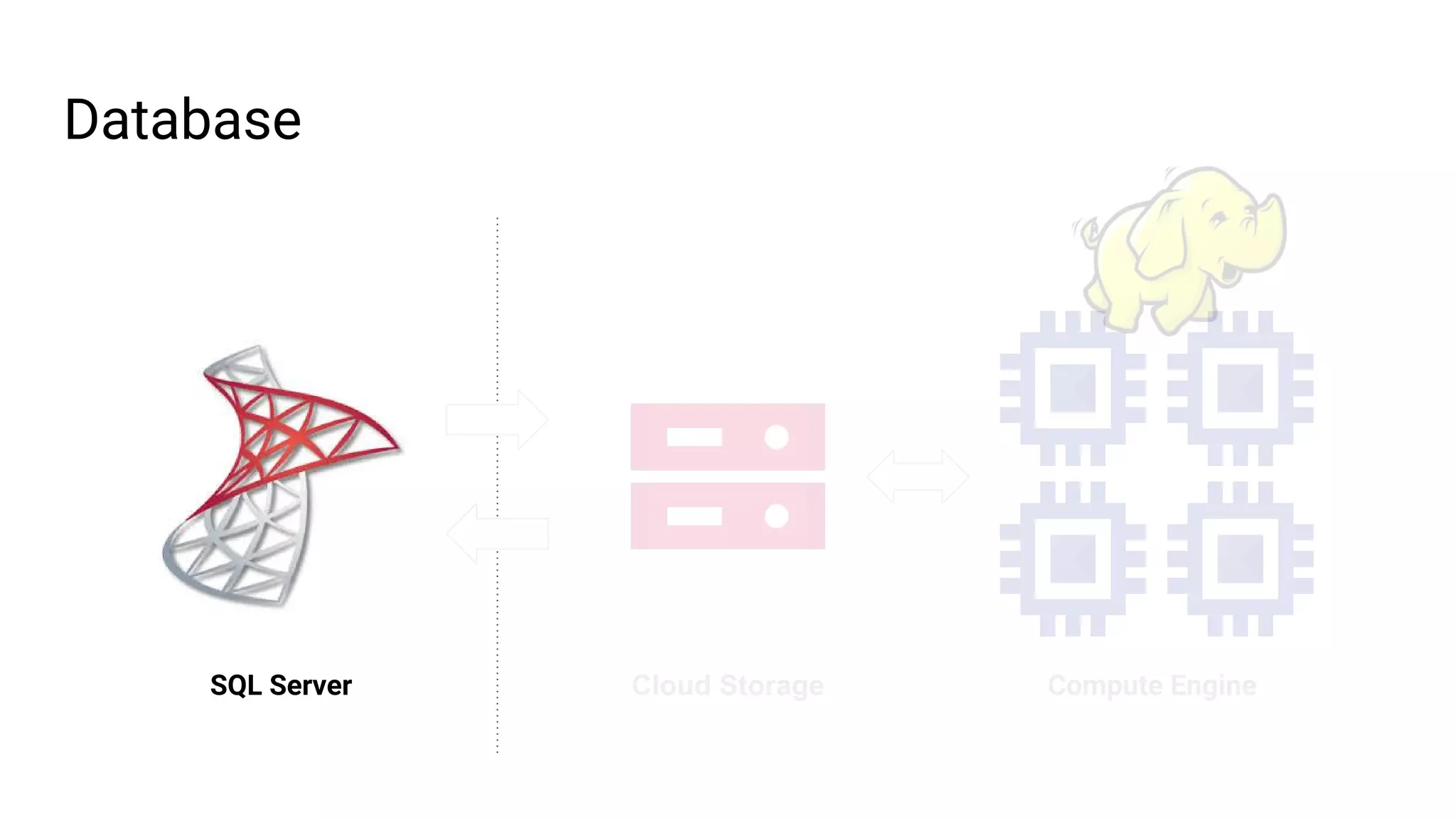

11. Database
SQL Server Cloud Storage Compute Engine

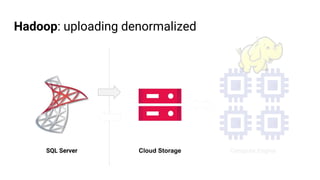

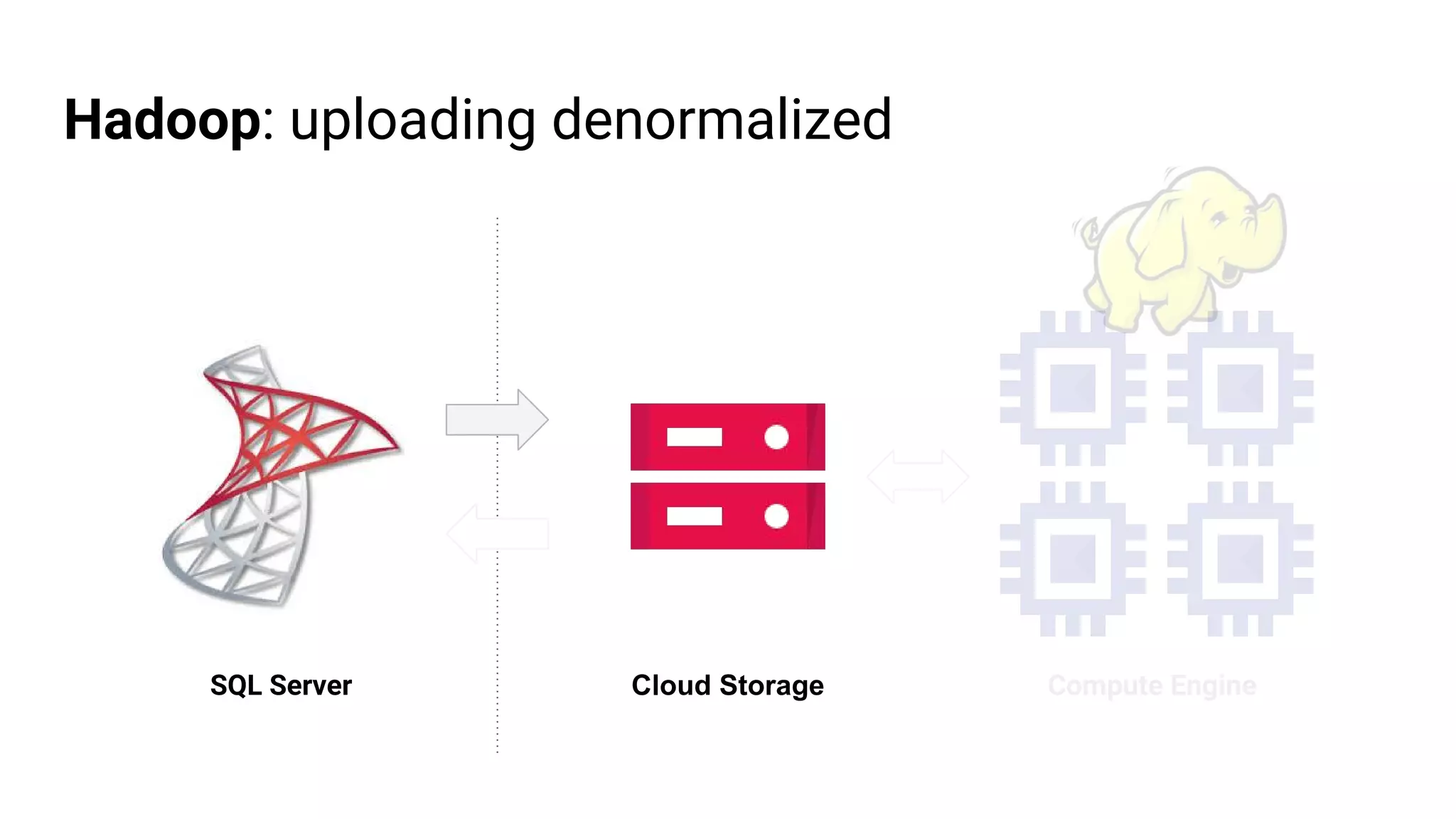

12. Hadoop: uploading denormalized
SQL Server Cloud Storage Compute Engine

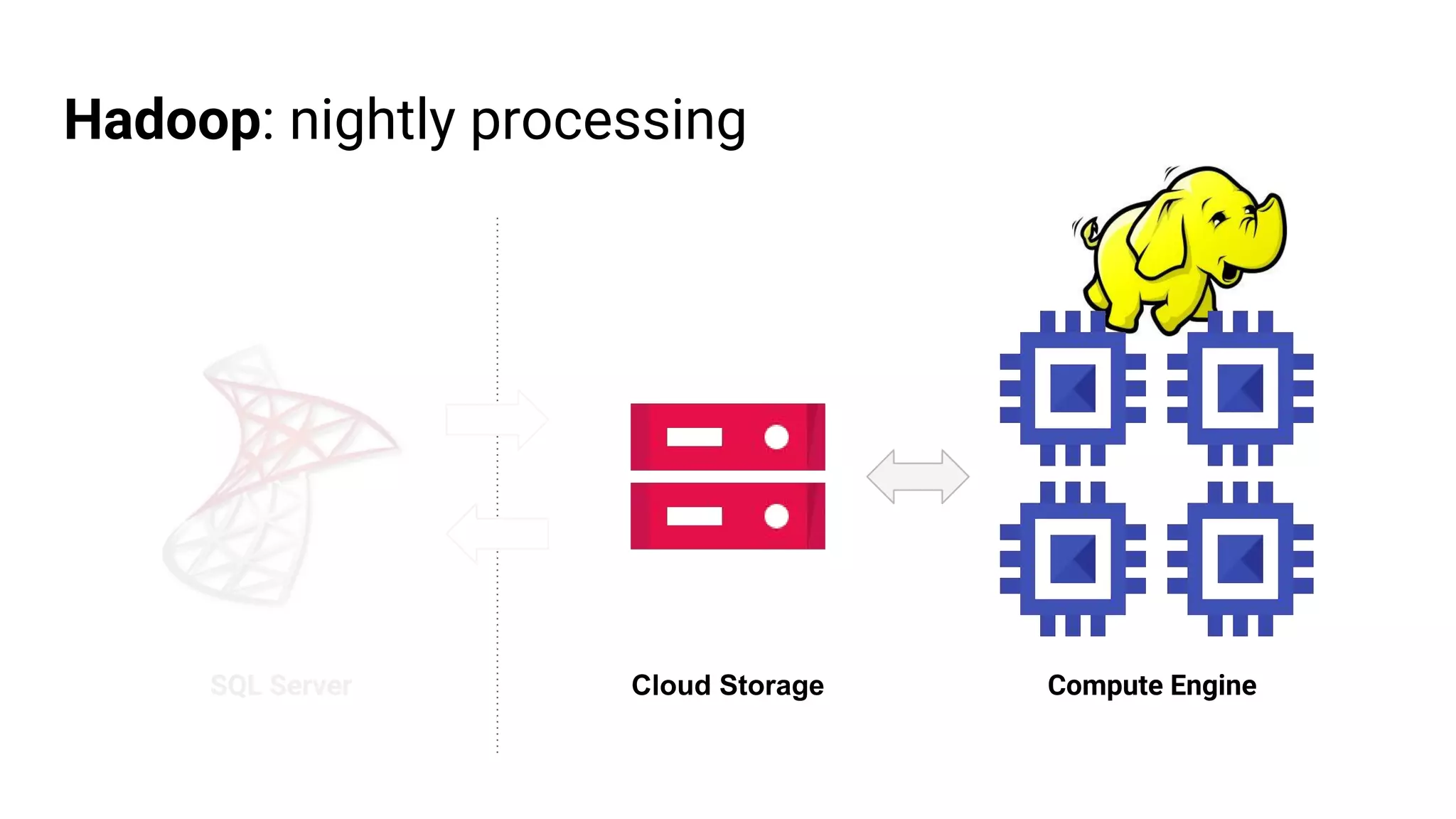

13. Hadoop: nightly processing
SQL Server Cloud Storage Compute Engine

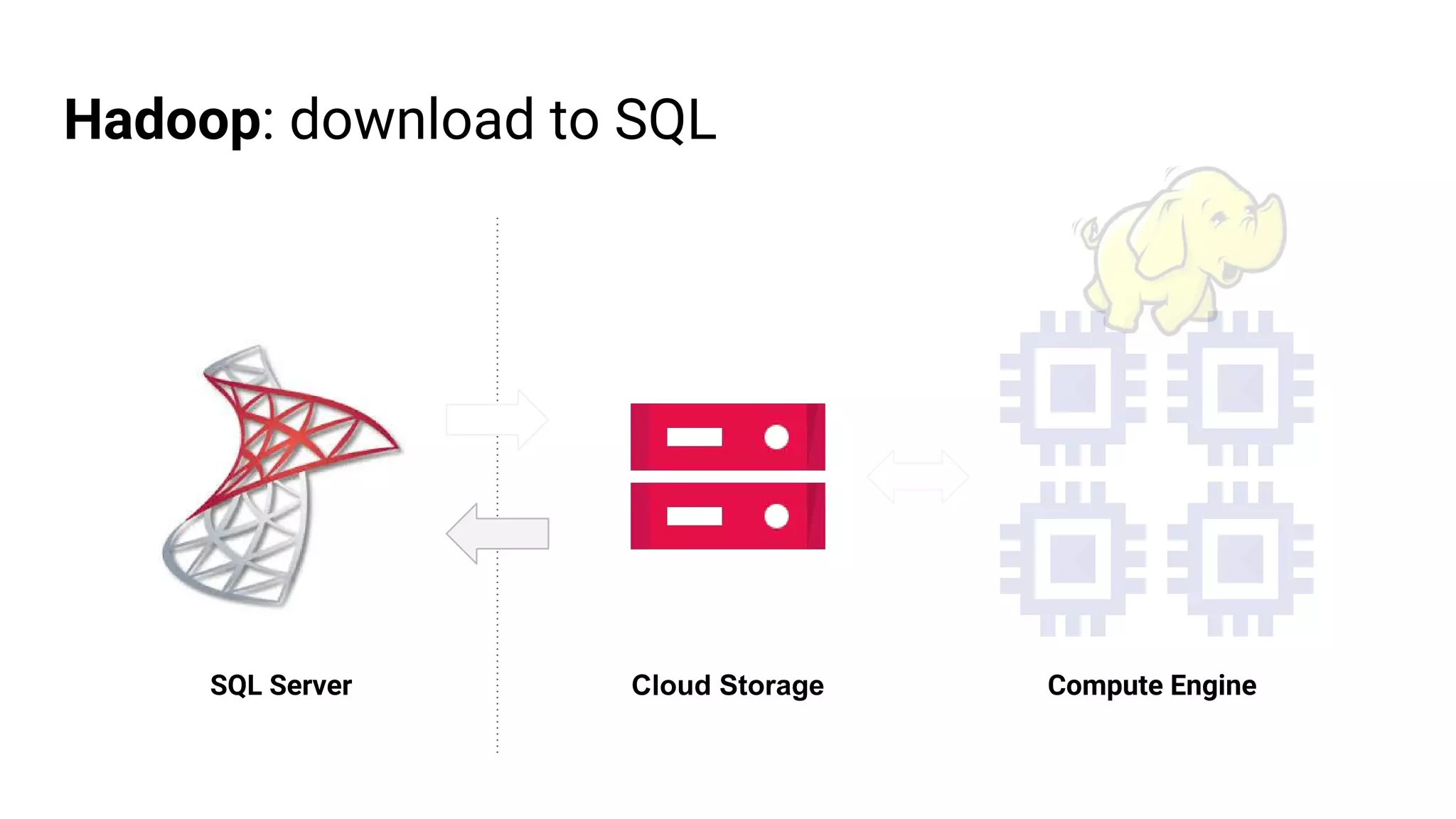

14. Hadoop: download to SQL
SQL Server Cloud Storage Compute Engine

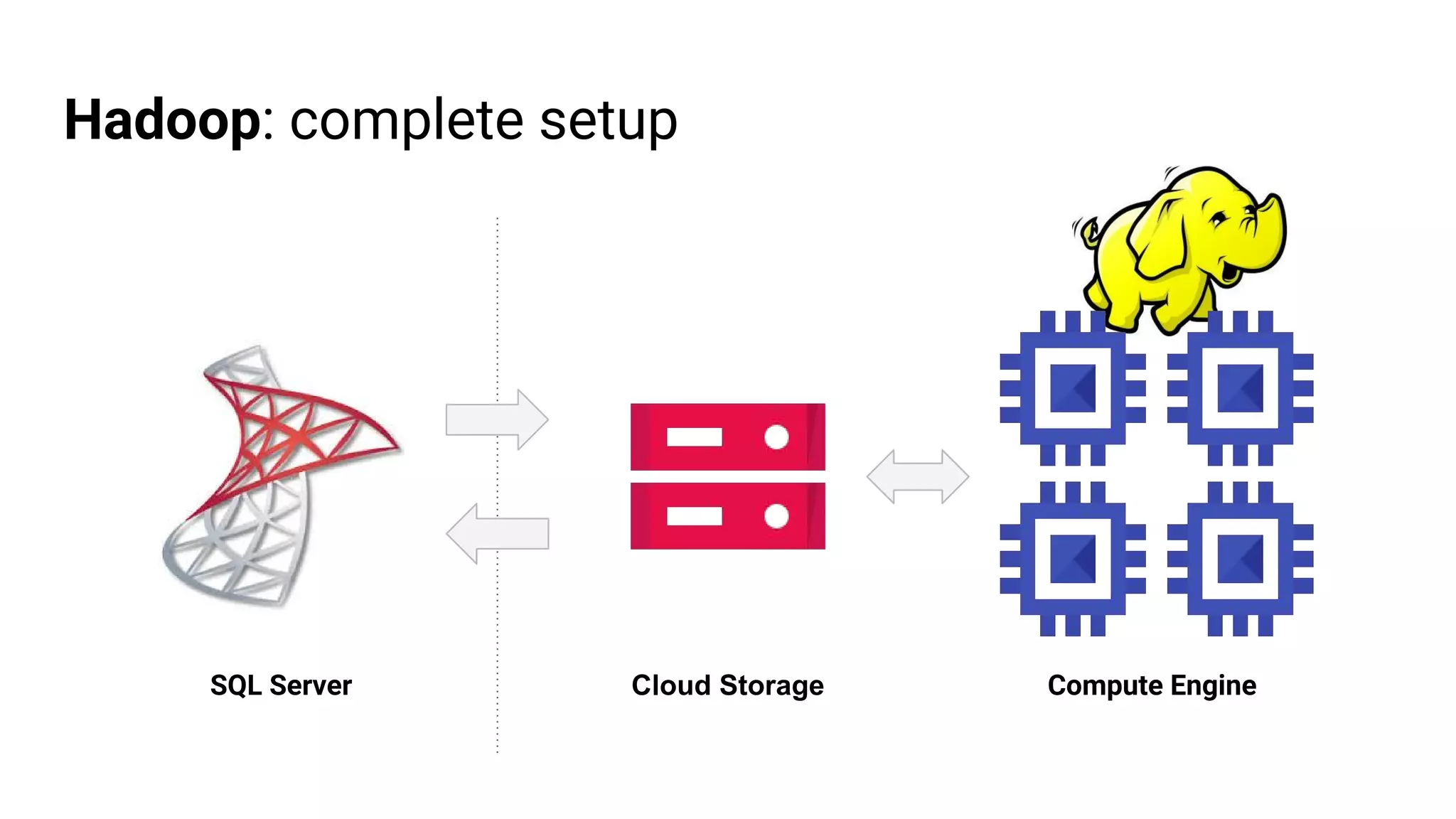

15. Hadoop: complete setup
SQL Server Cloud Storage Compute Engine

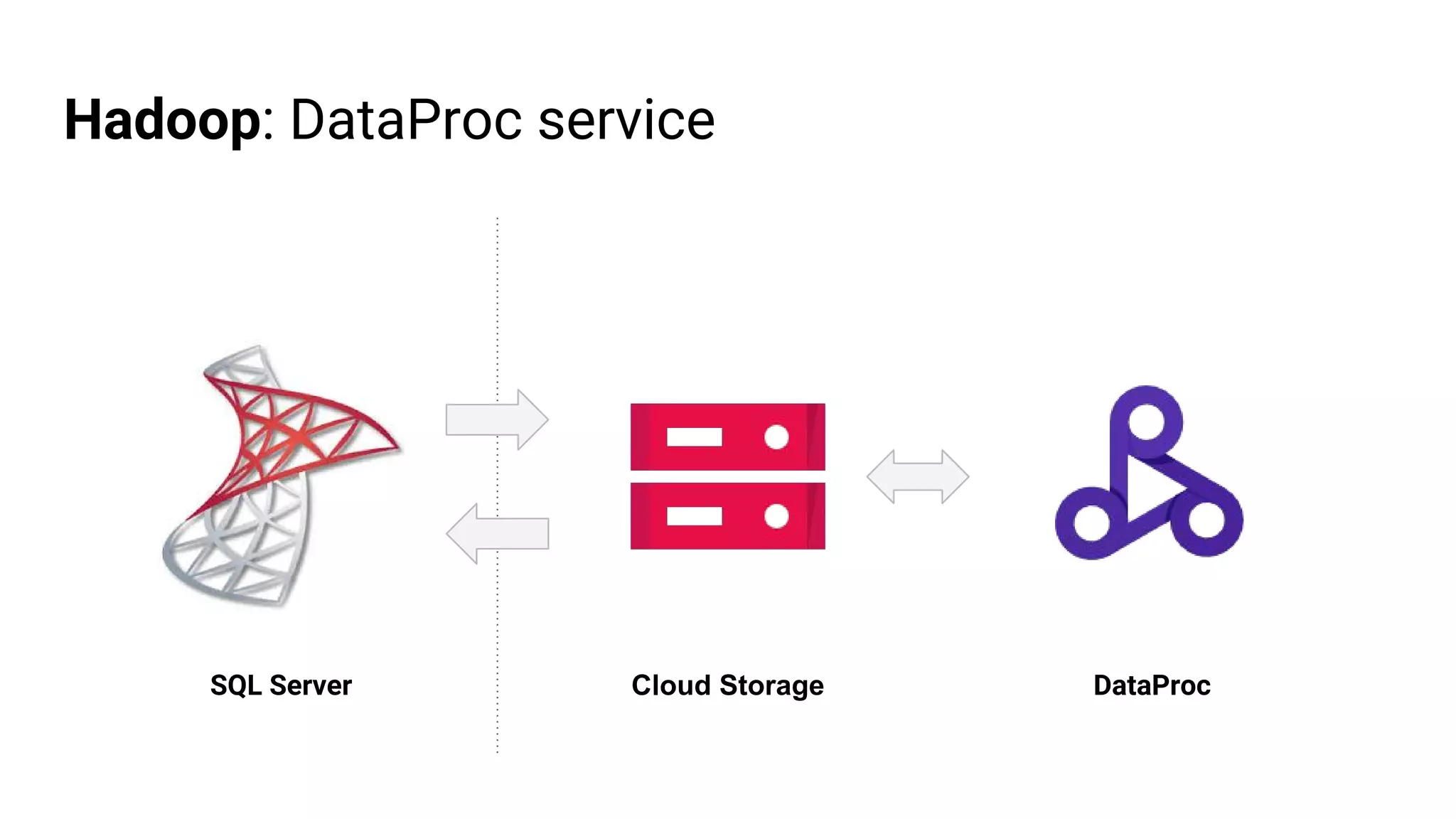

16. Hadoop: DataProc service
SQL Server Cloud Storage DataProc

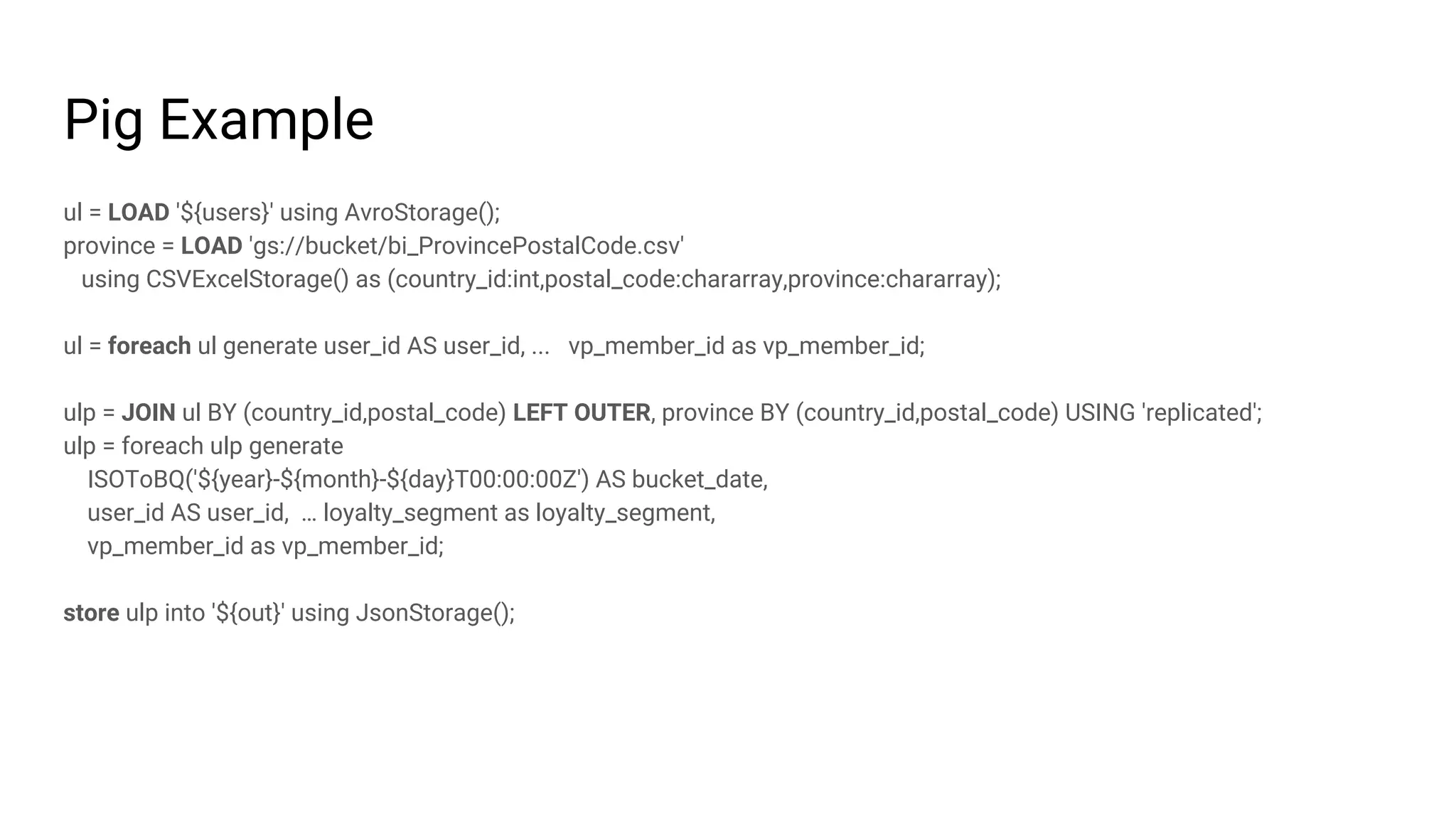

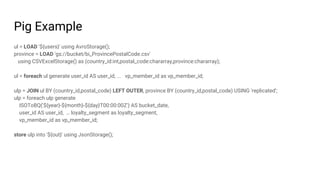

17. Pig Example
ul = LOAD '${users}' using AvroStorage();
province = LOAD 'gs://bucket/bi_ProvincePostalCode.csv'
using CSVExcelStorage() as (country_id:int,postal_code:chararray,province:chararray);
ul = foreach ul generate user_id AS user_id, ... vp_member_id as vp_member_id;
ulp = JOIN ul BY (country_id,postal_code) LEFT OUTER, province BY (country_id,postal_code) USING 'replicated';
ulp = foreach ulp generate
ISOToBQ('${year}-${month}-${day}T00:00:00Z') AS bucket_date,
user_id AS user_id, … loyalty_segment as loyalty_segment,
vp_member_id as vp_member_id;
store ulp into '${out}' using JsonStorage();

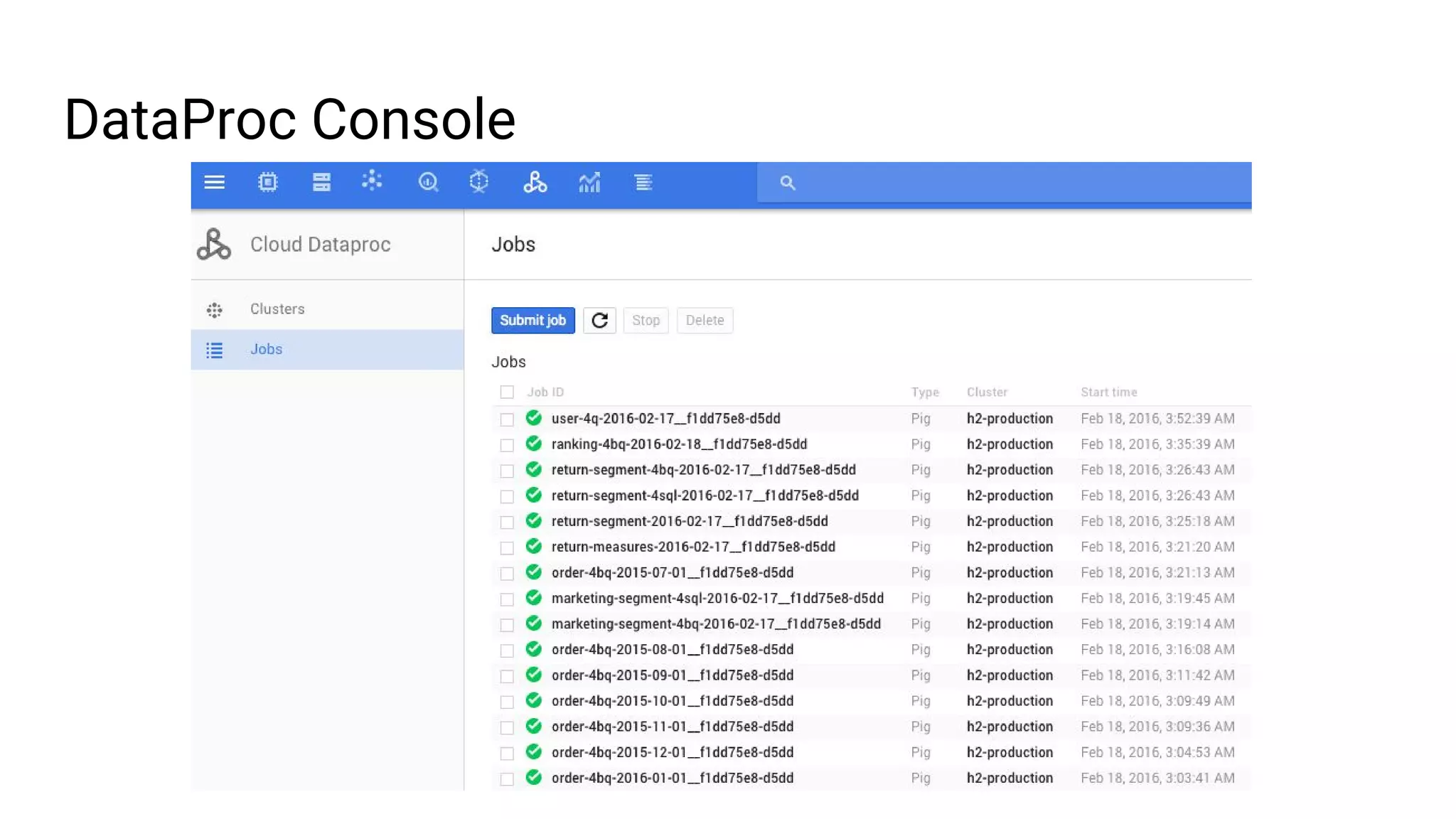

18. DataProc Console

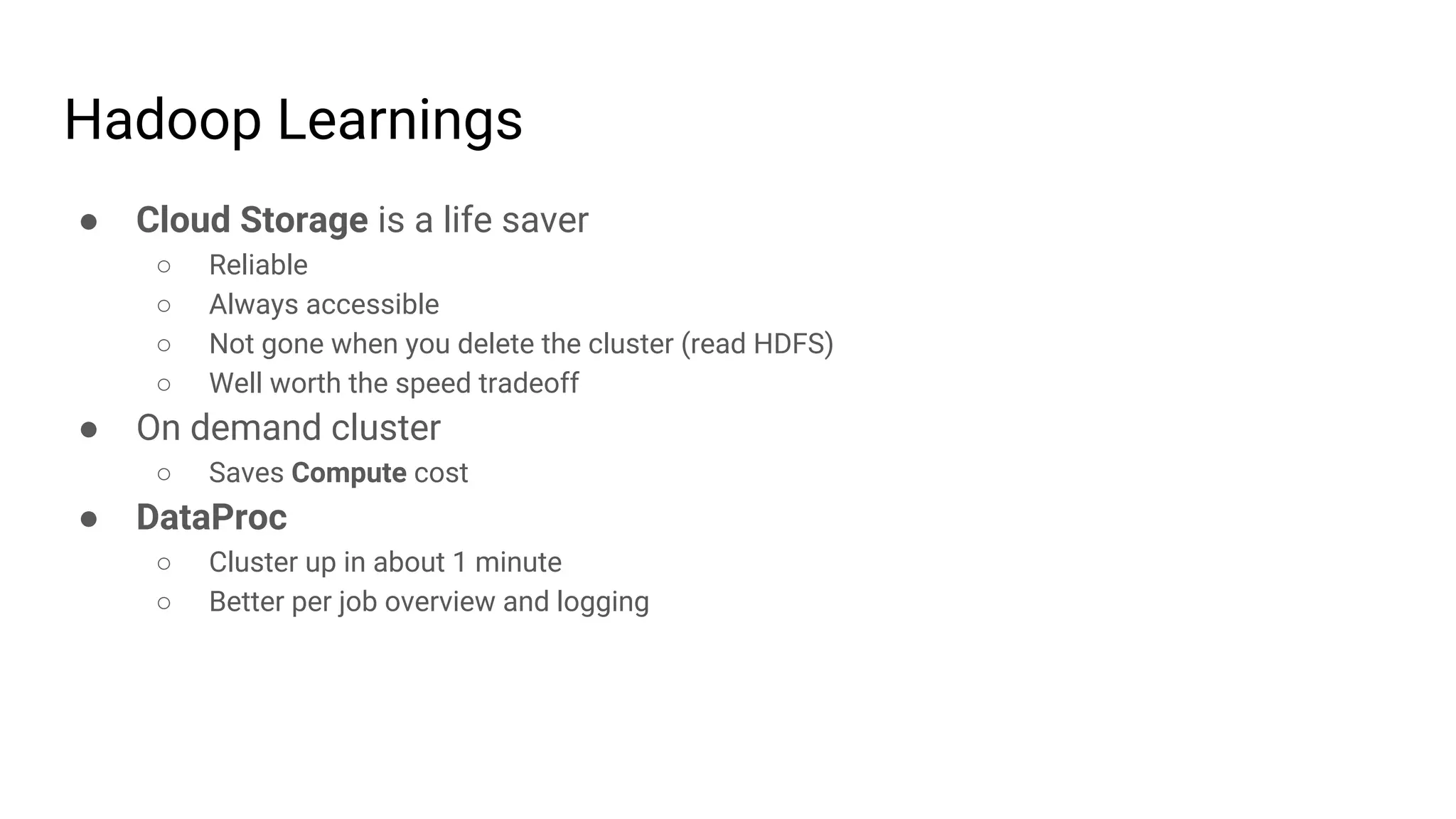

19. Hadoop Learnings
● Cloud Storage is a life saver
○ Reliable
○ Always accessible
○ Not gone when you delete the cluster (read HDFS)
○ Well worth the speed tradeoff
● On demand cluster
○ Saves Compute cost
● DataProc
○ Cluster up in about 1 minute
○ Better per job overview and logging

20. BigQuery rollout

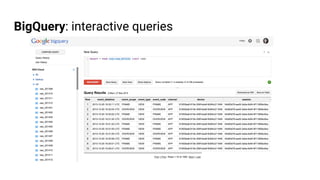

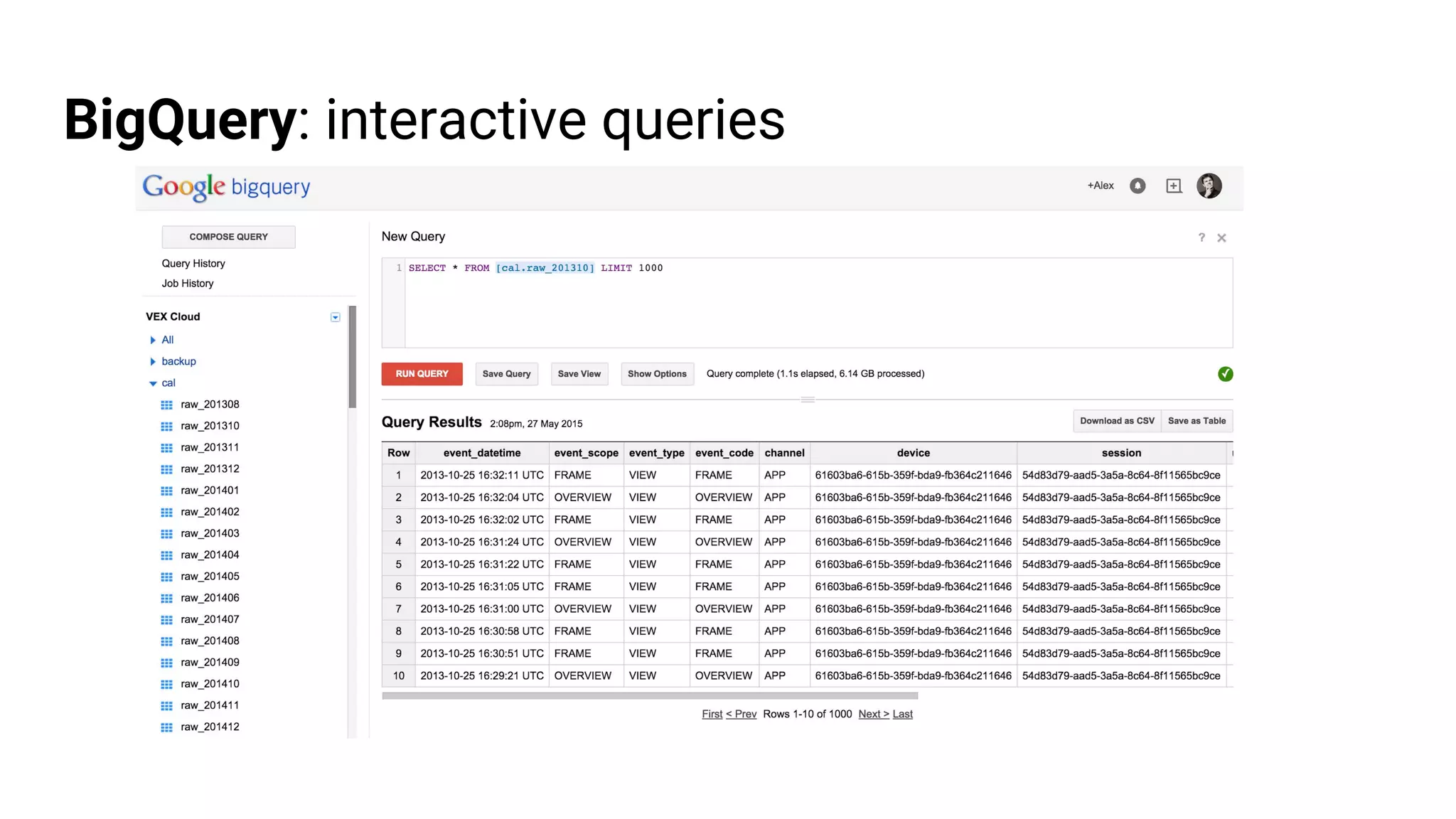

21. BigQuery: interactive queries

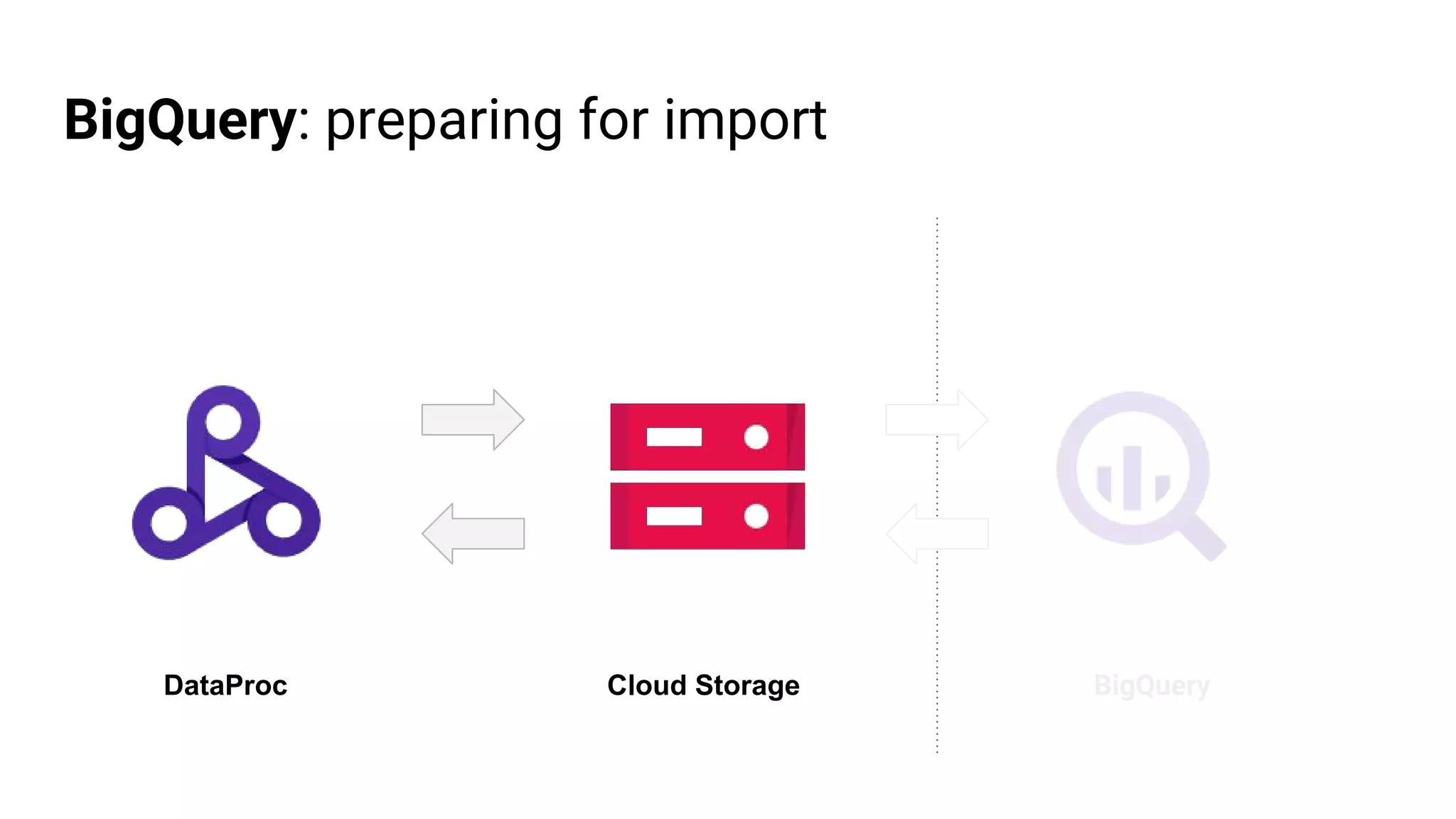

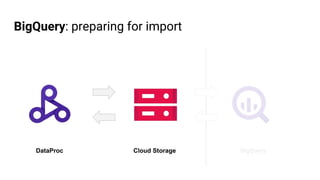

22. BigQuery: preparing for import
Cloud Storage BigQueryDataProc

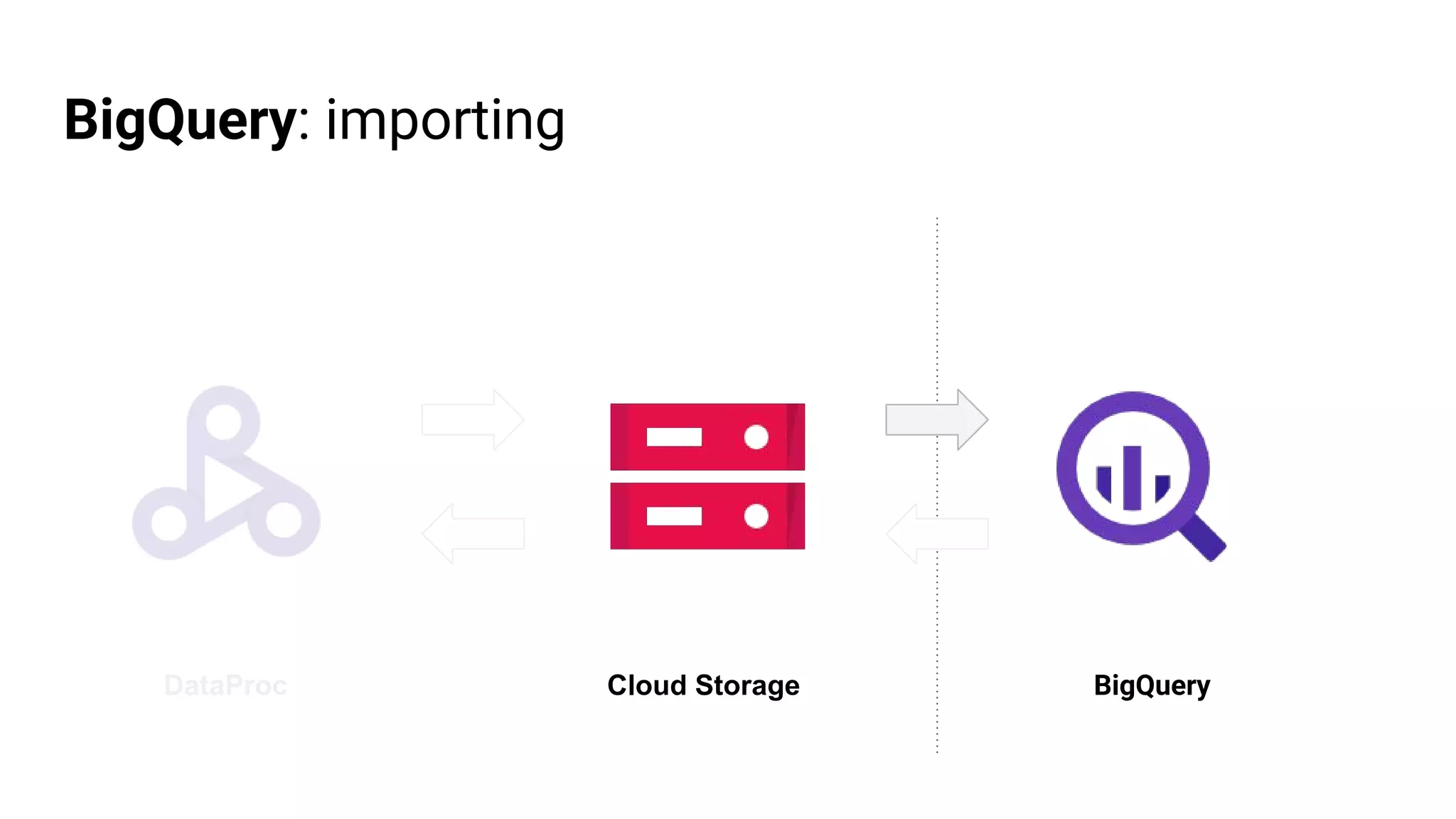

23. BigQuery: importing
Cloud Storage BigQueryDataProc

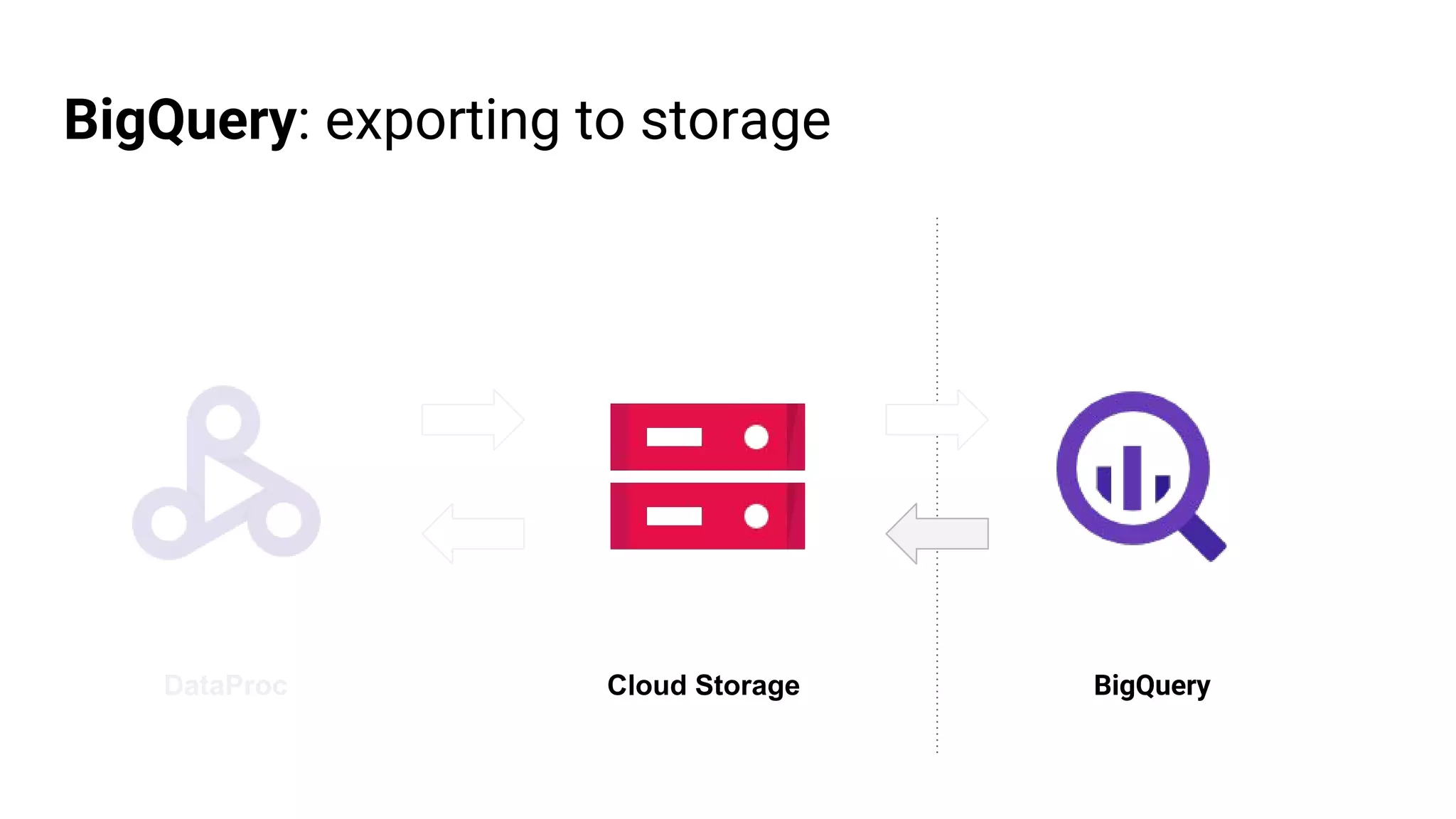

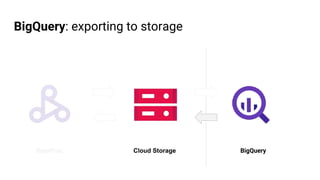

24. BigQuery: exporting to storage
Cloud Storage BigQueryDataProc

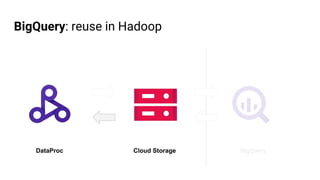

25. BigQuery: reuse in Hadoop
Cloud Storage BigQueryDataProc

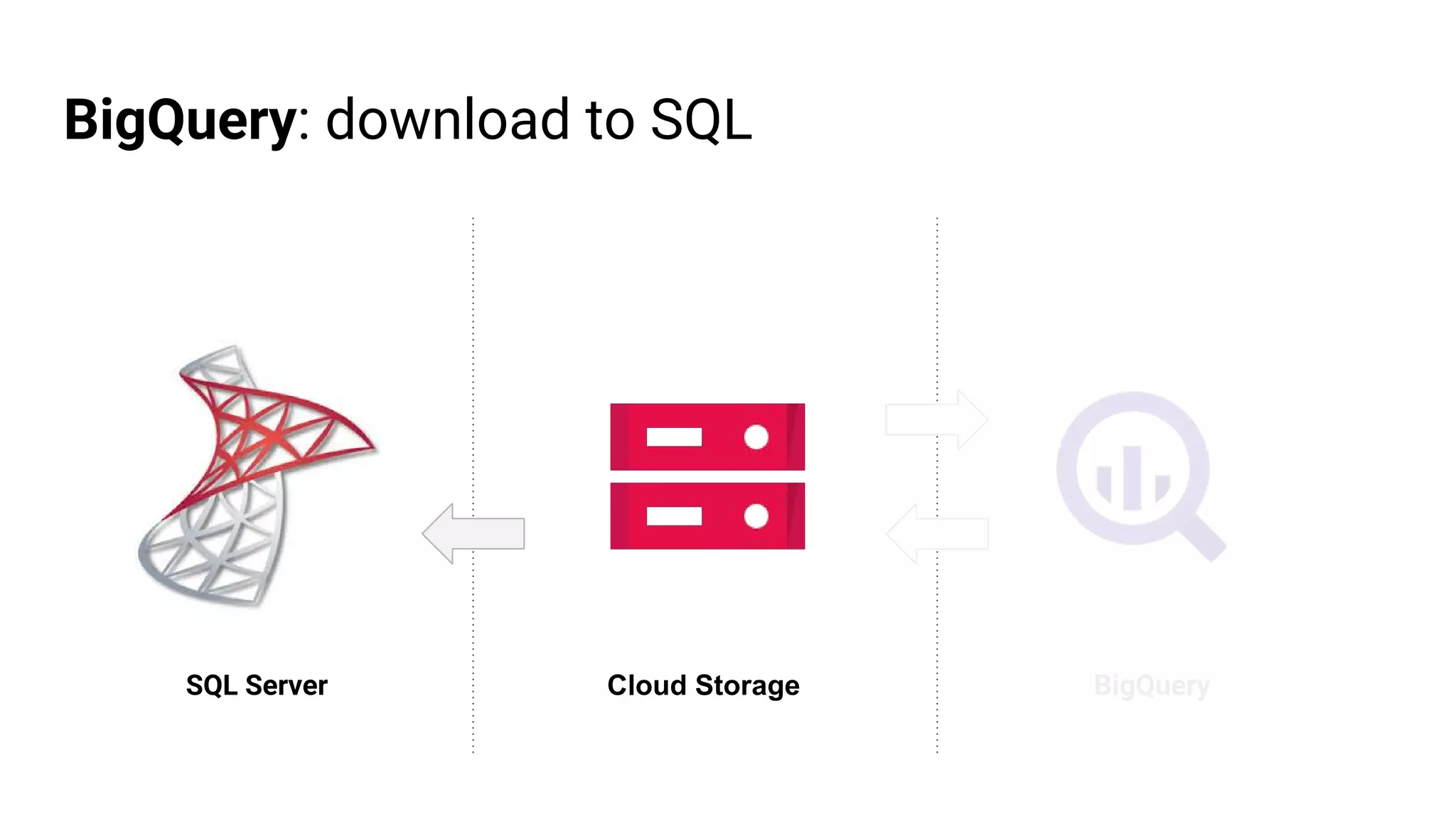

26. BigQuery: download to SQL
Cloud Storage BigQuerySQL Server

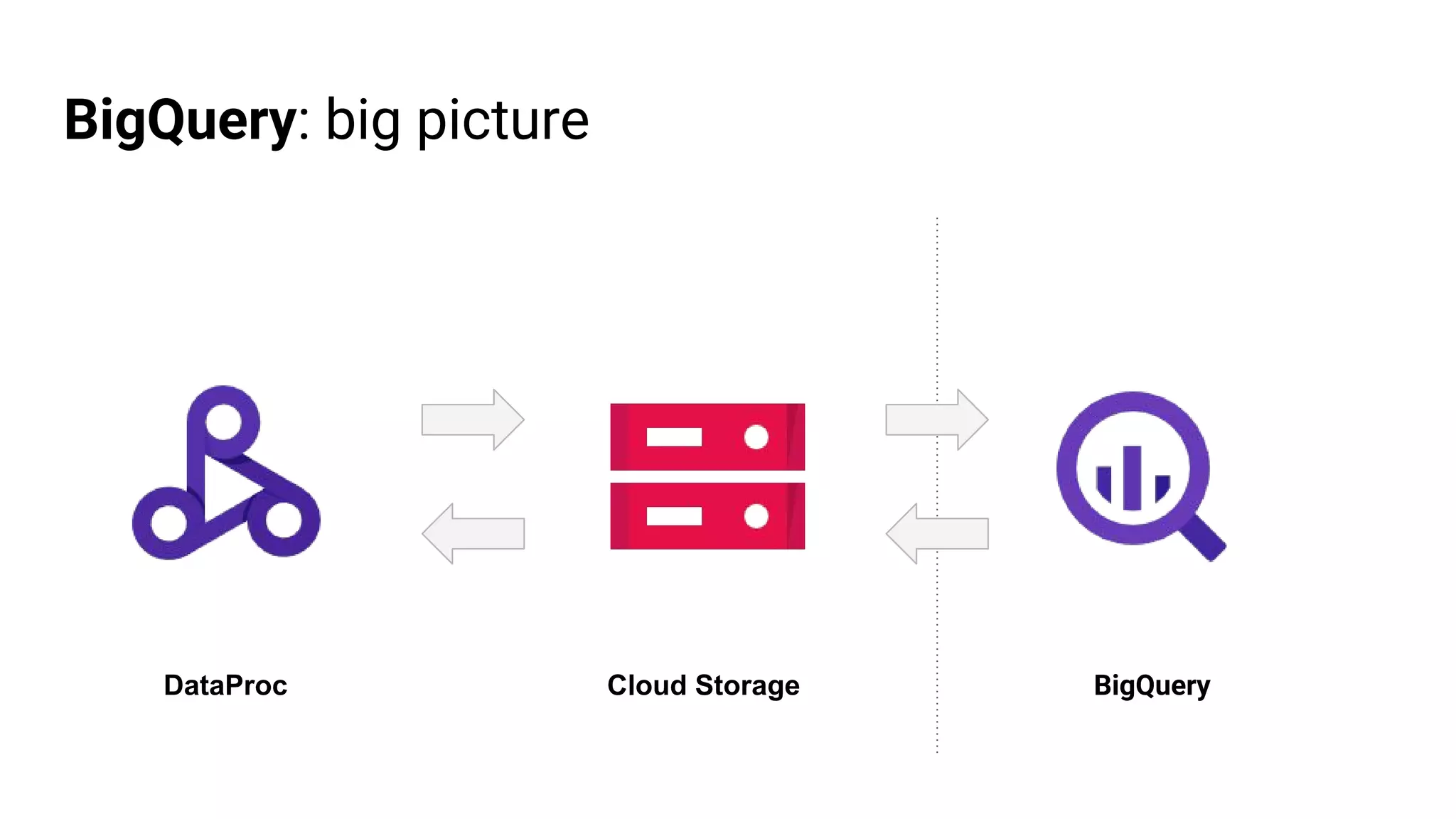

27. BigQuery: big picture
Cloud Storage BigQueryDataProc

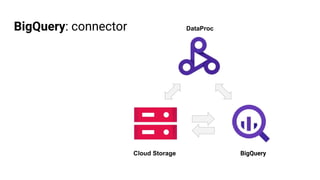

28. BigQuery: connector
Cloud Storage BigQuery
DataProc

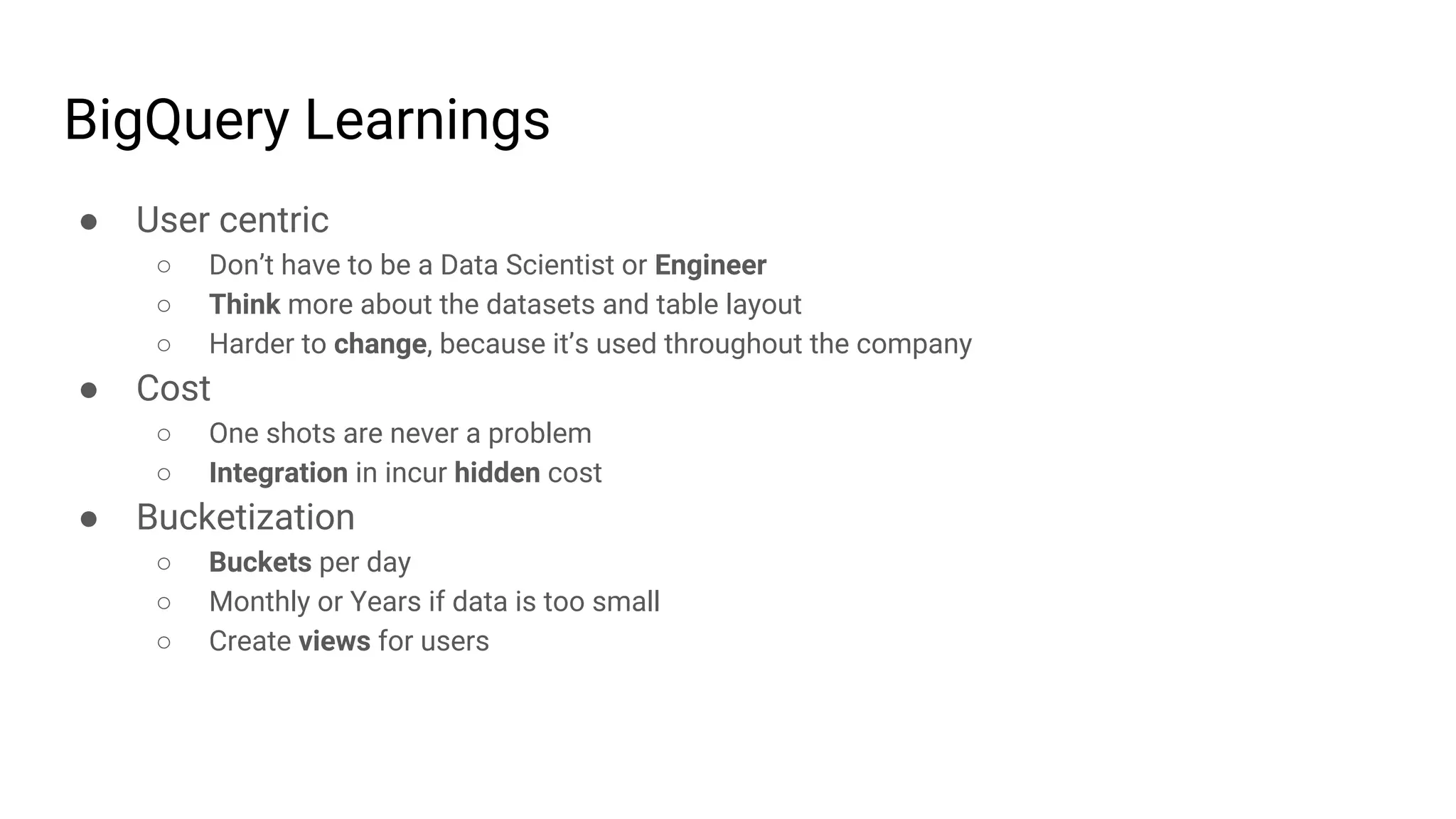

29. BigQuery Learnings
● User centric
○ Don’t have to be a Data Scientist or Engineer
○ Think more about the datasets and table layout
○ Harder to change, because it’s used throughout the company
● Cost
○ One shots are never a problem
○ Integration in incur hidden cost
● Bucketization
○ Buckets per day
○ Monthly or Years if data is too small
○ Create views for users

30. Interlude
Age of Enlightenment

31. Orchestration

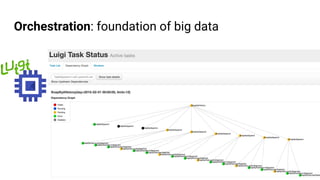

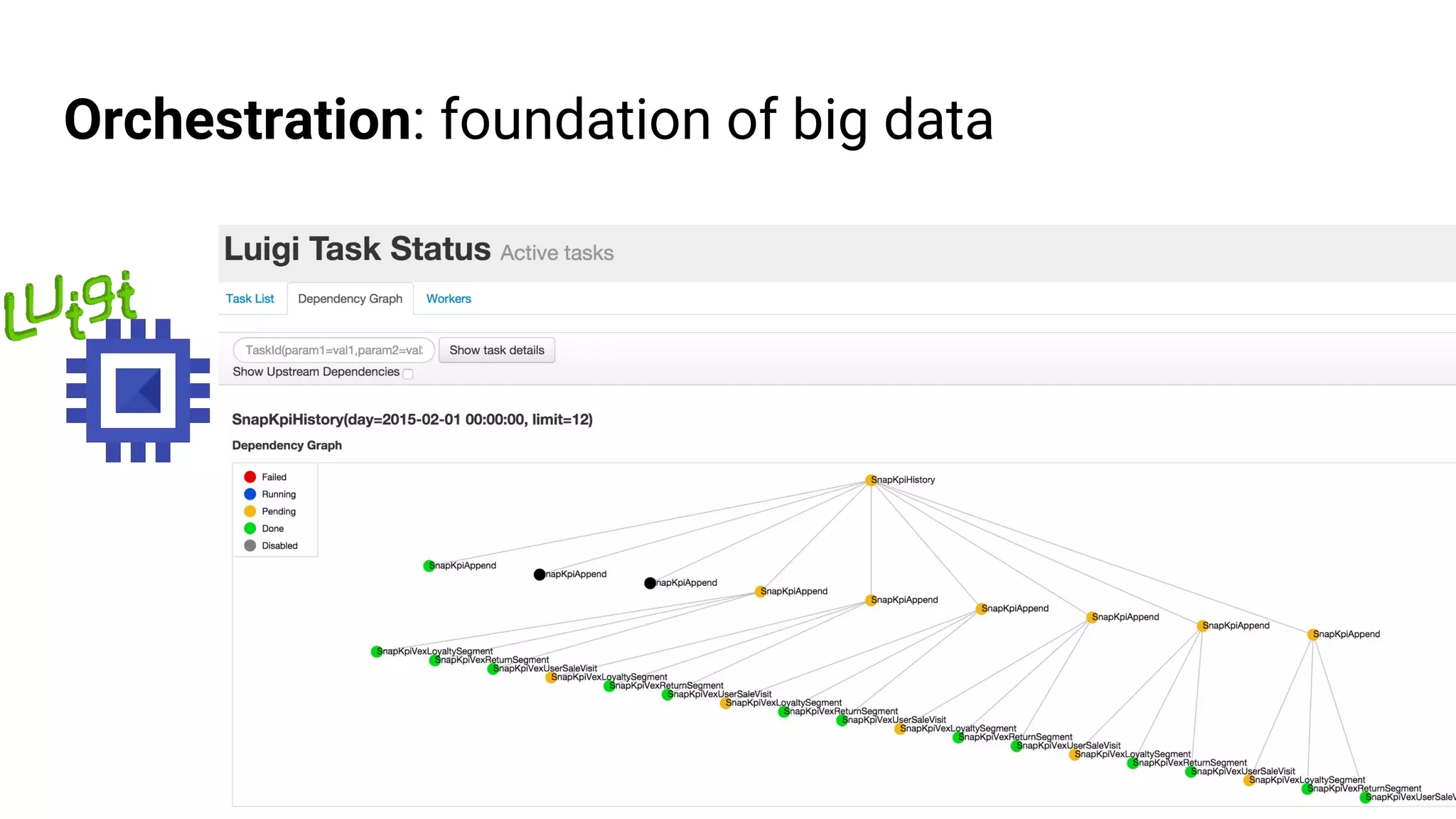

32. Orchestration: foundation of big data

33. Visualisation

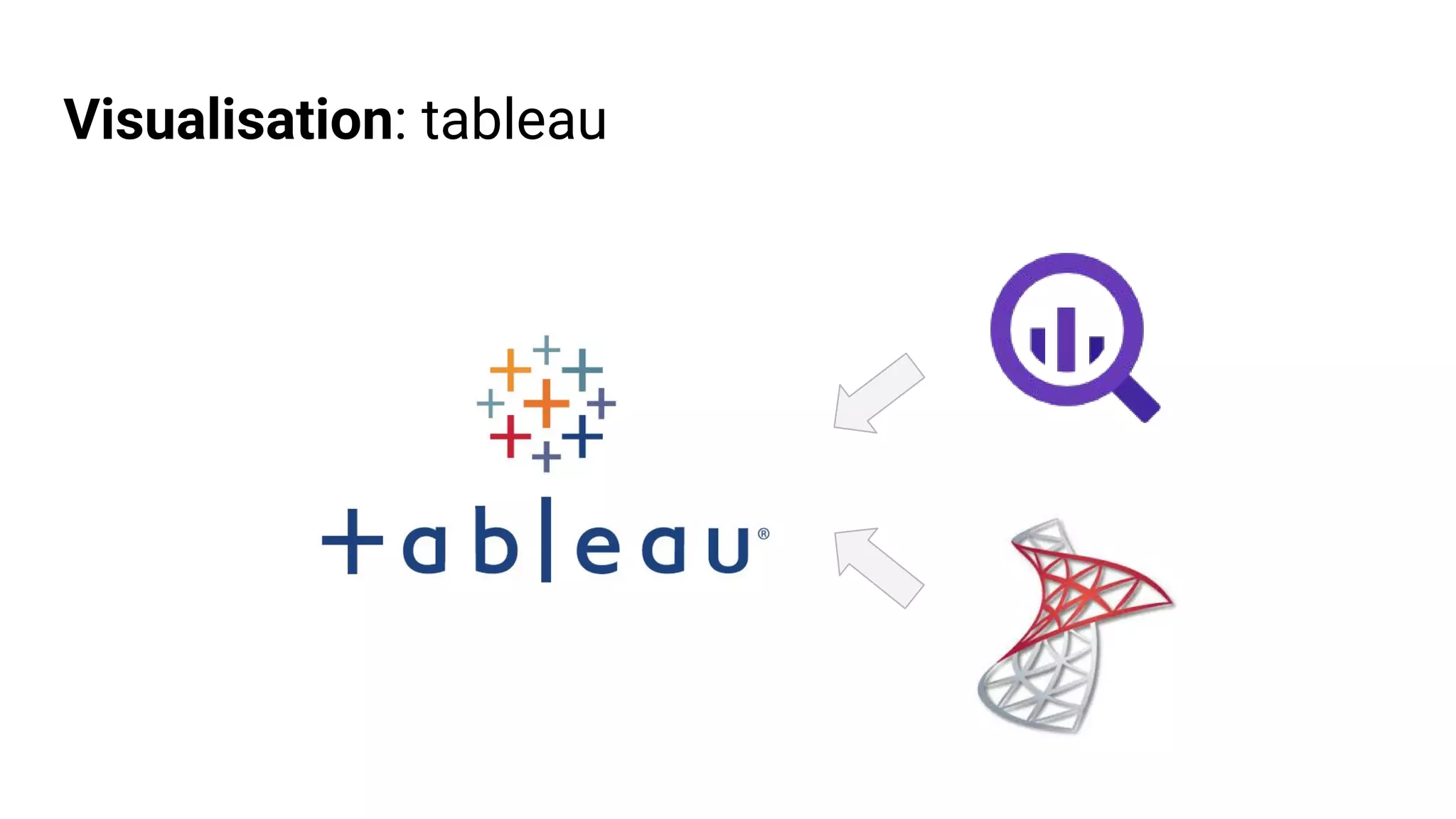

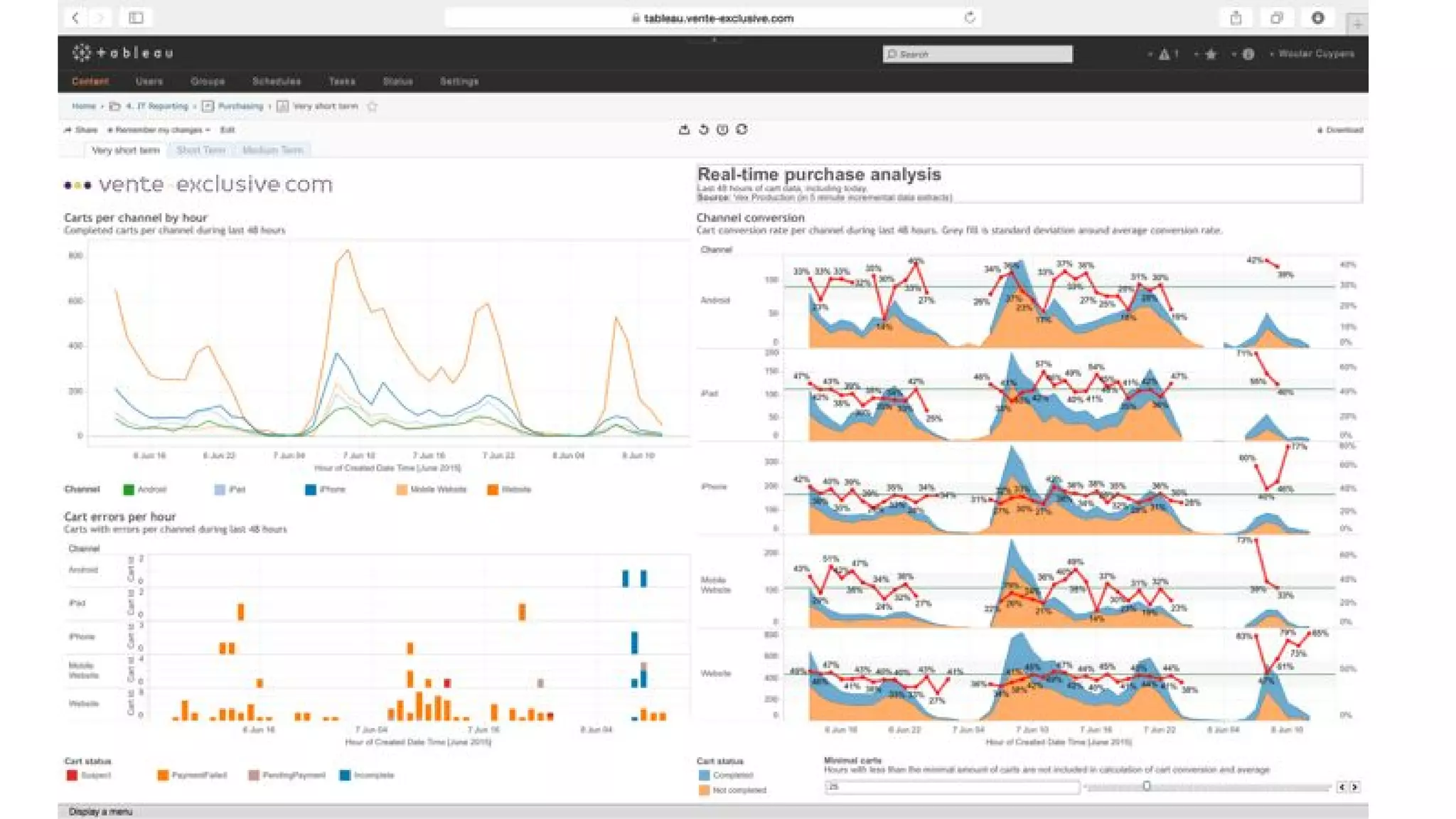

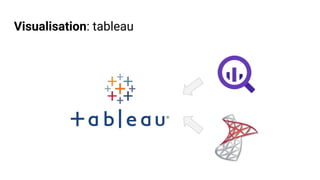

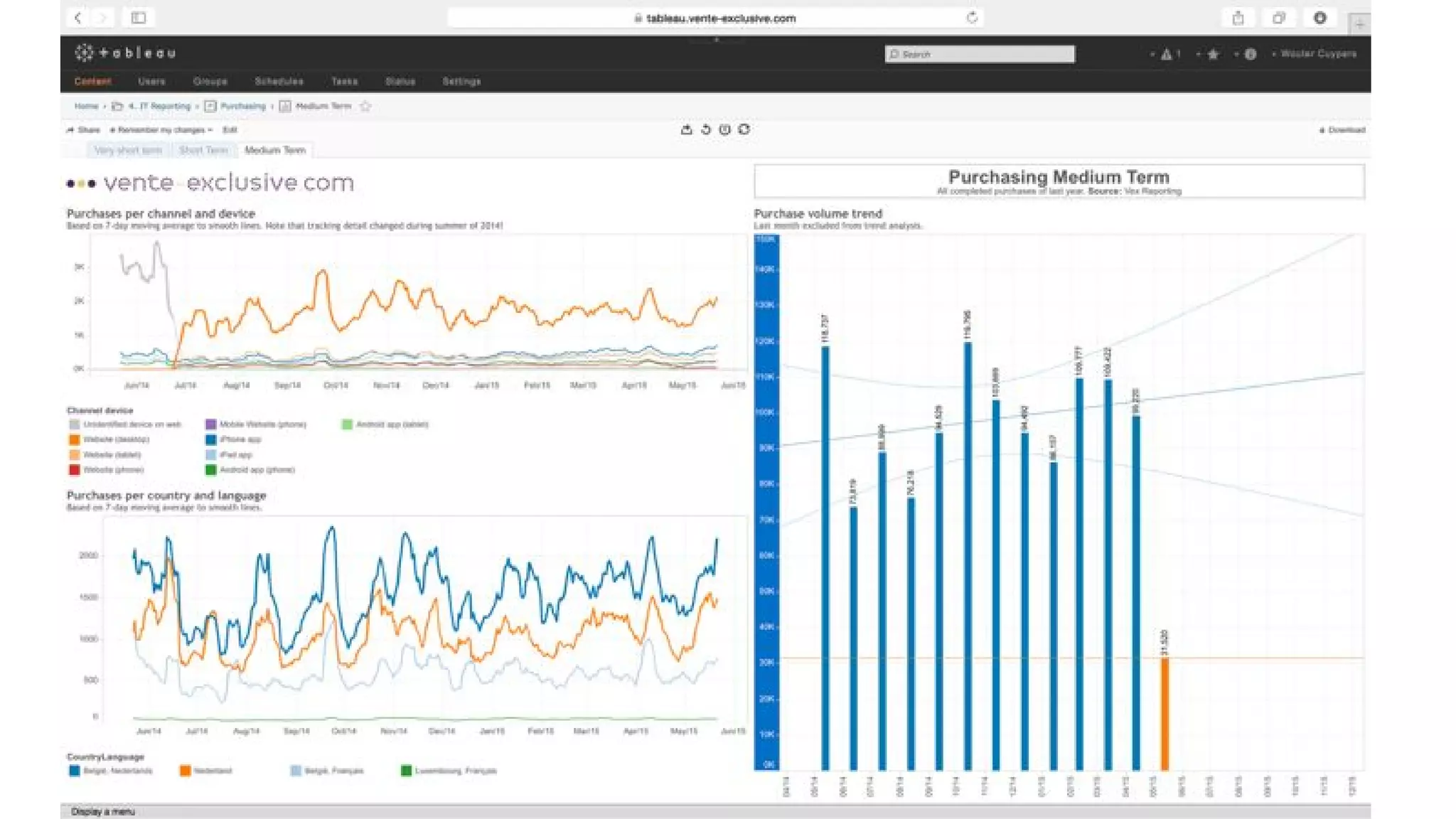

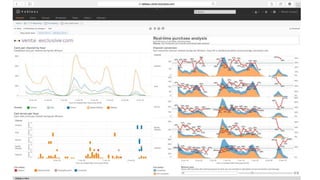

34. Visualisation: tableau

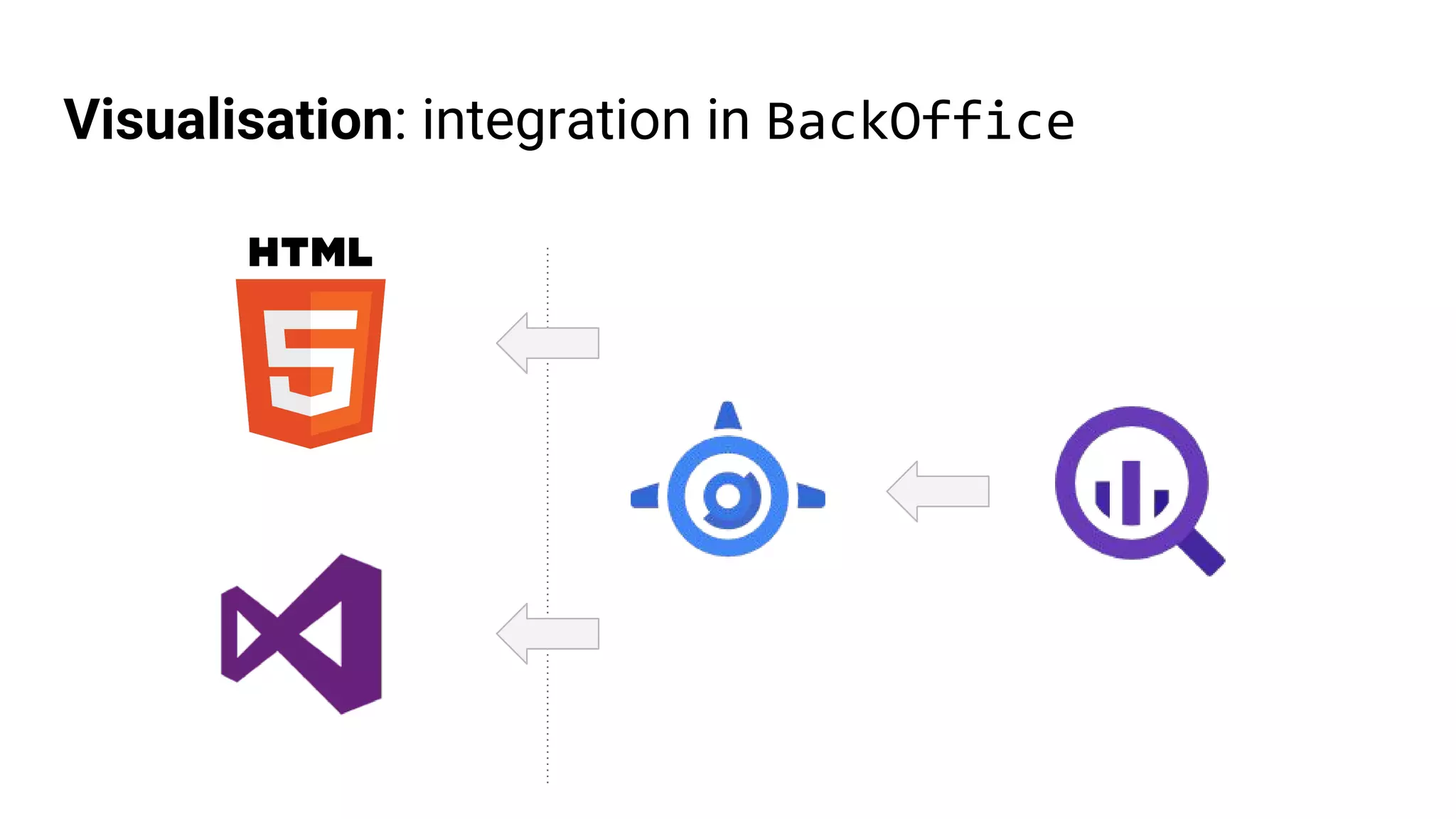

38. Visualisation: integration in BackOffice

39. Integration Learnings
● Making it visible for the business
● Keep an eye on hidden cost
● Training is key

40. Realtime
Space Age

41. Cloud PubSub

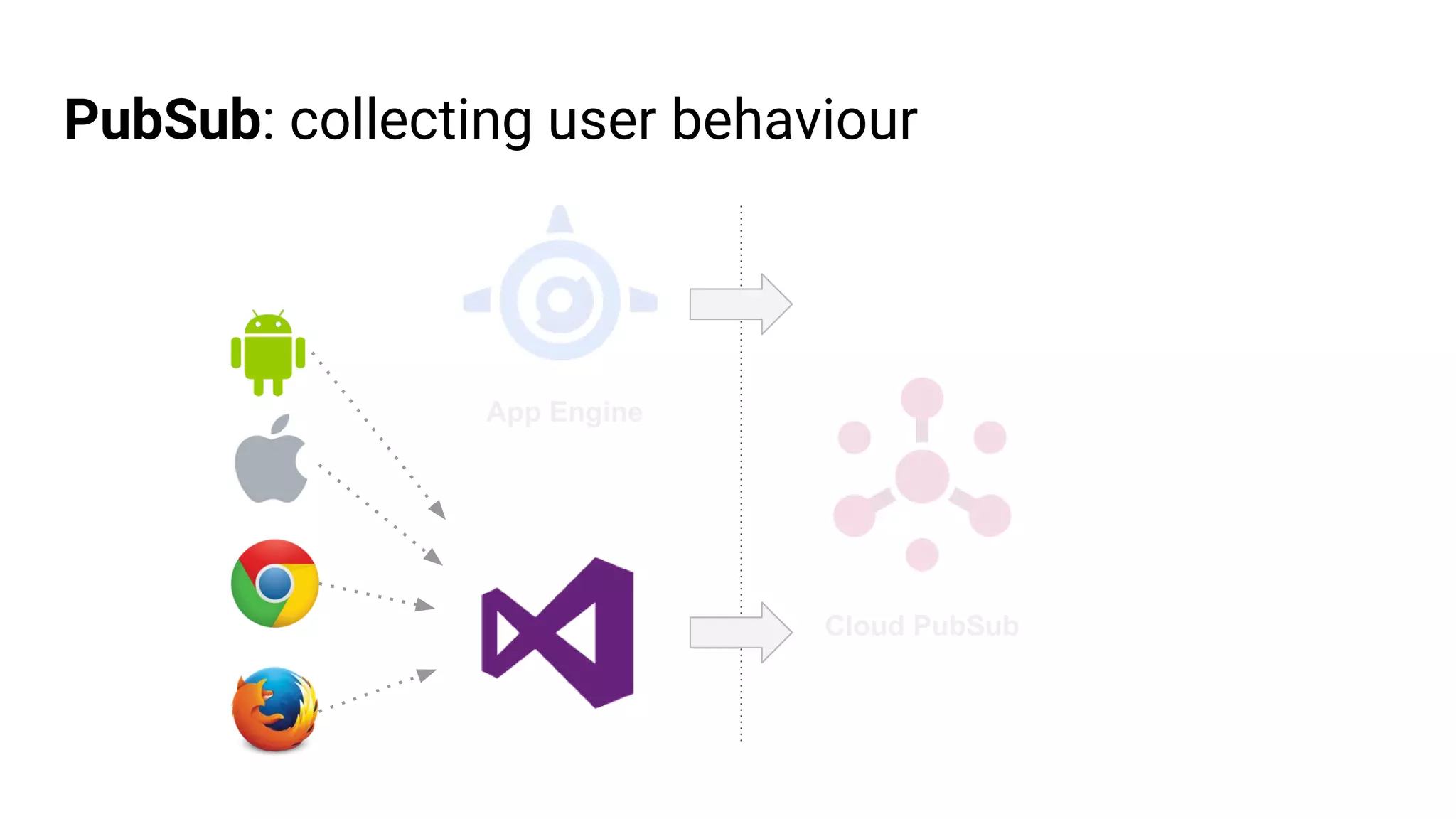

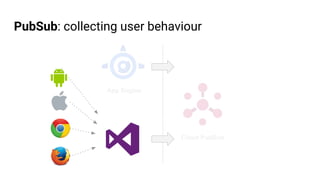

42. PubSub: collecting user behaviour
Cloud PubSub
App Engine

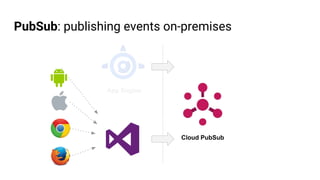

43. PubSub: publishing events on-premises
Cloud PubSub
App Engine

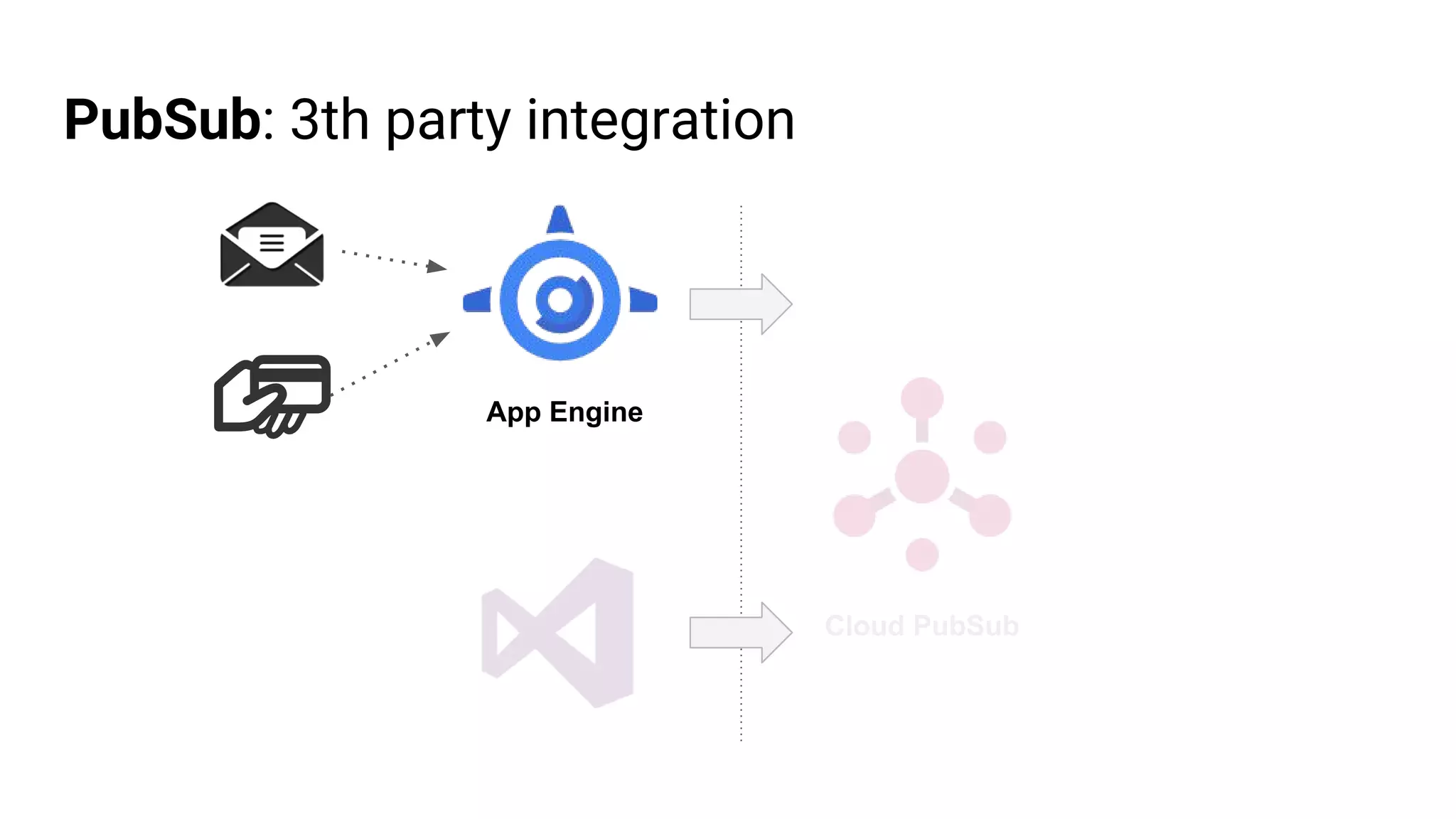

44. PubSub: 3th party integration
Cloud PubSub
App Engine

45. PubSub: publish via App Engine
Cloud PubSub
App Engine

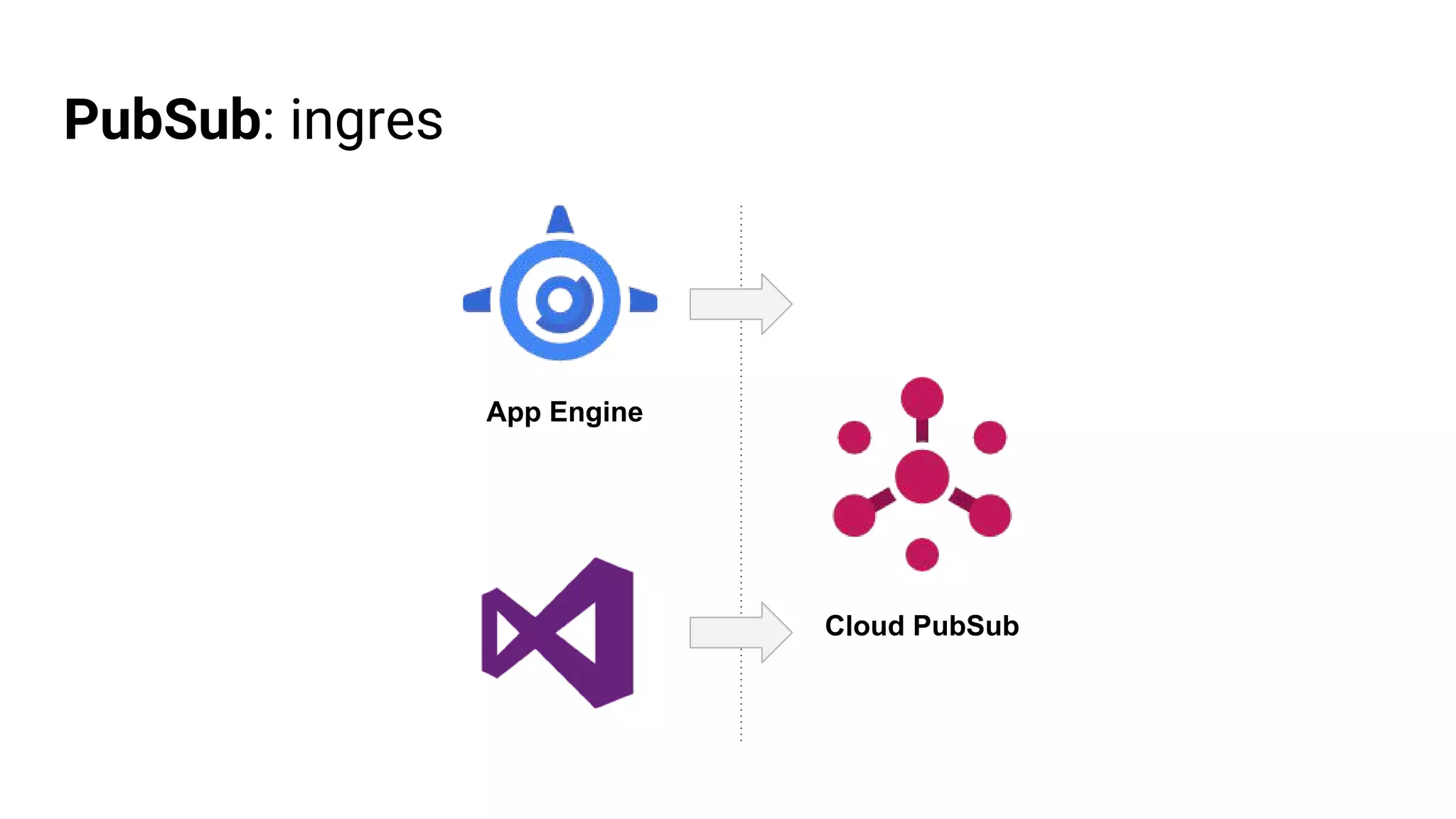

46. PubSub: ingres
Cloud PubSub
App Engine

47. Cloud DataFlow

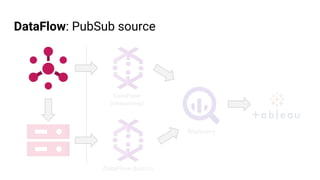

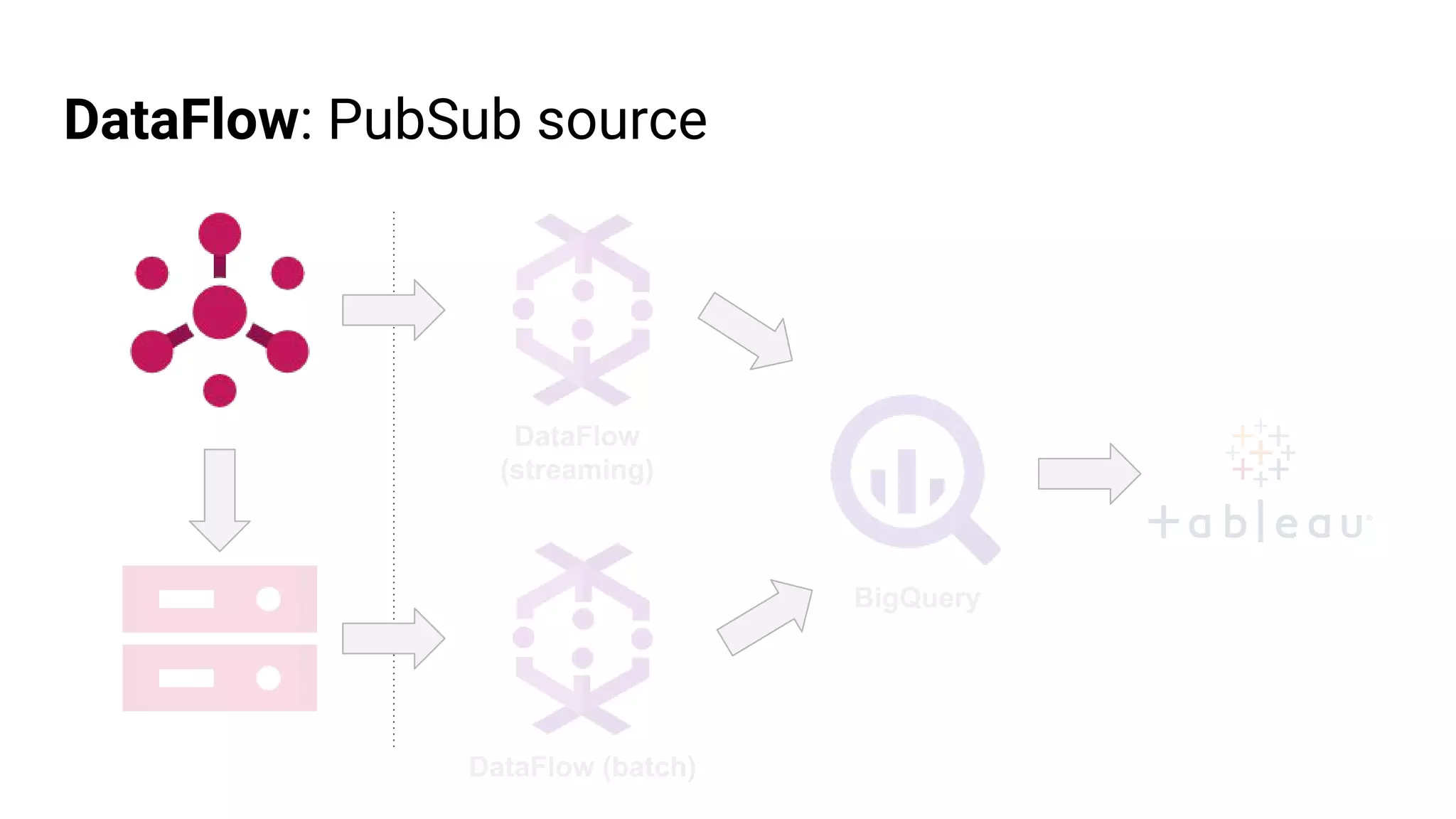

48. DataFlow: PubSub source
DataFlow
(streaming)
DataFlow (batch)
BigQuery

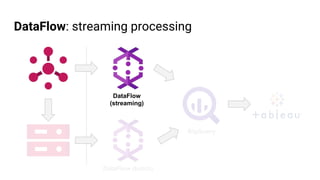

49. DataFlow: streaming processing
DataFlow
(streaming)
DataFlow (batch)
BigQuery

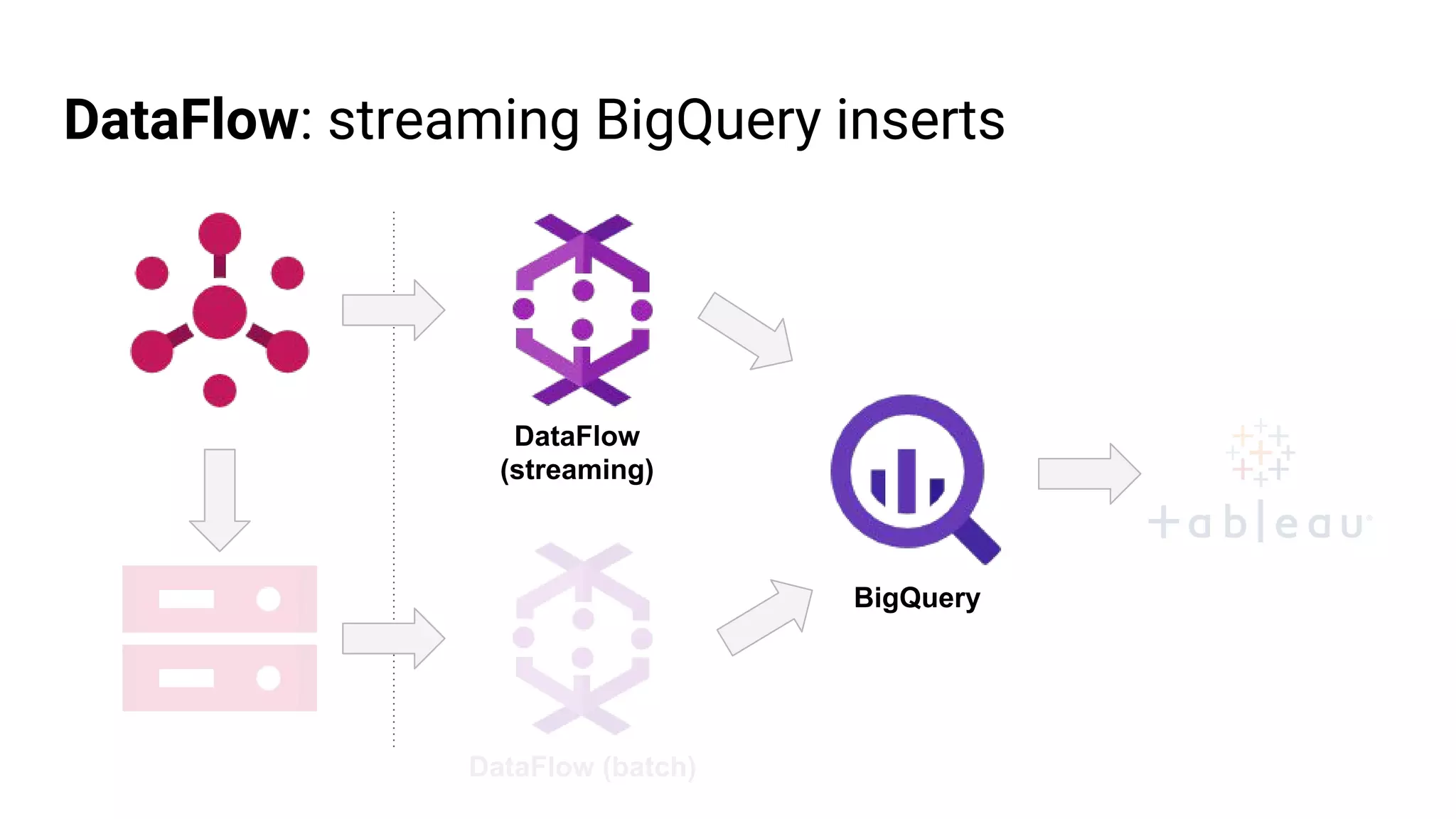

50. DataFlow: streaming BigQuery inserts
DataFlow
(streaming)
DataFlow (batch)
BigQuery

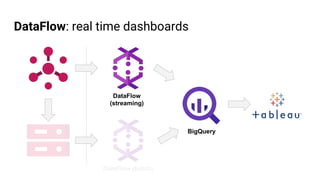

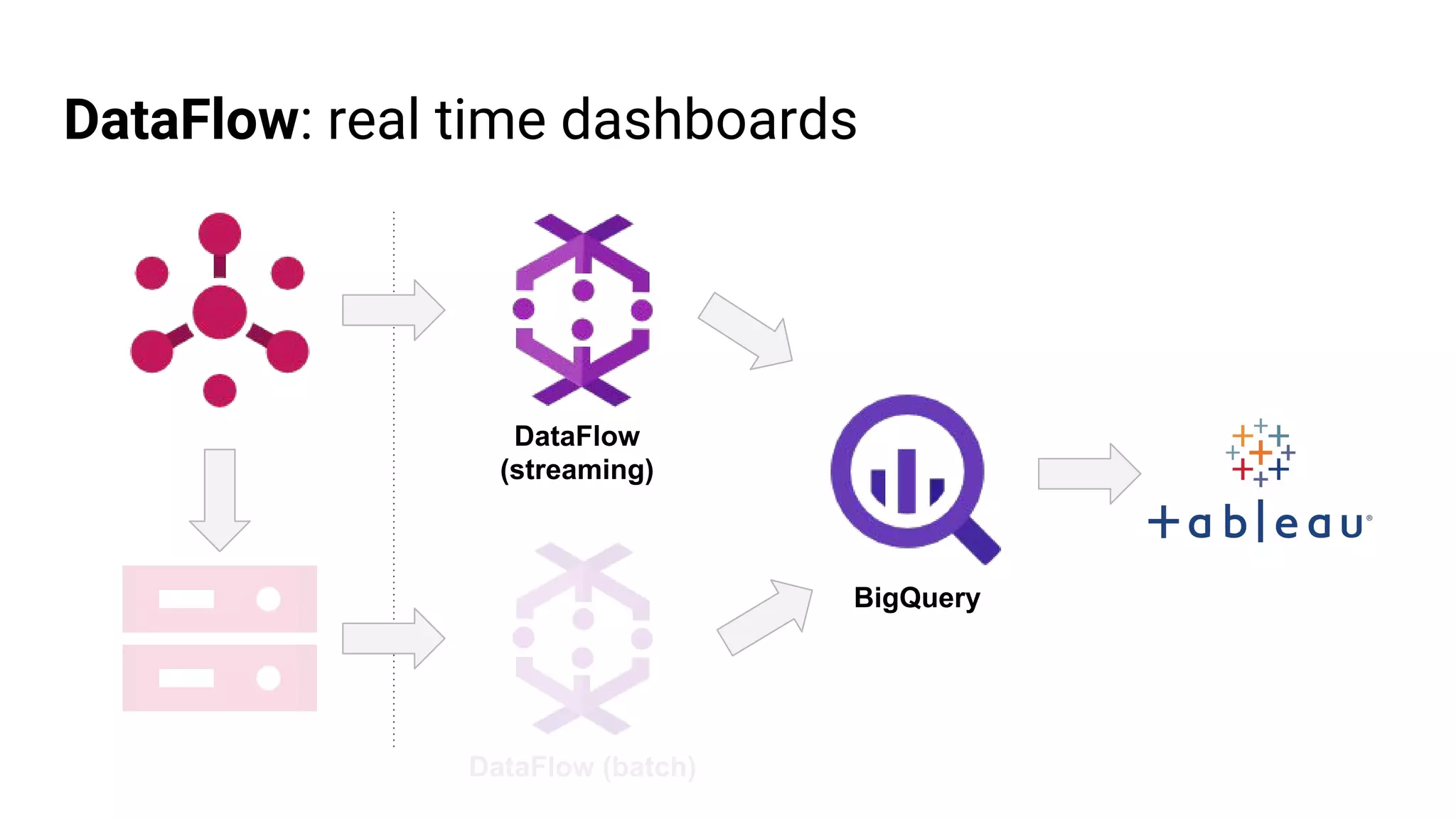

51. DataFlow: real time dashboards
DataFlow
(streaming)
DataFlow (batch)
BigQuery

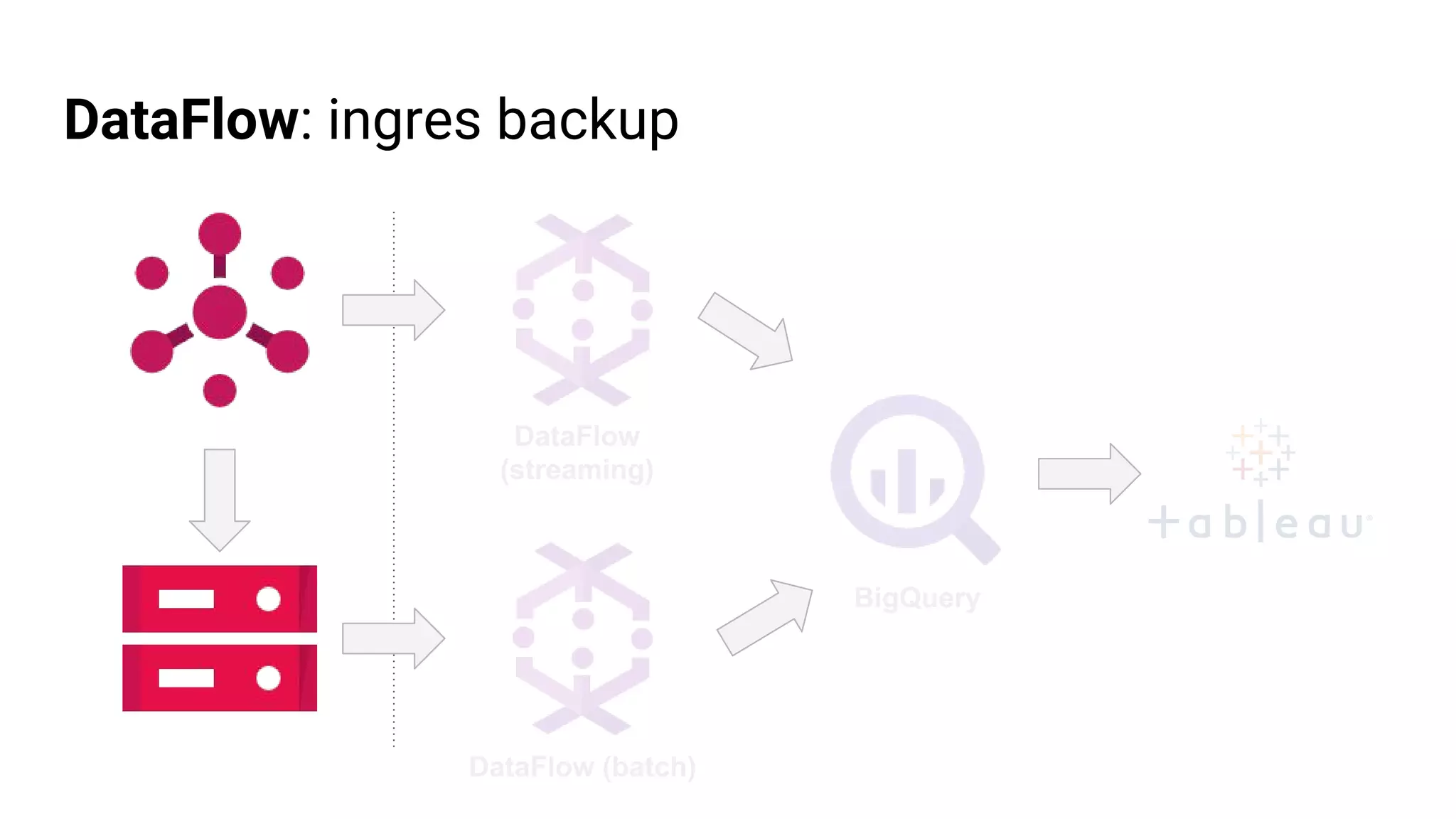

52. DataFlow: ingres backup
DataFlow
(streaming)
DataFlow (batch)
BigQuery

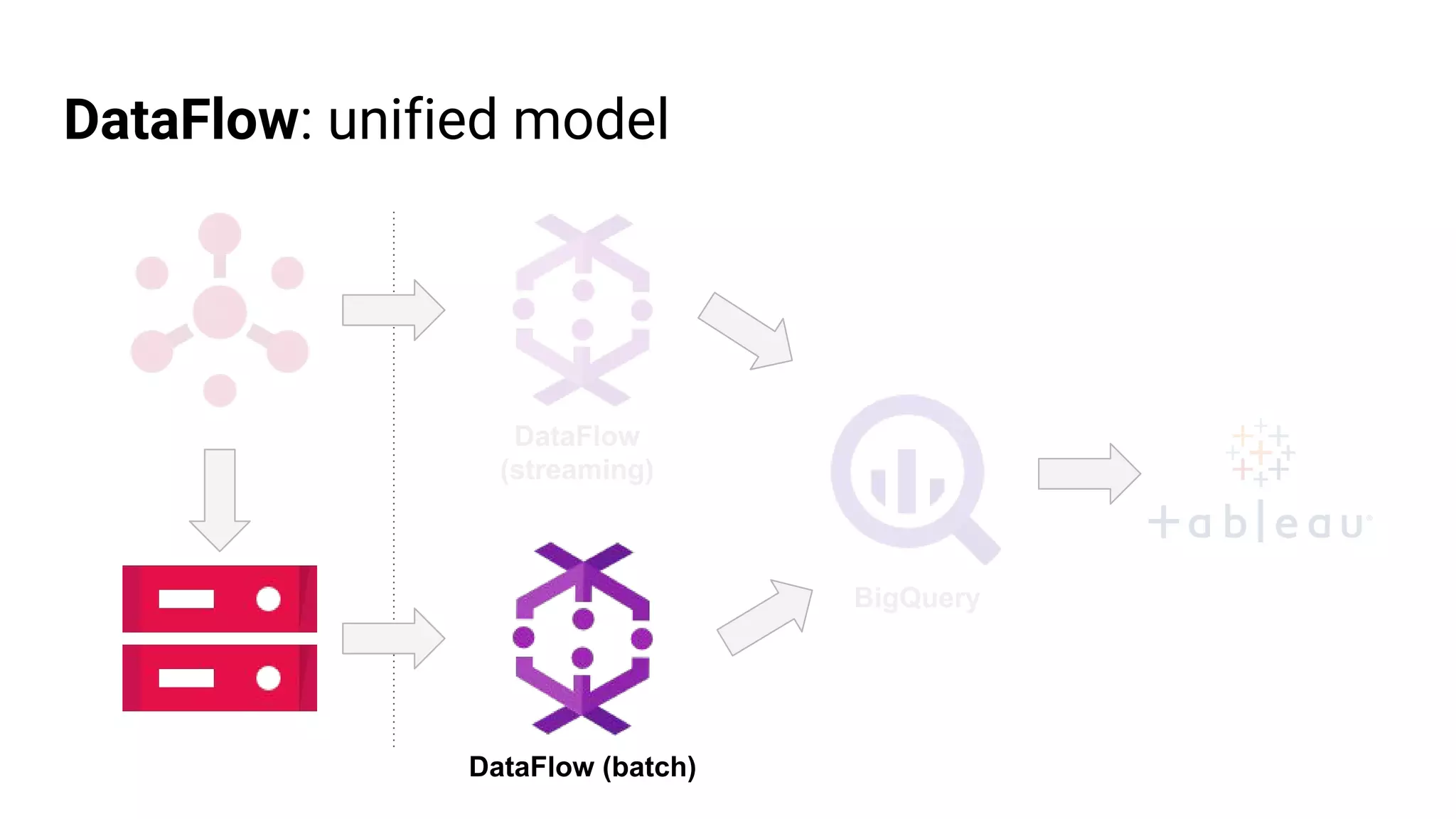

53. DataFlow: unified model
DataFlow
(streaming)
DataFlow (batch)
BigQuery

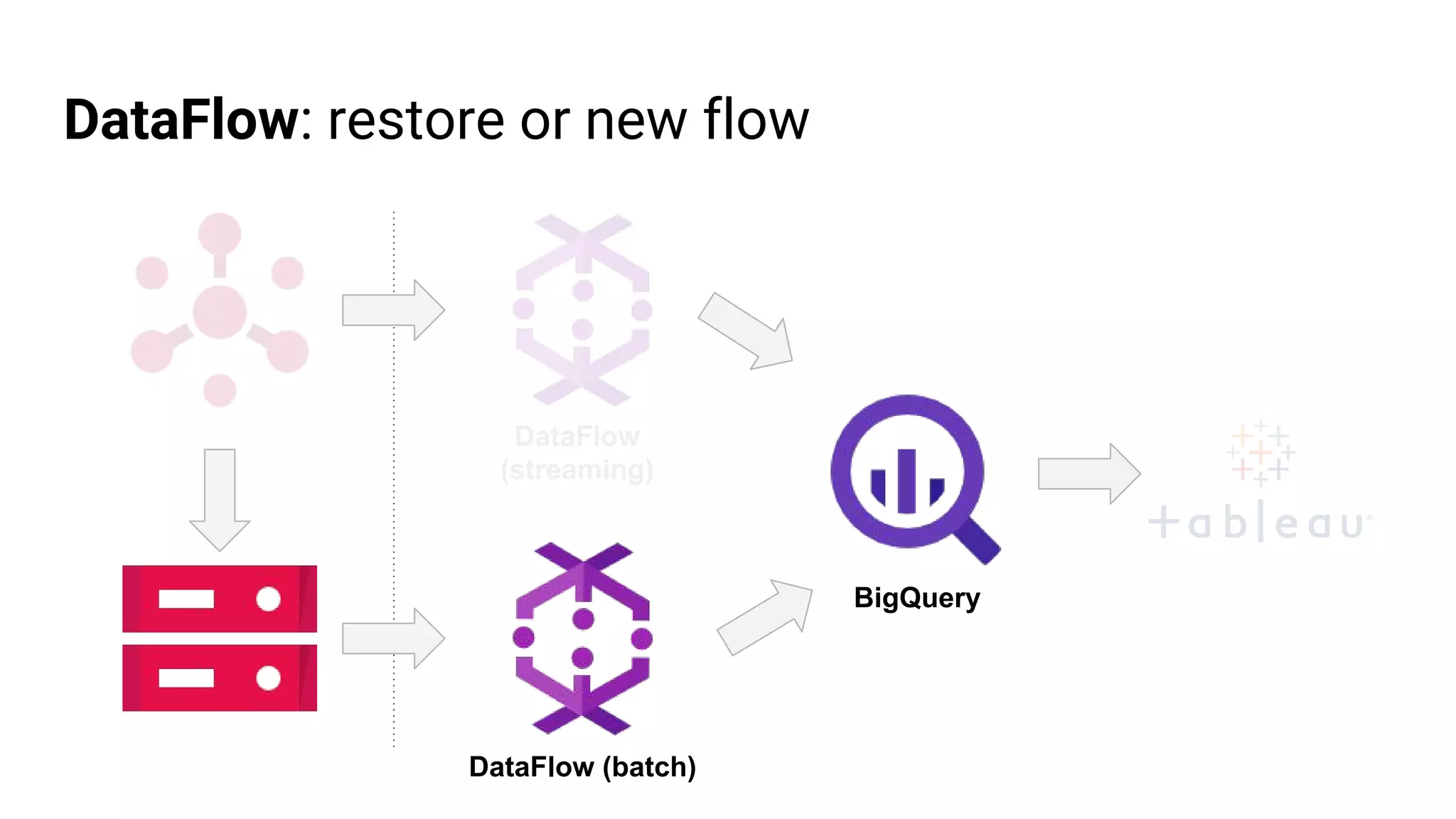

54. DataFlow: restore or new flow
DataFlow (batch)
DataFlow
(streaming)
BigQuery

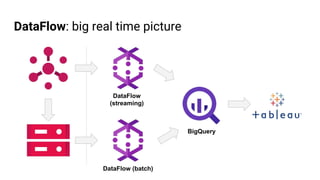

55. DataFlow: big real time picture
DataFlow (batch)
DataFlow
(streaming)
BigQuery

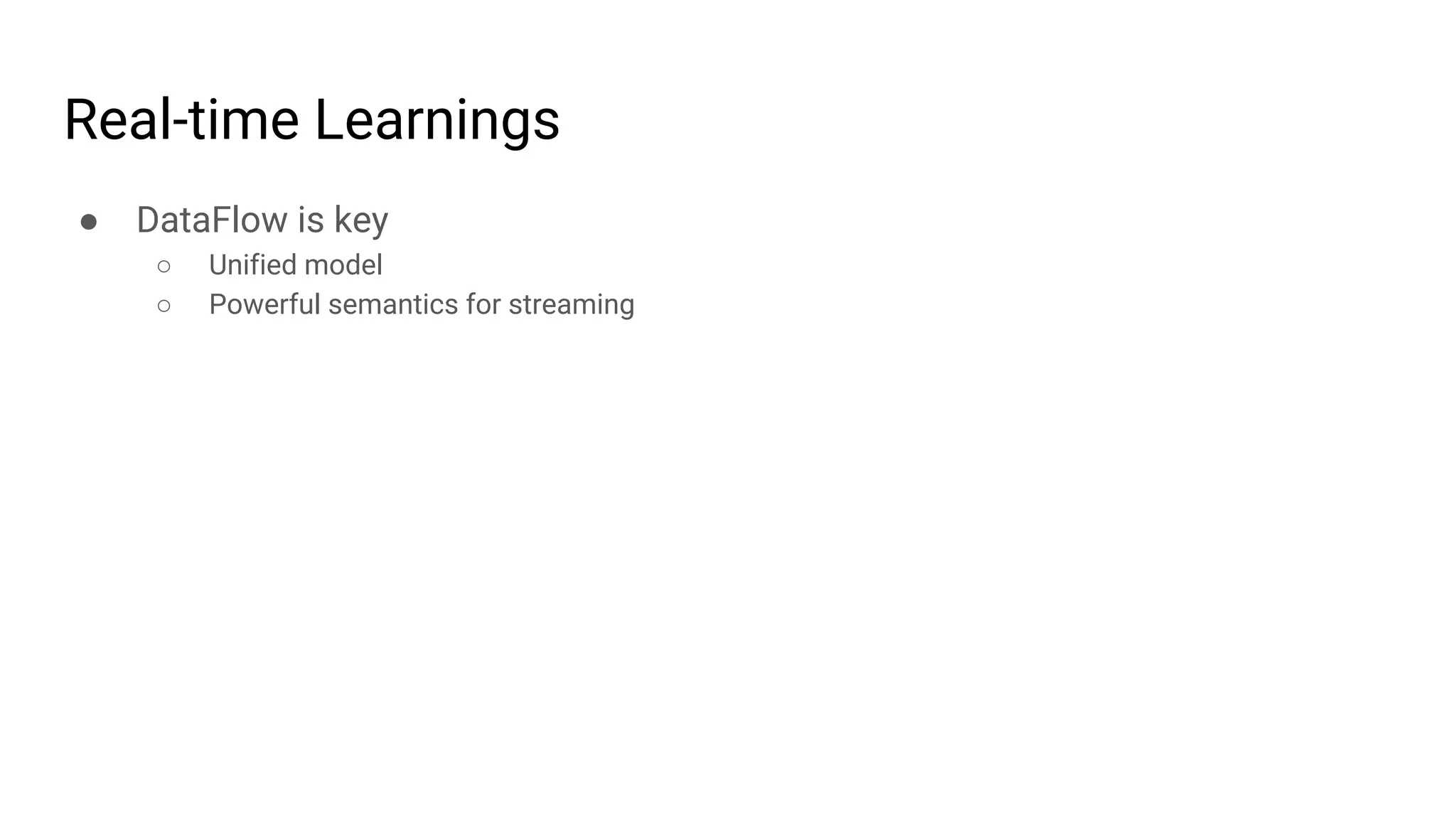

56. Real-time Learnings
● DataFlow is key
○ Unified model
○ Powerful semantics for streaming

57. Complete picture
Fitting it all together

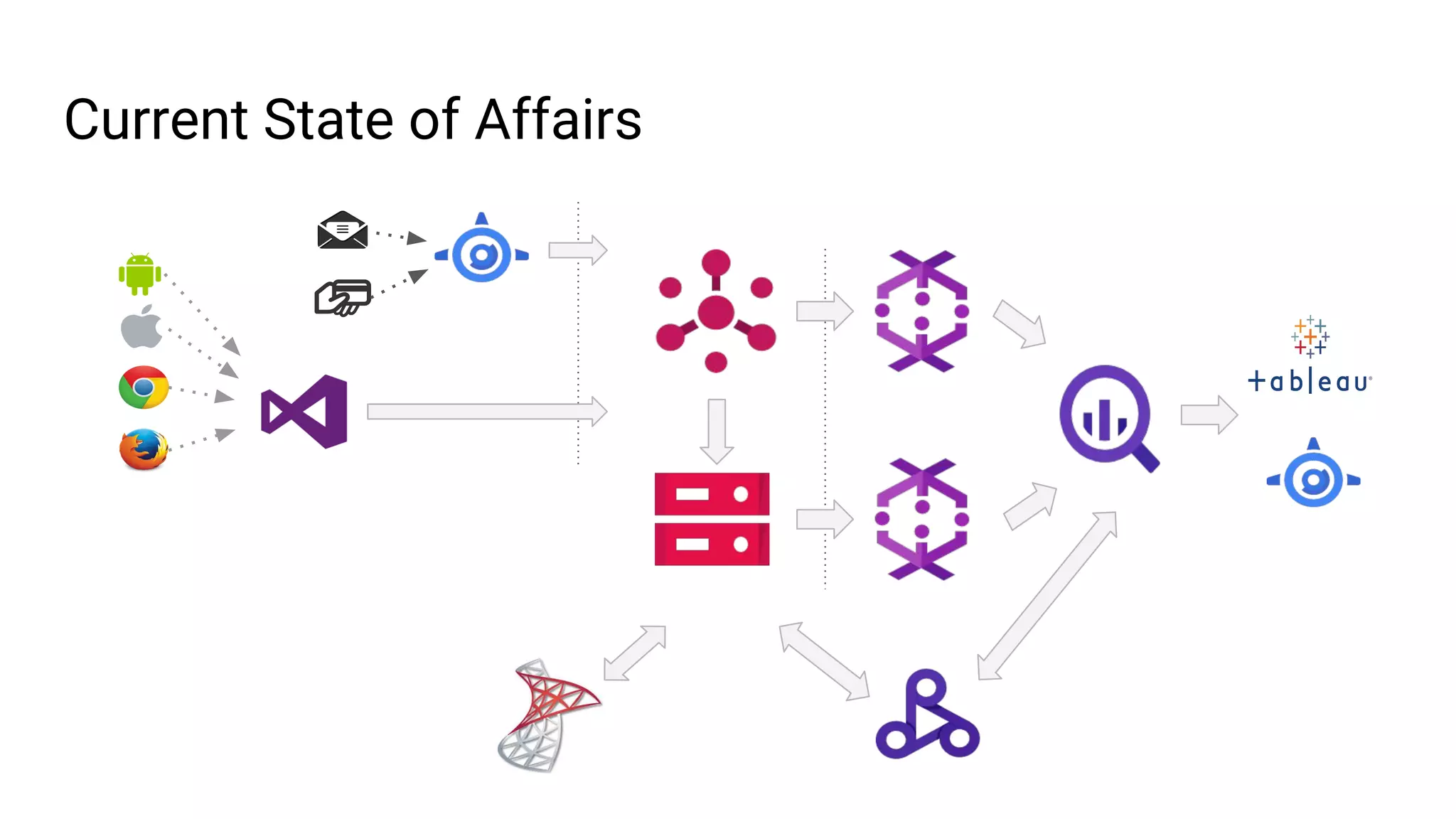

58. Current State of Affairs

59. Q&A
No state secrets
