Glass ionomer cement

GLASS IONOMER
CEMENT
DR. ABHIJIT. PALLEWAR
1st Year MDS
Dept of conservative dentistry & endodontics

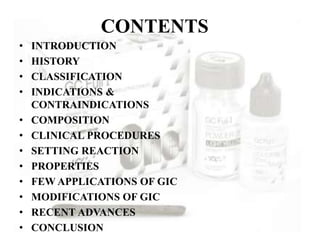

CONTENTS
• INTRODUCTION
• HISTORY
• CLASSIFICATION
• INDICATIONS &
CONTRAINDICATIONS

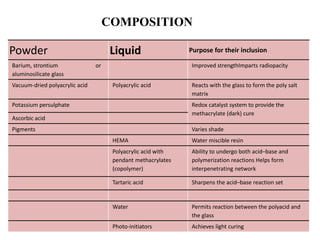

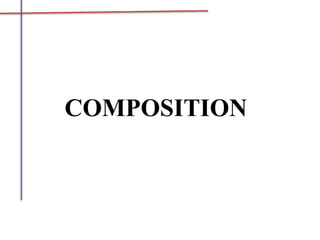

• COMPOSITION
• CLINICAL PROCEDURES

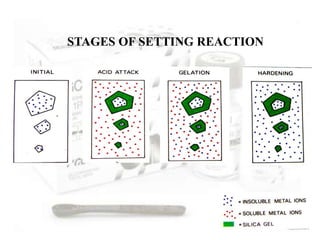

• SETTING REACTION
• PROPERTIES

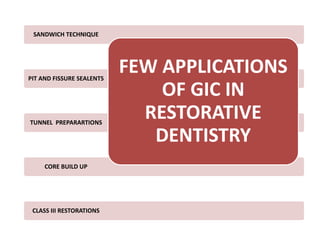

• FEW APPLICATIONS OF GIC

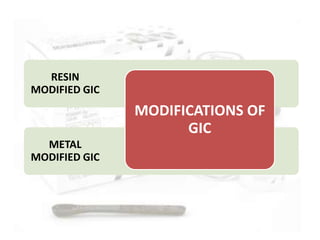

• MODIFICATIONS OF GIC

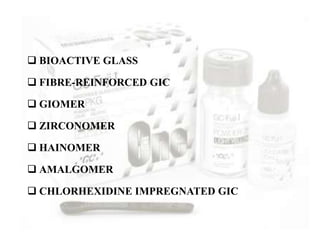

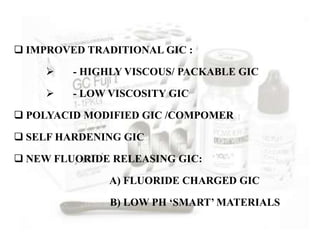

• RECENT ADVANCES
• CONCLUSION

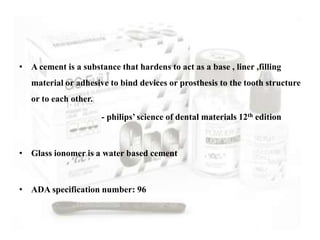

• A cement is a substance that hardens to act as a base , liner ,filling
material or adhesive to bind devices or prosthesis to the tooth structure
or to each other.
- philips’ science of dental materials 12th edition
• Glass ionomer is a water based cement
• ADA specification number: 96

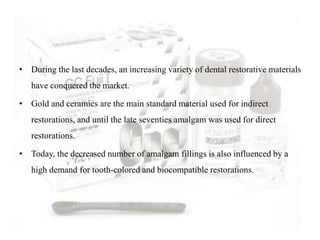

• During the last decades, an increasing variety of dental restorative materials
have conquered the market.
• Gold and ceramics are the main standard material used for indirect
restorations, and until the late seventies amalgam was used for direct
restorations.
• Today, the decreased number of amalgam fillings is also influenced by a
high demand for tooth-colored and biocompatible restorations.

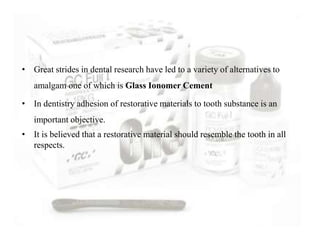

• Great strides in dental research have led to a variety of alternatives to
amalgam one of which is Glass Ionomer Cement

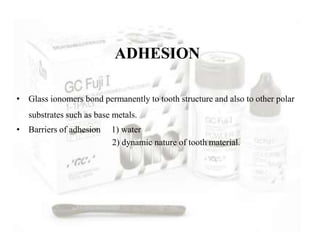

• In dentistry adhesion of restorative materials to tooth substance is an
important objective.
• It is believed that a restorative material should resemble the tooth in all
respects.

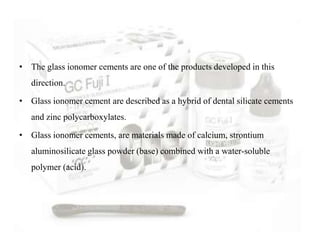

• The glass ionomer cements are one of the products developed in this
direction.
• Glass ionomer cement are described as a hybrid of dental silicate cements
and zinc polycarboxylates.
• Glass ionomer cements, are materials made of calcium, strontium
aluminosilicate glass powder (base) combined with a water-soluble
polymer (acid).

•
DEFINITIONS
“Glass-ionomer is the generic name of a group of materials
that use silicate glass powder and aqueous solution of
polyacrylic acid” - Kenneth J Anusavice
“Glass ionomer cement is a basic glass and an acidic polymer
which sets by an acid- base reaction between these
components”
JW McLean, LW Nicholson. AD Wilson

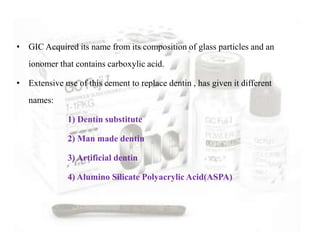

• GIC Acquired its name from its composition of glass particles and an
ionomer that contains carboxylic acid.
• Extensive use of this cement to replace dentin , has given it different
names:
1) Dentin substitute
2) Man made dentin
3) Artificial dentin
4) Alumino Silicate Polyacrylic Acid(ASPA)

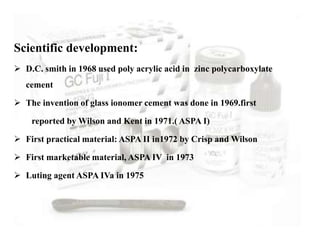

Scientific development:
 D.C. smith in 1968 used poly acrylic acid in zinc polycarboxylate
cement
 The invention of glass ionomer cement was done in 1969.first
reported by Wilson and Kent in 1971.( ASPA I)
 First practical material: ASPA II in1972 by Crisp and Wilson
 First marketable material, ASPA IV in 1973
 Luting agent ASPA IVa in 1975

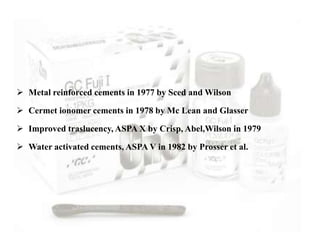

 Metal reinforced cements in 1977 by Sced and Wilson
 Cermet ionomer cements in 1978 by Mc Lean and Glasser
 Improved traslucency, ASPA X by Crisp, Abel,Wilson in 1979
 Water activated cements, ASPA V in 1982 by Prosser et al.

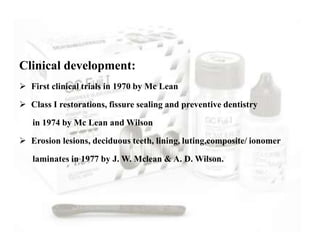

Clinical development:
 First clinical trials in 1970 by Mc Lean
 Class I restorations, fissure sealing and preventive dentistry
in 1974 by Mc Lean and Wilson
 Erosion lesions, deciduous teeth, lining, luting,composite/ ionomer
laminates in 1977 by J. W. Mclean & A. D. Wilson.

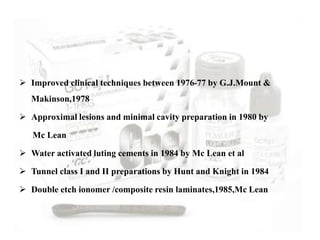

 Improved clinical techniques between 1976-77 by G.J.Mount &
Makinson,1978
 Approximal lesions and minimal cavity preparation in 1980 by
Mc Lean
 Water activated luting cements in 1984 by Mc Lean et al
 Tunnel class I and II preparations by Hunt and Knight in 1984
 Double etch ionomer /composite resin laminates,1985,Mc Lean

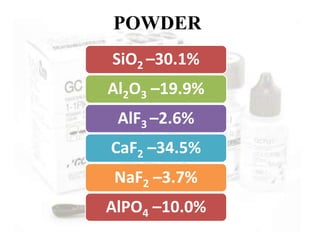

SiO2 –30.1%
Al2O3 –19.9%
AlF3 –2.6%
CaF2 –34.5%
NaF2 –3.7%
AlPO4 –10.0%
POWDER

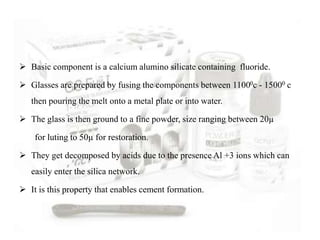

 Basic component is a calcium alumino silicate containing fluoride.
 Glasses are prepared by fusing the components between 11000c - 15000 c
then pouring the melt onto a metal plate or into water.
 The glass is then ground to a fine powder, size ranging between 20µ
for luting to 50µ for restoration.
 They get decomposed by acids due to the presence Al +3 ions which can
easily enter the silica network.
 It is this property that enables cement formation.

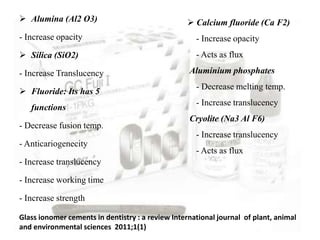

 Calcium fluoride (Ca F2)
- Increase opacity
- Acts as flux
Aluminium phosphates
- Decrease melting temp.
- Increase translucency
Cryolite (Na3 Al F6)
- Acts as flux
 Alumina (Al2 O3)
- Increase opacity
 Silica (SiO2)
- Increase Translucency
 Fluoride: Its has 5
functions
- Decrease fusion temp.
- Anticariogenecity
- Increase working time
- Increase strength
Glass ionomer cements in dentistry : a review International journal of plant, animal
and environmental sciences 2011;1(1)

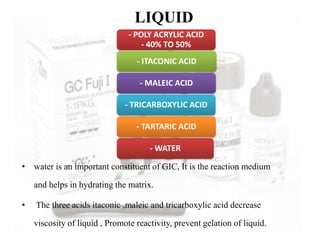

LIQUID
• water is an important constituent of GIC, It is the reaction medium
and helps in hydrating the matrix.
• The three acids itaconic ,maleic and tricarboxylic acid decrease
viscosity of liquid , Promote reactivity, prevent gelation of liquid.
- POLY ACRYLIC ACID
- 40% TO 50%
- ITACONIC ACID
- MALEIC ACID
- TRICARBOXYLIC ACID
- TARTARIC ACID
- WATER

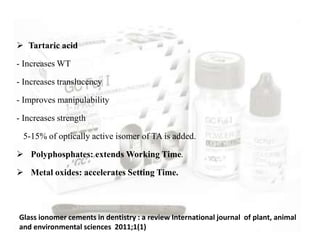

 Tartaric acid
- Increases WT
- Increases translucency
- Improves manipulability
- Increases strength
5-15% of optically active isomer of TA is added.
 Polyphosphates: extends Working Time.
 Metal oxides: accelerates Setting Time.
Glass ionomer cements in dentistry : a review International journal of plant, animal
and environmental sciences 2011;1(1)

A.ACCORDING TO A.D. WILSON AND J.W.McLEAN IN 1988
Type I --- luting cements
Type II --- restorative cements
a.Restorative aesthetic
b.Restorative reinforced
B.ACC.TO CHARACTERISTICS SPECIFIED BY MANUFACTURER
Type I --- Luting cement eg. Fuji I, KETAC
Type II --- Restorative material eg. Ketacfil, Fuji II, fuji IX
Type III --- a. Bases & liners --weak with less acidic
b. Bases & liners --stronger but more acidic
c. Bases & liners --strong even in thin layer
Type IV --- Admixture eg. Ketac silver, miracle mix

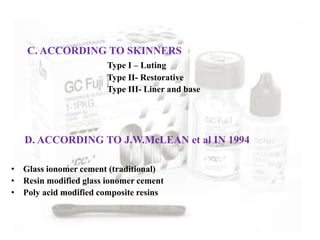

C. ACCORDING TO SKINNERS
Type I – Luting
Type II- Restorative
Type III- Liner and base
D. ACCORDING TO J.W.McLEAN et al IN 1994
• Glass ionomer cement (traditional)
• Resin modified glass ionomer cement
• Poly acid modified composite resins

E. ACCORDING TO USES:
• Type I – Luting
• Type II – Restorative
• Type III – Liner/base
• Type IV – Pit & fissure sealant
• Type V – Luting for orthodontic purpose
• Type VI – Core buildup material
• Type VII – High fluoride releasing command set
• Type VIII – Atraumatic restorative treatment
• Type IX − Pediatric Glass Ionomer cements

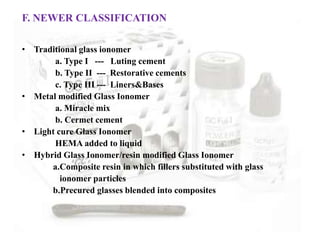

F. NEWER CLASSIFICATION
• Traditional glass ionomer
a. Type I --- Luting cement
b. Type II --- Restorative cements
c. Type III --- Liners&Bases
• Metal modified Glass Ionomer
a. Miracle mix
b. Cermet cement
• Light cure Glass Ionomer
HEMA added to liquid
• Hybrid Glass Ionomer/resin modified Glass Ionomer
a.Composite resin in which fillers substituted with glass
ionomer particles
b.Precured glasses blended into composites

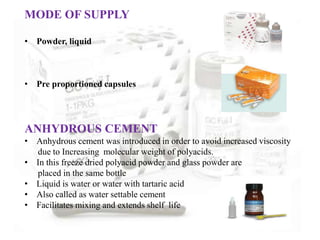

MODE OF SUPPLY
• Powder, liquid
• Pre proportioned capsules
ANHYDROUS CEMENT
• Anhydrous cement was introduced in order to avoid increased viscosity
due to Increasing molecular weight of polyacids.
• In this freeze dried polyacid powder and glass powder are
placed in the same bottle
• Liquid is water or water with tartaric acid
• Also called as water settable cement
• Facilitates mixing and extends shelf life

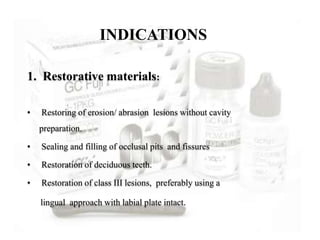

1. Restorative materials:
• Restoring of erosion/ abrasion lesions without cavity
preparation.
• Sealing and filling of occlusal pits and fissures
• Restoration of deciduous teeth.
• Restoration of class III lesions, preferably using a
lingual approach with labial plate intact.
INDICATIONS

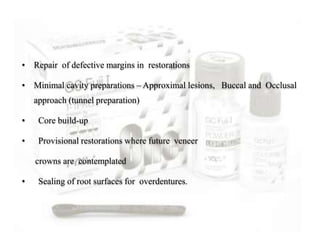

• Repair of defective margins in restorations

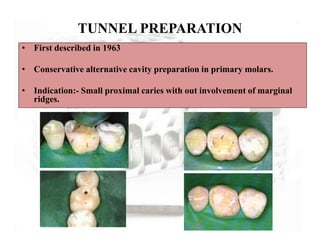

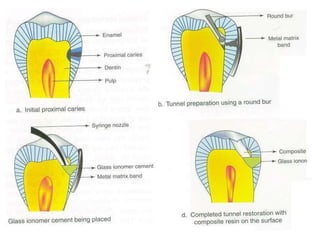

• Minimal cavity preparations – Approximal lesions, Buccal and Occlusal
approach (tunnel preparation)

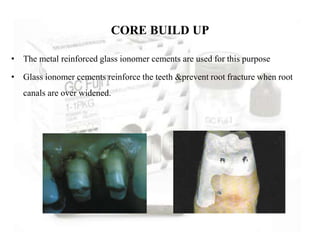

• Core build-up
• Provisional restorations where future veneer
crowns are contemplated
• Sealing of root surfaces for overdentures.

• Lining of all types of cavities where a biological seal and cariostatic
action are required
• Replacement of carious dentin and the attachment of composite
resins using the acid etch technique .
• Sealing and filling of occlusal fissures showing early signs of
caries.

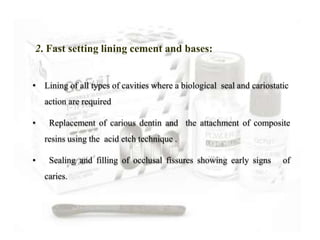

2. Fast setting lining cement and bases:

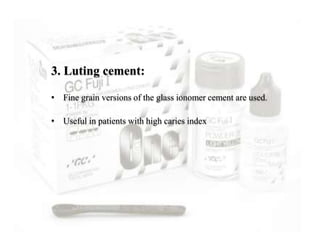

3. Luting cement:
• Fine grain versions of the glass ionomer cement are used.
• Useful in patients with high caries index

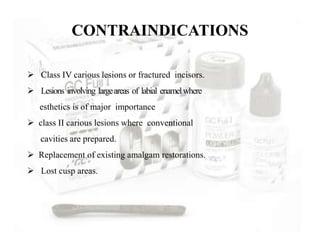

CONTRAINDICATIONS
 Class IV carious lesions or fractured incisors.
 Lesions involving largeareas of labial enamelwhere
esthetics is of major importance
 class II carious lesions where conventional
cavities are prepared.
 Replacement of existing amalgam restorations.
 Lost cusp areas.

To ensure successful Glass Ionomer restoration following parameters
are to considered:-
1.Preparation of tooth surface
2.Proportioning & mixing
3. Protection of cement during setting
4. Finishing
5.Protection of cement after setting

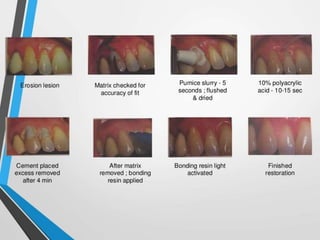

CLINICAL PROCEDURE FOR PLACEMENT

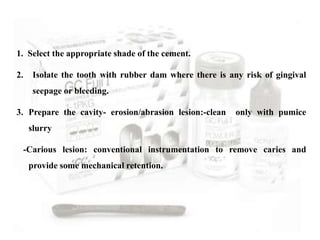

1. Select the appropriate shade of the cement.
2. Isolate the tooth with rubber dam where there is any risk of gingival
seepage or bleeding.
3. Prepare the cavity- erosion/abrasion lesion:-clean only with pumice
slurry
-Carious lesion: conventional instrumentation to remove caries and
provide some mechanical retention.

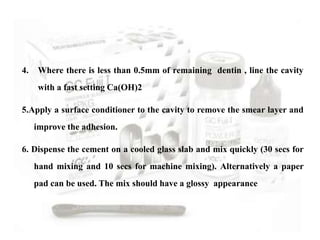

4. Where there is less than 0.5mm of remaining dentin , line the cavity
with a fast setting Ca(OH)2

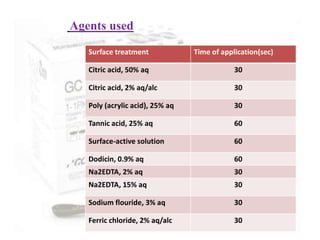

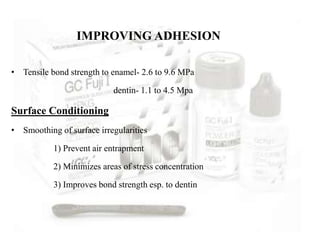

5.Apply a surface conditioner to the cavity to remove the smear layer and
improve the adhesion.
6. Dispense the cement on a cooled glass slab and mix quickly (30 secs for
hand mixing and 10 secs for machine mixing). Alternatively a paper
pad can be used. The mix should have a glossy appearance

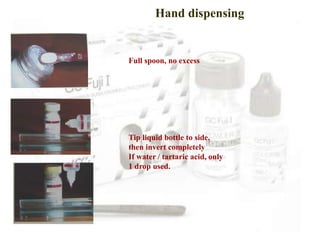

Full spoon, no excess
Tip liquid bottle to side,
then invert completely
If water / tartaric acid, only
1 drop used.
Hand dispensing

Hand mixing
Liquid should not stay on paper pad
longer than 1minute (some of it may soak
into it)
First half folded into liquid in 10-15seconds
Second half incorporated in 15 seconds
Small mixing area
Don’t mix beyond 30 seconds
The objective is – only wet the particle
– no dissolving it.

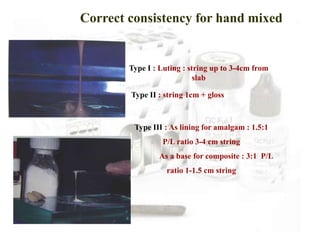

Correct consistency for hand mixed
Type I : Luting : string up to 3-4cm from
slab
Type II : string 1cm + gloss
Type III : As lining for amalgam : 1.5:1
P/L ratio 3-4 cm string
As a base for composite : 3:1 P/L
ratio 1-1.5 cm string

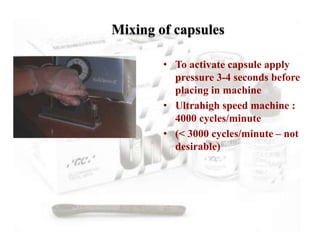

Mixing of capsules
• To activate capsule apply
pressure 3-4 seconds before
placing in machine
• Ultrahigh speed machine :
4000 cycles/minute
• (< 3000 cycles/minute – not
desirable)

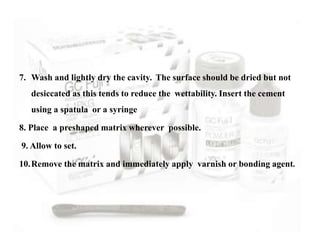

7. Wash and lightly dry the cavity. The surface should be dried but not
desiccated as this tends to reduce the wettability. Insert the cement
using a spatula or a syringe
8. Place a preshaped matrix wherever possible.
9. Allow to set.
10.Remove the matrix and immediately apply varnish or bonding agent.

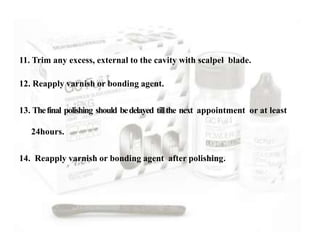

11. Trim any excess, external to the cavity with scalpel blade.
12. Reapply varnish or bonding agent.
13. Thefinal polishing should bedelayed tillthe next appointment or at least
24hours.
14. Reapply varnish or bonding agent after polishing.

- Best surface finish obtained – if cement allowed to set under matrix.
- Carving the cement external to the cavity margins with sharp knives or scalers
- Finest abrasive should be used to minimize tearing.
- Finishing with rotary instruments should be done at subsequent visit.
FINISHING OF GIC

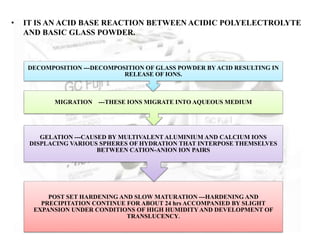

• IT IS AN ACID BASE REACTION BETWEEN ACIDIC POLYELECTROLYTE
AND BASIC GLASS POWDER.
POST SET HARDENING AND SLOW MATURATION ---HARDENING AND
PRECIPITATION CONTINUE FOR ABOUT 24 hrs ACCOMPANIED BY SLIGHT
EXPANSION UNDER CONDITIONS OF HIGH HUMIDITYAND DEVELOPMENT OF
TRANSLUCENCY.
MIGRATION ---THESE IONS MIGRATE INTO AQUEOUS MEDIUM
GELATION ---CAUSED BY MULTIVALENT ALUMINIUM AND CALCIUM IONS
DISPLACING VARIOUS SPHERES OF HYDRATION THAT INTERPOSE THEMSELVES
BETWEEN CATION-ANION ION PAIRS
DECOMPOSITION ---DECOMPOSITION OF GLASS POWDER BY ACID RESULTING IN
RELEASE OF IONS.

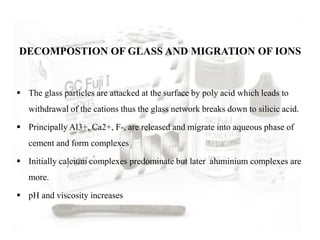

 The glass particles are attacked at the surface by poly acid which leads to
withdrawal of the cations thus the glass network breaks down to silicic acid.
 Principally Al3+, Ca2+, F-, are released and migrate into aqueous phase of
cement and form complexes
 Initially calcium complexes predominate but later aluminium complexes are
more.
 pH and viscosity increases
DECOMPOSTION OF GLASS AND MIGRATION OF IONS

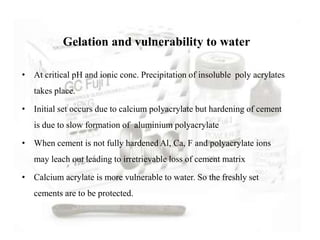

• At critical pH and ionic conc. Precipitation of insoluble poly acrylates
takes place.
• Initial set occurs due to calcium polyacrylate but hardening of cement
is due to slow formation of aluminium polyacrylate
• When cement is not fully hardened Al, Ca, F and polyacrylate ions
may leach out leading to irretrievable loss of cement matrix
• Calcium acrylate is more vulnerable to water. So the freshly set
cements are to be protected.
Gelation and vulnerability to water

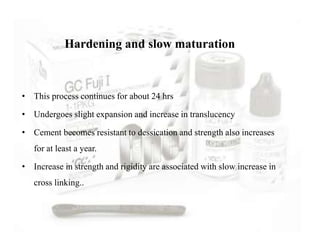

Hardening and slow maturation
• This process continues for about 24 hrs
• Undergoes slight expansion and increase in translucency
• Cement becomes resistant to dessication and strength also increases
for at least a year.
• Increase in strength and rigidity are associated with slow increase in
cross linking..

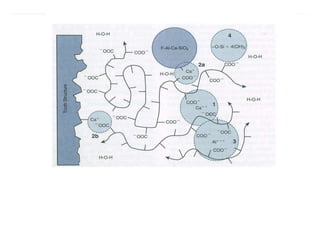

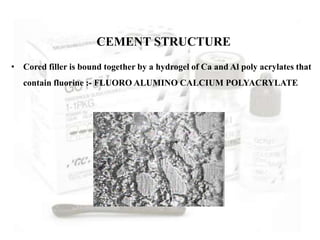

• Cored filler is bound together by a hydrogel of Ca and Al poly acrylates that
contain fluorine :- FLUORO ALUMINO CALCIUM POLYACRYLATE

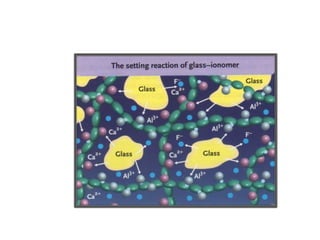

CEMENT STRUCTURE

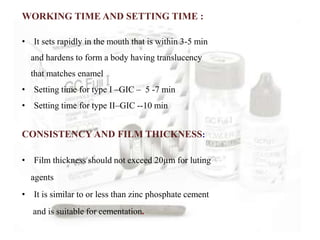

WORKING TIME AND SETTING TIME :
• It sets rapidly in the mouth that is within 3-5 min
and hardens to form a body having translucency
that matches enamel
• Setting time for type I –GIC – 5 -7 min
• Setting time for type II–GIC --10 min
CONSISTENCY AND FILM THICKNESS:
• Film thickness should not exceed 20µm for luting
agents
• It is similar to or less than zinc phosphate cement
and is suitable for cementation.

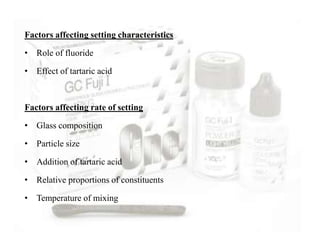

Factors affecting setting characteristics
• Role of fluoride
• Effect of tartaric acid
Factors affecting rate of setting
• Glass composition
• Particle size
• Addition of tartaric acid
• Relative proportions of constituents
• Temperature of mixing

 Plays an important role in setting reacton and structure of
cement.
 Acts as reaction medium
 Hydrates the siliceous microgel and metal poly
acrylate salts.
THE ROLE OF WATER

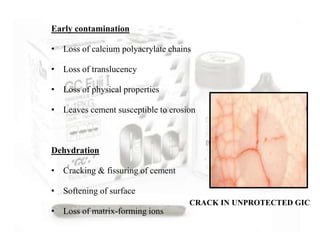

Early contamination
• Loss of calcium polyacrylate chains
• Loss of translucency
• Loss of physical properties
• Leaves cement susceptible to erosion
Dehydration
• Cracking & fissuring of cement
• Softening of surface
• Loss of matrix-forming ions
CRACK IN UNPROTECTED GIC

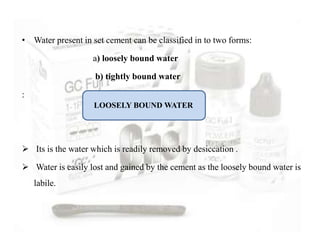

• Water present in set cement can be classified in to two forms:
a) loosely bound water
b) tightly bound water
:
 Its is the water which is readily removed by desiccation .
 Water is easily lost and gained by the cement as the loosely bound water is
labile.
LOOSELY BOUND WATER

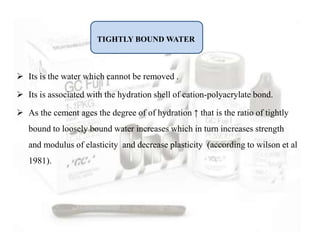

 Its is the water which cannot be removed .
 Its is associated with the hydration shell of cation-polyacrylate bond.
 As the cement ages the degree of of hydration ↑ that is the ratio of tightly
bound to loosely bound water increases which in turn increases strength
and modulus of elasticity and decrease plasticity (according to wilson et al
1981).
TIGHTLY BOUND WATER

RESIN COATING(protection of cement)
• Water plays a key role for proper maturation of GIC.
• water contamination and dehydration during the initial setting stages can
compromise the physical properties of the restoration.
• It is recommended to strictly exclude water during the vulnerable setting
stage, which is reported to last for atleast one hour until even two weeks
after placement.
• Petroleum jelly, cocoa butter, waterproof varnishes, and even nail varnishes
have been recommended as suitable surface coating agents.
• Coatings are lost by oral masticative wear, but by this time the cements
become more resistant to variations in water balance due to their post-
hardening.
Dental Glass Ionomer Cements As Permanent Filling Materials – Properties ,Limitations And
Future Tends – ulrich lohbauer Materials 2010,3,76-96

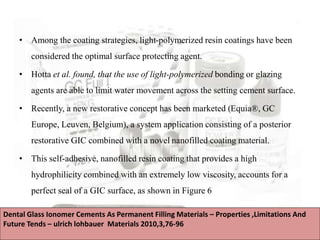

• Among the coating strategies, light-polymerized resin coatings have been
considered the optimal surface protecting agent.
• Hotta et al. found, that the use of light-polymerized bonding or glazing
agents are able to limit water movement across the setting cement surface.
• Recently, a new restorative concept has been marketed (Equia®, GC
Europe, Leuven, Belgium), a system application consisting of a posterior
restorative GIC combined with a novel nanofilled coating material.

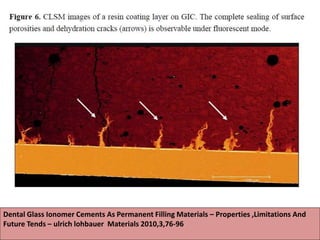

• This self-adhesive, nanofilled resin coating that provides a high
hydrophilicity combined with an extremely low viscosity, accounts for a
perfect seal of a GIC surface, as shown in Figure 6

AESTHETICS
BIOCOMPATIBILTY
ANTICARIOGENIC PROPERTIES
ADHESION
THERMAL COMPATIBILITY
WEAR AND FATIGUE
LINEAR ELASTIC MECHANICAL
PROPERTIES
PROPERTIES

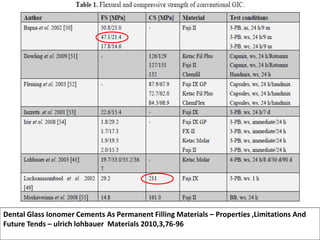

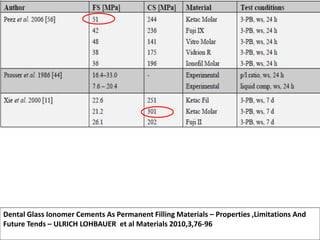

Linear-Elastic Mechanical Properties
• The compressive strength of GIC is commonly measured after 24 hours wet
storage.
• Compressive strength ranges between 60 and 300 Mpa and flexural
strength up to 50 Mpa .
• GIC exhibit a significant increase (approximately 100%) in flexural as well
as in compressive strength when exposed to water in the period between 24
hours and one year after mixing .
• When exposed to aqueous solutions of varying pH, GIC exhibited a high
acid erosion resistance compared to other restorative materials.

Future Tends – ULRICH LOHBAUER et al Materials 2010,3,76-96

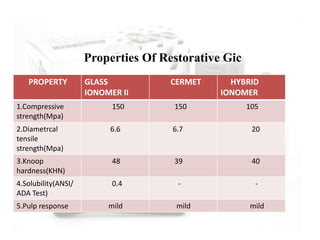

Properties Of Restorative Gic
PROPERTY GLASS
IONOMER II
CERMET HYBRID
IONOMER
1.Compressive
strength(Mpa)
150 150 105
2.Diametrcal
tensile
strength(Mpa)
6.6 6.7 20
3.Knoop
hardness(KHN)
48 39 40
4.Solubility(ANSI/
ADA Test)
0.4 - -
5.Pulp response mild mild mild

PROPERTY VALUES
1.Setting time(min) 7.0
2.Film thickness(µm) 24
3.24 hr compressive strength(Mpa) 86
4.24 hr diametrical tensile strength(Mpa) 6.2
5.Elastic modulus(Gpa) 7.3
6.Solubility in water(Wt%) 1.25
7.Pulp response Mild to moderate
Properties Of Luting Gic

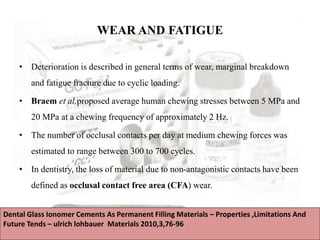

WEAR AND FATIGUE
• Deterioration is described in general terms of wear, marginal breakdown
and fatigue fracture due to cyclic loading.
• Braem et al.proposed average human chewing stresses between 5 MPa and
20 MPa at a chewing frequency of approximately 2 Hz.
• The number of occlusal contacts per day at medium chewing forces was
estimated to range between 300 to 700 cycles.
• In dentistry, the loss of material due to non-antagonistic contacts have been
defined as occlusal contact free area (CFA) wear.

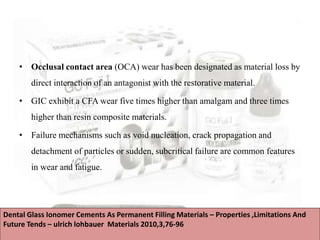

• Occlusal contact area (OCA) wear has been designated as material loss by
direct interaction of an antagonist with the restorative material.
• GIC exhibit a CFA wear five times higher than amalgam and three times
higher than resin composite materials.
• Failure mechanisms such as void nucleation, crack propagation and
detachment of particles or sudden, subcritical failure are common features
in wear and fatigue.

THERMAL COMPATIBILITY
• The tooth structure and restorative materials in the mouth will expand upon
heating by hot foods and beverages but will contract when exposed to cold
substances.
• Such expansions and contractions may break the marginal seal of an inlay
or other fillings in the tooth, particularly if the difference in coefficient of
thermal expansion (CTE) is great between the tooth and the restorative
material.

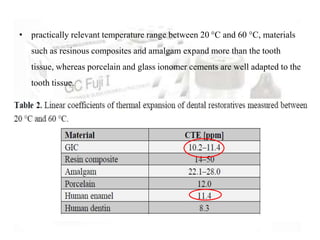

• practically relevant temperature range between 20 °C and 60 °C, materials
such as resinous composites and amalgam expand more than the tooth
tissue, whereas porcelain and glass ionomer cements are well adapted to the
tooth tissue.

ANTICARIOGENIC PROPERTIES
• Fluoride is the most effective agent in caries prevention.
• The metabolism of the bacteria that cause caries is inhibited and the
resistance of enamel and dentin is increased due to the remineralization of
porous or softened enamel and dentin.
• Sustained, long-term fluoride release especially in marginal gaps between
filling material and tooth help prevent secondary caries of the dental
tissues.
• For conventional GIC, an initial release of up to 10 ppm and a constant
long-term release of 1 to 3 ppm over 100 months was reported.

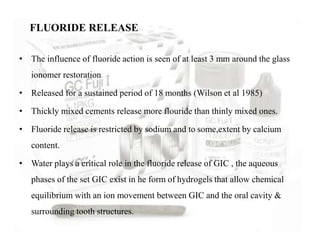

• The influence of fluoride action is seen of at least 3 mm around the glass
ionomer restoration
• Released for a sustained period of 18 months (Wilson et al 1985)
• Thickly mixed cements release more flouride than thinly mixed ones.
• Fluoride release is restricted by sodium and to some,extent by calcium
content.
• Water plays a critical role in the fluoride release of GIC , the aqueous
phases of the set GIC exist in he form of hydrogels that allow chemical
equilibrium with an ion movement between GIC and the oral cavity &
surrounding tooth structures.
FLUORIDE RELEASE

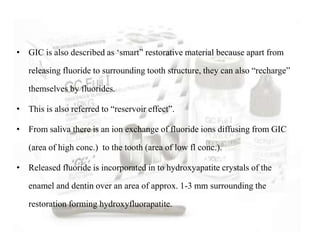

• GIC is also described as ‘smart” restorative material because apart from
releasing fluoride to surrounding tooth structure, they can also “recharge”
themselves by fluorides.
• This is also referred to “reservoir effect”.
• From saliva there is an ion exchange of fluoride ions diffusing from GIC
(area of high conc.) to the tooth (area of low fl conc.).
• Released fluoride is incorporated in to hydroxyapatite crystals of the
enamel and dentin over an area of approx. 1-3 mm surrounding the
restoration forming hydroxyfluorapatite.

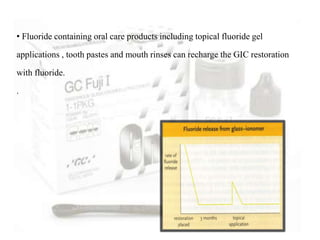

• Fluoride containing oral care products including topical fluoride gel
applications , tooth pastes and mouth rinses can recharge the GIC restoration
with fluoride.
.

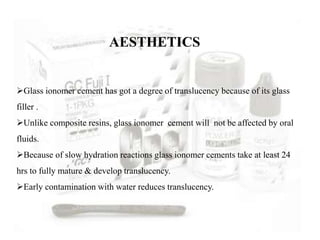

Glass ionomer cement has got a degree of translucency because of its glass
filler .
Unlike composite resins, glass ionomer cement will not be affected by oral
fluids.
Because of slow hydration reactions glass ionomer cements take at least 24
hrs to fully mature & develop translucency.
Early contamination with water reduces translucency.
AESTHETICS

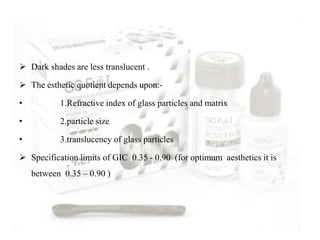

 Dark shades are less translucent .
 The esthetic quotient depends upon:-
• 1.Refractive index of glass particles and matrix
• 2.particle size
• 3.translucency of glass particles
 Specification limits of GIC 0.35 - 0.90 (for optimum aesthetics it is
between 0.35 – 0.90 )

• Glass ionomers bond permanently to tooth structure and also to other polar
substrates such as base metals.
• Barriers of adhesion 1) water
2) dynamic nature of tooth material.
ADHESION

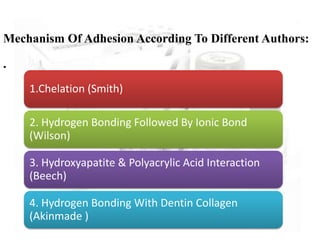

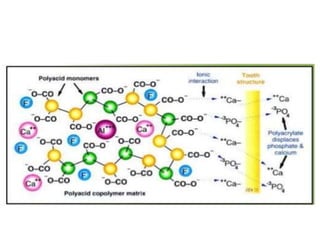

Mechanism Of Adhesion According To Different Authors:
.
1.Chelation (Smith)
2. Hydrogen Bonding Followed By Ionic Bond
(Wilson)
3. Hydroxyapatite & Polyacrylic Acid Interaction
(Beech)
4. Hydrogen Bonding With Dentin Collagen
(Akinmade )

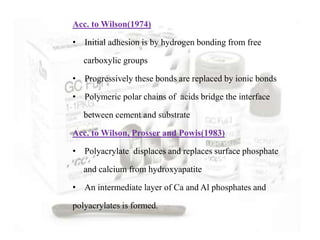

Acc. to Wilson(1974)
• Initial adhesion is by hydrogen bonding from free
carboxylic groups
• Progressively these bonds are replaced by ionic bonds
• Polymeric polar chains of acids bridge the interface
between cement and substrate
Acc. to Wilson, Prosser and Powis(1983)
• Polyacrylate displaces and replaces surface phosphate
and calcium from hydroxyapatite
• An intermediate layer of Ca and Al phosphates and
polyacrylates is formed.

IMPROVING ADHESION
• Tensile bond strength to enamel- 2.6 to 9.6 MPa
dentin- 1.1 to 4.5 Mpa
Surface Conditioning
• Smoothing of surface irregularities
1) Prevent air entrapment
2) Minimizes areas of stress concentration
3) Improves bond strength esp. to dentin

Agents used
Surface treatment Time of application(sec)
Citric acid, 50% aq 30
Citric acid, 2% aq/alc 30
Poly (acrylic acid), 25% aq 30
Tannic acid, 25% aq 60
Surface-active solution 60
Dodicin, 0.9% aq 60
Na2EDTA, 2% aq 30
Na2EDTA, 15% aq 30
Sodium flouride, 3% aq 30
Ferric chloride, 2% aq/alc 30

SEM of dentin without surface conditioning
SEM of dentine after treatment with citric acid

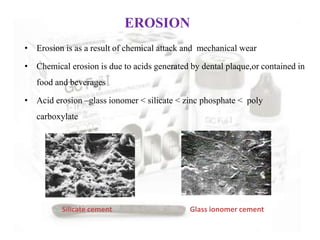

• Erosion is as a result of chemical attack and mechanical wear
• Chemical erosion is due to acids generated by dental plaque,or contained in
food and beverages
• Acid erosion –glass ionomer < silicate < zinc phosphate < poly
carboxylate
Silicate cement Glass ionomer cement
EROSION

GIC
Marginal
seal
Fluoride
release
Bio active
No
secondary
caries
BIOCOMPATABILITY

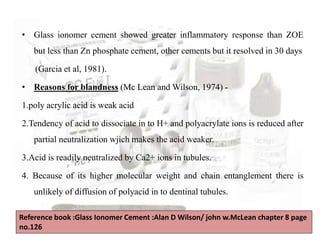

• Glass ionomer cement showed greater inflammatory response than ZOE
but less than Zn phosphate cement, other cements but it resolved in 30 days
(Garcia et al, 1981).
• Reasons for blandness (Mc Lean and Wilson, 1974) -
1.poly acrylic acid is weak acid
2.Tendency of acid to dissociate in to H+ and polyacrylate ions is reduced after
partial neutralization wjich makes the acid weaker.
3.Acid is readily neutralized by Ca2+ ions in tubules.
4. Because of its higher molecular weight and chain entanglement there is
unlikely of diffusion of polyacid in to dentinal tubules.
Reference book :Glass Ionomer Cement :Alan D Wilson/ john w.McLean chapter 8 page
no.126

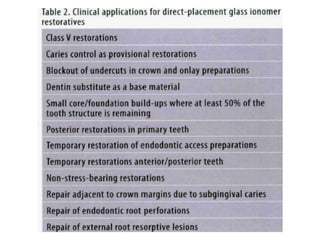

CLASS III RESTORATIONS
CORE BUILD UP
TUNNEL PREPARARTIONS
PIT AND FISSURE SEALENTS
SANDWICH TECHNIQUE
FEW APPLICATIONS
OF GIC IN
RESTORATIVE
DENTISTRY

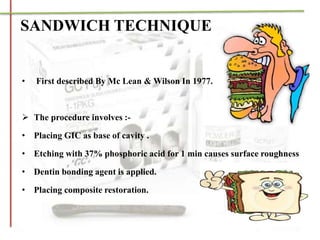

• First described By Mc Lean & Wilson In 1977.
 The procedure involves :-
• Placing GIC as base of cavity .
• Etching with 37% phosphoric acid for 1 min causes surface roughness
• Dentin bonding agent is applied.
• Placing composite restoration.

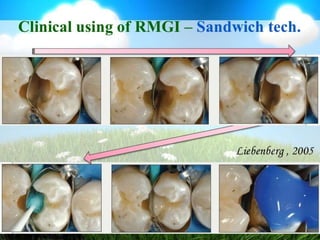

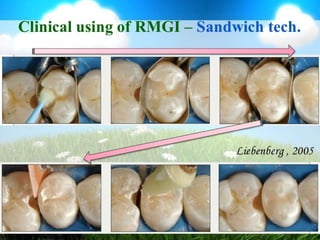

SANDWICH TECHNIQUE

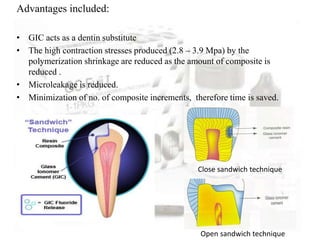

Advantages included:
• GIC acts as a dentin substitute
• The high contraction stresses produced (2.8 – 3.9 Mpa) by the
polymerization shrinkage are reduced as the amount of composite is
reduced .
• Microleakage is reduced.
• Minimization of no. of composite increments, therefore time is saved.
Close sandwich technique
Open sandwich technique

• A cariostatic action is essential for caries ,preventive material GIC is
recommended as a P and F sealant where the orifices of the fissure are
patent .
• The size of the fissure should allow sharp explorer tip to enter the crevice
which should be > 100 µ wide. Otherwise, GIC can get lost through erosion
due to its low wear resistance and solubility.

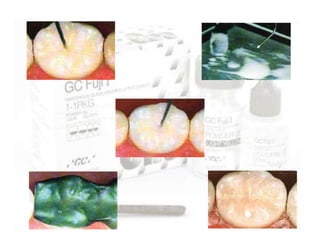

PIT AND FISSURE SEALANTS

• The metal reinforced glass ionomer cements are used for this purpose
• Glass ionomer cements reinforce the teeth &prevent root fracture when root
canals are over widened.
CORE BUILD UP

TUNNEL PREPARATION
• First described in 1963
• Conservative alternative cavity preparation in primary molars.
• Indication:- Small proximal caries with out involvement of marginal
ridges.

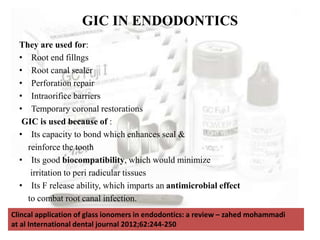

They are used for:
• Root end fillngs
• Root canal sealer
• Perforation repair
• Intraorifice barriers
• Temporary coronal restorations
GIC is used because of :
• Its capacity to bond which enhances seal &
reinforce the tooth
• Its good biocompatibility, which would minimize
irritation to peri radicular tissues
• Its F release ability, which imparts an antimicrobial effect
to combat root canal infection.
GIC IN ENDODONTICS
Clincal application of glass ionomers in endodontics: a review – zahed mohammadi
at al International dental journal 2012;62:244-250

METAL
MODIFIED GIC
RESIN
MODIFIED GIC
MODIFICATIONS OF
GIC

• Developed by Antonucci, Mc Kinney and SB mitra.
• It was developed in between late 1980s and early 1990s .
• Resin modification of glass ionomer cement was designed to produce
favourable physical properties similar to those of resin composites
while maintaining basic features of conventional GIC.
RESIN MODIFIED GIC
DEFINITION: RMGIC can be defined as a hybrid cement that sets via an acid
base reaction and partly via a photo- chemical polymerization reaction.
Eg: Fuji II LC, Vitrebond, Photac –Fil, Vitremer, FujiV

Powder Liquid Purpose for their inclusion
Barium, strontium or
aluminosilicate glass
Improved strengthImparts radiopacity
Vacuum-dried polyacrylic acid Polyacrylic acid Reacts with the glass to form the poly salt
matrix
Potassium persulphate Redox catalyst system to provide the
methacrylate (dark) cure
Ascorbic acid
Pigments Varies shade
HEMA Water miscible resin
Polyacrylic acid with
pendant methacrylates
(copolymer)
Ability to undergo both acid–base and
polymerization reactions Helps form
interpenetrating network
Tartaric acid Sharpens the acid–base reaction set
Water Permits reaction between the polyacid and
the glass
Photo-initiators Achieves light curing
COMPOSITION

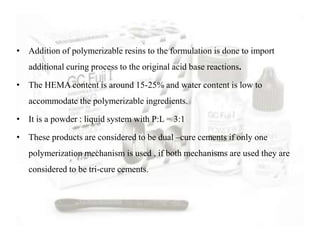

• Addition of polymerizable resins to the formulation is done to import
additional curing process to the original acid base reactions.
• The HEMA content is around 15-25% and water content is low to
accommodate the polymerizable ingredients.
• It is a powder : liquid system with P:L = 3:1
• These products are considered to be dual –cure cements if only one
polymerization mechanism is used , if both mechanisms are used they are
considered to be tri-cure cements.

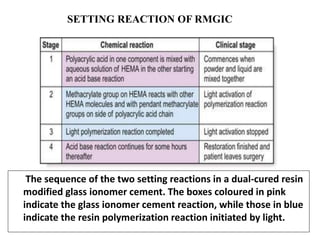

The sequence of the two setting reactions in a dual-cured resin
modified glass ionomer cement. The boxes coloured in pink
indicate the glass ionomer cement reaction, while those in blue
indicate the resin polymerization reaction initiated by light.
SETTING REACTION OF RMGIC

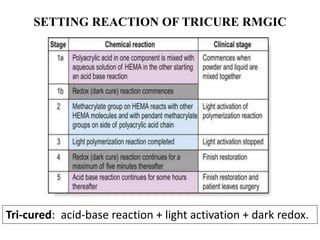

SETTING REACTION OF TRICURE RMGIC
Tri-cured: acid-base reaction + light activation + dark redox.

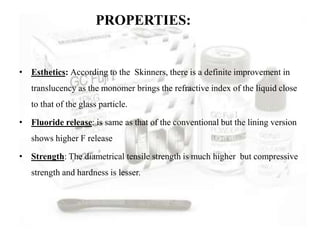

PROPERTIES:
• Esthetics: According to the Skinners, there is a definite improvement in
translucency as the monomer brings the refractive index of the liquid close
to that of the glass particle.
• Fluoride release: is same as that of the conventional but the lining version
shows higher F release
• Strength: The diametrical tensile strength is much higher but compressive
strength and hardness is lesser.

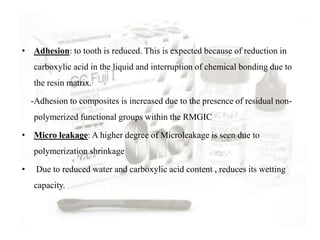

• Adhesion: to tooth is reduced. This is expected because of reduction in
carboxylic acid in the liquid and interruption of chemical bonding due to
the resin matrix.
-Adhesion to composites is increased due to the presence of residual non-
polymerized functional groups within the RMGIC
• Micro leakage: A higher degree of Microleakage is seen due to
polymerization shrinkage
• Due to reduced water and carboxylic acid content , reduces its wetting
capacity.

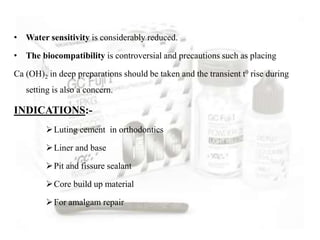

• Water sensitivity is considerably reduced.
• The biocompatibility is controversial and precautions such as placing
Ca (OH)2 in deep preparations should be taken and the transient t0 rise during
setting is also a concern.
INDICATIONS:-
Luting cement in orthodontics
Liner and base
Pit and fissure sealant
Core build up material
For amalgam repair

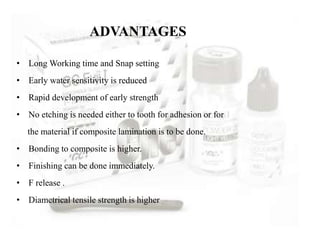

ADVANTAGES
• Long Working time and Snap setting
• Early water sensitivity is reduced
• Rapid development of early strength
• No etching is needed either to tooth for adhesion or for
the material if composite lamination is to be done.
• Bonding to composite is higher.
• Finishing can be done immediately.
• F release .
• Diametrical tensile strength is higher

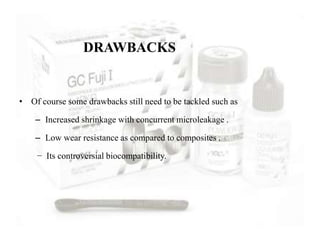

DRAWBACKS
• Of course some drawbacks still need to be tackled such as
– Increased shrinkage with concurrent microleakage .
– Low wear resistance as compared to composites .
− Its controversial biocompatibility.

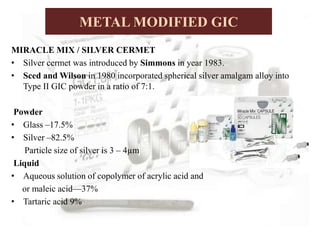

MIRACLE MIX / SILVER CERMET
• Silver cermet was introduced by Simmons in year 1983.
• Sced and Wilson in 1980 incorporated spherical silver amalgam alloy into
Type II GIC powder in a ratio of 7:1.
Powder
• Glass –17.5%
• Silver –82.5%
Particle size of silver is 3 – 4µm
Liquid
• Aqueous solution of copolymer of acrylic acid and
or maleic acid—37%
• Tartaric acid 9%
METAL MODIFIED GIC

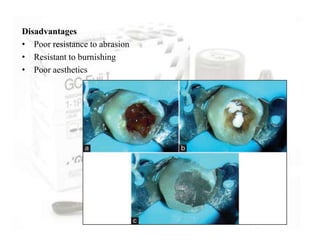

Disadvantages
• Poor resistance to abrasion
• Resistant to burnishing
• Poor aesthetics

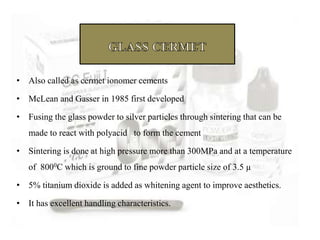

• Also called as cermet ionomer cements
• McLean and Gasser in 1985 first developed
• Fusing the glass powder to silver particles through sintering that can be
made to react with polyacid to form the cement
• Sintering is done at high pressure more than 300MPa and at a temperature
of 8000C which is ground to fine powder particle size of 3.5 µ
• 5% titanium dioxide is added as whitening agent to improve aesthetics.
• It has excellent handling characteristics.

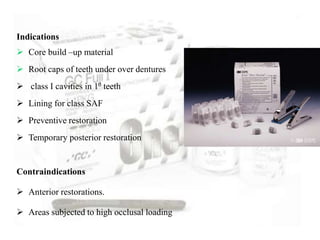

Indications
 Core build –up material
 Root caps of teeth under over dentures
 class I cavities in 10 teeth
 Lining for class SAF
 Preventive restoration
 Temporary posterior restoration
Contraindications
 Anterior restorations.
 Areas subjected to high occlusal loading

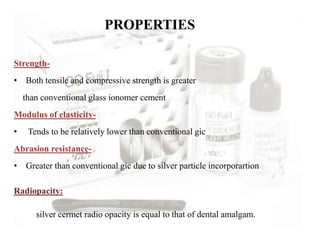

PROPERTIES
Strength-
• Both tensile and compressive strength is greater
than conventional glass ionomer cement
Modulus of elasticity-
• Tends to be relatively lower than conventional gic
Abrasion resistance-
• Greater than conventional gic due to silver particle incorporartion
Radiopacity:
silver cermet radio opacity is equal to that of dental amalgam.

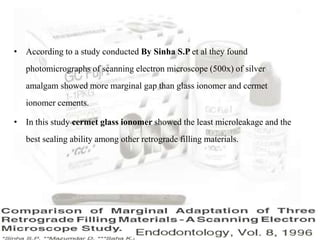

• According to a study conducted By Sinha S.P et al they found
photomicrographs of scanning electron microscope (500x) of silver
amalgam showed more marginal gap than glass ionomer and cermet
ionomer cements.
• In this study cermet glass ionomer showed the least microleakage and the
best sealing ability among other retrograde filling materials.

 IMPROVED TRADITIONAL GIC :
 - HIGHLY VISCOUS/ PACKABLE GIC

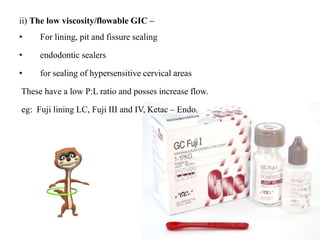

 - LOW VISCOSITY GIC

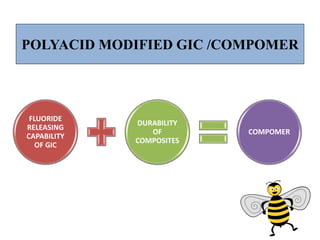

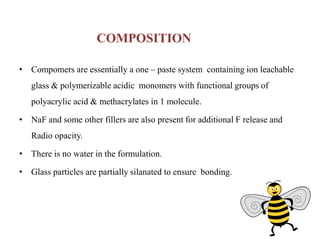

 POLYACID MODIFIED GIC /COMPOMER
 SELF HARDENING GIC

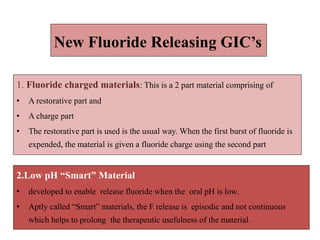

 NEW FLUORIDE RELEASING GIC:
A) FLUORIDE CHARGED GIC
B) LOW PH ‘SMART’ MATERIALS

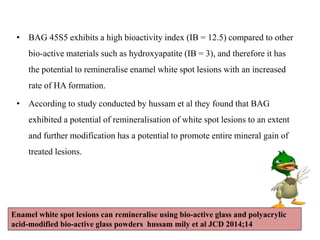

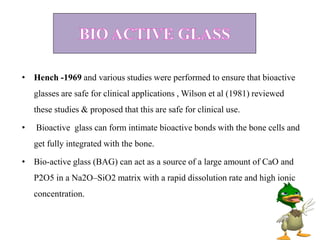

 BIOACTIVE GLASS

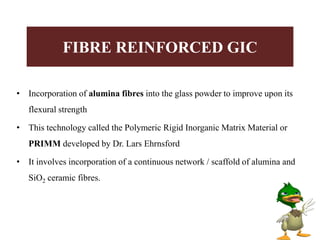

 FIBRE-REINFORCED GIC

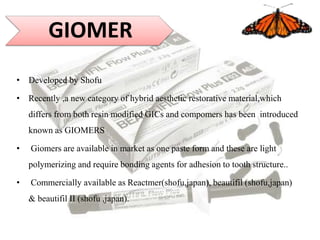

 GIOMER

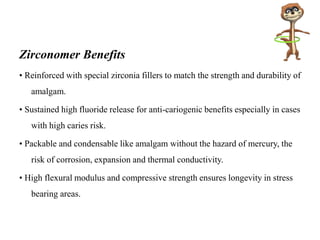

 ZIRCONOMER

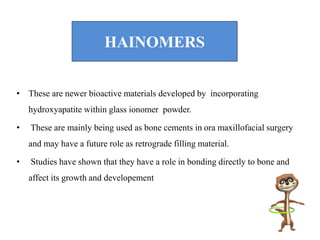

 HAINOMER

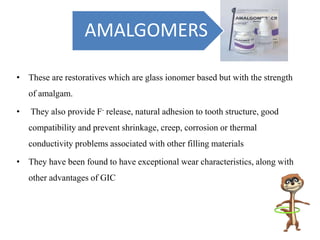

 AMALGOMER

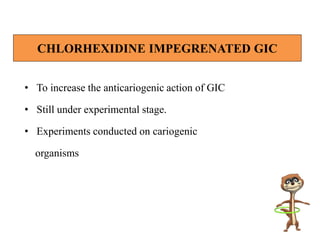

 CHLORHEXIDINE IMPREGNATED GIC

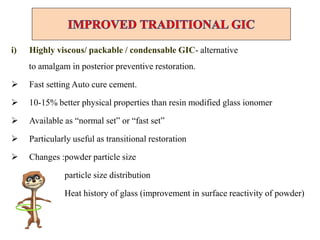

i) Highly viscous/ packable / condensable GIC- alternative
to amalgam in posterior preventive restoration.
 Fast setting Auto cure cement.
 10-15% better physical properties than resin modified glass ionomer
 Available as “normal set” or “fast set”
 Particularly useful as transitional restoration
 Changes :powder particle size
particle size distribution
Heat history of glass (improvement in surface reactivity of powder)

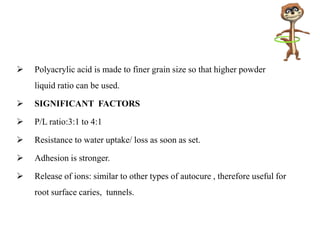

 Polyacrylic acid is made to finer grain size so that higher powder
liquid ratio can be used.
 SIGNIFICANT FACTORS
 P/L ratio:3:1 to 4:1
 Resistance to water uptake/ loss as soon as set.
 Adhesion is stronger.
 Release of ions: similar to other types of autocure , therefore useful for
root surface caries, tunnels.

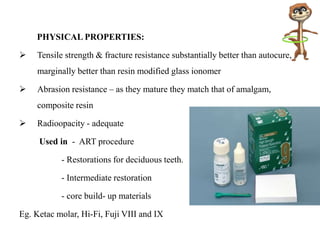

PHYSICAL PROPERTIES:
 Tensile strength & fracture resistance substantially better than autocure,
marginally better than resin modified glass ionomer
 Abrasion resistance – as they mature they match that of amalgam,
composite resin
 Radioopacity - adequate
Used in - ART procedure
- Restorations for deciduous teeth.
- Intermediate restoration
- core build- up materials
Eg. Ketac molar, Hi-Fi, Fuji VIII and IX

.

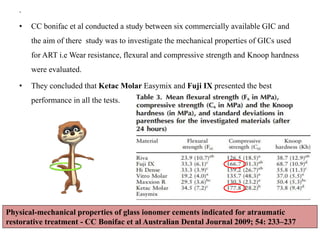

• CC bonifac et al conducted a study between six commercially available GIC and
the aim of there study was to investigate the mechanical properties of GICs used
for ART i.e Wear resistance, flexural and compressive strength and Knoop hardness
were evaluated.
• They concluded that Ketac Molar Easymix and Fuji IX presented the best
performance in all the tests.
Physical-mechanical properties of glass ionomer cements indicated for atraumatic
restorative treatment - CC Bonifac et al Australian Dental Journal 2009; 54: 233–237

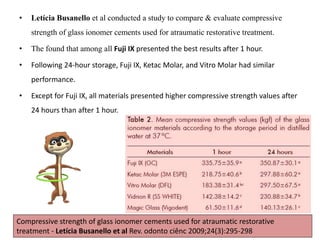

• Letícia Busanello et al conducted a study to compare & evaluate compressive
strength of glass ionomer cements used for atraumatic restorative treatment.
• The found that among all Fuji IX presented the best results after 1 hour.
• Following 24-hour storage, Fuji IX, Ketac Molar, and Vitro Molar had similar
performance.
• Except for Fuji IX, all materials presented higher compressive strength values after
24 hours than after 1 hour.
Compressive strength of glass ionomer cements used for atraumatic restorative
treatment - Letícia Busanello et al Rev. odonto ciênc 2009;24(3):295-298

ii) The low viscosity/flowable GIC –
• For lining, pit and fissure sealing
• endodontic sealers
• for sealing of hypersensitive cervical areas
These have a low P:L ratio and posses increase flow.
eg: Fuji lining LC, Fuji III and IV, Ketac – Endo.

FLUORIDE
RELEASING
CAPABILITY
OF GIC
DURABILITY
OF
COMPOSITES
COMPOMER
POLYACID MODIFIED GIC /COMPOMER

• Definition: Compomer can be defined as a material that contains both the
essential components of GIC but at levels insufficient to promote the acid –
base curing reaction in the dark .
• Compomer is a combination of the word ‘comp’ for composite “omer” for
ionomer.
• Though introduced as type of GIC, it became apparent that terms in of
clinical use and performance it is best considered as a composite.

COMPOSITION
• Compomers are essentially a one – paste system containing ion leachable
glass & polymerizable acidic monomers with functional groups of
polyacrylic acid & methacrylates in 1 molecule.
• NaF and some other fillers are also present for additional F release and
Radio opacity.
• There is no water in the formulation.
• Glass particles are partially silanated to ensure bonding.

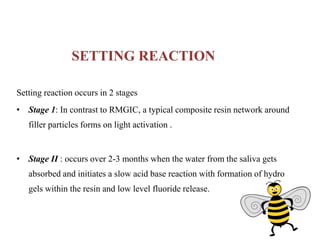

SETTING REACTION
Setting reaction occurs in 2 stages
• Stage 1: In contrast to RMGIC, a typical composite resin network around
filler particles forms on light activation .
• Stage II : occurs over 2-3 months when the water from the saliva gets
absorbed and initiates a slow acid base reaction with formation of hydro
gels within the resin and low level fluoride release.

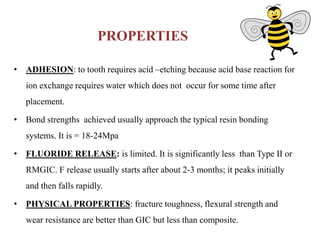

PROPERTIES
• ADHESION: to tooth requires acid –etching because acid base reaction for
ion exchange requires water which does not occur for some time after
placement.
• Bond strengths achieved usually approach the typical resin bonding
systems. It is = 18-24Mpa
• FLUORIDE RELEASE: is limited. It is significantly less than Type II or
RMGIC. F release usually starts after about 2-3 months; it peaks initially
and then falls rapidly.
• PHYSICAL PROPERTIES: fracture toughness, flexural strength and
wear resistance are better than GIC but less than composite.

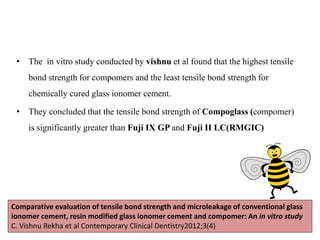

• The in vitro study conducted by vishnu et al found that the highest tensile
bond strength for compomers and the least tensile bond strength for
chemically cured glass ionomer cement.
• They concluded that the tensile bond strength of Compoglass (compomer)
is significantly greater than Fuji IX GP and Fuji II LC(RMGIC)
Comparative evaluation of tensile bond strength and microleakage of conventional glass
ionomer cement, resin modified glass ionomer cement and compomer: An in vitro study
C. Vishnu Rekha et al Contemporary Clinical Dentistry2012;3(4)

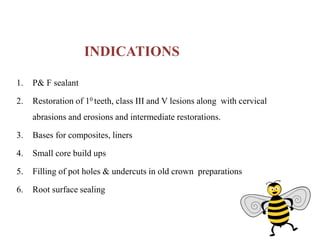

INDICATIONS
1. P& F sealant
2. Restoration of 10 teeth, class III and V lesions along with cervical
abrasions and erosions and intermediate restorations.
3. Bases for composites, liners
4. Small core build ups
5. Filling of pot holes & undercuts in old crown preparations
6. Root surface sealing

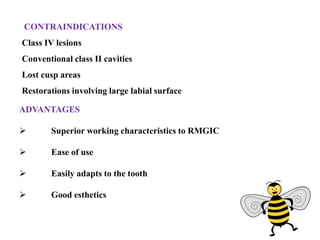

ADVANTAGES
 Superior working characteristics to RMGIC
 Ease of use
 Easily adapts to the tooth
 Good esthetics
CONTRAINDICATIONS
Class IV lesions
Conventional class II cavities
Lost cusp areas
Restorations involving large labial surface

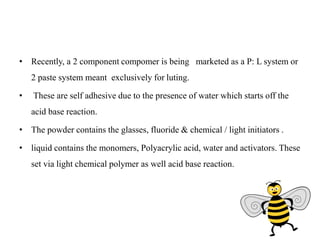

• Recently, a 2 component compomer is being marketed as a P: L system or
2 paste system meant exclusively for luting.
• These are self adhesive due to the presence of water which starts off the
acid base reaction.
• The powder contains the glasses, fluoride & chemical / light initiators .
• liquid contains the monomers, Polyacrylic acid, water and activators. These
set via light chemical polymer as well acid base reaction.

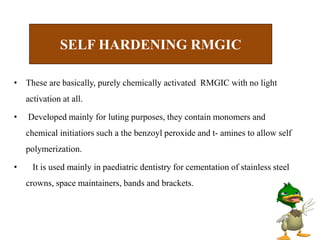

• These are basically, purely chemically activated RMGIC with no light
activation at all.
• Developed mainly for luting purposes, they contain monomers and
chemical initiatiors such a the benzoyl peroxide and t- amines to allow self
polymerization.
• It is used mainly in paediatric dentistry for cementation of stainless steel
crowns, space maintainers, bands and brackets.
SELF HARDENING RMGIC

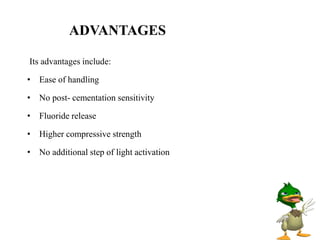

ADVANTAGES
Its advantages include:
• Ease of handling
• No post- cementation sensitivity
• Fluoride release
• Higher compressive strength
• No additional step of light activation

• Hench -1969 and various studies were performed to ensure that bioactive
glasses are safe for clinical applications , Wilson et al (1981) reviewed
these studies & proposed that this are safe for clinical use.
• Bioactive glass can form intimate bioactive bonds with the bone cells and
get fully integrated with the bone.
• Bio-active glass (BAG) can act as a source of a large amount of CaO and
P2O5 in a Na2O–SiO2 matrix with a rapid dissolution rate and high ionic
concentration.

• BAG 45S5 exhibits a high bioactivity index (IB = 12.5) compared to other
bio-active materials such as hydroxyapatite (IB = 3), and therefore it has
the potential to remineralise enamel white spot lesions with an increased
rate of HA formation.
• According to study conducted by hussam et al they found that BAG
exhibited a potential of remineralisation of white spot lesions to an extent
and further modification has a potential to promote entire mineral gain of
treated lesions.
Enamel white spot lesions can remineralise using bio-active glass and polyacrylic
acid-modified bio-active glass powders hussam mily et al JCD 2014;14

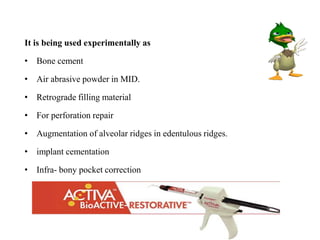

It is being used experimentally as
• Bone cement
• Air abrasive powder in MID.
• Retrograde filling material
• For perforation repair
• Augmentation of alveolar ridges in edentulous ridges.
• implant cementation
• Infra- bony pocket correction

• Incorporation of alumina fibres into the glass powder to improve upon its
flexural strength
• This technology called the Polymeric Rigid Inorganic Matrix Material or
PRIMM developed by Dr. Lars Ehrnsford
• It involves incorporation of a continuous network / scaffold of alumina and
SiO2 ceramic fibres.
FIBRE REINFORCED GIC

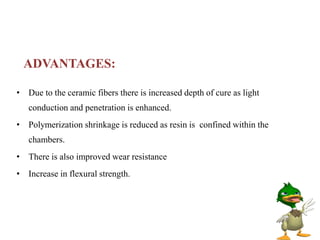

ADVANTAGES:
• Due to the ceramic fibers there is increased depth of cure as light
conduction and penetration is enhanced.
• Polymerization shrinkage is reduced as resin is confined within the
chambers.
• There is also improved wear resistance
• Increase in flexural strength.

• Developed by Shofu
• Recently ,a new category of hybrid aesthetic restorative material,which
differs from both resin modified GICs and compomers has been introduced
known as GIOMERS
• Giomers are available in market as one paste form and these are light
polymerizing and require bonding agents for adhesion to tooth structure..
• Commercially available as Reactmer(shofu,japan), beautifil (shofu,japan)
& beautifil II (shofu ,japan).
GIOMER

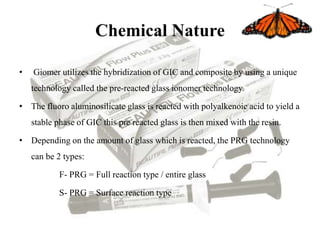

Chemical Nature
• Giomer utilizes the hybridization of GIC and composite by using a unique
technology called the pre-reacted glass ionomer technology.
• The fluoro aluminosilicate glass is reacted with polyalkenoic acid to yield a
stable phase of GIC this pre reacted glass is then mixed with the resin.
• Depending on the amount of glass which is reacted, the PRG technology
can be 2 types:
F- PRG = Full reaction type / entire glass
S- PRG = Surface reaction type

.

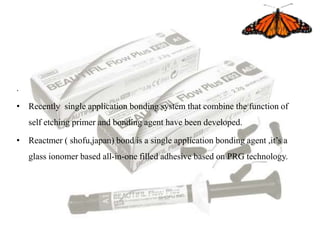

• Recently single application bonding system that combine the function of
self etching primer and bonding agent have been developed.
• Reactmer ( shofu,japan) bond is a single application bonding agent ,it’s a
glass ionomer based all-in-one filled adhesive based on PRG technology.

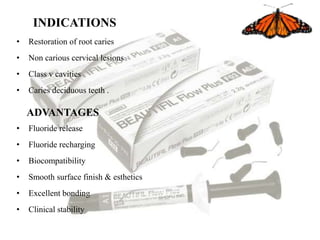

INDICATIONS
• Restoration of root caries
• Non carious cervical lesions
• Class v cavities
• Caries deciduous teeth .
ADVANTAGES
• Fluoride release
• Fluoride recharging
• Biocompatibility
• Smooth surface finish & esthetics
• Excellent bonding
• Clinical stability

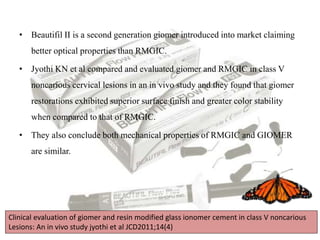

• Beautifil II is a second generation giomer introduced into market claiming
better optical properties than RMGIC.
• Jyothi KN et al compared and evaluated giomer and RMGIC in class V
noncarious cervical lesions in an in vivo study and they found that giomer
restorations exhibited superior surface finish and greater color stability
when compared to that of RMGIC.
• They also conclude both mechanical properties of RMGIC and GIOMER
are similar.
Clinical evaluation of giomer and resin modified glass ionomer cement in class V noncarious
Lesions: An in vivo study jyothi et al JCD2011;14(4)

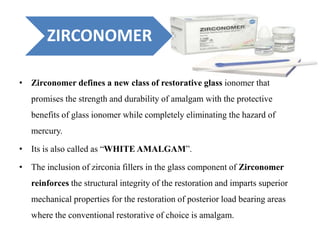

ZIRCONOMER
• Zirconomer defines a new class of restorative glass ionomer that
promises the strength and durability of amalgam with the protective
benefits of glass ionomer while completely eliminating the hazard of
mercury.
• Its is also called as “WHITE AMALGAM”.
• The inclusion of zirconia fillers in the glass component of Zirconomer
reinforces the structural integrity of the restoration and imparts superior
mechanical properties for the restoration of posterior load bearing areas
where the conventional restorative of choice is amalgam.

• Combination of outstanding strength, durability and sustained fluoride
protection deems it ideal for permanent posterior restoration in patients
with high caries incidence as well as cases where strong structural cores
and bases are required.

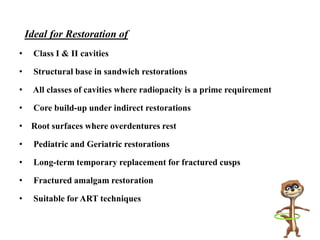

Ideal for Restoration of
• Class I & II cavities
• Structural base in sandwich restorations
• All classes of cavities where radiopacity is a prime requirement
• Core build-up under indirect restorations
• Root surfaces where overdentures rest
• Pediatric and Geriatric restorations
• Long-term temporary replacement for fractured cusps
• Fractured amalgam restoration
• Suitable for ART techniques

Zirconomer Benefits
• Reinforced with special zirconia fillers to match the strength and durability of
amalgam.
• Sustained high fluoride release for anti-cariogenic benefits especially in cases
with high caries risk.
• Packable and condensable like amalgam without the hazard of mercury, the
risk of corrosion, expansion and thermal conductivity.
• High flexural modulus and compressive strength ensures longevity in stress
bearing areas.

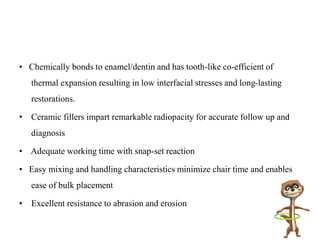

• Chemically bonds to enamel/dentin and has tooth-like co-efficient of
thermal expansion resulting in low interfacial stresses and long-lasting
restorations.
• Ceramic fillers impart remarkable radiopacity for accurate follow up and
diagnosis
• Adequate working time with snap-set reaction
• Easy mixing and handling characteristics minimize chair time and enables
ease of bulk placement
• Excellent resistance to abrasion and erosion

• These are restoratives which are glass ionomer based but with the strength
of amalgam.
• They also provide F- release, natural adhesion to tooth structure, good
compatibility and prevent shrinkage, creep, corrosion or thermal
conductivity problems associated with other filling materials
• They have been found to have exceptional wear characteristics, along with
other advantages of GIC
AMALGOMERS

• According to bahadure et al conducted a study to estimate fluoride release
of six different dental restorative materials namelyAmalgomer CR, Fuji II,
Fuji IX, Beautifil II, Dyract extra, and Coltene Synergy.
• They concluded Amalgomer CR was found to have significantly highest
fluoride releasing capacity among the all experimental dental restorative
materials.
An estimation of fluoride release from various dental restorative materials at different pH:
In vitro study Bahadure, et al JOURNAL OF INDIAN SOCIETY OF PEDODONTICS AND PREVENTIVE DENTISTRY 2012 ;30(2)

• These are newer bioactive materials developed by incorporating
hydroxyapatite within glass ionomer powder.
• These are mainly being used as bone cements in ora maxillofacial surgery
and may have a future role as retrograde filling material.
• Studies have shown that they have a role in bonding directly to bone and
affect its growth and developement
HAINOMERS

1. Fluoride charged materials: This is a 2 part material comprising of
• A restorative part and
• A charge part
• The restorative part is used is the usual way. When the first burst of fluoride is
expended, the material is given a fluoride charge using the second part
New Fluoride Releasing GIC’s
2.Low pH “Smart” Material
• developed to enable release fluoride when the oral pH is low.
• Aptly called “Smart” materials, the F release is episodic and not continuous
which helps to prolong the therapeutic usefulness of the material.

• To increase the anticariogenic action of GIC
• Still under experimental stage.
• Experiments conducted on cariogenic
organisms
CHLORHEXIDINE IMPEGRENATED GIC

 GIC’s have come a long ways since its modest beginning in 1969.
 Even though research can boast of substantial improvements, certain
essential properties still seem to be wanting and further clinical trials are
warranted for a majority of these developments.
 At this point of time, we are left wondering if GIC will ever be able to
dominate tomorrow’s restorative scene or will it go into total oblivion.
 Let us wish GIC all the best for the coming years

REFERENCES
Glass ionomer cement by Alan D.Wilson and John W.
Mclean
Philips science of dental materials, Eleventh edition
Sturdevant’s Art and science of operative dentistry,
Fifth edition
Craig’s Restorative dental materials, Twelfth edition

Glass ionomer cement

More Related Content

What's hot

Similar to Glass ionomer cement

Recently uploaded

Glass ionomer cement

Editor's Notes
