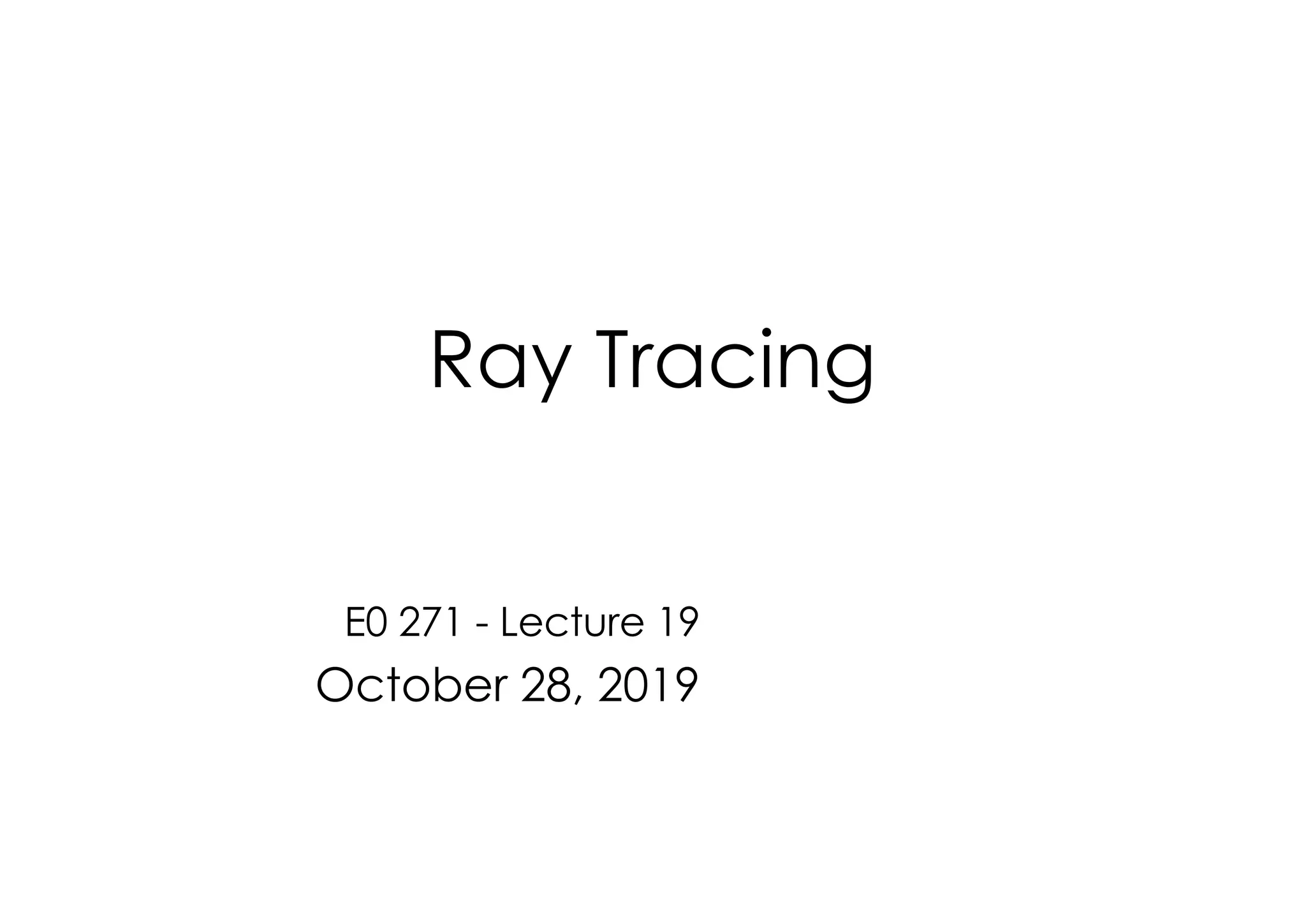

1. Ray Tracing
E0 271 - Lecture 19
October 28, 2019

2. Vijay Natarajan E0 271: Computer Graphics 1

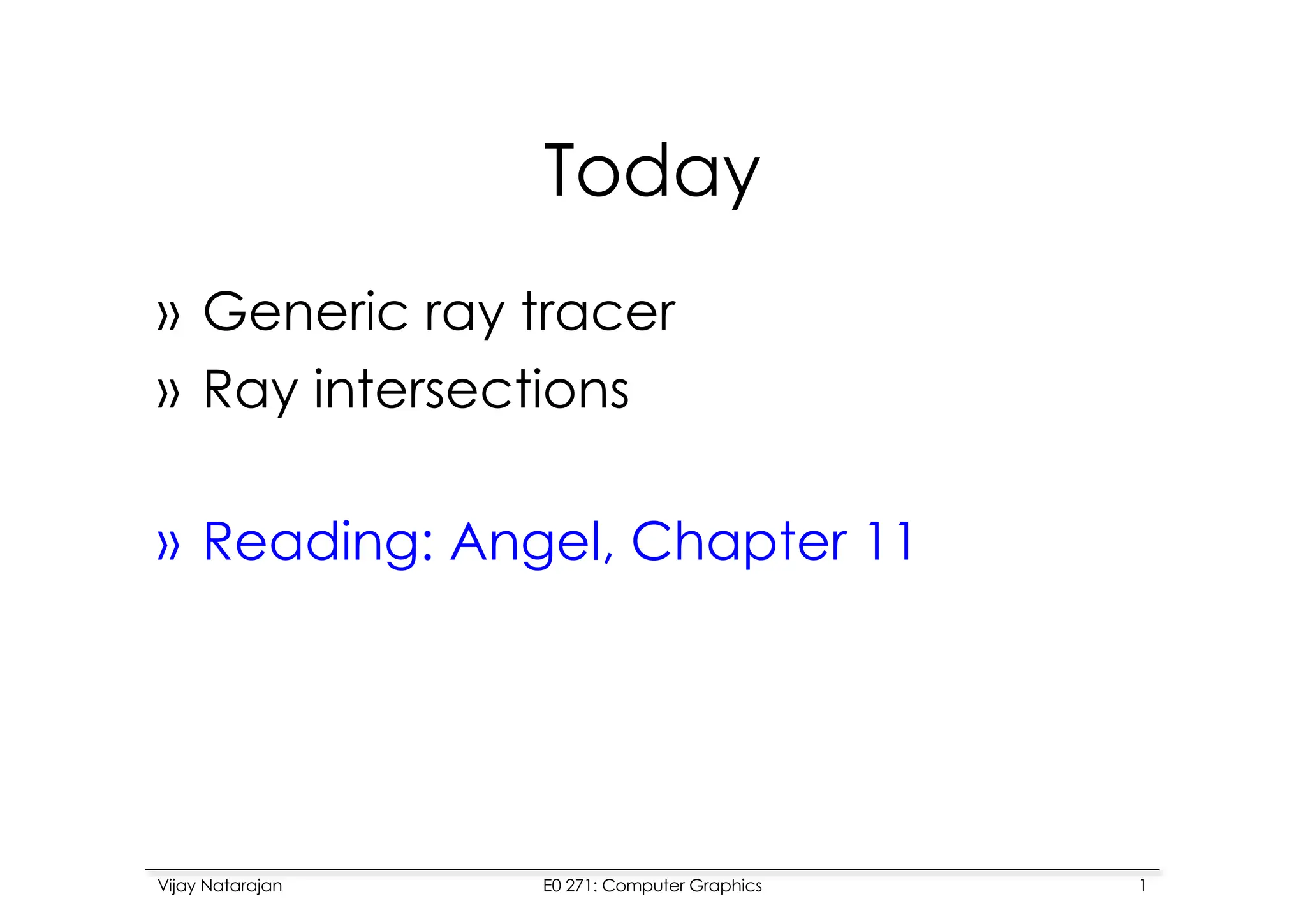

Today
» Generic ray tracer
» Ray intersections
» Reading: Angel, Chapter 11

3. Vijay Natarajan E0 271: Computer Graphics 2
What is Ray Tracing?
» Ray tracing
§ Send a ray from eye through pixel
into scene
§ Color determined by ray
intersections with the scene
» Recursive ray tracing
§ Create new rays upon intersection
§ Simulate specular reflections and
indirect illumination
[courtesy: Anders Brodersen, University of Aarhus]

4. Vijay Natarajan E0 271: Computer Graphics 3
Examples
http://www.povray.org

5. Vijay Natarajan E0 271: Computer Graphics 4
Examples
http://www.povray.org

6. Vijay Natarajan E0 271: Computer Graphics 5
Examples
http://www.povray.org

7. Vijay Natarajan E0 271: Computer Graphics 6
Generic Ray Tracer
» Given camera parameters and image resolution
§ Generate rays r(i,j) from eye passing through center of pixel (i,j)
§ Call function trace (r) on each ray
§ trace (r) returns color of the pixel
» trace (r)
§ Follow ray r into scene
§ Let O be the first object it intersects, P be the point of intersection
§ If O is reflective or translucent, then compute reflected or
transmitted ray and call trace recursively
§ For each light source, apply Phong model to compute shade at
point P if light is visible from P
§ Combine colors obtained from above two steps and return the
composite color

8. Vijay Natarajan E0 271: Computer Graphics 7

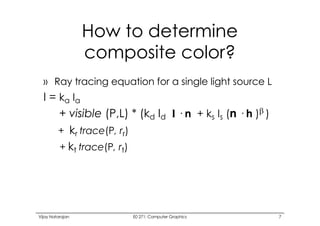

How to determine
composite color?
» Ray tracing equation for a single light source L
I = ka Ia
+ visible (P,L) * (kd Id l · n + ks Is (n · h )b )
+ kr trace(P, rr)
+ kt trace(P, rt)

9. Vijay Natarajan E0 271: Computer Graphics 8
Rays
» A ray r(t), for 0 ≤ t < ∞, is defined by
its origin P and a direction u:
§ r(t) = P + tu
§ u is a unit vector or not?

10. Vijay Natarajan E0 271: Computer Graphics 9
Ray Generation
» LookAt()
§ Eye, Gaze, Up
» Perspective()
§ FOV, Aspect ratio
§ Near = 1
» Image resolution
§ nx, ny

11. Vijay Natarajan E0 271: Computer Graphics 10
Ray-Object Intersection
» Ray-Sphere
§ Point of intersection
§ Normal vector
» Ray-Polygon
§ Point of intersection
» Ray-Triangle

12. Vijay Natarajan E0 271: Computer Graphics 11
Ray Intersection
» Point of intersection specified by t
» Maintain smallest value t0 (>0) for
each ray
» t0 represents intersection with
nearest object
