Give Me the Bad News Straight: Why Models are a Broken Approach to Alerting

Tech Talk: Give Me the Bad News
Straight: Why Models are a Broken
Approach to Alerting
David B. Martin
DevOps: Agile Ops
CA Technologies
APM Product Manager
DO5T41T
#CAWorld

2 © 2015 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD

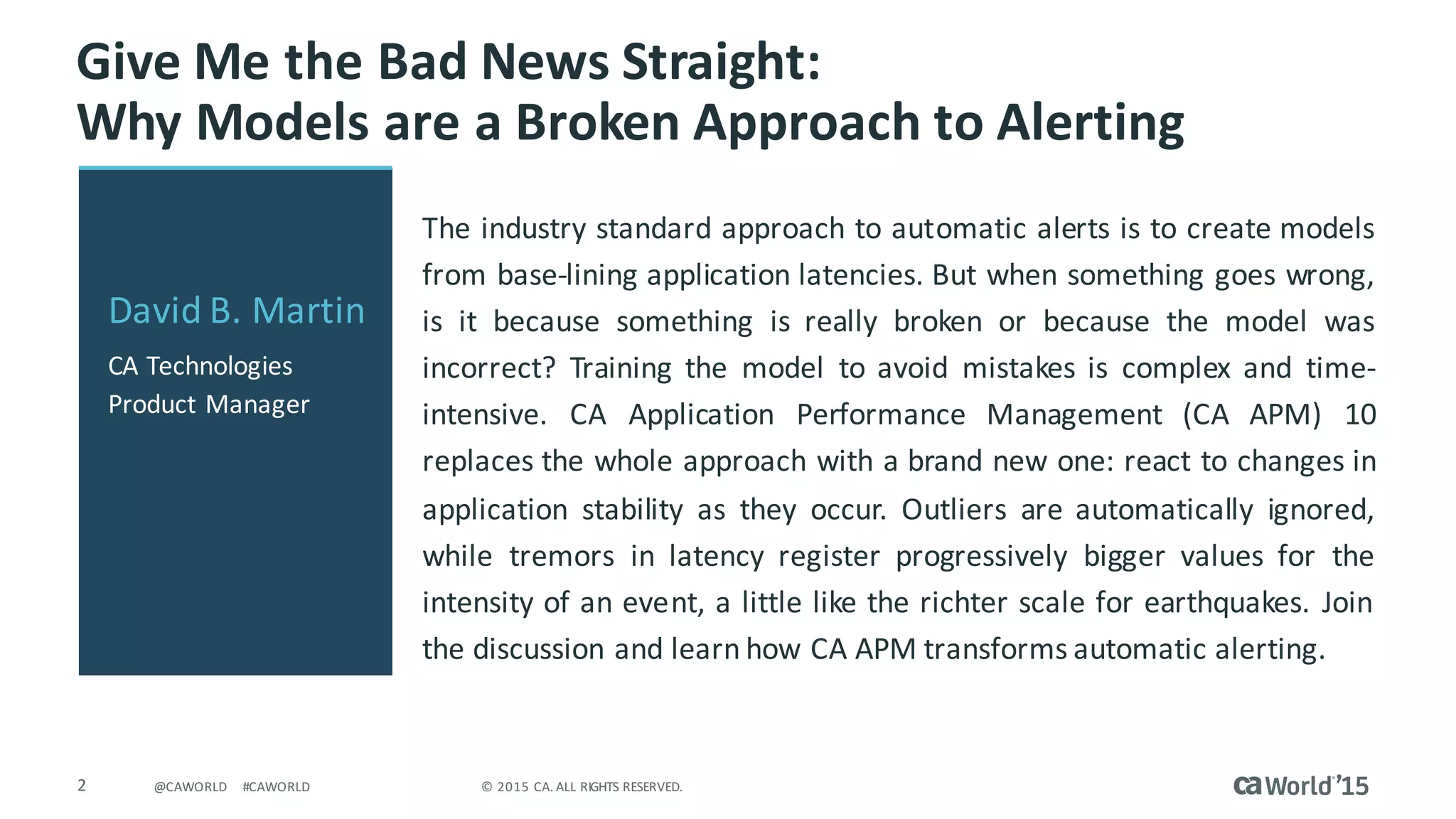

Give Me the Bad News Straight:
Why Models are a Broken Approach to Alerting
The industry standard approach to automatic alerts is to create models
from base-lining application latencies. But when something goes wrong,
is it because something is really broken or because the model was
incorrect? Training the model to avoid mistakes is complex and time-
intensive. CA Application Performance Management (CA APM) 10
replaces the whole approach with a brand new one: react to changes in
application stability as they occur. Outliers are automatically ignored,
while tremors in latency register progressively bigger values for the
intensity of an event, a little like the richter scale for earthquakes. Join
the discussion and learn how CA APM transforms automatic alerting.
David B. Martin
CA Technologies
Product Manager

© 2015 CA. All rights reserved. All trademarks referenced herein belong to their respective companies.
The content provided in this CA World 2015 presentation is intended for informational purposes only and does not form any type of
warranty. The information provided by a CA partner and/or CA customer has not been reviewed for accuracy by CA.

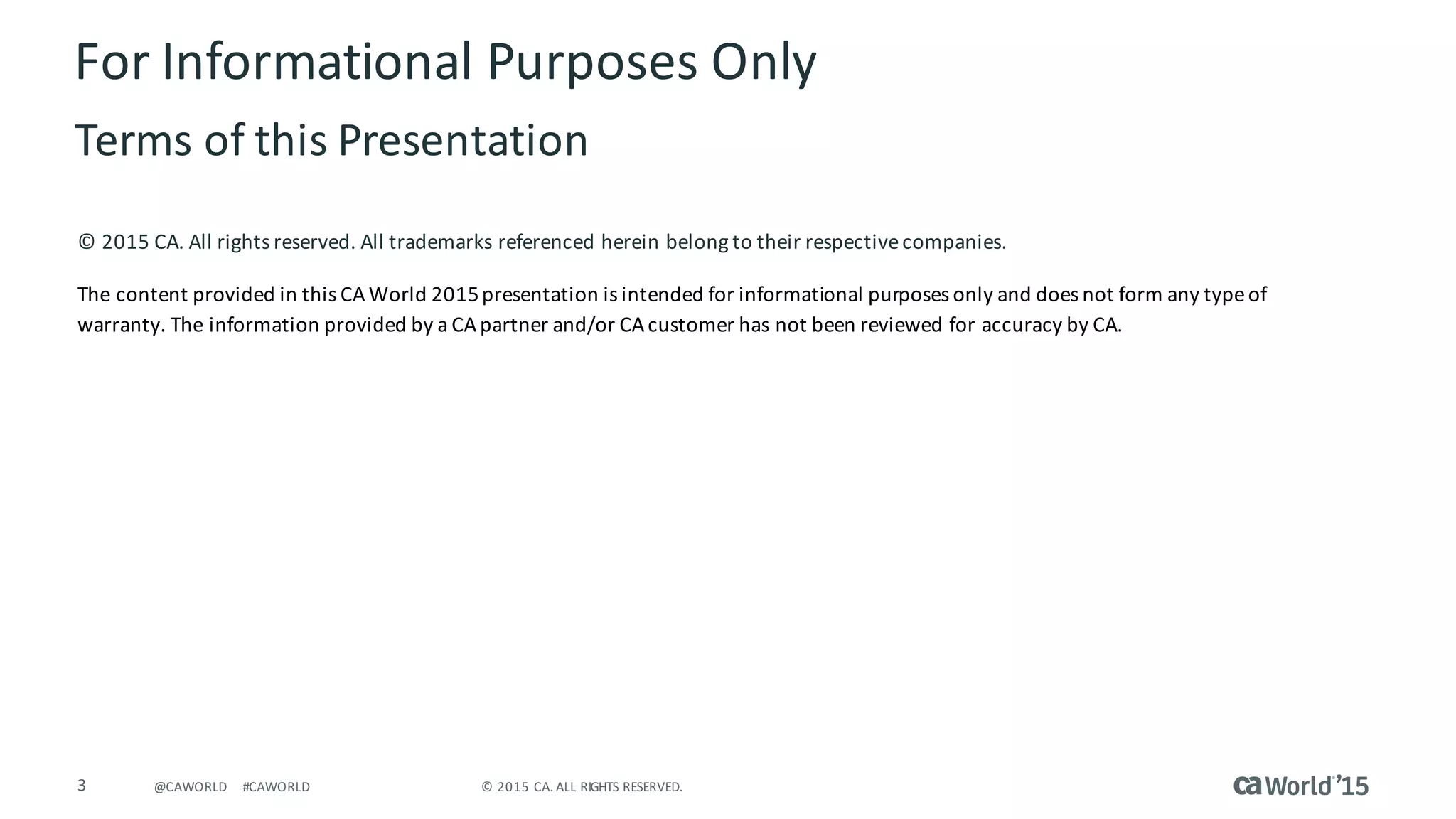

For Informational Purposes Only
Terms of this Presentation

Agenda
WHY MODELS ARE FAILING
A BRIEF HISTORY OF APM ALERTING
CA TECHNOLOGIES DIFFERENTIAL ANALYSIS
MODELS ARE MADE TO BE BROKEN
DATA-DRIVEN DIVE INTO AUTOMATIC ALERTING MODELS
SHEWHART SAVES THE DAY
1
2
3
4
5
6

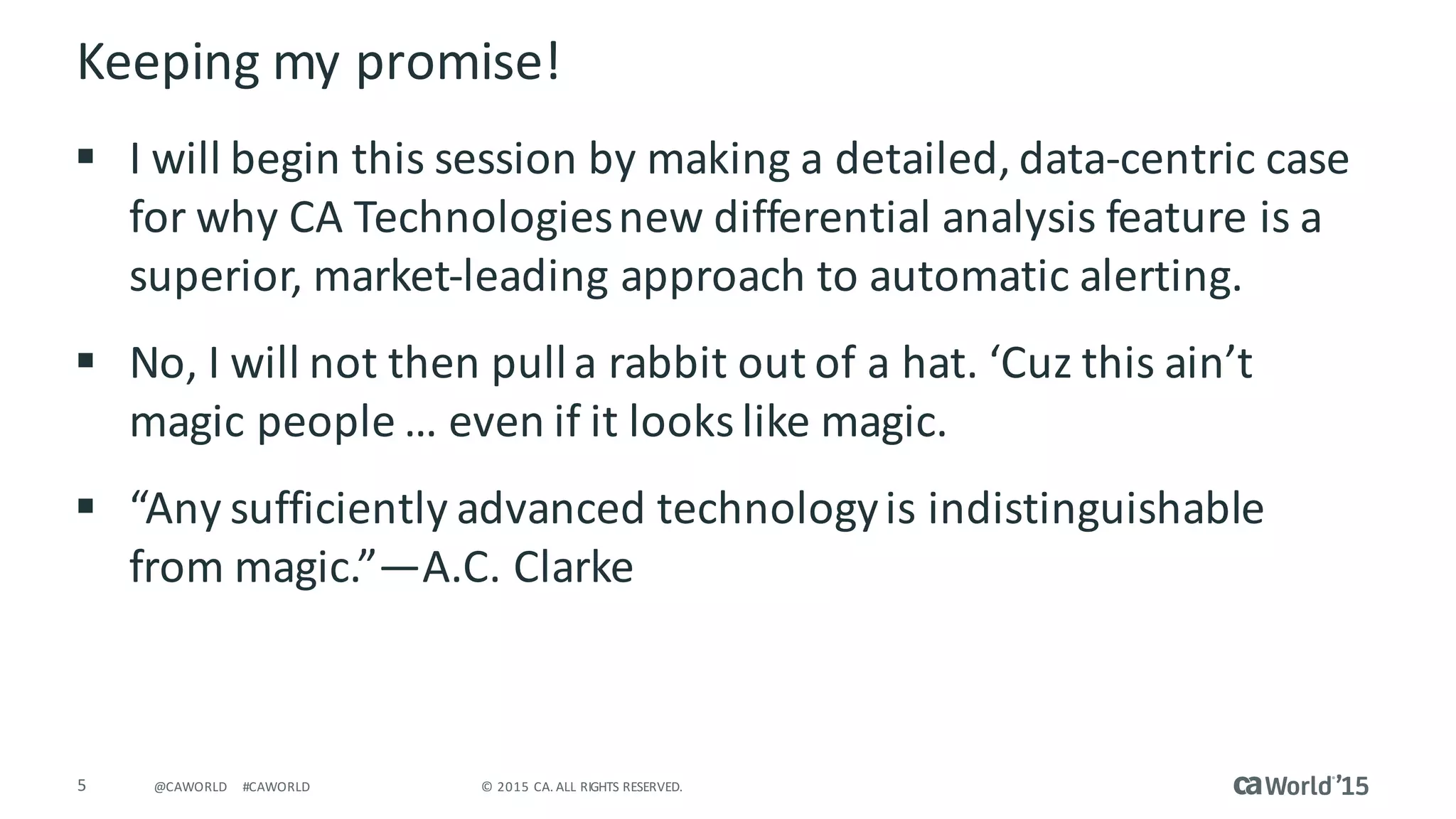

Keeping my promise!
§ I will begin this session by making a detailed, data-centric case
for why CA Technologies new differential analysis feature is a
superior, market-leading approach to automatic alerting.
§ No, I will not then pull a rabbit out of a hat. ‘Cuz this ain’t
magic people … even if it looks like magic.
§ “Any sufficiently advanced technology is indistinguishable
from magic.”—A.C. Clarke

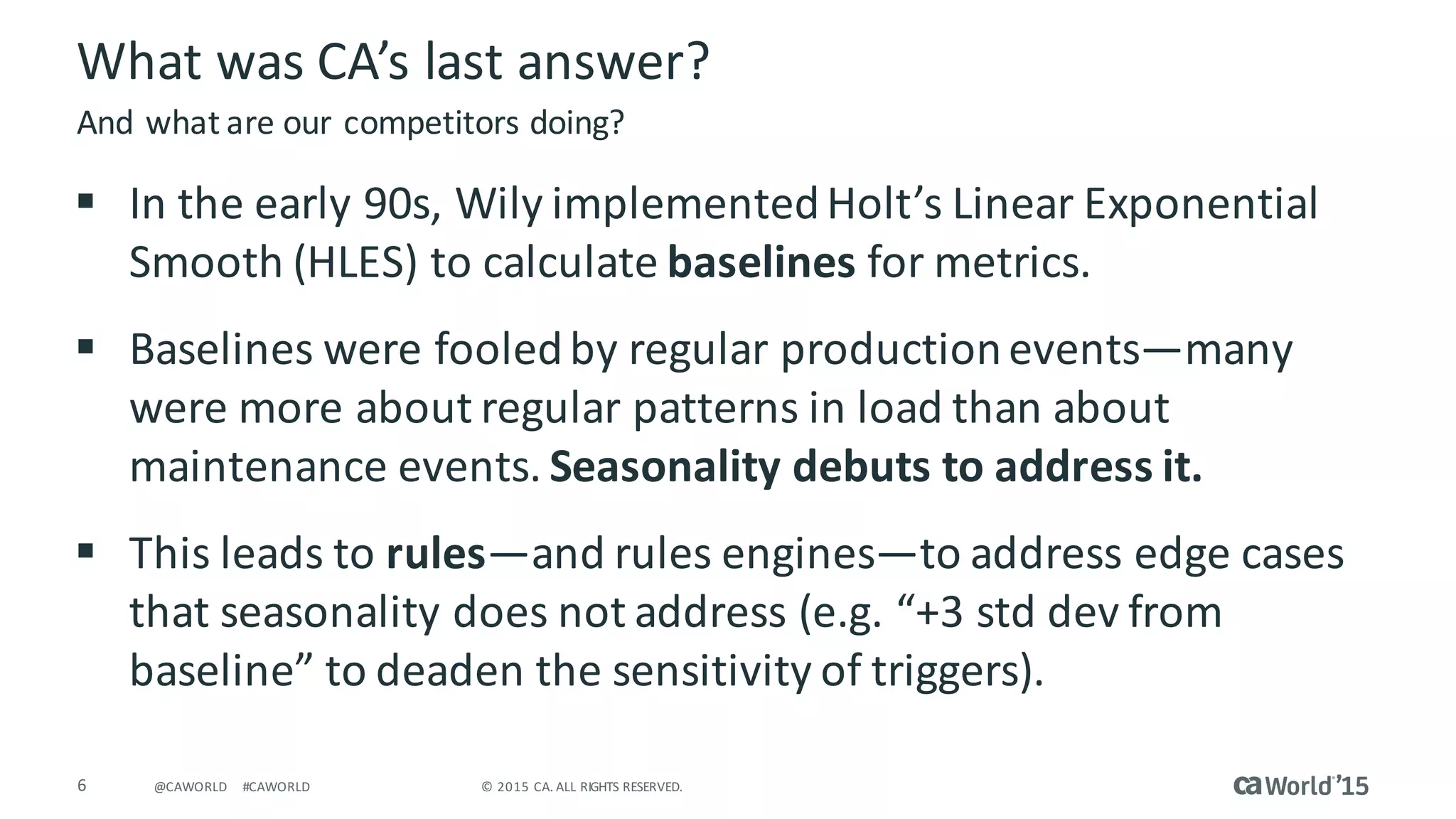

What was CA’s last answer?
§ In the early 90s, Wily implemented Holt’s Linear Exponential
Smooth (HLES) to calculate baselines for metrics.
§ Baselines were fooled by regular production events—many
were more about regular patterns in load than about
maintenance events. Seasonality debuts to address it.
§ This leads to rules—and rules engines—to address edge cases
that seasonality does not address (e.g. “+3 std dev from
baseline” to deaden the sensitivity of triggers).
And what are our competitors doing?

What’s the problem with the state-of-the-art?
§ As the following slides will explain, seasonal baselines miss
problems that you don’t want to miss.
§ Inevitably, they also report too often.
§ When they do, you have to write rules resolve the issue with
your issues.
§ Now you’ve failed to find the automatic alerting grail.
§ It may actually be more efficient to go back to writing static
thresholds for your key components.
Or, a good reason for teaching you some interesting math.

440
460
480
500
520
540
560
580
600
620
Average Response Time
+1 StdDev
+2 StdDev
+3 StdDev

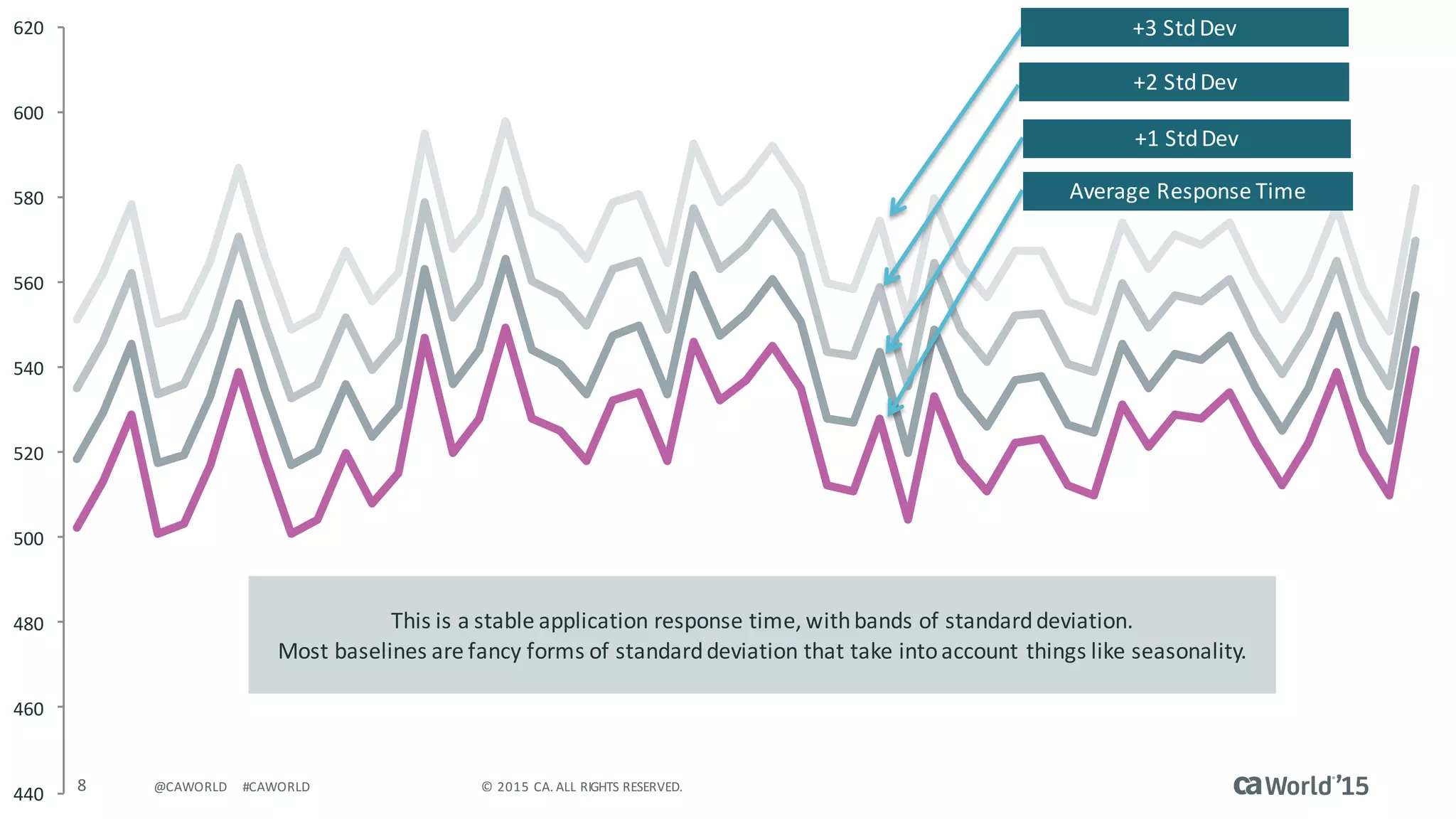

This is a stable application response time, with bands of standard deviation.
Most baselines are fancy forms of standard deviation that take into account things like seasonality.

0
200
400
600
800
1000
1200
1400
1600
1800

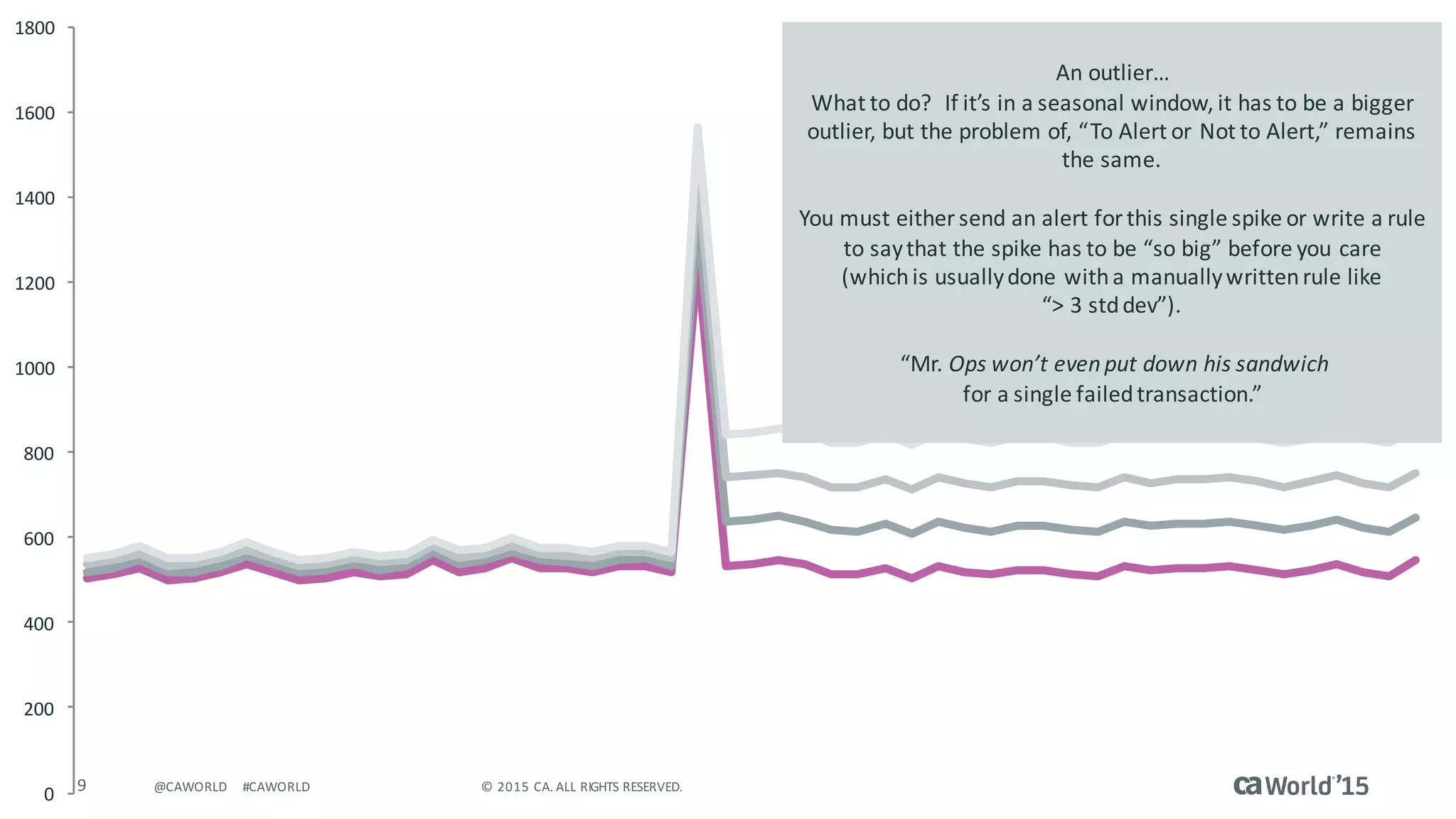

An outlier…
What to do? If it’s in a seasonal window, it has to be a bigger
outlier, but the problem of, “To Alert or Not to Alert,” remains
the same.
You must either send an alert for this single spike or write a rule
to say that the spike has to be “so big” before you care
(which is usually done with a manually written rule like
“> 3 stddev”).
“Mr. Ops won’t even put down his sandwich
for a single failed transaction.”

0
500
1000
1500
2000
2500

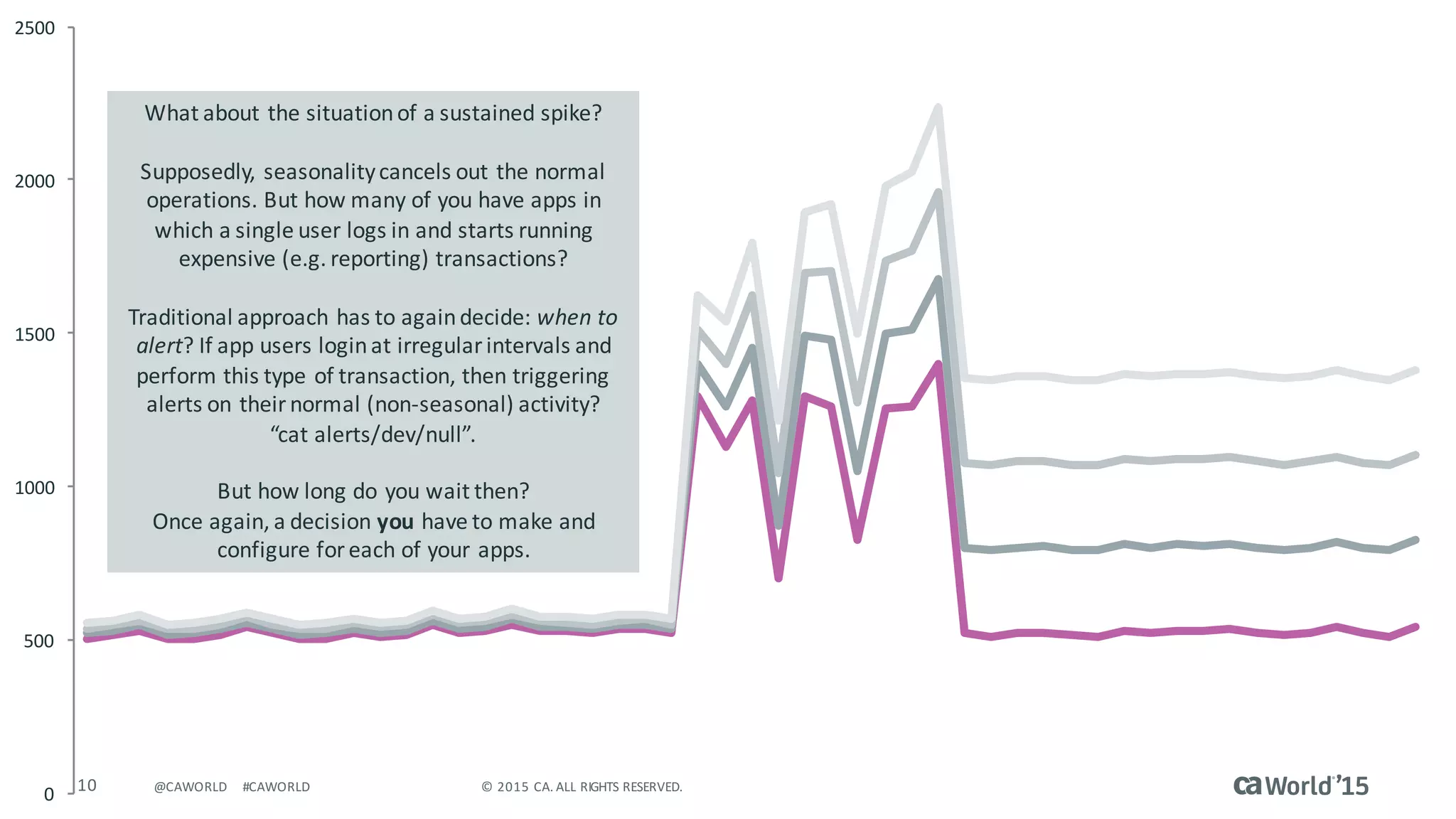

What about the situation of a sustained spike?
Supposedly, seasonality cancels out the normal
operations. But how many of you have apps in
which a single user logs in and starts running
expensive (e.g. reporting) transactions?
Traditional approach has to again decide: when to
alert? If app users login at irregular intervals and
perform this type of transaction, then triggering
alerts on their normal (non-seasonal) activity?
“cat alerts/dev/null”.
But how long do you wait then?
Once again, a decision you have to make and
configure for each of your apps.

0
500
1000
1500
2000
2500
3000

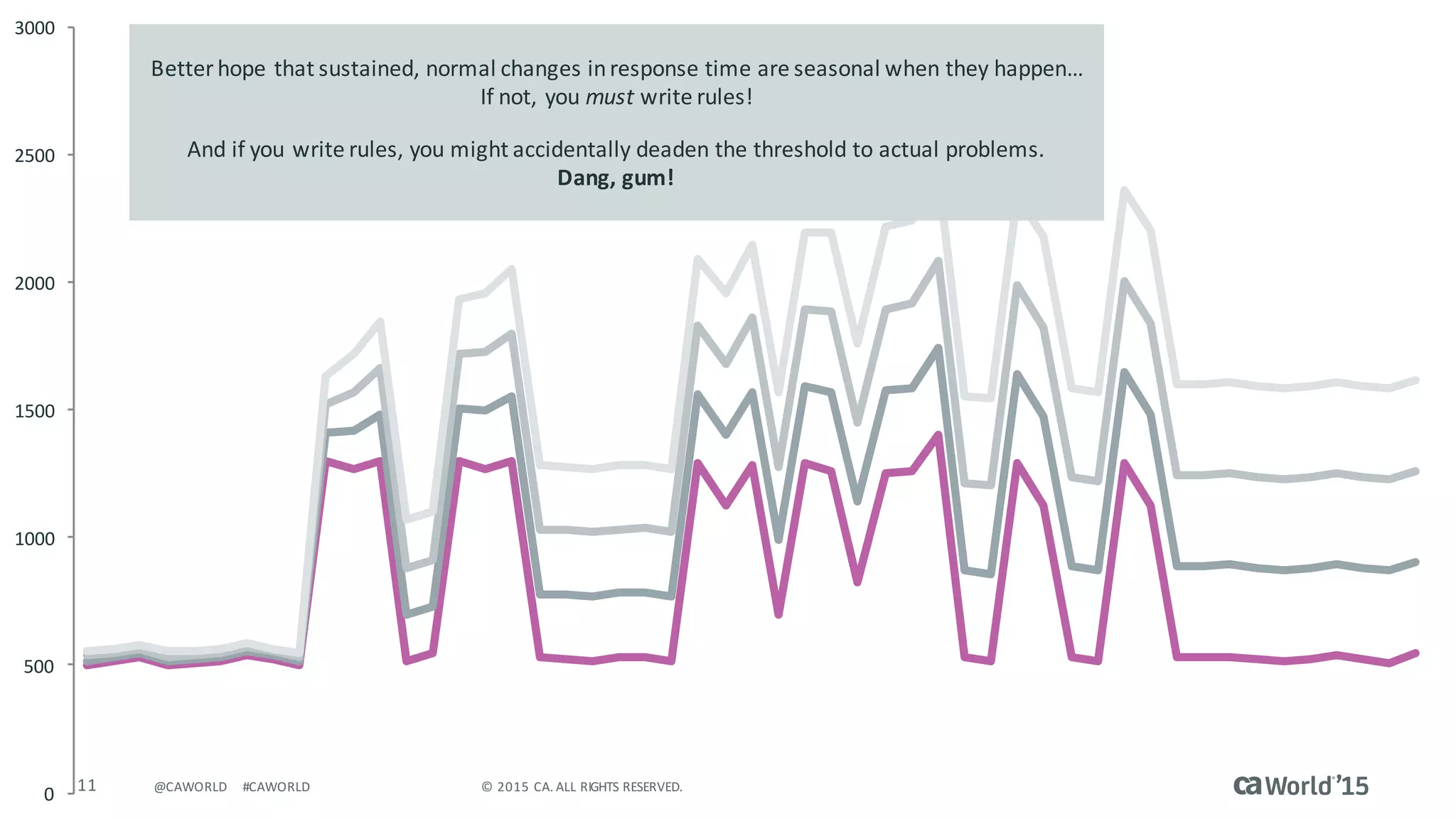

Better hope that sustained, normal changes in response time are seasonal when they happen…
If not, you must write rules!
And if you write rules, you might accidentally deaden the threshold to actual problems.
Dang, gum!

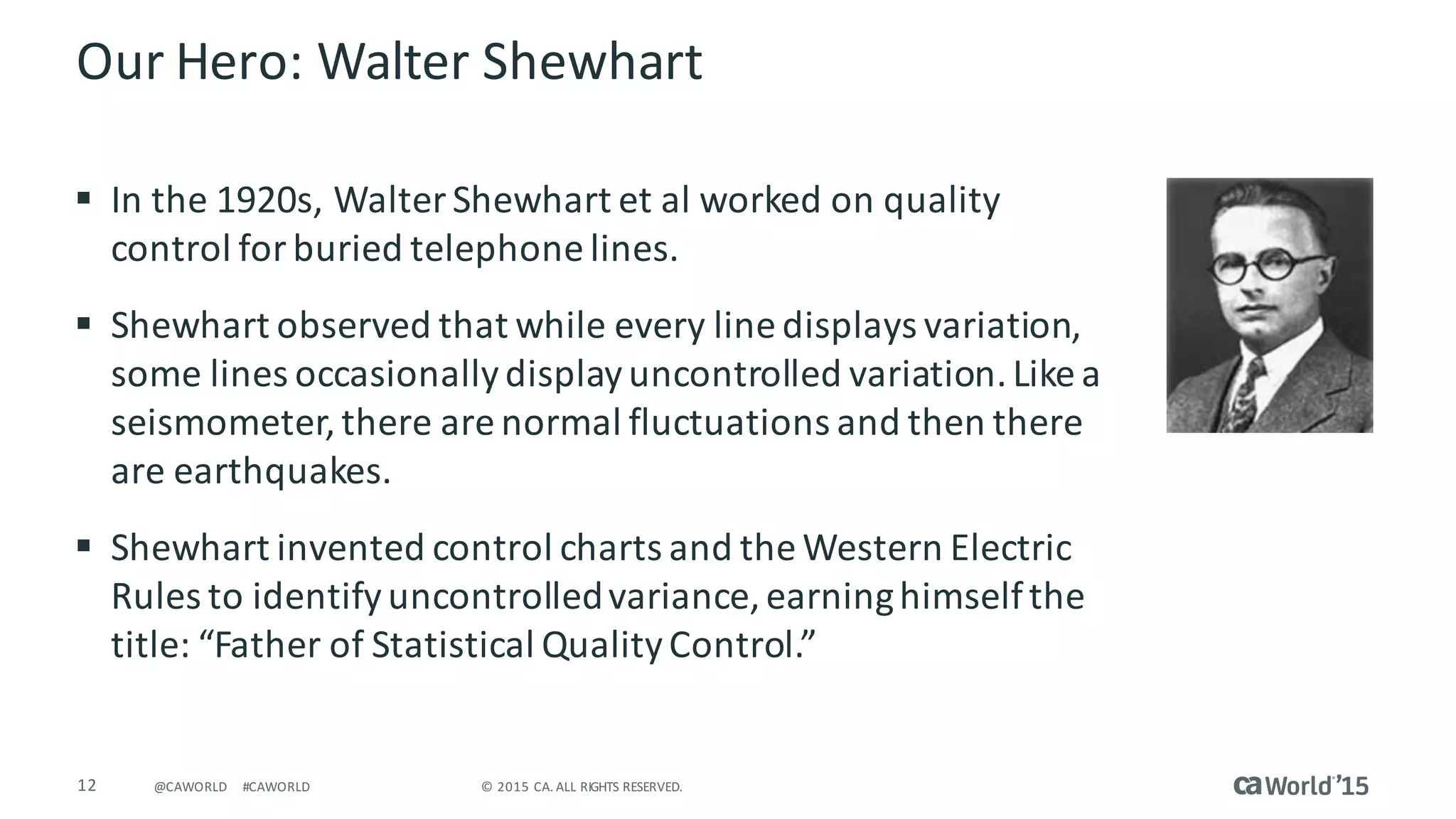

Our Hero: Walter Shewhart
§ In the 1920s, Walter Shewhart et al worked on quality
control for buried telephone lines.
§ Shewhart observed that while every line displays variation,
some lines occasionally display uncontrolled variation. Like a
seismometer, there are normal fluctuations and then there
are earthquakes.
§ Shewhart invented control charts and the Western Electric
Rules to identify uncontrolled variance, earning himself the
title: “Father of Statistical Quality Control.”

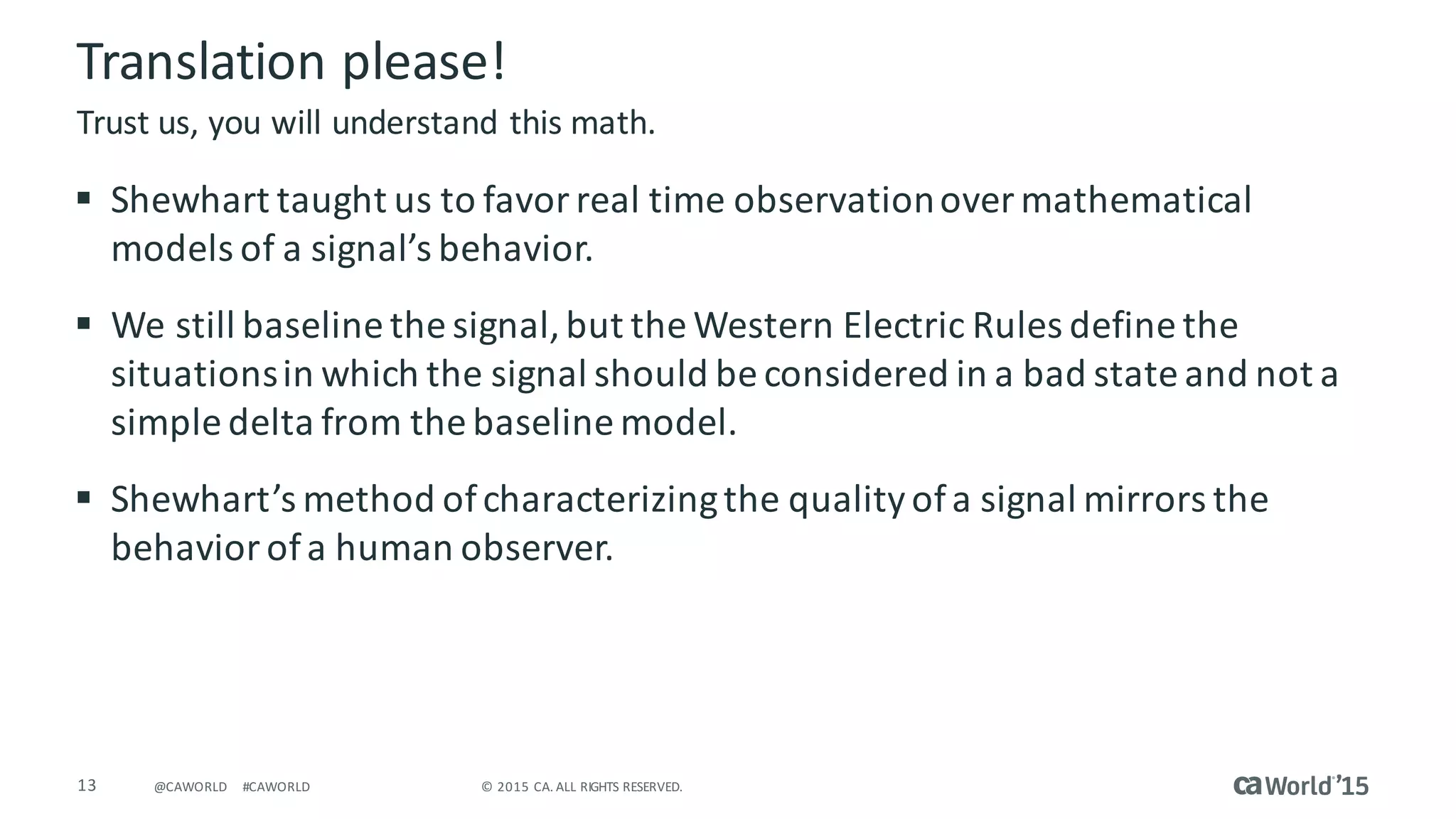

Translation please!
§ Shewhart taught us to favor real time observation over mathematical
models of a signal’s behavior.
§ We still baseline the signal, but the Western Electric Rules define the
situations in which the signal should be considered in a bad state and not a
simple delta from the baseline model.
§ Shewhart’s method of characterizing the quality of a signal mirrors the
behavior of a human observer.
Trust us, you will understand this math.

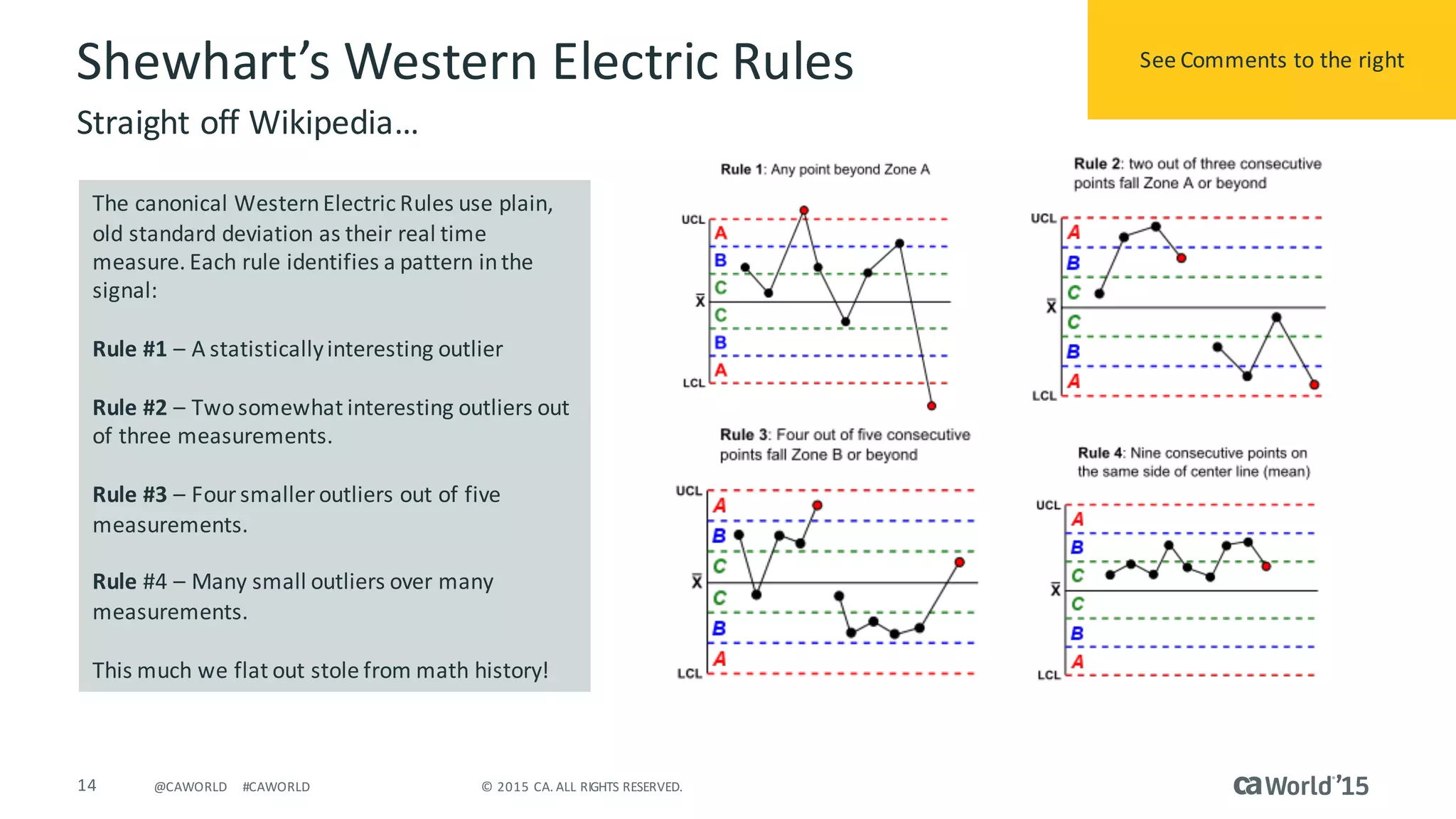

Shewhart’s Western Electric Rules
Straight off Wikipedia…
The canonical Western Electric Rules use plain,
old standard deviation as their real time
measure. Each rule identifies a pattern in the
signal:
Rule #1 – A statistically interesting outlier
Rule #2 – Two somewhat interesting outliers out
of three measurements.
Rule #3 – Four smaller outliers out of five
measurements.
Rule #4 – Many small outliers over many
measurements.
This much we flat out stole from math history!
See Comments to the right

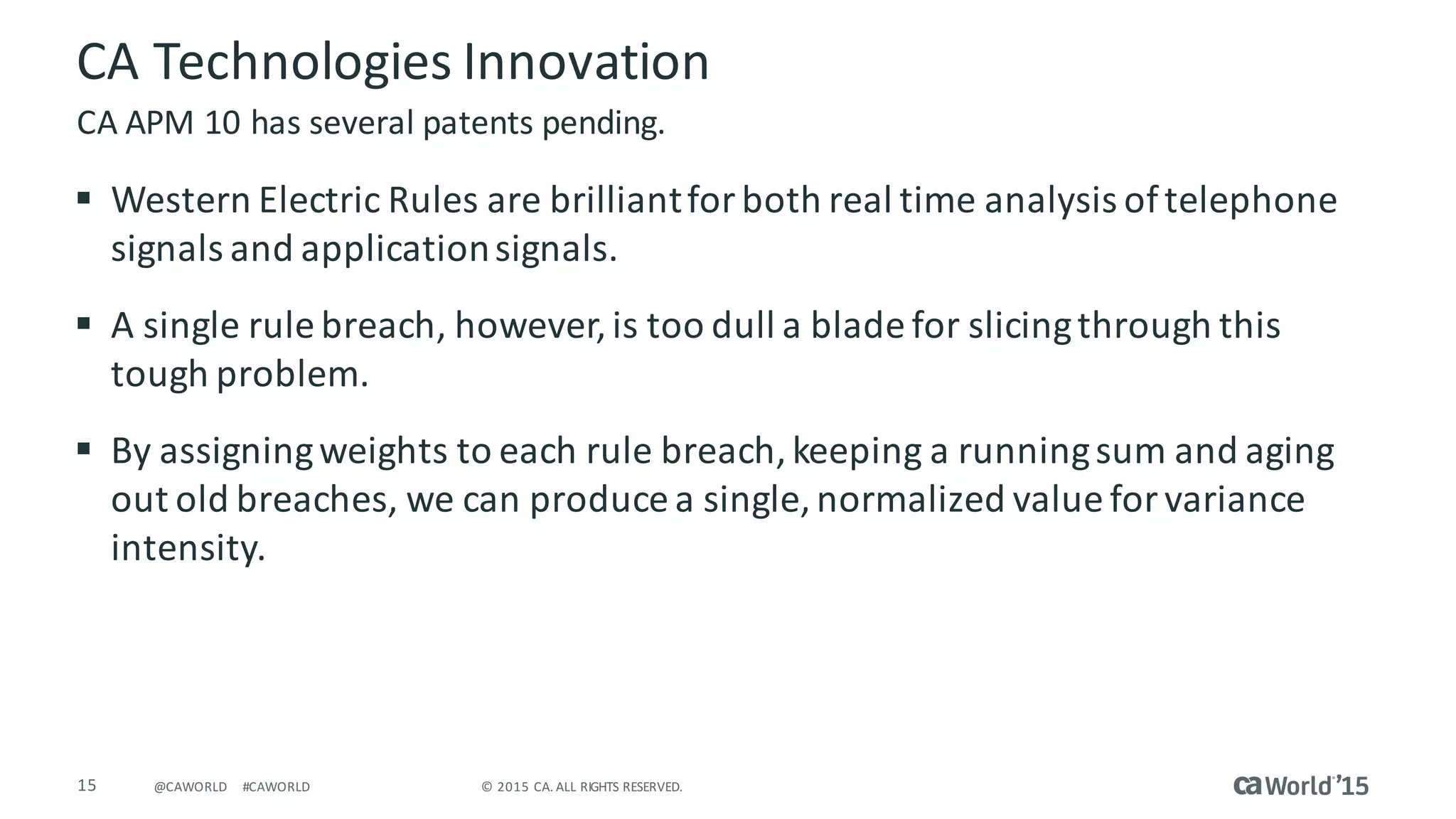

CA Technologies Innovation
§ Western Electric Rules are brilliant for both real time analysis of telephone
signals and application signals.
§ A single rule breach, however, is too dull a blade for slicing through this
tough problem.
§ By assigning weights to each rule breach, keeping a running sum and aging
out old breaches, we can produce a single, normalized value for variance
intensity.
CA APM 10 has several patents pending.

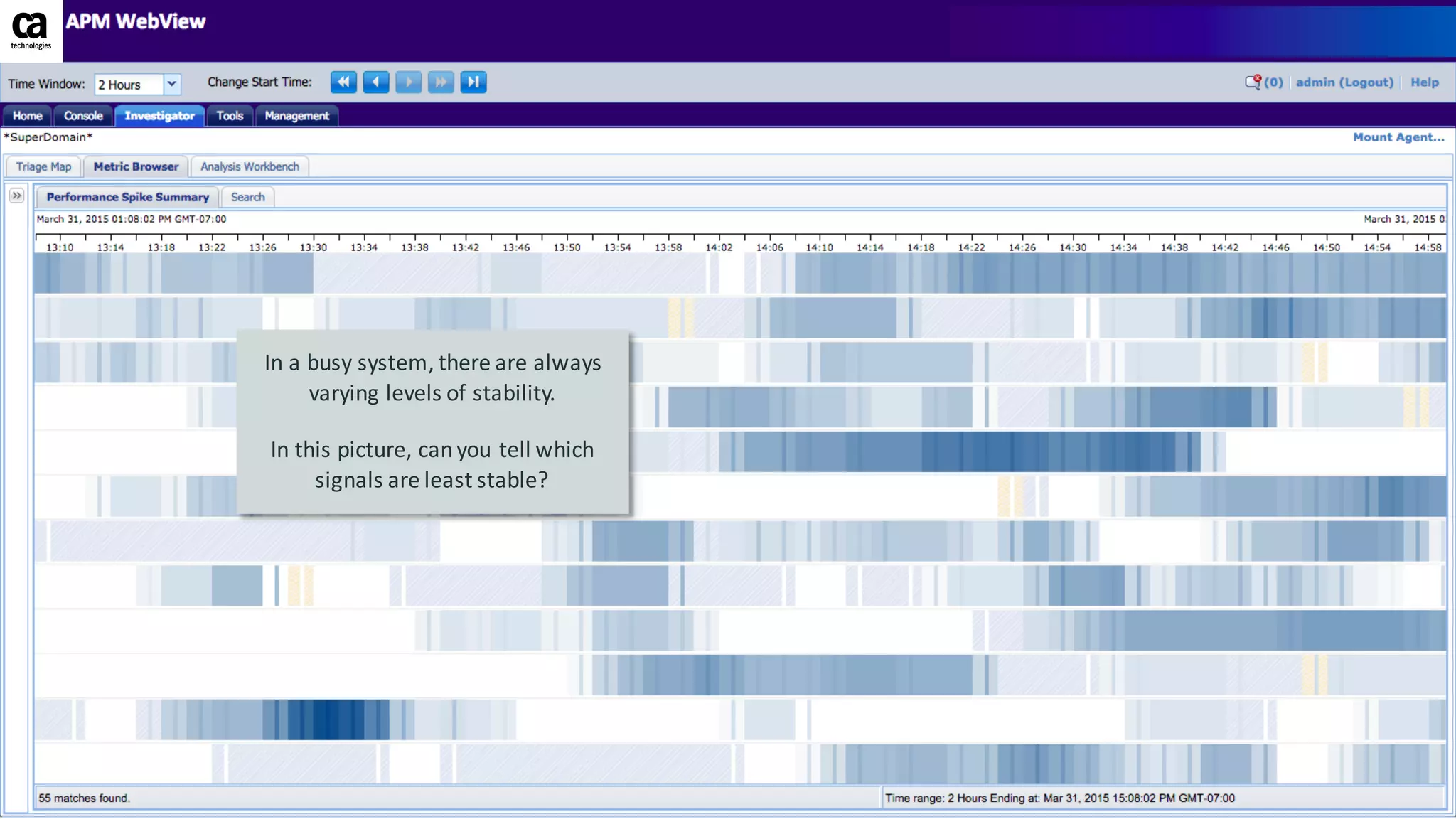

In a busy system, there are always
varying levels of stability.
In this picture, can you tell which
signals are least stable?

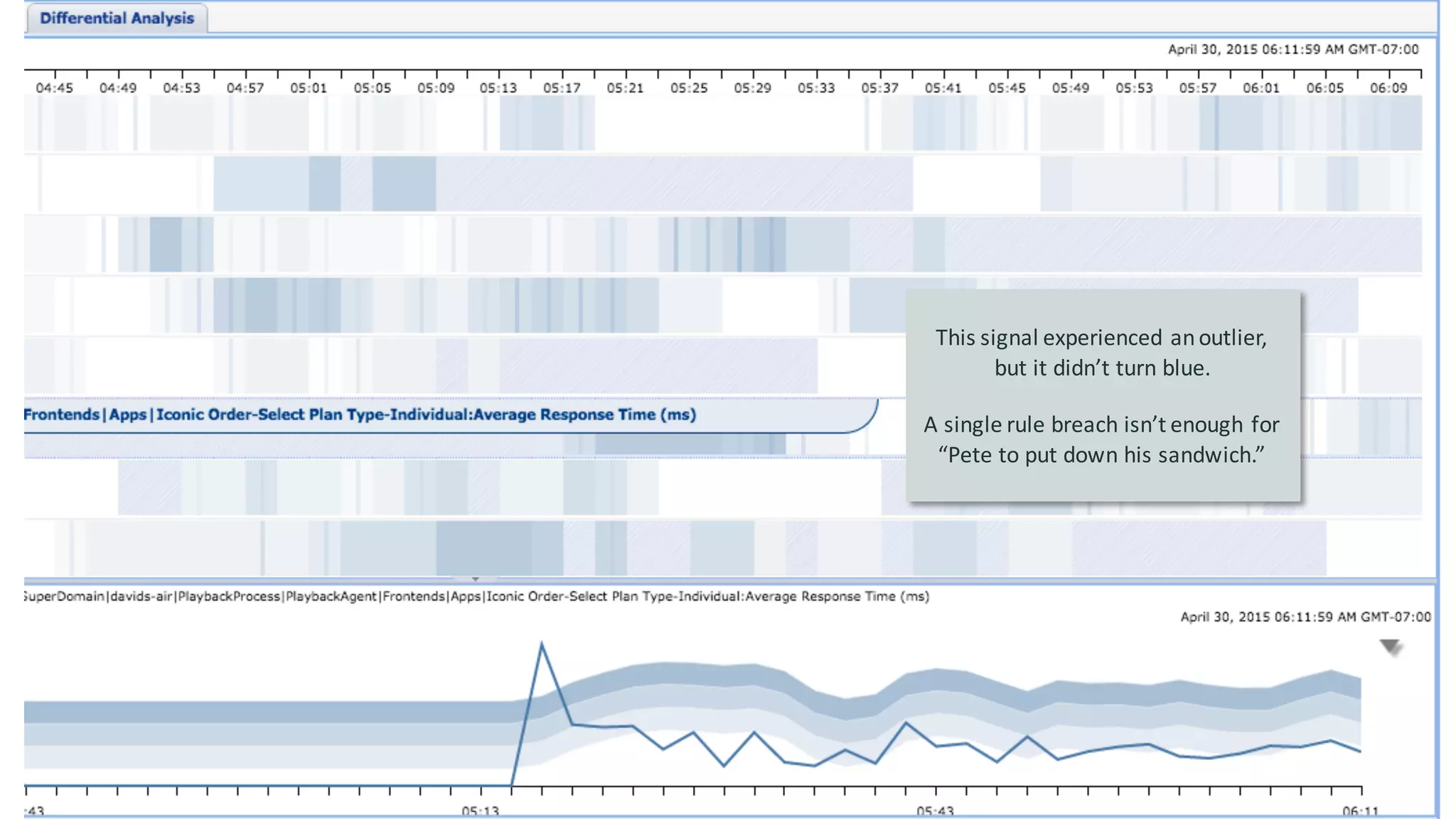

This signal experienced an outlier,
but it didn’t turn blue.
A single rule breach isn’t enough for
“Pete to put down his sandwich.”

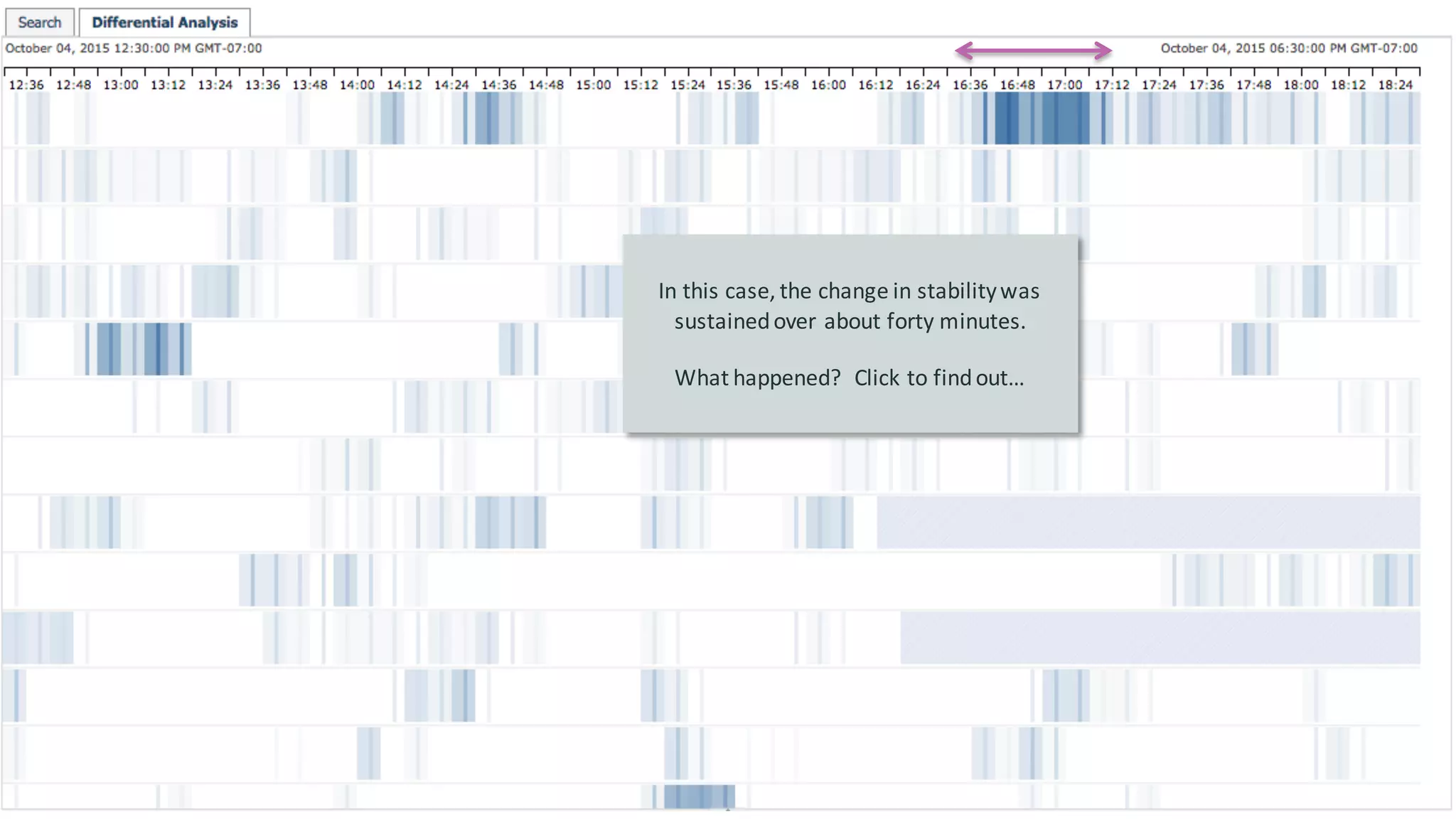

In this case, the change in stability was
sustained over about forty minutes.
What happened? Click to find out…

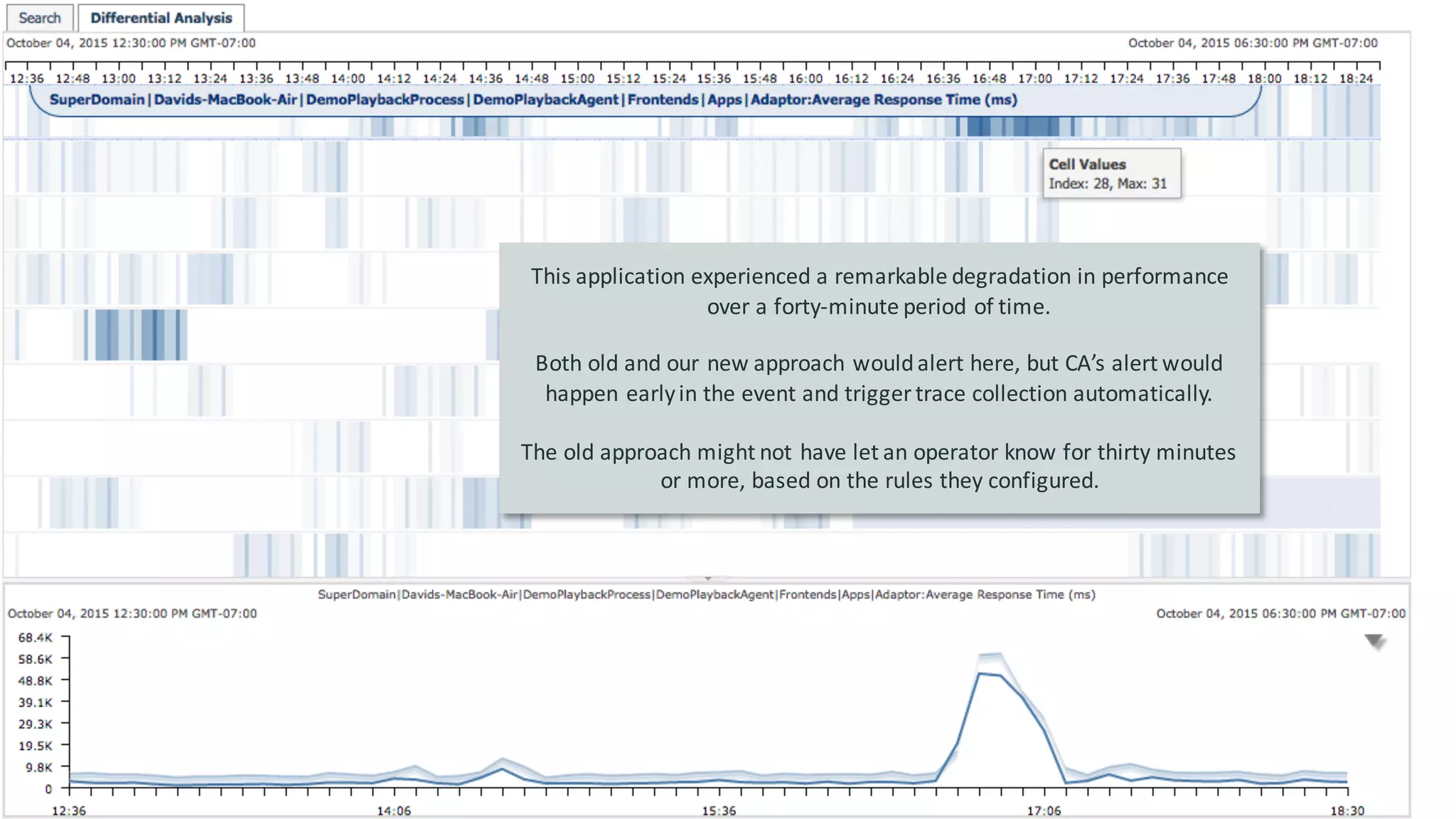

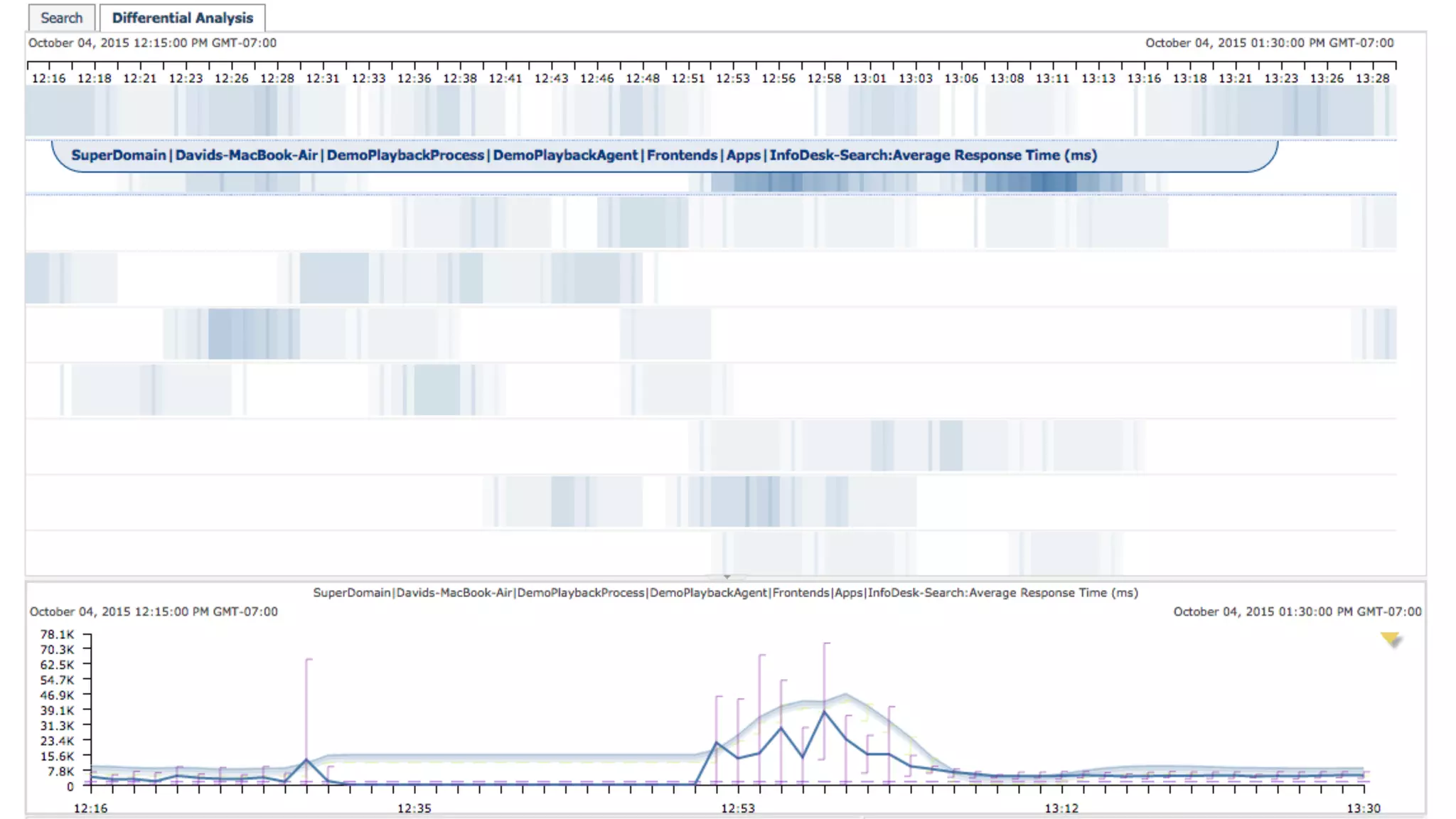

This application experienced a remarkable degradation in performance
over a forty-minute period of time.
Both old and our new approach would alert here, but CA’s alert would
happen early in the event and trigger trace collection automatically.
The old approach might not have let an operator know for thirty minutes
or more, based on the rules they configured.

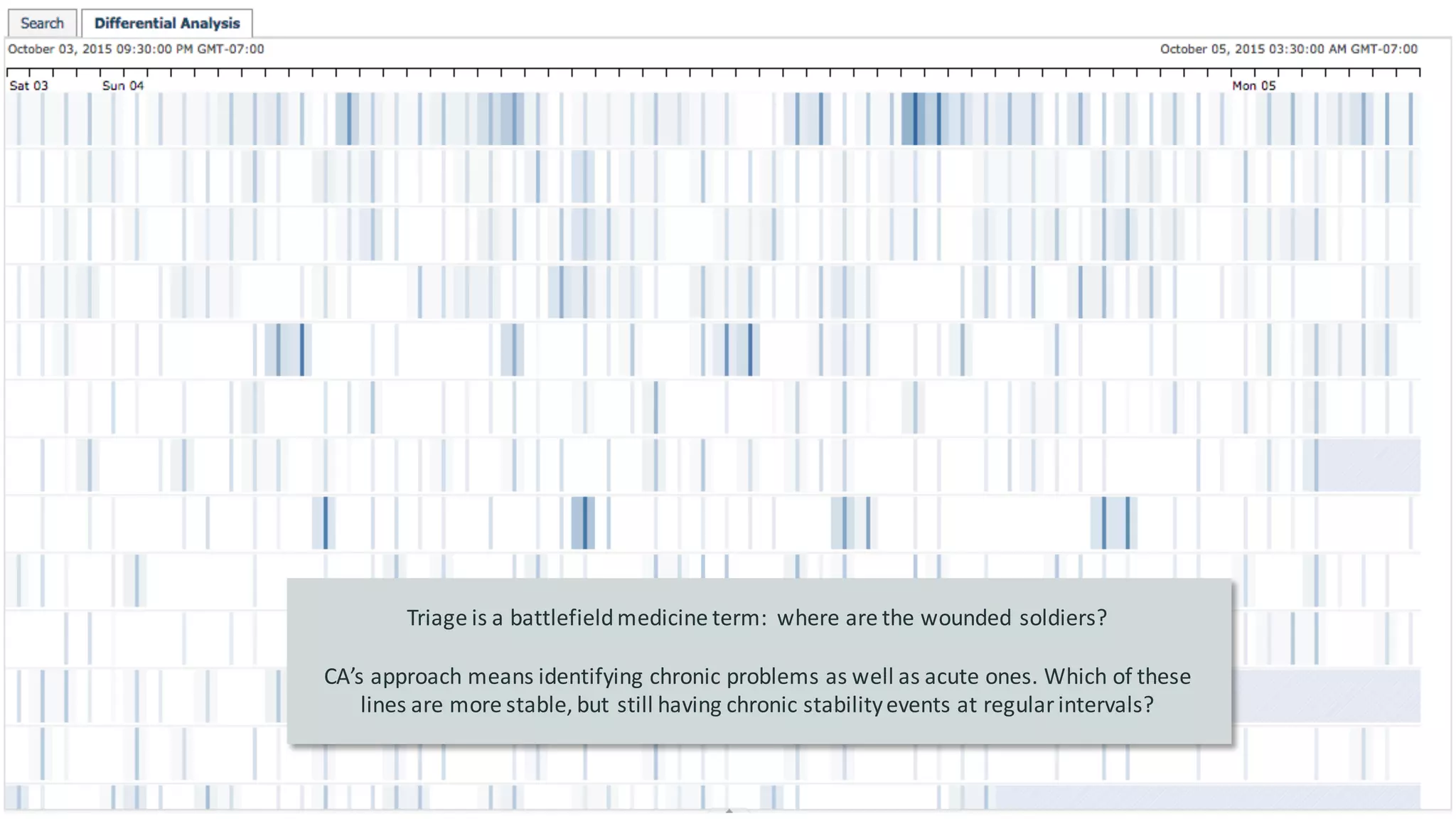

Triage is a battlefield medicine term: where are the wounded soldiers?

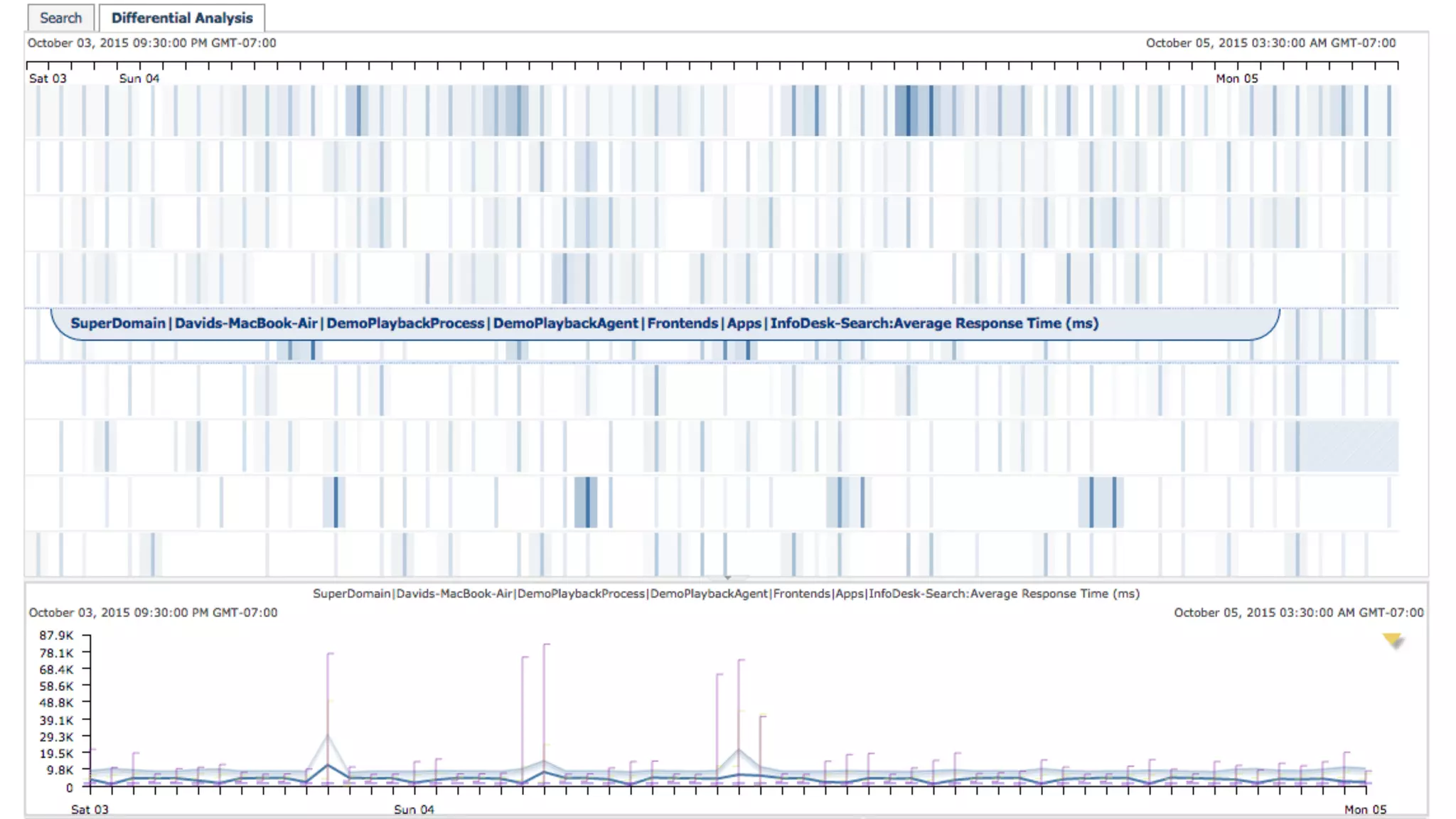

CA’s approach means identifying chronic problems as well as acute ones. Which of these
lines are more stable, but still having chronic stability events at regular intervals?

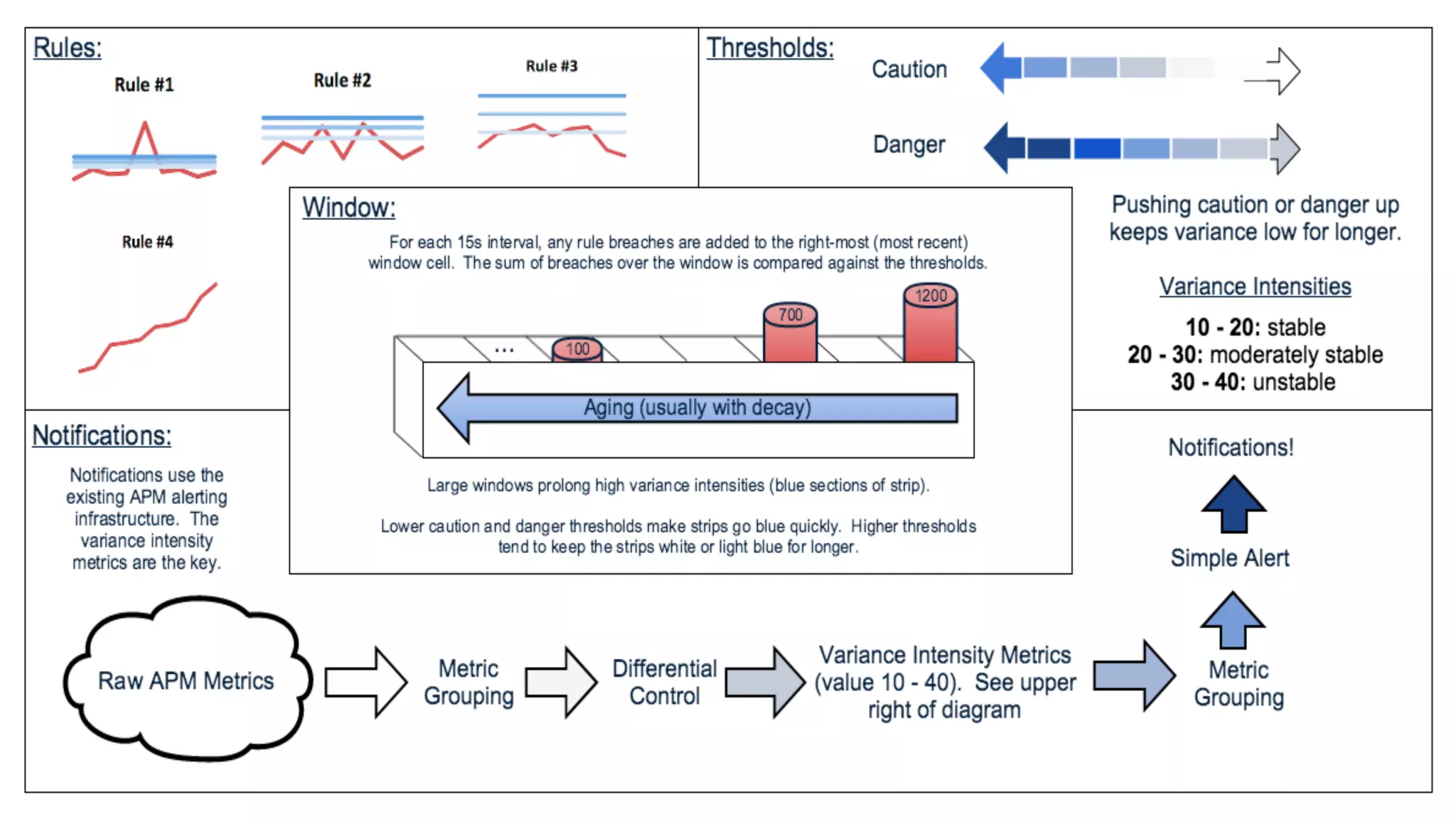

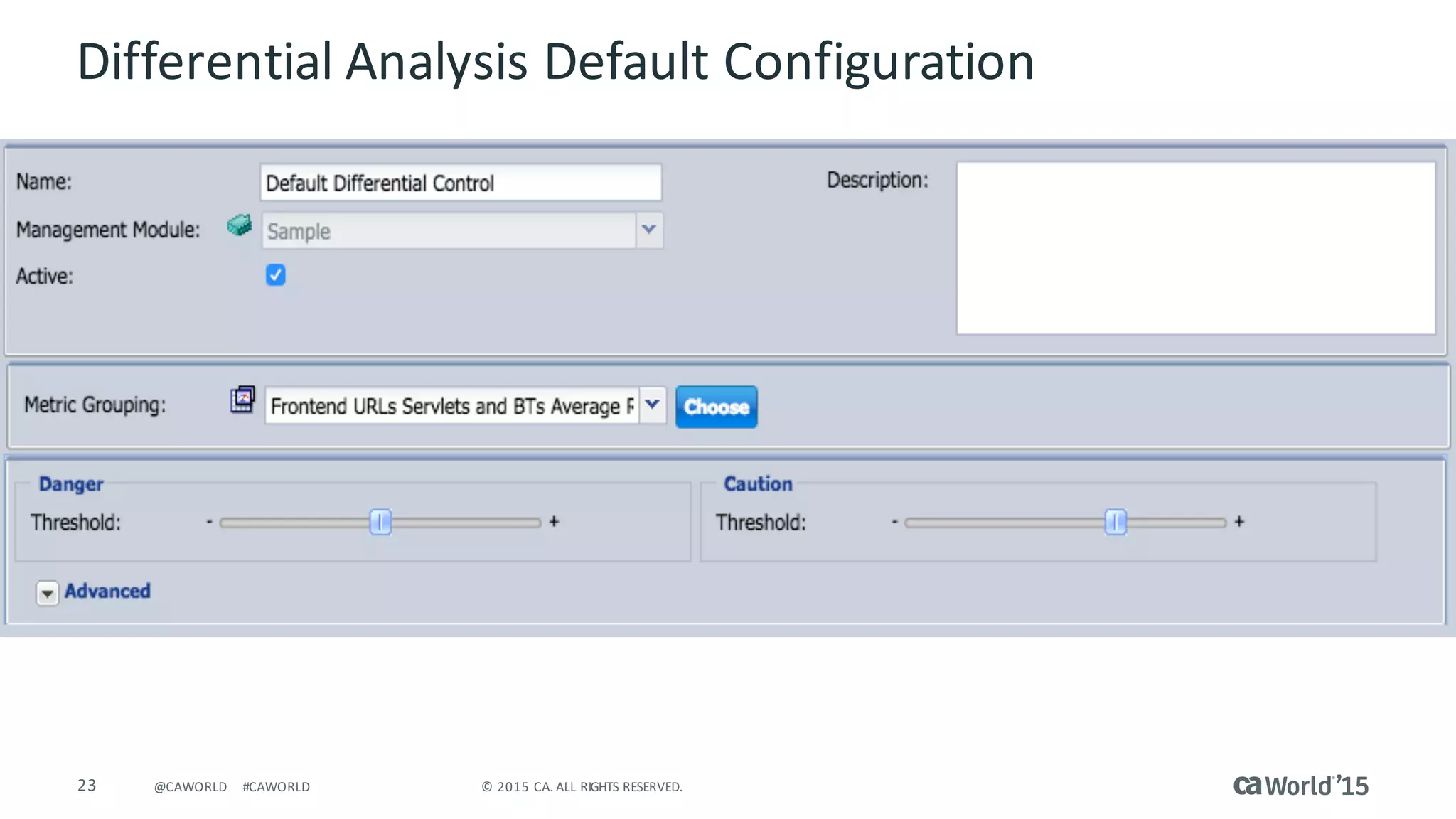

Differential Analysis Default Configuration

CA TECHNOLOGIES TEAM PEGASUS
Clockwise from left:
Prashant Pathak, Mark LoSacco, Weini Yu,
Prasanna Ram Venkatachalam, Naresh Chippada, Carey Feldstein,
Paul Callahan and Sai Krishna Rayanapati.
[not pictured: me]

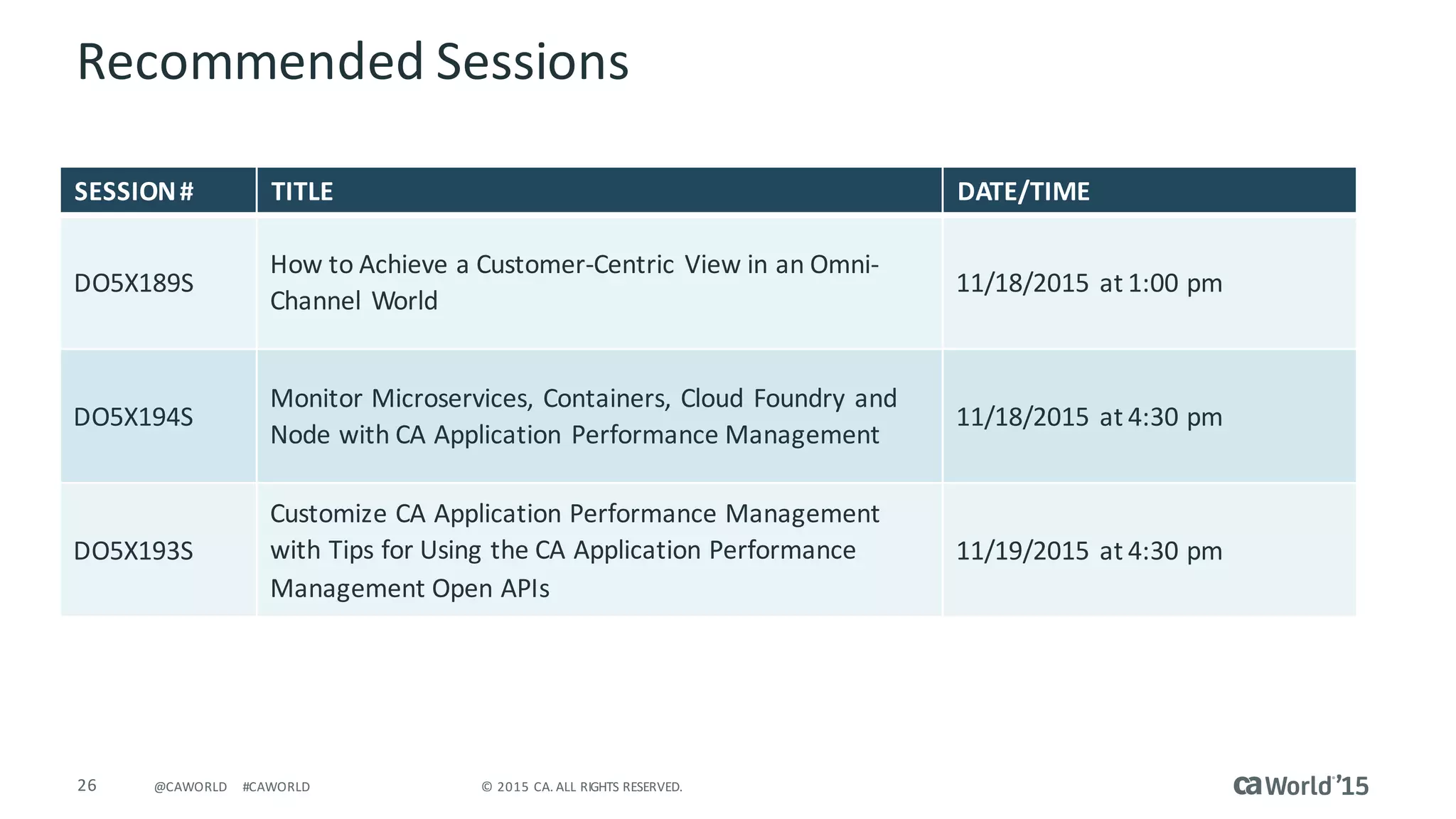

Recommended Sessions
SESSION # TITLE DATE/TIME
DO5X189S
How to Achieve a Customer-Centric View in an Omni-
Channel World
11/18/2015 at 1:00 pm
DO5X194S
Monitor Microservices, Containers, Cloud Foundry and
Node with CA Application Performance Management
11/18/2015 at 4:30 pm
DO5X193S
Customize CA Application Performance Management
with Tips for Using the CA Application Performance
Management Open APIs
11/19/2015 at 4:30 pm

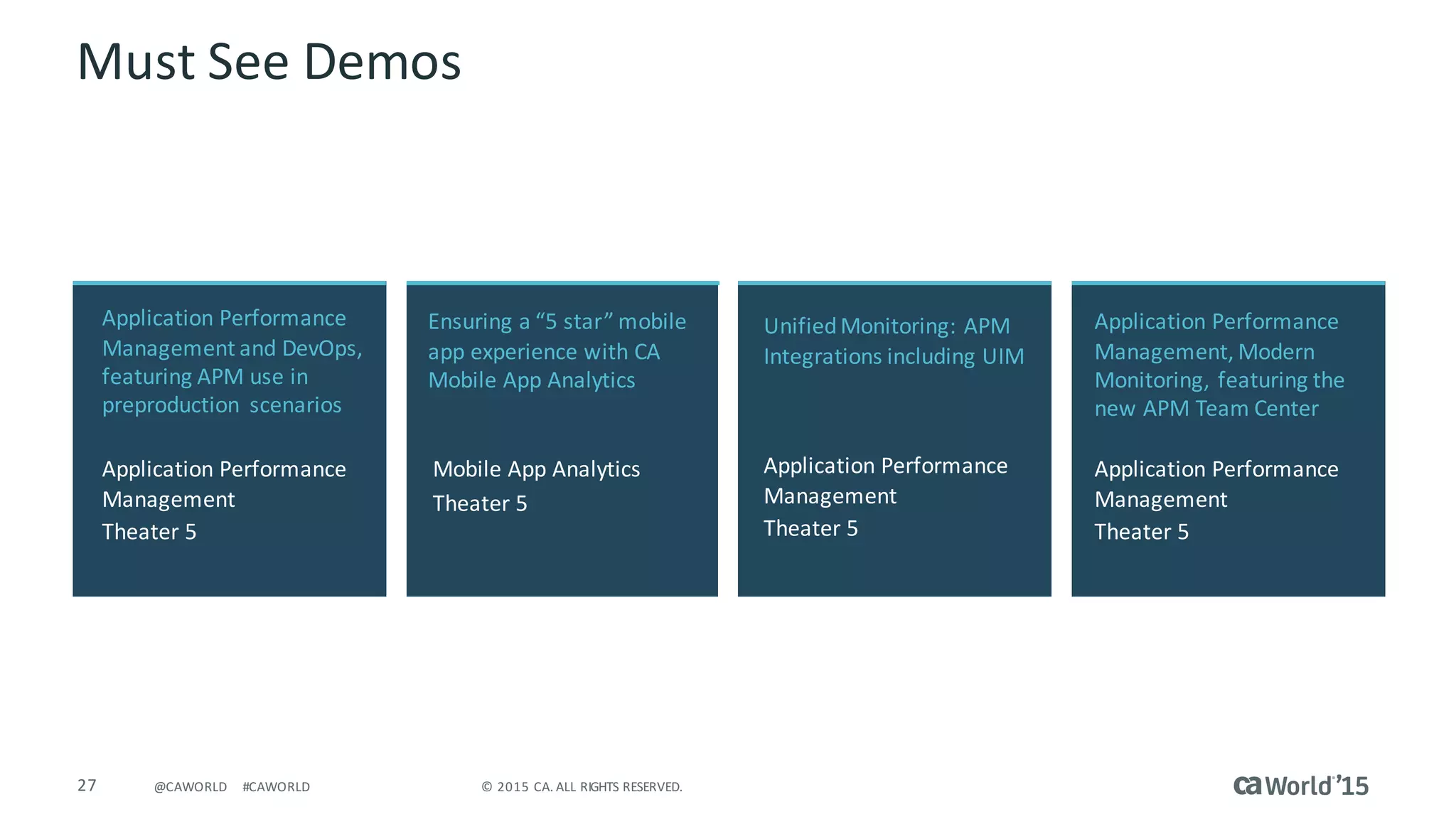

Must See Demos
Application Performance
Management and DevOps,
featuring APM use in
preproduction scenarios
Management
Theater 5
Management, Modern
Monitoring, featuring the
new APM Team Center
Management
Theater 5
Ensuring a “5 star” mobile
app experience with CA
Mobile App Analytics
Mobile App Analytics
Theater 5
Unified Monitoring: APM
Integrations including UIM
Management
Theater 5

Follow On Conversations At…
Smart Bar
Application
Performance
Management
Theater 5
Tech Talks
Application
Performance
Management
Theater 5

Question and Answer
DAVID.B.MARTIN@CA.COM
