Abstract
Database optimization tasks must be continually
performed to help improve performance, scalability,
platform support, standards compliance and usability
while simultaneously reducing costs and risk. Have
difficulty building, testing and deploying new DB2®
database functions and performance? Learn more about
a number of new enhancements for your DB2 database
management tools from CA Technologies.
Dhananjay
Joshi (DJ)
CA Technologies
Sr. Principal Product
Manager
Data Management

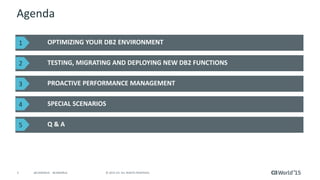

Agenda
OPTIMIZING YOUR DB2 ENVIRONMENT
TESTING, MIGRATING AND DEPLOYING NEW DB2 FUNCTIONS
PROACTIVE PERFORMANCE MANAGEMENT
SPECIAL SCENARIOS
Q & A
1
2
3
4
5

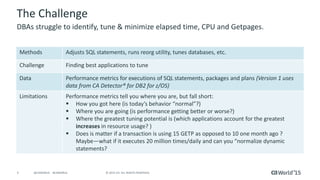

The Challenge
Methods Adjusts SQL statements, runs reorg utility, tunes databases, etc.
Challenge Finding best applications to tune
Data Performance metrics for executions of SQL statements, packages and plans (Version 1 uses
data from CA Detector® for DB2 for z/OS)
Limitations Performance metrics tell you where you are, but fall short:
 How you got here (is today’s behavior “normal”?)
 Where you are going (is performance getting better or worse?)
 Where the greatest tuning potential is (which applications account for the greatest
increases in resource usage? )
 Does is matter if a transaction is using 15 GETP as opposed to 10 one month ago ?
Maybe—what if it executes 20 million times/daily and can you “normalize dynamic
statements?
DBAs struggle to identify, tune & minimize elapsed time, CPU and Getpages.

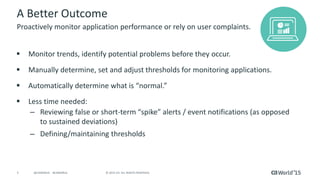

A Better Outcome
 Monitor trends, identify potential problems before they occur.
 Manually determine, set and adjust thresholds for monitoring applications.
 Automatically determine what is “normal.”
 Less time needed:
– Reviewing false or short-term “spike” alerts / event notifications (as opposed
to sustained deviations)
– Defining/maintaining thresholds
Proactively monitor application performance or rely on user complaints.

Application
monitoring
Performance
trend
Threshold
monitoring and
alert
management
Visualize
hotspots

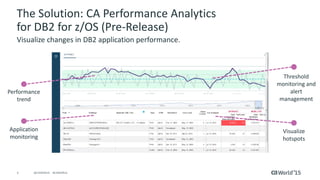

The Solution: CA Performance Analytics
for DB2 for z/OS (Pre-Release)
Visualize changes in DB2 application performance.

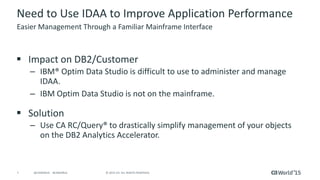

Need to Use IDAA to Improve Application Performance
 Impact on DB2/Customer
– IBM® Optim Data Studio is difficult to use to administer and manage
IDAA.
– IBM Optim Data Studio is not on the mainframe.
 Solution
– Use CA RC/Query® to drastically simplify management of your objects
on the DB2 Analytics Accelerator.
Easier Management Through a Familiar Mainframe Interface

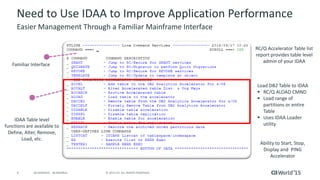

Need to Use IDAA to Improve Application Performance
IDAA Table level
functions are available to
Define, Alter, Remove,
Load, etc.
Familiar Interface
RC/Q Accelerator Table list
report provides table level
admin of your IDAA
Load DB2 Table to IDAA
 RC/Q ALOAD CMND
 Load range of
partitions or entire
Table
 Uses IDAA Loader
utility
Ability to Start, Stop,
Display and PING
Accelerator

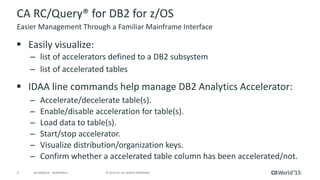

CA RC/Query® for DB2 for z/OS
 Easily visualize:
– list of accelerators defined to a DB2 subsystem
– list of accelerated tables
 IDAA line commands help manage DB2 Analytics Accelerator:
– Accelerate/decelerate table(s).
– Enable/disable acceleration for table(s).
– Load data to table(s).
– Start/stop accelerator.
– Visualize distribution/organization keys.
– Confirm whether a accelerated table column has been accelerated/not.

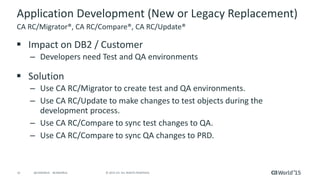

Application Development (New or Legacy Replacement)
 Impact on DB2 / Customer
– Developers need Test and QA environments
 Solution
– Use CA RC/Migrator to create test and QA environments.
– Use CA RC/Update to make changes to test objects during the
development process.
– Use CA RC/Compare to sync test changes to QA.
– Use CA RC/Compare to sync QA changes to PRD.
CA RC/Migrator®, CA RC/Compare®, CA RC/Update®

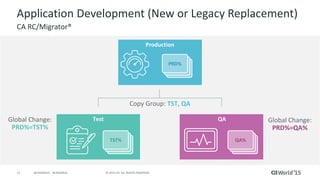

CA RC/Migrator®
Production
Test
Copy Group: TST, QA
Global Change:
PRD%=TST%
Global Change:
PRD%=QA%
PRD%
QA
QA%TST%

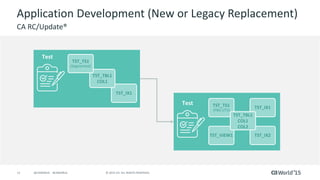

CA RC/Update®
TST_IX1
TST_TBL1
COL1
TST_TS1
(Segmented)
Test
TST_TS1
(PBG UTS)
TST_IX1
TST_VIEW1 TST_IX2
TST_TBL1
COL1
COL2
Test

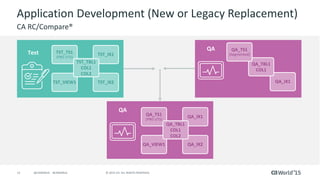

CA RC/Compare®
Test TST_TS1
(PBG UTS)
TST_IX1
TST_VIEW1 TST_IX2
TST_TBL1
COL1
COL2
QA
QA_TS1
(PBG UTS)
QA_IX1
QA_VIEW1 QA_IX2
QA_TBL1
COL1
COL2
QA
QA_IX1
QA_TBL1
COL1
QA_TS1
(Segmented)

QA
QA_TS1
(PBG UTS)
QA_IX1
QA_VIEW1 QA_IX2
QA_TBL1
COL1
COL2

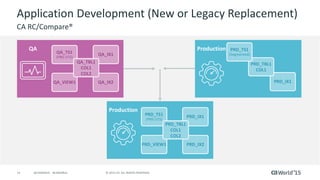

CA RC/Compare®
Production
PRD_TS1
(PBG UTS)
PRD_IX1
PRD_VIEW1 PRD_IX2
PRD_TBL1
COL1
COL2
Production
PRD_IX1
PRD_TBL1
COL1
PRD_TS1
(Segmented)

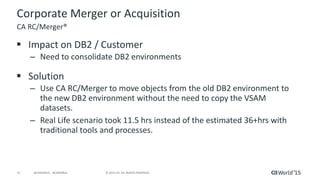

Corporate Merger or Acquisition
 Impact on DB2 / Customer
– Need to consolidate DB2 environments
 Solution
– Use CA RC/Merger to move objects from the old DB2 environment to
the new DB2 environment without the need to copy the VSAM
datasets.
– Real Life scenario took 11.5 hrs instead of the estimated 36+hrs with
traditional tools and processes.
CA RC/Merger®

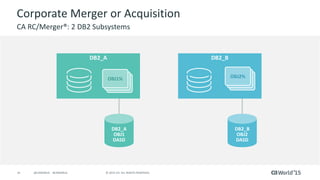

CA RC/Merger®: 2 DB2 Subsystems
DB2_A
OBJ1%
DB2_B
OBJ2%
DB2_B
OBJ2
DASD
DB2_A
OBJ1
DASD

CA RC/Merger® Step 1: Create DB2_A objects on DB2_B
DB2_A
OBJ1%
DB2_A
OBJ1
DASD
DB2_B
OBJ2
DASD
DB2_B
OBJ1
DASD
DB2_B
OBJ1% OBJ2%

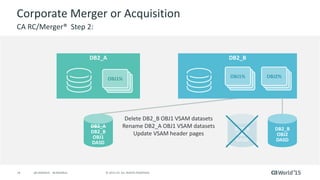

CA RC/Merger® Step 2:
Delete DB2_B OBJ1 VSAM datasets
Rename DB2_A OBJ1 VSAM datasets
Update VSAM header pages
DB2_A
OBJ1%
DB2_B
OBJ1%
DB2_A
DB2_B
OBJ1
DASD
DB2_B
OBJ2
DASD
OBJ2%
DB2_B
OBJ1
DASD

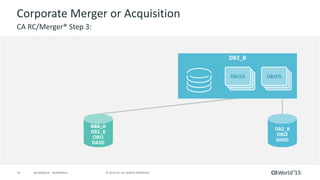

CA RC/Merger® Step 3:
DB2_B
OBJ1%
DB2_A
DB2_B
OBJ1
DASD
DB2_B
OBJ2
DASD
OBJ2%

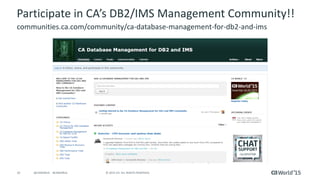

Participate in CA’s DB2/IMS Management Community!!
communities.ca.com/community/ca-database-management-for-db2-and-ims

Recommended Sessions
SESSION # TITLE DATE/TIME
MFX04E
What's New with DB2 Solutions from CA Technologies—
Administration, Performance, Recovery & Analytics
1/17/2015 at 11:00 am
Location: Breakers H
MFX06S
CA's Strategy and Vision for Mainframe Data Management and
Analytics
1/18/2015 at 1:00 pm
Location: Breakers I
MFX07E
Place your vote: Addressing newer Mainframe Database
Management Needs - Data Governance, Analytics and Autonomics,
Big Data and others
1/17/2015 at 9:00 pm
MFX14E Getting the Most out of Your DB2 Investment
1/17/2015 at 10:00 am
MFT05S
Big Iron + Big Data = BIG DEAL! Unlock The Power of Your
Mainframe Data
1/18/2015 at 2:00 pm
Location: Mainframe Theater
MFX15S
Predicting When Your Applications Will Go Off the Rails! Managing
DB2 Application Performance using Analytics
1/18/2015 at 4:30 pm
Location: Breakers I
MFT12T
It's Not a Dream—Conquer Chaos for Your DB2® for z/OS®
Optimization Nightmares
1/18/2015 at 3:00 pm
Location: Tech Talk 6

Must See Demos
Maximize Your
DB2 Tools
Investment
DB2 Tools
Mainframe Area
Station: MNFSE003
Unleash the
Power of
Mainframe Data
vStorm Connect Data
Streaming for Big Data
Mainframe Area
Station: MNFSE001
Maximize Your
Mainframe
Database Value
CA IDMS / CA Datacom
Mainframe Area
Station: MNFSE002
Performance
Analytics
for DB2
DB2 Analytics
Mainframe Area
Station: MNFSE004

Follow On Conversations At…
Smart Bar
DB2 Tools and
Performance Analytics
Mainframe Area on
Expo Floor
Tech Talks
DB2 Tools and
Performance Analytics
Mainframe Area on
Expo Floor

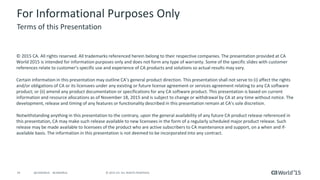

For Informational Purposes Only
