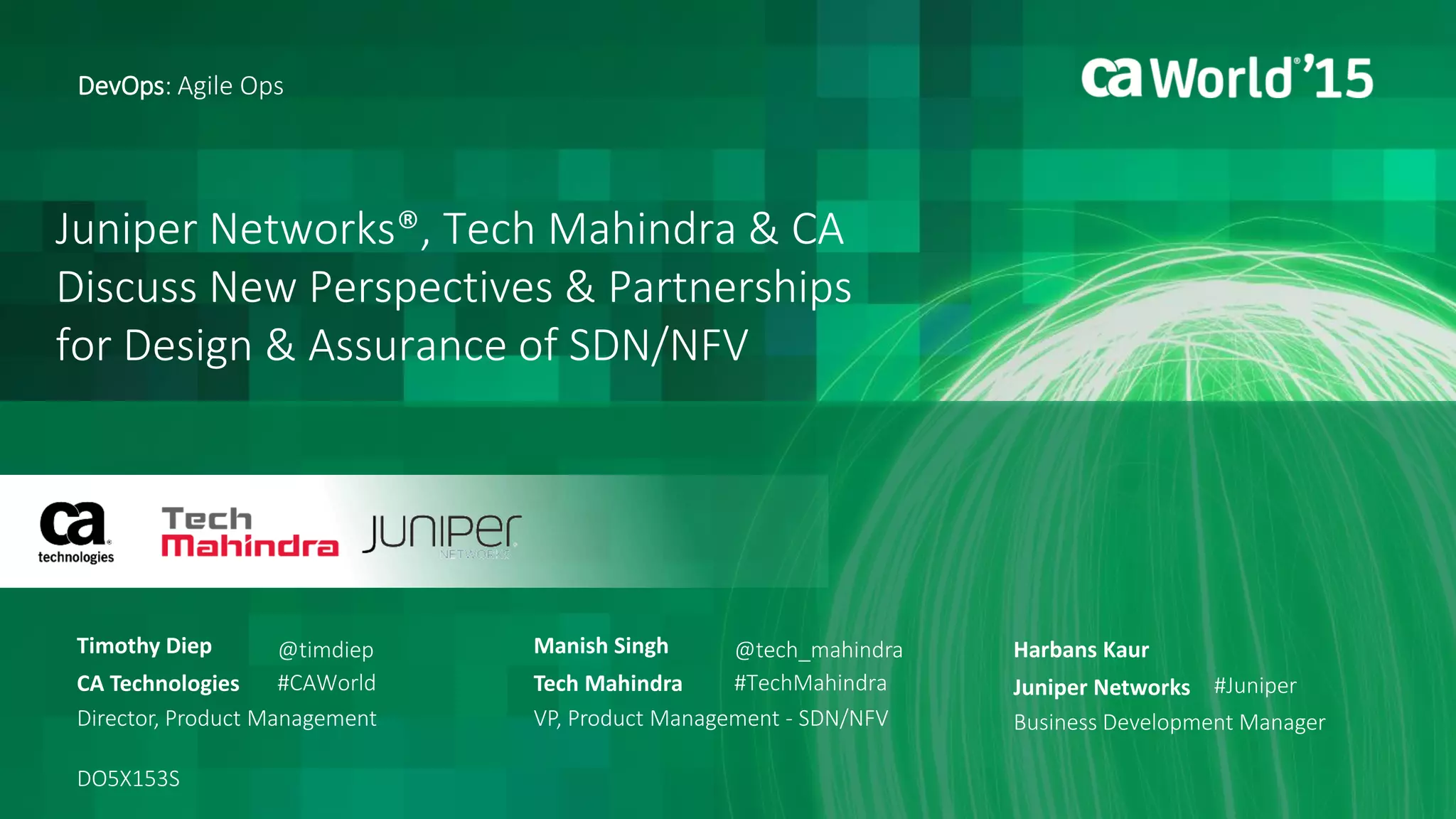

Juniper Networks®, Tech Mahindra & CA Discuss New Perspectives & Partnerships for Design & Assurance of SDN/NFV

Juniper Networks®, Tech Mahindra & CA
Discuss New Perspectives & Partnerships
for Design & Assurance of SDN/NFV
Timothy Diep
DevOps: Agile Ops
CA Technologies
Director, Product Management
DO5X153S
@timdiep
#CAWorld
Manish Singh
Tech Mahindra
VP, Product Management - SDN/NFV
@tech_mahindra
#TechMahindra
Harbans Kaur
Juniper Networks
Business Development Manager
#Juniper

2 © 2015 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD
© 2015 CA. All rights reserved. All trademarks referenced herein belong to their respective companies.
The content provided in this CA World 2015 presentation is intended for informational purposes only and does not form any type
of warranty. The information provided by a CA partner and/or CA customer has not been reviewed for accuracy by CA.

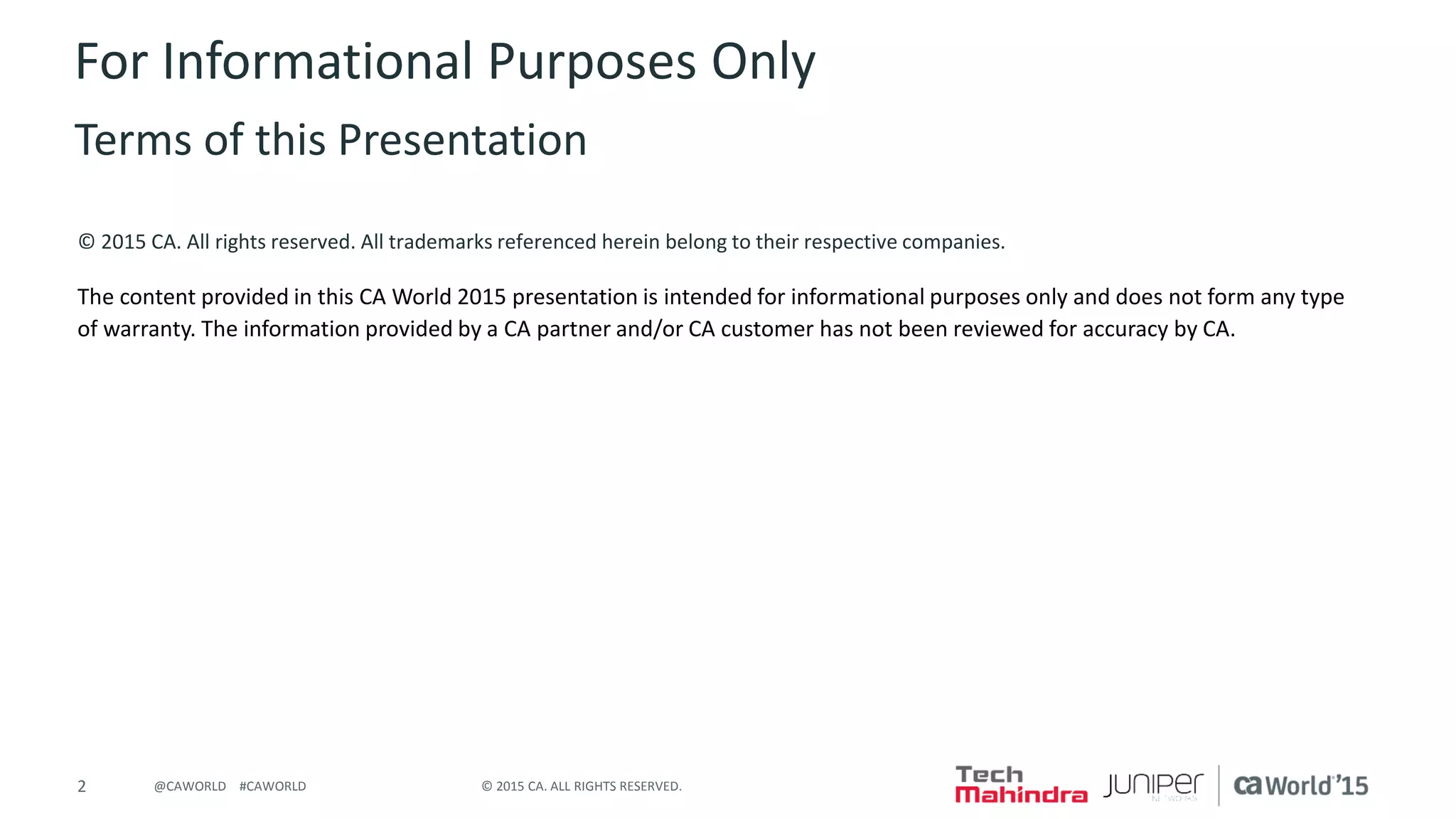

For Informational Purposes Only
Terms of this Presentation

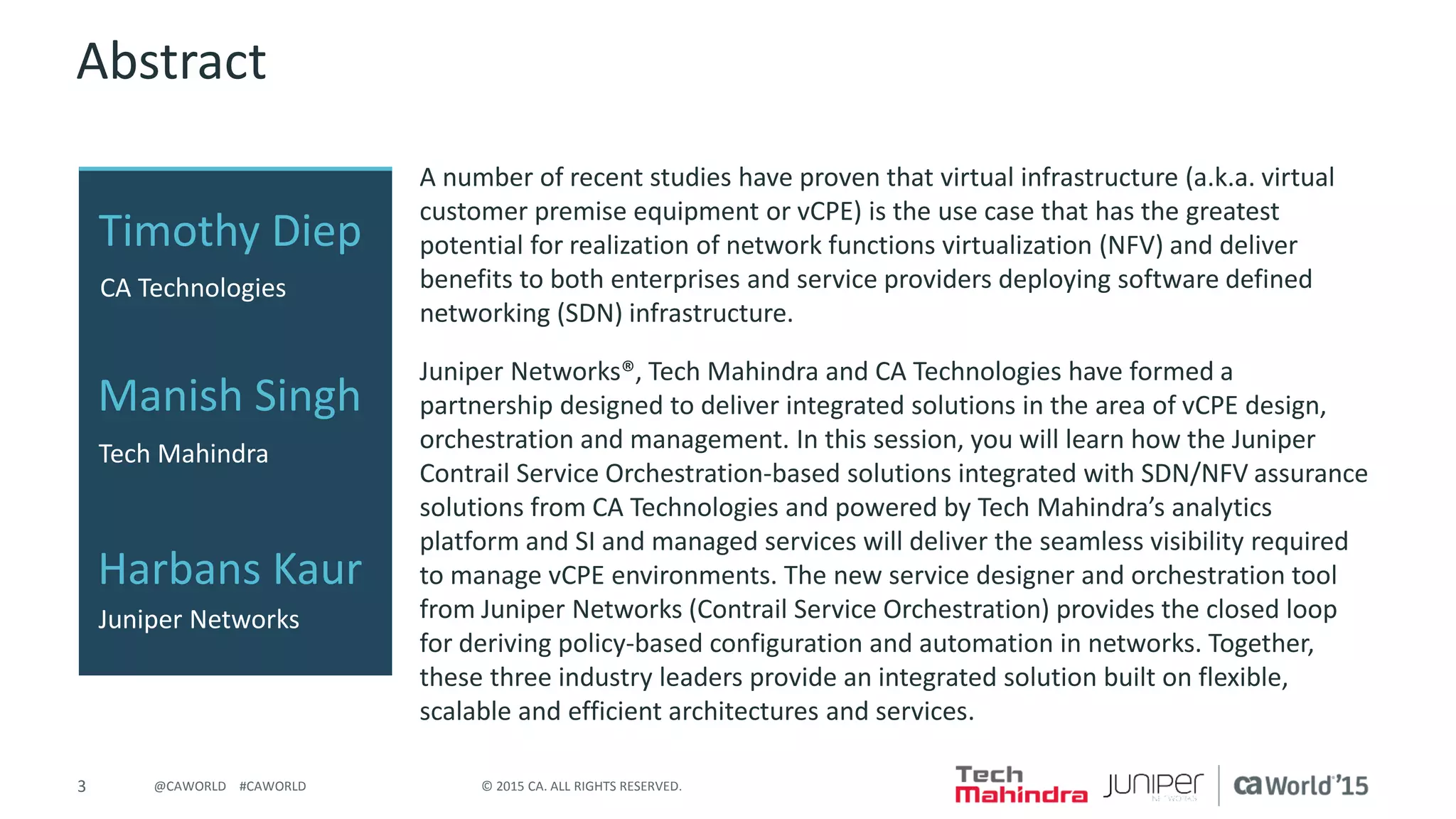

Abstract
A number of recent studies have proven that virtual infrastructure (a.k.a. virtual
customer premise equipment or vCPE) is the use case that has the greatest
potential for realization of network functions virtualization (NFV) and deliver
benefits to both enterprises and service providers deploying software defined
networking (SDN) infrastructure.
Juniper Networks®, Tech Mahindra and CA Technologies have formed a
partnership designed to deliver integrated solutions in the area of vCPE design,
orchestration and management. In this session, you will learn how the Juniper
Contrail Service Orchestration-based solutions integrated with SDN/NFV assurance
solutions from CA Technologies and powered by Tech Mahindra’s analytics
platform and SI and managed services will deliver the seamless visibility required
to manage vCPE environments. The new service designer and orchestration tool
from Juniper Networks (Contrail Service Orchestration) provides the closed loop
for deriving policy-based configuration and automation in networks. Together,
these three industry leaders provide an integrated solution built on flexible,
scalable and efficient architectures and services.
Timothy Diep
CA Technologies
Manish Singh
Harbans Kaur
Tech Mahindra
Juniper Networks

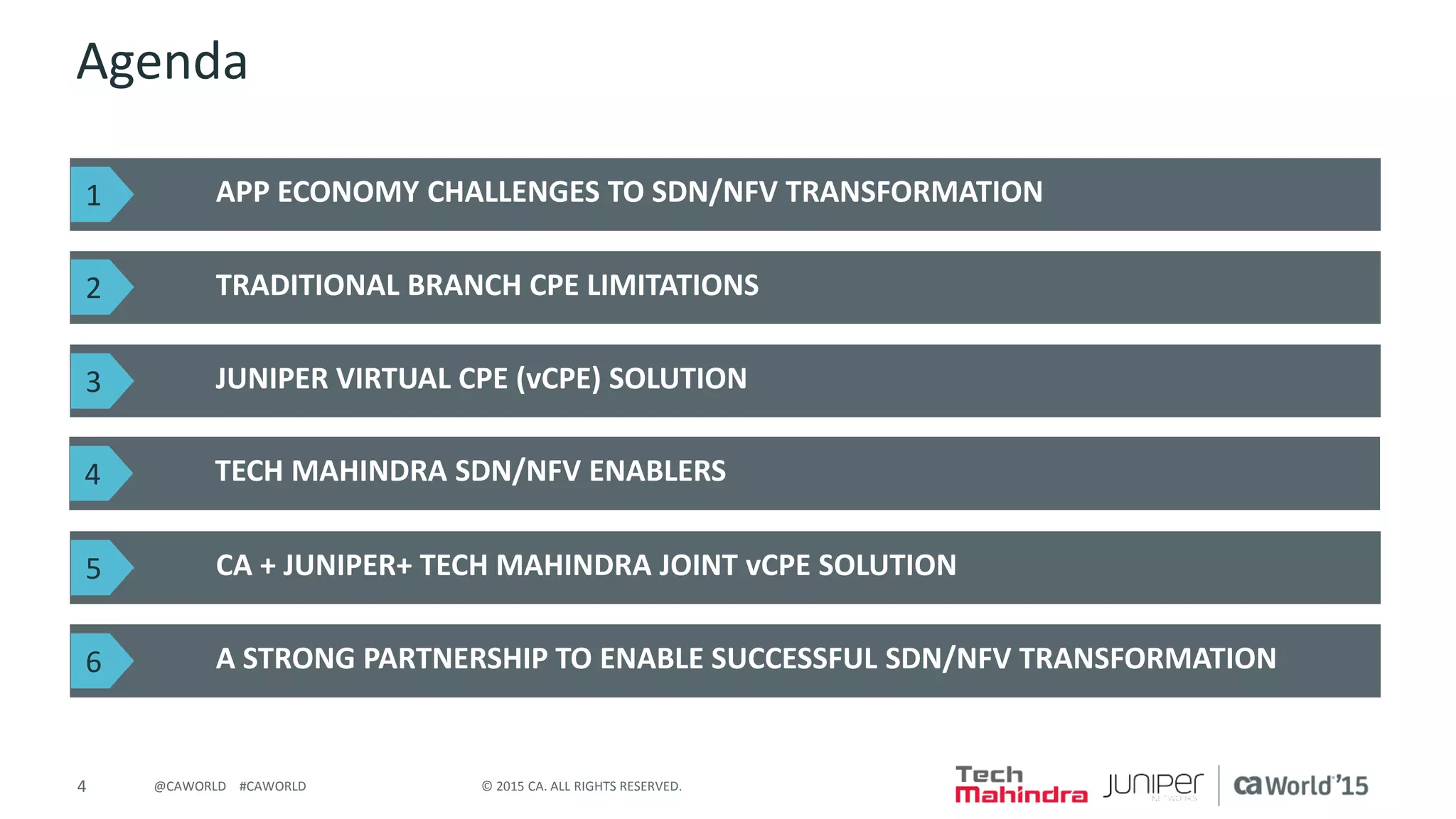

Agenda
APP ECONOMY CHALLENGES TO SDN/NFV TRANSFORMATION
TRADITIONAL BRANCH CPE LIMITATIONS
JUNIPER VIRTUAL CPE (vCPE) SOLUTION
1
2
3
TECH MAHINDRA SDN/NFV ENABLERS4
CA + JUNIPER+ TECH MAHINDRA JOINT vCPE SOLUTION5
A STRONG PARTNERSHIP TO ENABLE SUCCESSFUL SDN/NFV TRANSFORMATION6

Software Defined Networking
&
Network Function Virtualization
90%
By 2019, video will make up 90% of all
internet traffic1
213M
213 million packets per second achieved
in recent NFV performance tests3
26B
By 2020, there will be 26 billion internet
connected devices2
1 Cisco Visual Network Index: Forecast and Methodology, 2014-2019 White Paper, 27 May 2015, http://www.cisco.com/c/en/us/solutions/collateral/service-provider/ip-ngn-ip-next-generation-network/white_paper_c11-481360.html
2 Gartner: IoT and SDN Spark the Network Transformation Into a Universal Utility, 06 March 2015, http://www.gartner.com/document/3000917
3 Red Hat Satack: Scaling NFV to 213 Million Packets per Second with Red Hat Enterprise Linux, Open Stack, and DPDK, 19 Aug 2015, http://redhatstackblog.redhat.com/2015/08/19/scaling-nfv-to-213-million-packets-per-second-with-red-hat-enterprise-linux-openstack-and-dpdk/
Application
Economy
http://blogs.cisco.com/getyourbuildon/sdn-makes-network-
management-a-first-class-citizen-infrastructure-software
“SDN makes network
management a first
class citizen”
Cloud 2.0IOT
Millennials
IOT
IOT
IOT
IOTIOT

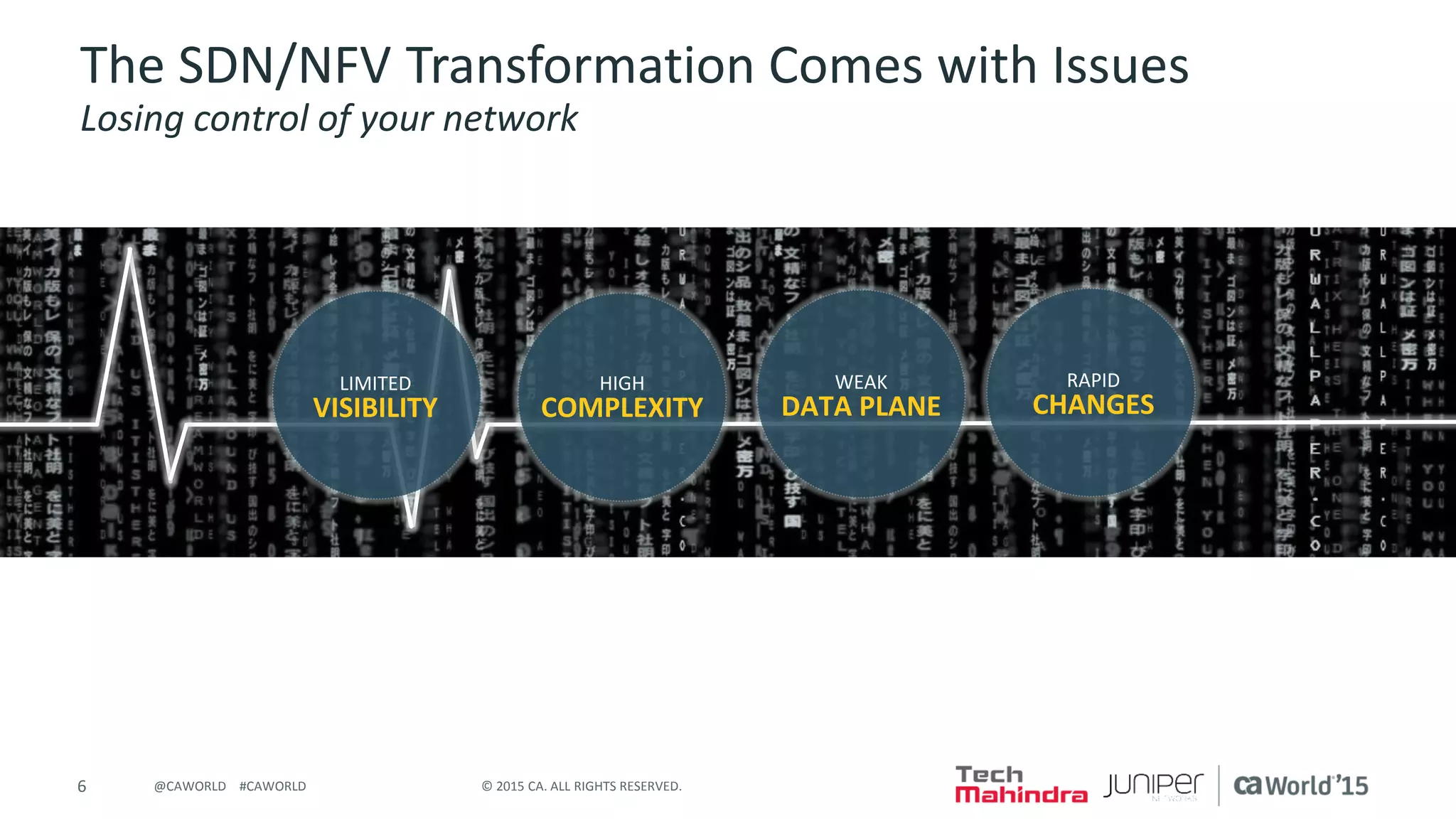

The SDN/NFV Transformation Comes with Issues
Losing control of your network
HIGH
COMPLEXITY
RAPID
CHANGES
WEAK
DATA PLANE
LIMITED
VISIBILITY

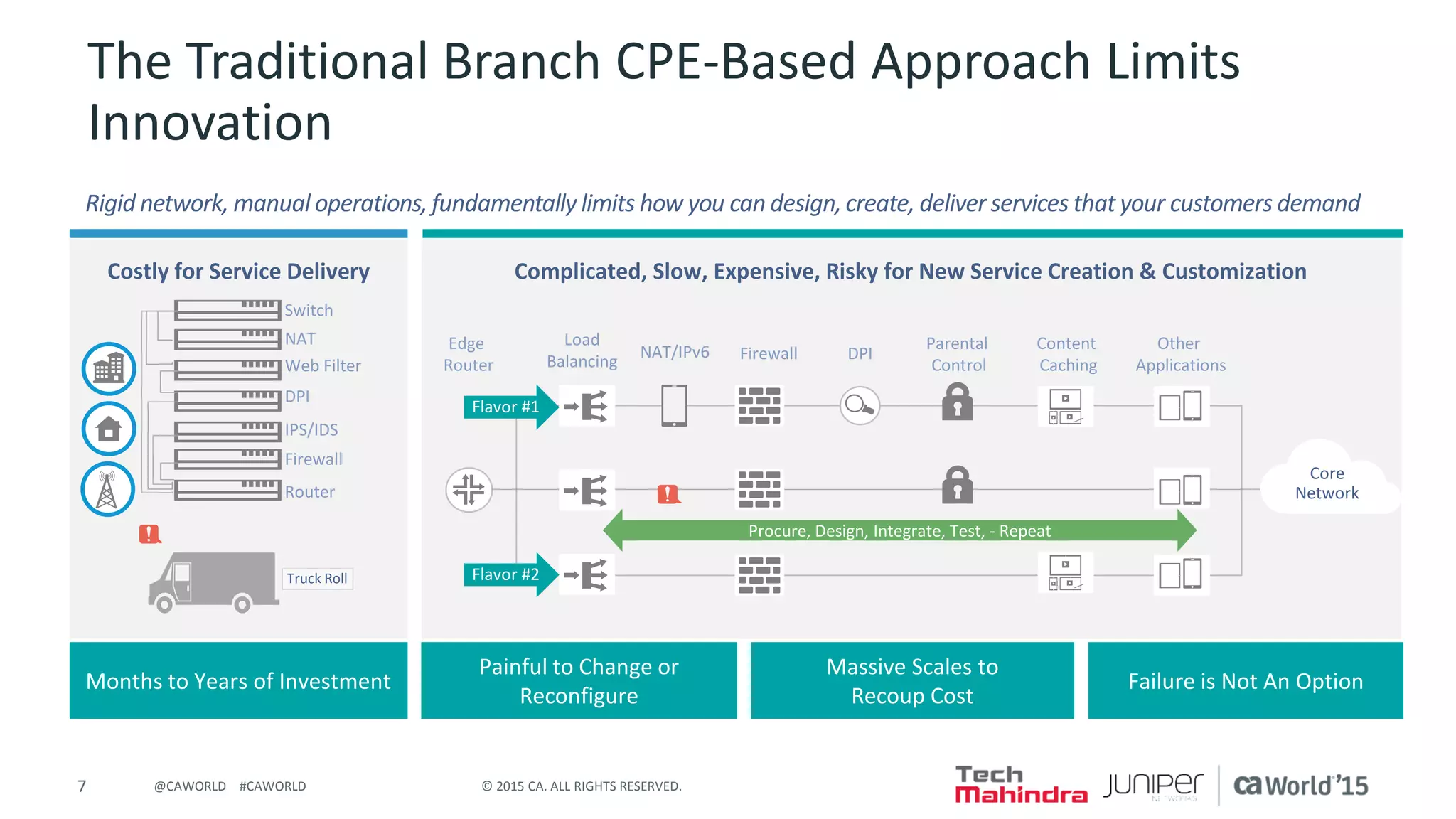

The Traditional Branch CPE-Based Approach Limits
Innovation
Rigid network, manual operations,fundamentally limits how you can design,create, deliver services that your customers demand
Months to Years of Investment
Painful to Change or
Reconfigure
Massive Scales to
Recoup Cost
Failure is Not An Option
Complicated, Slow, Expensive, Risky for New Service Creation & Customization
NAT/IPv6 Firewall DPI
Parental
Control
Content
Caching
Other
Applications
Edge
Router
Load
Balancing
Core
Network
Flavor #1
Procure, Design, Integrate, Test, - Repeat
Flavor #2
Costly for Service Delivery
Web Filter
NAT
DPI
IPS/IDS
Firewall
Router
Switch
Truck Roll

Contrail
Family
Flexible Service Delivery Platform
NFV Architecture
Customer
Portal
Juniper Cloud CPE Solution
Helps You Achieve Sustainable Long-Term Growth and Competitiveness
• Expand TAM with New Markets and
Segments
• Penetrate Verticals with Customized
Targeted Offering
…Delivering Customer Relevance …Increasing Competitiveness
• Lower Operating Expense through
Automating Process Workflows
• Reduce Truck Roll and Manual Error
Cost
• Improved Capital Efficiency with
network deployment options
• Increase Customer Satisfaction via
dynamic capacity allocation
…Increasing Agility and Flexibility
Programmable Network OS &
Telemetry
 Test = Production 
Infrastructure
 Production 
Infrastructure
 Test 
Infrastructure
Months / Years Minutes / Days
Centralized & Decentralized, Physical
& Virtual
OPEN
STANDARDS-BASED
DEVOPS &
COLLABORATION
END TO END
SOLUTION

Tech Mahindra’s SDN & NFV Service Offerings
Consultancy Design and
Development
Services
System
Integration
Transformation
Testing &
Certification
Validation
and Testing
CA Technologies, Comviva,
Fixstream, Dell, RedHat,
Juniper etc.
Full Stack Integration
NFVI, VNFs, MANO
SDN Controllers
BSS / OSS
Visualization & Analytics
DevOps
Design &
Development
Services
System
Integration
Testing &
Certification
SDN & NFV
Reference
Lab
Partner
Ecosystem
IP & Service
Enablers
PNF to VNF Migration
VNF, VNF-Manager
Performance Optimization
SDN Applications
Open Source Dev & Support
VNFs: vEPC, vPCRF, vSaMOG
VNF Manager, DPDK Accelerators
OpenFlow Agent Toolkit
SDN Applications: BoD,
Bandwitdh Calendering……
VNF Certification
Functional, Scalability &
Performance Testing
Interoperability & Reliability Testing
NFVI & MANO Components
Servers, DC Fabric, Switches, Routers,
Hypervisors, OS
SDN Controllers
Test Tools & Test Suites

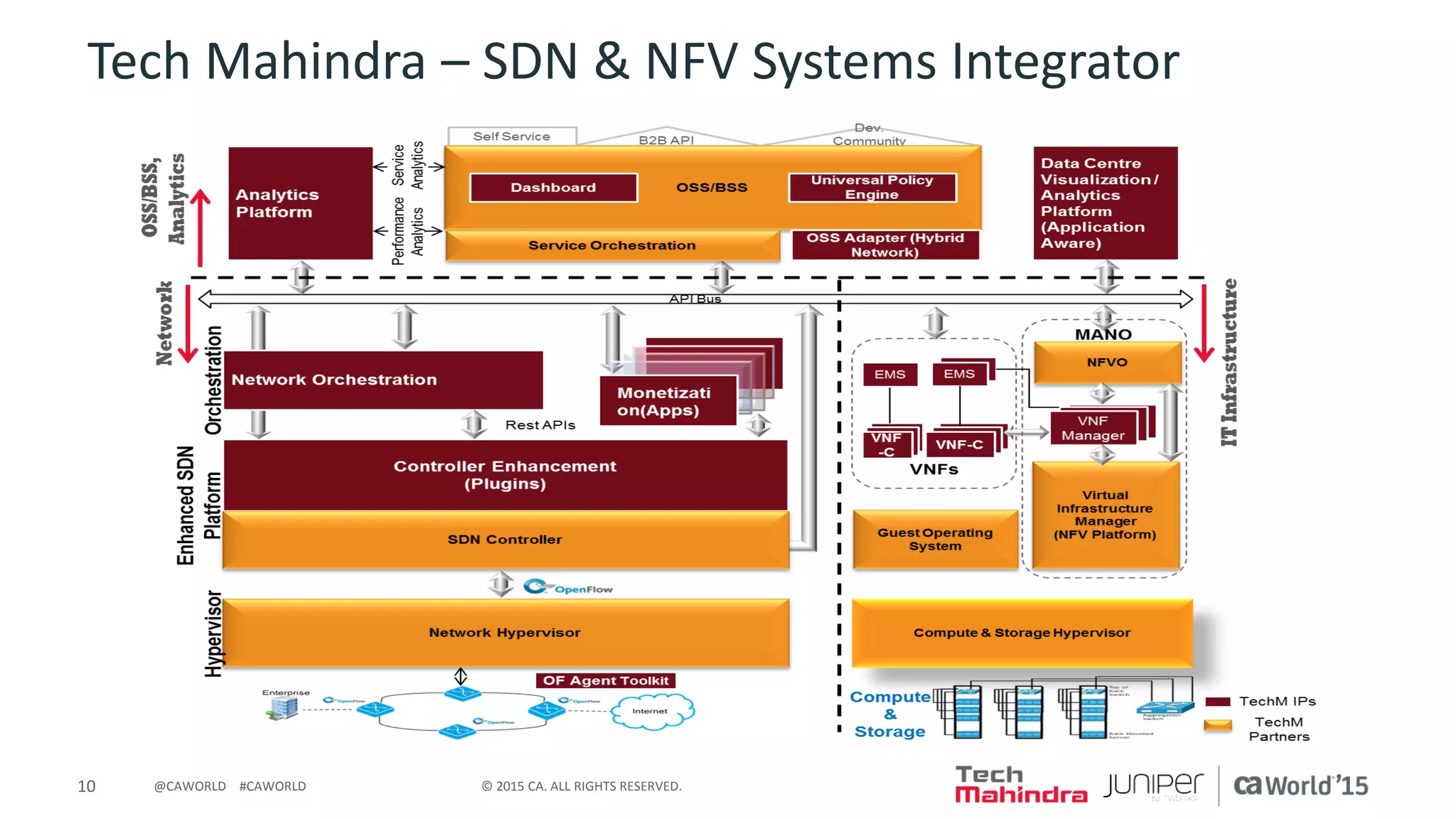

Tech Mahindra – SDN & NFV Systems Integrator

Branch
Intelligent Multi-Path
Platform
Distributed CPE
Direct CE or Overlay
Wired/ WiFi/ LTE uplinks
Zero Touch Activation
VNF Applications
Advanced Firewall
DPI, UTM
IPSec VPN / SSL-VPN
Cloud Analytics
3rd party VNF support
Multi-tenant, Multi-view Management
Zero Touch Activation Service
WAN Service Automation
Image management
Service & Config management
Network & Service Level Analytics
VPN
Private/Public
Network
VNF VNF VNF VNF VNF VNF
Branch
Branch BranchCloud CPE
Distributed or Centralized

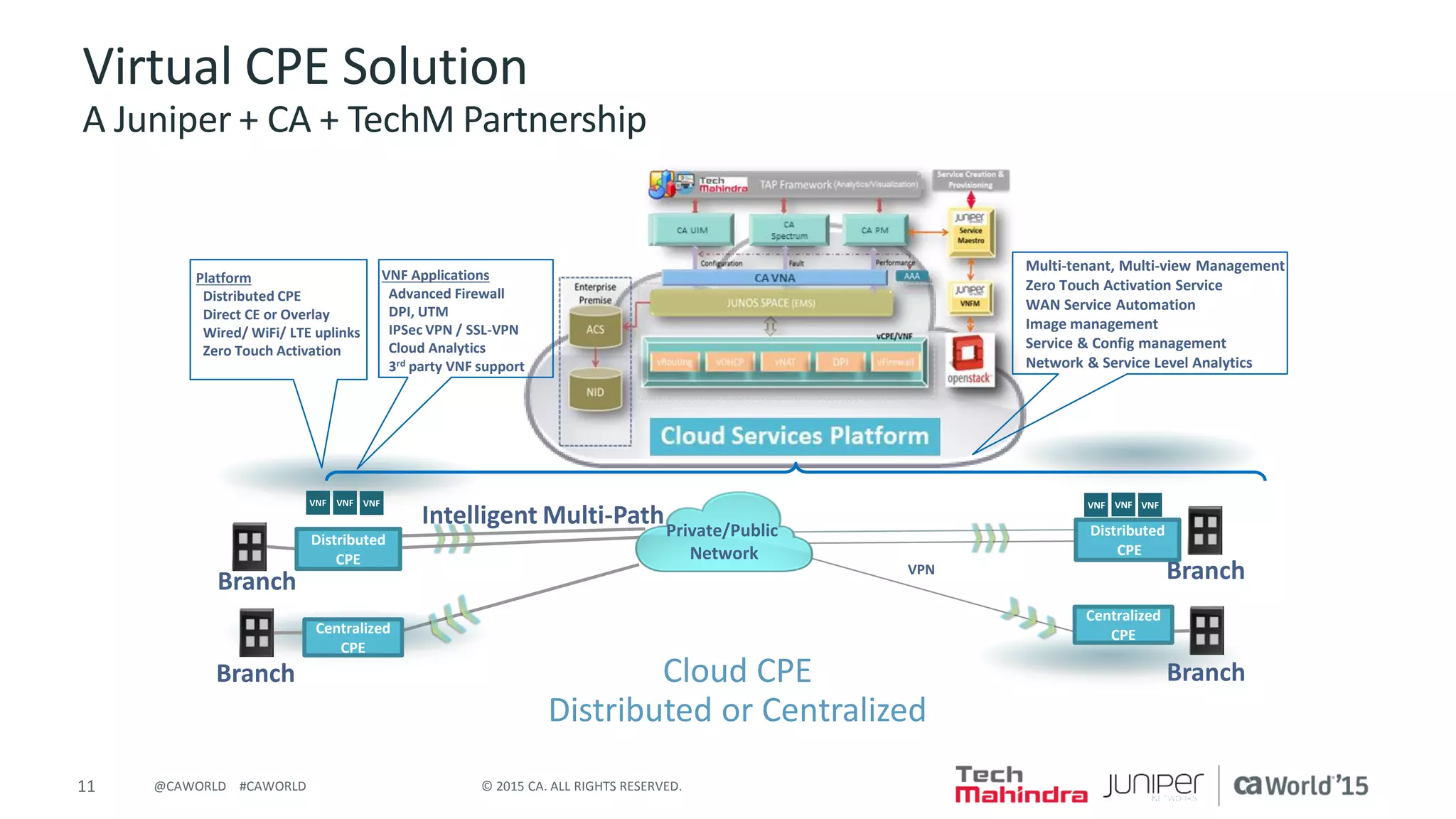

Virtual CPE Solution
A Juniper + CA + TechM Partnership
Distributed
CPE
Centralized
CPE
Distributed
CPE
Centralized
CPE

Cloud Services Brokerage and Cloud Connect

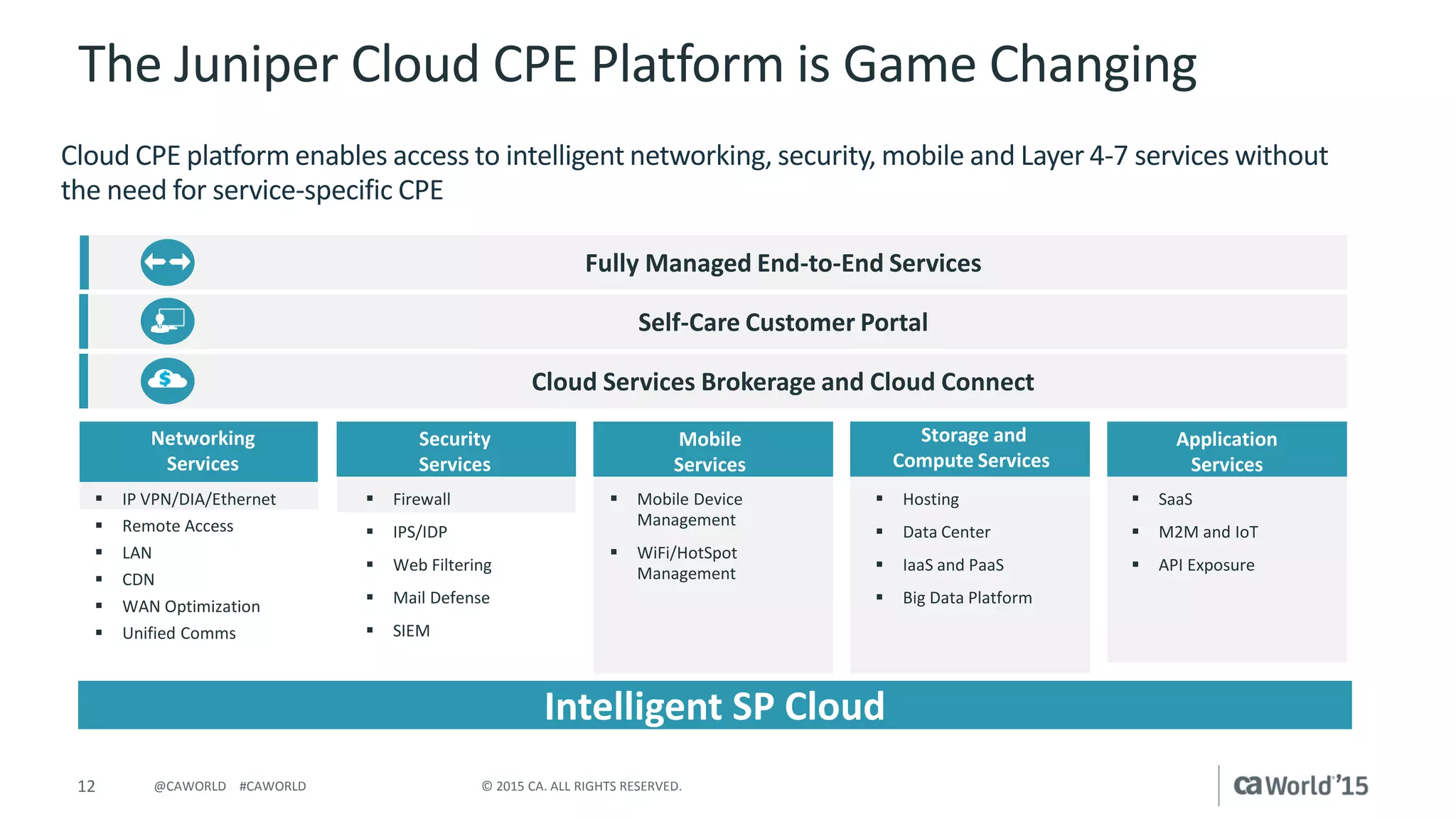

The Juniper Cloud CPE Platform is Game Changing
Cloud CPE platform enables access to intelligent networking, security, mobile and Layer 4-7 services without
the need for service-specific CPE
Intelligent SP Cloud
Self-Care Customer Portal
Fully Managed End-to-End Services
 IP VPN/DIA/Ethernet
 Remote Access
 LAN
 CDN
 WAN Optimization
 Unified Comms
Networking
Services
 Firewall
 IPS/IDP
 Web Filtering
 Mail Defense
 SIEM
Security
Services
 Mobile Device
Management
 WiFi/HotSpot
Management
Mobile
Services
 Hosting
 Data Center
 IaaS and PaaS
 Big Data Platform
Storage and
Compute Services
 SaaS
 M2M and IoT
 API Exposure
Application
Services

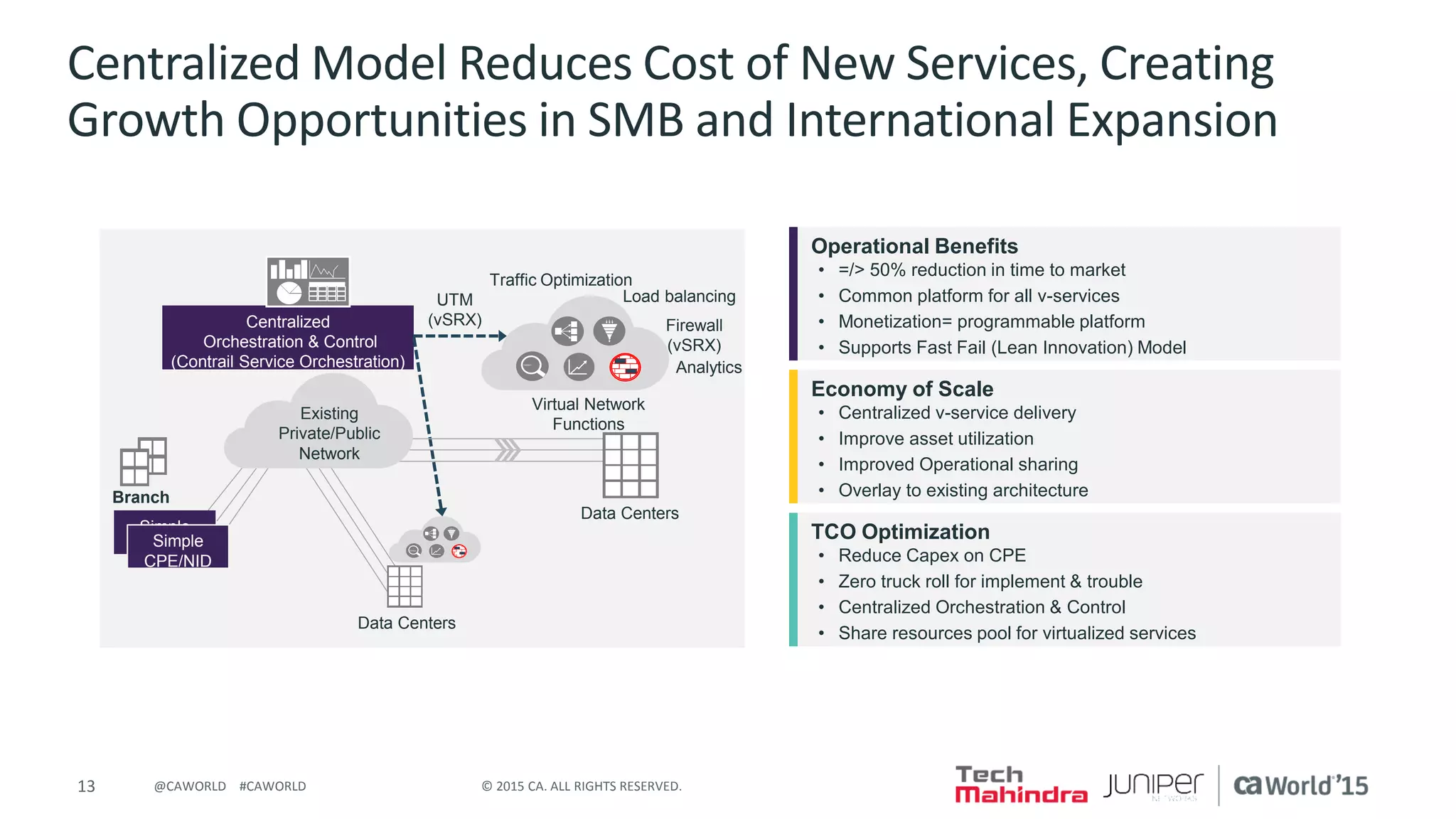

Centralized Model Reduces Cost of New Services, Creating
Growth Opportunities in SMB and International Expansion
Economy of Scale
• Centralized v-service delivery
• Improve asset utilization
• Improved Operational sharing
• Overlay to existing architecture
TCO Optimization
• Reduce Capex on CPE
• Zero truck roll for implement & trouble
• Centralized Orchestration & Control
• Share resources pool for virtualized services
Operational Benefits
• =/> 50% reduction in time to market
• Common platform for all v-services
• Monetization= programmable platform
• Supports Fast Fail (Lean Innovation) Model
THREAT
THREA
T
Virtual Network
Functions
Centralized
Orchestration & Control
(Contrail Service Orchestration)
Branch
UTM
(vSRX)
Data Centers
Data Centers
Firewall
(vSRX)
Load balancing
Traffic Optimization
Analytics
Existing
Private/Public
Network
Simple
CPE/NIDSimple
CPE/NID

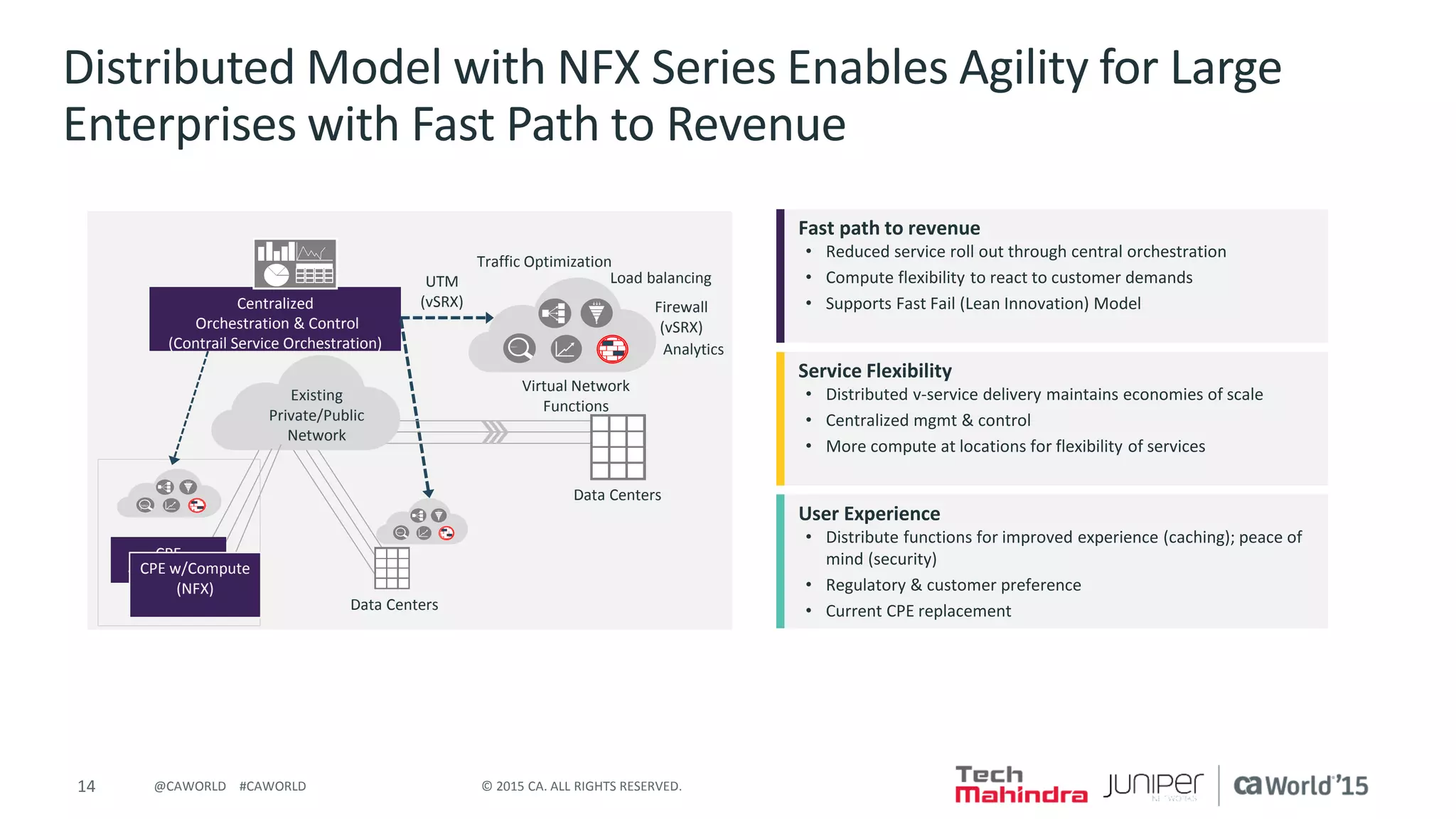

Distributed Model with NFX Series Enables Agility for Large
Enterprises with Fast Path to Revenue
Service Flexibility
• Distributed v-service delivery maintains economies of scale
• Centralized mgmt & control
• More compute at locations for flexibility of services
User Experience
• Distribute functions for improved experience (caching); peace of
mind (security)
• Regulatory & customer preference
• Current CPE replacement
Fast path to revenue
• Reduced service roll out through central orchestration
• Compute flexibility to react to customer demands
• Supports Fast Fail (Lean Innovation) Model
THREAT
THREAT
Virtual Network
Functions
Centralized
Orchestration & Control
(Contrail Service Orchestration)
UTM
(vSRX)
Data Centers
Data Centers
Firewall
(vSRX)
Load balancing
Traffic Optimization
Analytics
Existing
Private/Public
Network
THREA
T
CPE
w/ComputeCPE w/Compute
(NFX)

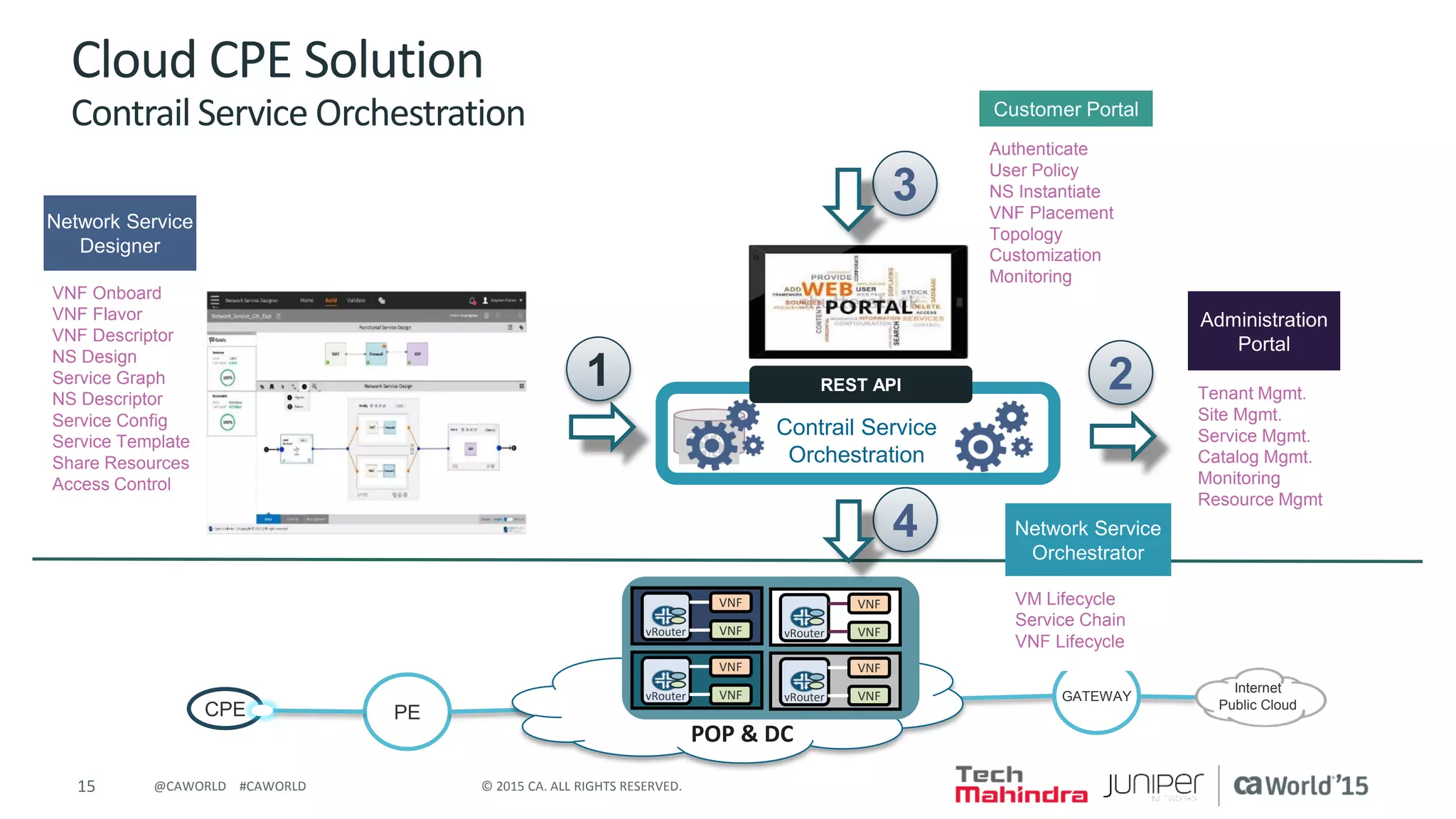

CPE PE
Internet
Public Cloud
POP & DC
GATEWAY
VNF
VNFvRouter
VNF
VNFvRouter
VNF
VNFvRouter
VNF
VNFvRouter
CATAL
OG
Contrail Service
Orchestration
REST API
VNF Onboard
VNF Flavor
VNF Descriptor
NS Design
Service Graph
NS Descriptor
Service Config
Service Template
Share Resources
Access Control
Network Service
Designer
Authenticate
User Policy
NS Instantiate
VNF Placement
Topology
Customization
Monitoring
Customer Portal
Tenant Mgmt.
Site Mgmt.
Service Mgmt.
Catalog Mgmt.
Monitoring
Resource Mgmt
Administration
Portal
1
3
4
VM Lifecycle
Service Chain
VNF Lifecycle
Network Service
Orchestrator
Cloud CPE Solution
Contrail Service Orchestration
2

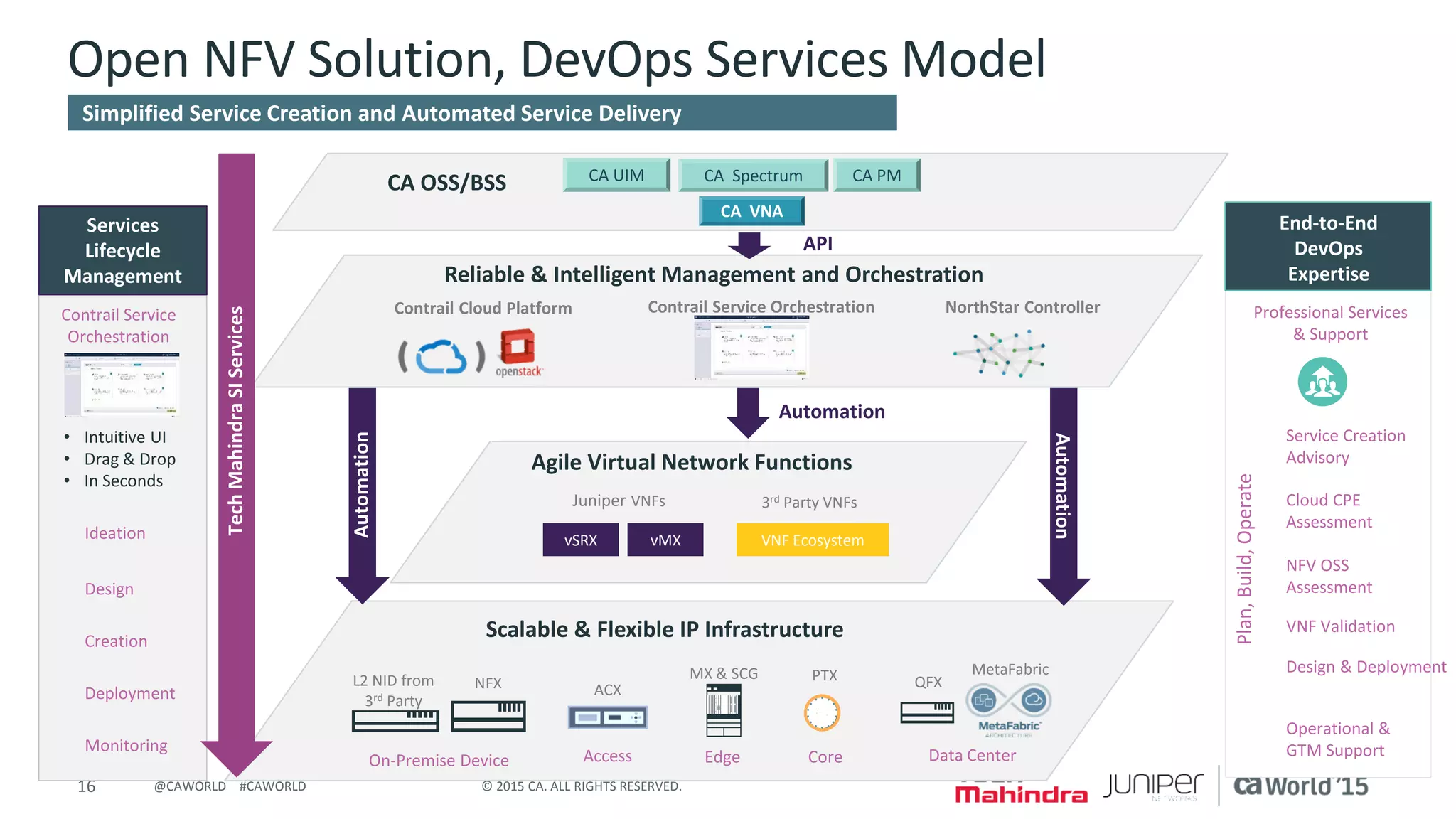

Open NFV Solution, DevOps Services Model End-to-End
Scalable & Flexible IP Infrastructure
On-Premise Device
L2 NID from
3rd Party
NFX ACX
Access Edge
MX & SCG
Core
PTX
Data Center
MetaFabric
QFX
Reliable & Intelligent Management and Orchestration
Contrail Cloud Platform Contrail Service Orchestration NorthStar Controller
Agile Virtual Network Functions
VNF Ecosystem
3rd Party VNFsJuniper VNFs
vSRX vMX
Automation
Automation
Automation
Services
Lifecycle
Management
Ideation
Design
Creation
Deployment
Monitoring
• Intuitive UI
• Drag & Drop
• In Seconds
Contrail Service
Orchestration
Professional Services
& Support
End-to-End
DevOps
Expertise
Support
VNF Validation
Service Creation
Advisory
Cloud CPE
Assessment
NFV OSS
Assessment
Design & Deployment
Operational &
GTM Support
Plan,Build,Operate
Simplified Service Creation and Automated Service Delivery
CA Spectrum CA PMCA UIM
CA VNA
APITechMahindraSIServices
CA OSS/BSS

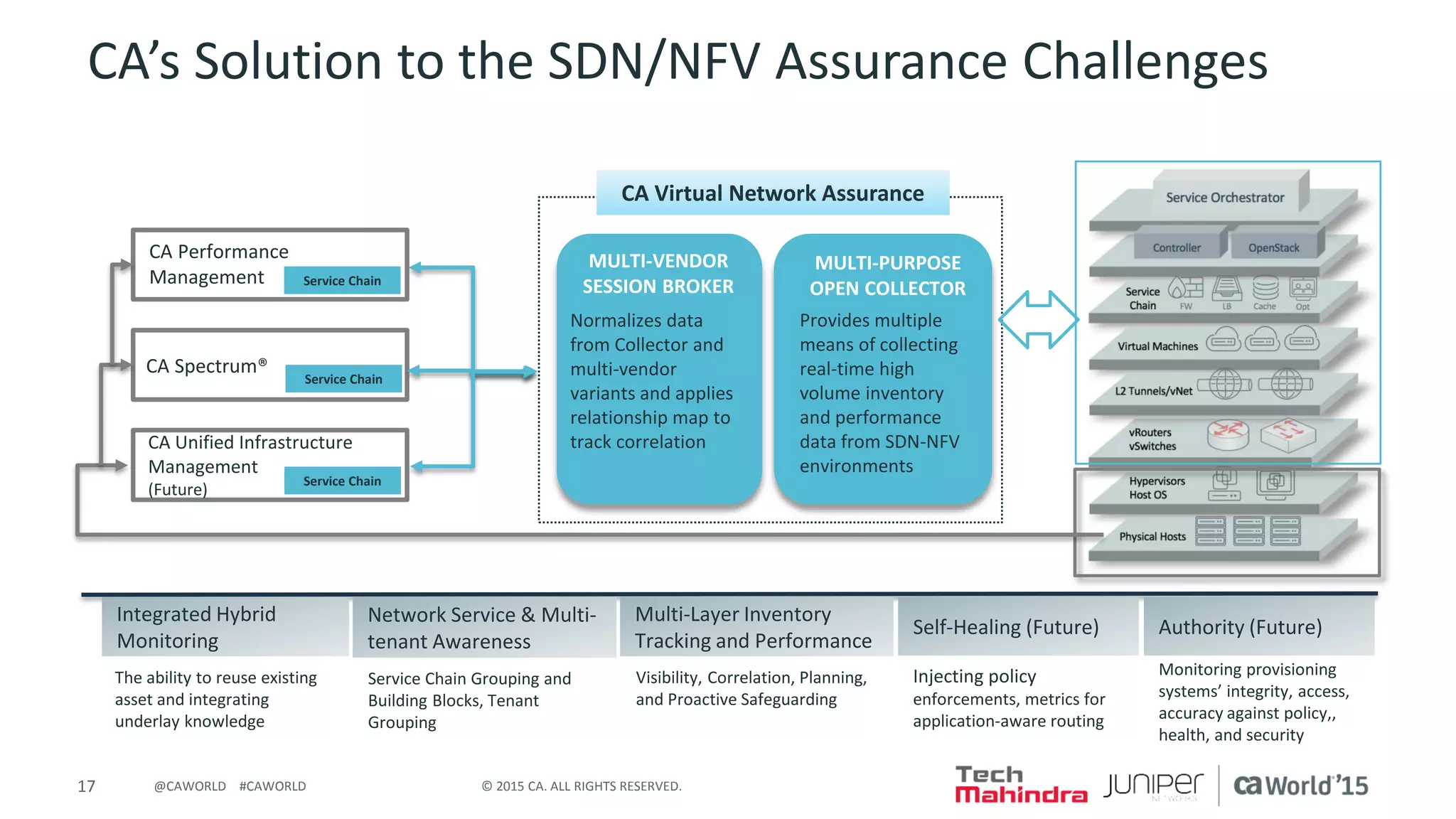

CA’s Solution to the SDN/NFV Assurance Challenges
MULTI-VENDOR
SESSION BROKER
Normalizes data
from Collector and
multi-vendor
variants and applies
relationship map to
track correlation
MULTI-PURPOSE
OPEN COLLECTOR
Provides multiple
means of collecting
real-time high
volume inventory
and performance
data from SDN-NFV
environments
CA Virtual Network Assurance
The ability to reuse existing
asset and integrating
underlay knowledge
Integrated Hybrid
Monitoring
Visibility, Correlation, Planning,
and Proactive Safeguarding
Self-Healing (Future)
Service Chain Grouping and
Building Blocks, Tenant
Grouping
Network Service & Multi-
tenant Awareness
Injecting policy
enforcements, metrics for
application-aware routing
Multi-Layer Inventory
Tracking and Performance
Monitoring provisioning
systems’ integrity, access,
accuracy against policy,,
health, and security
Authority (Future)
CA Performance
Management
CA Spectrum®
CA Unified Infrastructure
Management
(Future)
Service Chain
Service Chain
Service Chain

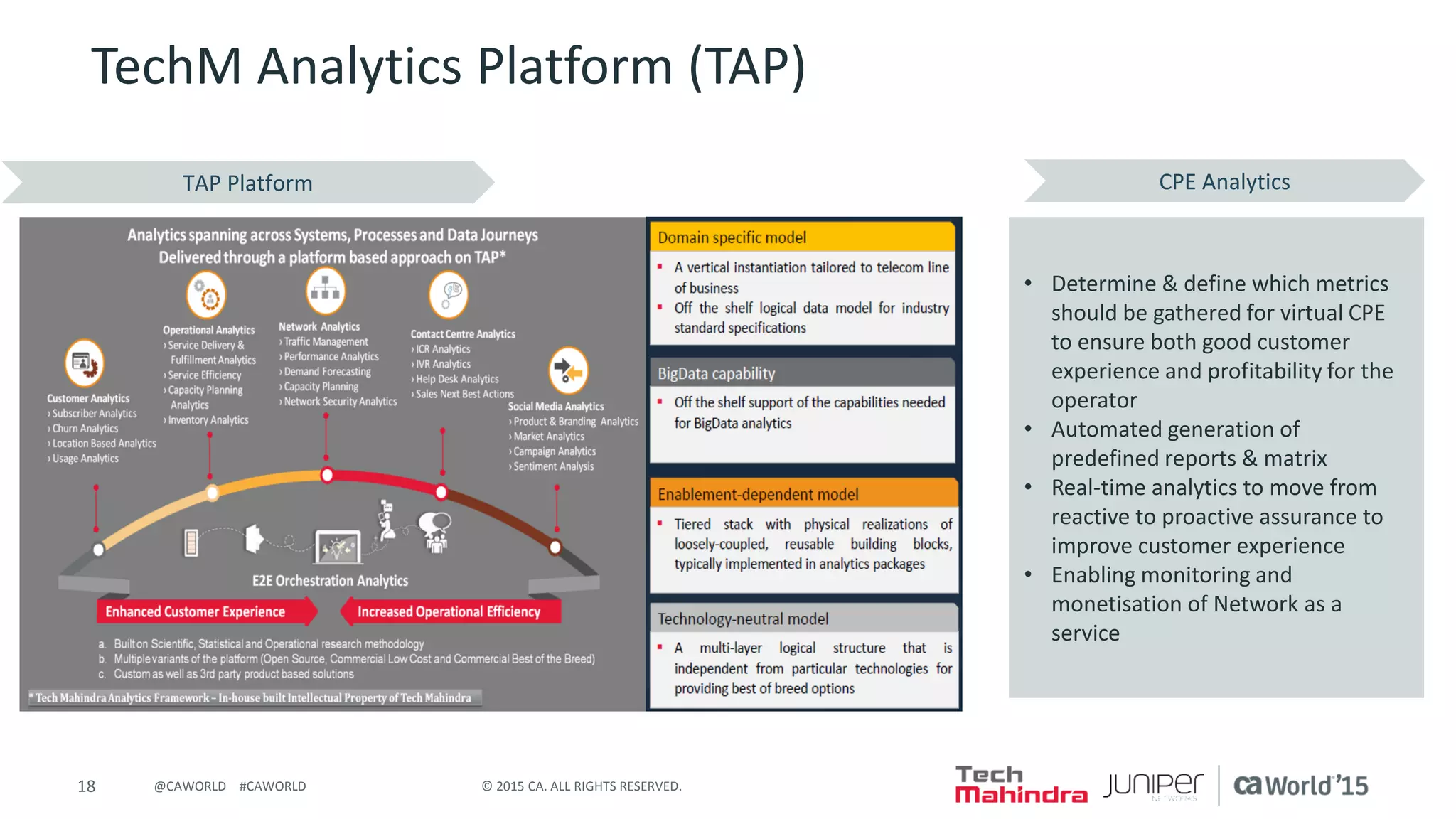

TechM Analytics Platform (TAP)
CPE AnalyticsTAP Platform
• Determine & define which metrics
should be gathered for virtual CPE
to ensure both good customer
experience and profitability for the
operator
• Automated generation of
predefined reports & matrix
• Real-time analytics to move from
reactive to proactive assurance to
improve customer experience
• Enabling monitoring and
monetisation of Network as a
service

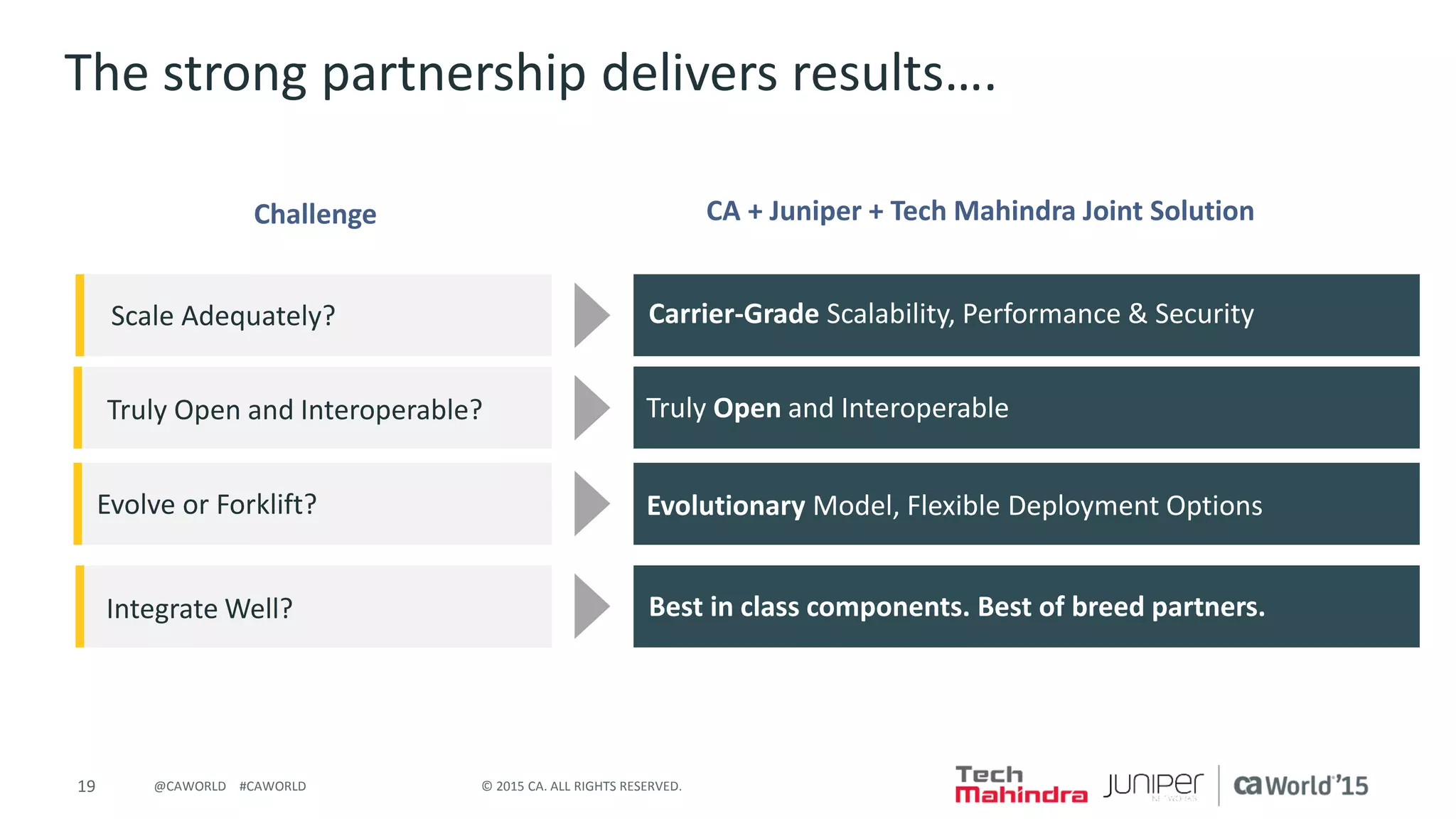

The strong partnership delivers results….
Best in class components. Best of breed partners.
Carrier-Grade Scalability, Performance & Security
Truly Open and Interoperable
Evolutionary Model, Flexible Deployment Options
Challenge CA + Juniper + Tech Mahindra Joint Solution
Integrate Well?
Scale Adequately?
Truly Open and Interoperable?
Evolve or Forklift?

For More Information
To learn more, please visit:
http://cainc.to/Nv2VOe
CA World ’15

Juniper Networks®, Tech Mahindra & CA Discuss New Perspectives & Partnerships for Design & Assurance of SDN/NFV

More Related Content

What's hot

Viewers also liked

Similar to Juniper Networks®, Tech Mahindra & CA Discuss New Perspectives & Partnerships for Design & Assurance of SDN/NFV

More from CA Technologies

Recently uploaded

Juniper Networks®, Tech Mahindra & CA Discuss New Perspectives & Partnerships for Design & Assurance of SDN/NFV
