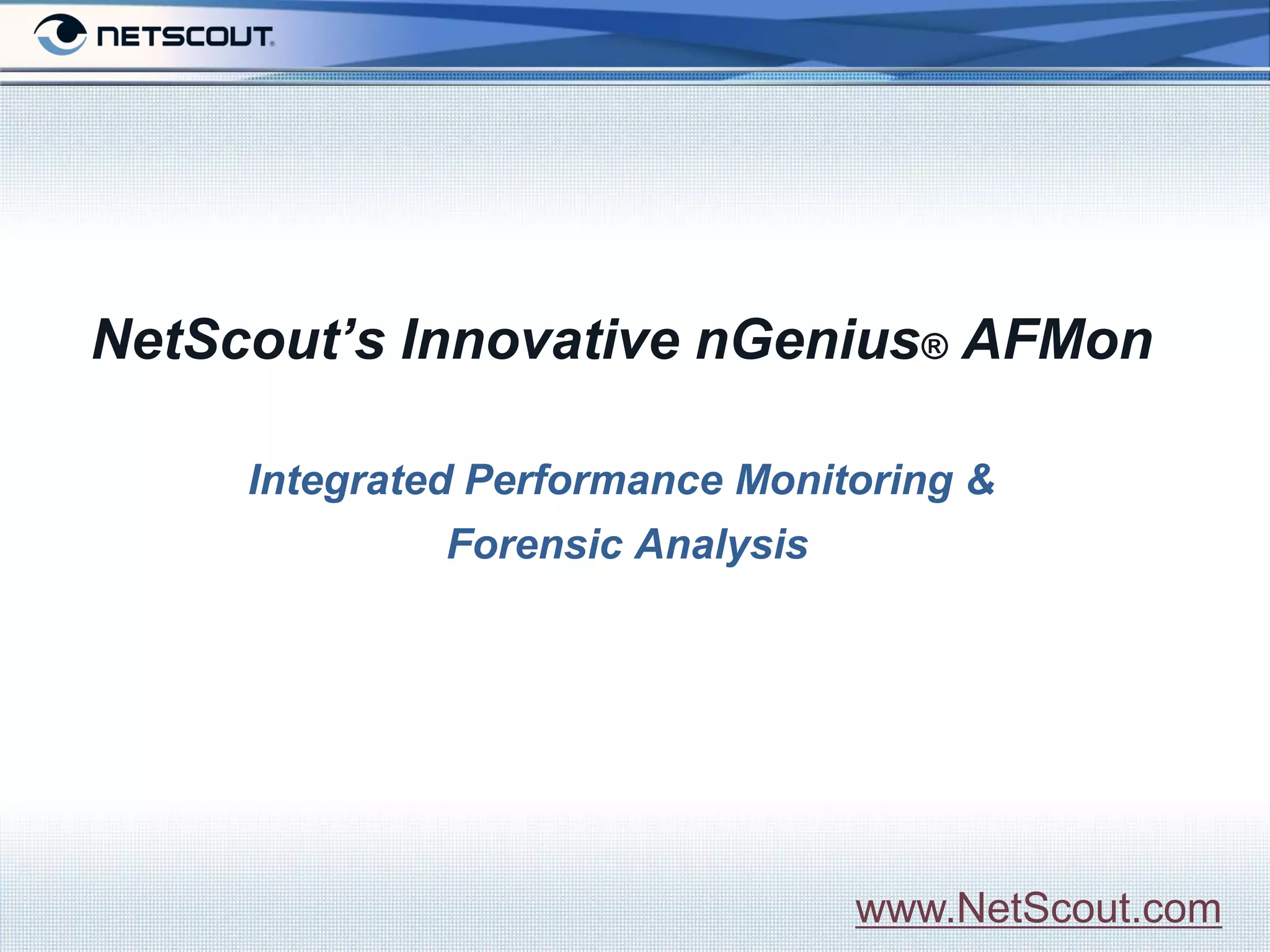

- 1. NetScout’s Innovative nGenius® AFMon Integrated Performance Monitoring & Introduction Forensic Analysis www.NetScout.com

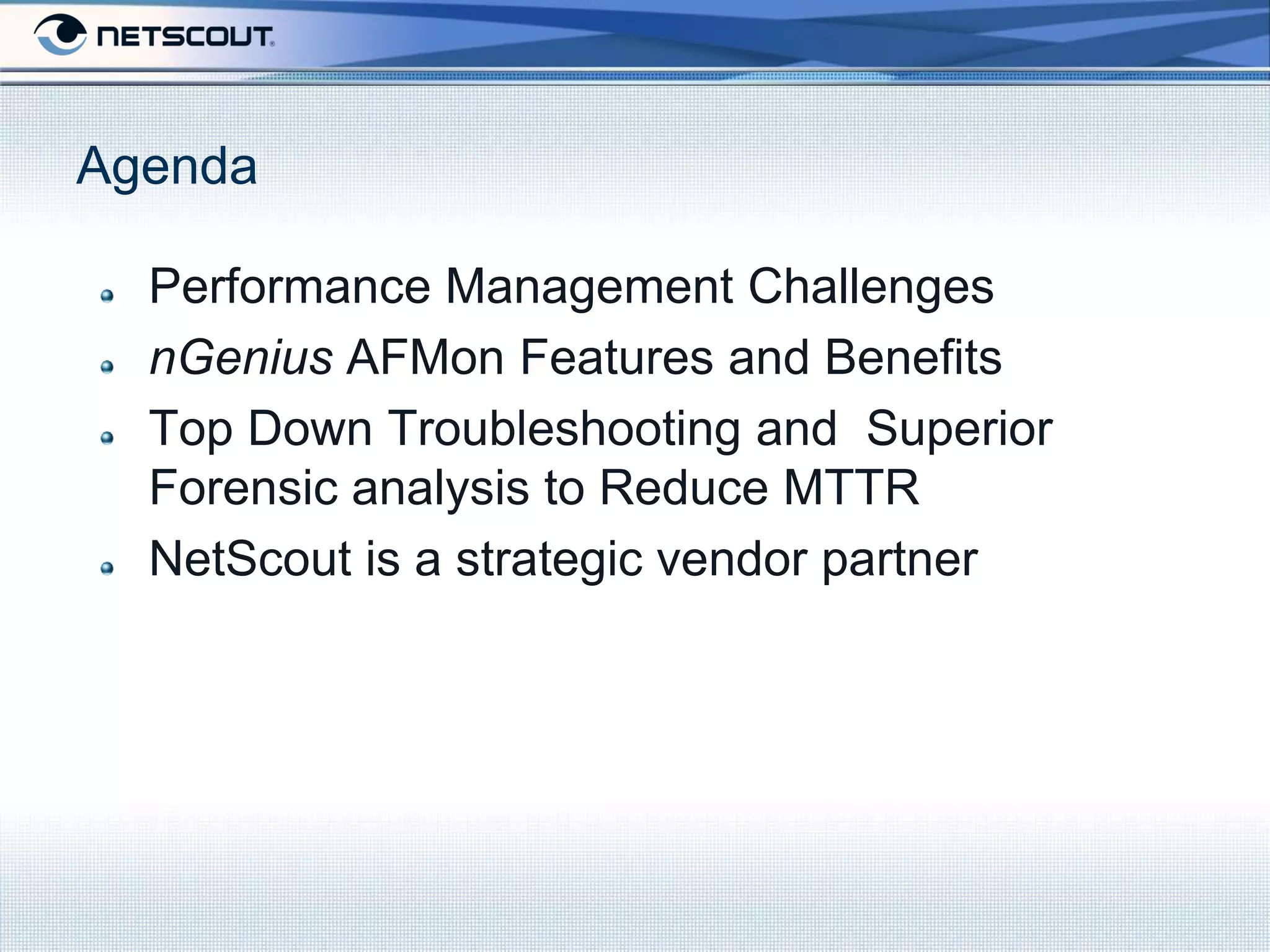

- 2. Agenda Performance Management Challenges nGenius AFMon Features and Benefits Top Down Troubleshooting and Superior Forensic analysis to Reduce MTTR NetScout is a strategic vendor partner

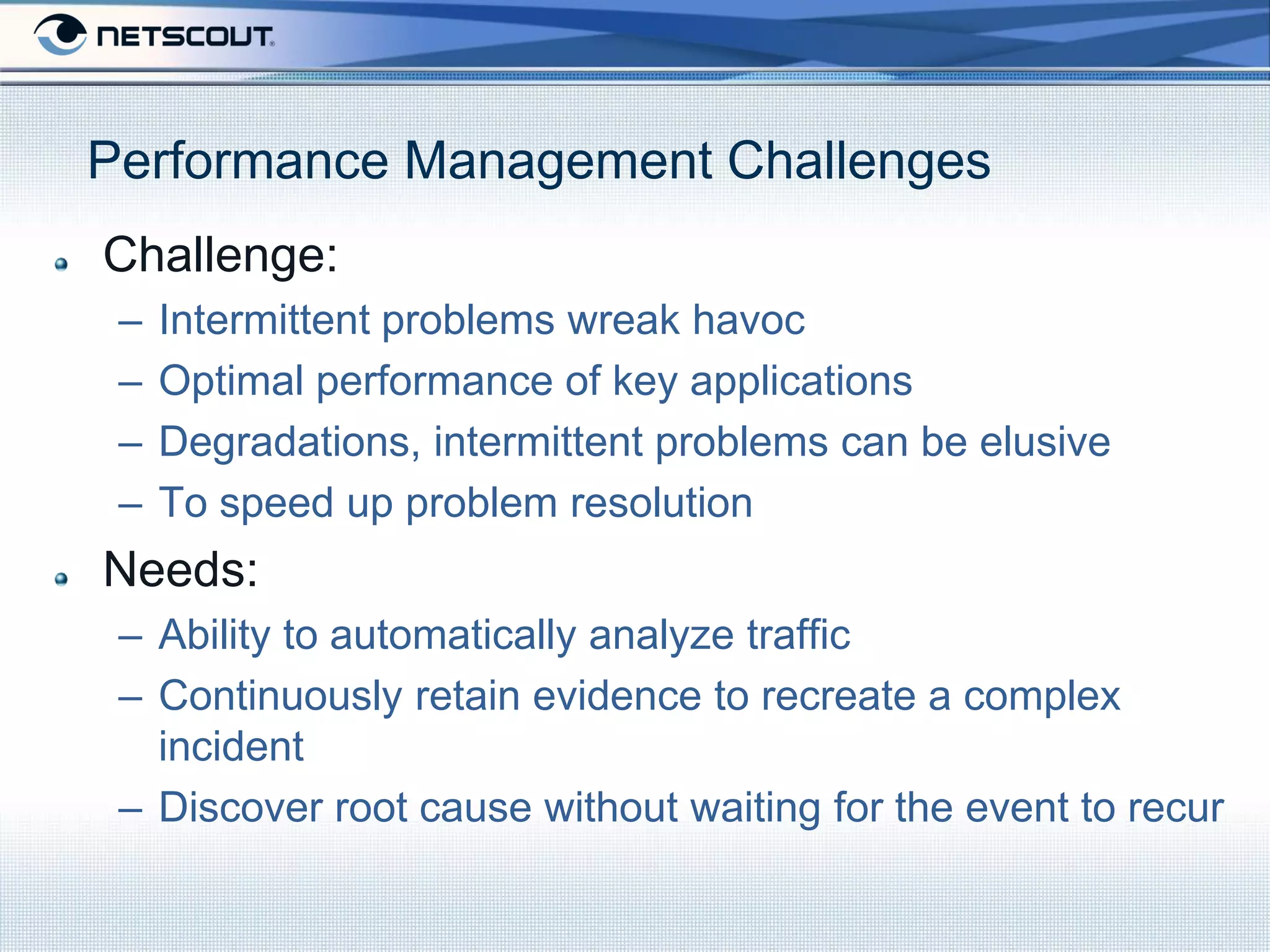

- 3. Performance Management Challenges Challenge: – Intermittent problems wreak havoc – Optimal performance of key applications – Degradations, intermittent problems can be elusive – To speed up problem resolution Needs: – Ability to automatically analyze traffic – Continuously retain evidence to recreate a complex incident – Discover root cause without waiting for the event to recur

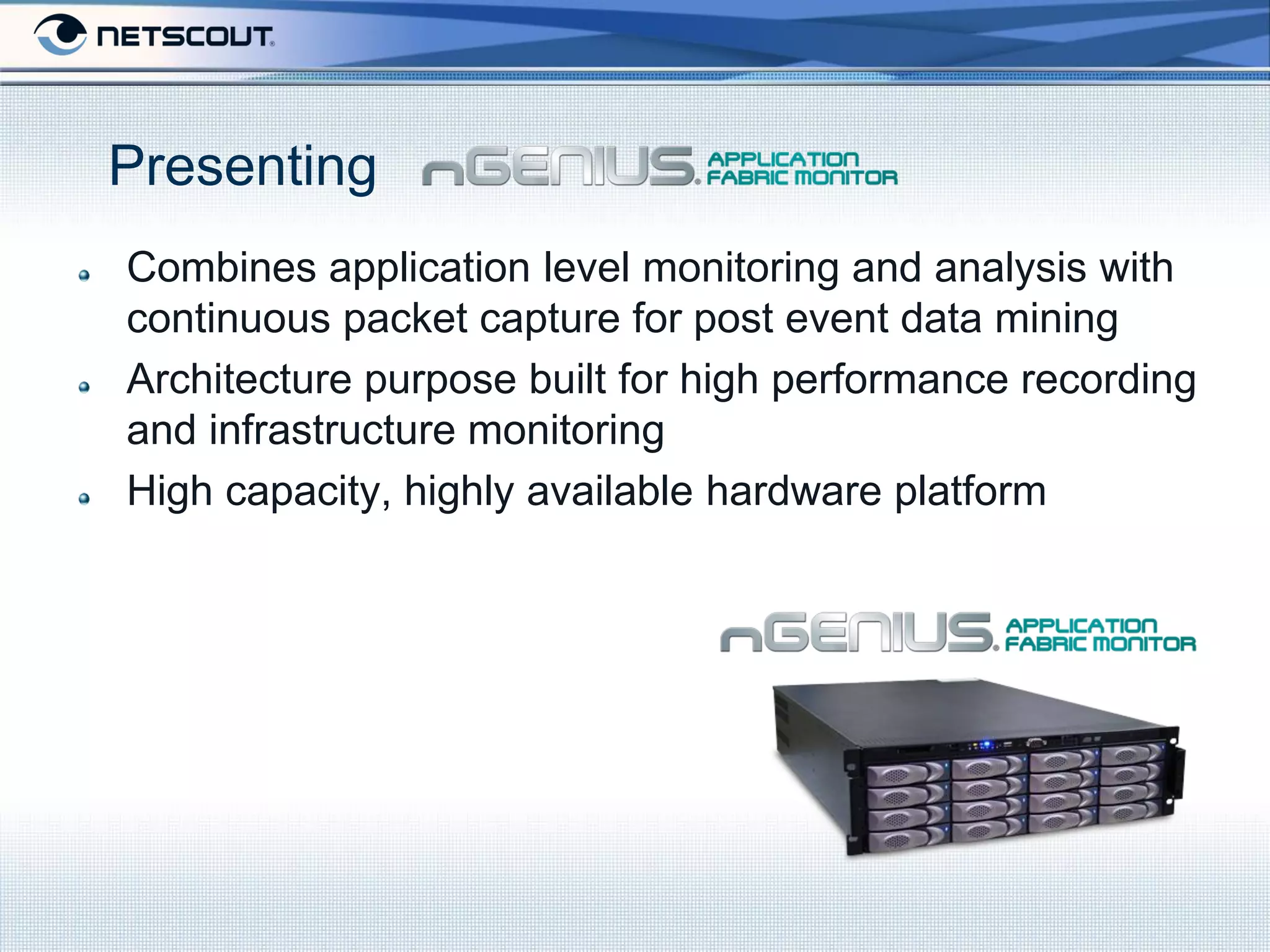

- 4. Presenting Combines application level monitoring and analysis with continuous packet capture for post event data mining Architecture purpose built for high performance recording and infrastructure monitoring High capacity, highly available hardware platform

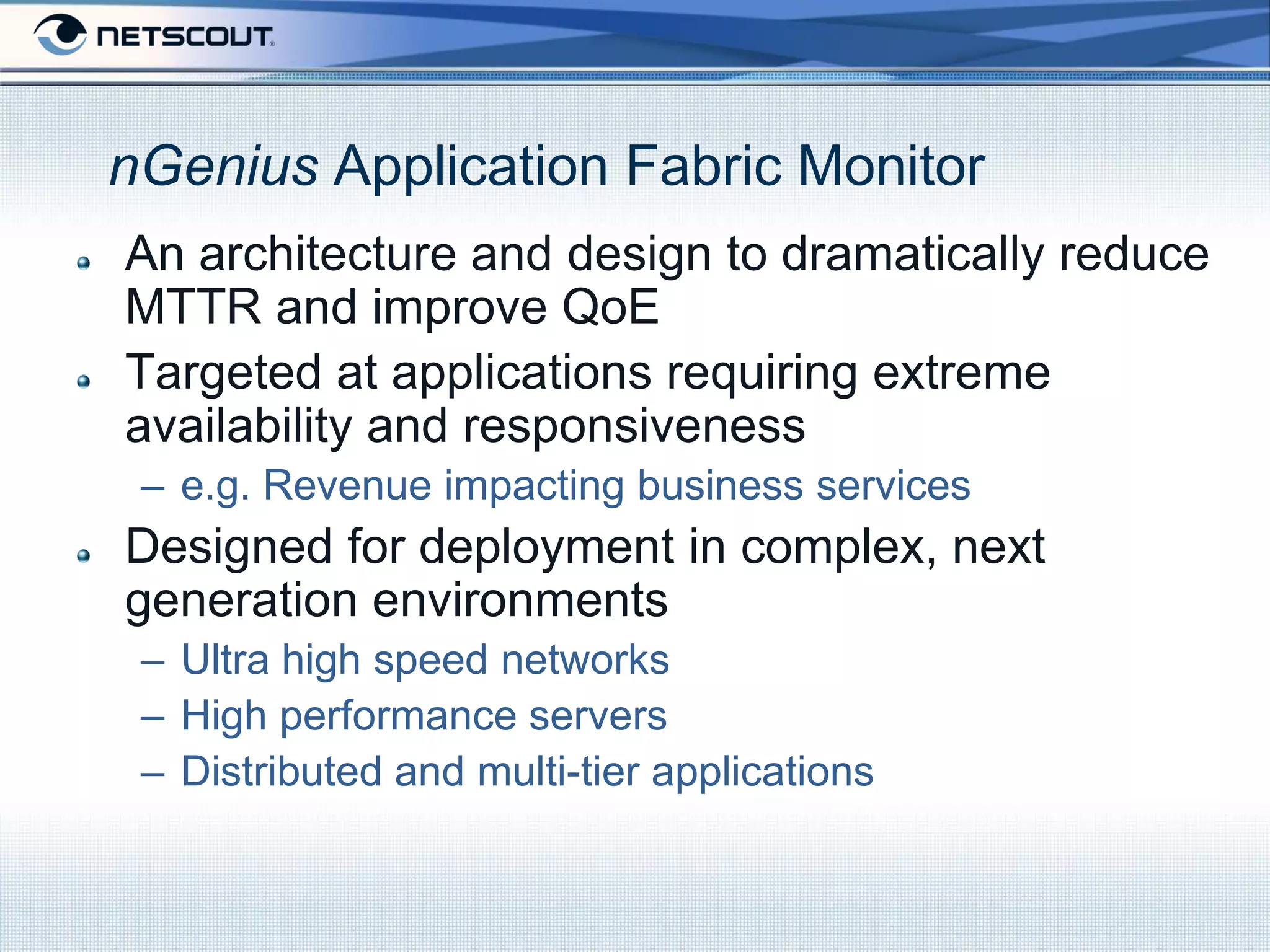

- 5. nGenius Application Fabric Monitor An architecture and design to dramatically reduce MTTR and improve QoE Targeted at applications requiring extreme availability and responsiveness – e.g. Revenue impacting business services Designed for deployment in complex, next generation environments – Ultra high speed networks – High performance servers – Distributed and multi-tier applications

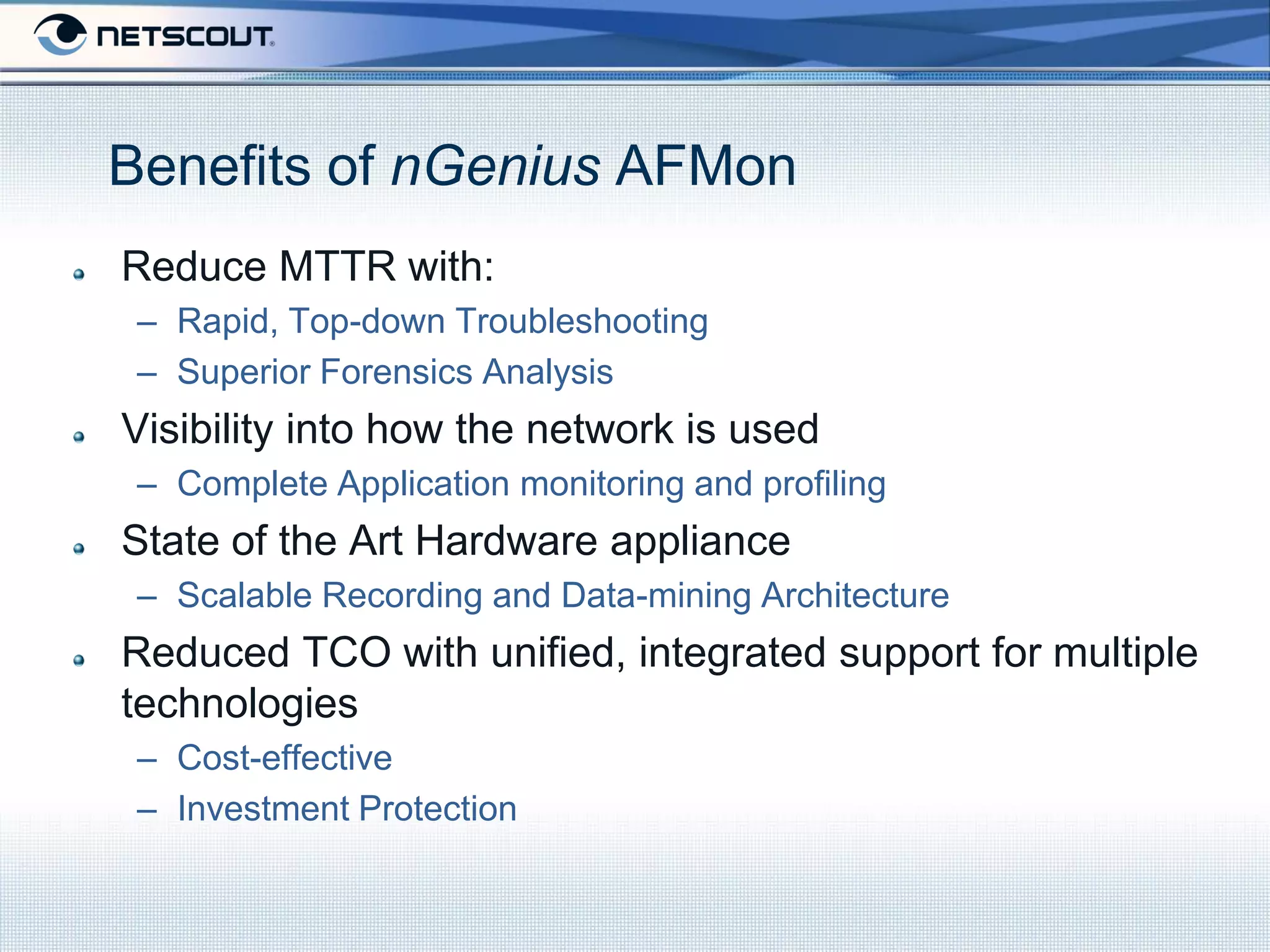

- 6. Benefits of nGenius AFMon Reduce MTTR with: – Rapid, Top-down Troubleshooting – Superior Forensics Analysis Visibility into how the network is used – Complete Application monitoring and profiling State of the Art Hardware appliance – Scalable Recording and Data-mining Architecture Reduced TCO with unified, integrated support for multiple technologies – Cost-effective – Investment Protection

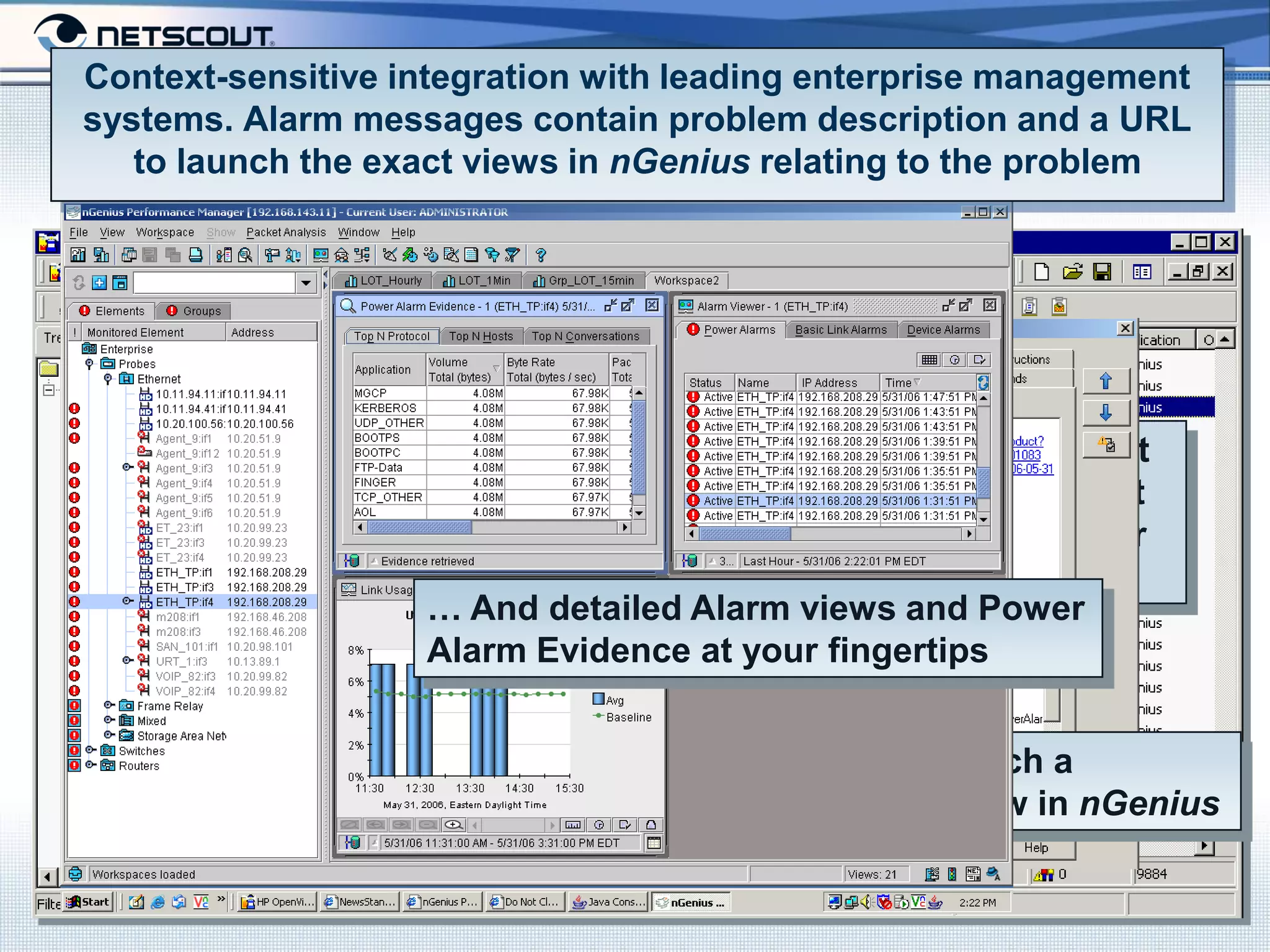

- 7. Context-sensitive integration with leading enterprise management systems. Alarm messages contain problem description and a URL to launch the exact views in nGenius relating to the problem More than alarm notification, it contains a description of what triggered the event for quicker problem identification… … And detailed Alarm views and Power Alarm Evidence at your fingertips … And a URL to launch a context-sensitive view in nGenius Company Confidential

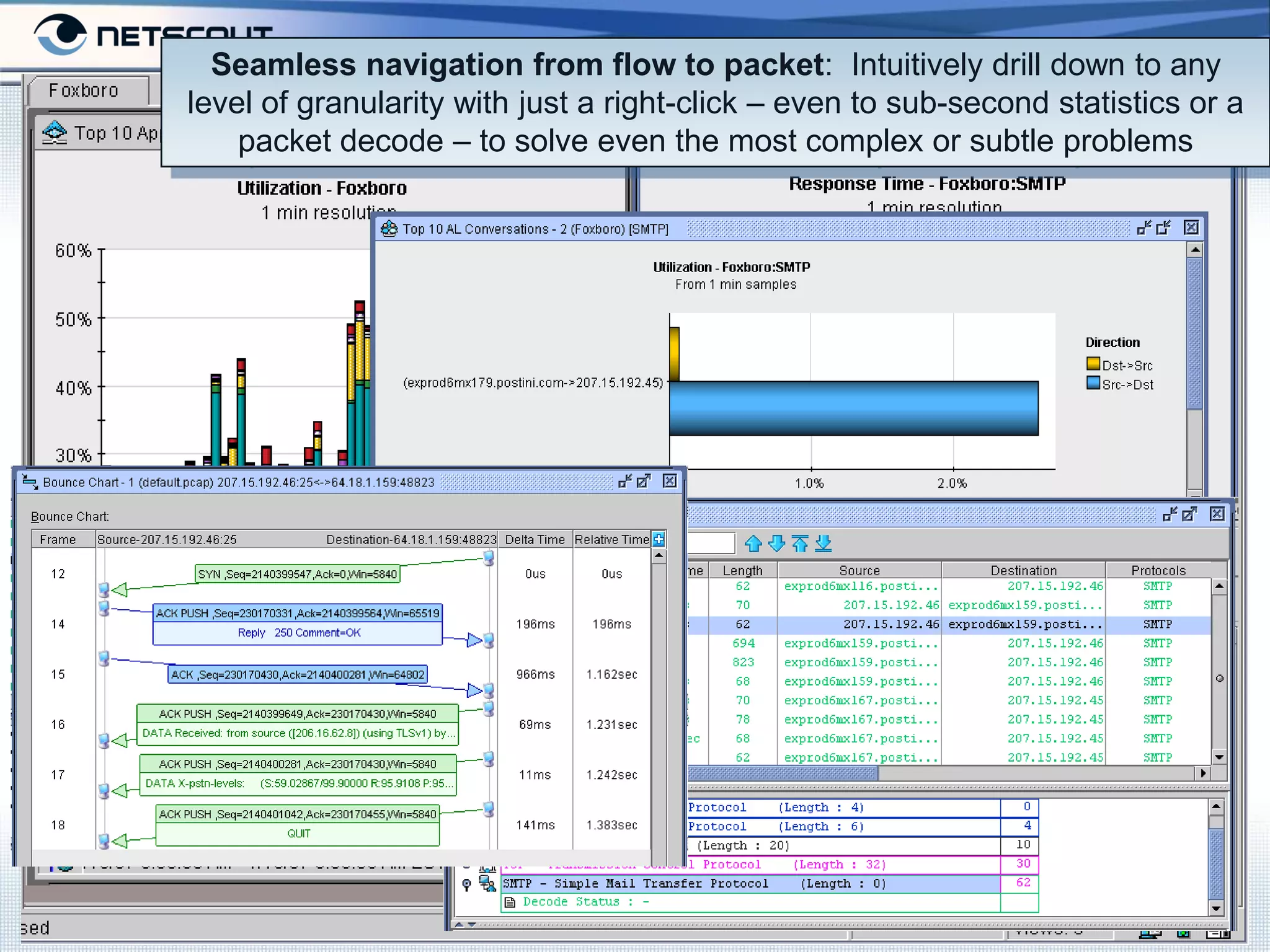

- 8. Seamless navigation from flow to packet: Intuitively drill down to any level of granularity with just a right-click – even to sub-second statistics or a packet decode – to solve even the most complex or subtle problems Company Confidential

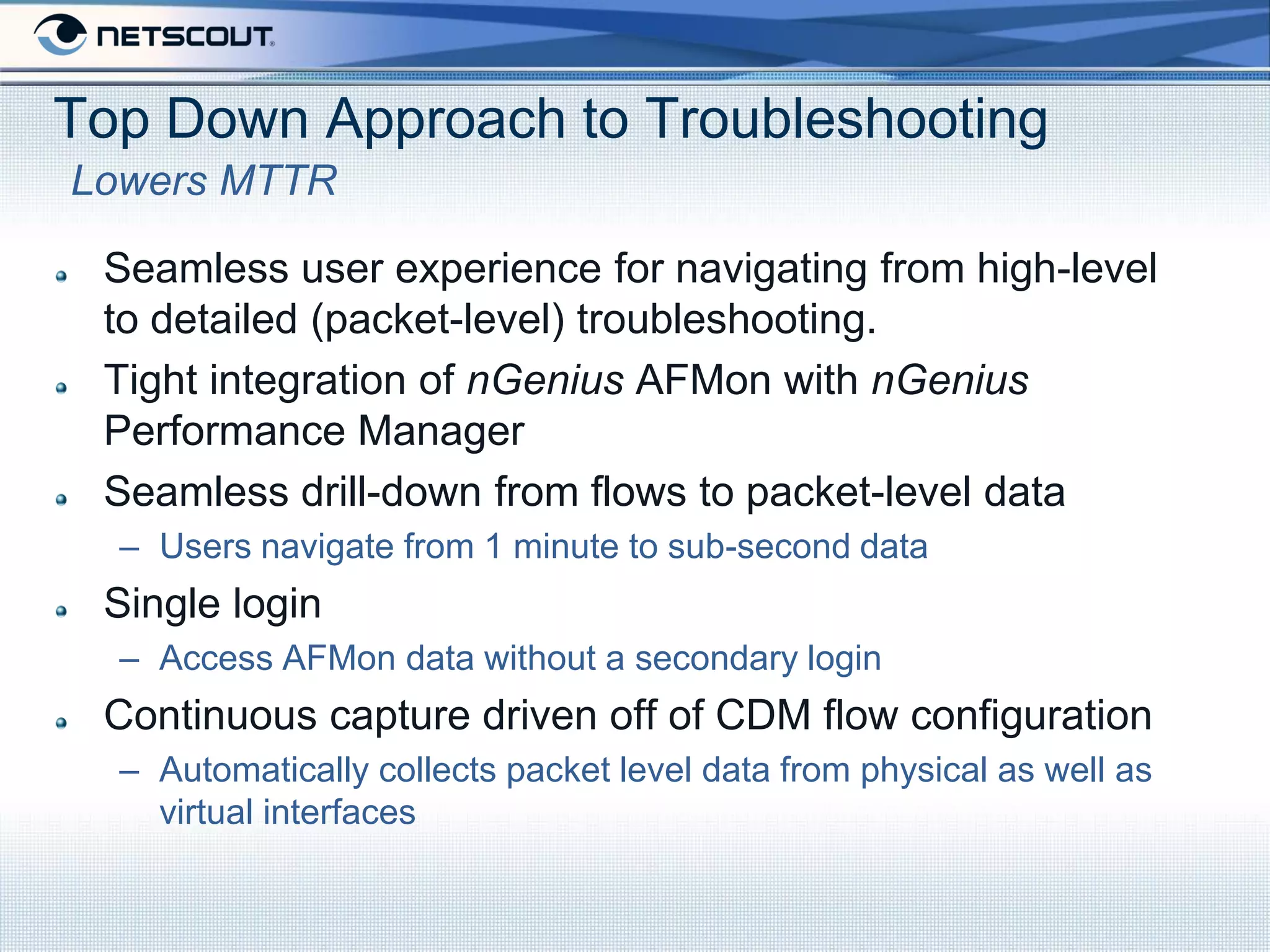

- 9. Top Down Approach to Troubleshooting Lowers MTTR Seamless user experience for navigating from high-level to detailed (packet-level) troubleshooting. Tight integration of nGenius AFMon with nGenius Performance Manager Seamless drill-down from flows to packet-level data – Users navigate from 1 minute to sub-second data Single login – Access AFMon data without a secondary login Continuous capture driven off of CDM flow configuration – Automatically collects packet level data from physical as well as virtual interfaces

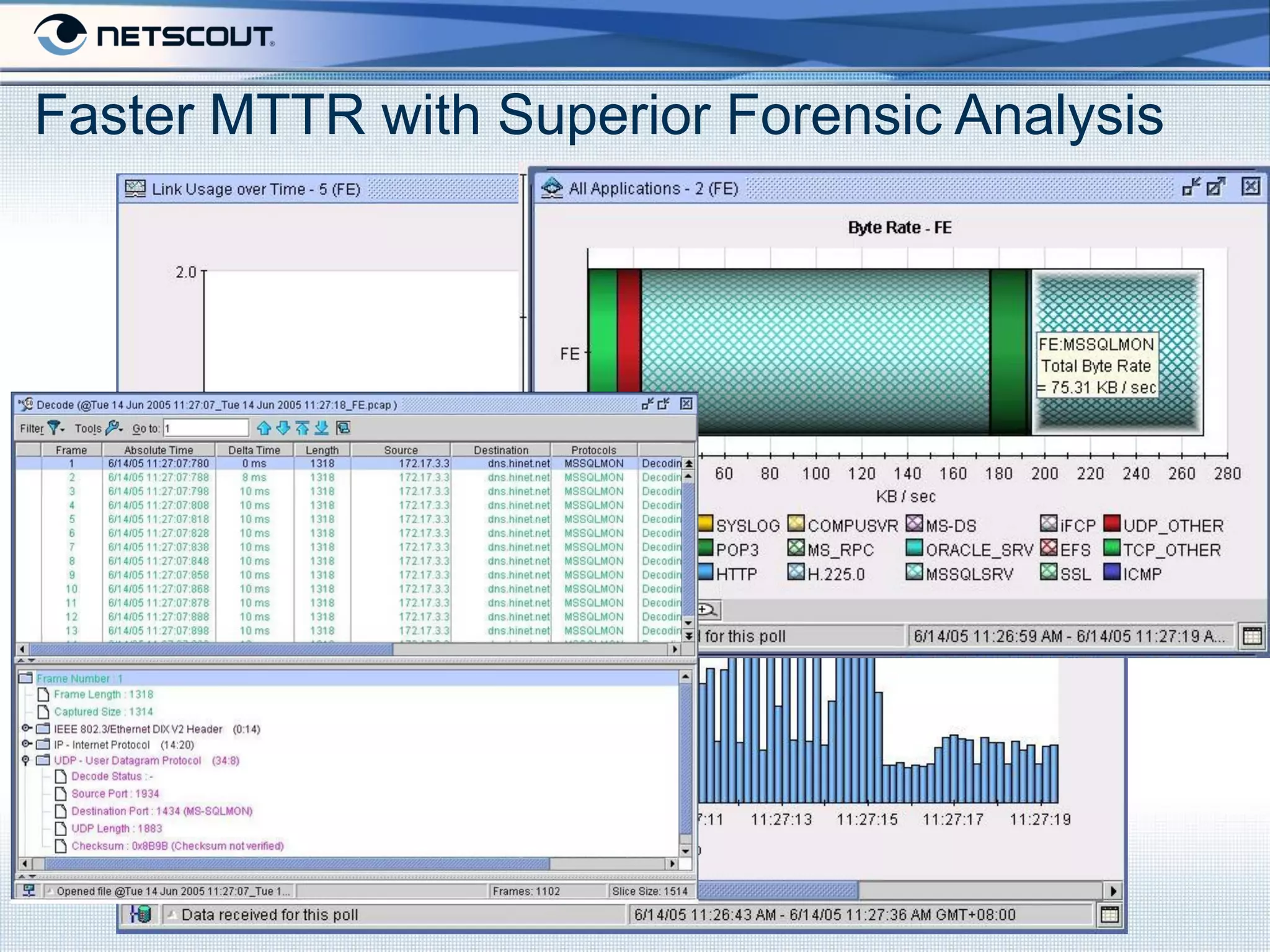

- 10. Faster MTTR with Superior Forensic Analysis Company Confidential

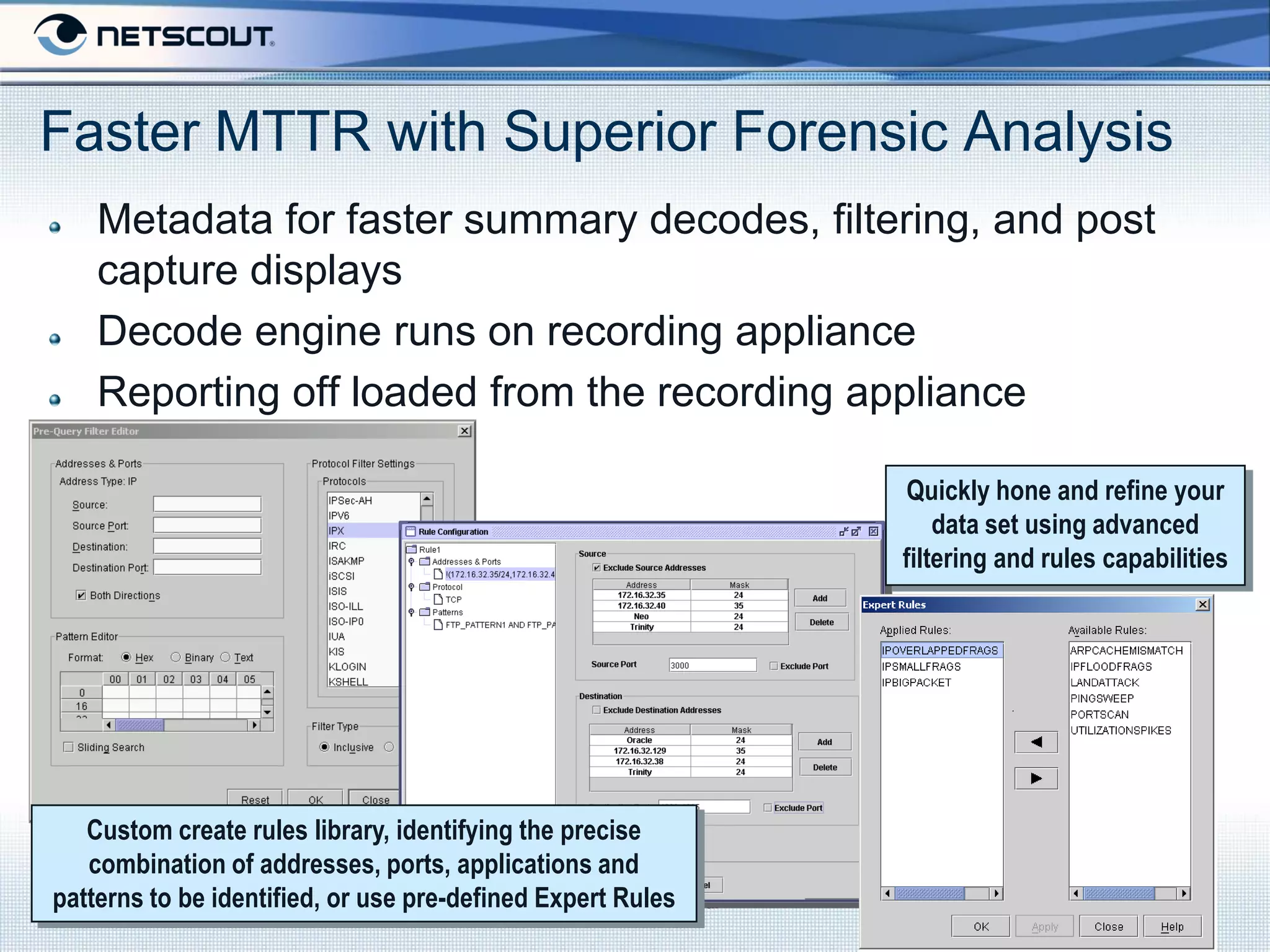

- 11. Faster MTTR with Superior Forensic Analysis Metadata for faster summary decodes, filtering, and post capture displays Decode engine runs on recording appliance Reporting off loaded from the recording appliance Quickly hone and refine your data set using advanced filtering and rules capabilities Custom create rules library, identifying the precise combination of addresses, ports, applications and patterns to be identified, or use pre-defined Expert Rules Company Confidential

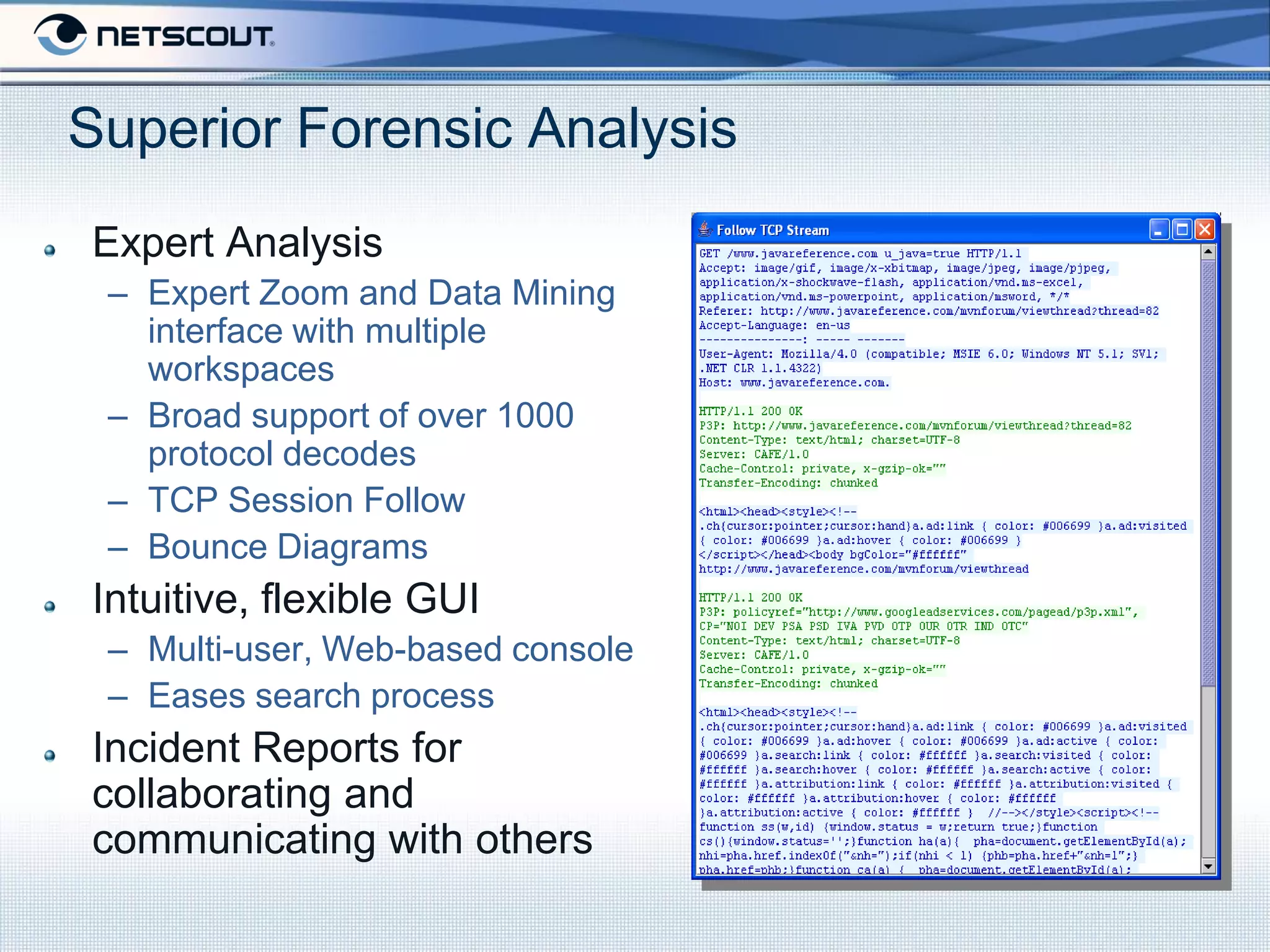

- 12. Superior Forensic Analysis Expert Analysis – Expert Zoom and Data Mining interface with multiple workspaces – Broad support of over 1000 protocol decodes – TCP Session Follow – Bounce Diagrams Intuitive, flexible GUI – Multi-user, Web-based console – Eases search process Incident Reports for collaborating and communicating with others

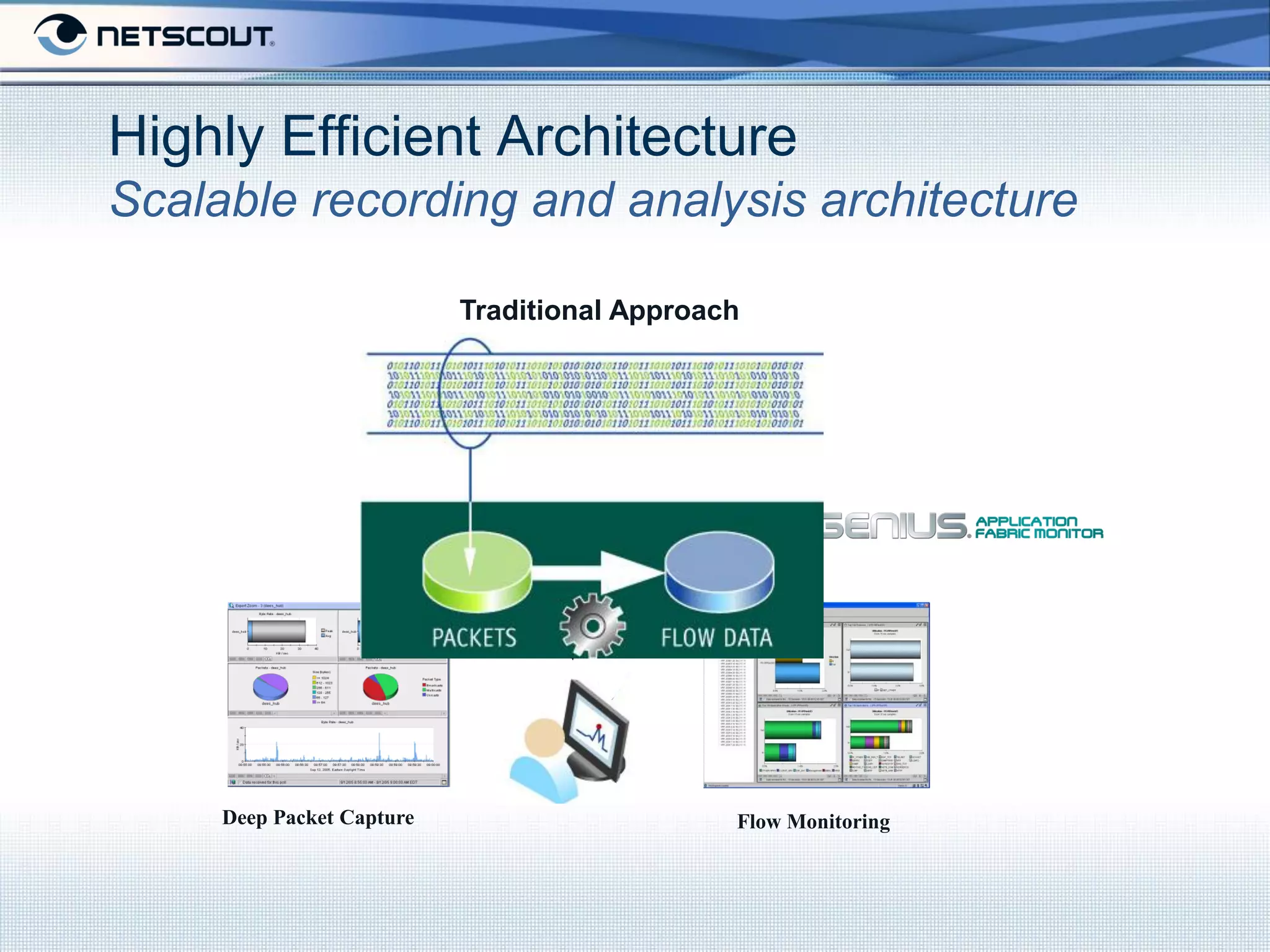

- 13. Highly Efficient Architecture Scalable recording and analysis architecture Netscout Approach Traditional Approach Deep Packet Capture Flow Monitoring

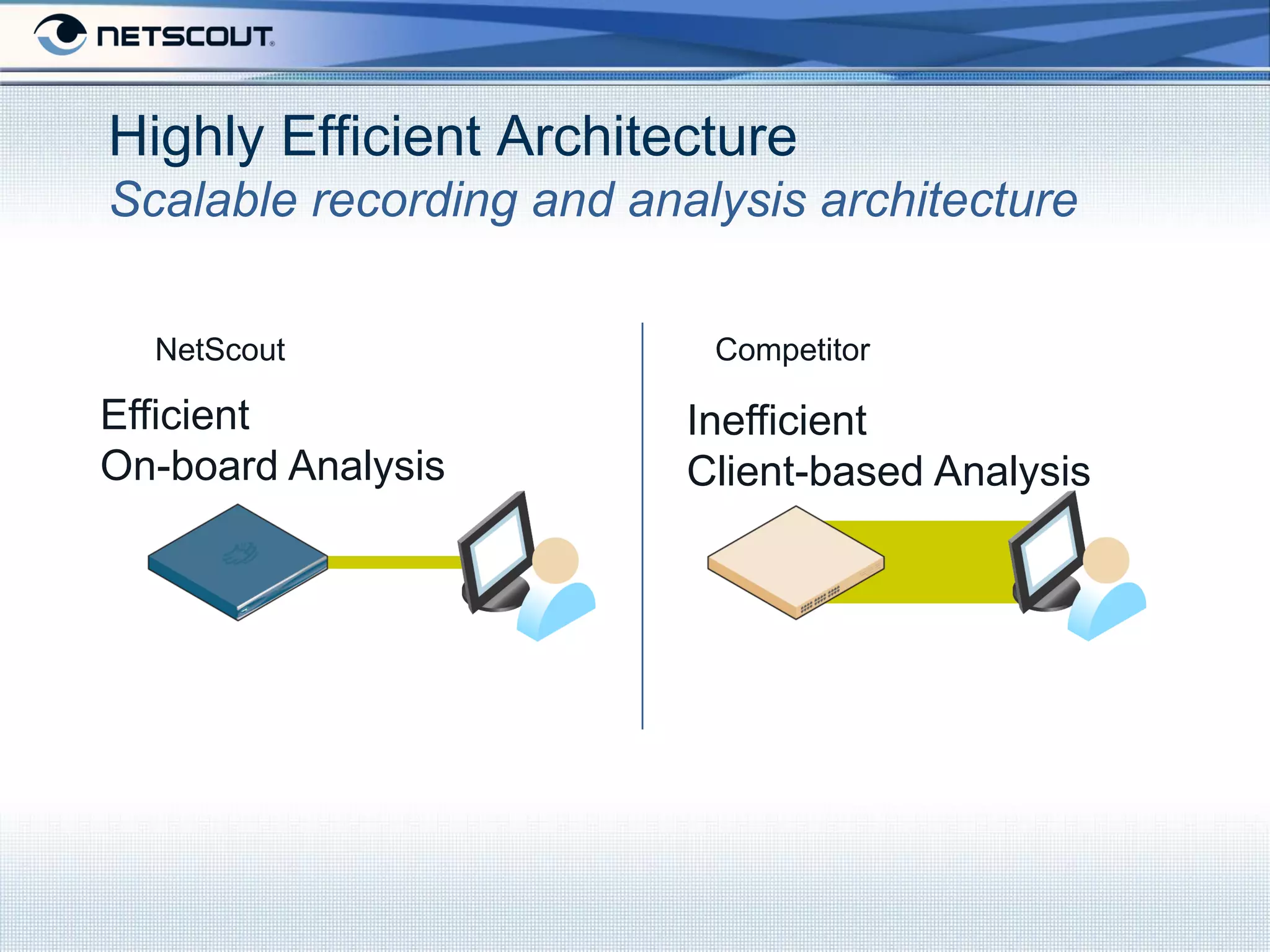

- 14. Highly Efficient Architecture Scalable recording and analysis architecture NetScout Competitor Efficient Inefficient On-board Analysis Client-based Analysis

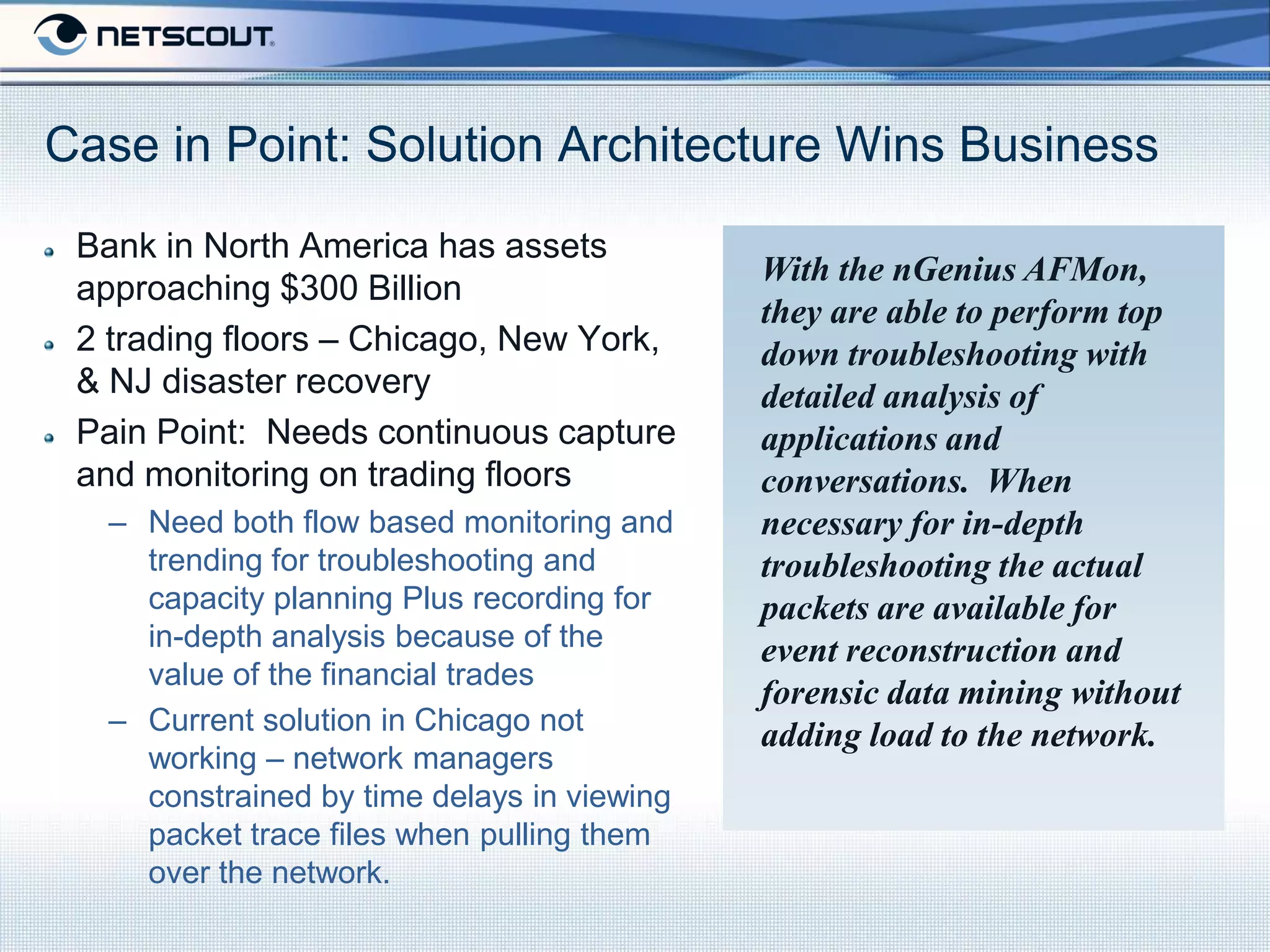

- 15. Case in Point: Solution Architecture Wins Business Bank in North America has assets With the nGenius AFMon, approaching $300 Billion they are able to perform top 2 trading floors – Chicago, New York, down troubleshooting with & NJ disaster recovery detailed analysis of Pain Point: Needs continuous capture applications and and monitoring on trading floors conversations. When – Need both flow based monitoring and necessary for in-depth trending for troubleshooting and troubleshooting the actual capacity planning Plus recording for packets are available for in-depth analysis because of the event reconstruction and value of the financial trades forensic data mining without – Current solution in Chicago not adding load to the network. working – network managers constrained by time delays in viewing packet trace files when pulling them over the network.

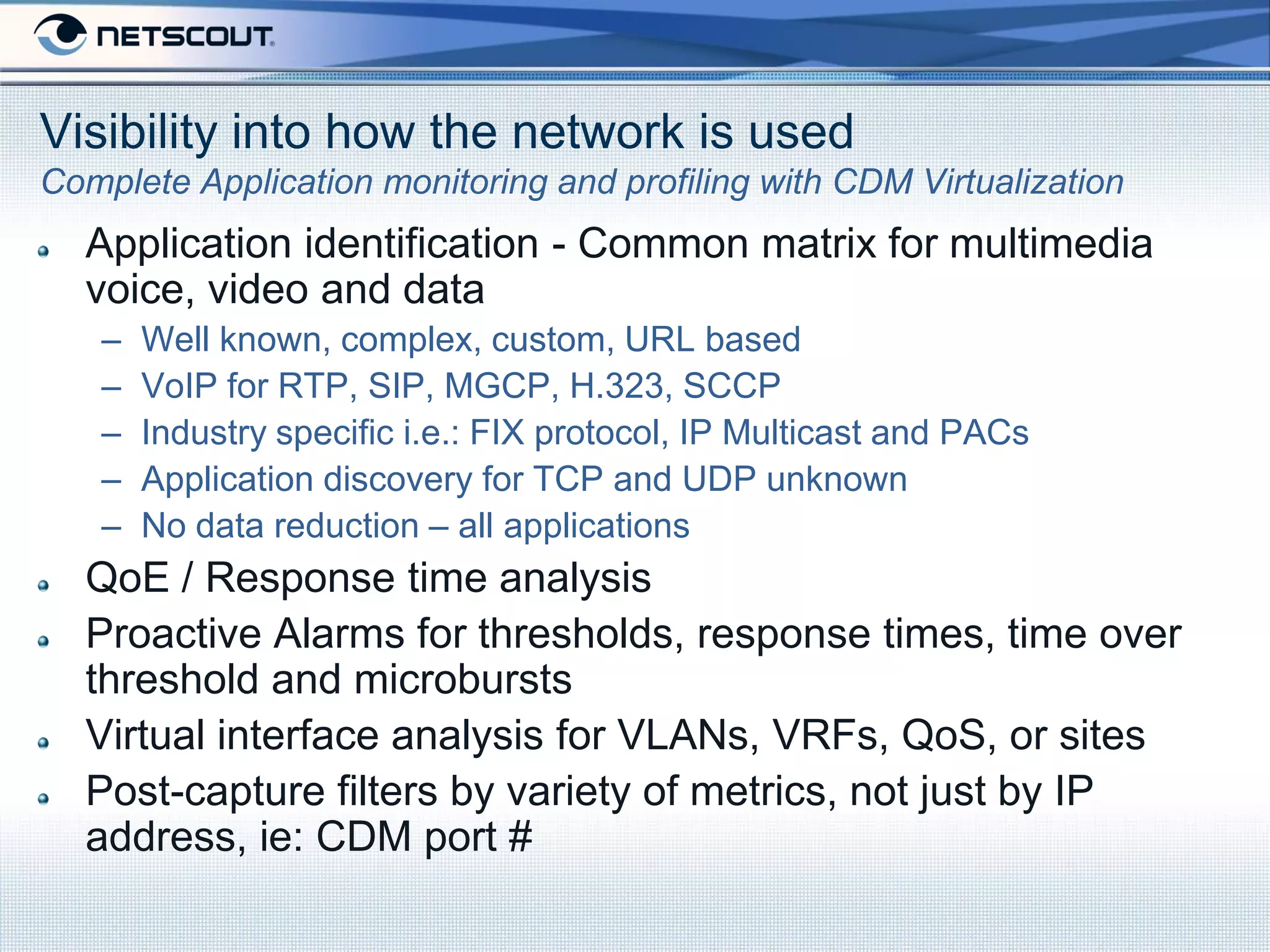

- 16. Visibility into how the network is used Complete Application monitoring and profiling with CDM Virtualization Application identification - Common matrix for multimedia voice, video and data – Well known, complex, custom, URL based – VoIP for RTP, SIP, MGCP, H.323, SCCP – Industry specific i.e.: FIX protocol, IP Multicast and PACs – Application discovery for TCP and UDP unknown – No data reduction – all applications QoE / Response time analysis Proactive Alarms for thresholds, response times, time over threshold and microbursts Virtual interface analysis for VLANs, VRFs, QoS, or sites Post-capture filters by variety of metrics, not just by IP address, ie: CDM port #

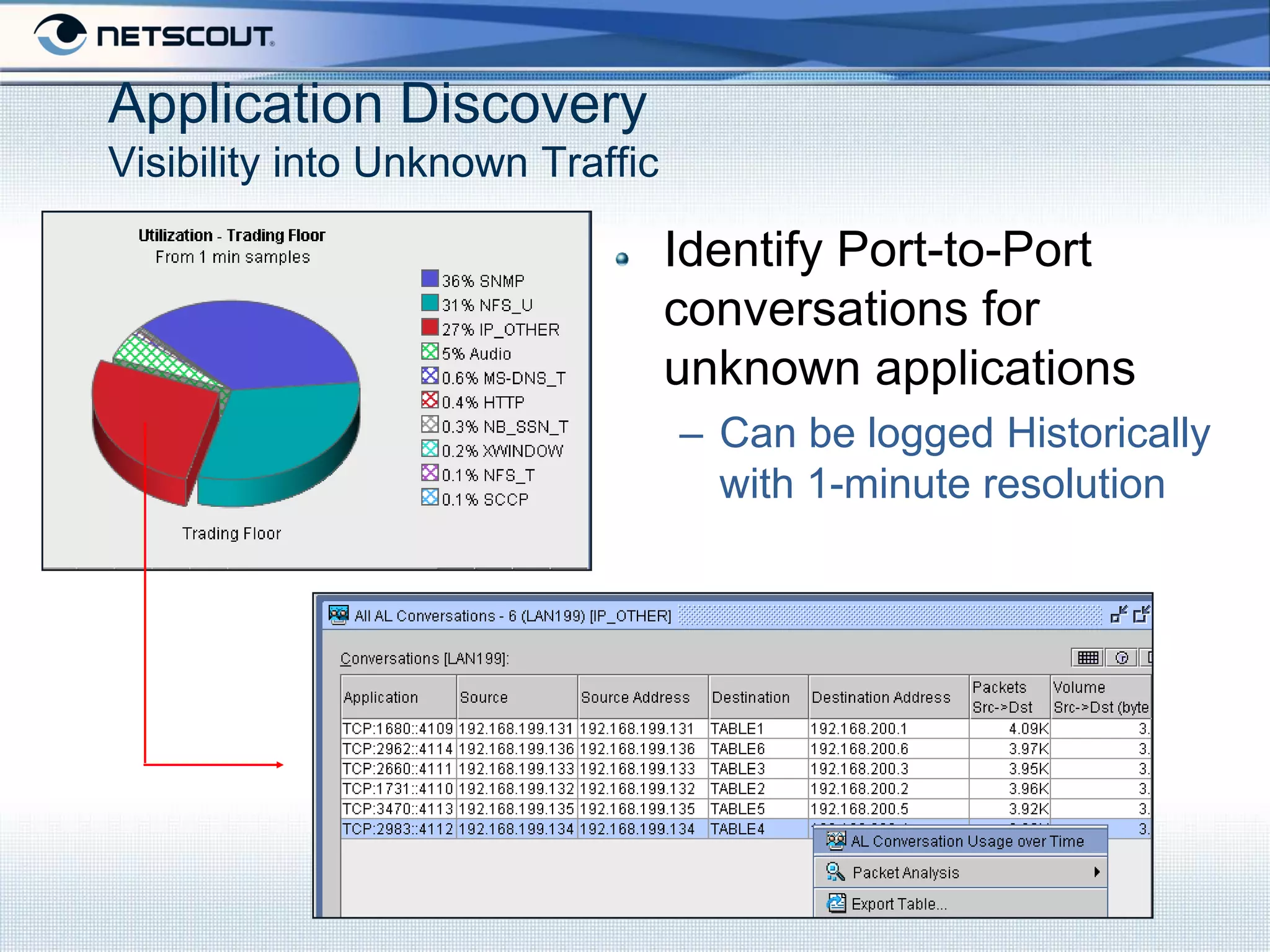

- 17. Application Discovery Visibility into Unknown Traffic Identify Port-to-Port conversations for unknown applications – Can be logged Historically with 1-minute resolution Company Confidential

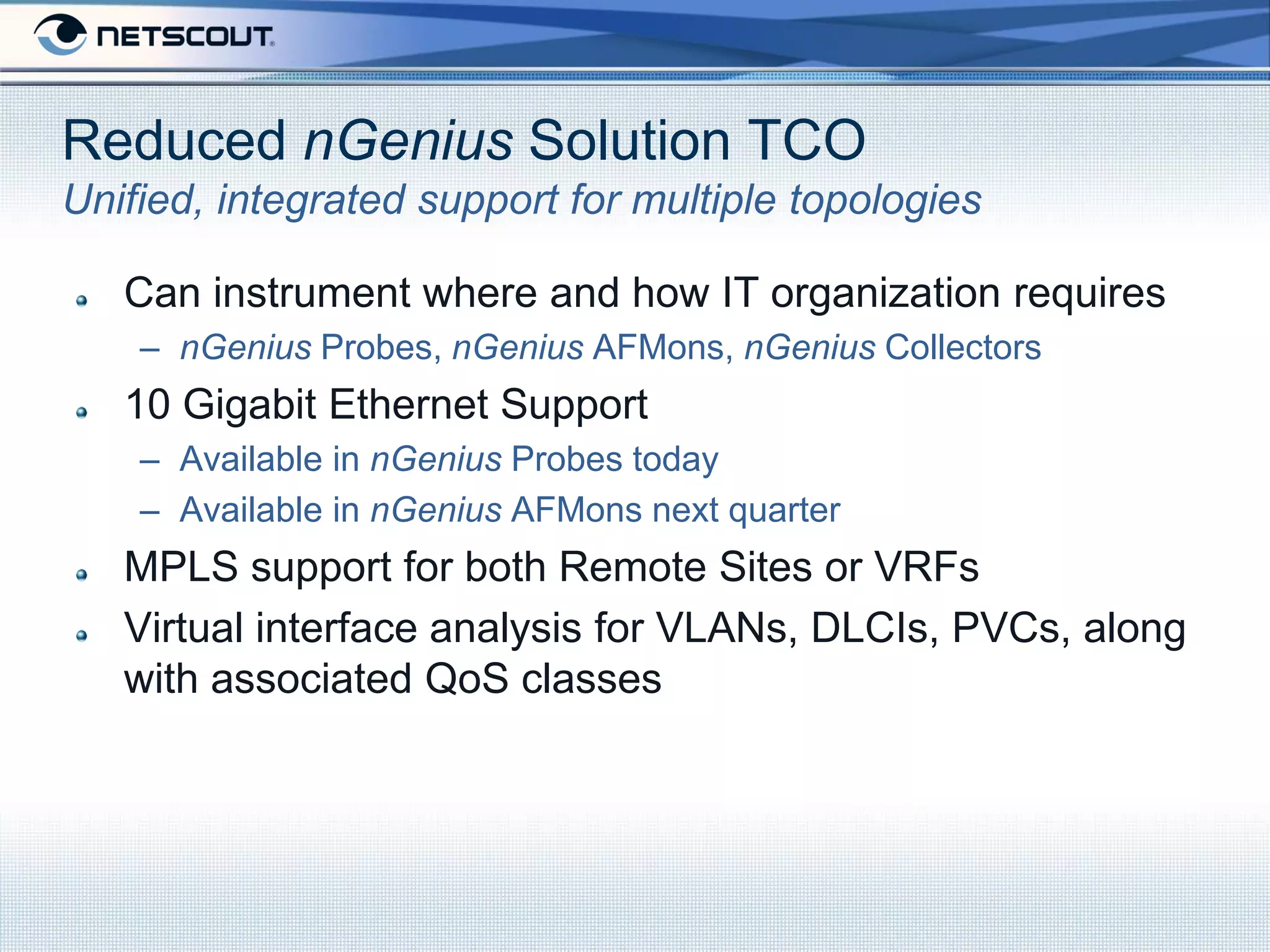

- 18. Reduced nGenius Solution TCO Unified, integrated support for multiple topologies Can instrument where and how IT organization requires – nGenius Probes, nGenius AFMons, nGenius Collectors 10 Gigabit Ethernet Support – Available in nGenius Probes today – Available in nGenius AFMons next quarter MPLS support for both Remote Sites or VRFs Virtual interface analysis for VLANs, DLCIs, PVCs, along with associated QoS classes

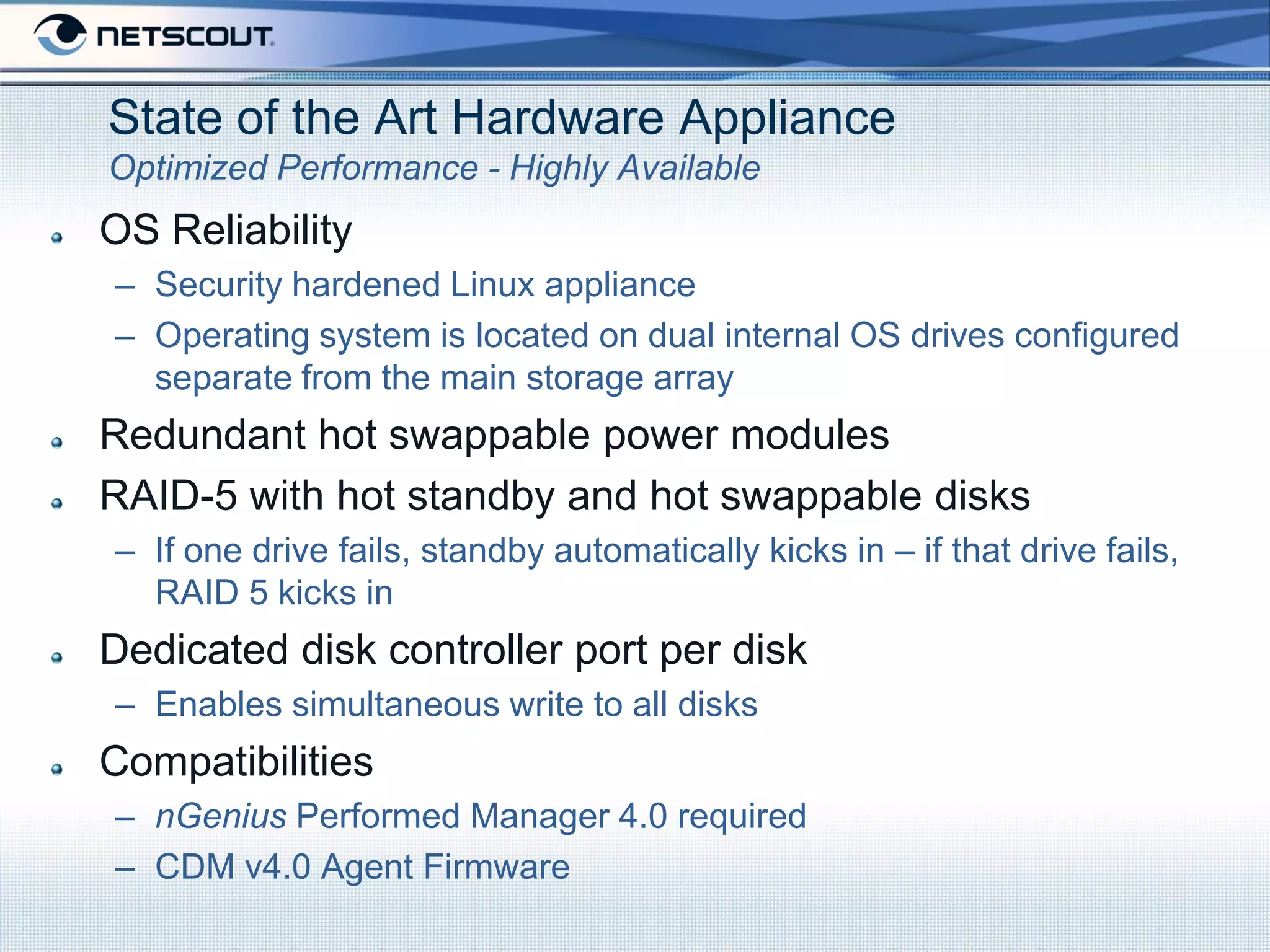

- 19. State of the Art Hardware Appliance Optimized Performance - Highly Available OS Reliability – Security hardened Linux appliance – Operating system is located on dual internal OS drives configured separate from the main storage array Redundant hot swappable power modules RAID-5 with hot standby and hot swappable disks – If one drive fails, standby automatically kicks in – if that drive fails, RAID 5 kicks in Dedicated disk controller port per disk – Enables simultaneous write to all disks Compatibilities – nGenius Performed Manager 4.0 required – CDM v4.0 Agent Firmware

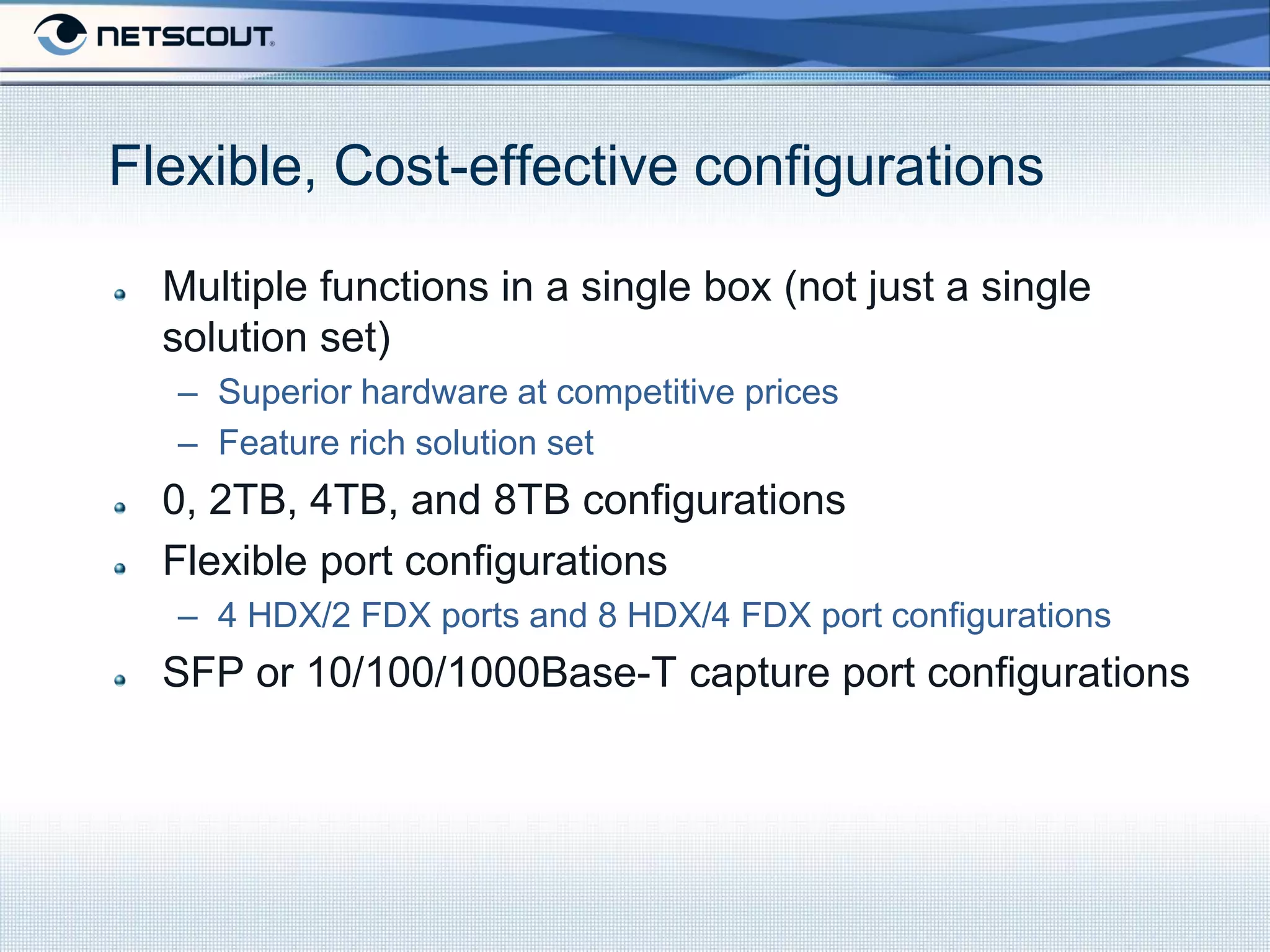

- 20. Flexible, Cost-effective configurations Multiple functions in a single box (not just a single solution set) – Superior hardware at competitive prices – Feature rich solution set 0, 2TB, 4TB, and 8TB configurations Flexible port configurations – 4 HDX/2 FDX ports and 8 HDX/4 FDX port configurations SFP or 10/100/1000Base-T capture port configurations

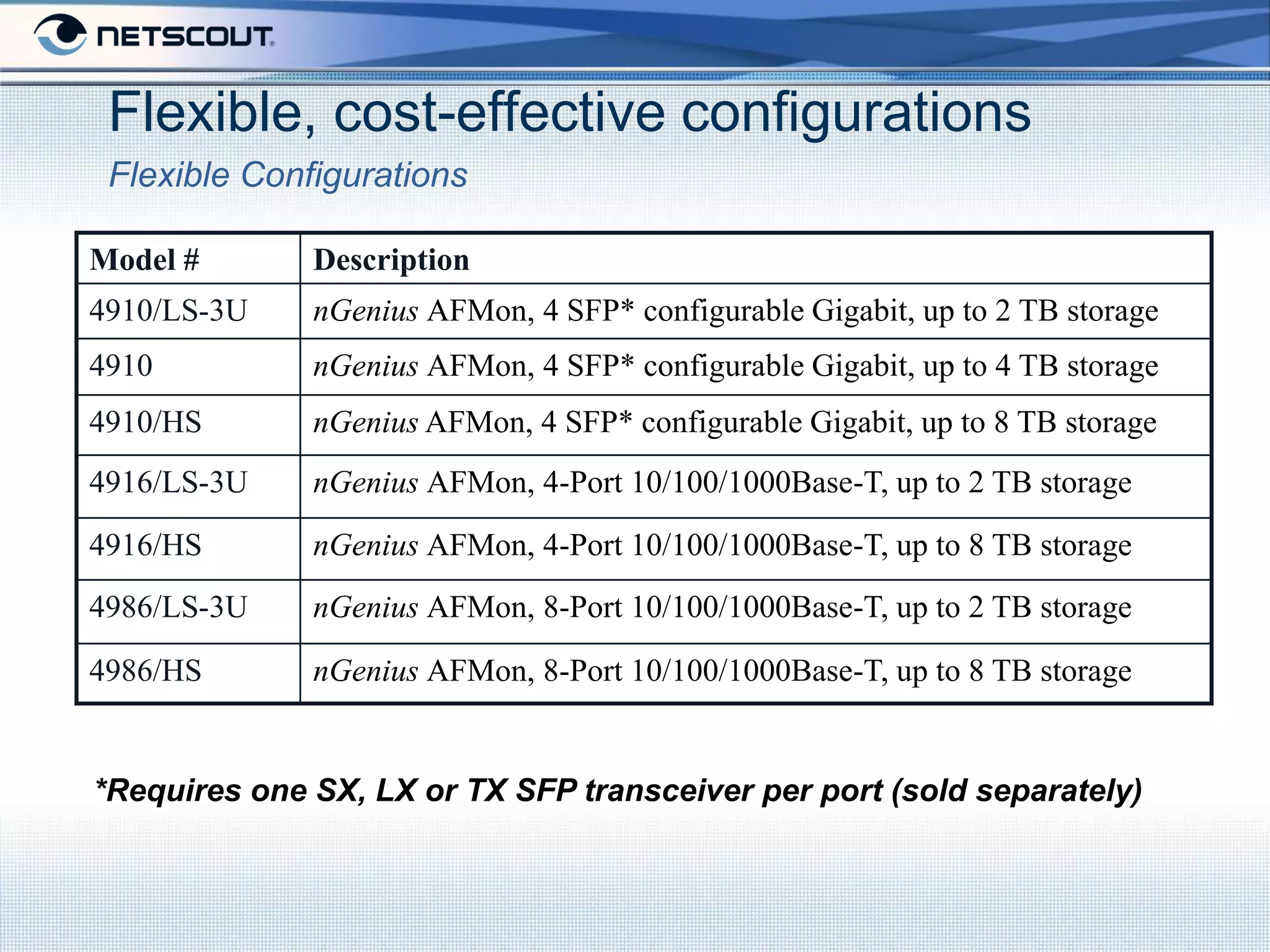

- 21. Flexible, cost-effective configurations Flexible Configurations Model # Description 4910/LS-3U nGenius AFMon, 4 SFP* configurable Gigabit, up to 2 TB storage 4910 nGenius AFMon, 4 SFP* configurable Gigabit, up to 4 TB storage 4910/HS nGenius AFMon, 4 SFP* configurable Gigabit, up to 8 TB storage 4916/LS-3U nGenius AFMon, 4-Port 10/100/1000Base-T, up to 2 TB storage 4916/HS nGenius AFMon, 4-Port 10/100/1000Base-T, up to 8 TB storage 4986/LS-3U nGenius AFMon, 8-Port 10/100/1000Base-T, up to 2 TB storage 4986/HS nGenius AFMon, 8-Port 10/100/1000Base-T, up to 8 TB storage *Requires one SX, LX or TX SFP transceiver per port (sold separately)

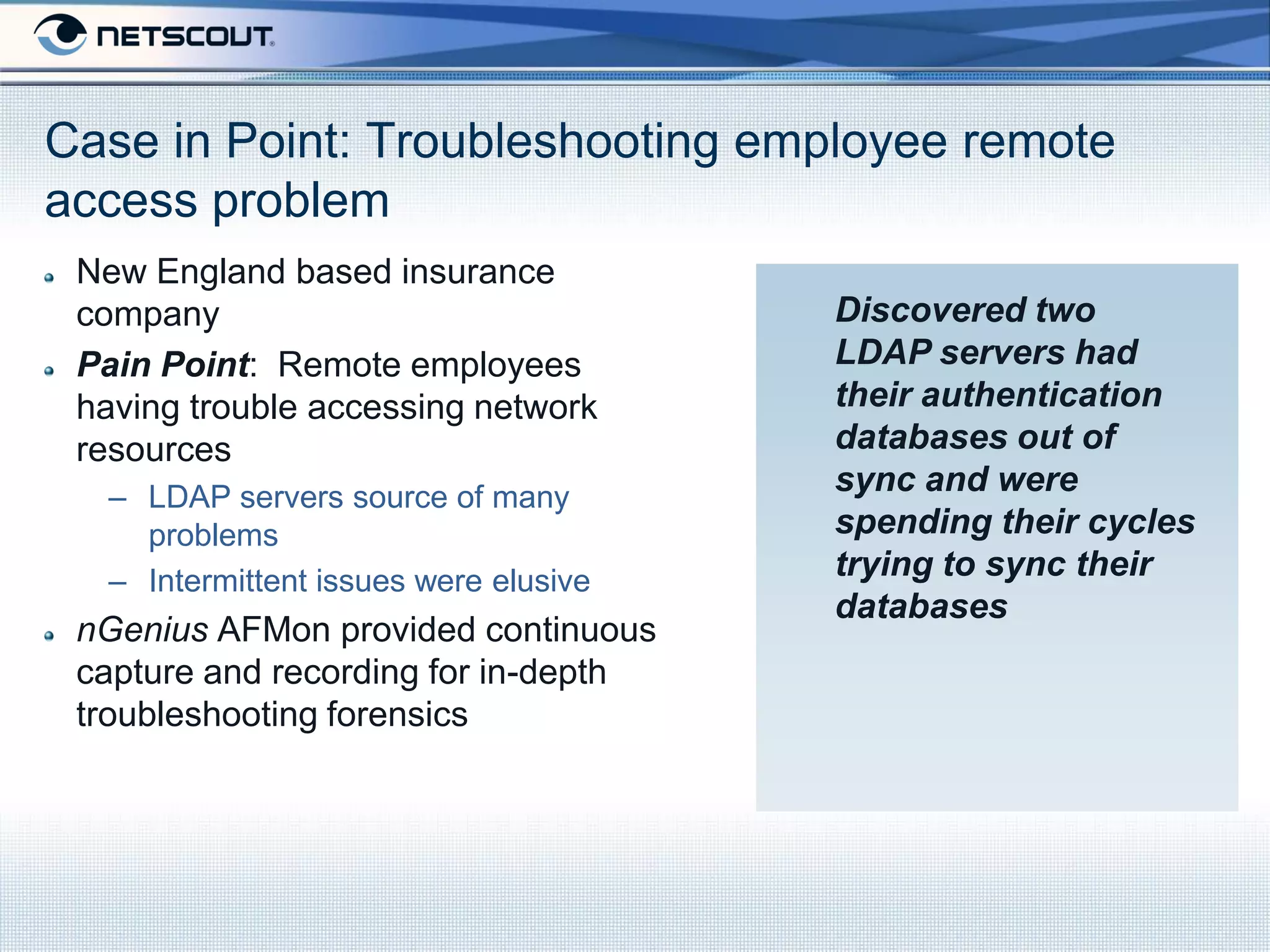

- 22. Case in Point: Troubleshooting employee remote access problem New England based insurance company Discovered two Pain Point: Remote employees LDAP servers had having trouble accessing network their authentication resources databases out of – LDAP servers source of many sync and were problems spending their cycles – Intermittent issues were elusive trying to sync their databases nGenius AFMon provided continuous capture and recording for in-depth troubleshooting forensics

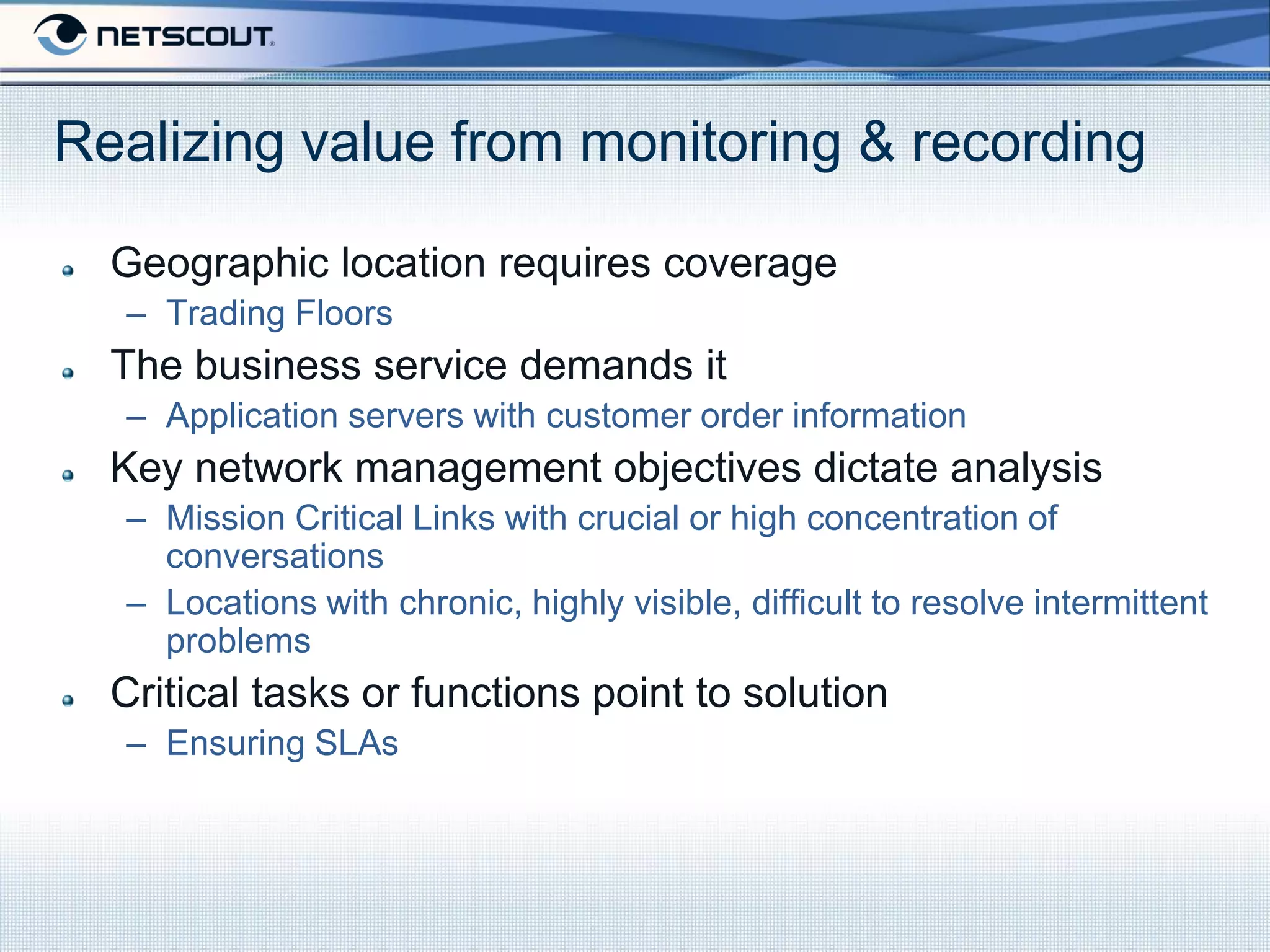

- 23. Realizing value from monitoring & recording Geographic location requires coverage – Trading Floors The business service demands it – Application servers with customer order information Key network management objectives dictate analysis – Mission Critical Links with crucial or high concentration of conversations – Locations with chronic, highly visible, difficult to resolve intermittent problems Critical tasks or functions point to solution – Ensuring SLAs
- 24. Superior Company Technology leader with a clear vision The most experienced team in the industry – Founded in 1984 – Over 360 employees Growing, profitable – $100M revenue run rate – $95M in cash, no debt World-wide distribution and support

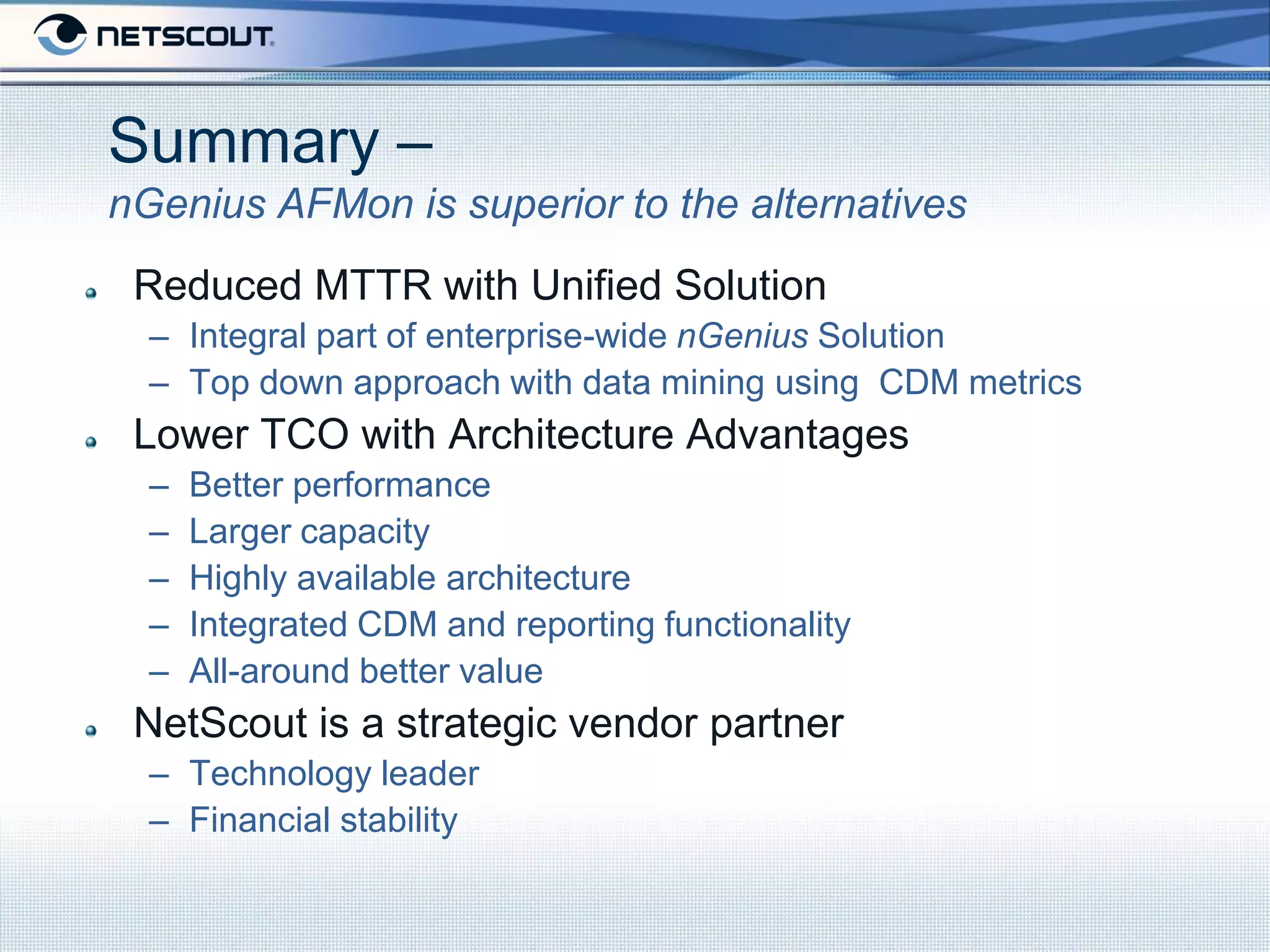

- 25. Summary – nGenius AFMon is superior to the alternatives Reduced MTTR with Unified Solution – Integral part of enterprise-wide nGenius Solution – Top down approach with data mining using CDM metrics Lower TCO with Architecture Advantages – Better performance – Larger capacity – Highly available architecture – Integrated CDM and reporting functionality – All-around better value NetScout is a strategic vendor partner – Technology leader – Financial stability
- 26. Thank You www.NetScout.com
