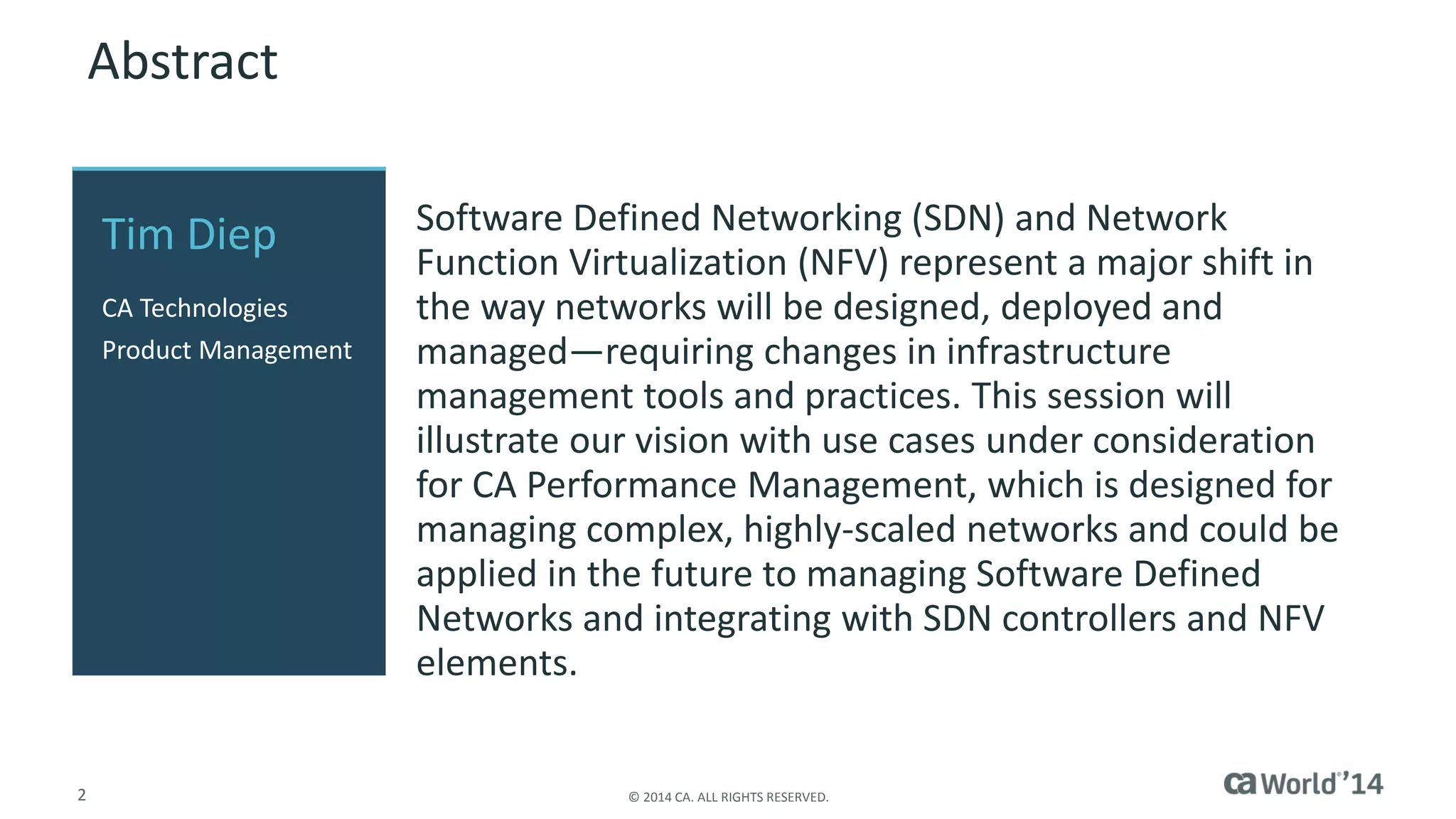

Abstract
Software Defined Networking (SDN) and Network Function Virtualization (NFV) represent a major shift in the way networks will be designed, deployed and managed—requiring changes in infrastructure management tools and practices. This session will illustrate our vision with use cases under consideration for CA Performance Management, which is designed for managing complex, highly-scaled networks and could be applied in the future to managing Software Defined Networks and integrating with SDN controllers and NFV elements.
Tim Diep
CA Technologies
Product Management

3. 3
© 2014 CA. ALL RIGHTS RESERVED.

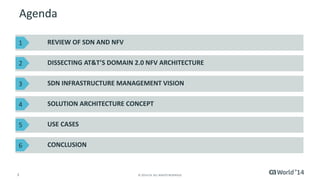

Agenda
REVIEW OF SDN AND NFV
DISSECTING AT&T’S DOMAIN 2.0 NFV ARCHITECTURE
CONCLUSION
SDN INFRASTRUCTURE MANAGEMENT VISION
SOLUTION ARCHITECTURE CONCEPT
USE CASES
1
2
3
4
5
6

4. 4
© 2014 CA. ALL RIGHTS RESERVED.

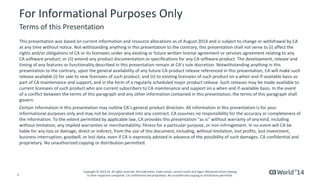

For Informational Purposes Only
This presentation was based on current information and resource allocations as of August 2014 and is subject to change or withdrawal by CA at any time without notice. Not withstanding anything in this presentation to the contrary, this presentation shall not serve to (i) affect the rights and/or obligations of CA or its licensees under any existing or future written license agreement or services agreementrelating to any CA software product; or (ii) amend any product documentation or specifications for any CA software product. The development, release and timing of any features or functionality described in this presentation remain at CA’s sole discretion. Notwithstanding anything in this presentation to the contrary, upon the general availability of any future CA product release referenced in this presentation,CAwill make such release available (i) for sale to new licensees of such product; and (ii) to existing licensees of such product on a when and if-available basis as part of CA maintenance and support, and in the form of a regularly scheduled major product release. Such releases may be madeavailable to current licensees of such product who are current subscribers to CA maintenance and support on a when and if-available basis.In the event of a conflict between the terms of this paragraph and any other information contained in this presentation, the terms of thisparagraph shall govern.
Certain information in this presentation may outline CA’s general product direction. All information in this presentation is for your informational purposes only and may not be incorporated into any contract. CA assumes no responsibility for the accuracy or completeness of the information. To the extent permitted by applicable law, CA provides this presentation “as is” without warranty of any kind, including without limitation, any implied warranties or merchantability, fitness for a particular purpose, or non-infringement. In no event will CA be liable for any loss or damage, direct or indirect, from the use of this document, including, without limitation, lost profits, lost investment, business interruption, goodwill, or lost data, even if CA is expressly advised in advance of the possibility of such damages.CAconfidential and proprietary. No unauthorized copying or distribution permitted.
Terms of this Presentation
Copyright © 2014 CA. All rights reserved. All trademarks, trade names, service marks and logos referenced herein belongto their respective companies. CA confidential and proprietary. No unauthorized copying or distribution permitted.

5. 5
© 2014 CA. ALL RIGHTS RESERVED.
What Is SDN and NFV
SDN (Software Defined Networking) is an architectural change to networking focusing on three areas: Abstraction, Centralization and Automation.
Technical Review
NFV (Network Function Virtualization) is the virtualization of network services in order to reduce network equipment cost and add velocity. It is an SDN use case for CSP.
Apps/
Services
Apps/
Services
Controller
brain
Network Element
brain
Network Element
brain
Network Element
brain
Network Element
Network Element
Network Element
Traditional Networking
SDN-enabled
Centralized Control
Automation
Abstraction
Hardware
Net Functions
Traditional Networking
NFV-enabled
Net Functions Virtualized “Cloud”
Hardware
Net Functions
Network Appliance
Network Appliance
Hardware locked
Over-proConcept
Elastic, on-demand
Hardware agnostic
Controller
Resource Pool
Hardware
Hardware
Hardware

6. 6
© 2014 CA. ALL RIGHTS RESERVED.

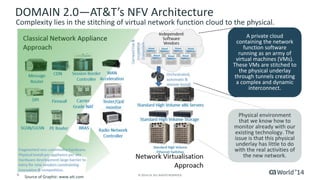

DOMAIN 2.0—AT&T’s NFV Architecture
Complexity lies in the stitching of virtual network function cloud to the physical. network
Physical environment that we know how to monitor already with our existing technology. The issue is that this physical underlay has little to do with the real activities of the new network.
A private cloud containing the network function software running as an army of virtual machines (VMs). These VMs are stitched to the physical underlay through tunnels creating a complex and dynamic interconnect.
Source of Graphic: www.att.com

7. 7
© 2014 CA. ALL RIGHTS RESERVED.

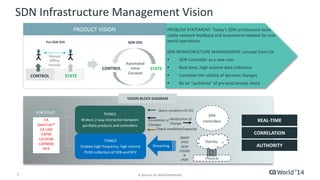

SDN Infrastructure Management Vision
CONTROL
STATE
SDN OSS
Automated
Inline
Constant
Manual
Offline
Periodic
Pre-SDN OSS
CONTROL
STATE
PRODUCT VISION
PROBLEM STATEMENT: Today’s SDN architecture lacks viable network feedback and assessment needed for real- world operations.
SDN INFRASTRUCTURE MANAGEMENT concept from CA:
SDN Controller as a new user
Real-time, high volume data collection
Correlate the validity of dynamic changes
Be an “authority” of pre-proConceptcheck
THING1
Brokers 2-way interaction between portfolio products and controllers
THING2
Enables high frequency, high volume PUSH collection of SDN and NFV
CA Spectrum®
CA UIM
CAPM
CA DCIM
CAPMAN
NFA
SDN Controllers
PORTFOLIO
Query condition (ALTO)
Correlation of Changes
Check condition/capacity
SNMP
IPFIX
DCM
JVSISION
IPDR
CORRELATION
REAL-TIME
AUTHORITY
Physical
Overlay
Notification of Change
VISION BLOCK DIAGRAM
Streaming

8. 8
© 2014 CA. ALL RIGHTS RESERVED.
Market Segment Use Cases and Product Concept
RACKSPACE
FUJITSU
CENTURYLINK
*L2/3 Automation (OpEx) Integrating server automation with L2/3 forwarding and network functions
*Dynamic User Access *Stretching the network *Dynamic Security Management
*Multi-tenancy ($/OpEx) Slicing the DC for private or public use ITaaSservice model (ex: Pertino)
*L2/3 Automation (OpEx) Integrating server automation with L2/3 forwarding and network functions
*Service ProConcepting($/OpEX) *Stretching the network
INTEL
WF
BARCLAYS
Cloud Providers DC
Large Enterprise DCMulti-Tenancy DCIM Needs
v-Storage
v-Data-Plane
v-Compute
Network Fabric
Tenants
CA Universal Infrastructure Management (CA UIM) for SDN Concept
•Monitor/Correlate/Authorize
•Integrated per-tenant view of virtualized compute, storage, data- plane, and L2/3 fabric
•Comprehensive multi-dimension SLA monitoring, correlation and reporting
•Per-tenant usage profile of BW, compute, and storage
*Multi-tenancy ($/OpEx) Slicing the DC for private or public use ITaaSservice model
*NFV -Edge Service Chaining ($) Dynamically setup, chain and tear down network function services (LB, FW, Proxy, CGN, Flow, Cache, IDP, DPI, CDN, VOD…etc.)
*NFV -Virtual CPE/Cloud CE Virtualizing customer premise functions to reduce truckroll
*Dynamic WAN Reroute *BW on demand *NFV -E2E Subscriber ProConcepting
COMCAST
VZ
AT&T
NTT
Wireline/Mobile/MSO
NFV Service Chaining IM Needs
Virtualized Data-Plane
X86 Server
VM Firewall
VM CGNAT
VM Proxy
VM Cache
CA Performance Management for NFV Concept
•Correlate/authorize dynamic chain creation
•Monitor per-VM HA/resiliency, BW, performance
•Map virtual data-plane to physical utilization

9. 9
© 2014 CA. ALL RIGHTS RESERVED.

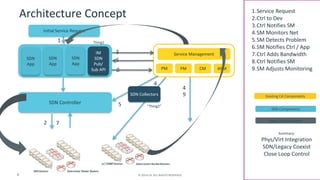

1.Service Request
2.Ctrl to Dev
3.Ctrl Notifies SM
4.SM Monitors Net
5.SM Detects Problem
6.SM Notifies Ctrl / App
7.Ctrl Adds Bandwidth
8.Ctrl Notifies SM
9.SM Adjusts Monitoring
Existing CA Components
SDN Components
New CA Component
Summary:
Phys/VirtIntegration
SDN/Legacy Coexist
Close Loop Control
SDN Controller
PM
Service Management
IM
SDN
Pub/
Sub API
Initial Service Request
1
2
3
4
4
5
6
7
8
9
FM
CM
APM
SDN App
SDN App
SDN App
Thing1
SDN Collectors
“Thing2”
Architecture Concept

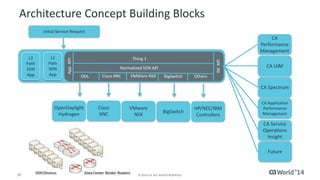

10. 10
© 2014 CA. ALL RIGHTS RESERVED.
OpenDaylight Hydrogen
Initial Service Request
L3
Path
SDN App
L2
Path
SDN App
IM API
App API
ODL
Thing 1
Cisco XNC
VMWareNSX
BigSwitch
Others
Normalized SDN API
Cisco
XNC
VMware
NSX
BigSwitch
HP/NEC/IBM
Controllers
CA Performance Management
CA UIM
CA Spectrum
CA Application Performance Management
CA Service Operations Insight
Future
Architecture Concept Building Blocks

11. 11
© 2014 CA. ALL RIGHTS RESERVED.
CA World’14 SDN Demo
THING1
SDN Forwarding App
“Hydrogen”
CAPC
B
A
(1) I want to go from A to B
(3) Provide me the utilization of these paths
(5) Here is a list of paths starting with the least utilized
(4a) Request immediate polling for the specific interfaces along each paths and retrieves monitored information
(6) ProConceptsthe path using OpenFlow
(4b) Polls the specific devices along requested path (SNMP)
(2) Controller calculates paths using routing protocol
(7) Collects flow data
(8) Dashboard shows before/after configuration and correction, and an event is generated for flow analysis shows QOS issue
REST API
NFA
CGPM
Open API
Write out names

12. 12
© 2014 CA. ALL RIGHTS RESERVED.
NFV Use Case
Today’s controller is forced to provision blindly without sufficient knowledge of network capacity and availability.
The constant SDN-triggered configuration changes on VMs, network elements and servers can disrupt operational workflow.
App
Controller
Network
Bring up new video service for these 100K mobile subscribers
ProConceptsGiLANnetwork services in an EPC
GiLANhas already reached the maximum # of sessions
App
Controller
Bring up new VPN for this enterprise customer
Network
ProConceptsMPLS on PE routers
NOC
These routers jumped from 20 to 80 percent. What happened?
alarm
alarm
alarm
alarm

13. 13
© 2014 CA. ALL RIGHTS RESERVED.
A Framework for Eliminating Operational Bottlenecks
On-demand analysis of network capacity and availability
Controller
SDN IM Concept
NE
Srvr
(1) What are the network capacity of these nodes/IP
(2)Node capacity, CPU utilization, memory utilization …etc.
Real-time correlation of network state/topology changes
I will be making these changes to the network
Changes has taken place and all nodes are stable
Controller
SDN IM Concept
NE
Srvr
NOC
Real-time performance monitoring
Real-time performance monitoring

14. 14
© 2014 CA. ALL RIGHTS RESERVED.
