Getting started with image processing using Matlab

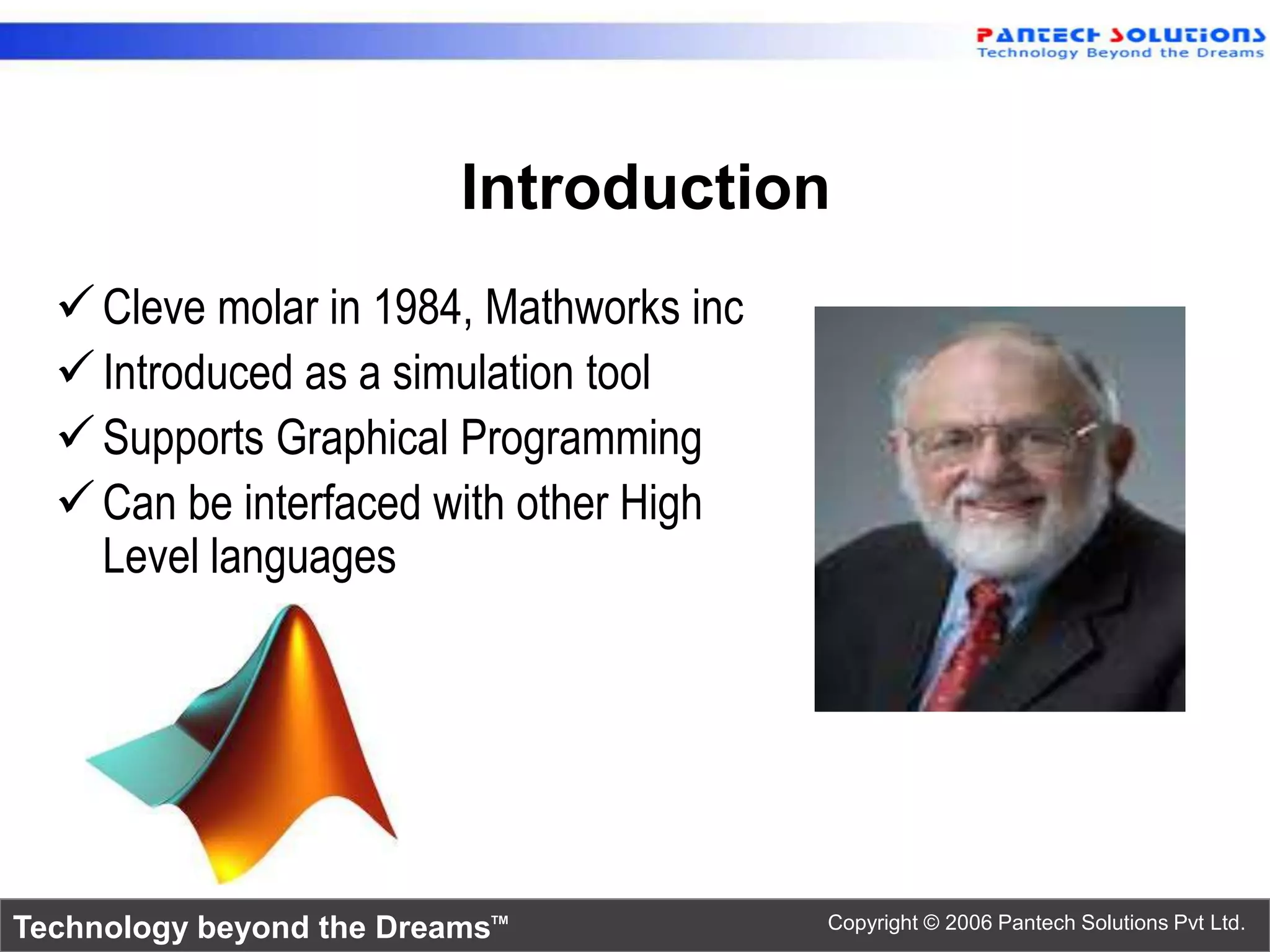

Introduction
 Cleve molar in 1984, Mathworks inc
 Introduced as a simulation tool
 Supports Graphical Programming
 Can be interfaced with other High
Level languages

Technology beyond the Dreams™ Copyright © 2006 Pantech Solutions Pvt Ltd.

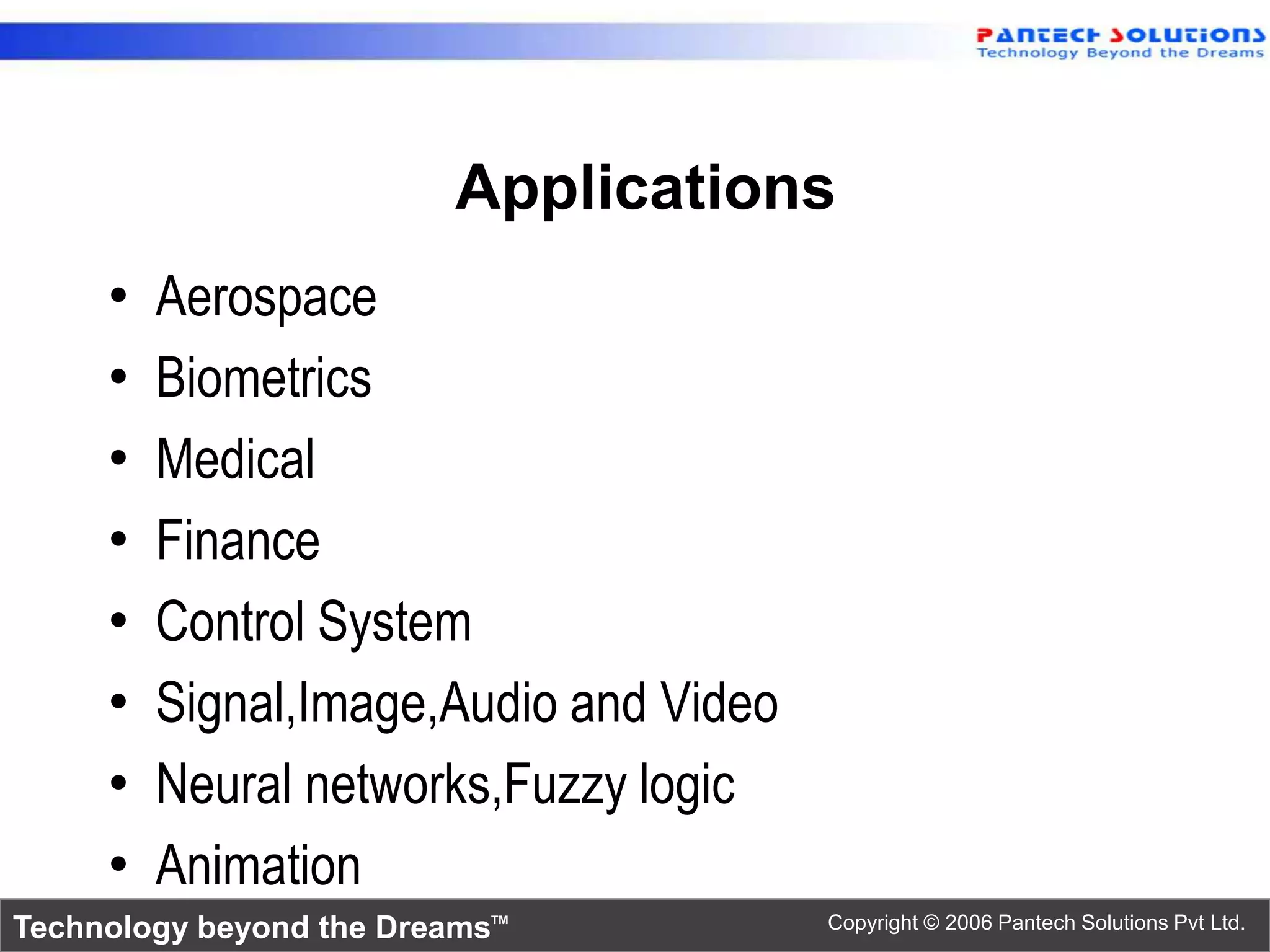

Applications
• Aerospace
• Biometrics
• Medical
• Finance
• Control System
• Signal,Image,Audio and Video
• Neural networks,Fuzzy logic
• Animation

List of Companies
• ADOBE (Photoshop)
• NASA
• GE
• L&T
• ROBERT BOSCH
• PEPSI , COCACOLA (Neuro Marketing)

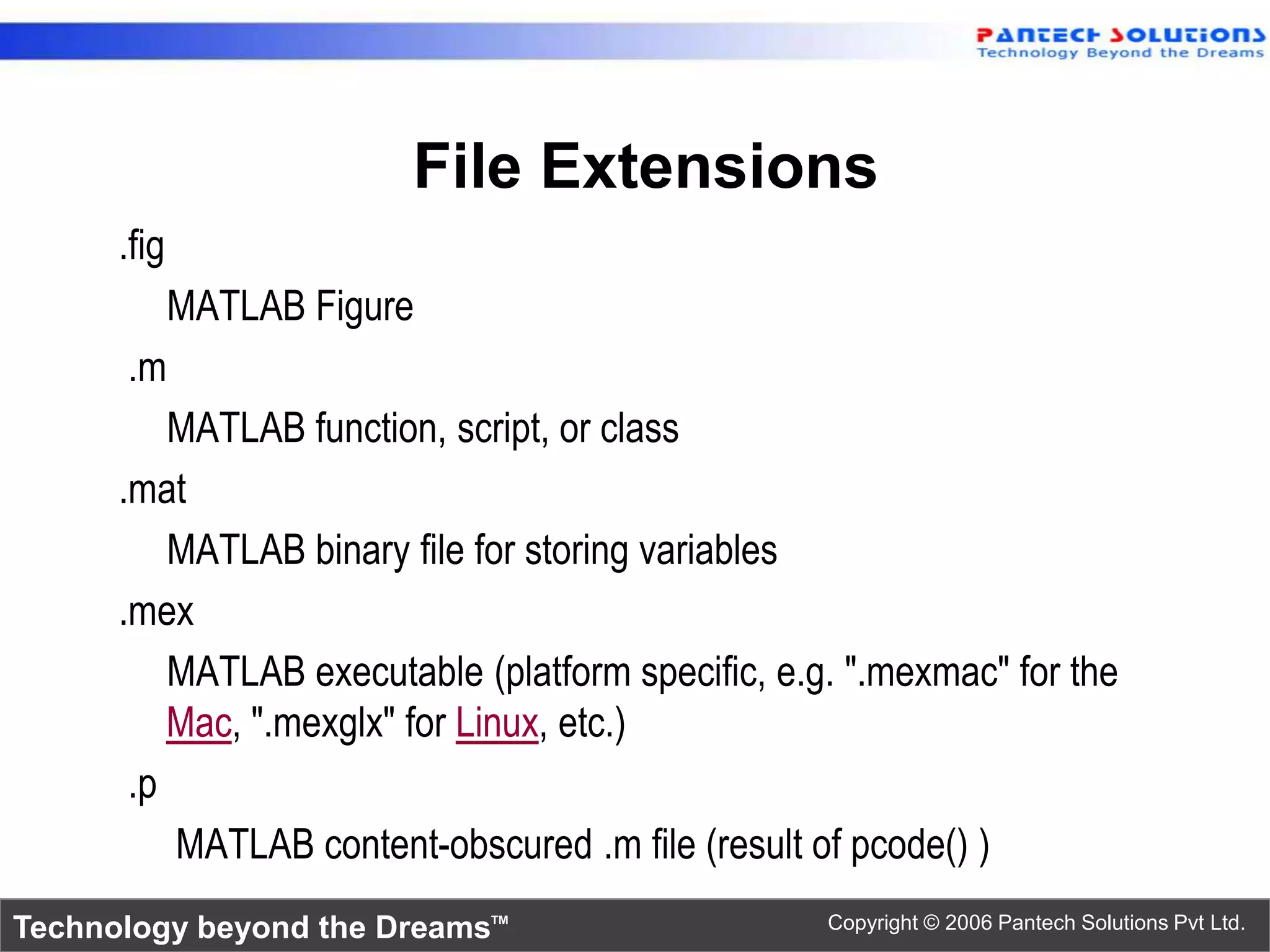

File Extensions
.fig
MATLAB Figure
.m
MATLAB function, script, or class
.mat
MATLAB binary file for storing variables
.mex
MATLAB executable (platform specific, e.g. ".mexmac" for the
Mac, ".mexglx" for Linux, etc.)
.p
MATLAB content-obscured .m file (result of pcode() )

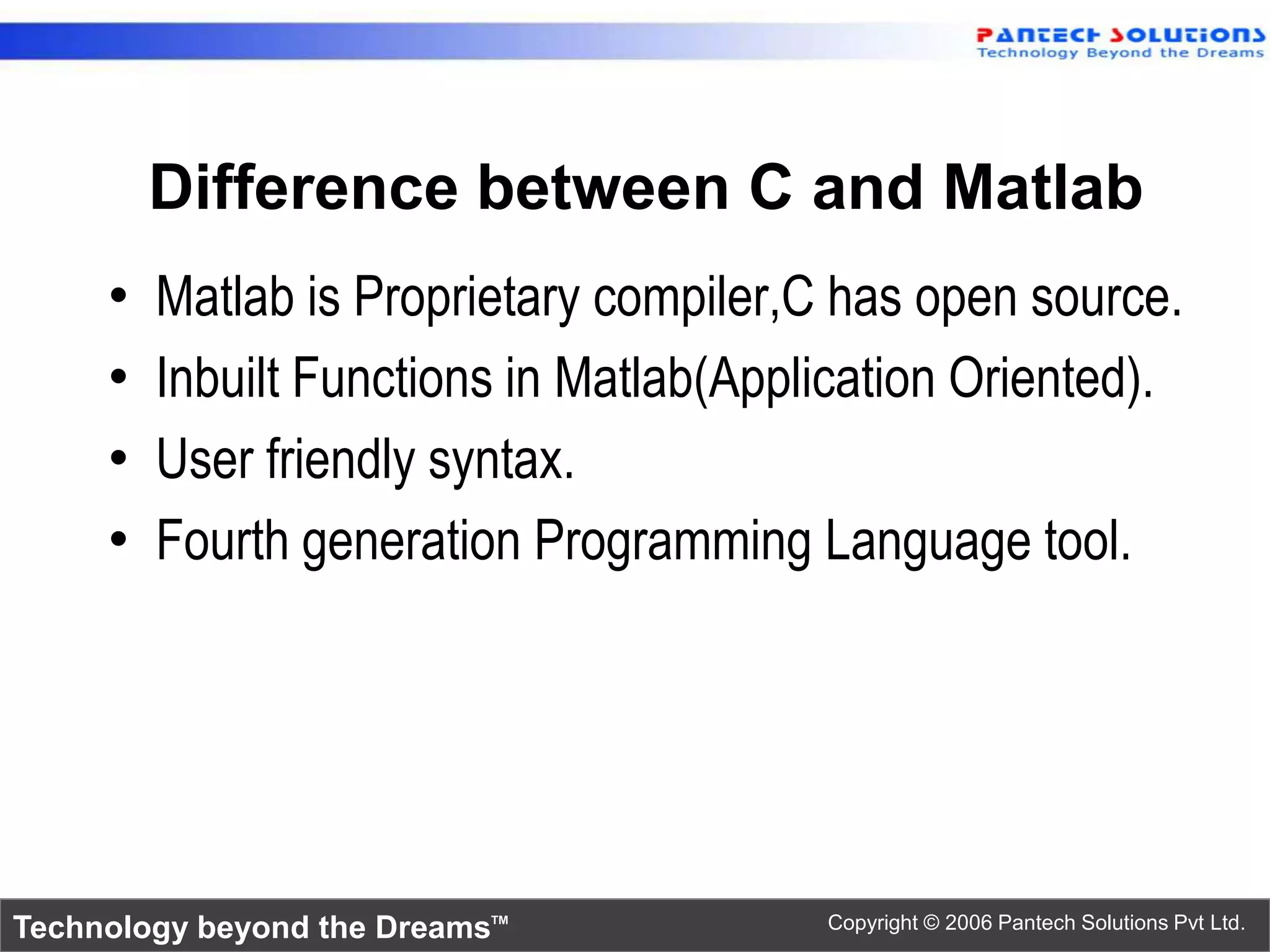

Difference between C and Matlab
• Matlab is Proprietary compiler,C has open source.
• Inbuilt Functions in Matlab(Application Oriented).
• User friendly syntax.
• Fourth generation Programming Language tool.

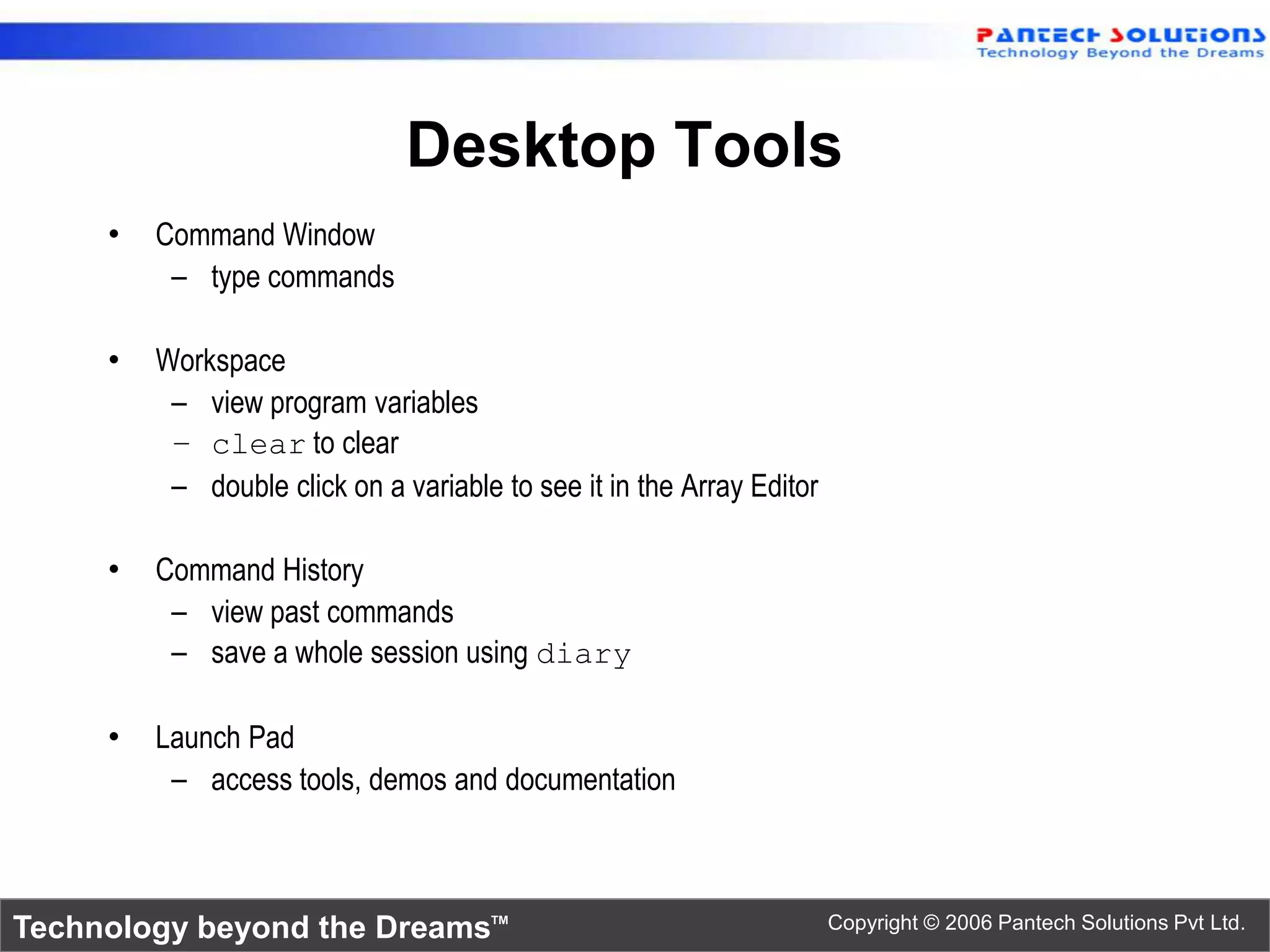

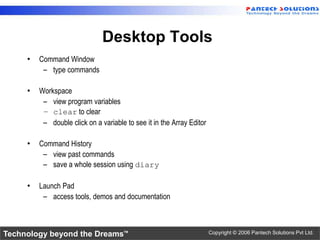

Desktop Tools
• Command Window
– type commands

• Workspace
– view program variables
– clear to clear
– double click on a variable to see it in the Array Editor

• Command History
– view past commands
– save a whole session using diary

• Launch Pad
– access tools, demos and documentation

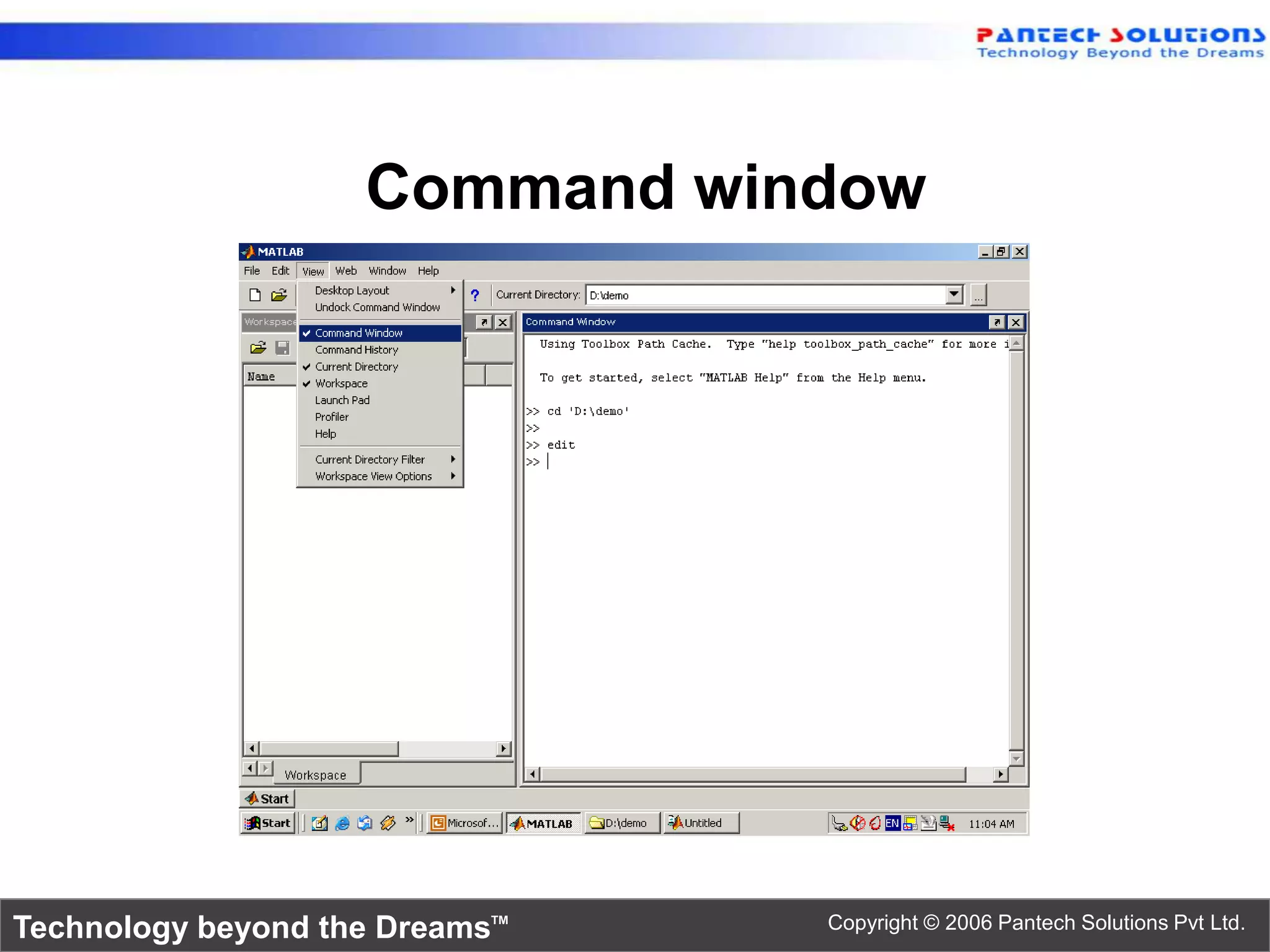

Command window

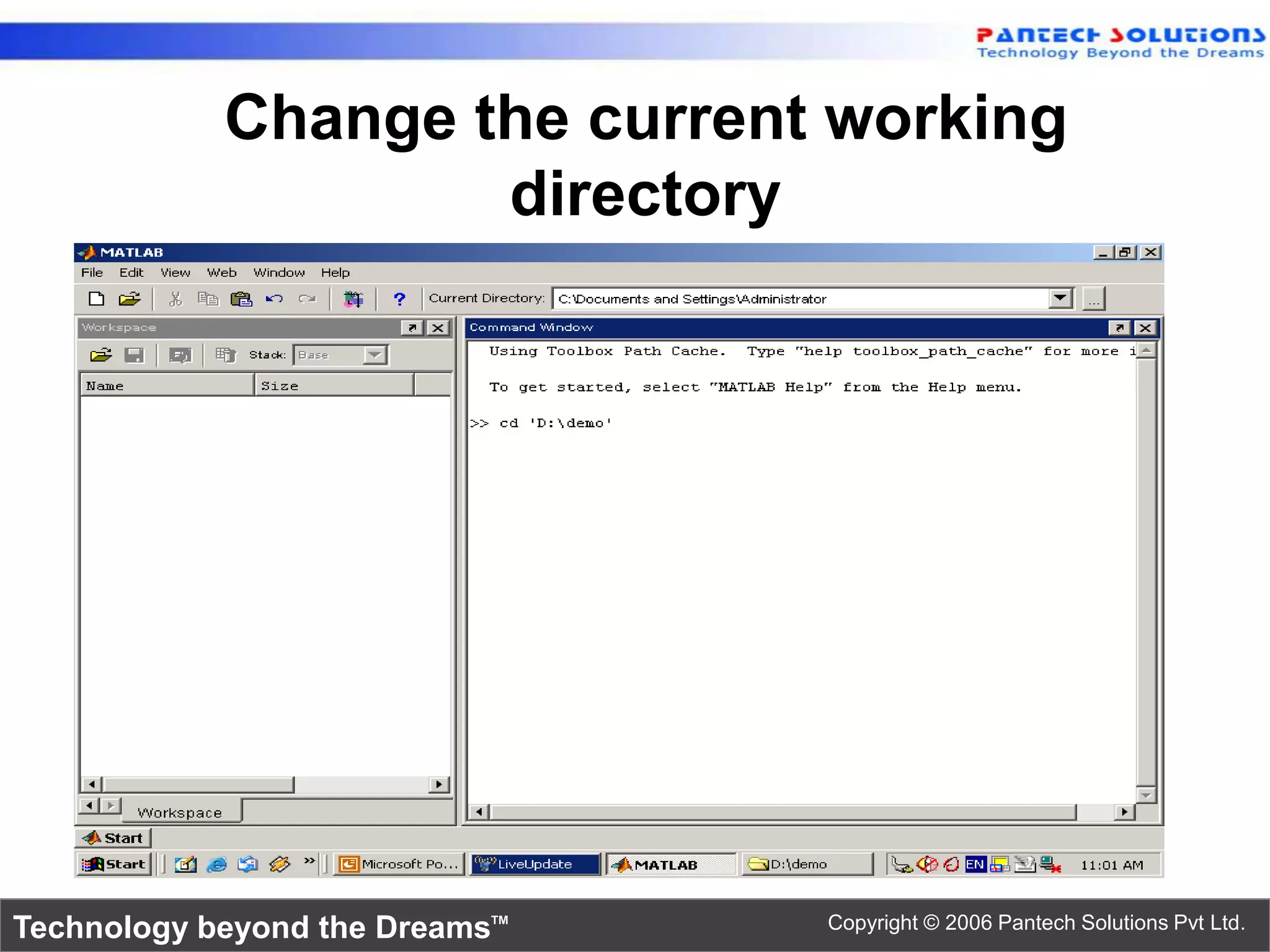

Change the current working
directory


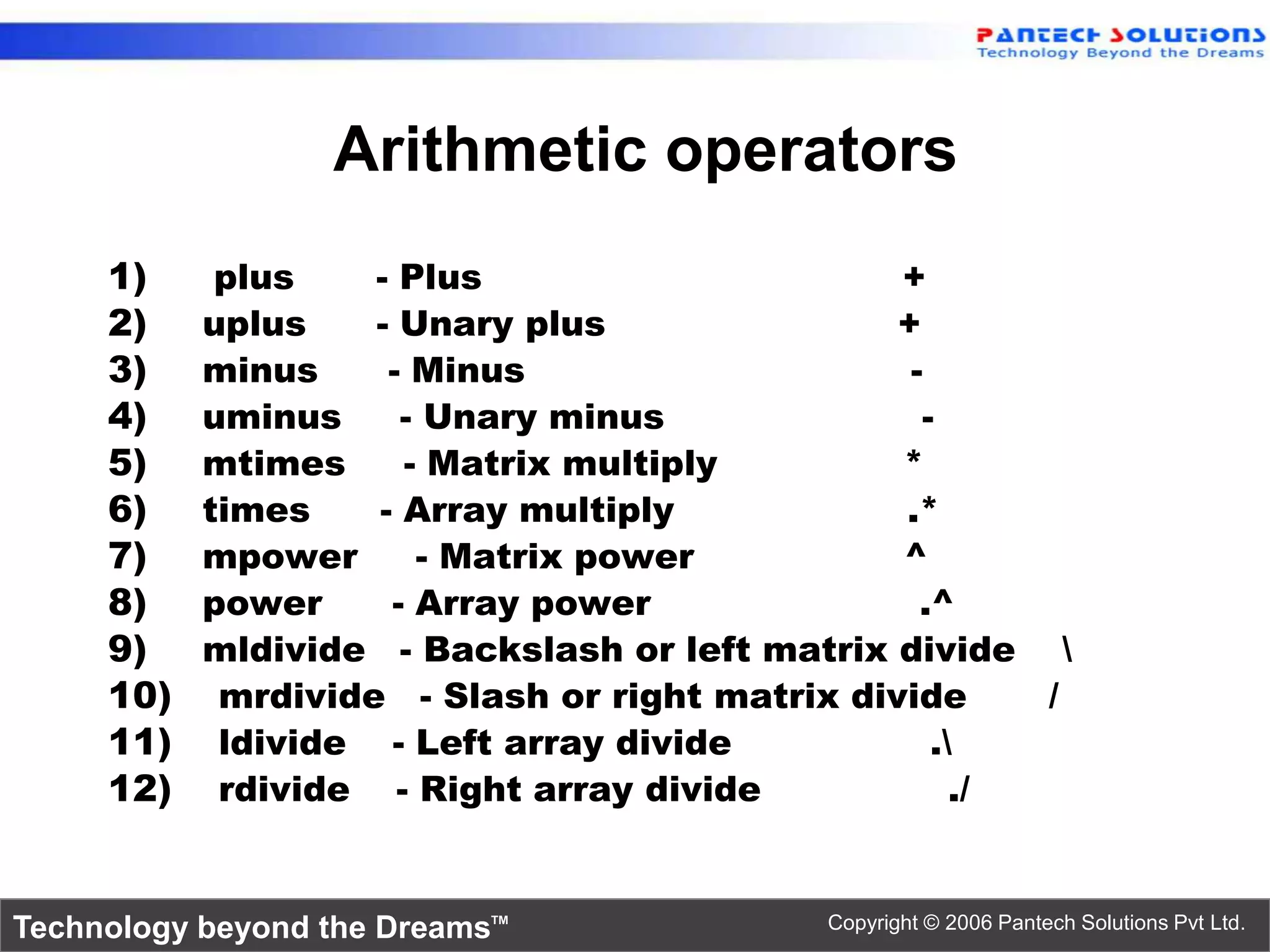

Arithmetic operators
1) plus - Plus +
2) uplus - Unary plus +
3) minus - Minus -
4) uminus - Unary minus -
5) mtimes - Matrix multiply *
6) times - Array multiply .*
7) mpower - Matrix power ^
8) power - Array power .^
9) mldivide - Backslash or left matrix divide
10) mrdivide - Slash or right matrix divide /
11) ldivide - Left array divide .
12) rdivide - Right array divide ./

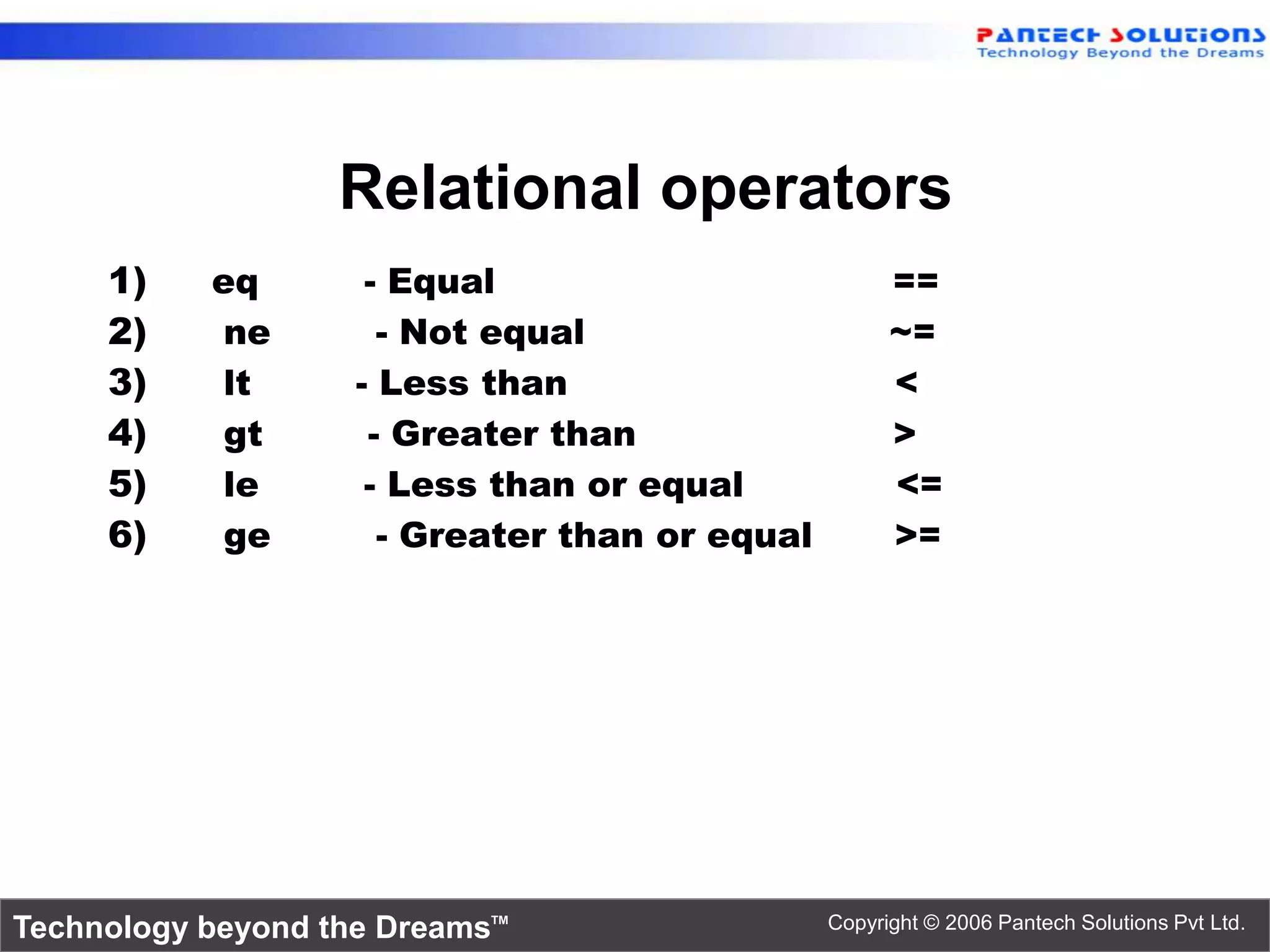

Relational operators
1) eq - Equal ==
2) ne - Not equal ~=
3) lt - Less than <
4) gt - Greater than >
5) le - Less than or equal <=
6) ge - Greater than or equal >=

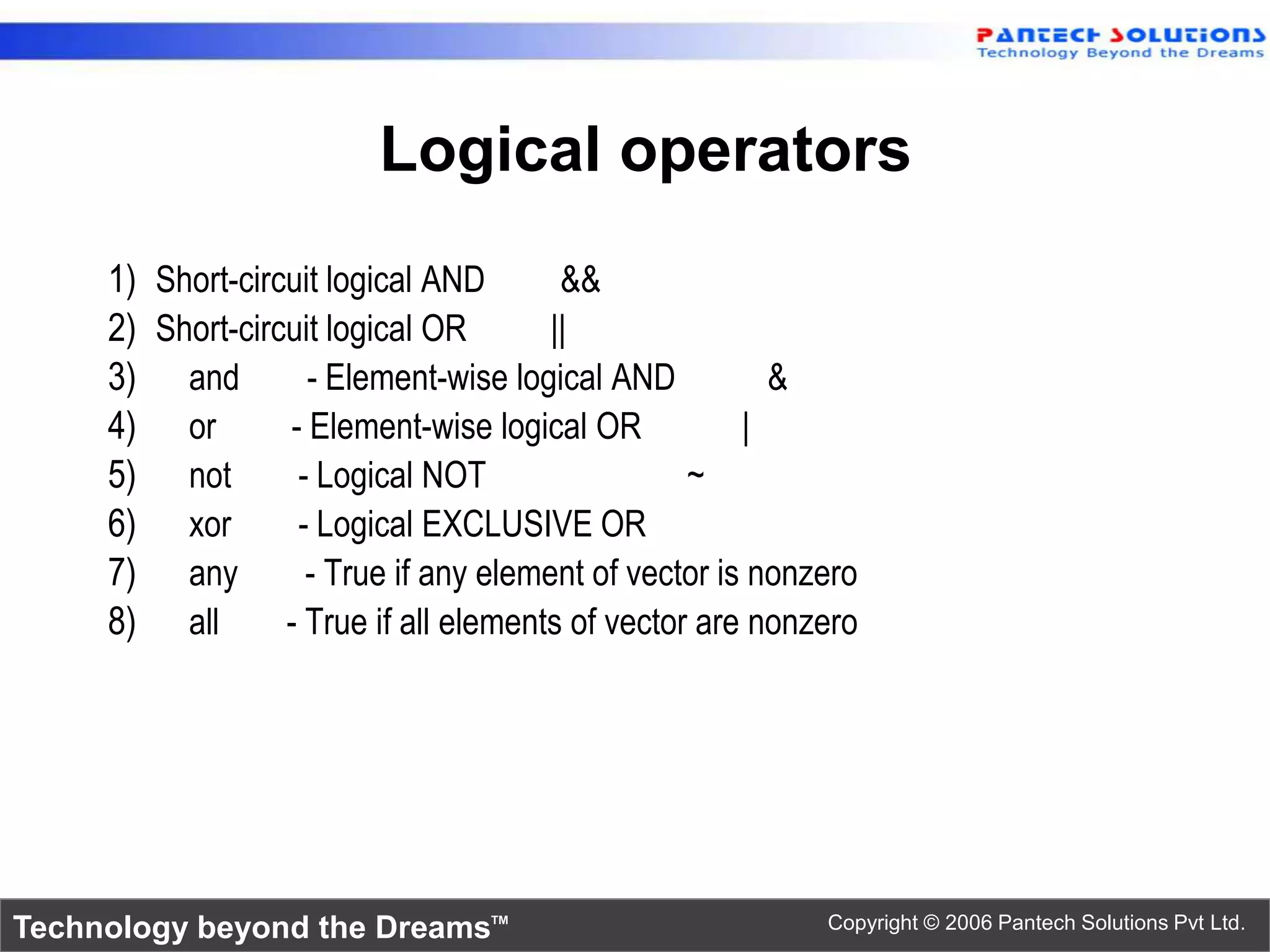

Logical operators
1) Short-circuit logical AND &&
2) Short-circuit logical OR ||
3) and - Element-wise logical AND &
4) or - Element-wise logical OR |
5) not - Logical NOT ~
6) xor - Logical EXCLUSIVE OR
7) any - True if any element of vector is nonzero
8) all - True if all elements of vector are nonzero

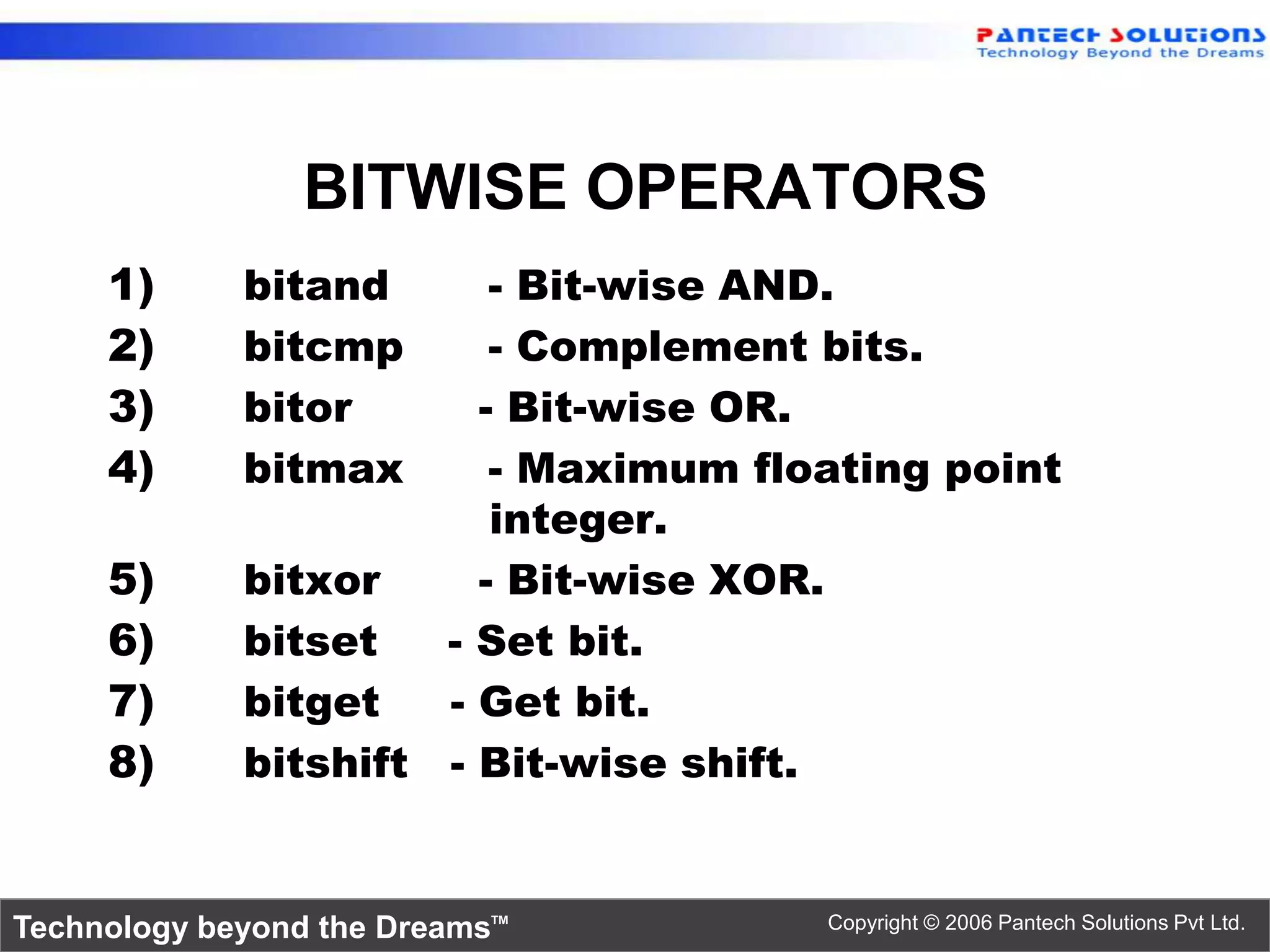

BITWISE OPERATORS
1) bitand - Bit-wise AND.
2) bitcmp - Complement bits.
3) bitor - Bit-wise OR.
4) bitmax - Maximum floating point
integer.
5) bitxor - Bit-wise XOR.
6) bitset - Set bit.
7) bitget - Get bit.
8) bitshift - Bit-wise shift.


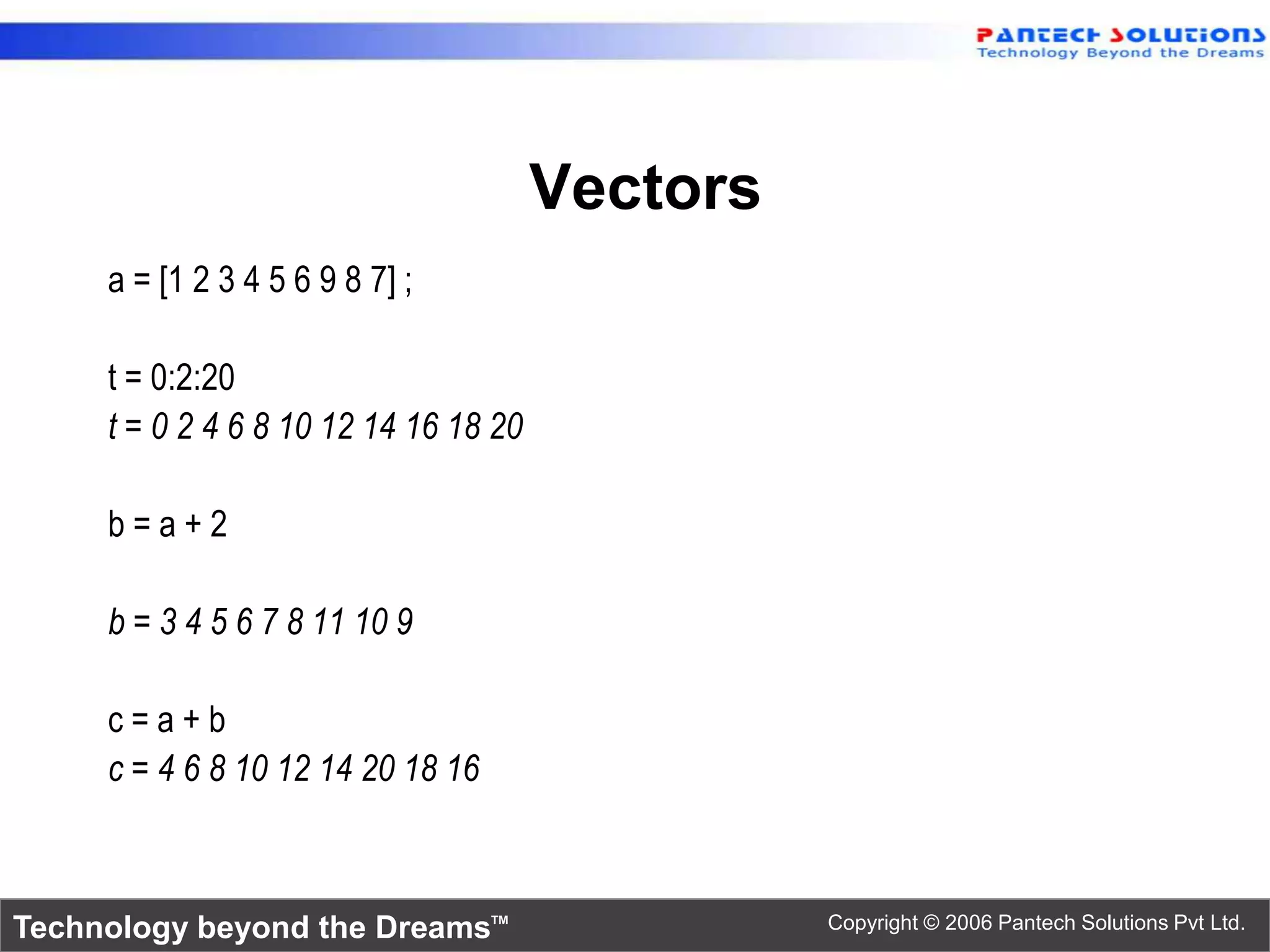

Vectors
a = [1 2 3 4 5 6 9 8 7] ;

t = 0:2:20
t = 0 2 4 6 8 10 12 14 16 18 20

b=a+2

b = 3 4 5 6 7 8 11 10 9

c=a+b
c = 4 6 8 10 12 14 20 18 16

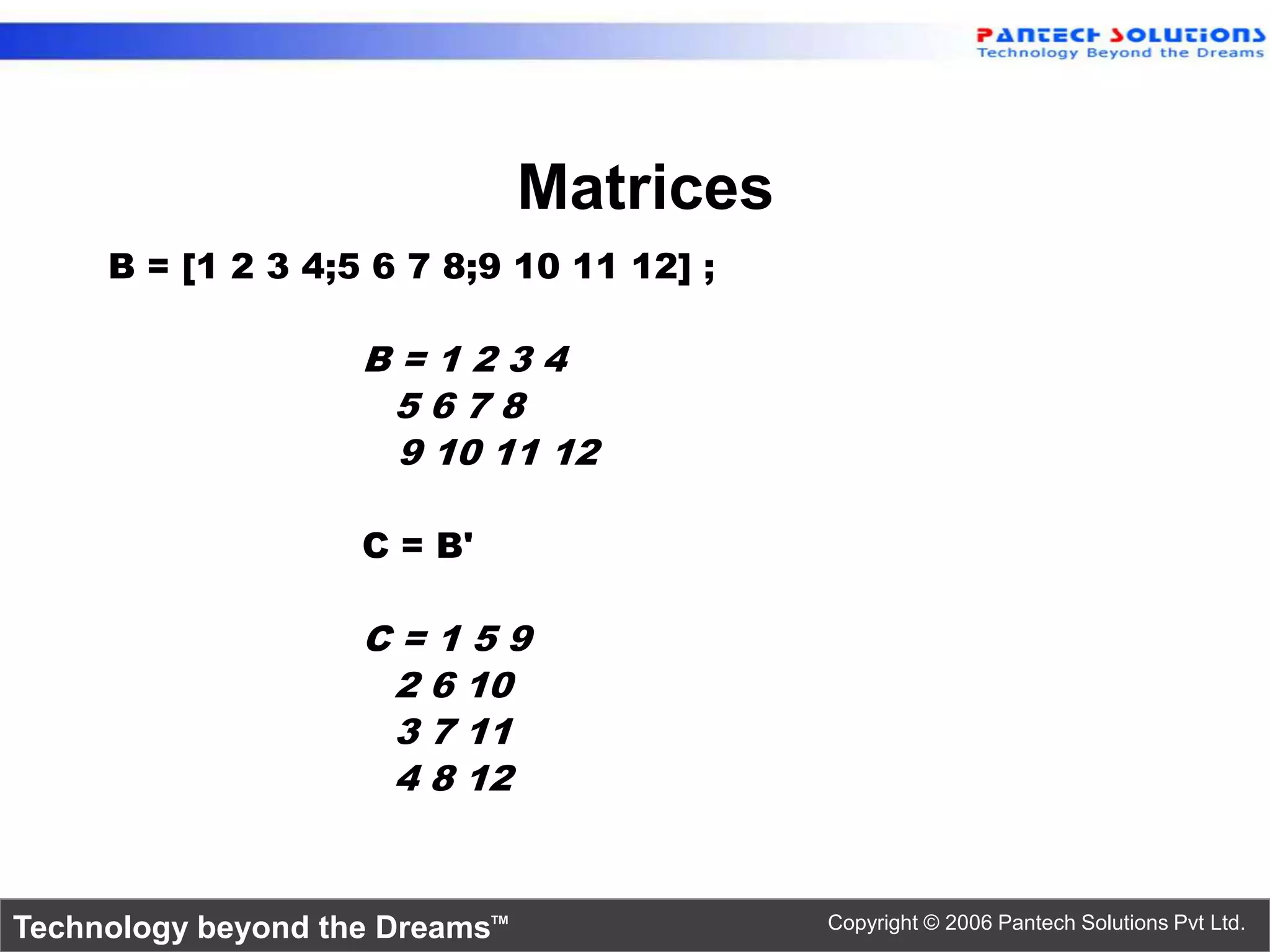

Matrices
B = [1 2 3 4;5 6 7 8;9 10 11 12] ;

B=1234
5678
9 10 11 12

C = B'

C=159
2 6 10
3 7 11
4 8 12

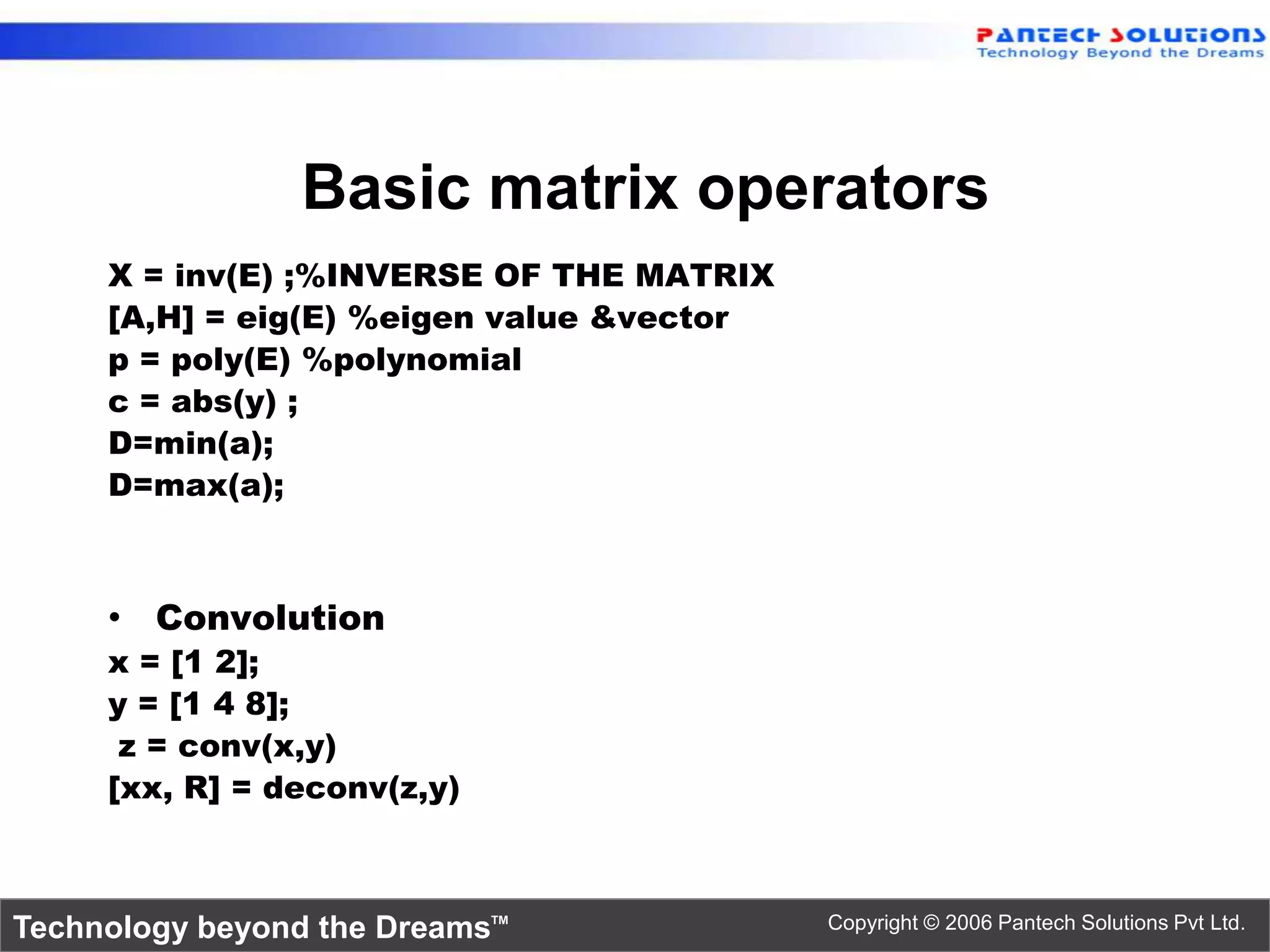

Basic matrix operators
X = inv(E) ;%INVERSE OF THE MATRIX
[A,H] = eig(E) %eigen value &vector
p = poly(E) %polynomial
c = abs(y) ;
D=min(a);
D=max(a);

• Convolution
x = [1 2];
y = [1 4 8];
z = conv(x,y)
[xx, R] = deconv(z,y)

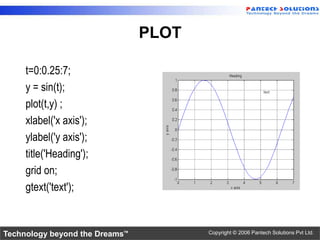

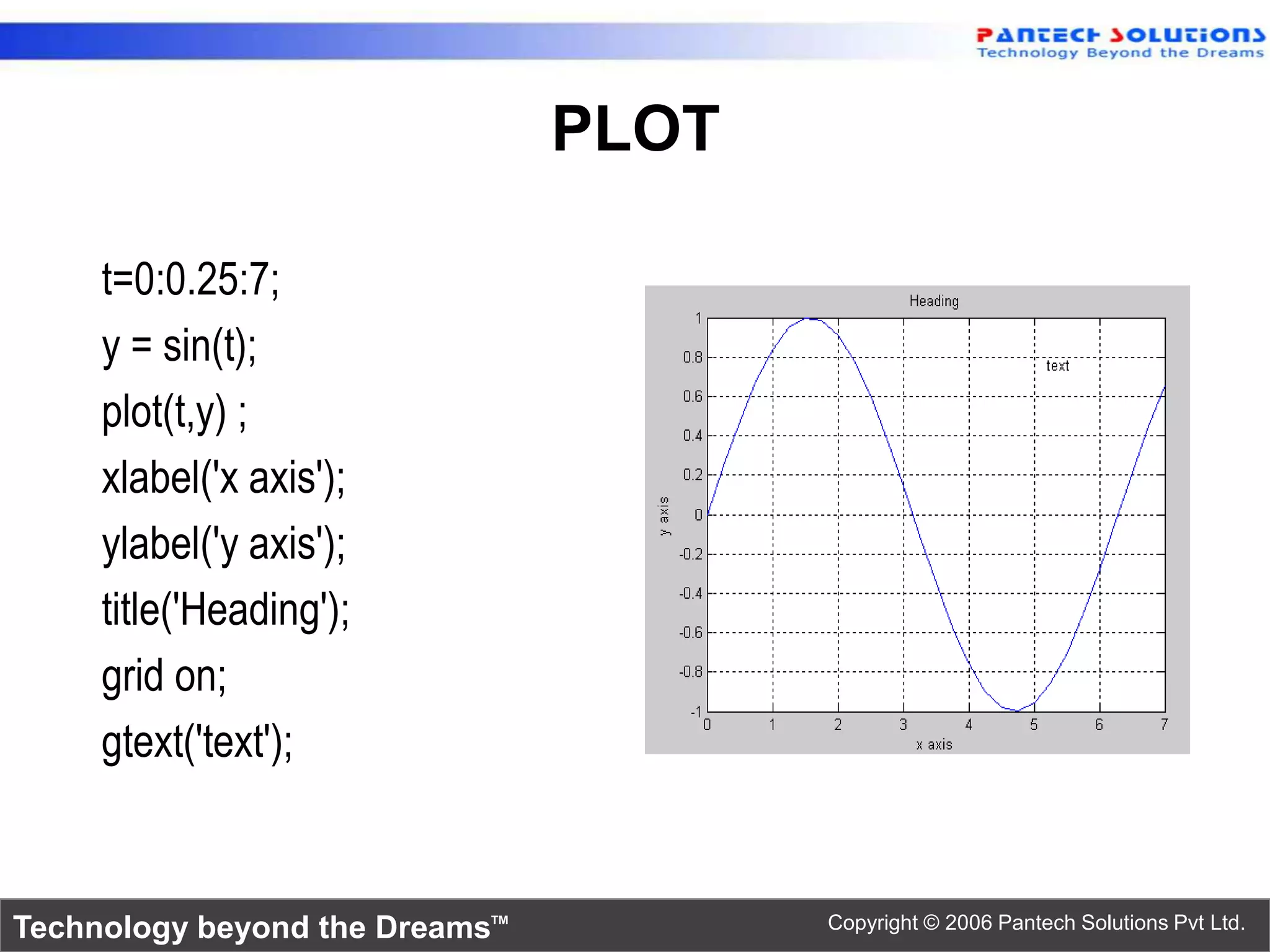

PLOT

t=0:0.25:7;
y = sin(t);
plot(t,y) ;
xlabel('x axis');
ylabel('y axis');
title('Heading');
grid on;
gtext('text');

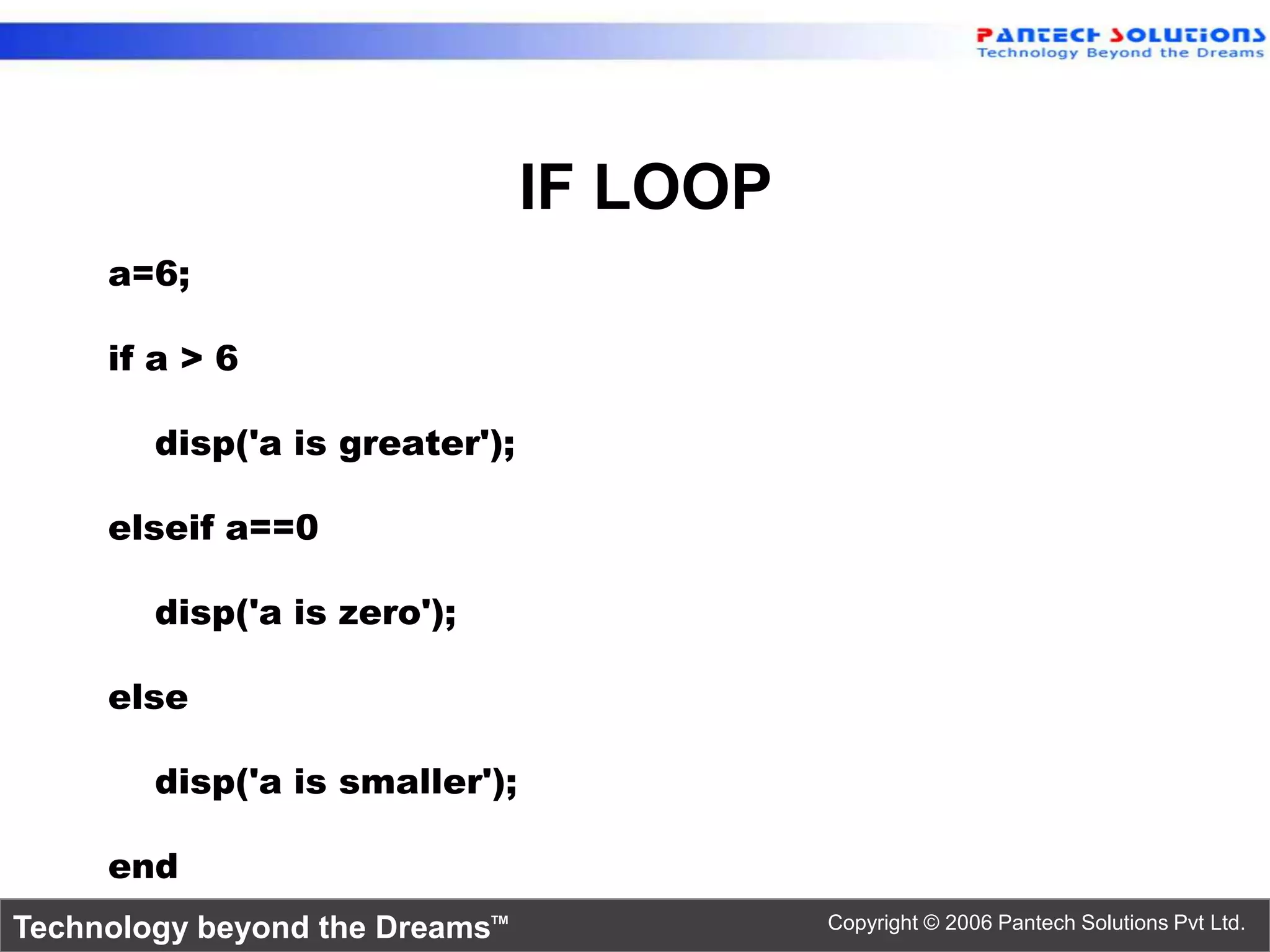

IF LOOP
a=6;

if a > 6

disp('a is greater');

elseif a==0

disp('a is zero');

else

disp('a is smaller');

end

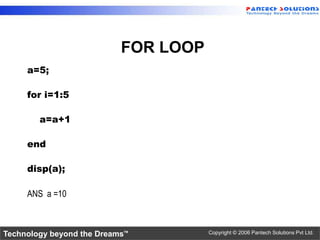

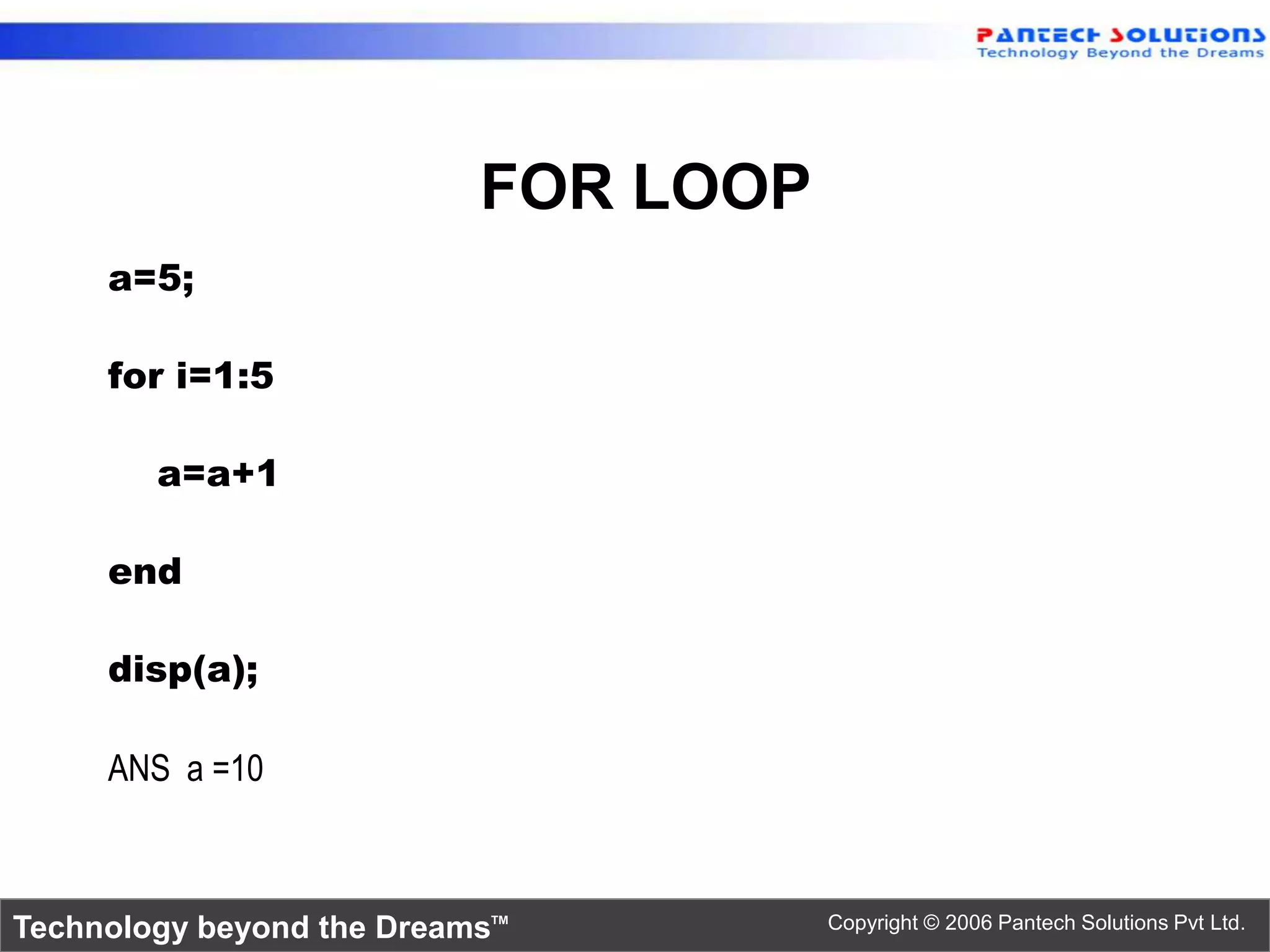

FOR LOOP
a=5;

for i=1:5

a=a+1

end

disp(a);

ANS a =10

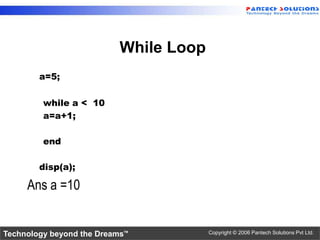

While Loop
a=5;

while a < 10
a=a+1;

end

disp(a);

Ans a =10

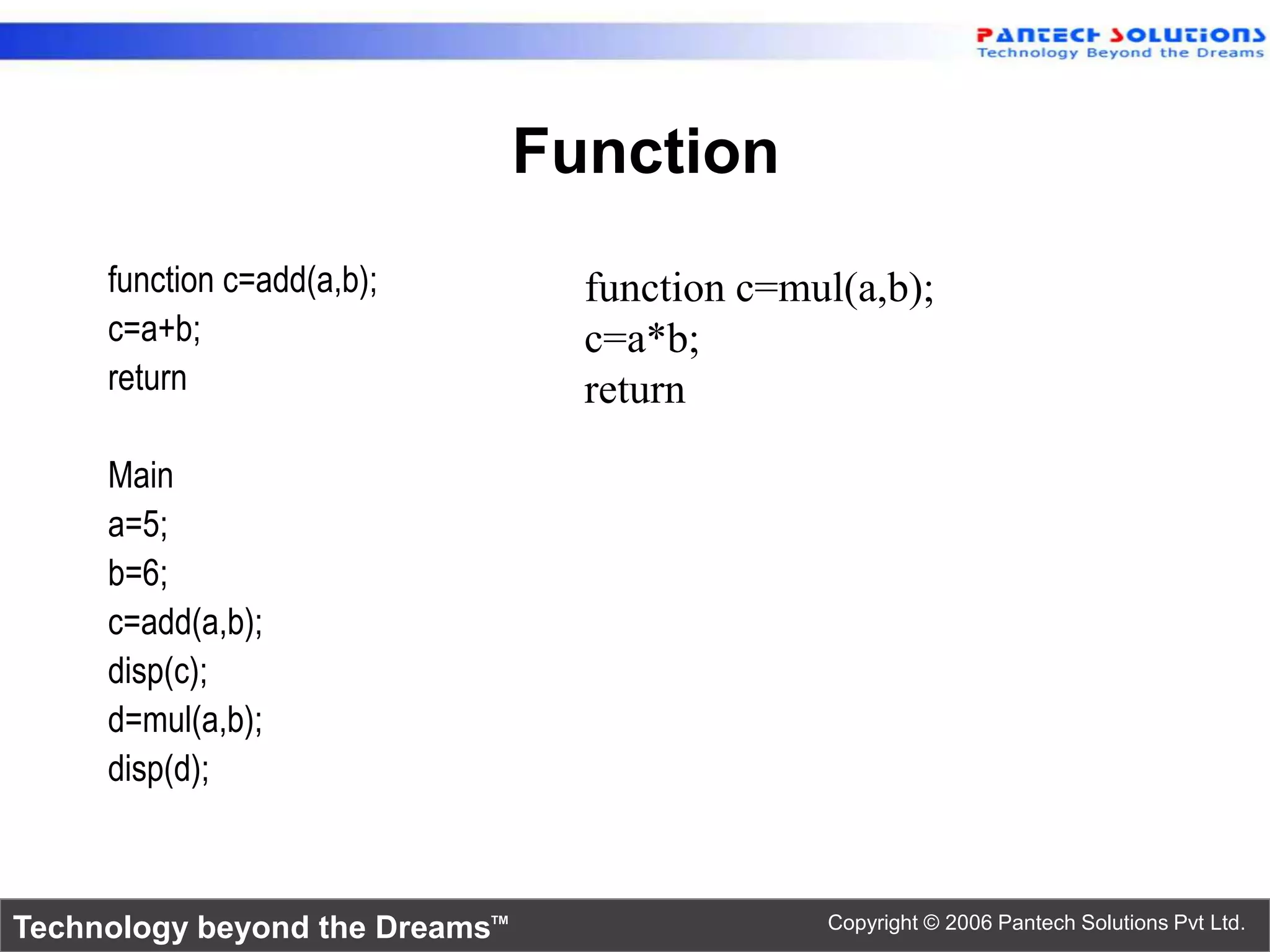

Function
function c=add(a,b); function c=mul(a,b);
c=a+b; c=a*b;
return return

Main
a=5;
b=6;
c=add(a,b);
disp(c);
d=mul(a,b);
disp(d);

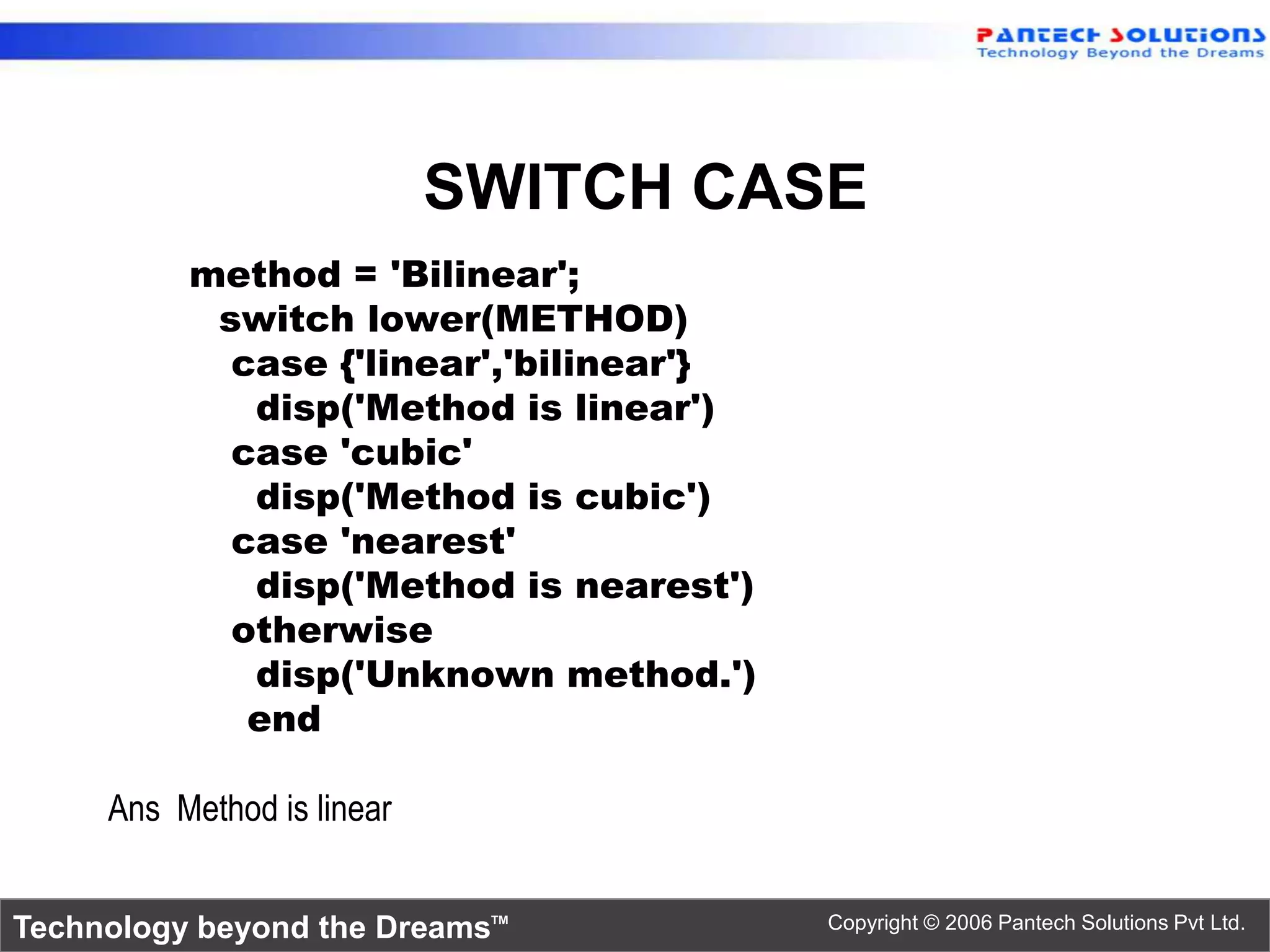

SWITCH CASE
method = 'Bilinear';
switch lower(METHOD)
case {'linear','bilinear'}
disp('Method is linear')
case 'cubic'
disp('Method is cubic')
case 'nearest'
disp('Method is nearest')
otherwise
disp('Unknown method.')
end

Ans Method is linear

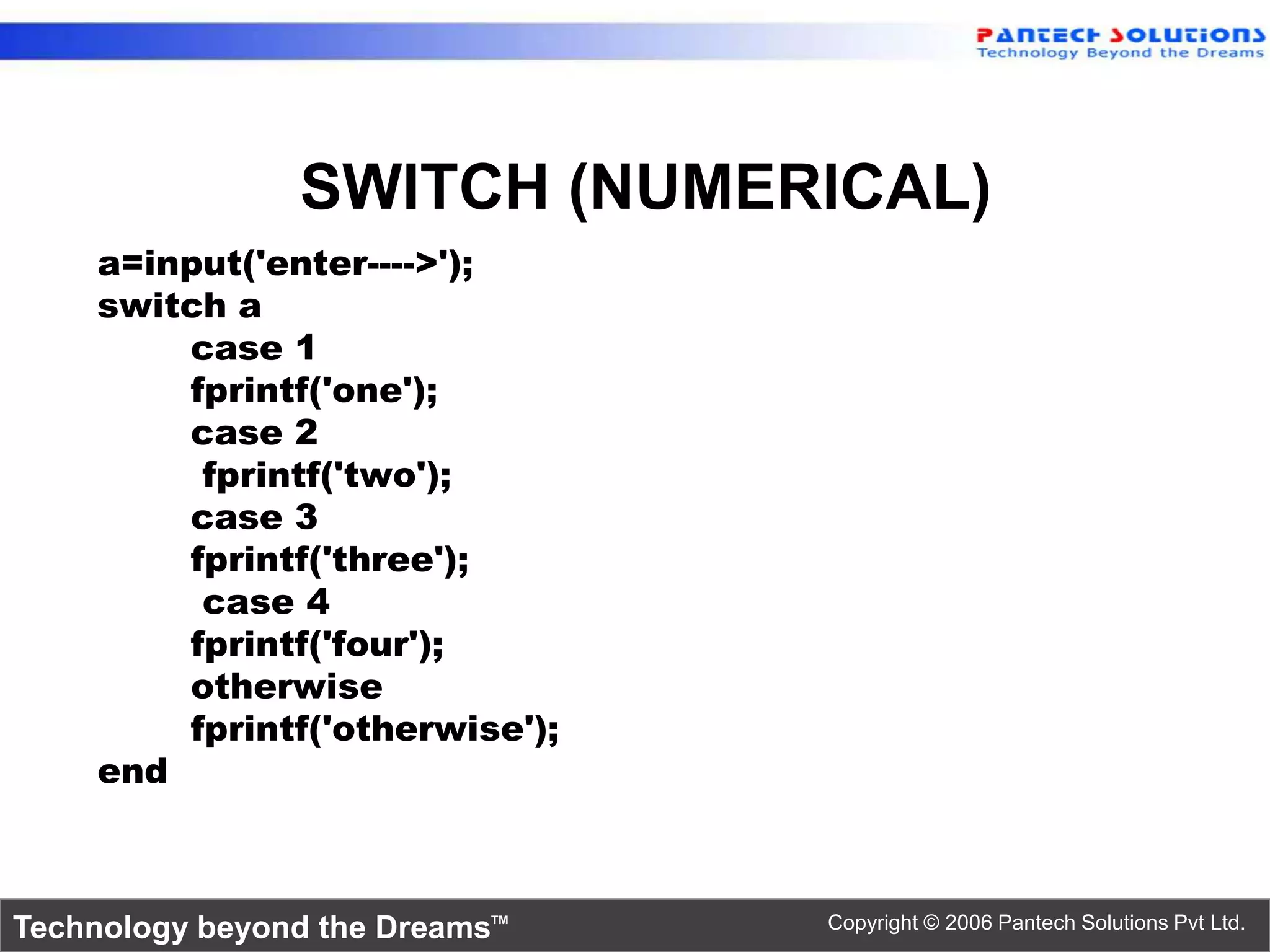

SWITCH (NUMERICAL)
a=input('enter---->');
switch a
case 1
fprintf('one');
case 2
fprintf('two');
case 3
fprintf('three');
case 4
fprintf('four');
otherwise
fprintf('otherwise');
end

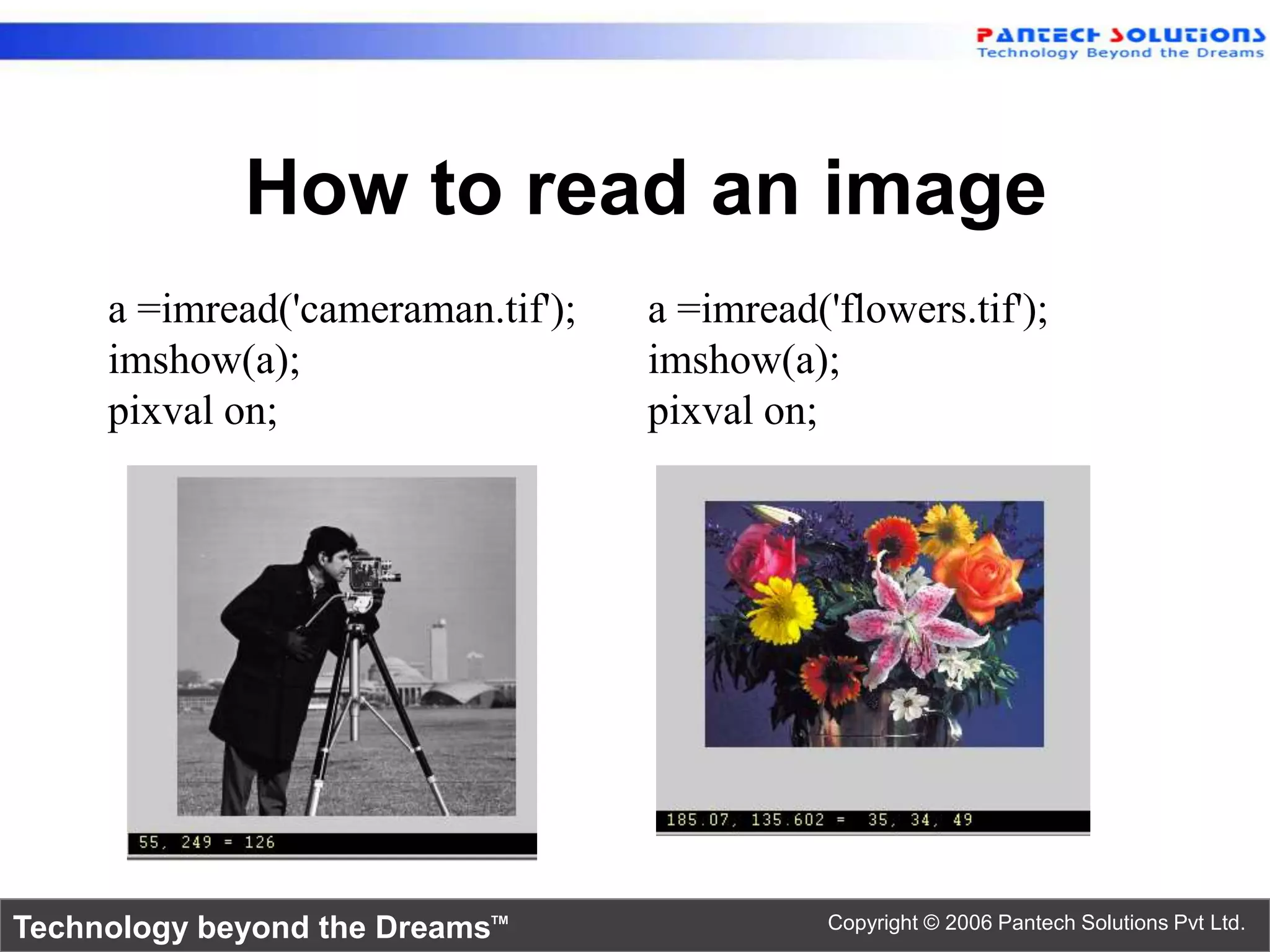

How to read an image
a =imread('cameraman.tif'); a =imread('flowers.tif');
imshow(a); imshow(a);
pixval on; pixval on;

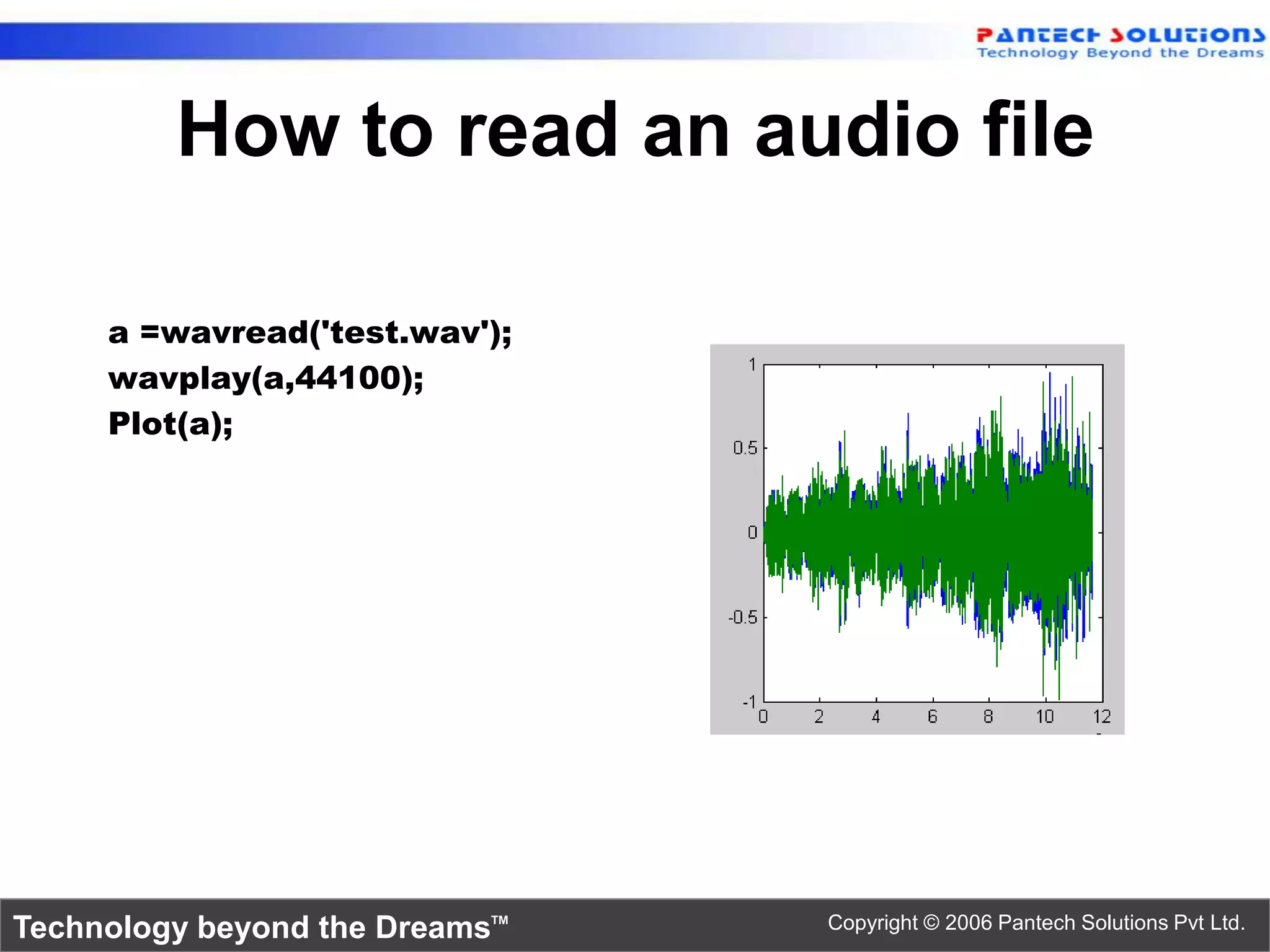

How to read an audio file

a =wavread('test.wav');
wavplay(a,44100);
Plot(a);

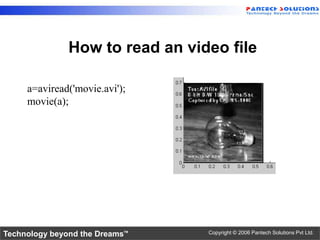

How to read an video file

a=aviread('movie.avi');
movie(a);

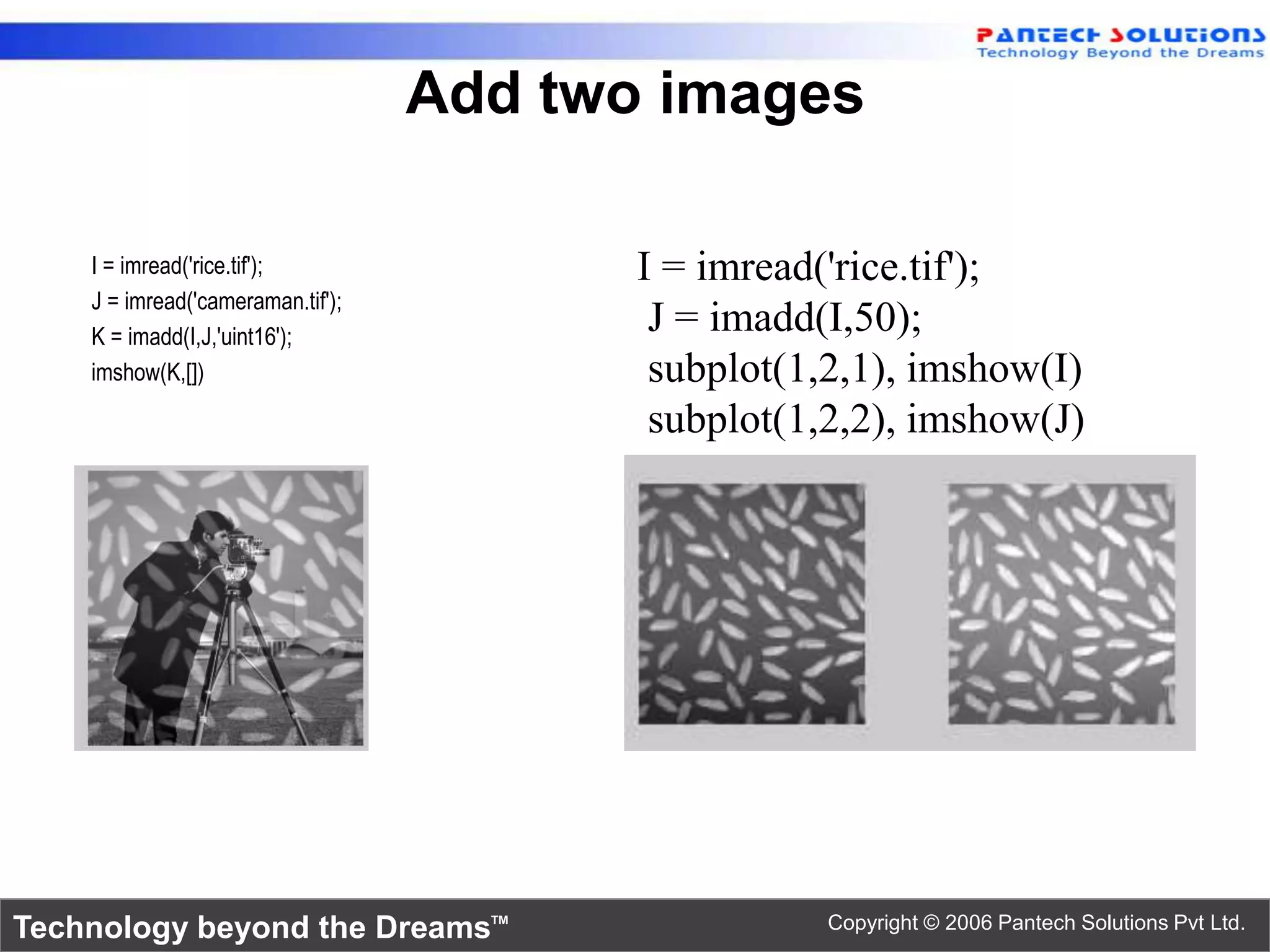

Add two images

I = imread('rice.tif'); I = imread('rice.tif');
J = imread('cameraman.tif');
K = imadd(I,J,'uint16');
J = imadd(I,50);
imshow(K,[]) subplot(1,2,1), imshow(I)
subplot(1,2,2), imshow(J)

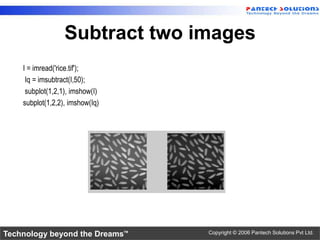

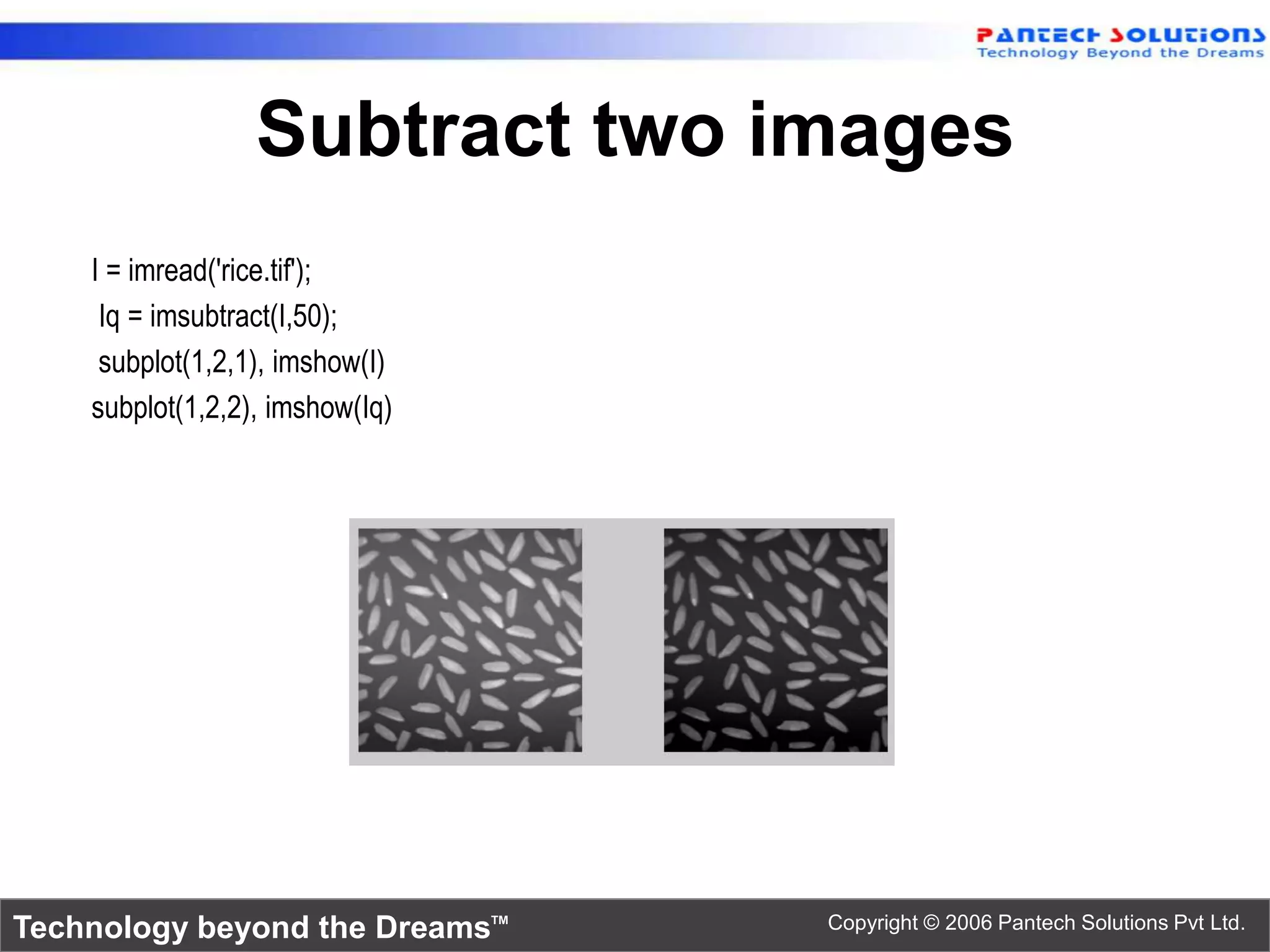

Subtract two images
I = imread('rice.tif');
Iq = imsubtract(I,50);
subplot(1,2,1), imshow(I)
subplot(1,2,2), imshow(Iq)

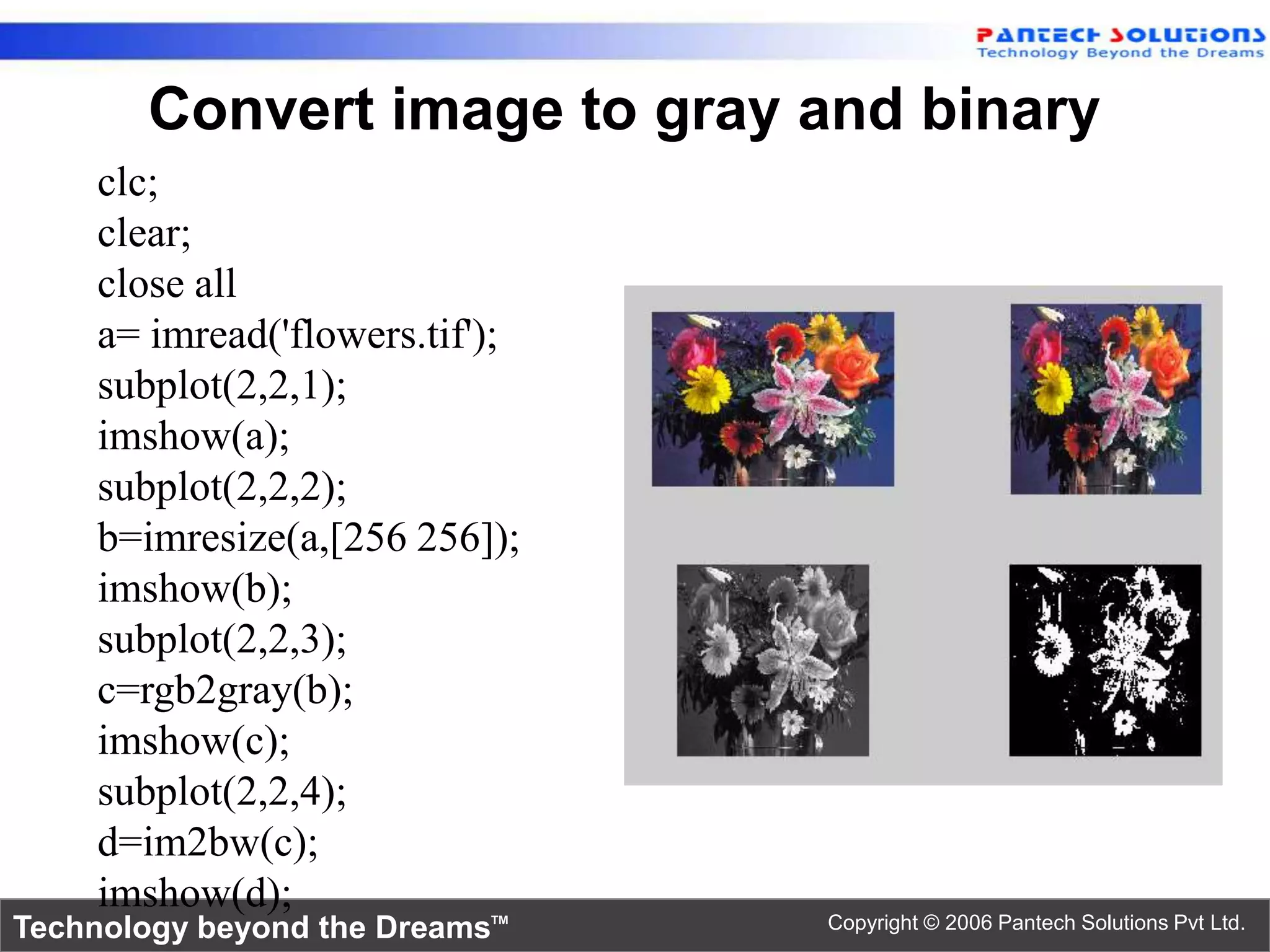

Convert image to gray and binary
clc;
clear;
close all
a= imread('flowers.tif');
subplot(2,2,1);
imshow(a);
subplot(2,2,2);
b=imresize(a,[256 256]);
imshow(b);
subplot(2,2,3);
c=rgb2gray(b);
imshow(c);
subplot(2,2,4);
d=im2bw(c);
imshow(d);

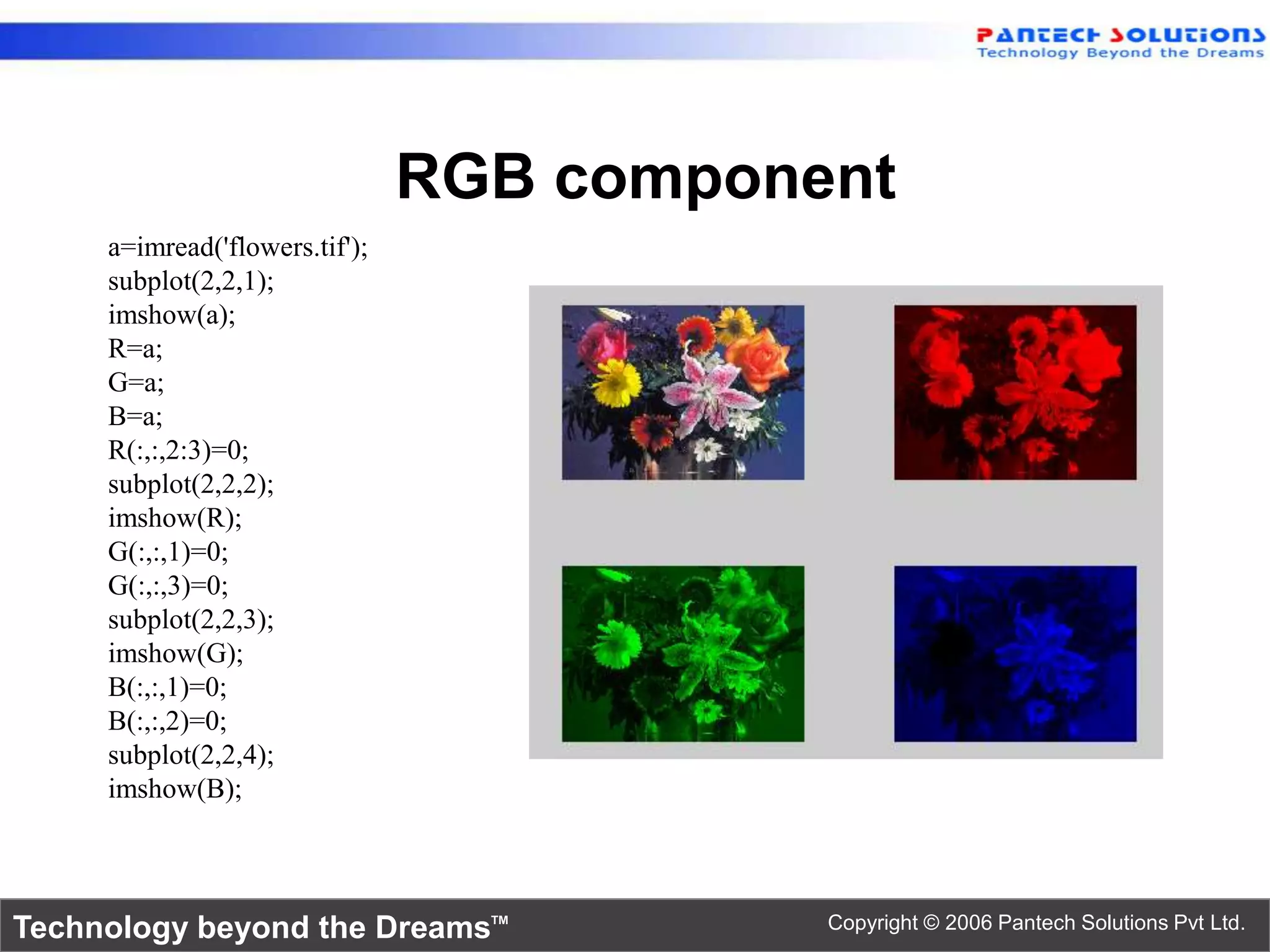

RGB component
a=imread('flowers.tif');
subplot(2,2,1);
imshow(a);
R=a;
G=a;
B=a;
R(:,:,2:3)=0;
subplot(2,2,2);
imshow(R);
G(:,:,1)=0;
G(:,:,3)=0;
subplot(2,2,3);
imshow(G);
B(:,:,1)=0;
B(:,:,2)=0;
subplot(2,2,4);
imshow(B);

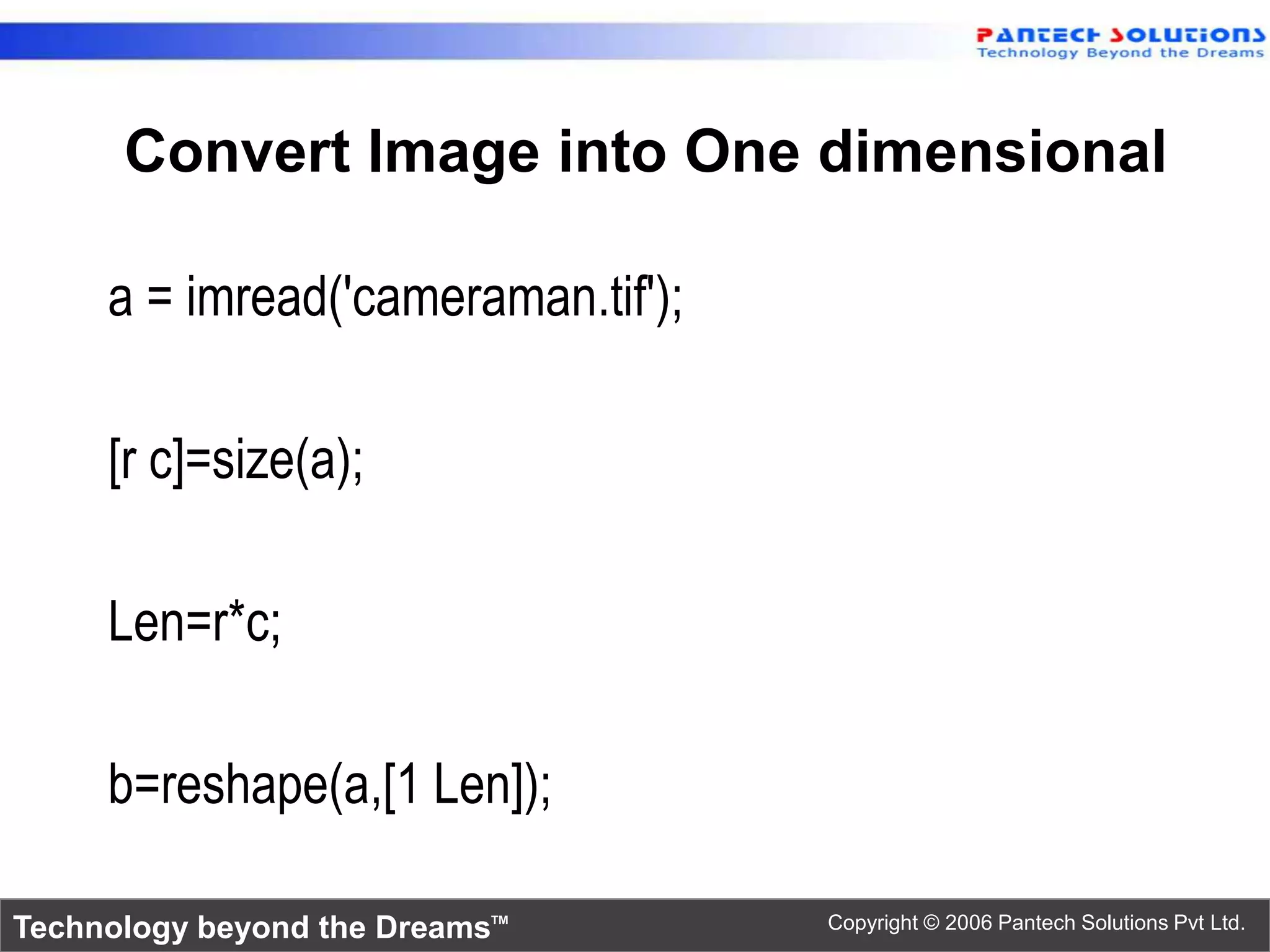

Convert Image into One dimensional

a = imread('cameraman.tif');

[r c]=size(a);

Len=r*c;

b=reshape(a,[1 Len]);

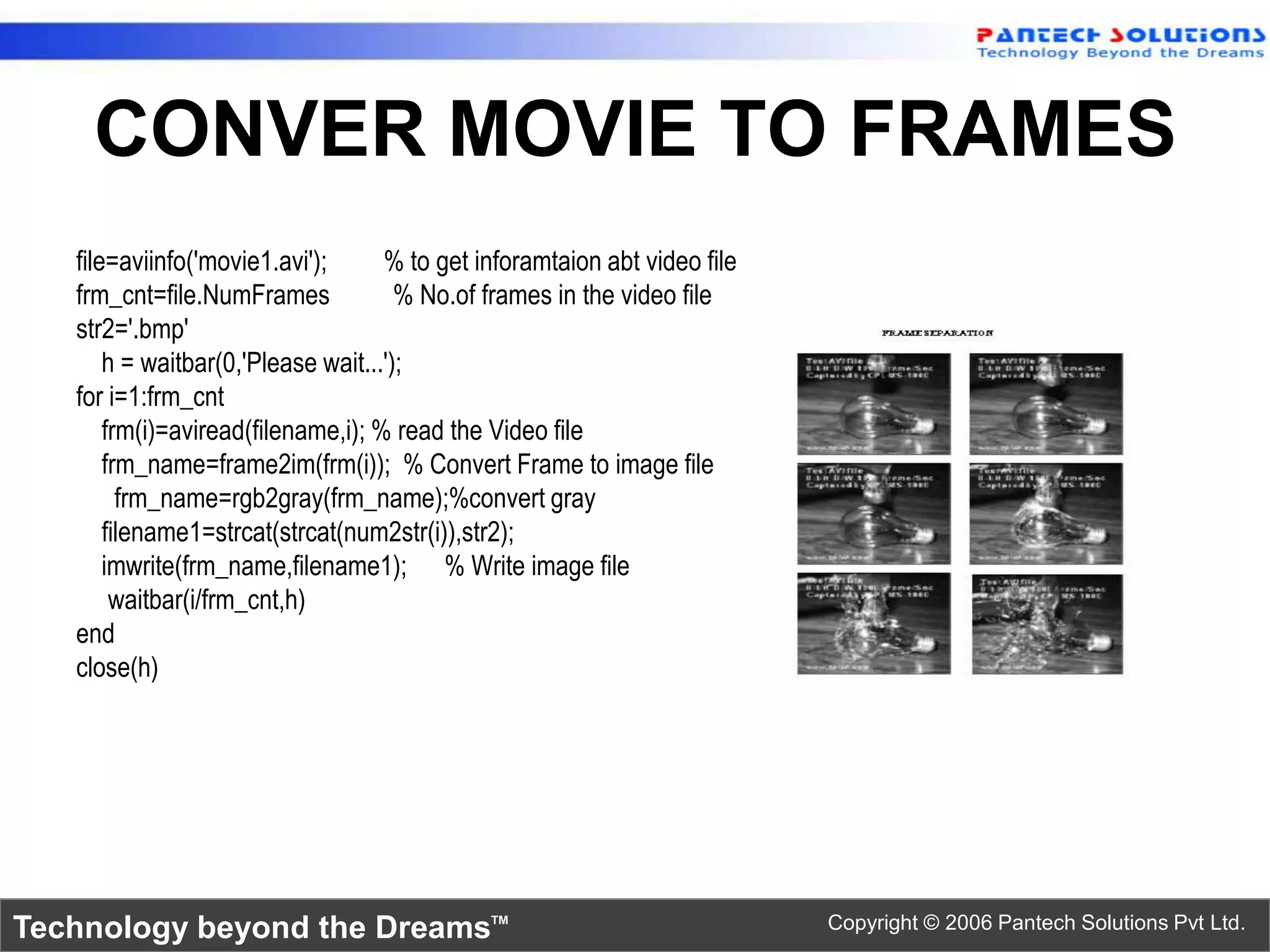

CONVER MOVIE TO FRAMES
file=aviinfo('movie1.avi'); % to get inforamtaion abt video file
frm_cnt=file.NumFrames % No.of frames in the video file
str2='.bmp'
h = waitbar(0,'Please wait...');
for i=1:frm_cnt
frm(i)=aviread(filename,i); % read the Video file
frm_name=frame2im(frm(i)); % Convert Frame to image file
frm_name=rgb2gray(frm_name);%convert gray
filename1=strcat(strcat(num2str(i)),str2);
imwrite(frm_name,filename1); % Write image file
waitbar(i/frm_cnt,h)
end
close(h)

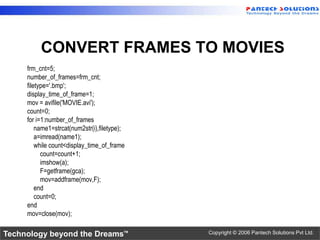

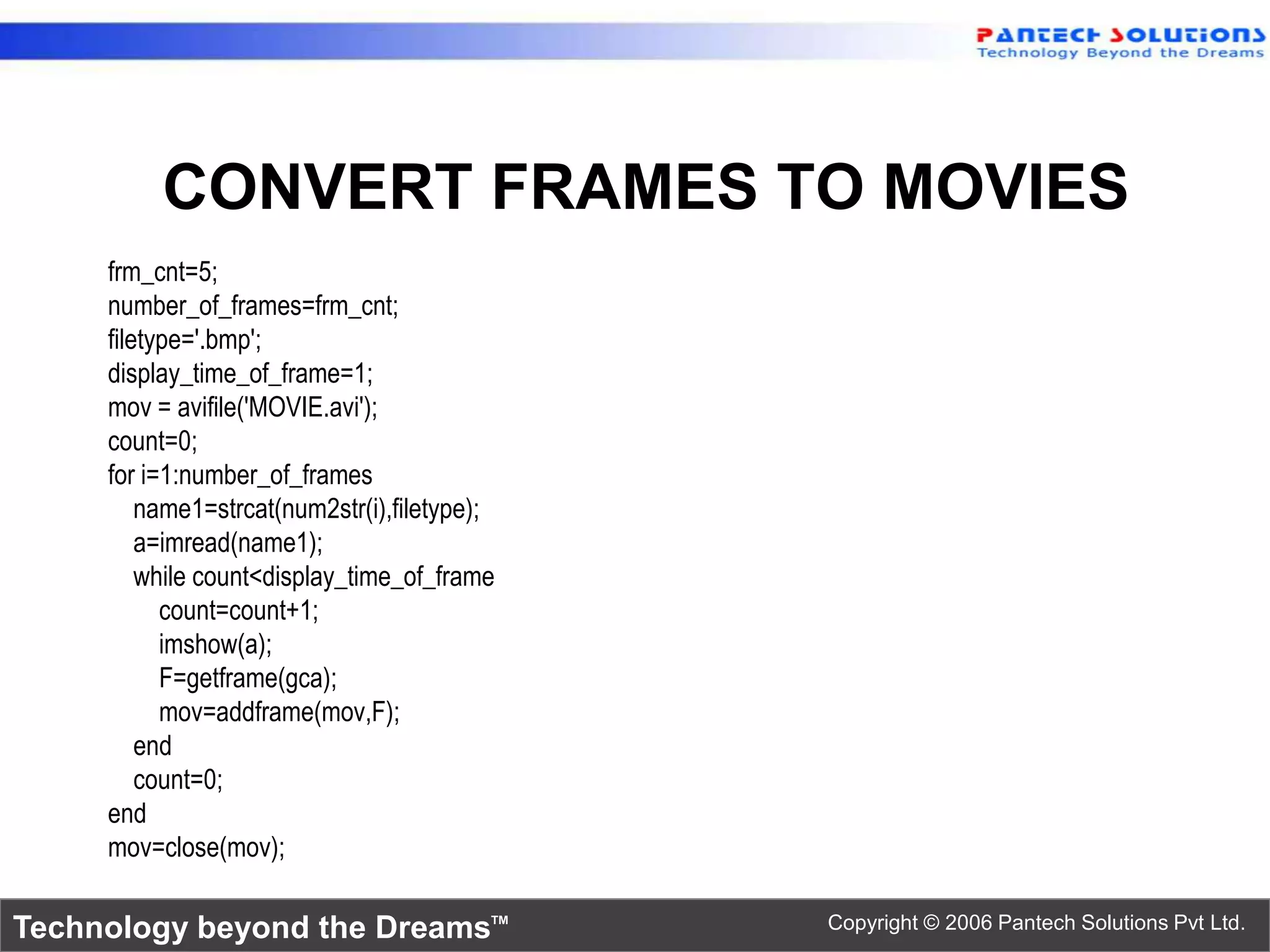

CONVERT FRAMES TO MOVIES
frm_cnt=5;
number_of_frames=frm_cnt;
filetype='.bmp';
display_time_of_frame=1;
mov = avifile('MOVIE.avi');
count=0;
for i=1:number_of_frames
name1=strcat(num2str(i),filetype);
a=imread(name1);
while count<display_time_of_frame
count=count+1;
imshow(a);
F=getframe(gca);
mov=addframe(mov,F);
end
count=0;
end
mov=close(mov);


How to read a text file

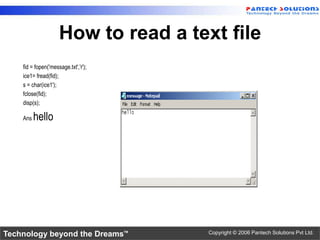

fid = fopen('message.txt','r');
ice1= fread(fid);
s = char(ice1');
fclose(fid);
disp(s);

Ans hello

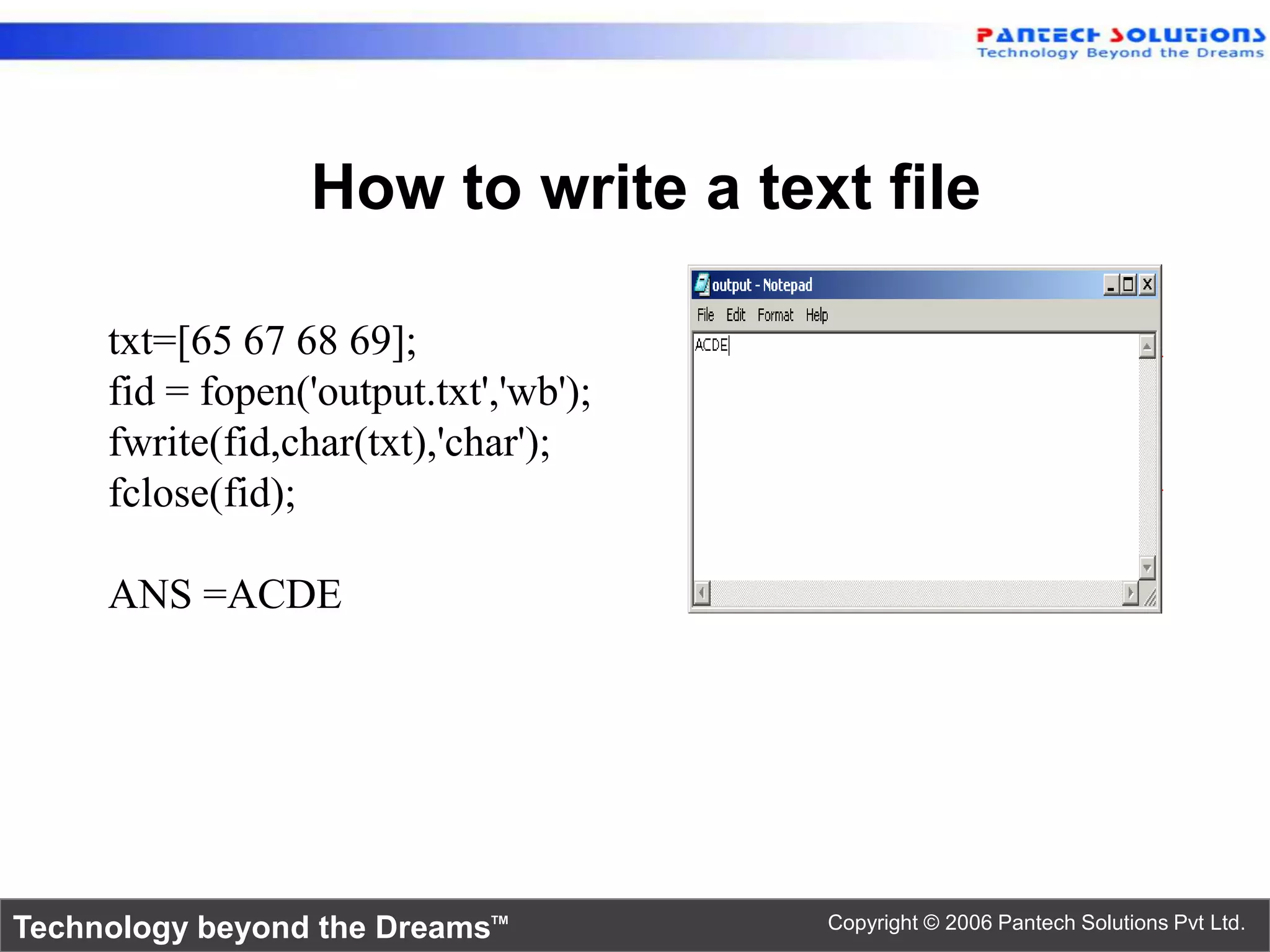

How to write a text file

txt=[65 67 68 69];
fid = fopen('output.txt','wb');
fwrite(fid,char(txt),'char');
fclose(fid);

ANS =ACDE

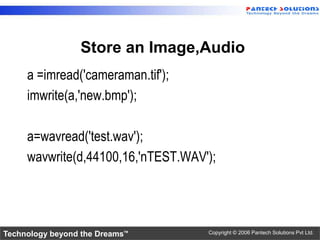

Store an Image,Audio
a =imread('cameraman.tif');
imwrite(a,'new.bmp');

a=wavread('test.wav');
wavwrite(d,44100,16,'nTEST.WAV');

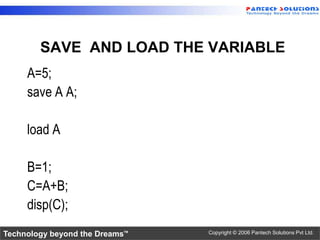

SAVE AND LOAD THE VARIABLE
A=5;
save A A;

load A

B=1;
C=A+B;
disp(C);

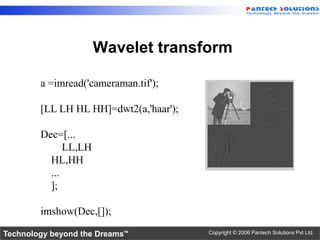

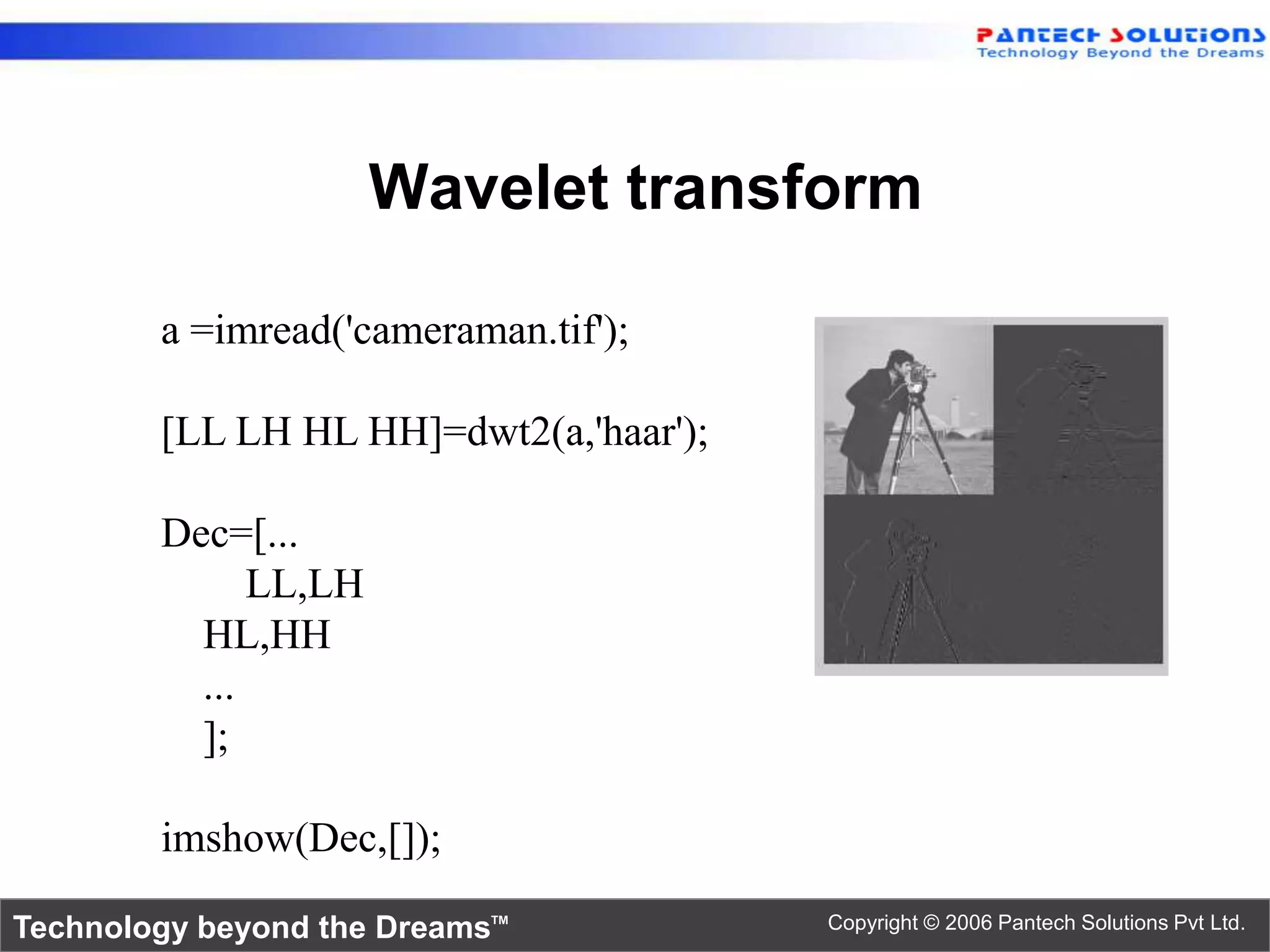

Wavelet transform


[LL LH HL HH]=dwt2(a,'haar');

Dec=[...
LL,LH
HL,HH
...
];

imshow(Dec,[]);

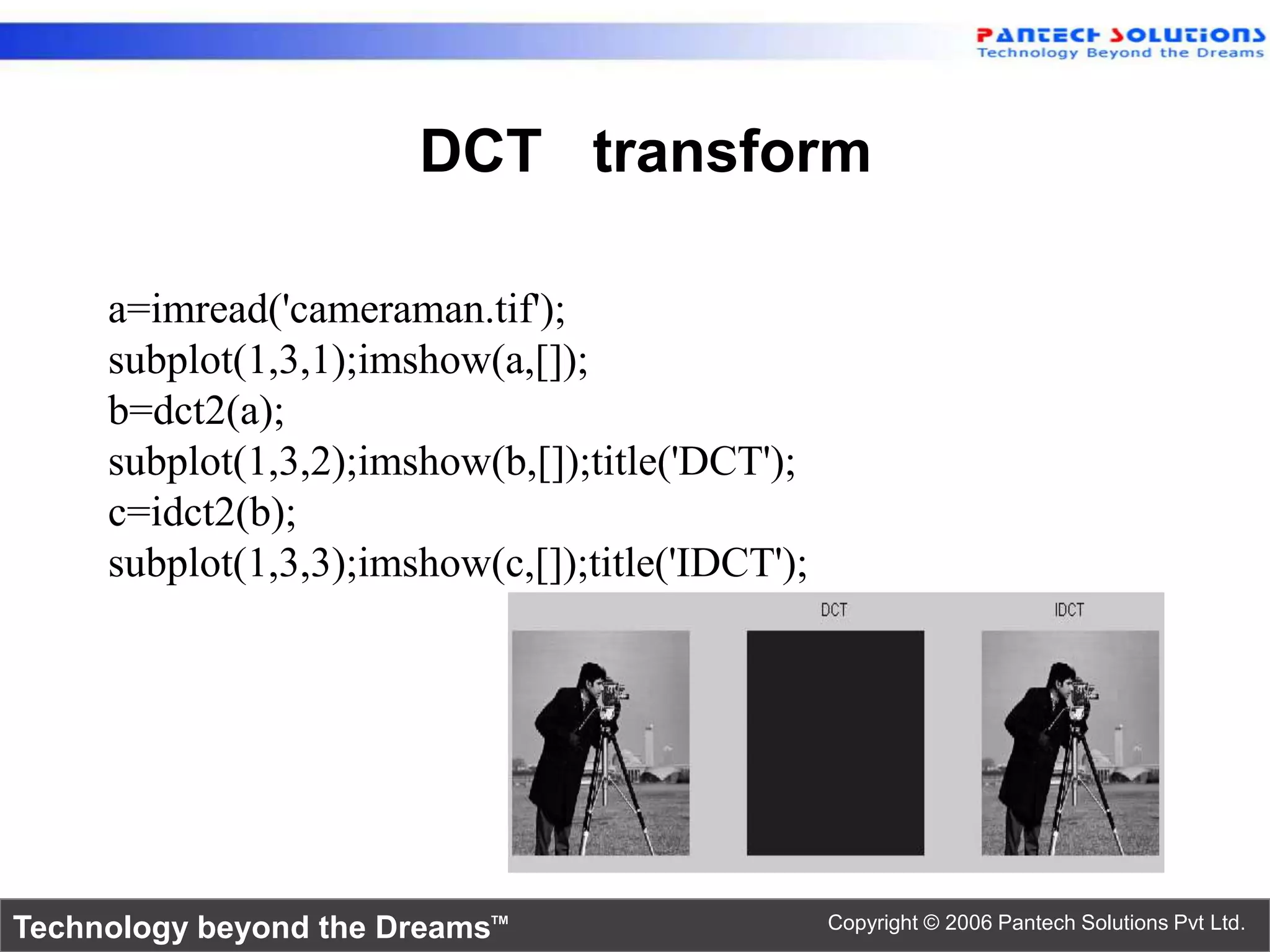

DCT transform

a=imread('cameraman.tif');
subplot(1,3,1);imshow(a,[]);
b=dct2(a);
subplot(1,3,2);imshow(b,[]);title('DCT');
c=idct2(b);
subplot(1,3,3);imshow(c,[]);title('IDCT');

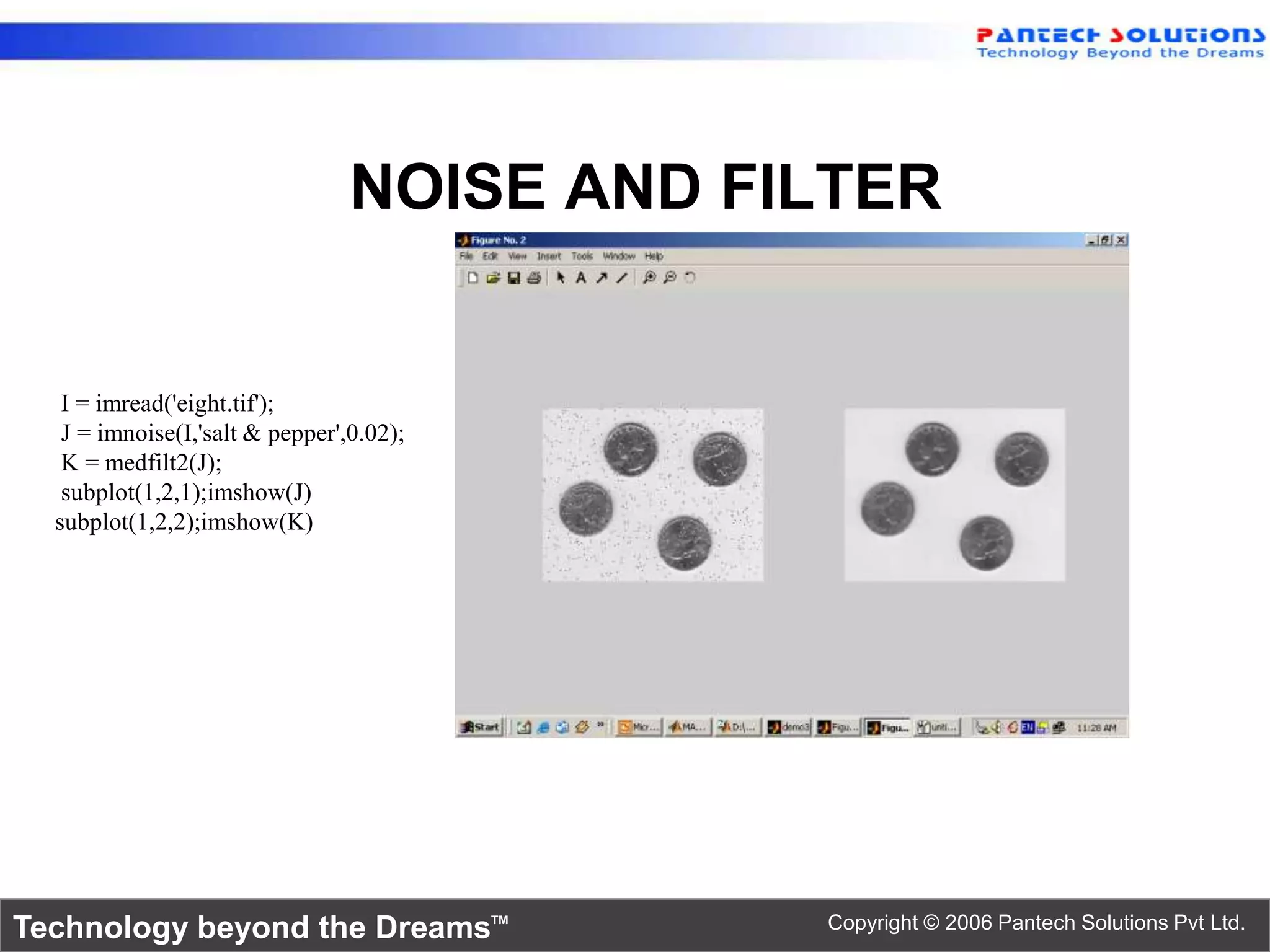

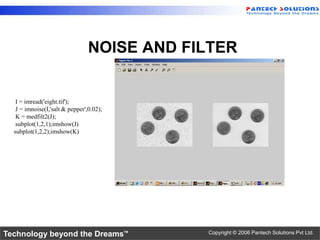

NOISE AND FILTER

I = imread('eight.tif');
J = imnoise(I,'salt & pepper',0.02);
K = medfilt2(J);
subplot(1,2,1);imshow(J)
subplot(1,2,2);imshow(K)

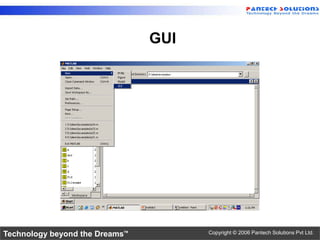

GUI

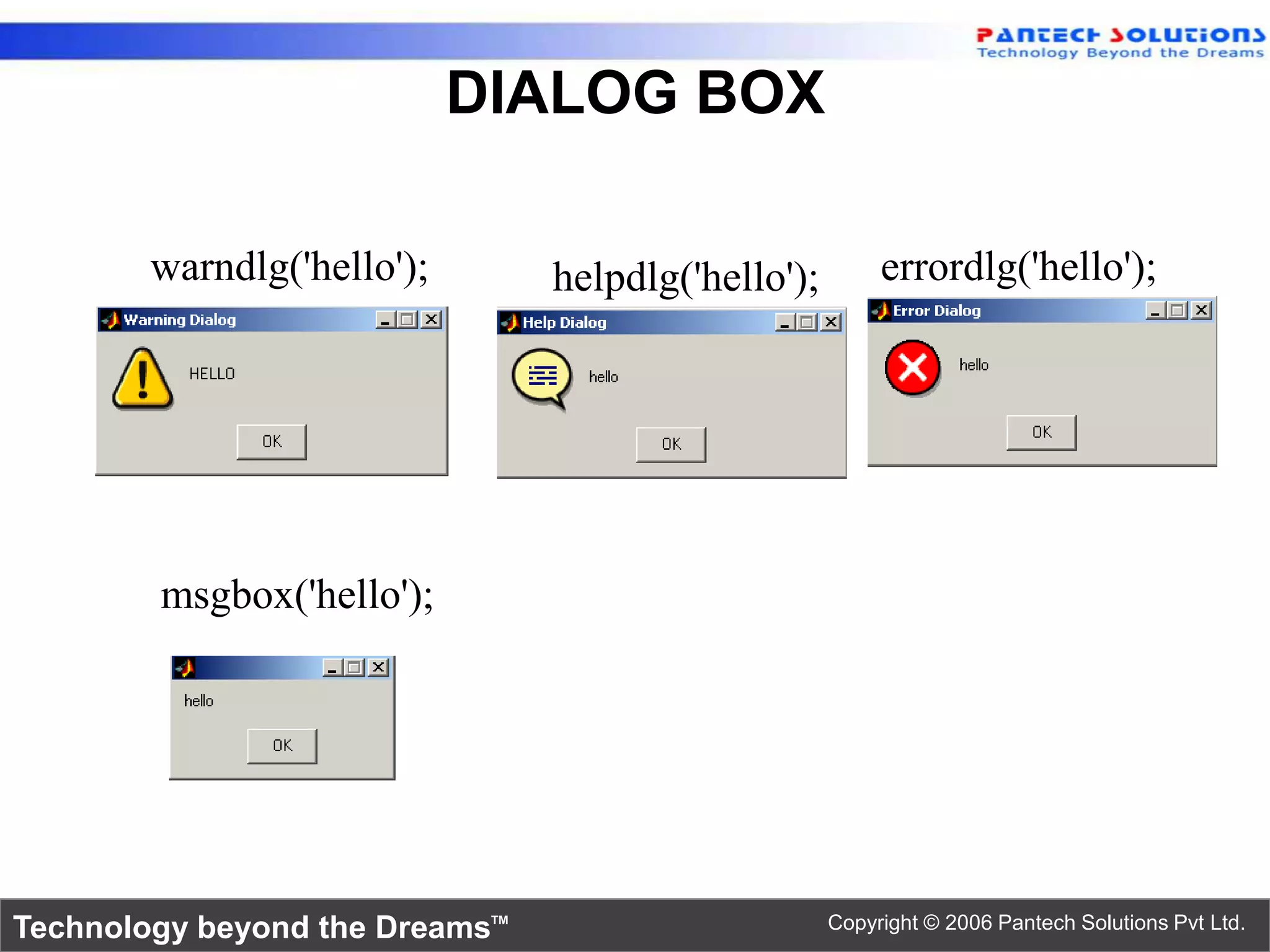

DIALOG BOX

warndlg('hello'); helpdlg('hello'); errordlg('hello');

msgbox('hello');

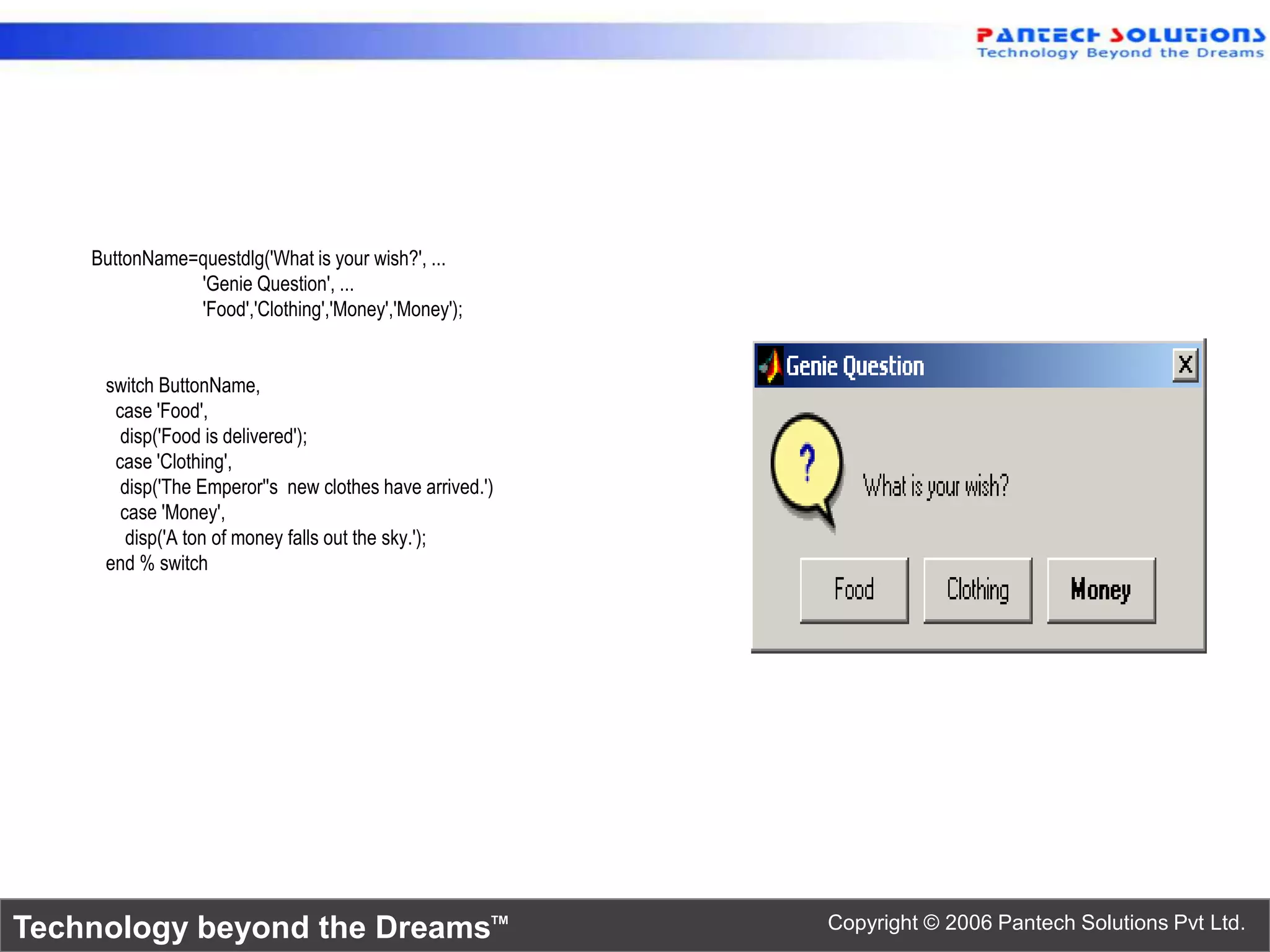

ButtonName=questdlg('What is your wish?', ...
'Genie Question', ...
'Food','Clothing','Money','Money');

switch ButtonName,
case 'Food',
disp('Food is delivered');
case 'Clothing',
disp('The Emperor''s new clothes have arrived.')
case 'Money',
disp('A ton of money falls out the sky.');
end % switch

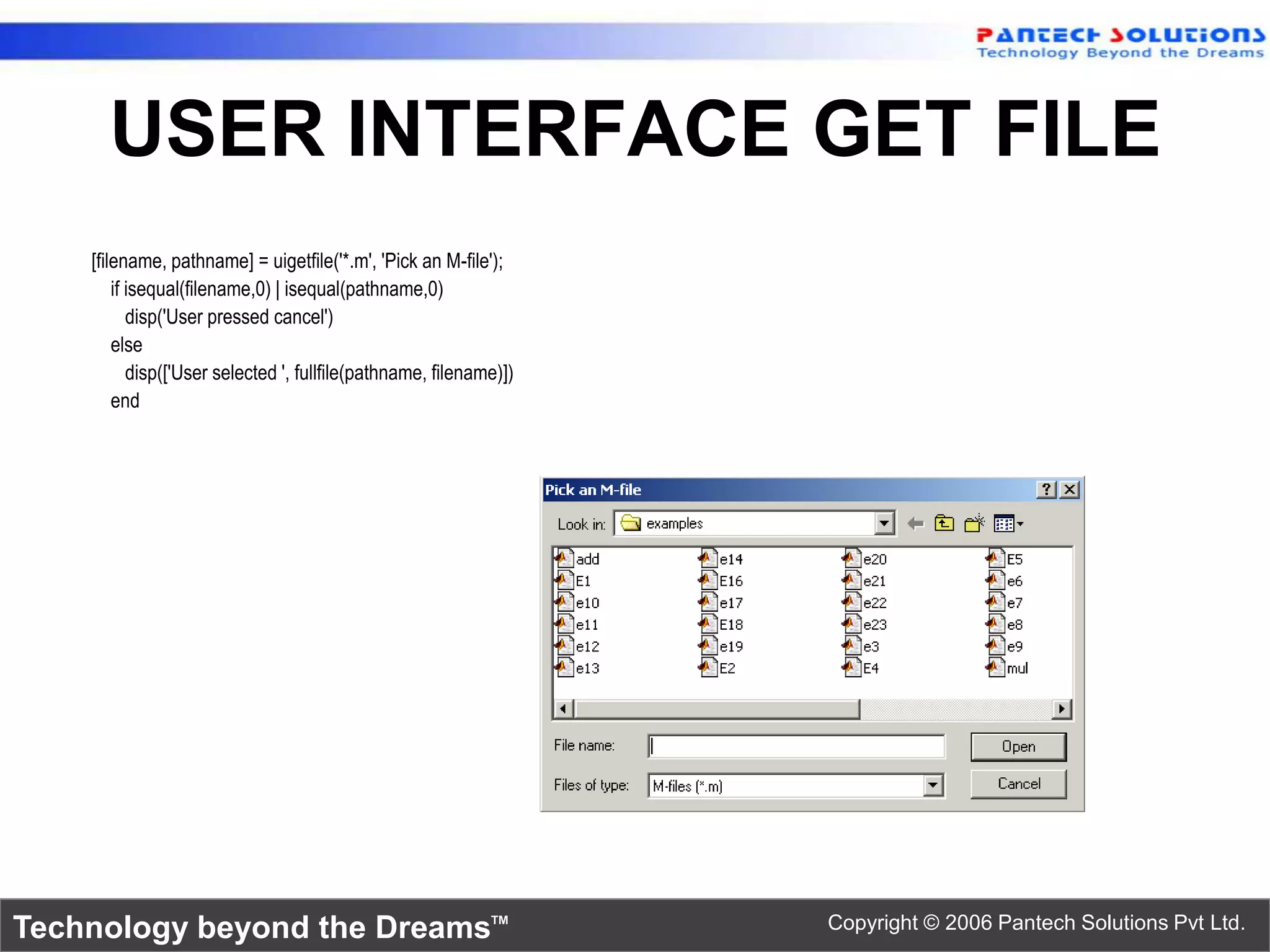

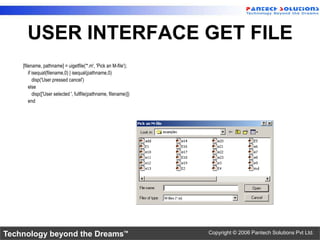

USER INTERFACE GET FILE
[filename, pathname] = uigetfile('*.m', 'Pick an M-file');
if isequal(filename,0) | isequal(pathname,0)
disp('User pressed cancel')
else
disp(['User selected ', fullfile(pathname, filename)])
end

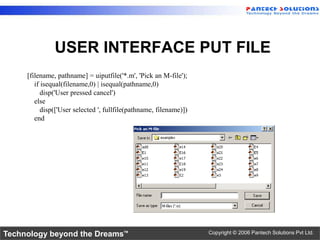

USER INTERFACE PUT FILE
[filename, pathname] = uiputfile('*.m', 'Pick an M-file');
disp('User pressed cancel')
else
disp(['User selected ', fullfile(pathname, filename)])
end

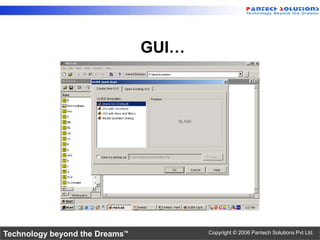

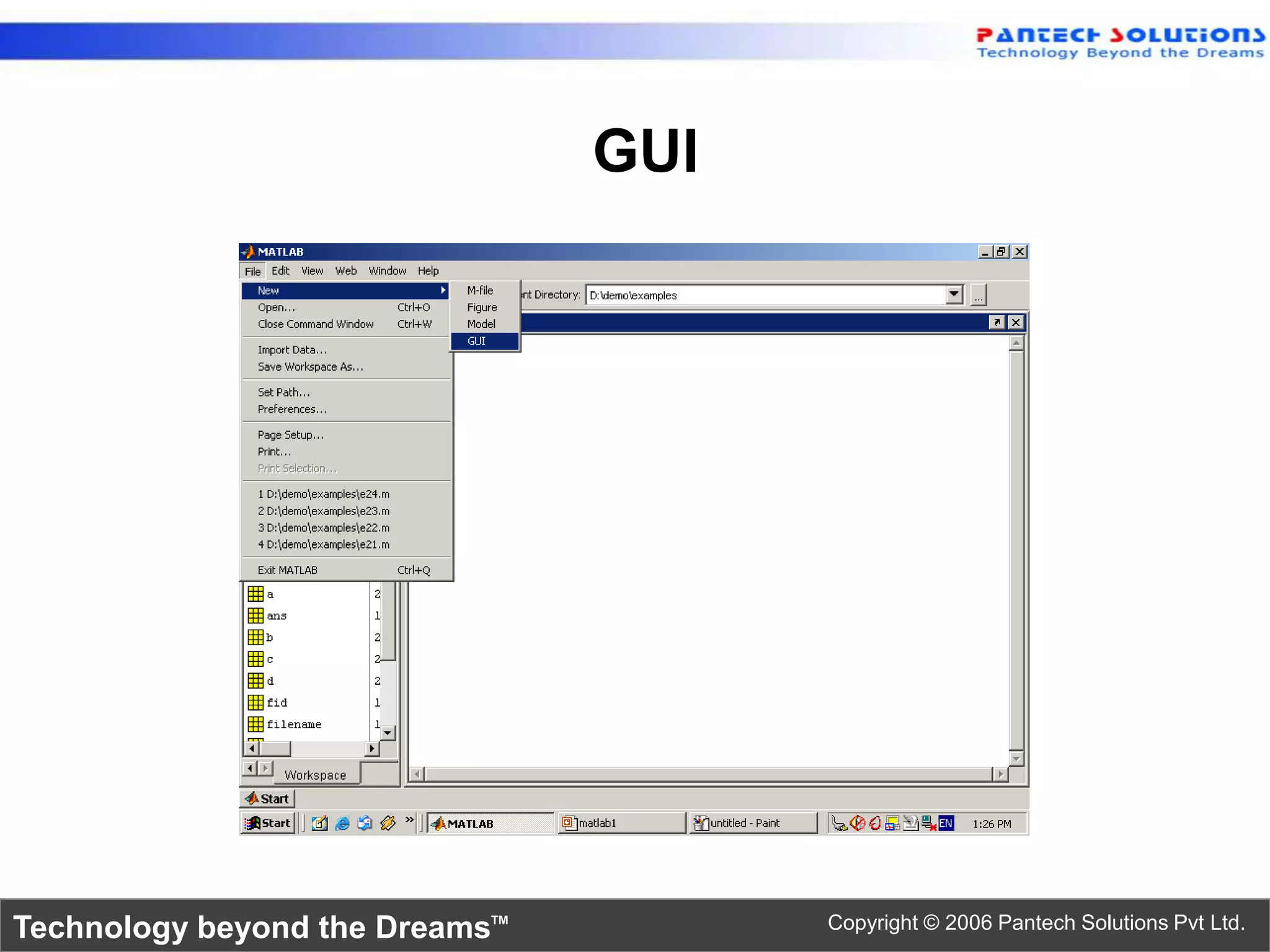

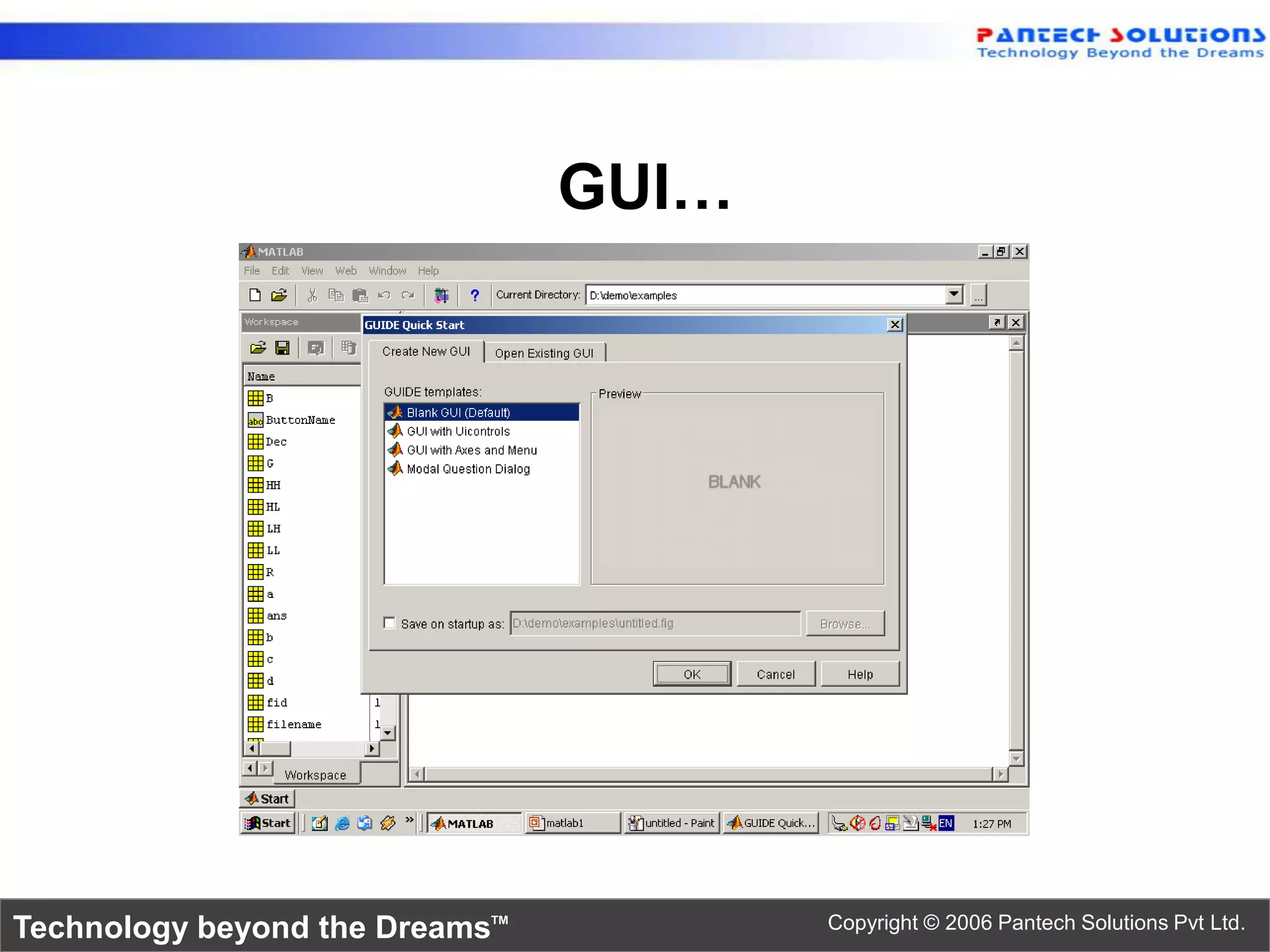

GUI…

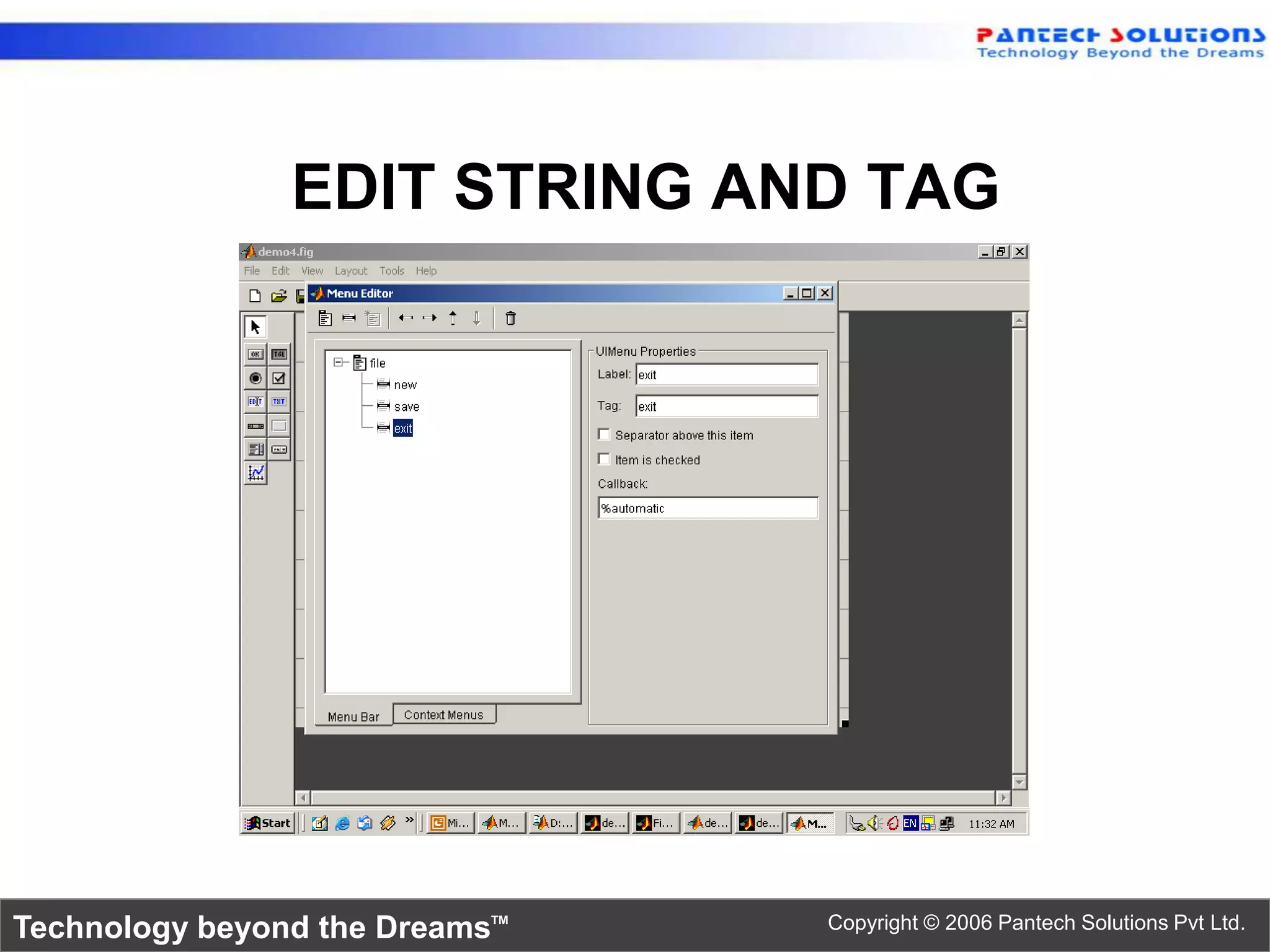

MENU BAR

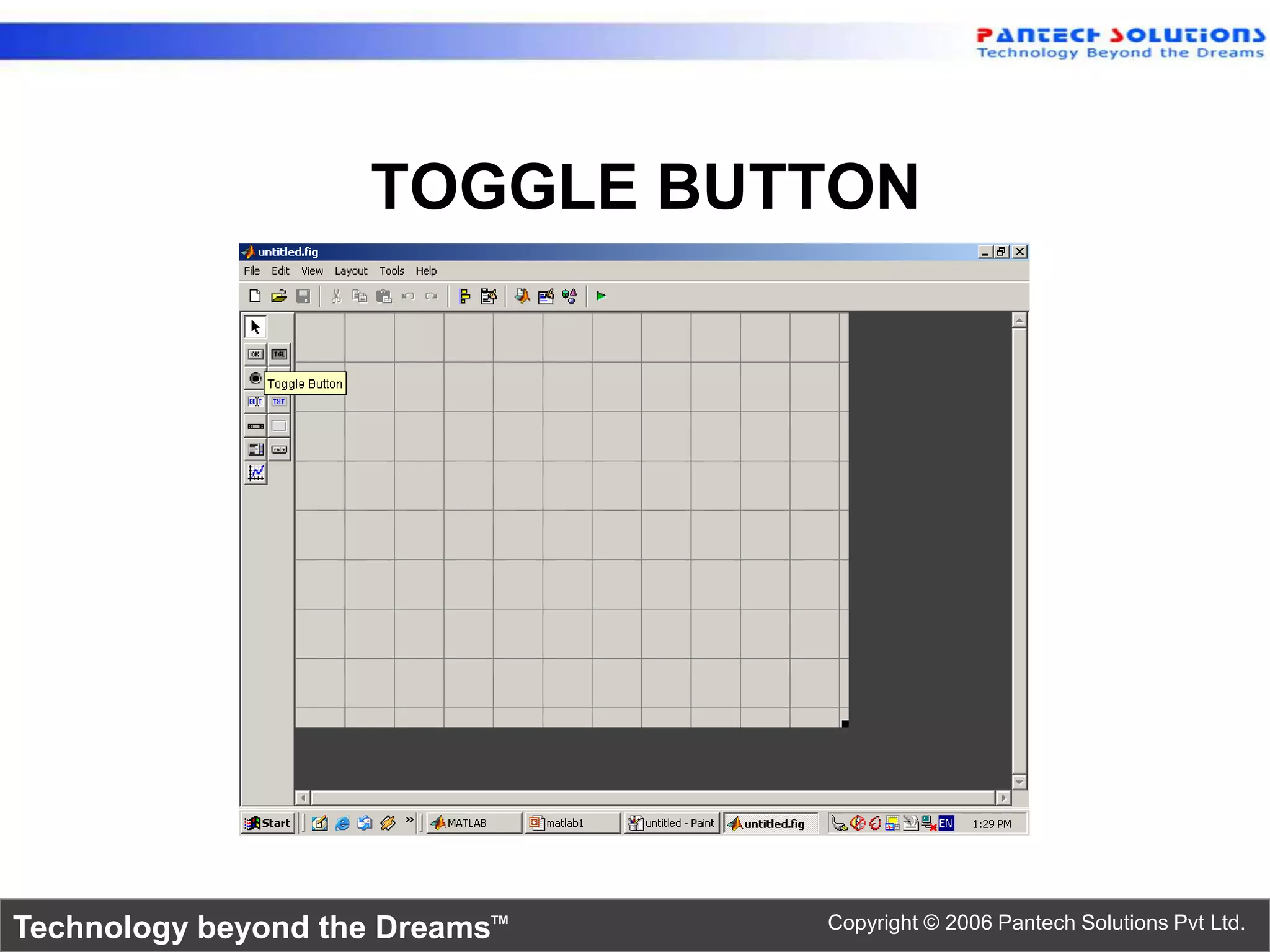

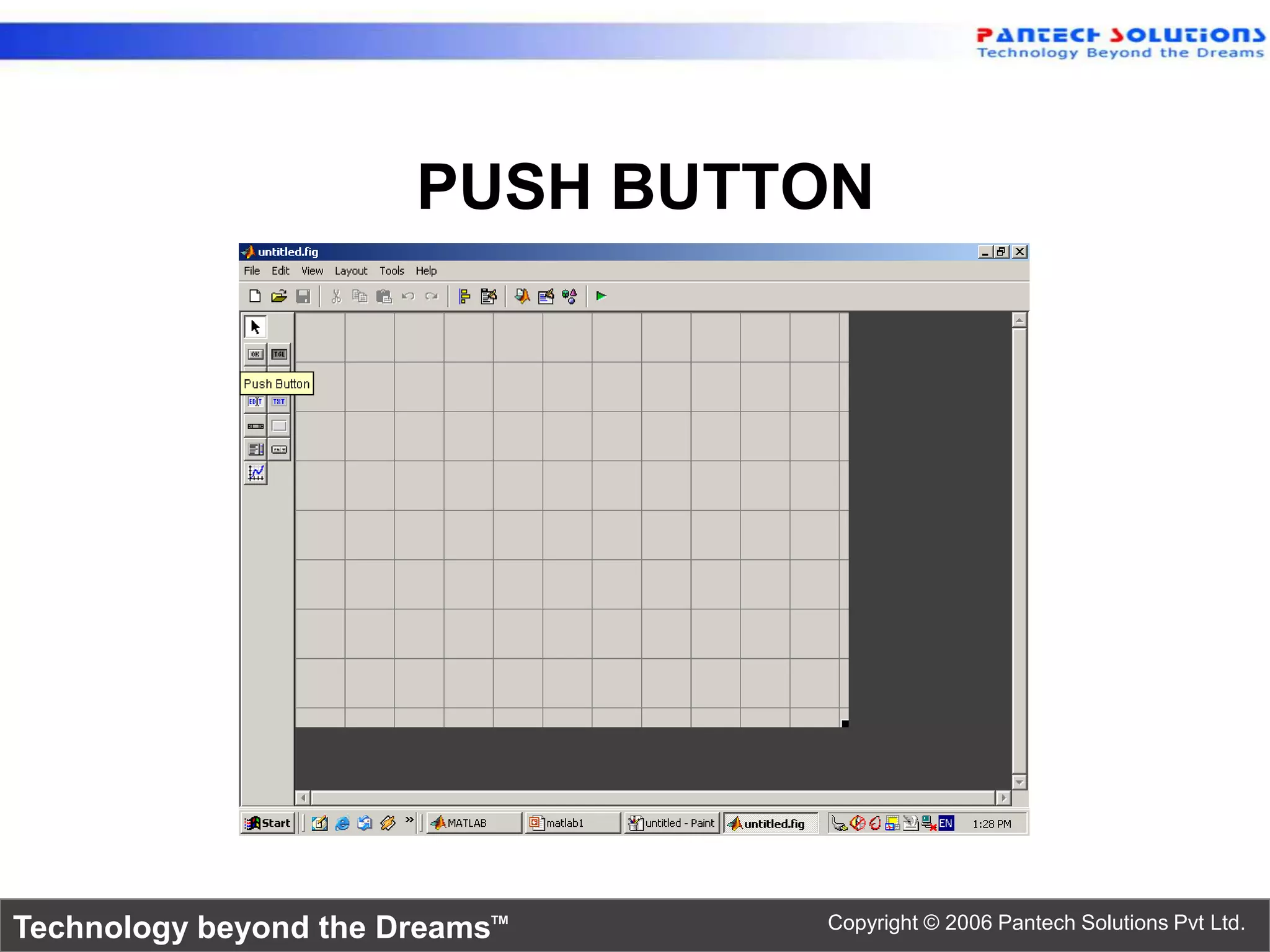

PUSH BUTTON

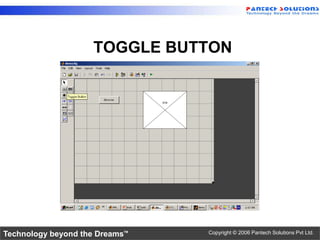

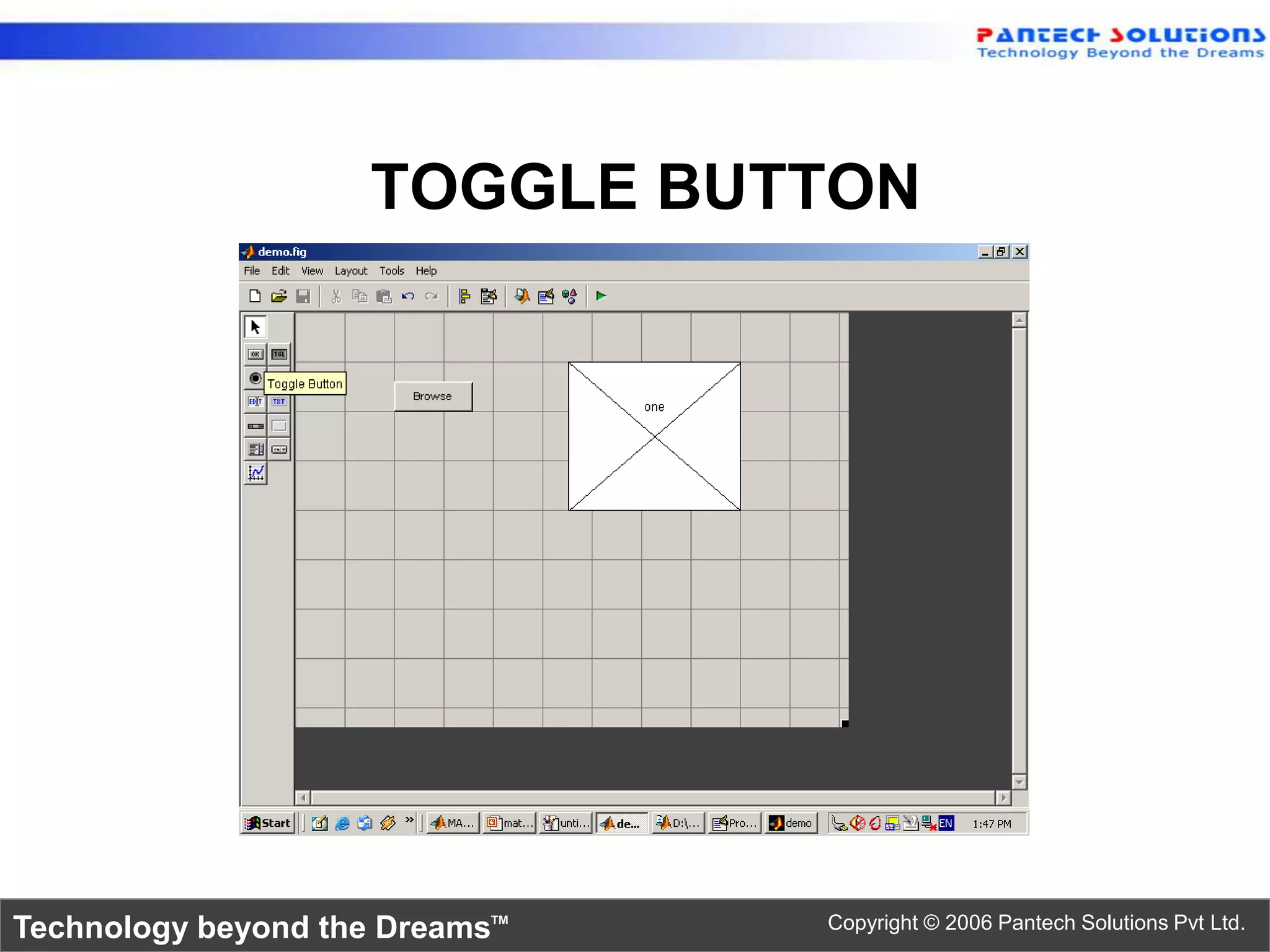

TOGGLE BUTTON


RADIO BUTTON

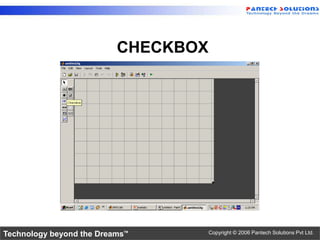

CHECKBOX


EDIT TEXT

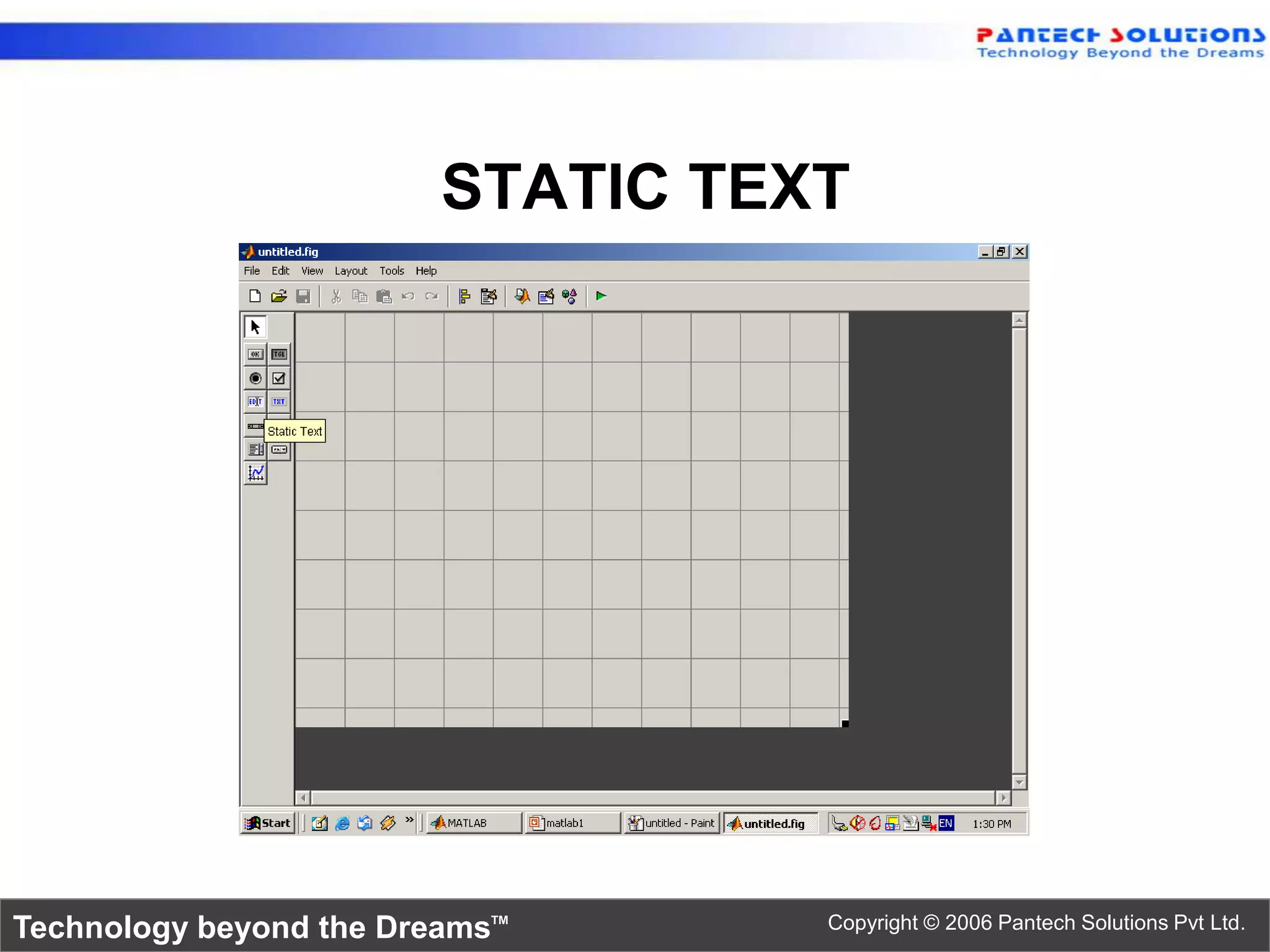

STATIC TEXT


SLIDER

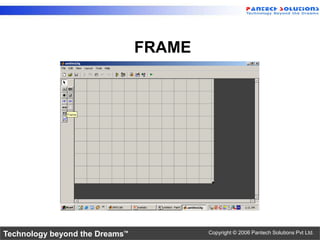

FRAME

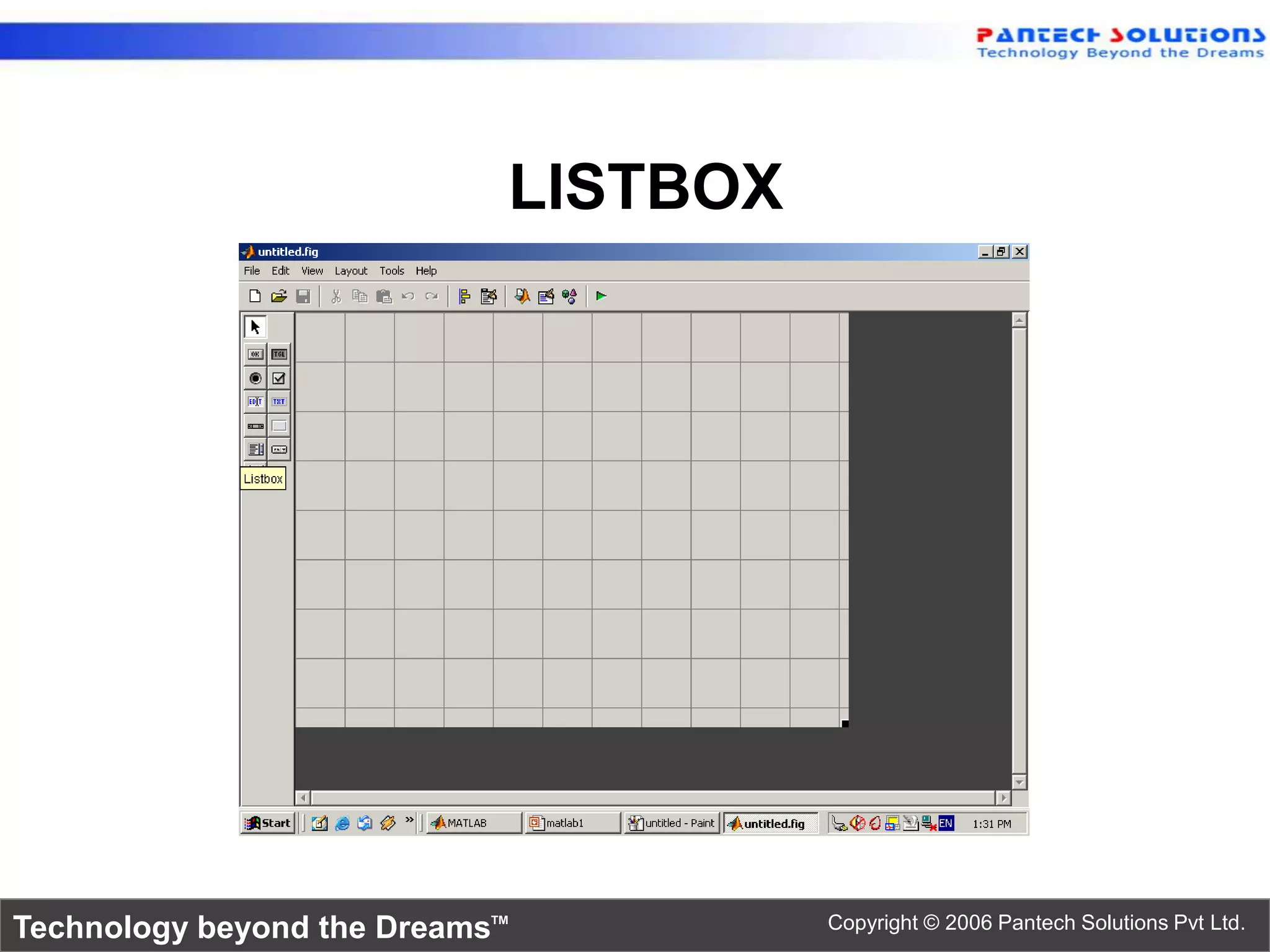

LISTBOX


POPUP MENU

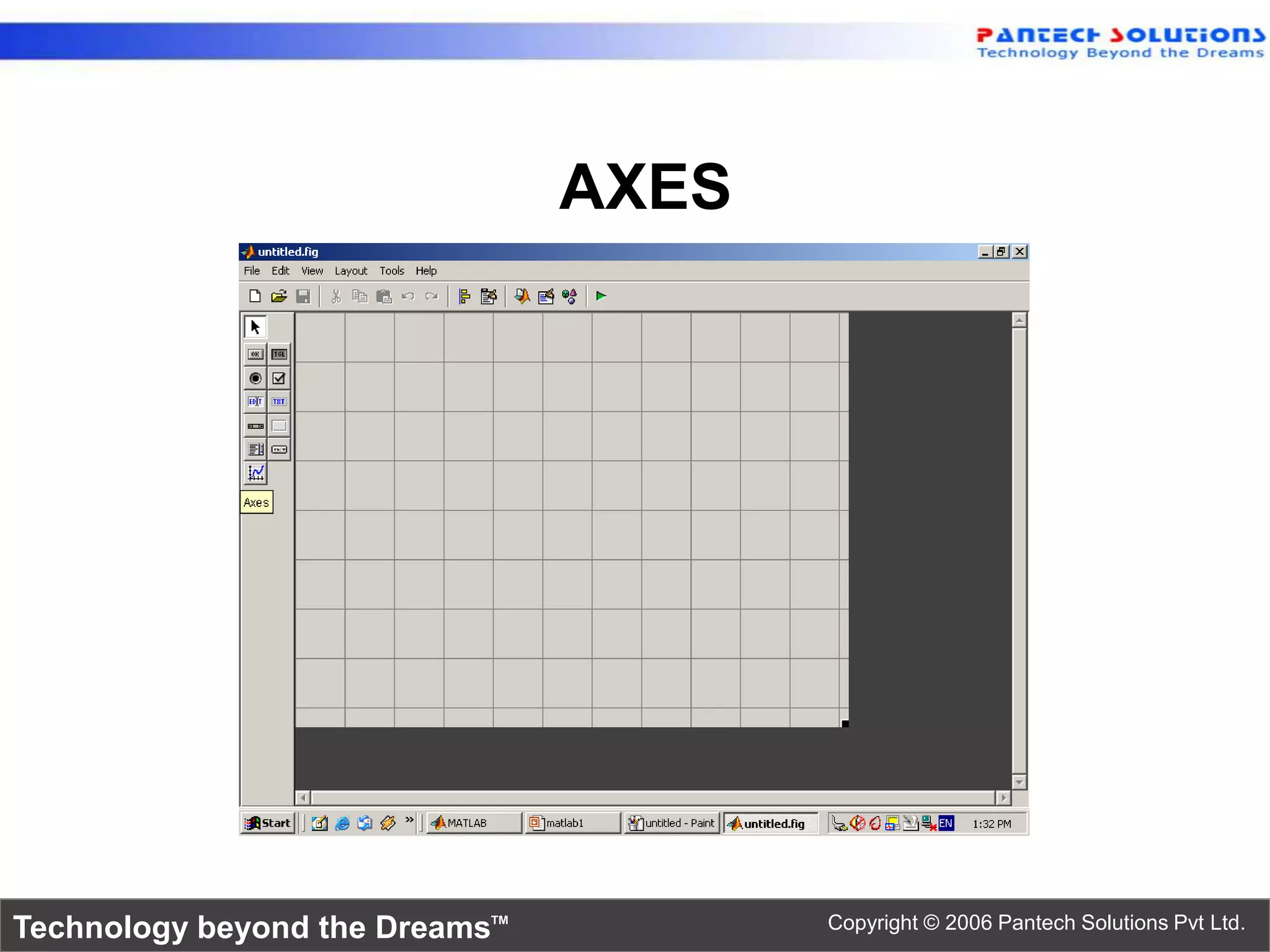

AXES

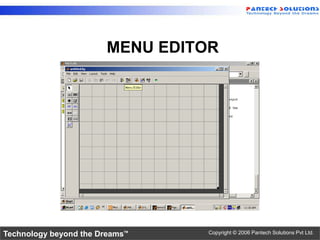

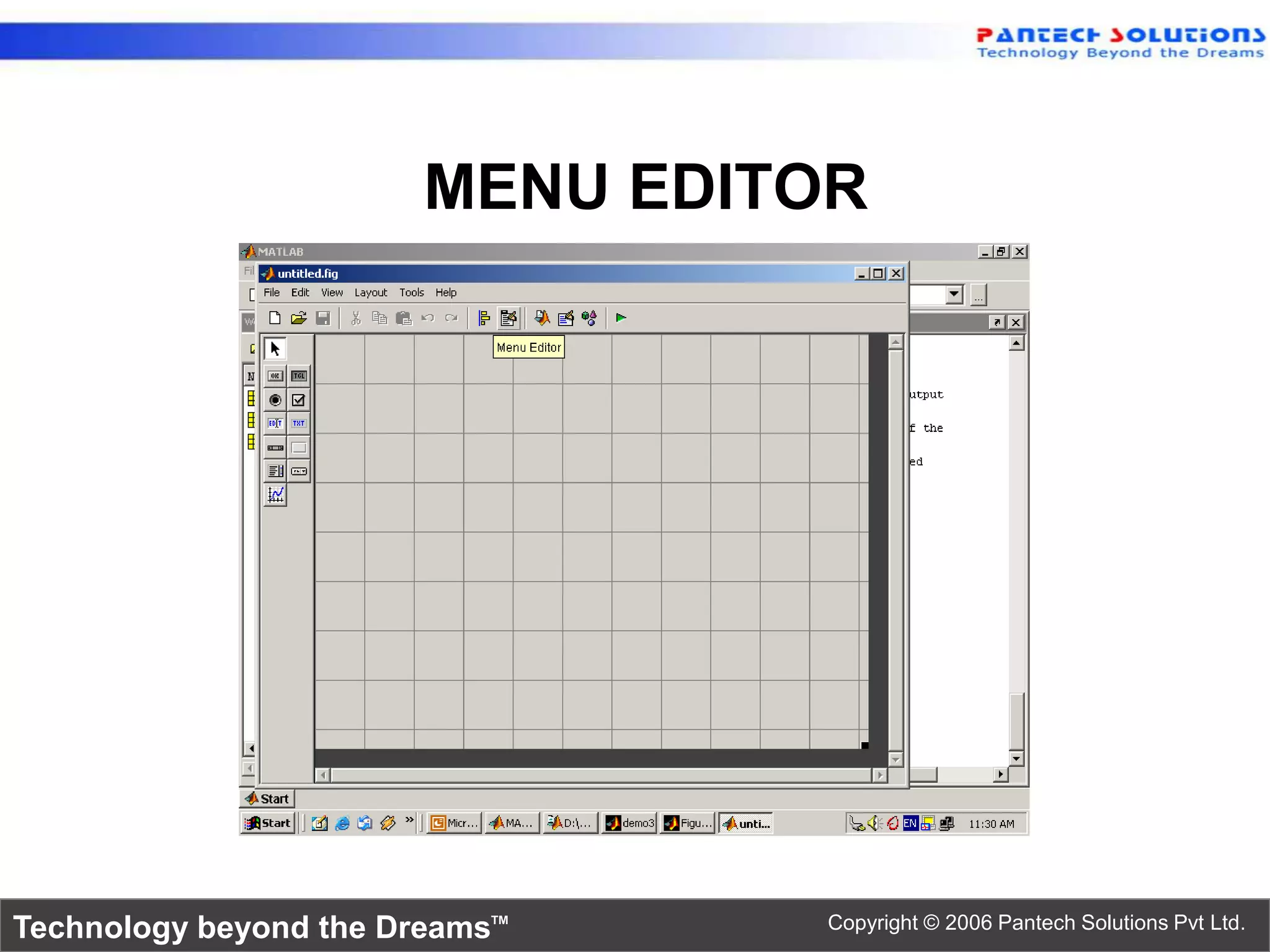

ALIGN OBJECTS

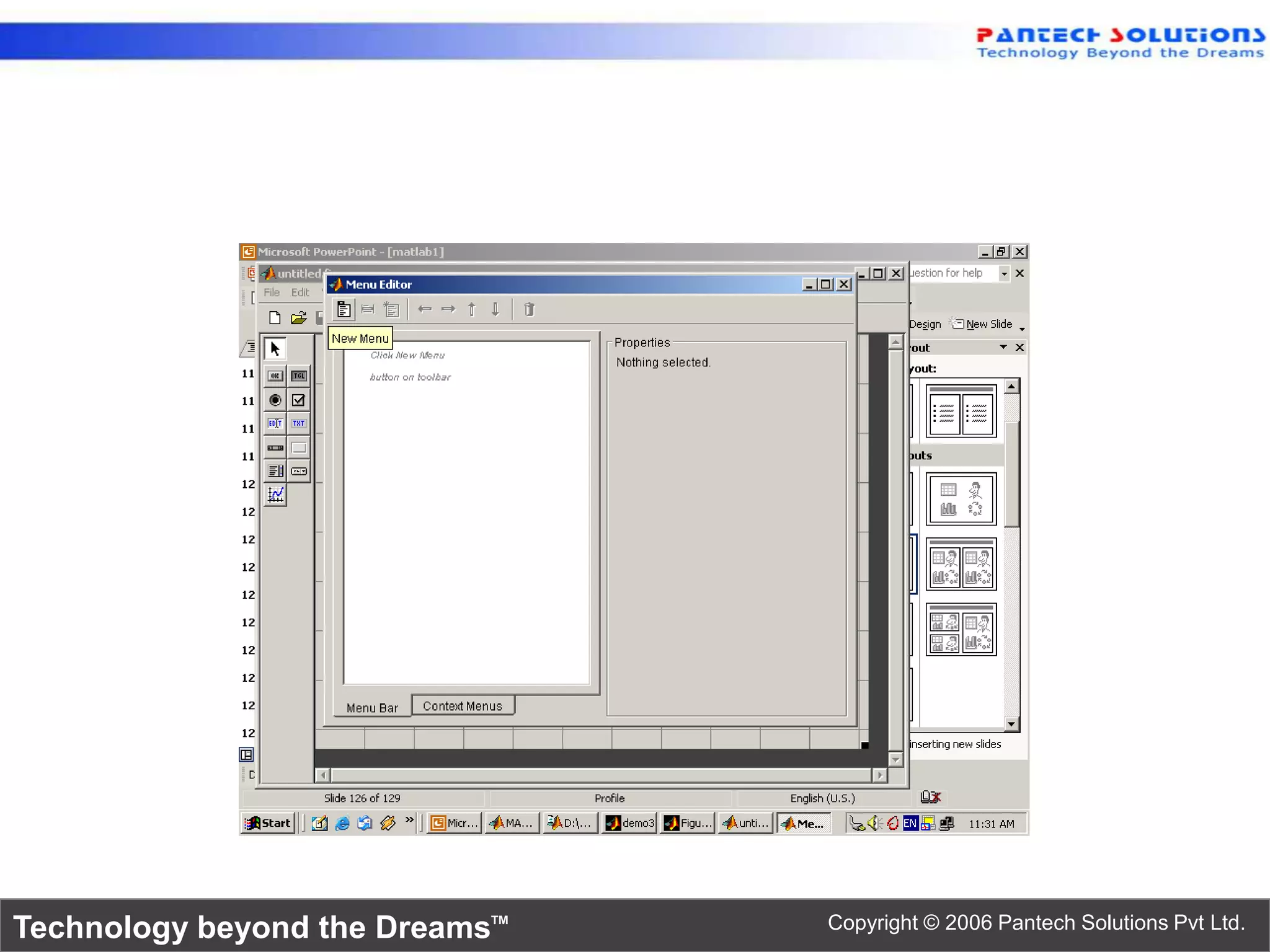

MENU EDITOR

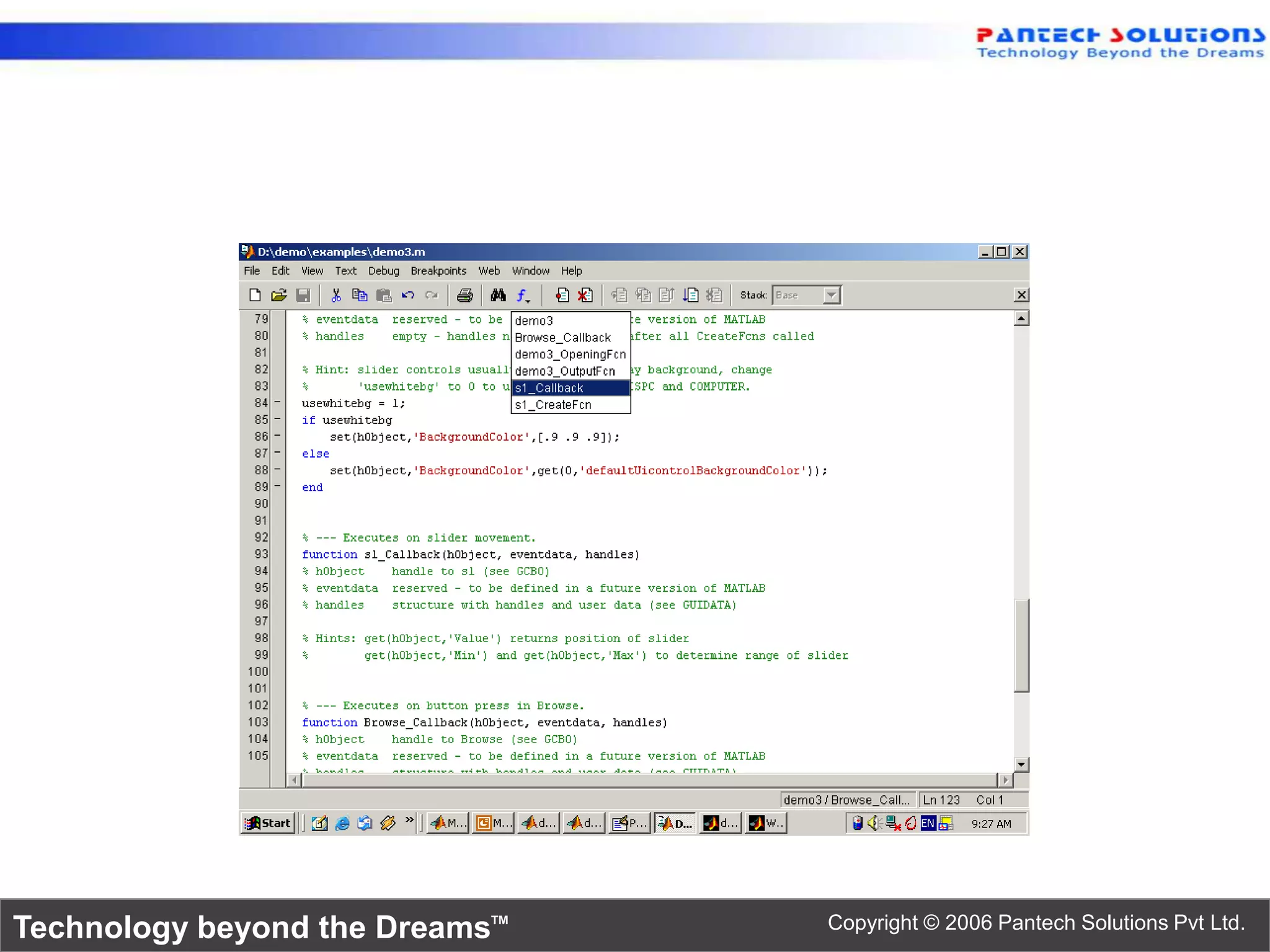

M FILE EDITOR

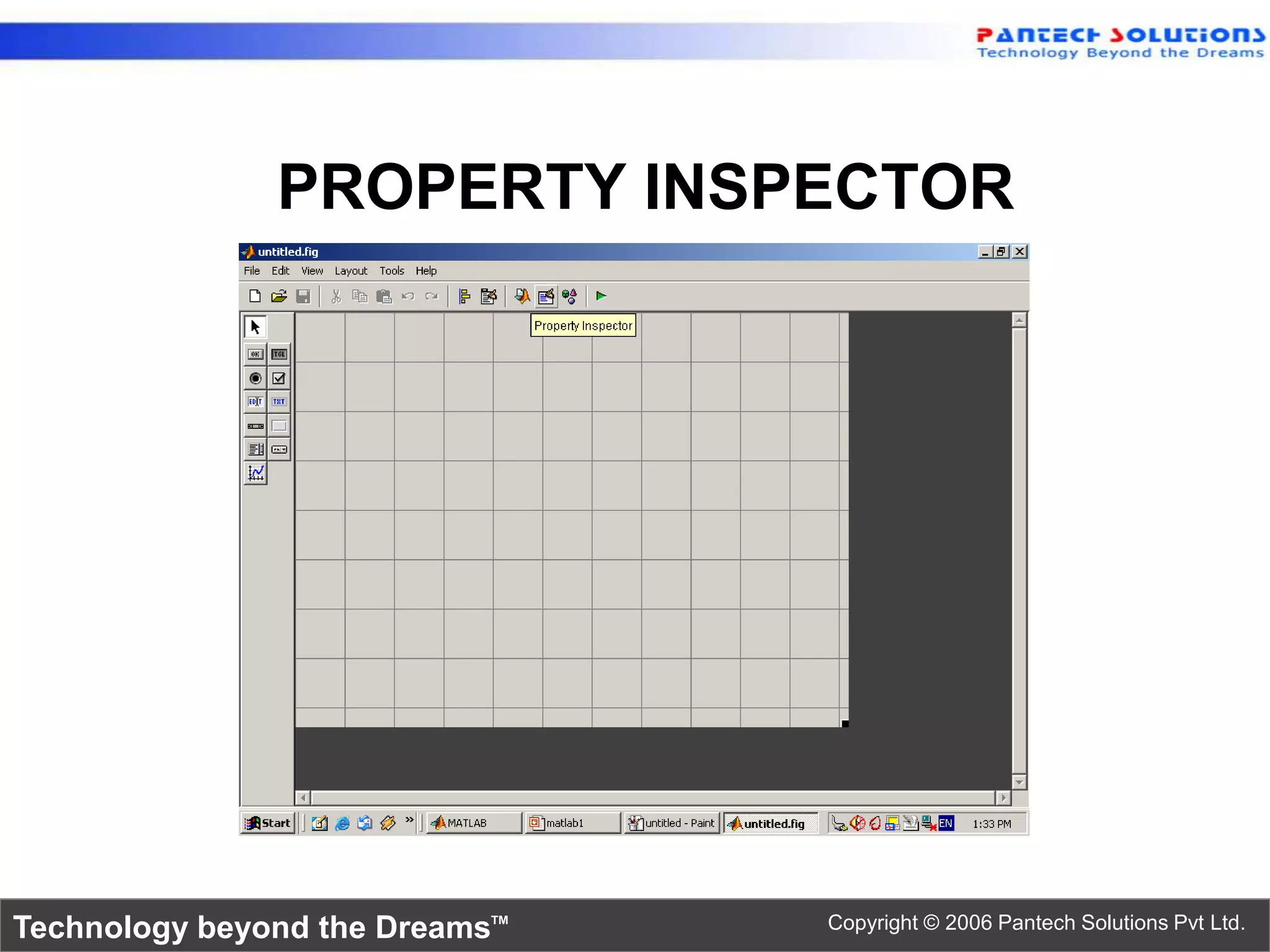

PROPERTY INSPECTOR

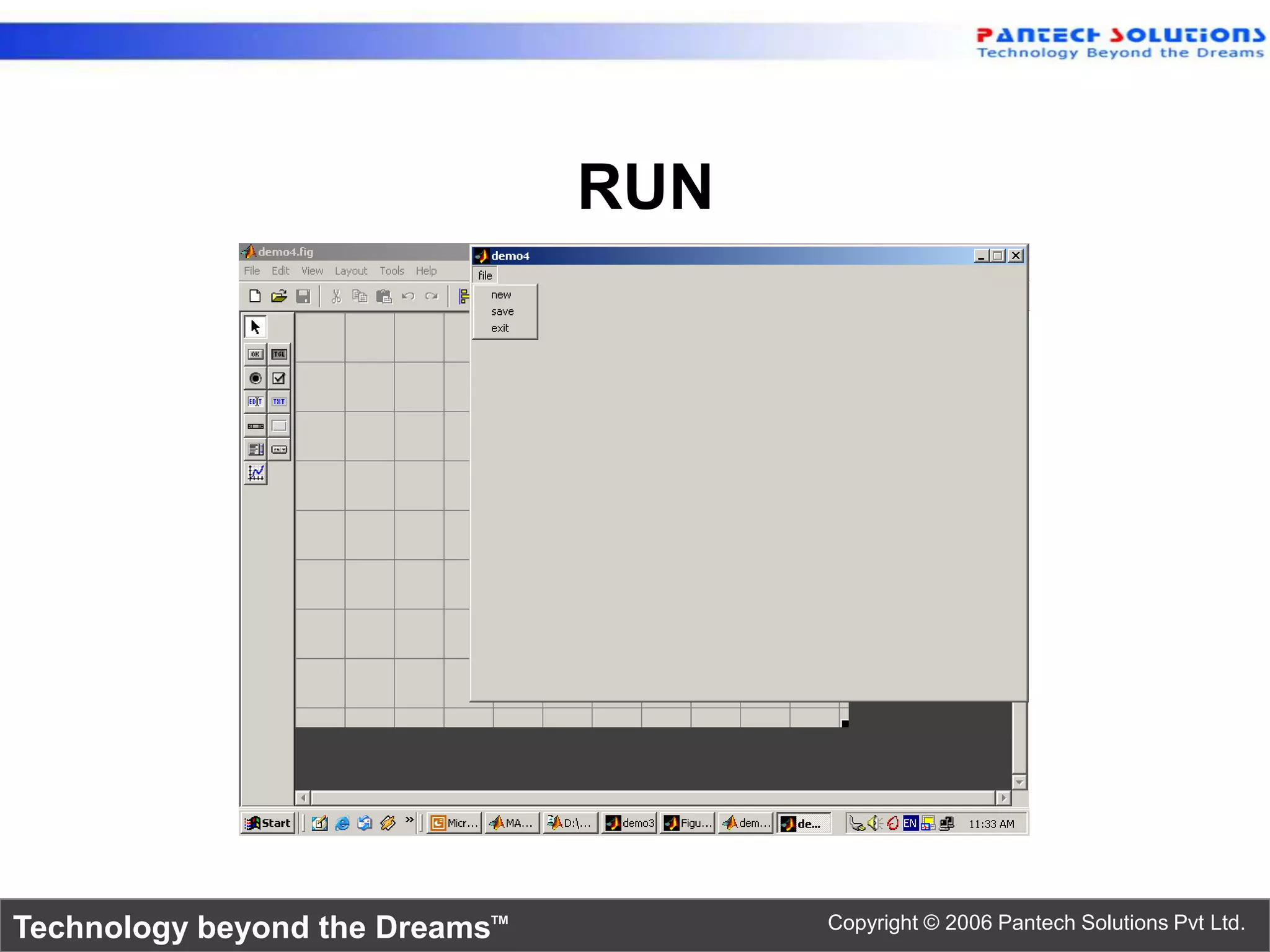

RUN

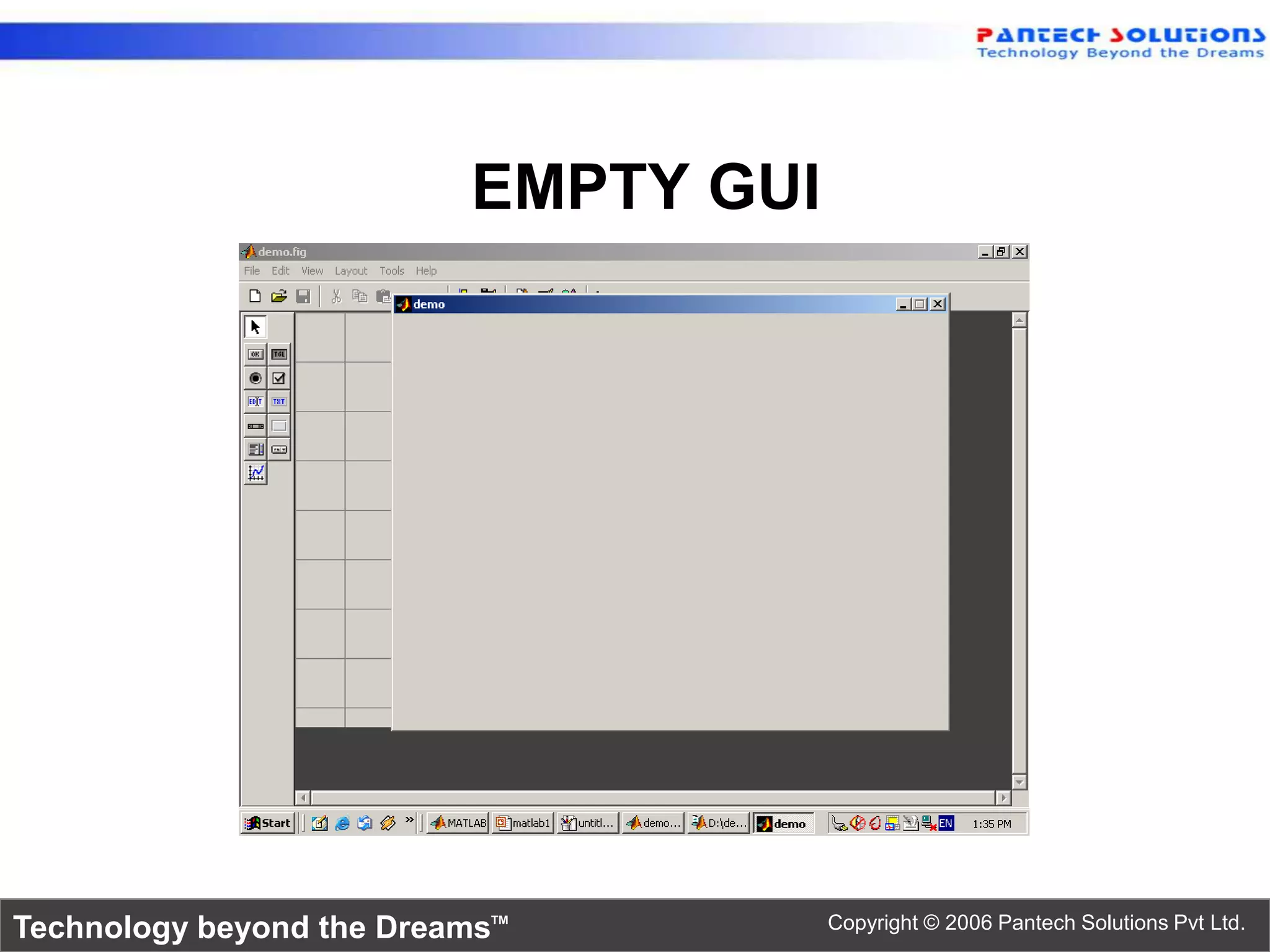

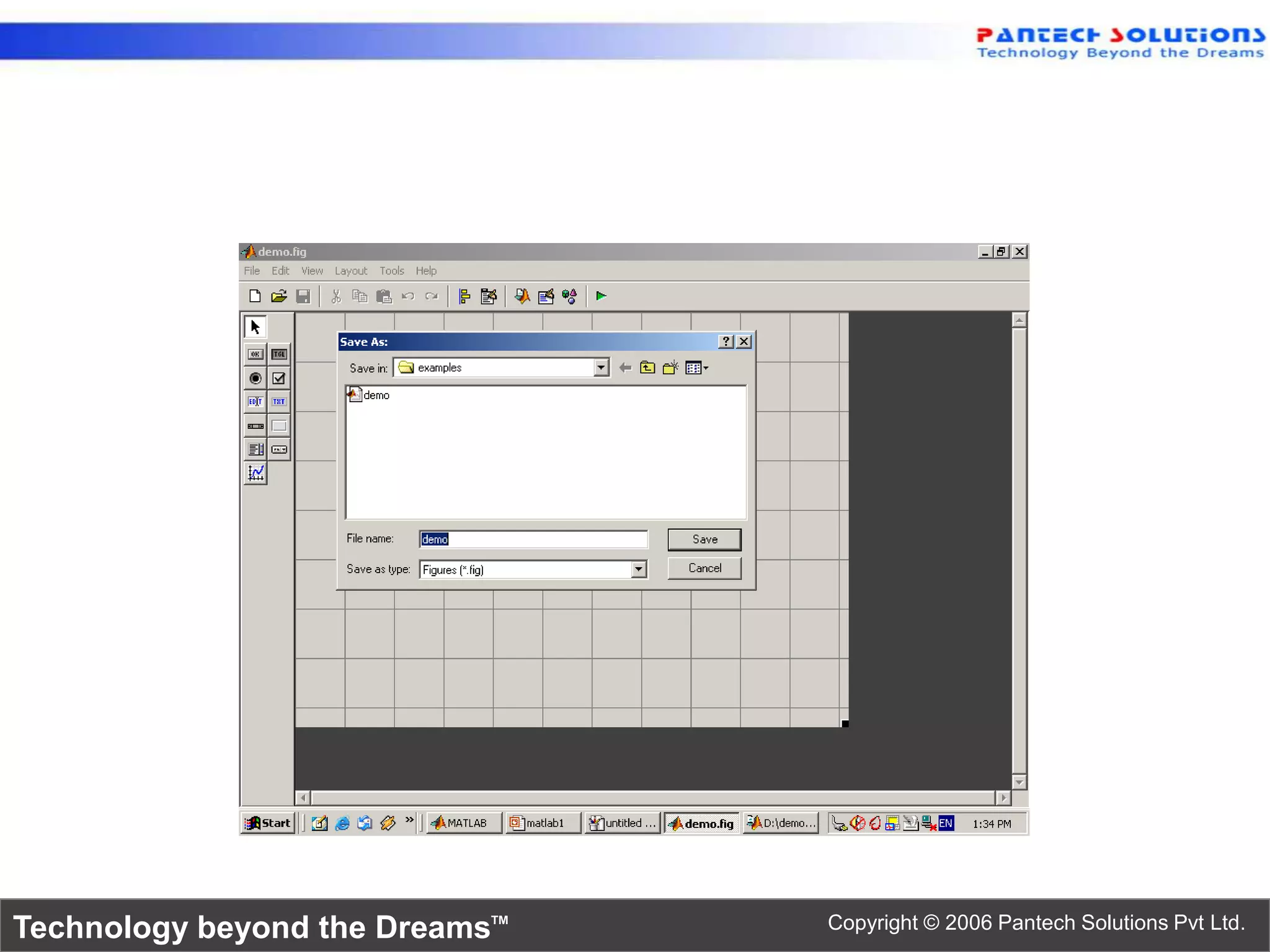

EMPTY GUI

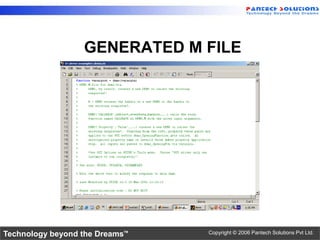

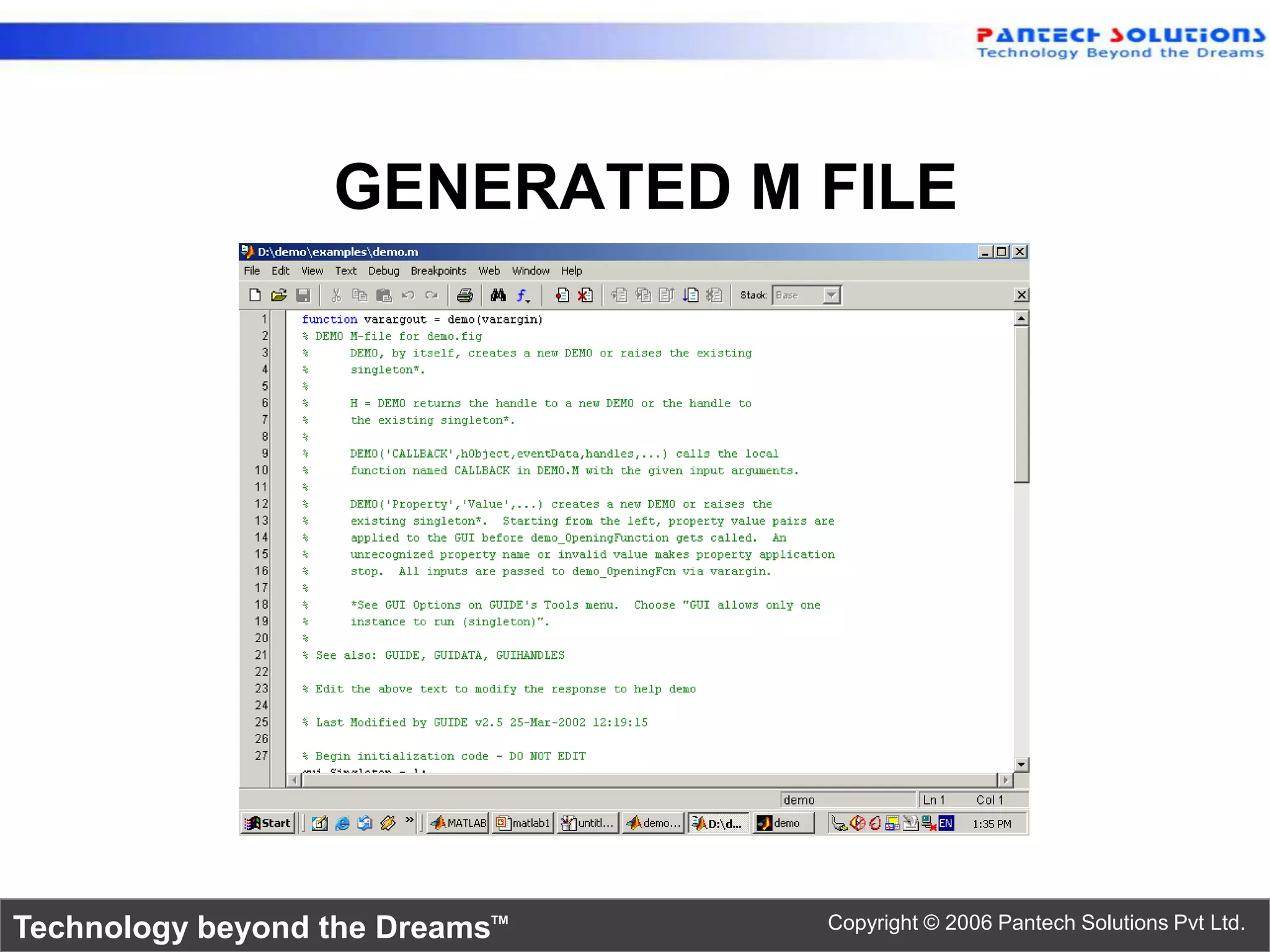

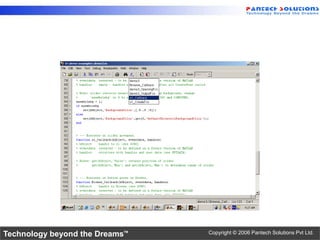

GENERATED M FILE


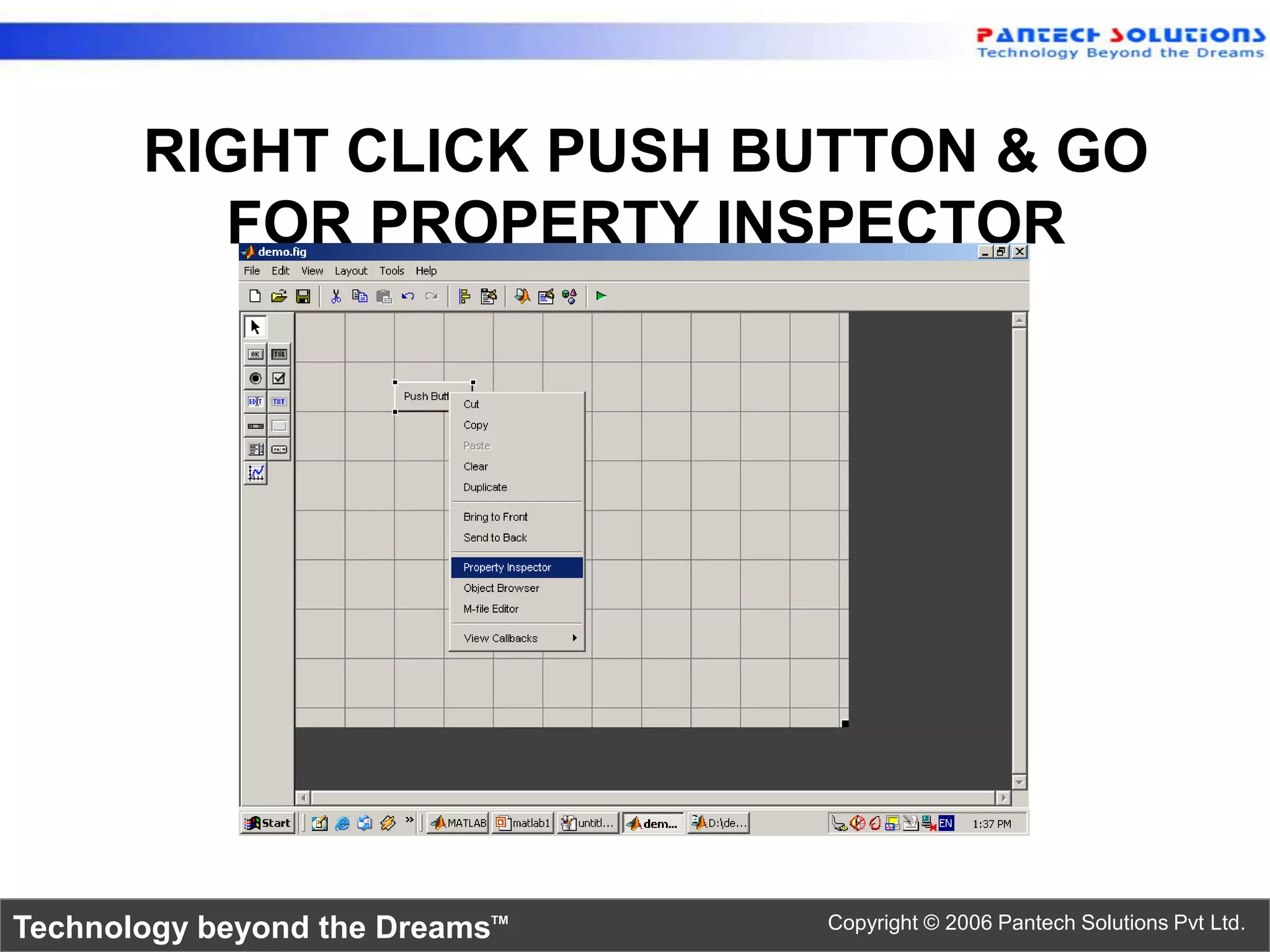

RIGHT CLICK PUSH BUTTON & GO
FOR PROPERTY INSPECTOR

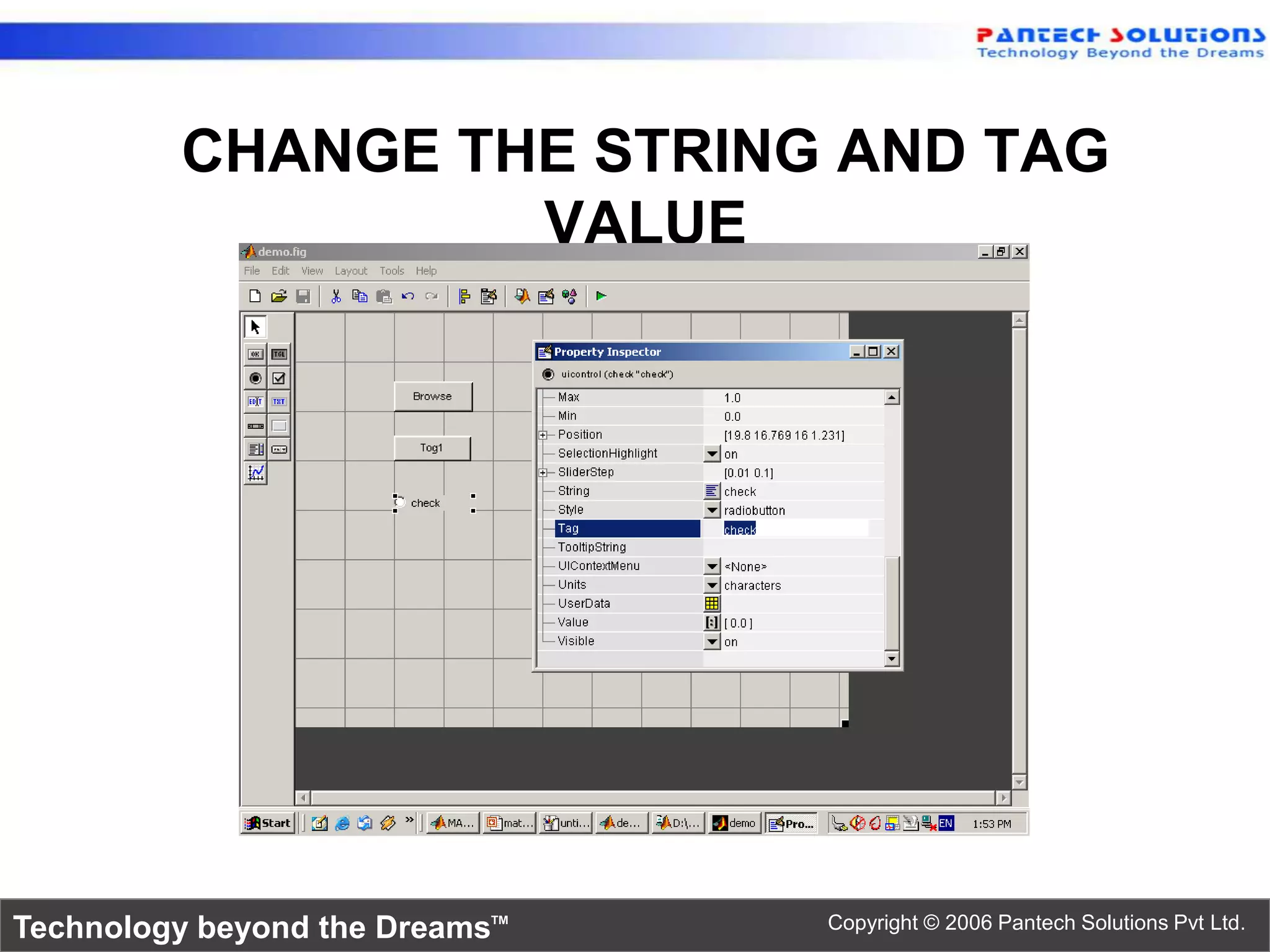

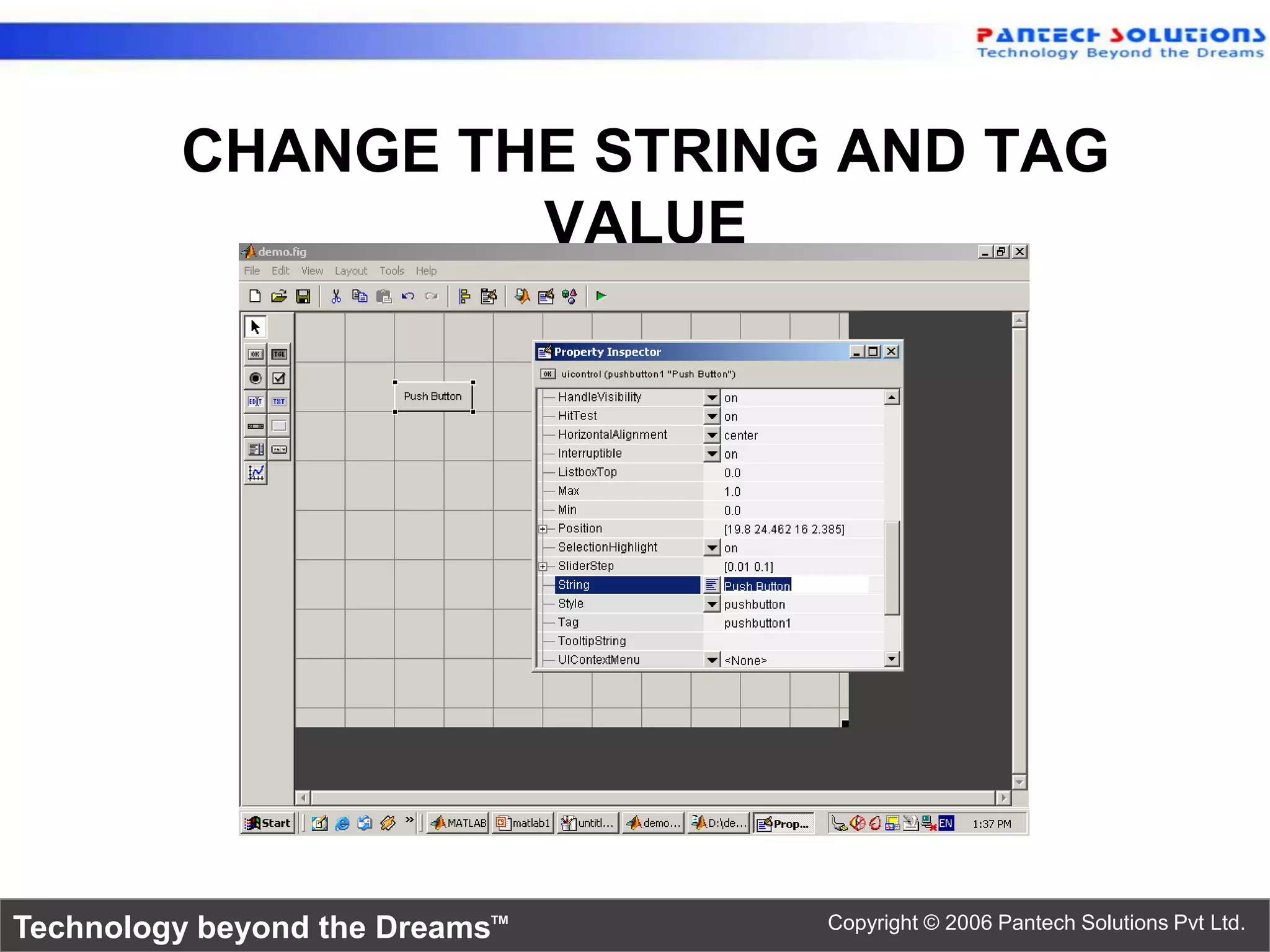

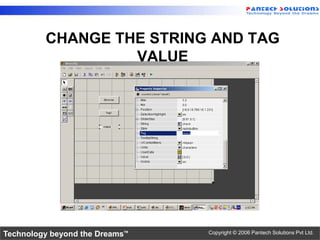

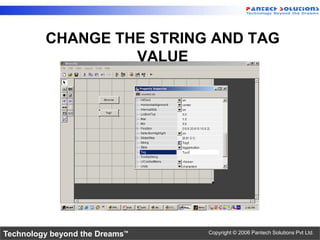

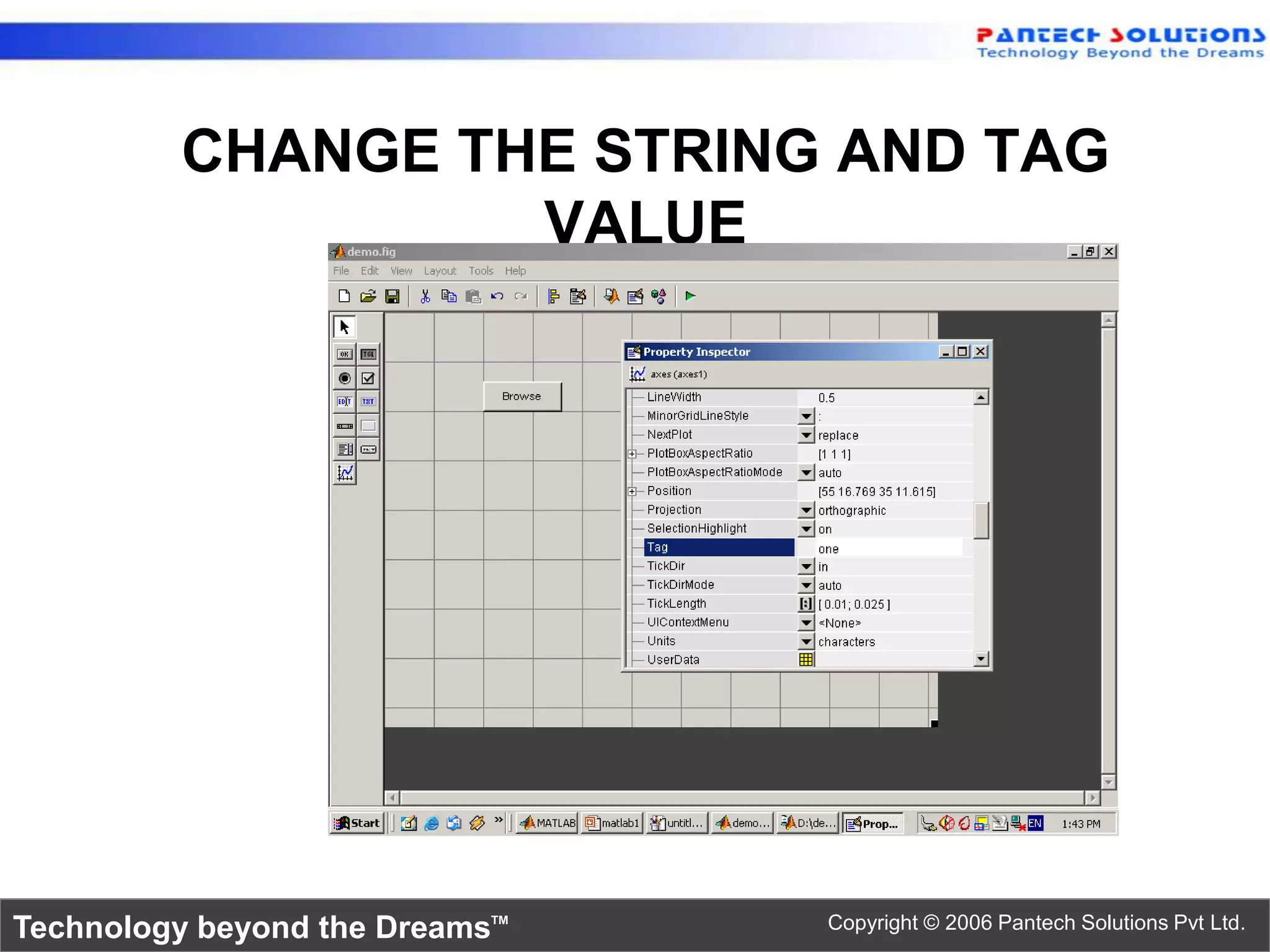

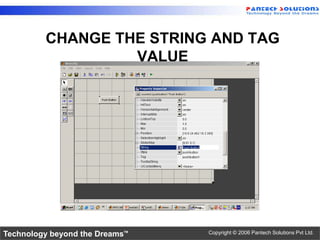

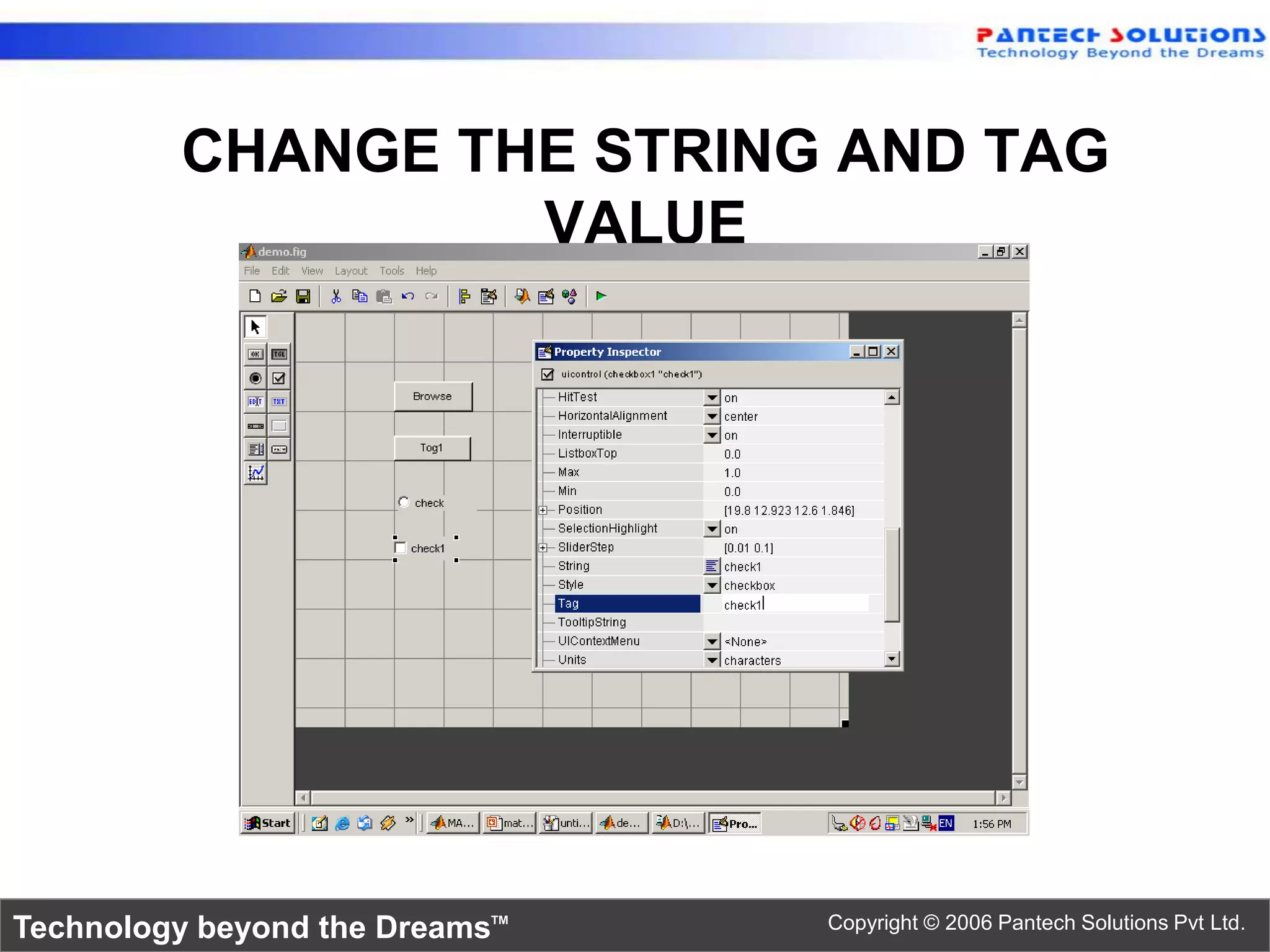

CHANGE THE STRING AND TAG
VALUE


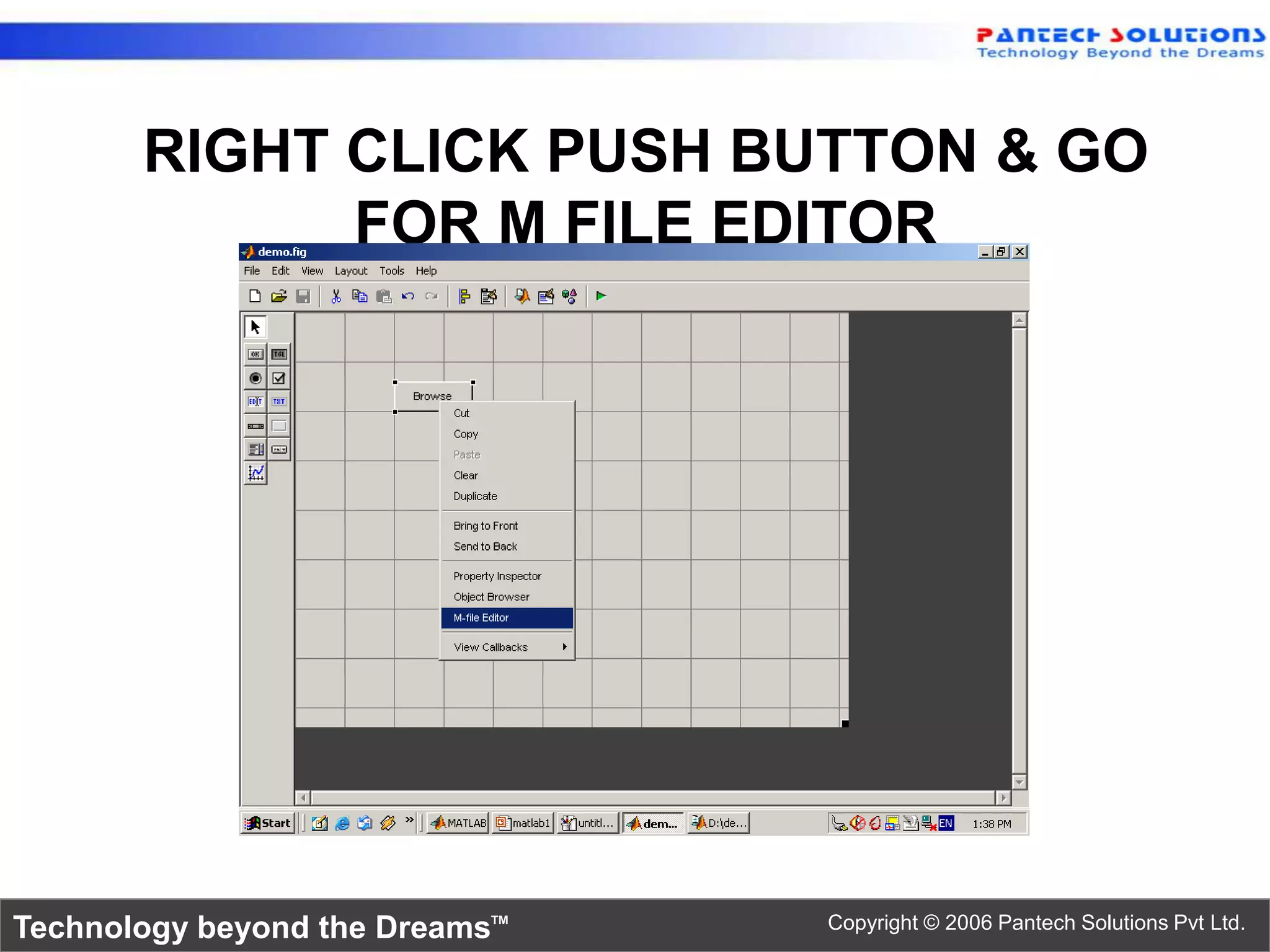

RIGHT CLICK PUSH BUTTON & GO
FOR M FILE EDITOR

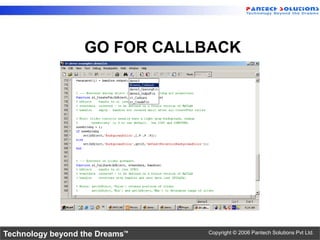

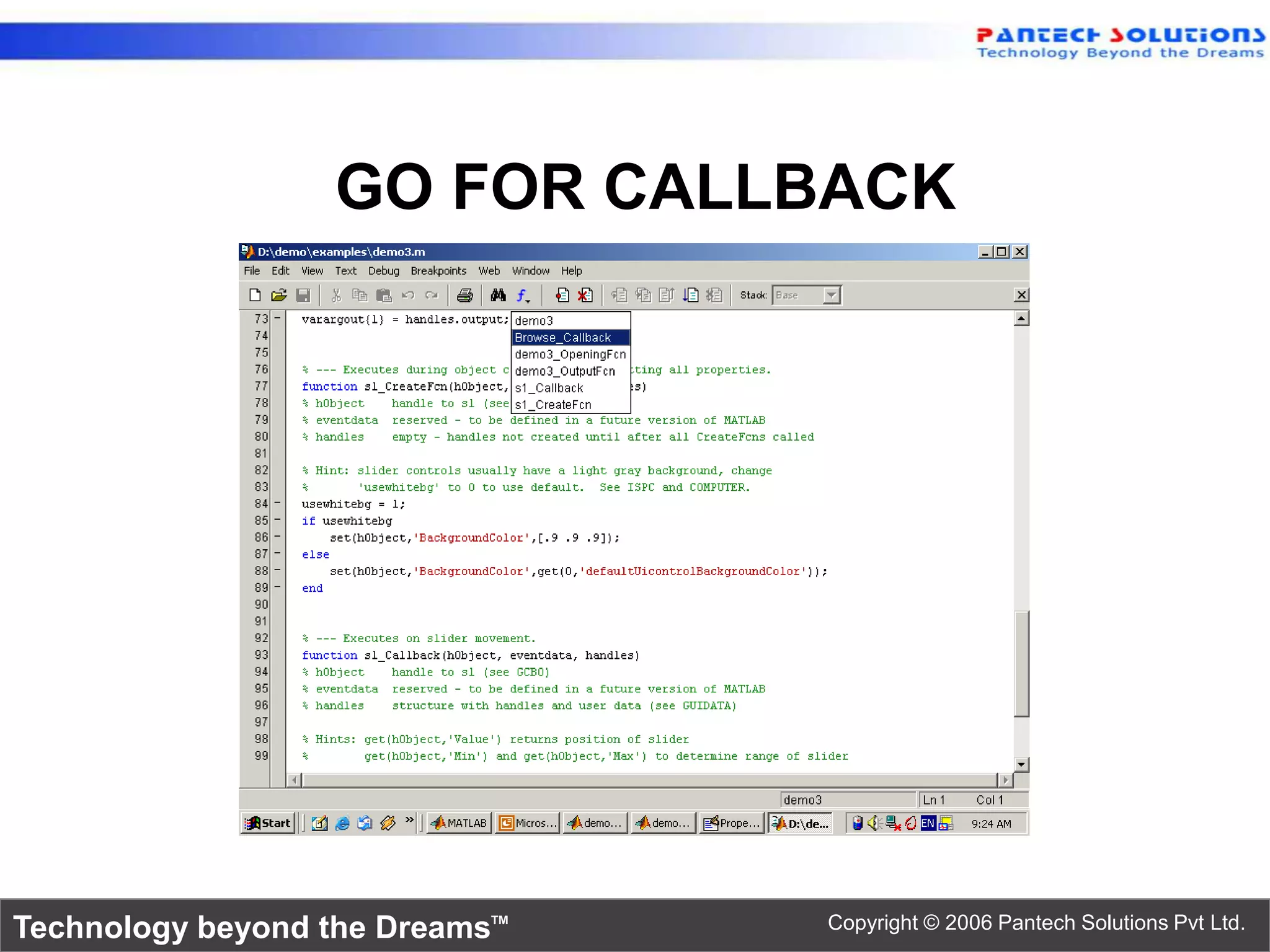

GO FOR CALLBACK

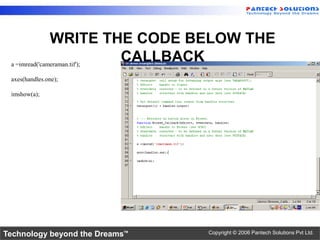

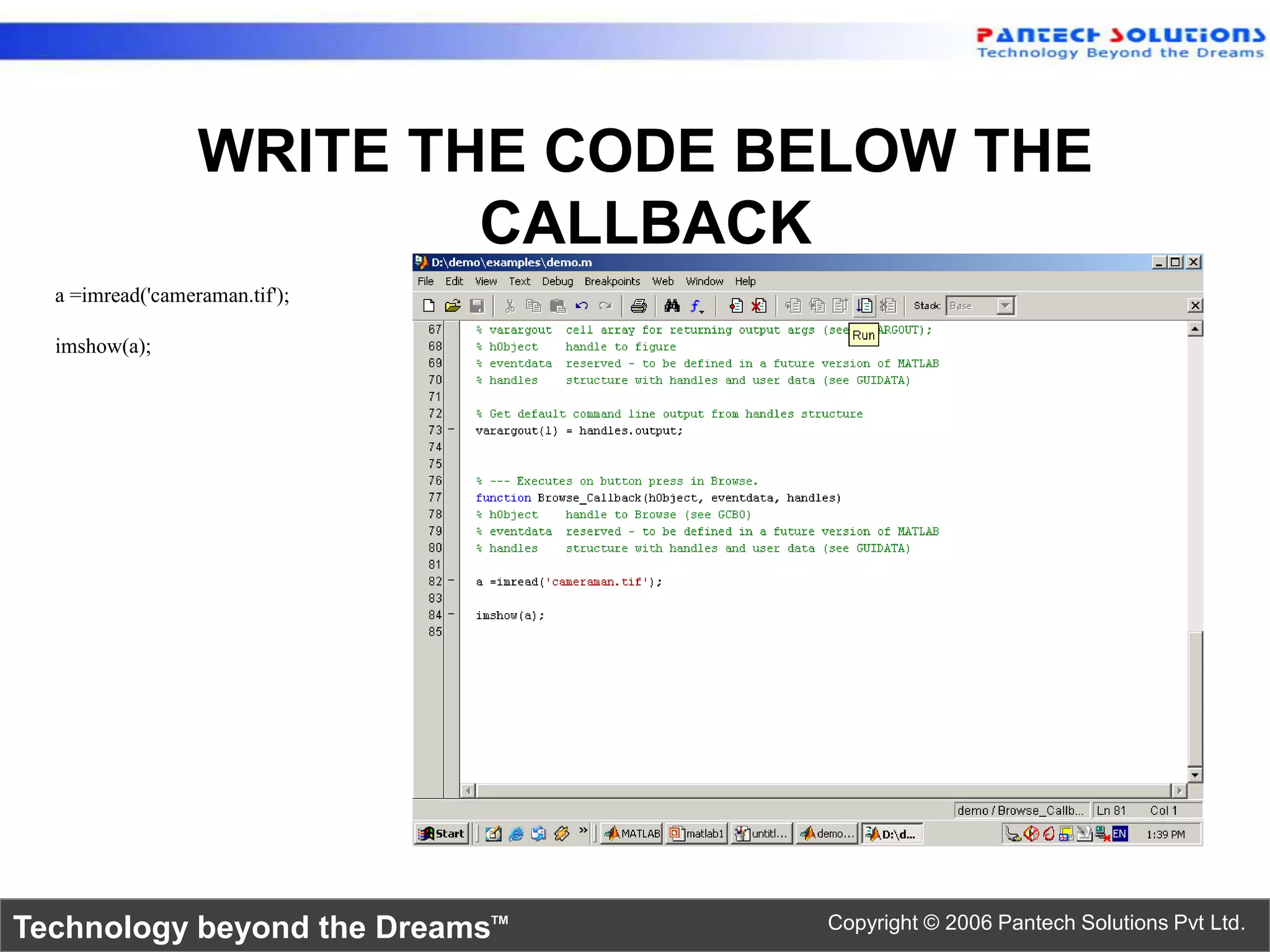

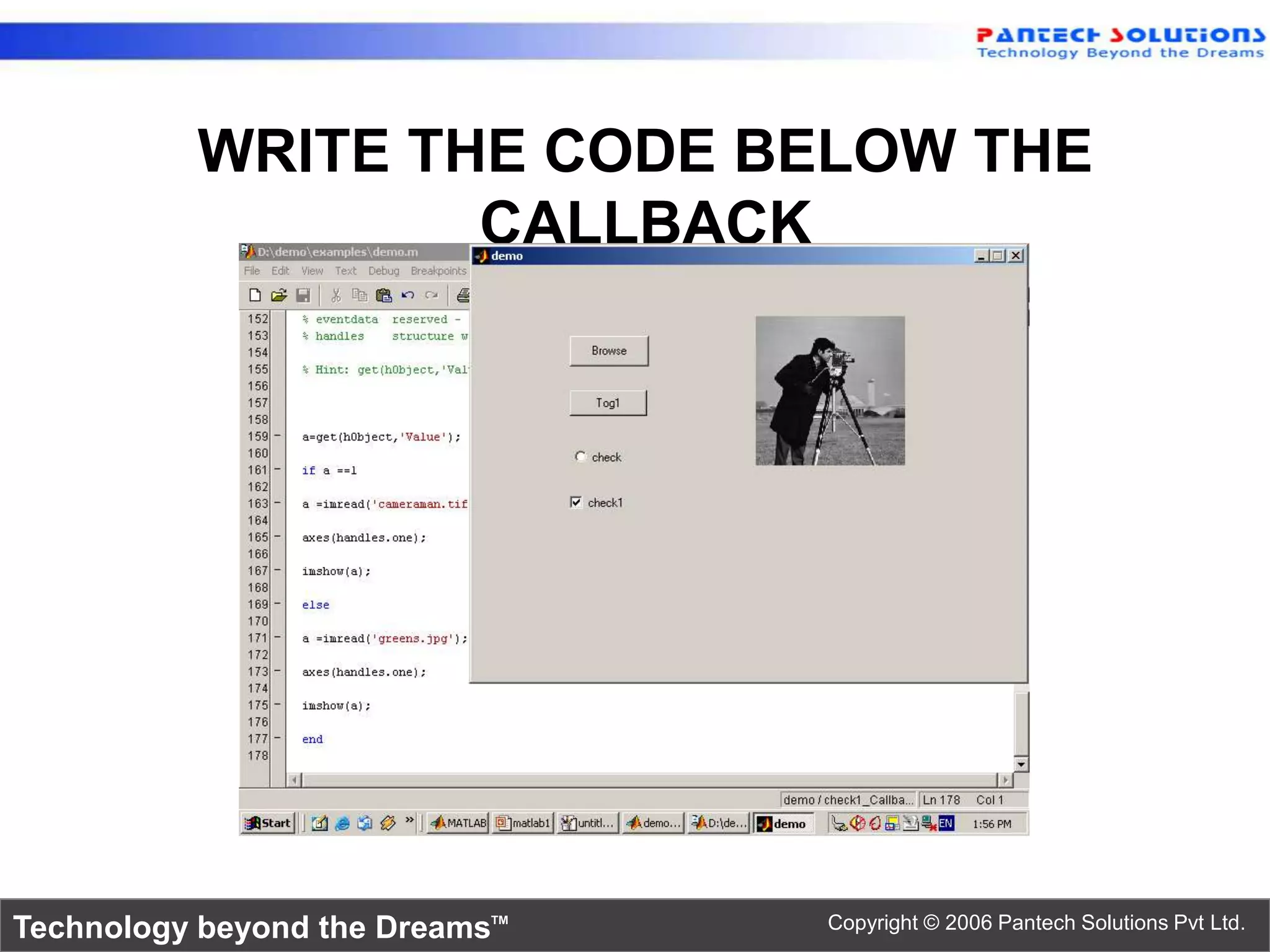

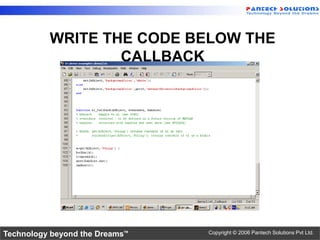

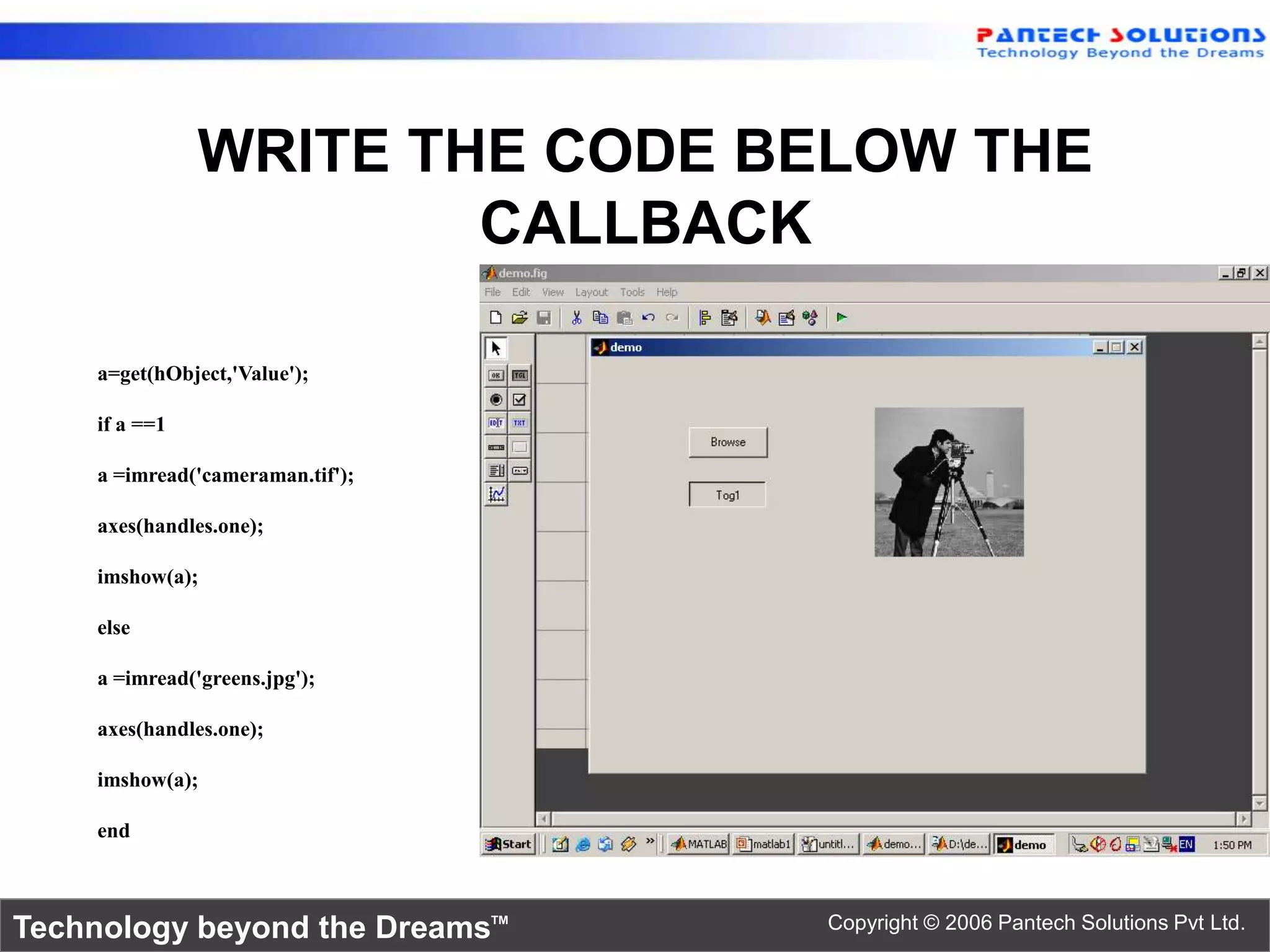

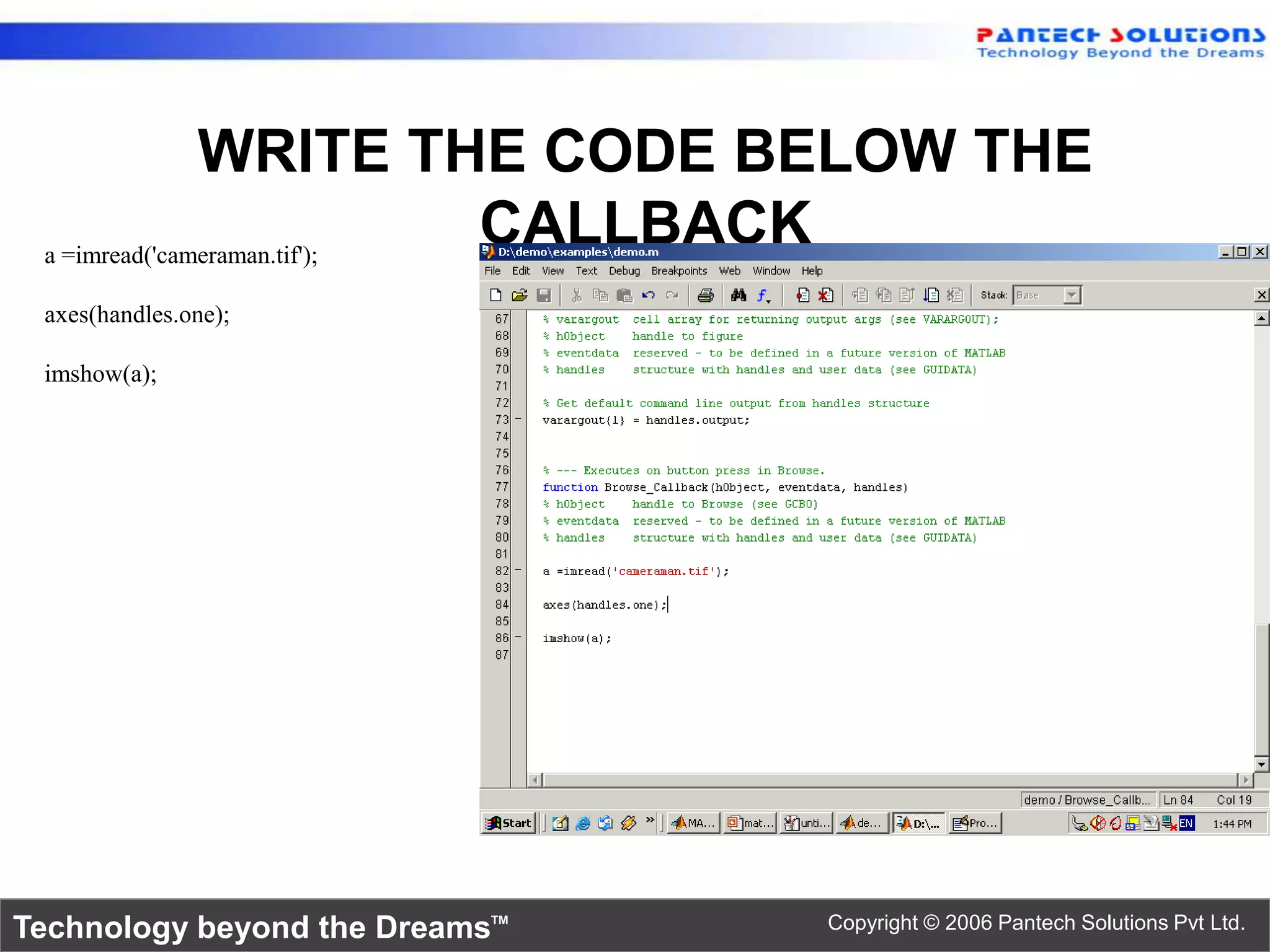

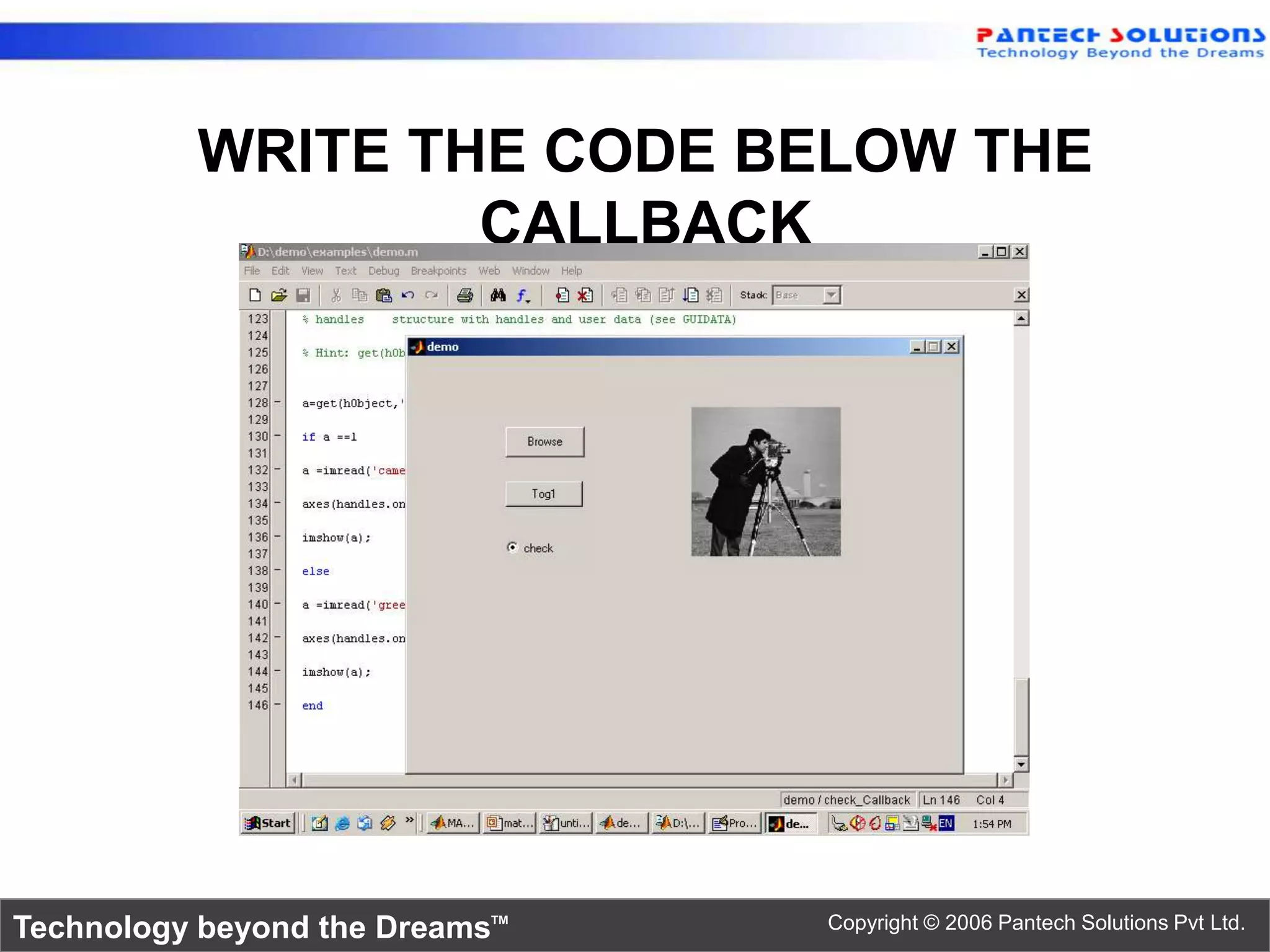

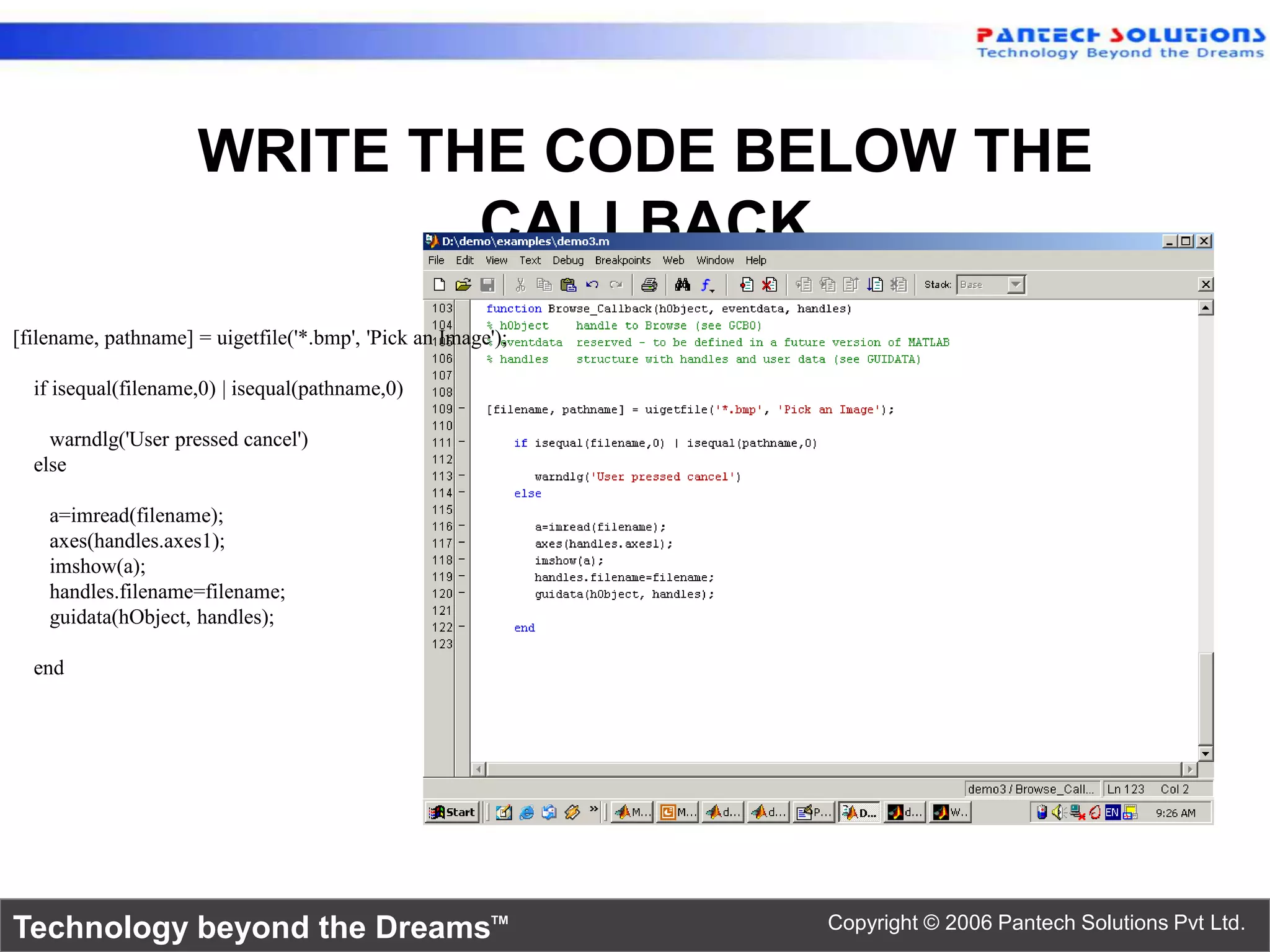

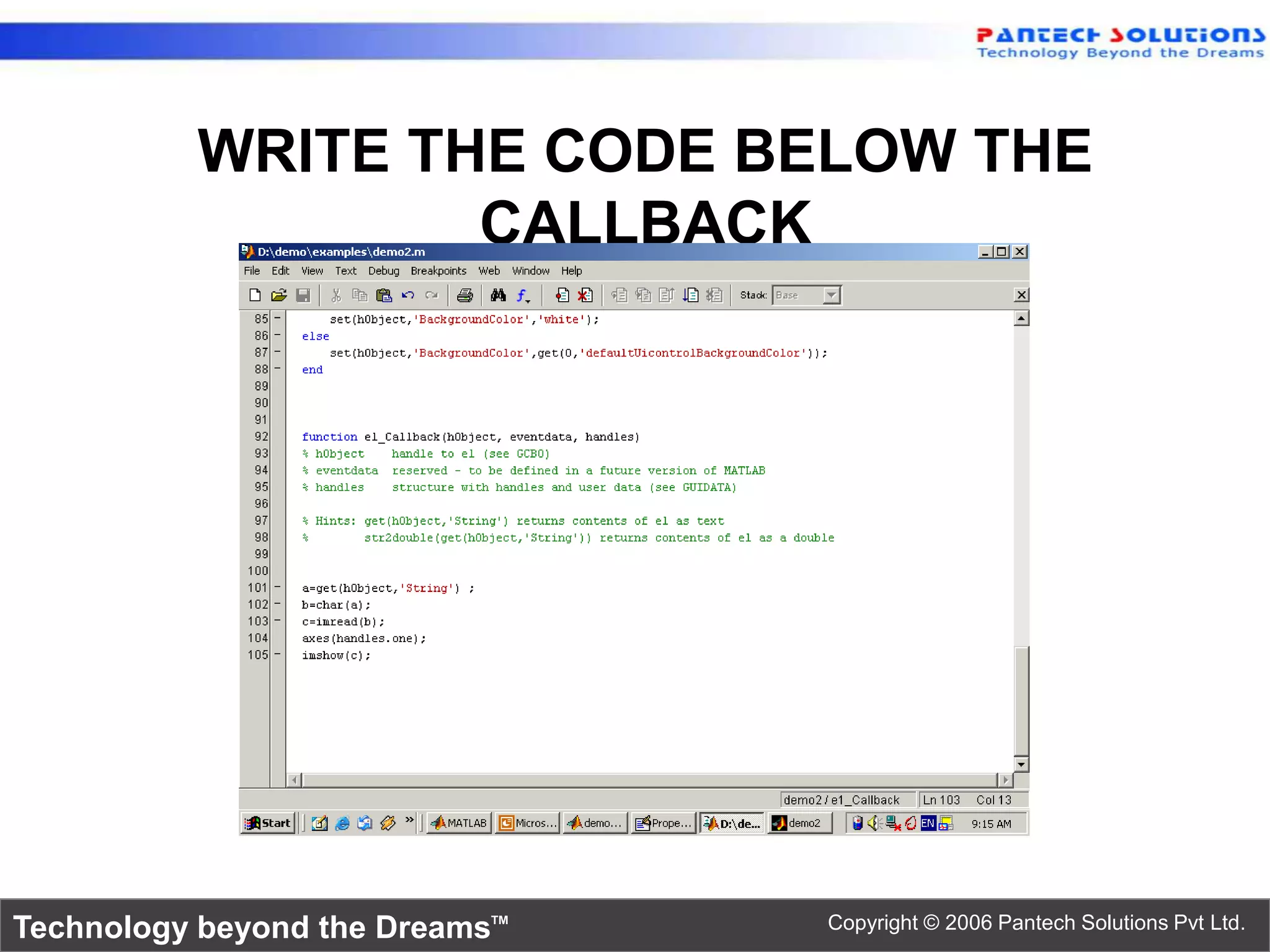

WRITE THE CODE BELOW THE
CALLBACK

imshow(a);

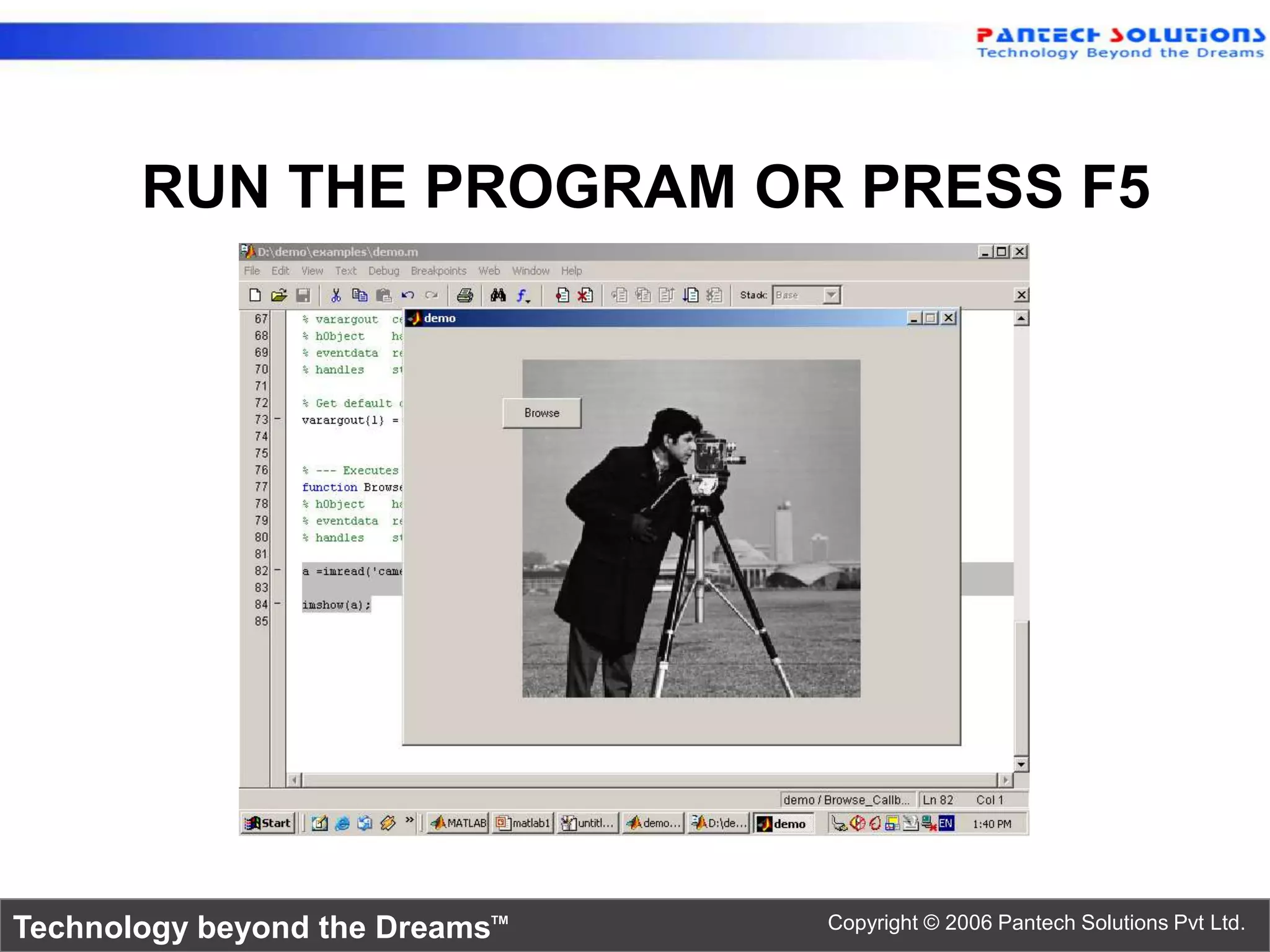

RUN THE PROGRAM OR PRESS F5

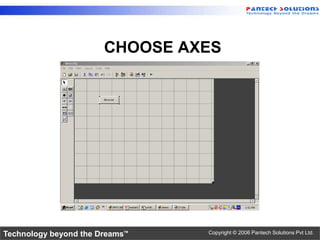

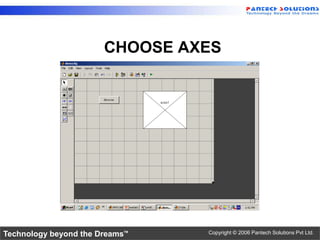

CHOOSE AXES

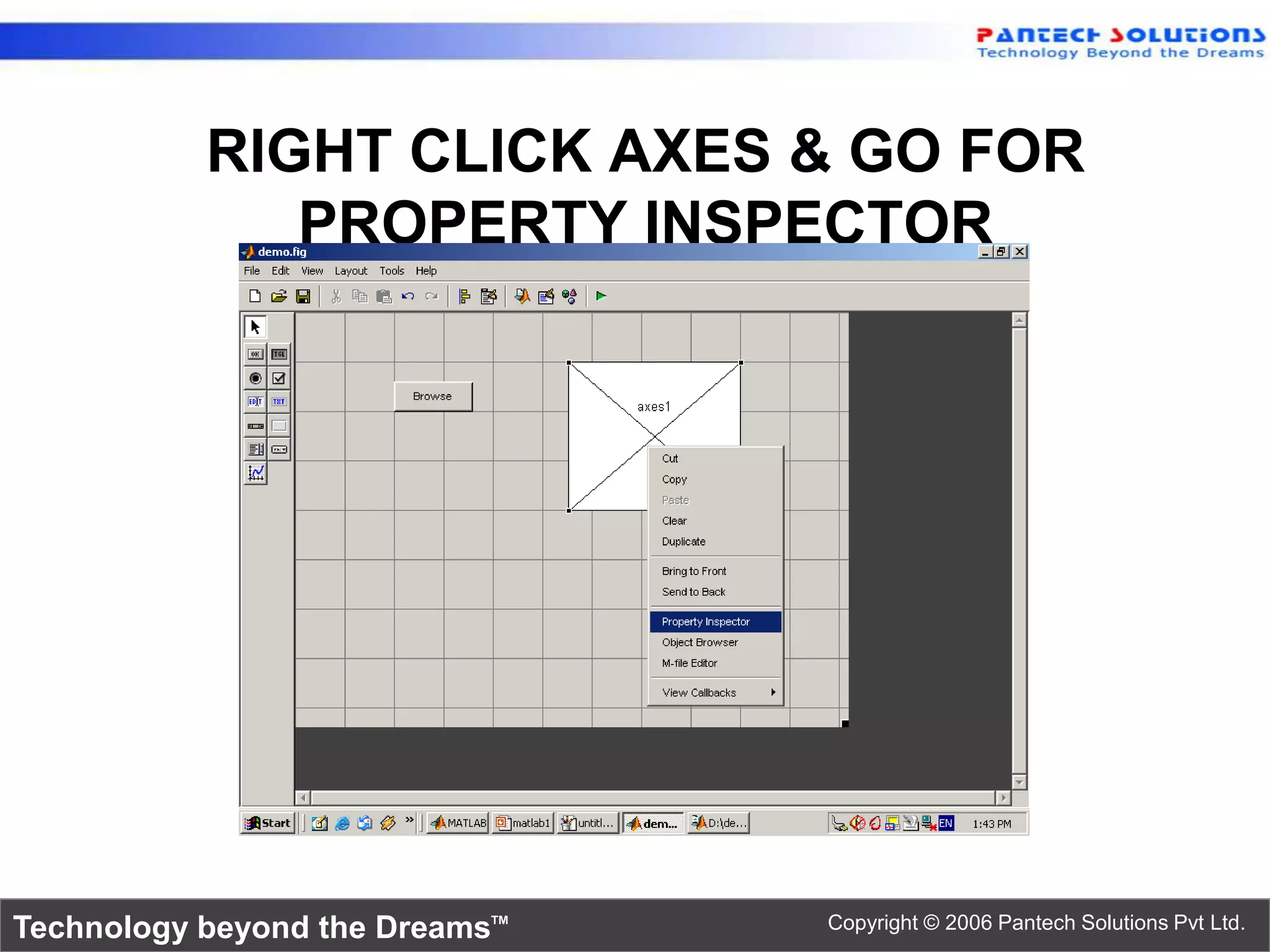

RIGHT CLICK AXES & GO FOR
PROPERTY INSPECTOR


CALLBACK
axes(handles.one);

imshow(a);

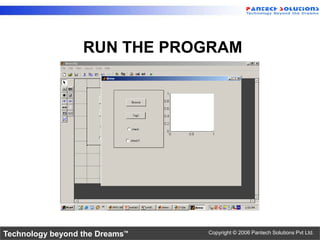

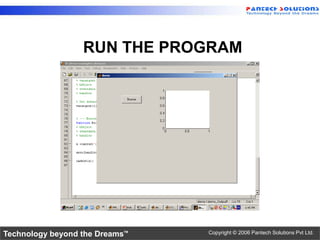

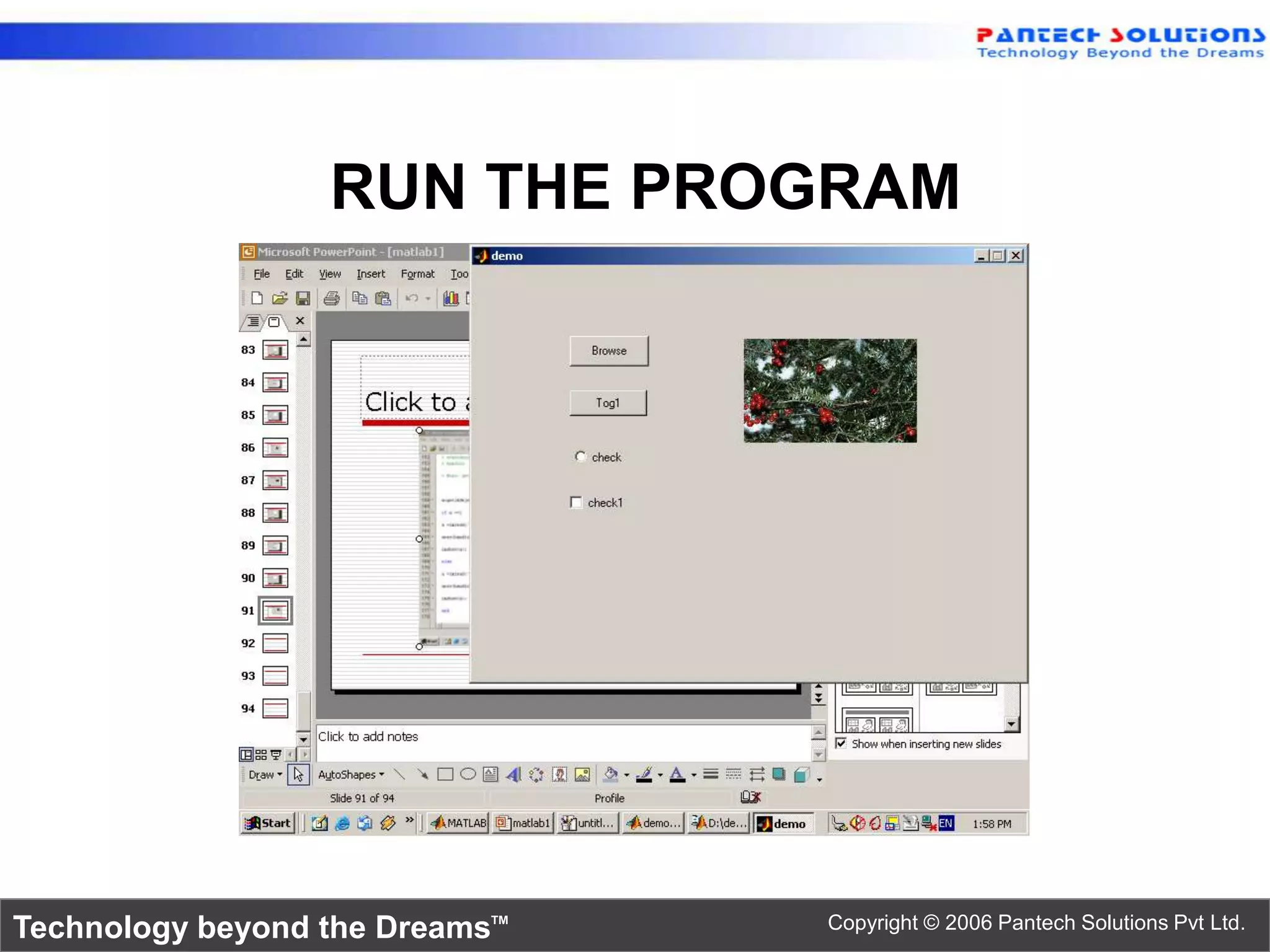

RUN THE PROGRAM

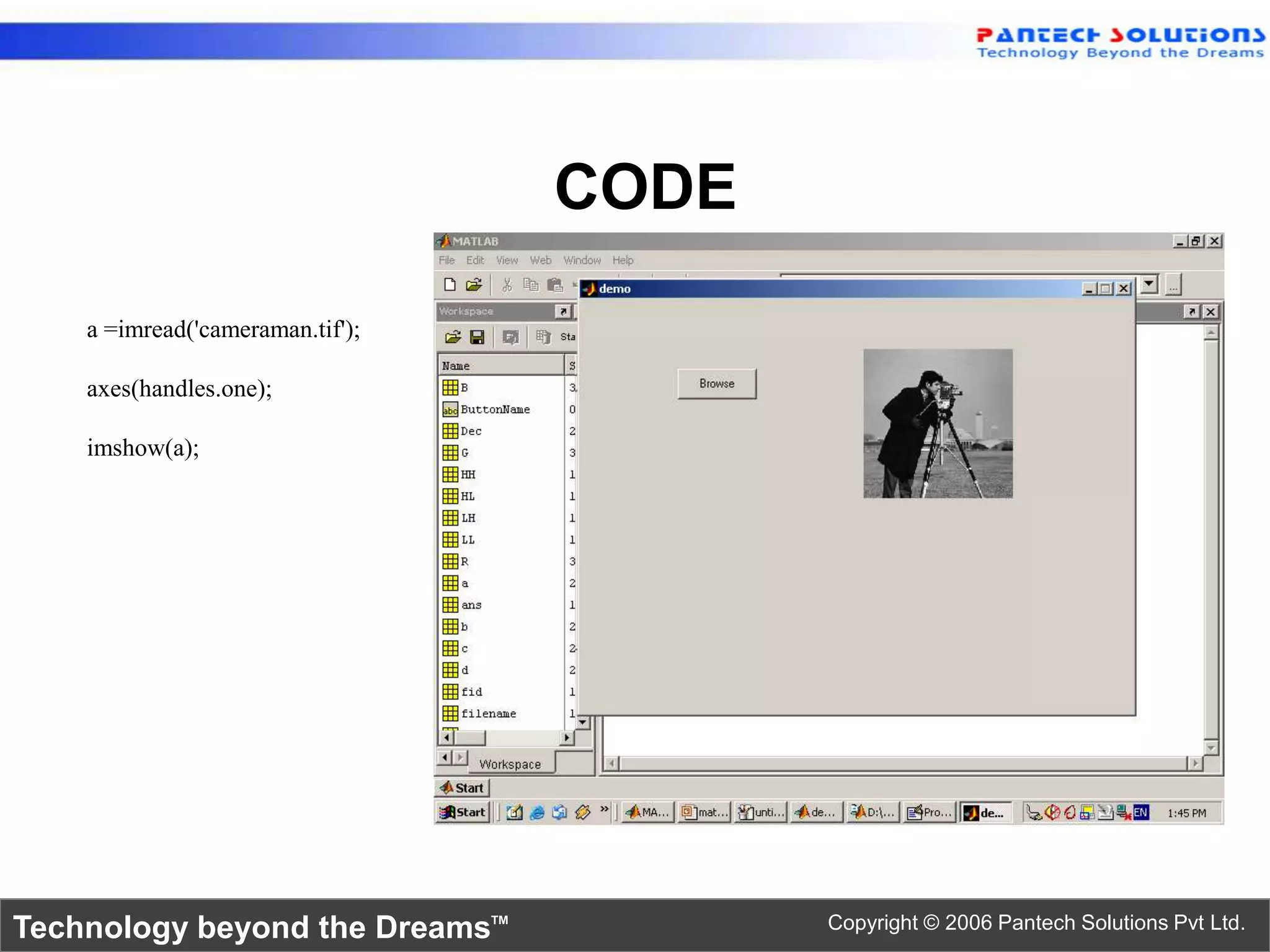

CODE


axes(handles.one);

imshow(a);

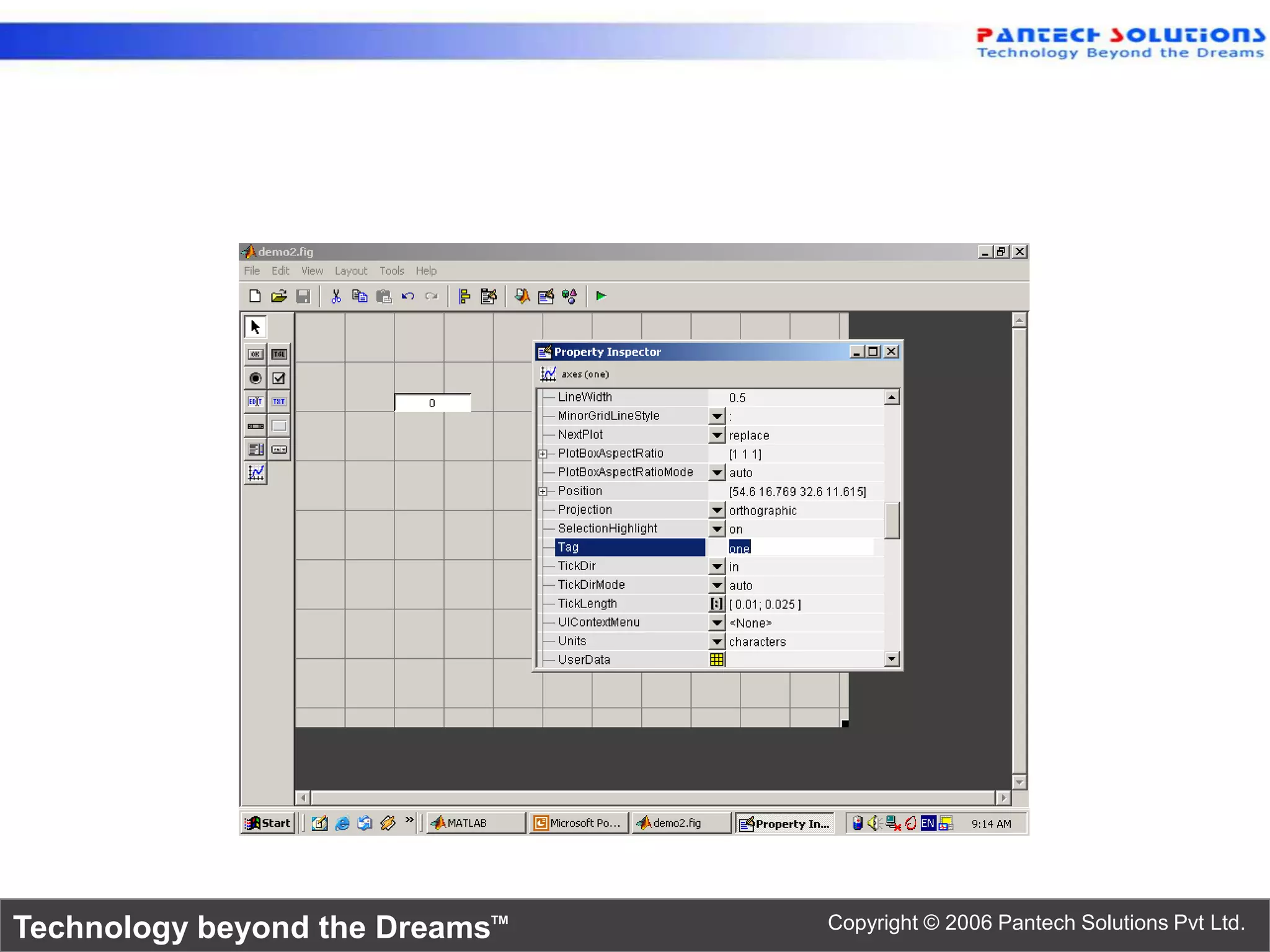

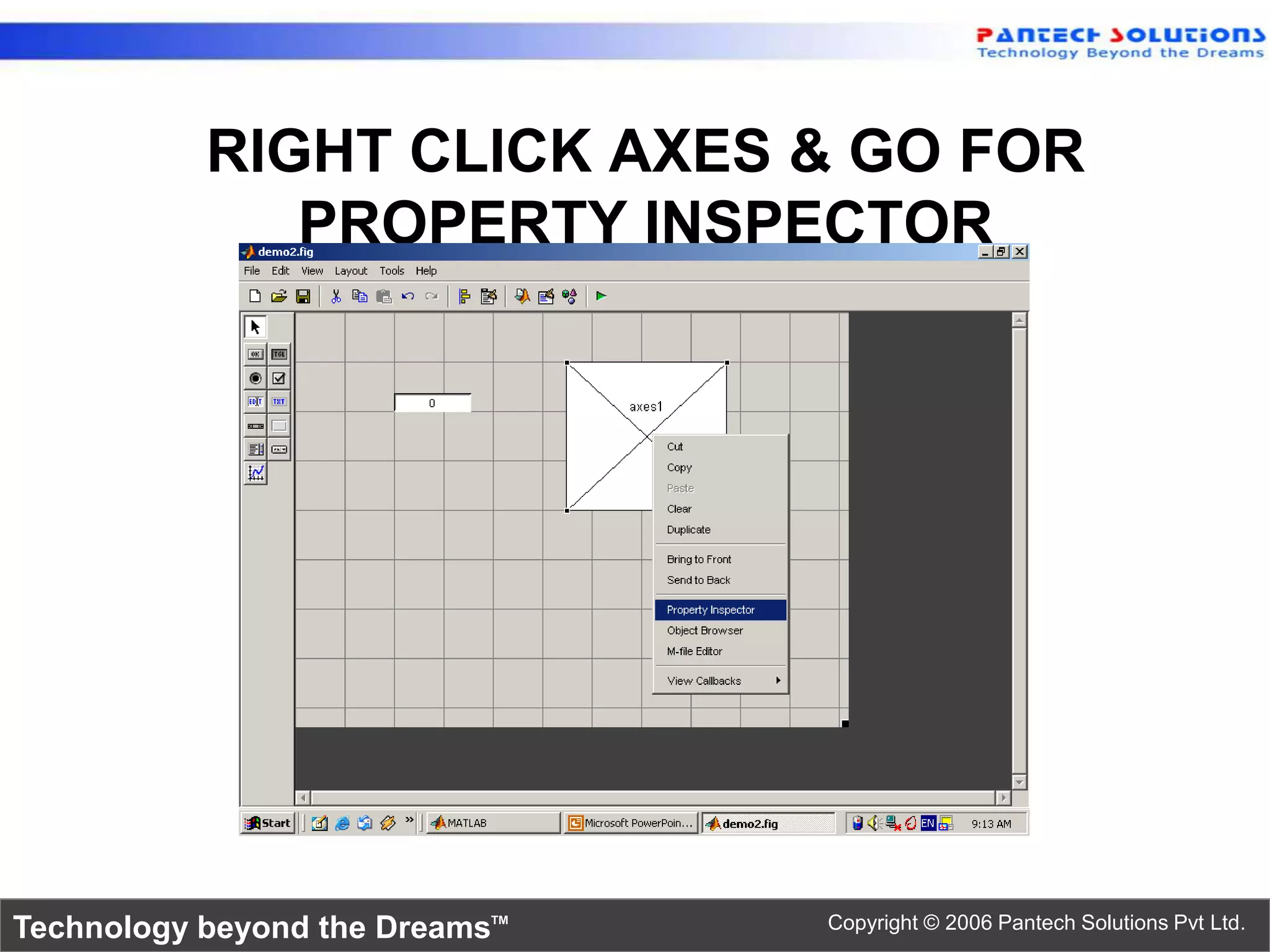

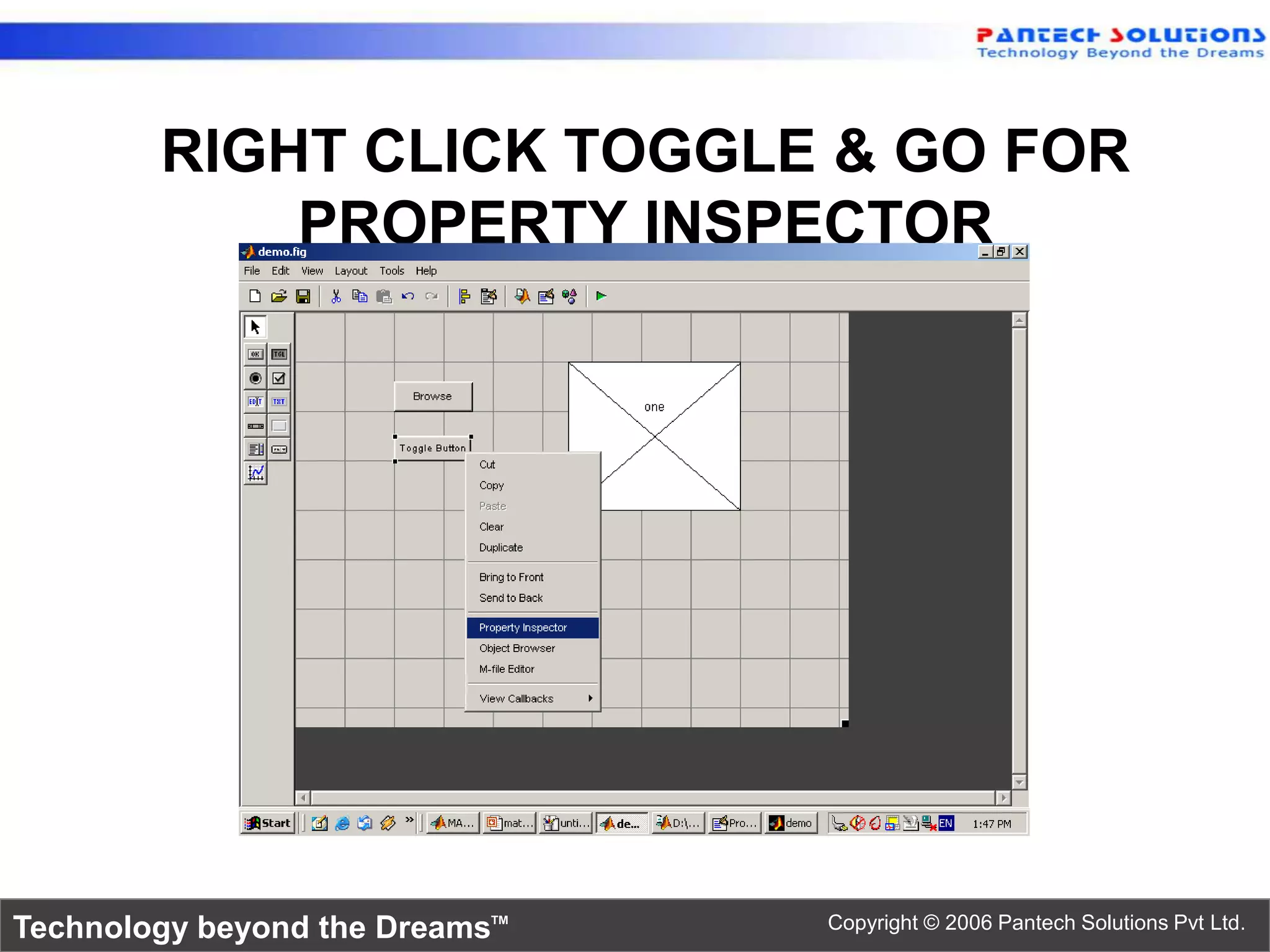

RIGHT CLICK TOGGLE & GO FOR
PROPERTY INSPECTOR

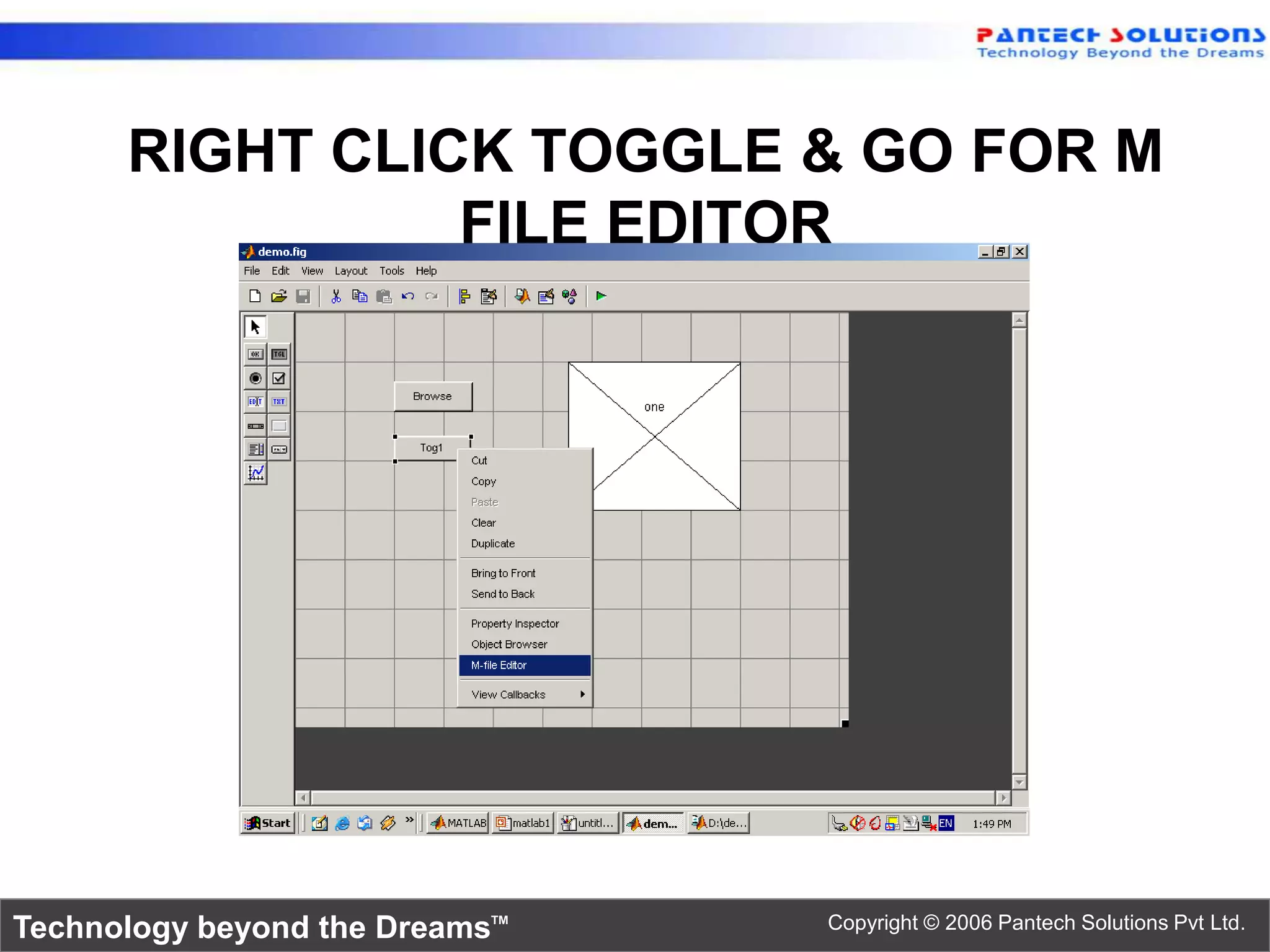

RIGHT CLICK TOGGLE & GO FOR M
FILE EDITOR


CALLBACK

a=get(hObject,'Value');

if a ==1


axes(handles.one);

imshow(a);

else

a =imread('greens.jpg');

axes(handles.one);

imshow(a);

end

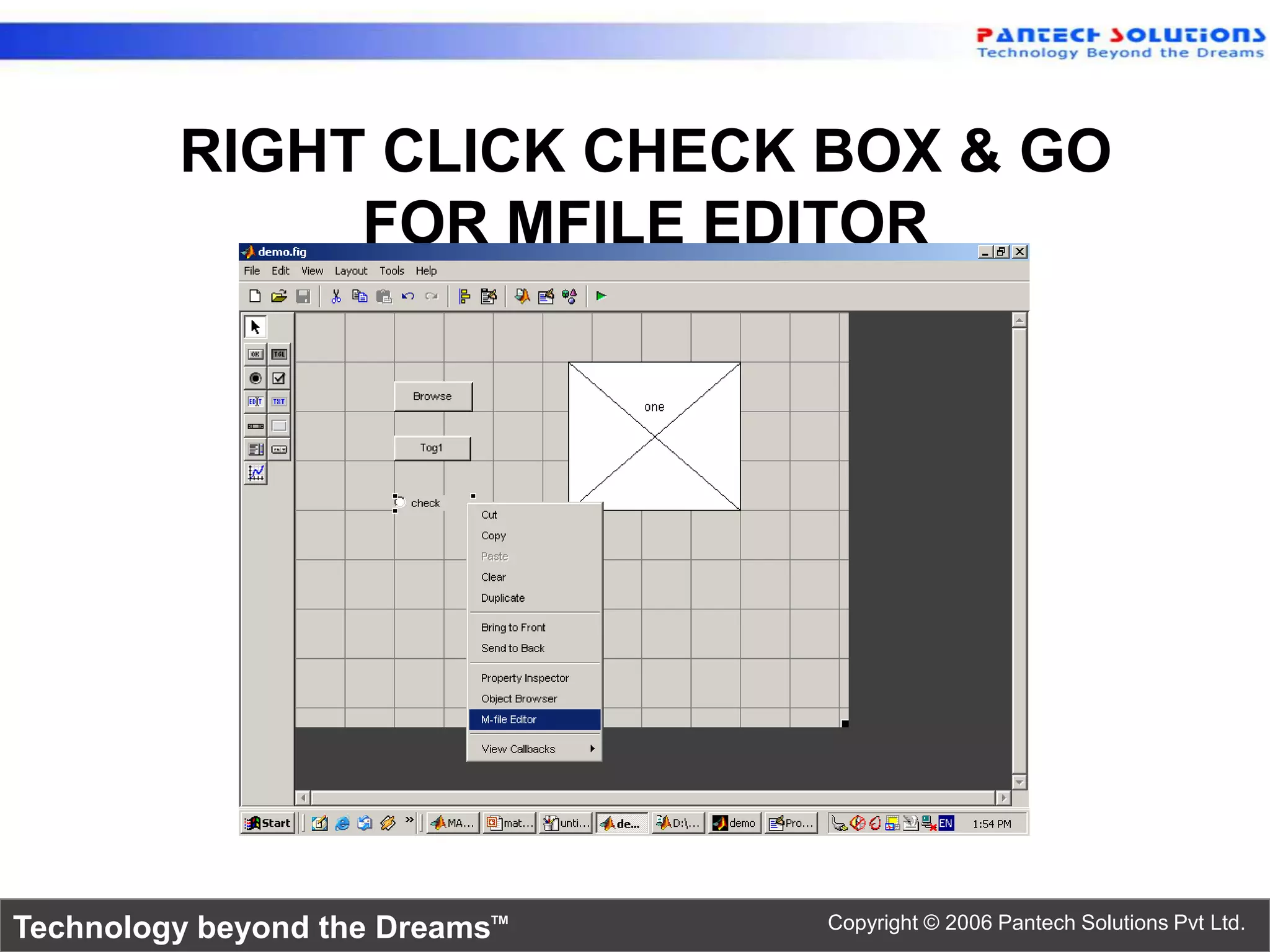

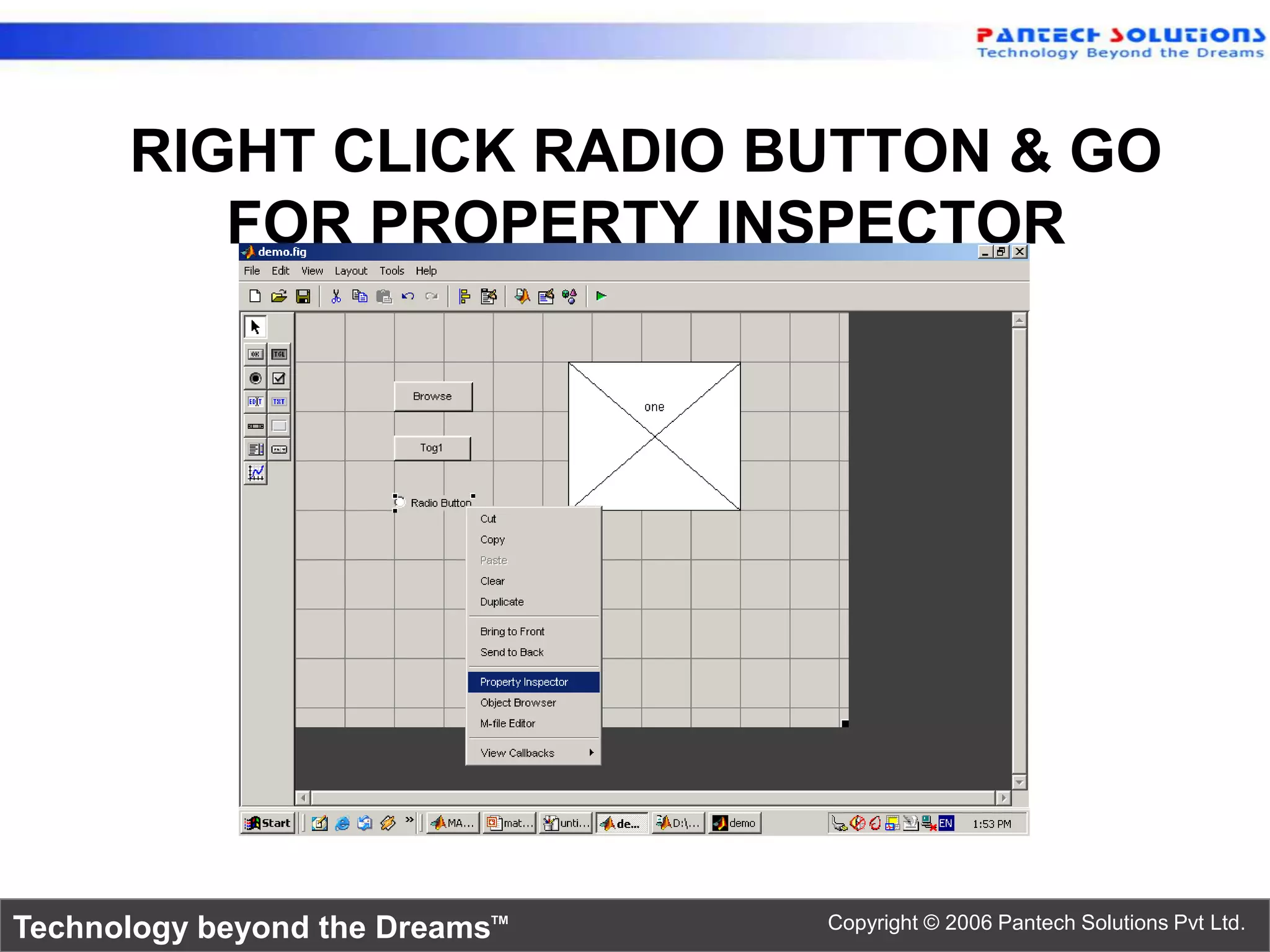

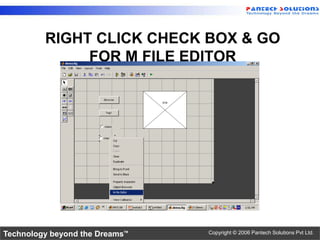

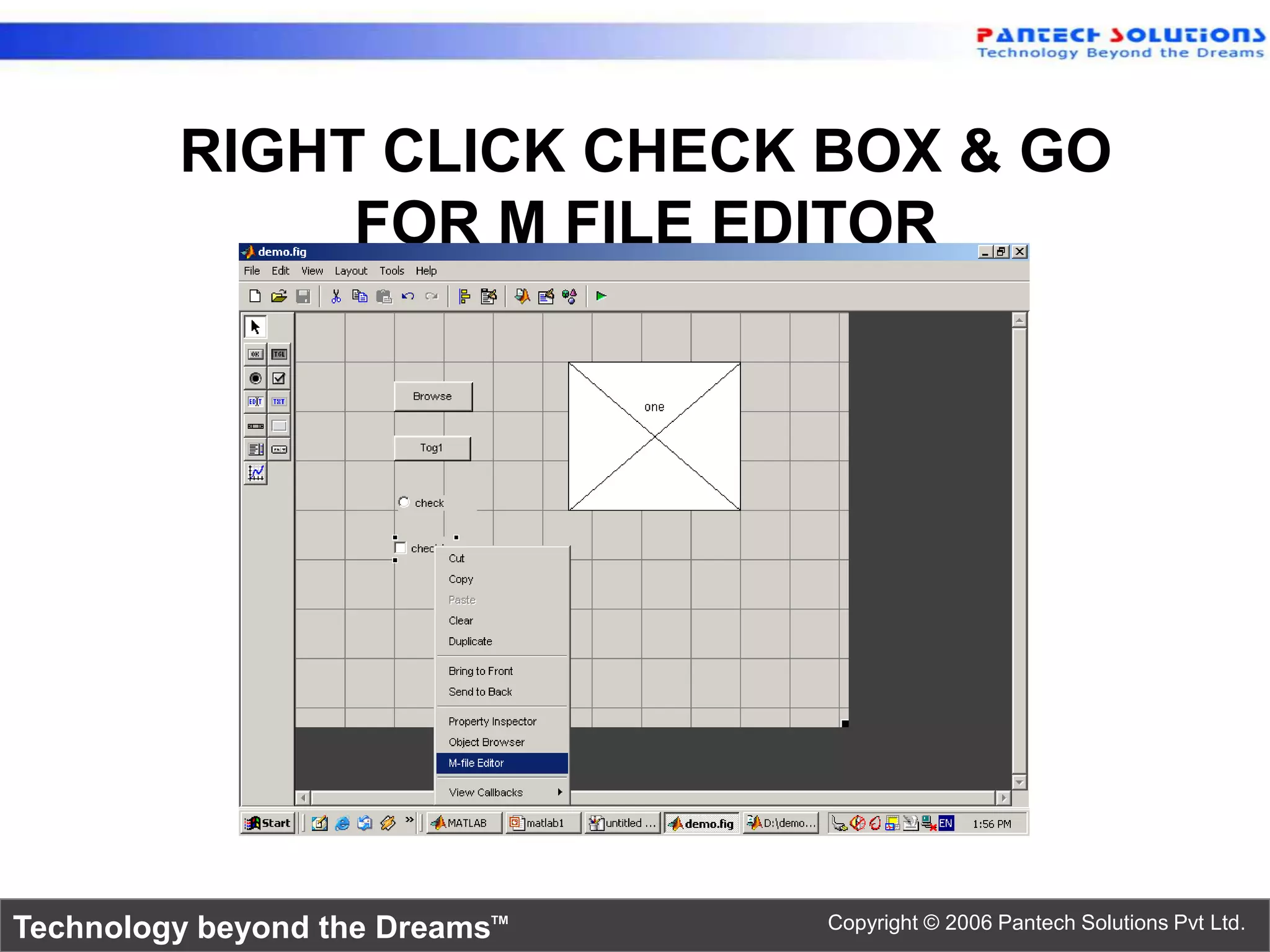

RIGHT CLICK RADIO BUTTON & GO

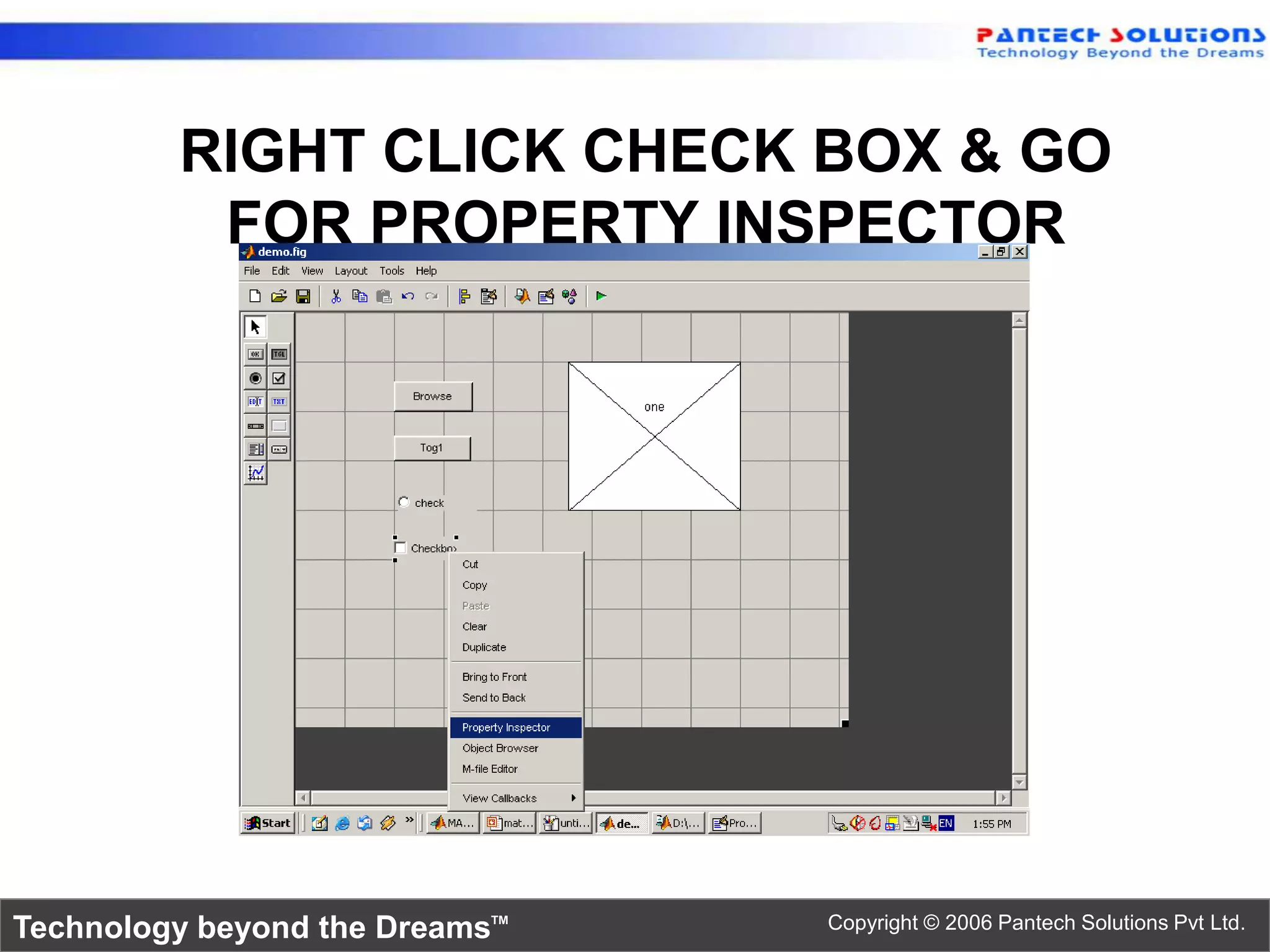

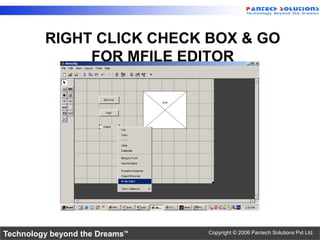

RIGHT CLICK CHECK BOX & GO
FOR MFILE EDITOR


CALLBACK


FOR M FILE EDITOR

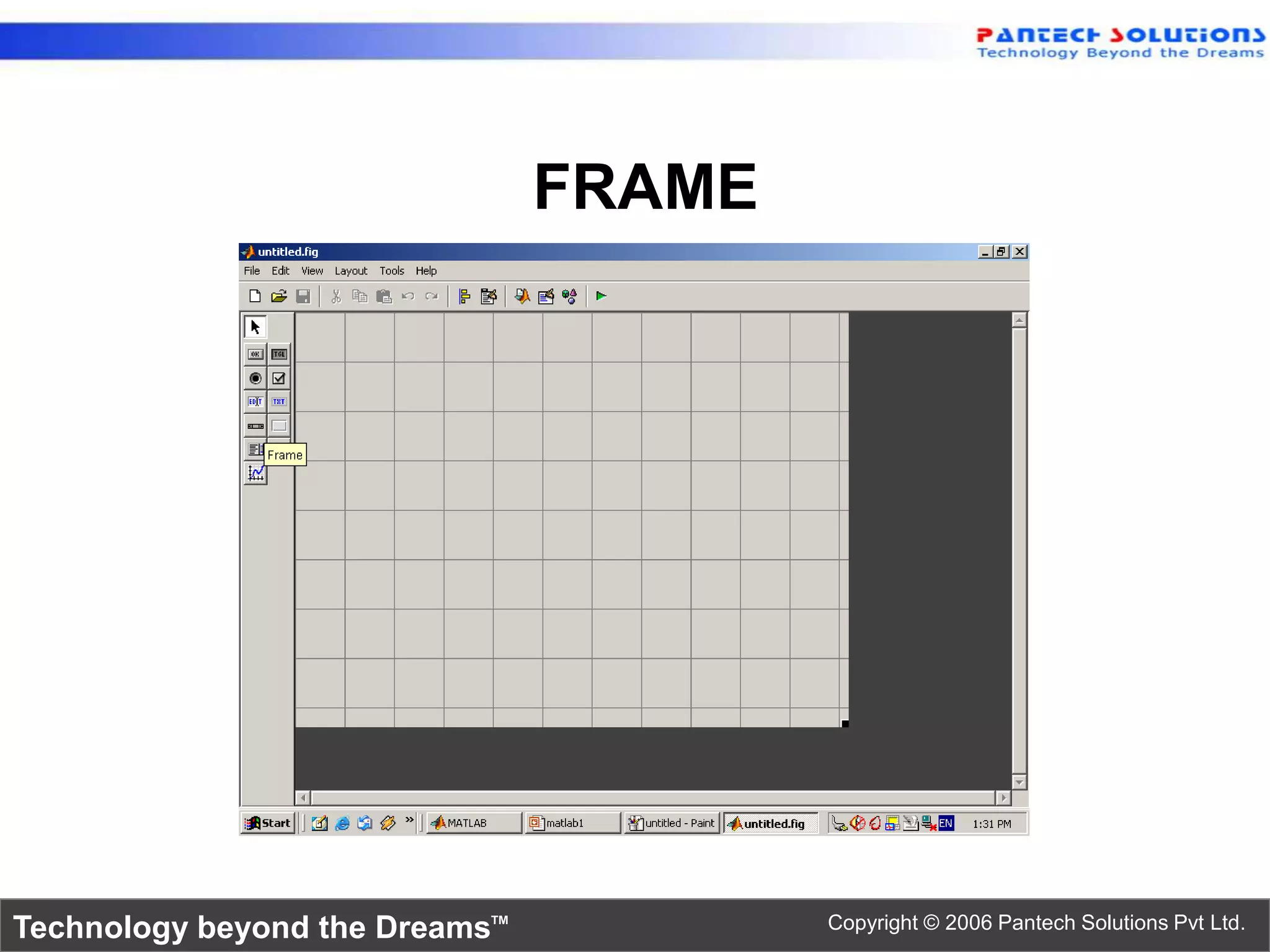

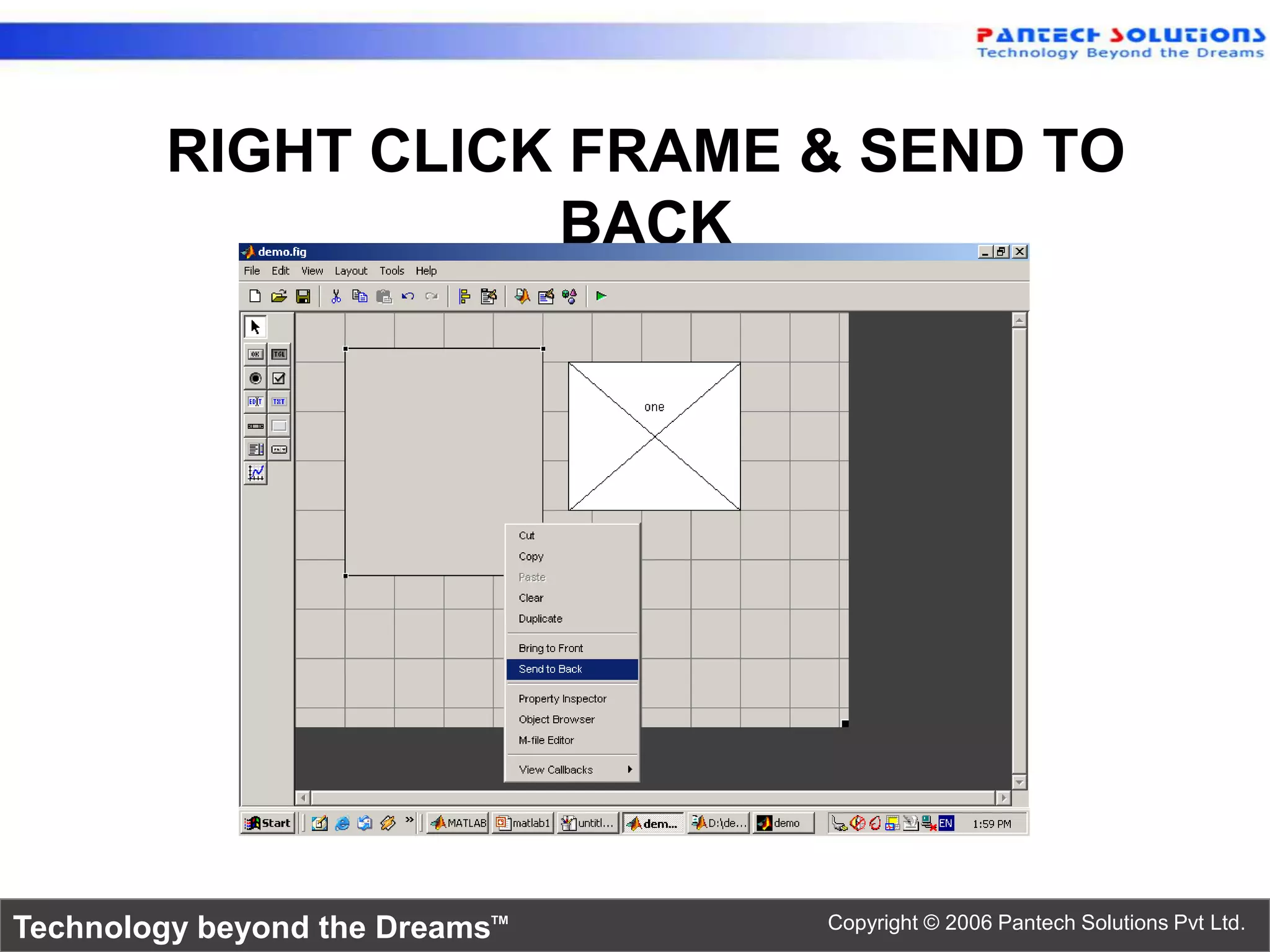

RIGHT CLICK FRAME & SEND TO
BACK

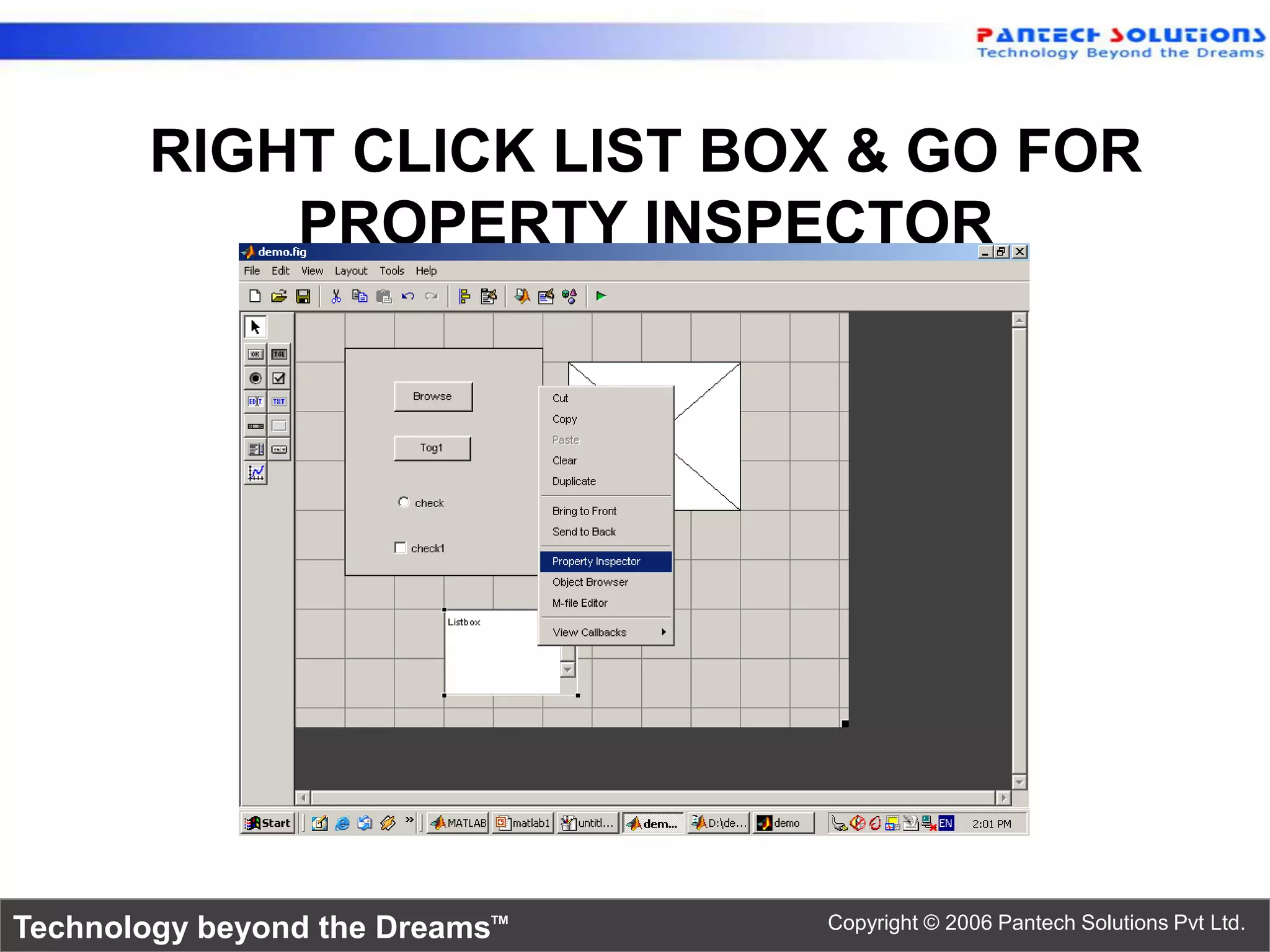

RIGHT CLICK LIST BOX & GO FOR
PROPERTY INSPECTOR

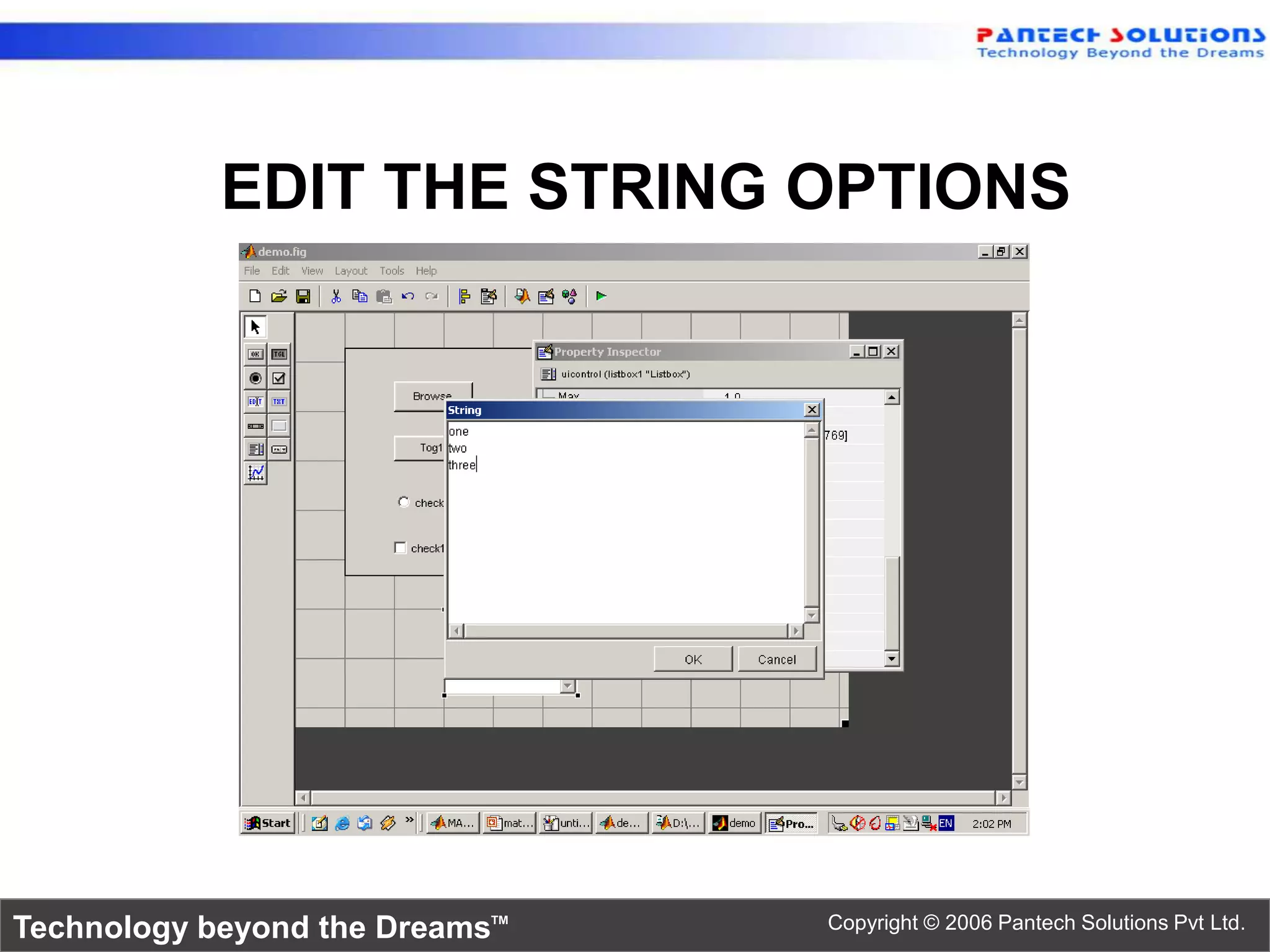

EDIT THE STRING OPTIONS

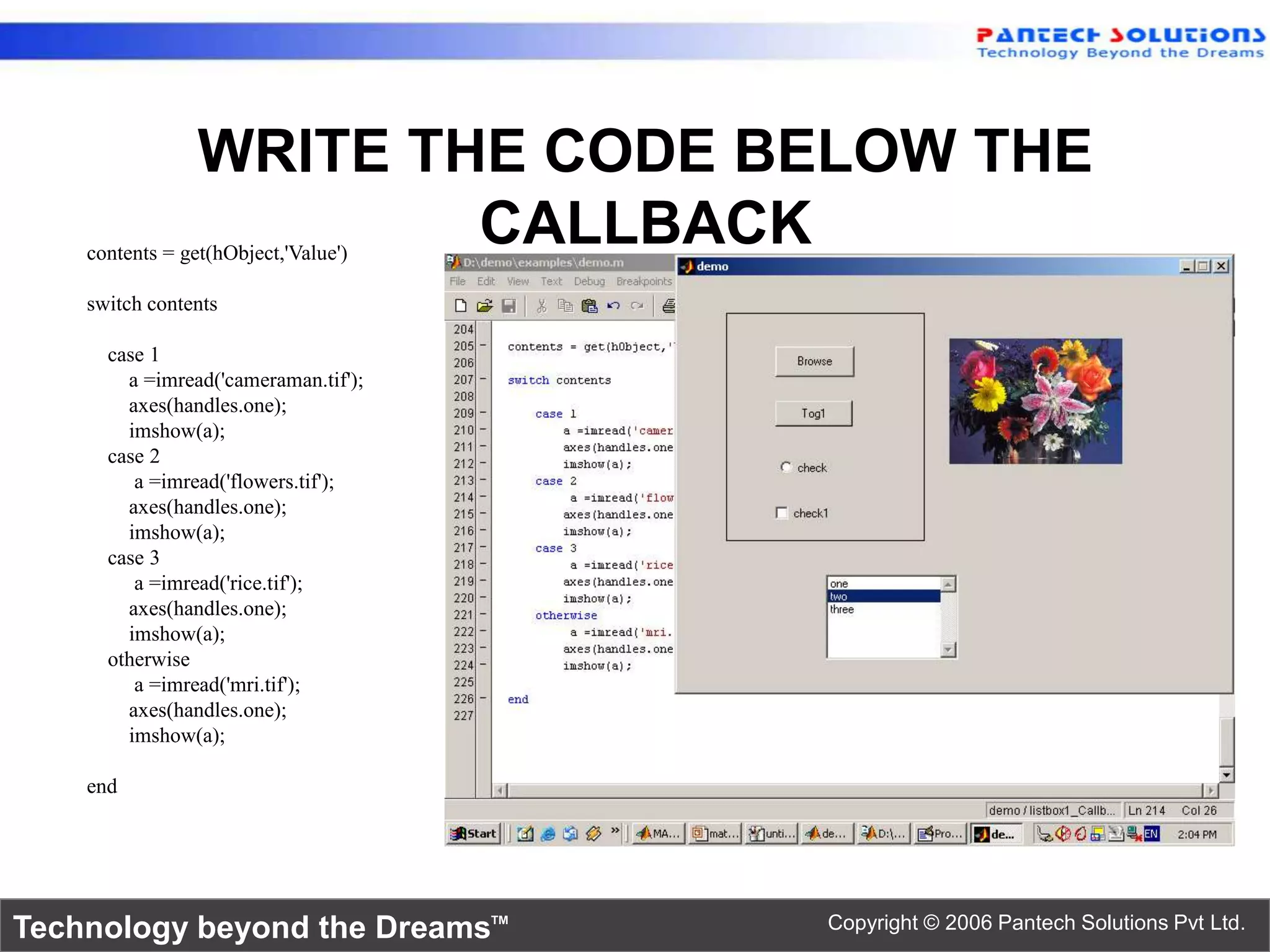

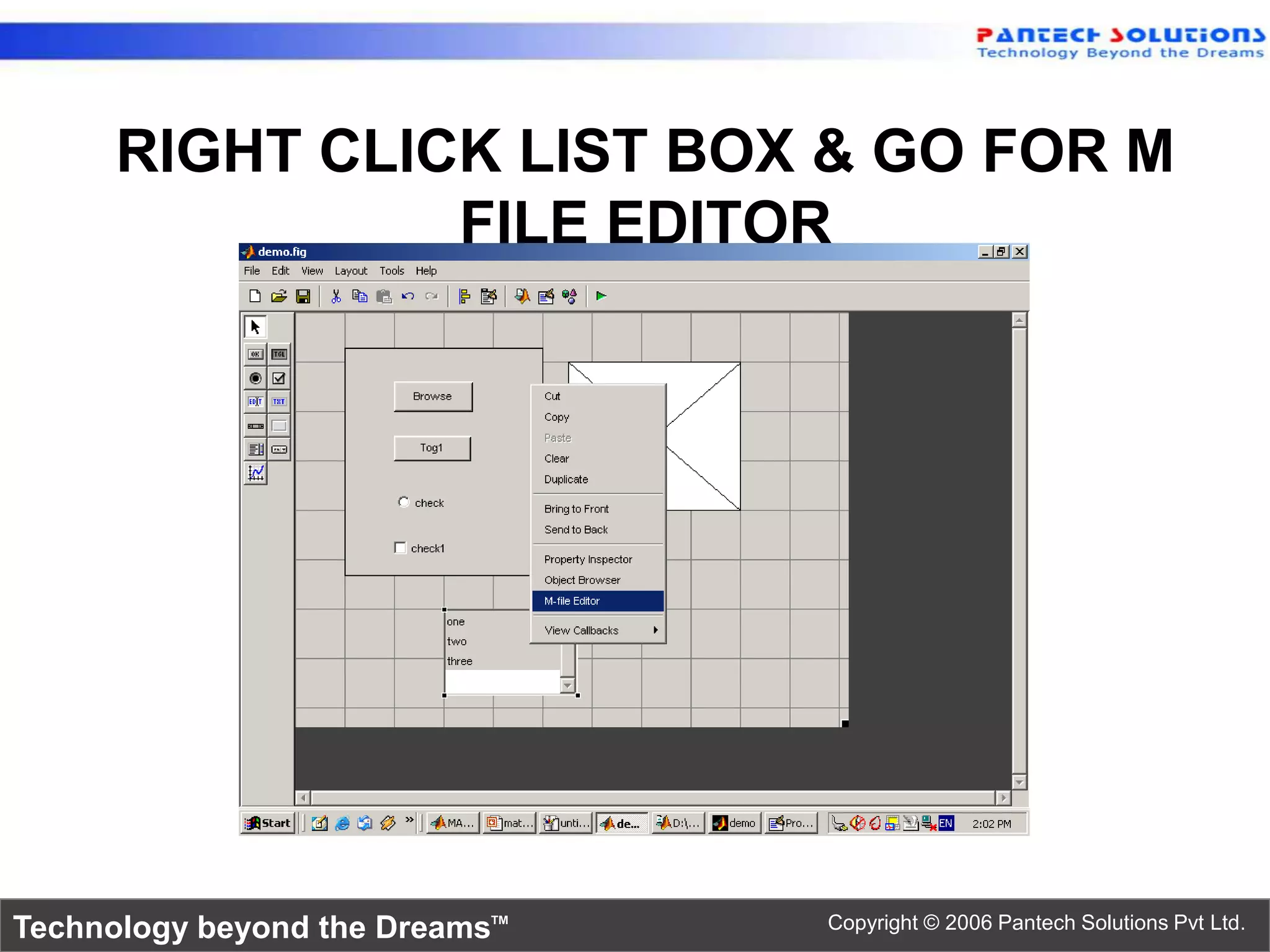

RIGHT CLICK LIST BOX & GO FOR M
FILE EDITOR

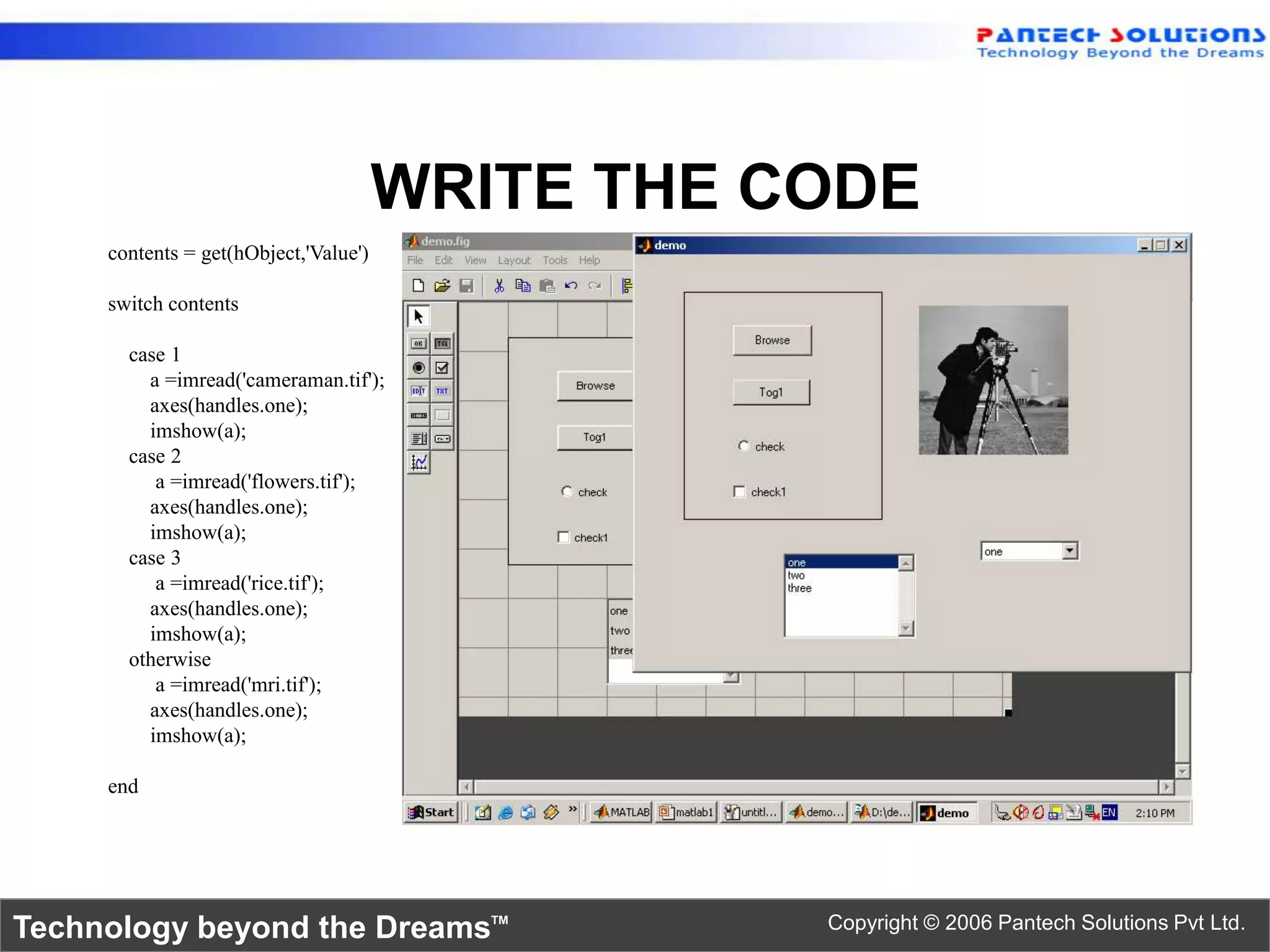

CALLBACK
contents = get(hObject,'Value')

switch contents

case 1
axes(handles.one);
imshow(a);
case 2
a =imread('flowers.tif');
axes(handles.one);
imshow(a);
case 3
a =imread('rice.tif');
axes(handles.one);
imshow(a);
otherwise
a =imread('mri.tif');
axes(handles.one);
imshow(a);

end

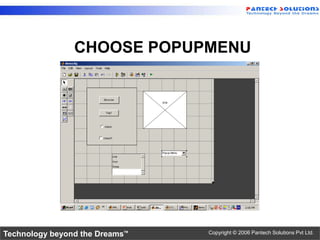

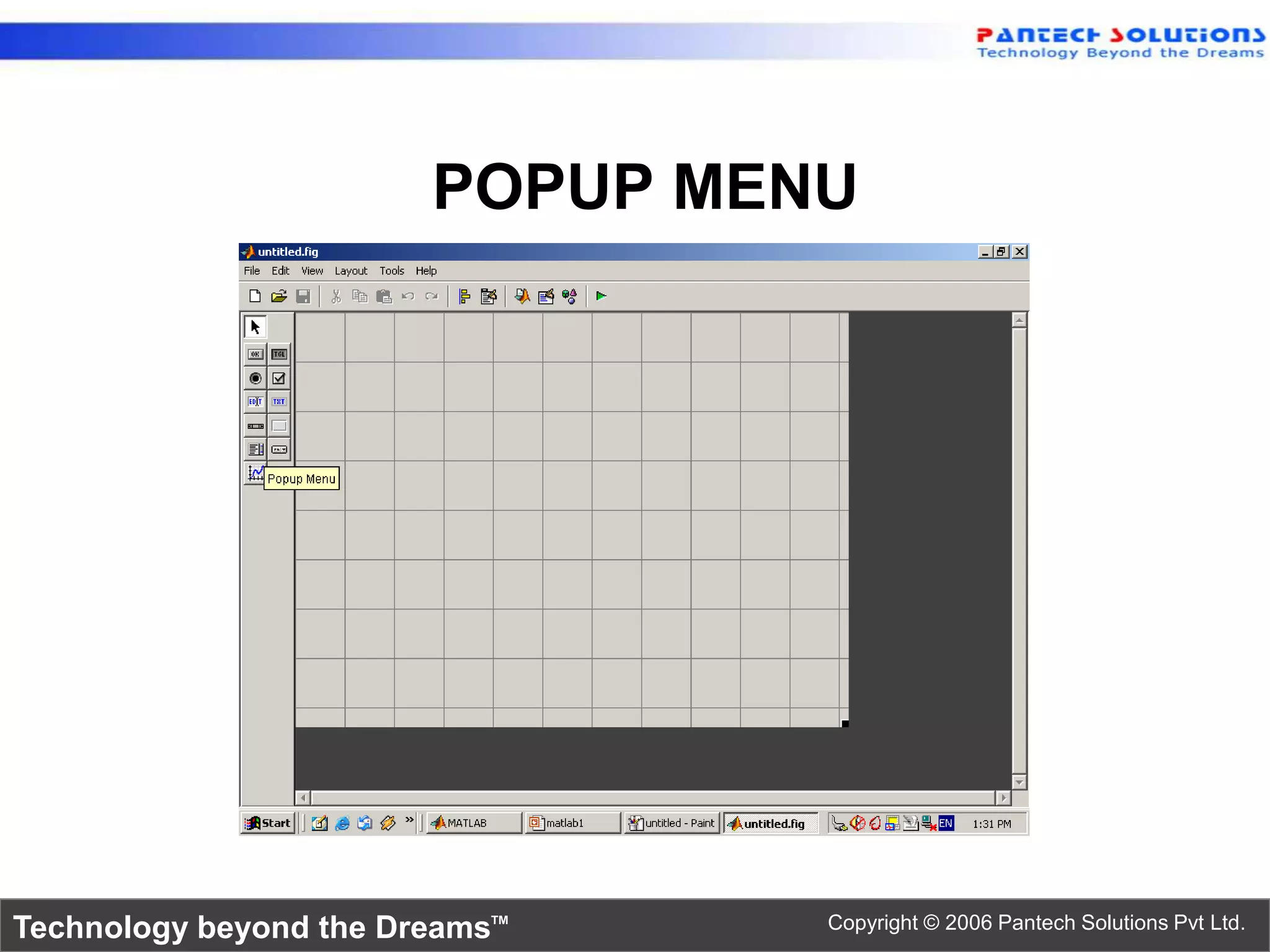

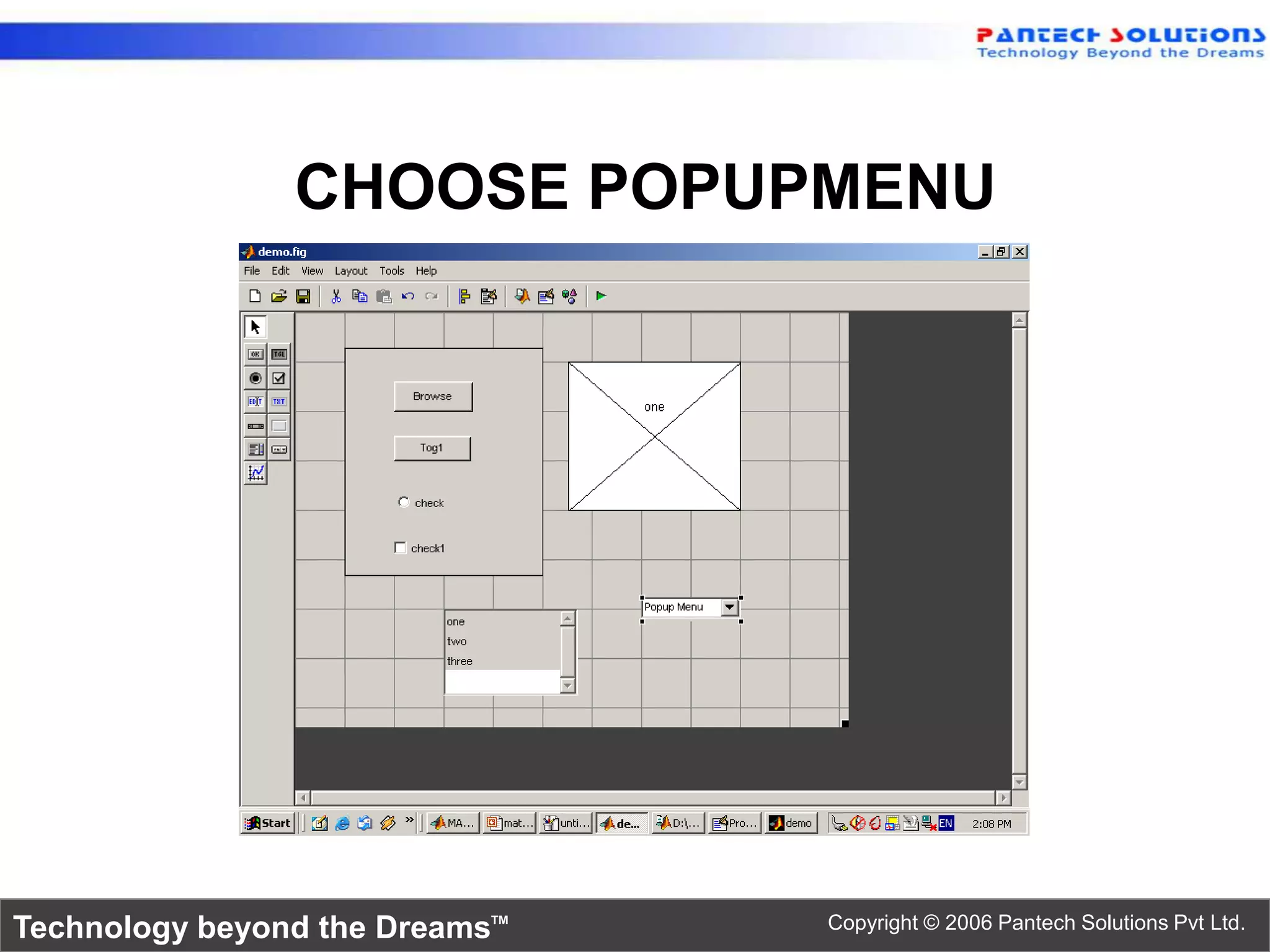

CHOOSE POPUPMENU


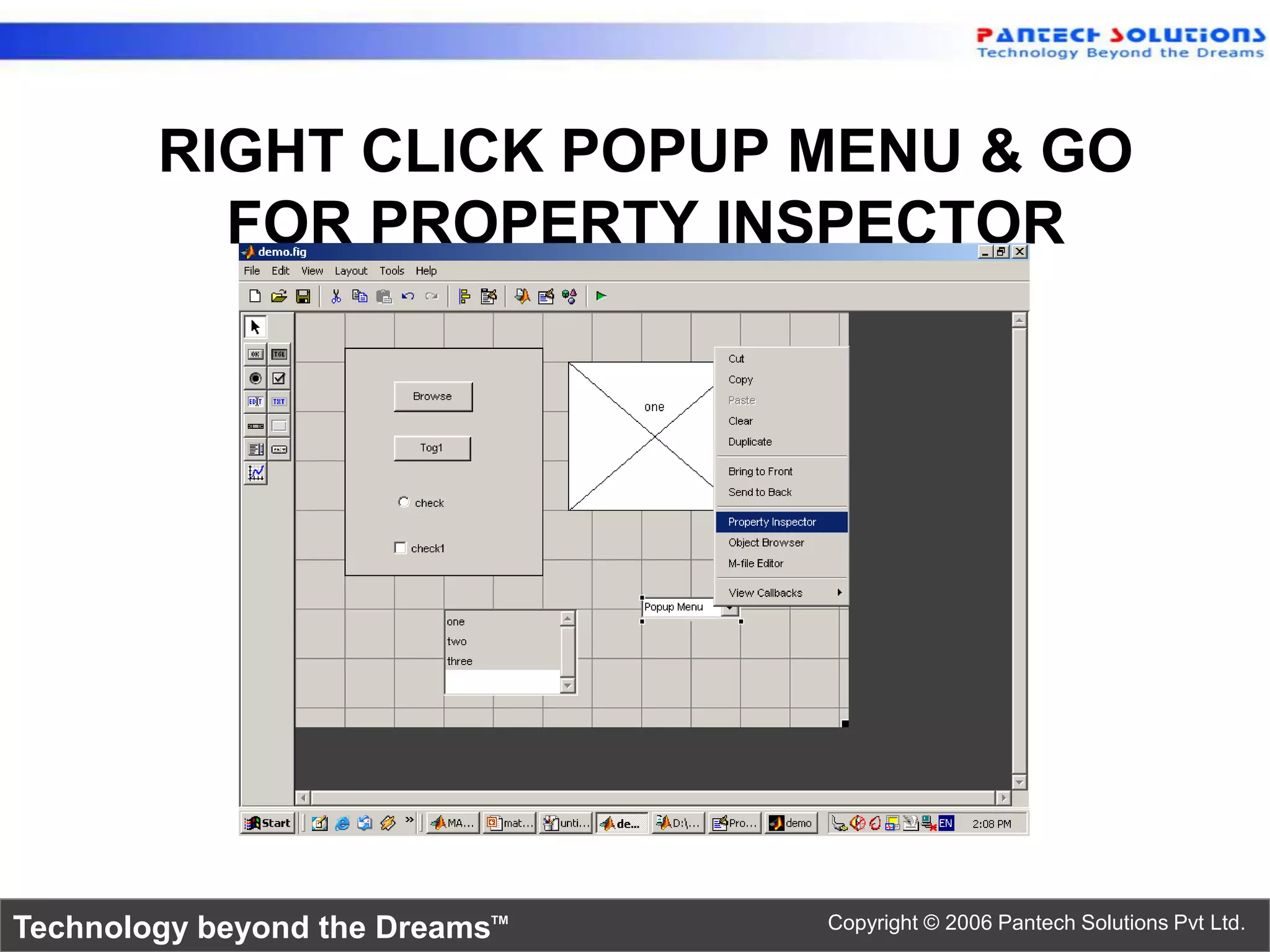

RIGHT CLICK POPUP MENU & GO


WRITE THE CODE
contents = get(hObject,'Value')

switch contents

case 1
axes(handles.one);
imshow(a);
case 2
a =imread('flowers.tif');
axes(handles.one);
imshow(a);
case 3
a =imread('rice.tif');
axes(handles.one);
imshow(a);
otherwise
a =imread('mri.tif');
axes(handles.one);
imshow(a);

end

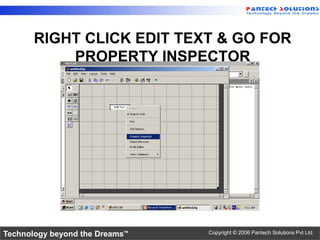

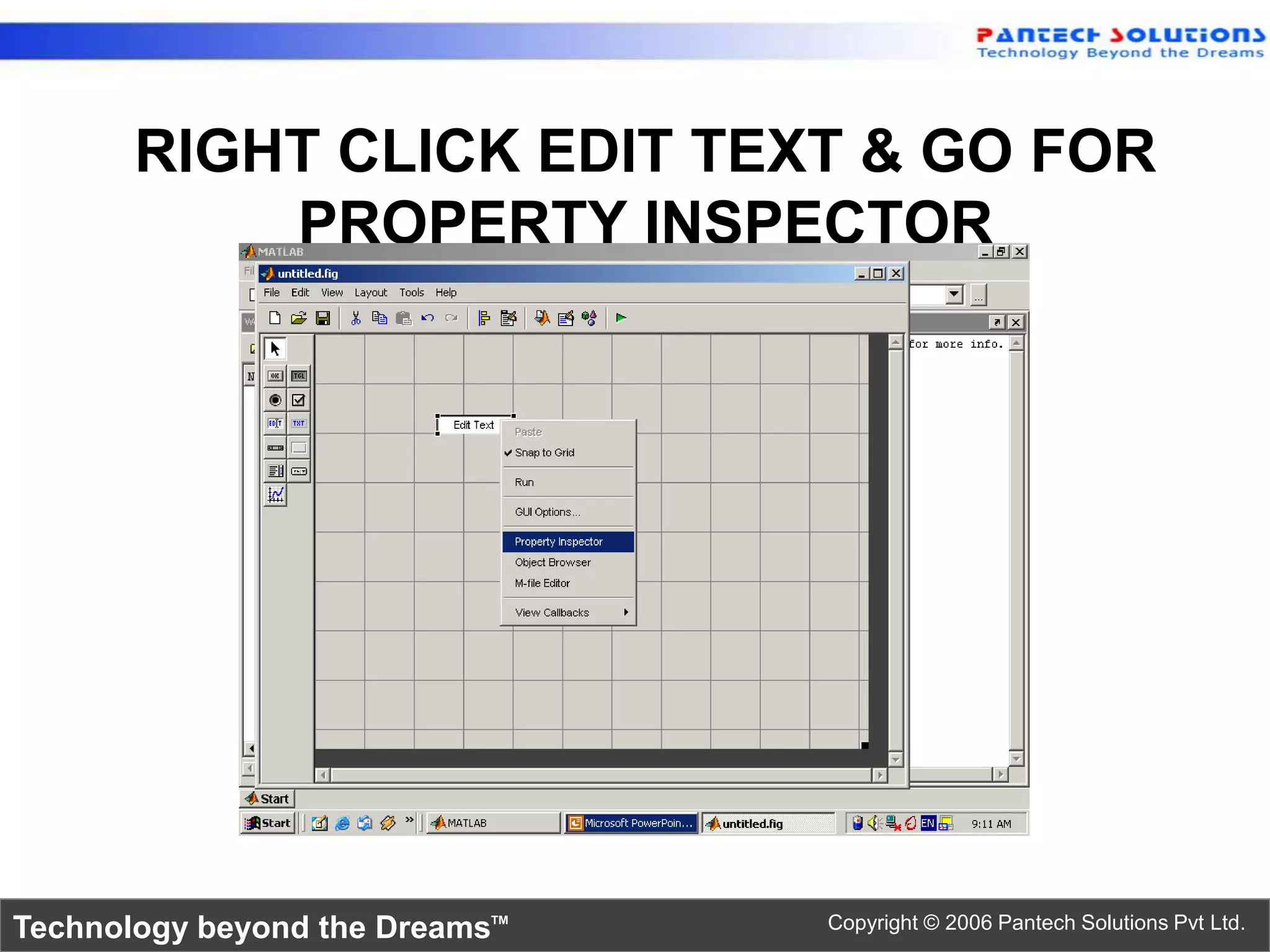

RIGHT CLICK EDIT TEXT & GO FOR
PROPERTY INSPECTOR

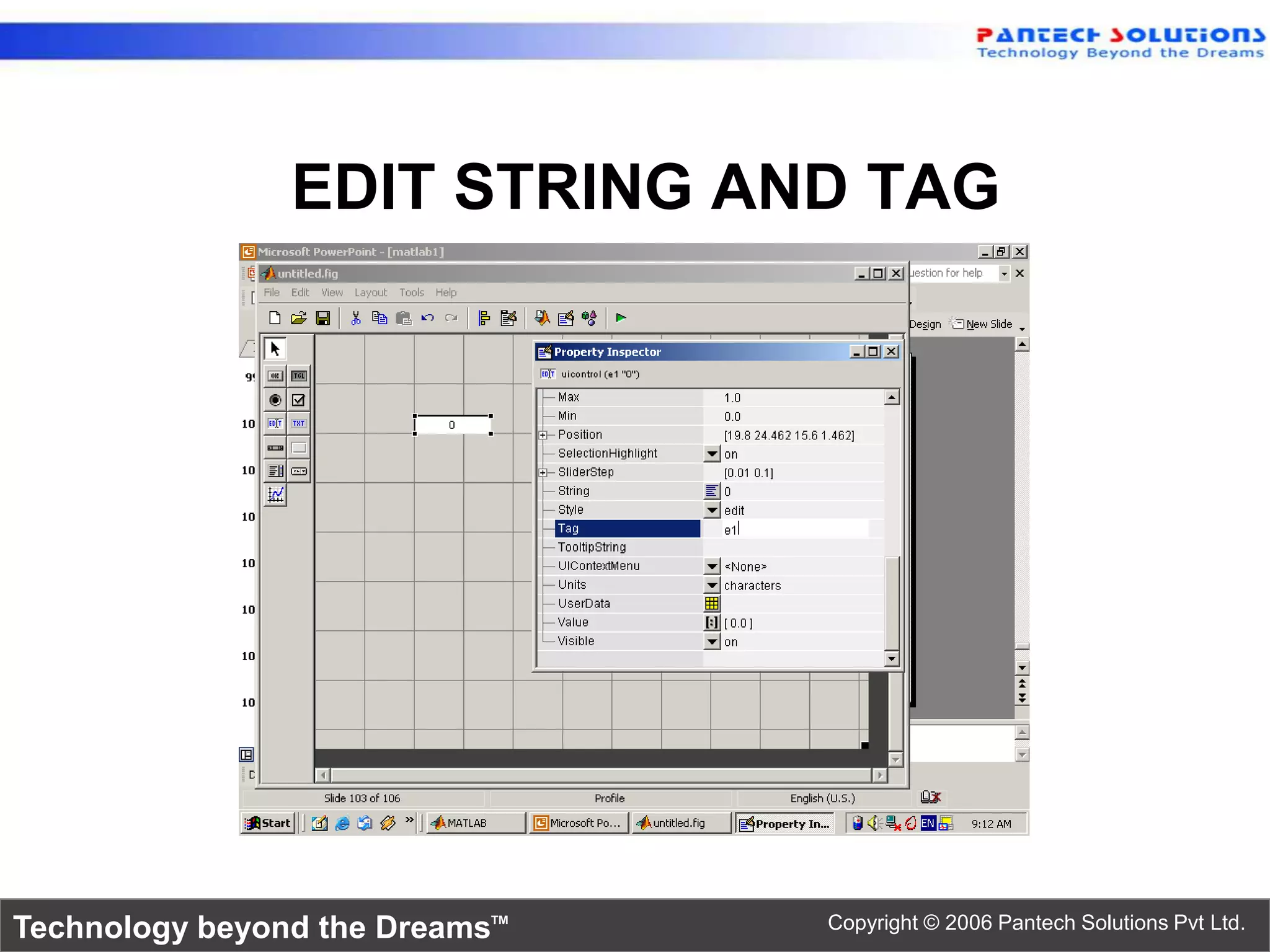

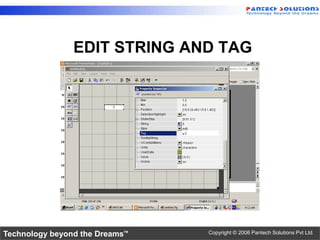

EDIT STRING AND TAG


RIGHT CLICK EDIT TEXT & GO FOR
M FILE EDITOR


CALLBACK

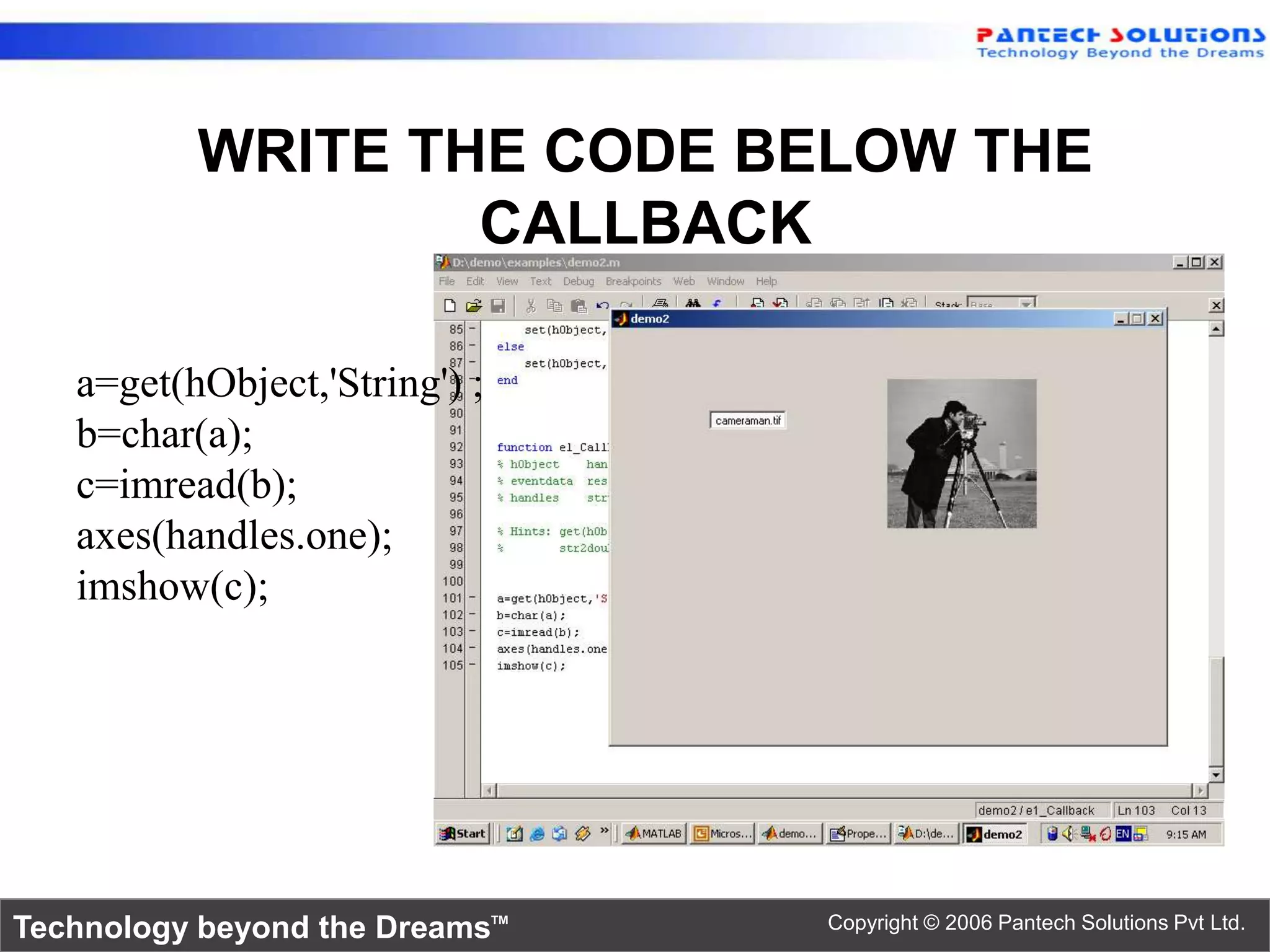

a=get(hObject,'String') ;
b=char(a);
c=imread(b);
axes(handles.one);
imshow(c);

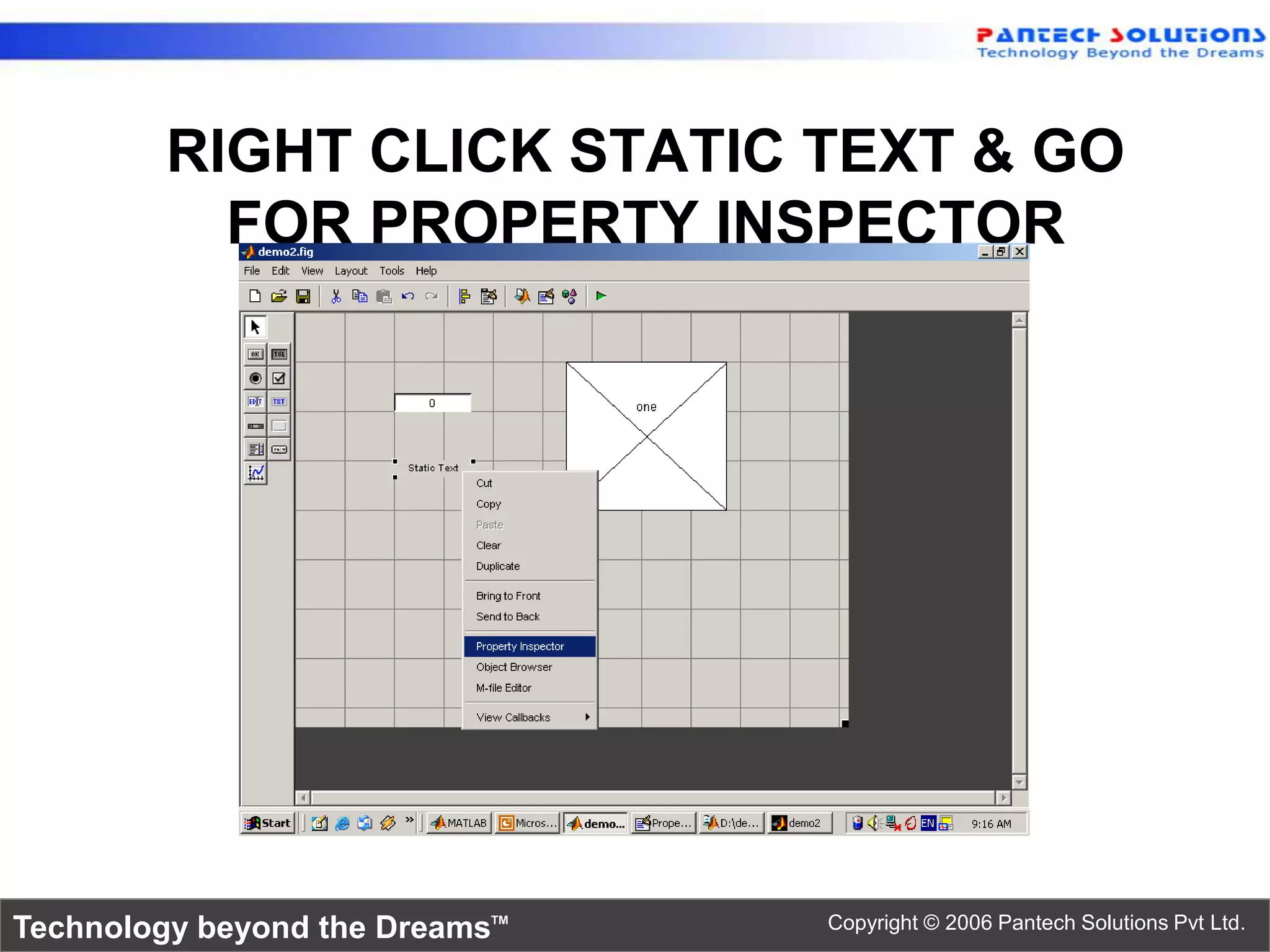

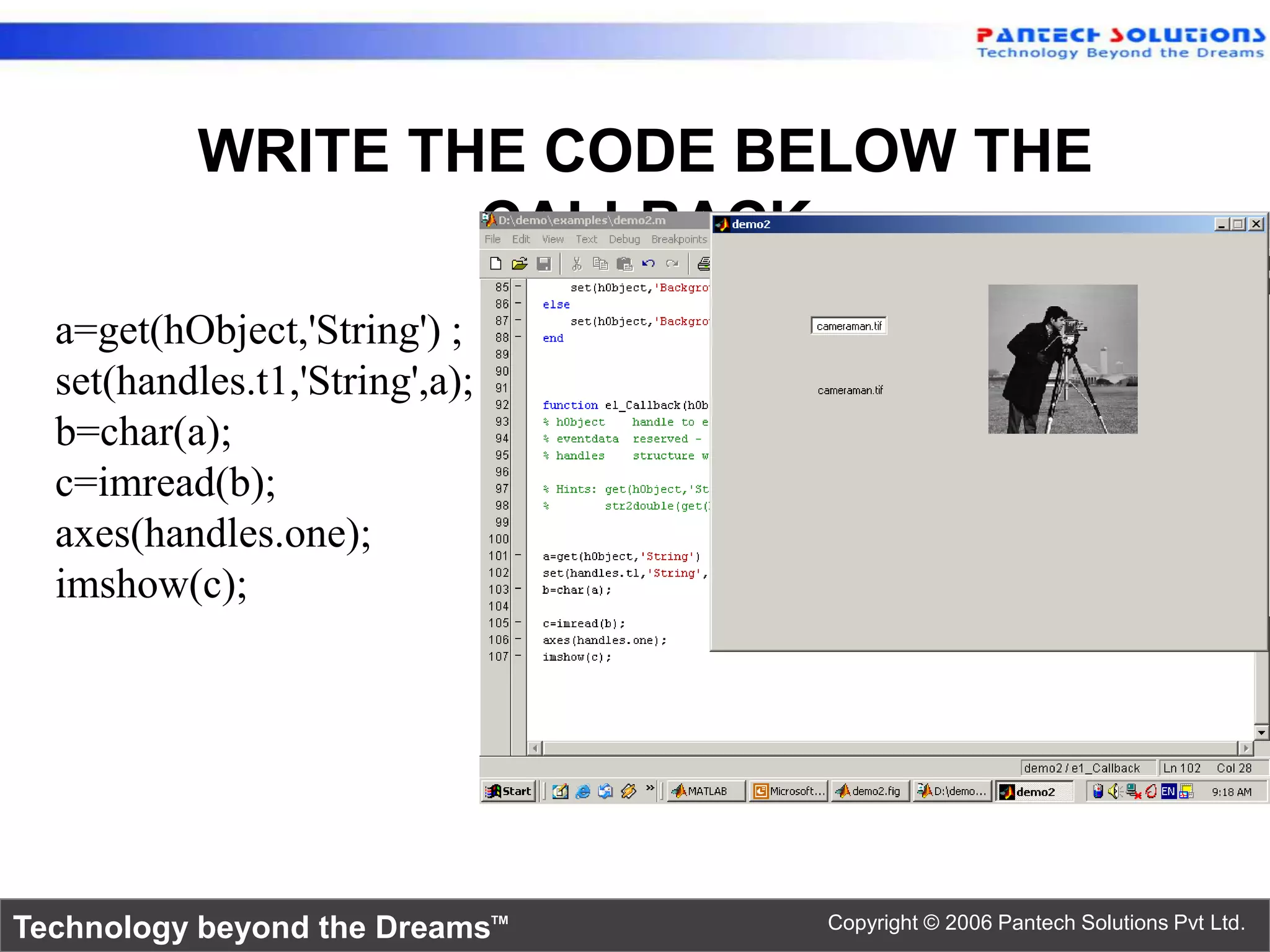

RIGHT CLICK STATIC TEXT & GO


CALLBACK
a=get(hObject,'String') ;
set(handles.t1,'String',a);
b=char(a);
c=imread(b);
axes(handles.one);
imshow(c);

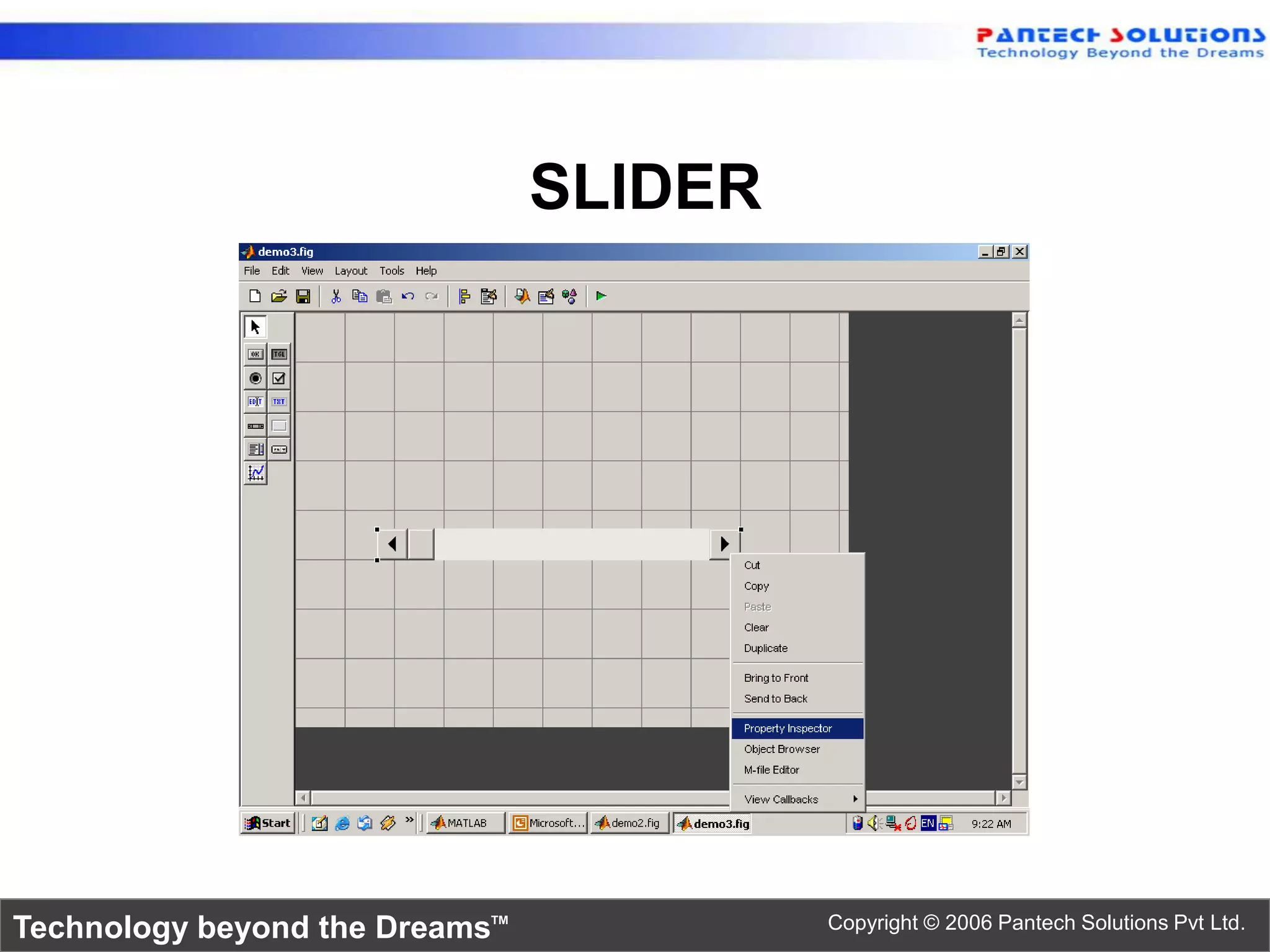

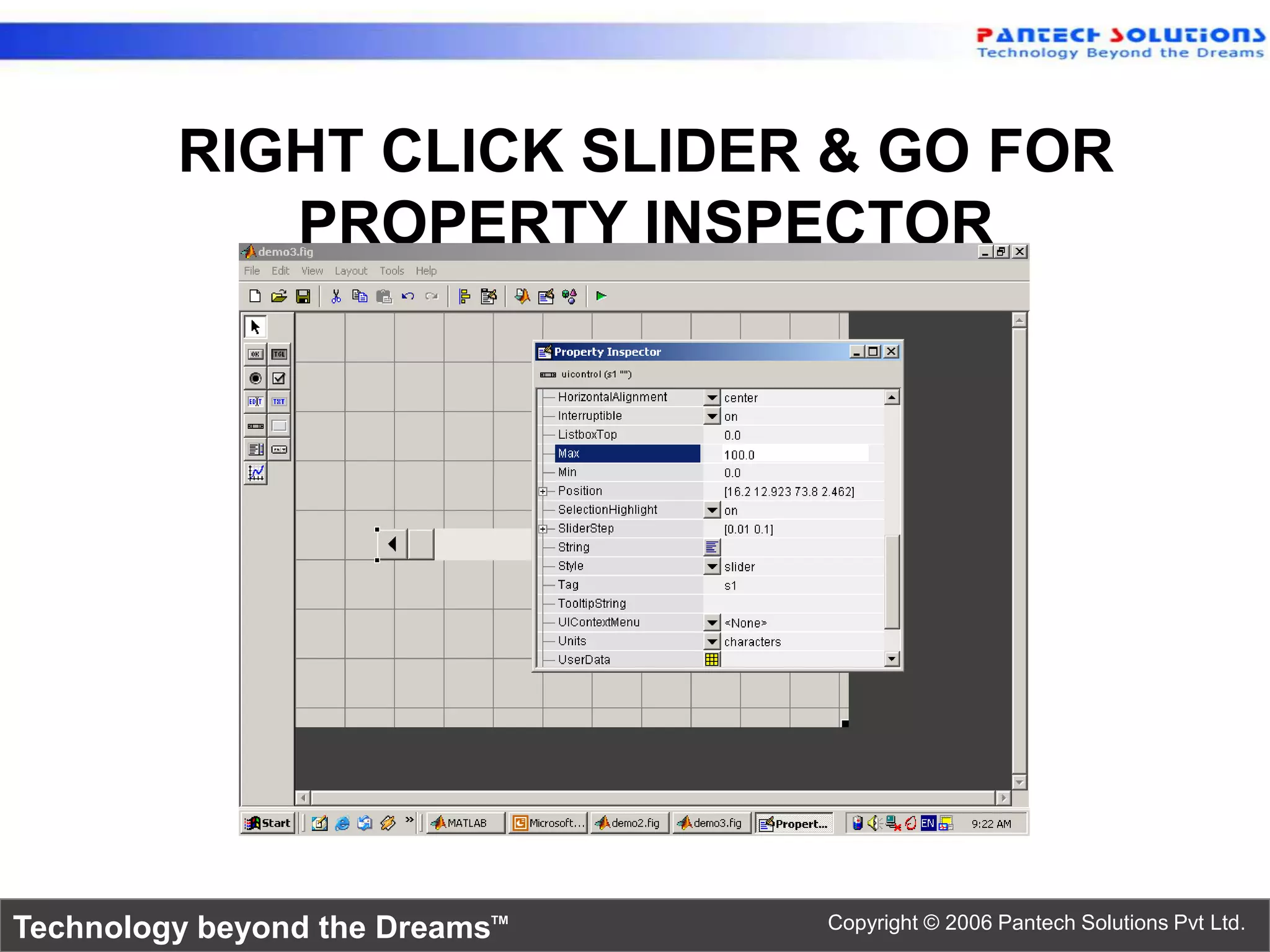

RIGHT CLICK SLIDER & GO FOR
PROPERTY INSPECTOR

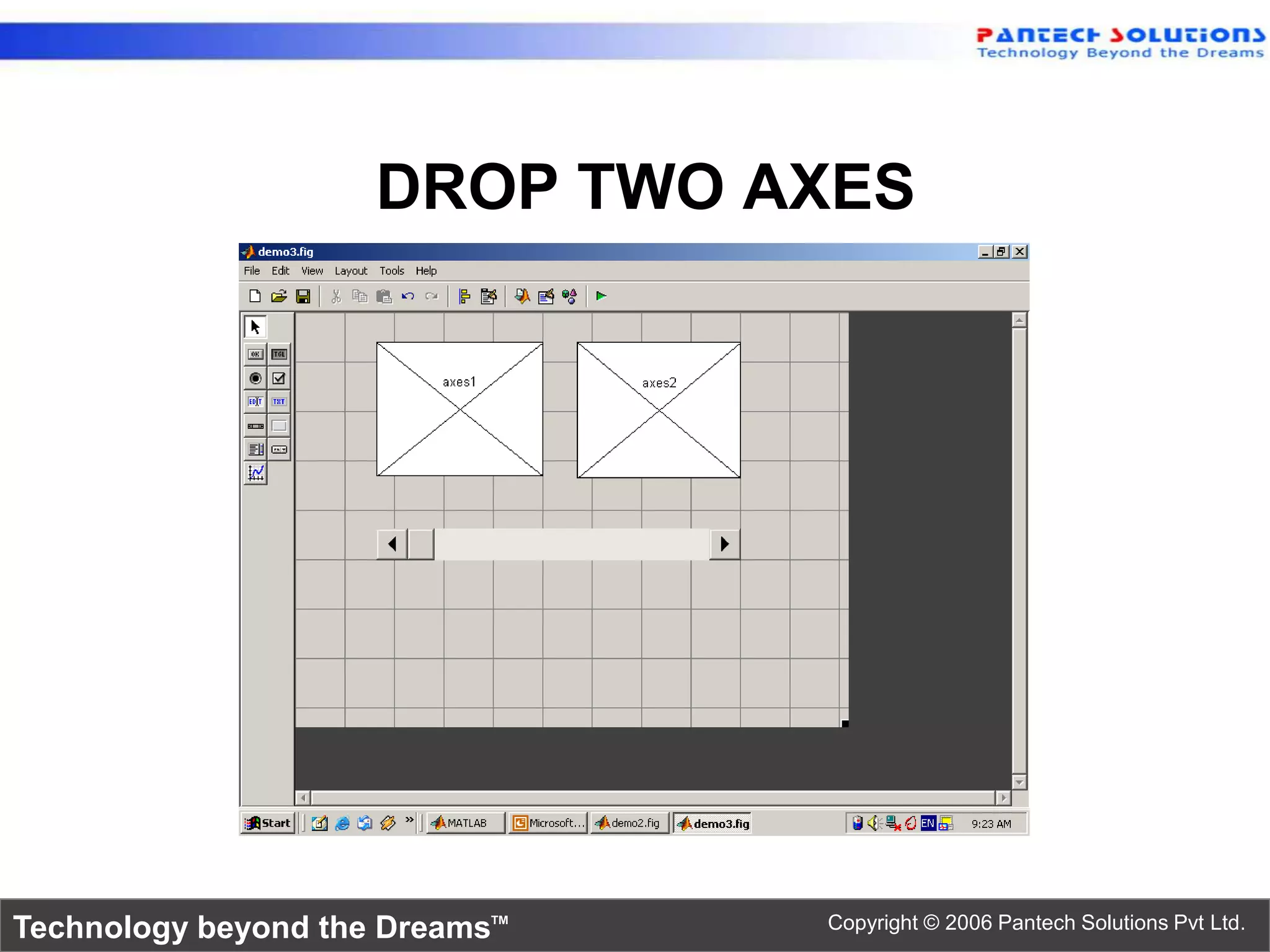

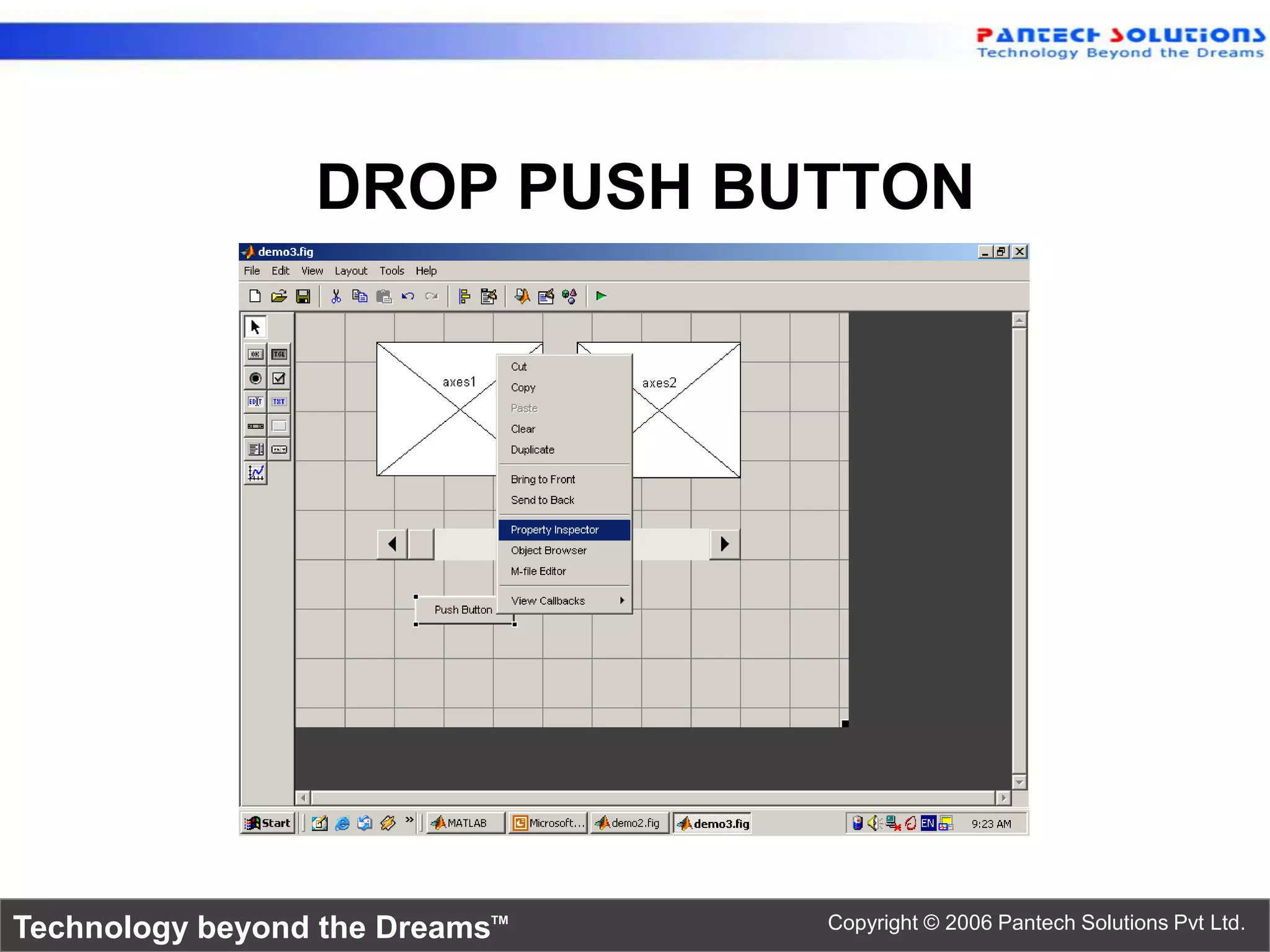

DROP TWO AXES


DROP PUSH BUTTON


CALLBACK
[filename, pathname] = uigetfile('*.bmp', 'Pick an Image');


warndlg('User pressed cancel')
else

a=imread(filename);
axes(handles.axes1);
imshow(a);
handles.filename=filename;
guidata(hObject, handles);

end

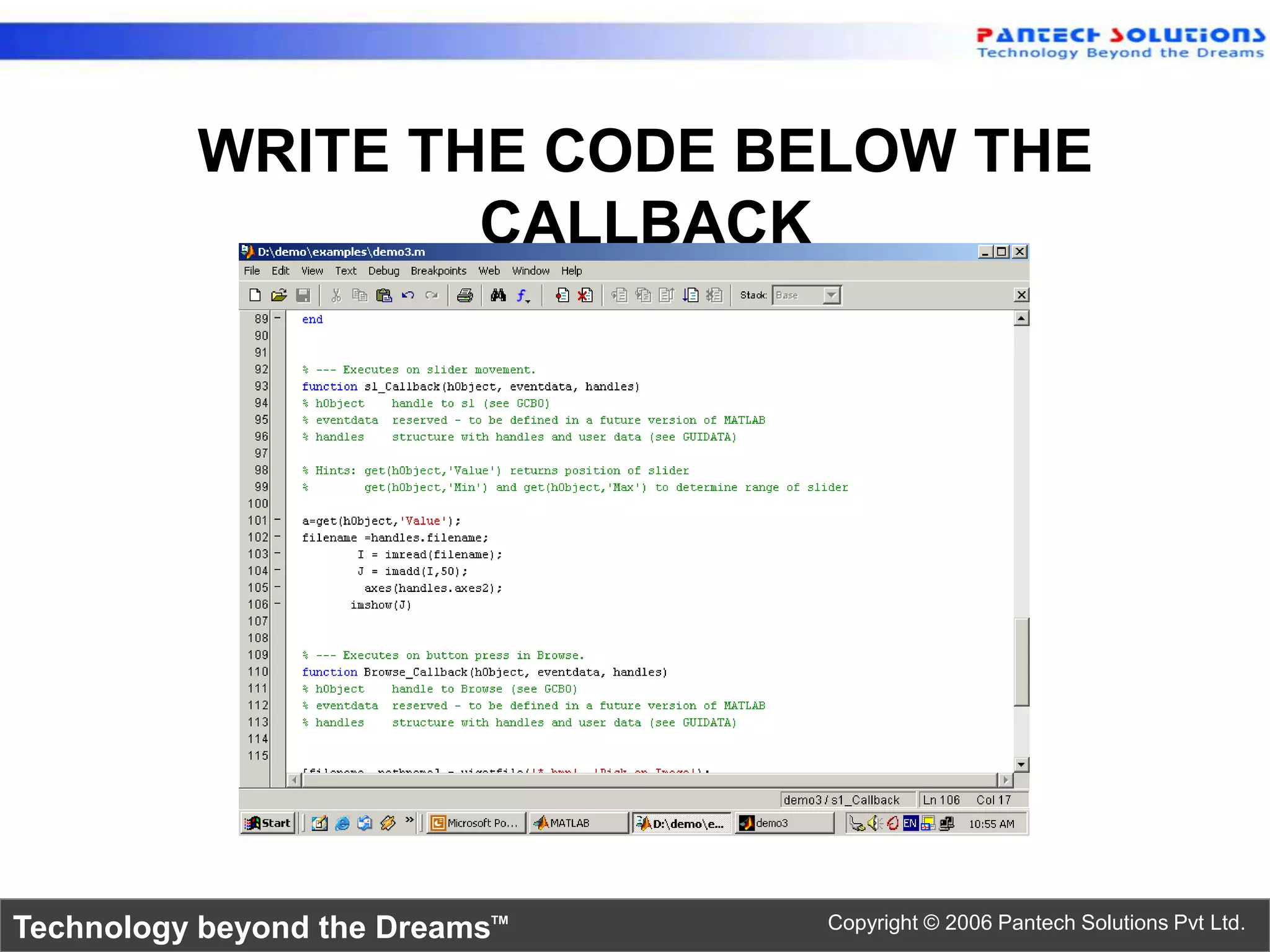

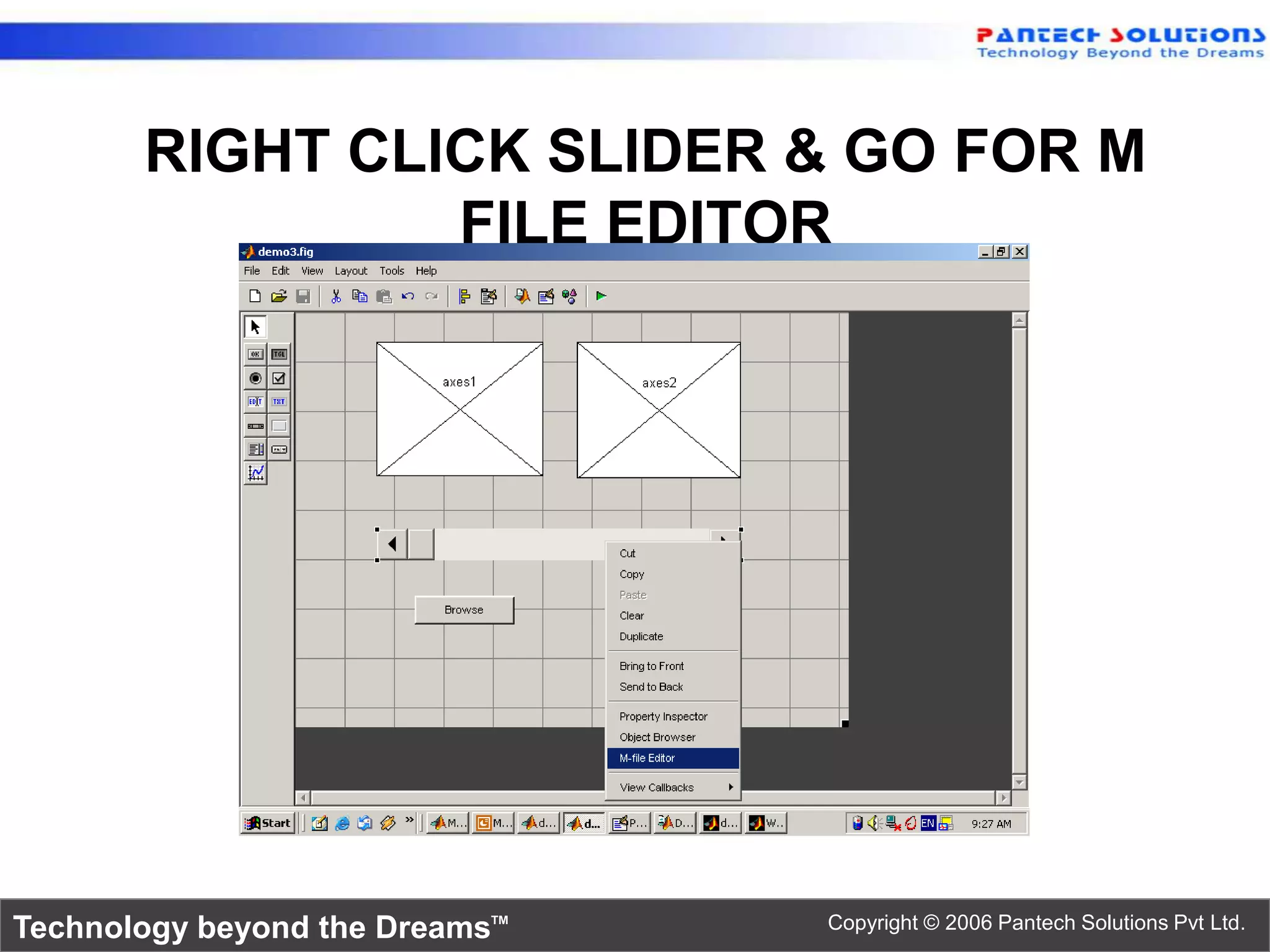

RIGHT CLICK SLIDER & GO FOR M
FILE EDITOR

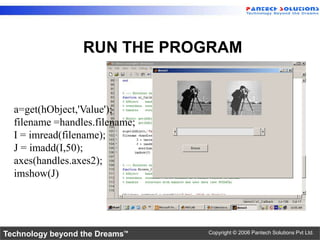

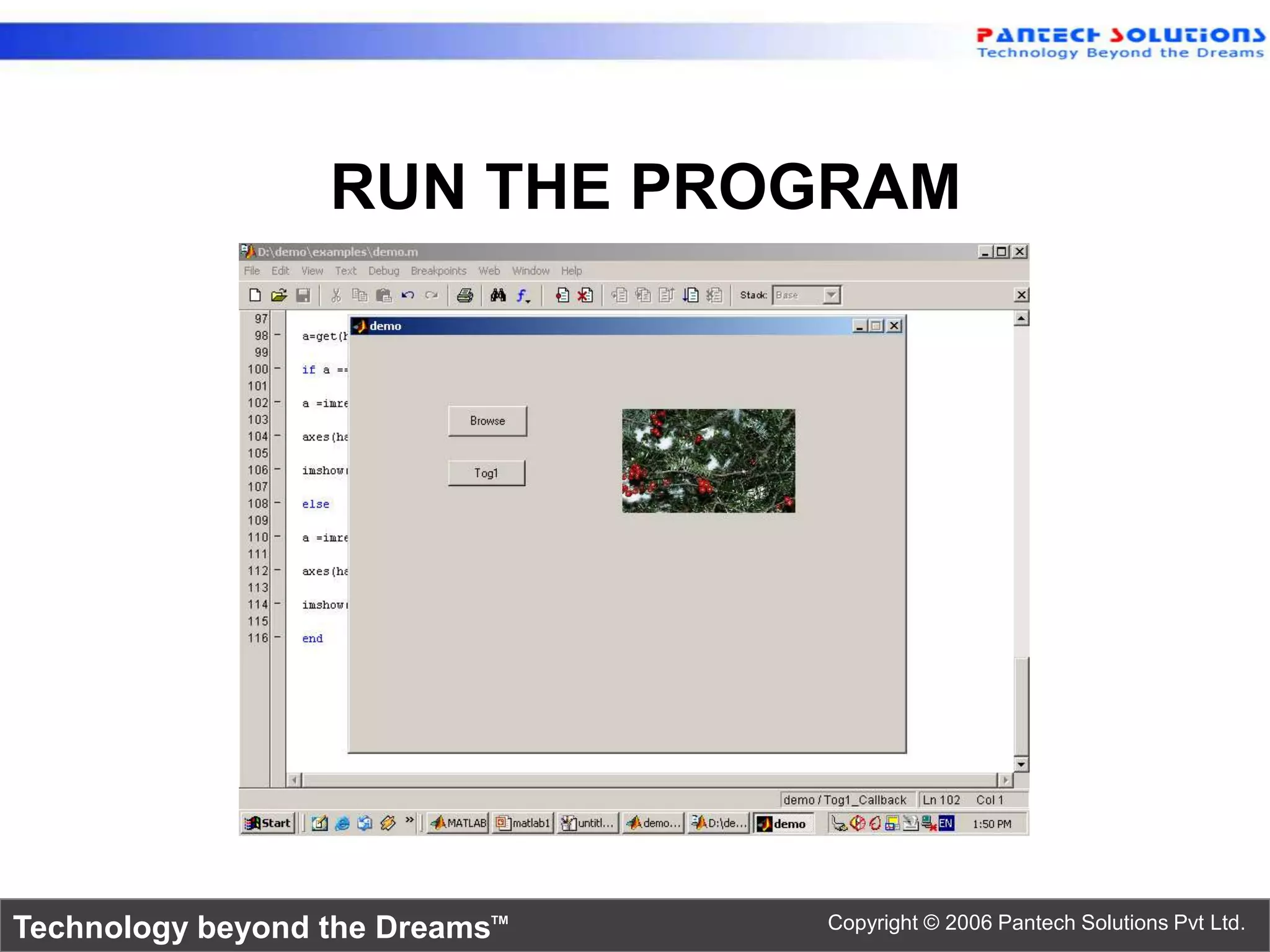

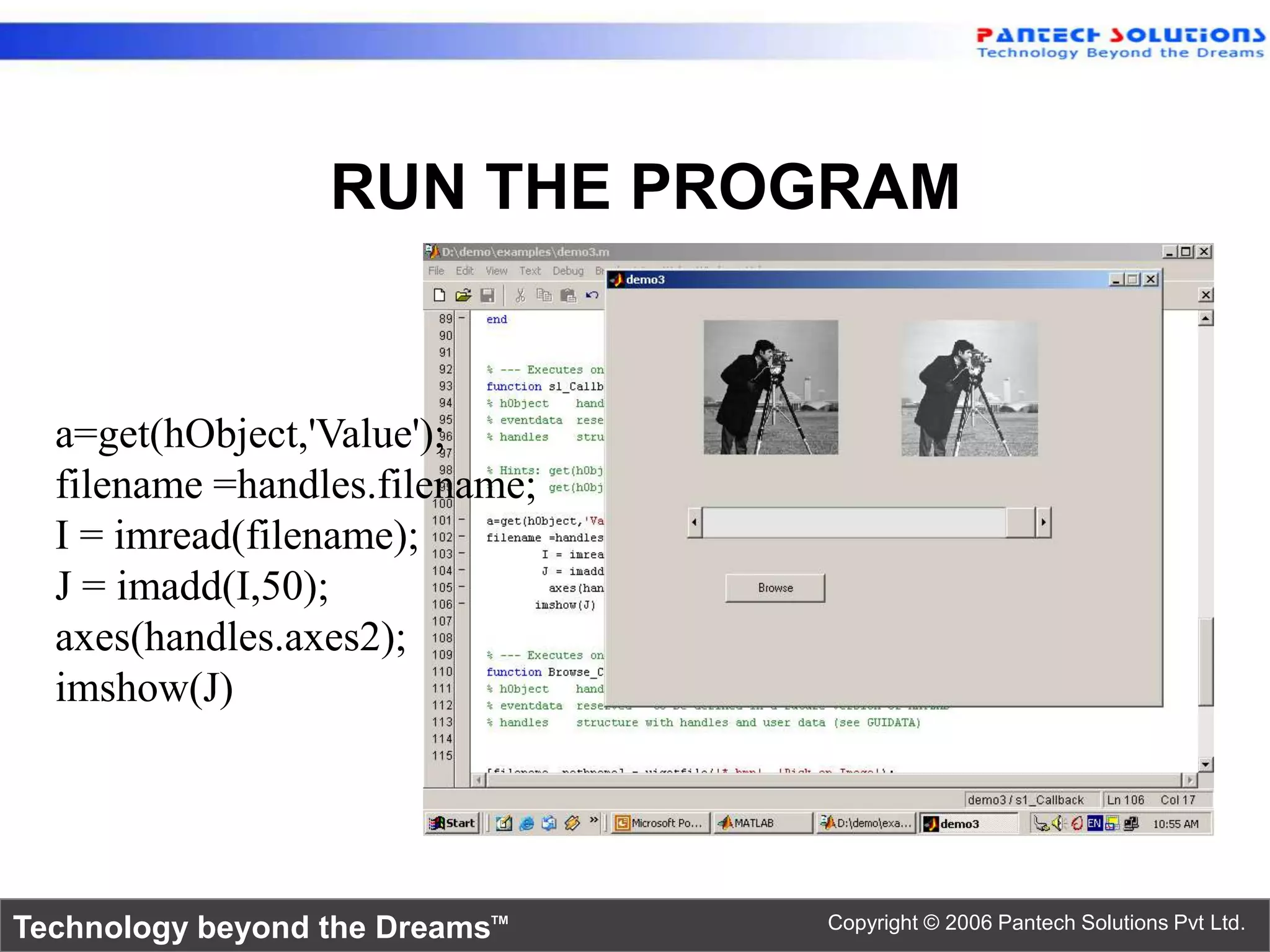

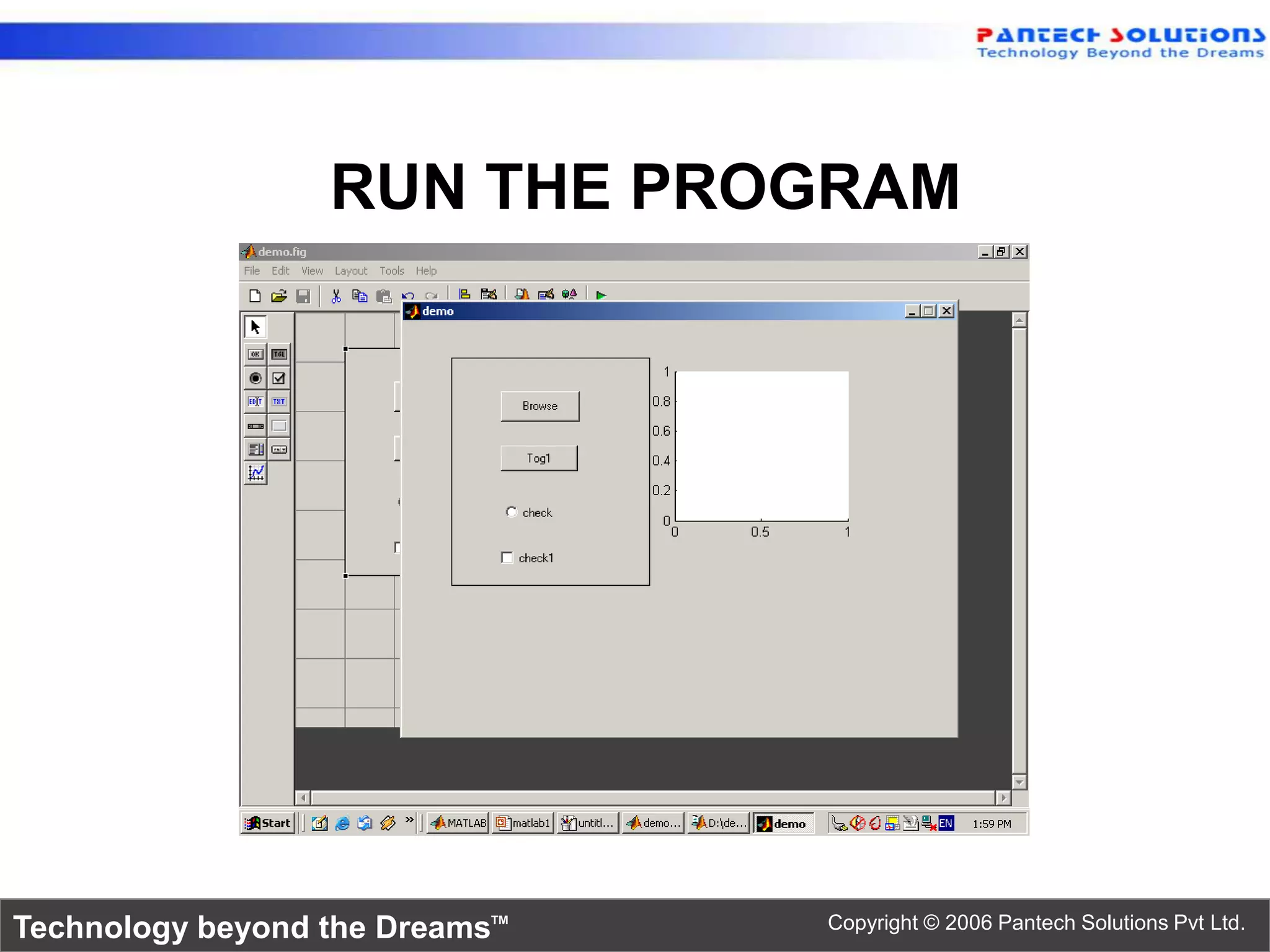

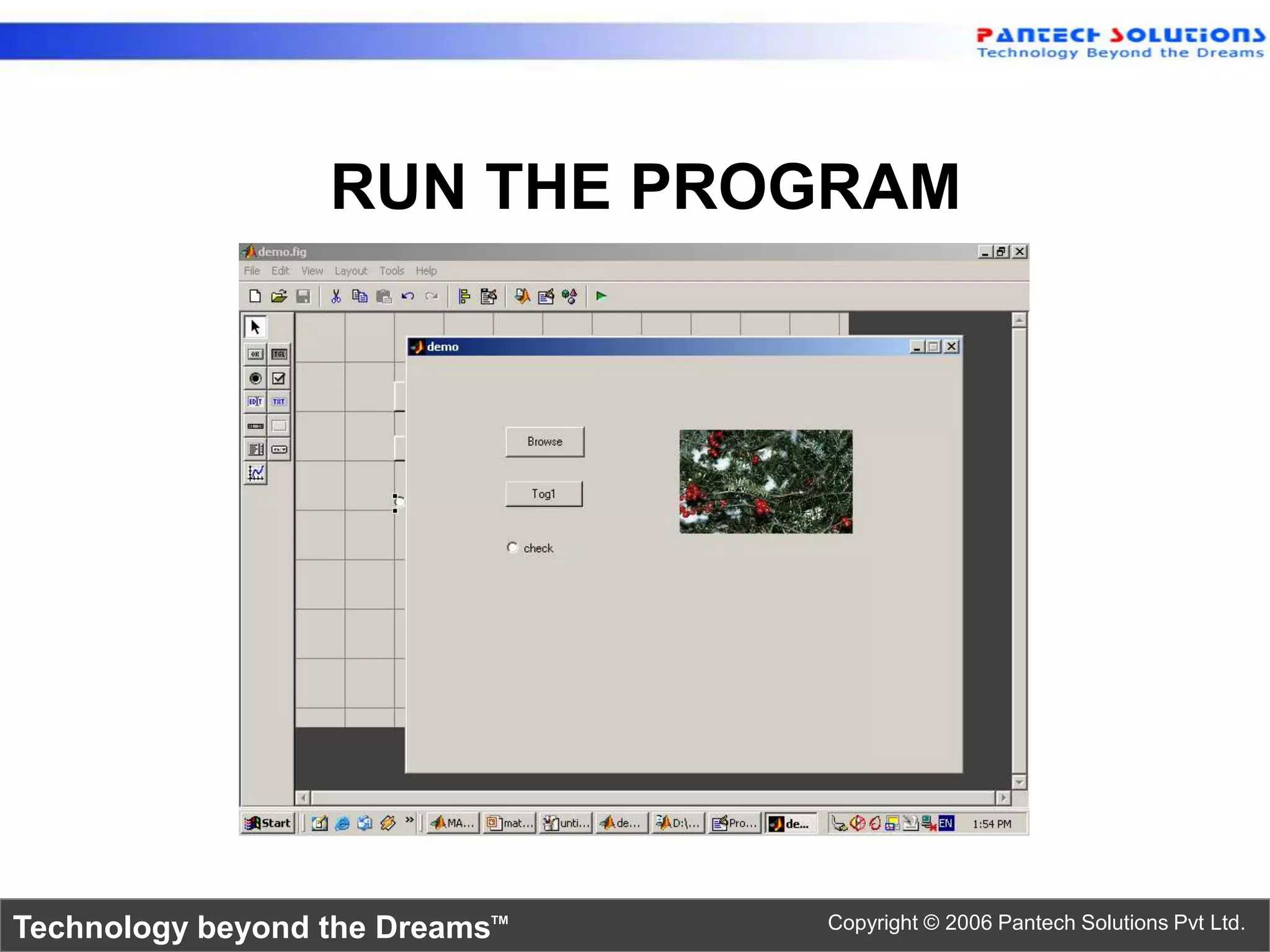

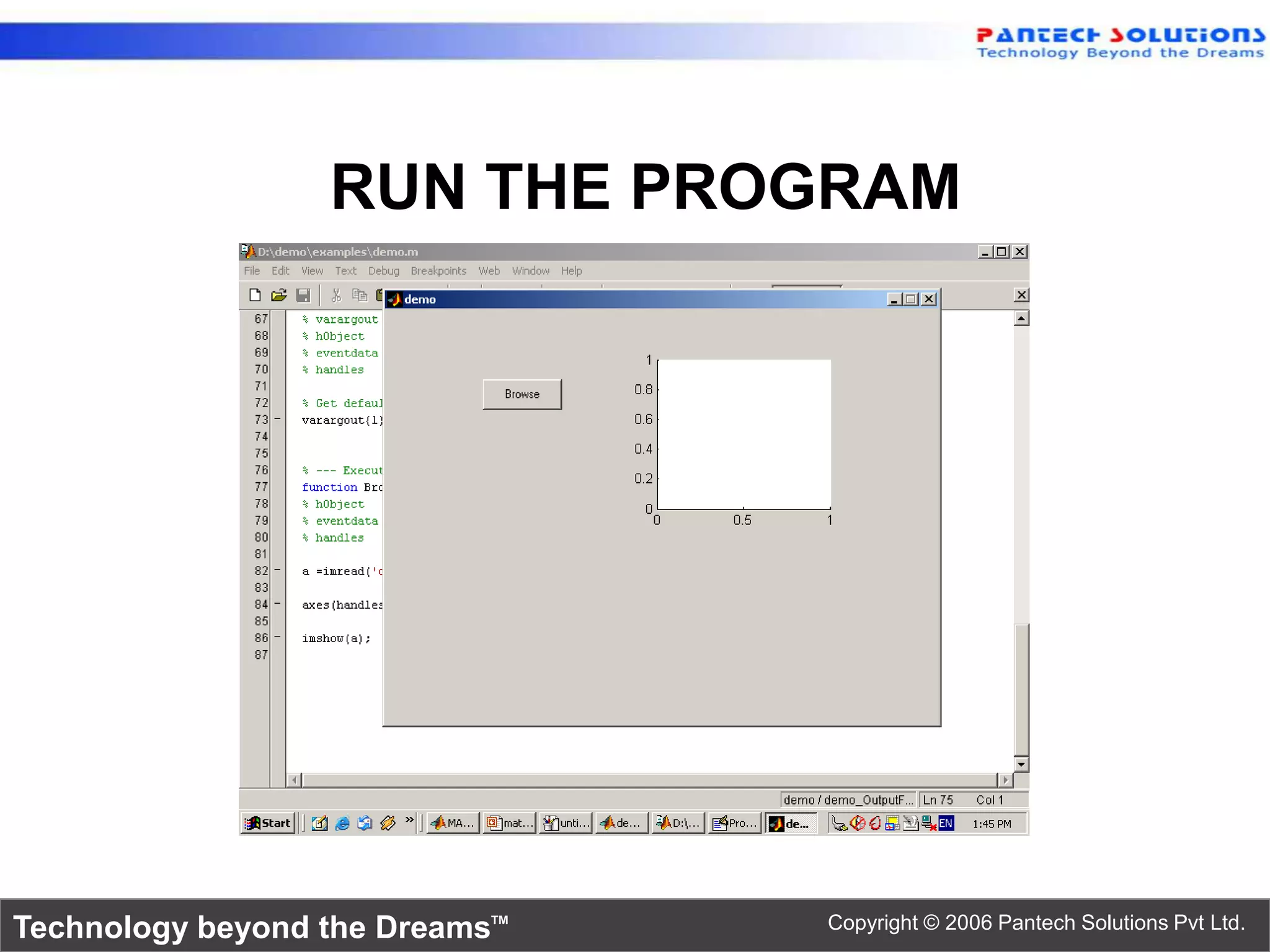

RUN THE PROGRAM

a=get(hObject,'Value');
filename =handles.filename;
I = imread(filename);
J = imadd(I,50);
axes(handles.axes2);
imshow(J)

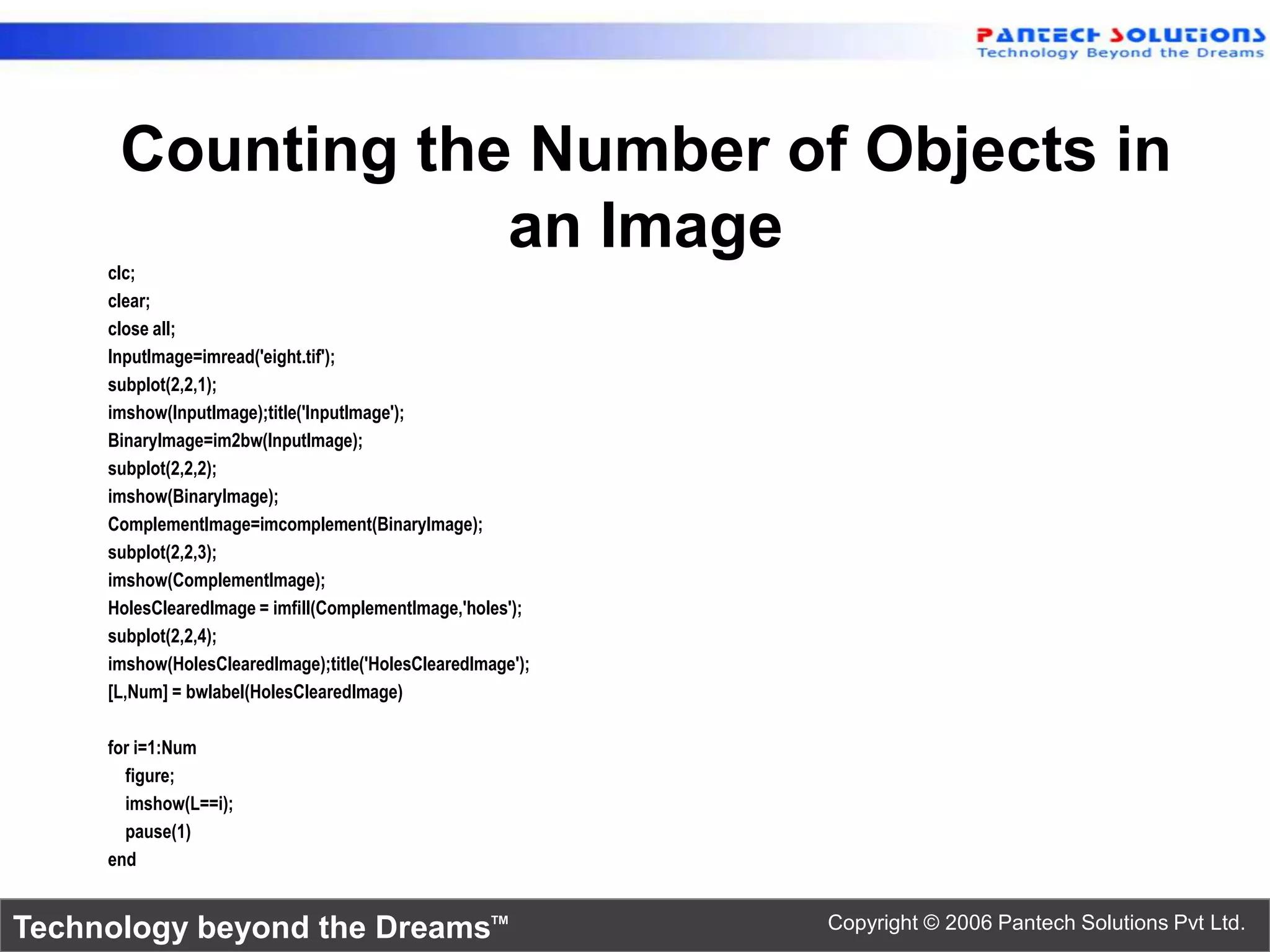

Counting the Number of Objects in
an Image
clc;
clear;
close all;
InputImage=imread('eight.tif');
subplot(2,2,1);
imshow(InputImage);title('InputImage');
BinaryImage=im2bw(InputImage);
subplot(2,2,2);
imshow(BinaryImage);
ComplementImage=imcomplement(BinaryImage);
subplot(2,2,3);
imshow(ComplementImage);
HolesClearedImage = imfill(ComplementImage,'holes');
subplot(2,2,4);
imshow(HolesClearedImage);title('HolesClearedImage');
[L,Num] = bwlabel(HolesClearedImage)

for i=1:Num
figure;
imshow(L==i);
pause(1)
end

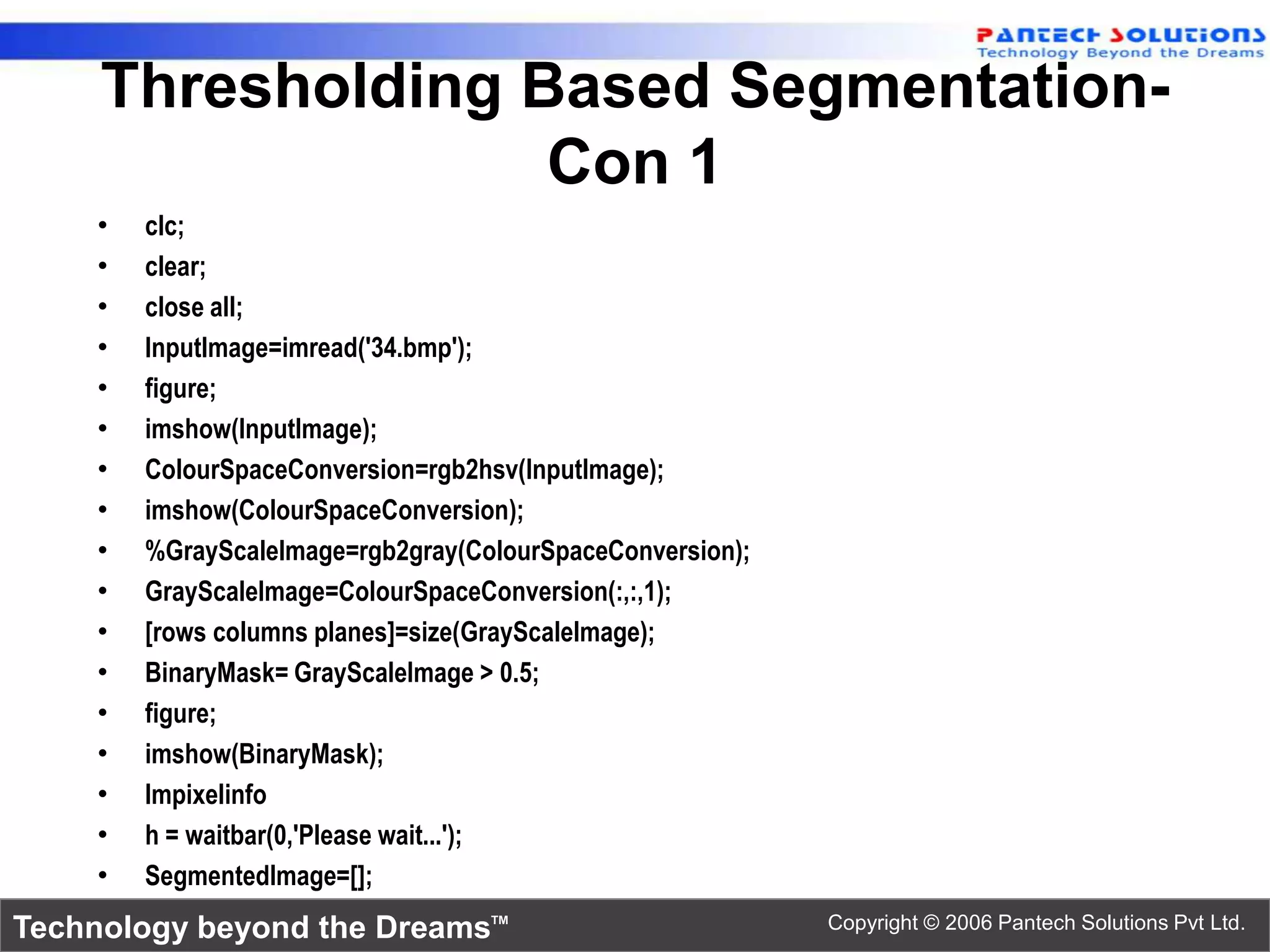

Thresholding Based Segmentation-
Con 1
• clc;
• clear;
• close all;
• InputImage=imread('34.bmp');
• figure;
• imshow(InputImage);
• ColourSpaceConversion=rgb2hsv(InputImage);
• imshow(ColourSpaceConversion);
• %GrayScaleImage=rgb2gray(ColourSpaceConversion);
• GrayScaleImage=ColourSpaceConversion(:,:,1);
• [rows columns planes]=size(GrayScaleImage);
• BinaryMask= GrayScaleImage > 0.5;
• figure;
• imshow(BinaryMask);
• Impixelinfo
• h = waitbar(0,'Please wait...');
• SegmentedImage=[];

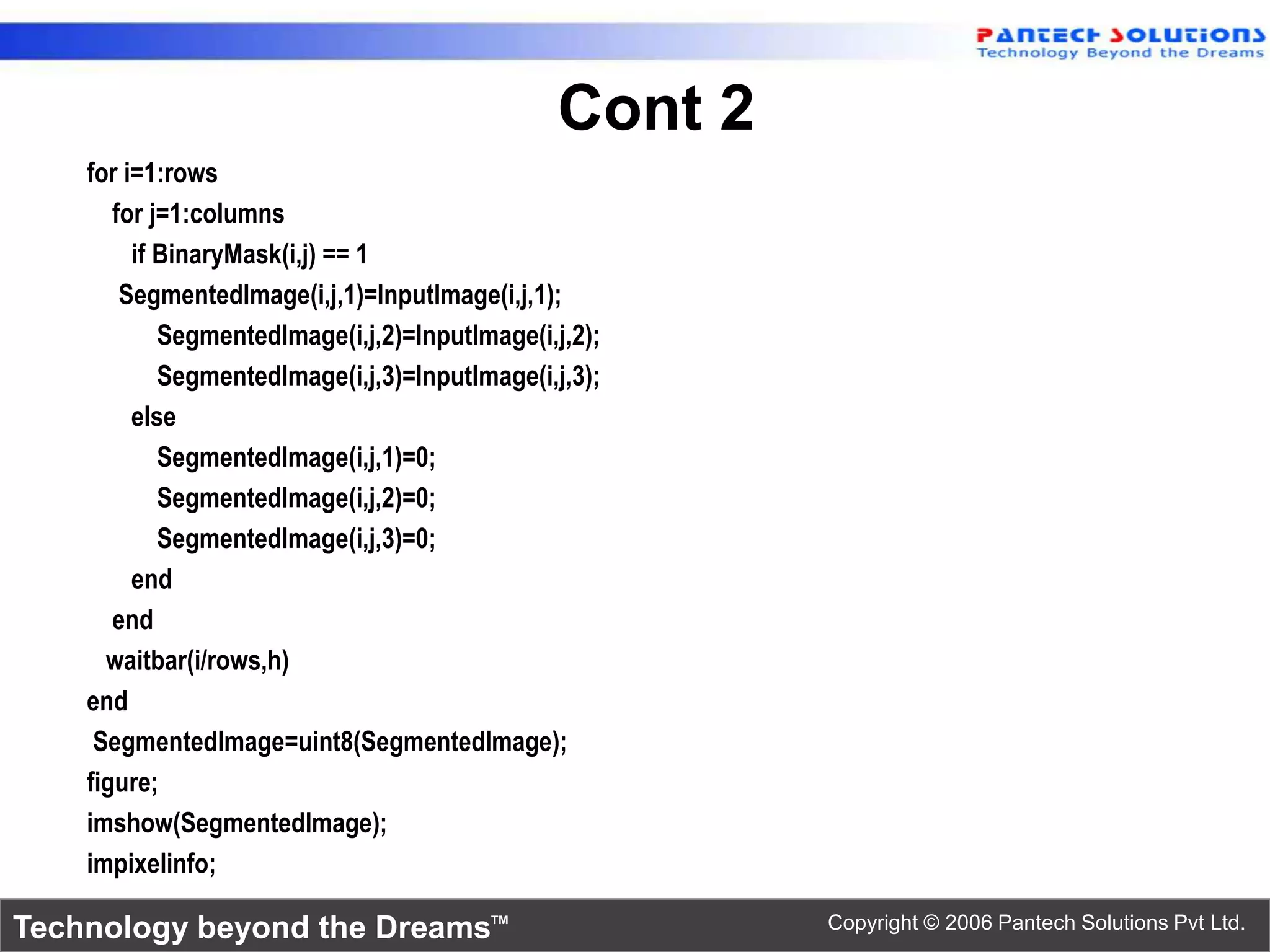

Cont 2
for i=1:rows
for j=1:columns
if BinaryMask(i,j) == 1
SegmentedImage(i,j,1)=InputImage(i,j,1);
else
SegmentedImage(i,j,1)=0;
end
end
waitbar(i/rows,h)
end
SegmentedImage=uint8(SegmentedImage);
figure;
imshow(SegmentedImage);
impixelinfo;

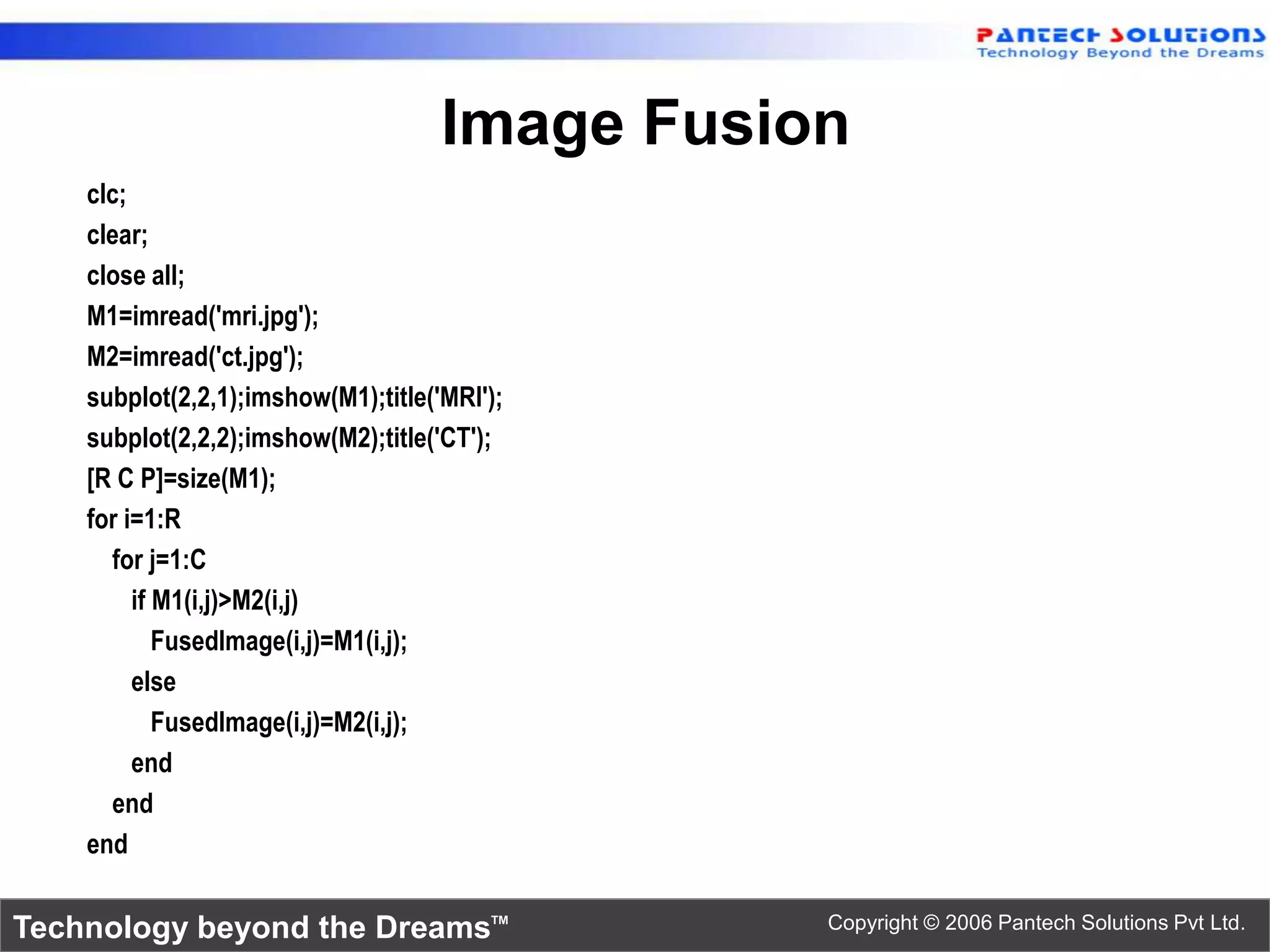

Image Fusion
clc;
clear;
close all;
M1=imread('mri.jpg');
M2=imread('ct.jpg');
subplot(2,2,1);imshow(M1);title('MRI');
subplot(2,2,2);imshow(M2);title('CT');
[R C P]=size(M1);
for i=1:R
for j=1:C
if M1(i,j)>M2(i,j)
FusedImage(i,j)=M1(i,j);
else
end
end
end

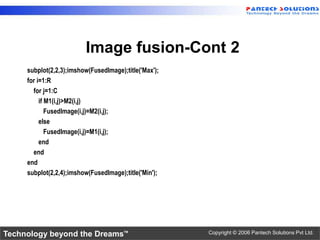

Image fusion-Cont 2
subplot(2,2,3);imshow(FusedImage);title('Max');
for i=1:R
for j=1:C
if M1(i,j)>M2(i,j)
else
end
end
end
subplot(2,2,4);imshow(FusedImage);title('Min');


For more details
– www.pantechsolutions.net
– http://www.slideshare.net/pantechsolutions
– http://www.scribd.com/pantechsolutions
– http://www.youtube.com/pantechsolutions


Getting started with image processing using Matlab

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Getting started with image processing using Matlab

Similar to Getting started with image processing using Matlab (20)

More from Pantech ProLabs India Pvt Ltd

More from Pantech ProLabs India Pvt Ltd (20)

Recently uploaded

Recently uploaded (20)

Getting started with image processing using Matlab
