Model Inheritance in
Odoo 17
Enterprise

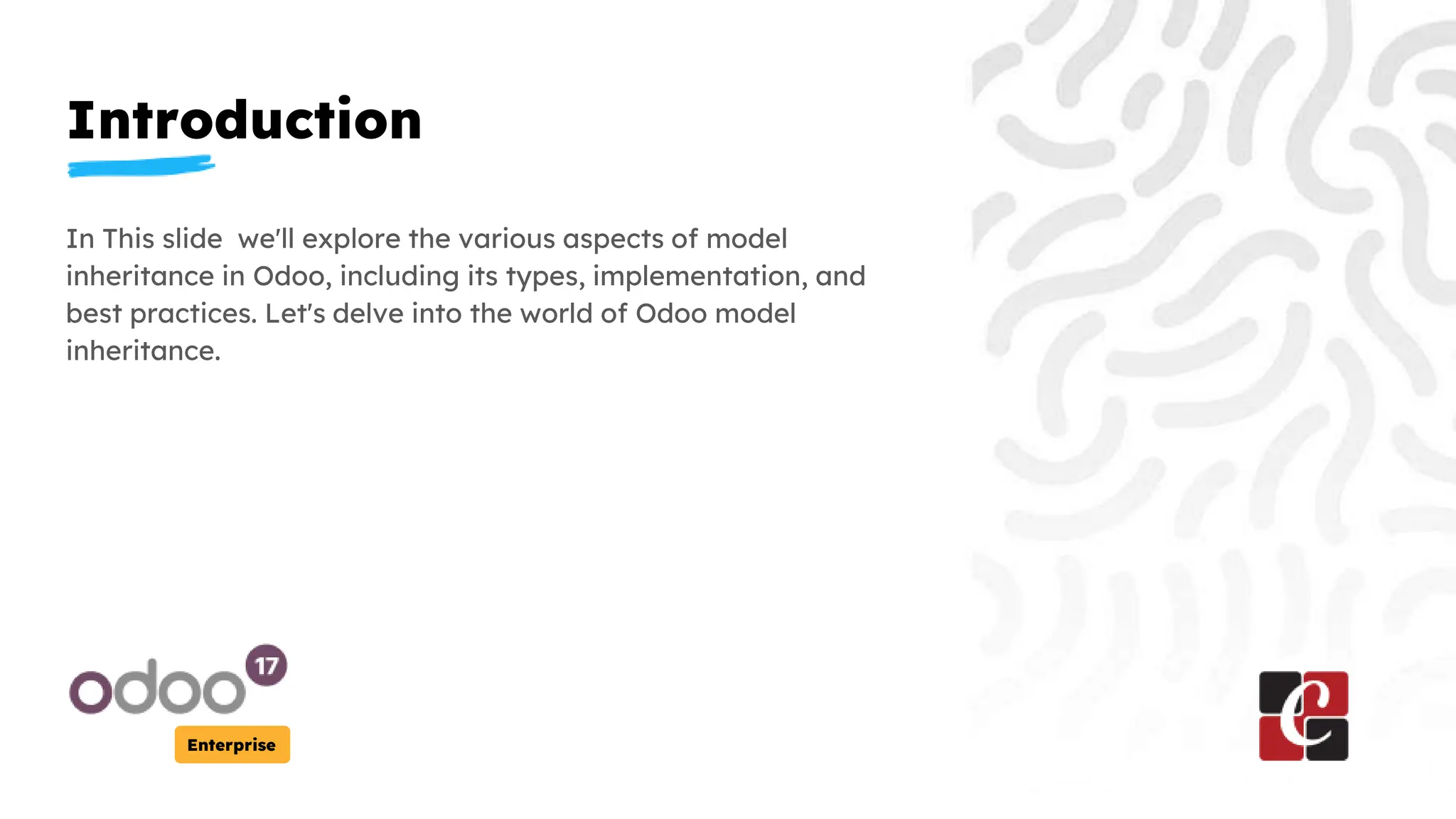

Introduction
Enterprise
In This slide we'll explore the various aspects of model
inheritance in Odoo, including its types, implementation, and
best practices. Let's delve into the world of Odoo model
inheritance.
Enterprise
Model Inheritance
● Model inheritance is a fundamental concept in Odoo, the
popular open-source ERP system.
● With model inheritance, you can extend existing
database models without modifying their core
definitions.
● Odoo primarily provides three kinds of model inheritance
which are inheritance via Delegation, Extension, and
Classical methods.
Enterprise
Classical Inheritance
● The _inherit and _name attributes are used together. The
new model retrieves all of its base's fields, methods, and
meta-data (defaults, etc.).
Example:
class ClassicalInheritanceParent(models.Model):
_name = 'classical.inheritance.parent'
_description = 'Classical Inheritance Parent'
name = fields.Char(string="Name")
def call(self):
return self.test_check("Model ClassicalInheritanceParent")
def test_check(self, s):
return "This is a test check with {}".format(s)
Enterprise
Classical Inheritance
Now lets create a model to inherit the parent class.
class ClassicalInheritanceChild(models.Model):
_name = 'inheritance.child'
_inherit = 'classical.inheritance.parent'
_description = 'Classical Inheritance Child'
def call(self):
return self.test_check("Model
ClassicalInheritanceChild")
Enterprise
Classical Inheritance
● The attribute “_name” was the only declared in the
parent class; however, the child class defined both
“_name” and “_inherit”, allowing the child model to
access the parent class's fields and functions.
● So by using the classical inheritance we can access the
data from the parent model to the child model.
Enterprise
Extension Inheritance
● Use the _inherit attribute and not the _name attribute.
The previous model is also replaced by the new one.
● When we wish to add more fields or functionalities to the
existing model, we use this inheritance.
Example:
class SaleOrder(models.Model):
_inherit = sale.order
test_field = fields.Char(string="Test Field")
Enterprise
Extension Inheritance
● When we check in the database we can see that the
test_field is added to the model sale.order.
Enterprise
Delegation Inheritance
● We use the _inherits attribute for delegation inheritance.
● This kind of inheritance also allows you to sink another
model to your current model without changing the views.
● As a result, the database tables will have both a field for
the inherited object and the information from your model
Enterprise
Delegation Inheritance
● Let see an example.
class ProductTemplate(models.Model):
_name = "product.template"
class ProductProduct(models.Model):
_name = "product.product"
_inherits = {'product.template': 'product_tmpl_id'}
product_tmpl_id = fields.Many2one('product.template',
'Product Template', required=True, ondelete="cascade")
Enterprise
Delegation Inheritance
● In this example, we can observe that the product
template has many2one fields in the product model.
These fields are only preserved in the Product template
table, even though the Product model can access the
fields from the Product template.
For More Info.
Check our company website for related
blogs and Odoo book.
Check our YouTube channel for
functional and technical videos in Odoo.
Enterprise
www.cybrosys.com
