1. What is soil exploration?
The field and laboratory studies carried out for obtaining the
necessary information about the surface and sub-surface features of the
proposed area including the position of the ground water table, are termed as
soil exploration or site investigation.
2. What is the object of soil exploration?
 Determination of the nature of the deposits of soil,
 Determination of the depth and thickness of the various soil strata and
their extent in the horizontal direction,
 The location of groundwater and fluctuations in GWT,
 Obtaining soil and rock samples from the various strata,
 The determination of the engineering properties of the soil and rock
strata that affect the performance of the structure, and
 Determination of the in-situ properties by performing field tests.
3. State the need of soil exploration.
 To determine the basic properties of soil which affect the design and
safety of structure i.e., compressibility, strength and hydrological
conditions.
 To determine the extent and properties of the material to be used for
construction.
 To determine the condition of groundwater.

P a g e | 118
 To analyze the causes of failure of existing works.
4. What are the uses of soil exploration?
 To select type and depth of foundation for a given structure
 To determine the bearing capacity of the soil of the selected
foundation
 To investigate the safety of the existing structure
 To establish ground water level
5. What are the objectives of site exploration?
The object of site exploration is to provide reliable, specific and
detailed information about the soil and ground water conditions of the site
which may be required for a safe and economic design and execution of the
engineering work.
6. What is the equivalent penetration resistance given by Terzaghi’s and
pech?
𝑁𝑒 = 15 +
1
2
( 𝑁 − 15 )
Where,
Ne = corrected value for overburden effect
N = actual value of blows
7. Define chunk sample.
Hand carved samples can be obtained if the soil is exposed, as in a test
pit, shaft or tunnel. Hand carved samples is also known as chunk samples.

P a g e | 119

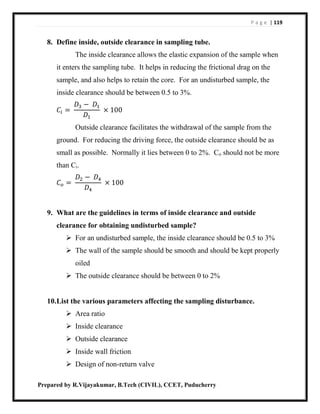

8. Define inside, outside clearance in sampling tube.
The inside clearance allows the elastic expansion of the sample when
it enters the sampling tube. It helps in reducing the frictional drag on the
sample, and also helps to retain the core. For an undisturbed sample, the
inside clearance should be between 0.5 to 3%.
𝐶𝑖 =
𝐷3 − 𝐷1
𝐷1
× 100
Outside clearance facilitates the withdrawal of the sample from the
ground. For reducing the driving force, the outside clearance should be as
small as possible. Normally it lies between 0 to 2%. Co should not be more
than Ci.
𝐶 𝑜 =
𝐷2 − 𝐷4
𝐷4
× 100
9. What are the guidelines in terms of inside clearance and outside
clearance for obtaining undisturbed sample?
 For an undisturbed sample, the inside clearance should be 0.5 to 3%
 The wall of the sample should be smooth and should be kept properly
oiled
 The outside clearance should be between 0 to 2%
10.List the various parameters affecting the sampling disturbance.
 Area ratio
 Inside clearance
 Outside clearance
 Inside wall friction
 Design of non-return valve

P a g e | 120

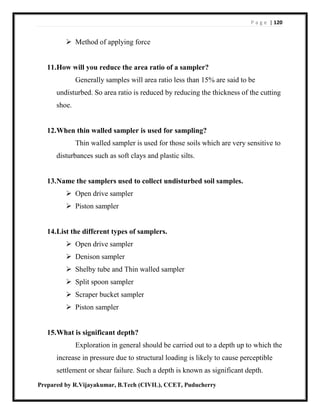

 Method of applying force
11.How will you reduce the area ratio of a sampler?
Generally samples will area ratio less than 15% are said to be
undisturbed. So area ratio is reduced by reducing the thickness of the cutting
shoe.
12.When thin walled sampler is used for sampling?
Thin walled sampler is used for those soils which are very sensitive to
disturbances such as soft clays and plastic silts.
13.Name the samplers used to collect undisturbed soil samples.
 Open drive sampler
 Piston sampler
14.List the different types of samplers.
 Open drive sampler
 Denison sampler
 Shelby tube and Thin walled sampler
 Split spoon sampler
 Scraper bucket sampler
 Piston sampler
15.What is significant depth?
Exploration in general should be carried out to a depth up to which the
increase in pressure due to structural loading is likely to cause perceptible
settlement or shear failure. Such a depth is known as significant depth.

P a g e | 121
16.What is sub – surface profile?
A Sub surface profile is a vertical section through the ground along
the line of exploration which indicates the boundaries of different strata,
along with their classification.

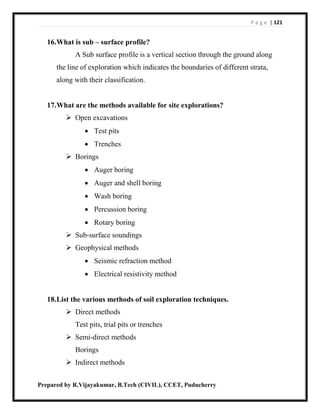

17.What are the methods available for site explorations?
 Open excavations
 Test pits
 Trenches
 Borings
 Auger boring
 Auger and shell boring
 Wash boring
 Percussion boring
 Rotary boring
 Sub-surface soundings
 Geophysical methods
 Seismic refraction method
 Electrical resistivity method
18.List the various methods of soil exploration techniques.
 Direct methods
Test pits, trial pits or trenches
 Semi-direct methods
Borings
 Indirect methods

P a g e | 122

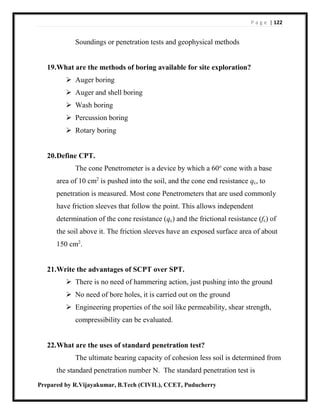

Soundings or penetration tests and geophysical methods
19.What are the methods of boring available for site exploration?
 Auger boring
 Auger and shell boring
 Wash boring
 Percussion boring
 Rotary boring
20.Define CPT.
The cone Penetrometer is a device by which a 60o
cone with a base
area of 10 cm2
is pushed into the soil, and the cone end resistance qc, to
penetration is measured. Most cone Penetrometers that are used commonly
have friction sleeves that follow the point. This allows independent
determination of the cone resistance (qc) and the frictional resistance (fc) of
the soil above it. The friction sleeves have an exposed surface area of about
150 cm2
.
21.Write the advantages of SCPT over SPT.
 There is no need of hammering action, just pushing into the ground
 No need of bore holes, it is carried out on the ground
 Engineering properties of the soil like permeability, shear strength,
compressibility can be evaluated.
22.What are the uses of standard penetration test?
The ultimate bearing capacity of cohesion less soil is determined from
the standard penetration number N. The standard penetration test is

P a g e | 123

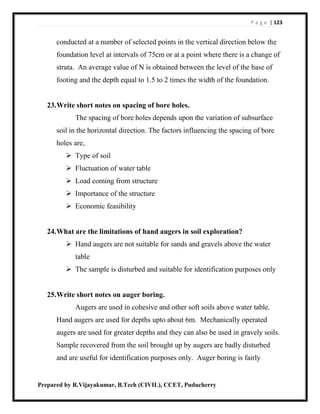

conducted at a number of selected points in the vertical direction below the
foundation level at intervals of 75cm or at a point where there is a change of
strata. An average value of N is obtained between the level of the base of
footing and the depth equal to 1.5 to 2 times the width of the foundation.
23.Write short notes on spacing of bore holes.
The spacing of bore holes depends upon the variation of subsurface
soil in the horizontal direction. The factors influencing the spacing of bore
holes are,
 Type of soil
 Fluctuation of water table
 Load coming from structure
 Importance of the structure
 Economic feasibility
24.What are the limitations of hand augers in soil exploration?
 Hand augers are not suitable for sands and gravels above the water
table
 The sample is disturbed and suitable for identification purposes only
25.Write short notes on auger boring.
Augers are used in cohesive and other soft soils above water table.
Hand augers are used for depths upto about 6m. Mechanically operated
augers are used for greater depths and they can also be used in gravely soils.
Sample recovered from the soil brought up by augers are badly disturbed
and are useful for identification purposes only. Auger boring is fairly

P a g e | 124

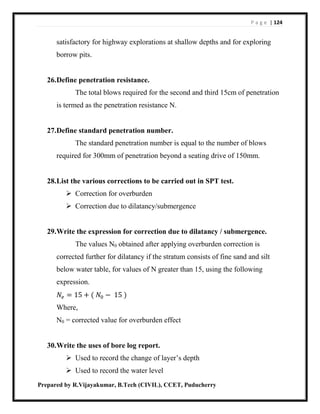

satisfactory for highway explorations at shallow depths and for exploring
borrow pits.
26.Define penetration resistance.
The total blows required for the second and third 15cm of penetration
is termed as the penetration resistance N.
27.Define standard penetration number.
The standard penetration number is equal to the number of blows
required for 300mm of penetration beyond a seating drive of 150mm.
28.List the various corrections to be carried out in SPT test.
 Correction for overburden
 Correction due to dilatancy/submergence
29.Write the expression for correction due to dilatancy / submergence.
The values N0 obtained after applying overburden correction is
corrected further for dilatancy if the stratum consists of fine sand and silt
below water table, for values of N greater than 15, using the following
expression.
𝑁𝑒 = 15 + ( 𝑁0 − 15 )
Where,
N0 = corrected value for overburden effect
30.Write the uses of bore log report.
 Used to record the change of layer’s depth
 Used to record the water level

P a g e | 125

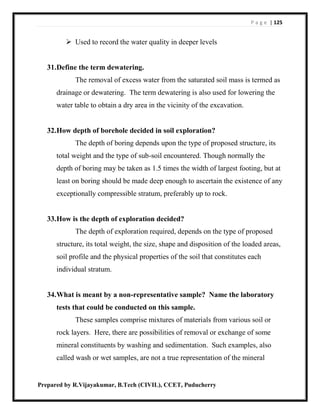

 Used to record the water quality in deeper levels
31.Define the term dewatering.
The removal of excess water from the saturated soil mass is termed as
drainage or dewatering. The term dewatering is also used for lowering the
water table to obtain a dry area in the vicinity of the excavation.
32.How depth of borehole decided in soil exploration?
The depth of boring depends upon the type of proposed structure, its
total weight and the type of sub-soil encountered. Though normally the
depth of boring may be taken as 1.5 times the width of largest footing, but at
least on boring should be made deep enough to ascertain the existence of any
exceptionally compressible stratum, preferably up to rock.
33.How is the depth of exploration decided?
The depth of exploration required, depends on the type of proposed
structure, its total weight, the size, shape and disposition of the loaded areas,
soil profile and the physical properties of the soil that constitutes each
individual stratum.
34.What is meant by a non-representative sample? Name the laboratory
tests that could be conducted on this sample.
These samples comprise mixtures of materials from various soil or
rock layers. Here, there are possibilities of removal or exchange of some
mineral constituents by washing and sedimentation. Such examples, also
called wash or wet samples, are not a true representation of the mineral

P a g e | 126

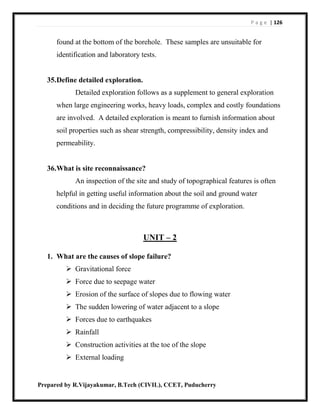

found at the bottom of the borehole. These samples are unsuitable for
identification and laboratory tests.
35.Define detailed exploration.
Detailed exploration follows as a supplement to general exploration
when large engineering works, heavy loads, complex and costly foundations
are involved. A detailed exploration is meant to furnish information about
soil properties such as shear strength, compressibility, density index and
permeability.
36.What is site reconnaissance?
An inspection of the site and study of topographical features is often
helpful in getting useful information about the soil and ground water
conditions and in deciding the future programme of exploration.
UNIT – 2
1. What are the causes of slope failure?
 Gravitational force
 Force due to seepage water
 Erosion of the surface of slopes due to flowing water
 The sudden lowering of water adjacent to a slope
 Forces due to earthquakes
 Rainfall
 Construction activities at the toe of the slope
 External loading

P a g e | 127

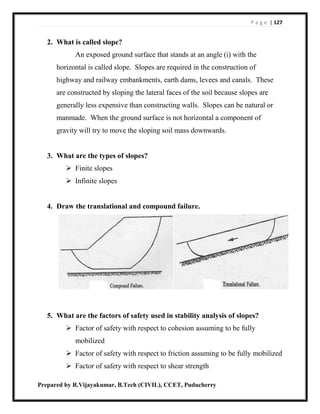

2. What is called slope?
An exposed ground surface that stands at an angle (i) with the
horizontal is called slope. Slopes are required in the construction of
highway and railway embankments, earth dams, levees and canals. These
are constructed by sloping the lateral faces of the soil because slopes are
generally less expensive than constructing walls. Slopes can be natural or
manmade. When the ground surface is not horizontal a component of
gravity will try to move the sloping soil mass downwards.
3. What are the types of slopes?
 Finite slopes
 Infinite slopes
4. Draw the translational and compound failure.
5. What are the factors of safety used in stability analysis of slopes?
 Factor of safety with respect to cohesion assuming to be fully
mobilized
 Factor of safety with respect to friction assuming to be fully mobilized
 Factor of safety with respect to shear strength

P a g e | 128

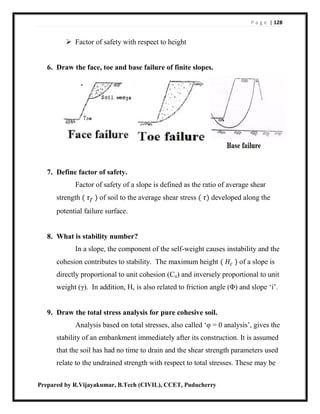

 Factor of safety with respect to height
6. Draw the face, toe and base failure of finite slopes.
7. Define factor of safety.
Factor of safety of a slope is defined as the ratio of average shear
strength ( 𝜏 𝑓 ) of soil to the average shear stress ( 𝜏) developed along the
potential failure surface.
8. What is stability number?
In a slope, the component of the self-weight causes instability and the
cohesion contributes to stability. The maximum height ( 𝐻𝑐 ) of a slope is
directly proportional to unit cohesion (Cu) and inversely proportional to unit
weight (γ). In addition, Hc is also related to friction angle (Φ) and slope ‘i’.
9. Draw the total stress analysis for pure cohesive soil.
Analysis based on total stresses, also called ‘φ = 0 analysis’, gives the
stability of an embankment immediately after its construction. It is assumed
that the soil has had no time to drain and the shear strength parameters used
relate to the undrained strength with respect to total stresses. These may be

P a g e | 129
obtained from either unconfined compression test or an undrained tri-axial
test without pore pressure measurements.

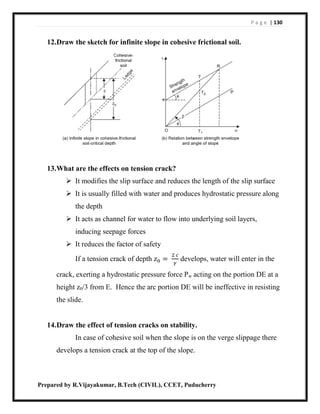

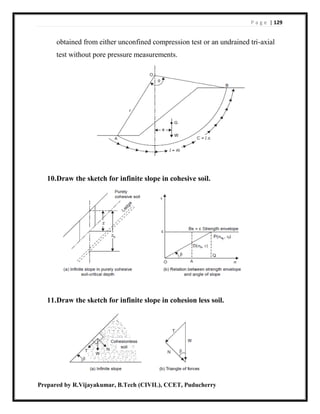

10.Draw the sketch for infinite slope in cohesive soil.
11.Draw the sketch for infinite slope in cohesion less soil.

P a g e | 130
12.Draw the sketch for infinite slope in cohesive frictional soil.
13.What are the effects on tension crack?
 It modifies the slip surface and reduces the length of the slip surface
 It is usually filled with water and produces hydrostatic pressure along
the depth
 It acts as channel for water to flow into underlying soil layers,
inducing seepage forces
 It reduces the factor of safety
If a tension crack of depth 𝑧0 =
2 𝑐
𝛾
develops, water will enter in the
crack, exerting a hydrostatic pressure force Pw acting on the portion DE at a
height z0/3 from E. Hence the arc portion DE will be ineffective in resisting
the slide.
14.Draw the effect of tension cracks on stability.
In case of cohesive soil when the slope is on the verge slippage there
develops a tension crack at the top of the slope.

P a g e | 131

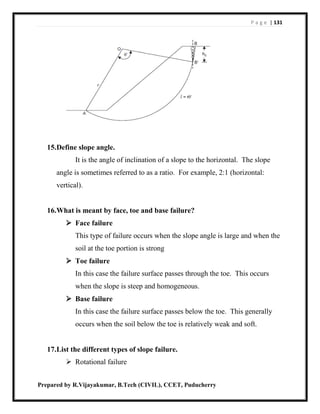

15.Define slope angle.
It is the angle of inclination of a slope to the horizontal. The slope
angle is sometimes referred to as a ratio. For example, 2:1 (horizontal:
vertical).
16.What is meant by face, toe and base failure?
 Face failure
This type of failure occurs when the slope angle is large and when the
soil at the toe portion is strong
 Toe failure
In this case the failure surface passes through the toe. This occurs
when the slope is steep and homogeneous.
 Base failure
In this case the failure surface passes below the toe. This generally
occurs when the soil below the toe is relatively weak and soft.

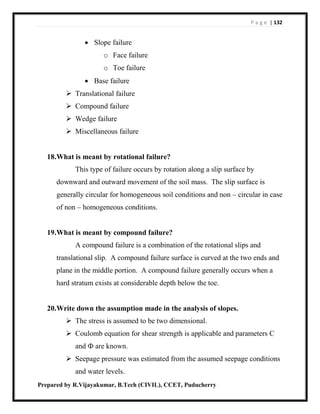

17.List the different types of slope failure.
 Rotational failure

P a g e | 132
 Slope failure
o Face failure
o Toe failure
 Base failure
 Translational failure
 Compound failure
 Wedge failure
 Miscellaneous failure
18.What is meant by rotational failure?
This type of failure occurs by rotation along a slip surface by
downward and outward movement of the soil mass. The slip surface is
generally circular for homogeneous soil conditions and non – circular in case
of non – homogeneous conditions.
19.What is meant by compound failure?
A compound failure is a combination of the rotational slips and
translational slip. A compound failure surface is curved at the two ends and
plane in the middle portion. A compound failure generally occurs when a
hard stratum exists at considerable depth below the toe.
20.Write down the assumption made in the analysis of slopes.
 The stress is assumed to be two dimensional.
 Coulomb equation for shear strength is applicable and parameters C
and Ф are known.
 Seepage pressure was estimated from the assumed seepage conditions
and water levels.

P a g e | 133

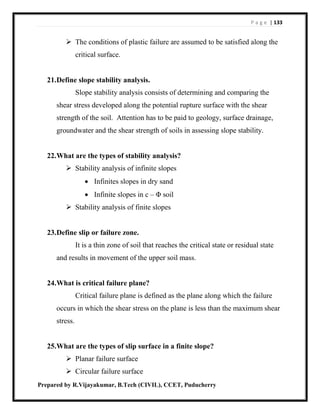

 The conditions of plastic failure are assumed to be satisfied along the
critical surface.
21.Define slope stability analysis.
Slope stability analysis consists of determining and comparing the
shear stress developed along the potential rupture surface with the shear
strength of the soil. Attention has to be paid to geology, surface drainage,
groundwater and the shear strength of soils in assessing slope stability.
22.What are the types of stability analysis?
 Stability analysis of infinite slopes
 Infinites slopes in dry sand
 Infinite slopes in c – Φ soil
 Stability analysis of finite slopes
23.Define slip or failure zone.
It is a thin zone of soil that reaches the critical state or residual state
and results in movement of the upper soil mass.
24.What is critical failure plane?
Critical failure plane is defined as the plane along which the failure
occurs in which the shear stress on the plane is less than the maximum shear
stress.
25.What are the types of slip surface in a finite slope?
 Planar failure surface
 Circular failure surface

P a g e | 134
 Non – circular failure surface
26.What do you mean by planar failure surface?
Planar failure surface may commonly occur in a soil deposit or
embankment with a specific plane of weakness. It is common in stratified
deposit and the failure plane is parallel to the strata.
27.Where does a non – circular (composite) slip surface occur in a
homogeneous dam?
 Foundation of infinite depth
 Rigid boundary planes of maximum or zero Shear
 Presence of relatively stronger or weaker layers.
28.What is landslip?
A landslide, also known as a landslip, is a form of mass wasting that
includes a wide range of ground movements, such as rock falls, deep failure
of slopes, and shallow debris flows. Landslides can occur in underwater,
called a submarine landslide, coastal and onshore environments.
29.Write about the uses of friction circle method.
This method uses total stress based limit equilibrium approach. In this
method the equilibrium of the resultant weight (W), the reaction (p) due to
frictional resistance and the cohesive force (c) are considered. The
magnitude direction and line of action of resultant weight (W), the line of
action of the reaction force (p) and the cohesive force (c) being known the
magnitude of p and c are determined by considering the triangle of forces.

P a g e | 135
The friction circle method is useful for the stability analysis of slopes
made of homogeneous soils. In this method, the slip surface is assumed to
be an arc of a circle.

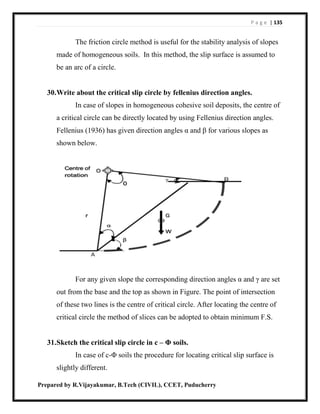

30.Write about the critical slip circle by fellenius direction angles.
In case of slopes in homogeneous cohesive soil deposits, the centre of
a critical circle can be directly located by using Fellenius direction angles.
Fellenius (1936) has given direction angles α and β for various slopes as
shown below.
For any given slope the corresponding direction angles α and γ are set
out from the base and the top as shown in Figure. The point of intersection
of these two lines is the centre of critical circle. After locating the centre of
critical circle the method of slices can be adopted to obtain minimum F.S.
31.Sketch the critical slip circle in c – Φ soils.
In case of c-Φ soils the procedure for locating critical slip surface is
slightly different.

P a g e | 136

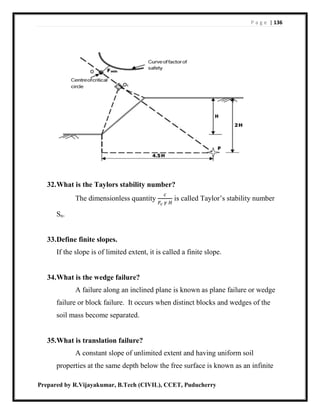

32.What is the Taylors stability number?
The dimensionless quantity
𝑐
𝐹𝑐 𝛾 𝐻
is called Taylor’s stability number
Sn.
33.Define finite slopes.
If the slope is of limited extent, it is called a finite slope.
34.What is the wedge failure?
A failure along an inclined plane is known as plane failure or wedge
failure or block failure. It occurs when distinct blocks and wedges of the
soil mass become separated.
35.What is translation failure?
A constant slope of unlimited extent and having uniform soil
properties at the same depth below the free surface is known as an infinite

P a g e | 137
slope. In practice, the slopes which are of considerable extent and in which
the conditions on all verticals are adequately represented by average
conditions are designated as infinite slopes. Translation failure occurs in an
infinite slope along a long failure surface parallel to the slope. The shape of
the failure surface is influenced by the presence of any hard stratum at a
shallow depth below the slope surface. Translational failures may also occur
along slopes of layered materials.

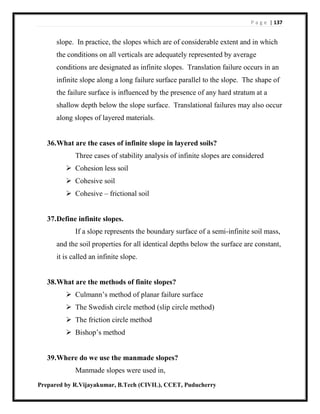

36.What are the cases of infinite slope in layered soils?
Three cases of stability analysis of infinite slopes are considered
 Cohesion less soil
 Cohesive soil
 Cohesive – frictional soil
37.Define infinite slopes.
If a slope represents the boundary surface of a semi-infinite soil mass,
and the soil properties for all identical depths below the surface are constant,
it is called an infinite slope.
38.What are the methods of finite slopes?
 Culmann’s method of planar failure surface
 The Swedish circle method (slip circle method)
 The friction circle method
 Bishop’s method
39.Where do we use the manmade slopes?
Manmade slopes were used in,

P a g e | 138
 Highways
 Railways
 Earth dams
 River training works

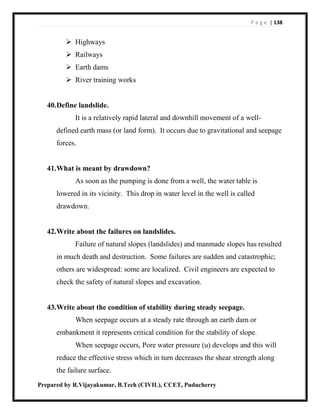

40.Define landslide.
It is a relatively rapid lateral and downhill movement of a well-
defined earth mass (or land form). It occurs due to gravitational and seepage
forces.
41.What is meant by drawdown?
As soon as the pumping is done from a well, the water table is
lowered in its vicinity. This drop in water level in the well is called
drawdown.
42.Write about the failures on landslides.
Failure of natural slopes (landslides) and manmade slopes has resulted
in much death and destruction. Some failures are sudden and catastrophic;
others are widespread: some are localized. Civil engineers are expected to
check the safety of natural slopes and excavation.
43.Write about the condition of stability during steady seepage.
When seepage occurs at a steady rate through an earth dam or
embankment it represents critical condition for the stability of slope.
When seepage occurs, Pore water pressure (u) develops and this will
reduce the effective stress which in turn decreases the shear strength along
the failure surface.

P a g e | 139

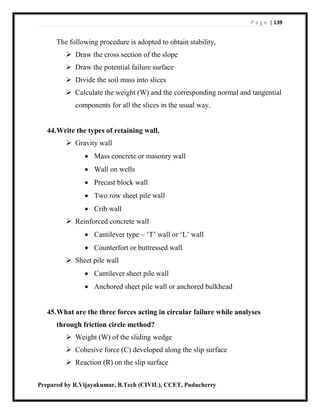

The following procedure is adopted to obtain stability,
 Draw the cross section of the slope
 Draw the potential failure surface
 Divide the soil mass into slices
 Calculate the weight (W) and the corresponding normal and tangential
components for all the slices in the usual way.
44.Write the types of retaining wall.
 Gravity wall
 Mass concrete or masonry wall
 Wall on wells
 Precast block wall
 Two row sheet pile wall
 Crib wall
 Reinforced concrete wall
 Cantilever type – ‘T’ wall or ‘L’ wall
 Counterfort or buttressed wall
 Sheet pile wall
 Cantilever sheet pile wall
 Anchored sheet pile wall or anchored bulkhead
45.What are the three forces acting in circular failure while analyses
through friction circle method?
 Weight (W) of the sliding wedge
 Cohesive force (C) developed along the slip surface
 Reaction (R) on the slip surface

P a g e | 140

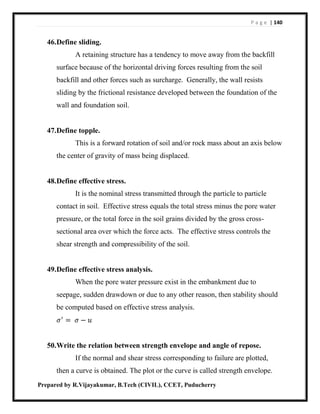

46.Define sliding.
A retaining structure has a tendency to move away from the backfill
surface because of the horizontal driving forces resulting from the soil
backfill and other forces such as surcharge. Generally, the wall resists
sliding by the frictional resistance developed between the foundation of the
wall and foundation soil.
47.Define topple.
This is a forward rotation of soil and/or rock mass about an axis below
the center of gravity of mass being displaced.
48.Define effective stress.
It is the nominal stress transmitted through the particle to particle
contact in soil. Effective stress equals the total stress minus the pore water
pressure, or the total force in the soil grains divided by the gross cross-
sectional area over which the force acts. The effective stress controls the
shear strength and compressibility of the soil.
49.Define effective stress analysis.
When the pore water pressure exist in the embankment due to
seepage, sudden drawdown or due to any other reason, then stability should
be computed based on effective stress analysis.
𝜎′
= 𝜎 − 𝑢
50.Write the relation between strength envelope and angle of repose.
If the normal and shear stress corresponding to failure are plotted,
then a curve is obtained. The plot or the curve is called strength envelope.

P a g e | 141

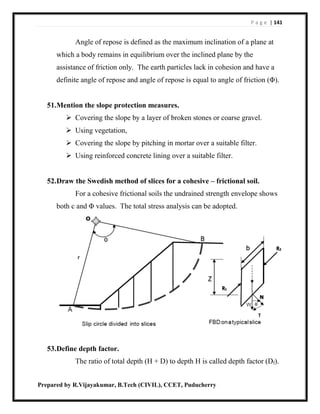

Angle of repose is defined as the maximum inclination of a plane at
which a body remains in equilibrium over the inclined plane by the
assistance of friction only. The earth particles lack in cohesion and have a
definite angle of repose and angle of repose is equal to angle of friction (Φ).
51.Mention the slope protection measures.
 Covering the slope by a layer of broken stones or coarse gravel.
 Using vegetation,
 Covering the slope by pitching in mortar over a suitable filter.
 Using reinforced concrete lining over a suitable filter.
52.Draw the Swedish method of slices for a cohesive – frictional soil.
For a cohesive frictional soils the undrained strength envelope shows
both c and Φ values. The total stress analysis can be adopted.
53.Define depth factor.
The ratio of total depth (H + D) to depth H is called depth factor (Df).

P a g e | 142
 For toe failure, Df = 1
 For base failure, Df > 1

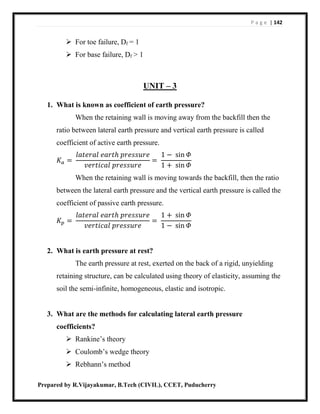

UNIT – 3
1. What is known as coefficient of earth pressure?
When the retaining wall is moving away from the backfill then the
ratio between lateral earth pressure and vertical earth pressure is called
coefficient of active earth pressure.
𝐾𝑎 =
𝑙𝑎𝑡𝑒𝑟𝑎𝑙 𝑒𝑎𝑟𝑡ℎ 𝑝𝑟𝑒𝑠𝑠𝑢𝑟𝑒
𝑣𝑒𝑟𝑡𝑖𝑐𝑎𝑙 𝑝𝑟𝑒𝑠𝑠𝑢𝑟𝑒
=
1 − sin 𝛷
1 + sin 𝛷
When the retaining wall is moving towards the backfill, then the ratio
between the lateral earth pressure and the vertical earth pressure is called the
coefficient of passive earth pressure.
𝐾𝑝 =
=
1 + sin 𝛷
1 − sin 𝛷
2. What is earth pressure at rest?
The earth pressure at rest, exerted on the back of a rigid, unyielding
retaining structure, can be calculated using theory of elasticity, assuming the
soil the semi-infinite, homogeneous, elastic and isotropic.
3. What are the methods for calculating lateral earth pressure
coefficients?
 Rankine’s theory
 Coulomb’s wedge theory
 Rebhann’s method

P a g e | 143
 Culmann’s method
4. What is surcharge?
The position of backfill lying above a horizontal plane at the elevation
of the top of the wall is called the surcharge, and its inclination to the
horizontal is called surcharge angle β.
5. What is the angle of wall friction?
The resultant pressure acts on the back of the wall at one third the
height of the wall from the base and is inclined at an angle δ is called the
angle of wall friction.
6. Define surcharge load.
A surcharge load results from forces that are applied along the surface
of the backfill behind the wall. These forces apply an additional lateral force
along the back of the wall. Surcharge pressures result from loads such as a
line load, strip load, embankment load, traffic (such as a parking lot), floor
loads and temporary loads such as construction traffic and stockpiles of
material.
7. What is meant by conjugate plane and conjugate stresses?
In finding out the active earth pressure for the backfill with sloping
surface by Rankine’s theory, an additional assumption that the vertical and
lateral stresses are conjugate is made. It can be shown that if the stress on a
given plane at a given point is parallel to another plane, the stress on the
latter plane at the same point must be parallel to the first plane. Such planes

P a g e | 144
are called the conjugate planes and the stresses acting on them are called
conjugate stresses.

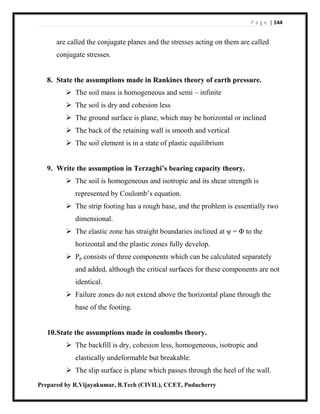

8. State the assumptions made in Rankines theory of earth pressure.
 The soil mass is homogeneous and semi – infinite
 The soil is dry and cohesion less
 The ground surface is plane, which may be horizontal or inclined
 The back of the retaining wall is smooth and vertical
 The soil element is in a state of plastic equilibrium
9. Write the assumption in Terzaghi’s bearing capacity theory.
 The soil is homogeneous and isotropic and its shear strength is
represented by Coulomb’s equation.
 The strip footing has a rough base, and the problem is essentially two
dimensional.
 The elastic zone has straight boundaries inclined at ψ = Φ to the
horizontal and the plastic zones fully develop.
 Pp consists of three components which can be calculated separately
and added, although the critical surfaces for these components are not
identical.
 Failure zones do not extend above the horizontal plane through the
base of the footing.
10.State the assumptions made in coulombs theory.
 The backfill is dry, cohesion less, homogeneous, isotropic and
elastically undeformable but breakable.
 The slip surface is plane which passes through the heel of the wall.

P a g e | 145
 The sliding wedge itself acts as a rigid body and the value of earth
pressure is obtained by considering the limiting equilibrium of the
sliding wedge as a whole.
 The position and direction of the resultant earth pressure are known.
11.Compare Rankine’s and Coulomb’s theory.
RANKINE’S THEORY COULOMB’S THEORY
The intensity of earth pressure at
each depth is known. So point of
application of the earth pressure is
known at any depth.
Only the total earth pressure value
acting on the retaining structures
can be calculated. The point of
application of earth pressure can be
calculated from Coulomb’s
assumption that all points on the
back of the retaining wall are
essentially considered as feet of
failure surface.
Wall is smooth and vertical. Wall is rough and sloped.
Wall moved sufficiently so soil is in
plastic failure mass.
Wall is rigid, straight failure plane
and rigid failure wedge.
12.Define coulomb theory.
Coulomb, in 1776, developed an earth pressure theory which includes
the effect of friction between the backfill and the wall. The theory considers
a dry, non – cohesive inclined backfill, and the lateral earth pressure
required to maintain the equilibrium of a sliding wedge with a plane slip
surface is calculated.

P a g e | 146

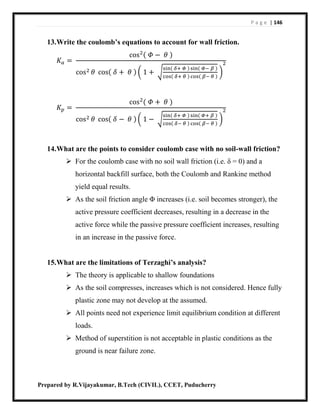

13.Write the coulomb’s equations to account for wall friction.
𝐾𝑎 =
cos2( 𝛷 − 𝜃 )
cos2 𝜃 cos( 𝛿 + 𝜃 ) ( 1 + √
sin( 𝛿+ 𝛷 ) sin( 𝛷− 𝛽 )
cos( 𝛿+ 𝜃 ) cos( 𝛽− 𝜃 )
)
2
𝐾𝑝 =
cos2
( 𝛷 + 𝜃 )
cos2 𝜃 cos( 𝛿 − 𝜃 ) ( 1 − √
sin( 𝛿+ 𝛷 ) sin( 𝛷+ 𝛽 )
cos( 𝛿− 𝜃 ) cos( 𝛽− 𝜃 )
)
2
14.What are the points to consider coulomb case with no soil-wall friction?
 For the coulomb case with no soil wall friction (i.e. δ = 0) and a
horizontal backfill surface, both the Coulomb and Rankine method
yield equal results.
 As the soil friction angle Φ increases (i.e. soil becomes stronger), the
active pressure coefficient decreases, resulting in a decrease in the
active force while the passive pressure coefficient increases, resulting
in an increase in the passive force.
15.What are the limitations of Terzaghi’s analysis?
 The theory is applicable to shallow foundations
 As the soil compresses, increases which is not considered. Hence fully
plastic zone may not develop at the assumed.
 All points need not experience limit equilibrium condition at different
loads.
 Method of superstition is not acceptable in plastic conditions as the
ground is near failure zone.

P a g e | 147

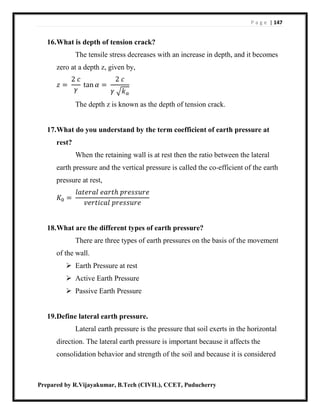

16.What is depth of tension crack?
The tensile stress decreases with an increase in depth, and it becomes
zero at a depth z, given by,
𝑧 =
2 𝑐
𝛾
tan 𝛼 =
2 𝑐
𝛾 √𝑘 𝑎
The depth z is known as the depth of tension crack.
17.What do you understand by the term coefficient of earth pressure at
rest?
When the retaining wall is at rest then the ratio between the lateral
earth pressure and the vertical pressure is called the co-efficient of the earth
pressure at rest,
𝐾0 =
18.What are the different types of earth pressure?
There are three types of earth pressures on the basis of the movement
of the wall.
 Earth Pressure at rest
 Active Earth Pressure
 Passive Earth Pressure
19.Define lateral earth pressure.
Lateral earth pressure is the pressure that soil exerts in the horizontal
direction. The lateral earth pressure is important because it affects the
consolidation behavior and strength of the soil and because it is considered

P a g e | 148
in the design of geotechnical engineering structures such as retaining walls,
basements, tunnels, deep foundations and braced excavations.
20.Define passive earth pressure.
When the wall moves towards the backfill, there is an increase in the
pressure on the wall and this increase continues until a maximum value is
reaches after which there is no increase in the pressure and the value will
become constant. This kind of pressure is known as passive earth pressure.
21.Define active earth pressure.
When the wall moves away from the backfill, there is a decrease in
the pressure on the wall and this decrease continues until a minimum value
is reaches after which there is no reduction in the pressure and the value will
become constant. This kind of pressure is known as active earth pressure.
22.Define earth pressure.
It is the lateral pressure exerted by a soil mass against an earth
retaining structure (or on a fictitious vertical plane located within a soil
mass).
23.What is a sheet pile wall?
A sheet pile wall consists of a series of sheet piles driven side by side
into the ground, thus forming a continuous vertical wall for the purpose of
retaining an earth bank. They are commonly used for water front structures,
temporary construction and light weight construction where sub – soil is
poor for supporting a retaining wall.

P a g e | 149
24.What are the other forces acting on the wall?
Other forces acting on the wall aside from the earth pressure force
acting on the wall, other forces might also act on the wall and these are
superimposed onto the earth pressure force. For example, these forces might
include,
 Surcharge load
 Earthquake load
 Water pressure
25.What do you understand by plastic equilibrium of soils?
A body of soil is said to be in plastic equilibrium, if every point of it is
on the verge of failure.
26.Why retaining walls are usually designed for active pressure?
From Rankine’s assumption, no existence of frictional forces at the
wall face. The resultant pressure must be parallel to the surface of the
backfill. The existence of the friction makes the resultant pressure inclined
to the normal to the wall at an angle that approaches the friction angle
between the soil and the wall.

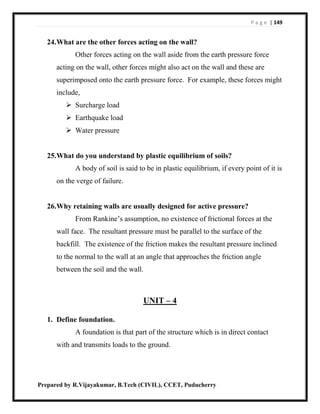

UNIT – 4
1. Define foundation.
A foundation is that part of the structure which is in direct contact
with and transmits loads to the ground.

P a g e | 150

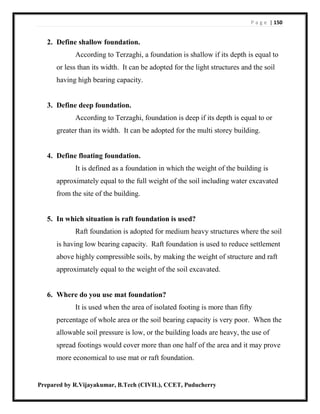

2. Define shallow foundation.
According to Terzaghi, a foundation is shallow if its depth is equal to
or less than its width. It can be adopted for the light structures and the soil
having high bearing capacity.
3. Define deep foundation.
According to Terzaghi, foundation is deep if its depth is equal to or
greater than its width. It can be adopted for the multi storey building.
4. Define floating foundation.
It is defined as a foundation in which the weight of the building is
approximately equal to the full weight of the soil including water excavated
from the site of the building.
5. In which situation is raft foundation is used?
Raft foundation is adopted for medium heavy structures where the soil
is having low bearing capacity. Raft foundation is used to reduce settlement
above highly compressible soils, by making the weight of structure and raft
approximately equal to the weight of the soil excavated.
6. Where do you use mat foundation?
It is used when the area of isolated footing is more than fifty
percentage of whole area or the soil bearing capacity is very poor. When the
allowable soil pressure is low, or the building loads are heavy, the use of
spread footings would cover more than one half of the area and it may prove
more economical to use mat or raft foundation.

P a g e | 151
7. When trapezoidal combined footings are provided?
 When the projection parallel to the length of the footing is restricted
on both the sides.
 When the length of the footing is restricted.
8. Under what circumstances, a strap footing is adopted?
When the distance between the two columns is so great, so that
trapezoidal footing is very narrow and so it is uneconomical. It transfers the
heavy load of one column to other column.
9. What is the function of strap beam in a strap footing?
The strap connects the two isolated footing such that they behave as
one unit. The strap simply acts as a connecting beam.
10.What is meant by foundation soil?
It is the upper part of the earth mass carrying the load of the structure.
11.Sketch the contact pressure distribution diagram for a rigid footing on
sand and clay.
12.Write the equation for shear strength of soil.
𝑆 = 𝑐 + 𝜎 𝑡𝑎𝑛𝛷
Where,
S = shear stress

P a g e | 152
σ = normal stress
c = cohesion
Φ = angle of internal friction

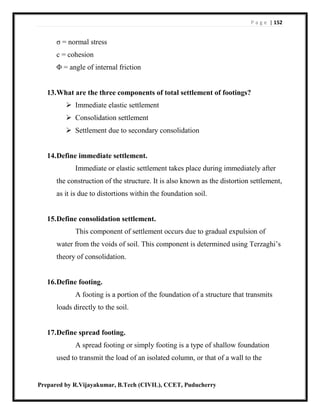

13.What are the three components of total settlement of footings?
 Immediate elastic settlement
 Consolidation settlement
 Settlement due to secondary consolidation
14.Define immediate settlement.
Immediate or elastic settlement takes place during immediately after
the construction of the structure. It is also known as the distortion settlement,
as it is due to distortions within the foundation soil.
15.Define consolidation settlement.
This component of settlement occurs due to gradual expulsion of
water from the voids of soil. This component is determined using Terzaghi’s
theory of consolidation.
16.Define footing.
A footing is a portion of the foundation of a structure that transmits
loads directly to the soil.
17.Define spread footing.
A spread footing or simply footing is a type of shallow foundation
used to transmit the load of an isolated column, or that of a wall to the

P a g e | 153
subsoil. This is most common type of foundation. The base of the column
or wall is enlarged or spread to provide individual support for the load.
18.What is a mat foundation?
It is a combined footing that covers the entire area beneath a structure
and supports all the walls and columns.
19.List the various factors affecting the bearing capacity of soil.
 Nature of soil and its physical and engineering properties
 Nature of the foundation and other details such as the size, shape,
depth below the ground surface and rigidity of the structure
 Total and differential settlements that the structure can withstand
without functional failure
 Location of the ground water table relative to the level of the
foundation
 Initial stresses, if any
20.A footing was designed based on ultimate bearing capacity arrived for
the condition of water table at the ground surface. If there is a chance
for rise in water level much above the ground level do you expect any
change in the bearing capacity, why?
The raise in water level above the ground level would not change the
bearing capacity of the soil. Because the soil under submerged condition
when the water reaches the ground surface. Therefore the water above the
ground level does not affect the unit weight of soil.

P a g e | 154
21.What is the effect of rise of water table on the bearing capacity and the
settlement of a footing on sand?
The pressure of water affects the unit weight of soil. Hence bearing
capacity is affected due to the effect of water table. For practical purpose it
is more sensitive when the water table rises above depth 13m from footing.
22.List the types of bearing capacity failure (or) modes of failure.
 General shear failure
 Local shear failure
 Punching shear failure
23.Define general shear failure.
General shear failure results in a clearly defined plastic yield slip
surface beneath the footing and spreads out one or both sides, eventually to
the ground surface. Failure is sudden and will often be accompanied by
severe tilting generally associated with heaving. This type of failure occurs
in dense sand or stiff clay.
24.Define local shear failure.
Local shear failure results in considerable vertical displacement prior
to the development of noticeable shear planes. These shear planes do not
generally extend to the soil surface, but some adjacent bulging may be
observed, but little tilting of the structure results. This shear failure occurs
for loose sand and soft clay.

P a g e | 155

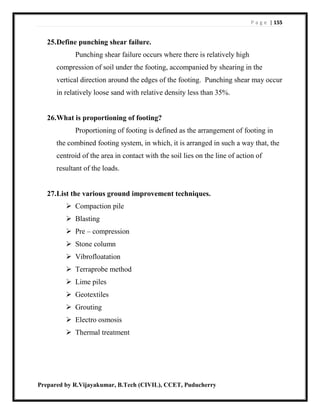

25.Define punching shear failure.
Punching shear failure occurs where there is relatively high
compression of soil under the footing, accompanied by shearing in the
vertical direction around the edges of the footing. Punching shear may occur
in relatively loose sand with relative density less than 35%.
26.What is proportioning of footing?
Proportioning of footing is defined as the arrangement of footing in
the combined footing system, in which, it is arranged in such a way that, the
centroid of the area in contact with the soil lies on the line of action of
resultant of the loads.
27.List the various ground improvement techniques.
 Compaction pile
 Blasting
 Pre – compression
 Stone column
 Vibrofloatation
 Terraprobe method
 Lime piles
 Geotextiles
 Grouting
 Electro osmosis
 Thermal treatment

P a g e | 156

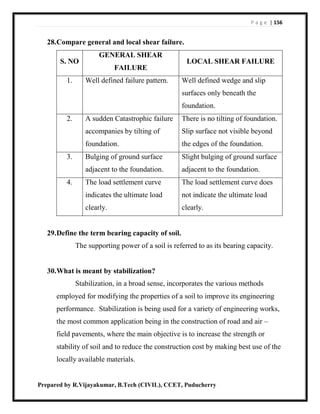

28.Compare general and local shear failure.
S. NO
GENERAL SHEAR
FAILURE
LOCAL SHEAR FAILURE
1. Well defined failure pattern. Well defined wedge and slip
surfaces only beneath the
foundation.
2. A sudden Catastrophic failure
accompanies by tilting of
foundation.
There is no tilting of foundation.
Slip surface not visible beyond
the edges of the foundation.
3. Bulging of ground surface
adjacent to the foundation.
Slight bulging of ground surface
adjacent to the foundation.
4. The load settlement curve
indicates the ultimate load
clearly.
The load settlement curve does
not indicate the ultimate load
clearly.
29.Define the term bearing capacity of soil.
The supporting power of a soil is referred to as its bearing capacity.
30.What is meant by stabilization?
Stabilization, in a broad sense, incorporates the various methods
employed for modifying the properties of a soil to improve its engineering
performance. Stabilization is being used for a variety of engineering works,
the most common application being in the construction of road and air –
field pavements, where the main objective is to increase the strength or
stability of soil and to reduce the construction cost by making best use of the
locally available materials.

P a g e | 157

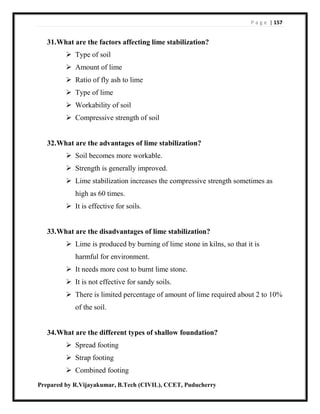

31.What are the factors affecting lime stabilization?
 Type of soil
 Amount of lime
 Ratio of fly ash to lime
 Type of lime
 Workability of soil
 Compressive strength of soil
32.What are the advantages of lime stabilization?
 Soil becomes more workable.
 Strength is generally improved.
 Lime stabilization increases the compressive strength sometimes as
high as 60 times.
 It is effective for soils.
33.What are the disadvantages of lime stabilization?
 Lime is produced by burning of lime stone in kilns, so that it is
harmful for environment.
 It needs more cost to burnt lime stone.
 It is not effective for sandy soils.
 There is limited percentage of amount of lime required about 2 to 10%
of the soil.
34.What are the different types of shallow foundation?
 Spread footing
 Strap footing
 Combined footing

P a g e | 158
 Mat or raft footing
 Strip footing
 Wall footing

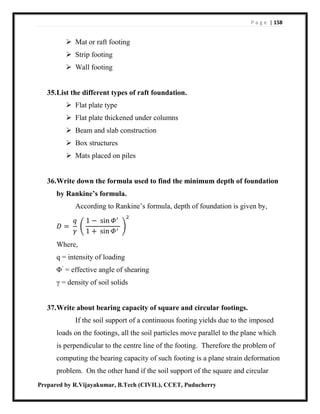

35.List the different types of raft foundation.
 Flat plate type
 Flat plate thickened under columns
 Beam and slab construction
 Box structures
 Mats placed on piles
36.Write down the formula used to find the minimum depth of foundation
by Rankine’s formula.
According to Rankine’s formula, depth of foundation is given by,
𝐷 =
𝑞
𝛾
(
1 − sin 𝛷′
1 + sin 𝛷′
)
2
Where,
q = intensity of loading
Φ’
= effective angle of shearing
γ = density of soil solids
37.Write about bearing capacity of square and circular footings.
If the soil support of a continuous footing yields due to the imposed
loads on the footings, all the soil particles move parallel to the plane which
is perpendicular to the centre line of the footing. Therefore the problem of
computing the bearing capacity of such footing is a plane strain deformation
problem. On the other hand if the soil support of the square and circular

P a g e | 159

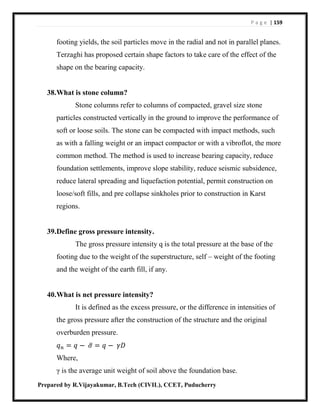

footing yields, the soil particles move in the radial and not in parallel planes.
Terzaghi has proposed certain shape factors to take care of the effect of the
shape on the bearing capacity.
38.What is stone column?
Stone columns refer to columns of compacted, gravel size stone
particles constructed vertically in the ground to improve the performance of
soft or loose soils. The stone can be compacted with impact methods, such
as with a falling weight or an impact compactor or with a vibroflot, the more
common method. The method is used to increase bearing capacity, reduce
foundation settlements, improve slope stability, reduce seismic subsidence,
reduce lateral spreading and liquefaction potential, permit construction on
loose/soft fills, and pre collapse sinkholes prior to construction in Karst
regions.
39.Define gross pressure intensity.
The gross pressure intensity q is the total pressure at the base of the
footing due to the weight of the superstructure, self – weight of the footing
and the weight of the earth fill, if any.
40.What is net pressure intensity?
It is defined as the excess pressure, or the difference in intensities of
the gross pressure after the construction of the structure and the original
overburden pressure.
𝑞 𝑛 = 𝑞 − 𝜎̅ = 𝑞 − 𝛾𝐷
Where,
γ is the average unit weight of soil above the foundation base.

P a g e | 160

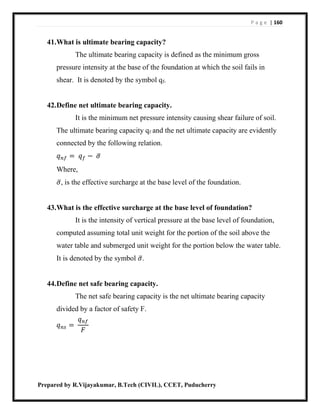

41.What is ultimate bearing capacity?
The ultimate bearing capacity is defined as the minimum gross
pressure intensity at the base of the foundation at which the soil fails in
shear. It is denoted by the symbol qf.
42.Define net ultimate bearing capacity.
It is the minimum net pressure intensity causing shear failure of soil.
The ultimate bearing capacity qf and the net ultimate capacity are evidently
connected by the following relation.
𝑞 𝑛𝑓 = 𝑞 𝑓 − 𝜎̅
Where,
𝜎̅, is the effective surcharge at the base level of the foundation.
43.What is the effective surcharge at the base level of foundation?
It is the intensity of vertical pressure at the base level of foundation,
computed assuming total unit weight for the portion of the soil above the
water table and submerged unit weight for the portion below the water table.
It is denoted by the symbol 𝜎̅.
44.Define net safe bearing capacity.
The net safe bearing capacity is the net ultimate bearing capacity
divided by a factor of safety F.
𝑞 𝑛𝑠 =
𝑞 𝑛𝑓
𝐹

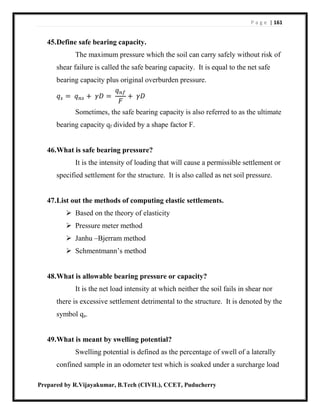

P a g e | 161
45.Define safe bearing capacity.
The maximum pressure which the soil can carry safely without risk of
shear failure is called the safe bearing capacity. It is equal to the net safe
bearing capacity plus original overburden pressure.
𝑞 𝑠 = 𝑞 𝑛𝑠 + 𝛾𝐷 =
𝑞 𝑛𝑓
𝐹
+ 𝛾𝐷
Sometimes, the safe bearing capacity is also referred to as the ultimate
bearing capacity qf divided by a shape factor F.
46.What is safe bearing pressure?
It is the intensity of loading that will cause a permissible settlement or
specified settlement for the structure. It is also called as net soil pressure.
47.List out the methods of computing elastic settlements.
 Based on the theory of elasticity
 Pressure meter method
 Janhu –Bjerram method
 Schmentmann’s method
48.What is allowable bearing pressure or capacity?
It is the net load intensity at which neither the soil fails in shear nor
there is excessive settlement detrimental to the structure. It is denoted by the
symbol qa.
49.What is meant by swelling potential?
Swelling potential is defined as the percentage of swell of a laterally
confined sample in an odometer test which is soaked under a surcharge load

P a g e | 162

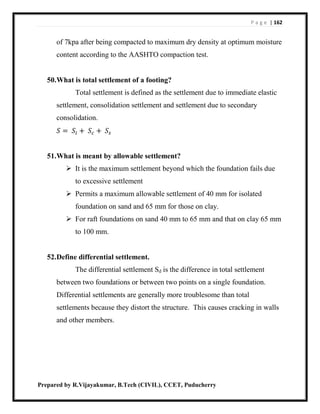

of 7kpa after being compacted to maximum dry density at optimum moisture
content according to the AASHTO compaction test.
50.What is total settlement of a footing?
Total settlement is defined as the settlement due to immediate elastic
settlement, consolidation settlement and settlement due to secondary
consolidation.
𝑆 = 𝑆𝑖 + 𝑆𝑐 + 𝑆𝑠
51.What is meant by allowable settlement?
 It is the maximum settlement beyond which the foundation fails due
to excessive settlement
 Permits a maximum allowable settlement of 40 mm for isolated
foundation on sand and 65 mm for those on clay.
 For raft foundations on sand 40 mm to 65 mm and that on clay 65 mm
to 100 mm.
52.Define differential settlement.
The differential settlement Sd is the difference in total settlement
between two foundations or between two points on a single foundation.
Differential settlements are generally more troublesome than total
settlements because they distort the structure. This causes cracking in walls
and other members.

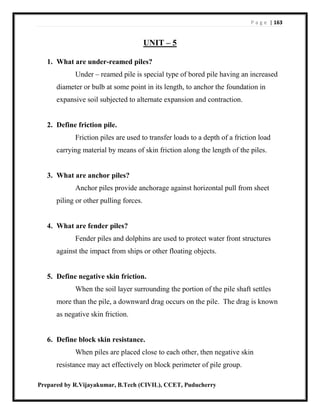

P a g e | 163
UNIT – 5
1. What are under-reamed piles?
Under – reamed pile is special type of bored pile having an increased
diameter or bulb at some point in its length, to anchor the foundation in
expansive soil subjected to alternate expansion and contraction.
2. Define friction pile.
Friction piles are used to transfer loads to a depth of a friction load
carrying material by means of skin friction along the length of the piles.
3. What are anchor piles?
Anchor piles provide anchorage against horizontal pull from sheet
piling or other pulling forces.
4. What are fender piles?
Fender piles and dolphins are used to protect water front structures
against the impact from ships or other floating objects.
5. Define negative skin friction.
When the soil layer surrounding the portion of the pile shaft settles
more than the pile, a downward drag occurs on the pile. The drag is known
as negative skin friction.
6. Define block skin resistance.
When piles are placed close to each other, then negative skin
resistance may act effectively on block perimeter of pile group.

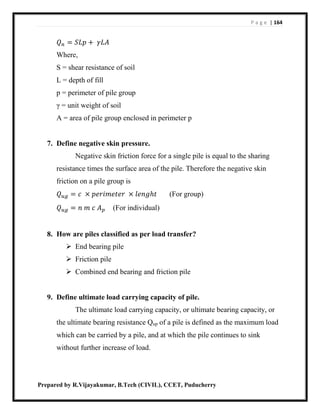

P a g e | 164
𝑄 𝑛 = 𝑆𝐿𝑝 + 𝛾𝐿𝐴
Where,
S = shear resistance of soil
L = depth of fill
p = perimeter of pile group
γ = unit weight of soil
A = area of pile group enclosed in perimeter p
7. Define negative skin pressure.
Negative skin friction force for a single pile is equal to the sharing
resistance times the surface area of the pile. Therefore the negative skin
friction on a pile group is
𝑄 𝑢𝑔 = 𝑐 × 𝑝𝑒𝑟𝑖𝑚𝑒𝑡𝑒𝑟 × 𝑙𝑒𝑛𝑔ℎ𝑡 (For group)
𝑄 𝑢𝑔 = 𝑛 𝑚 𝑐 𝐴 𝑝 (For individual)
8. How are piles classified as per load transfer?
 End bearing pile
 Friction pile
 Combined end bearing and friction pile
9. Define ultimate load carrying capacity of pile.
The ultimate load carrying capacity, or ultimate bearing capacity, or
the ultimate bearing resistance Qup of a pile is defined as the maximum load
which can be carried by a pile, and at which the pile continues to sink
without further increase of load.

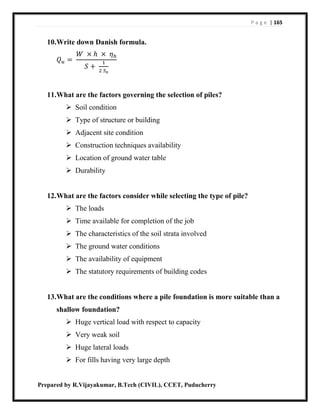

P a g e | 165
10.Write down Danish formula.
𝑄 𝑢 =
𝑊 × ℎ × 𝜂ℎ
𝑆 +
1
2 𝑆 𝑜
11.What are the factors governing the selection of piles?
 Soil condition
 Type of structure or building
 Adjacent site condition
 Construction techniques availability
 Location of ground water table
 Durability
12.What are the factors consider while selecting the type of pile?
 The loads
 Time available for completion of the job
 The characteristics of the soil strata involved
 The ground water conditions
 The availability of equipment
 The statutory requirements of building codes
13.What are the conditions where a pile foundation is more suitable than a
shallow foundation?
 Huge vertical load with respect to capacity
 Very weak soil
 Huge lateral loads
 For fills having very large depth

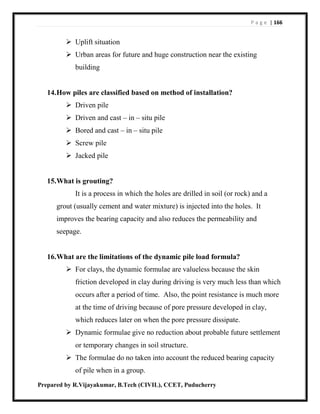

P a g e | 166
 Uplift situation
 Urban areas for future and huge construction near the existing
building
14.How piles are classified based on method of installation?
 Driven pile
 Driven and cast – in – situ pile
 Bored and cast – in – situ pile
 Screw pile
 Jacked pile
15.What is grouting?
It is a process in which the holes are drilled in soil (or rock) and a
grout (usually cement and water mixture) is injected into the holes. It
improves the bearing capacity and also reduces the permeability and
seepage.
16.What are the limitations of the dynamic pile load formula?
 For clays, the dynamic formulae are valueless because the skin
friction developed in clay during driving is very much less than which
occurs after a period of time. Also, the point resistance is much more
at the time of driving because of pore pressure developed in clay,
which reduces later on when the pore pressure dissipate.
 Dynamic formulae give no reduction about probable future settlement
or temporary changes in soil structure.
 The formulae do no taken into account the reduced bearing capacity
of pile when in a group.

P a g e | 167
 Law of impact used for determining energy loss is not strictly valid
for piles subjected to restraining influence of the surrounding soil.
 In Hiley’s formula, a number of constants are involved, which are
difficult to determine.
17.What are the limitations of the dynamic pile load test?
 It is largely depends on the nature of the ground through which the
pile was driven to get down to finished level.
 It takes very little account of the effect of friction on sides of pile, and
this friction tends only to develop later.
18.List the limitations of plate load test.
 Size effect
 Scale effect
 Time effect
 Interpretation of failure load
 Reaction load
 Water table
19.List out the type of pile based on material used.
 Concrete pile
 Pre – cast
 Cast – in – situ
o Driven piles: case or uncased
o Bored piles: pressure piles and under reamed piles
 Timber pile
 Steel pile

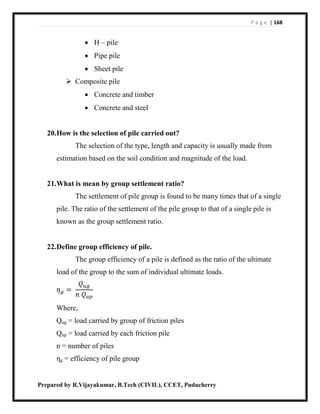

P a g e | 168
 H – pile
 Pipe pile
 Sheet pile
 Composite pile
 Concrete and timber
 Concrete and steel
20.How is the selection of pile carried out?
The selection of the type, length and capacity is usually made from
estimation based on the soil condition and magnitude of the load.
21.What is mean by group settlement ratio?
The settlement of pile group is found to be many times that of a single
pile. The ratio of the settlement of the pile group to that of a single pile is
known as the group settlement ratio.
22.Define group efficiency of pile.
The group efficiency of a pile is defined as the ratio of the ultimate
load of the group to the sum of individual ultimate loads.
𝜂 𝑔 =
𝑄 𝑢𝑔
𝑛 𝑄 𝑢𝑝
Where,
Qug = load carried by group of friction piles
Qup = load carried by each friction pile
n = number of piles
ηg = efficiency of pile group

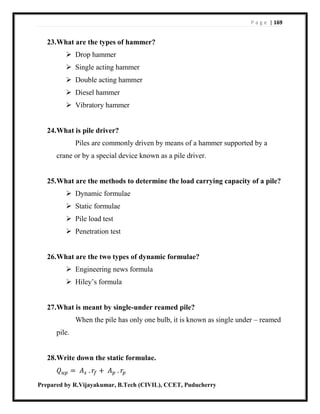

P a g e | 169
23.What are the types of hammer?
 Drop hammer
 Single acting hammer
 Double acting hammer
 Diesel hammer
 Vibratory hammer
24.What is pile driver?
Piles are commonly driven by means of a hammer supported by a
crane or by a special device known as a pile driver.
25.What are the methods to determine the load carrying capacity of a pile?
 Dynamic formulae
 Static formulae
 Pile load test
 Penetration test
26.What are the two types of dynamic formulae?
 Engineering news formula
 Hiley’s formula
27.What is meant by single-under reamed pile?
When the pile has only one bulb, it is known as single under – reamed
pile.
28.Write down the static formulae.
𝑄 𝑢𝑝 = 𝐴 𝑠 . 𝑟𝑓 + 𝐴 𝑝 . 𝑟𝑝

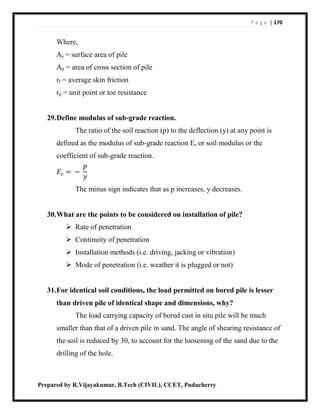

P a g e | 170
Where,
As = surface area of pile
Ap = area of cross section of pile
rf = average skin friction
rp = unit point or toe resistance
29.Define modulus of sub-grade reaction.
The ratio of the soil reaction (p) to the deflection (y) at any point is
defined as the modulus of sub-grade reaction Es or soil modulus or the
coefficient of sub-grade reaction.
𝐸𝑠 = −
𝑝
𝑦
The minus sign indicates that as p increases, y decreases.
30.What are the points to be considered on installation of pile?
 Rate of penetration
 Continuity of penetration
 Installation methods (i.e. driving, jacking or vibration)
 Mode of penetration (i.e. weather it is plugged or not)
31.For identical soil conditions, the load permitted on bored pile is lesser
than driven pile of identical shape and dimensions, why?
The load carrying capacity of bored cast in situ pile will be much
smaller than that of a driven pile in sand. The angle of shearing resistance of
the soil is reduced by 30, to account for the loosening of the sand due to the
drilling of the hole.

P a g e | 171
32.How will you determine the capacity of a pile?
The allowable load Qa is the safe load which the pile can carry safely
and is determined on the basis of,
 Ultimate bearing resistance divided by suitable factor of safety
 The permissible settlement
 Overall stability of the pile foundation
33.What is the use of batter pile?
The batter piles are used to resist large horizontal forces or inclined
forces.
34.Write about the plate bearing test.
Plate bearing test is a field test to determine the ultimate bearing
capacity of soil, and the probable settlement under a given loading. The test
essentially consists in loading a rigid plate at the foundation level, and
determining the settlements corresponding to each load increment. The
ultimate bearing capacity is then taken as the load at which the plate starts
sinking at a rapid rate. The method assumes that down to the depth of
influence of stresses, the soil stratum is reasonably uniform.

Geotechnical engineering 2

More Related Content

What's hot

Similar to Geotechnical engineering 2

More from R VIJAYAKUMAR

Recently uploaded

Geotechnical engineering 2
