GCMGoogle Cloud Messaging for Android
Niraj Singh

GCM: Introduction
• GCM (Google Cloud Messaging) is a free service that helps developers
send data from servers to their Android applications on Android devices.
• Using GCM we can push lightweight message to applications telling that
there is new data to be fetched from the server or
a message containing up to 4kb of payload data (e g: instant messaging
apps).
• This can eliminate continuous query to server for updates using
background services

GCM: Characteristics
• Allows 3rd-party application servers to send messages to their Android
applications.
• GCM makes no guarantees about delivery or the order of messages.
• Application on an Android device doesn't need to be running to receive
messages.
• Requires devices running Android 2.2 or higher (with Google Play Store
application installed), or an emulator running Android 2.2 with Google APIs.
• Uses an existing connection for Google services. For pre-3.0
devices, this requires users to set up their Google account on their mobile
devices. A Google account is not a requirement on devices running Android
4.0.4 or higher.

GCM: Architectural Overview
Key Terms: key terms and concepts involved in GCM are divided
into these categories.
• Components -The physical entities that playa role in GCM.
• Credentials -The IDs and tokens that are used in different stages of GCM
to ensure that all parties have been authenticated, and that the message
is going to the correct place.

GCM Architecture: Components
Components
• Mobile Device -The device that is running an Android application that uses
GCM. This must be a 2.2 Android device that has Google Play Store installed,
and it must have at least one logged in Google account if the device is running a
version lower than Android 4.0.4. Alternatively, for testing you can use an
emulator running Android 2.2 with Google APIs.
• 3rd-party Application Server - An application server that developers set up as
part of implementing GCM in their applications. The 3rd-party application
server sends data to an Android application on the device via the GCM server.
• GCM Servers - The Google servers involved in taking messages from the 3rd-
party application server and sending them to the device.

GCM Architecture: Credentials
Credentials
• Sender ID - A project ID you acquire from the API console to identify an
Android application that is permitted to send messages to the device.
• Application ID - The Android application that is registering to receive
messages.
• Registration ID - An ID issued by the GCM servers to the Android
application that allows it to receive messages.
• Google User Account - For GCM to work, the mobile device must include
at least one Google account if the device is running a version lower than
Android 4.0.4.
• Sender Auth Token - An API key that is saved on the 3rd-party application
server that gives the application server authorized access to Google
services.

GCM: Implementation
• Enabling GCM - An Android application running on a mobile device
registers to receive messages.
• Sending a Message - A 3rd-party application server sends messages to the
device. (we'll do it with php)
• Receiving a Message - An Android application receives a message from a
GCM server.

GCM: Implementation Steps (1)
• Goto https://code.google.com/apis/console
• Create a project - Project_Name
• Browser link has changed as https://code.google.com/apis/console/?
pli=1#project:351708780651:services
• it contains project id (94384365614 in this example)
• We required that in our application as sender id.

• In the main Google APIs Console page, select Services. Turn the Google Cloud Messaging toggle to ON. In
the Terms of Service page, accept the terms.

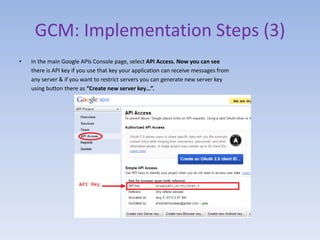

• In the main Google APIs Console page, select API Access. Now you can see
there is API key if you use that key your application can receive messages from
any server & if you want to restrict servers you can generate new server key
using button there as “Create new server key…”.

GCM: Implementation Steps (3.1)
Now we have Sender ID and API KEY
• Sender ID - 351708780651
• API KEY - AIzaSyBFhGpJswkvMxMTElfAQeMUskG13ii7s1Q

• Create new Android Project
• Copy the gcm.jar file from - SDK~PATH/extras/google/gcm/gcm-client/dist directory to your
application classpath. As external jar.

Permissions in Manifest
• INTERNET – To make your app use internet services.
<uses-permission android:name="android.permission.INTERNET" />
• ACCESS_NETWORK_STATE – To access network state (used to detect internet
status)
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
• GET_ACCOUNTS – Required as GCM needs google account
<uses-permission android:name="android.permission.GET_ACCOUNTS" />

Permissions in Manifest
• WAKE_LOCK – Needed if your app need to wake your device when it sleeps
<uses-permission android:name="android.permission.WAKE_LOCK" />
• VIBRATE – Needed if your support vibration when receiving notification Also add
some broadcast receivers as mentioned below.
<uses-permission android:name="android.permission.VIBRATE" />

• Add GCM Receiver
BroadcastReceiver that will receive intent from GCM Services and handle them
To the custom Intent Services.
<receiver
android:name="com.google.android.gcm.GCMBroadcastReceiver"
android:permission="com.google.android.c2dm.permission.SEND" >
<intent-filter>

<action android:name="com.google.android.c2dm.intent.RECEIVE" />

<action android:name="com.google.android.c2dm.intent.REGISTRATION" />
<category android:name="com.androidexample.gcm" />
</intent-filter>
</receiver>

• Add GCMIntentService extending GCMBaseIntentService and add the service in
Manifest
<service android:name="com.androidexample.gcm.GCMIntentService" />
public class GCMIntentService extends GCMBaseIntentService {
 /**
* Method called on device registered
**/
@Override
protected void onRegistered(Context context, String registrationId) {
 /**
* Method called on device unregistred
* */
@Override
protected void onUnregistered(Context context, String registrationId) {

• Add GCMIntentService extending GCMBaseIntentService and add the service in
Manifest
 /**
* Method called on Receiving a new message from GCM server
* */
@Override
protected void onMessage(Context context, Intent intent) {
 /**
* Method called on receiving a deleted message
* */
@Override
protected void onDeletedMessages(Context context, int total) {

• Register:
// Make sure the device has the proper dependencies.
GCMRegistrar.checkDevice(this);
// Make sure the manifest permissions was properly set
GCMRegistrar.checkManifest(this);
// Get GCM registration id
final String regId = GCMRegistrar.getRegistrationId(this);
// Check if regid already presents
if (regId.equals("")) {
// Register with GCM
GCMRegistrar.register(this, Config.GOOGLE_SENDER_ID);
} else {

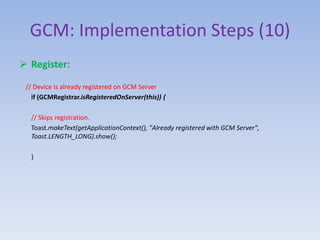

 Register:
// Device is already registered on GCM Server
if (GCMRegistrar.isRegisteredOnServer(this)) {
// Skips registration.
Toast.makeText(getApplicationContext(), "Already registered with GCM Server",
Toast.LENGTH_LONG).show();
}

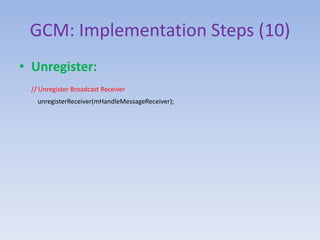

• Unregister:
// Unregister Broadcast Receiver
unregisterReceiver(mHandleMessageReceiver);

• Receive Message
/**
* Method called on Receiving a new message from GCM server
* */
@Override
protected void onMessage(Context context, Intent intent) {
if(aController == null)
aController = (Controller) getApplicationContext();
Log.i(TAG, "Received message");
String message = intent.getExtras().getString("price");
aController.displayMessageOnScreen(context, message);
// notifies user
generateNotification(context, message);
}

• Send Message from Server
//Sending Push Notification
function send_push_notification($registatoin_ids, $message) {
// Set POST variables
$url = 'https://android.googleapis.com/gcm/send';
$fields = array(
'registration_ids' => $registatoin_ids,
'data' => $message,
);
$headers = array(
'Authorization: key=' . GOOGLE_API_KEY,
'Content-Type: application/json'
);
