1. Fusion of Bandwidth on Demand and Virtual Organizations
Harold Teunissen and Gerben van Malenstein — SURFnet
I2JTW12 — January 2012

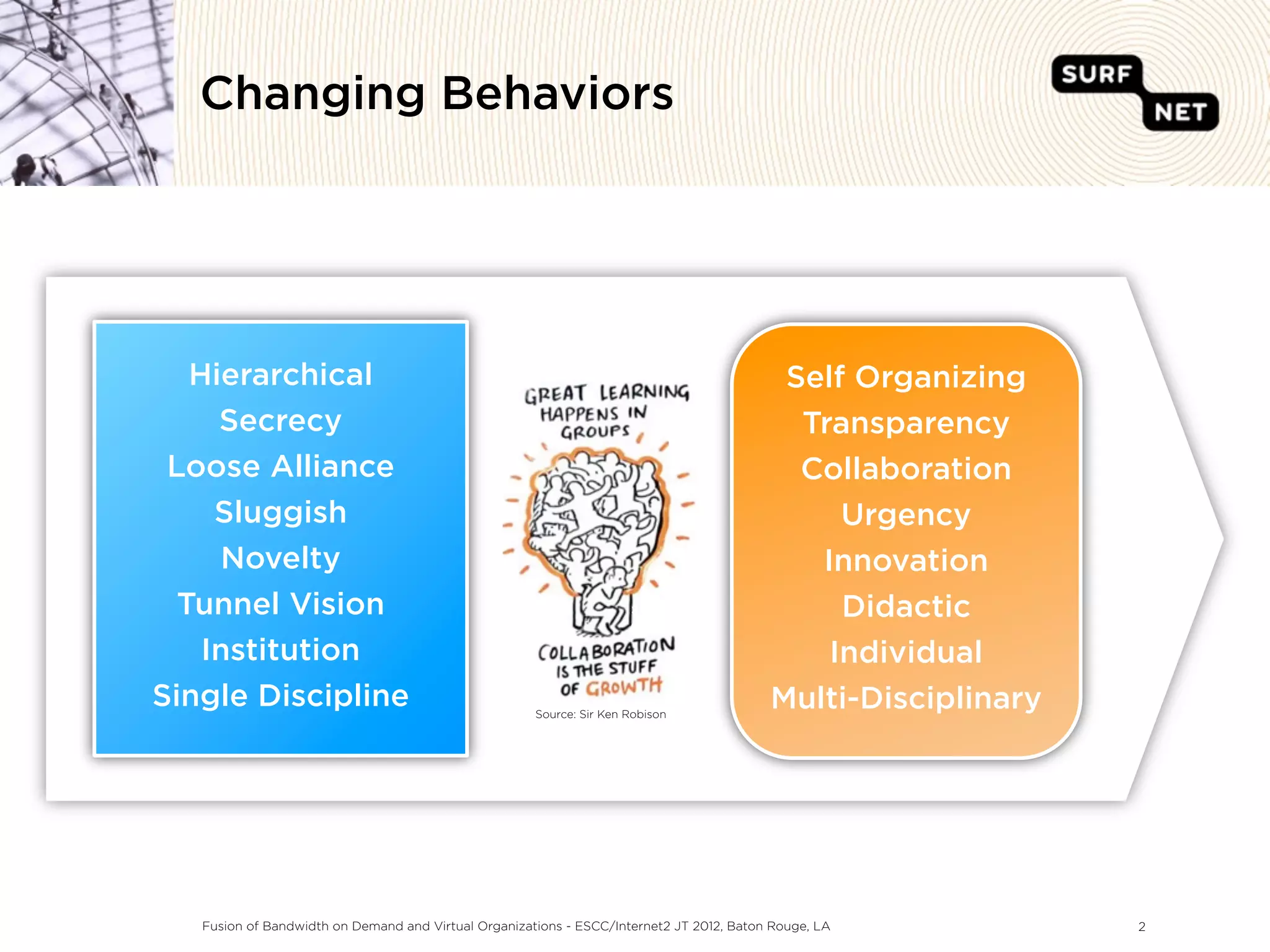

2. Changing Behaviors
Hierarchical Self Organizing
Secrecy Transparency
Loose Alliance Collaboration
Sluggish Urgency
Novelty Innovation
Tunnel Vision Didactic
Institution Individual
Single Discipline Source: Sir Ken Robison
Multi-Disciplinary
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 2

3. Motive
• Cloud cloud cloud — data explosion
• Sharing sharing sharing — connectivity explosion
• Go go go — study + work + play + collaborate +
organize + share + et cetera
• Collaboration is key to you and your team’s
success!
Source: AMD
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 3

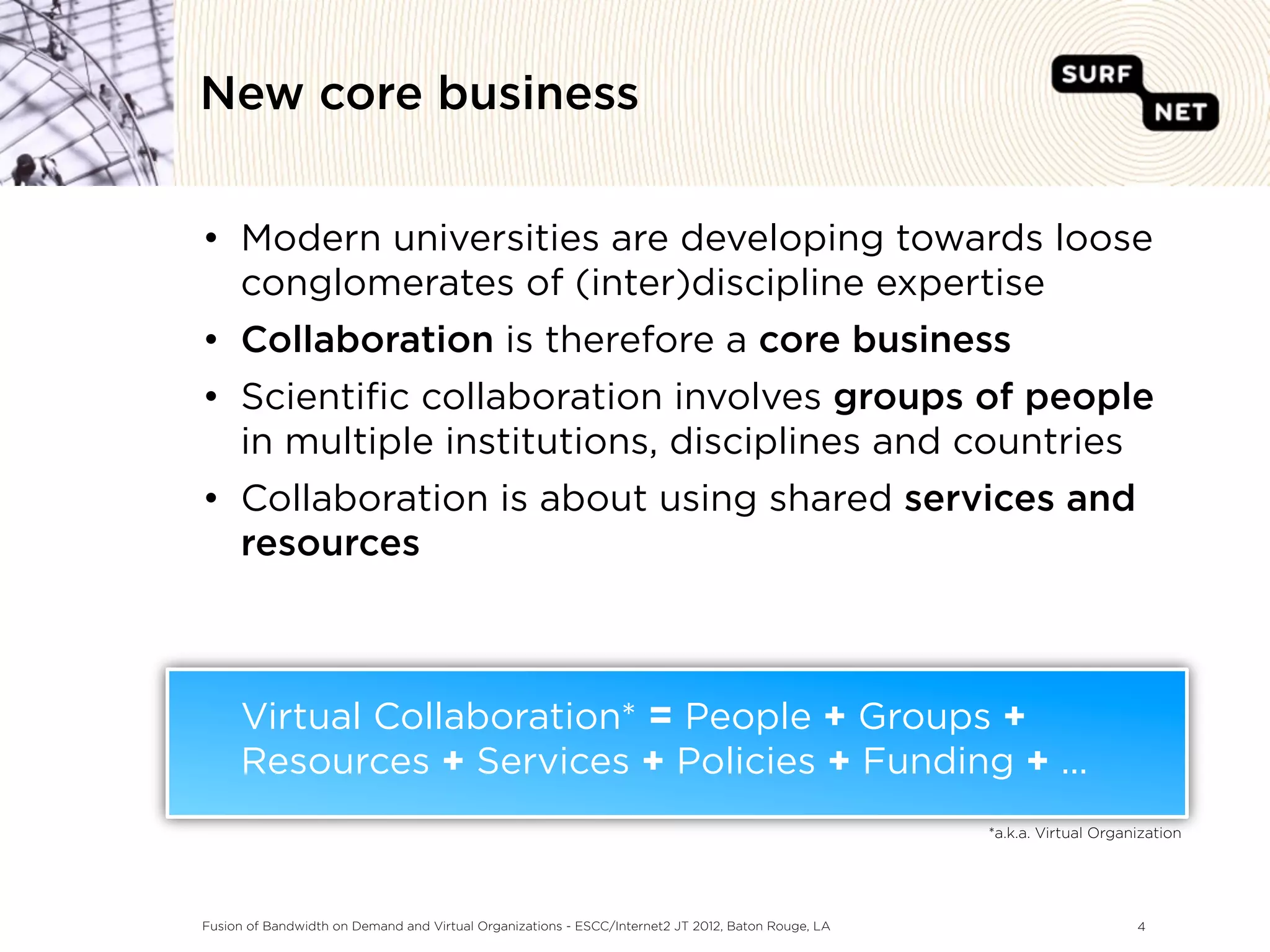

4. New core business
• Modern universities are developing towards loose
conglomerates of (inter)discipline expertise
• Collaboration is therefore a core business
• Scientific collaboration involves groups of people
in multiple institutions, disciplines and countries
• Collaboration is about using shared services and
resources
Virtual Collaboration* = People + Groups +
Resources + Services + Policies + Funding + ...
*a.k.a. Virtual Organization
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 4

5. Distributed landscape
• Modern science combines resources from multiple
sources across multiple (administrative) domains
‣ The core resources are within one virtual
collaboration domain, but within multiple
institutions, and
‣ the generic collaboration services can be found
in 'the cloud'
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 5

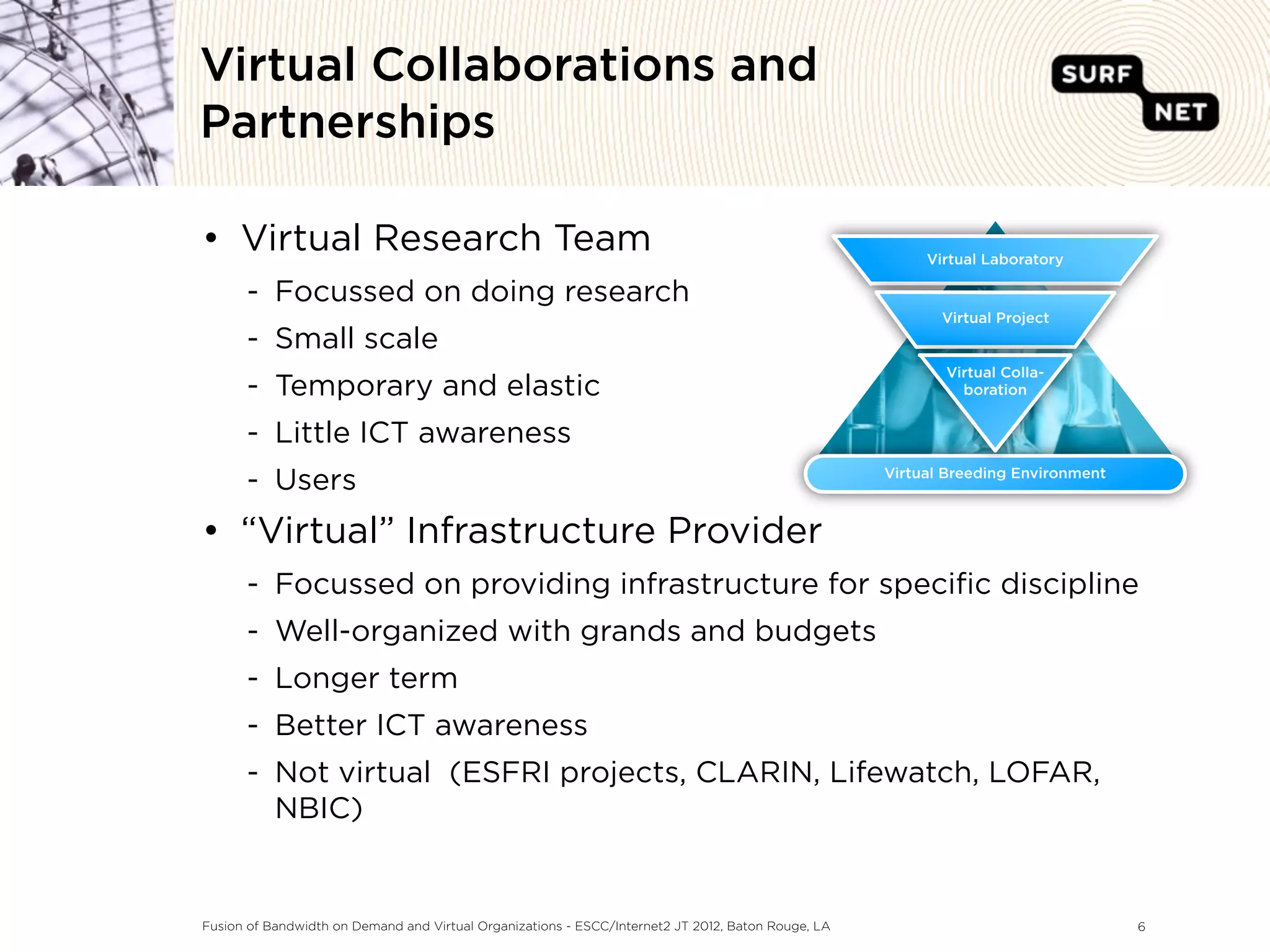

6. Virtual Collaborations and
Partnerships
• Virtual Research Team Virtual Laboratory
- Focussed on doing research
Virtual Project
- Small scale
Virtual Colla-
- Temporary and elastic boration
- Little ICT awareness
- Users Virtual Breeding Environment
• “Virtual” Infrastructure Provider
- Focussed on providing infrastructure for specific discipline
- Well-organized with grands and budgets
- Longer term
- Better ICT awareness
- Not virtual (ESFRI projects, CLARIN, Lifewatch, LOFAR,
NBIC)
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 6

7. Researchers are knocking on our
door
Radio Astronomy — Pulsar Climate Modeling for Scientist CineGRID — 4K+ Video
Research and Decision Makers Distribution Testbed
Centralized Imaging for Large Jungle Computing and Multi- Next Generation DNA
Scale Population Imaging Studies Model Multi-Kernel Simulations Sequencing
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 7

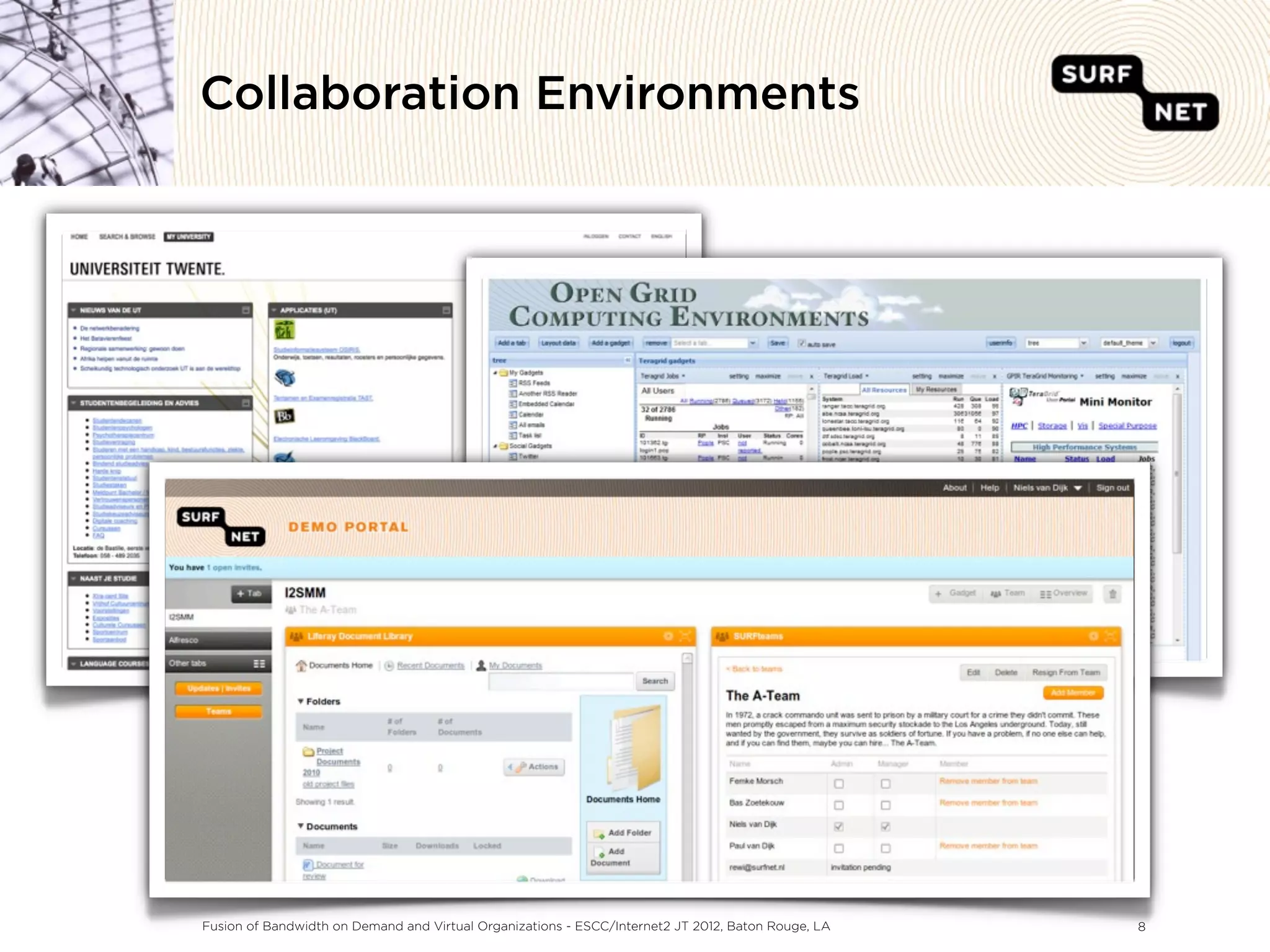

8. Collaboration Environments
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 8

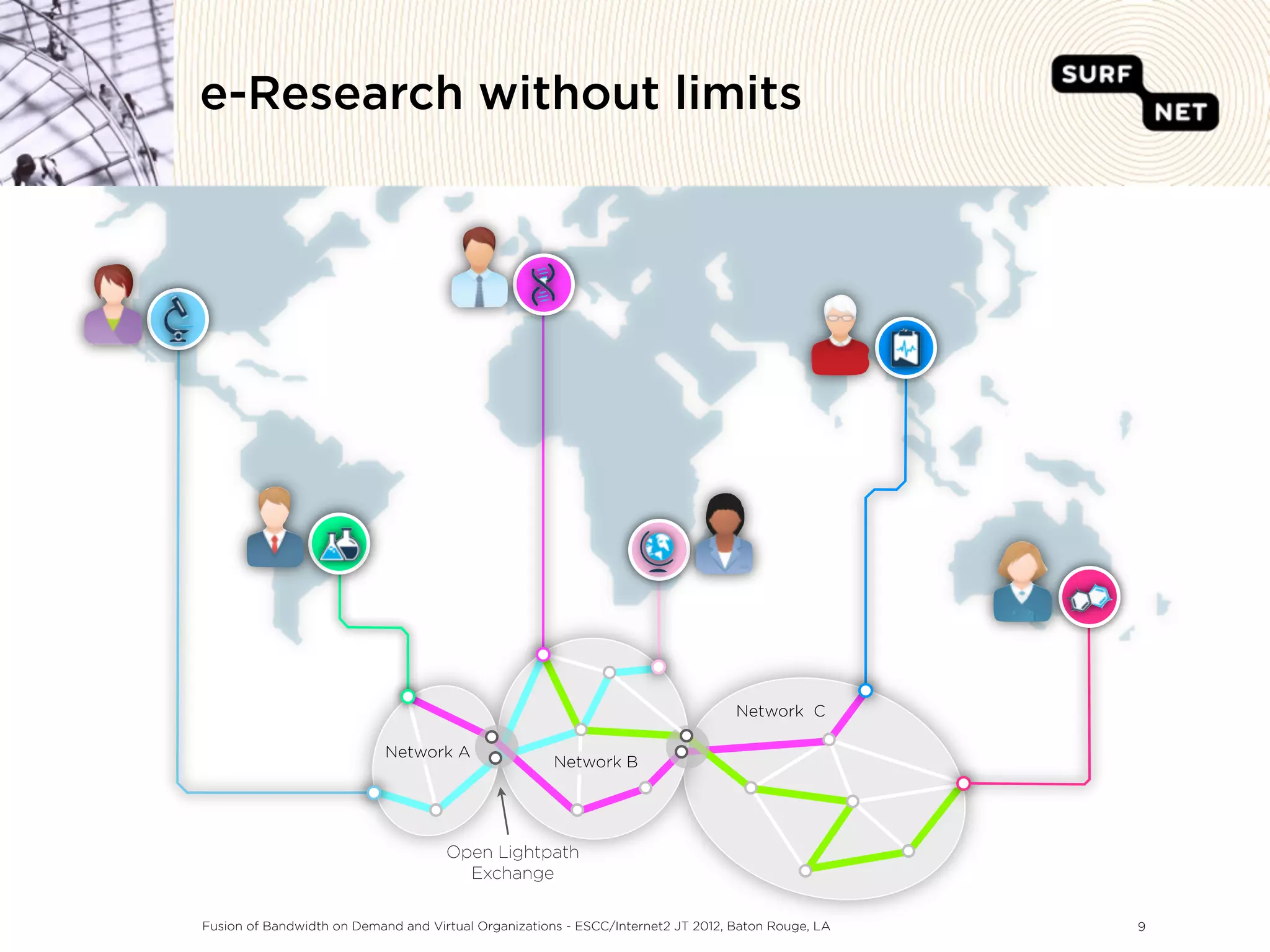

9. e-Research without limits
ƒ
Network C
Network A
Network B
Open Lightpath
Exchange
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 9

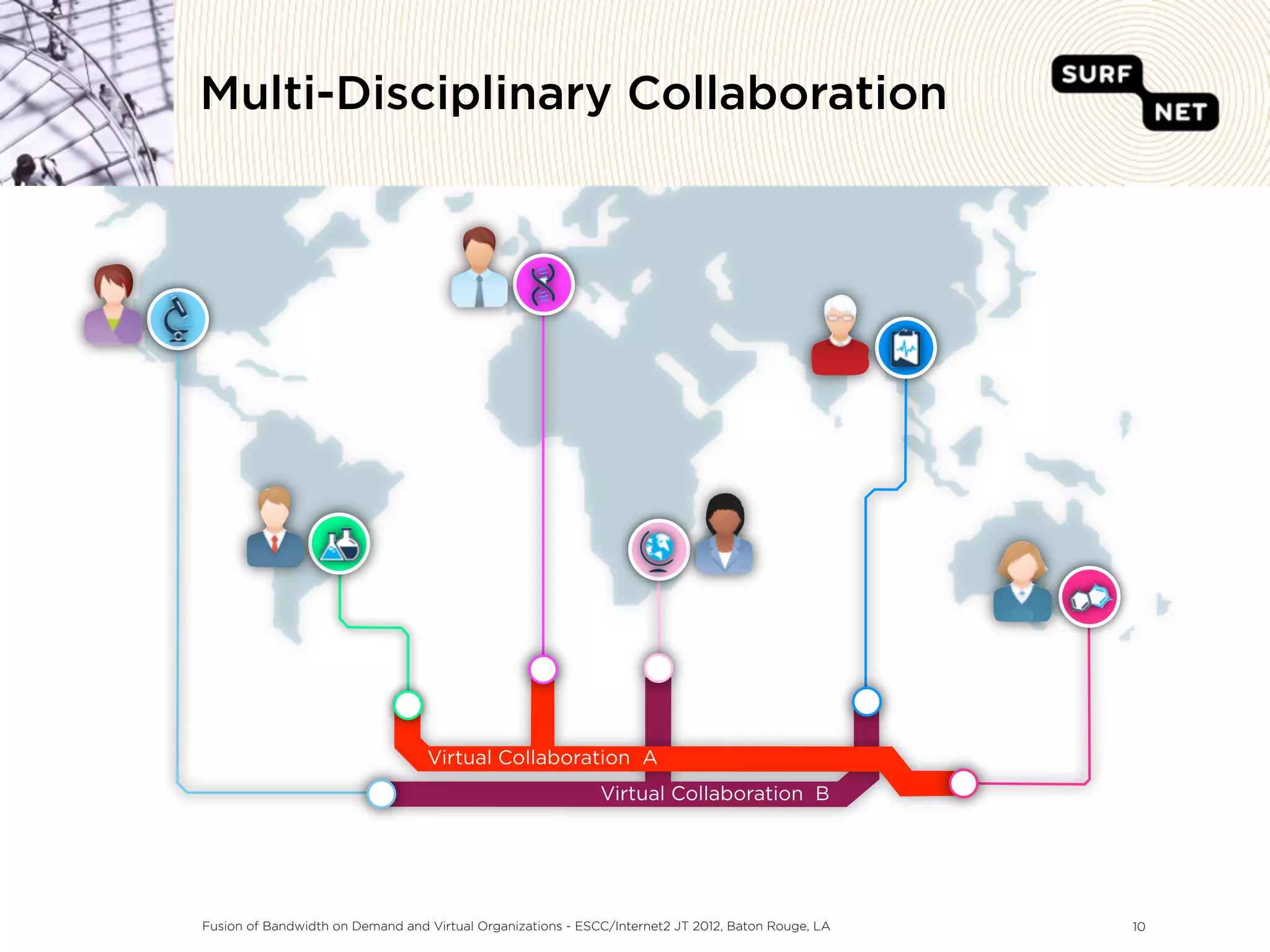

10. Multi-Disciplinary Collaboration
ƒ
Virtual Collaboration A
Virtual Collaboration B
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 10

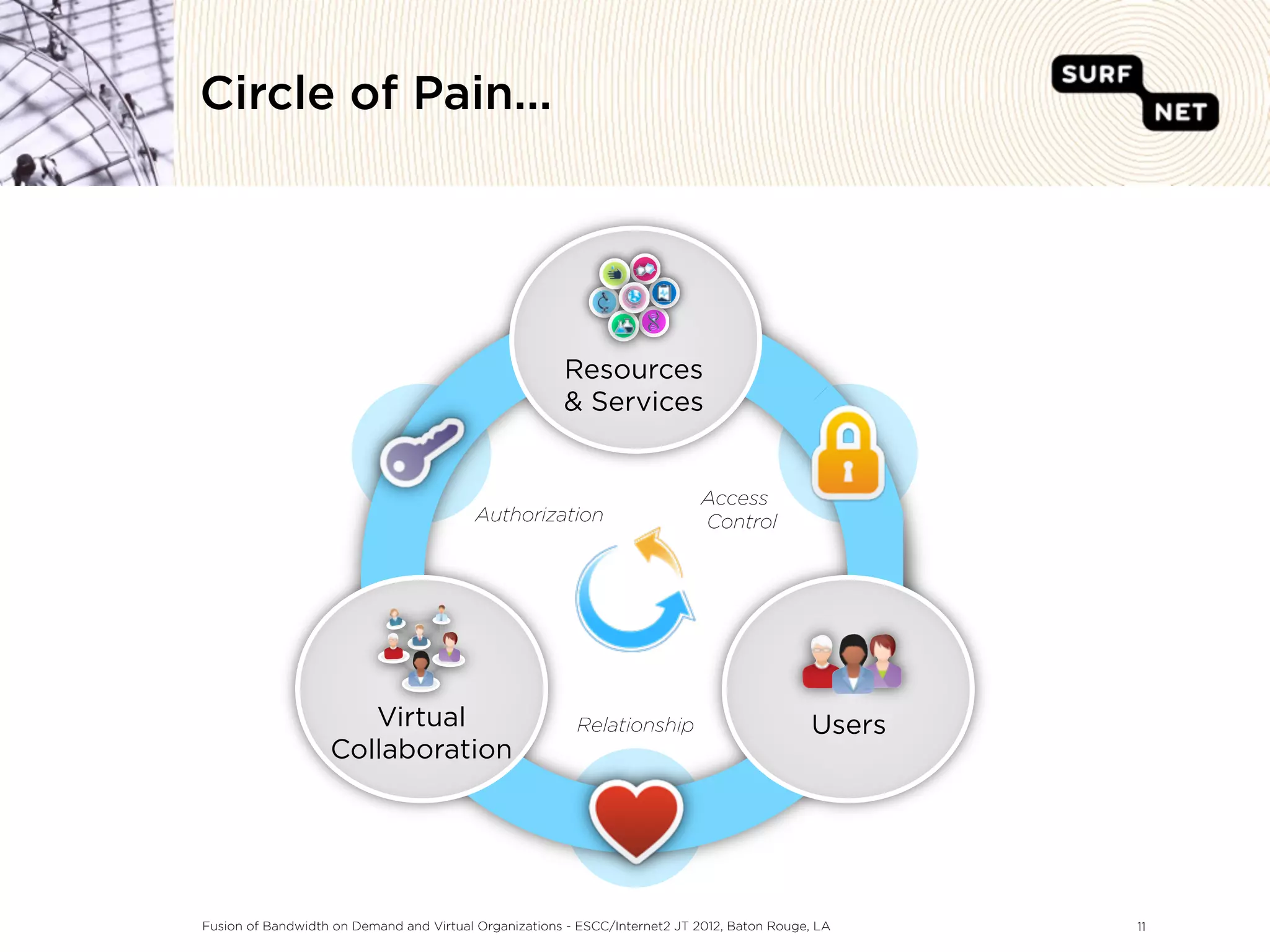

11. Circle of Pain...
Resources
& Services
Access
Authorization Control
Virtual Relationship Users
Collaboration
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 11

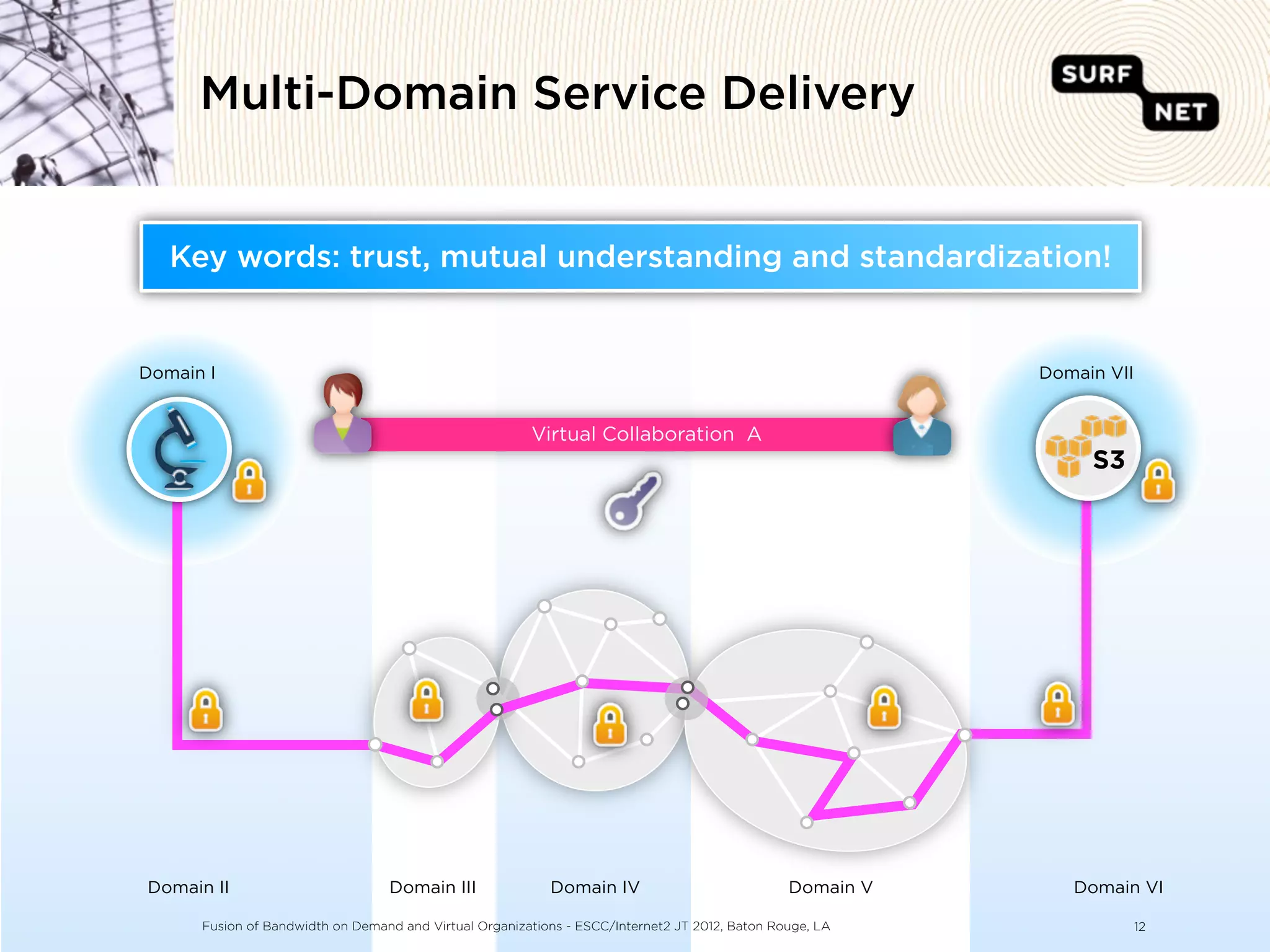

12. Multi-Domain Service Delivery
Key words: trust, mutual understanding and standardization!
Domain I Domain VII
Virtual Collaboration A
S3
Domain II Domain III Domain IV Domain V Domain VI
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 12

13. SURFconext
SURFconext allows you to create your own
collaboration environment that organizes your
applications, services and resources
• Provides the glue and lubrication middleware to
make campus, cloud based services and resources
usable for collaboration for both inter campus and
virtual collaboration scenarios
• O er the platform as a service for smaller & ad-
hoc team collaboration
• O er the platform software for large, virtual
collaboration-type collaboration to run-you-own
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 13

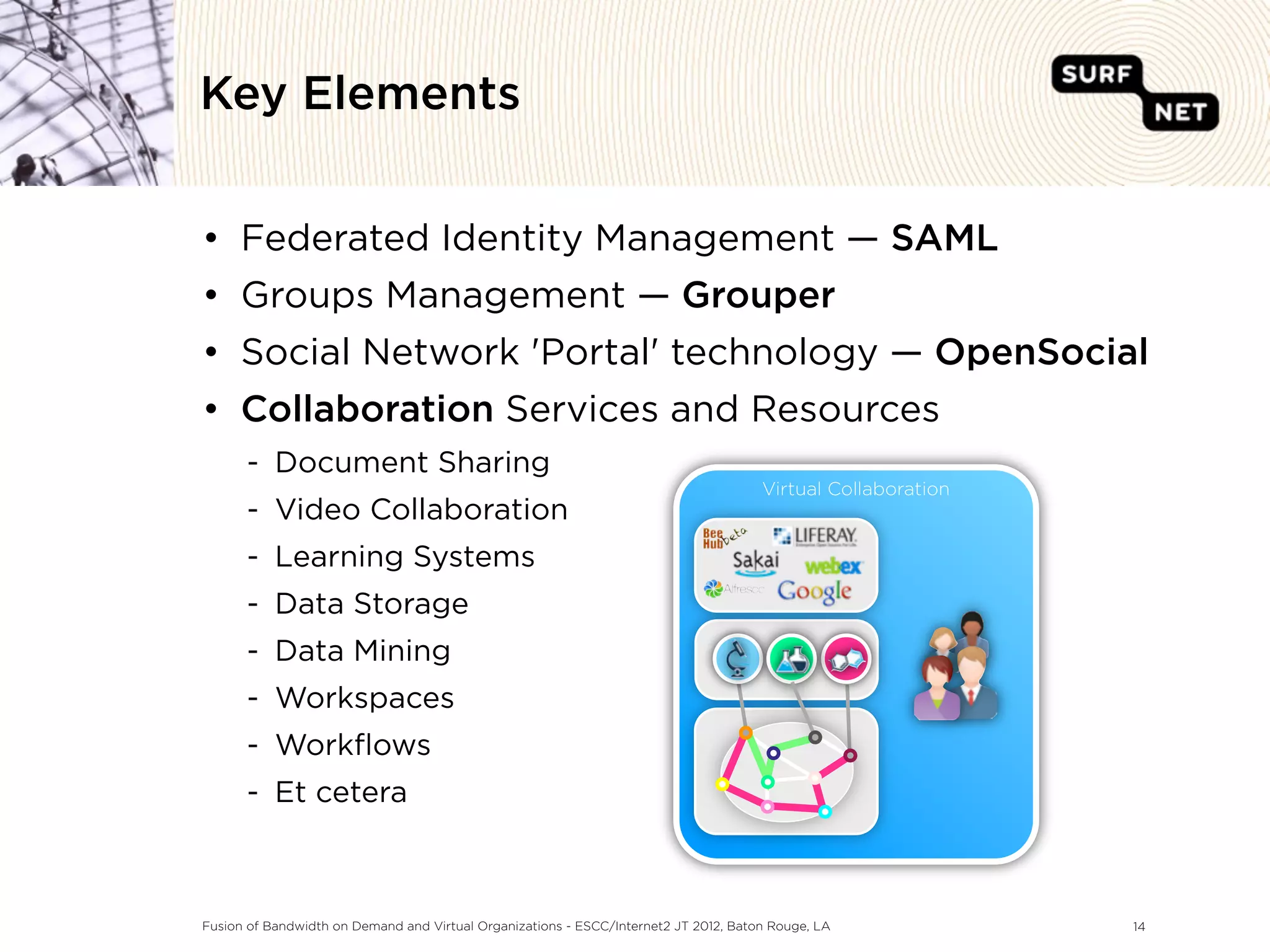

14. Key Elements
• Federated Identity Management — SAML
• Groups Management — Grouper
• Social Network 'Portal' technology — OpenSocial
• Collaboration Services and Resources
- Document Sharing
Virtual Collaboration
- Video Collaboration
- Learning Systems
- Data Storage
- Data Mining
- Workspaces
- Workflows
- Et cetera
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 14

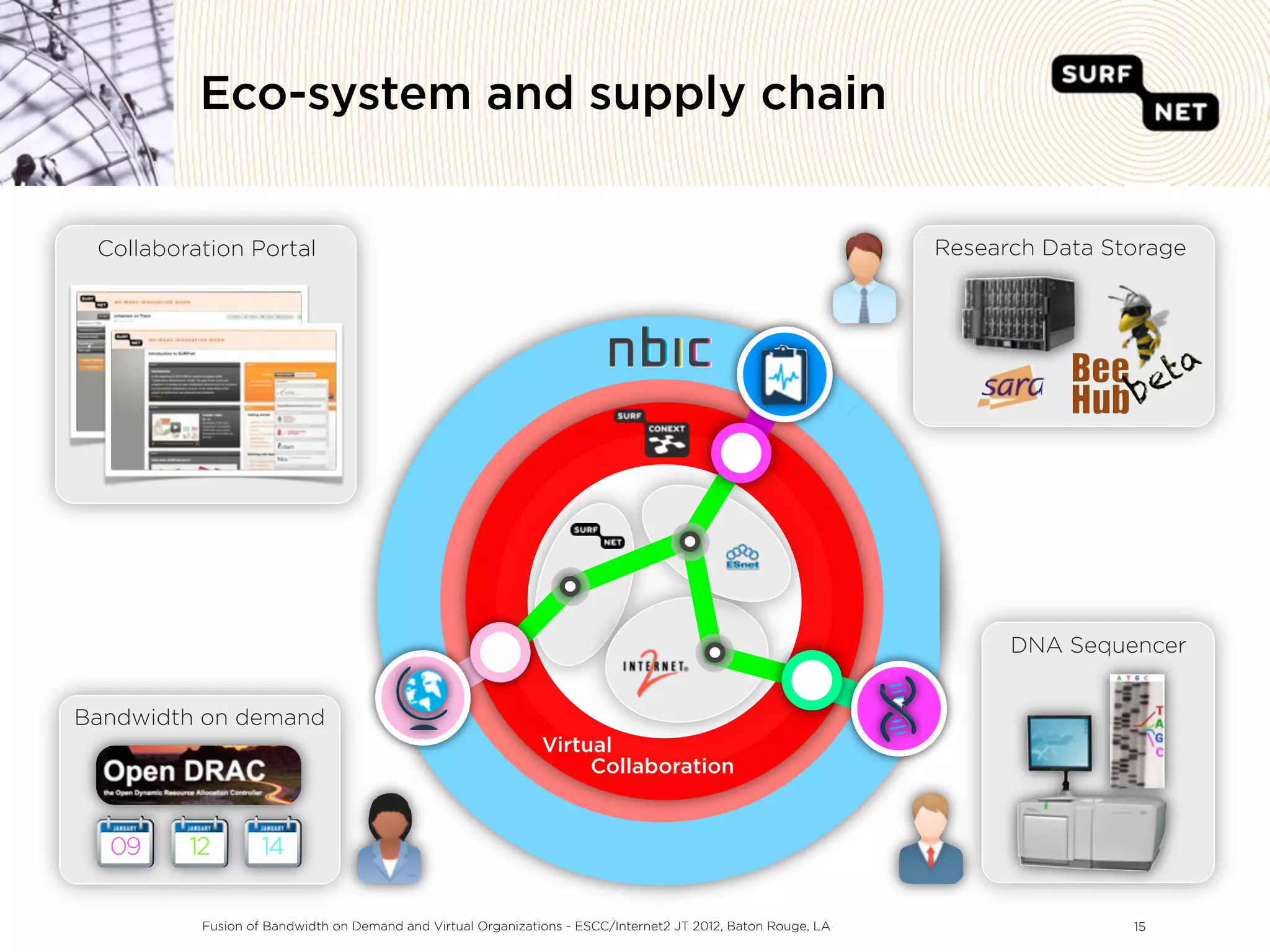

15. Eco-system and supply chain
Collaboration Portal Research Data Storage
ƒ
DNA Sequencer
Bandwidth on demand
Virtual
Collaboration
09 12 14
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 15

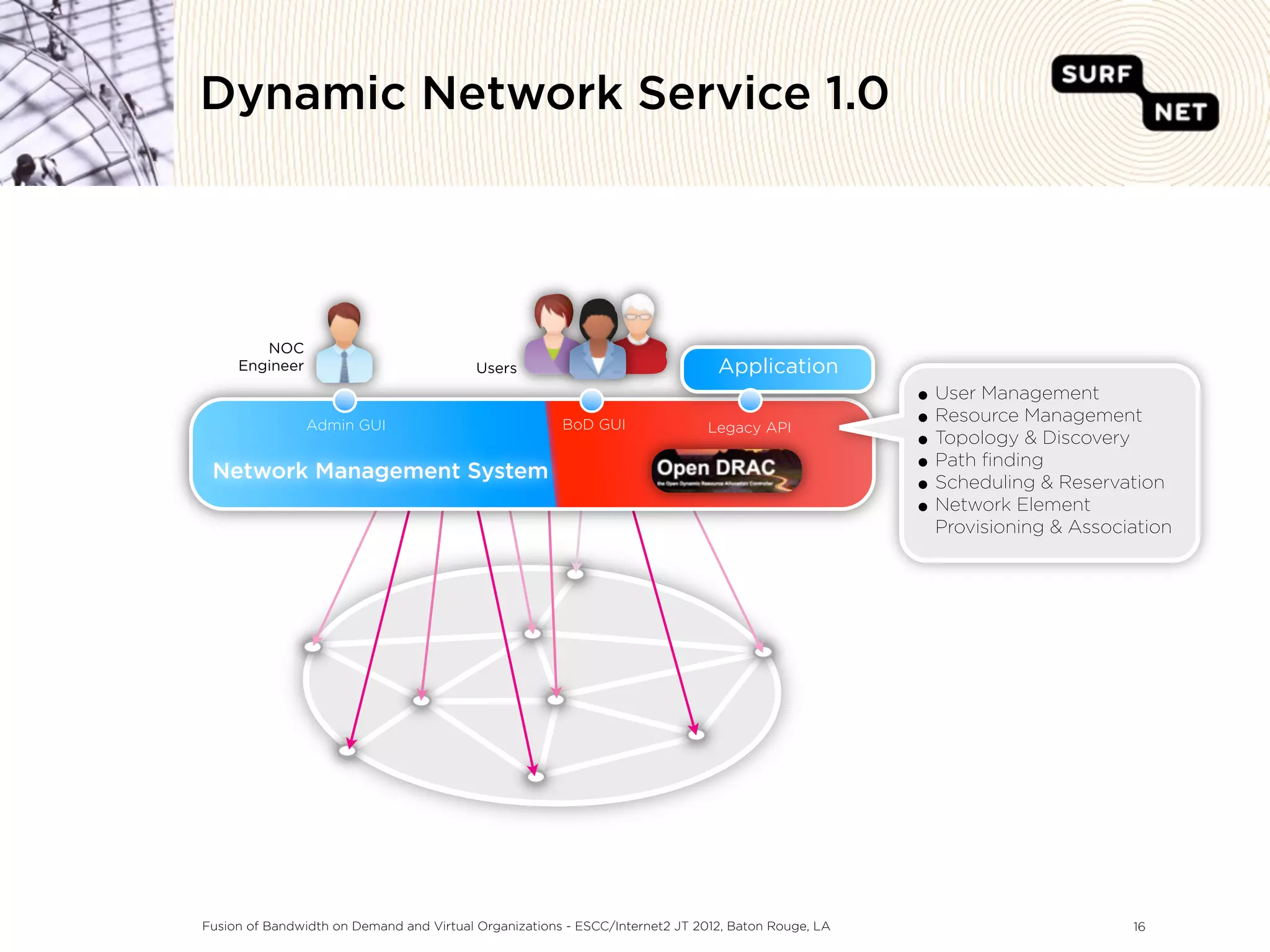

16. Dynamic Network Service 1.0
NOC
Engineer Users Application
• User Management
Admin GUI BoD GUI Legacy API • Resource Management
• Topology & Discovery
Network Management System • Path finding
• Scheduling & Reservation
• Network Element
Provisioning & Association
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 16

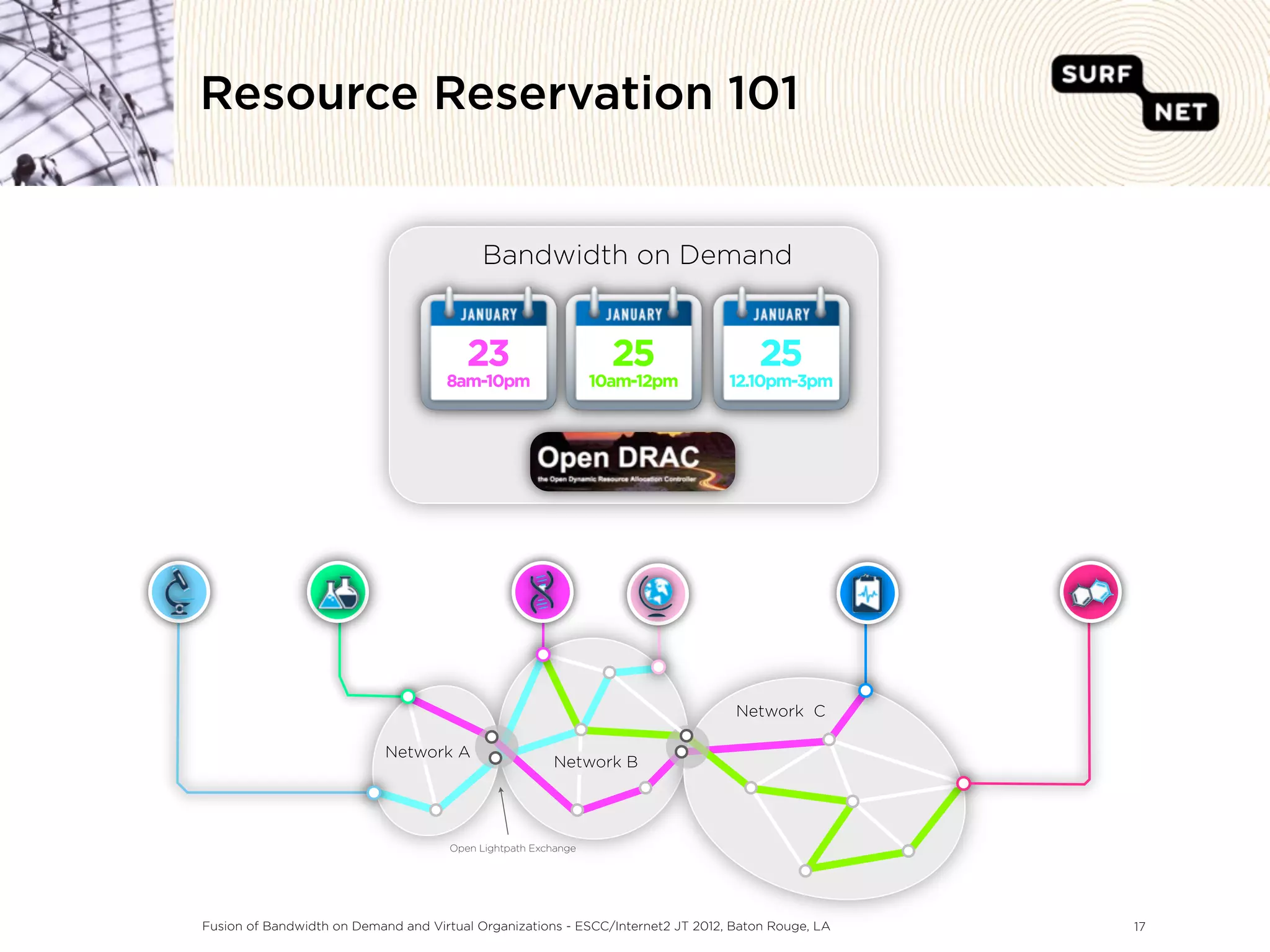

17. Resource Reservation 101
Bandwidth on Demand
23 25 25
8am-10pm 10am-12pm 12.10pm-3pm
ƒ
Network C
Network A
Network B
Open Lightpath Exchange
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 17

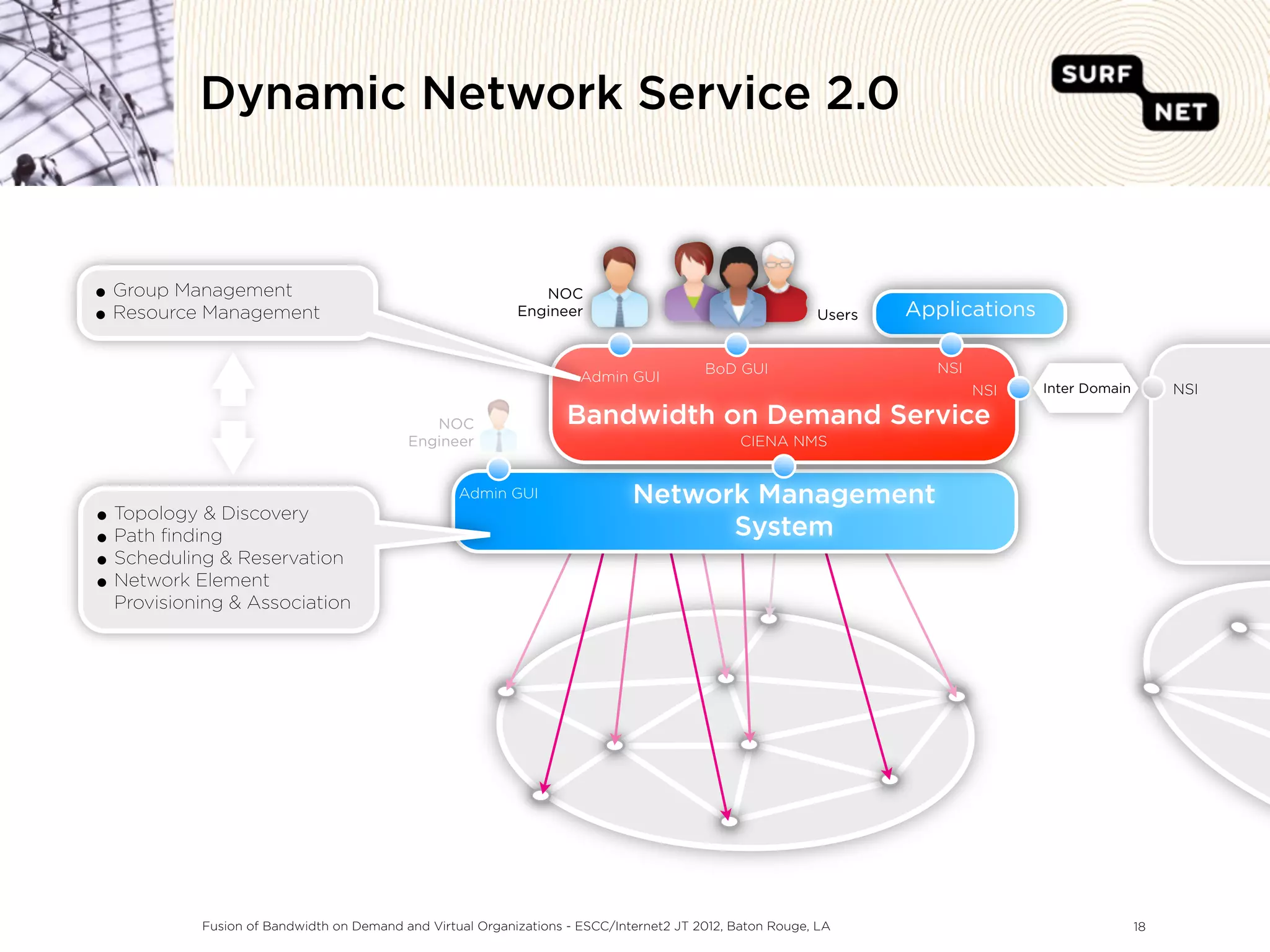

18. Dynamic Network Service 2.0
• Group Management NOC
• Resource Management Engineer Users Applications
BoD GUI NSI
Admin GUI
NSI Inter Domain NSI
NOC Bandwidth on Demand Service
Engineer CIENA NMS
Admin GUI Network Management
• Topology & Discovery
• Path finding System
• Scheduling & Reservation
• Network Element
Provisioning & Association
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 18

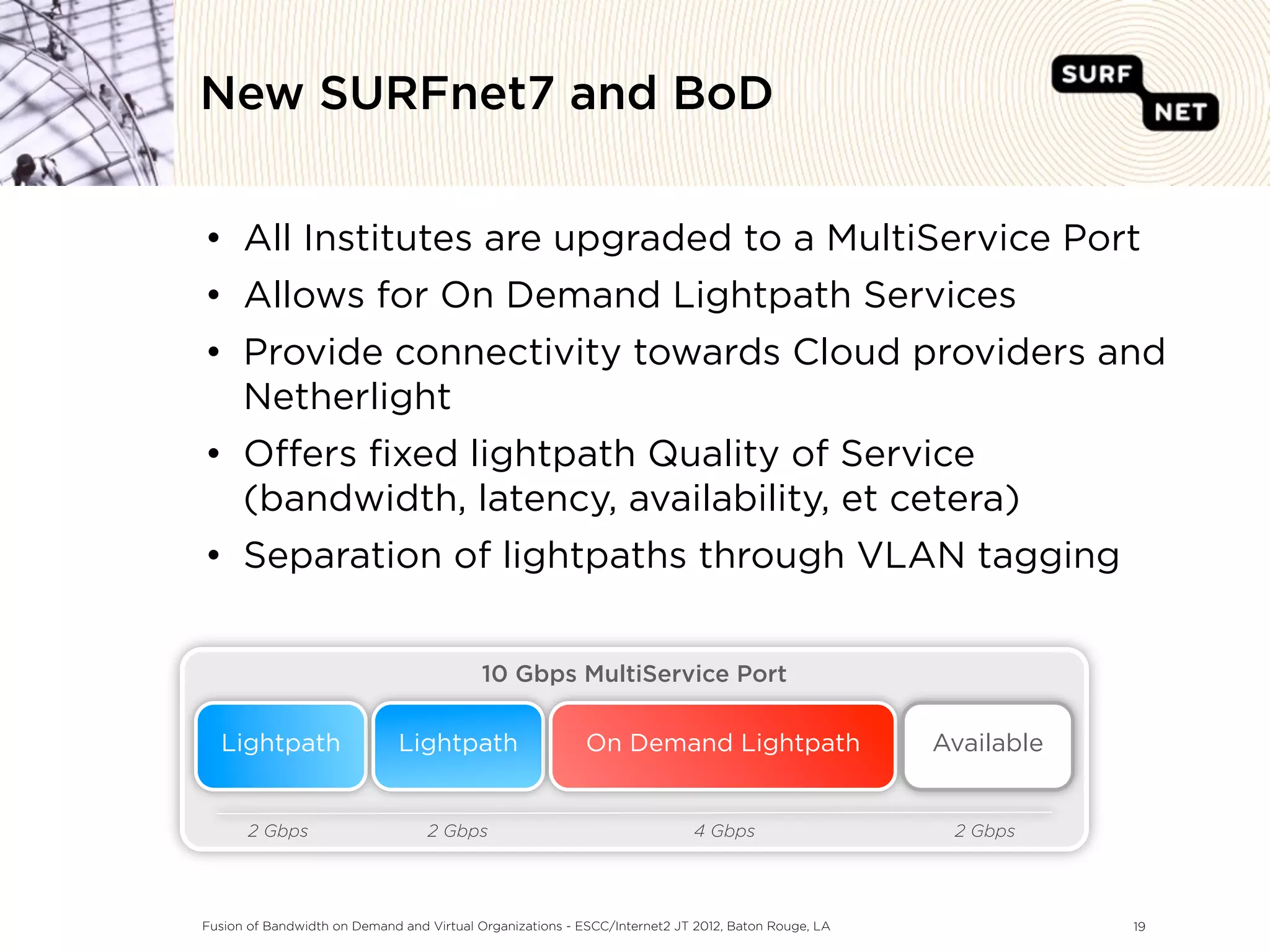

19. New SURFnet7 and BoD
• All Institutes are upgraded to a MultiService Port
• Allows for On Demand Lightpath Services
• Provide connectivity towards Cloud providers and
Netherlight
• O ers fixed lightpath Quality of Service
(bandwidth, latency, availability, et cetera)
• Separation of lightpaths through VLAN tagging
10 Gbps MultiService Port
Lightpath Lightpath On Demand Lightpath Available
2 Gbps 2 Gbps 4 Gbps 2 Gbps
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 19

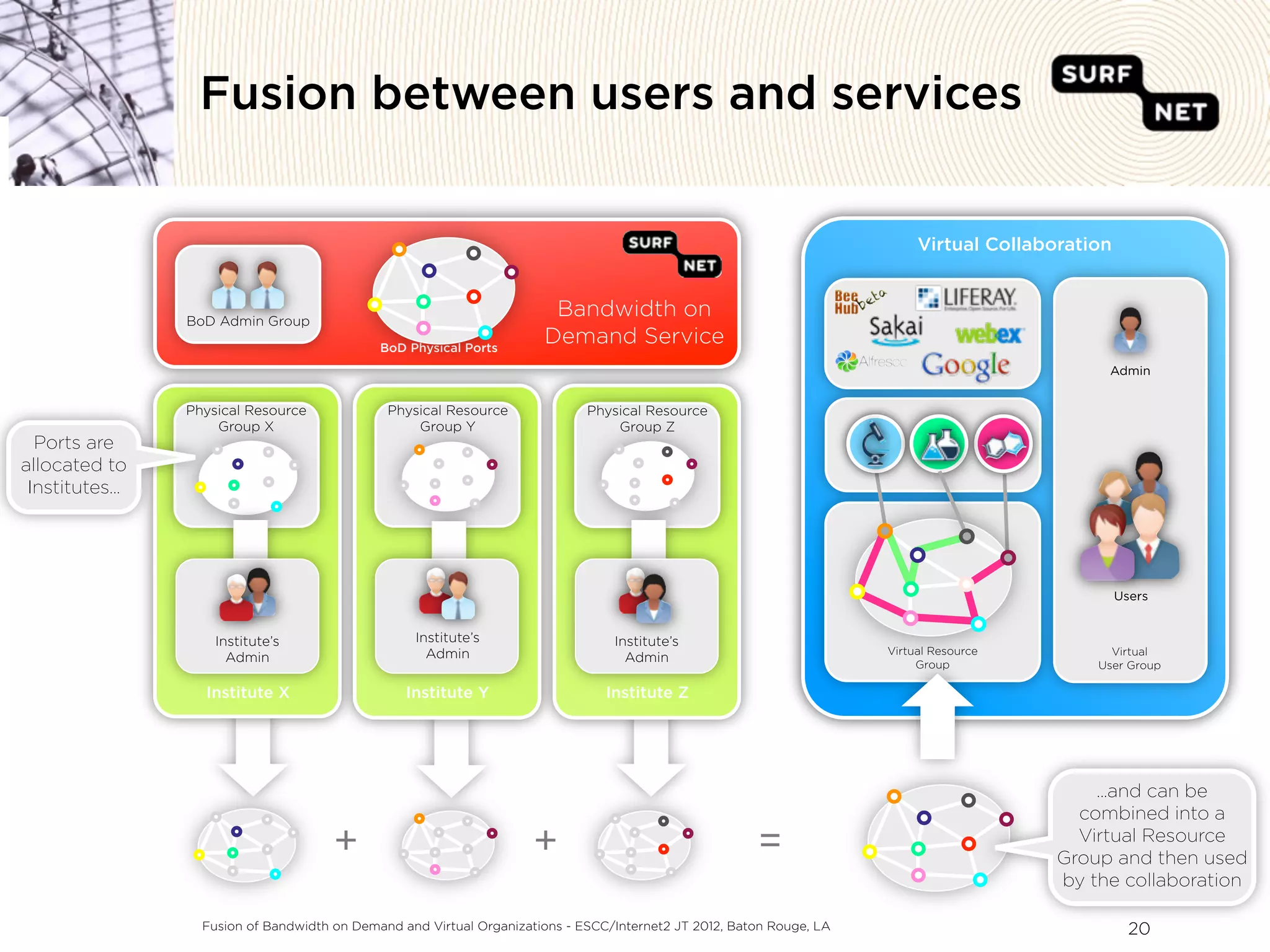

20. Fusion between users and services
Virtual Collaboration
BoD Admin Group
Bandwidth on
BoD Physical Ports
Demand Service
Admin
Physical Resource Physical Resource Physical Resource
Group X Group Y Group Z
Ports are
allocated to
Institutes...
Users
Institute’s Institute’s Institute’s
Admin Virtual Resource Virtual
Admin Admin Group User Group
Institute X Institute Y Institute Z
...and can be
combined into a
+ + = Virtual Resource
Group and then used
by the collaboration
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 20

21. Architecture
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 21

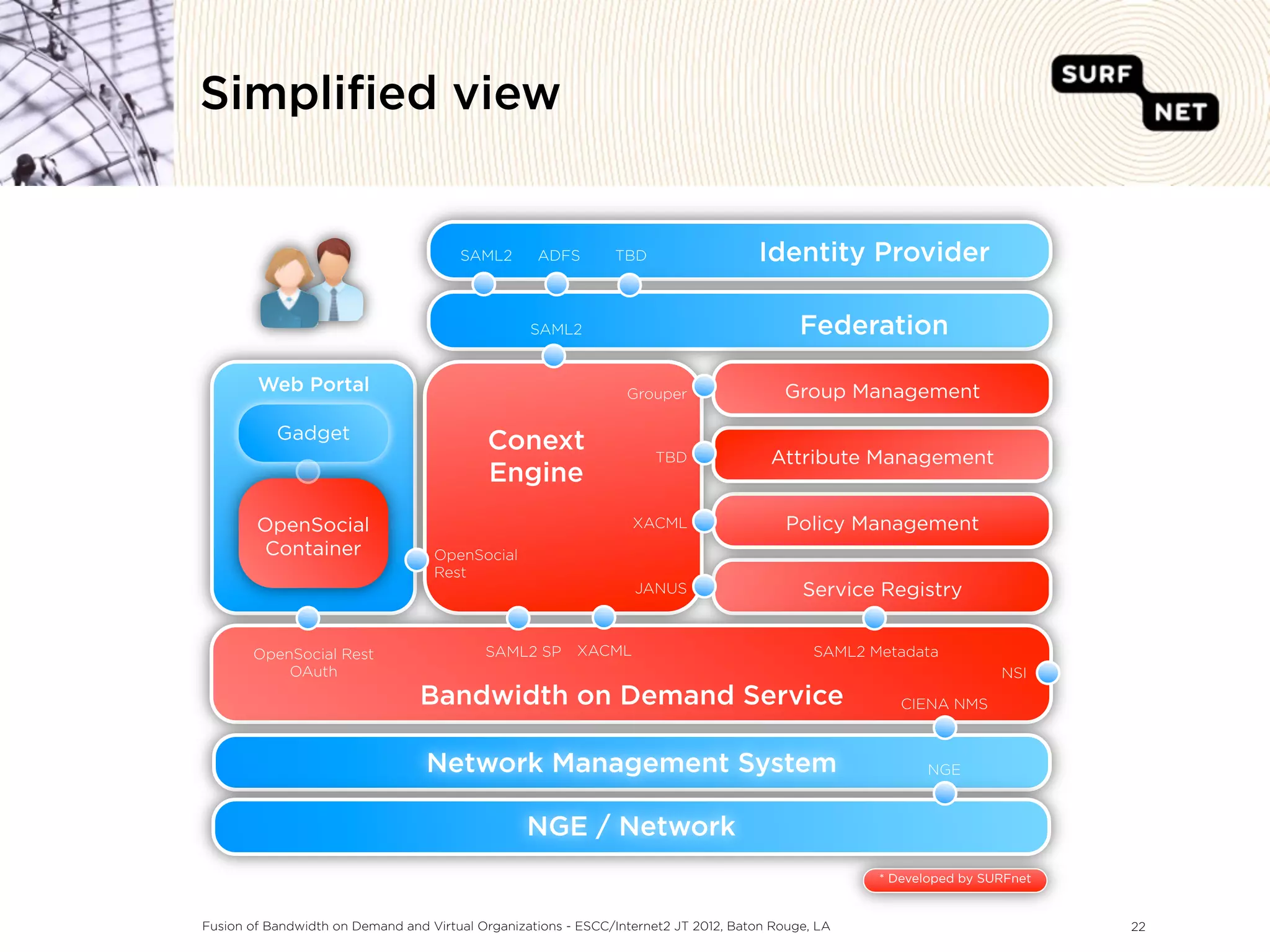

22. Simplified view
SAML2 ADFS TBD Identity Provider
SAML2 Federation
Web Portal Grouper Group Management
Gadget Conext TBD Attribute Management
Engine
OpenSocial XACML Policy Management
Container OpenSocial
Rest
JANUS Service Registry
OpenSocial Rest SAML2 SP XACML SAML2 Metadata
OAuth NSI
Bandwidth on Demand Service CIENA NMS
Network Management System NGE
NGE / Network
* Developed by SURFnet
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 22

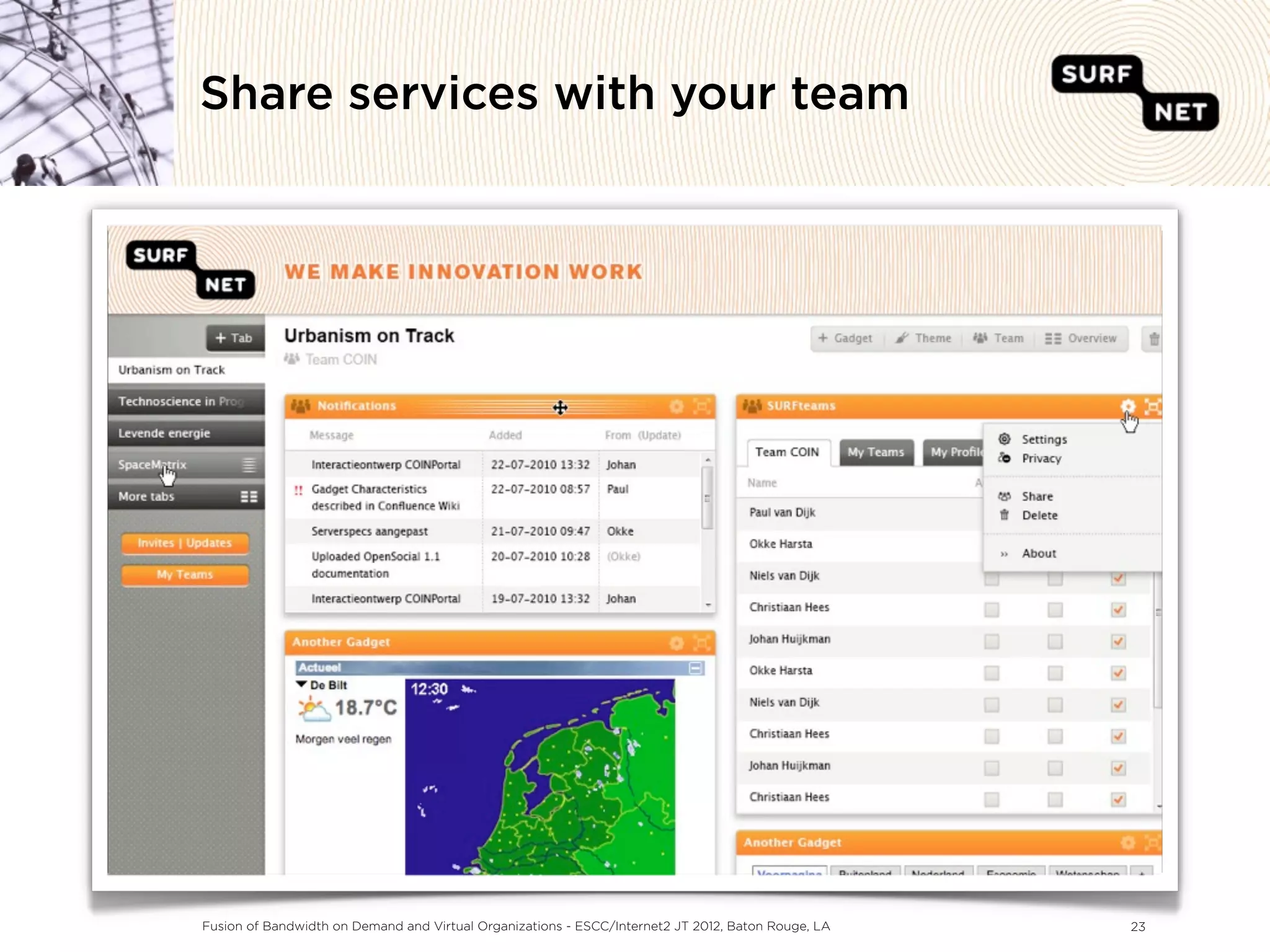

23. Share services with your team
Fusion of Bandwidth on Demand and Virtual Organizations - ESCC/Internet2 JT 2012, Baton Rouge, LA 23

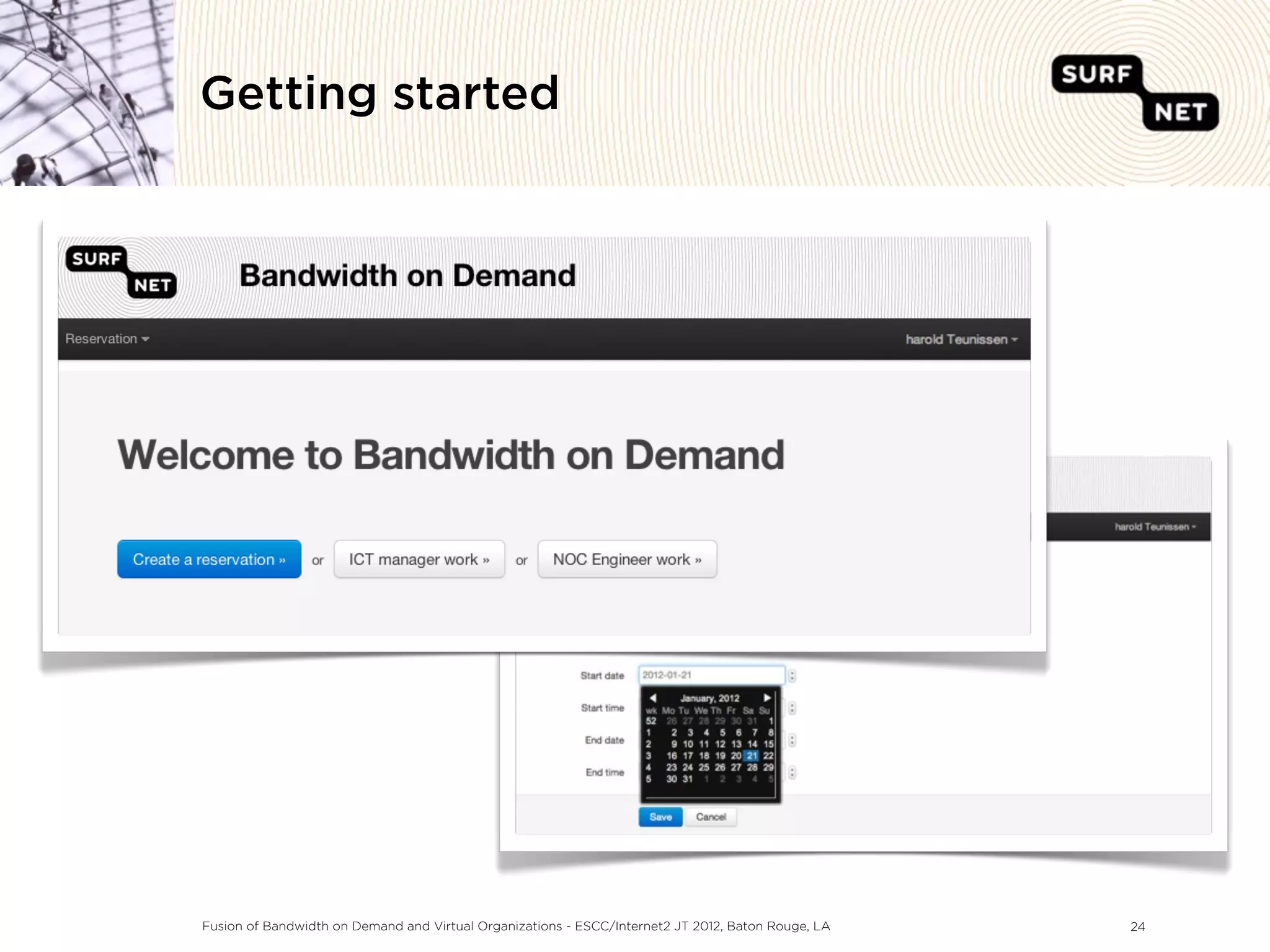

24. Getting started
