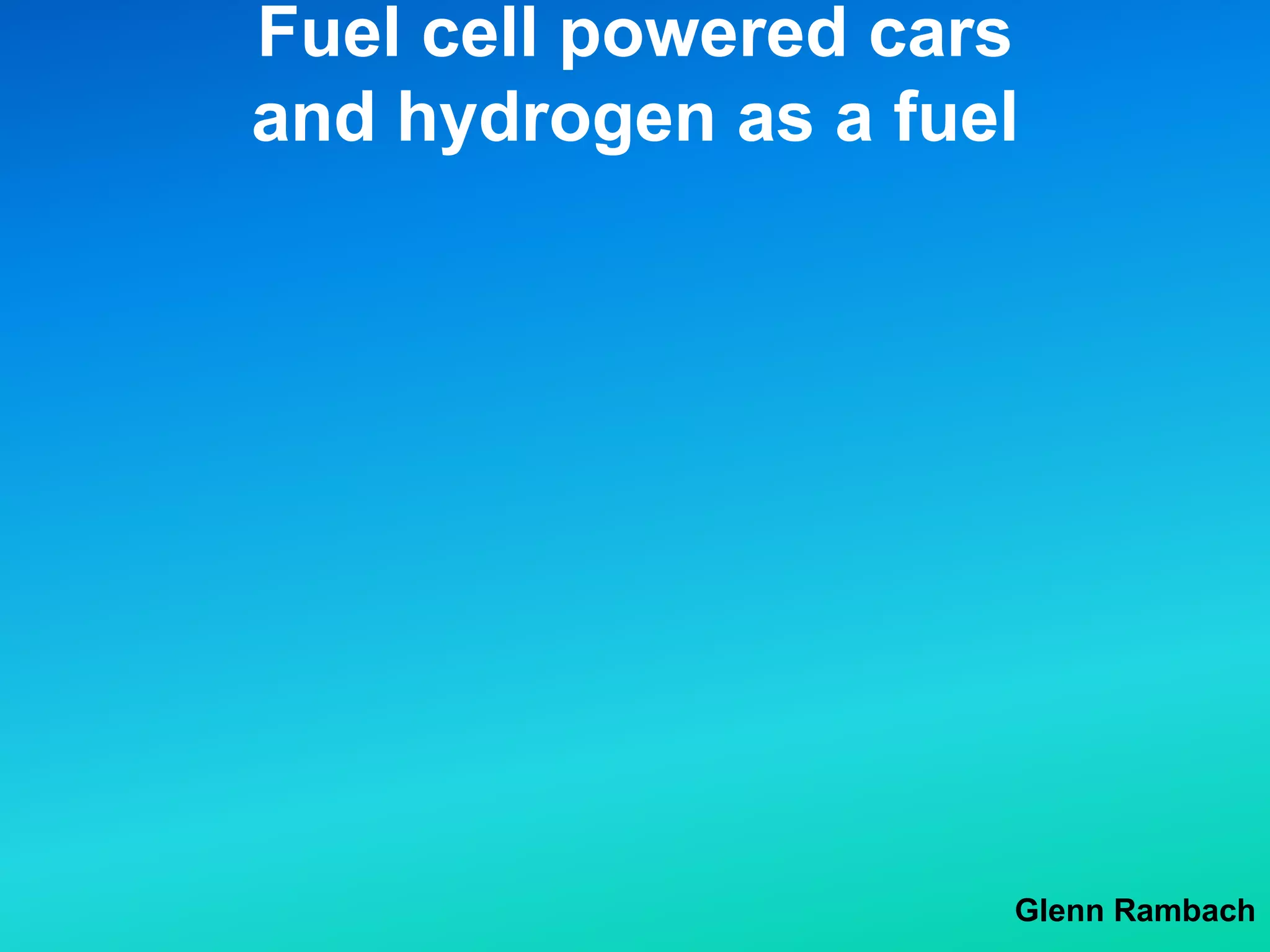

Fuel cell powered cars and hydrogen as a fuel Glenn Rambach
Fuel cell powered cars and hydrogen as a fuel Glenn Rambach
Fuel cell powered cars and hydrogen as a fuel Glenn Rambach Does that thing run on gasoline? DANG! I haven’t seen one of those since I was a kid.

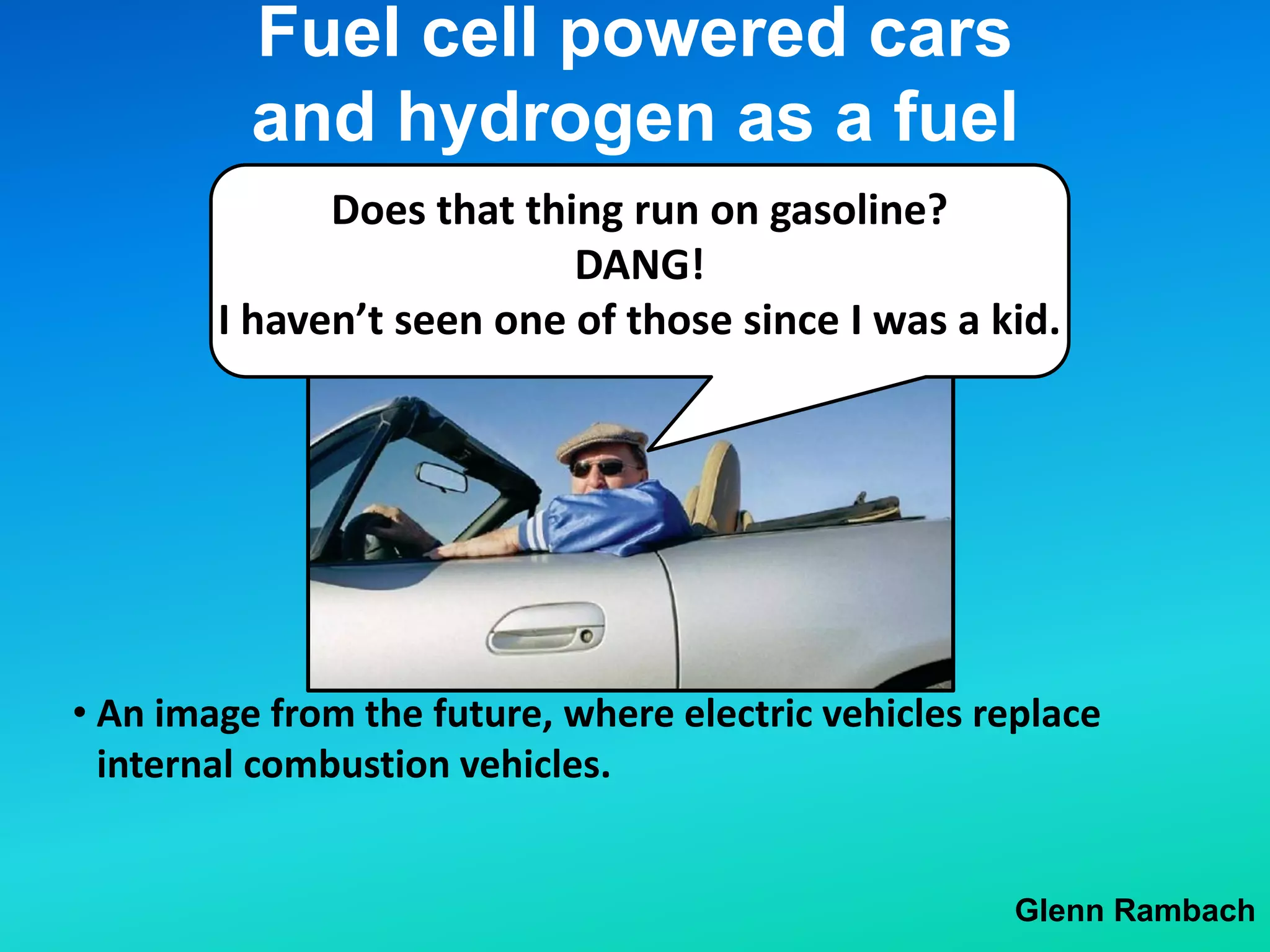

Fuel cell powered cars and hydrogen as a fuel Glenn Rambach • An image from the future, where electric vehicles replace internal combustion vehicles. Does that thing run on gasoline? DANG! I haven’t seen one of those since I was a kid.

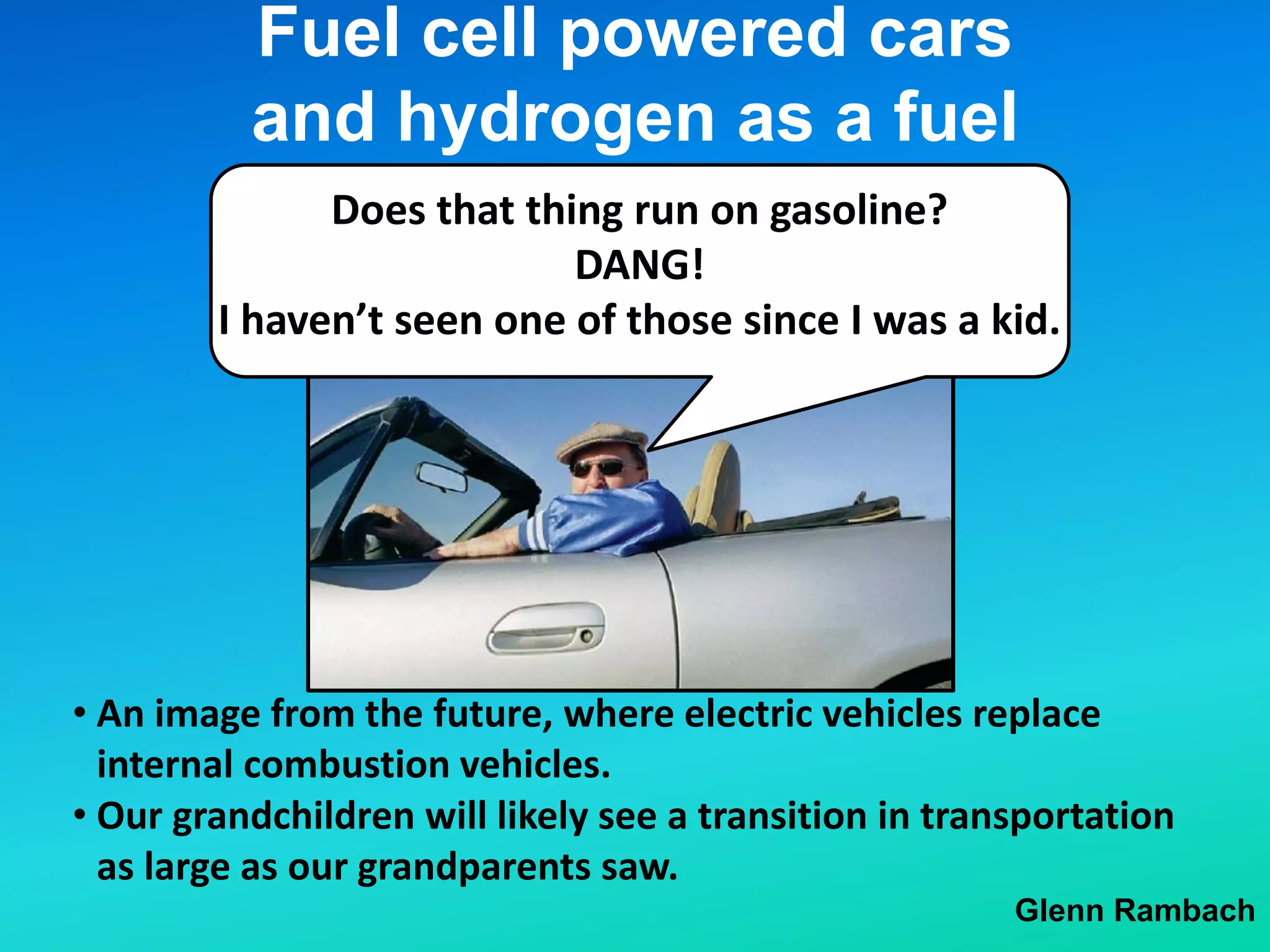

Fuel cell powered cars and hydrogen as a fuel Glenn Rambach • Our grandchildren will likely see a transition in transportation as large as our grandparents saw. • An image from the future, where electric vehicles replace internal combustion vehicles. Does that thing run on gasoline? DANG! I haven’t seen one of those since I was a kid.

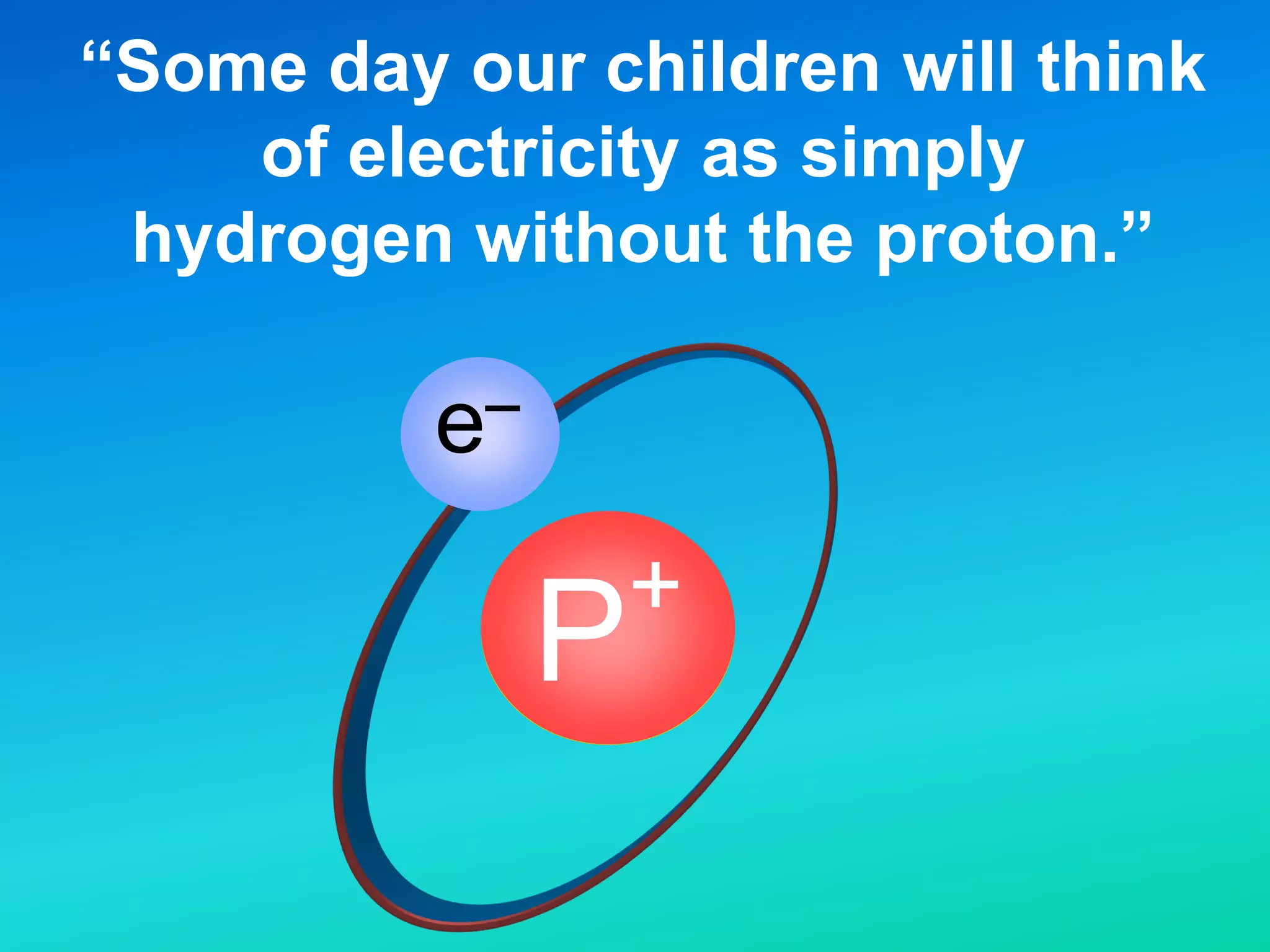

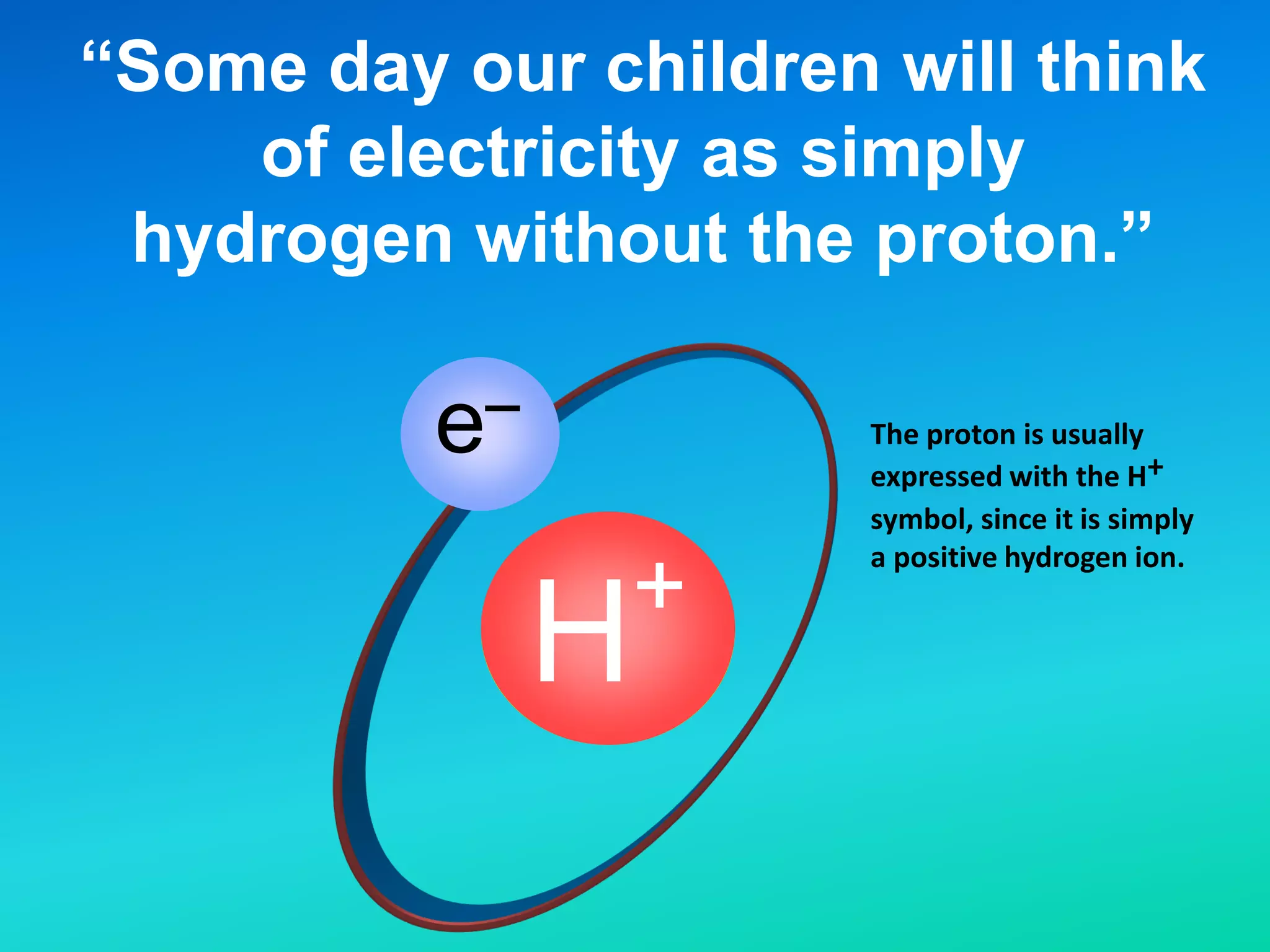

“Some day our children will think of electricity as simply hydrogen without the proton.” P+ e _
“Some day our children will think of electricity as simply hydrogen without the proton.” H+ e _ expressed with the H+ symbol, since it is simply a positive hydrogen ion. The proton is usually

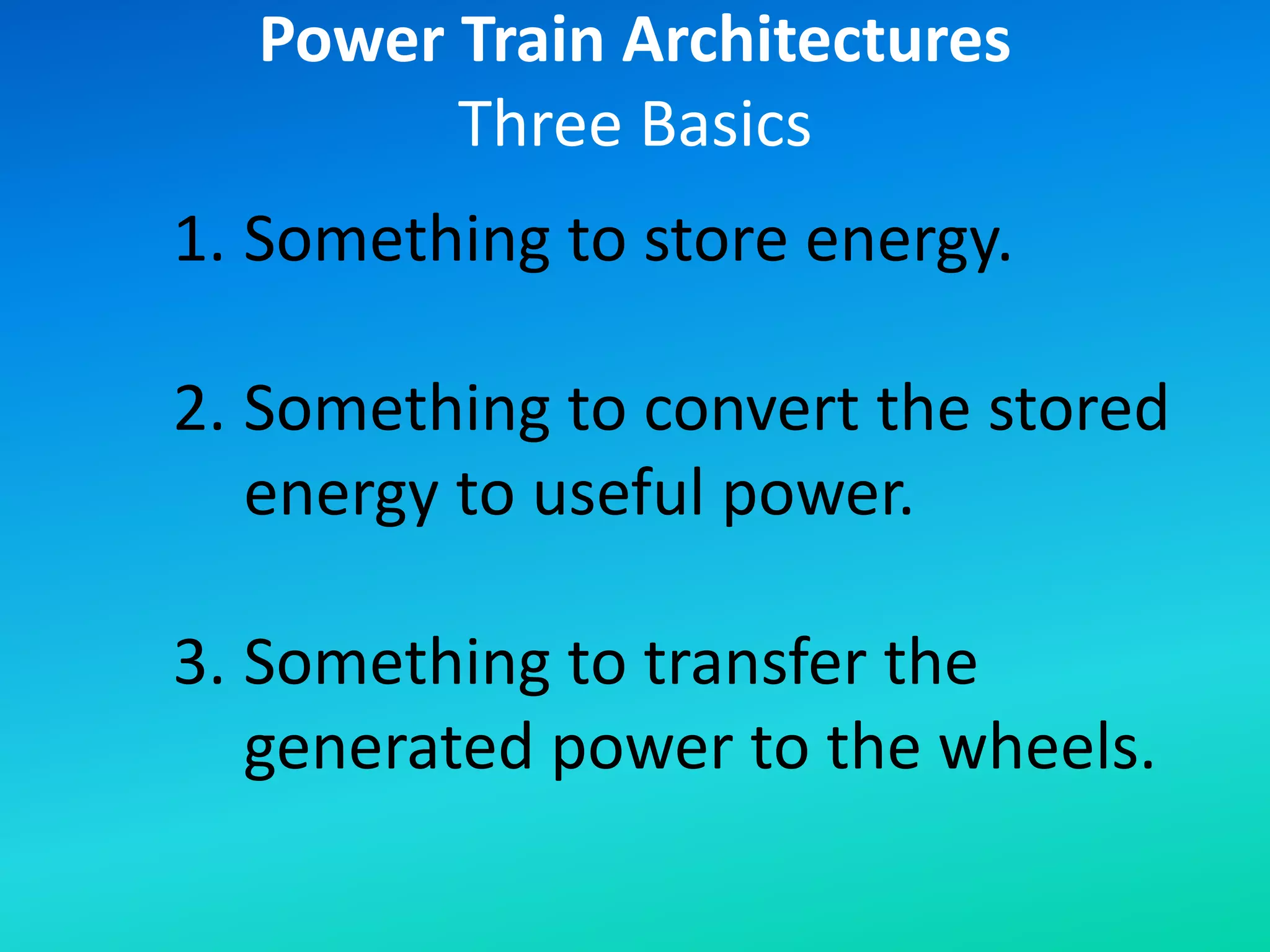

1. Something to store energy. 2. Something to convert the stored energy to useful power. 3. Something to transfer the generated power to the wheels. Power Train Architectures Three Basics

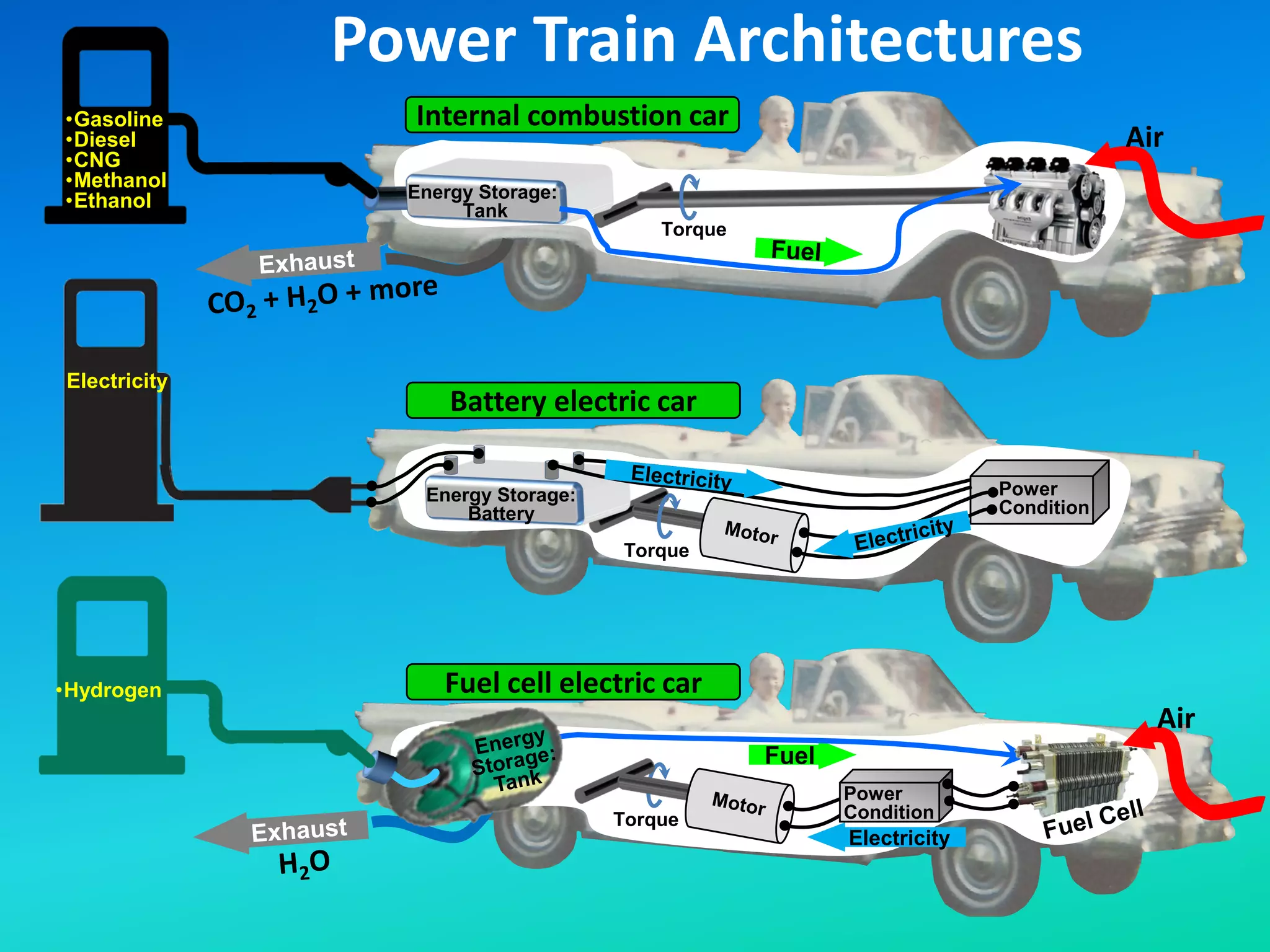

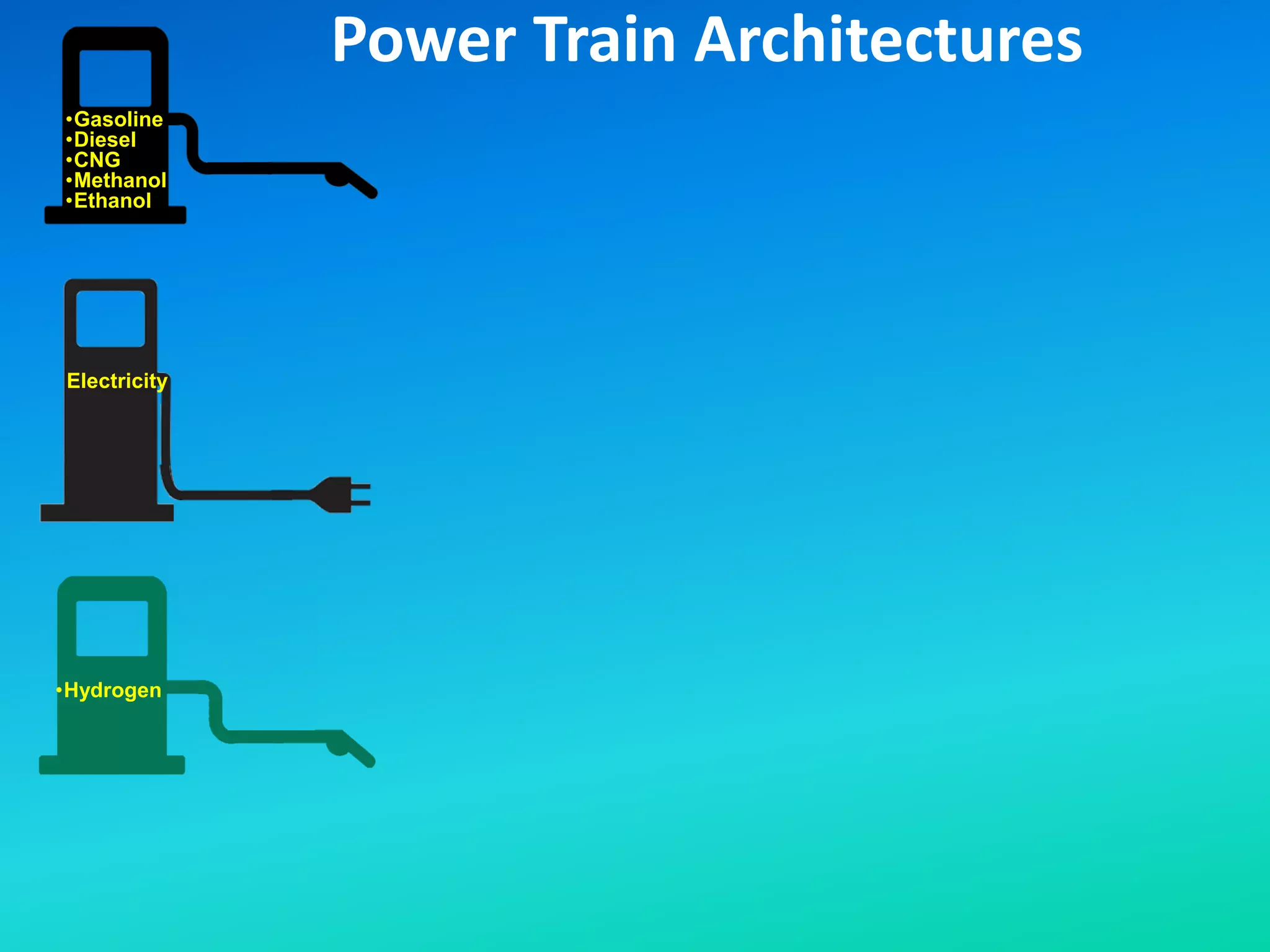

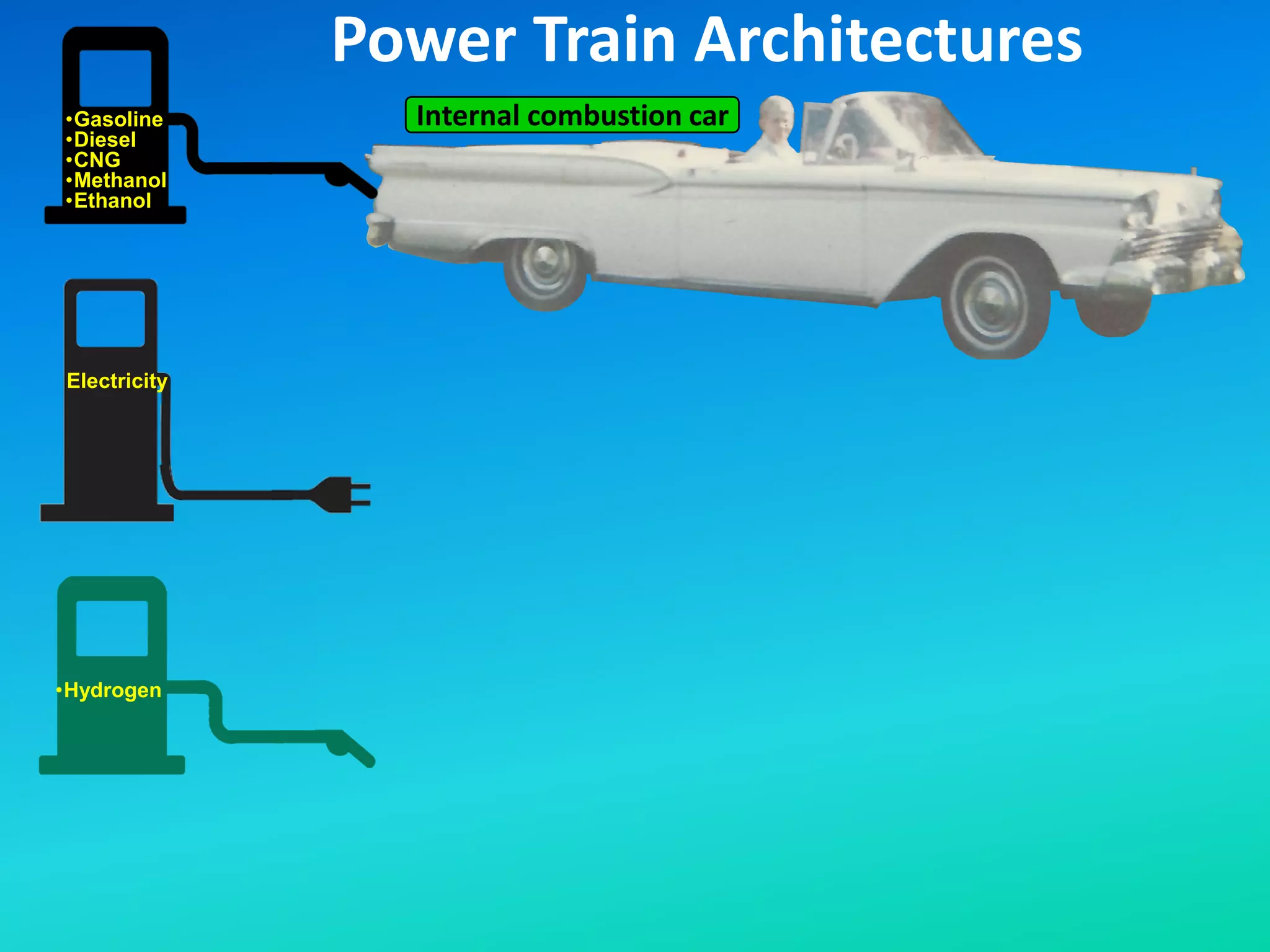

Electricity •Gasoline •Diesel •CNG •Methanol •Ethanol Power Train Architectures •Hydrogen
Electricity •Gasoline •Diesel •CNG •Methanol •Ethanol Power Train Architectures •Hydrogen Internal combustion car

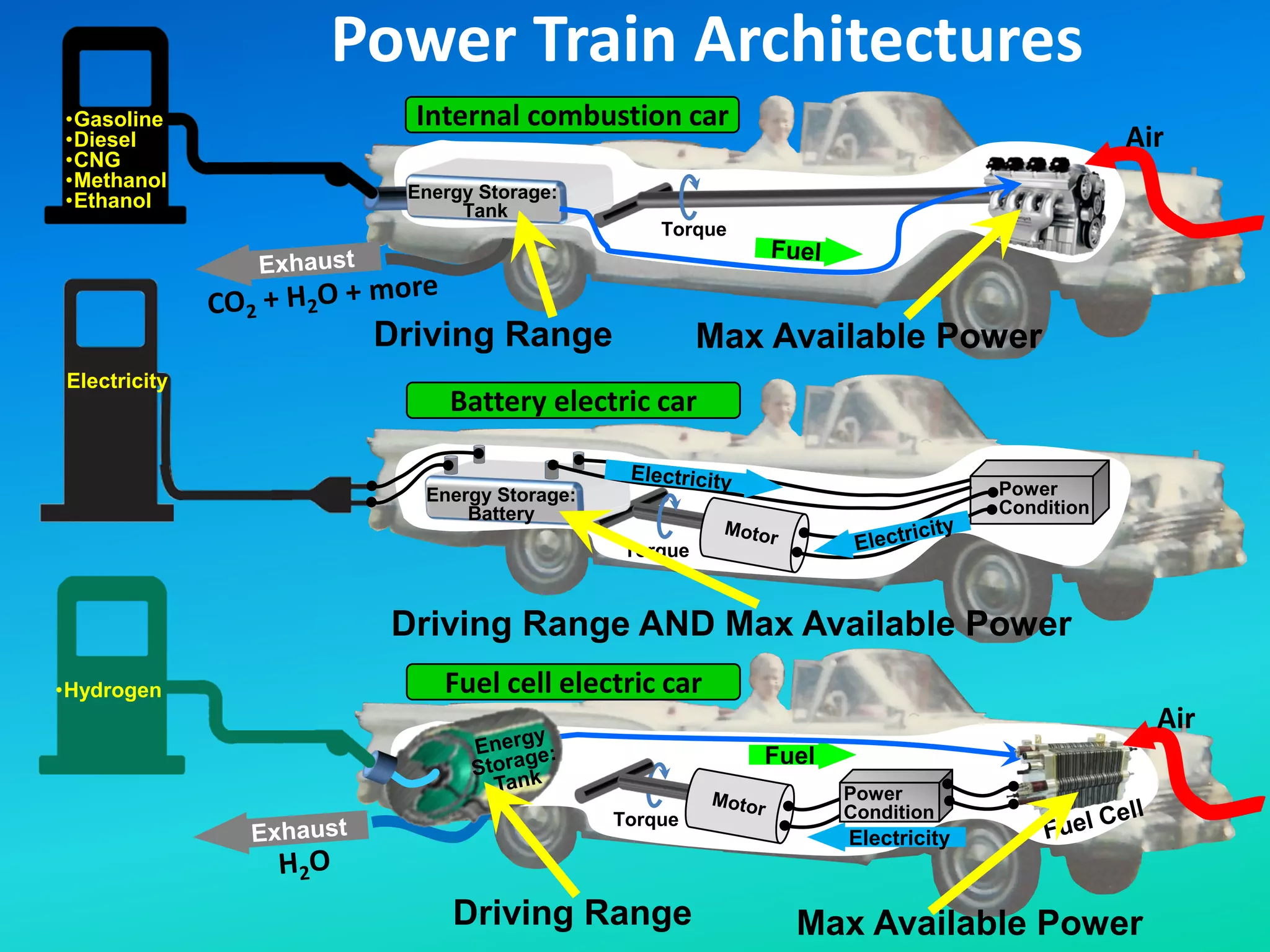

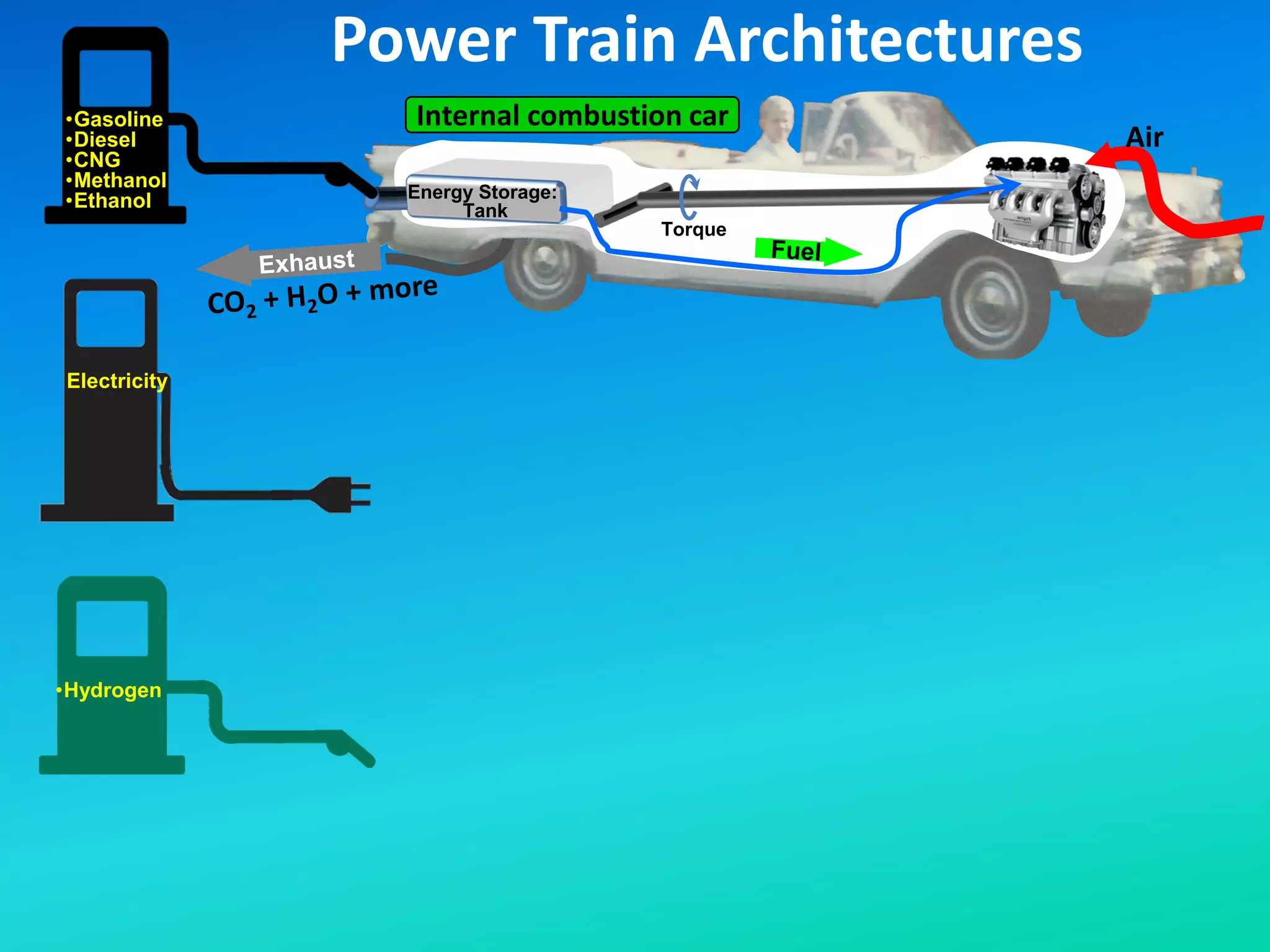

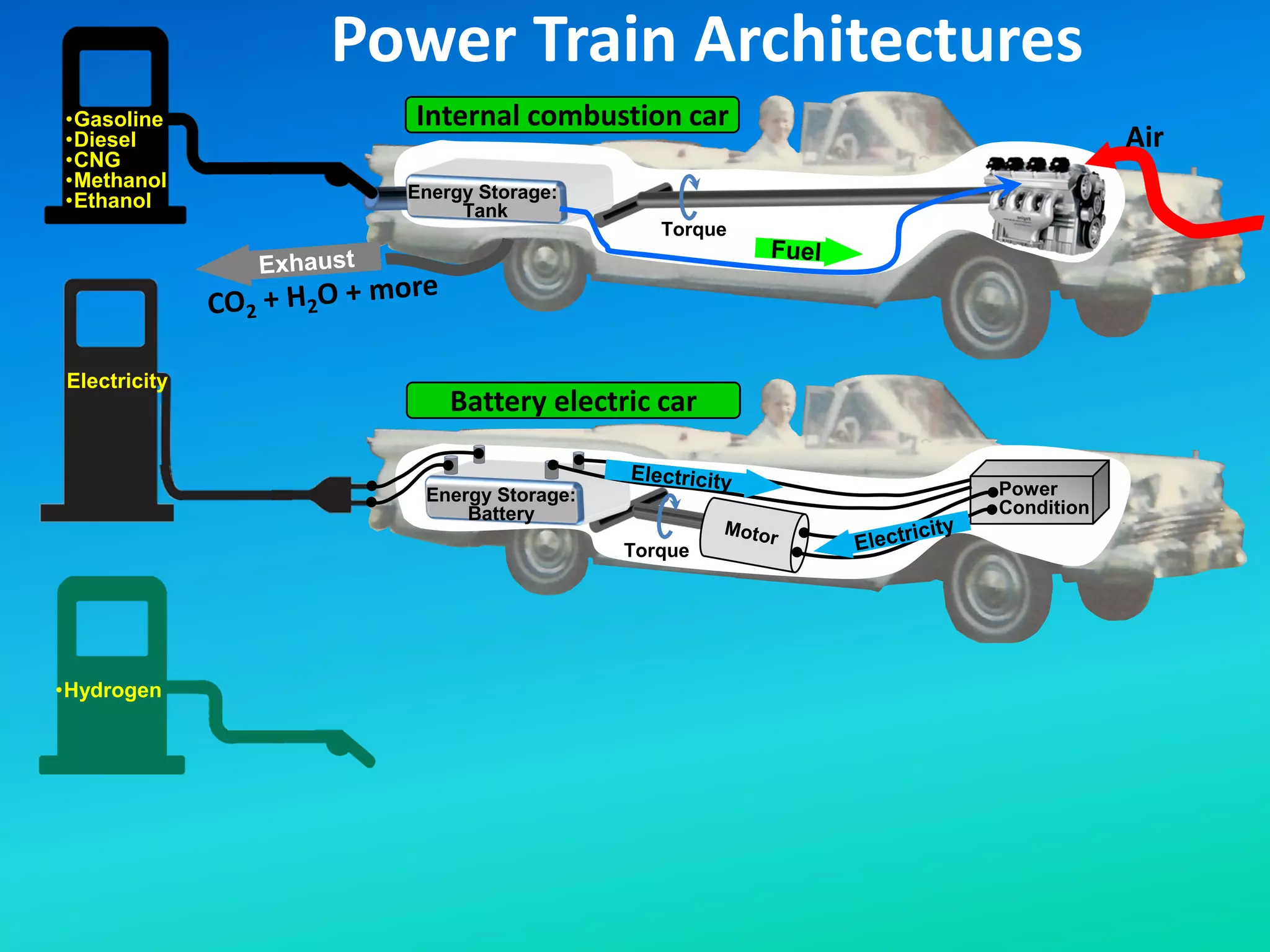

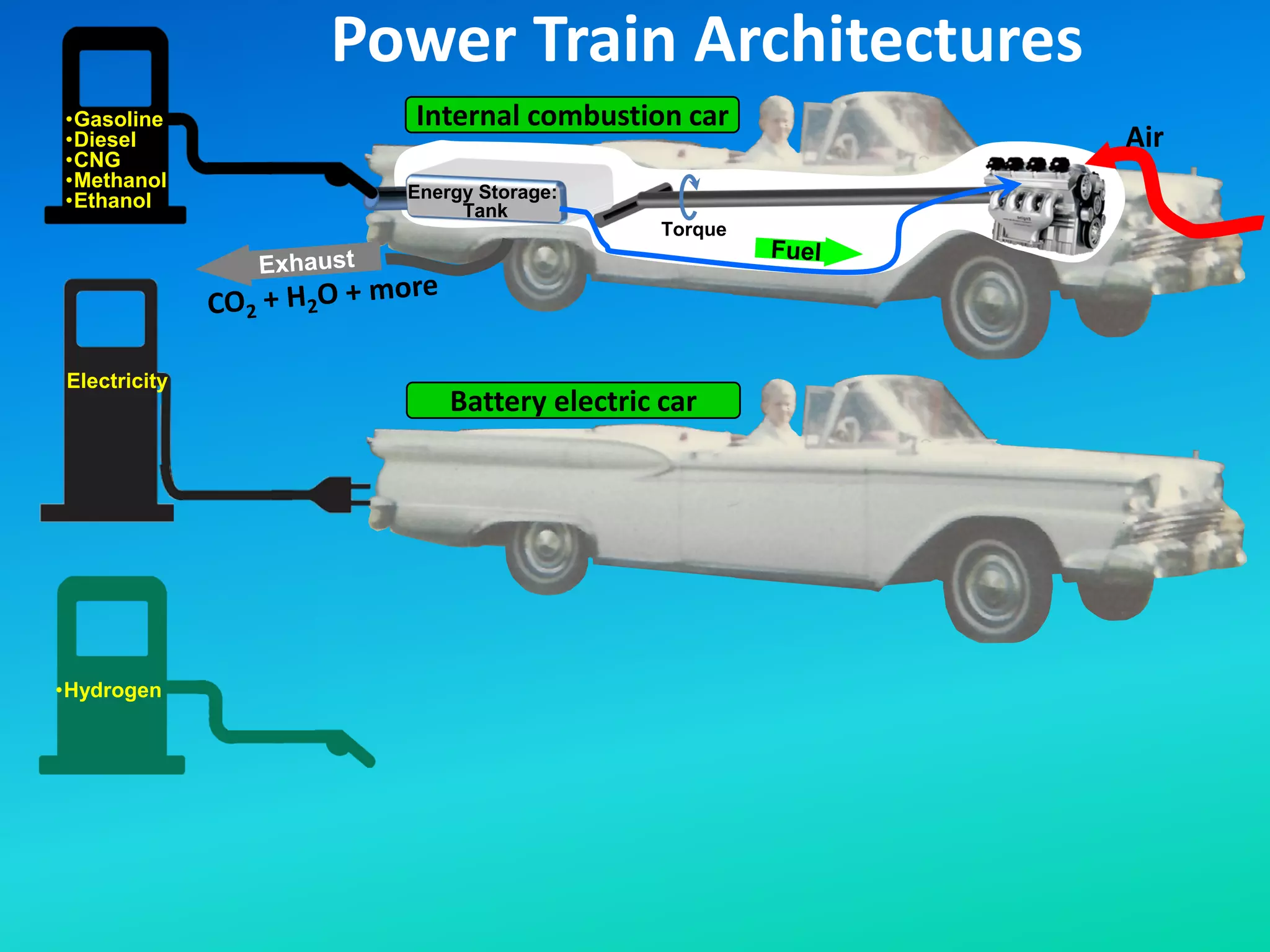

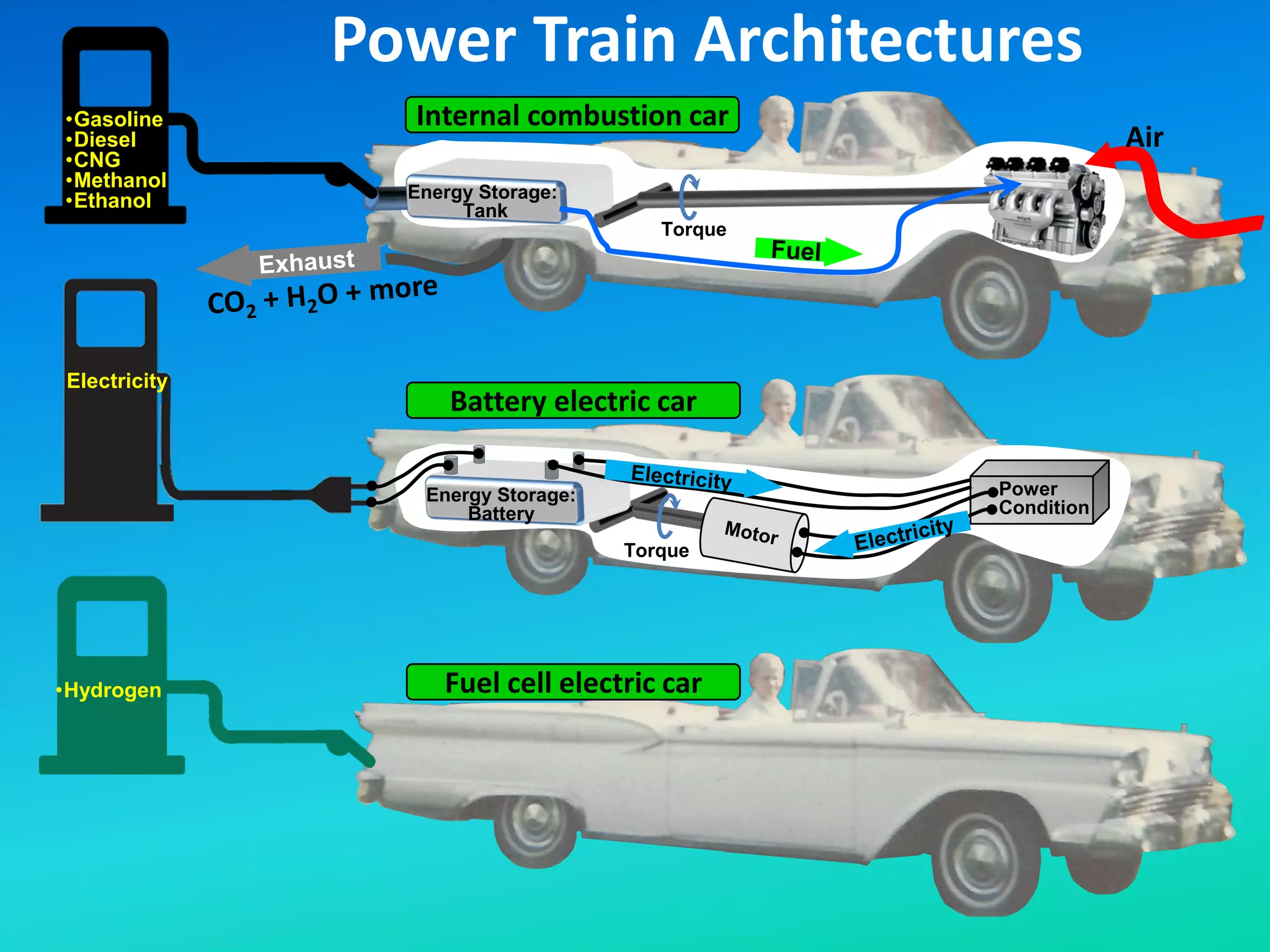

Electricity Air •Gasoline •Diesel •CNG •Methanol •Ethanol Energy Storage: Tank Torque Power Train Architectures •Hydrogen Internal combustion car
Electricity Air •Gasoline •Diesel •CNG •Methanol •Ethanol Energy Storage: Tank Torque Power Train Architectures •Hydrogen Internal combustion car Battery electric car
Electricity Air •Gasoline •Diesel •CNG •Methanol •Ethanol Energy Storage: Tank Torque Power Train Architectures Torque Power Condition •Hydrogen Internal combustion car Battery electric car Energy Storage: Battery
Electricity Air •Gasoline •Diesel •CNG •Methanol •Ethanol Energy Storage: Tank Torque Power Train Architectures Torque Power Condition •Hydrogen Internal combustion car Battery electric car Fuel cell electric car Energy Storage: Battery
Electricity Air •Gasoline •Diesel •CNG •Methanol •Ethanol Energy Storage: Tank Torque Power Train Architectures Torque Power Condition Electricity Torque Fuel Air •Hydrogen Power Condition Internal combustion car Battery electric car Fuel cell electric car Energy Storage: Battery
Electricity Air •Gasoline •Diesel •CNG •Methanol •Ethanol Energy Storage: Tank Torque Power Train Architectures Torque Power Condition Electricity Torque Fuel Air •Hydrogen Power Condition Internal combustion car Battery electric car Fuel cell electric car Energy Storage: Battery Driving Range Max Available Power Driving Range Max Available Power Driving Range AND Max Available Power

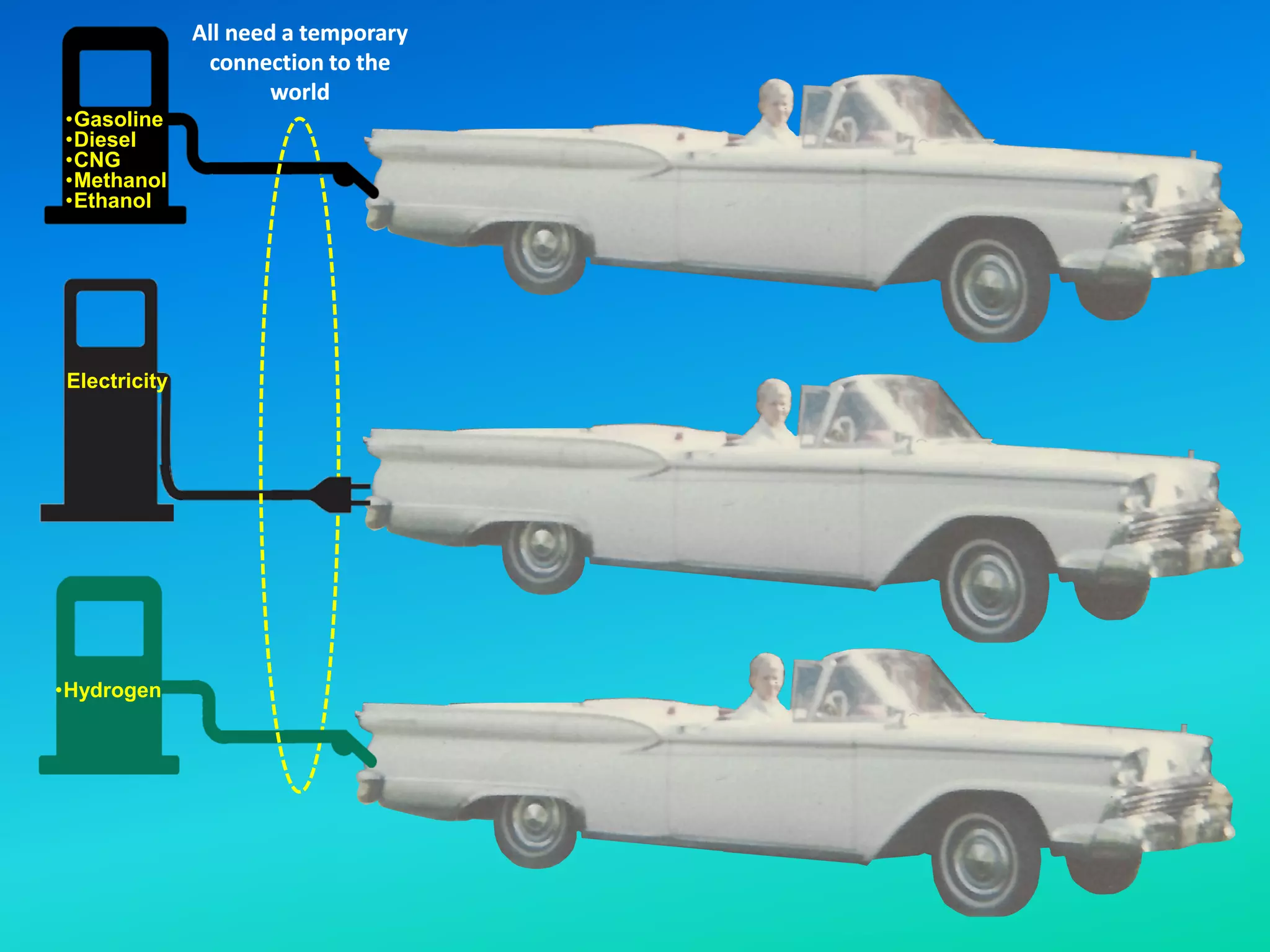

•Gasoline •Diesel •CNG •Methanol •Ethanol Electricity •Hydrogen All need a temporary connection to the world All need a temporary connection to the world

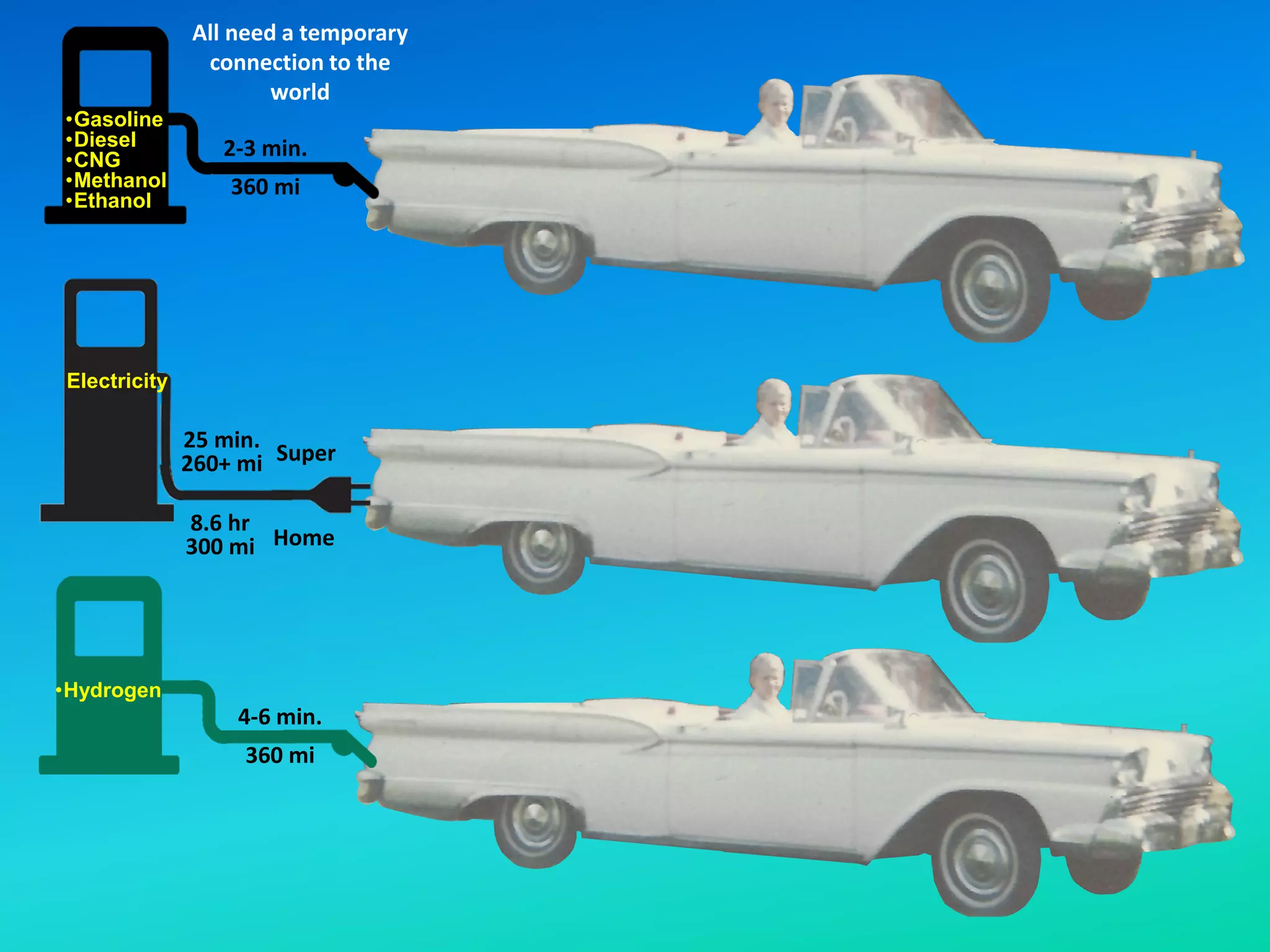

•Gasoline •Diesel •CNG •Methanol •Ethanol Electricity •Hydrogen 2-3 min. 360 mi 4-6 min. 360 mi All need a temporary connection to the world 25 min. 260+ mi Super 8.6 hr 300 mi Home
What hydrogen cars are NOT going to be.

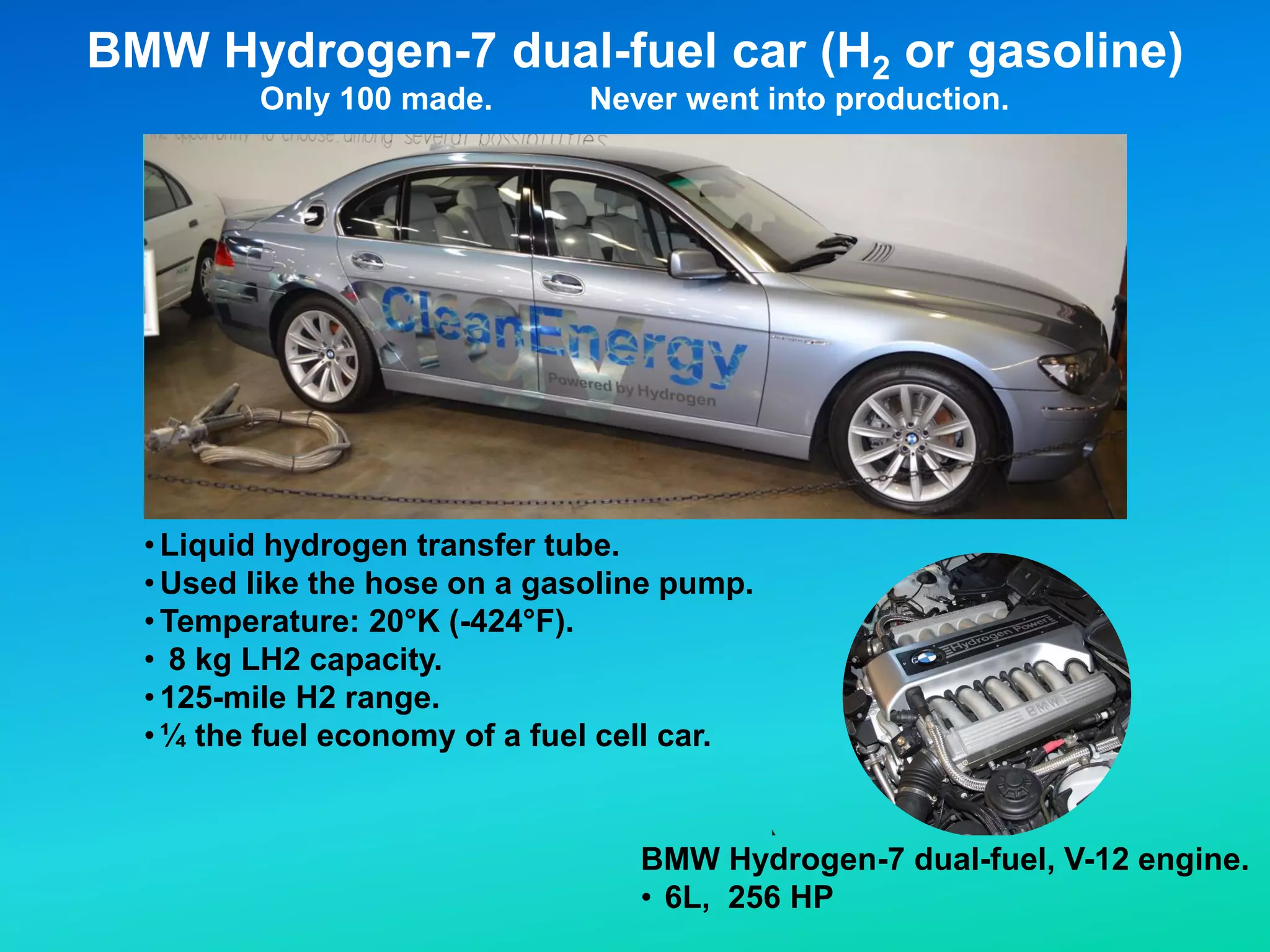

•Liquid hydrogen transfer tube. •Used like the hose on a gasoline pump. •Temperature: 20°K (-424°F). • 8 kg LH2 capacity. •125-mile H2 range. •¼ the fuel economy of a fuel cell car. BMW Hydrogen-7 dual-fuel car (H2 or gasoline) Only 100 made. Never went into production. BMW Hydrogen-7 dual-fuel, V-12 engine. • 6L, 256 HP
What hydrogen cars are going to be.

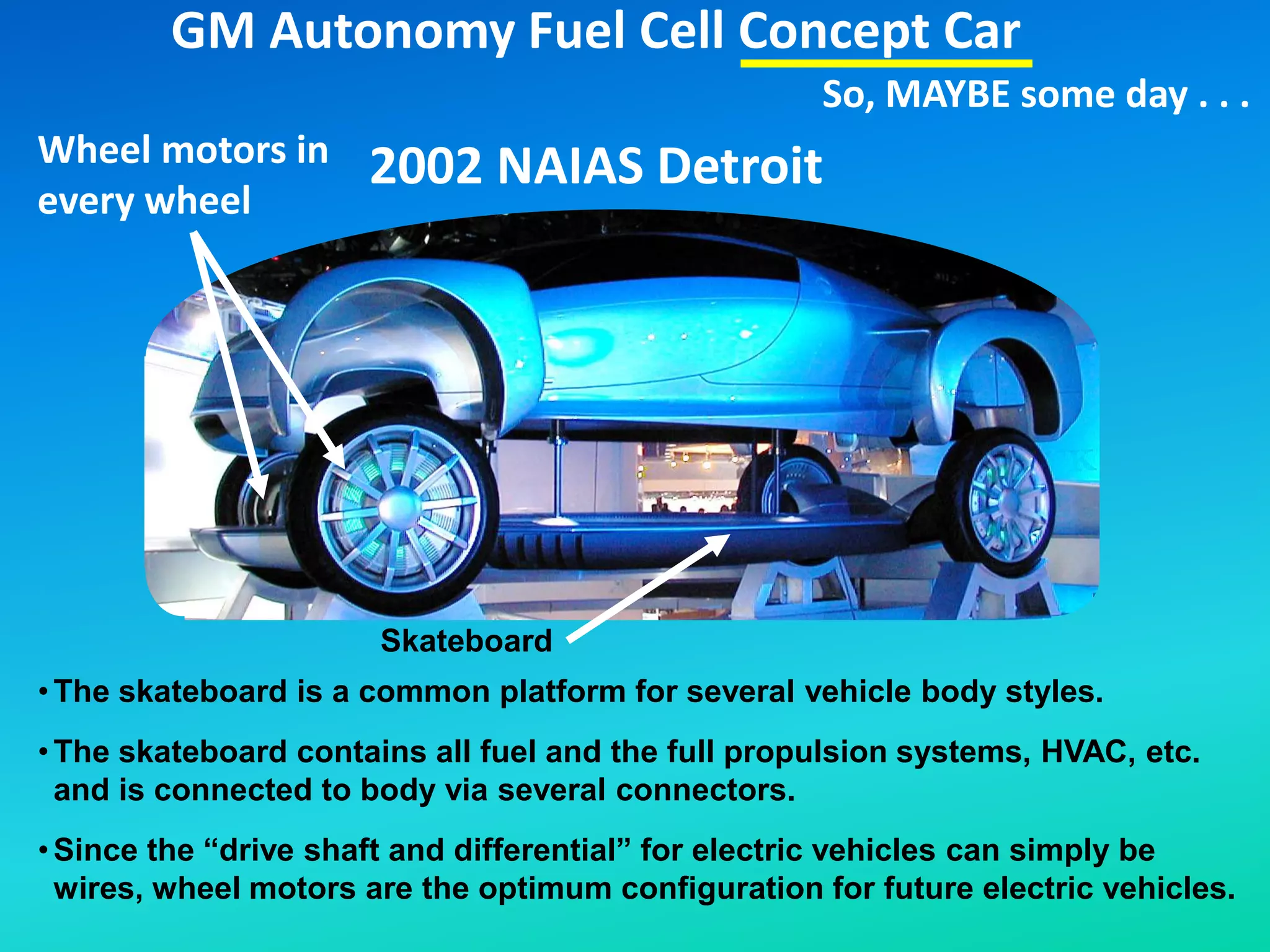

GM Autonomy Fuel Cell Concept Car 2002 NAIAS Detroit •The skateboard is a common platform for several vehicle body styles. •The skateboard contains all fuel and the full propulsion systems, HVAC, etc. and is connected to body via several connectors. •Since the “drive shaft and differential” for electric vehicles can simply be wires, wheel motors are the optimum configuration for future electric vehicles. Wheel motors in every wheel Skateboard So, MAYBE some day . . .
What is a fuel cell?

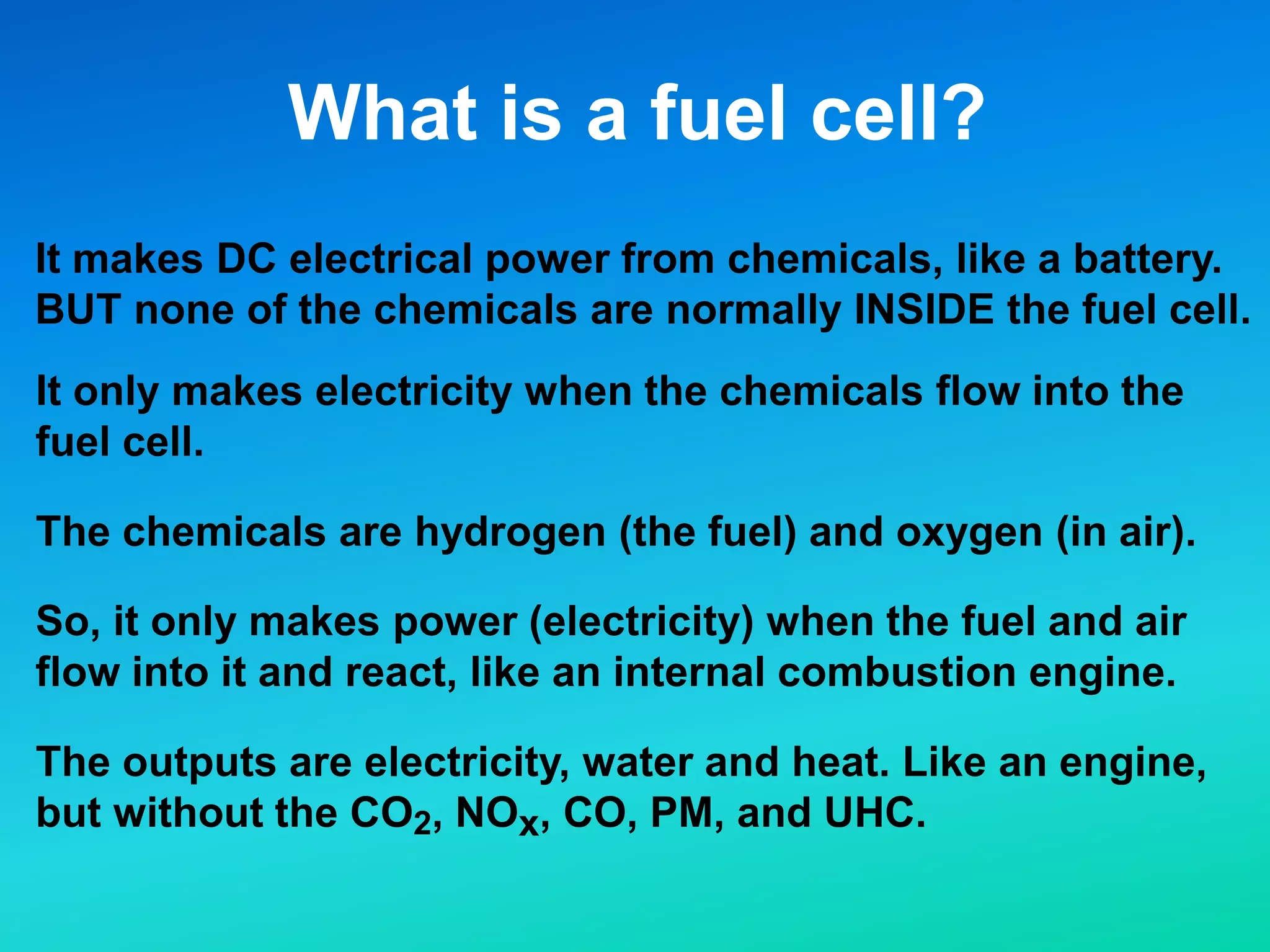

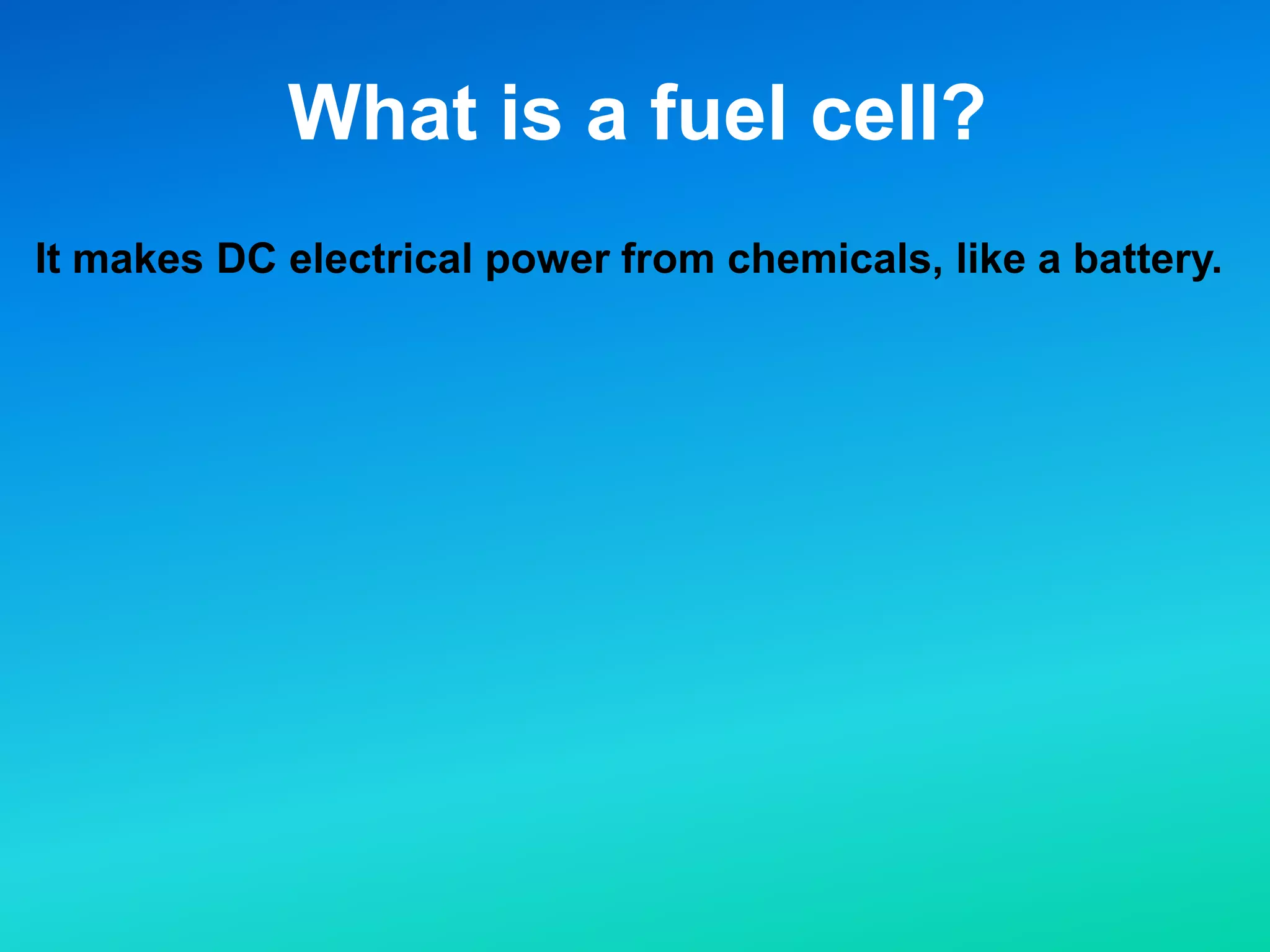

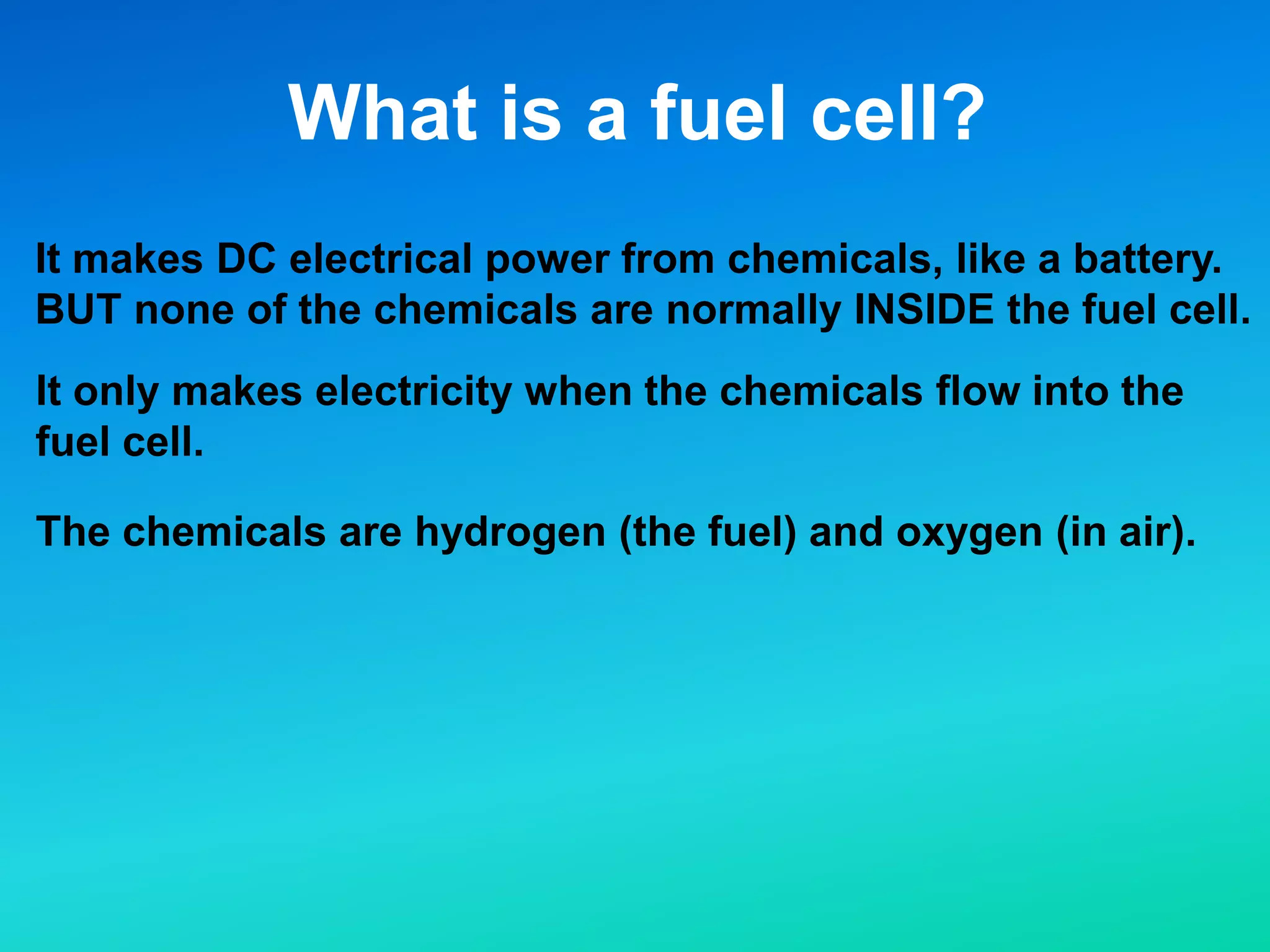

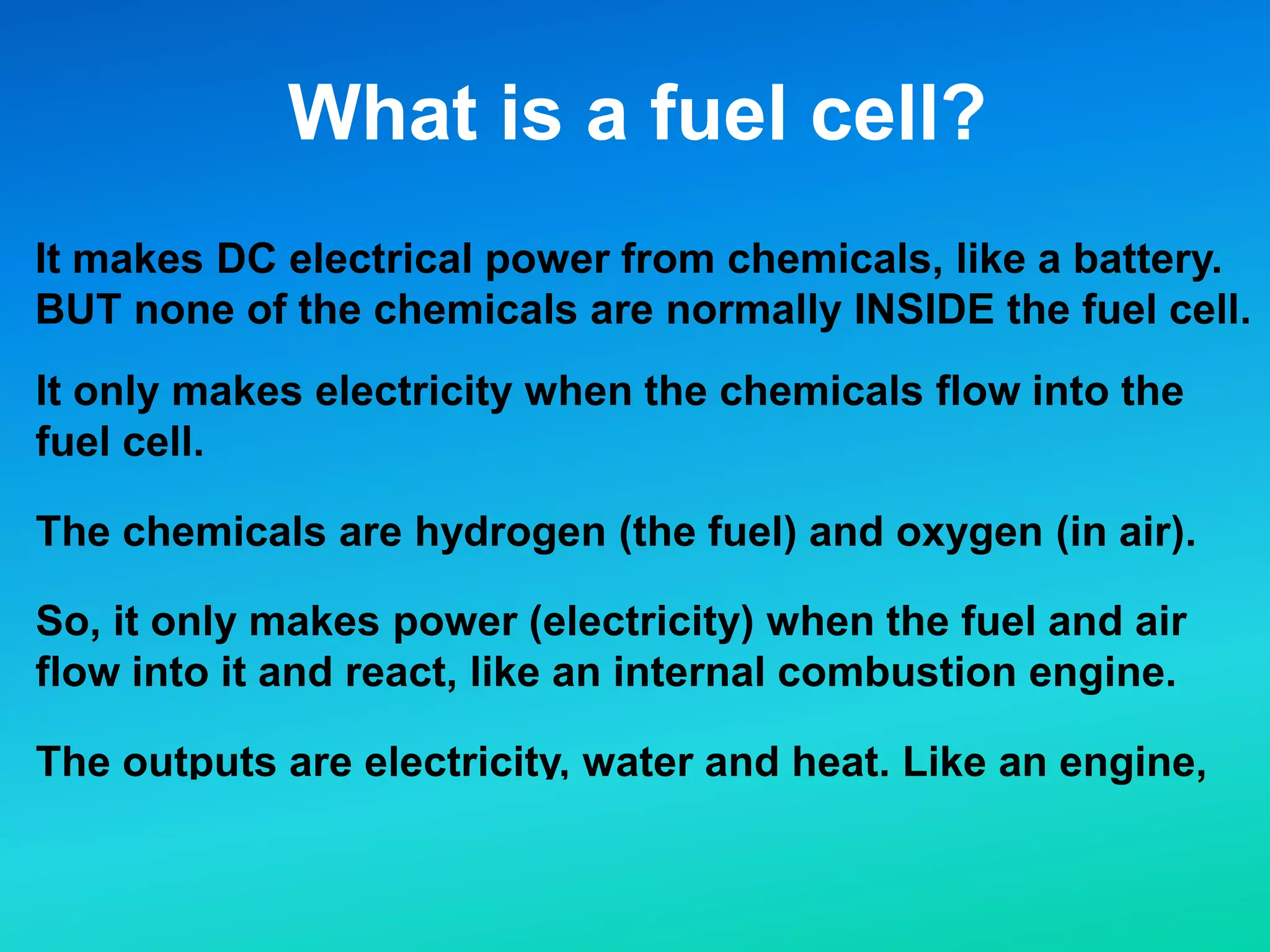

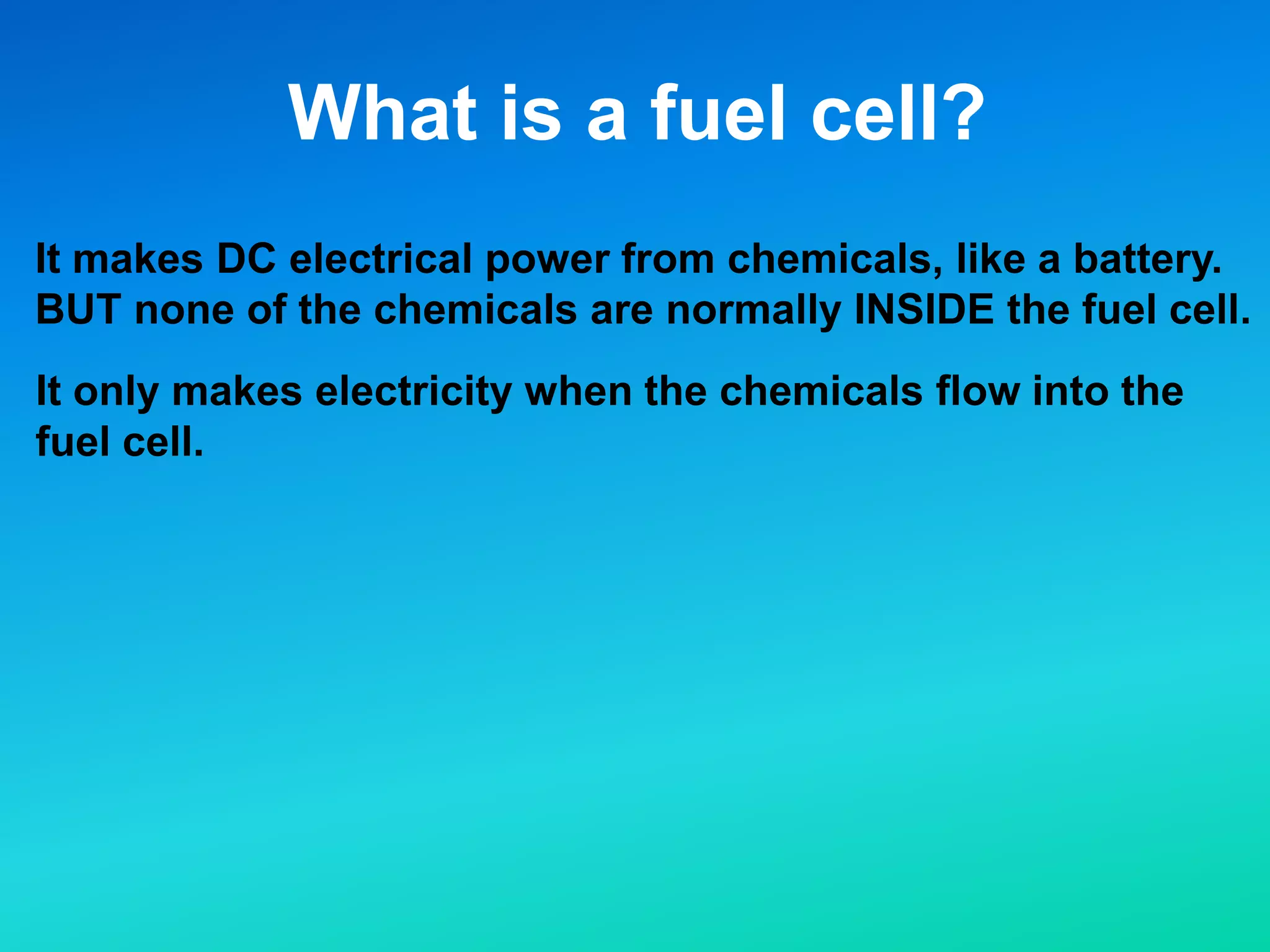

What is a fuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell.

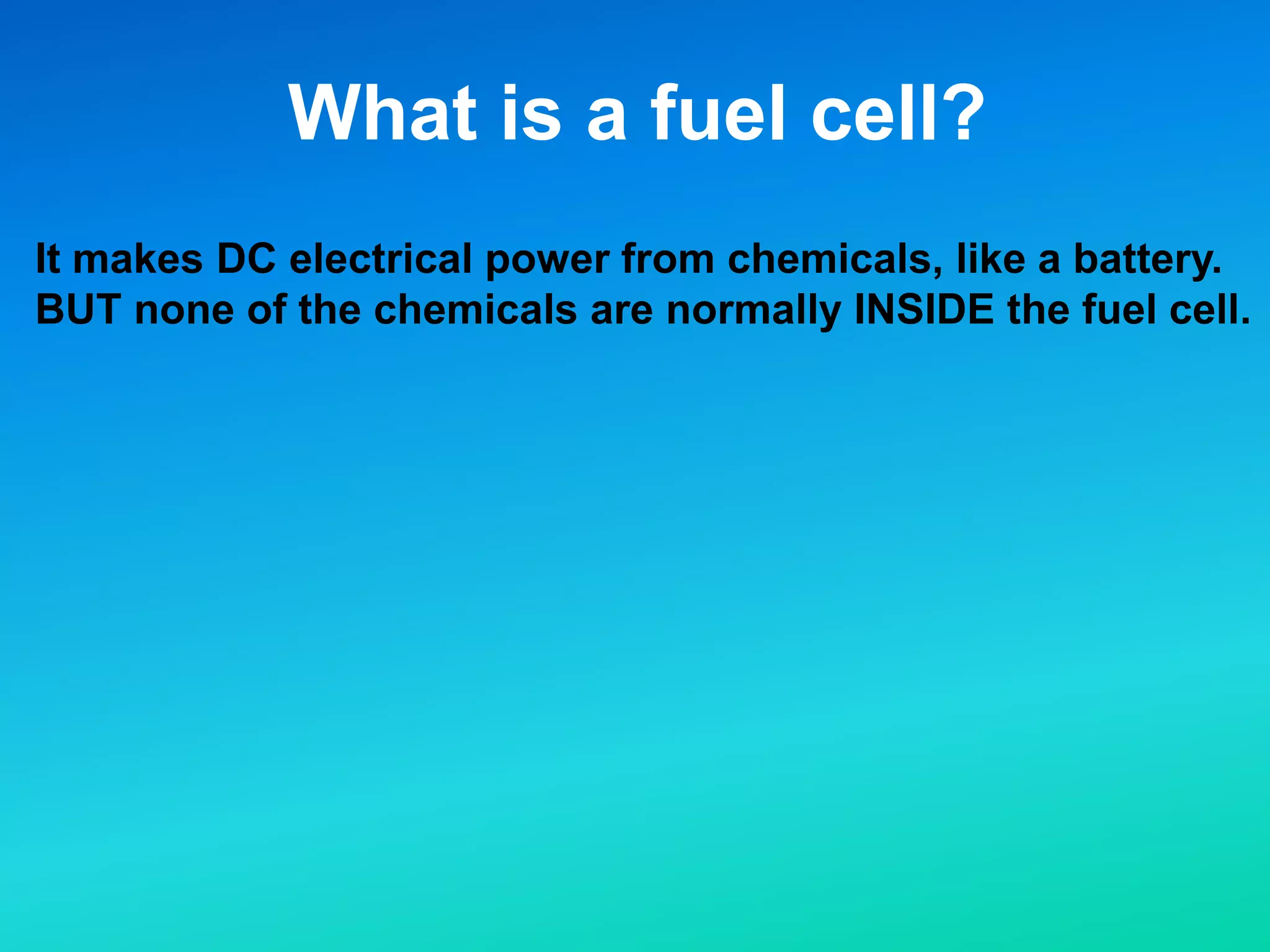

What is a fuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell.
What is a fuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell. It only makes electricity when the chemicals flow into the fuel cell.
What is a fuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell. It only makes electricity when the chemicals flow into the fuel cell. The chemicals are hydrogen (the fuel) and oxygen (in air). So, it only makes power (electricity) when the fuel and air flow into it and react, like an internal combustion engine. The outputs are electricity, water and heat. Like an engine, but without the CO2, NOx, CO, PM, and UHC.

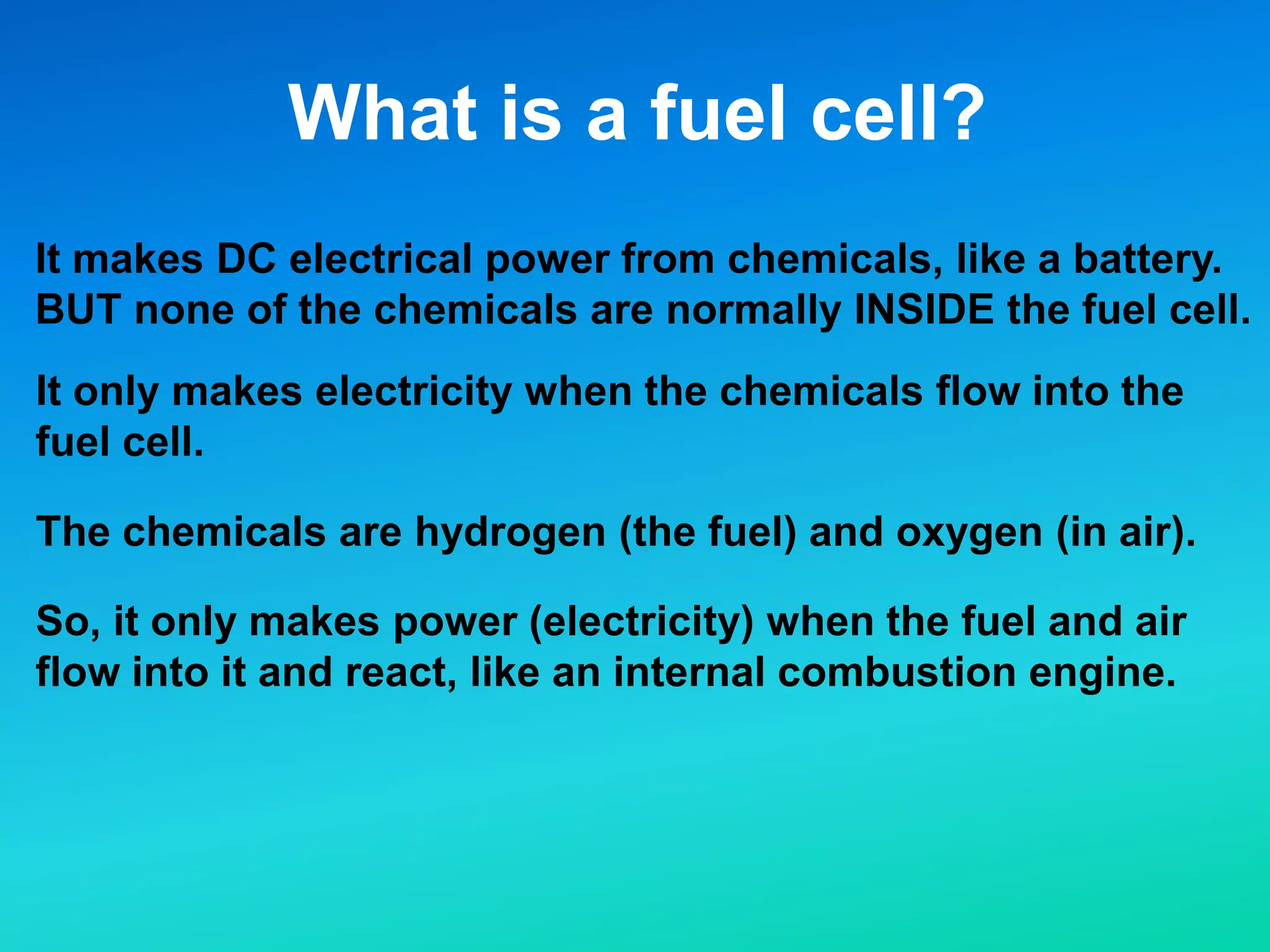

What is a fuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell. It only makes electricity when the chemicals flow into the fuel cell. The chemicals are hydrogen (the fuel) and oxygen (in air). So, it only makes power (electricity) when the fuel and air flow into it and react, like an internal combustion engine.
What is a fuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell. It only makes electricity when the chemicals flow into the fuel cell. The chemicals are hydrogen (the fuel) and oxygen (in air). So, it only makes power (electricity) when the fuel and air flow into it and react, like an internal combustion engine. The outputs are electricity, water and heat. Like an engine, but without the CO2, NOx, CO, PM, and UHC.
What is a fuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell. It only makes electricity when the chemicals flow into the fuel cell. The chemicals are hydrogen (the fuel) and oxygen (in air). So, it only makes power (electricity) when the fuel and air flow into it and react, like an internal combustion engine. The outputs are electricity, water and heat. Like an engine, but without the CO2, NOx, CO, PM, and UHC.

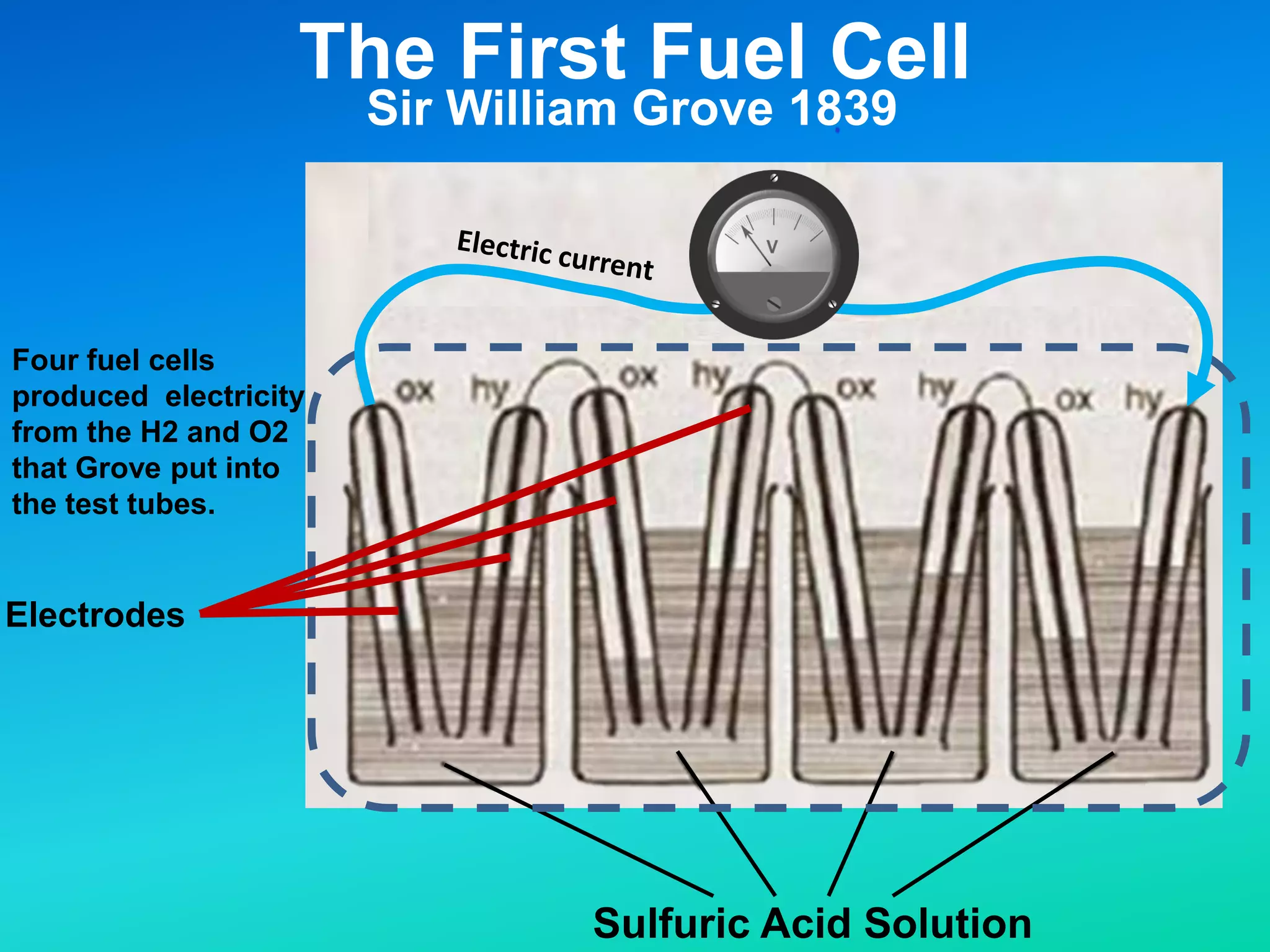

Sulfuric Acid Solution The First Fuel Cell Sir William Grove 1839 Electrodes
Sulfuric Acid Solution The First Fuel Cell Sir William Grove 1839 Electrodes Sir William began thinking about this on his honeymoon in 1837
Sulfuric Acid Solution Electrodes Four fuel cells produced electricity from the H2 and O2 that Grove put into the test tubes. The First Fuel Cell Sir William Grove 1839

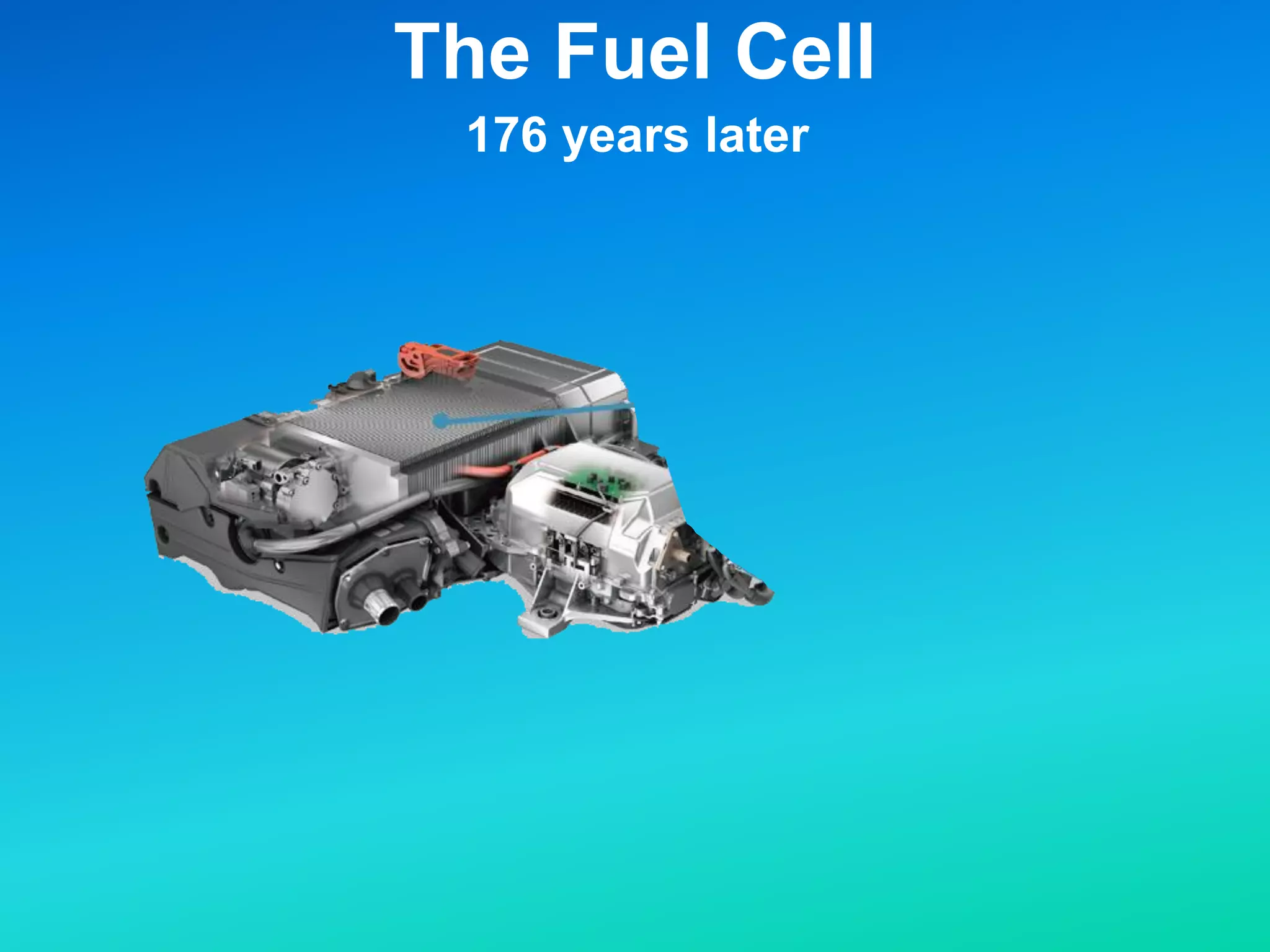

176 years later The Fuel Cell

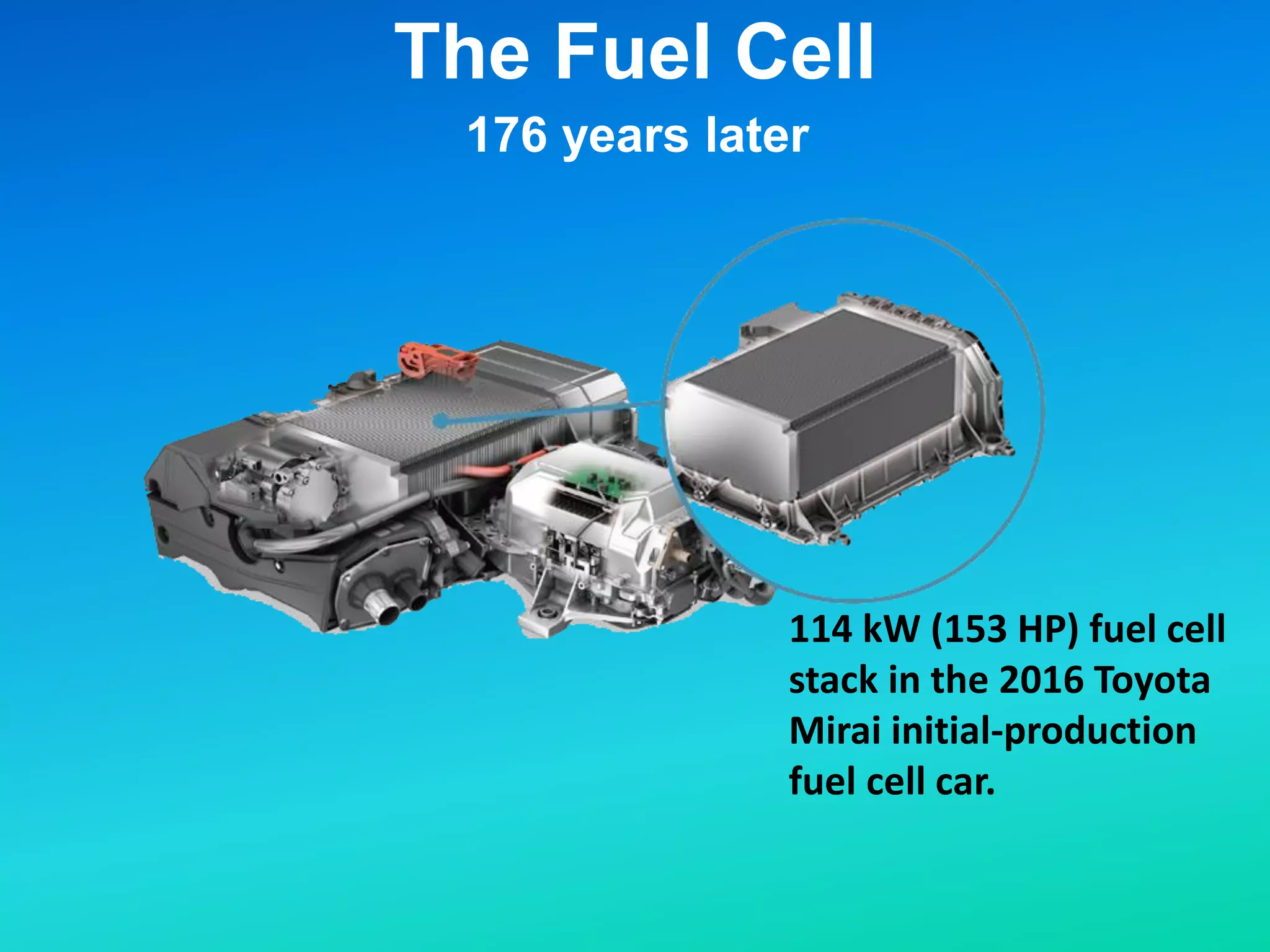

114 kW (153 HP) fuel cell stack in the 2016 Toyota Mirai initial-production fuel cell car. 176 years later The Fuel Cell
The last 28 years in 7 examples

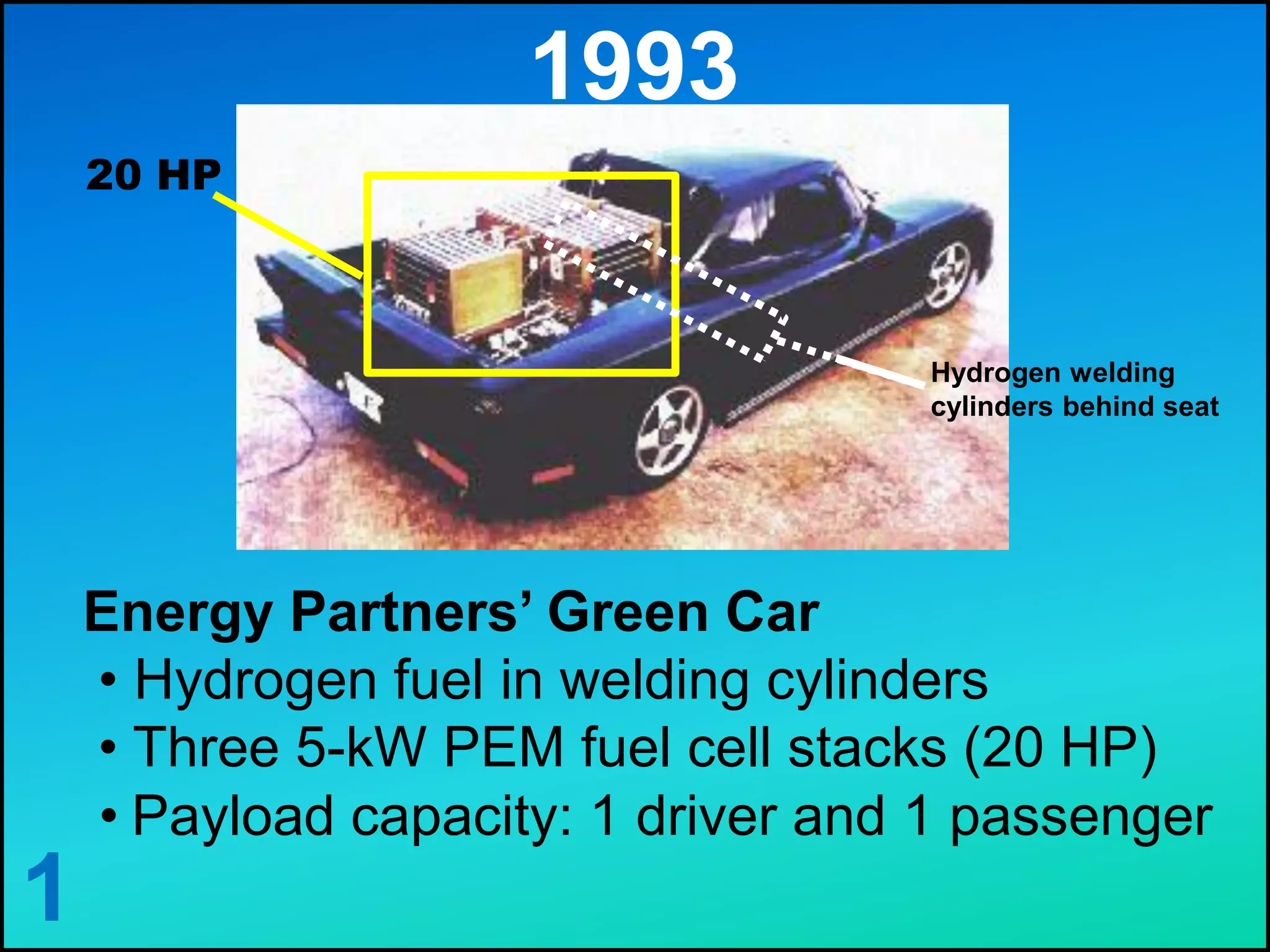

1993 1 Energy Partners’ Green Car • Hydrogen fuel in welding cylinders • Three 5-kW PEM fuel cell stacks (20 HP) • Payload capacity: 1 driver and 1 passenger 20 HP Hydrogen welding cylinders behind seat

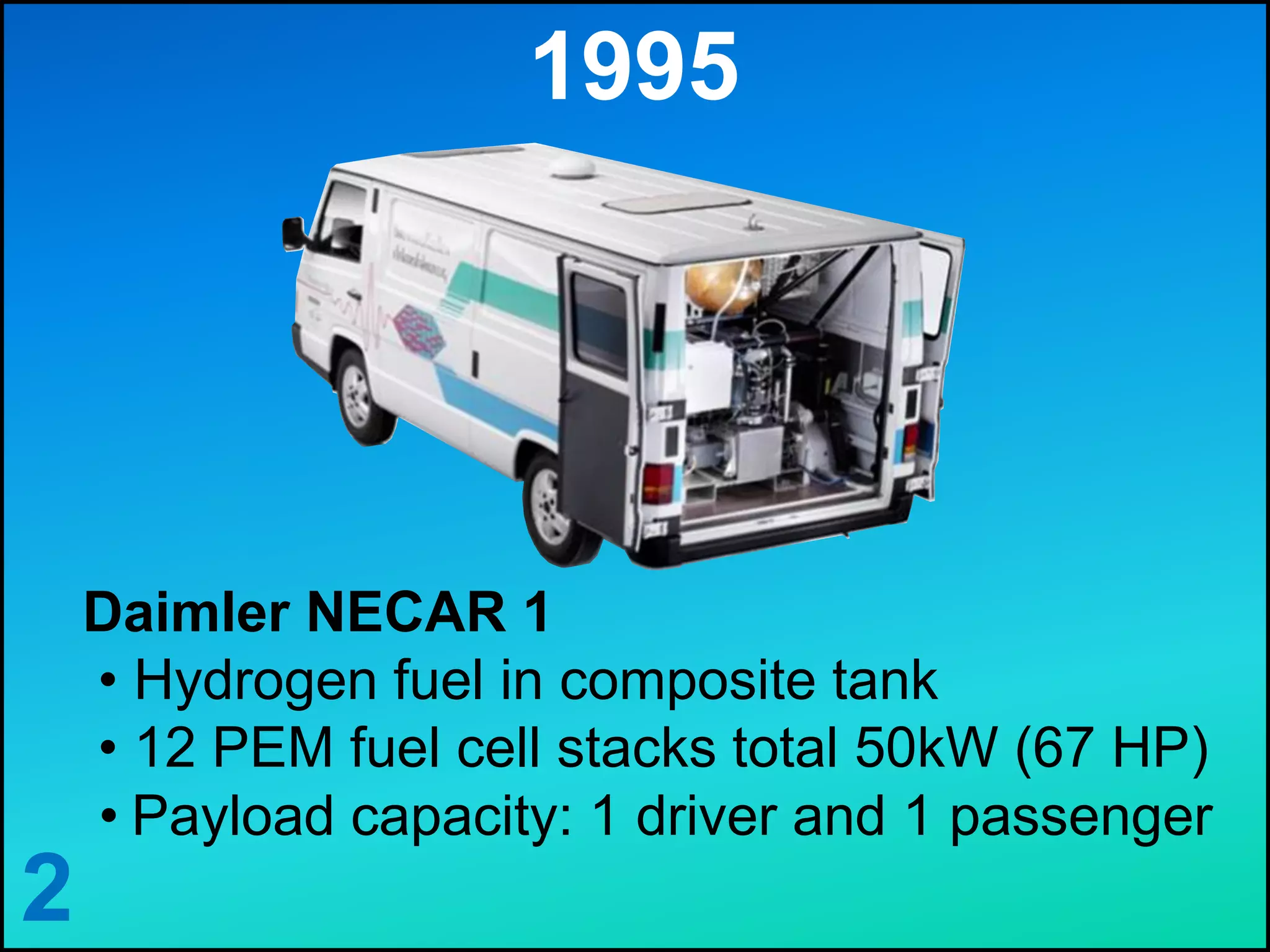

1995 2 Daimler NECAR 1 • Hydrogen fuel in composite tank • 12 PEM fuel cell stacks total 50kW (67 HP) • Payload capacity: 1 driver and 1 passenger

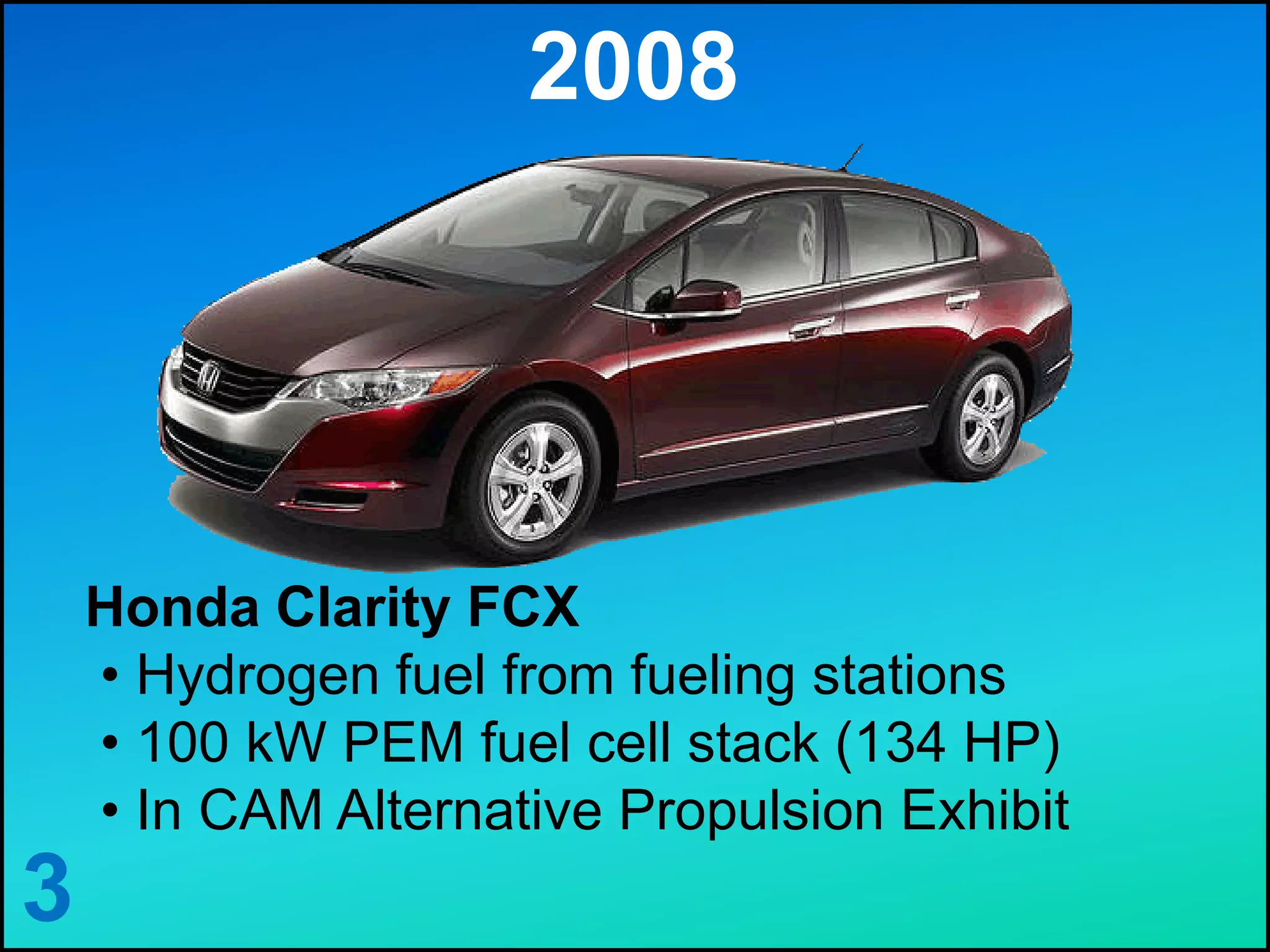

2008 3 Honda Clarity FCX • Hydrogen fuel from fueling stations • 100 kW PEM fuel cell stack (134 HP) • In CAM Alternative Propulsion Exhibit

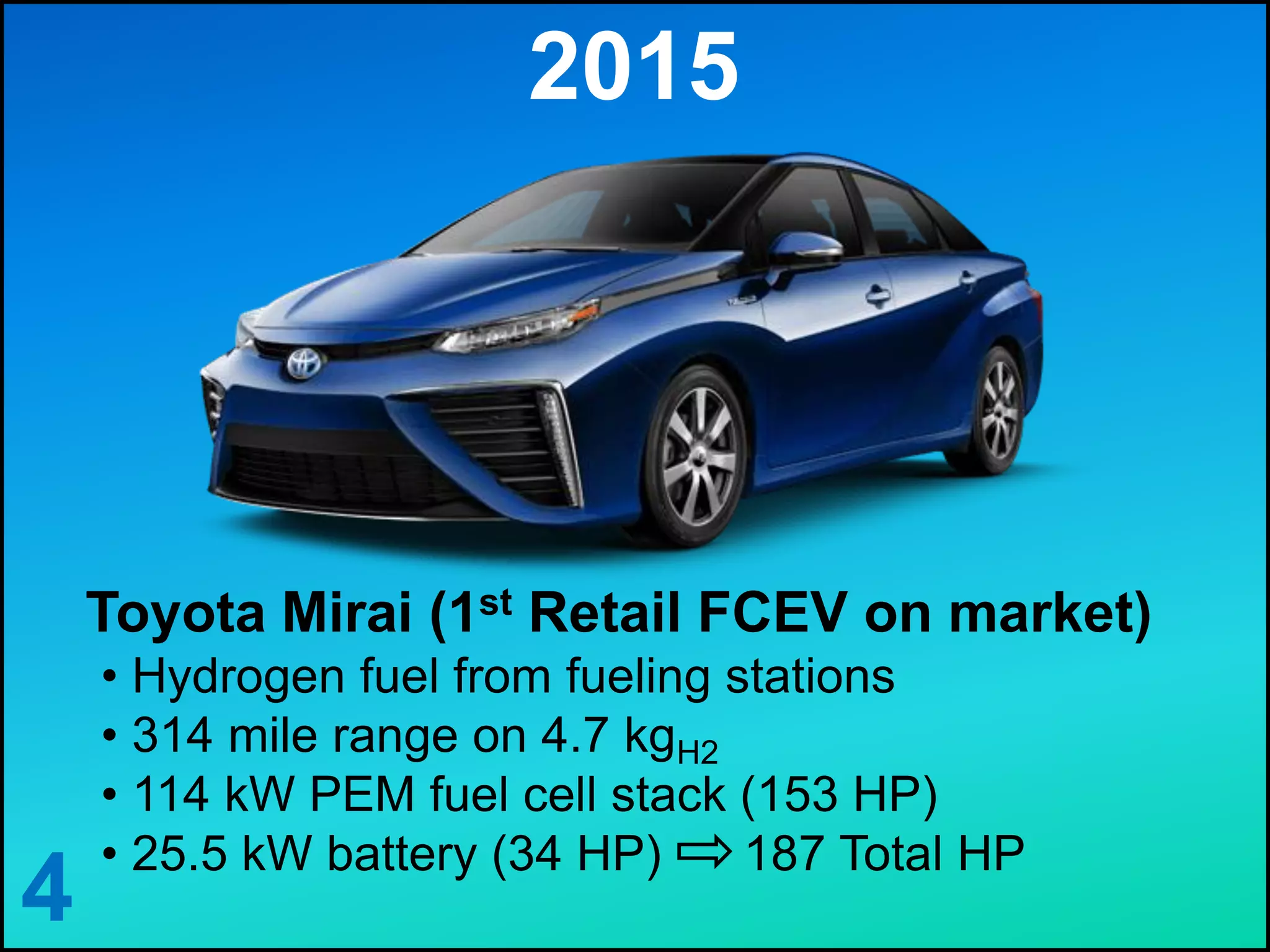

4 2015 Toyota Mirai (1st Retail FCEV on market) • Hydrogen fuel from fueling stations • 314 mile range on 4.7 kgH2 • 114 kW PEM fuel cell stack (153 HP) • 25.5 kW battery (34 HP) 187 Total HP

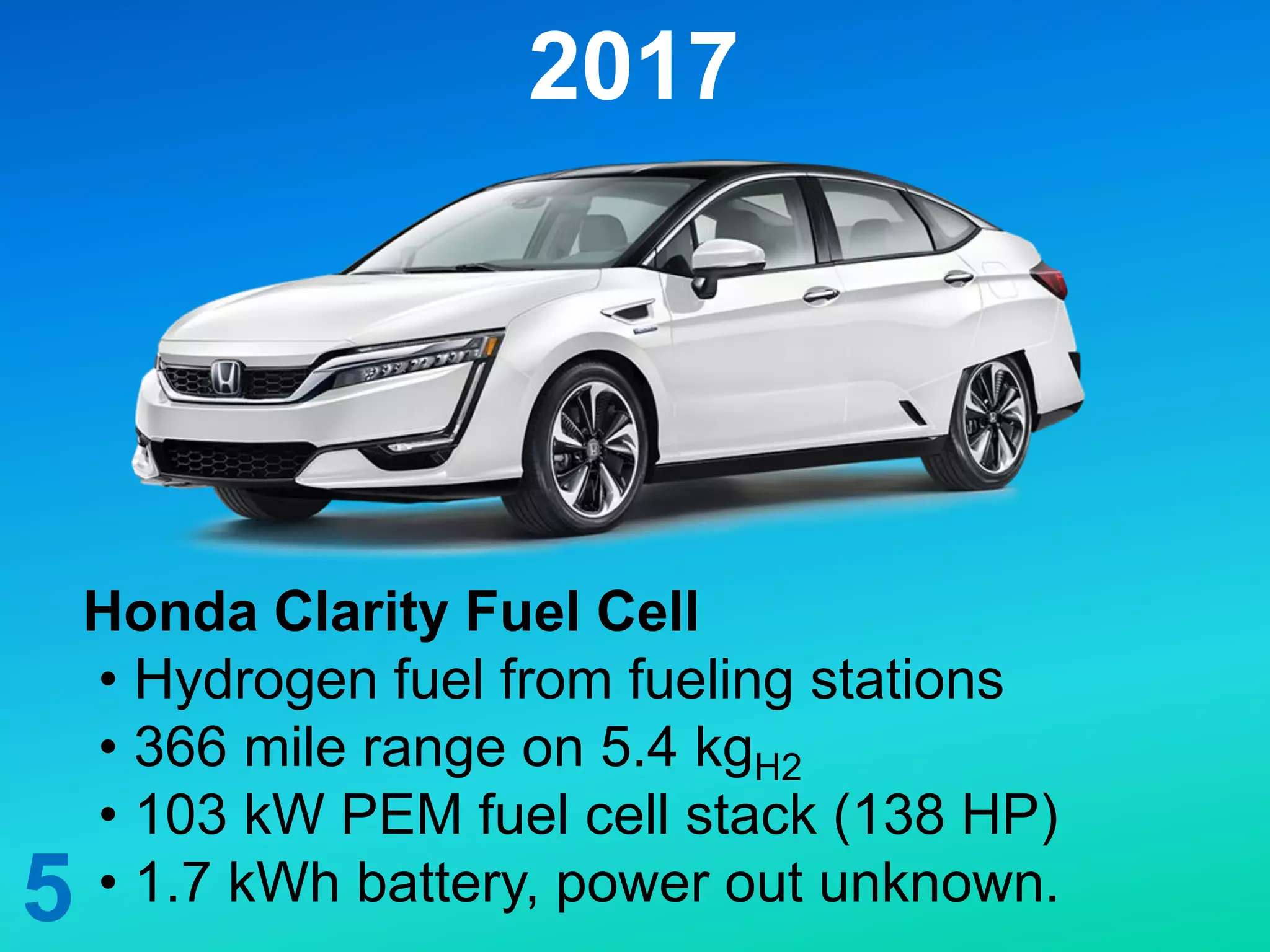

2017 5 Honda Clarity Fuel Cell • Hydrogen fuel from fueling stations • 366 mile range on 5.4 kgH2 • 103 kW PEM fuel cell stack (138 HP) • 1.7 kWh battery, power out unknown.

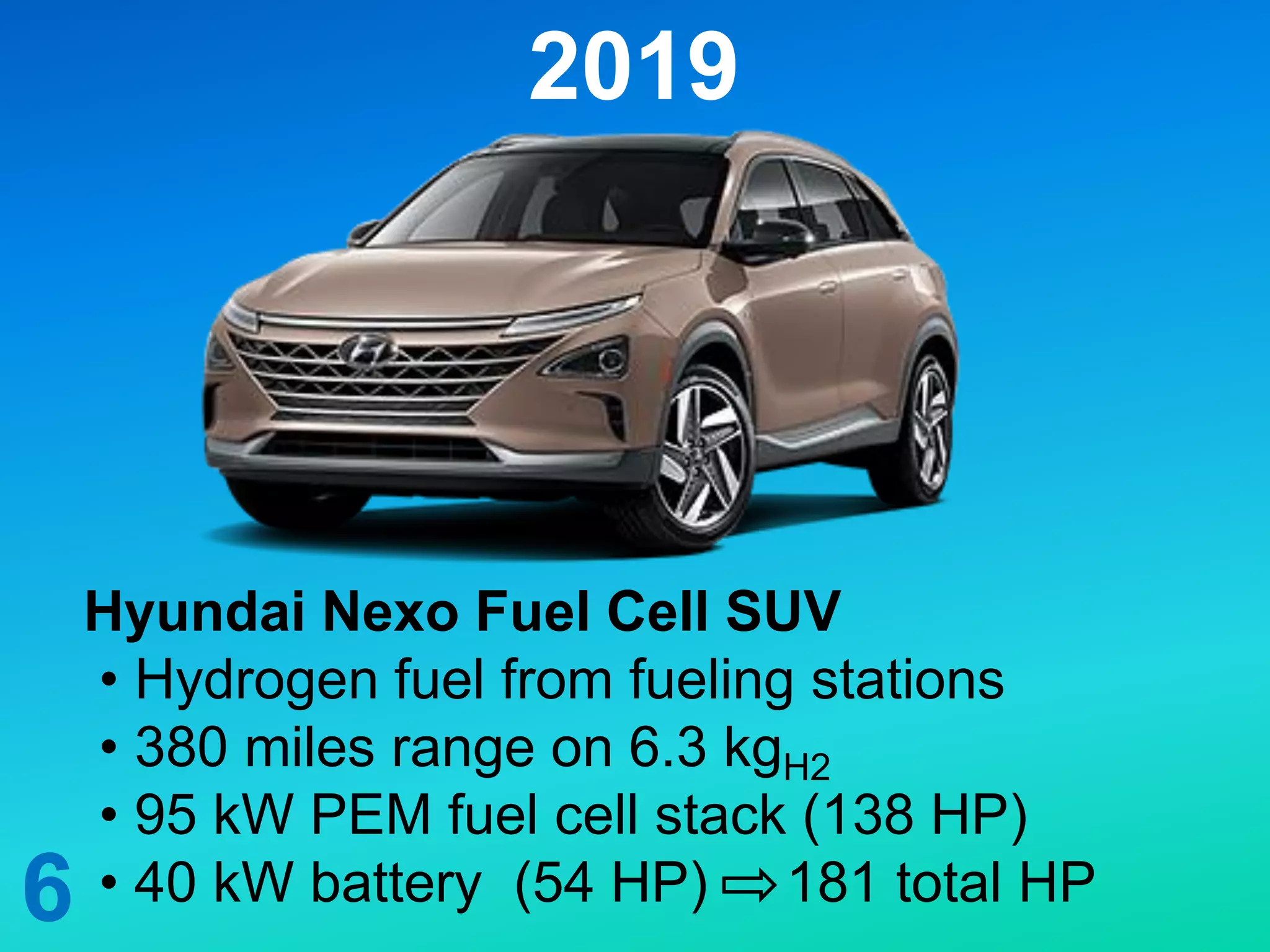

2019 6 Hyundai Nexo Fuel Cell SUV • Hydrogen fuel from fueling stations • 380 miles range on 6.3 kgH2 • 95 kW PEM fuel cell stack (138 HP) • 40 kW battery (54 HP) 181 total HP

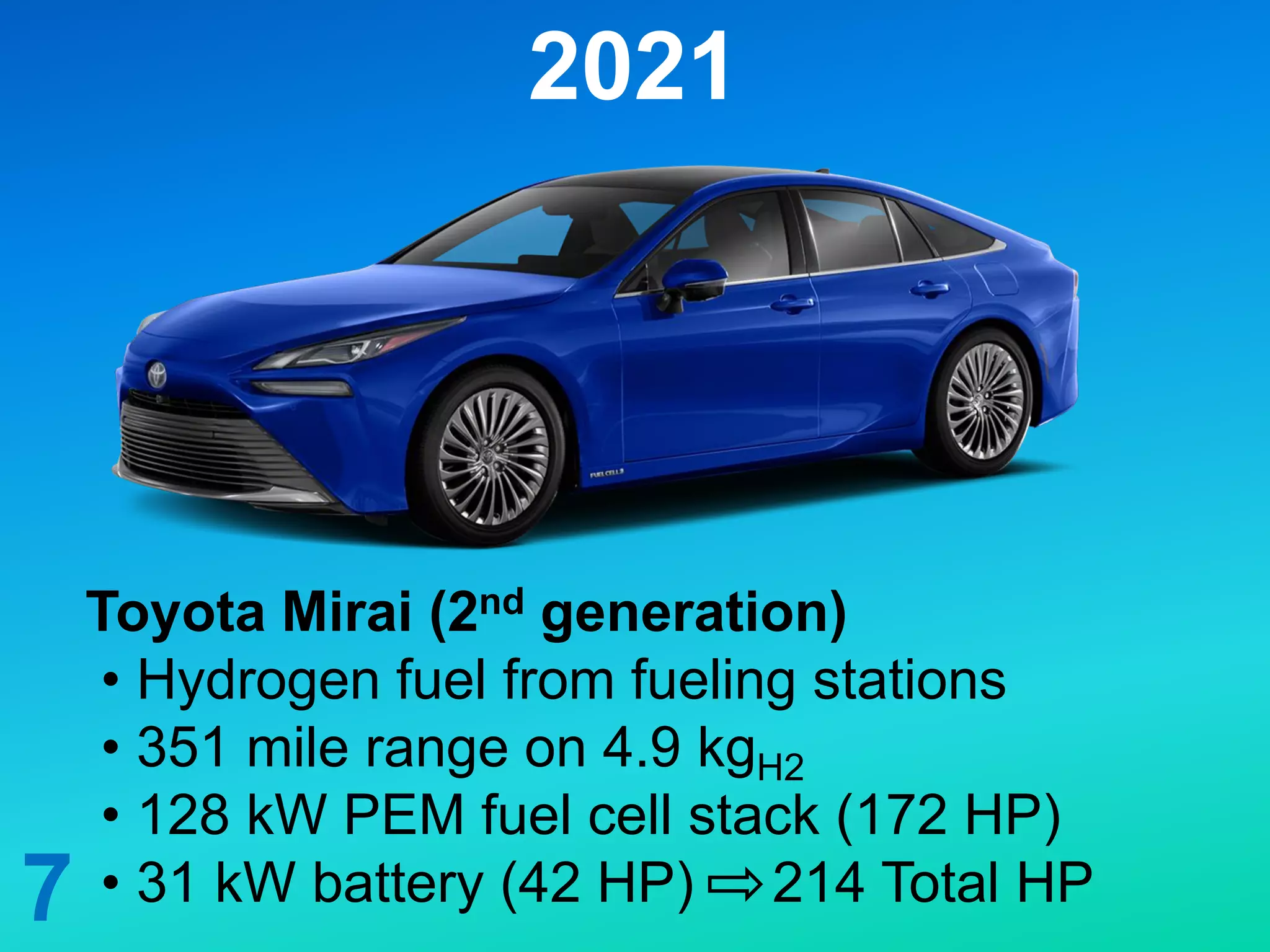

2021 7 Toyota Mirai (2nd generation) • Hydrogen fuel from fueling stations • 351 mile range on 4.9 kgH2 • 128 kW PEM fuel cell stack (172 HP) • 31 kW battery (42 HP) 214 Total HP

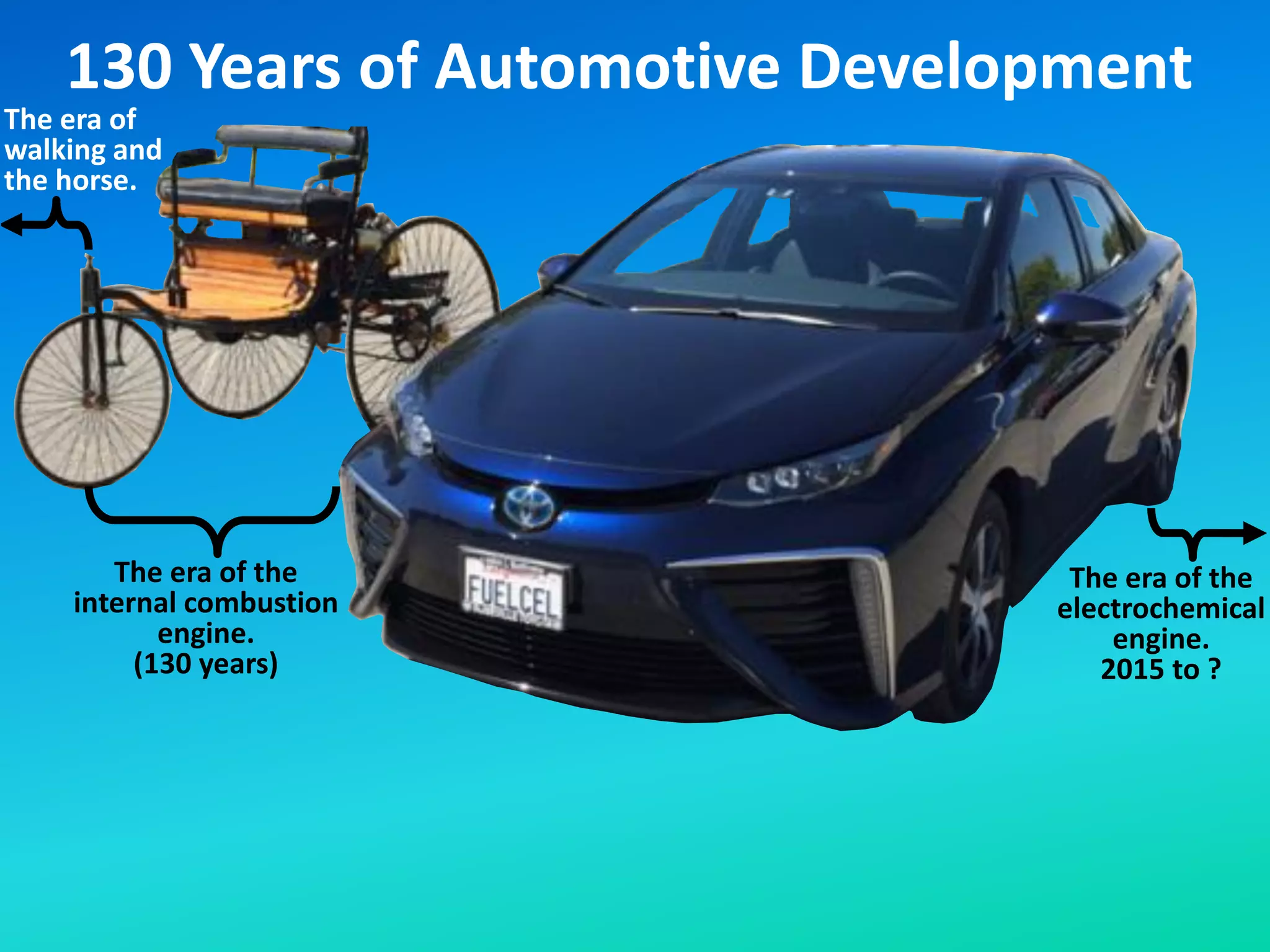

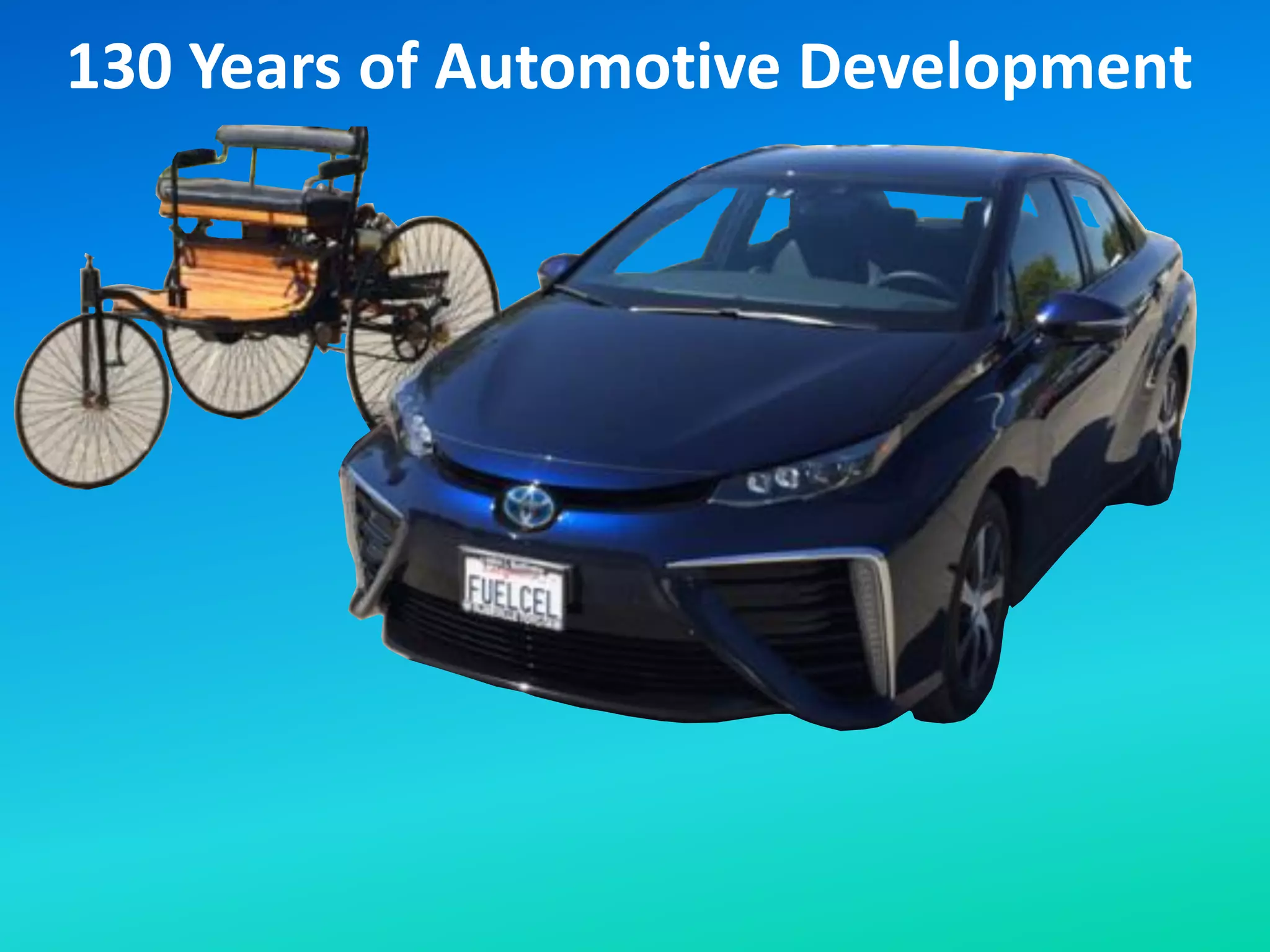

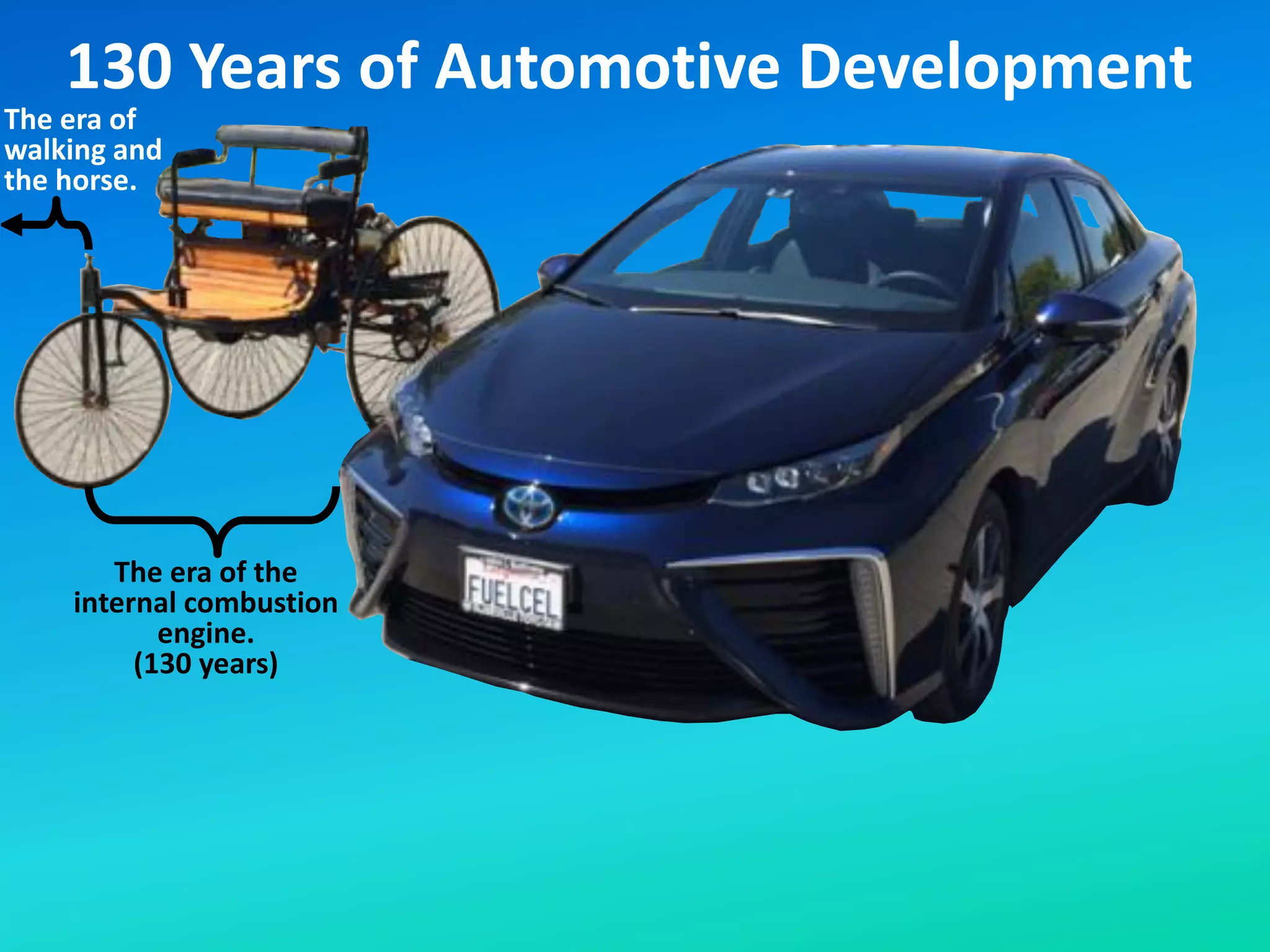

130 Years of Automotive Development

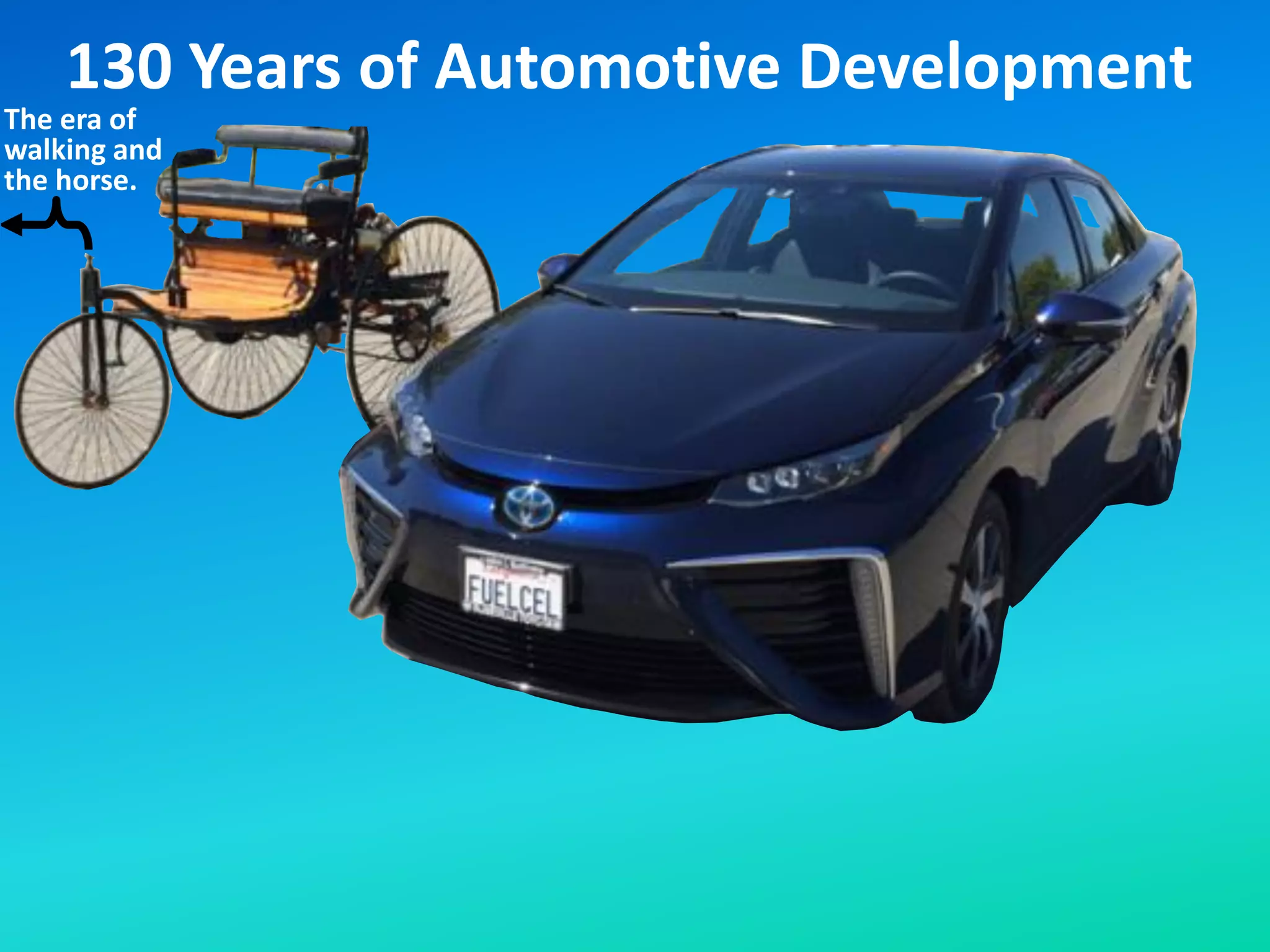

130 Years of Automotive Development The era of walking and the horse.
130 Years of Automotive Development The era of walking and the horse. The era of the internal combustion engine. (130 years)
130 Years of Automotive Development The era of walking and the horse. The era of the internal combustion engine. (130 years) The era of the electrochemical engine. 2015 to ?

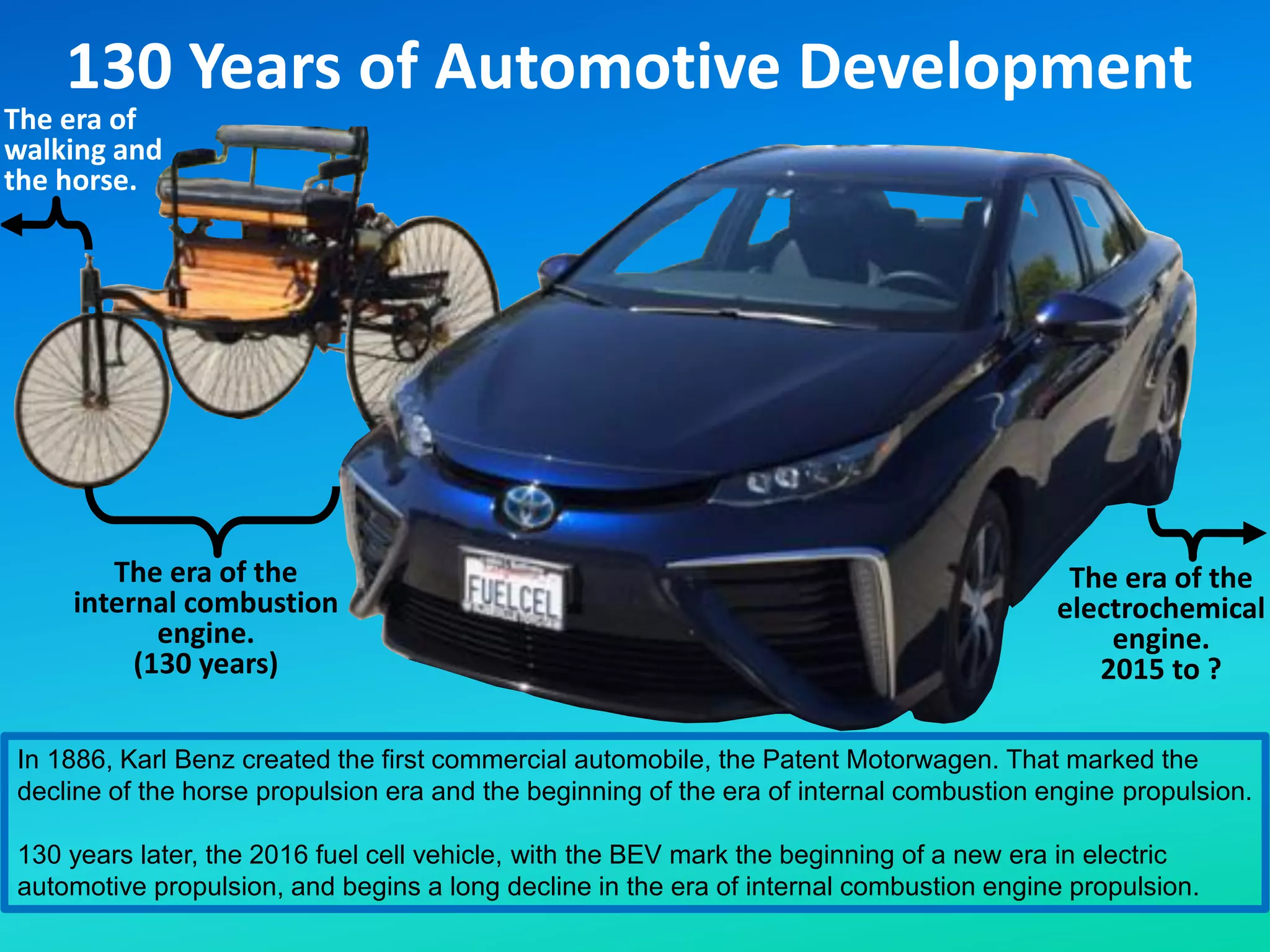

130 Years of Automotive Development In 1886, Karl Benz created the first commercial automobile, the Patent Motorwagen. That marked the decline of the horse propulsion era and the beginning of the era of internal combustion engine propulsion. 130 years later, the 2016 fuel cell vehicle, with the BEV mark the beginning of a new era in electric automotive propulsion, and begins a long decline in the era of internal combustion engine propulsion. The era of walking and the horse. The era of the internal combustion engine. (130 years) The era of the electrochemical engine. 2015 to ?

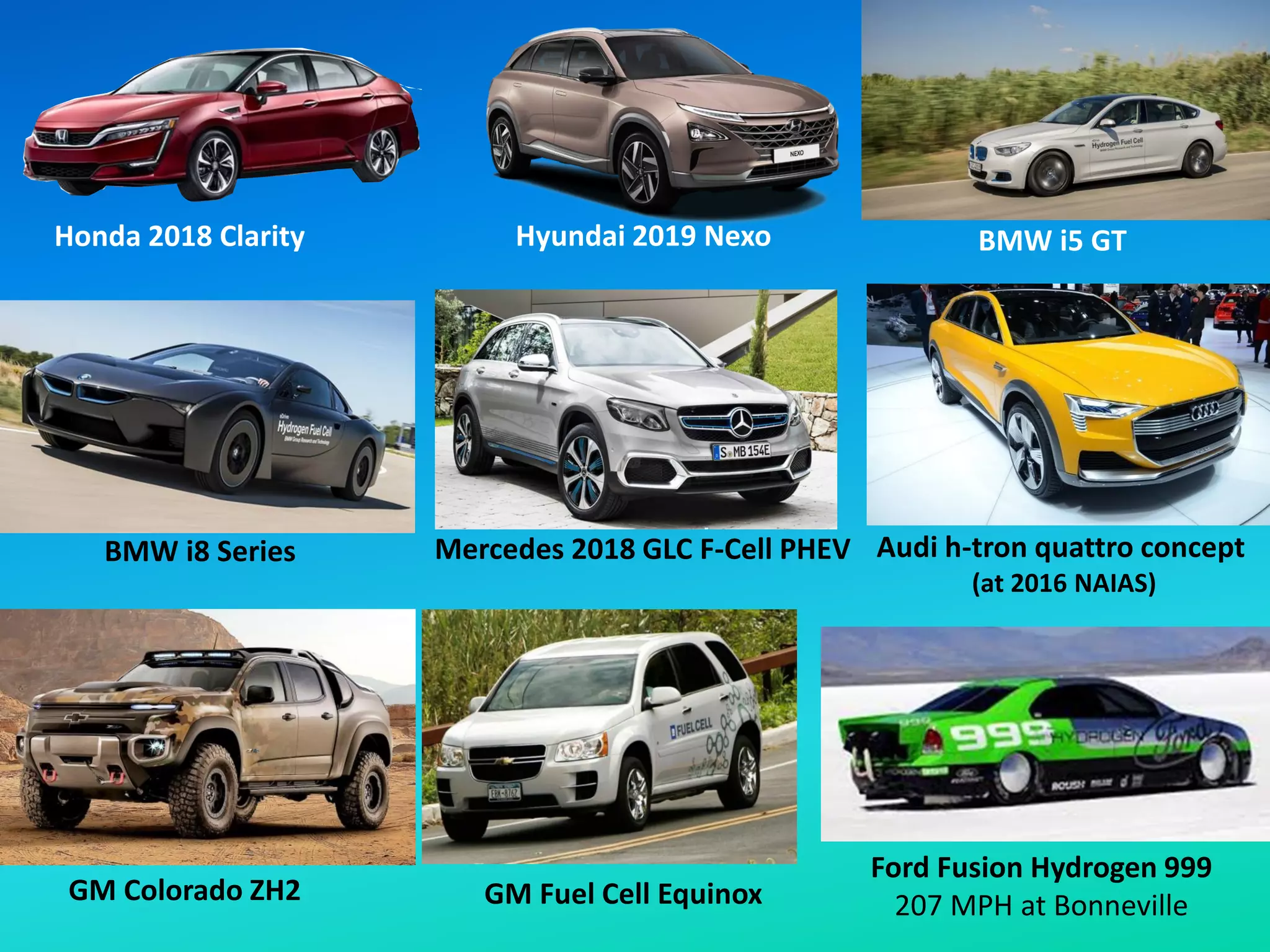

Honda 2018 Clarity Hyundai 2019 Nexo Mercedes 2018 GLC F-Cell PHEV BMW i8 Series BMW i5 GT Audi h-tron quattro concept (at 2016 NAIAS) GM Colorado ZH2 GM Fuel Cell Equinox Ford Fusion Hydrogen 999 207 MPH at Bonneville

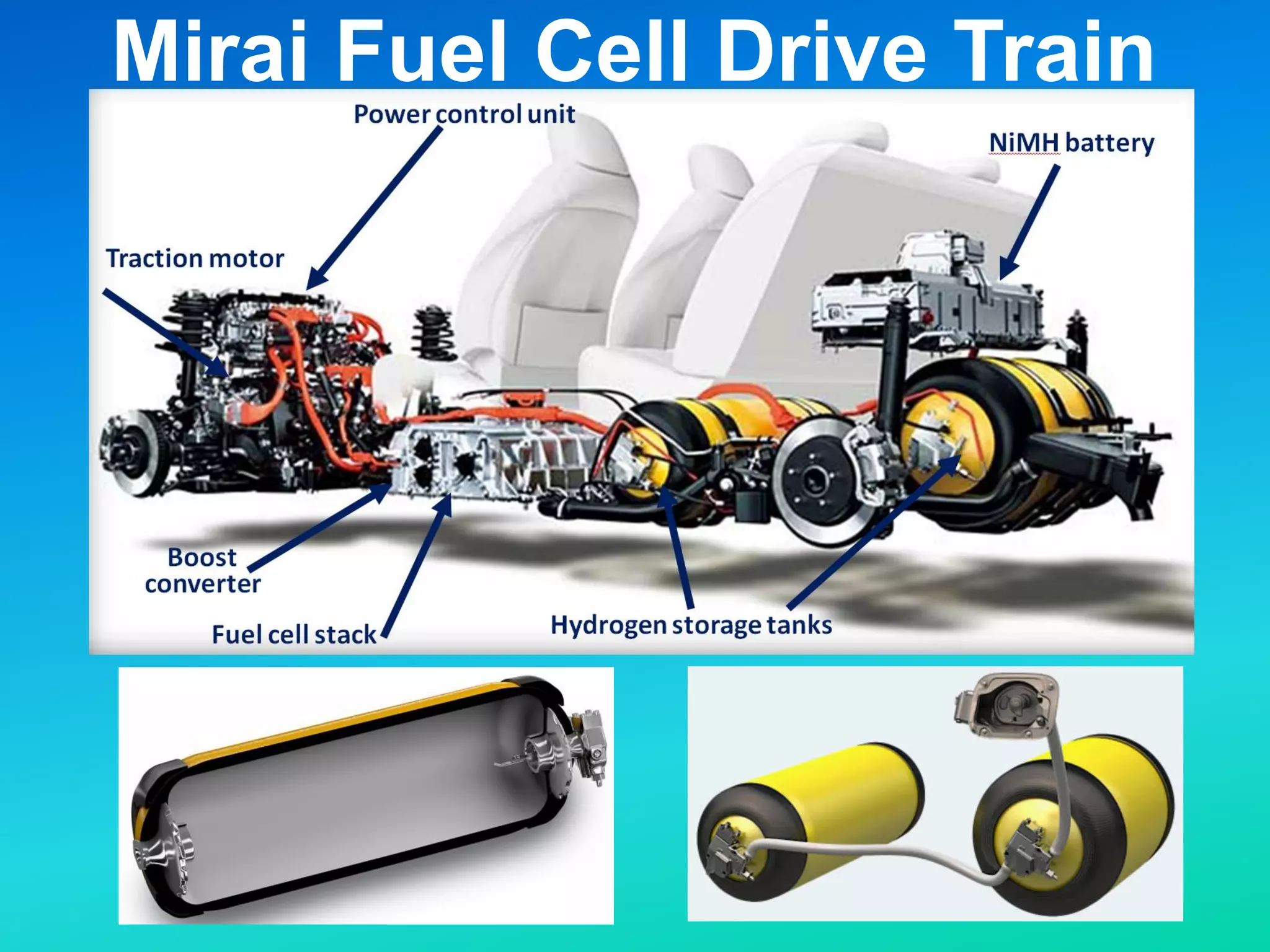

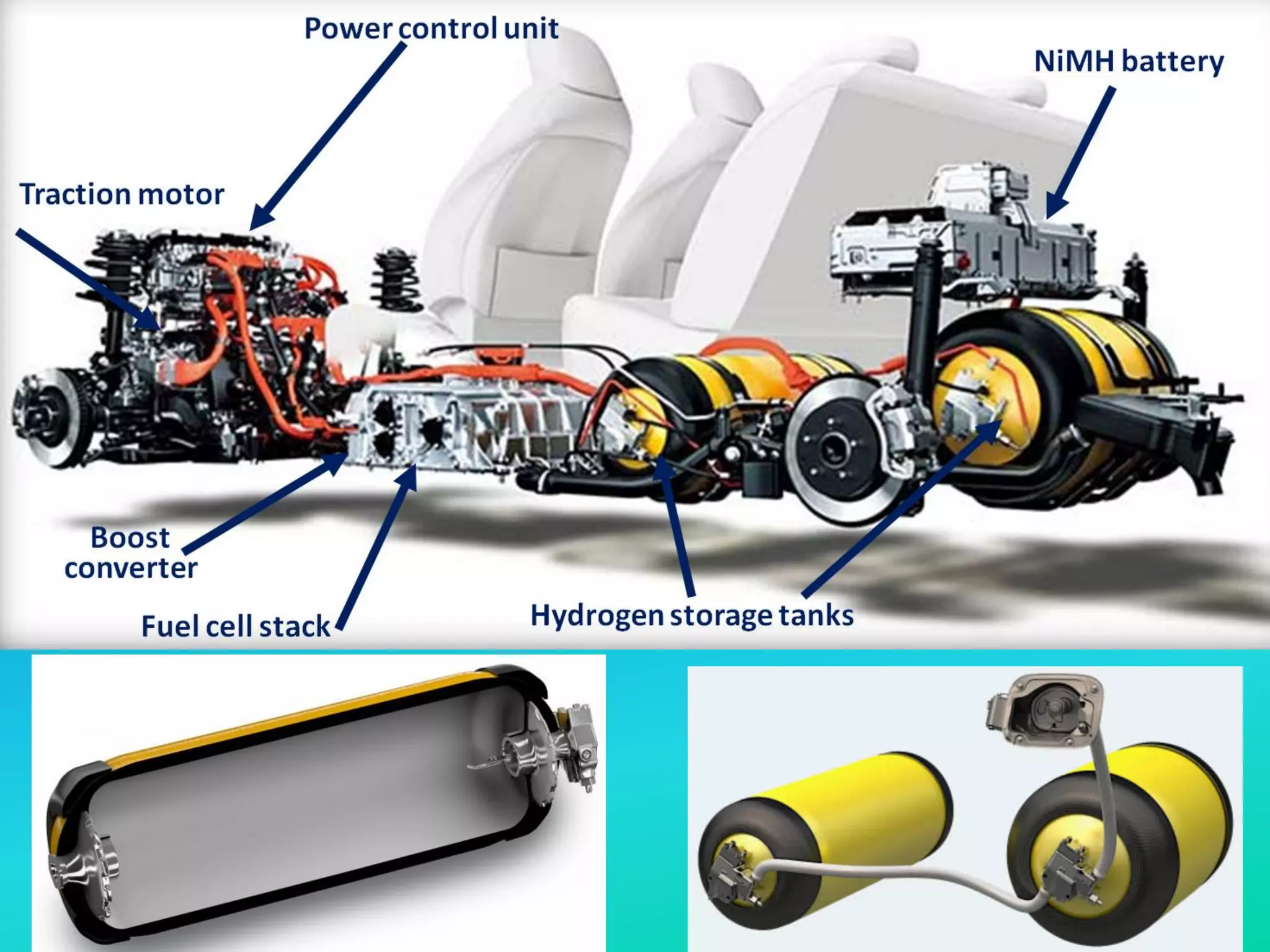

Mirai Fuel Cell Drive Train

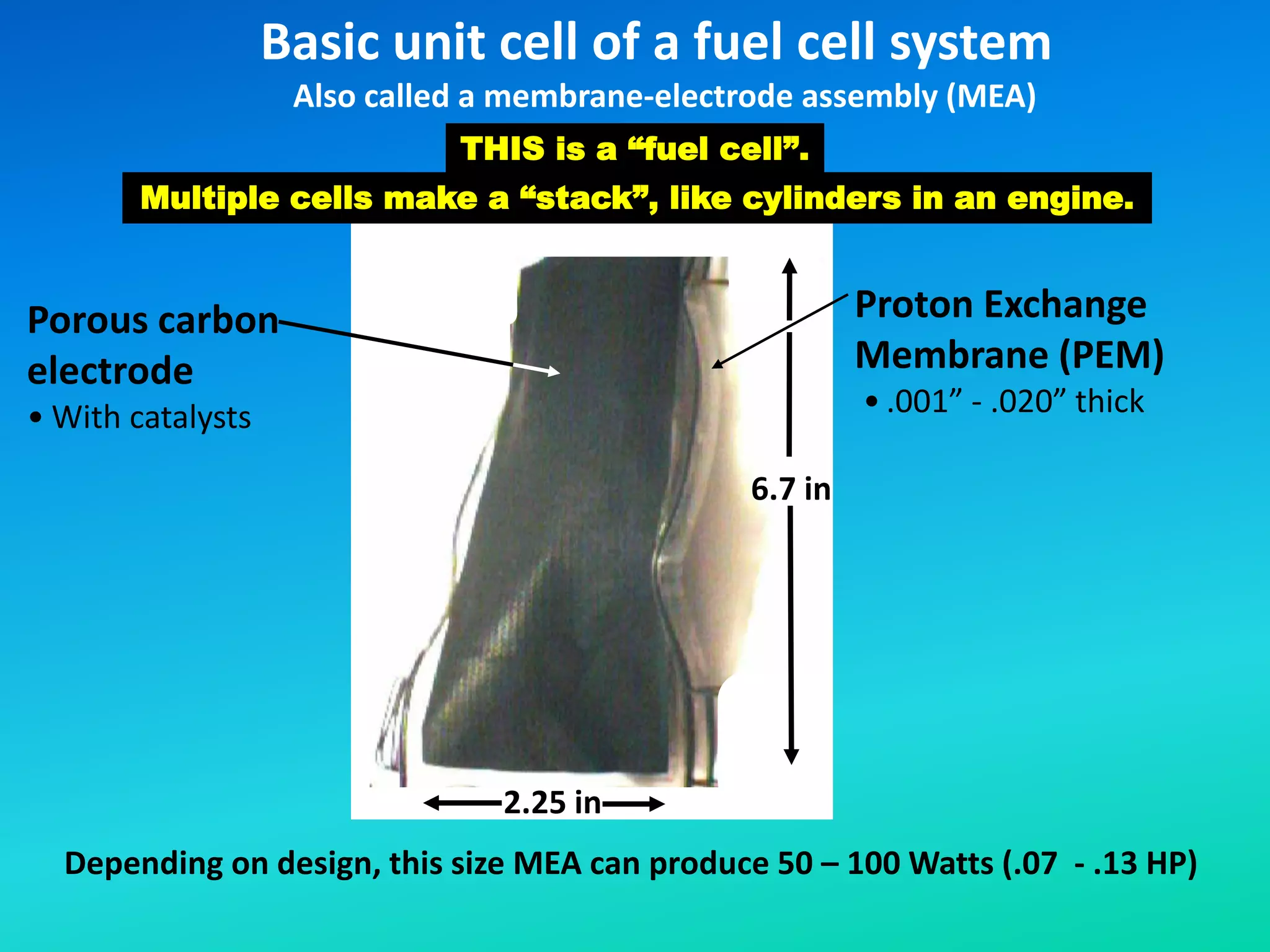

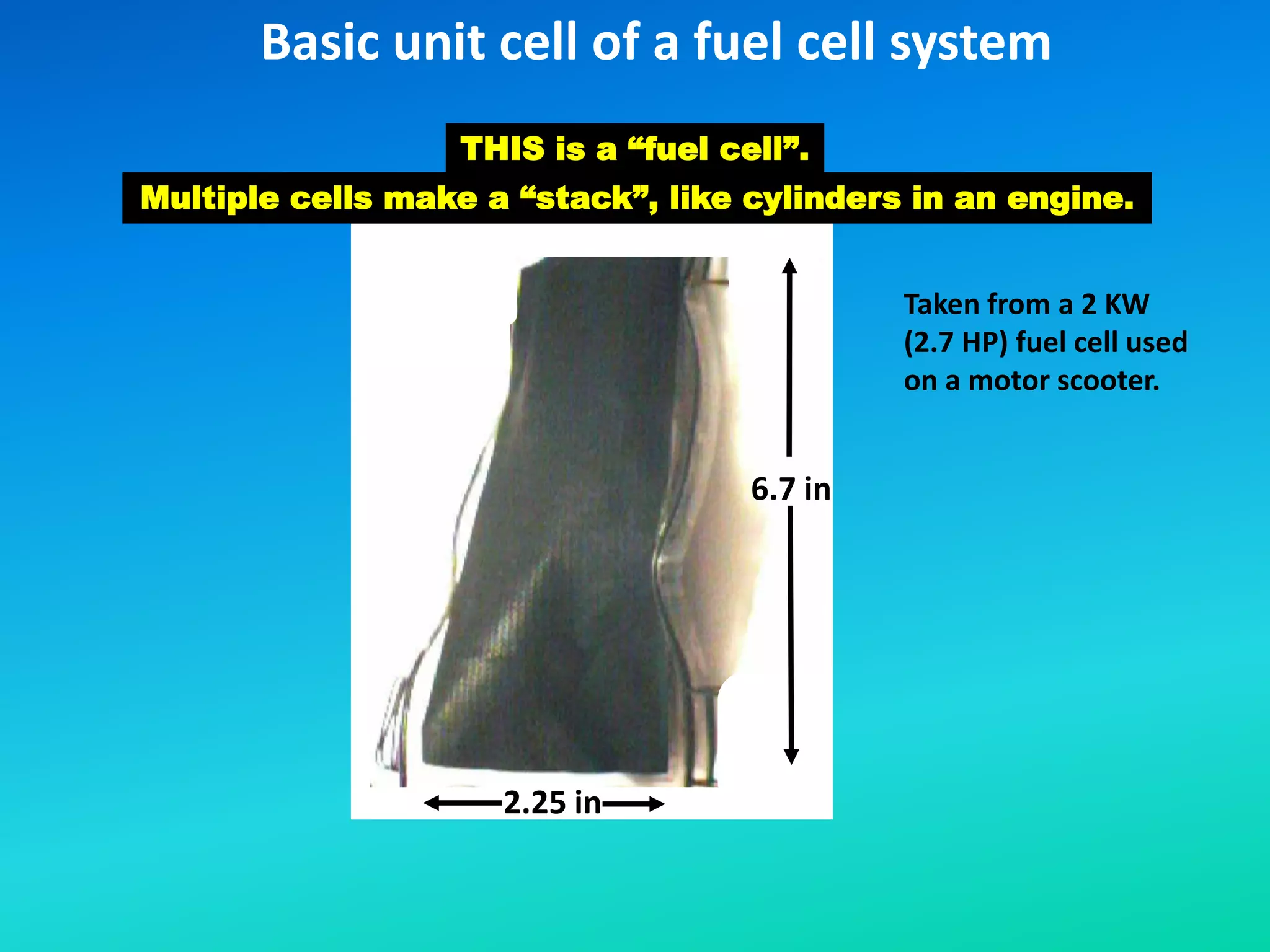

Basic unit cell of a fuel cell system 2.25 in 6.7 in THIS is a “fuel cell”. Multiple cells make a “stack”, like cylinders in an engine. Taken from a 2 KW (2.7 HP) fuel cell used on a motor scooter.

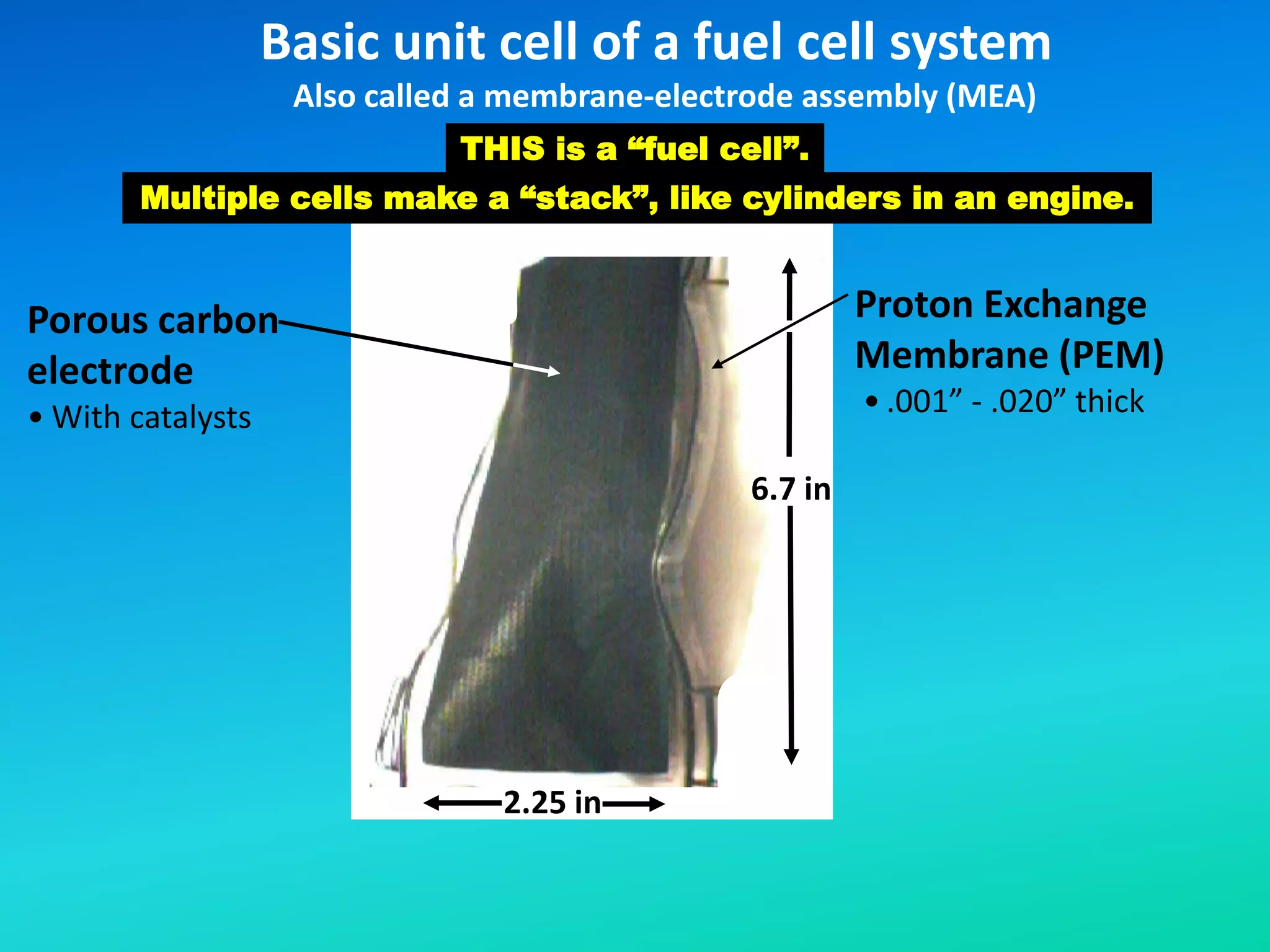

Basic unit cell of a fuel cell system 2.25 in 6.7 in Also called a membrane-electrode assembly (MEA) THIS is a “fuel cell”. Multiple cells make a “stack”, like cylinders in an engine. Taken from a 2 KW (2.7 HP) fuel cell used on a motor scooter.
Basic unit cell of a fuel cell system 2.25 in Porous carbon electrode • With catalysts 6.7 in THIS is a “fuel cell”. Multiple cells make a “stack”, like cylinders in an engine. Proton Exchange Membrane (PEM) • .001” - .020” thick Also called a membrane-electrode assembly (MEA)
Basic unit cell of a fuel cell system 2.25 in Porous carbon electrode • With catalysts 6.7 in Depending on design, this size MEA can produce 50 – 100 Watts (.07 - .13 HP) THIS is a “fuel cell”. Multiple cells make a “stack”, like cylinders in an engine. Proton Exchange Membrane (PEM) • .001” - .020” thick Also called a membrane-electrode assembly (MEA)

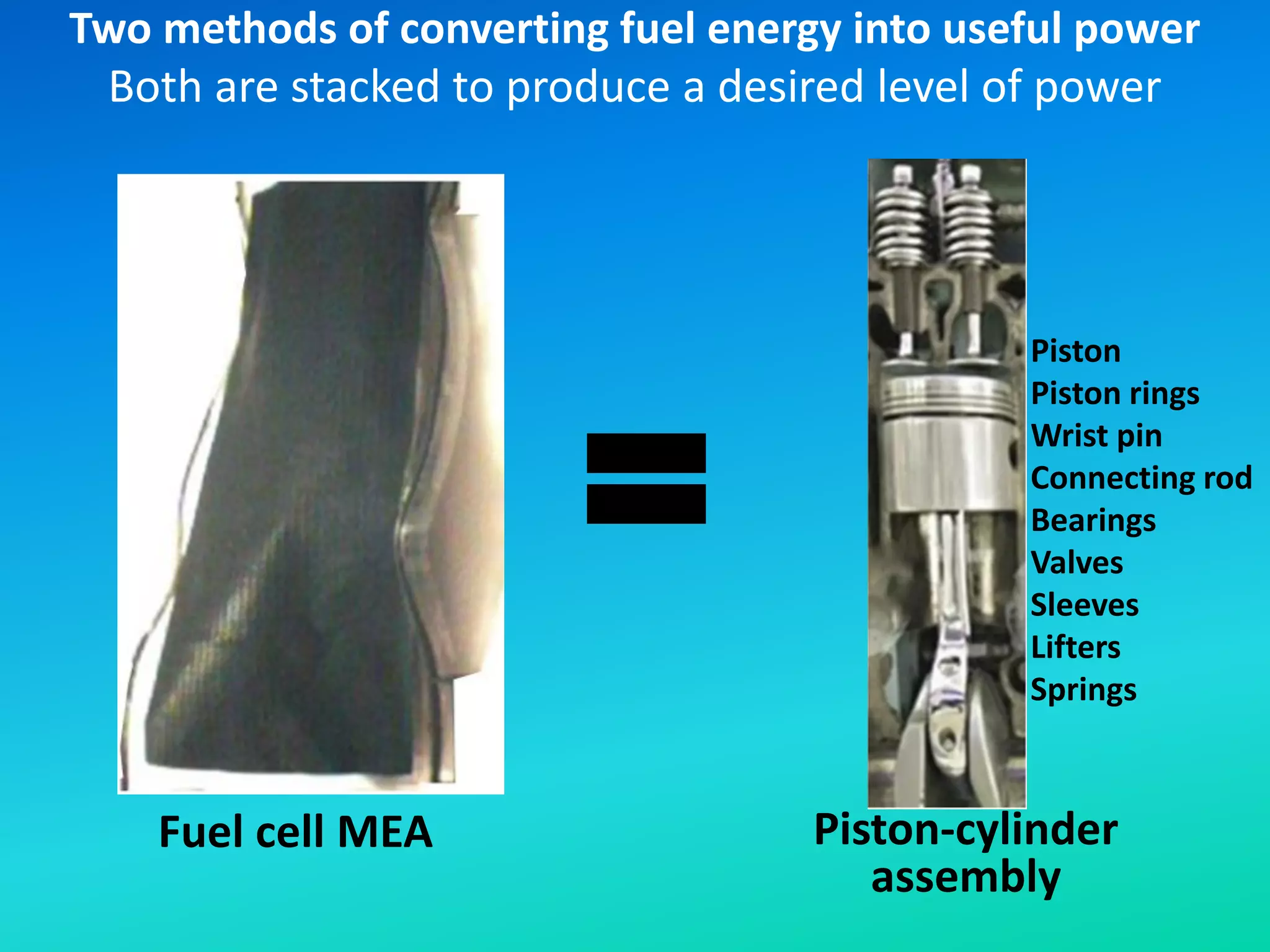

Piston Piston rings Wrist pin Connecting rod Bearings Valves Sleeves Lifters Springs Two methods of converting fuel energy into useful power Both are stacked to produce a desired level of power = Fuel cell MEA Piston-cylinder assembly

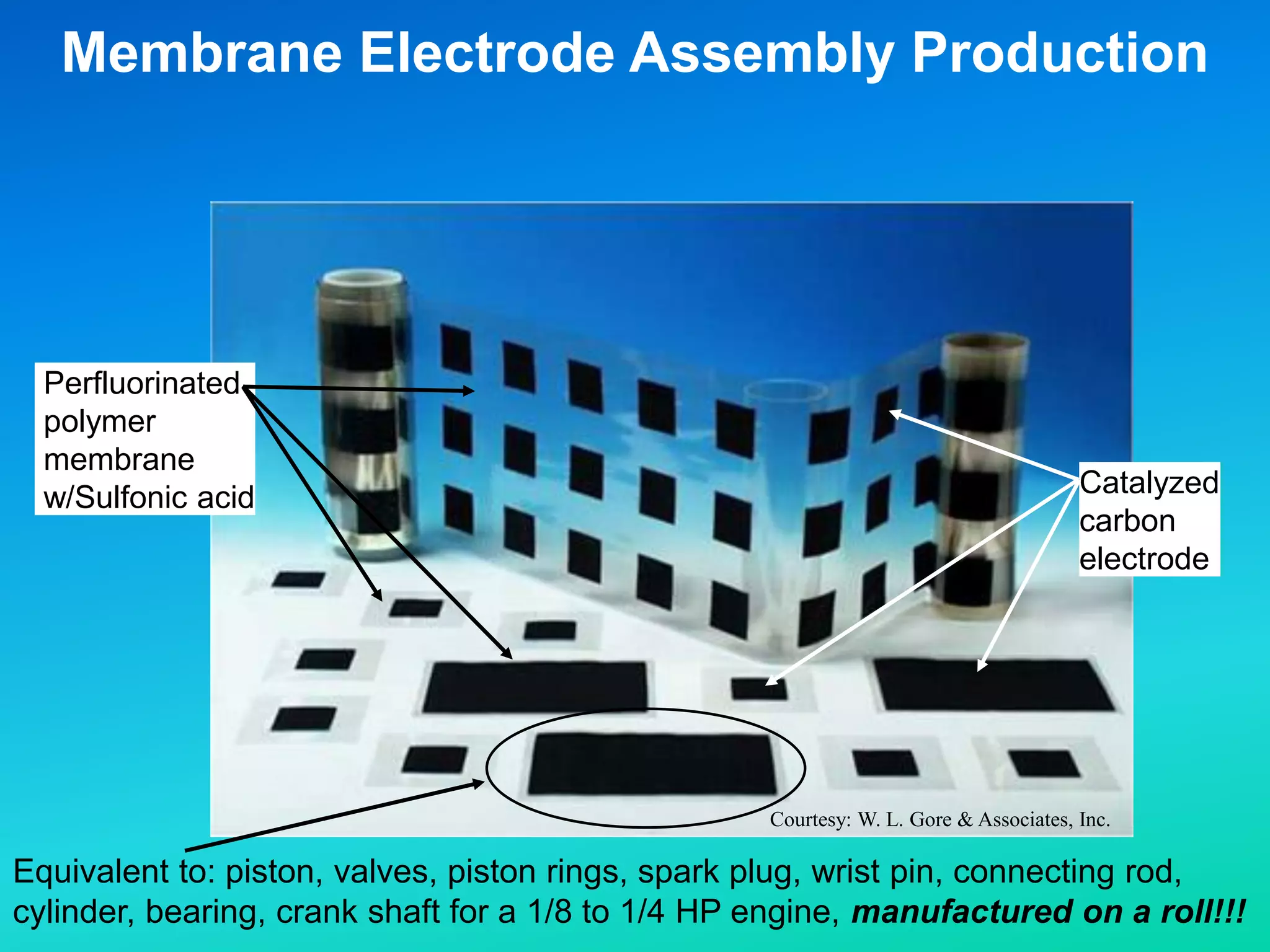

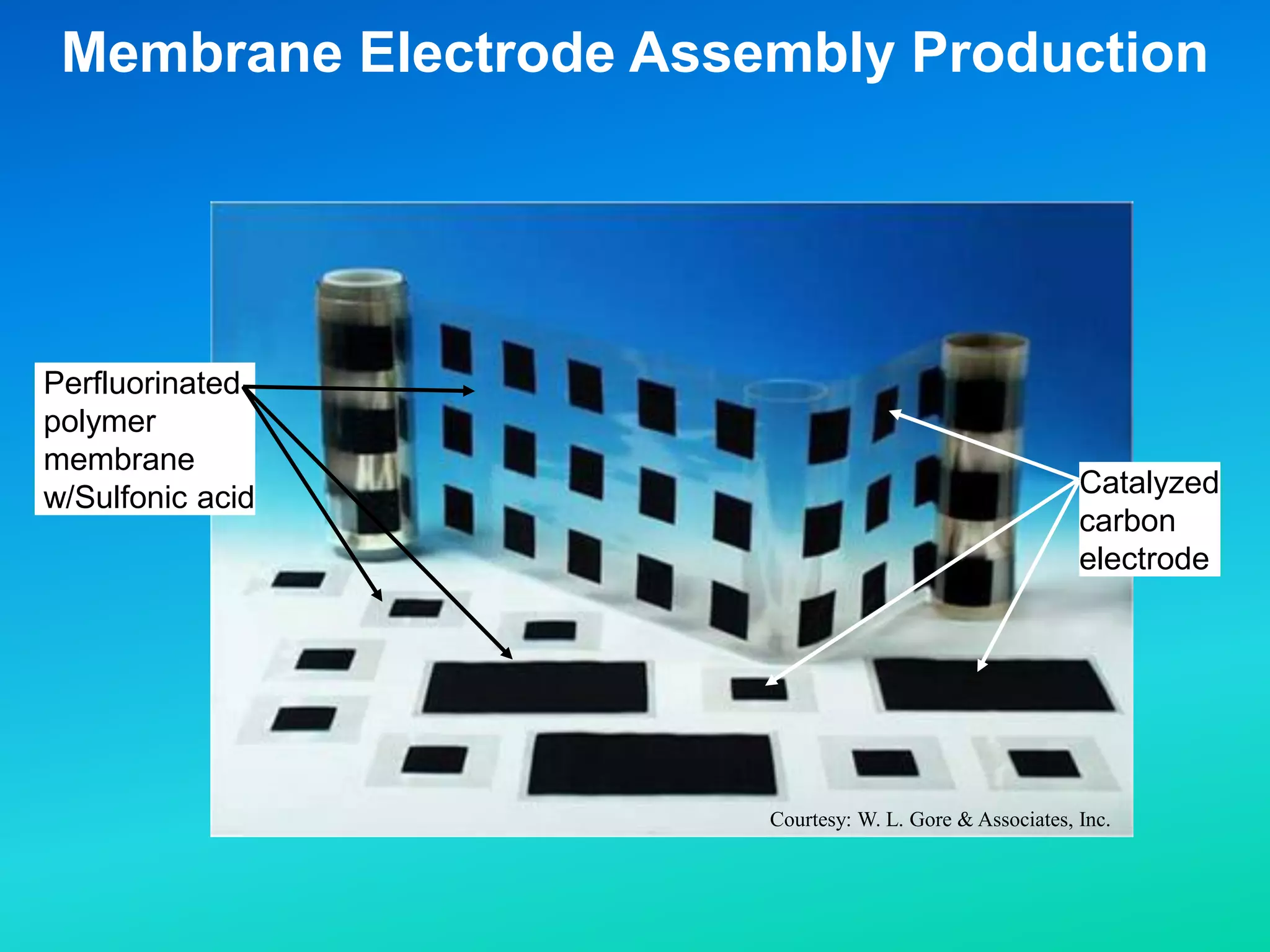

Catalyzed carbon electrode Perfluorinated polymer membrane w/Sulfonic acid Courtesy: W. L. Gore & Associates, Inc. Membrane Electrode Assembly Production
Catalyzed carbon electrode Perfluorinated polymer membrane w/Sulfonic acid Courtesy: W. L. Gore & Associates, Inc. Membrane Electrode Assembly Production Equivalent to: piston, valves, piston rings, spark plug, wrist pin, connecting rod, cylinder, bearing, crank shaft for a 1/8 to 1/4 HP engine, manufactured on a roll!!!

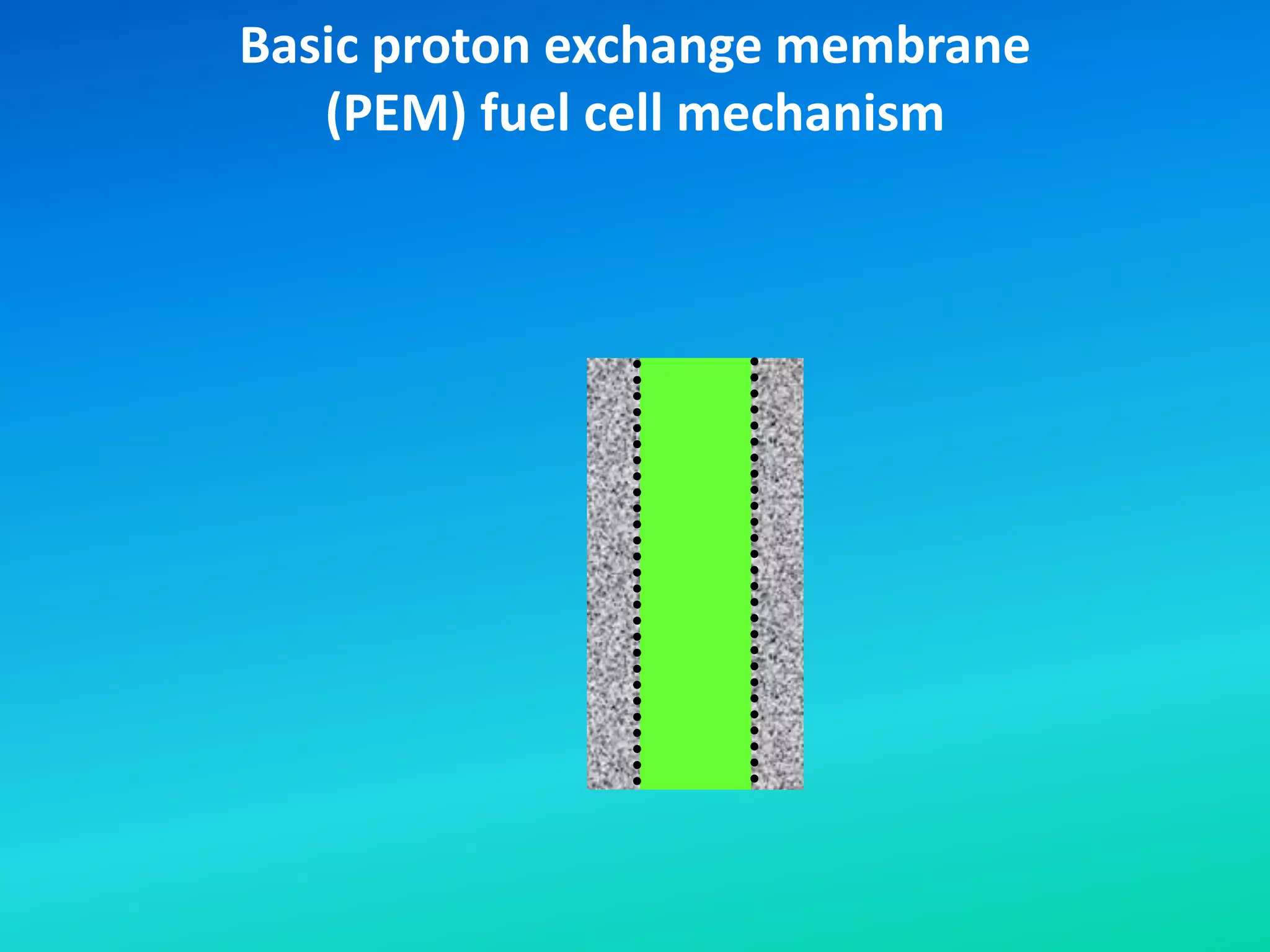

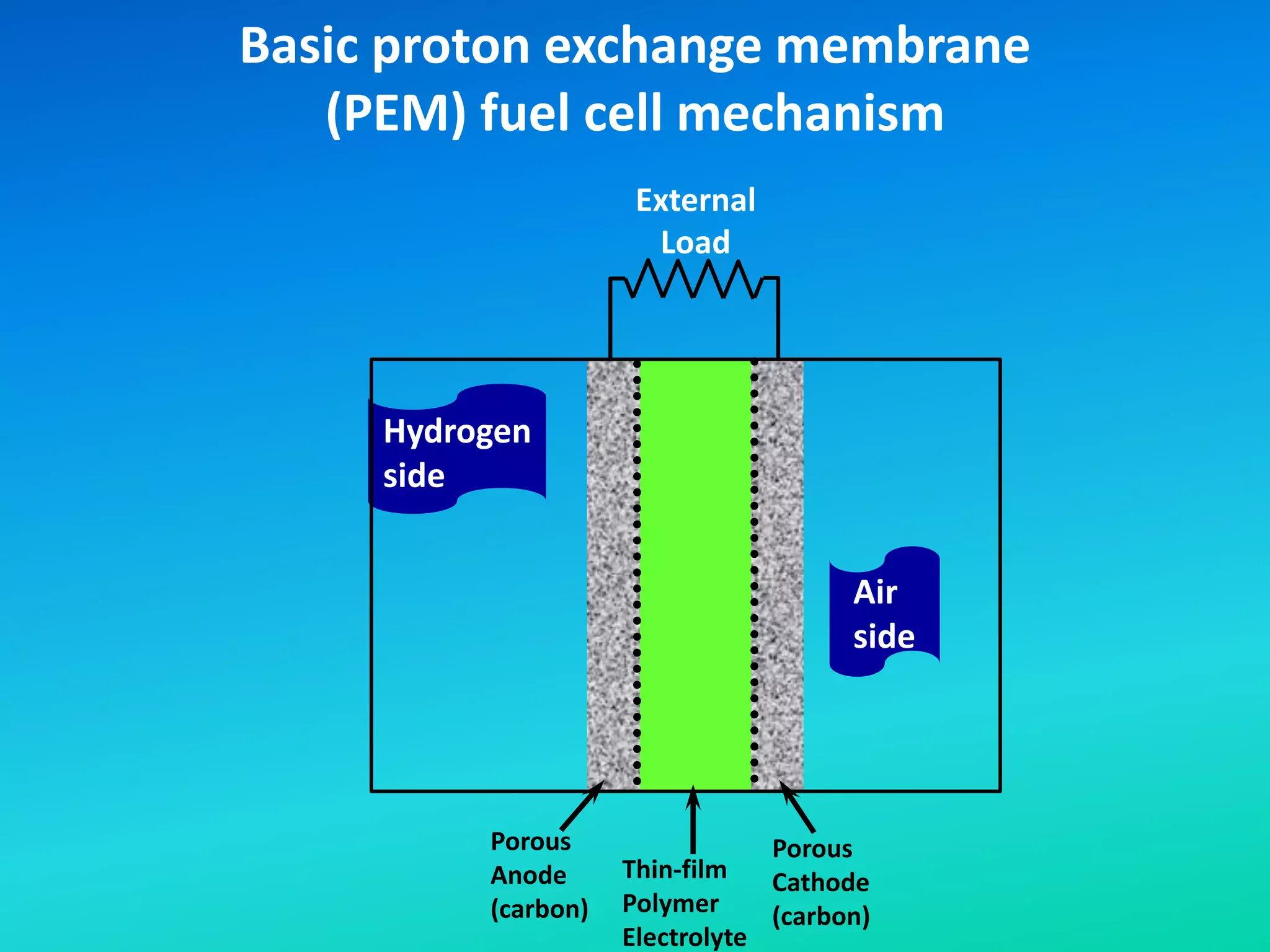

Basic proton exchange membrane (PEM) fuel cell mechanism

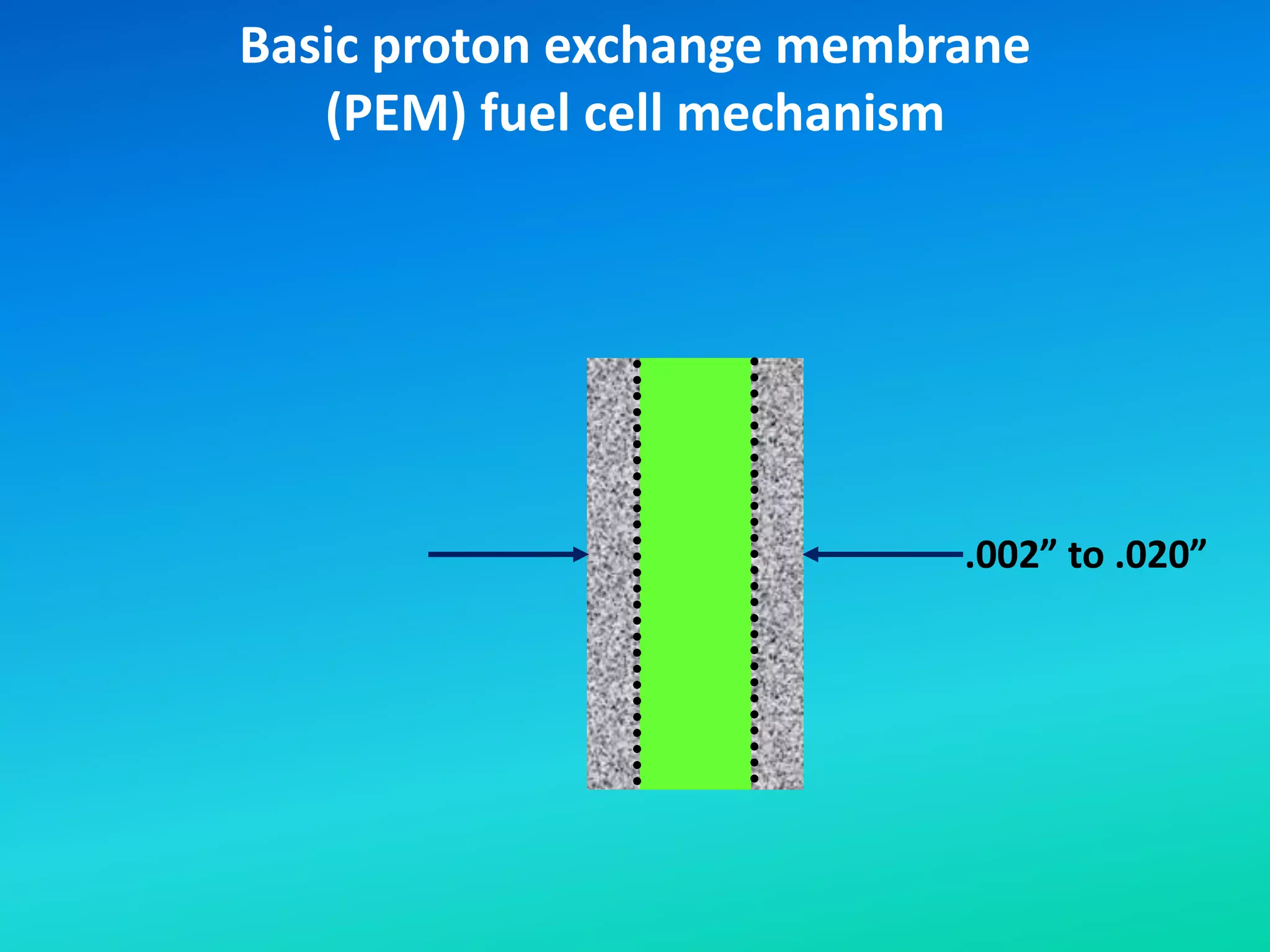

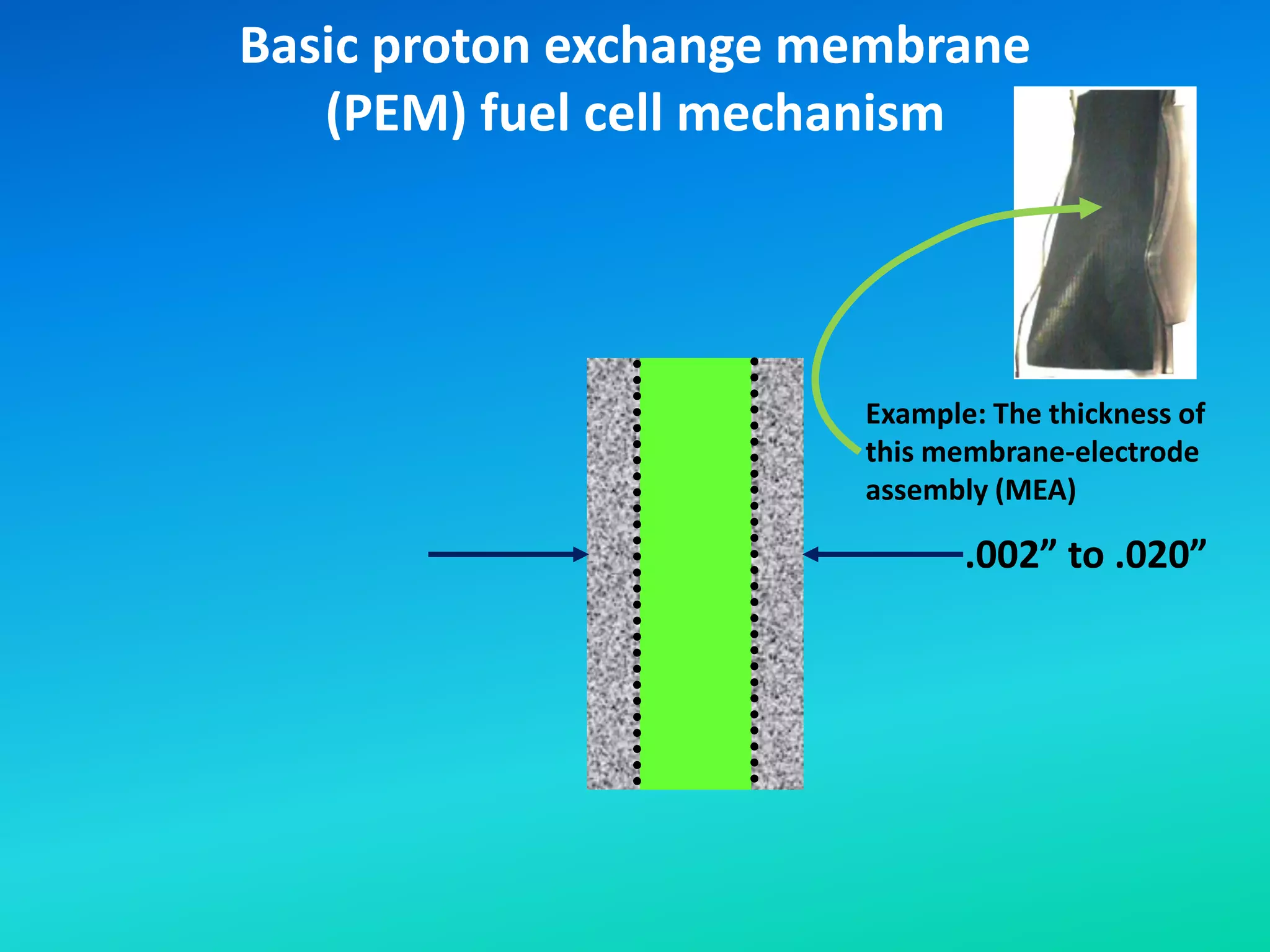

Basic proton exchange membrane (PEM) fuel cell mechanism .002” to .020”
Basic proton exchange membrane (PEM) fuel cell mechanism .002” to .020” Example: The thickness of this membrane-electrode assembly (MEA)

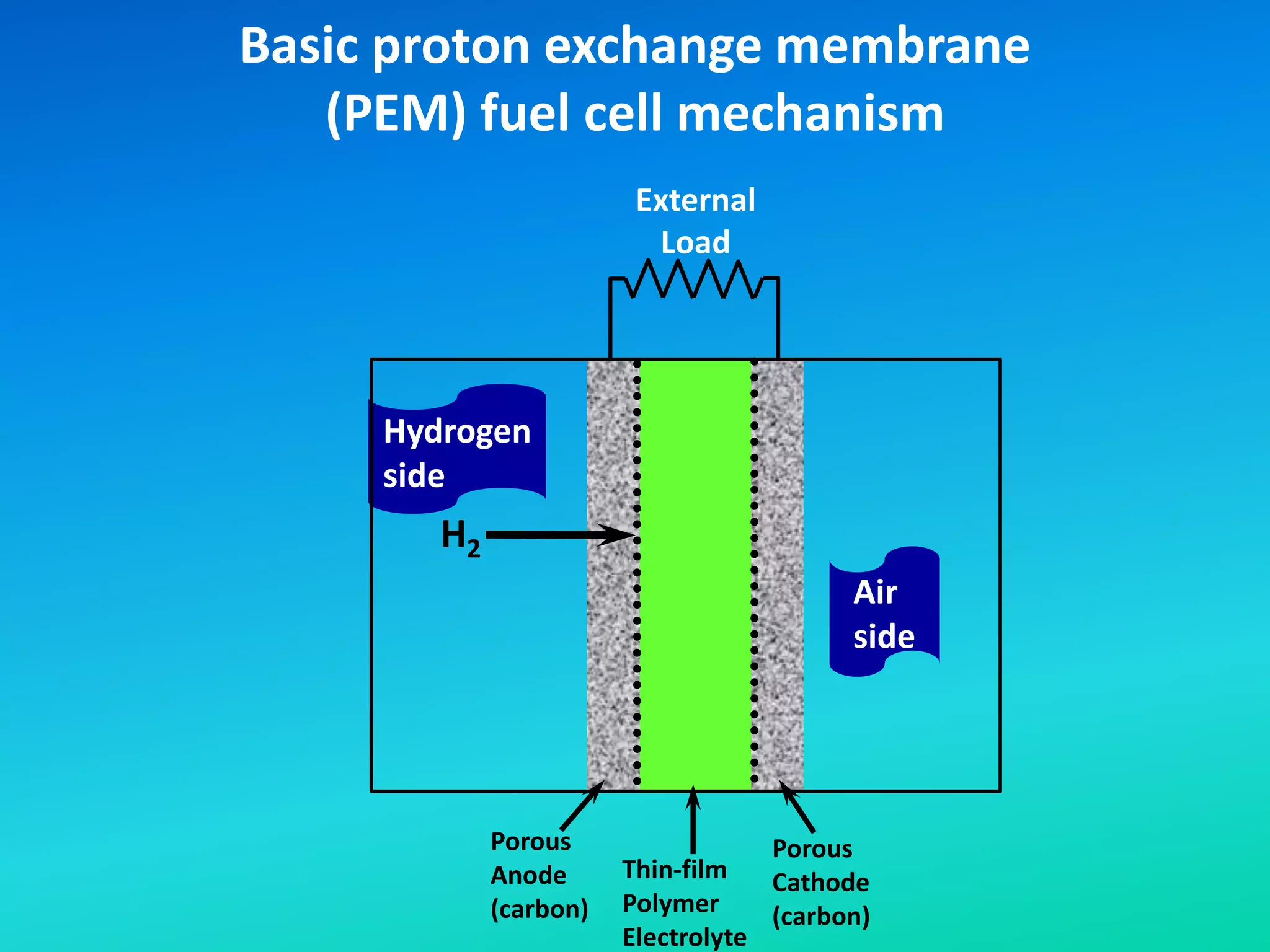

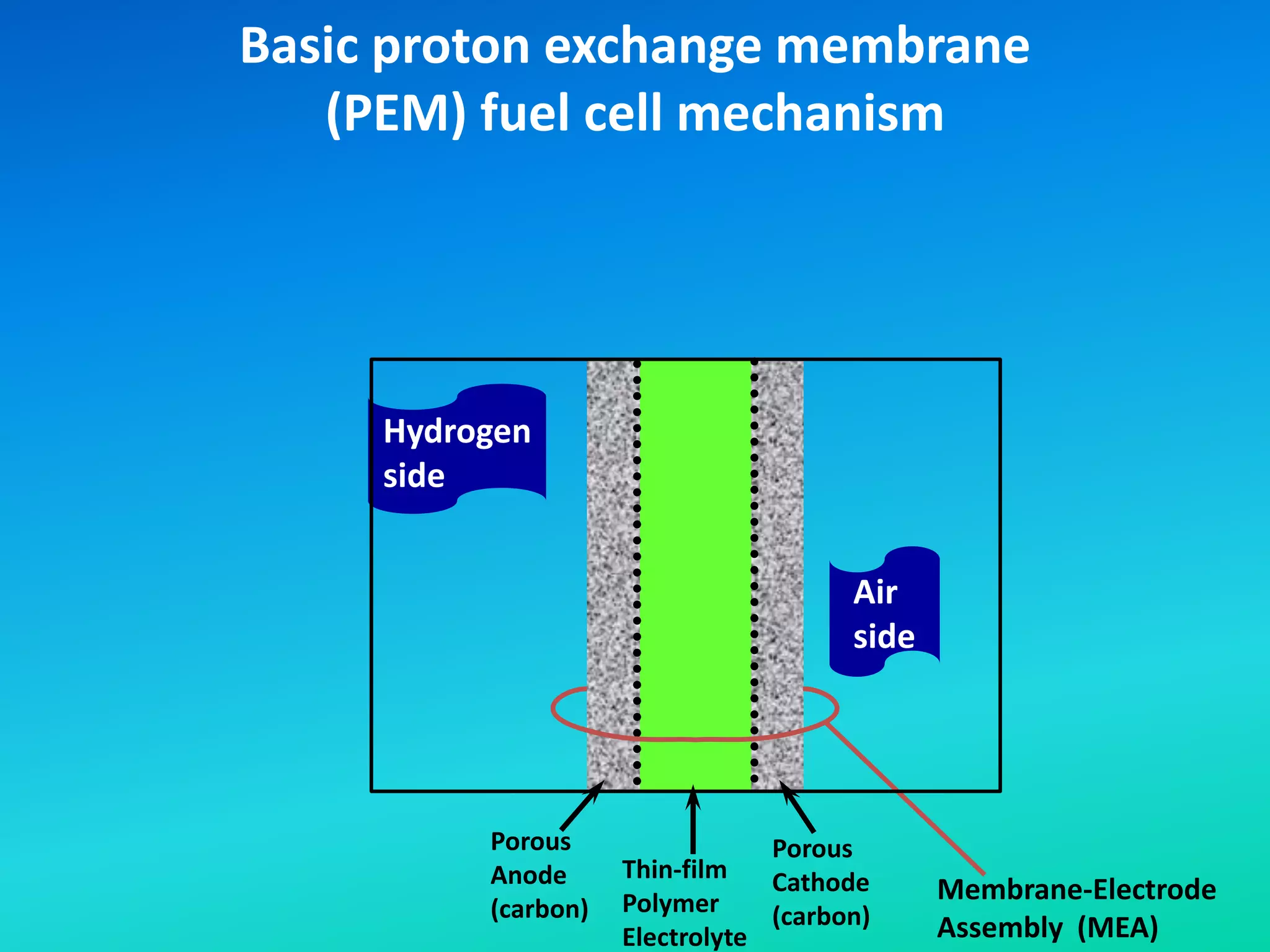

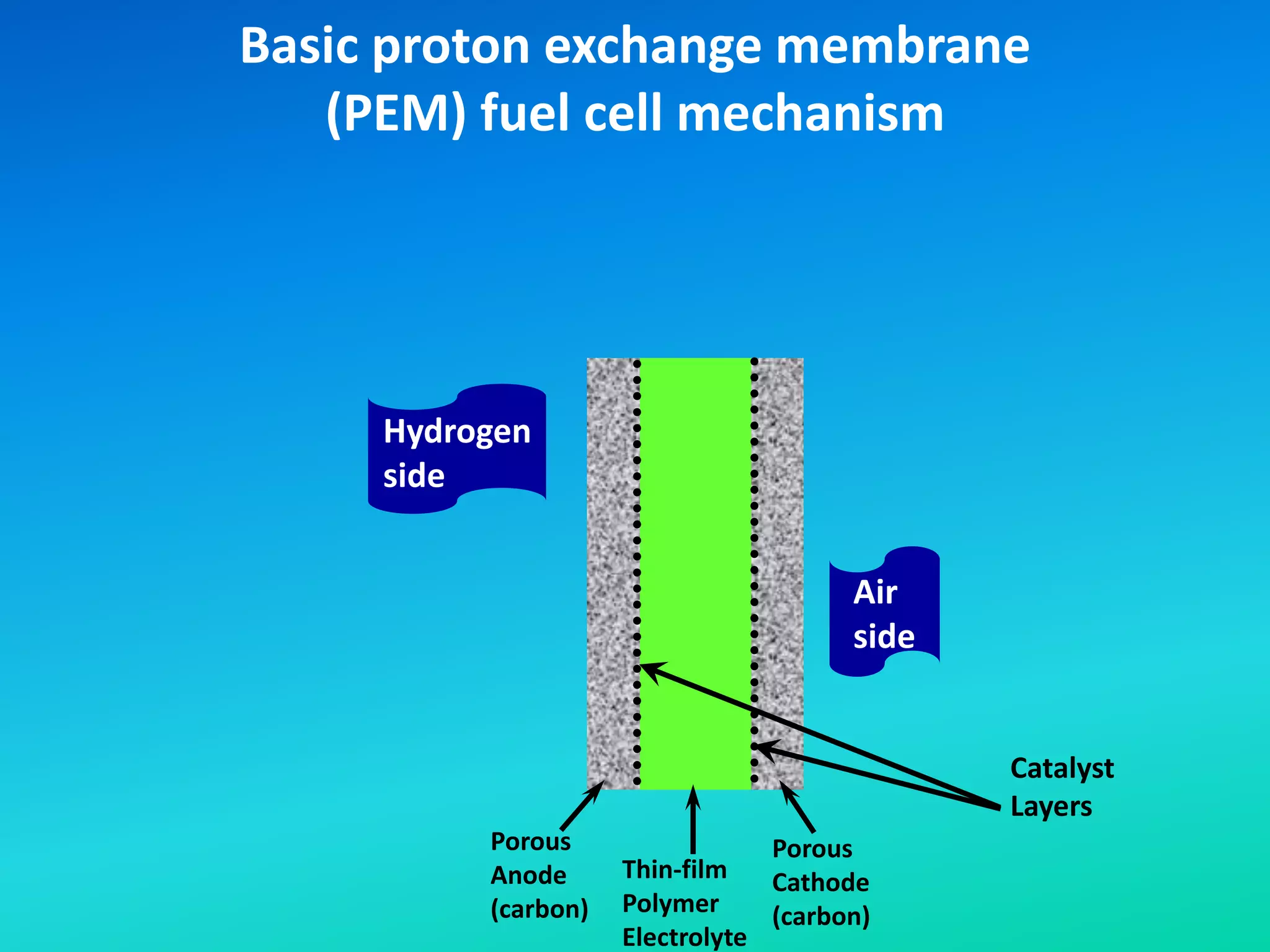

Basic proton exchange membrane (PEM) fuel cell mechanism Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Catalyst Layers Hydrogen side Air side
Basic proton exchange membrane (PEM) fuel cell mechanism Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side Membrane-Electrode Assembly (MEA)
Basic proton exchange membrane (PEM) fuel cell mechanism External Load Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side
Basic proton exchange membrane (PEM) fuel cell mechanism H2 External Load Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side
Basic proton exchange membrane (PEM) fuel cell mechanism H2 External Load O2 Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side
Basic proton exchange membrane (PEM) fuel cell mechanism H2 External Load O2 Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side H+ = a proton H2 2H H H+ + e _

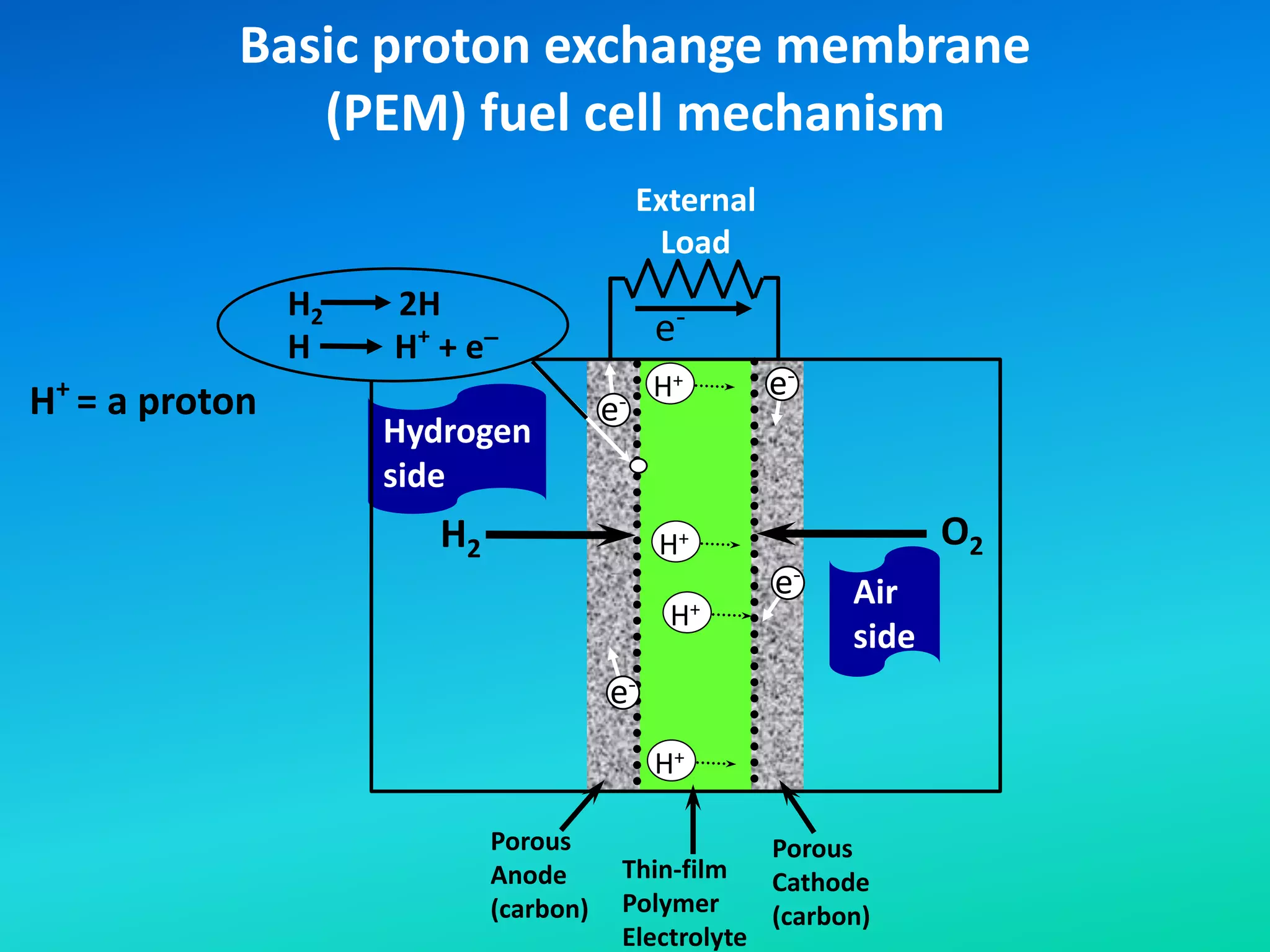

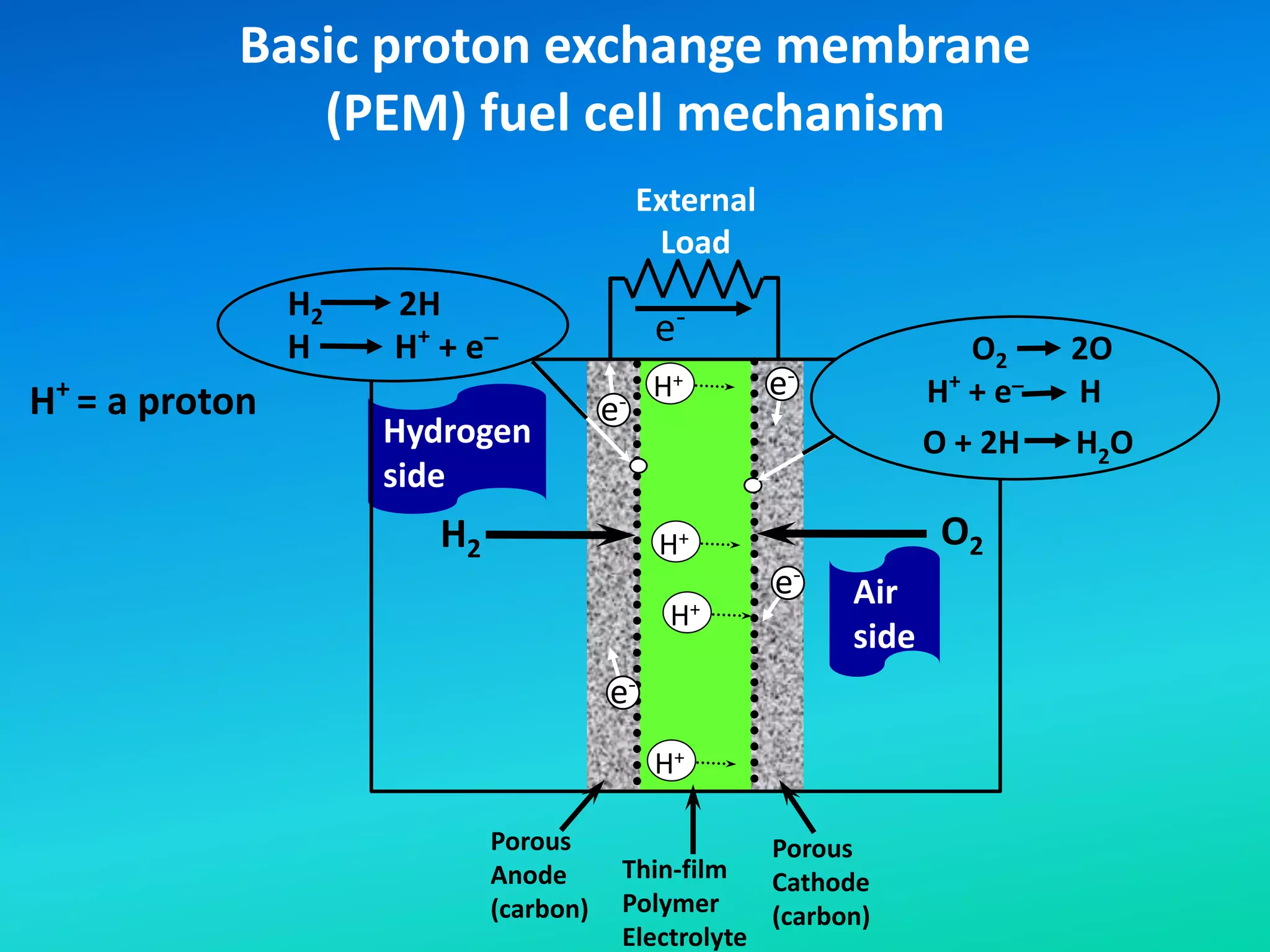

Basic proton exchange membrane (PEM) fuel cell mechanism H2 e- External Load O2 H+ H+ H+ H+ Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side H+ = a proton e- e- e- e- H2 2H H H+ + e _
Basic proton exchange membrane (PEM) fuel cell mechanism H2 e- External Load O2 H+ H+ H+ H+ Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side H+ = a proton e- e- e- e- O2 2O H+ + e _ H O + 2H H2O H2 2H H H+ + e _

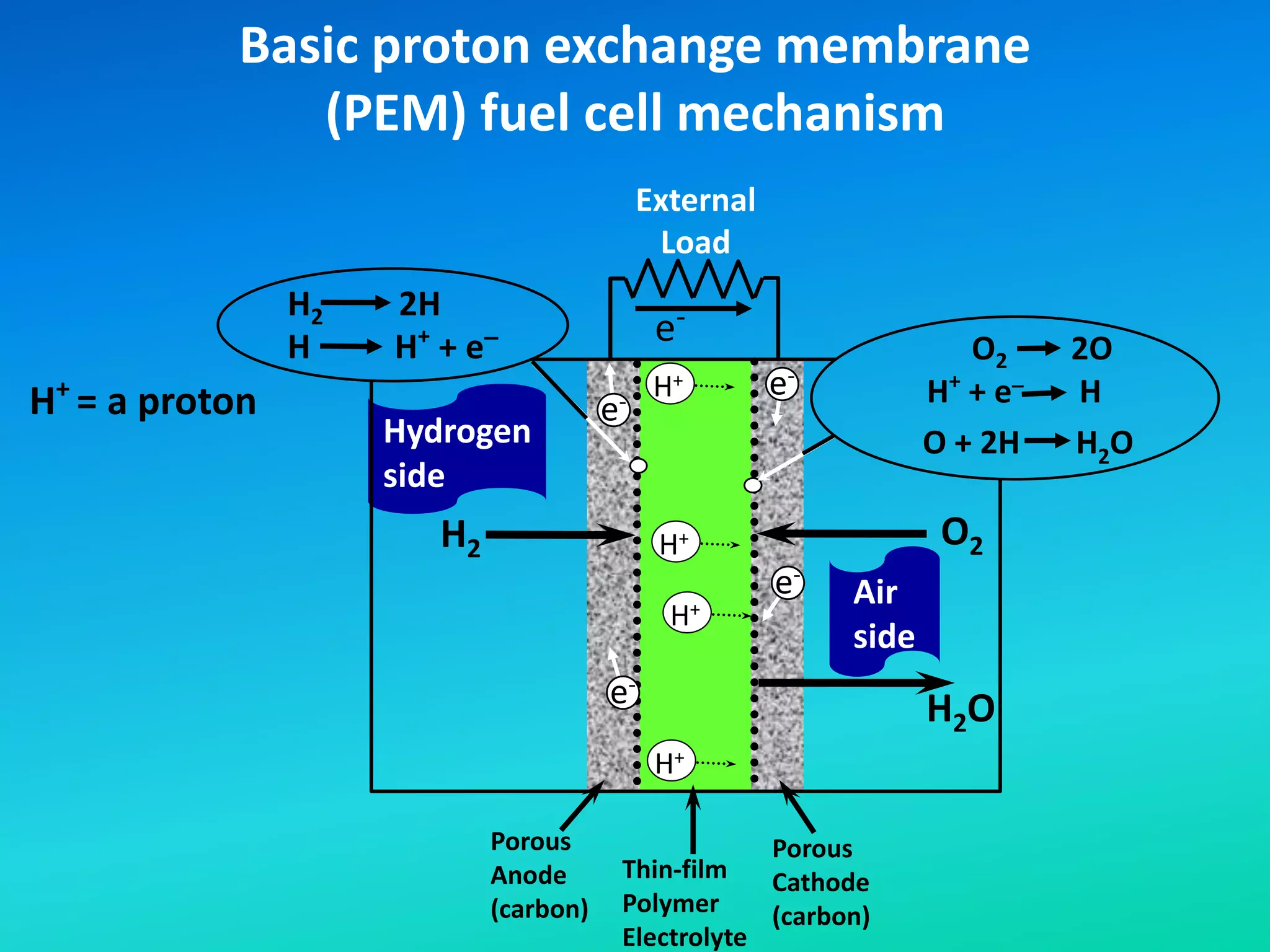

Basic proton exchange membrane (PEM) fuel cell mechanism H2O H2 e- External Load O2 H+ H+ H+ H+ Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side H+ = a proton e- e- e- e- O2 2O H+ + e _ H O + 2H H2O H2 2H H H+ + e _
Basic proton exchange membrane (PEM) fuel cell mechanism H2 e- External Load O2 H+ H+ H+ H+ Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Temperature: Hydrogen side Air side 50 - 90C (120 – 195F) Reasonable cell voltage: .5 - .8 V H+ = a proton e- e- e- e- O2 2O H+ + e _ H O + 2H H2O H2 2H H H+ + e _ H2O

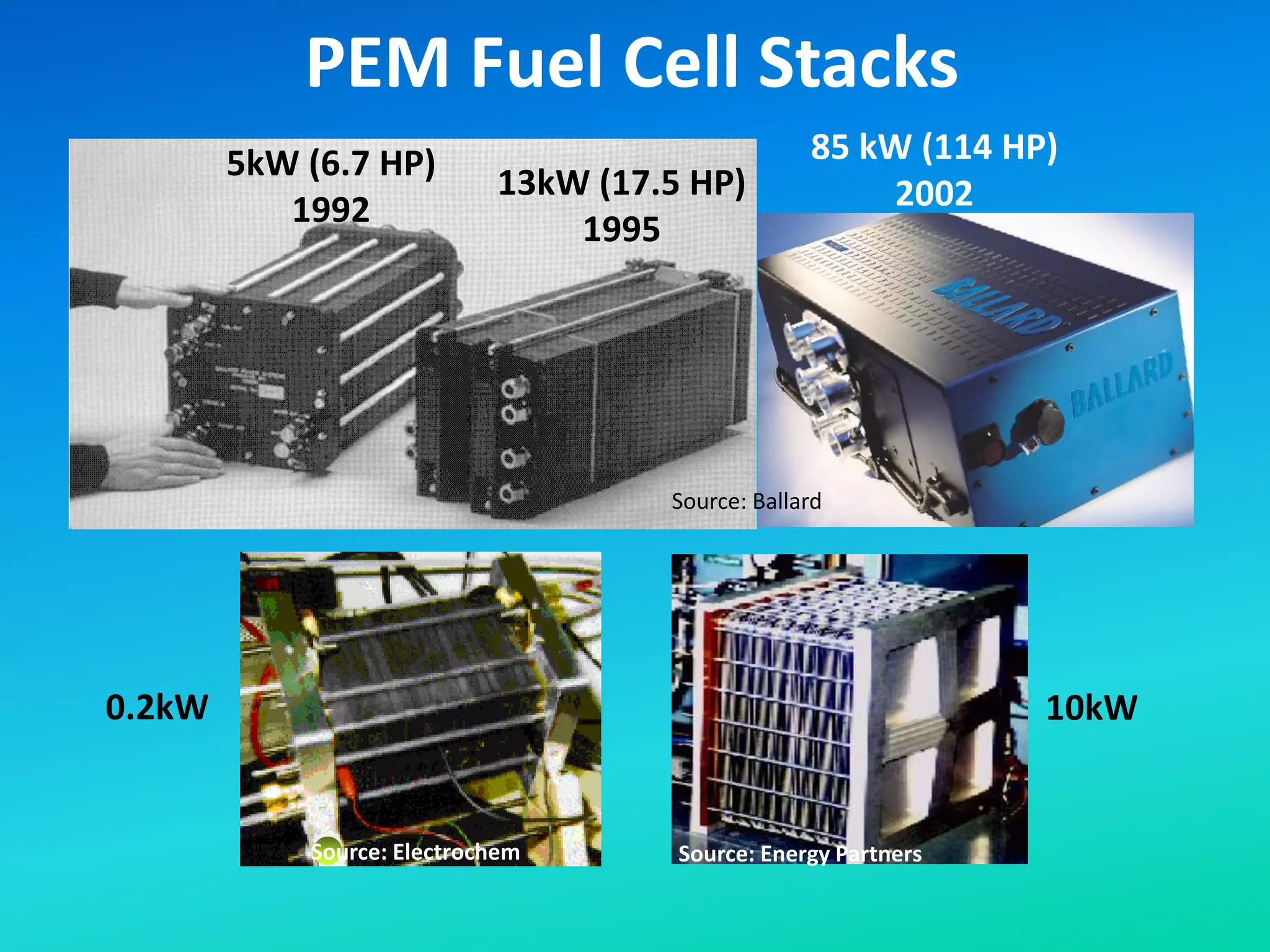

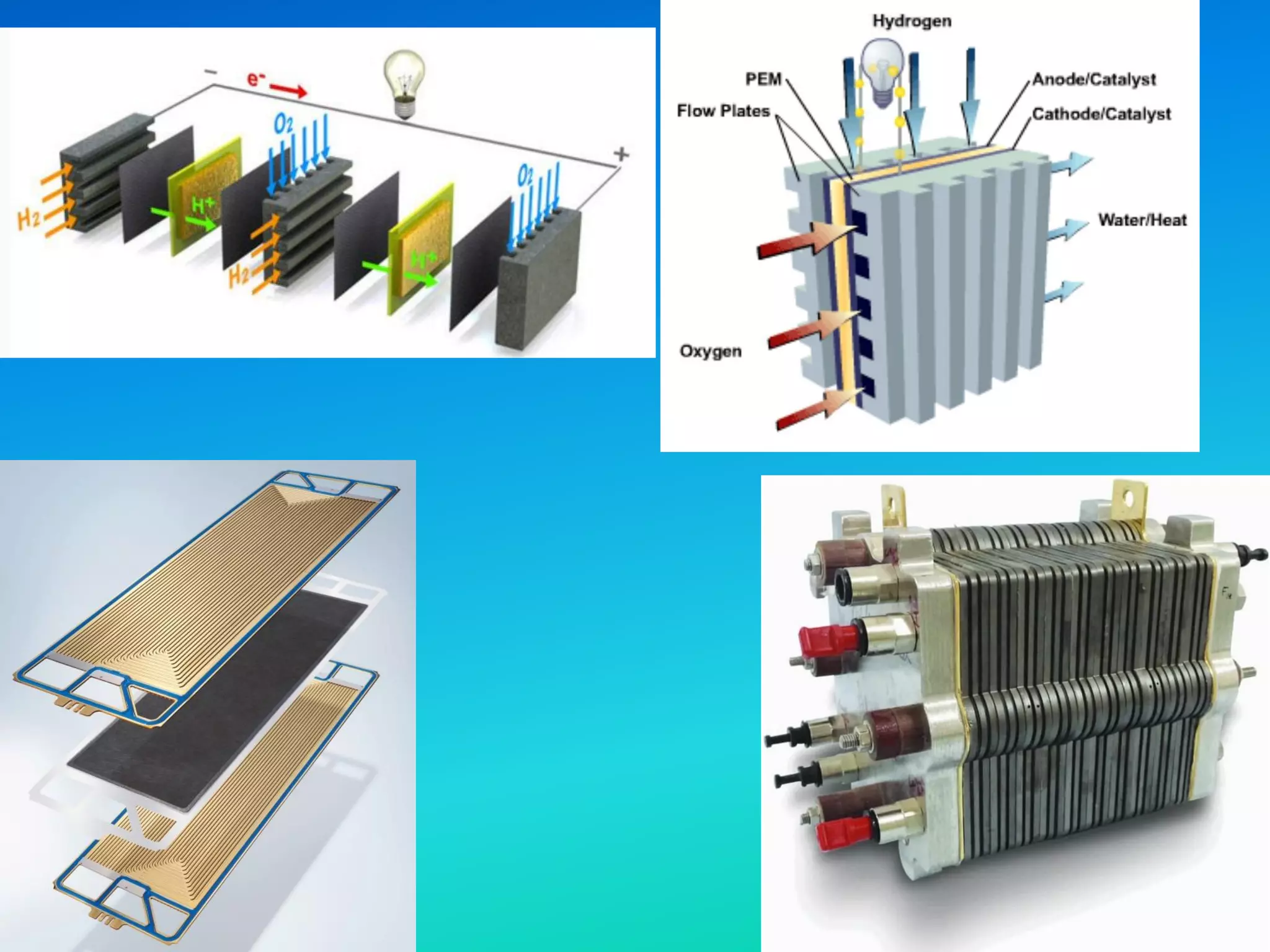

PEM Fuel Cell Stacks Source: Energy Partners 10kW 0.2kW Source: Electrochem Source: Ballard 85 kW (114 HP) 2002 5kW (6.7 HP) 1992 13kW (17.5 HP) 1995

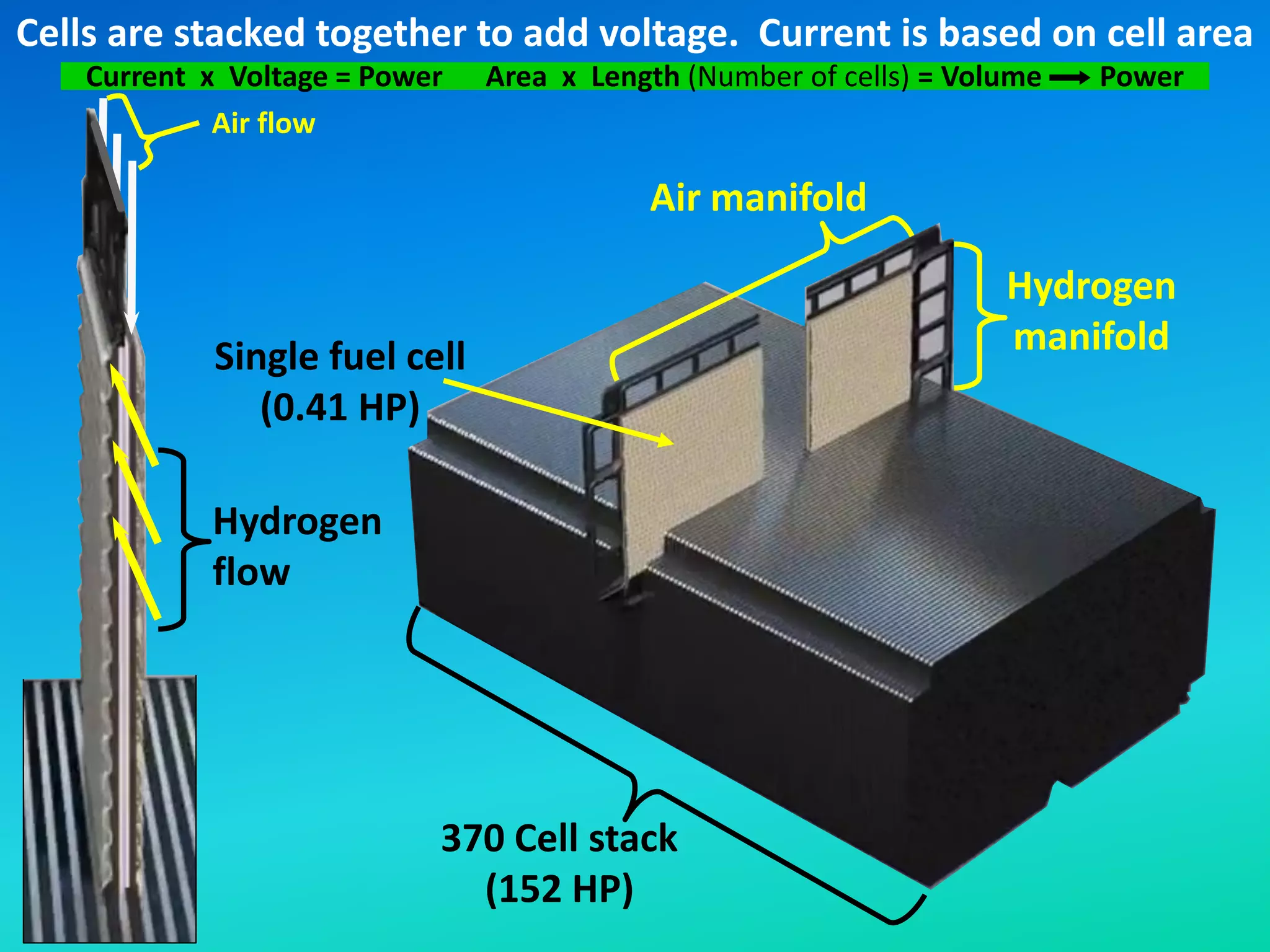

370 Cell stack (152 HP) Air flow Hydrogen flow Single fuel cell (0.41 HP) Air manifold Hydrogen manifold Cells are stacked together to add voltage. Current is based on cell area Current x Voltage = Power Area x Length (Number of cells) = Volume Power

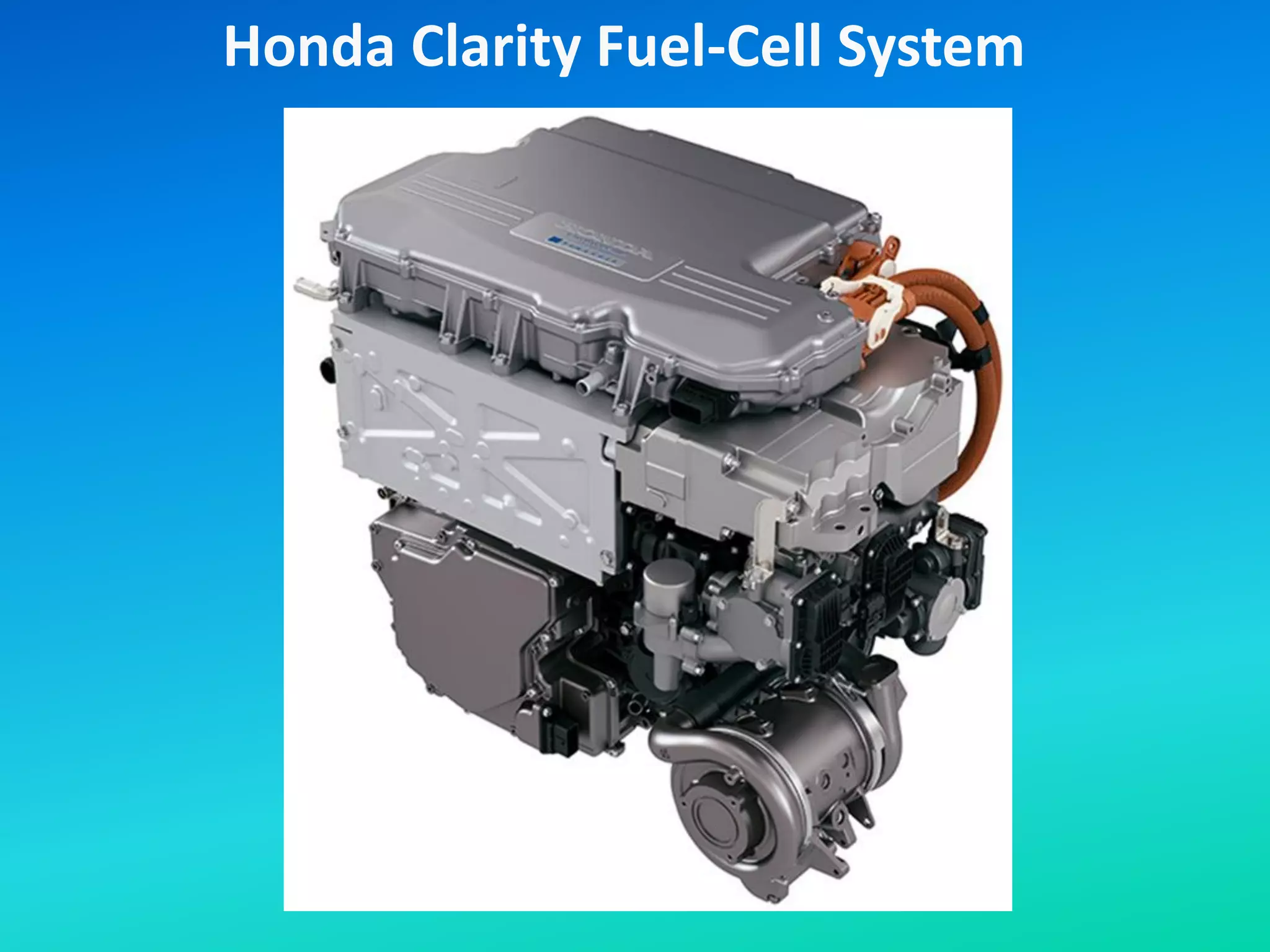

Honda Clarity Fuel-Cell System

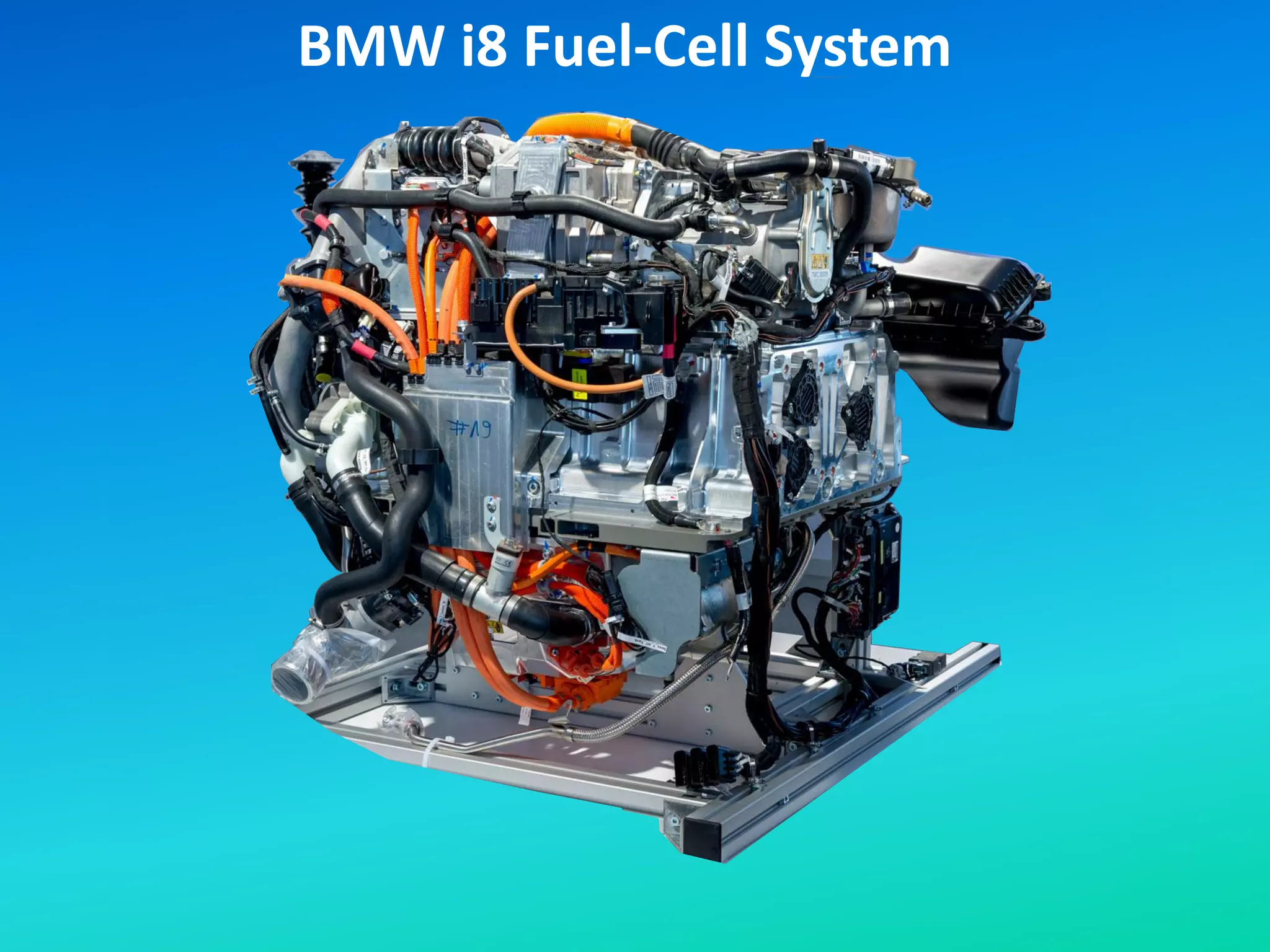

BMW i8 Fuel-Cell System

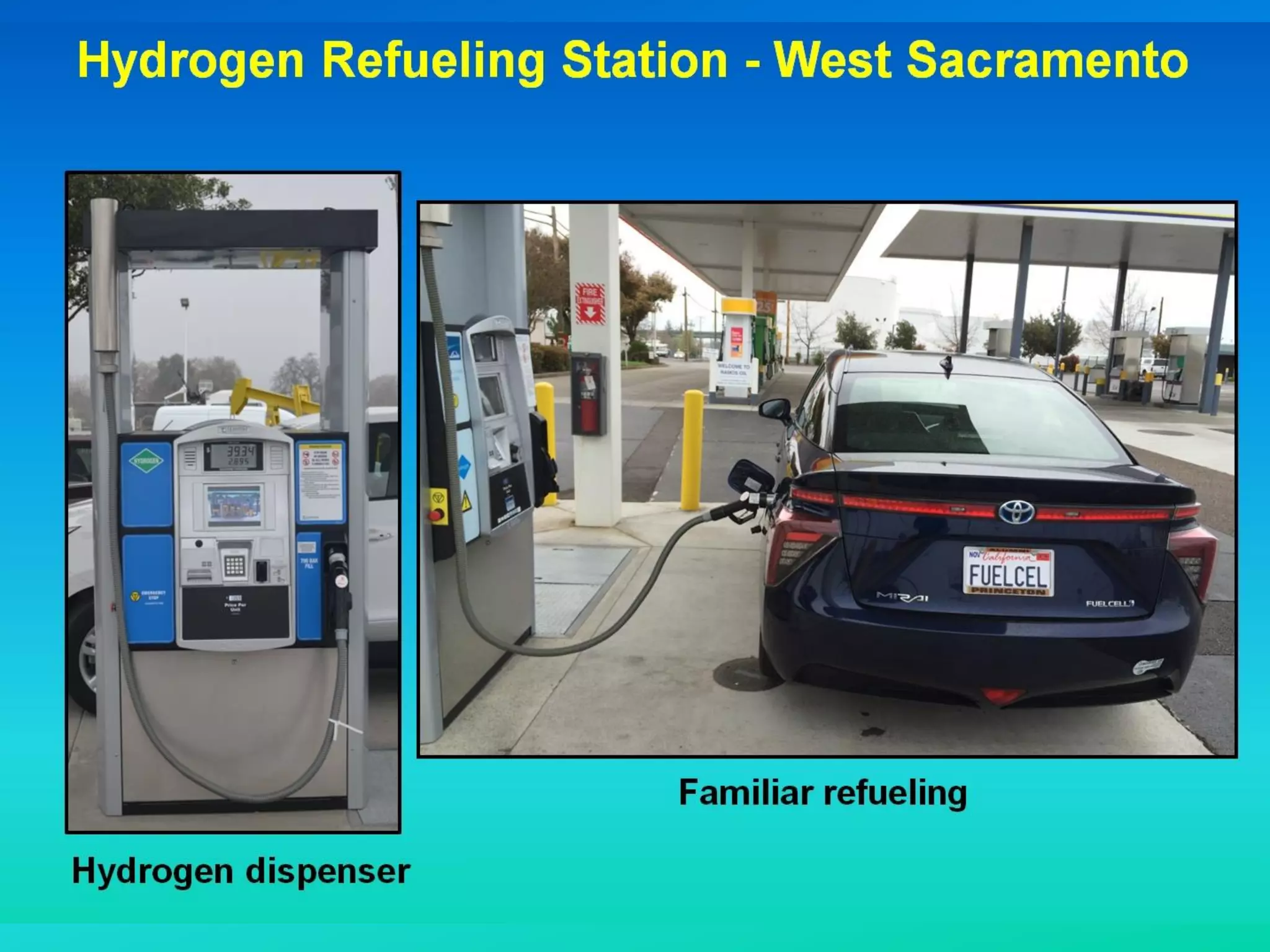

Hydrogen Refueling Stations
Hydrogen Refueling Stations The Infrastructure Challenge

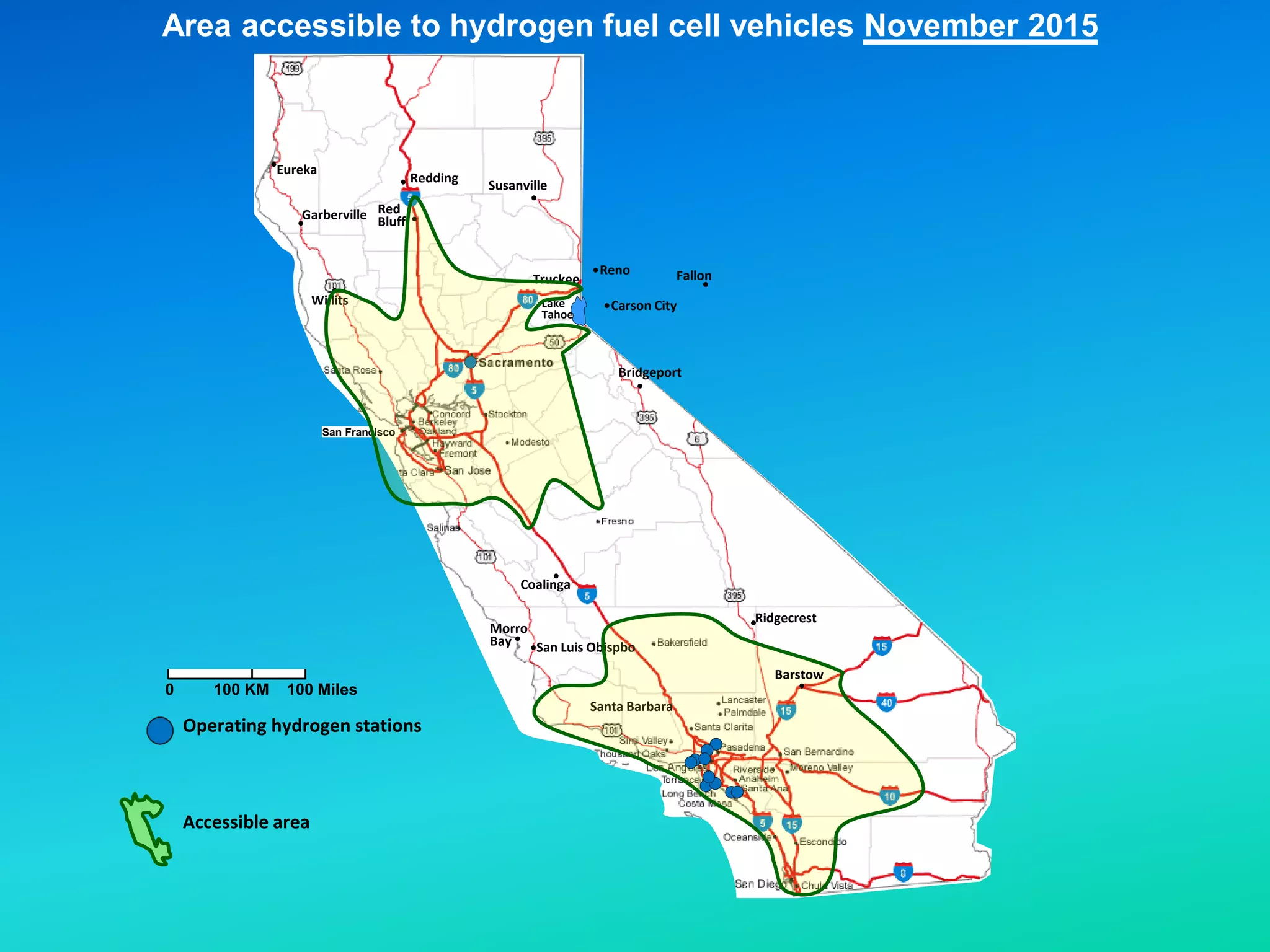

Area accessible to hydrogen fuel cell vehicles November 2015 Coalinga Willits Eureka Redding Red Bluff Susanville Truckee Garberville Santa Barbara San Luis Obispbo Morro Bay Reno Bridgeport Carson City Fallon Lake Tahoe San Francisco Barstow Ridgecrest San Francisco 0 100 KM 100 Miles Operating hydrogen stations Accessible area

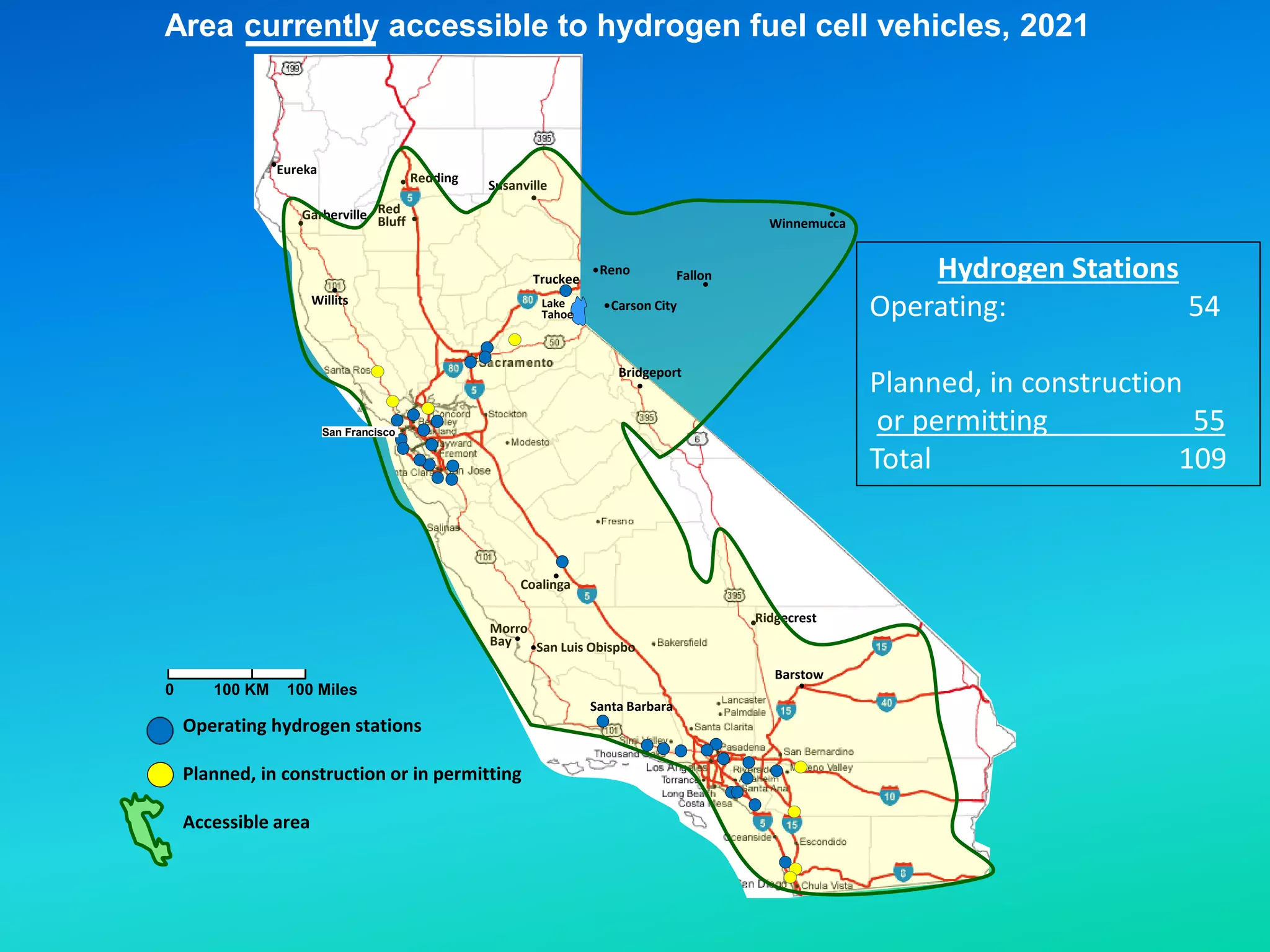

Area currently accessible to hydrogen fuel cell vehicles, 2021 Coalinga Eureka Redding Red Bluff Susanville Ridgecrest Garberville San Luis Obispbo Morro Bay 0 100 KM 100 Miles Operating hydrogen stations Planned, in construction or in permitting Accessible area Barstow Willits Truckee Lake Tahoe San Francisco Santa Barbara Bridgeport Carson City Reno Fallon Winnemucca Hydrogen Stations Operating: 54 Planned, in construction or permitting 55 Total 109

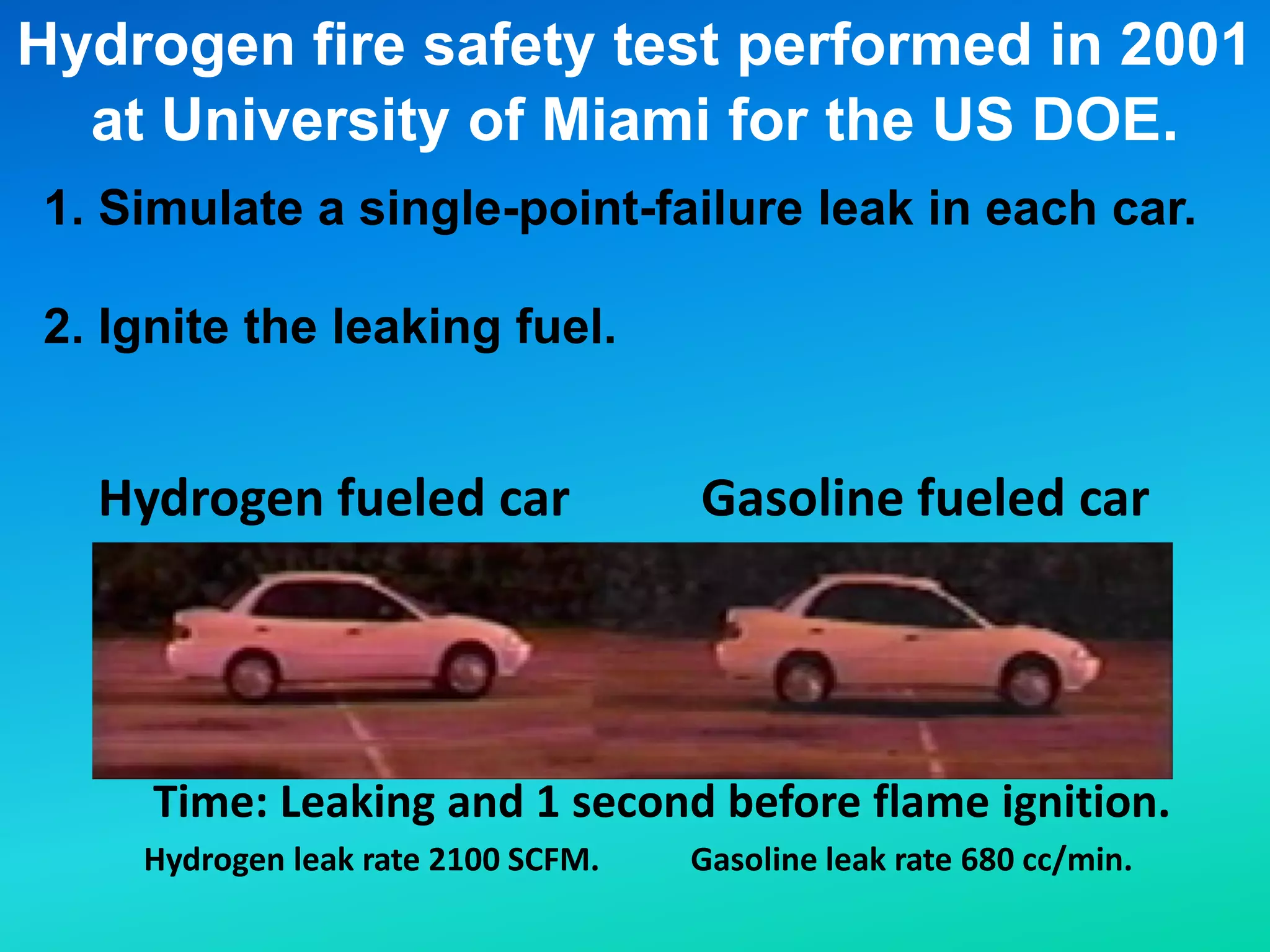

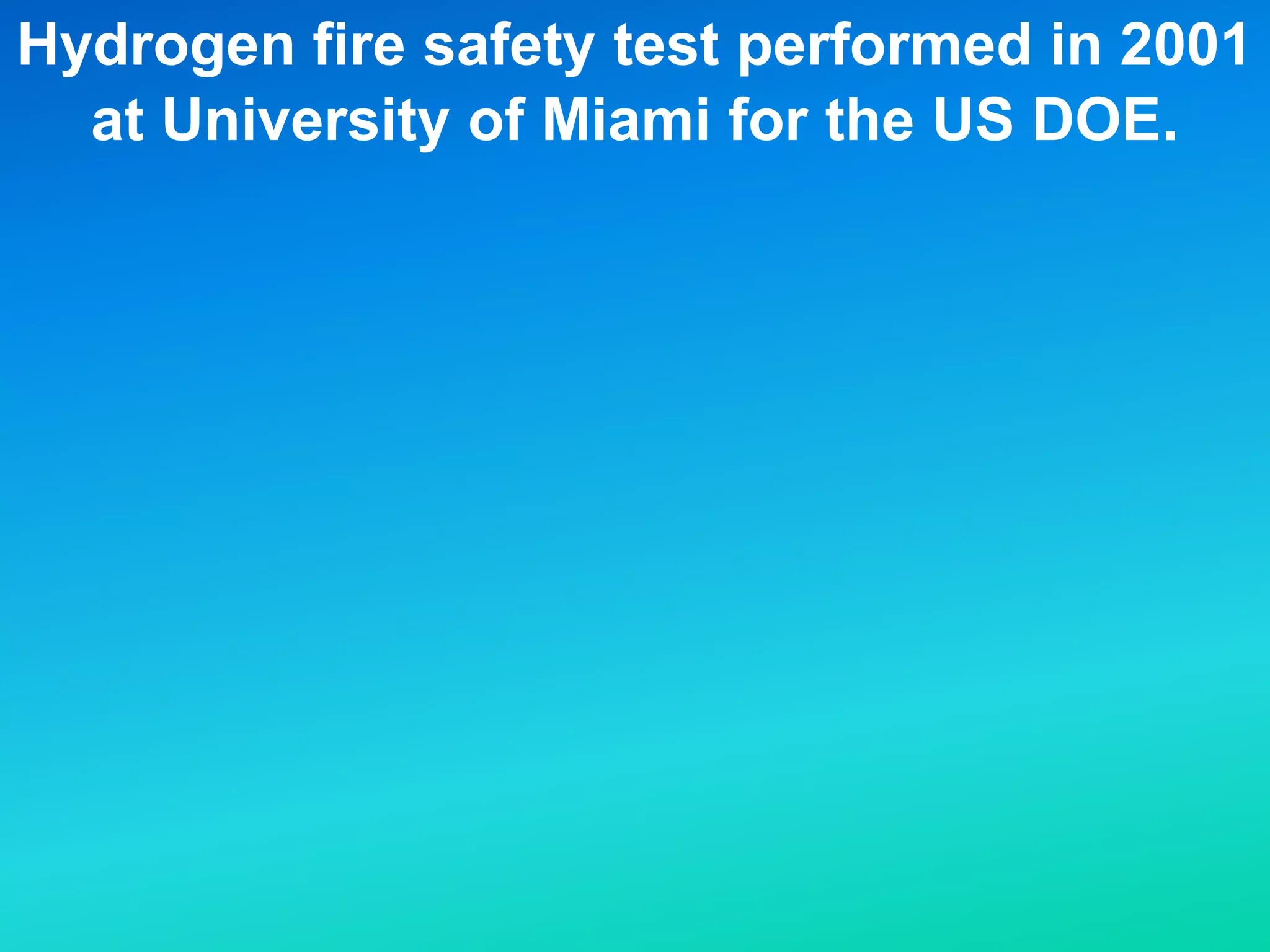

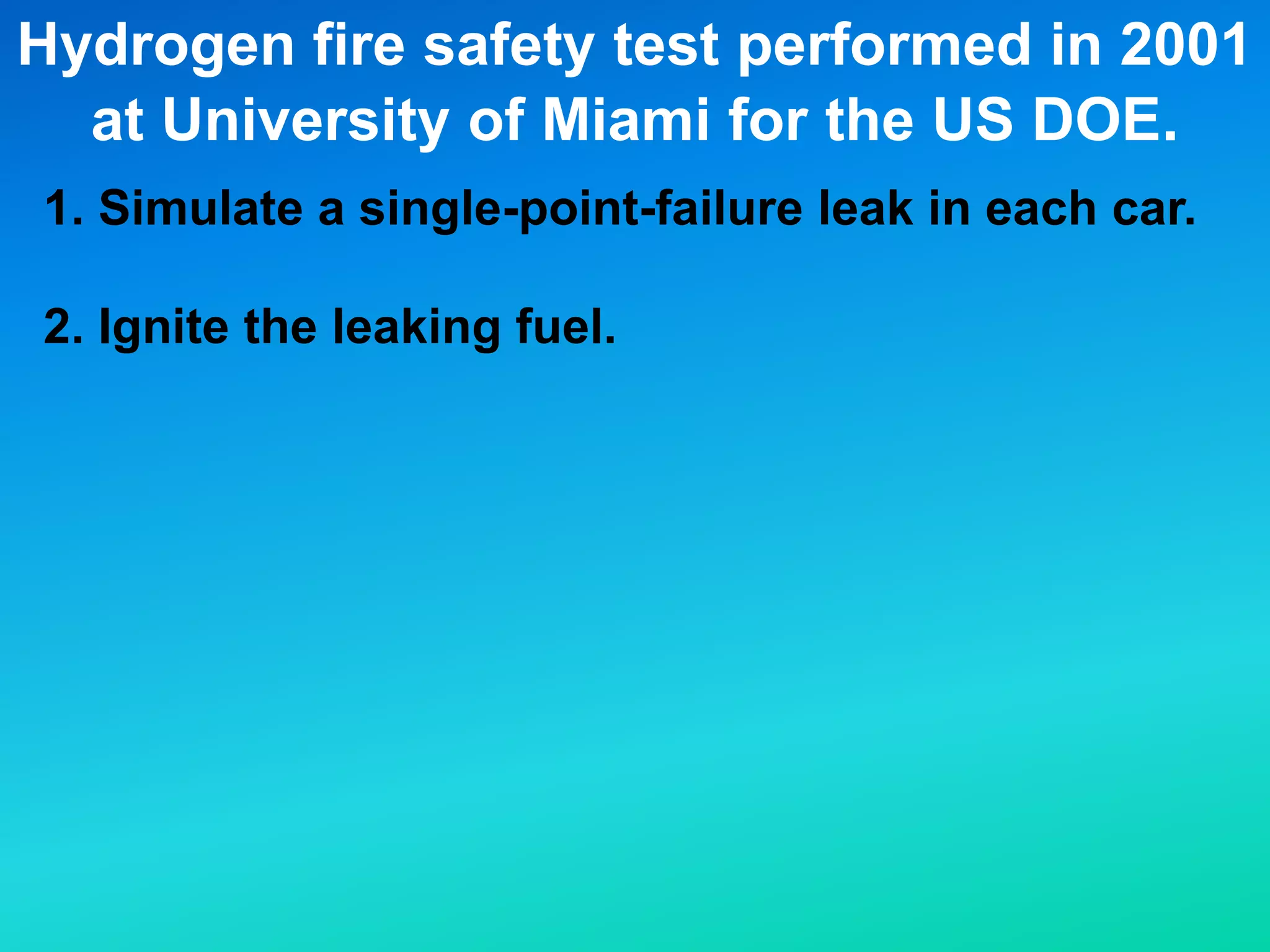

Hydrogen fire safety test performed in 2001 at University of Miami for the US DOE.
Hydrogen fire safety test performed in 2001 at University of Miami for the US DOE. 1. Simulate a single-point-failure leak in each car. 2. Ignite the leaking fuel.
Hydrogen fueled car Gasoline fueled car Hydrogen leak rate 2100 SCFM. Gasoline leak rate 680 cc/min. Time: Leaking and 1 second before flame ignition. Hydrogen fire safety test performed in 2001 at University of Miami for the US DOE. 1. Simulate a single-point-failure leak in each car. 2. Ignite the leaking fuel.

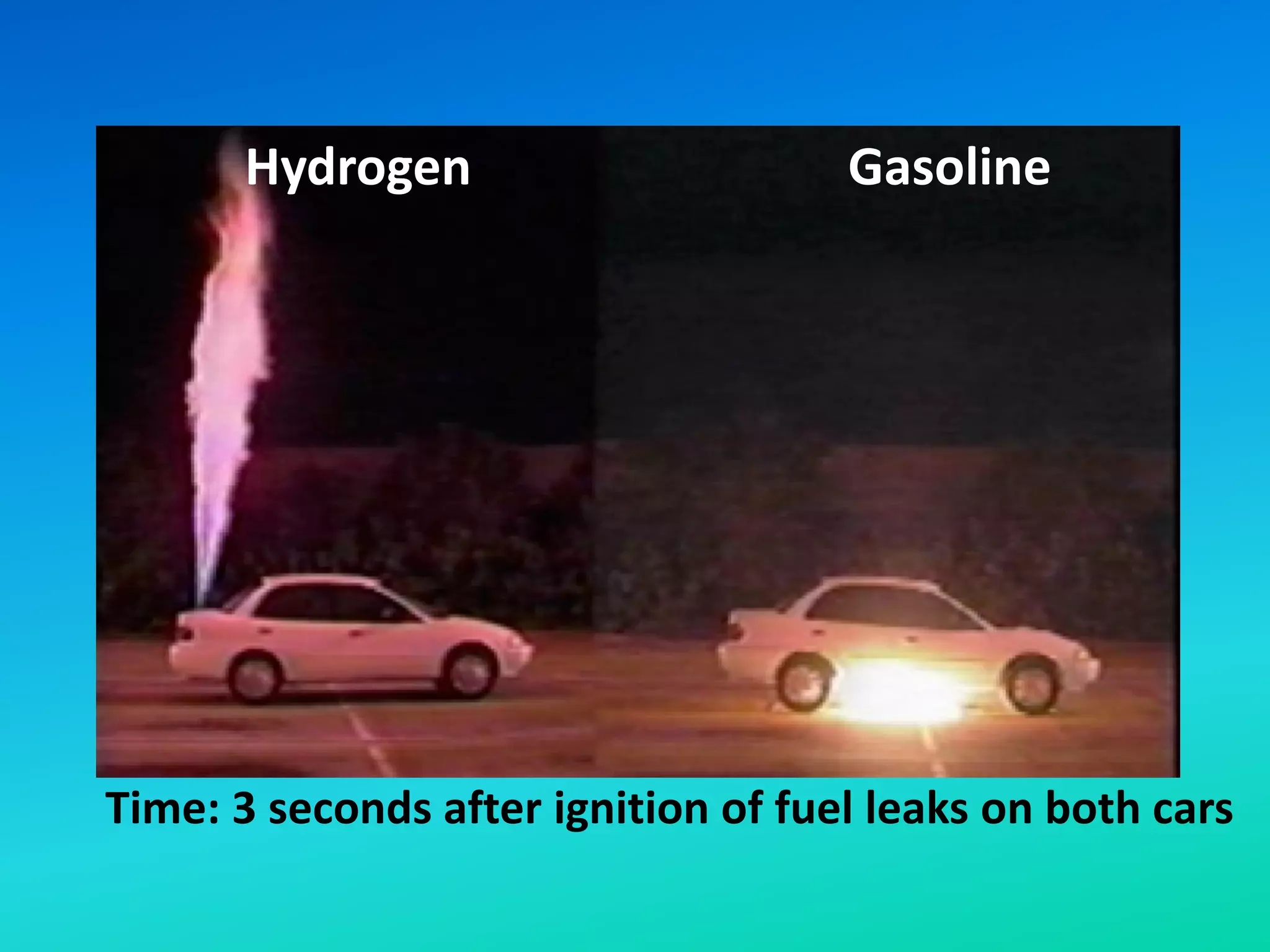

Time: 3 seconds after ignition of fuel leaks on both cars Hydrogen Gasoline Hydrogen Gasoline
Time: 1 minute

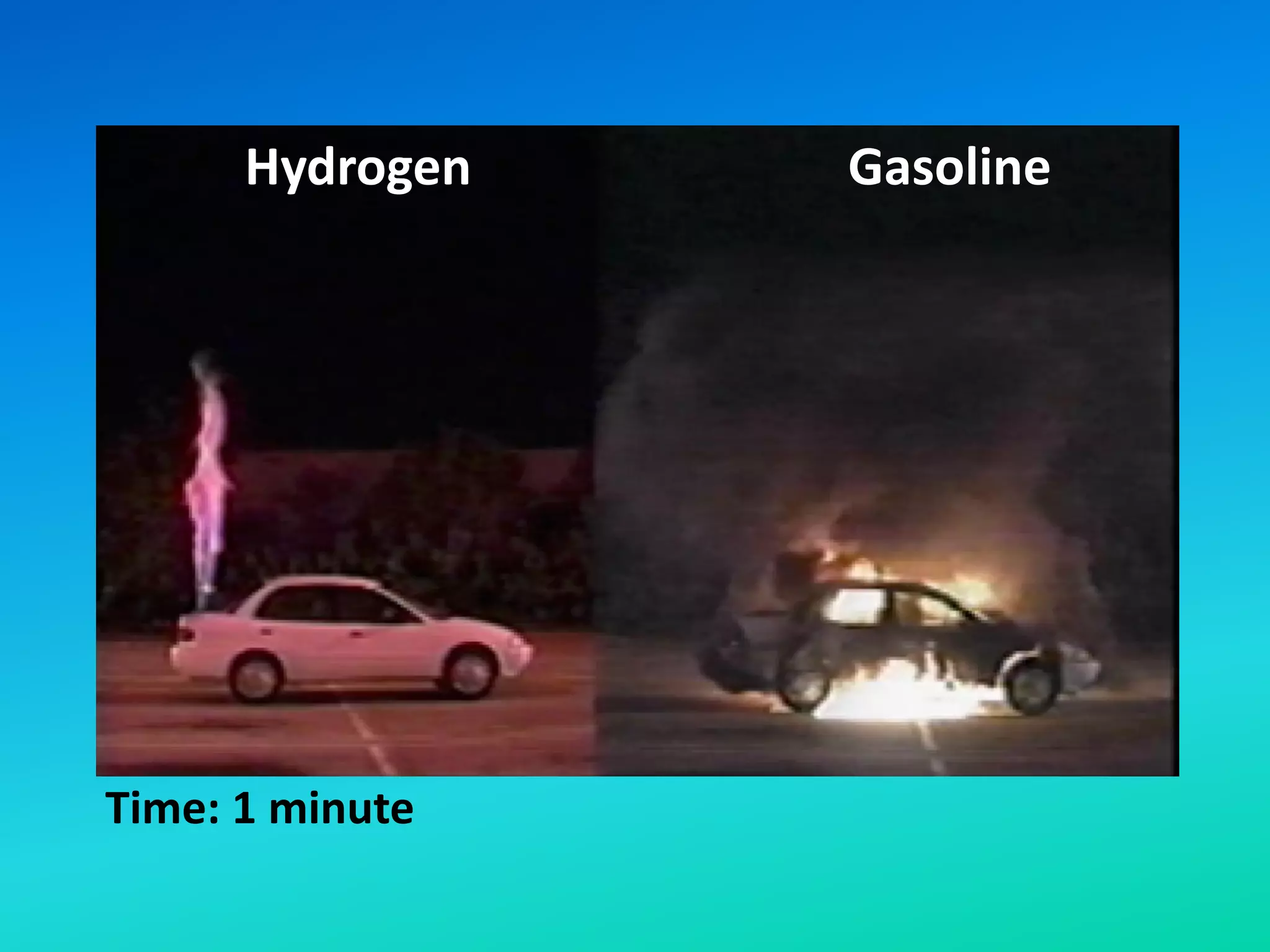

Time: 1 minute Hydrogen Gasoline
Highest temperature in test: 117F on window. Like Palm Springs in August. Time: 1 minute Hydrogen Gasoline

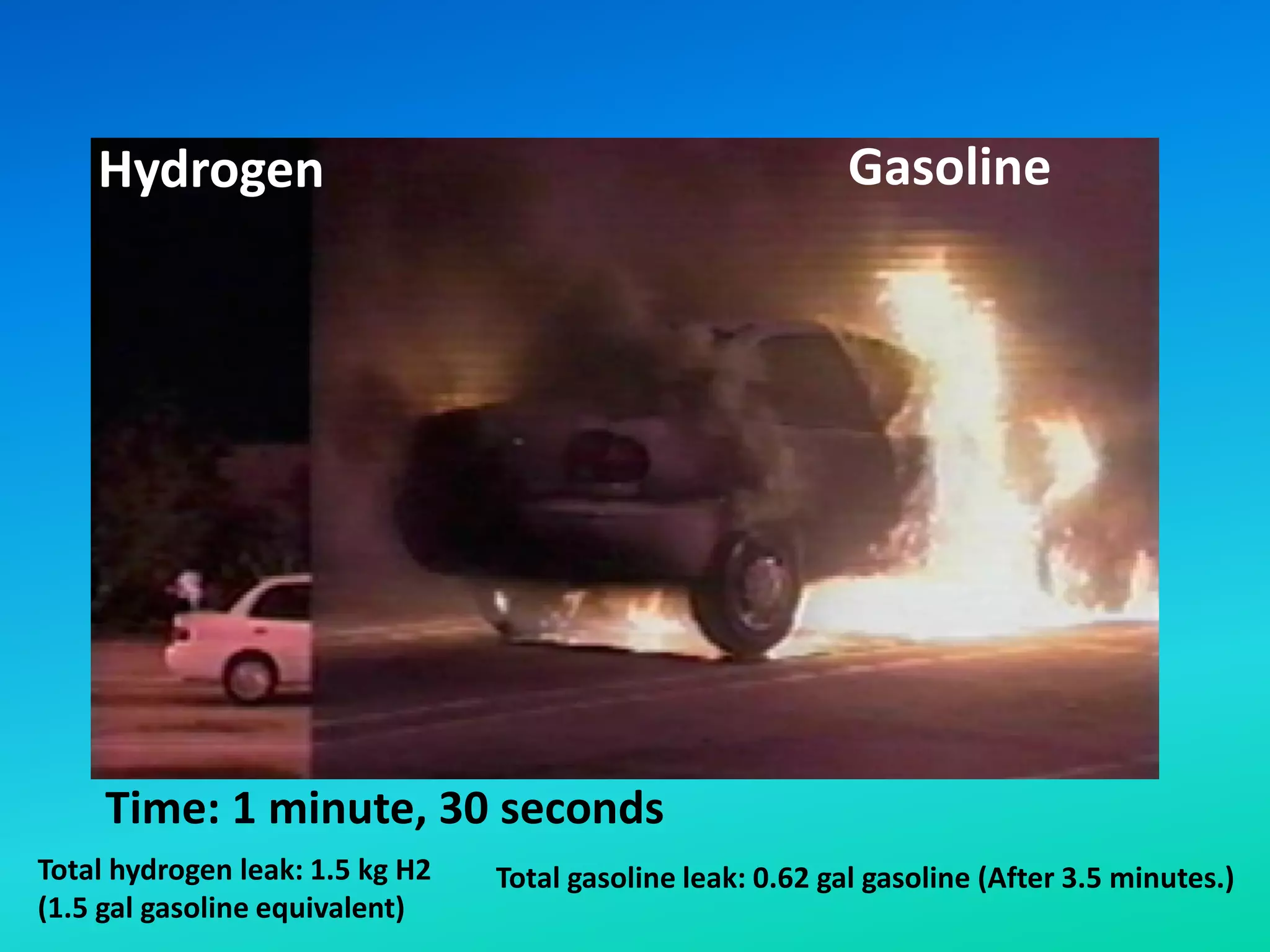

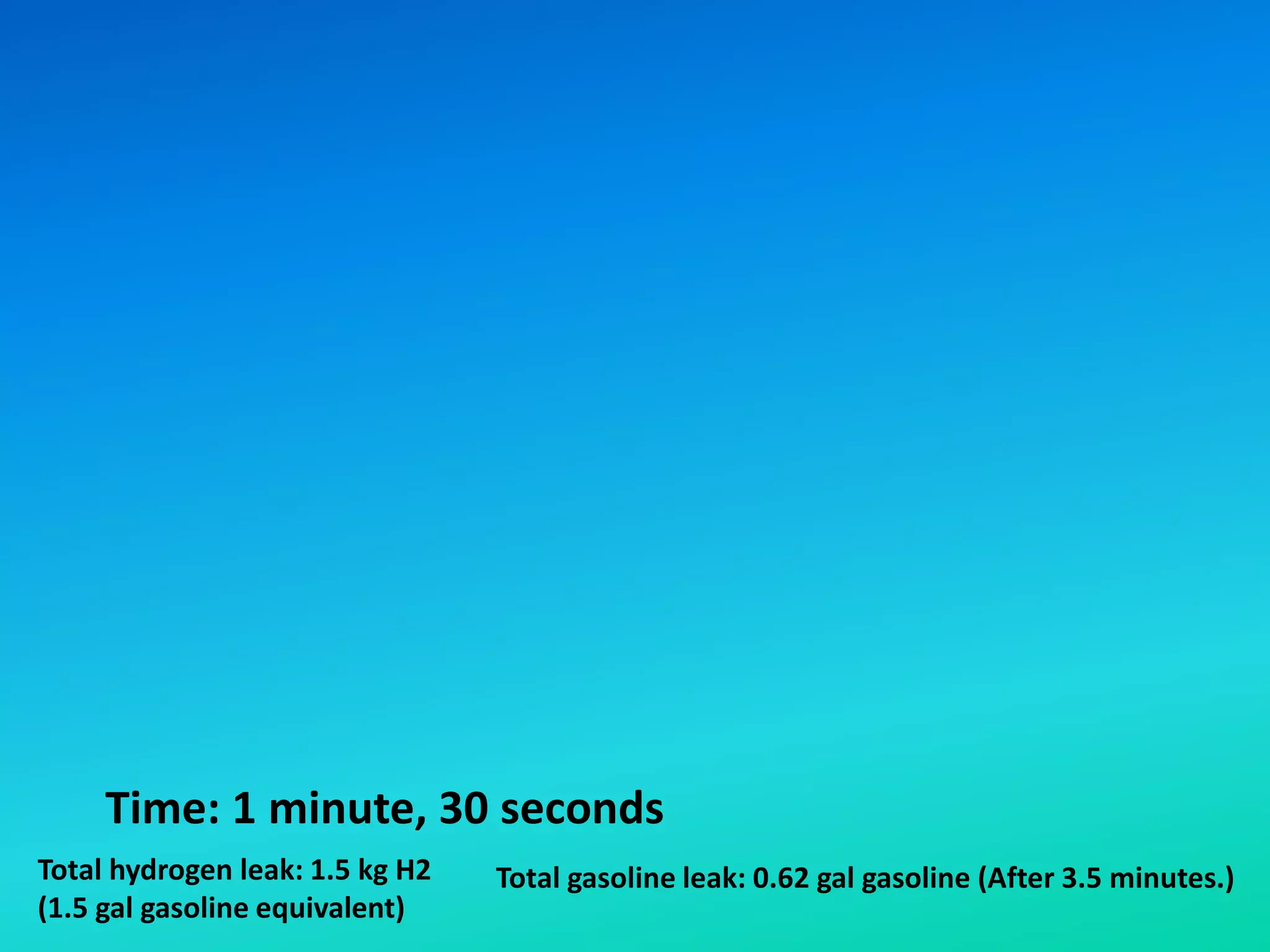

Total hydrogen leak: 1.5 kg H2 (1.5 gal gasoline equivalent) Total gasoline leak: 0.62 gal gasoline (After 3.5 minutes.) Time: 1 minute, 30 seconds
Total hydrogen leak: 1.5 kg H2 (1.5 gal gasoline equivalent) Total gasoline leak: 0.62 gal gasoline (After 3.5 minutes.) Time: 1 minute, 30 seconds Hydrogen Gasoline
When the energy storage part of a battery car catches fire, it can be similar to a gasoline car fire.
How the heck did these PEM fuel cells get started?
How the heck did these PEM fuel cells get started? We owe it to 2 things:
How the heck did these PEM fuel cells get started? We owe it to 2 things: 1) Powerful atom bombs
How the heck did these PEM fuel cells get started? We owe it to 2 things: 1) Powerful atom bombs and 2) Itty bitty rockets.

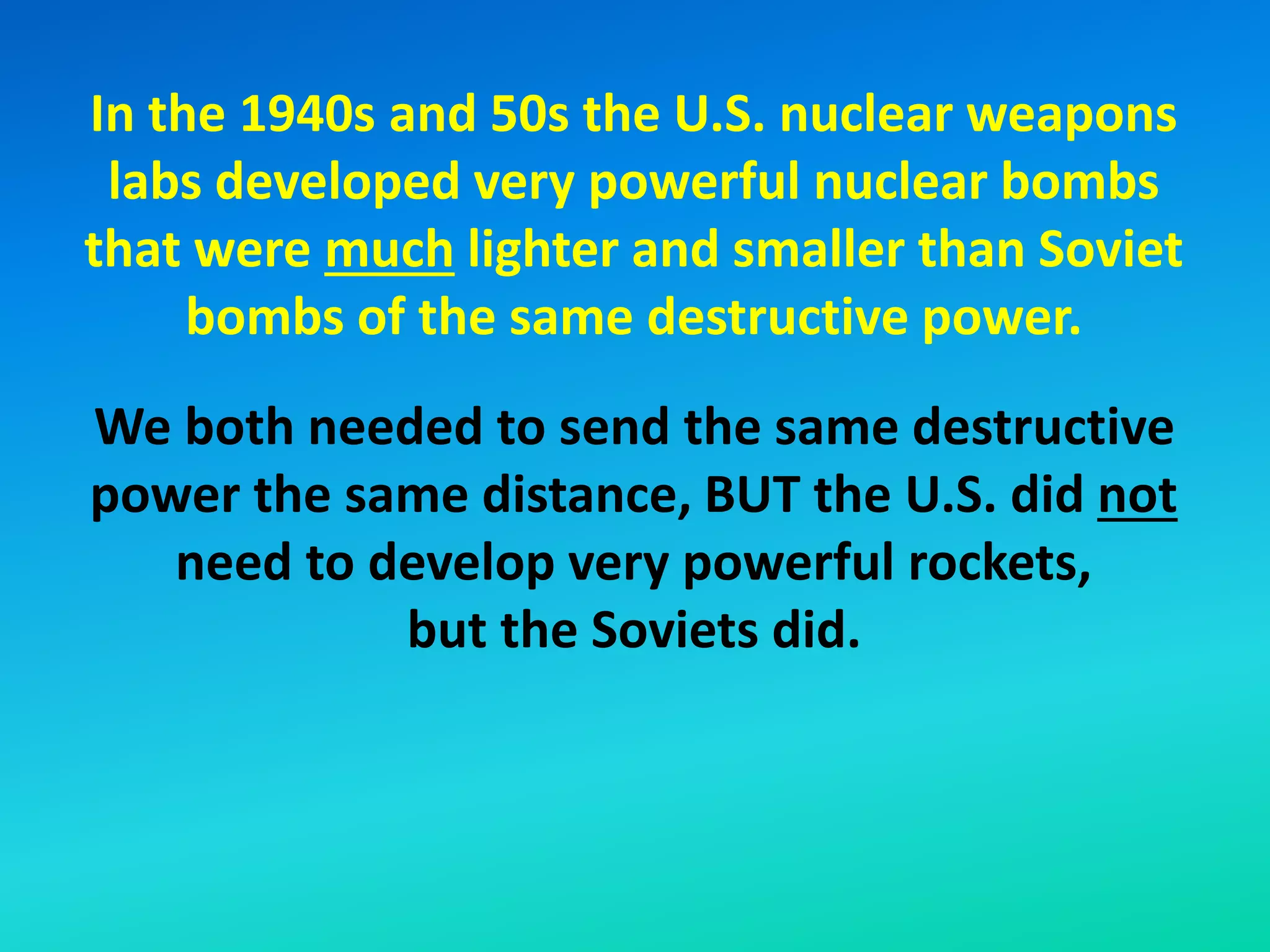

In the 1940s and 50s the U.S. nuclear weapons labs developed very powerful nuclear bombs that were much lighter and smaller than Soviet bombs of the same destructive power.
In the 1940s and 50s the U.S. nuclear weapons labs developed very powerful nuclear bombs that were much lighter and smaller than Soviet bombs of the same destructive power. We both needed to send the same destructive power the same distance, BUT the U.S. did not need to develop very powerful rockets,
In the 1940s and 50s the U.S. nuclear weapons labs developed very powerful nuclear bombs that were much lighter and smaller than Soviet bombs of the same destructive power. We both needed to send the same destructive power the same distance, BUT the U.S. did not need to develop very powerful rockets, but the Soviets did.
In the 1940s and 50s the U.S. nuclear weapons labs developed very powerful nuclear bombs that were much lighter and smaller than Soviet bombs of the same destructive power. We both needed to send the same destructive power the same distance, BUT the U.S. did not need to develop very powerful rockets, but the Soviets did. Then, on Oct. 4, 1957 a VERY large rocket launched Sputnik, the first artificial moon.

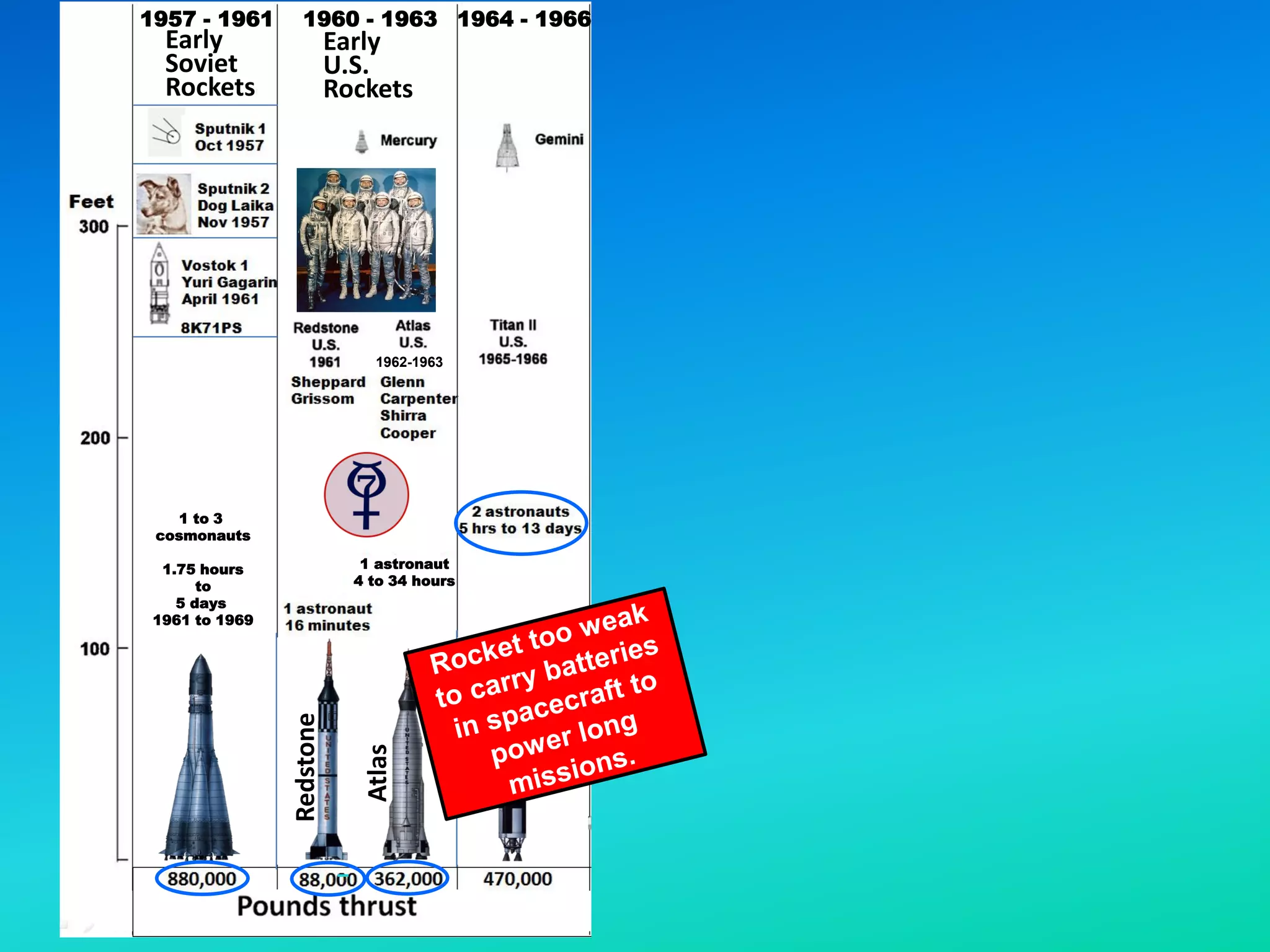

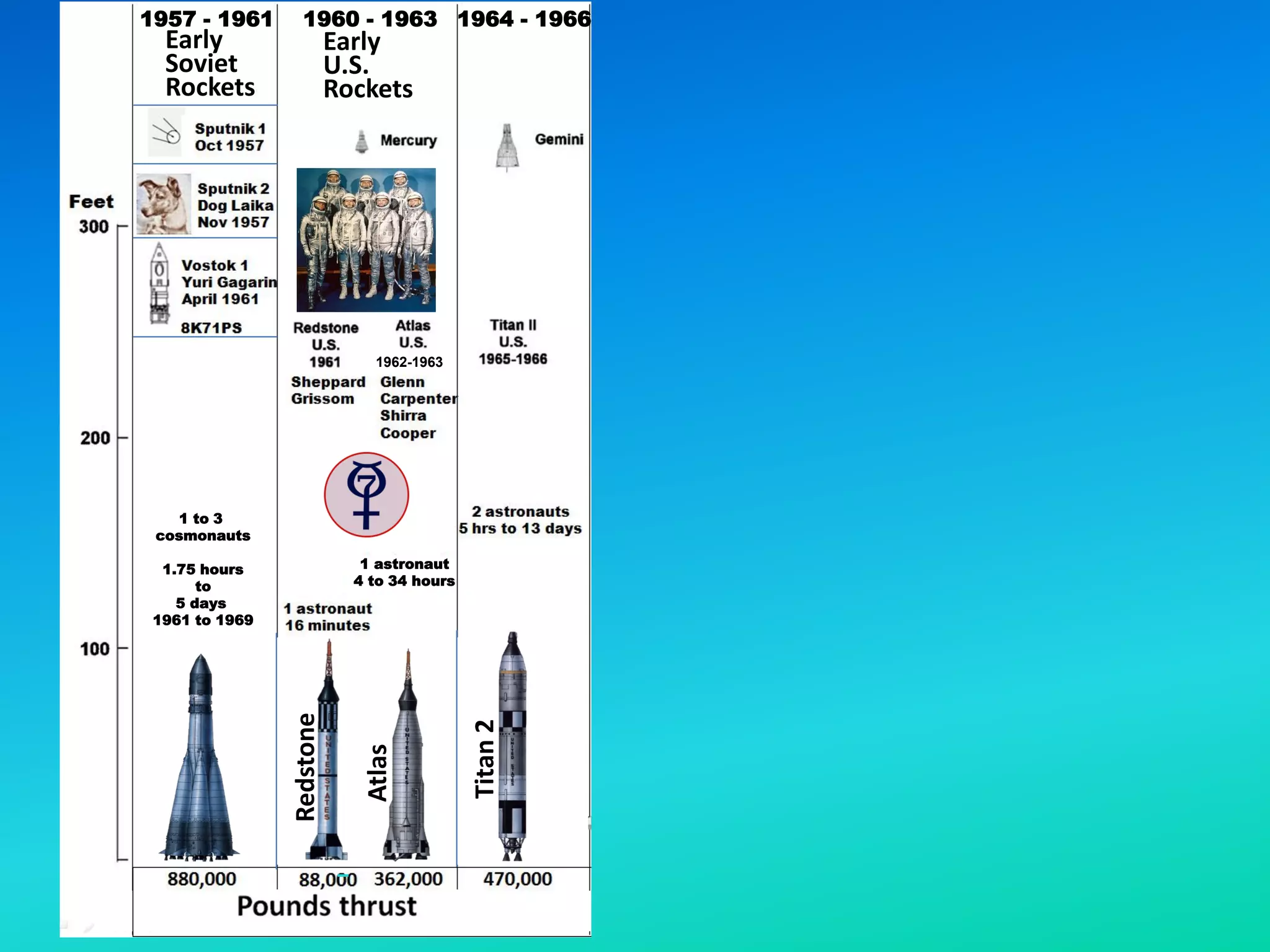

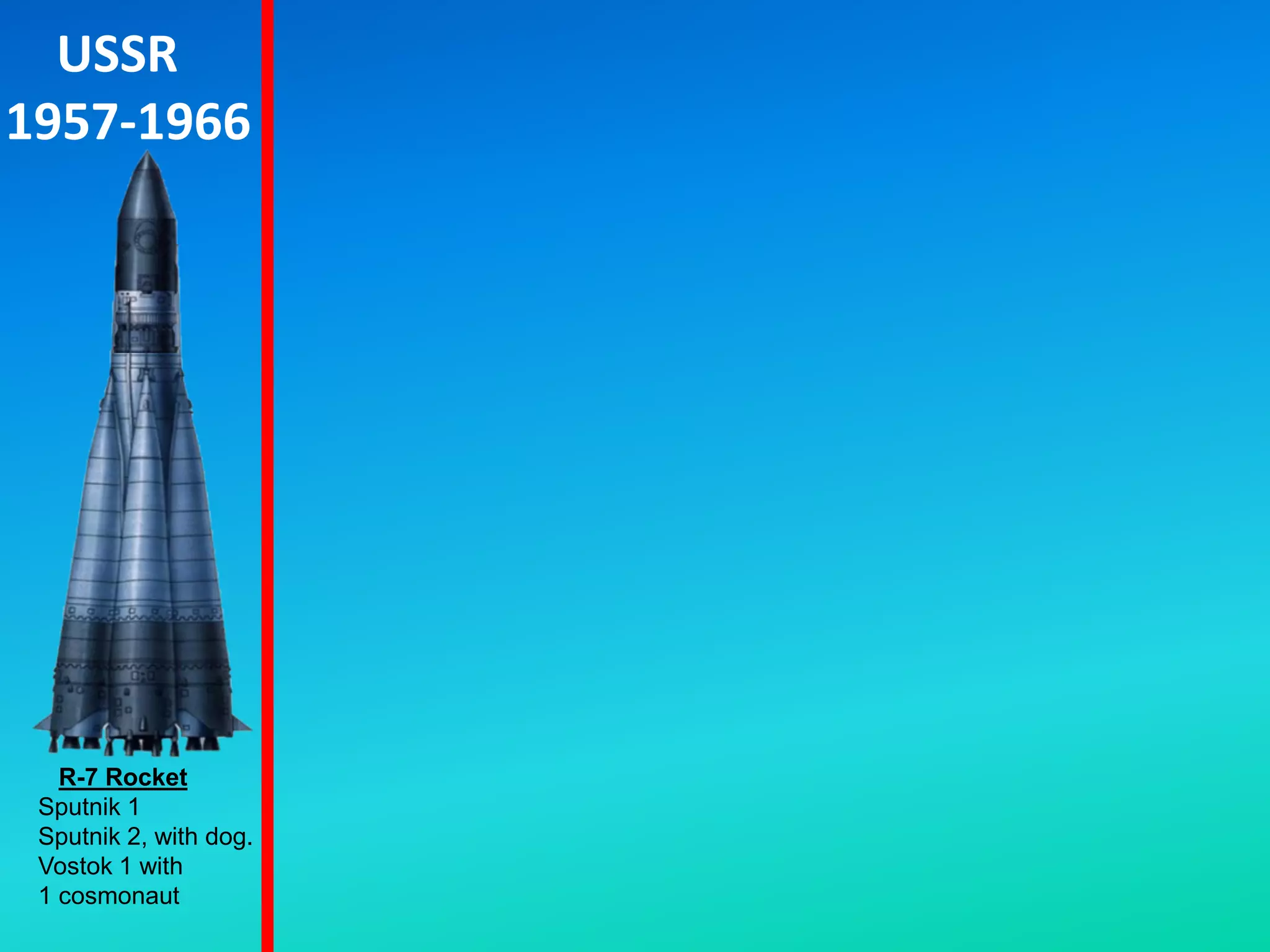

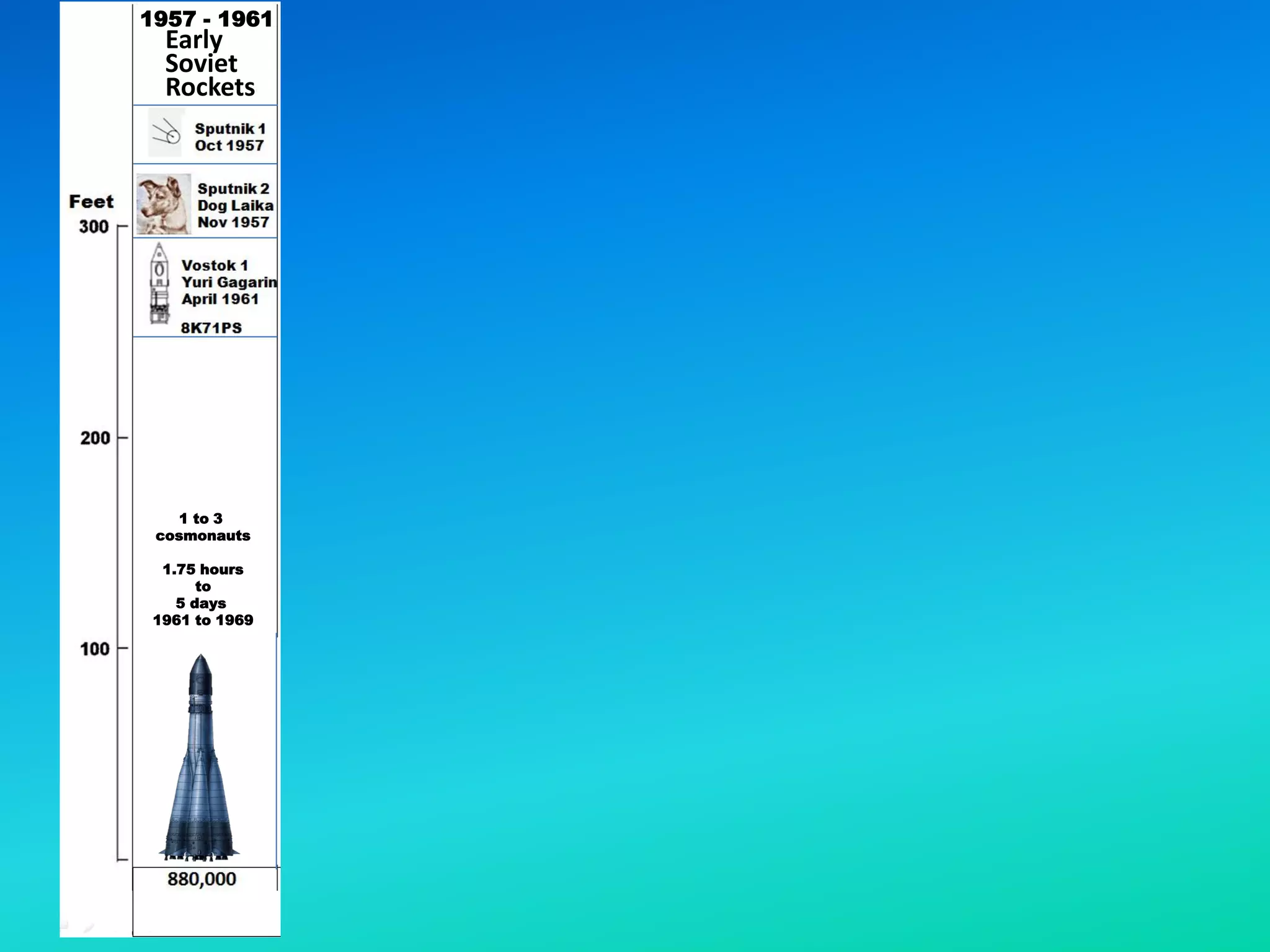

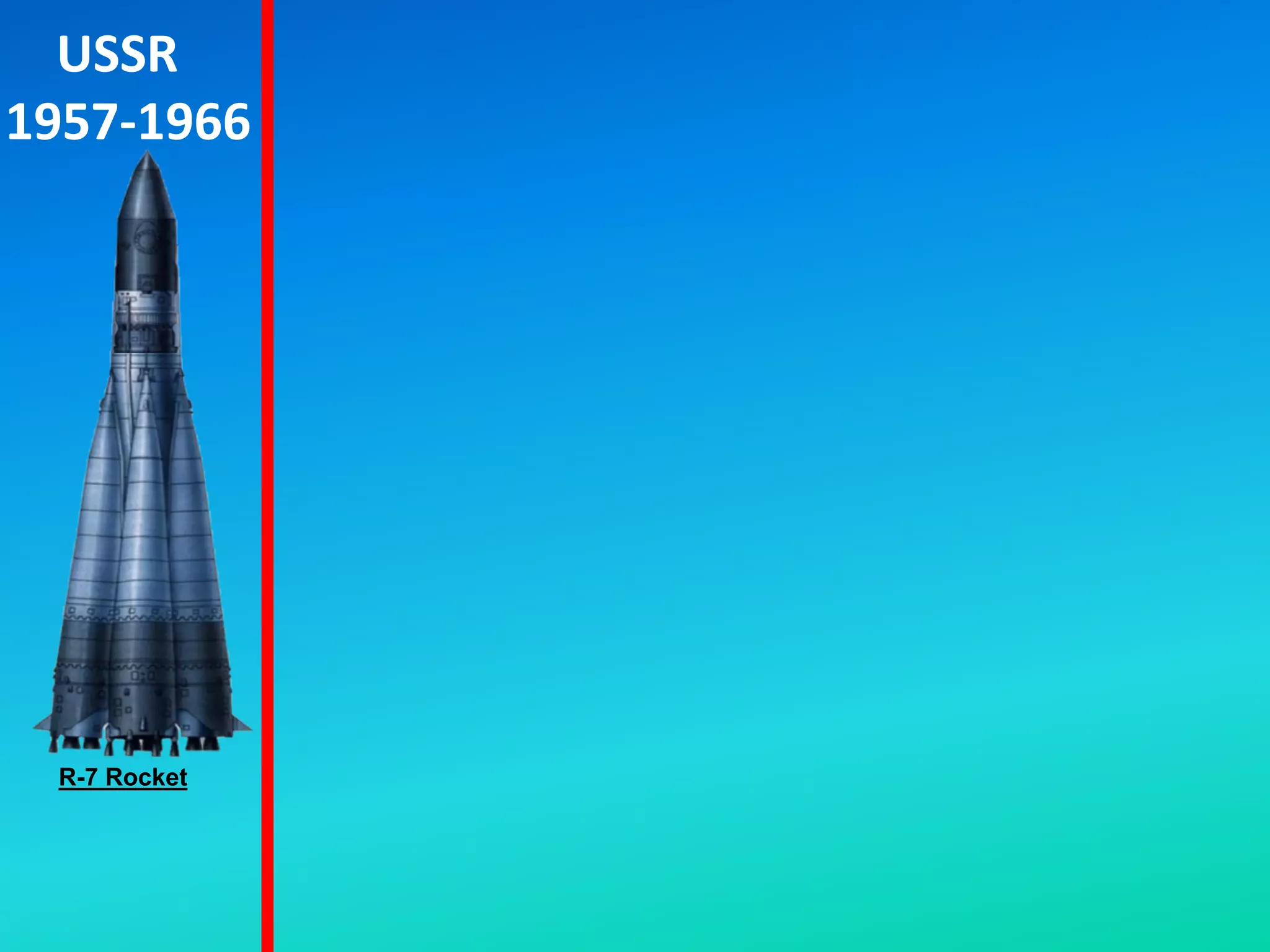

USSR Good Ole USA 1957-1966 1958-1966 R-7 Rocket Sputnik 1 Sputnik 2, with dog. Vostok 1 with 1 cosmonaut
USSR Good Ole USA 1957-1966 1958-1966 R-7 Rocket Sputnik 1 Sputnik 2, with dog. Vostok 1 with 1 cosmonaut

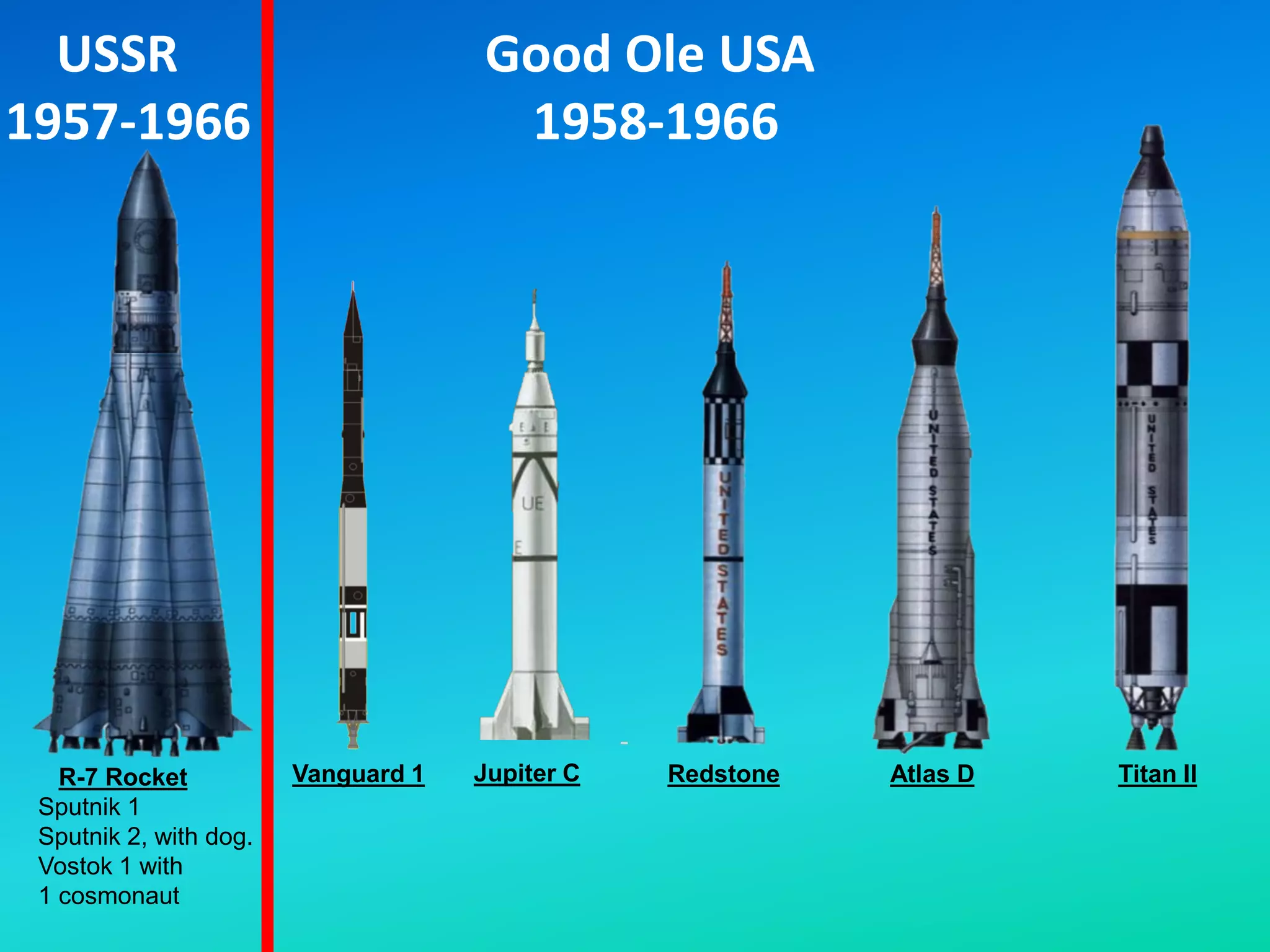

USSR Good Ole USA 1957-1966 1958-1966 Vanguard 1 Exploded on launch Jupiter C Explorer 1 1st US satellite Atlas D Mercury capsule with 1 astronaut (orbital) Titan II Gemini capsule with 2 astronauts (orbital) Redstone Mercury capsule with 1 astronaut (sub-orbital) R-7 Rocket Sputnik 1 Sputnik 2, with dog. Vostok 1 with 1 cosmonaut

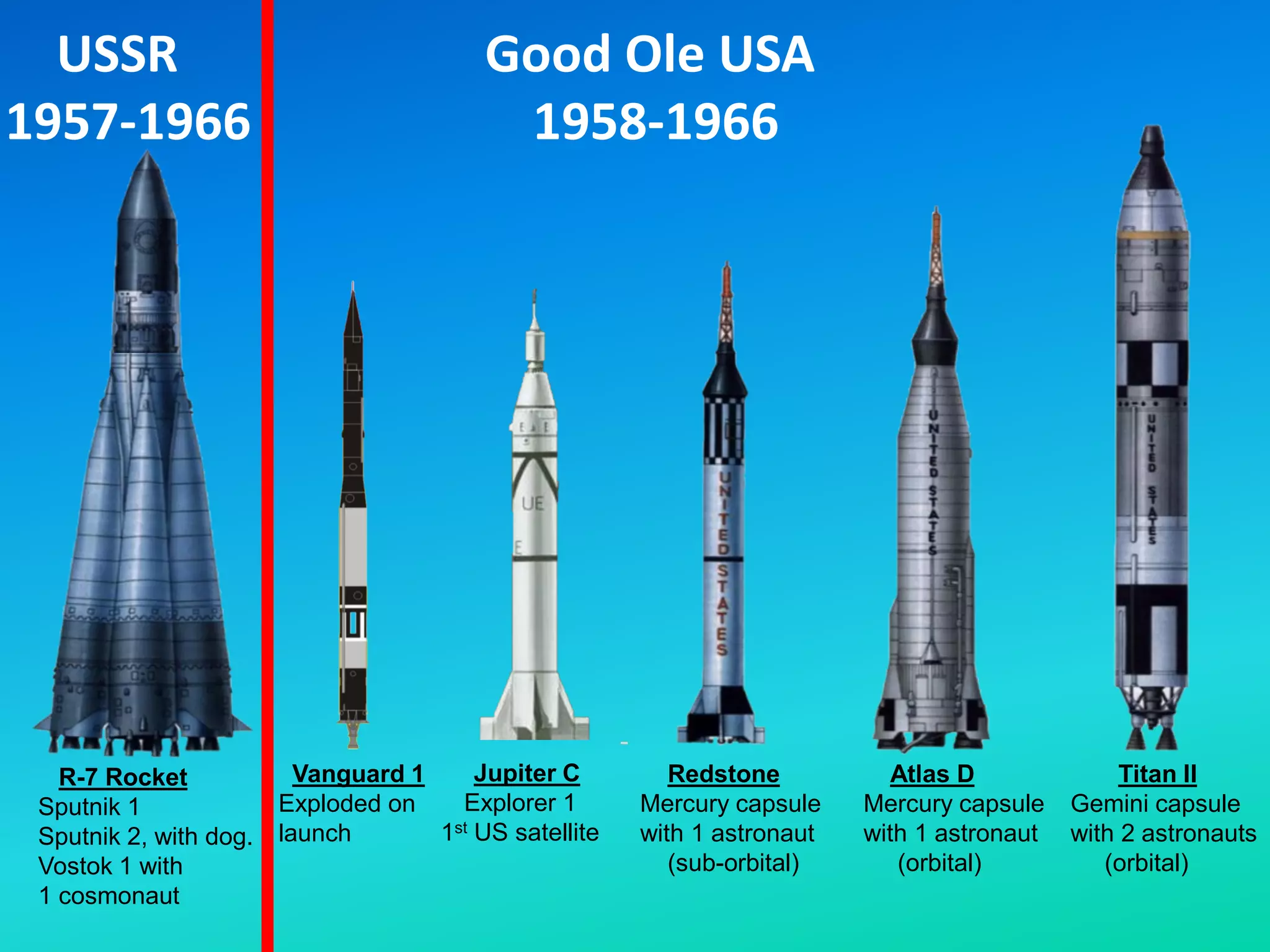

USSR Good Ole USA 1957-1966 1958-1966 Vanguard 1 Exploded on launch Jupiter C Explorer 1 1st US satellite Atlas D Mercury capsule with 1 astronaut (orbital) Titan II Gemini capsule with 2 astronauts (orbital) Redstone Mercury capsule with 1 astronaut (sub-orbital) R-7 Rocket Sputnik 1 Sputnik 2, with dog. Vostok 1 with 1 cosmonaut

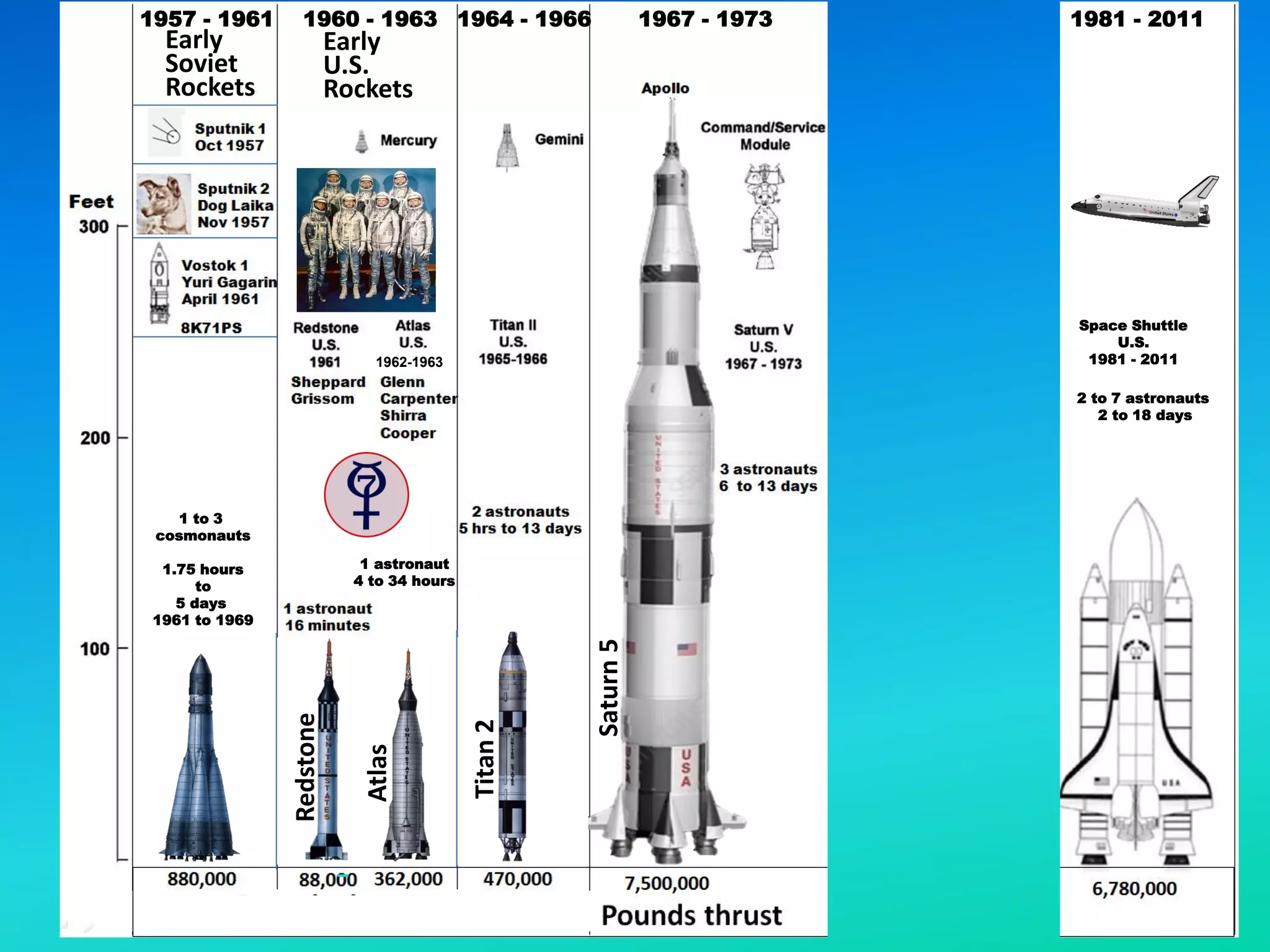

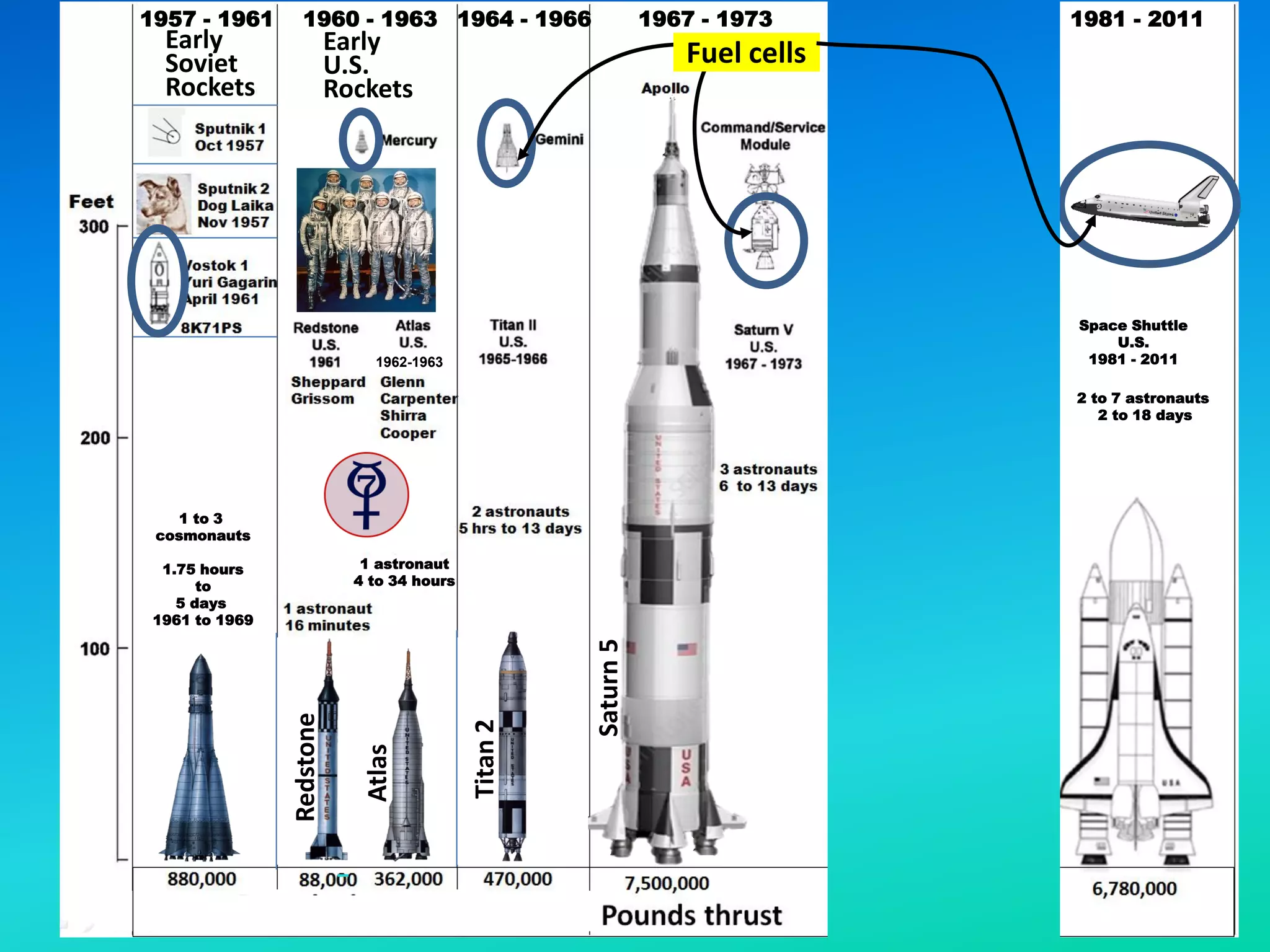

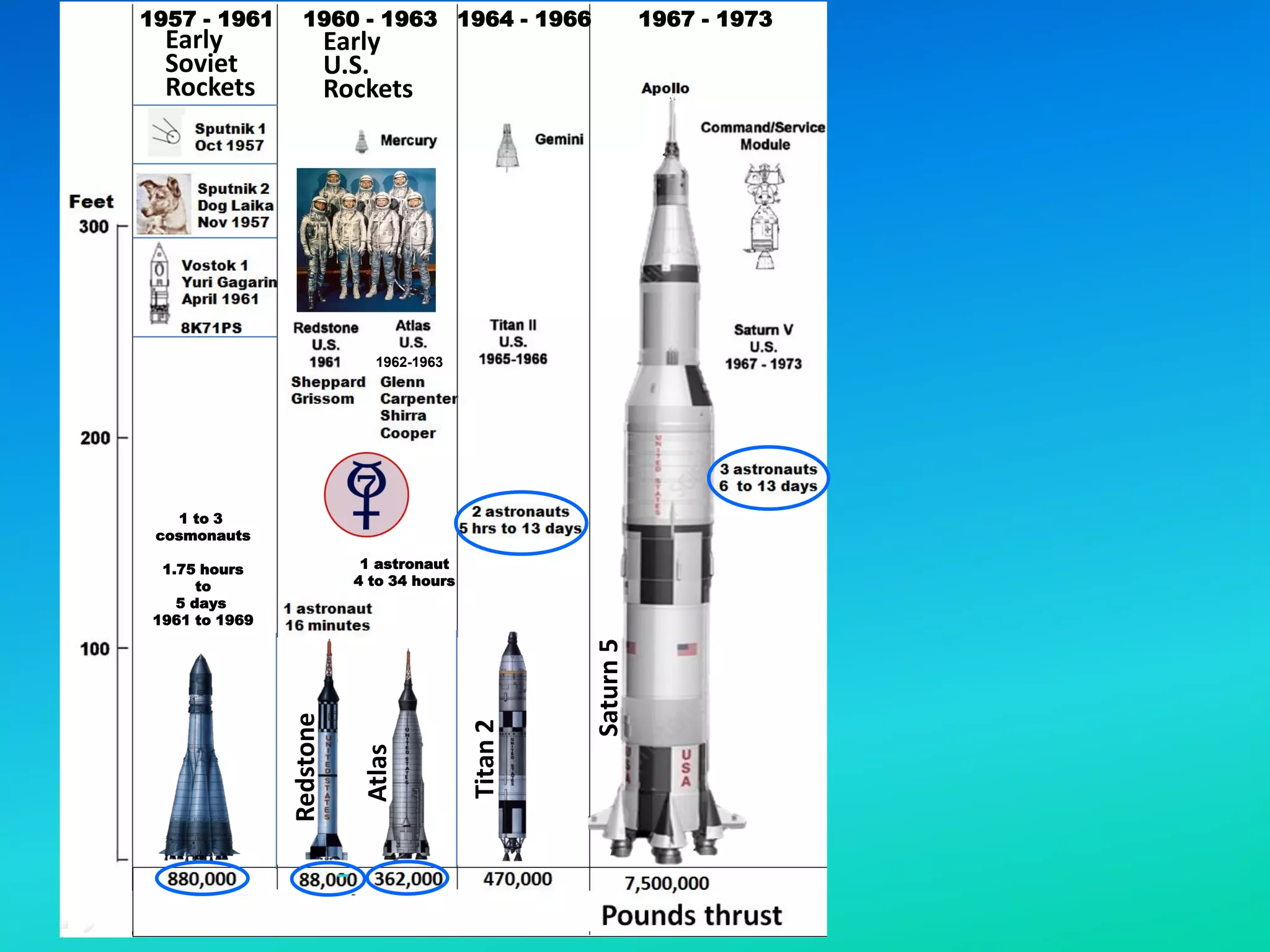

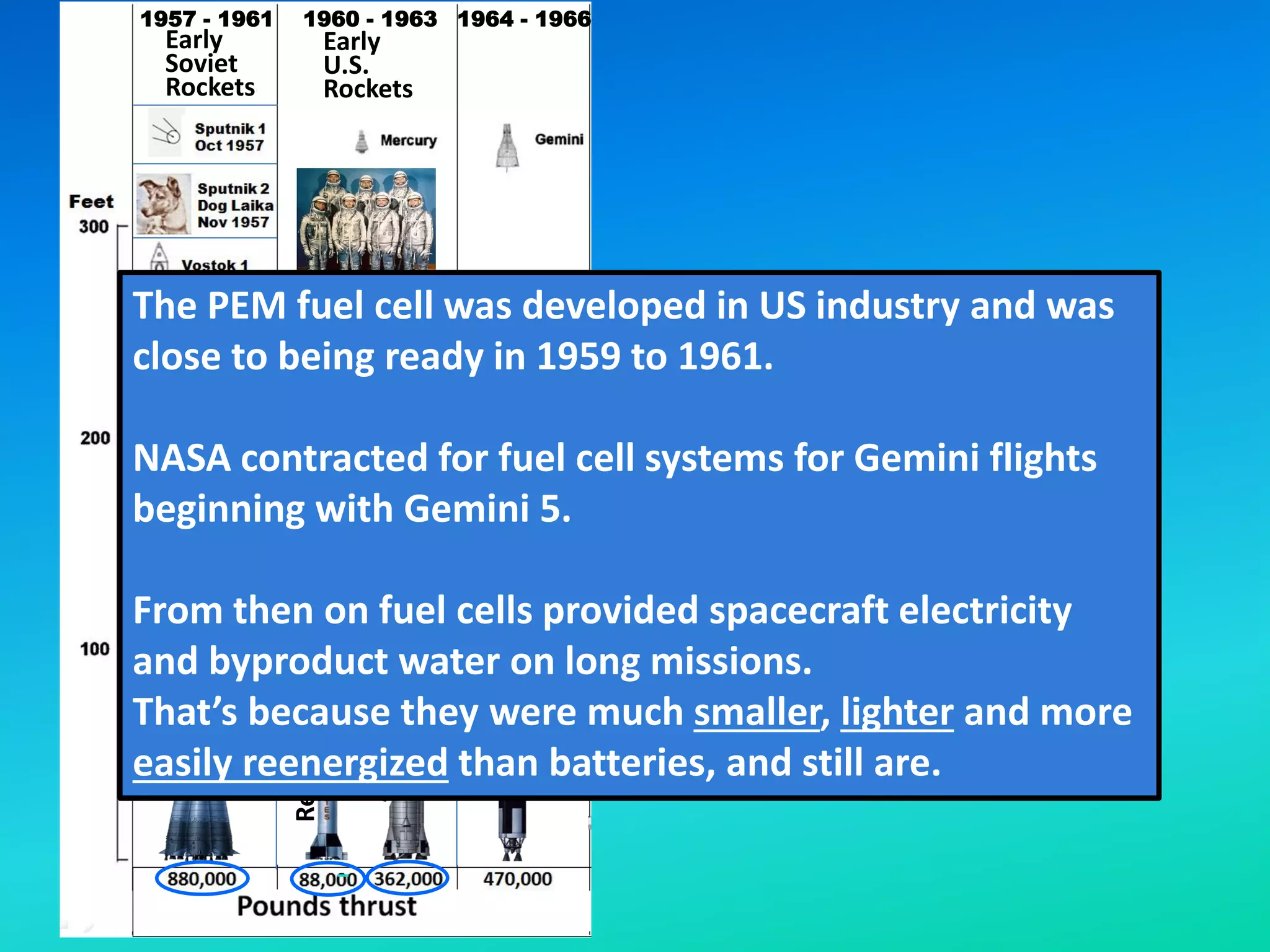

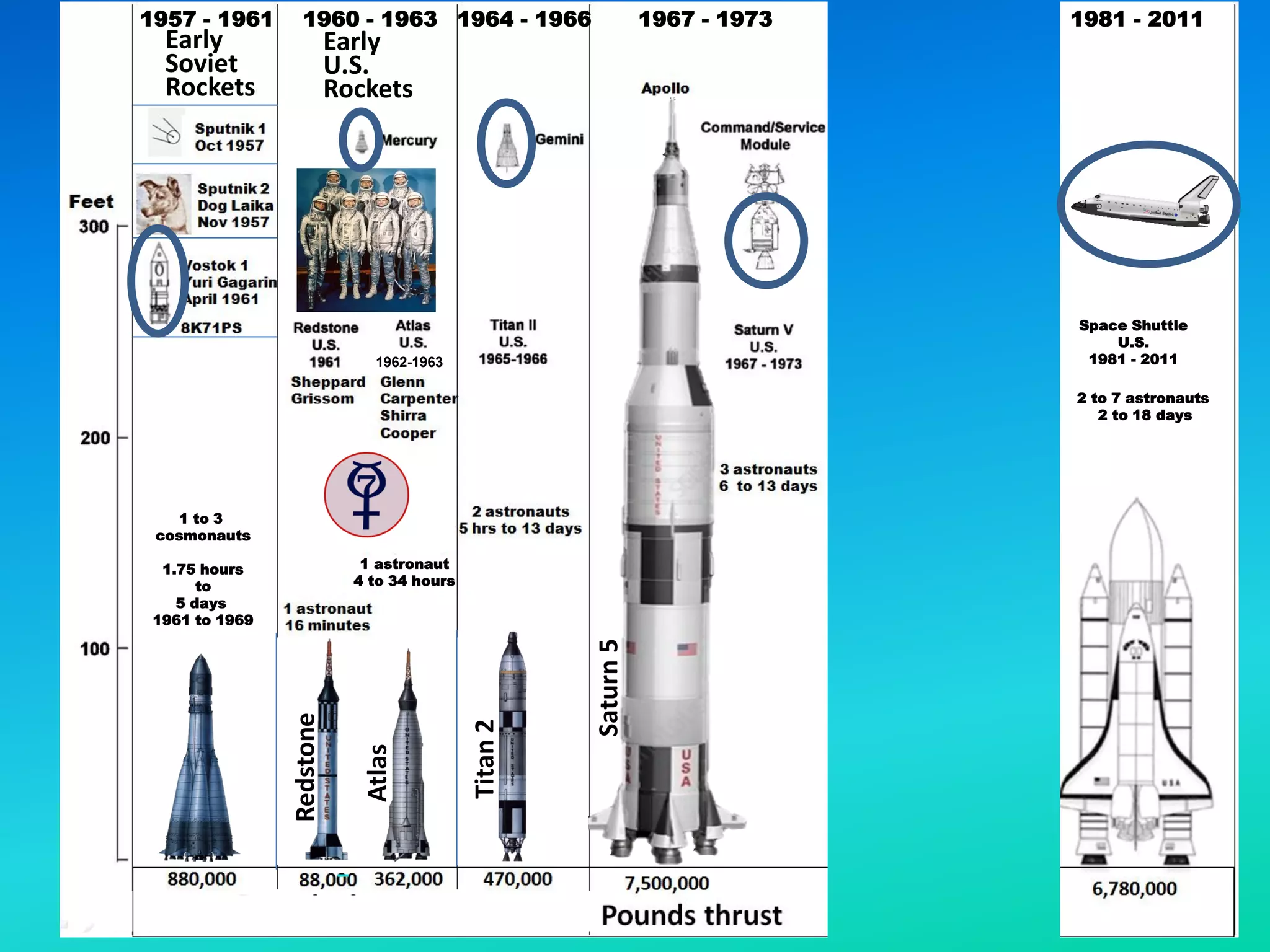

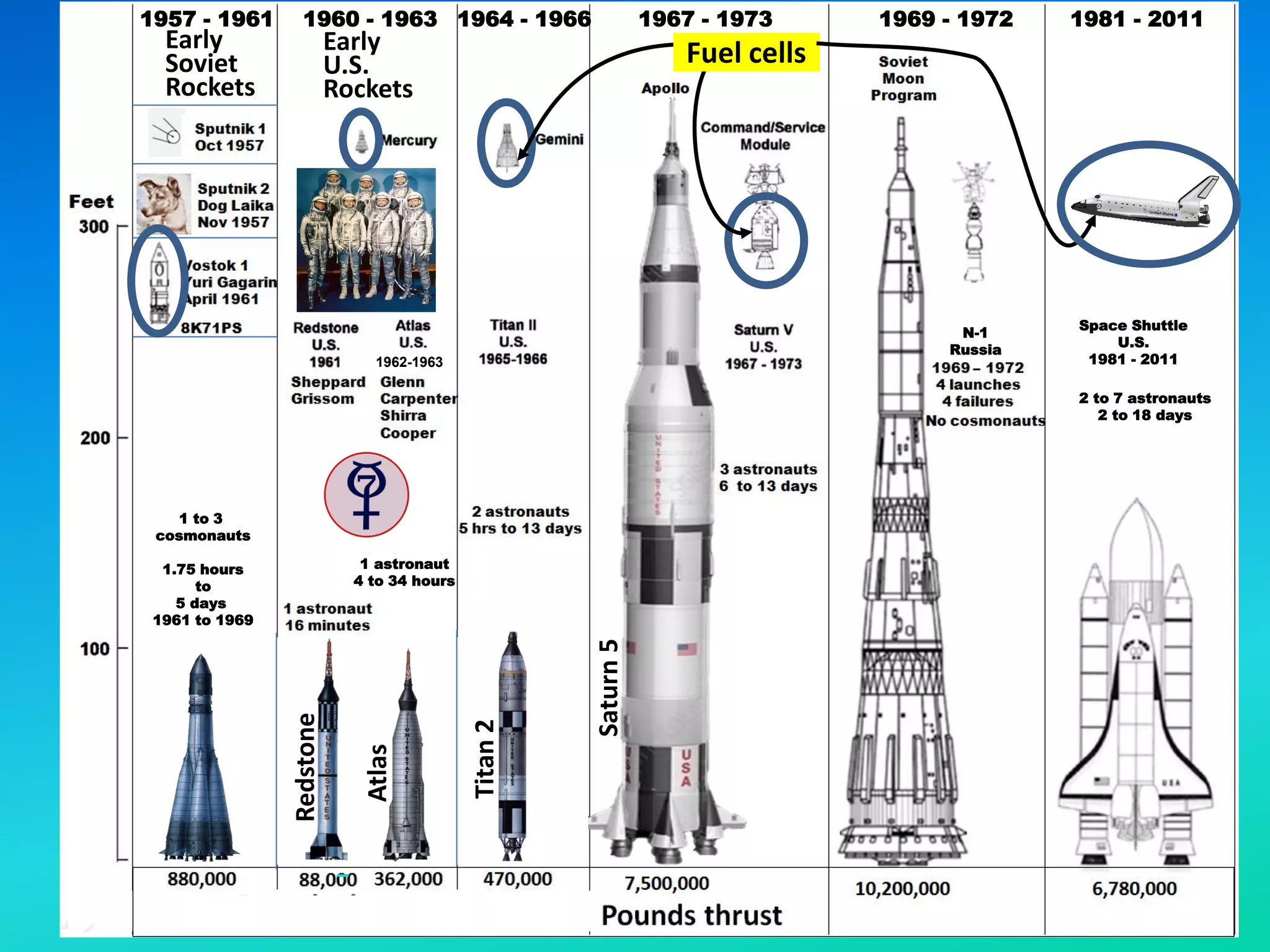

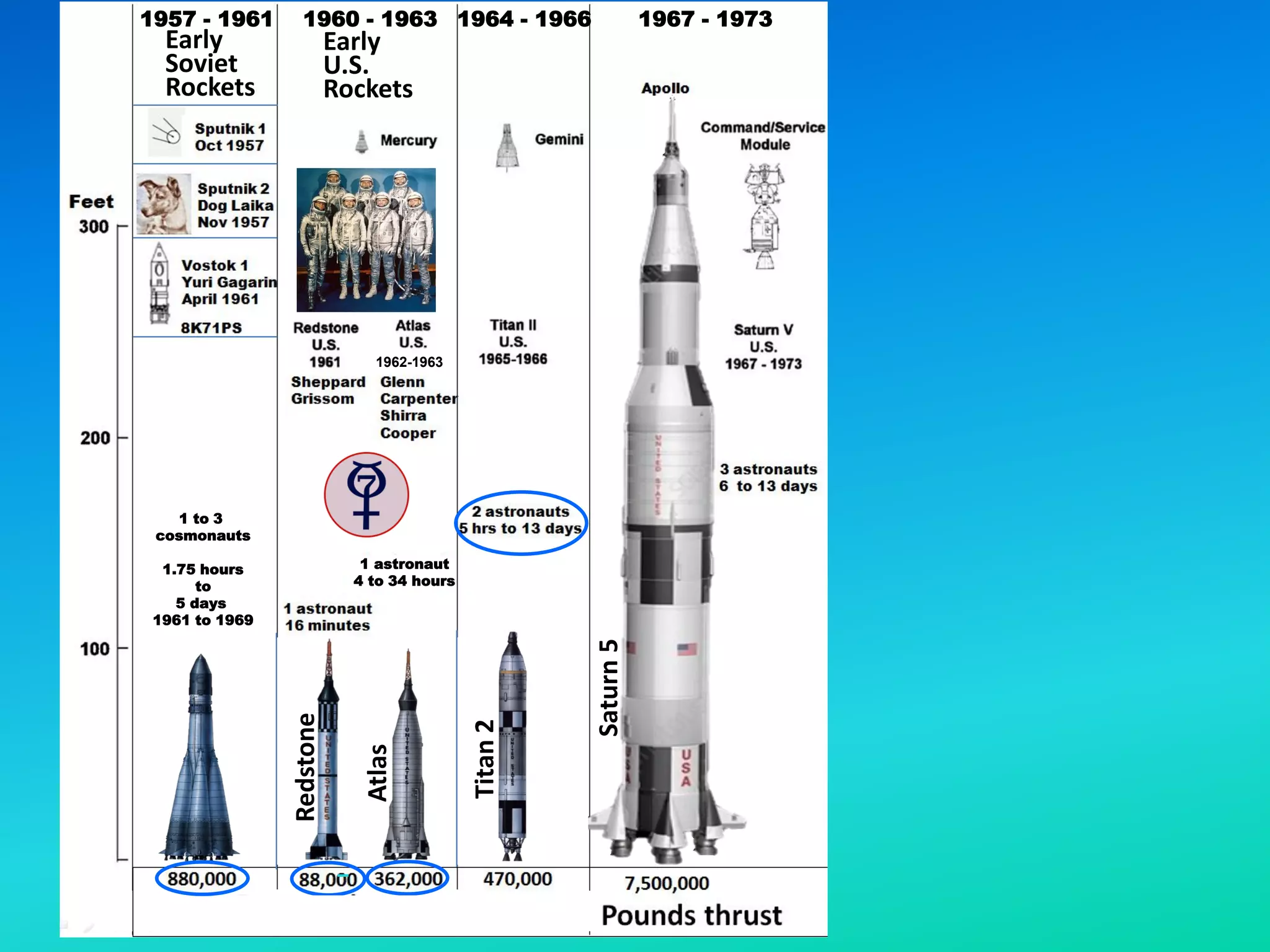

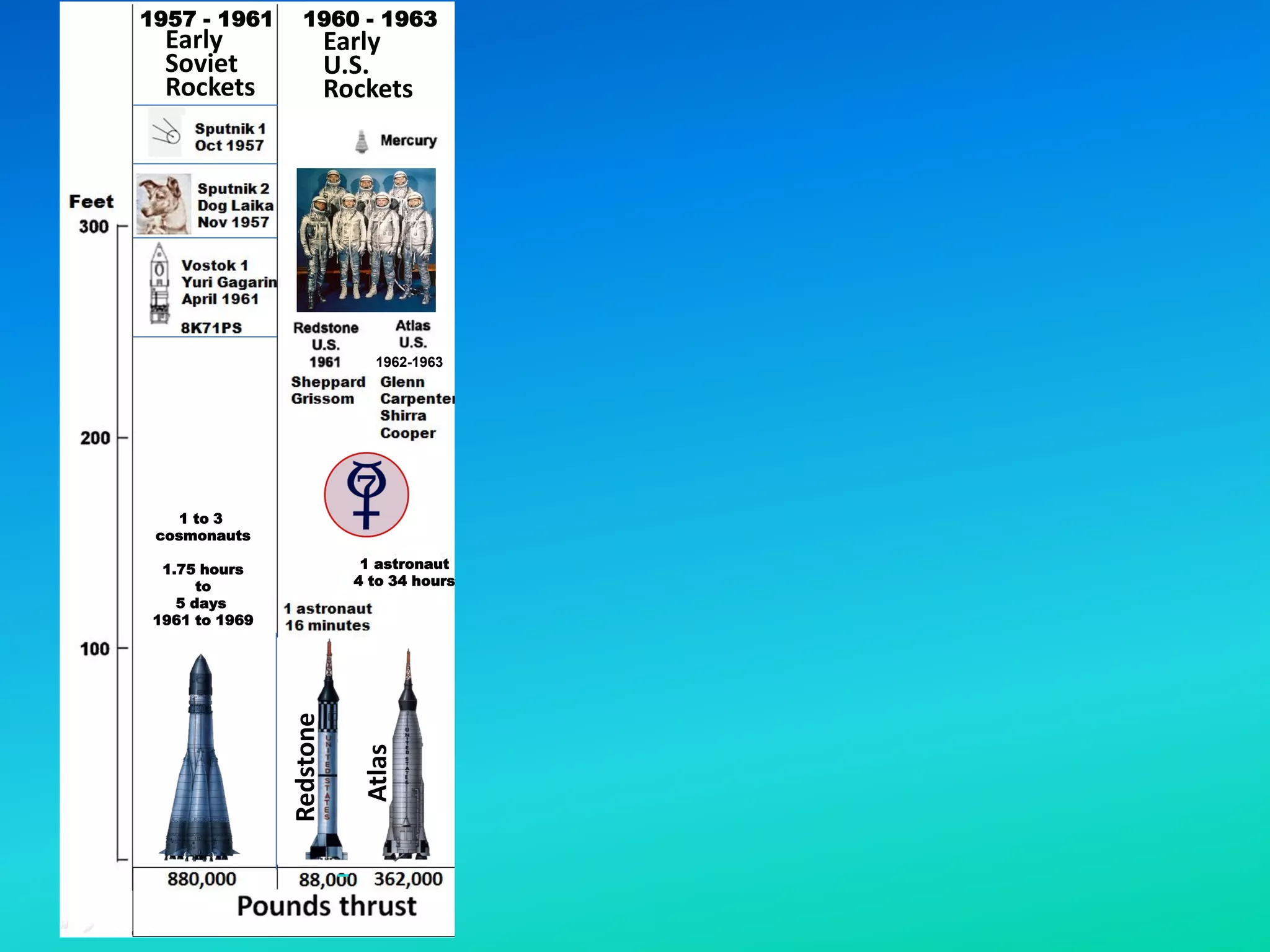

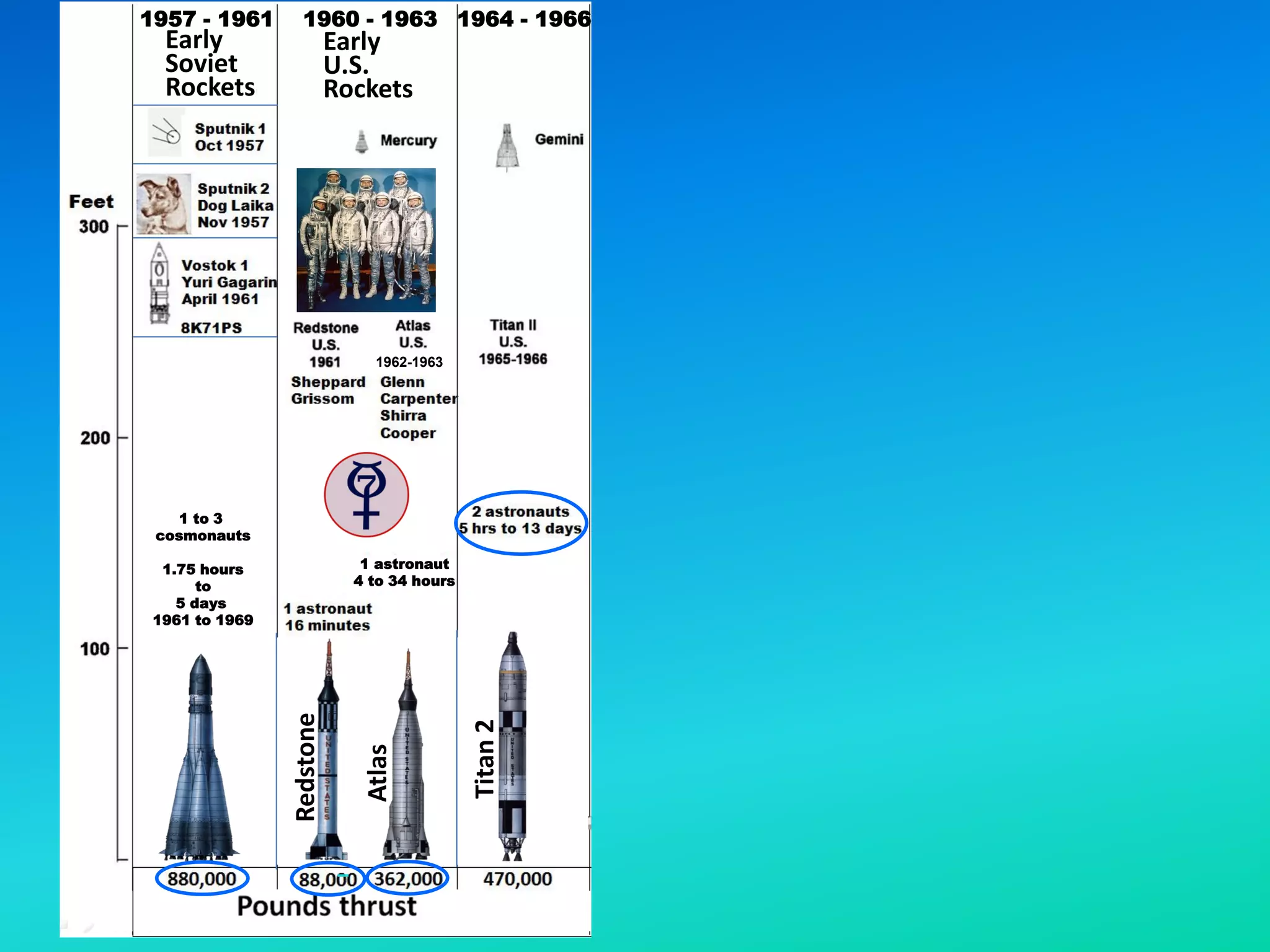

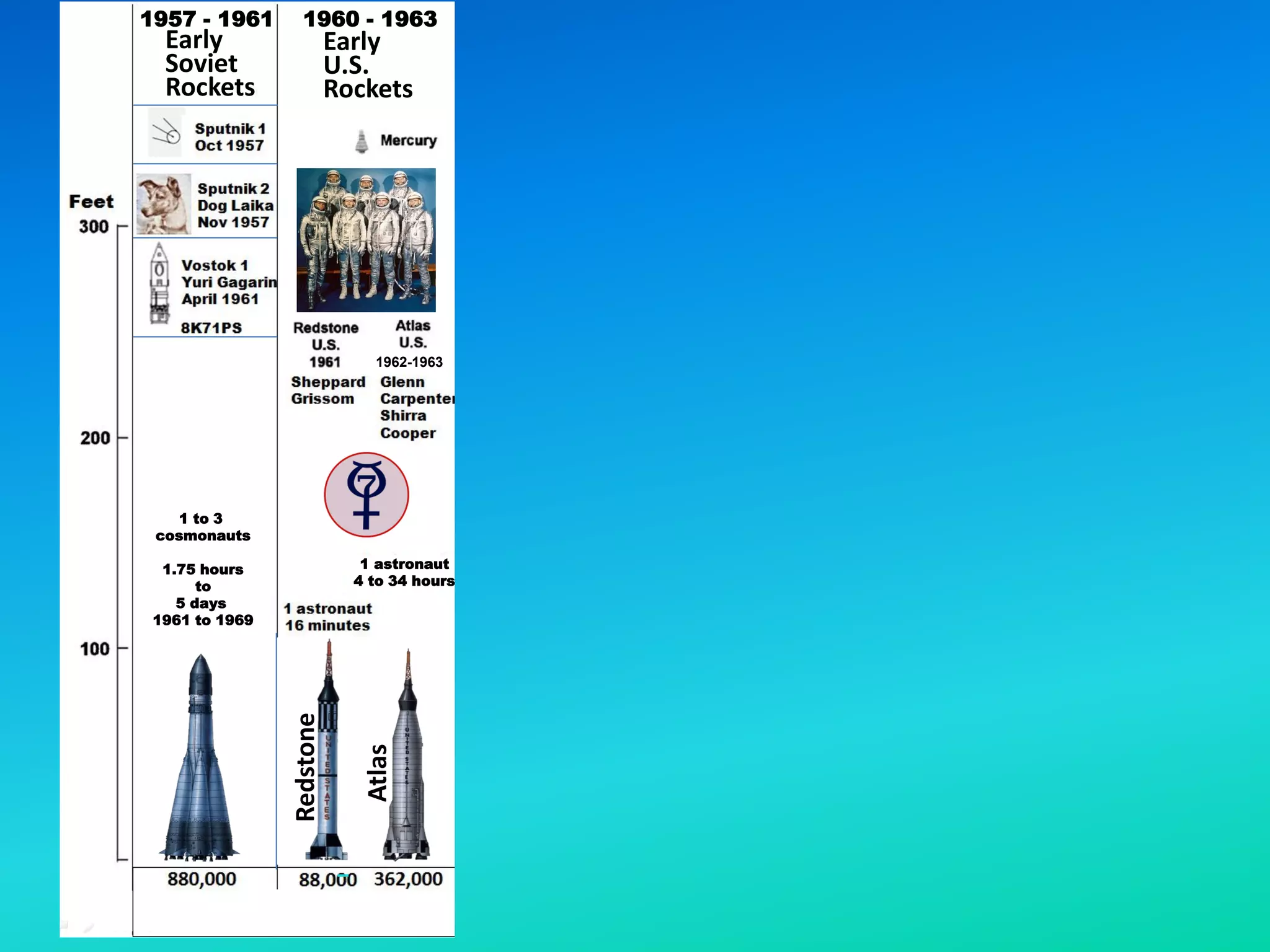

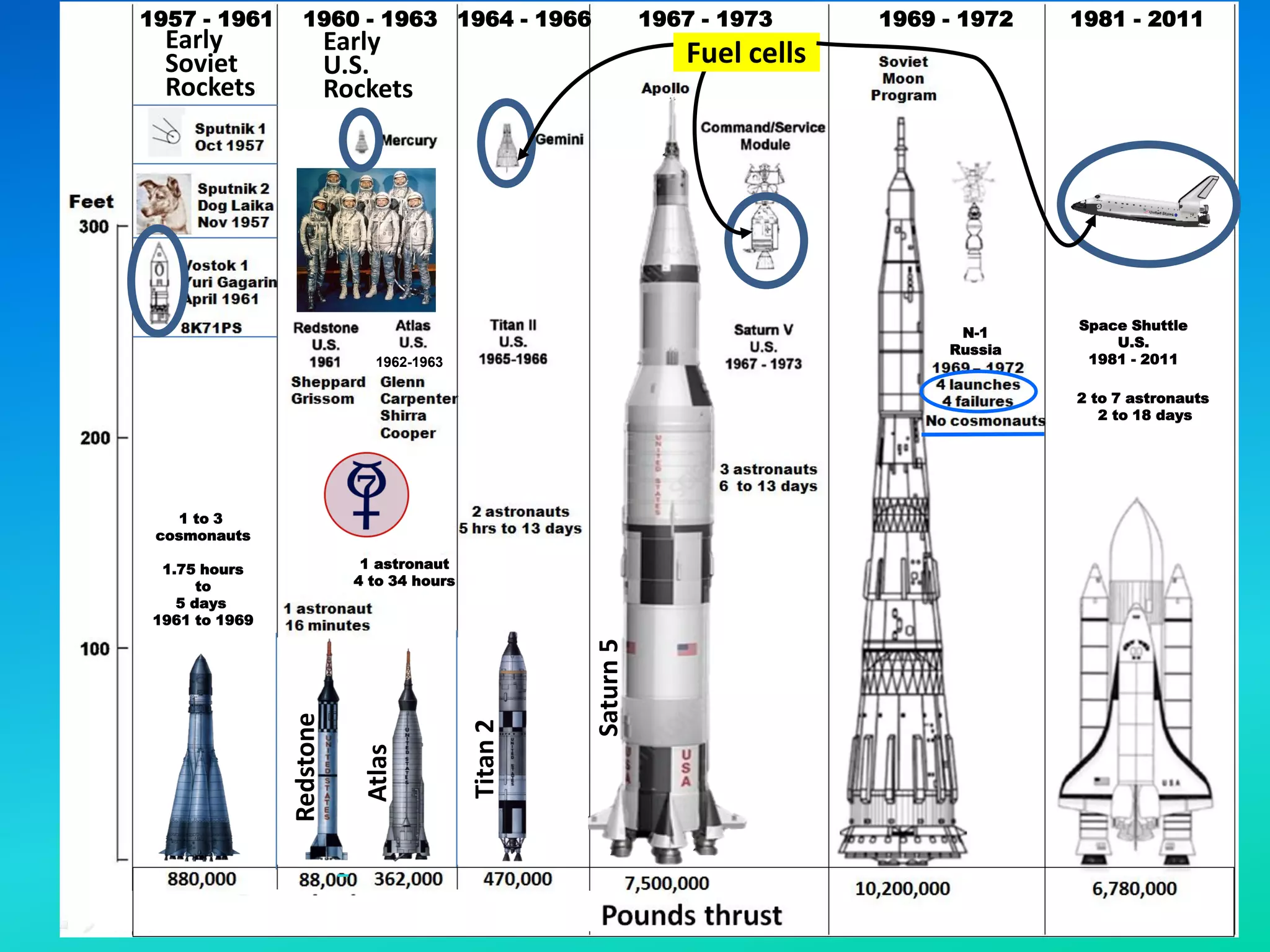

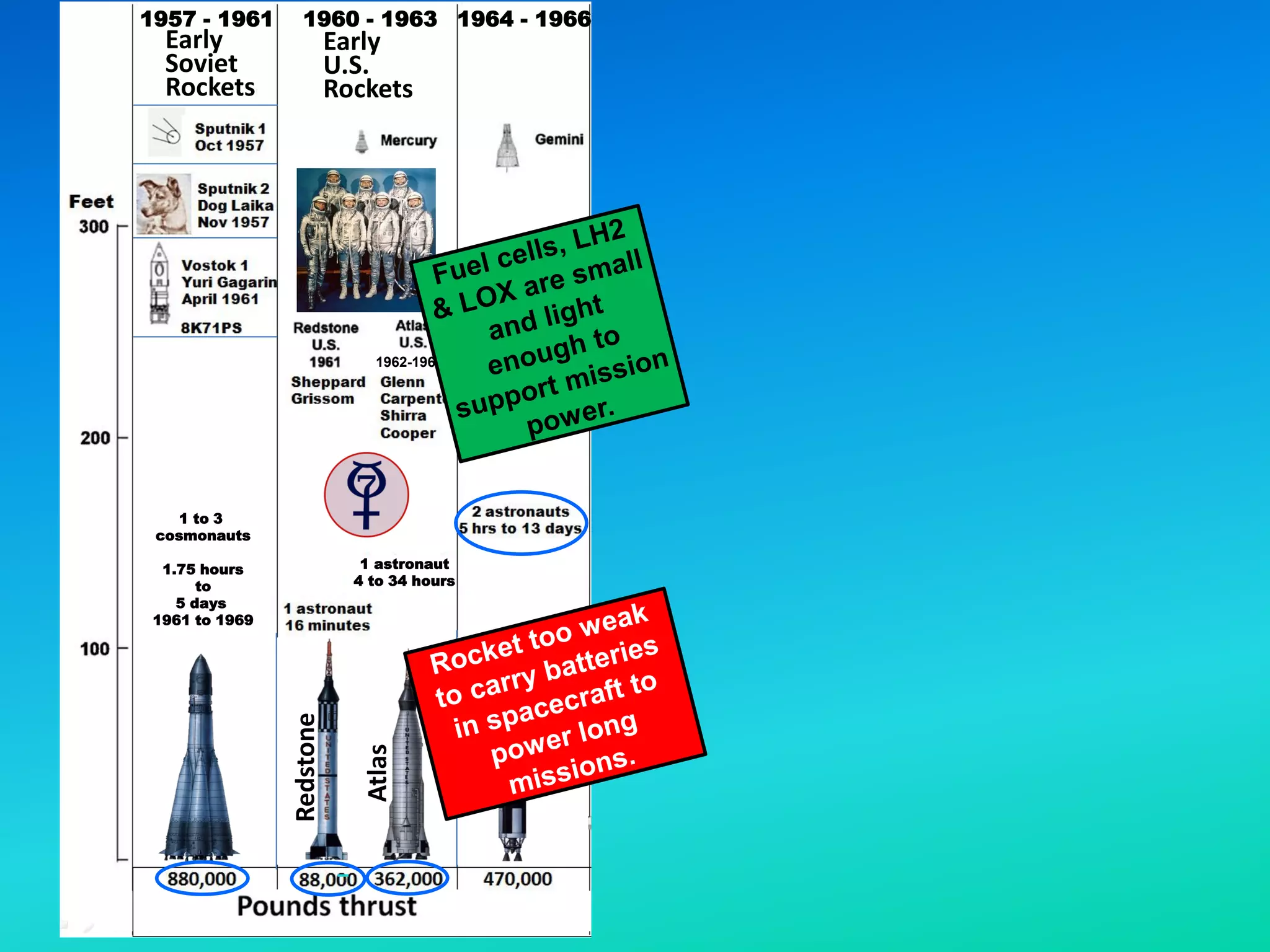

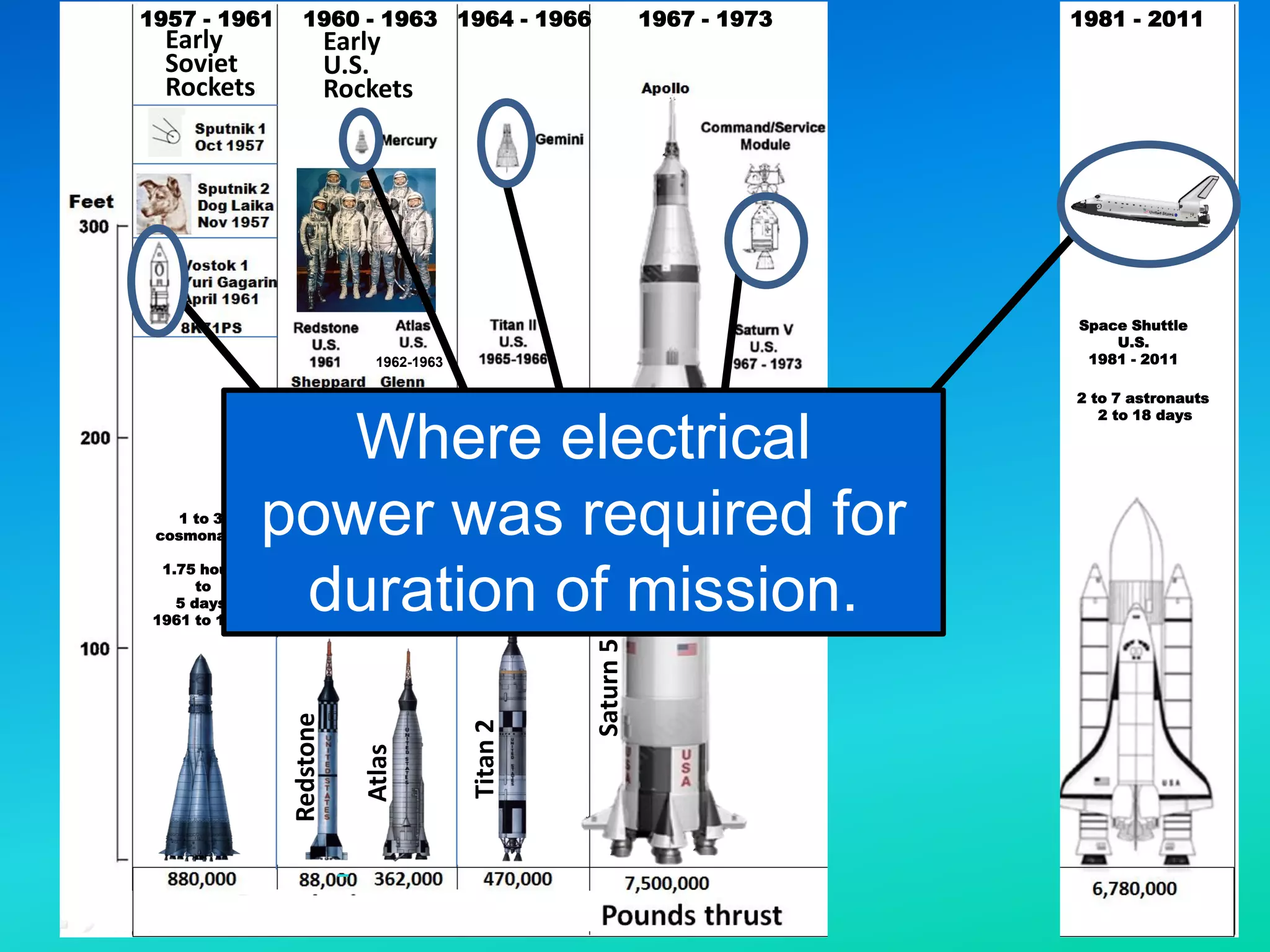

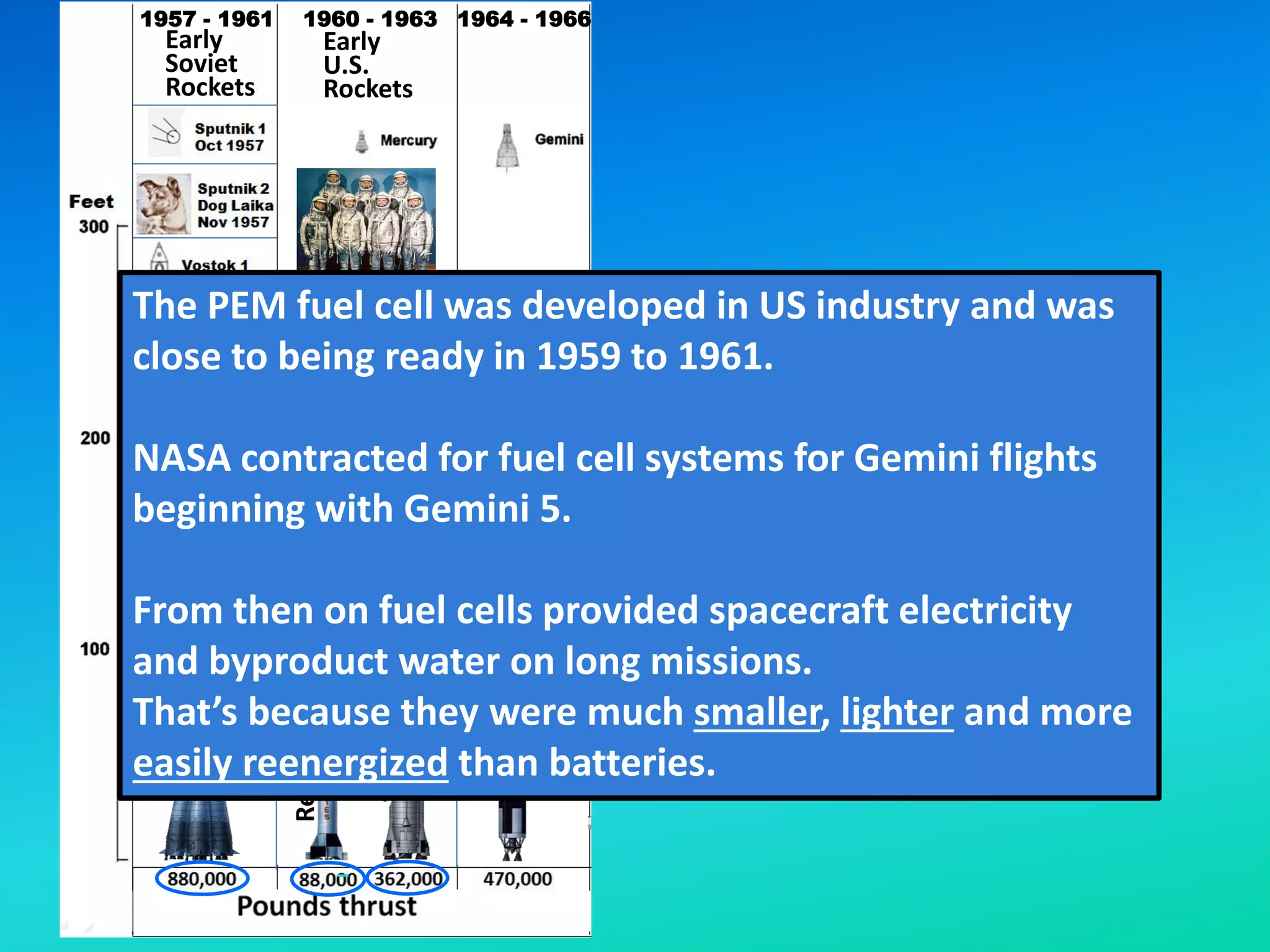

Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours Early Soviet Rockets
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours Redstone Early Soviet Rockets
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Early U.S. Rockets
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Early U.S. Rockets
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets

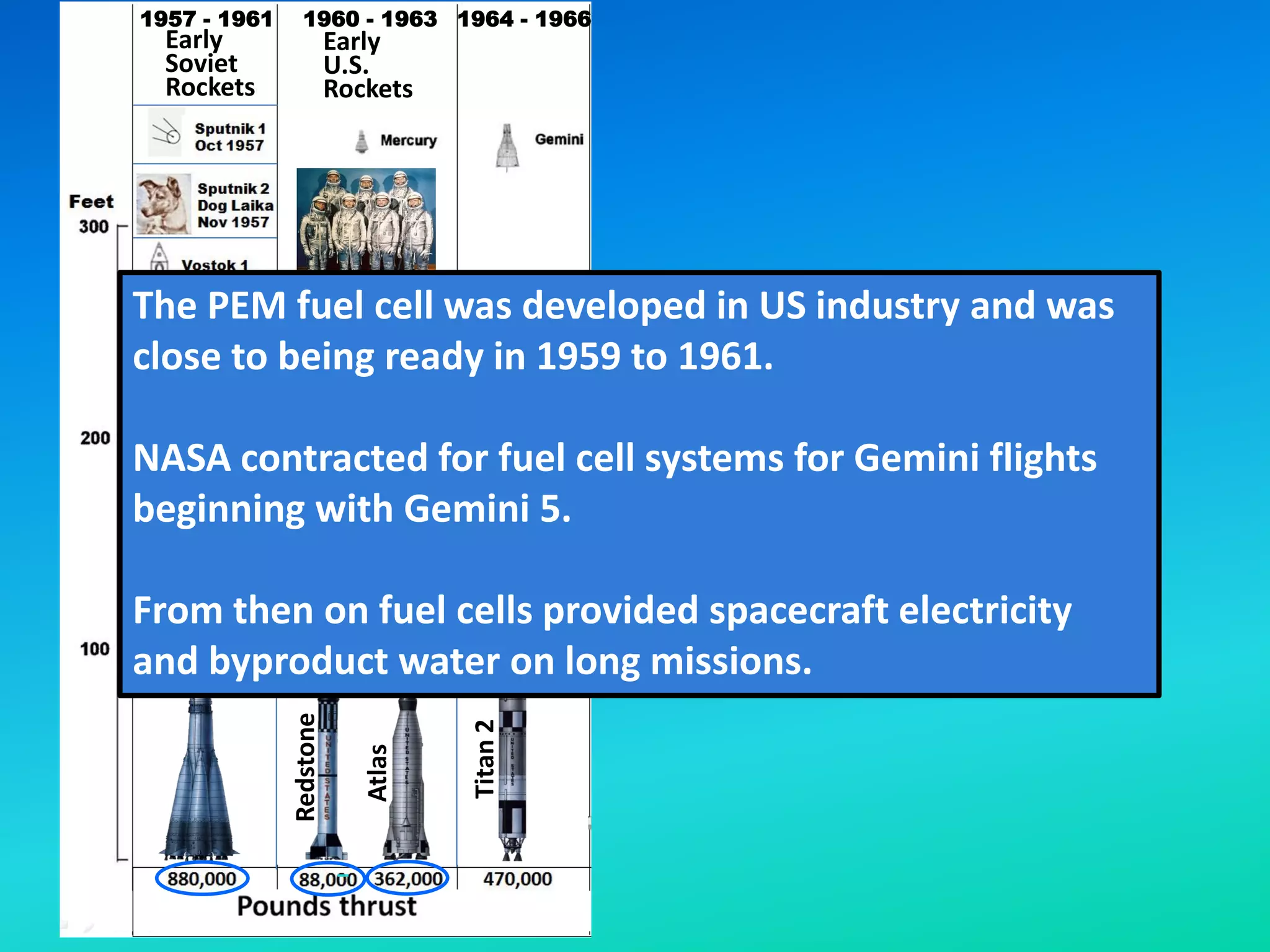

Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets The PEM fuel cell was developed in US industry and was close to being ready in 1959 to 1961. NASA contracted for fuel cell systems for Gemini flights beginning with Gemini 5. From then on fuel cells provided spacecraft electricity and byproduct water on long missions.
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets The PEM fuel cell was developed in US industry and was close to being ready in 1959 to 1961. NASA contracted for fuel cell systems for Gemini flights beginning with Gemini 5. From then on fuel cells provided spacecraft electricity and byproduct water on long missions. That’s because they were much smaller, lighter and more easily reenergized than batteries.
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets The PEM fuel cell was developed in US industry and was close to being ready in 1959 to 1961. NASA contracted for fuel cell systems for Gemini flights beginning with Gemini 5. From then on fuel cells provided spacecraft electricity and byproduct water on long missions. That’s because they were much smaller, lighter and more easily reenergized than batteries, and still are.
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Early U.S. Rockets
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets 2 to 7 astronauts 2 to 18 days
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets 2 to 7 astronauts 2 to 18 days
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets Where electrical power was required for duration of mission. 2 to 7 astronauts 2 to 18 days
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets Fuel cells 2 to 7 astronauts 2 to 18 days
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets Fuel cells 2 to 7 astronauts 2 to 18 days
Space Shuttle U.S. 1981 - 2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets Fuel cells 2 to 7 astronauts 2 to 18 days

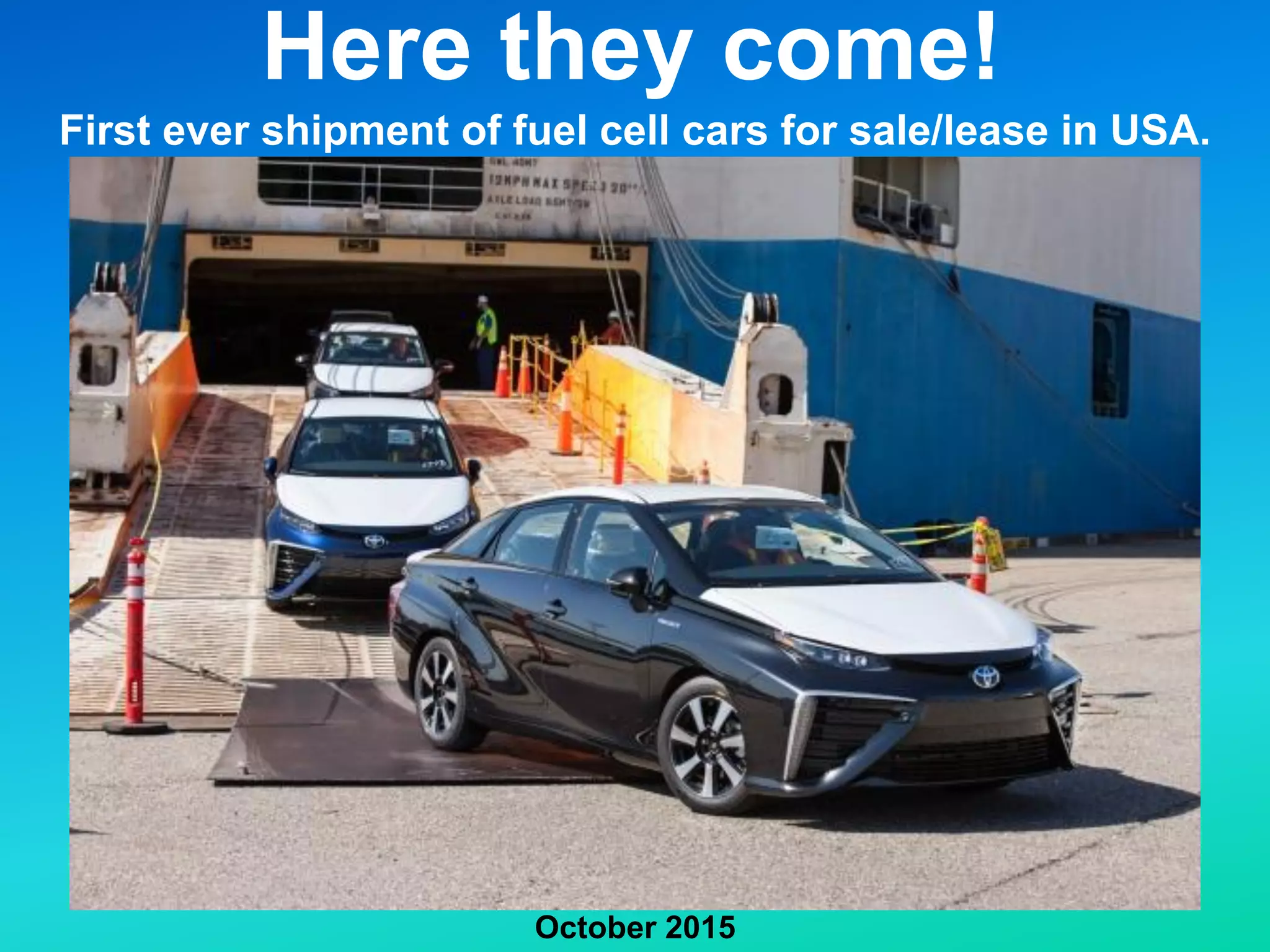

Here they come! First ever shipment of fuel cell cars for sale/lease in USA. October 2015

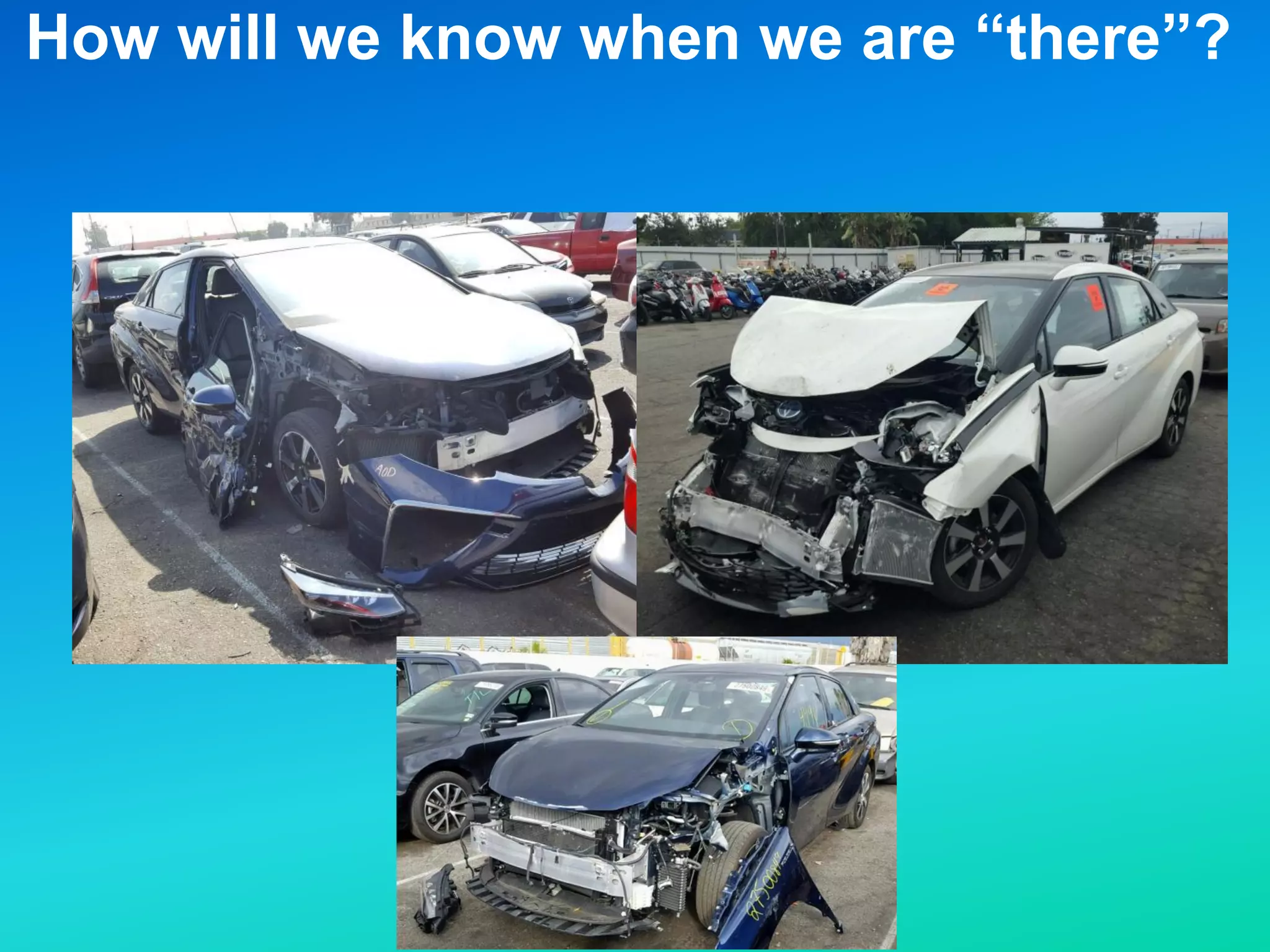

How will we know when we are “there”?
How will we know when we are “there”?

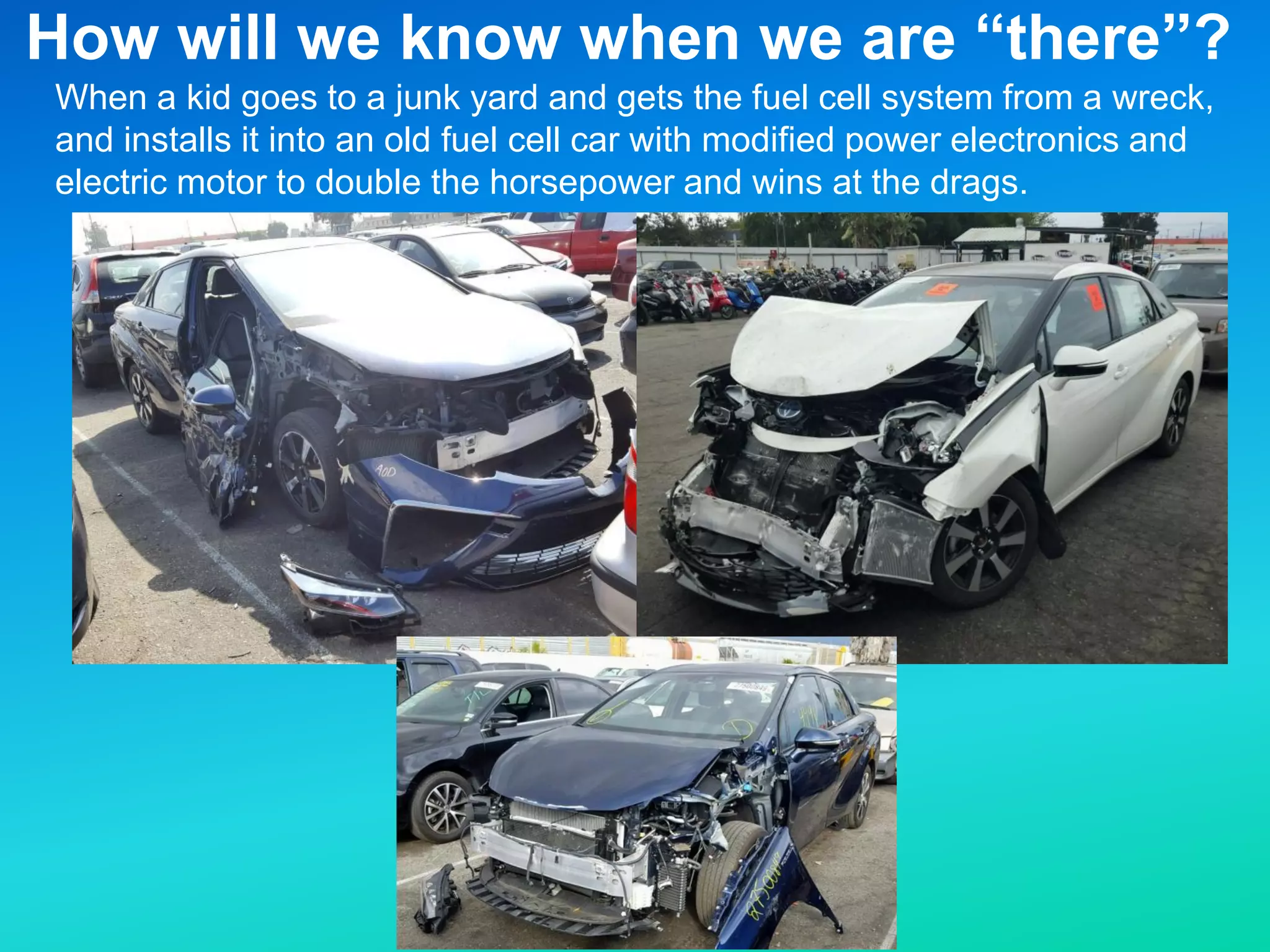

When a kid goes to a junk yard and gets the fuel cell system from a wreck, and installs it into an old fuel cell car with modified power electronics and electric motor to double the horsepower and wins at the drags. How will we know when we are “there”?
Thank you! Glenn Rambach FuelCellPlace@aol.com
Fuel Cell introduction class presentation-2022

More Related Content

PDF
Fuel cell presentation museum docent class 2022- color with no extra slides...
byGlenn Rambach

PPT
Hydrogen engine
bysaifuddin ahamed

PPTX
HYdrogen Fuel Cell Vehicle
byShubham Dubey

PDF
Hydrogen Fuelled Ic Engine – An Overview
byiosrjce

PPT
Senior Year Project - Hydrogen Fuelled Engine
byANKIT KUKREJA

PDF
Electrochemical synthetic hydrocarbons - Rambach - for printing with title page
byGlenn Rambach

DOC
Petroleum and Kerosene in Industry
byThePetroleumKid

DOC
Petroleum and Kerosene in Industry
byThePetroleumKid

Fuel cell presentation museum docent class 2022- color with no extra slides...
byGlenn Rambach

Hydrogen engine
bysaifuddin ahamed

HYdrogen Fuel Cell Vehicle
byShubham Dubey

Hydrogen Fuelled Ic Engine – An Overview
byiosrjce

Senior Year Project - Hydrogen Fuelled Engine
byANKIT KUKREJA

Electrochemical synthetic hydrocarbons - Rambach - for printing with title page
byGlenn Rambach

Petroleum and Kerosene in Industry
byThePetroleumKid

Petroleum and Kerosene in Industry
byThePetroleumKid


What's hot

PPTX
Hydrogen fuel cells
byGirish Panchal

PPTX
Shaik hussain abbas technical seminar ppt
bySyedmuhammed Hussainabbas

PPTX
Fuel Cells: The Fuel for Tomorrow
byDebajyoti Bose

PPTX
Hydrogen fuel cell cars
bySambitRath10

PPTX
Hydrogen fuel & its sustainable development
bySridhar Sibi

PPTX
Oxy hydrogen generator
byDennis Paulraj

PPTX
Hydrogen engine
by9600763376

PPTX
Hydrogen fuel cell Technology
byjignesh parmar

PPTX
Hydrogen Fuel Cell (Report Presentation)
byKunal Panchal

PPT
Hydrogen fuel cell vehicles
byManoja m h

PPT
Mazda Chapter 2 Vehicle Concepts Engine Rotary
byCardinaleWay Mazda

PPTX
Hydrogen & Fuel Cells
byDebajyoti Bose

DOCX
Hydrogen fuel cell vehicle
byUmesh Jaiswal

PPTX
Hydrogen powered tractor .ppt
bypratiknayi97

PDF
Organic chemistry
byhasha gal

DOC
Alternative fuel hho gas ieee
byReliance Power

PPSX
Oxy- Hydrogen Generator (www.watercar.in)
byAbilashh

PPTX
Atomic hydrogen engine
byMauricio Mancini

PPT
Bartholomy Hydrogen Fuel Cell Vehicles Using Mazda Rotary Prototype
byCardinaleWay Mazda

PPTX
Hydrogen
byJoshua Lewandowski

Hydrogen fuel cells
byGirish Panchal

Shaik hussain abbas technical seminar ppt
bySyedmuhammed Hussainabbas

Fuel Cells: The Fuel for Tomorrow
byDebajyoti Bose

Hydrogen fuel cell cars
bySambitRath10

Hydrogen fuel & its sustainable development
bySridhar Sibi

Oxy hydrogen generator
byDennis Paulraj

Hydrogen engine
by9600763376

Hydrogen fuel cell Technology
byjignesh parmar

Hydrogen Fuel Cell (Report Presentation)
byKunal Panchal

Hydrogen fuel cell vehicles
byManoja m h

Mazda Chapter 2 Vehicle Concepts Engine Rotary
byCardinaleWay Mazda

Hydrogen & Fuel Cells
byDebajyoti Bose

Hydrogen fuel cell vehicle
byUmesh Jaiswal

Hydrogen powered tractor .ppt
bypratiknayi97

Organic chemistry
byhasha gal

Alternative fuel hho gas ieee
byReliance Power

Oxy- Hydrogen Generator (www.watercar.in)
byAbilashh

Atomic hydrogen engine
byMauricio Mancini

Bartholomy Hydrogen Fuel Cell Vehicles Using Mazda Rotary Prototype
byCardinaleWay Mazda

Hydrogen
byJoshua Lewandowski


Similar to Fuel Cell introduction class presentation-2022

PDF
Fuel Cells and Hydrogen in Transportation - An Introduction
byGlenn Rambach

PPT
Fuel Cells
byAnkit Saxena

PPTX
Hydrogen Fuel Cell Vehicles
bySAM HIGGINBOTTOM UNIVERSITY OF AGRICULTURE, TECHNOLOGY AND SCIENCES

PPTX
Hydrogen energy
byAbhishek Pachisia

PDF
Seminar report shaik hussain abbas
bySyedmuhammed Hussainabbas

PDF
Hydrogen fuel cell
byGirish Panchal

PPTX
Production of hydrogen.pptx
byHarsh Maurya

PPTX
Alternate energy Sources For VEHICLES
byS.Vijaya Bhaskar

PPT
Hydrogen vehicle
byLINGARAJ APPA ENGINEERING COLLEGE

PPTX
hydrogenfuelcell ppt.pptx
byHassan Yousaf

PPTX
Fuel cell ppt
byBhanuKhandelwal5

PPTX
Seminar on Hydrogen powered Technologies
bySahil Garg

PDF
Fuel cell vehicles
byIETSwindon

PPT
fuel cells power point presentation for ungraduate.ppt
bySaravana Priya

PDF
Hydrogen Fuel Cell Electric Vehicles Future of Sustainable Mobility
byijtsrd

PDF
Hydrogen Fuel Cell AutoMobile: A Comprehensive Overview
byIRJET Journal

PPT
Chem Mazda Presentation
byCardinaleWay Mazda

PDF
Fuel Cell
byTsuyoshi Horigome

PPTX
fuel cells
byAryanGoswami8

PPTX
Hydrogen fuel cell
byFakhre alam

Fuel Cells and Hydrogen in Transportation - An Introduction
byGlenn Rambach

Fuel Cells
byAnkit Saxena

Hydrogen Fuel Cell Vehicles
bySAM HIGGINBOTTOM UNIVERSITY OF AGRICULTURE, TECHNOLOGY AND SCIENCES

Hydrogen energy
byAbhishek Pachisia

Seminar report shaik hussain abbas
bySyedmuhammed Hussainabbas

Hydrogen fuel cell
byGirish Panchal

Production of hydrogen.pptx
byHarsh Maurya

Alternate energy Sources For VEHICLES
byS.Vijaya Bhaskar

Hydrogen vehicle
byLINGARAJ APPA ENGINEERING COLLEGE

hydrogenfuelcell ppt.pptx
byHassan Yousaf

Fuel cell ppt
byBhanuKhandelwal5

Seminar on Hydrogen powered Technologies
bySahil Garg

Fuel cell vehicles
byIETSwindon

fuel cells power point presentation for ungraduate.ppt
bySaravana Priya

Hydrogen Fuel Cell Electric Vehicles Future of Sustainable Mobility
byijtsrd

Hydrogen Fuel Cell AutoMobile: A Comprehensive Overview
byIRJET Journal

Chem Mazda Presentation
byCardinaleWay Mazda

Fuel Cell
byTsuyoshi Horigome

fuel cells
byAryanGoswami8

Hydrogen fuel cell
byFakhre alam


Recently uploaded

PPTX
ISO 14224 Compliance & CMMS Software — A Comprehensive Guide for Reliable Mai...
byMaintWiz Technologies Private Limited

PPTX
Engineering Economics CHAPTER 4.pptx - R
byMisgnaArefe

PDF
Materials Science and Engineering an Introduction 10th Edition PDF
bylagef66927

PDF
Hazim Gaber - A Lean Six Sigma Black Belt
byHazim Gaber

PPTX
Cloud vs On-Premises CMMS — Which Maintenance Platform Is Better for Your Plant?
byMaintWiz Technologies Private Limited

PPTX
How to Create an Effective Monthly Preventive Maintenance Plan
byMaintWiz Technologies Private Limited

PDF
Troubleshooting of Marine Refrigeration System - Part 4
byMahmoud Moghtaderi

PPT
Tutorial-security-privacy-cloud intro duction about cloud compting its services
byHEmansuSingh

PPTX
A7383 3D Printing UNIT-III : 3D printing techniques
byVishnuVardhan909561

PPTX
Optimizing Plant Maintenance — Key Elements of a Successful Maintenance Plan ...
byMaintWiz Technologies Private Limited

PPTX
Track & Monitor Preventive Maintenance — Best Practices with MaintWiz CMMS
byMaintWiz Technologies Private Limited

PPTX
Shutdown Maintenance Explained — Full Plant Turnaround & Best Practices with ...
byMaintWiz Technologies Private Limited

PPTX
22PEOIT4C Session 9 Local search in continuous space.pptx
bymailmegokilavani

PPTX
22PEOIT4C Session 1 Introduction to AI and intelligent agents.pptx
bymailmegokilavani

PDF
TechSprint: Innovate for Impact Hackathon
byDeepakkumarSingh415123

PPTX
Network Security v1.0 - Module 2.pptx
byssuserb1479b

PPTX
Industrial Plant Safety – Comprehensive Guide for Workplace Safety & Risk Pre...
byMaintWiz Technologies Private Limited

PDF
Advanced Intrusion Detection and Classification using Transfer Learning with ...
byIJCNCJournal

PPTX
infosecurity & Cyber Sec 2025 September for deep.pptx
bymsrehan

PDF
AI-Driven CTI for Business: Emerging Threats, Attack Strategies, and Defensiv...
byAIRCC Publishing Corporation

ISO 14224 Compliance & CMMS Software — A Comprehensive Guide for Reliable Mai...
byMaintWiz Technologies Private Limited

Engineering Economics CHAPTER 4.pptx - R
byMisgnaArefe

Materials Science and Engineering an Introduction 10th Edition PDF
bylagef66927

Hazim Gaber - A Lean Six Sigma Black Belt
byHazim Gaber

Cloud vs On-Premises CMMS — Which Maintenance Platform Is Better for Your Plant?
byMaintWiz Technologies Private Limited

How to Create an Effective Monthly Preventive Maintenance Plan
byMaintWiz Technologies Private Limited

Troubleshooting of Marine Refrigeration System - Part 4
byMahmoud Moghtaderi

Tutorial-security-privacy-cloud intro duction about cloud compting its services
byHEmansuSingh

A7383 3D Printing UNIT-III : 3D printing techniques
byVishnuVardhan909561

Optimizing Plant Maintenance — Key Elements of a Successful Maintenance Plan ...
byMaintWiz Technologies Private Limited

Track & Monitor Preventive Maintenance — Best Practices with MaintWiz CMMS
byMaintWiz Technologies Private Limited

Shutdown Maintenance Explained — Full Plant Turnaround & Best Practices with ...
byMaintWiz Technologies Private Limited

22PEOIT4C Session 9 Local search in continuous space.pptx
bymailmegokilavani

22PEOIT4C Session 1 Introduction to AI and intelligent agents.pptx
bymailmegokilavani

TechSprint: Innovate for Impact Hackathon
byDeepakkumarSingh415123

Network Security v1.0 - Module 2.pptx
byssuserb1479b

Industrial Plant Safety – Comprehensive Guide for Workplace Safety & Risk Pre...
byMaintWiz Technologies Private Limited

Advanced Intrusion Detection and Classification using Transfer Learning with ...
byIJCNCJournal

infosecurity & Cyber Sec 2025 September for deep.pptx
bymsrehan

AI-Driven CTI for Business: Emerging Threats, Attack Strategies, and Defensiv...
byAIRCC Publishing Corporation


Fuel Cell introduction class presentation-2022

  • 1.
    Fuel cell poweredcars and hydrogen as a fuel Glenn Rambach
  • 2.
    Fuel cell poweredcars and hydrogen as a fuel Glenn Rambach
  • 3.
    Fuel cell poweredcars and hydrogen as a fuel Glenn Rambach Does that thing run on gasoline? DANG! I haven’t seen one of those since I was a kid.
  • 4.
    Fuel cell poweredcars and hydrogen as a fuel Glenn Rambach • An image from the future, where electric vehicles replace internal combustion vehicles. Does that thing run on gasoline? DANG! I haven’t seen one of those since I was a kid.
  • 5.
    Fuel cell poweredcars and hydrogen as a fuel Glenn Rambach • Our grandchildren will likely see a transition in transportation as large as our grandparents saw. • An image from the future, where electric vehicles replace internal combustion vehicles. Does that thing run on gasoline? DANG! I haven’t seen one of those since I was a kid.
  • 6.
    “Some day ourchildren will think of electricity as simply hydrogen without the proton.” P+ e _
  • 7.
    “Some day ourchildren will think of electricity as simply hydrogen without the proton.” H+ e _ expressed with the H+ symbol, since it is simply a positive hydrogen ion. The proton is usually
  • 8.
    1. Something tostore energy. 2. Something to convert the stored energy to useful power. 3. Something to transfer the generated power to the wheels. Power Train Architectures Three Basics
  • 9.
  • 10.
  • 11.
  • 12.
    Electricity Air •Gasoline •Diesel •CNG •Methanol •Ethanol Energy Storage: Tank Torque PowerTrain Architectures •Hydrogen Internal combustion car Battery electric car
  • 13.
    Electricity Air •Gasoline •Diesel •CNG •Methanol •Ethanol Energy Storage: Tank Torque PowerTrain Architectures Torque Power Condition •Hydrogen Internal combustion car Battery electric car Energy Storage: Battery
  • 14.
    Electricity Air •Gasoline •Diesel •CNG •Methanol •Ethanol Energy Storage: Tank Torque PowerTrain Architectures Torque Power Condition •Hydrogen Internal combustion car Battery electric car Fuel cell electric car Energy Storage: Battery
  • 15.
    Electricity Air •Gasoline •Diesel •CNG •Methanol •Ethanol Energy Storage: Tank Torque PowerTrain Architectures Torque Power Condition Electricity Torque Fuel Air •Hydrogen Power Condition Internal combustion car Battery electric car Fuel cell electric car Energy Storage: Battery
  • 16.
    Electricity Air •Gasoline •Diesel •CNG •Methanol •Ethanol Energy Storage: Tank Torque PowerTrain Architectures Torque Power Condition Electricity Torque Fuel Air •Hydrogen Power Condition Internal combustion car Battery electric car Fuel cell electric car Energy Storage: Battery Driving Range Max Available Power Driving Range Max Available Power Driving Range AND Max Available Power
  • 17.
    •Gasoline •Diesel •CNG •Methanol •Ethanol Electricity •Hydrogen All need atemporary connection to the world All need a temporary connection to the world
  • 18.
    •Gasoline •Diesel •CNG •Methanol •Ethanol Electricity •Hydrogen 2-3 min. 360 mi 4-6min. 360 mi All need a temporary connection to the world 25 min. 260+ mi Super 8.6 hr 300 mi Home
  • 19.
    What hydrogen cars areNOT going to be.
  • 20.
    •Liquid hydrogen transfertube. •Used like the hose on a gasoline pump. •Temperature: 20°K (-424°F). • 8 kg LH2 capacity. •125-mile H2 range. •¼ the fuel economy of a fuel cell car. BMW Hydrogen-7 dual-fuel car (H2 or gasoline) Only 100 made. Never went into production. BMW Hydrogen-7 dual-fuel, V-12 engine. • 6L, 256 HP
  • 21.
  • 22.
    GM Autonomy FuelCell Concept Car 2002 NAIAS Detroit •The skateboard is a common platform for several vehicle body styles. •The skateboard contains all fuel and the full propulsion systems, HVAC, etc. and is connected to body via several connectors. •Since the “drive shaft and differential” for electric vehicles can simply be wires, wheel motors are the optimum configuration for future electric vehicles. Wheel motors in every wheel Skateboard So, MAYBE some day . . .
  • 23.
    What is afuel cell?
  • 24.
    What is afuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell.
  • 25.
    What is afuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell.
  • 26.
    What is afuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell. It only makes electricity when the chemicals flow into the fuel cell.
  • 27.
    What is afuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell. It only makes electricity when the chemicals flow into the fuel cell. The chemicals are hydrogen (the fuel) and oxygen (in air). So, it only makes power (electricity) when the fuel and air flow into it and react, like an internal combustion engine. The outputs are electricity, water and heat. Like an engine, but without the CO2, NOx, CO, PM, and UHC.
  • 28.
    What is afuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell. It only makes electricity when the chemicals flow into the fuel cell. The chemicals are hydrogen (the fuel) and oxygen (in air). So, it only makes power (electricity) when the fuel and air flow into it and react, like an internal combustion engine.
  • 29.
    What is afuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell. It only makes electricity when the chemicals flow into the fuel cell. The chemicals are hydrogen (the fuel) and oxygen (in air). So, it only makes power (electricity) when the fuel and air flow into it and react, like an internal combustion engine. The outputs are electricity, water and heat. Like an engine, but without the CO2, NOx, CO, PM, and UHC.
  • 30.
    What is afuel cell? It makes DC electrical power from chemicals, like a battery. BUT none of the chemicals are normally INSIDE the fuel cell. It only makes electricity when the chemicals flow into the fuel cell. The chemicals are hydrogen (the fuel) and oxygen (in air). So, it only makes power (electricity) when the fuel and air flow into it and react, like an internal combustion engine. The outputs are electricity, water and heat. Like an engine, but without the CO2, NOx, CO, PM, and UHC.
  • 31.
    Sulfuric Acid Solution TheFirst Fuel Cell Sir William Grove 1839 Electrodes
  • 32.
    Sulfuric Acid Solution TheFirst Fuel Cell Sir William Grove 1839 Electrodes Sir William began thinking about this on his honeymoon in 1837
  • 33.
    Sulfuric Acid Solution Electrodes Fourfuel cells produced electricity from the H2 and O2 that Grove put into the test tubes. The First Fuel Cell Sir William Grove 1839
  • 34.
  • 35.
    114 kW (153HP) fuel cell stack in the 2016 Toyota Mirai initial-production fuel cell car. 176 years later The Fuel Cell
  • 36.
    The last 28years in 7 examples
  • 37.
    1993 1 Energy Partners’ GreenCar • Hydrogen fuel in welding cylinders • Three 5-kW PEM fuel cell stacks (20 HP) • Payload capacity: 1 driver and 1 passenger 20 HP Hydrogen welding cylinders behind seat
  • 38.
    1995 2 Daimler NECAR 1 •Hydrogen fuel in composite tank • 12 PEM fuel cell stacks total 50kW (67 HP) • Payload capacity: 1 driver and 1 passenger
  • 39.
    2008 3 Honda Clarity FCX •Hydrogen fuel from fueling stations • 100 kW PEM fuel cell stack (134 HP) • In CAM Alternative Propulsion Exhibit
  • 40.
    4 2015 Toyota Mirai (1stRetail FCEV on market) • Hydrogen fuel from fueling stations • 314 mile range on 4.7 kgH2 • 114 kW PEM fuel cell stack (153 HP) • 25.5 kW battery (34 HP) 187 Total HP
  • 41.
    2017 5 Honda Clarity FuelCell • Hydrogen fuel from fueling stations • 366 mile range on 5.4 kgH2 • 103 kW PEM fuel cell stack (138 HP) • 1.7 kWh battery, power out unknown.
  • 42.
    2019 6 Hyundai Nexo FuelCell SUV • Hydrogen fuel from fueling stations • 380 miles range on 6.3 kgH2 • 95 kW PEM fuel cell stack (138 HP) • 40 kW battery (54 HP) 181 total HP
  • 43.
    2021 7 Toyota Mirai (2ndgeneration) • Hydrogen fuel from fueling stations • 351 mile range on 4.9 kgH2 • 128 kW PEM fuel cell stack (172 HP) • 31 kW battery (42 HP) 214 Total HP
  • 44.
    130 Years ofAutomotive Development
  • 45.
    130 Years ofAutomotive Development The era of walking and the horse.
  • 46.
    130 Years ofAutomotive Development The era of walking and the horse. The era of the internal combustion engine. (130 years)
  • 47.
    130 Years ofAutomotive Development The era of walking and the horse. The era of the internal combustion engine. (130 years) The era of the electrochemical engine. 2015 to ?
  • 48.
    130 Years ofAutomotive Development In 1886, Karl Benz created the first commercial automobile, the Patent Motorwagen. That marked the decline of the horse propulsion era and the beginning of the era of internal combustion engine propulsion. 130 years later, the 2016 fuel cell vehicle, with the BEV mark the beginning of a new era in electric automotive propulsion, and begins a long decline in the era of internal combustion engine propulsion. The era of walking and the horse. The era of the internal combustion engine. (130 years) The era of the electrochemical engine. 2015 to ?
  • 49.
    Honda 2018 ClarityHyundai 2019 Nexo Mercedes 2018 GLC F-Cell PHEV BMW i8 Series BMW i5 GT Audi h-tron quattro concept (at 2016 NAIAS) GM Colorado ZH2 GM Fuel Cell Equinox Ford Fusion Hydrogen 999 207 MPH at Bonneville
  • 50.
    Mirai Fuel CellDrive Train
  • 51.
    Basic unit cellof a fuel cell system 2.25 in 6.7 in THIS is a “fuel cell”. Multiple cells make a “stack”, like cylinders in an engine. Taken from a 2 KW (2.7 HP) fuel cell used on a motor scooter.
  • 52.
    Basic unit cellof a fuel cell system 2.25 in 6.7 in Also called a membrane-electrode assembly (MEA) THIS is a “fuel cell”. Multiple cells make a “stack”, like cylinders in an engine. Taken from a 2 KW (2.7 HP) fuel cell used on a motor scooter.
  • 53.
    Basic unit cellof a fuel cell system 2.25 in Porous carbon electrode • With catalysts 6.7 in THIS is a “fuel cell”. Multiple cells make a “stack”, like cylinders in an engine. Proton Exchange Membrane (PEM) • .001” - .020” thick Also called a membrane-electrode assembly (MEA)
  • 54.
    Basic unit cellof a fuel cell system 2.25 in Porous carbon electrode • With catalysts 6.7 in Depending on design, this size MEA can produce 50 – 100 Watts (.07 - .13 HP) THIS is a “fuel cell”. Multiple cells make a “stack”, like cylinders in an engine. Proton Exchange Membrane (PEM) • .001” - .020” thick Also called a membrane-electrode assembly (MEA)
  • 55.
    Piston Piston rings Wrist pin Connectingrod Bearings Valves Sleeves Lifters Springs Two methods of converting fuel energy into useful power Both are stacked to produce a desired level of power = Fuel cell MEA Piston-cylinder assembly
  • 56.
    Catalyzed carbon electrode Perfluorinated polymer membrane w/Sulfonic acid Courtesy: W.L. Gore & Associates, Inc. Membrane Electrode Assembly Production
  • 57.
    Catalyzed carbon electrode Perfluorinated polymer membrane w/Sulfonic acid Courtesy: W.L. Gore & Associates, Inc. Membrane Electrode Assembly Production Equivalent to: piston, valves, piston rings, spark plug, wrist pin, connecting rod, cylinder, bearing, crank shaft for a 1/8 to 1/4 HP engine, manufactured on a roll!!!
  • 58.
    Basic proton exchangemembrane (PEM) fuel cell mechanism
  • 59.
    Basic proton exchangemembrane (PEM) fuel cell mechanism .002” to .020”
  • 60.
    Basic proton exchangemembrane (PEM) fuel cell mechanism .002” to .020” Example: The thickness of this membrane-electrode assembly (MEA)
  • 61.
    Basic proton exchangemembrane (PEM) fuel cell mechanism Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Catalyst Layers Hydrogen side Air side
  • 62.
    Basic proton exchangemembrane (PEM) fuel cell mechanism Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side Membrane-Electrode Assembly (MEA)
  • 63.
    Basic proton exchangemembrane (PEM) fuel cell mechanism External Load Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side
  • 64.
    Basic proton exchangemembrane (PEM) fuel cell mechanism H2 External Load Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side
  • 65.
    Basic proton exchangemembrane (PEM) fuel cell mechanism H2 External Load O2 Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side
  • 66.
    Basic proton exchangemembrane (PEM) fuel cell mechanism H2 External Load O2 Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side H+ = a proton H2 2H H H+ + e _
  • 67.
    Basic proton exchangemembrane (PEM) fuel cell mechanism H2 e- External Load O2 H+ H+ H+ H+ Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side H+ = a proton e- e- e- e- H2 2H H H+ + e _
  • 68.
    Basic proton exchangemembrane (PEM) fuel cell mechanism H2 e- External Load O2 H+ H+ H+ H+ Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side H+ = a proton e- e- e- e- O2 2O H+ + e _ H O + 2H H2O H2 2H H H+ + e _
  • 69.
    Basic proton exchangemembrane (PEM) fuel cell mechanism H2O H2 e- External Load O2 H+ H+ H+ H+ Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Hydrogen side Air side H+ = a proton e- e- e- e- O2 2O H+ + e _ H O + 2H H2O H2 2H H H+ + e _
  • 70.
    Basic proton exchangemembrane (PEM) fuel cell mechanism H2 e- External Load O2 H+ H+ H+ H+ Porous Anode (carbon) Porous Cathode (carbon) Thin-film Polymer Electrolyte Temperature: Hydrogen side Air side 50 - 90C (120 – 195F) Reasonable cell voltage: .5 - .8 V H+ = a proton e- e- e- e- O2 2O H+ + e _ H O + 2H H2O H2 2H H H+ + e _ H2O
  • 72.
    PEM Fuel CellStacks Source: Energy Partners 10kW 0.2kW Source: Electrochem Source: Ballard 85 kW (114 HP) 2002 5kW (6.7 HP) 1992 13kW (17.5 HP) 1995
  • 73.
    370 Cell stack (152HP) Air flow Hydrogen flow Single fuel cell (0.41 HP) Air manifold Hydrogen manifold Cells are stacked together to add voltage. Current is based on cell area Current x Voltage = Power Area x Length (Number of cells) = Volume Power
  • 74.
  • 75.
  • 77.
  • 78.
    Hydrogen Refueling Stations TheInfrastructure Challenge
  • 79.
    Area accessible tohydrogen fuel cell vehicles November 2015 Coalinga Willits Eureka Redding Red Bluff Susanville Truckee Garberville Santa Barbara San Luis Obispbo Morro Bay Reno Bridgeport Carson City Fallon Lake Tahoe San Francisco Barstow Ridgecrest San Francisco 0 100 KM 100 Miles Operating hydrogen stations Accessible area
  • 80.
    Area currently accessibleto hydrogen fuel cell vehicles, 2021 Coalinga Eureka Redding Red Bluff Susanville Ridgecrest Garberville San Luis Obispbo Morro Bay 0 100 KM 100 Miles Operating hydrogen stations Planned, in construction or in permitting Accessible area Barstow Willits Truckee Lake Tahoe San Francisco Santa Barbara Bridgeport Carson City Reno Fallon Winnemucca Hydrogen Stations Operating: 54 Planned, in construction or permitting 55 Total 109
  • 82.
    Hydrogen fire safetytest performed in 2001 at University of Miami for the US DOE.
  • 83.
    Hydrogen fire safetytest performed in 2001 at University of Miami for the US DOE. 1. Simulate a single-point-failure leak in each car. 2. Ignite the leaking fuel.
  • 84.
    Hydrogen fueled carGasoline fueled car Hydrogen leak rate 2100 SCFM. Gasoline leak rate 680 cc/min. Time: Leaking and 1 second before flame ignition. Hydrogen fire safety test performed in 2001 at University of Miami for the US DOE. 1. Simulate a single-point-failure leak in each car. 2. Ignite the leaking fuel.
  • 85.
    Time: 3 secondsafter ignition of fuel leaks on both cars Hydrogen Gasoline Hydrogen Gasoline
  • 86.
  • 87.
  • 88.
    Highest temperature in test:117F on window. Like Palm Springs in August. Time: 1 minute Hydrogen Gasoline
  • 89.
    Total hydrogen leak:1.5 kg H2 (1.5 gal gasoline equivalent) Total gasoline leak: 0.62 gal gasoline (After 3.5 minutes.) Time: 1 minute, 30 seconds
  • 90.
    Total hydrogen leak:1.5 kg H2 (1.5 gal gasoline equivalent) Total gasoline leak: 0.62 gal gasoline (After 3.5 minutes.) Time: 1 minute, 30 seconds Hydrogen Gasoline
  • 92.
    When the energy storagepart of a battery car catches fire, it can be similar to a gasoline car fire.
  • 93.
    How the heckdid these PEM fuel cells get started?
  • 94.
    How the heckdid these PEM fuel cells get started? We owe it to 2 things:
  • 95.
    How the heckdid these PEM fuel cells get started? We owe it to 2 things: 1) Powerful atom bombs
  • 96.
    How the heckdid these PEM fuel cells get started? We owe it to 2 things: 1) Powerful atom bombs and 2) Itty bitty rockets.
  • 97.
    In the 1940sand 50s the U.S. nuclear weapons labs developed very powerful nuclear bombs that were much lighter and smaller than Soviet bombs of the same destructive power.
  • 98.
    In the 1940sand 50s the U.S. nuclear weapons labs developed very powerful nuclear bombs that were much lighter and smaller than Soviet bombs of the same destructive power. We both needed to send the same destructive power the same distance, BUT the U.S. did not need to develop very powerful rockets,
  • 99.
    In the 1940sand 50s the U.S. nuclear weapons labs developed very powerful nuclear bombs that were much lighter and smaller than Soviet bombs of the same destructive power. We both needed to send the same destructive power the same distance, BUT the U.S. did not need to develop very powerful rockets, but the Soviets did.
  • 100.
    In the 1940sand 50s the U.S. nuclear weapons labs developed very powerful nuclear bombs that were much lighter and smaller than Soviet bombs of the same destructive power. We both needed to send the same destructive power the same distance, BUT the U.S. did not need to develop very powerful rockets, but the Soviets did. Then, on Oct. 4, 1957 a VERY large rocket launched Sputnik, the first artificial moon.
  • 101.
    USSR Good OleUSA 1957-1966 1958-1966 R-7 Rocket Sputnik 1 Sputnik 2, with dog. Vostok 1 with 1 cosmonaut
  • 102.
    USSR Good OleUSA 1957-1966 1958-1966 R-7 Rocket Sputnik 1 Sputnik 2, with dog. Vostok 1 with 1 cosmonaut
  • 103.
    USSR Good OleUSA 1957-1966 1958-1966 Vanguard 1 Exploded on launch Jupiter C Explorer 1 1st US satellite Atlas D Mercury capsule with 1 astronaut (orbital) Titan II Gemini capsule with 2 astronauts (orbital) Redstone Mercury capsule with 1 astronaut (sub-orbital) R-7 Rocket Sputnik 1 Sputnik 2, with dog. Vostok 1 with 1 cosmonaut
  • 104.
    USSR Good OleUSA 1957-1966 1958-1966 Vanguard 1 Exploded on launch Jupiter C Explorer 1 1st US satellite Atlas D Mercury capsule with 1 astronaut (orbital) Titan II Gemini capsule with 2 astronauts (orbital) Redstone Mercury capsule with 1 astronaut (sub-orbital) R-7 Rocket Sputnik 1 Sputnik 2, with dog. Vostok 1 with 1 cosmonaut
  • 105.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours Early Soviet Rockets
  • 106.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours Redstone Early Soviet Rockets
  • 107.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Early U.S. Rockets
  • 108.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Early U.S. Rockets
  • 109.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets
  • 110.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets
  • 111.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets
  • 112.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets
  • 113.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets The PEM fuel cell was developed in US industry and was close to being ready in 1959 to 1961. NASA contracted for fuel cell systems for Gemini flights beginning with Gemini 5. From then on fuel cells provided spacecraft electricity and byproduct water on long missions.
  • 114.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets The PEM fuel cell was developed in US industry and was close to being ready in 1959 to 1961. NASA contracted for fuel cell systems for Gemini flights beginning with Gemini 5. From then on fuel cells provided spacecraft electricity and byproduct water on long missions. That’s because they were much smaller, lighter and more easily reenergized than batteries.
  • 115.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets The PEM fuel cell was developed in US industry and was close to being ready in 1959 to 1961. NASA contracted for fuel cell systems for Gemini flights beginning with Gemini 5. From then on fuel cells provided spacecraft electricity and byproduct water on long missions. That’s because they were much smaller, lighter and more easily reenergized than batteries, and still are.
  • 116.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Early U.S. Rockets
  • 117.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets
  • 118.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets
  • 119.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets 2 to 7 astronauts 2 to 18 days
  • 120.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets 2 to 7 astronauts 2 to 18 days
  • 121.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets Where electrical power was required for duration of mission. 2 to 7 astronauts 2 to 18 days
  • 122.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets Fuel cells 2 to 7 astronauts 2 to 18 days
  • 123.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets Fuel cells 2 to 7 astronauts 2 to 18 days
  • 124.
    Space Shuttle U.S. 1981 -2011 1957 - 1961 1960 - 1963 1964 - 1966 1967 - 1973 1981 - 2011 1969 - 1972 1 to 3 cosmonauts 1.75 hours to 5 days 1961 to 1969 N-1 Russia 1 astronaut 4 to 34 hours 1962-1963 Early Soviet Rockets Redstone Atlas Titan 2 Saturn 5 Early U.S. Rockets Fuel cells 2 to 7 astronauts 2 to 18 days
  • 125.
    Here they come! Firstever shipment of fuel cell cars for sale/lease in USA. October 2015
  • 126.
    How will weknow when we are “there”?
  • 127.
    How will weknow when we are “there”?
  • 128.
    When a kidgoes to a junk yard and gets the fuel cell system from a wreck, and installs it into an old fuel cell car with modified power electronics and electric motor to double the horsepower and wins at the drags. How will we know when we are “there”?
  • 129.
