1. MySQL and Fedora: A Developer's Overview Brian Aker Director of Architecture Fudcon April 2006 MySQL AB

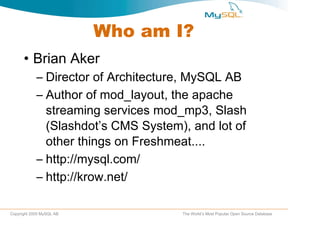

2. Who am I? Brian Aker Director of Architecture, MySQL AB Author of mod_layout, the apache streaming services mod_mp3, Slash (Slashdot’s CMS System), and lot of other things on Freshmeat.... http://mysql.com/ http://krow.net/

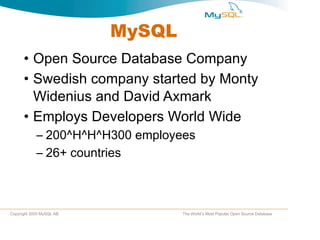

3. MySQL Open Source Database Company Swedish company started by Monty Widenius and David Axmark Employs Developers World Wide 200^H^H^H300 employees 26+ countries

4. Agenda What's in MySQL 5.0 Fitting in with the Fedora Community Differences in packaging Contributing to the OSS movement MySQL and India Resources What is coming in the Future? Q&A?

5. What is in 5.0? Views Stored Procedures Triggers Precision Math Instance Manager XA • GUI Tools • Cluster • Information Schema • Cursors • Archive • More…..

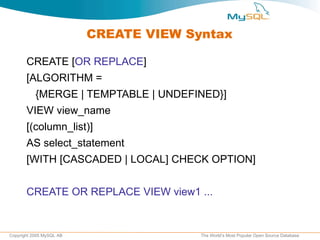

6. CREATE VIEW Syntax CREATE [ OR REPLACE ] [ALGORITHM = {MERGE | TEMPTABLE | UNDEFINED}] VIEW view_name [(column_list)] AS select_statement [WITH [CASCADED | LOCAL] CHECK OPTION] CREATE OR REPLACE VIEW view1 ...

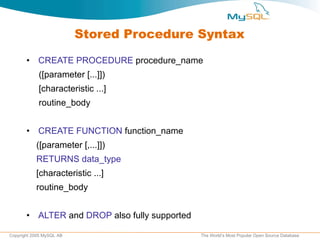

7. Stored Procedure Syntax CREATE PROCEDURE procedure_name ([parameter [...]]) [characteristic ...] routine_body CREATE FUNCTION function_name ([parameter [,...]]) RETURNS data_type [characteristic ...] routine_body ALTER and DROP also fully supported

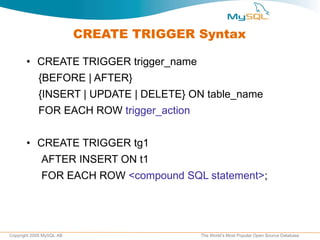

8. CREATE TRIGGER Syntax CREATE TRIGGER trigger_name {BEFORE | AFTER} {INSERT | UPDATE | DELETE} ON table_name FOR EACH ROW trigger_action CREATE TRIGGER tg1 AFTER INSERT ON t1 FOR EACH ROW <compound SQL statement> ;

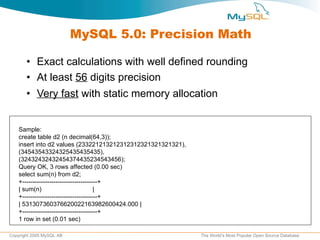

9. MySQL 5.0: Precision Math Exact calculations with well defined rounding At least 56 digits precision Very fast with static memory allocation Sample: create table d2 (n decimal(64,3)); insert into d2 values (233221213212312312321321321321), (34543543324325435435435), (32432432432454374435234543456); Query OK, 3 rows affected (0.00 sec) select sum(n) from d2; +------------------------------------+ | sum(n) | +------------------------------------+ | 531307360376620022163982600424.000 | +------------------------------------+ 1 row in set (0.01 sec)

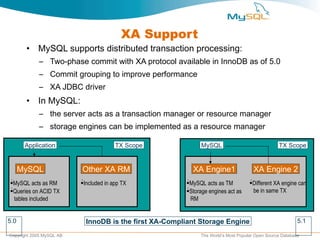

10. XA Support MySQL supports distributed transaction processing: Two-phase commit with XA protocol available in InnoDB as of 5.0 Commit grouping to improve performance XA JDBC driver In MySQL: the server acts as a transaction manager or resource manager storage engines can be implemented as a resource manager Application MySQL  MySQL acts as RM  Queries on ACID TX tables included Other XA RM  Included in app TX TX Scope MySQL XA Engine1  MySQL acts as TM  Storage engines act as RM XA Engine 2 TX Scope  Different XA engine can be in same TX OR InnoDB is the first XA-Compliant Storage Engine 5.1 5.0

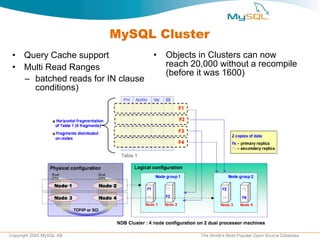

11. MySQL Cluster Query Cache support Multi Read Ranges batched reads for IN clause conditions) • Objects in Clusters can now reach 20,000 without a recompile (before it was 1600)

12. Information Schema mysql> SELECT table_name, table_type, engine -> FROM INFORMATION_SCHEMA.tables -> WHERE table_schema = 'tp' -> ORDER BY table_type, table_name DESC; +------------+------------+--------+ | table_name | table_type | engine | +------------+------------+--------+ | t2 | BASE TABLE | MyISAM | | t1 | BASE TABLE | InnoDB | | v1 | VIEW | NULL | +------------+------------+--------+ • INFORMATION_SCHEMA is a new, virtual database. • INFORMATION_SCHEMA can be queried via a SELECT statement, so there is no need to learn a new set of commands to be able to access the metadata you need. • MySQL creates and populates the tables automatically.

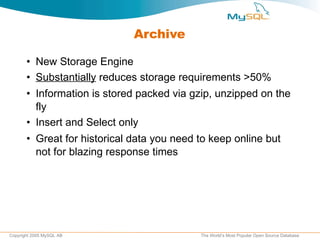

13. Archive New Storage Engine Substantially reduces storage requirements >50% Information is stored packed via gzip, unzipped on the fly Insert and Select only Great for historical data you need to keep online but not for blazing response times

14. Where we fit in with the Fedora Community Just a package out of 1,500 (okay, really 13/1795) Want to forge better relationships If you're a LAMP user, on Fedora, it should all “just work” Ship more Extras packages that rely on MySQL in FC These could be our tools (Query Browser, Adminstrator) Could be other apps (mytop, Gforge, SequioaERP) Working out “Alternatives”, like the NDB cluster, is the hard part Fix bugs with the package maintainer

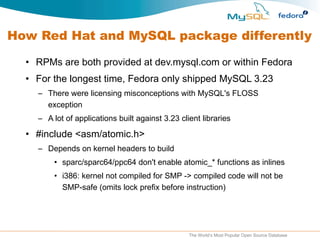

15. How Red Hat and MySQL package differently RPMs are both provided at dev.mysql.com or within Fedora For the longest time, Fedora only shipped MySQL 3.23 There were licensing misconceptions with MySQL's FLOSS exception A lot of applications built against 3.23 client libraries #include <asm/atomic.h> Depends on kernel headers to build sparc/sparc64/ppc64 don't enable atomic_* functions as inlines i386: kernel not compiled for SMP -> compiled code will not be SMP-safe (omits lock prefix before instruction)

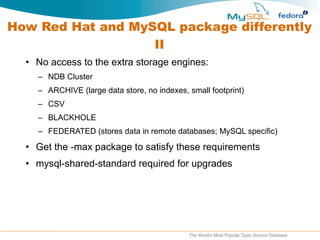

16. How Red Hat and MySQL package differently II No access to the extra storage engines: NDB Cluster ARCHIVE (large data store, no indexes, small footprint) CSV BLACKHOLE FEDERATED (stores data in remote databases; MySQL specific) Get the -max package to satisfy these requirements mysql-shared-standard required for upgrades

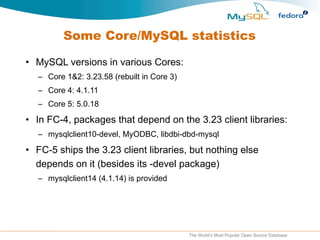

17. Some Core/MySQL statistics MySQL versions in various Cores: Core 1&2: 3.23.58 (rebuilt in Core 3) Core 4: 4.1.11 Core 5: 5.0.18 In FC-4, packages that depend on the 3.23 client libraries: mysqlclient10-devel, MyODBC, libdbi-dbd-mysql FC-5 ships the 3.23 client libraries, but nothing else depends on it (besides its -devel package) mysqlclient14 (4.1.14) is provided

18. How you can contribute to the OSS movement With Fedora, you have Extras package maintenance, documentation, translation ...or contribute to a package within Fedora, with upstream MySQL has many entry points Translation of documentation/applications Get access to translation repository In locale directory, find how_to_translate.txt Sign Translation Agreement, granting MySQL AB all exclusive rights to translation Requires: Love for your language/dialect, and proficient English

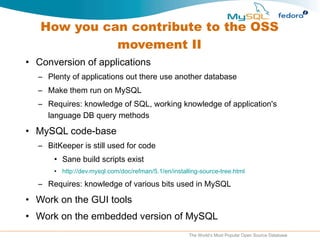

19. How you can contribute to the OSS movement II Conversion of applications Plenty of applications out there use another database Make them run on MySQL Requires: knowledge of SQL, working knowledge of application's language DB query methods MySQL code-base BitKeeper is still used for code Sane build scripts exist http://dev.mysql.com/doc/refman/5.1/en/installing-source-tree.html Requires: knowledge of various bits used in MySQL Work on the GUI tools Work on the embedded version of MySQL

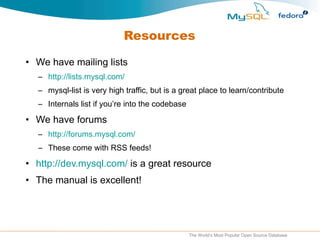

20. Resources We have mailing lists http://lists.mysql.com/ mysql-list is very high traffic, but is a great place to learn/contribute Internals list if you’re into the codebase We have forums http://forums.mysql.com/ These come with RSS feeds! http://dev.mysql.com/ is a great resource The manual is excellent!

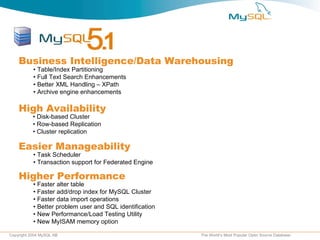

21. Business Intelligence/Data Warehousing • Table/Index Partitioning • Full Text Search Enhancements • Better XML Handling – XPath • Archive engine enhancements High Availability • Disk-based Cluster • Row-based Replication • Cluster replication Easier Manageability • Task Scheduler • Transaction support for Federated Engine Higher Performance • Faster alter table • Faster add/drop index for MySQL Cluster • Faster data import operations • Better problem user and SQL identification • New Performance/Load Testing Utility • New MyISAM memory option

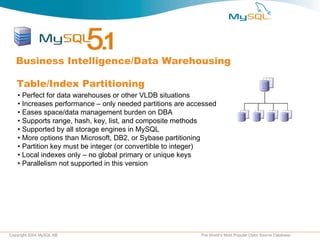

22. Business Intelligence/Data Warehousing Table/Index Partitioning • Perfect for data warehouses or other VLDB situations • Increases performance – only needed partitions are accessed • Eases space/data management burden on DBA • Supports range, hash, key, list, and composite methods • Supported by all storage engines in MySQL • More options than Microsoft, DB2, or Sybase partitioning • Partition key must be integer (or convertible to integer) • Local indexes only – no global primary or unique keys • Parallelism not supported in this version

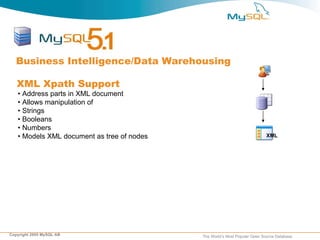

23. • Address parts in XML document • Allows manipulation of • Strings • Booleans • Numbers • Models XML document as tree of nodes Business Intelligence/Data Warehousing XML Xpath Support XML

24. • Faster I/O operations • Lower Memory requirements • Autoincrement column support • Unique key support • Non-unique key support Business Intelligence/Data Warehousing Archive Engine Enhancements

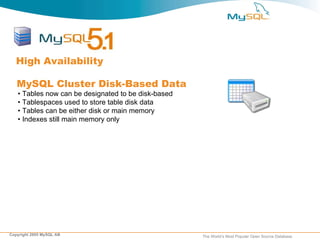

25. • Tables now can be designated to be disk-based • Tablespaces used to store table disk data • Tables can be either disk or main memory • Indexes still main memory only High Availability MySQL Cluster Disk-Based Data

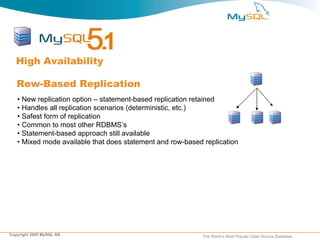

26. High Availability Row-Based Replication • New replication option – statement-based replication retained • Handles all replication scenarios (deterministic, etc.) • Safest form of replication • Common to most other RDBMS’s • Statement-based approach still available • Mixed mode available that does statement and row-based replication

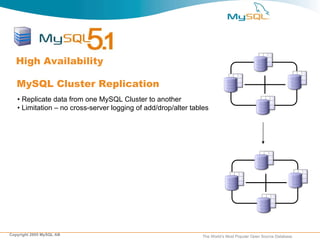

27. High Availability MySQL Cluster Replication • Replicate data from one MySQL Cluster to another • Limitation – no cross-server logging of add/drop/alter tables

28. Higher Performance Better Problem User/SQL Identification • SHOW PROCESSLIST command now system table • General and Slow Query Log now system tables • Can easily query tables to find all or just inefficient SQL • General/Slow Query Log use CSV engine and can be read by MS Excel SQL

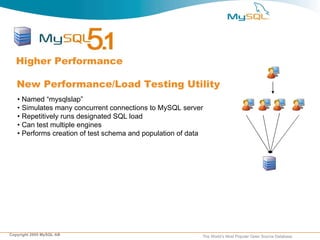

29. Higher Performance New Performance/Load Testing Utility • Named “mysqlslap” • Simulates many concurrent connections to MySQL server • Repetitively runs designated SQL load • Can test multiple engines • Performs creation of test schema and population of data

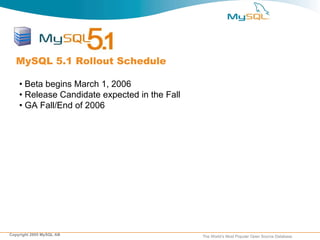

30. MySQL 5.1 Rollout Schedule • Beta begins March 1, 2006 • Release Candidate expected in the Fall • GA Fall/End of 2006

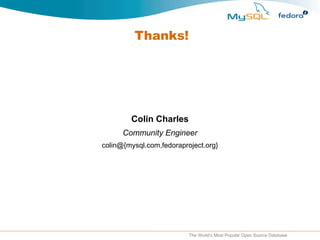

31. Thanks! Colin Charles Community Engineer colin@{mysql.com,fedoraproject.org}
