1. ©Continuent 2013
Tungsten University:
Configure & Provision
Tungsten Clusters
Je! Mace, Director of Services
Robert Hodges, CEO

2. ©Continuent 2013
About Continuent
• The leading provider of clustering and
replication for open source DBMS
• Tungsten Clustering - Commercial-grade HA,
performance scaling and data management
for MySQL
• Tungsten Replication - Flexible, high-
performance replication
2

3. ©Continuent 2013
Introducing Tungsten
3

4. ©Continuent 2013
Application Application
Replicator Replicator Replicator
MySQL Client API MySQL Client API
MasterSlave Slave

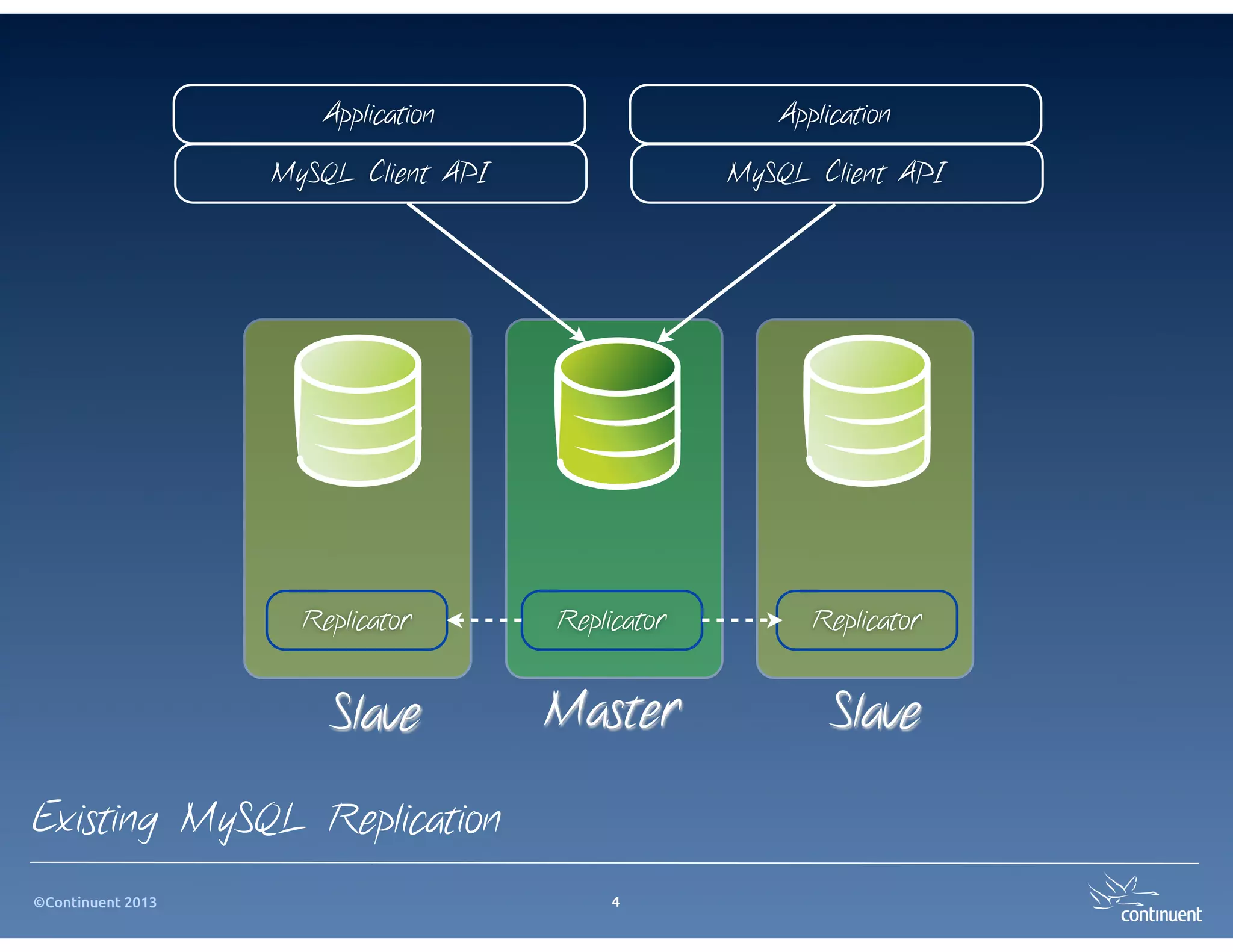

Existing MySQL Replication
4

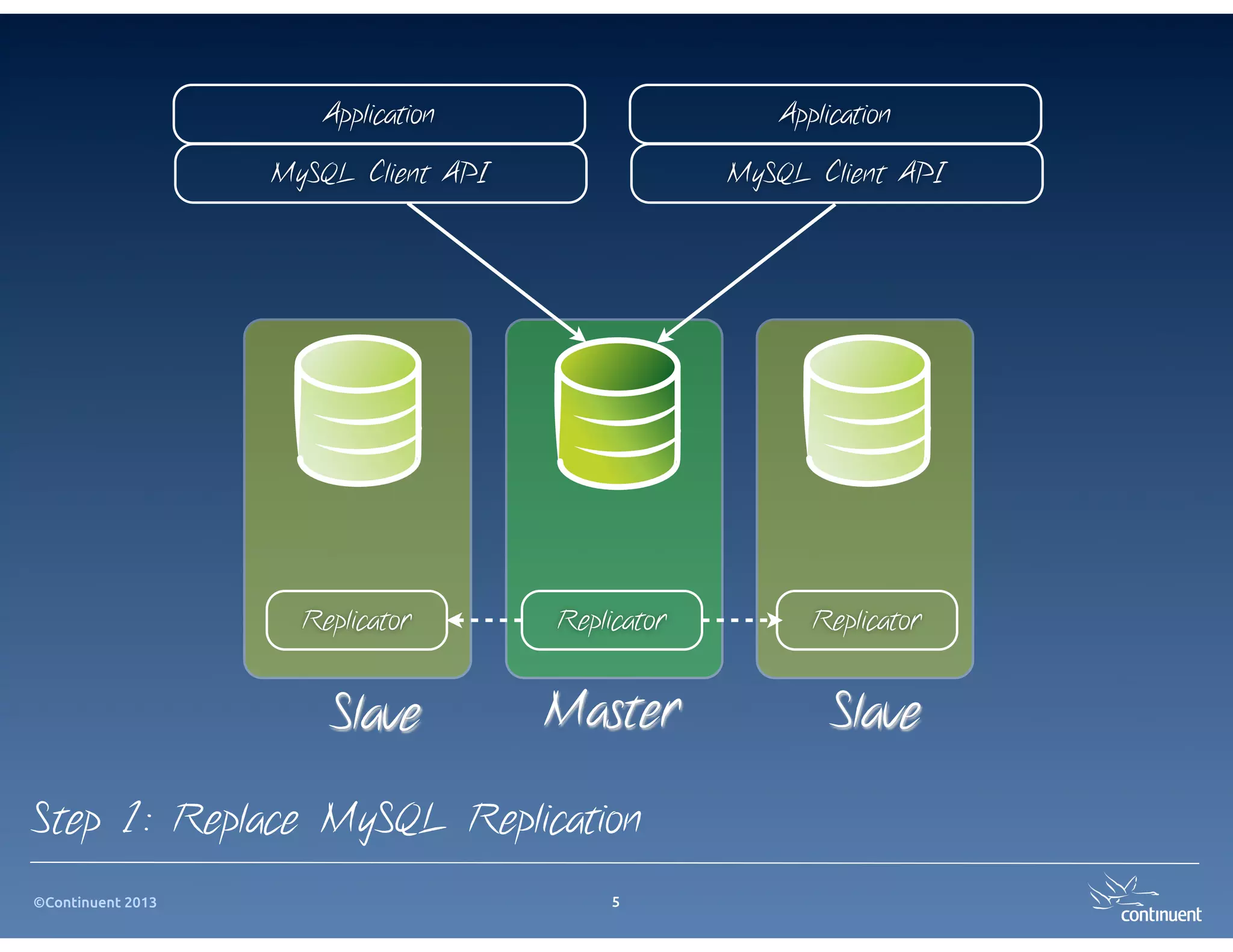

5. ©Continuent 2013
Application Application
Replicator Replicator Replicator
MySQL Client API MySQL Client API
MasterSlave Slave
Step 1: Replace MySQL Replication
5

6. ©Continuent 2013
Application Application
Replicator Replicator Replicator
MySQL Client API MySQL Client API
Manager Manager Manager
MasterSlave Slave

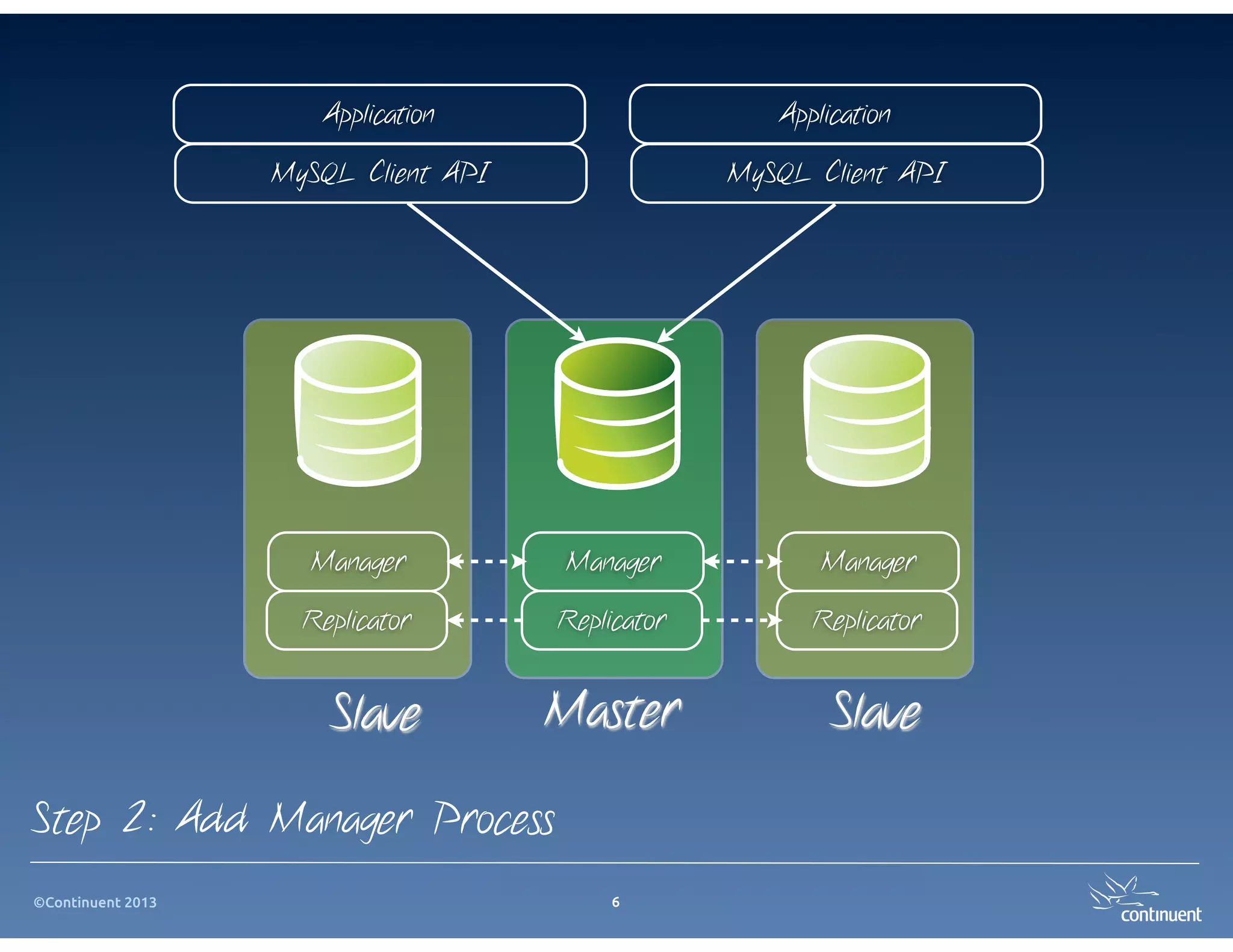

Step 2: Add Manager Process
6

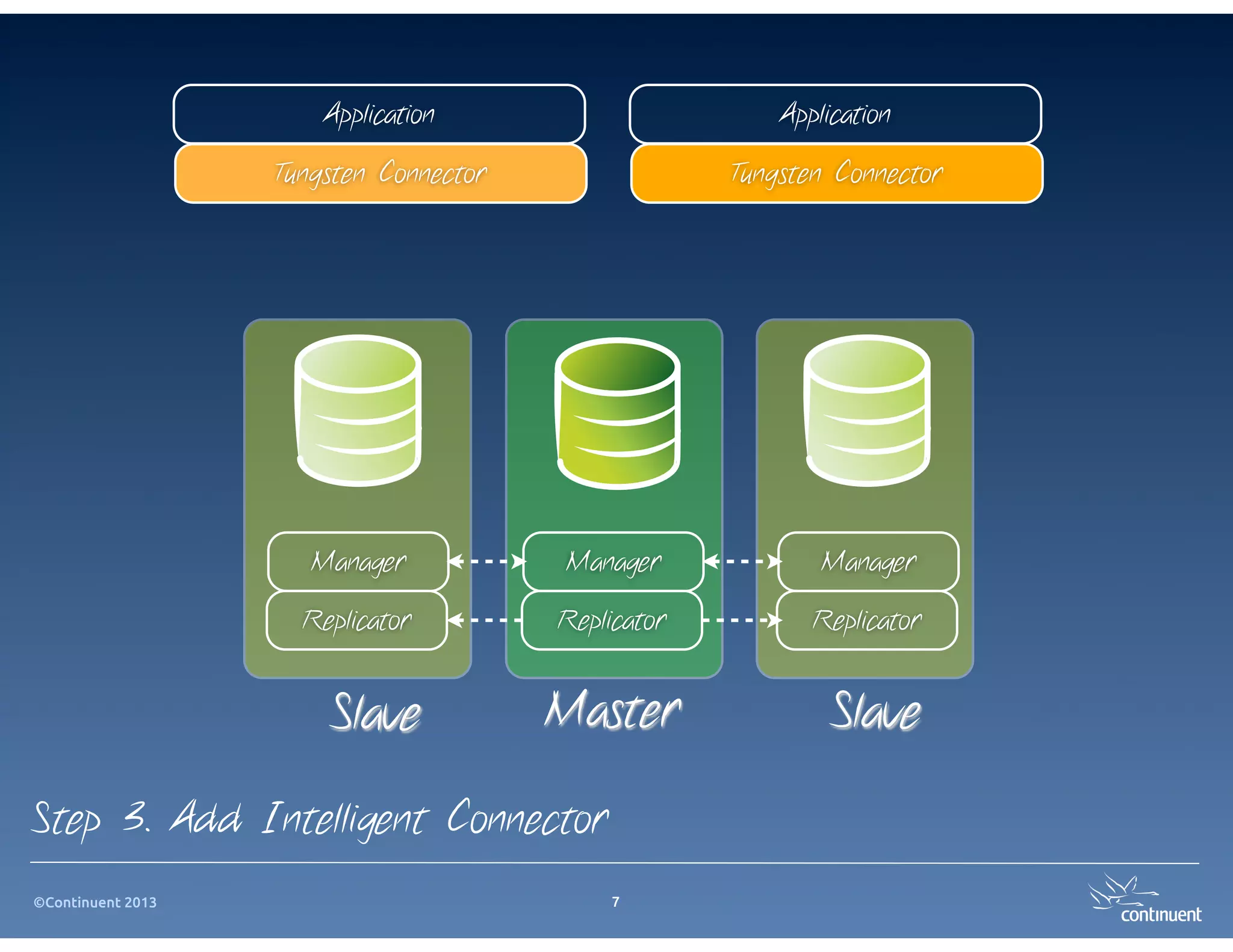

7. ©Continuent 2013
Application Application
Replicator Replicator Replicator
Manager Manager Manager
Tungsten Connector Tungsten Connector
MasterSlave Slave
Step 3. Add Intelligent Connector
7

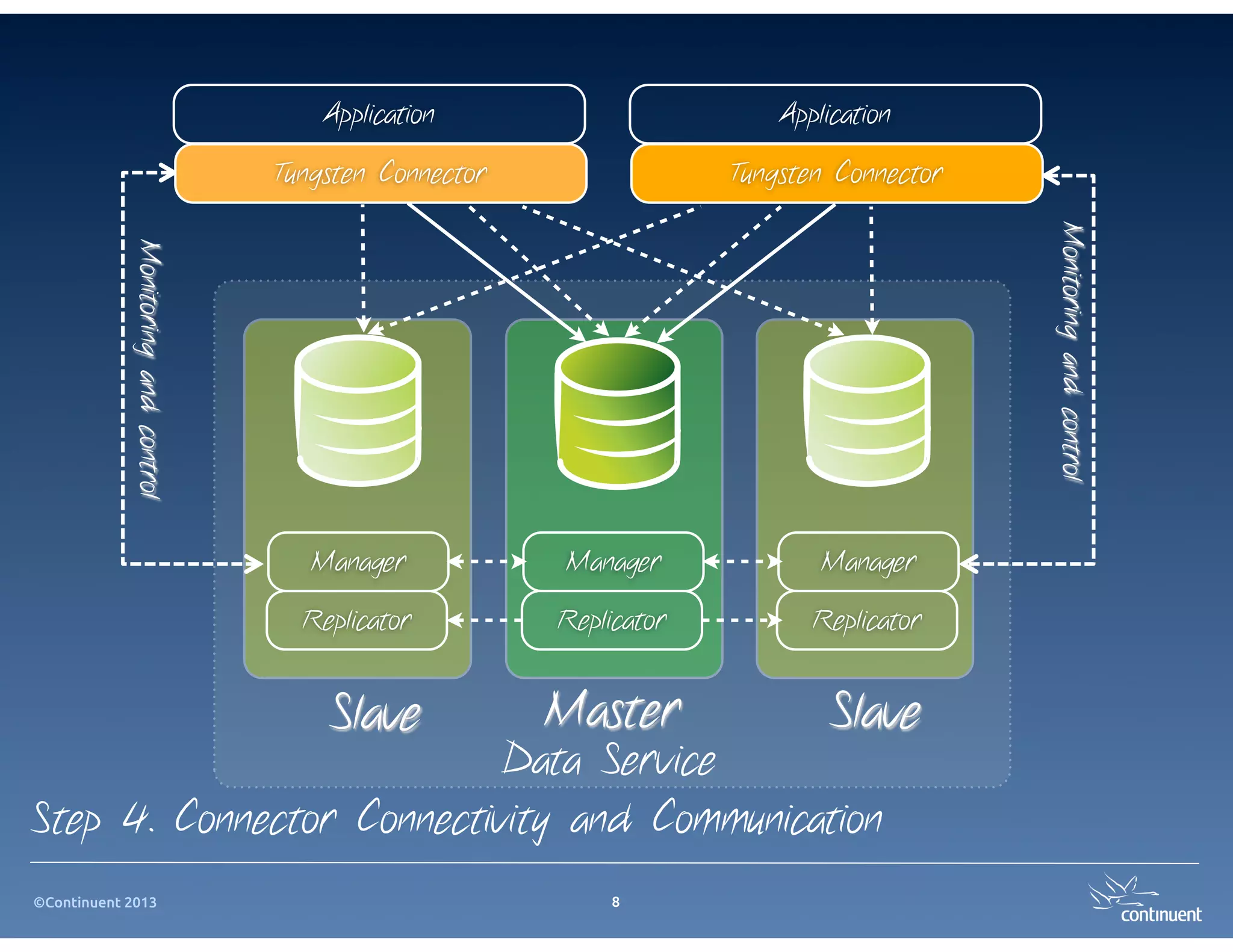

8. ©Continuent 2013
Data Service
Application
Replicator Replicator Replicator
Application
Manager Manager Manager
Monitoringandcontrol
Monitoringandcontrol
MasterSlave Slave
Step 4. Connector Connectivity and Communication
Tungsten Connector Tungsten Connector
8

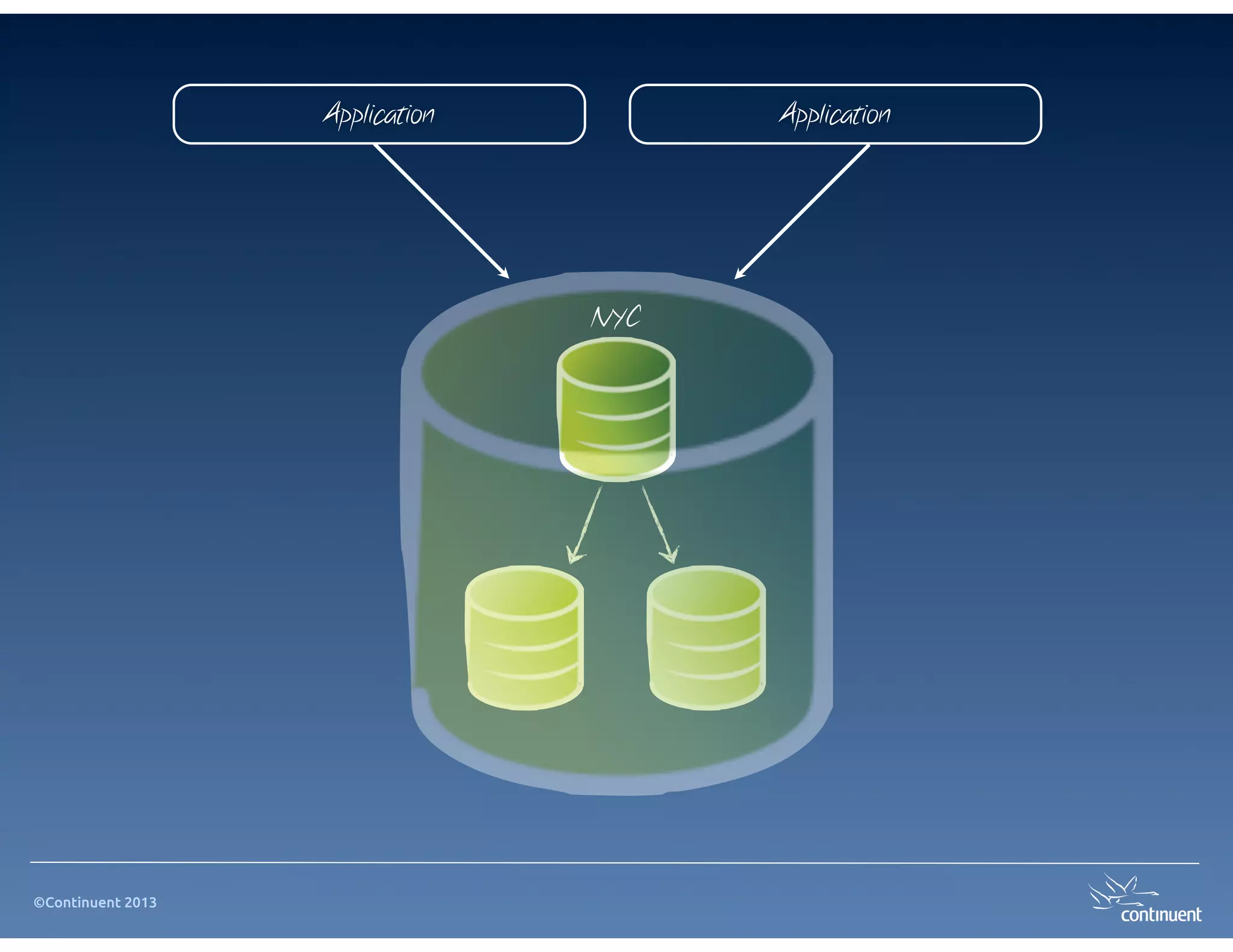

9. ©Continuent 2013
Application Application
NYC

10. ©Continuent 2013 10

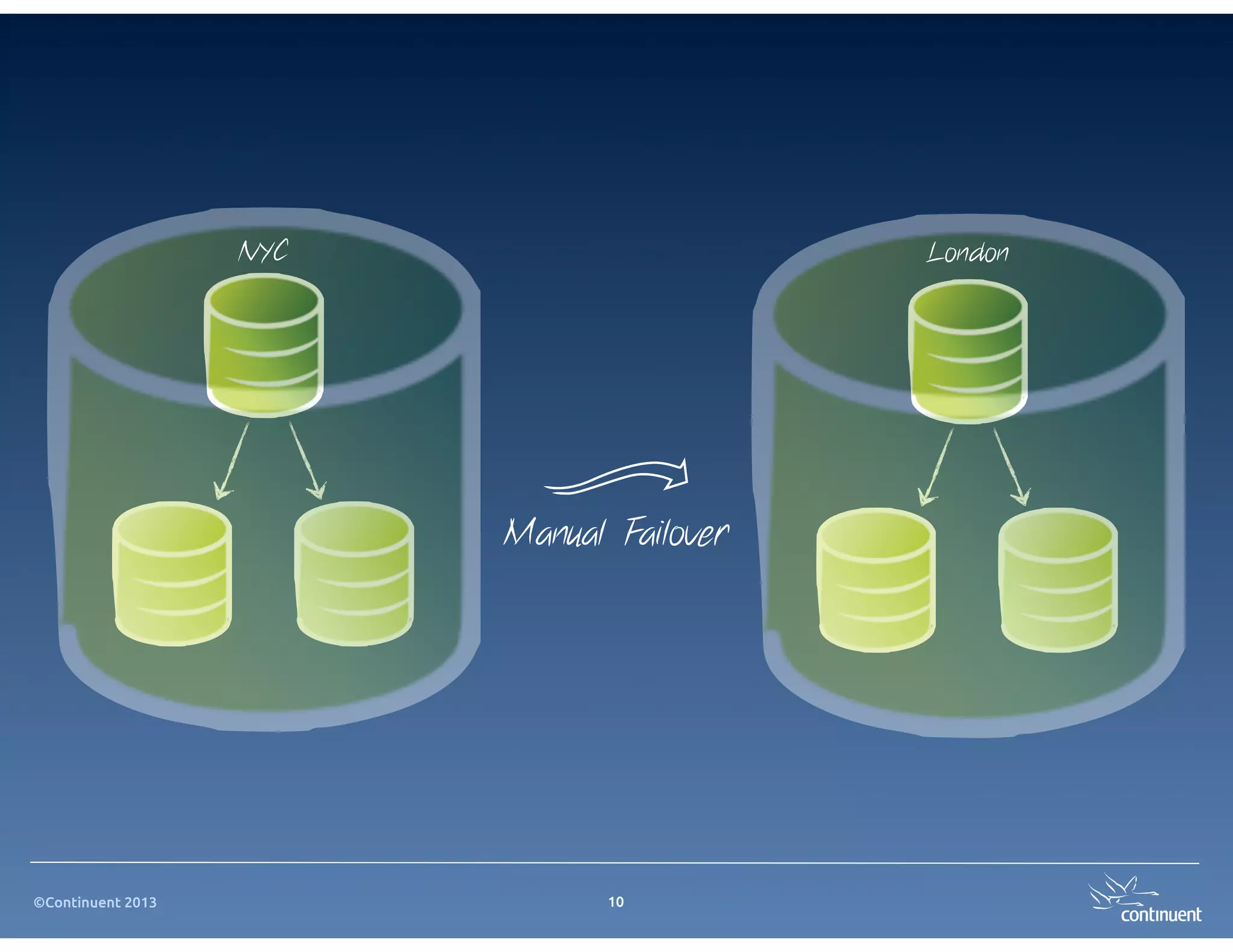

Manual Failover
NYC London

11. ©Continuent 2013

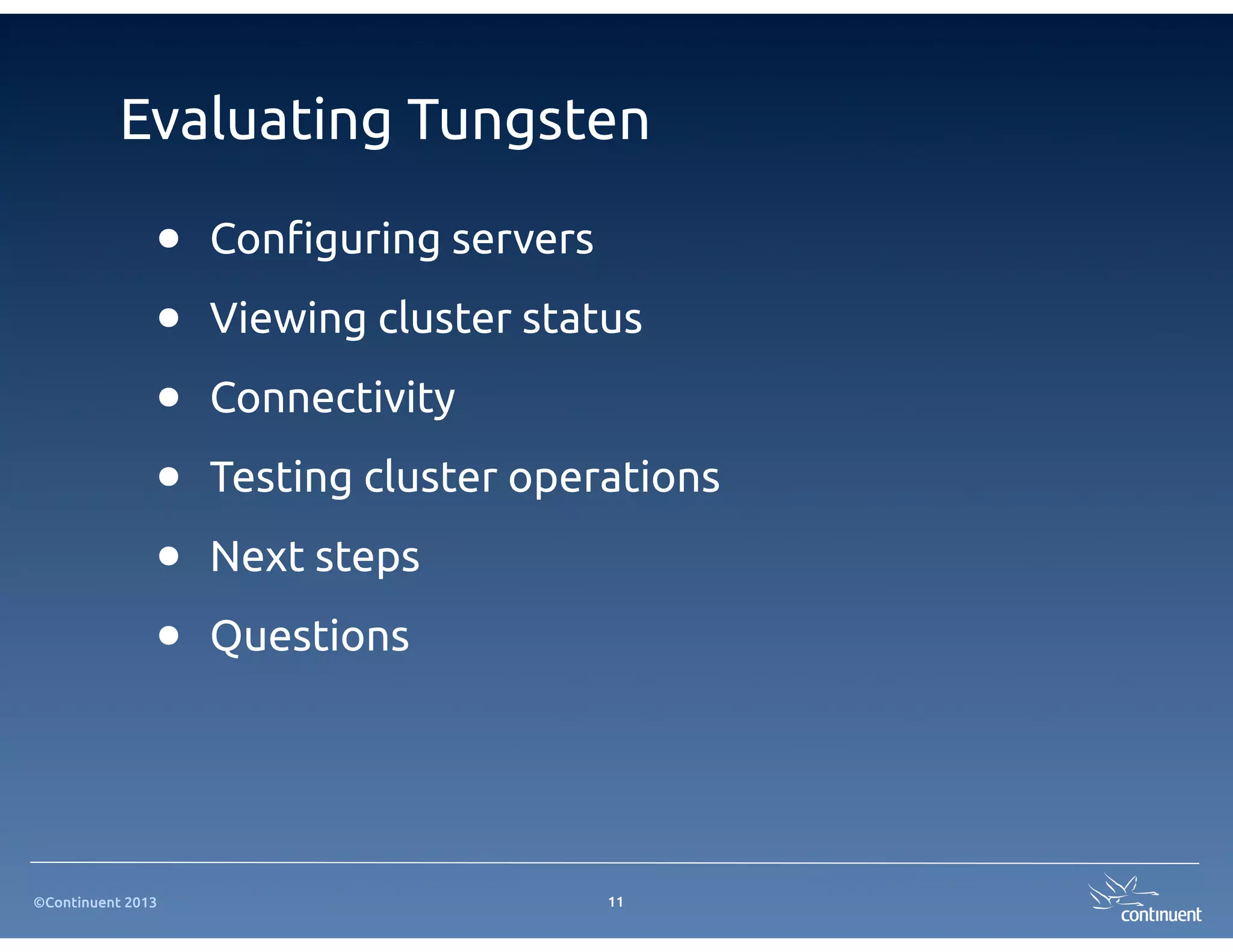

Evaluating Tungsten
• Con"guring servers
• Viewing cluster status
• Connectivity
• Testing cluster operations
• Next steps
• Questions
11

12. ©Continuent 2013
Con"guring Servers
12

13. ©Continuent 2013

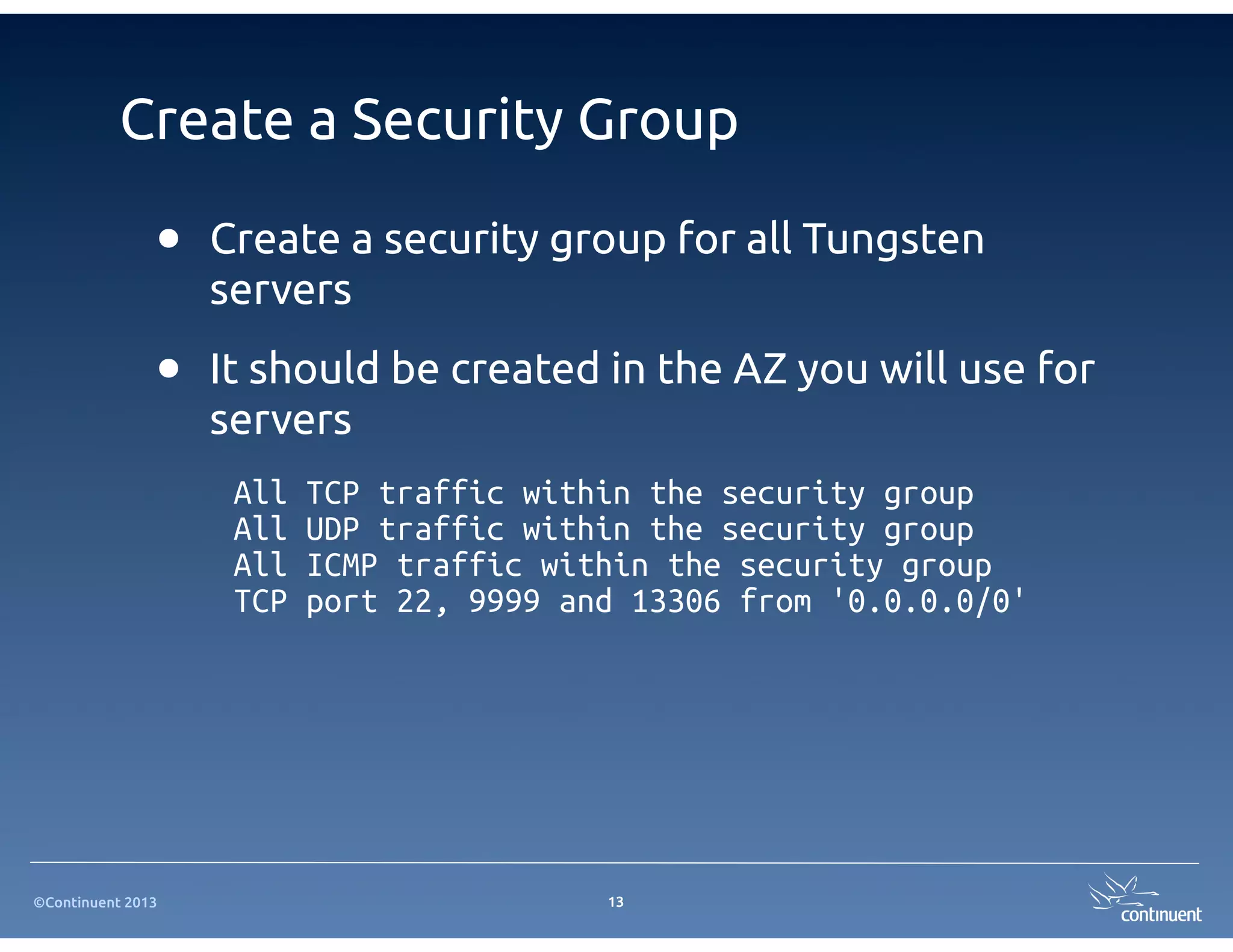

Create a Security Group
• Create a security group for all Tungsten
servers
• It should be created in the AZ you will use for
servers
13
All TCP traffic within the security group
All UDP traffic within the security group
All ICMP traffic within the security group
TCP port 22, 9999 and 13306 from '0.0.0.0/0'

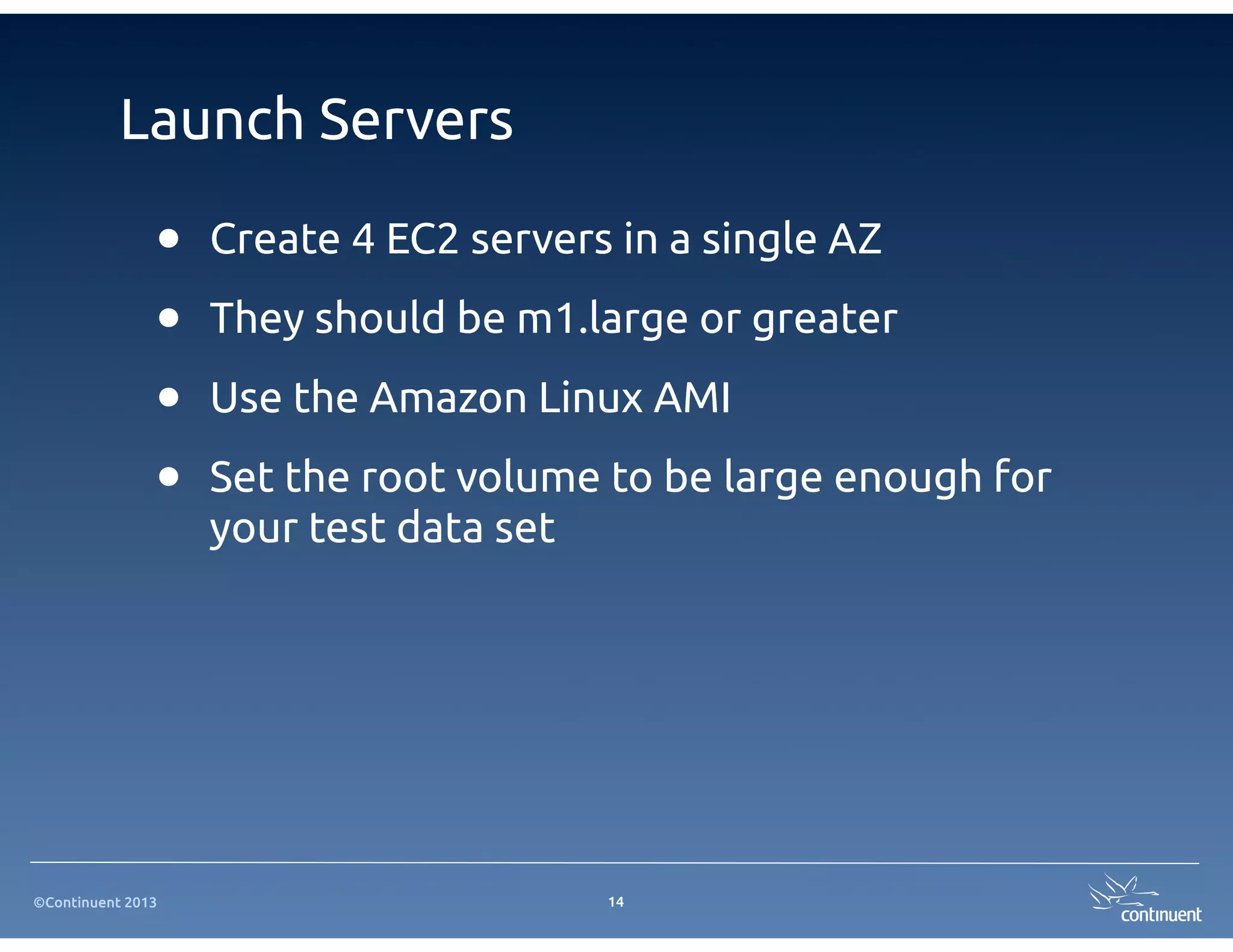

14. ©Continuent 2013
Launch Servers
• Create 4 EC2 servers in a single AZ
• They should be m1.large or greater
• Use the Amazon Linux AMI
• Set the root volume to be large enough for
your test data set
14

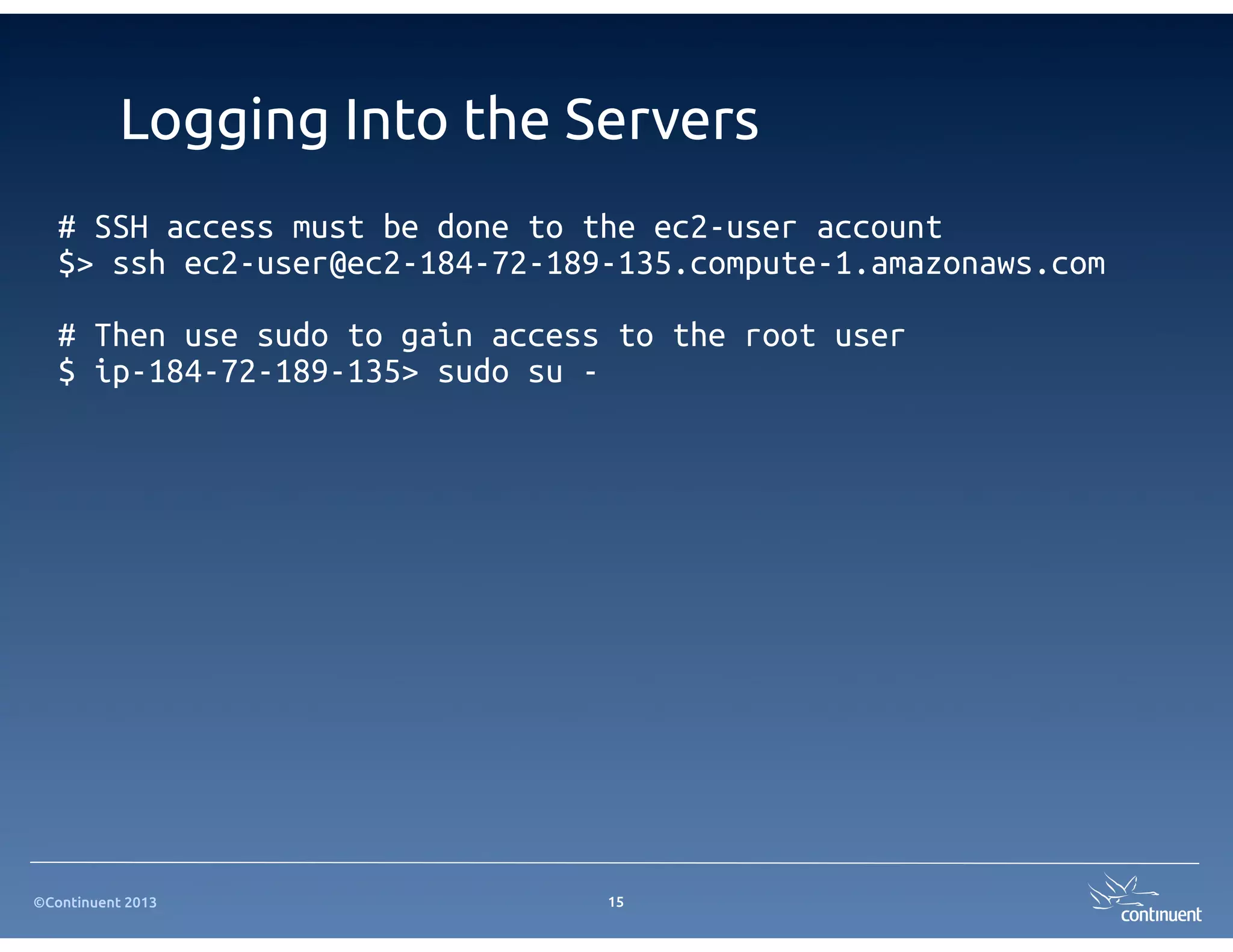

15. ©Continuent 2013
Logging Into the Servers
# SSH access must be done to the ec2-user account
$> ssh ec2-user@ec2-184-72-189-135.compute-1.amazonaws.com
# Then use sudo to gain access to the root user
$ ip-184-72-189-135> sudo su -
15

16. ©Continuent 2013

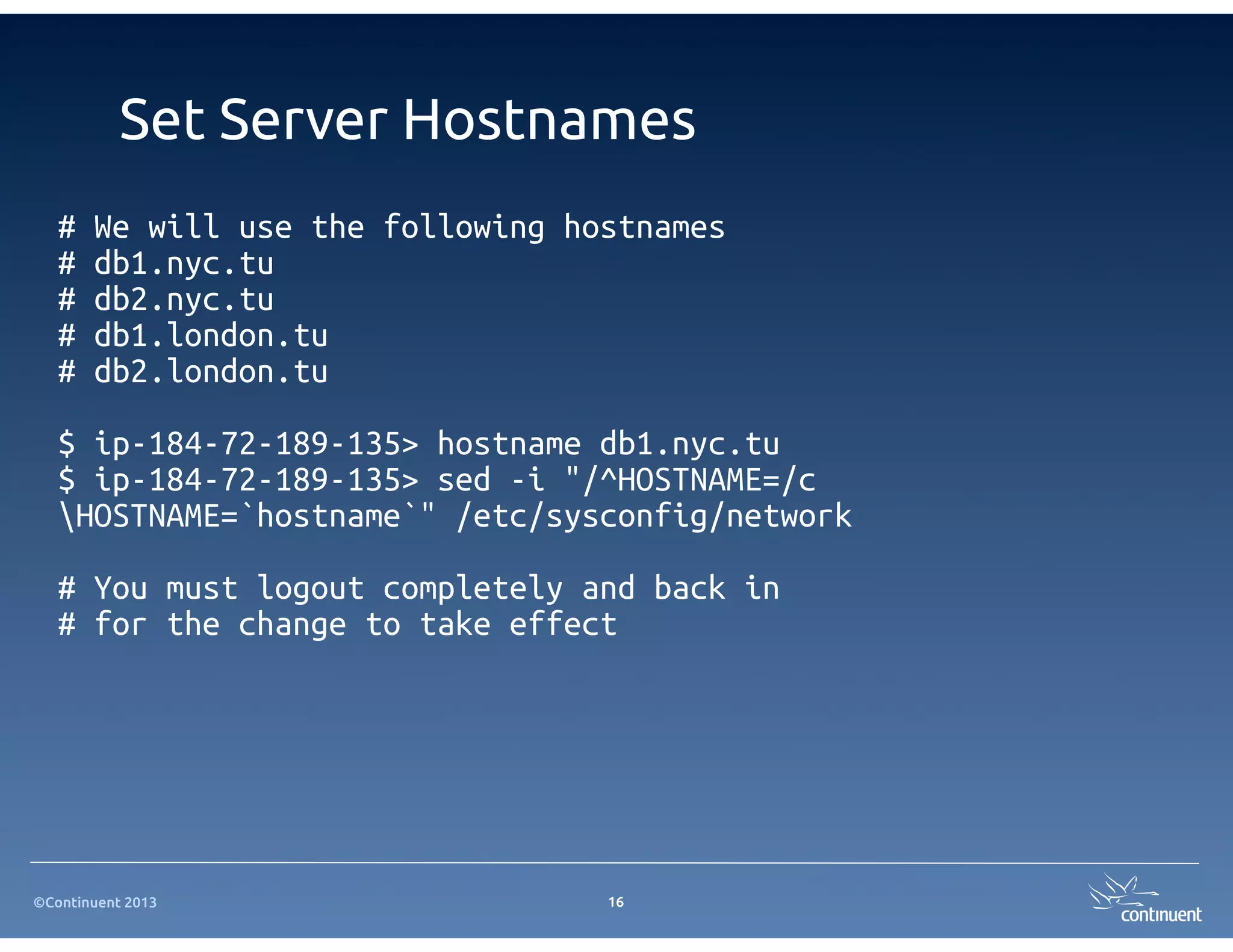

Set Server Hostnames
# We will use the following hostnames
# db1.nyc.tu
# db2.nyc.tu
# db1.london.tu
# db2.london.tu
$ ip-184-72-189-135> hostname db1.nyc.tu
$ ip-184-72-189-135> sed -i "/^HOSTNAME=/c
HOSTNAME=`hostname`" /etc/sysconfig/network
# You must logout completely and back in
# for the change to take effect
16

17. ©Continuent 2013

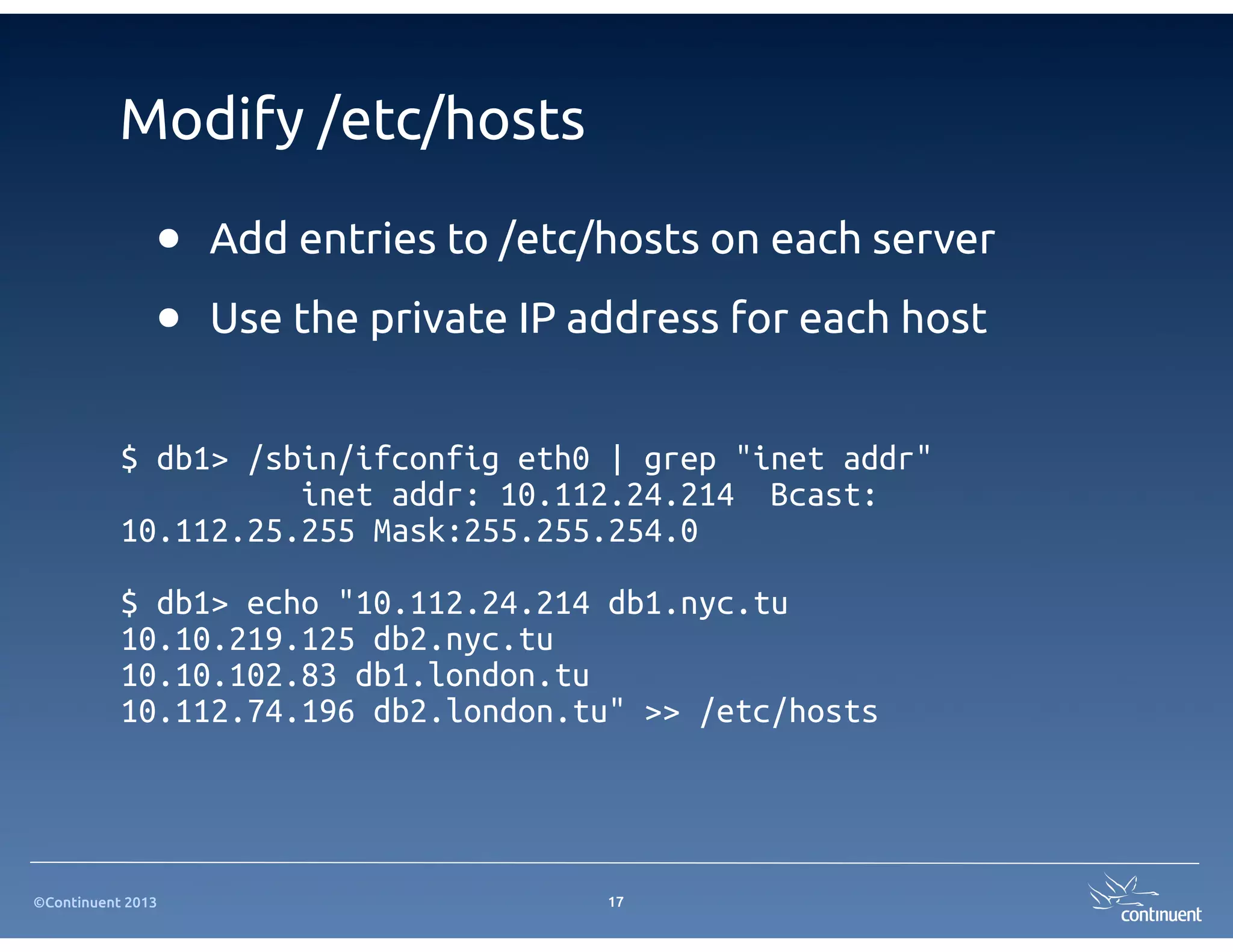

Modify /etc/hosts
• Add entries to /etc/hosts on each server
• Use the private IP address for each host
17
$ db1> /sbin/ifconfig eth0 | grep "inet addr"
inet addr: 10.112.24.214 Bcast:
10.112.25.255 Mask:255.255.254.0
$ db1> echo "10.112.24.214 db1.nyc.tu
10.10.219.125 db2.nyc.tu
10.10.102.83 db1.london.tu
10.112.74.196 db2.london.tu" >> /etc/hosts

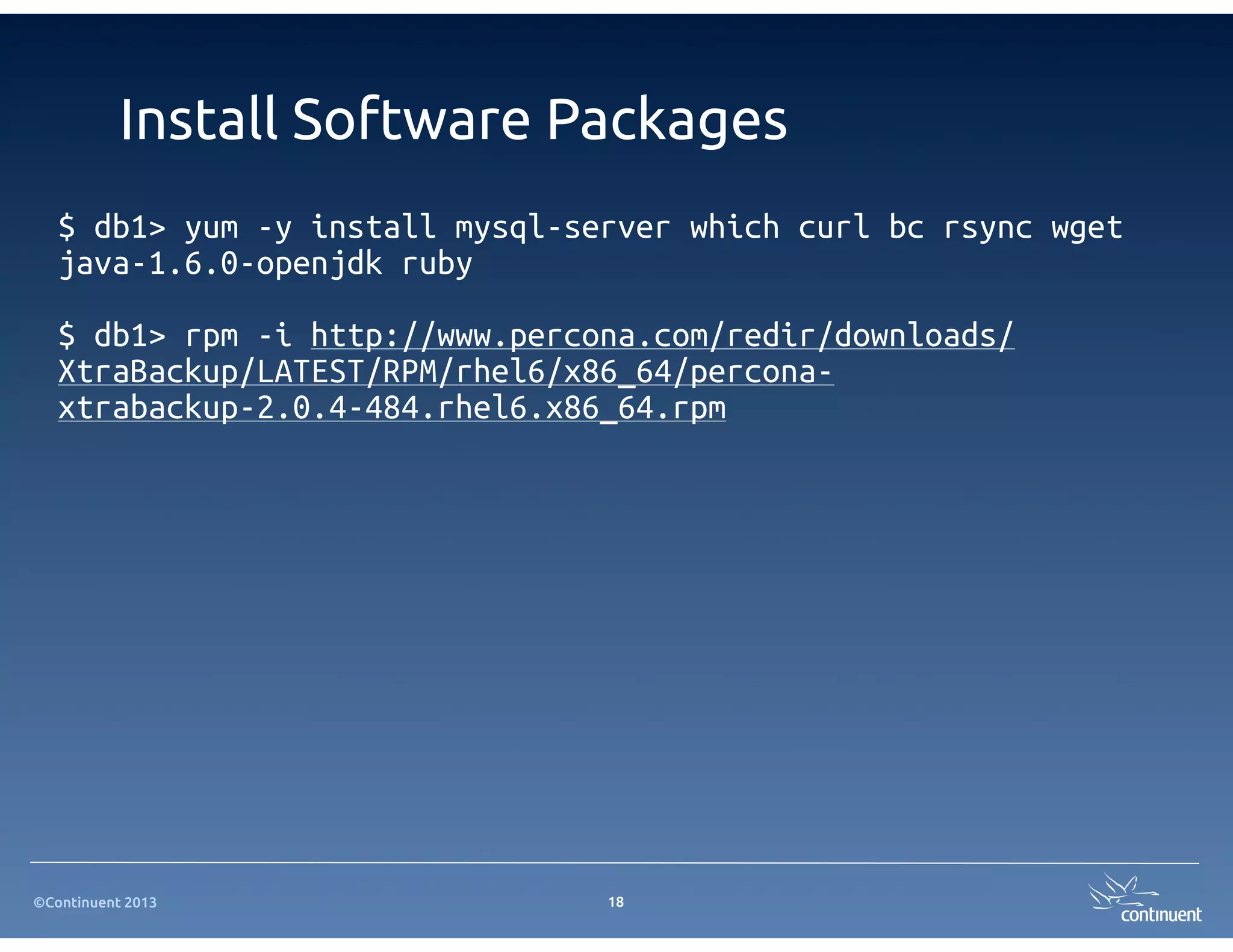

18. ©Continuent 2013
Install Software Packages
$ db1> yum -y install mysql-server which curl bc rsync wget
java-1.6.0-openjdk ruby
$ db1> rpm -i http://www.percona.com/redir/downloads/
XtraBackup/LATEST/RPM/rhel6/x86_64/percona-
xtrabackup-2.0.4-484.rhel6.x86_64.rpm
18

19. ©Continuent 2013

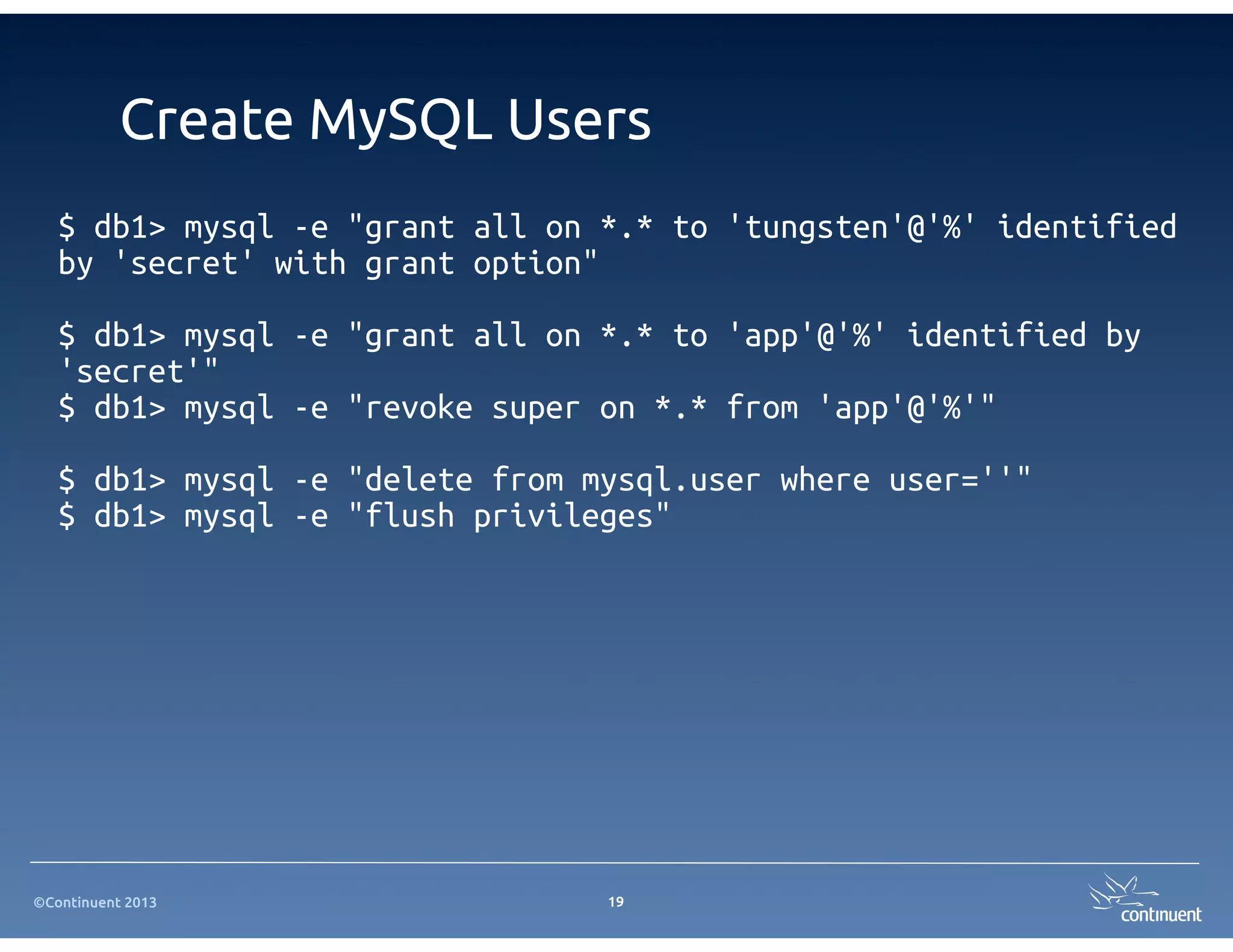

Create MySQL Users
$ db1> mysql -e "grant all on *.* to 'tungsten'@'%' identified
by 'secret' with grant option"
$ db1> mysql -e "grant all on *.* to 'app'@'%' identified by
'secret'"
$ db1> mysql -e "revoke super on *.* from 'app'@'%'"
$ db1> mysql -e "delete from mysql.user where user=''"
$ db1> mysql -e "flush privileges"
19

20. ©Continuent 2013

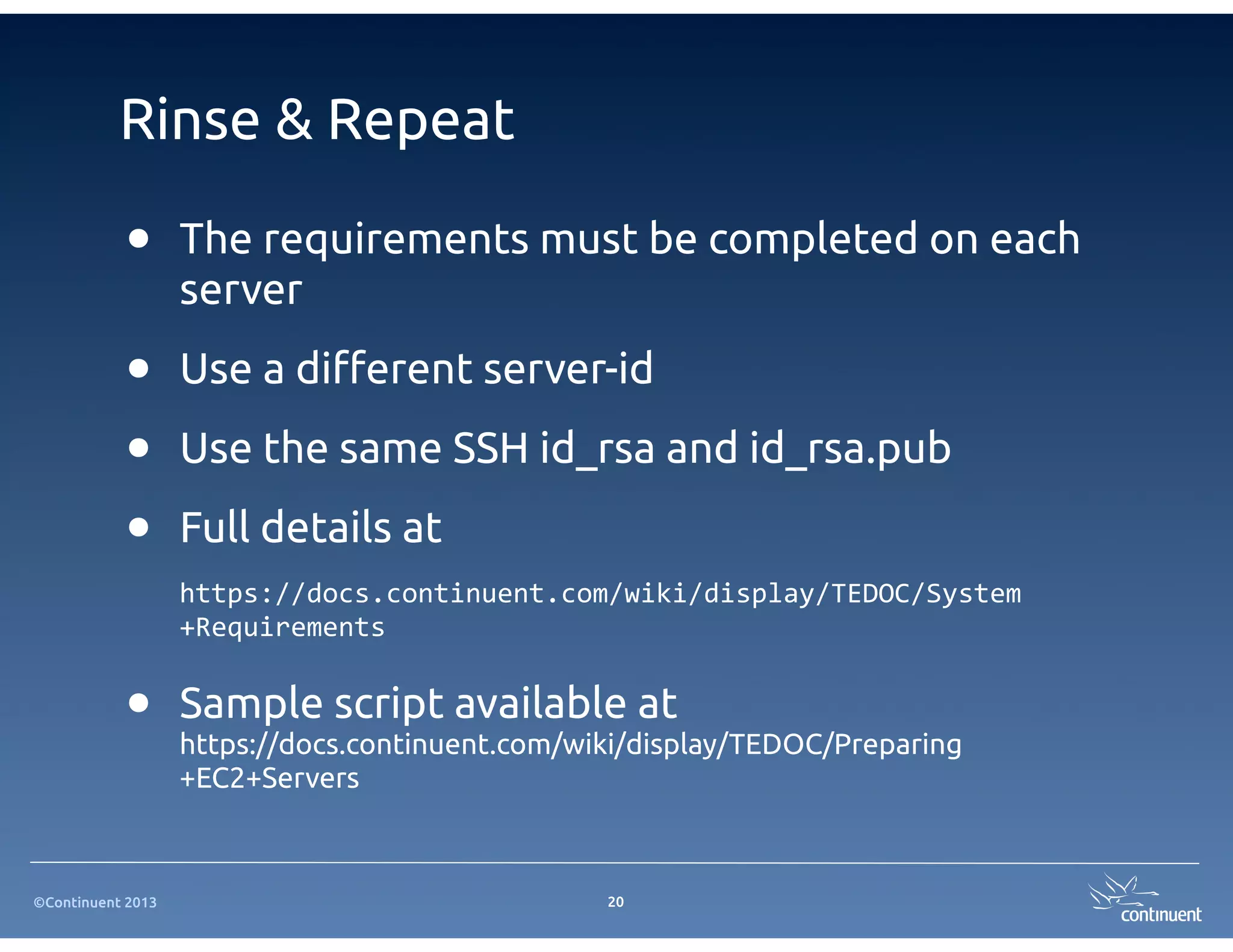

Rinse & Repeat
• The requirements must be completed on each
server
• Use a di!erent server-id
• Use the same SSH id_rsa and id_rsa.pub
• Full details at
https://docs.continuent.com/wiki/display/TEDOC/System
+Requirements
• Sample script available at
https://docs.continuent.com/wiki/display/TEDOC/Preparing
+EC2+Servers
20

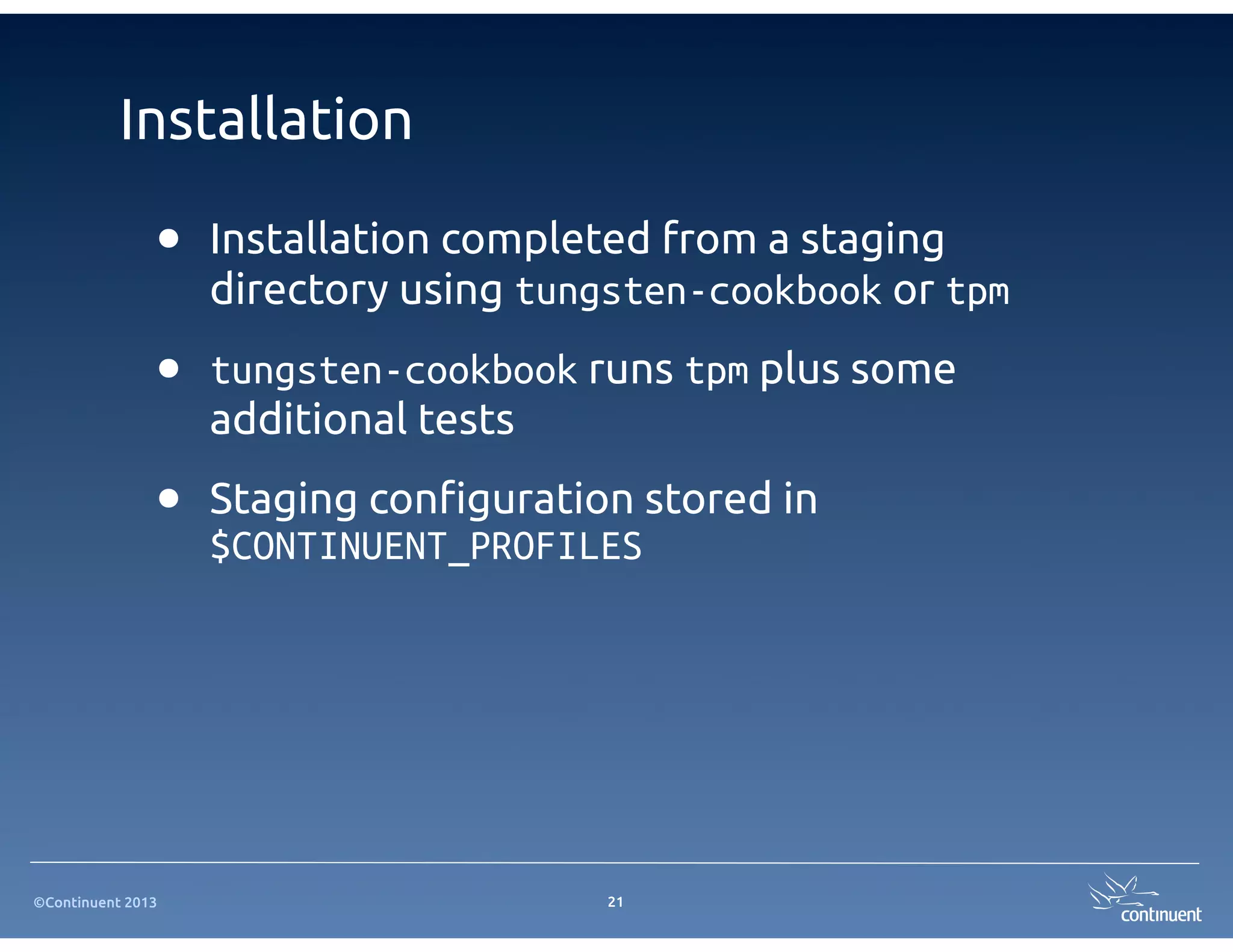

21. ©Continuent 2013
Installation
21
• Installation completed from a staging
directory using tungsten-cookbook or tpm
• tungsten-cookbook runs tpm plus some
additional tests
• Staging con"guration stored in
$CONTINUENT_PROFILES

22. ©Continuent 2013
Installation
$ db1> cd /opt/continuent/software
$ db1> wget http://dev.mysql.com/get/Downloads/Connector-J/
mysql-connector-java-5.1.22.tar.gz/from/http://cdn.mysql.com/
$ db1> tar zxf mysql-connector-java-5.1.22.tar.gz
# Upload the software to /opt/continuent/software on db1
$ db1> tar zxf continuent-tungsten-2.0.1-662.tar.gz
$ db1> cd continuent-tungsten-2.0.1-662
# See the next slides for USER_VALUES.sh content
$ db1> vi cookbook/USER_VALUES.sh
$ db1> ./cookbook/tungsten-cookbook sor --run-test
# Fix any errors and repeat the command until success
$ db1> . /opt/continuent/share/env.sh
22

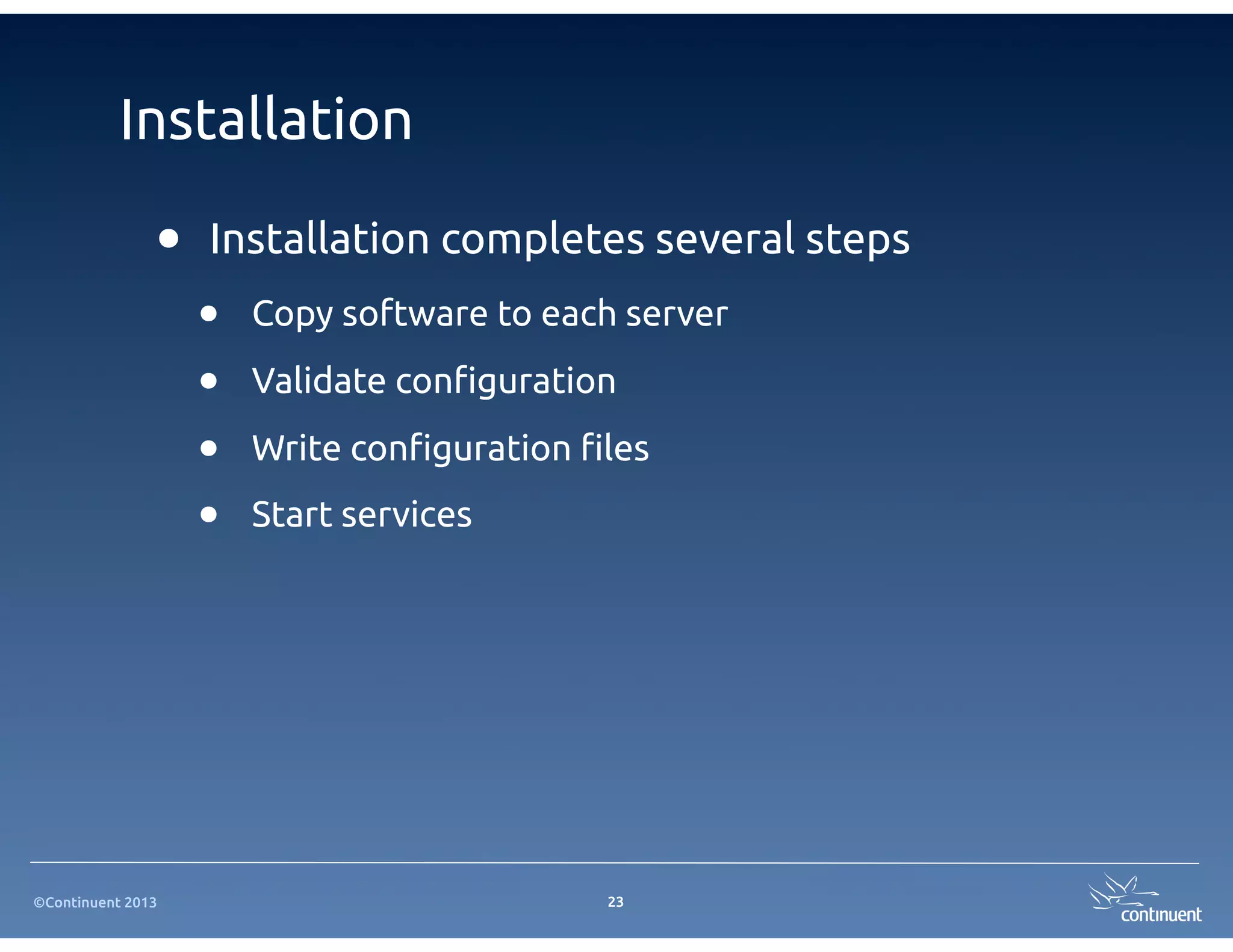

23. ©Continuent 2013
Installation
23
• Installation completes several steps
• Copy software to each server
• Validate con"guration
• Write con"guration "les
• Start services

24. ©Continuent 2013

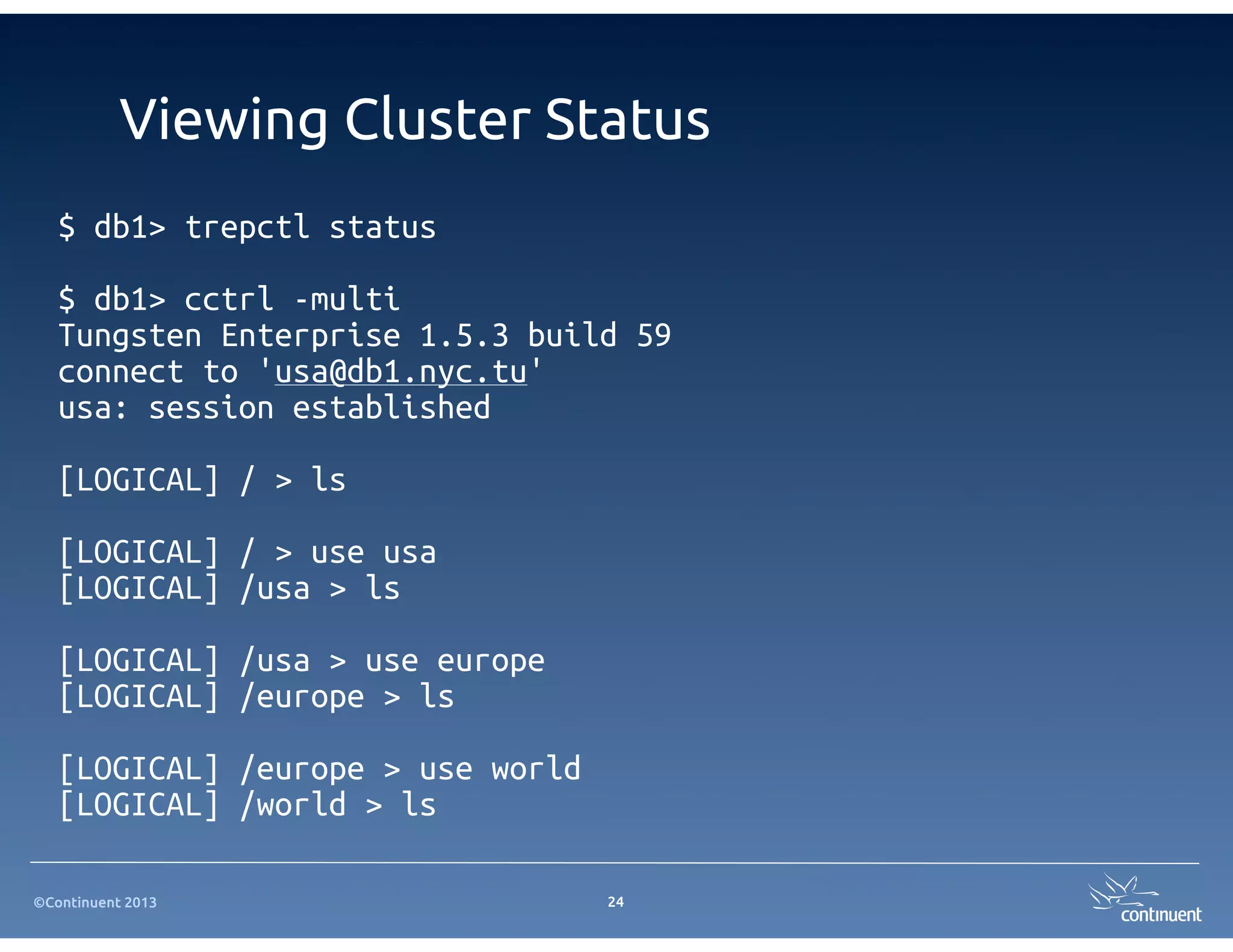

Viewing Cluster Status
24
$ db1> trepctl status
$ db1> cctrl -multi
Tungsten Enterprise 1.5.3 build 59
connect to 'usa@db1.nyc.tu'
usa: session established
[LOGICAL] / > ls
[LOGICAL] / > use usa
[LOGICAL] /usa > ls
[LOGICAL] /usa > use europe
[LOGICAL] /europe > ls
[LOGICAL] /europe > use world
[LOGICAL] /world > ls

25. ©Continuent 2013

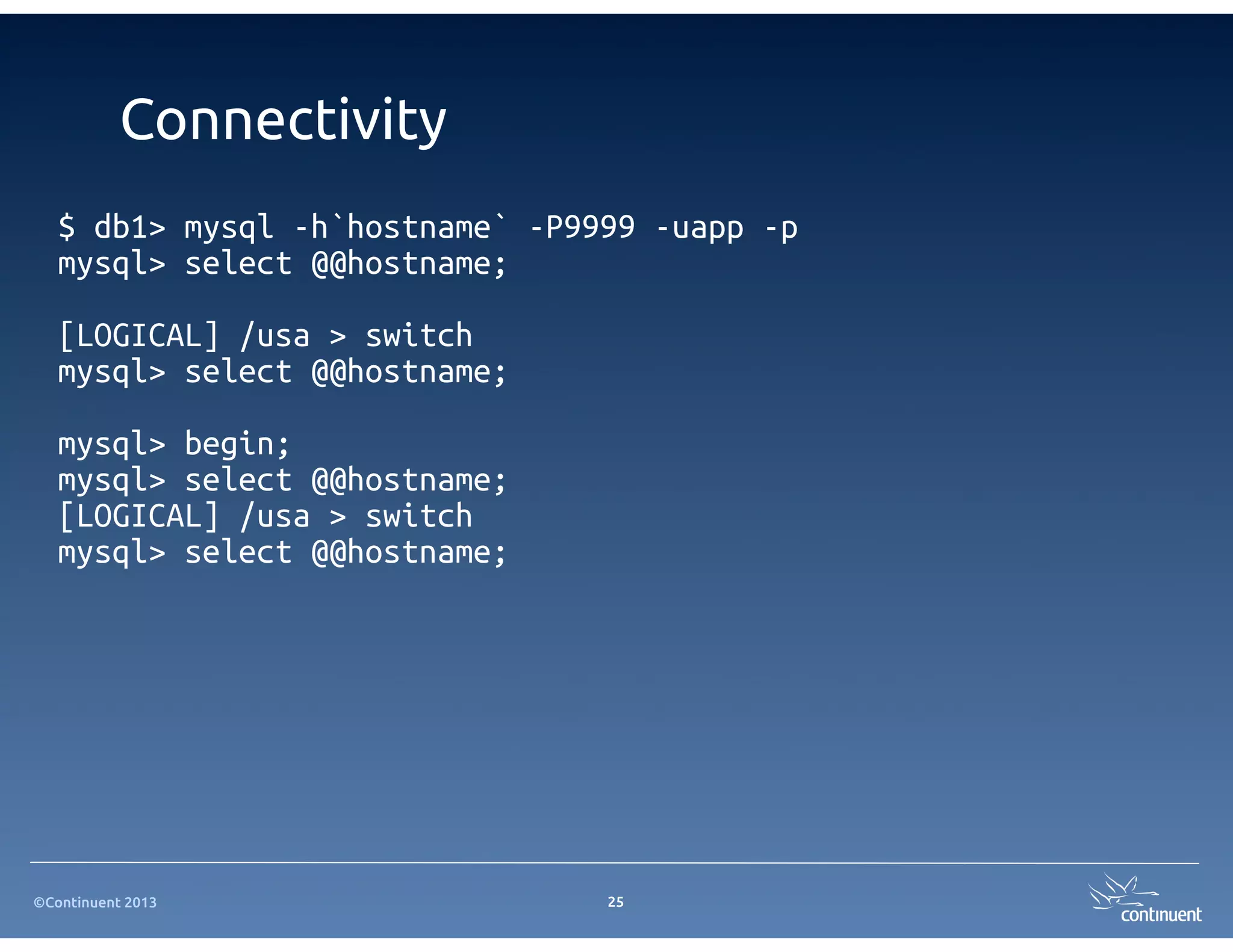

Connectivity
25
$ db1> mysql -h`hostname` -P9999 -uapp -p
mysql> select @@hostname;
[LOGICAL] /usa > switch
mysql> select @@hostname;
mysql> begin;
mysql> select @@hostname;
[LOGICAL] /usa > switch
mysql> select @@hostname;

26. ©Continuent 2013
Cluster Operations
26

27. ©Continuent 2013

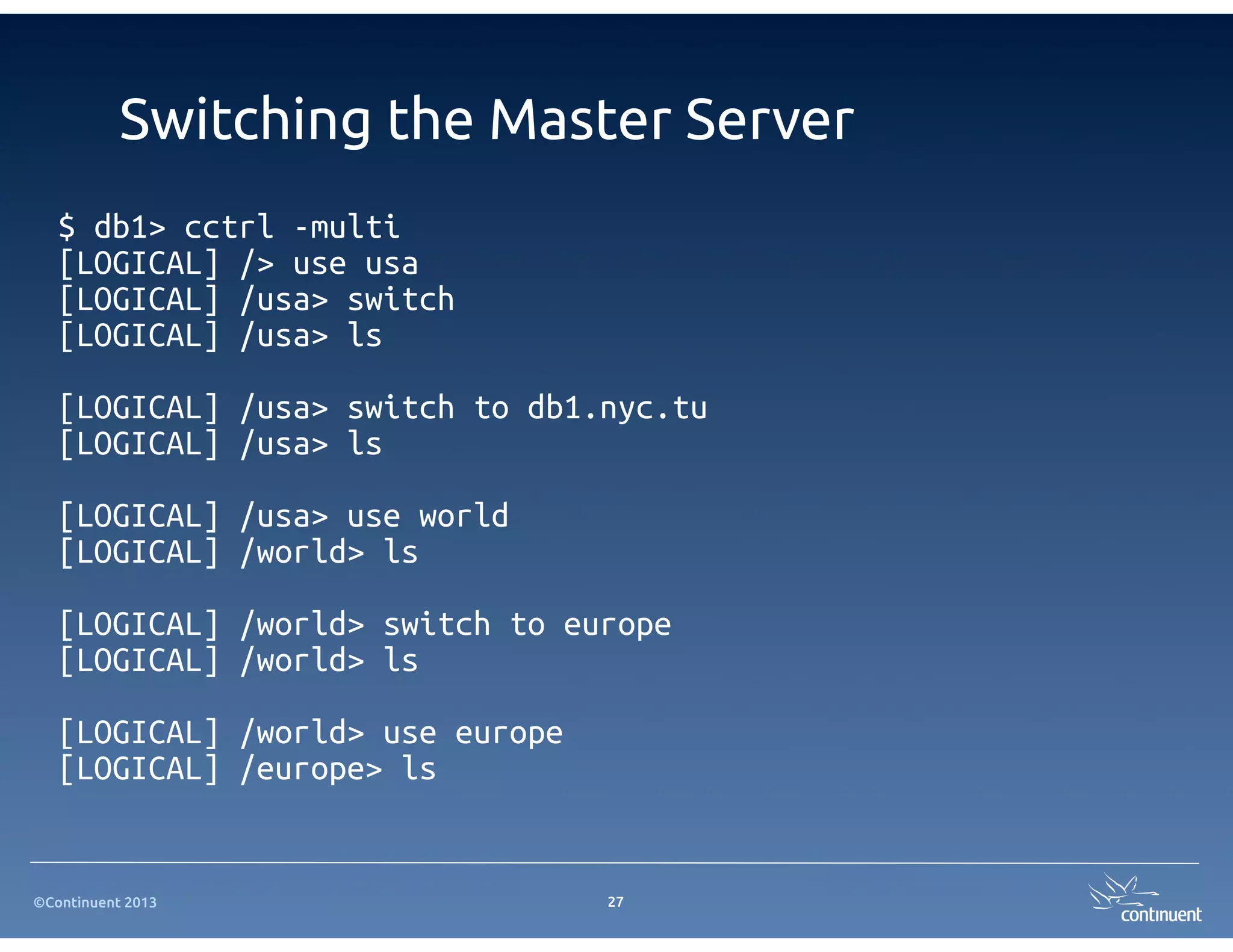

Switching the Master Server
27
$ db1> cctrl -multi
[LOGICAL] /> use usa
[LOGICAL] /usa> switch
[LOGICAL] /usa> ls
[LOGICAL] /usa> switch to db1.nyc.tu
[LOGICAL] /usa> ls
[LOGICAL] /usa> use world
[LOGICAL] /world> ls
[LOGICAL] /world> switch to europe
[LOGICAL] /world> ls
[LOGICAL] /world> use europe
[LOGICAL] /europe> ls

28. ©Continuent 2013

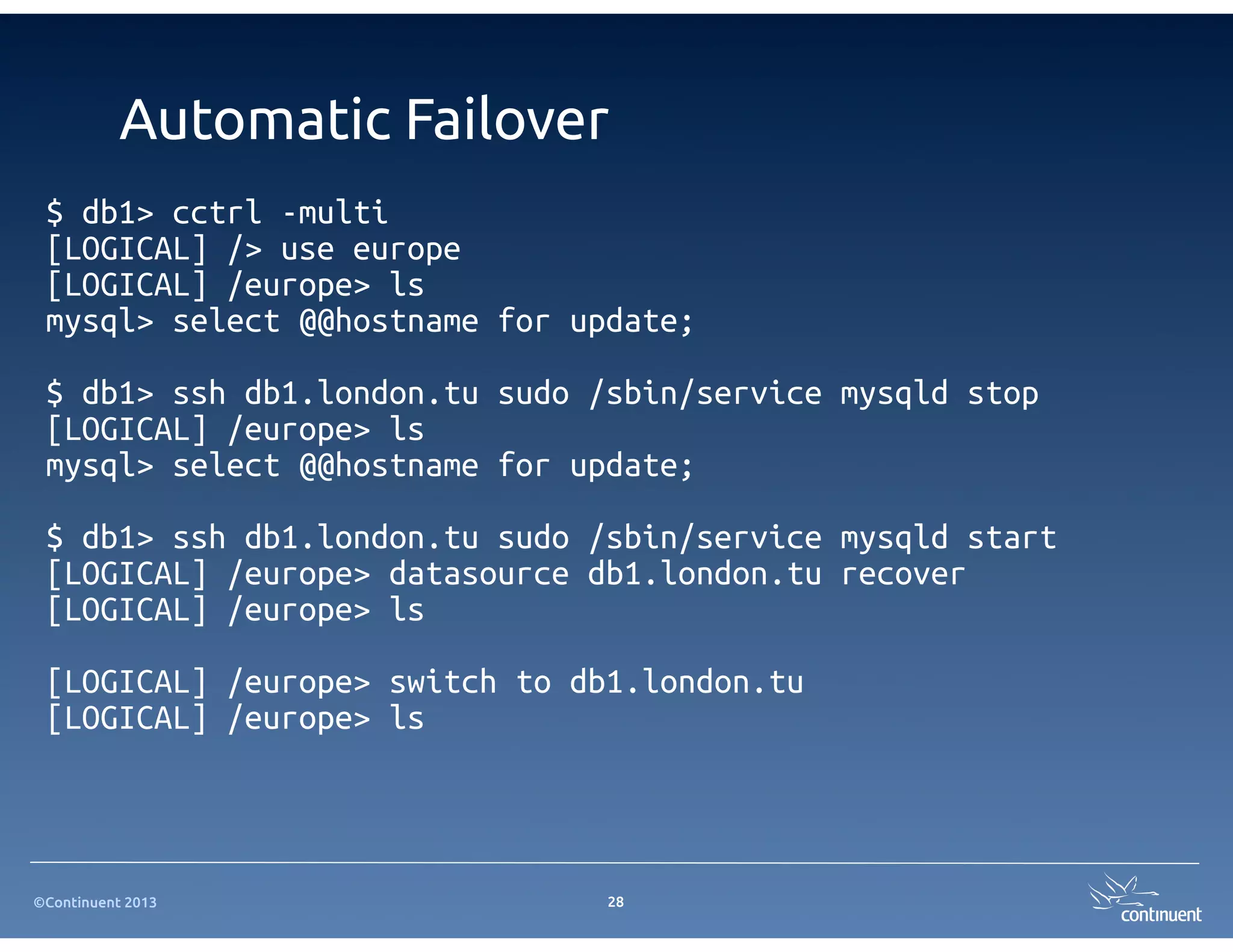

Automatic Failover
$ db1> cctrl -multi
[LOGICAL] /> use europe
[LOGICAL] /europe> ls
mysql> select @@hostname for update;
$ db1> ssh db1.london.tu sudo /sbin/service mysqld stop
[LOGICAL] /europe> ls
mysql> select @@hostname for update;
$ db1> ssh db1.london.tu sudo /sbin/service mysqld start
[LOGICAL] /europe> datasource db1.london.tu recover
[LOGICAL] /europe> ls
[LOGICAL] /europe> switch to db1.london.tu
[LOGICAL] /europe> ls
28

29. ©Continuent 2013
Online Upgrades
29

30. ©Continuent 2013

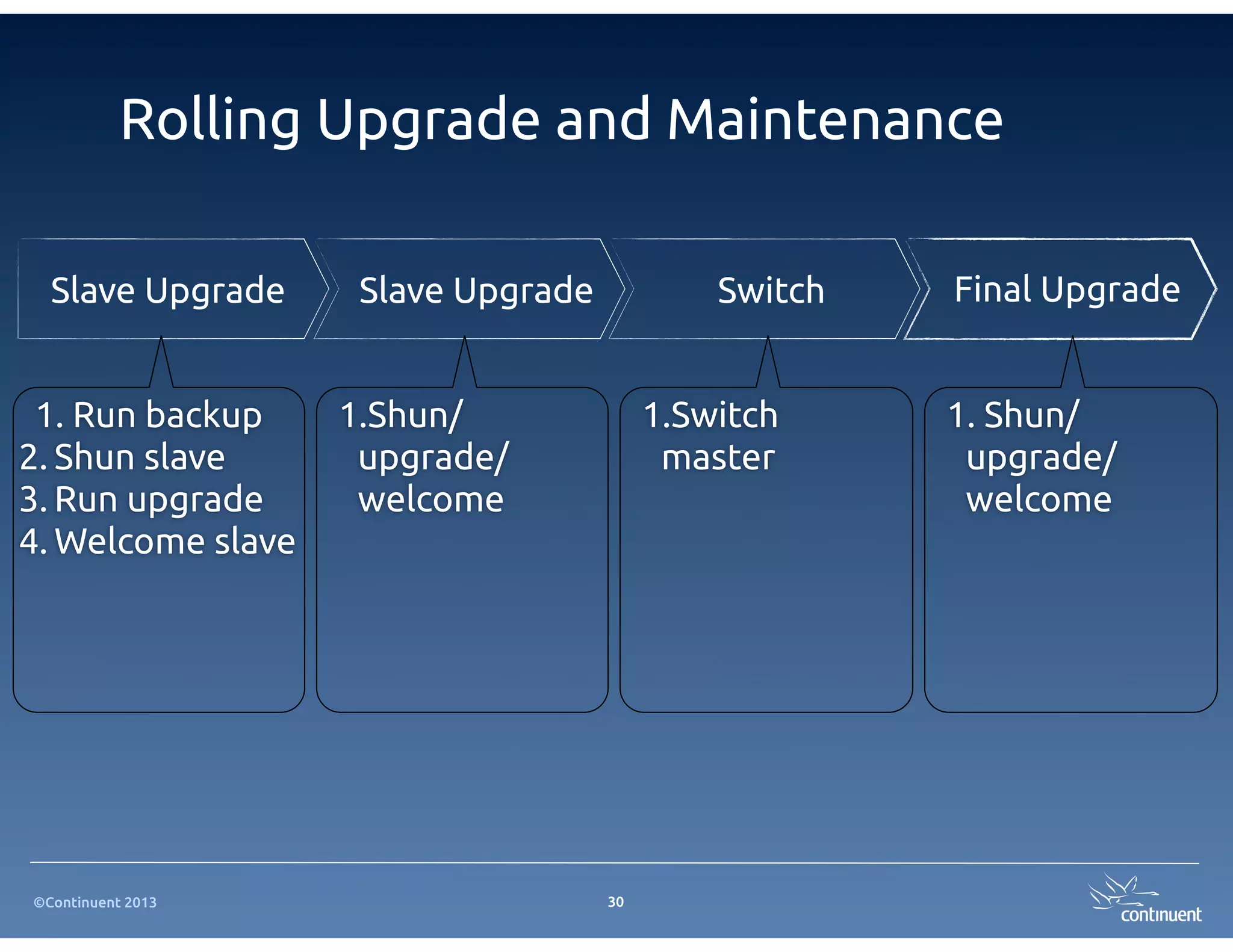

Rolling Upgrade and Maintenance
30
Final UpgradeSwitchSlave Upgrade Slave Upgrade
1. Run backup
2. Shun slave
3. Run upgrade
4. Welcome slave
1. Shun/
upgrade/
welcome
1.Shun/
upgrade/
welcome
1.Switch
master

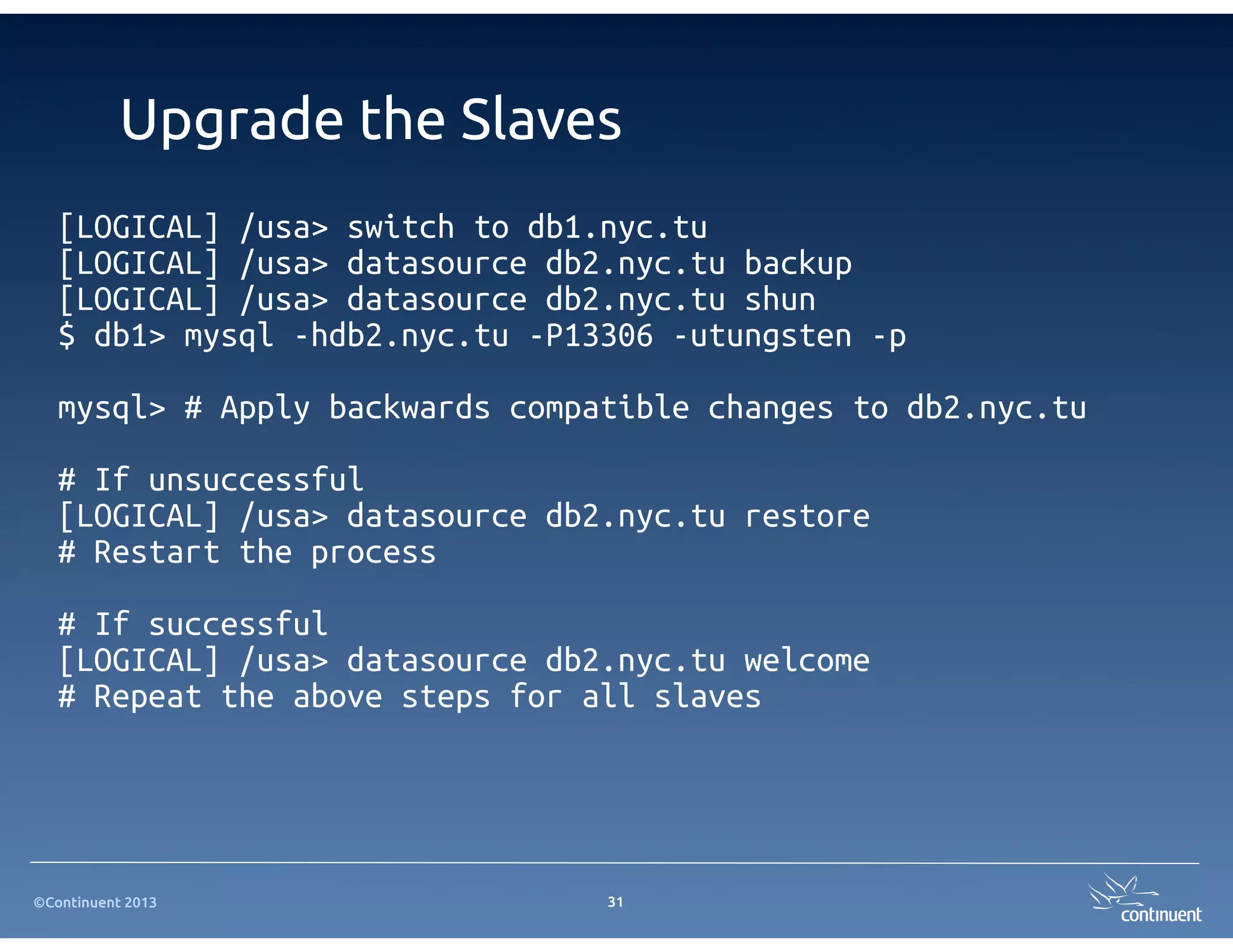

31. ©Continuent 2013
Upgrade the Slaves
31
[LOGICAL] /usa> switch to db1.nyc.tu
[LOGICAL] /usa> datasource db2.nyc.tu backup
[LOGICAL] /usa> datasource db2.nyc.tu shun
$ db1> mysql -hdb2.nyc.tu -P13306 -utungsten -p
mysql> # Apply backwards compatible changes to db2.nyc.tu
# If unsuccessful
[LOGICAL] /usa> datasource db2.nyc.tu restore
# Restart the process
# If successful
[LOGICAL] /usa> datasource db2.nyc.tu welcome
# Repeat the above steps for all slaves

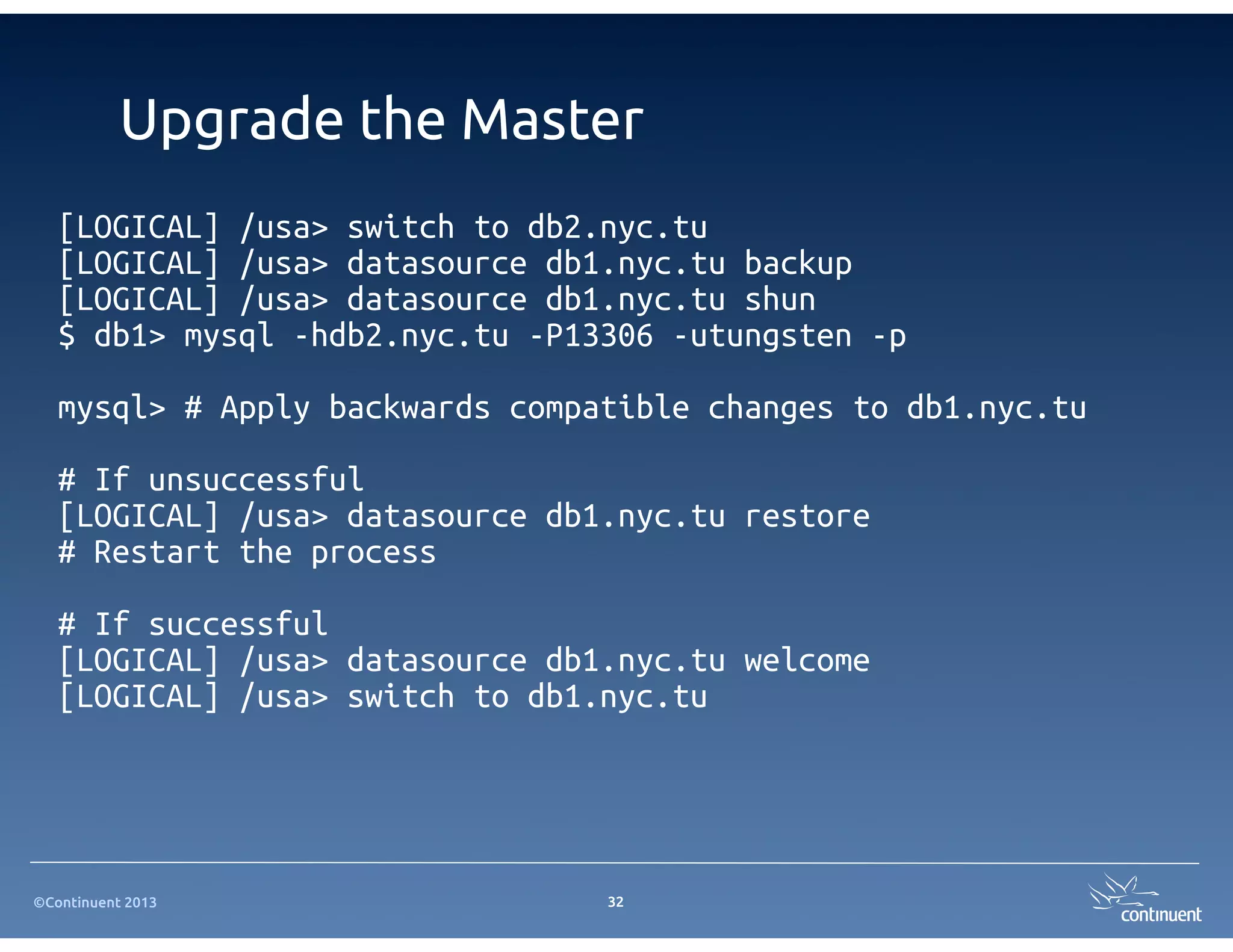

32. ©Continuent 2013
Upgrade the Master
[LOGICAL] /usa> switch to db2.nyc.tu
[LOGICAL] /usa> datasource db1.nyc.tu backup
[LOGICAL] /usa> datasource db1.nyc.tu shun
$ db1> mysql -hdb2.nyc.tu -P13306 -utungsten -p
mysql> # Apply backwards compatible changes to db1.nyc.tu
# If unsuccessful
[LOGICAL] /usa> datasource db1.nyc.tu restore
# Restart the process
# If successful
[LOGICAL] /usa> datasource db1.nyc.tu welcome
[LOGICAL] /usa> switch to db1.nyc.tu
32

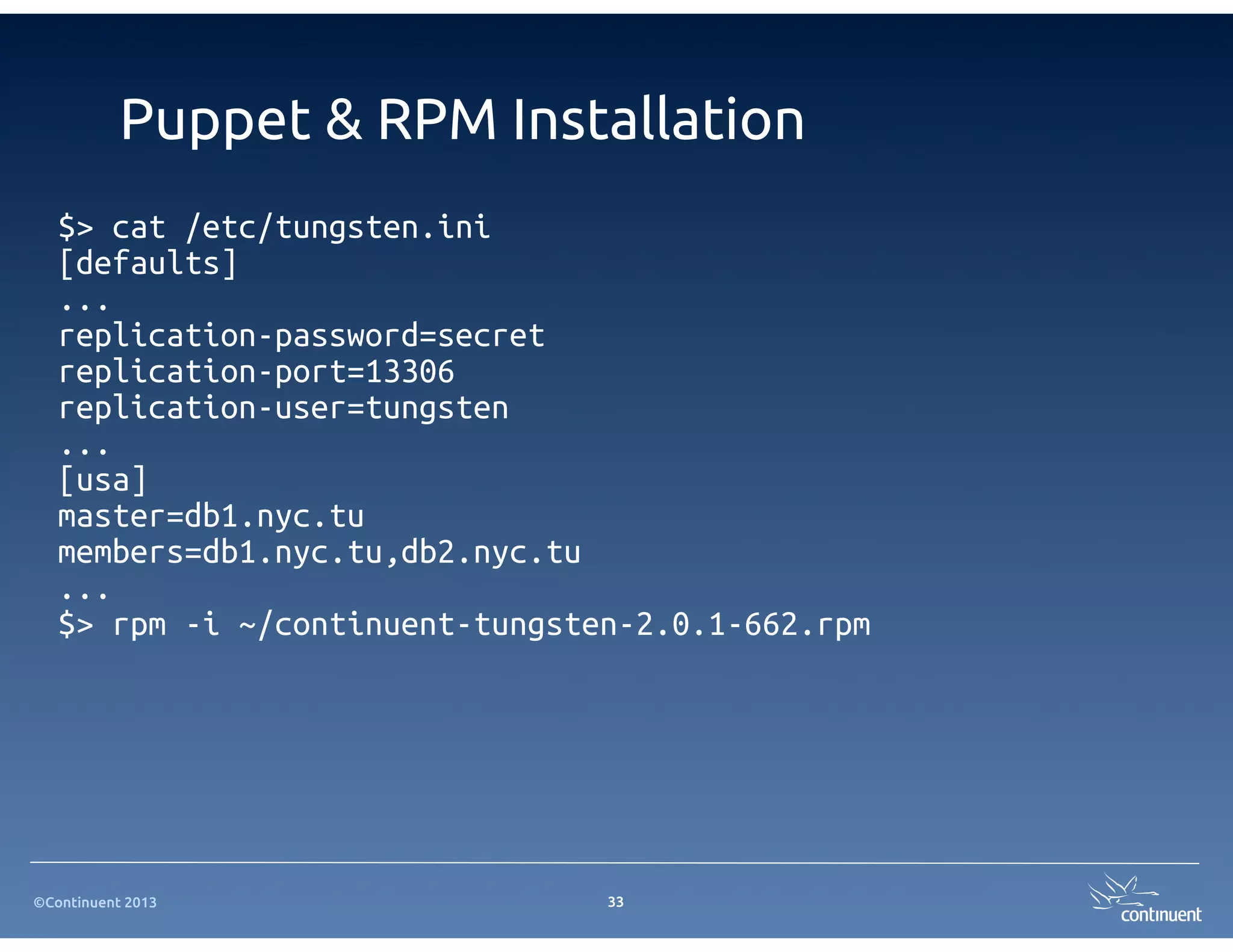

33. ©Continuent 2013
Puppet & RPM Installation
$> cat /etc/tungsten.ini
[defaults]
...
replication-password=secret
replication-port=13306
replication-user=tungsten
...
[usa]
master=db1.nyc.tu
members=db1.nyc.tu,db2.nyc.tu
...
$> rpm -i ~/continuent-tungsten-2.0.1-662.rpm
33

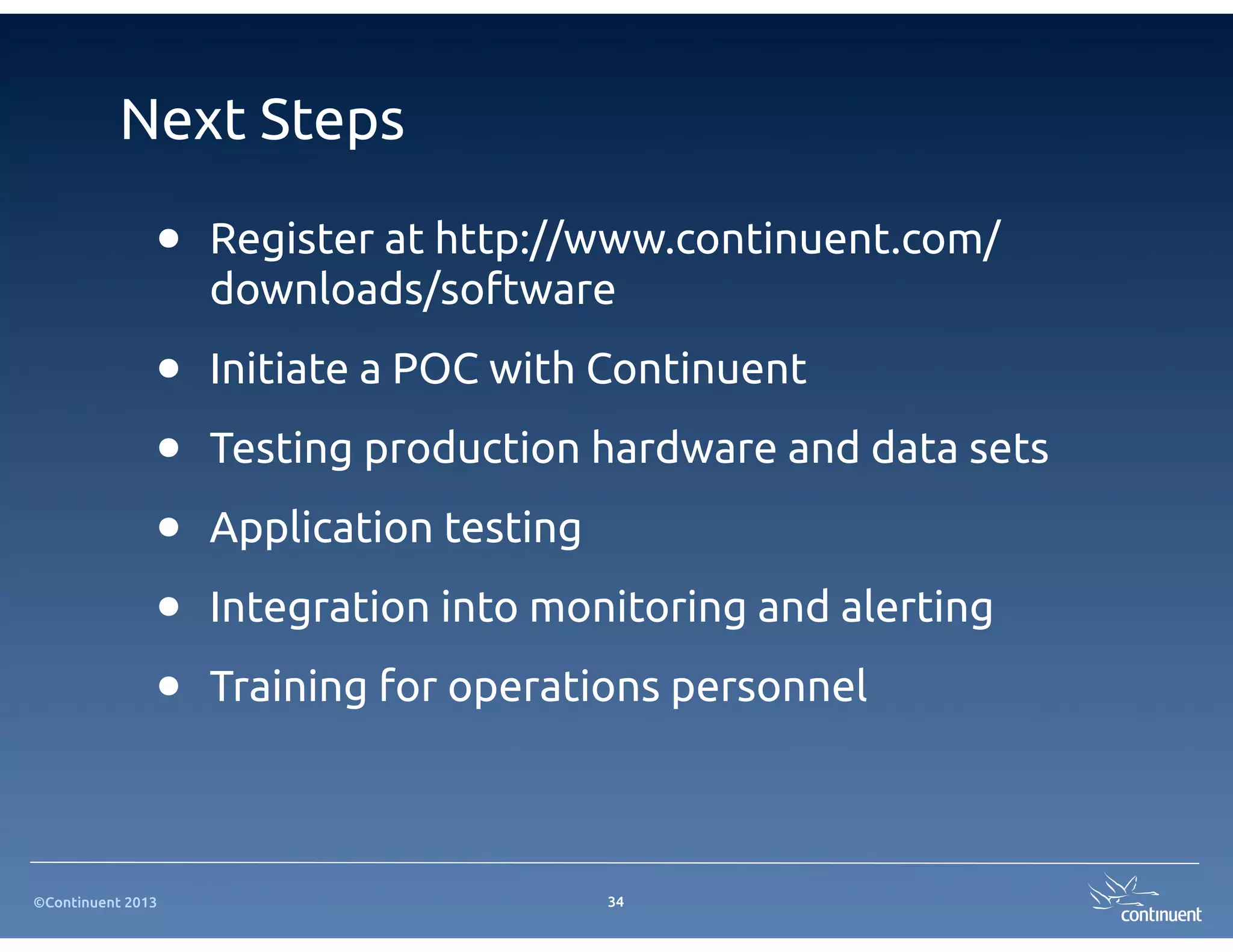

34. ©Continuent 2013
Next Steps
• Register at http://www.continuent.com/
downloads/software
• Initiate a POC with Continuent
• Testing production hardware and data sets
• Application testing
• Integration into monitoring and alerting
• Training for operations personnel
34

35. ©Continuent 2013
Wrap-Up and Questions
35

36. ©Continuent 2013
Feedback
36
• Send any feedback to
tu@continuent.com
