10. All Product Specifica on is protected by copyright. Specifica on subject to change without prior no ce.www.litech.cc
PRODUCT SPECIFICATION
.........................................................................................................................
1.0 General
This specifica on covers the design and performance of the drop cables to be used in FTTH applica on.
1.1 Cable Descrip on
2 Core LSZH Drop Cable with singlemode G657A fiber.
1.2 Quality
Litech ensures a con nuing level of quality in our cable products through several programs including ISO 9001.
1.3 Reliability
Litech ensures product reliability through rigorous qualifica on tes ng to assure the cable’s performance and durability in the field
environment.
1.4 Reference
1.5 Working Condi on
• Transporta on and storage temperature: -40°C～+60°C
• Installa on temperature: -30°C～+60°C
• Opera on temperature: -40°C～+60°C
1.6 Minimum Allowable Bending Radius
• Sta c: 10mm
• Dynamic: 20mm
1.7 Life Time
Op cal fiber cables supplied in compliance with the specifica ons can be capable of withstanding the typical service condi on for
a period of twenty-five (25) years without detriment to the transmission or opera on and maintenance characteris cs of the
cable.
ITU-T G.657
IEC 60794-1-1
IEC 60794-1-2
IEC 60794-2
IEC 60794-2-20
IEC 60332-2-2
IEC 61034-2
IEC 60754-1
Characteris cs of a bending loss insensi ve single mode op cal fiber and cable for the access network
Op cal fiber cables- part1-1-Generic specifica on-General
Op cal fiber cables- part1-2-Generic specifica on-Basic op cal cable test procedure
Op cal fiber cables- part2- Indoor cables-Sec onal specifica on
Op cal fiber cables- part2-20- Indoor cables-Family specifica on for mul -fiber op cal distribu on cables
IEC 60332-2_2 Tests on electric and op cal fibre cables Under Fire Condi on
Measurement of smoke density of cables burning under defined condi ons - Part 2: Test procedure and
requirements
Test on gases evolved during combus on of materials from cables; part 1: determina on of the amount of
halogen acid gas
Fiber Optic
Product :
Op cal Fiber Cable - Drop Cable G657A
Document No. : 1.1.15.1_Vr3 Rev1.1
Page No : 1 of 5
IEC 60794-1-1 Op cal fiber cables- part1-1-Generic specifica on-General
IEC 60794-2 Op cal fiber cables- part2- Indoor cables-Sec onal specifica on
IEC 60332-2-2 IEC 60332-2_2 Tests on electric and op cal fibre cables Under Fire Condi on
IEC 60754-1 Test on gases evolved during combus on of materials from cables; part 1: determina on of the amount of
halogen acid gas

11. All Product Specifica on is protected by copyright. Specifica on subject to change without prior no ce.www.litech.cc
PRODUCT SPECIFICATION
.........................................................................................................................
Fiber Optic
2. Op cal Fiber In Cable (ITU-G657A1)
Cladding diameter
Cladding non-circularity
Coa ng diameter
Fiber curl (Radius)
Mode field diameter at 1310 nm
Core concentricity error
A enua on at 1310 nm
A enua on at 1380 nm
A enua on at 1550 nm
A enua on at 1625 nm
Dispersion in 1288 – 1339 nm
Dispersion in 1271 – 1360 nm
Dispersion at 1550 nm
Zero dispersion wavelength
Zero dispersion slope
Cable cut-off wavelength
Polariza on mode dispersion individual fiber
Polariza on mode dispersion design link value
(M=20, Q=0.01%)
Proof stress level
Macro-bend loss
(10 turns, 15mm radius,)
Macro-bend loss
(1 turns, 10mm radius,)
125.0 ± 0.7 μm
≤ 1.0 %
245±10 μm(Before Colored)
250 ± 15 μm (Colored)
≥ 4 m
8.6-9.5 ± 0.4 μm
≤ 0.5 μm
≤ 0.35 dB/km
≤ 0.35 dB/km
≤ 0.21 dB/km
≤ 0.23 dB/km
≤ 3.5 ps/(nm·km)
≤ 5.3 ps/(nm·km)
≤ 18 ps/(nm·km)
1300 – 1324 nm
≤ 0.092 ps/(nm2·km)
≤ 1260 nm
≤ 0.2 ps/ km
≤ 0.1 ps/ km
≥100kpsi (0.69 GPa)
≤ 0.25 dB at 1550nm
≤ 1 dB at 1625nm
≤ 0.75 dB at 1550nm
≤ 1.5 dB at 1625nm
≤ 0.40 dB/km
≤ 0.40 dB/km
≤ 0.30 dB/km
≤ 0.32 dB/km
Geometrical
Characteris cs
Op cal
Characteris cs
Mechanical
Specifica on
Category Descrip on
Specifica on
Before cable A er cable
Product :
Op cal Fiber Cable - Drop Cable G657A
Document No. : 1.1.15.1_Vr3 Rev1.1
Page No : 2 of 5

12. All Product Specifica on is protected by copyright. Specifica on subject to change without prior no ce.www.litech.cc
PRODUCT SPECIFICATION
.........................................................................................................................
Fiber Optic
Product :
Op cal Fiber Cable - Drop Cable G657A
Document No. : 1.1.15.1_Vr3 Rev1.1
Page No : 3 of 5
FRP
Op cal fiber
Sheath
Strength element
Outer sheath
Cable diameter(mm) Approx.
Cable weight(kg/km) Approx.
Material
Diameter(mm)
Count
Material
Color
FRP
0.5±0.1
2
LSZH
White/Beige/Black
3.0（±0.2）*2.0（±0.2）
9.0 ±0.1 kg/km
A er cableA er cableA er cable
3.2.2 Dimensions and Descrip ons of Cable Construc ons
3.2.3 Mechanical Performance of Cable
3.2.4 Color Code of the Fiber
Each fiber can be iden fiable throughout the length of the cable in accordance with the following color sequence.
Fiber color in each tube starts from No. 1 Blue.
100 50 1000 500
Tensile performance(N) Crush(N/100mm)
Short term Short termLong term Long term
No. 1 2
Color Blue Yellow
3.0 Op c Cable
3.1 General Design
Op cal fibers are posi oned in the centre. Two parallel strength elements are place at the two sides. Then, the cable is completed with
a black LSZH sheath. FRP are applied as strength element. LSZH sheath is applied over the cable core.
3.2 Construc on
3.2.1 Cross Sec on of Cable

13. All Product Specifica on is protected by copyright. Specifica on subject to change without prior no ce.www.litech.cc
PRODUCT SPECIFICATION
.........................................................................................................................
Fiber Optic
Product :
Op cal Fiber Cable - Drop Cable G657A
Document No. : 1.1.15.1_Vr3 Rev1.1
Page No : 4 of 5
3.3 Mechanical, Electrical and Environmental Test Characteris csof the Fiber
Tensile
performance
Crush
Impact
Bend
Repeated
bending
Cable bending
at low temperature
Cable torsion
Cable kink
Temperature
cycling
Flame propaga on
Emission of smoke
Emission of corrosive
gases
Other
parameters
Item Test Method Requirements
IEC 60794-1-2-E1
Load: 80N or weight of 1 km cable,whichever is greater.
Cable length under tension: Not less than 50m.
Dura on of load sustain: 5min.
Velocity of transfer device: either 100 mm/min
Diameter of chuck drums and transfer devices:20 mes
cable diameter
IEC 60794-1-2-E3
Load: 1000N
Dura on of load: 1min
Length between test loca ons: 500 mm
IEC 60794-1-2-E4
Striking surface Radius: 12.5mm
Impact energy: 1J
Number of impacts: at least 3, each separated at least
500 mm
Height:1m
IEC 60794-1-2-E11A
Mandrel radius: ± 15 mes cable diameter
Turns:10
Cycles:6
IEC 60794-1-2-E6
Bending radius: 30 mes cable diameter
Cycles: 300
Mass of weights: 4 kg
IEC 60794-1-2-E11A
Bending radius: 10 mes cable diameter
Tes ng temperature: -15°C
Cycles:2
IEC 60794-1-2-E7
Cycles:10
Turns: ±180°
clamp:1m
Tension load: 20N
IEC 60794-1-2-E10
Min. loop diameter: 30 mm.
IEC 60794-1-2-F1
Temperature range: －40°C～＋60°C
Cycles:2
Dura on: 8 hours
IEC 60332-2-2
IEC 61034-2
IEC 60754-1 and 60754-2
According to IEC 60794 ,YD/T 1997-2009
- Total fiber strain less than 0.4%
under rated tensile load.
- No change in a enua on a er the test.
- No damage to the cable elements.
- The maximum increase in
a enua on less than 0.4dB.
- No change in a enua on a er the test.
- No damage to the cable elements.
- The maximum increase in
a enua on less than 0.4dB.
- No damage to the cable elements.
- No fiber breakage.
- The maximum increase in a enua on
less than 0.4dB.
- No damage to the cable elements.
- Under visual examina on without
magnifica on, no damage to the sheath,
no fiber breakage during the test.
- The maximum increase in a enua on
less than 0.4dB.
- No damage to the cable elements.
- No kink occur.
- The maximum increase (1550nm) in
a enua on shall be less than 0.4dB
- IEC 60332-2-2 Annex A
- Minimum light transmi ance is 50%
- pH ≥4.2

14. All Product Specifica on is protected by copyright. Specifica on subject to change without prior no ce.www.litech.cc
PRODUCT SPECIFICATION
.........................................................................................................................
Fiber Optic
Product :
Op cal Fiber Cable - Drop Cable G657A
Document No. : 1.1.15.1_Vr3 Rev1.1
Page No : 5 of 5
4. Packing & Marking
4.1 Prin ng on op cal fiber cable
Unless otherwise specified, white prin ngs are printed at intervals of 1m with the following informa on:
• Metre marks
• Type of cable and fiber count
• Name of manufacture
• Year of manufatured
Packing of op cal cable:
• Standard length: 1 or 2km/reel
4.2 Wooden Reel Label & Marking
4.2.1 Content of label:
• Type of cable, fiber count
• Length
• Gross weight KGS
• Reel No
• Year of manufacture
4.2.2 Marking
The following are mark on the outside of reel flanges:
• Arrow indica ng the direc on of winding

15. All Product Specifica on is protected by copyright. Specifica on subject to change without prior no ce.www.litech.cc
PRODUCT SPECIFICATION
.........................................................................................................................
1.0 General
This specifica on covers the design and performance of the drop cables to be used in FTTH applica on.
1.1 Cable Descrip on
2 Core LSZH Drop Cable with singlemode G657A fiber.
1.2 Quality
Litech ensures a con nuing level of quality in our cable products through several programs including ISO 9001.
1.3 Reliability
Litech ensures product reliability through rigorous qualifica on tes ng to assure the cable’s performance and durability in the field
environment.
1.4 Reference
1.5 Working Condi on
• Transporta on and storage temperature: -40°C～+60°C
• Installa on temperature: -30°C～+60°C
• Opera on temperature: -40°C～+60°C
1.6 Minimum Allowable Bending Radius
• Sta c: 10mm
• Dynamic: 20mm
1.7 Life Time
Op cal fiber cables supplied in compliance with the specifica ons can be capable of withstanding the typical service condi on for
a period of twenty-five (25) years without detriment to the transmission or opera on and maintenance characteris cs of the
cable.
ITU-T G.657
IEC 60794-1-1
IEC 60794-1-2
IEC 60794-2
IEC 60794-2-20
IEC 60332-2-2
IEC 61034-2
IEC 60754-1
Characteris cs of a bending loss insensi ve single mode op cal fiber and cable for the access network
Op cal fiber cables- part1-1-Generic specifica on-General
Op cal fiber cables- part1-2-Generic specifica on-Basic op cal cable test procedure
Op cal fiber cables- part2- Indoor cables-Sec onal specifica on
Op cal fiber cables- part2-20- Indoor cables-Family specifica on for mul -fiber op cal distribu on cables
IEC 60332-2_2 Tests on electric and op cal fibre cables Under Fire Condi on
Measurement of smoke density of cables burning under defined condi ons - Part 2: Test procedure and
requirements
Test on gases evolved during combus on of materials from cables; part 1: determina on of the amount of
halogen acid gas
Fiber Optic
Product :
Op cal Fiber Cable - Outdoor Drop Cable G657A
Page No : 1 of 5
IEC 60794-1-1 Op cal fiber cables- part1-1-Generic specifica on-General
IEC 60794-2 Op cal fiber cables- part2- Indoor cables-Sec onal specifica on
IEC 60332-2-2 IEC 60332-2_2 Tests on electric and op cal fibre cables Under Fire Condi on
IEC 60754-1 Test on gases evolved during combus on of materials from cables; part 1: determina on of the amount of
halogen acid gas

16. All Product Specifica on is protected by copyright. Specifica on subject to change without prior no ce.www.litech.cc
PRODUCT SPECIFICATION
.........................................................................................................................
Fiber Optic
2. Op cal Fiber In Cable (ITU-G657A1)
Cladding diameter
Cladding non-circularity
Coa ng diameter
Fiber curl (Radius)
Mode field diameter at 1310 nm
Core concentricity error
A enua on at 1310 nm
A enua on at 1380 nm
A enua on at 1550 nm
A enua on at 1625 nm
Dispersion in 1288 – 1339 nm
Dispersion in 1271 – 1360 nm
Dispersion at 1550 nm
Zero dispersion wavelength
Zero dispersion slope
Cable cut-off wavelength
Polariza on mode dispersion individual fiber
Polariza on mode dispersion design link value
(M=20, Q=0.01%)
Proof stress level
Macro-bend loss
(10 turns, 15mm radius)
125.0 ± 0.7 μm
≤ 1.0 %
245±10 μm(Before Colored)
250 ± 15 μm (Colored)
≥ 4 m
8.6-9.5 ± 0.4 μm
≤ 0.5 μm
≤ 0.35 dB/km
≤ 0.35 dB/km
≤ 0.21 dB/km
≤ 0.23 dB/km
≤ 3.5 ps/(nm·km)
≤ 5.3 ps/(nm·km)
≤ 18 ps/(nm·km)
1300 – 1324 nm
≤ 0.092 ps/(nm2·km)
≤ 1260 nm
≤ 0.2 ps/ km
≤ 0.1 ps/ km
≥100kpsi (0.69 GPa)
≤ 0.03dB
≤ 0.10 dB
≤ 0.40 dB/km
≤ 0.40 dB/km
≤ 0.30 dB/km
≤ 0.32 dB/km
Geometrical
Characteris cs
Op cal
Characteris cs
Mechanical
Specifica on
Category Descrip on
Specifica on
Before cable A er cable
Product :
Op cal Fiber Cable - Outdoor Drop Cable G657A
Page No : 2 of 5

17. All Product Specifica on is protected by copyright. Specifica on subject to change without prior no ce.www.litech.cc
PRODUCT SPECIFICATION
.........................................................................................................................
Fiber Optic
Product :
Op cal Fiber Cable - Outdoor Drop Cable G657A
Page No : 3 of 5
Strength element
Outer sheath
Cable diameter(mm) Approx.
Cable weight(kg/km) Approx.
Material
Diameter(mm)
Count
Material
Color
FRP
0.5 ± 0.1
Steel Wire
1.0
2
LSZH
Black
5.2 (±0.2) * 2.0 (±0.2)
21.5
A er cableA er cableA er cable
3.2.2 Dimensions and Descrip ons of Cable Construc ons
3.2.3 Mechanical Performance of Cable
3.2.4 Color Code of the Fiber
Each fiber can be iden fiable throughout the length of the cable in accordance with the following color sequence.
660 200 2200 300
Tensile performance(N) Crush(N/100mm)
Short term Short termLong term Long term
No. 1 2
Color Blue Yellow
3.0 Op c Cable
3.1 General Design
Op cal fibers are posi oned in the centre. Two parallel strength elements are place at the two sides. Then, the cable is completed with
a black LSZH sheath. FRP are applied as strength element. LSZH sheath is applied over the cable core.
3.2 Construc on
3.2.1 Cross Sec on of Cable
FRP
Op cal fiber
Messenger Wire

18. All Product Specifica on is protected by copyright. Specifica on subject to change without prior no ce.www.litech.cc
PRODUCT SPECIFICATION
.........................................................................................................................
Fiber Optic
Product :
Op cal Fiber Cable - Outdoor Drop Cable G657A
Page No : 4 of 5
3.3 Mechanical, Electrical and Environmental Test Characteris csof the Fiber
Tensile
performance
Crush
Impact
Bend
Repeated
bending
Cable bending
at low temperature
Cable torsion
Cable kink
Temperature
cycling
Flame propaga on
Emission of smoke
Emission of corrosive
gases
Other
parameters
Item Test Method Requirements
IEC 60794-1-2-E1
Load: 600N or weight of 1 km cable,whichever is greater.
Cable length under tension: Not less than 50m.
Dura on of load sustain: 1min.
Velocity of transfer device: either 100 mm/min
Diameter of chuck drums and transfer devices:20 mes
cable diameter
IEC 60794-1-2-E3
Load: 2200N
Dura on of load: 1min
Length between test loca ons: 500 mm
IEC 60794-1-2-E4
Striking surface Radius: 12.5mm
Impact energy: 1N
Number of impacts: at least 3, each separated at least
500 mm
Height:1m
IEC 60794-1-2-E11A
Mandrel radius: ± 15 mes cable diameter
Turns:10
Cycles:6
IEC 60794-1-2-E6
Bending radius: 30 mes cable diameter
Cycles: 300
Mass of weights: 4 kg
IEC 60794-1-2-E11A
Bending radius: 10 mes cable diameter
Tes ng temperature: -15°C
Cycles:2
IEC 60794-1-2-E7
Cycles:10
Turns: ±180°
clamp:1m
Tension load: 20N
IEC 60794-1-2-E10
Min. loop diameter: 30 mm.
IEC 60794-1-2-F1
Temperature range: －40°C～＋60°C
Cycles:2
Dura on: 8 hours
IEC 60332-2-2
IEC 61034-2
IEC 60754-1 and 60754-2
According to IEC 60794 ,YD/T 1997-2009
- Total fiber strain less than 0.4%
under rated tensile load.
- No change in a enua on a er the test.
- No damage to the cable elements.
- The maximum increase in
a enua on less than 0.4dB.
- No change in a enua on a er the test.
- No damage to the cable elements.
- The maximum increase in
a enua on less than 0.4dB.
- No damage to the cable elements.
- No fiber breakage.
- The maximum increase in a enua on
less than 0.4dB.
- No damage to the cable elements.
- Under visual examina on without
magnifica on, no damage to the sheath,
no fiber breakage during the test.
- The maximum increase in a enua on
less than 0.4dB.
- No damage to the cable elements.
- No kink occur.
- The maximum increase (1550nm) in
a enua on shall be less than 0.4dB
- IEC 60332-2-2 Annex A
- Minimum light transmi ance is 50%
- pH ≥4.2

19. All Product Specifica on is protected by copyright. Specifica on subject to change without prior no ce.www.litech.cc
PRODUCT SPECIFICATION
.........................................................................................................................
Fiber Optic
Product :
Op cal Fiber Cable - Outdoor Drop Cable G657A
Page No : 5 of 5
4. Packing & Marking
4.1 Prin ng on op cal fiber cable
Unless otherwise specified, white prin ngs are printed at intervals of 1m with the following informa on:
• Metre marks
• Type of cable and fiber count
• Name of manufacture
• Year of manufatured
Packing of op cal cable:
• Standard length: 1 or 2km/reel
4.2 Wooden Reel Label & Marking
4.2.1 Content of label:
• Type of cable, fiber count
• Length
• Gross weight KGS
• Reel No
• Year of manufacture
4.2.2 Marking
The following are mark on the outside of reel flanges:
• Arrow indica ng the direc on of winding

20. FTTH Solutions -
Outdoor Subscriber Distribution Box
2 Port
FTTH Solutions -
Outdoor Subscriber Distribution Box
2 Port
•All Product Specification is protected by copyright. Specification subject to change without prior notice.•
FiberOpticDataSheet•1.7.3.2.8_Rev1.0
1 of 1
Features
• Quick installation
• Accommodate up to 2 pieces of SC, FC, LC or E2000 adapter.
• Traditional swing frame design allow for access to the back section of the box
• Can be used as splice box or FTTH drop cable fiber distribution.
• Can be wall and pole mount.
• Suitable for indoor and outdoor use.
Application
• FTTH deployment
• CATV system application
• Premise location
Part Number Description
Ordering Information
LTOC-FTH-OSDB-2 Outdoor Subscriber Distribution Box 2 port
Parameter Specification
Product Specification
Dimension
Material
Protection Rating
172mm (H) x 120mm (W) x 30mm(D)
ABS + Polycarbonate (PC)
IP 55
This mini OSDB can cater up to 2 core connections. It can be splice and patch whereby it has a
traditional swing frame design provide access to adapters at the back section of the box.It is suitable
for plug and play drop cable connections with field installable connector on the distribution side for
easy connection. It contains cable strain relief for incoming cable and drop cable to avoid pull out.

21. FTTH Solutions -
Outdoor Subscriber Distribution Box
12 Port
FTTH Solutions -
Outdoor Subscriber Distribution Box
12 Port
•All Product Specification is protected by copyright. Specification subject to change without prior notice.•
FiberOpticDataSheet•1.7.3.2.9_Rev1.0
1 of 1
This compact OSDB can cater up to 12 core connection. It can be splice and patch whereby it has a
unique swing frame design provide access to splice part at the back of the swing. It is suitable to house
pigtail and splice it to incoming cable before it patch to distribution side. It contains cable strain relief
for incoming cable to avoid pull out. It has a compact cable slack management allow tighter slack with
minimum bending radius to reduce the attenuation.
Parameter Specification
Product Specification
Dimension
Material
Protection Rating
240mm (H) x 204mm (W) x 175mm(D)
ABS + Polycarbonate (PC)
IP 55
Part Number Description
Ordering Informtion
LTOC-FTH-OSDB-12 Outdoor Subscriber DIistribution Box 12 Port
Application
• FTTH deployment
• In- Building
Features
• Accommodate up to 12 pieces of SC, FC, LC or E2000 adapter.
• Can be used as splice box or FTTH drop cable fiber distribution.
• Can be wall and pole mount.
• Suitable for indoor and outdoor use
• Hinge opening 180°
• Slam lock design for easy locking after finish installation
• Made of polycarbonate (PC) and ABS with high mechanical strength

22. Fiber Management System -
SDB4 Subscriber Distribution Box
16 Port
Fiber Management System -
SDB4 Subscriber Distribution Box
16 Port
•All Product Specification is protected by copyright. Specification subject to change without prior notice.•
FiberOpticDataSheet•1.7.3.2.14_Rev1.0
1 of 1
SDB4 Subscriber Distribution Box 16 Port is design for FTTH drop cable in FTTH environment. The box
can house splitter or adapters for splicing, splitting and distribution applications. It is made of ABS plus
PC material with high mechanical strength, corrosion resistance and weather proof for outdoor
application. It also has features of slam lock design for easy locking during installation.
Features
• Made of ABS plus polycarbonate (PC) with high mechanical strength
• Weather proof for outdoor application
• Hinge opening up to 180°
• Slam lock design
• Sealed cable gland for unusual cable entry ports
• Suitable for SC and LC duplex adapter
• Wall and pole mountable, suitable for indoor and outdoor use
Parameter Specification
Product Specification
Dimension
Material
Protection Rating
280mm (L) x 220mm (W) x 85mm(H)
ABS + Polycarbonate (PC)
IP 55
Part Number Description
Ordering Informtion
LTOC-FTH-SDB4-16 Outdoor Subscriber Box SDB4 16 Port

23. SOHO BoxSOHO BoxSOHO Box
•All Product Specification is protected by copyright. Specification subject to change without prior notice.•
FiberOpticDataSheet•1.7.3.14.3_Rev1.0
ONU 2 ONU 3
ONU 4 ONU 5 (OUTDOOR) ONU 6
ONU 7
ONU 1
1 of 1
Part Number Description Dimension
Ordering Information
LTOC-FTH-ONU-01-X
LTOC-FTH-ONU-02-X
LTOC-FTH-ONU-03-X
LTOC-FTH-ONU-04-X
LTOC-FTH-ONU-05-X
LTOC-FTH-ONU-06-X
LTOC-FTH-ONU-07-X
Soho Box ONU1
Soho Box ONU2
Soho Box ONU3
Soho Box ONU4
Soho Box ONU5 (Outdoor)
Soho Box ONU6
Soho Box ONU7
ONU1 - 280mm (H) x 330mm (W) x 120mm (D)
ONU2 - 325mm (H) x 425mm (W) x 300mm (D)
ONU3 - 340mm (H) x 310mm (W) x 120mm (D)
ONU4 - 340mm (H) x 310mm (W) x 140mm (D)
ONU5 - 252mm (H) x 252mm (W) x 130mm (D)
ONU6 - 300mm (H) x 300mm (W) x 120mm (D)
ONU7 - 400mm (H) x 300mm (W) x 120mm (D)
Litech SOHO Box/ONU Box/Multimedia Box is designed to house active equipments such as ONU and
routes, as well as termination point for fiber, data cable and CATV Coaxial Cable.
Various designs and size are available to cater for different type of properties such as small apartment, high
end condominium, bungalow or office unit.
Features
• Different design and size available
• Surface mount or conceal type
• Plastic or metal door
• Outdoor or Indoor version
Option Accessories
• Mini power sockets
• Cat 5e or Cat6 RJ45 jack
• Fiber sockets
• Telephone RJ11 jack
• CATV Splitter
• Fan with thermostat

24. FTTH Solutions -FTTH Solutions -

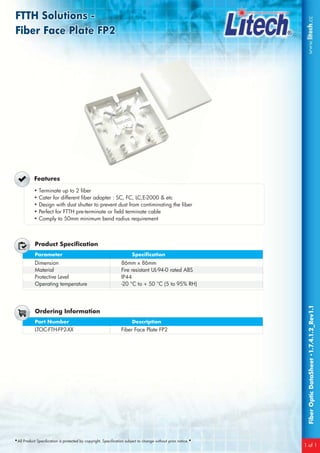

Fiber Face Plate FP2
FTTH Solutions -
Fiber Face Plate FP2
•All Product Specification is protected by copyright. Specification subject to change without prior notice.•
FiberOpticDataSheet•1.7.4.1.2_Rev1.1
1 of 1
Features
• Terminate up to 2 fiber
• Cater for different fiber adapter : SC, FC, LC,E-2000 & etc
• Design with dust shutter to prevent dust from contiminating the fiber
• Perfect for FTTH pre-terminate or field terminate cable
• Comply to 50mm minimum bend radius requirement
Parameter Specification
Product Specification
Dimension
Material
Protective Level
Operating temperature
86mm x 86mm
Fire resistant UL-94-0 rated ABS
IP44
-20 °C to + 50 °C (5 to 95% RH)
Part Number Description
Ordering Information
LTOC-FTH-FP2-XX Fiber Face Plate FP2

25. •All Product Specification is protected by copyright. Specification subject to change without prior notice.•
NGTS Fiber Management RackNGTS Fiber Management RackNGTS Fiber Management Rack
•All Product Specification is protected by copyright. Specification subject to change without prior notice.•
FiberOpticDataSheet•1.3.1.22.1_Rev1.3
1 of 1
NGTS Fiber Management Rack are designed to accommodate wide range of Litech fiber panels for
termination and patching of high density fibers. NGTS fiber rack is equip with space for incoming cables
as well as excess patch cables.
Features
Parameter Specification
Product Specification - Fiber Cabinet
Dimension
Finish
Colour
2200mm x 300mm(D) x 900mm(W)
High quality oven baked epoxy powdered
Beige
DescriptionPart Number
Ordering Informtion
LTOC-NGTS-CAB-220309 NGTS Fiber Indoor Cabinet 2200mm x 300mm x 900mm
• Total Fiber Management Systems
• Space for excess patch cables
• High Density
• Proper strain relief for incoming cables
• Good appearance
• Complied to ETSI specification

36. www.litech.cc www.apspower.cc
www.litech.ccmarketing@advancednet.com.my

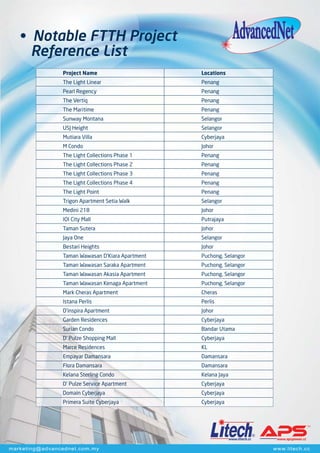

• Notable FTTH Project
Reference List
Project Name
The Light Linear
Pearl Regency
The Vertiq
The Maritime
Sunway Montana
USJ Height
Mutiara Villa
M Condo
The Light Collections Phase 1
The Light Collections Phase 2
The Light Collections Phase 3
The Light Collections Phase 4
The Light Point
Trigon Apartment Setia Walk
Medini 218
IOI City Mall
Taman Sutera
Jaya One
Bestari Heights
Taman Wawasan D’Kiara Apartment
Taman Wawasan Saraka Apartment
Taman Wawasan Akasia Apartment
Taman Wawasan Kenaga Apartment
Mark Cheras Apartment
Istana Perlis
D’inspira Apartment
Garden Residences
Surian Condo
D' Pulze Shopping Mall
Marce Residences
Empayar Damansara
Flora Damansara
Kelana Sterling Condo
D' Pulze Service Apartment
Domain Cyberjaya
Primera Suite Cyberjaya
Locations
Penang
Penang
Penang
Penang
Selangor
Selangor
Cyberjaya
Johor
Penang
Penang
Penang
Penang
Penang
Selangor
Johor
Putrajaya
Johor
Selangor
Johor
Puchong, Selangor
Puchong, Selangor
Puchong, Selangor
Puchong, Selangor
Cheras
Perlis
Johor
Cyberjaya
Bandar Utama
Cyberjaya
KL
Damansara
Damansara
Kelana Jaya
Cyberjaya
Cyberjaya
Cyberjaya

37. www.litech.cc www.apspower.cc
www.litech.ccmarketing@advancednet.com.my
• Notable FTTH Project
Reference List
Project Name
Tierra Crest
Vista Komanwel
Sky Residence
Solaris Dutamas
Regalia Condo
Domain 2
Kelana Square
Windsar Tower
Casa Tropicana Condo
Sunway Vivaldi
Metropolitan Square
Vista Damai
Endah Promonade
Twin @ Damansara
Park Residence
Palmyra
Locations
Kelana Jaya
Bukit Jalil
Kuala Lumpur
Mont Kiara
Kuala Lumpur
Cyberjaya
Kelana Jaya
Sri Hartamas
Petaling Jaya
Sri Hartamas
Damansara Perdana
Kuala Lumpur
Kuala Lumpur
Damansara Height
Bangsar
Bangsar
