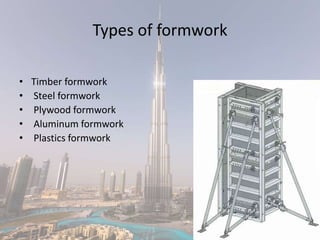

types of formwork
formwork for concrete
what is formwork in construction
building formwork

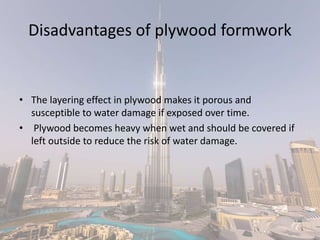

plywood disadvantages
advantage plywood
advantages and disadvantages of wood
best plywood for formwork
plywood formwork for concrete
mdf advantages and disadvantages
examples of advantages and disadvantages
advantage steel and construction
advantages of steel
disadvantages of steel structures
examples of advantages and disadvantages
advantages and disadvantages of surveys
wiki advantages and disadvantages
steel formwork design
steel formwork system
Modern construction formworks:-

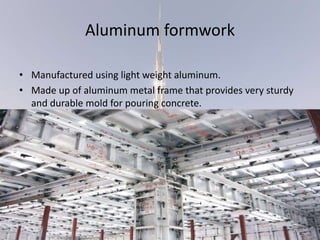

1. Aluminium formwork
2. Precast system
3.Modular formwork
4.Tunnel formwork
5.Fiberglass shuttering
Description of each formwork with their advantages and disadvantages
It is used as a mould for a structure in which fresh concrete is poured only to harden subsequently.
formwork for concrete slab
beam formwork
steel formwork
doka h20
types of formwork
formwork for concrete
what is formwork in construction
building formwork
plywood disadvantages
advantage plywood
advantages and disadvantages of wood
best plywood for formwork
plywood formwork for concrete
mdf advantages and disadvantages
examples of advantages and disadvantages
advantage steel and construction
advantages of steel
disadvantages of steel structures
examples of advantages and disadvantages
advantages and disadvantages of surveys
wiki advantages and disadvantages
steel formwork design
steel formwork system
Modern construction formworks:-
1. Aluminium formwork
2. Precast system
3.Modular formwork
4.Tunnel formwork
5.Fiberglass shuttering
Description of each formwork with their advantages and disadvantages
Concrete can form any shape, design, different color, pattern, texture. Coloured concrete is the best flooring option to enhance the richness of the floor.
Scaffolding, underepinning and shoringlaxman singh
i have made all the slide according to poly diploma and BTech
this chennal is gold for poly diploma and BTech students.
follow me for all updates and i will help u in make a quality of notes
if u have any doubt fell free to ask on comment section i will reply as fast as a cheeta
I love to interact with you all.
Pointing - the technique of repairing mortar joints between bricks or other masonry elements.
Finishing - a fine job in building construction process
where it forms the beauty of a building.
In this presentation, the process of building construction is explained. It is mainly divided into pre-construction and during construction steps. Each and every step with it's importance has been well explained in this presentation.
A presentation with exhaustive information about the general idea of formwork, the various types, the newest introductions and a comparative study between the conventional and modern-day formwork.
It also includes the study of causes of failure of formwork and the safety measures to be taken for preventing failure.
Concrete can form any shape, design, different color, pattern, texture. Coloured concrete is the best flooring option to enhance the richness of the floor.
Scaffolding, underepinning and shoringlaxman singh
i have made all the slide according to poly diploma and BTech
this chennal is gold for poly diploma and BTech students.
follow me for all updates and i will help u in make a quality of notes
if u have any doubt fell free to ask on comment section i will reply as fast as a cheeta
I love to interact with you all.
Pointing - the technique of repairing mortar joints between bricks or other masonry elements.
Finishing - a fine job in building construction process
where it forms the beauty of a building.
In this presentation, the process of building construction is explained. It is mainly divided into pre-construction and during construction steps. Each and every step with it's importance has been well explained in this presentation.
A presentation with exhaustive information about the general idea of formwork, the various types, the newest introductions and a comparative study between the conventional and modern-day formwork.
It also includes the study of causes of failure of formwork and the safety measures to be taken for preventing failure.
Formwork(Shuttering), Importance, Qualities of Formwork,types,Major objectives considered in formwork, Requirements of formwork,Formwork for Wall,Formwork for Column,Formwork for Slabs & beams ,Lintel or Beam Formwork, FORMWORK FOR SLAB,FORMWORK FOR STAIRS,FORMWORK FOR SPIRAL STAIRS,FORMWORK FOR CHIMNEYS,Removal of formwork,Time of Removal of formwork,Comparison between Steel and Timber Formwork,Cantilever slab,Maintenance of formwork,Cost of formwork,Advantages of steel form work,LOADS ON FORMWORK
Here in this post, we have to list 6 processes of aluminum castings. The aluminum oxide layer that forms instantly behind the work is removed from the mold and provides a barrier against corrosion.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
TECHNICAL TRAINING MANUAL GENERAL FAMILIARIZATION COURSEDuvanRamosGarzon1
AIRCRAFT GENERAL
The Single Aisle is the most advanced family aircraft in service today, with fly-by-wire flight controls.
The A318, A319, A320 and A321 are twin-engine subsonic medium range aircraft.
The family offers a choice of engines
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
Forklift Classes Overview by Intella PartsIntella Parts
Discover the different forklift classes and their specific applications. Learn how to choose the right forklift for your needs to ensure safety, efficiency, and compliance in your operations.
For more technical information, visit our website https://intellaparts.com
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
Event Management System Vb Net Project Report.pdfKamal Acharya
In present era, the scopes of information technology growing with a very fast .We do not see any are untouched from this industry. The scope of information technology has become wider includes: Business and industry. Household Business, Communication, Education, Entertainment, Science, Medicine, Engineering, Distance Learning, Weather Forecasting. Carrier Searching and so on.
My project named “Event Management System” is software that store and maintained all events coordinated in college. It also helpful to print related reports. My project will help to record the events coordinated by faculties with their Name, Event subject, date & details in an efficient & effective ways.
In my system we have to make a system by which a user can record all events coordinated by a particular faculty. In our proposed system some more featured are added which differs it from the existing system such as security.
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
Vaccine management system project report documentation..pdfKamal Acharya
The Division of Vaccine and Immunization is facing increasing difficulty monitoring vaccines and other commodities distribution once they have been distributed from the national stores. With the introduction of new vaccines, more challenges have been anticipated with this additions posing serious threat to the already over strained vaccine supply chain system in Kenya.
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxR&R Consult
CFD analysis is incredibly effective at solving mysteries and improving the performance of complex systems!
Here's a great example: At a large natural gas-fired power plant, where they use waste heat to generate steam and energy, they were puzzled that their boiler wasn't producing as much steam as expected.
R&R and Tetra Engineering Group Inc. were asked to solve the issue with reduced steam production.
An inspection had shown that a significant amount of hot flue gas was bypassing the boiler tubes, where the heat was supposed to be transferred.
R&R Consult conducted a CFD analysis, which revealed that 6.3% of the flue gas was bypassing the boiler tubes without transferring heat. The analysis also showed that the flue gas was instead being directed along the sides of the boiler and between the modules that were supposed to capture the heat. This was the cause of the reduced performance.
Based on our results, Tetra Engineering installed covering plates to reduce the bypass flow. This improved the boiler's performance and increased electricity production.
It is always satisfying when we can help solve complex challenges like this. Do your systems also need a check-up or optimization? Give us a call!
Work done in cooperation with James Malloy and David Moelling from Tetra Engineering.
More examples of our work https://www.r-r-consult.dk/en/cases-en/

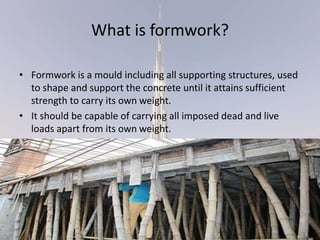

2. What is formwork?
• Formwork is a mould including all supporting structures, used
to shape and support the concrete until it attains sufficient
strength to carry its own weight.
• It should be capable of carrying all imposed dead and live
loads apart from its own weight.
3. Requirements good formwork
1. It should be strong enough to withstand all types of dead and live loads.
2. It should be rigidly constructed and efficiently propped and braced both
horizontally and vertically, so as to retain its shape.
3. The joints in the formwork should be tight against leakage of cement grout.
4. Construction of formwork should permit removal of various parts in desired
sequences without damage to the concrete.
5. The material of the formwork should be cheap, easily available and should
be suitable for reuse.
6. The formwork should be set accurately to the desired line and levels should
have plane surface.
7. It should be as light as possible.
8. The material of the formwork should not warp or get distorted when
exposed to the elements.
9. It should rest on firm base.

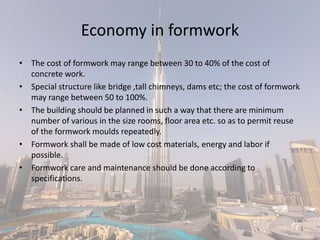

4. Economy in formwork
• The cost of formwork may range between 30 to 40% of the cost of
concrete work.
• Special structure like bridge ,tall chimneys, dams etc; the cost of formwork
may range between 50 to 100%.
• The building should be planned in such a way that there are minimum
number of various in the size rooms, floor area etc. so as to permit reuse
of the formwork moulds repeatedly.
• Formwork shall be made of low cost materials, energy and labor if
possible.
• Formwork care and maintenance should be done according to
specifications.
6. Timber formwork
• It should be well seasoned.
• It should be light weight.
• It should be easily workable
with nail without splitting.
• It should be free from knots.
7. Advantage of timber formwork
• Easy handling because it is light weight.
• Easy to disassemble.
• Damaged parts can be replaced with new one.
• Very flexible.
• Easy to produce.
• Easily available.

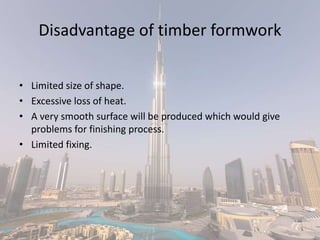

8. Disadvantage of timber formwork
• Limited size of shape.
• Excessive loss of heat.
• A very smooth surface will be produced which would give
problems for finishing process.
• Limited fixing.

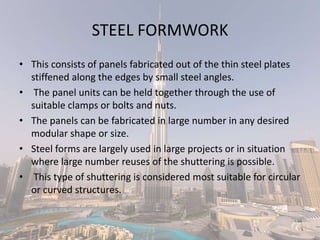

9. STEEL FORMWORK
• This consists of panels fabricated out of the thin steel plates
stiffened along the edges by small steel angles.
• The panel units can be held together through the use of
suitable clamps or bolts and nuts.
• The panels can be fabricated in large number in any desired
modular shape or size.
• Steel forms are largely used in large projects or in situation
where large number reuses of the shuttering is possible.
• This type of shuttering is considered most suitable for circular
or curved structures.

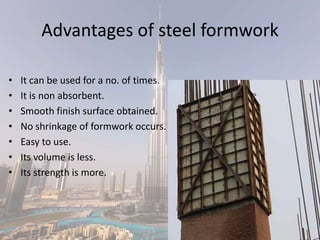

10. Advantages of steel formwork
• It can be used for a no. of times.
• It is non absorbent.
• Smooth finish surface obtained.
• No shrinkage of formwork occurs.
• Easy to use.
• Its volume is less.
• Its strength is more.

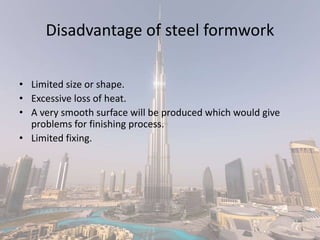

11. Disadvantage of steel formwork
• Limited size or shape.
• Excessive loss of heat.
• A very smooth surface will be produced which would give
problems for finishing process.
• Limited fixing.
12. Aluminum formwork
• Manufactured using light weight aluminum.
• Made up of aluminum metal frame that provides very sturdy
and durable mold for pouring concrete.

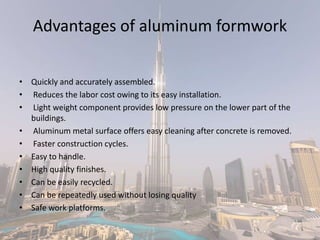

13. Advantages of aluminum formwork
• Quickly and accurately assembled.
• Reduces the labor cost owing to its easy installation.
• Light weight component provides low pressure on the lower part of the
buildings.
• Aluminum metal surface offers easy cleaning after concrete is removed.
• Faster construction cycles.
• Easy to handle.
• High quality finishes.
• Can be easily recycled.
• Can be repeatedly used without losing quality
• Safe work platforms.
14. Disadvantages of aluminum formwork
• Initial high investment.
• Compares very poorly on modifications, against brick work
constructions.
• Fear of theft of valuable Aluminum Extrusions & sheets &
hence kit not being complete at critical stages of construction.
• Mass Housing projects are not as high for investing in large
number of Aluminum Formwork.

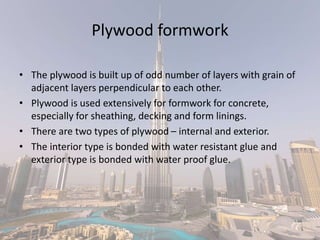

15. Plywood formwork
• The plywood is built up of odd number of layers with grain of
adjacent layers perpendicular to each other.
• Plywood is used extensively for formwork for concrete,
especially for sheathing, decking and form linings.
• There are two types of plywood – internal and exterior.
• The interior type is bonded with water resistant glue and
exterior type is bonded with water proof glue.
17. Advantages of plywood formwork
• Easily cut to shape on site.
• Reusable.
• Thinner plywood is used to facilitate bending.
• Thicker plywood is used when the weight of concrete caused
a standard thickness plywood to blow out, it might distorting
the concrete face.
18. Disadvantages of plywood formwork
• The layering effect in plywood makes it porous and
susceptible to water damage if exposed over time.
• Plywood becomes heavy when wet and should be covered if
left outside to reduce the risk of water damage.
19. PLASTIC FORMWORK
• Lightweight
• Reusable
• Chemical resistant
• Fungus and termites resistant
• Can be easily cut and nail by
using wood working tools
• Non degradable
20. Construction of formwork
• Propping and centering.
• Shuttering.
• Provision of camber.
• Cleaning and surface treatment.

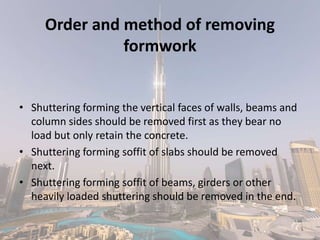

21. Order and method of removing
formwork
• Shuttering forming the vertical faces of walls, beams and
column sides should be removed first as they bear no
load but only retain the concrete.
• Shuttering forming soffit of slabs should be removed
next.
• Shuttering forming soffit of beams, girders or other
heavily loaded shuttering should be removed in the end.
24. Causes of formwork failure
• Improper stripping and shore
removal
• Inadequate bracing
• Vibration
• Unstable soil under mudsills,
shoring not plumb
• Inadequate control of
concrete placement
• Lack of attention to
formwork details

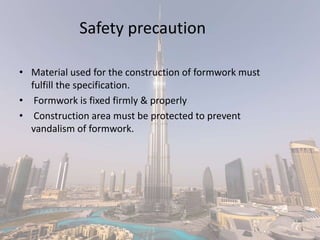

25. Safety precaution
• Material used for the construction of formwork must
fulfill the specification.
• Formwork is fixed firmly & properly
• Construction area must be protected to prevent
vandalism of formwork.

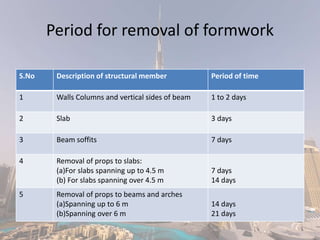

26. Period for removal of formwork
S.No Description of structural member Period of time
1 Walls Columns and vertical sides of beam 1 to 2 days
2 Slab 3 days
3 Beam soffits 7 days
4 Removal of props to slabs:
(a)For slabs spanning up to 4.5 m
(b) For slabs spanning over 4.5 m
7 days
14 days
5 Removal of props to beams and arches
(a)Spanning up to 6 m
(b)Spanning over 6 m
14 days
21 days
