Forms
Forms are used on websites to collect user information through various form elements like text fields, checkboxes, radio buttons, menus, and buttons. Forms have a front-end visible to users and a back-end program that processes the submitted information. Common XHTML tags like <form>, <input>, <select>, <option>, and <textarea> are used to structure forms and create different form elements. Form layout and design should keep the form short, simple, and well organized to make it easy for users to complete.
More Related Content
More from Digital Insights - Digital Marketing Agency

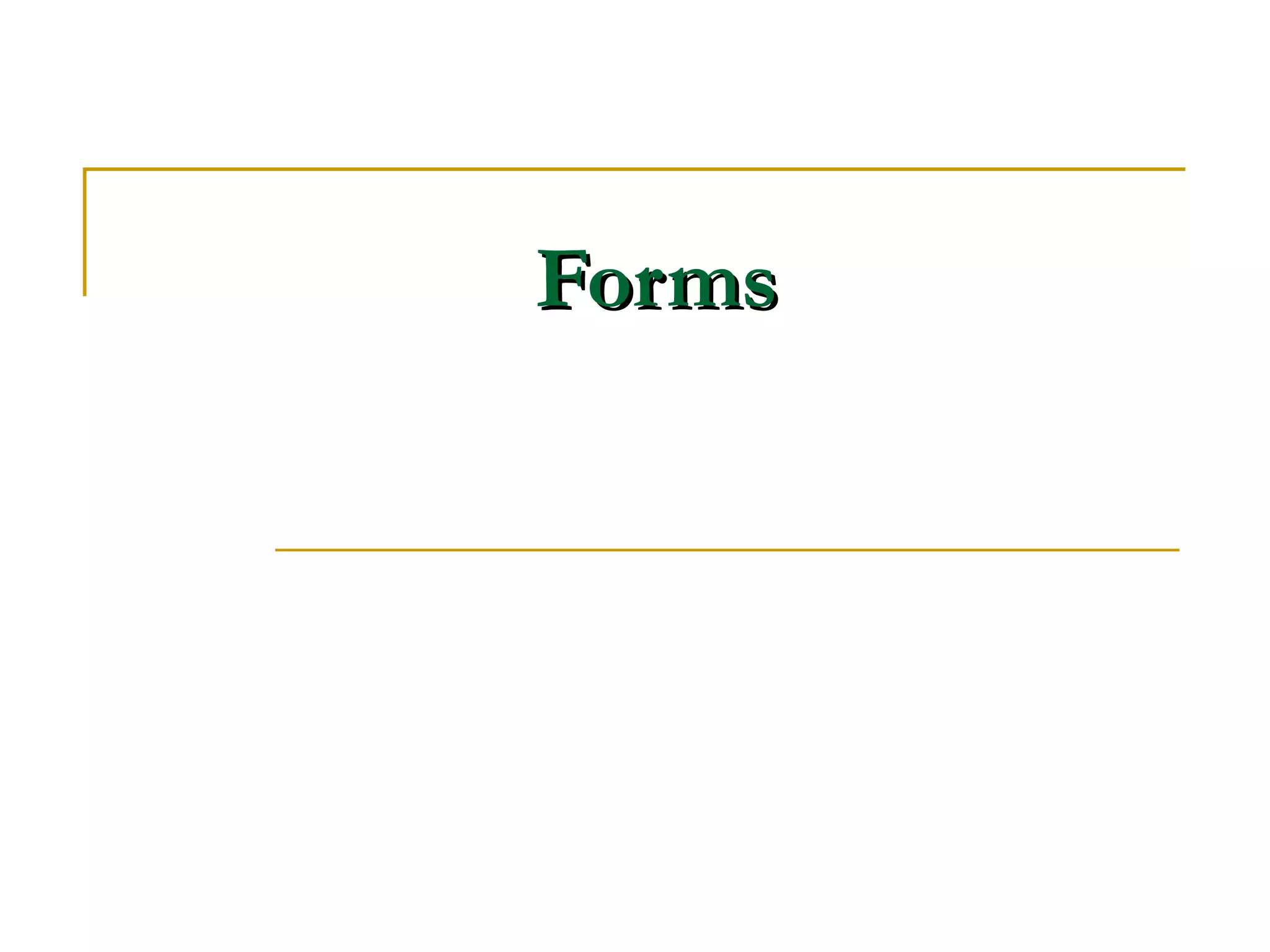

Forms
- 1.
- 2. Forms Forms areused for e-commerce, online purchases, surveys, registrations, etc. Websites using forms usually collect information and must use secure internet connections Sending information via forms is easy and automatic The information is sent using name/value pairs: It can be submitted/written to a database It can be e-mailed to someone
- 3. Structure & CommunicationThere are two distinct parts: front end and back end Front end is the visible part in the browser where the user enters data Back end is the invisible part and is a computer program that processes the information Developing front end is much simpler than developing the back end Front end uses XHTML, while back end uses knowledge of programming languages The <form> tag with action attribute develops the link between the front and the back ends
- 4.
- 5. Elements The formelements are: text fields – allows you to input a line of text Parameters: size and maximum length radio buttons – provide multiple choices with only one selection Parameters: checked or unchecked check boxes – provide multiple choices with multiple selections Parameters: checked or unchecked Menus – Provides a menu of verbose choices Parameter: size text areas – Provide multiple lines of text Parameters: width and height submit buttons – collects and sends form input Parameters: button label reset buttons – erases or clears the form input Parameters : button label
- 6.
- 7. Layout & DesignForm design tips: Keep the form short Keep the form simple Keep the form organised Arrange form elements with tables and layers The common theme for each form is: All forms have a submit and reset button Every form has an action attribute and a method
- 8.
- 9. Using Forms Thereare 5 XHTML tags that can be used <form> - Allows you to create a layout Attributes : name, action, method, enctype, accept-charset, accept <input> - creates form elements Attributes : type, name, value, size, maxlength, checked, src <select> - creates a menu Attributes : name, size, multiple <option> - creates menu items Attributes : selected, value, label <textarea> - creates a text area Attributes : name, rows, cols, wrap
- 10. Using Forms Createa web page that uses text fields
- 11. Using Forms Thestart of the code for this form is as follows: <form name="MyForm" action="mailto:youremailaddress@dit.ie" method="post"> Enter your name: <br/> First name: <input type="text" name="First Name" size="40" maxlength="256" value="James" /> MI: <input type="text" name="Middle Initial" size="5" maxlength="6" value="D" /> Last name: <input type="text" name="Second Name" size="40" maxlength="256" value="Carswell" /> <br/> Address: <input type="text" name="Address" size="10" maxlength="30"/> <input type="submit" value="Send It" /> <input type="reset" value="Reset It" /> </form>
- 12. Using Forms Createa web page that uses check boxes <form name="MyForm2" action="mailto:youremailaddress@dit.ie" method="post"> <input type="checkbox" name="FavouriteFood" value="Pizza" checked/> Pizza <input type="checkbox" name=" FavouriteFood" value="Salad" /> Salad <input type="checkbox" name=" FavouriteFood " value="Burger" /> Burger<br/> <input type="submit" value="Send It" /> <input type="reset" value="Reset It" /> </form>
- 13. Using Forms Createa web page that uses radio buttons <form name="MyForm3" action="mailto:youremailaddress@dit.ie" method="post"> <input type="radio" name="gender" value="male" /> Male<br /> <input type="radio" name="gender" value="female" /> Female<br /> <input type="submit" value="Send It" /> <input type="reset" value="Reset It" /> </form>
- 14. Using Forms Createa web page that uses buttons <form name="MyForm4" action="mailto:youremailaddress@dit.ie" method="post"> Select your favourite season: <input type="button" value="Fallish" /> <input type="button" value="Winter" /> <input type="button" value="Spring" /> <input type="button" value="Summer" /><br /> </form>
- 15. Using Forms Createa web page that uses menus <form action="mailto:email@address.com" method="post"> <select name="compHardware" size="4"> <option> Disk Drive</option> <option > More RAM</option> <option selected> Zip drive</option> <option> New monitor</option> </select> </form>
- 16. Formatting Forms Aform may have multiple elements The form elements must be organised to make it easier for the web surfers to fill them When using tables, form elements are a part of the table cells -> can get quite complex Formatting forms by using layers is easier and offers more flexibility
- 17. Formatting Forms Formatform with tables <table align="center"> <caption><h2 align="center">Please fill this survey </h2></caption> <form name="myForm" method="post" action="mailto:a@b.com"> <tr> <td>First Name:</td> <td><input type="text" name="first" size="10" maxlength="15"></td> <td>MI:</td> <td><input type="text" name="mi" size="1"></td> <td>Last Name:</td> <td><input type="text" name="last" size="10" maxlength="18"></td> </tr> </form> </table>
