AN INTRODUCTION TO THE FIX PROTOCOL

2. AGENDA
 FIX General Overview.
 FIX in Detail.
 Session layer.
 Application Layer.
 FIX engine.
 FIX versions.

3. What is FIX?
Financial information eXchange.
Protocol created by Fidelity and Salomon 1992.
A standard way to communicate trading information electronically
between brokers, buy-side institutions, and markets.
An industry driven messaging standard for the exchange of trading
related information between financial institutions.
 Platform independent.
 Flexible.
 Open (free) protocol.

4. Growth of FIX
Began as IOI (Indication of Interest) - Bid/Offers.
Moved to Orders and Executions:
Actual Orders to buy and sell shares in securities, and responses from
the counterparty about how those Orders were executed.
FIX has become the most commonly used protocol for electronic
financial transactions.
Used by – ECNs, Brokers, Portfolio Managers, Exchanges.
Covers major asset classes – Equities, Derivatives, FX, Fixed Income.
Supports Pre-Trade, Trade, and Post-Trade messaging.

5. What is a FIX message?
FIX message contains three parts:
- Header
- Body
- Trailer
FIX message is a collection of fields e.g. Symbol, Order ID, Price,
Order Quantity.
Each field is a tag-value pair. <tag>=<value> e.g. 55=IBM.
Two types of FIX messages:
- Application Level
- Session Level

6. What do you mean by tag value pair?
Tag:
FIX uses predefined Tags.
Each Tag represents a specific Field.
Each Tag is given a predefined number.
FIX dictionary provides the list of Fields and corresponding Tag
numbers.
Value:
Values represent the value the Tag is assigned to.
Supported data types are: int, float, Qty, Price, char, Boolean (Y/N),
Currency, timestamp, string.
e.g. Symbol is tag55. If there was a FIX order for Intel, it would look like
55=INTC

7. What are the parts of a FIX message?
Three parts:
Header – contains administrative information about the message – who
sent the message, who the message is going to, what time it was sent.
Body – contains the actual financial information – fields like Symbol,
Shares, Price.
Trailer – usually there is only one field set in here – the Checksum for
the message – to ensure message integrity.

8. Message Header
All administrative fields:
Who sent the message.
Who the message was sent to.
Who was the trader that sent the message (if applicable).
What version of FIX is being used in the message.
What type of message it is.
Where the message is to be routed to (if applicable).

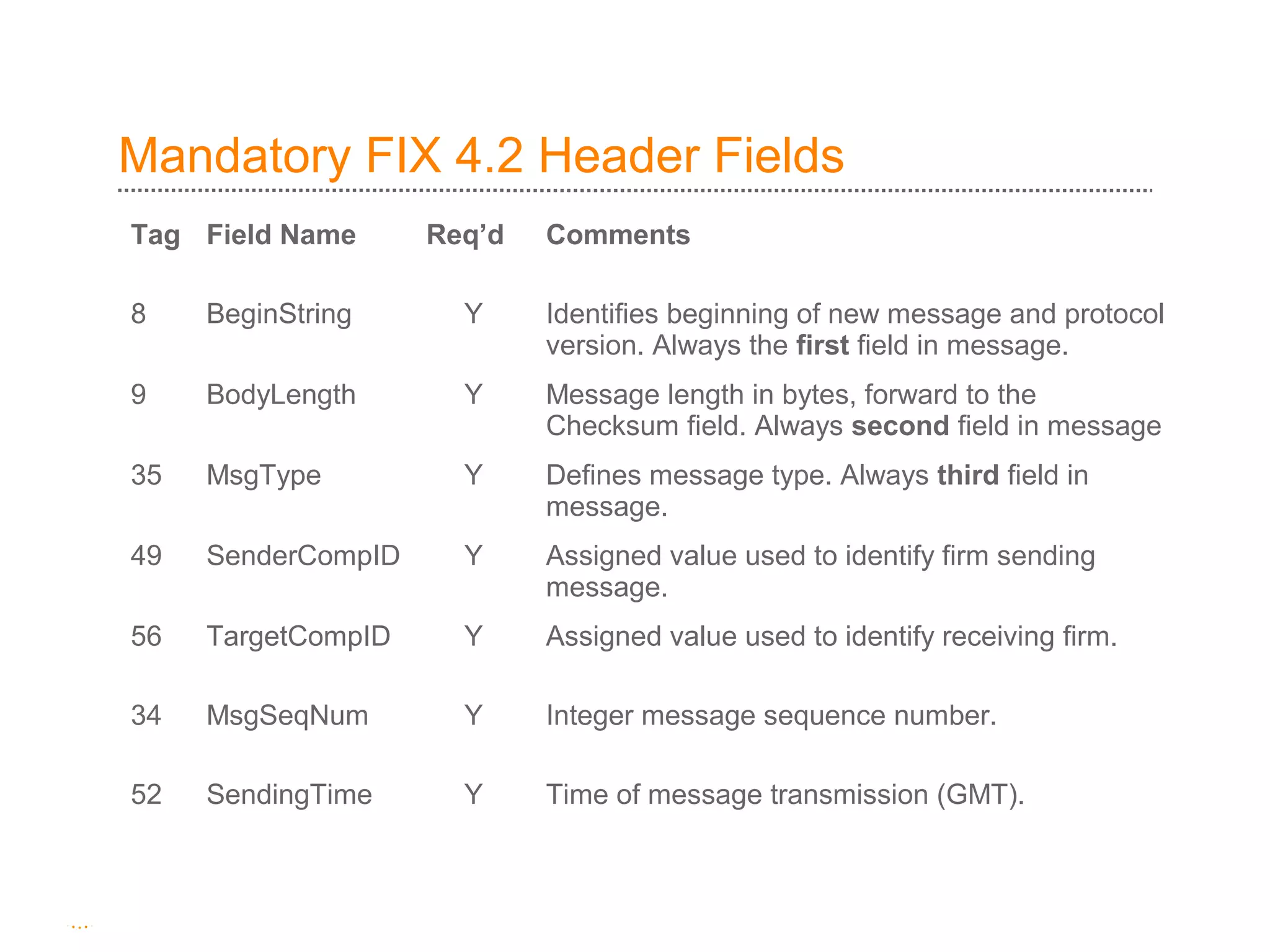

9. Mandatory FIX 4.2 Header Fields
Tag Field Name Req’d Comments
8 BeginString Y Identifies beginning of new message and protocol
version. Always the first field in message.
9 BodyLength Y Message length in bytes, forward to the
Checksum field. Always second field in message
35 MsgType Y Defines message type. Always third field in
message.
49 SenderCompID Y Assigned value used to identify firm sending
message.
56 TargetCompID Y Assigned value used to identify receiving firm.
34 MsgSeqNum Y Integer message sequence number.
52 SendingTime Y Time of message transmission (GMT).

10. Header Field Examples
8=FIX 4.2 Message is using Version 4.2 of FIX protocol (BeginString).
52=20090724-13:40:24 What time the message was sent (GMT)
(SendingTime).
49=Fidelity Fidelity is sending the message, specified in the header using the
SenderCompID field.
56=ML Message being sent to Merril Lynch, specified in the TargetCompID
field.
35=D Fidelity sending Merril Lynch an Order, specified in the MsgType field.
D signifies an Order. Other values for MsgType include:
- 8 (Execution Report).
- 6 (Indication of Interest).
- A (FIX logon message).

11. Message Body
The Body of a FIX message contains the actual financial
information that will be important to the receiver of the message.
Important fields that could be in the body of a FIX Order
message are:
• Symbol (tag 55).
• Order Quantity (tag 38).
• Order Type (tag 40).
• Price (tag 44).
• Side (tag 54).
• TimeInForce (tag 59).

12. Message Body Example
I want to create an order to buy 10000 shares of Yahoo at the
Market, and have it be Good Till Cancelled.
OrderQty – 10000 38=10000
Symbol – Yahoo 55=YHOO
Order Type – Market Order 40=1 (1 indicates Market Order).
Time In Force – Good until cancelled 59=1 (1 indicates Good Until
cancelled).
Side – buy 54=1 (1 indicates buy).

13. Message Trailer
The Trailer of a FIX message usually contains only one field – tag 10
the CheckSum.
The Checksum in a FIX message provides a simple message integrity
check. The Checksum is the sum of all the binary values in the
message. E.g. 10=193
Upon receiving a message, a FIX engine will compute the checksum of
the message, and make sure it matches the checksum in the actual
message, this helps to identify transmission problems.

14. Example FIX messages
A FIX 4.2 message that would be seen in a FIX engine log file for an
Order for 10000 shares of IBM.
8=FIX4.2|9=0132|35=D|57=Simulator|34=2|49=SLGM0|56=SB10|52=20100315-
13:45:28|55=IBM|40=2|38=1000|21=2|11=order 0|60=20100315-17:45:20|54=1|
44=110.5|10=097
The message fields are delimited using the ASCII 01 <start of header>
character.
Tag 8 FIX version Tag 55 Symbol
Tag 49 SenderCompID Tag 54 Side
Tag 35 MessageType Tag 38 OrderQty

15. Two types of FIX messages
Application level message.
Session level message.
Both are constructed the same way (tag/value pairs) but the functionality of
the two types is different.
An application level message contains the actual financial data that a user
will care about.
Application level messages include Orders, Execution Reports, Indications of
Interest, Order Cancels, Allocations.
Session level messages are used for administrative functionality, and
connectivity between FIX engines,
Session level messages include – FIX Login messages (establish a
connection to a remote FIX engine), FIX Logoff messages, FIX Resend
Request messages.

16. Session Layer
A session layer of any protocol defines how two sides using that
protocol communicate.
The FIX session layer handles all the administrative functionality
of the FIX protocol.
Session layer – handles communication between the two
counterparties, and also makes sure that no messages are
missed, and bad messages are rejected.

17. What type of messages are in the FIX Session Layer?
Session level messages:
Logon (35=A) – handshake to authenticate counterparty.
Resend Requests (35=2) - used to request missed messages
after detecting a message gap
Heartbeats (35=0) /Test Requests (35=1) - keep alive packets
used to detect problems during slow message traffic periods.
Reject (35=3)
Sequence Reset (35=4)
Logout (35=5)

18. What is a sequence number?
The FIX protocol also specifies the use of Sequence numbers in the
Session layer for all FIX messages.
It is a unique identifier for each incoming and outgoing message, and is
used by the FIX engine to keep track of how many messages have
come in and gone out.
It is an incrementing number.
Normally, at the beginning of a trading day, the first message sent out
by both sides would be sequence number 1, and would increase by one
every time a new message is sent out.
Sequence numbers are unique for each connection, and for each
incoming and outgoing message.

19. So how does it all get started?
The side that has agreed to initiate the connection (the Initiator) first
makes a socket connection to the counterparty’s FIX engine and then
sends a FIX Logon message.
Upon receiving that FIX Logon message, the Acceptor counterparty
must acknowledge that FIX Logon message with its own FIX Logon
acknowledgement message.
Once the ack has been received, the connection has been established
and trading can begin.

20. Sample FIX Message – Logon and Logon Ack
8=FIX4.2|9=0060|35=A|34=1|49=PGB10|56=PXY11|
52=20090713-14:48:20|98=0|108=30|10=008
PGB10 PXY11
8=FIX4.2|9=0060|35=A|34=1|49=PXY11|56=PGB10|
52=20090713-14:48:21|98=0|108=30|10=009

21. Application Layer
Contains the actual useful financial data.
e.g. Orders, Execution Reports, Indications of Interest, Allocations,
Quotes, Cancel Requests.
e.g. How do I create an Order in FIX 4.2
FIX. 4.2 specifies these fields are required:
Client Order ID, Handling Instructions, Symbol, Side, Transaction Time,
Order Quantity, Order Type.

22. Application Layer
ClOrdID (tag 11) (Client Order ID) is a unique identifier for any order.
HandlInst (tag 21) (Handling Instructions ) allows you to specify
whether you want this order to be automatically executed or want broker
intervention.
Symbol (tag 55) – the stock symbol for that security.
Side (tag 54) – represents whether or not stock is being bought (1) or
sold (2).
TransactTime (tag 60) – time the order was created by the trader or
trading system.
OrderQty (tag 38) – the number of shares in that order.
OrderType (tag 40) – type of order.

23. FIX Customer / Broker Example:
Step 1: Customer A’s Order
FIX Order
Symbol = 0001.HK, Side = Sell, OrderQty = 1000, OrdType = Market
[35=D;55=0001.HK;54=2;38=1000;40=1] Broker
Sell
1000
Cheung Kong
Accept Sell
1000
Cheung Kong
Customer A
FIX Order Accept (Execution Report)
Symbol = 0001.HK
Side = Sell
OrderQty = 1000, OrdType = Market
OrdStatus = New
[35=8;55=0001.HK;54=2;38=1000;40=1;39=0]

24. Step 2 - Sending an IOI
Seller of
FIX Network 1000
Cheung
Kong Broker/
Position Trader
Customers
FIX IOI
Symbol = 0001.HK
Side = Sell
IOIShares = 1000
Price = 101
IOINaturalFlag = Y
[35=6;55=0001.HK;54=2;27=1000;44=101;130=Y;]

25. Step 3 - Filter IOIs, Cust B’s Order
FIX Order
Symbol = 0001.HK
Side = Buy
OrderQty = 1000
OrdType = Market
[35=D;55=0001.HK;54=1;38=1000;40=1]
Buy 1000
Cheung Kong
Accept Buy 1000 Broker/
Customer B Cheung Kong Sales Trader
FIX Order Accept (Execution Report)
Symbol = 0001.HK
Side = Buy
OrderQty = 1000, OrdType = Market
OrdStatus = New
[35=8;55=0001.HK;54=1;38=1000;40=1;39=0]

26. Step 4 - Traded, Execution Rpts
FIX Execution Report (Filled)
Symbol = 0001.HK, Side = Buy, OrderQty = 1000,
OrdStatus = Filled, LastShares=1000, LastPx=101
[35=8;55=0001.HK;54=1;38=1000;39=2;32=1000;31=101]
Bought 1000
Cheung Kong
Customer B Broker
Sold 1000 Sales Trader
Cheung Kong
Customer A
FIX Execution Report (Filled)
Symbol = 0001.HK, Side = Sell, OrderQty = 1000,
OrdStatus = Filled, LastShares=1000, LastPx=101
[35=8;55=0001.HK;54=2;38=1000;39=2;32=1000;31=101]

27. FIX Engine
A FIX engine is a piece of software that manages
 the “FIX session” (external network connection) to counterparties.
- Sequence Number maintenance.
- Resend Requests.
- Establishing, maintaining, and breaking connections.
- Session layer messages – heartbeats, test requests, logons/logoffs.
 FIX message formatting and validation (rejection of invalid
messages) both inbound and outbound.

28. FIX Versions
Version: 3.0 4.0 4.1 4.2 4.3 4.4 5.0
Rel. date: Sep95 Jan97 Apr98 Mar00 Apr01 Apr03 Oct06
Business Msgs. 17 20 21 39 61 86 94
Fields: 112 138 208 396 641 914 1139
http://www.fixprotocol.org/specifications/
Version has significant impact on application-level business processing –
messages have different field contents between versions, and are not as a
rule backward compatible.
Trading counterparties must use the same version of the FIX protocol.

30. Useful Websites
http://www.fixprotocol.org
Central repository & authority for all specification documents.
Discussion forums, presentations.
http://fixglobal.com
FIXGlobal Journal, the FIX Protocol’s official journal.
http://www.fixprotocol.org/FIXimate3.0
FIX interactive message and tag explorer Tool – access and navigate
the FIX specification.
