Financial Information Exchange (FIX) Protocol Introduction Guide

January 2020 Copyright Federico Brun & Jonatan Saúl (Grupo del Plata S.A.) Version 1.0
Financial Information
Exchange Protocol (FIX)
Introduction Guide

AGENDA
What is FIX?
FIX Messages
FIX Protocol Architecture
FIX Engines

What is FIX?

What is FIX?
Financial Information eXchange (FIX) protocol is an open electronic communications protocol designed to
standardise and streamline electronic communications in the financial services industry supporting multiple
formats and types of communications between financial entities including trade allocation, order submissions,
order changes, execution reporting and advertisements.
From a Systems perspective, FIX is a transport-independent session protocol that guarantees reliable real-time
delivery of data between two directly-connected points. It provides a set of flexible and extensible business
message formats.

What is FIX?
The core FIX protocol and family of messaging specification standards is maintained by FIX Trading Community™ ,
an independent non-profit, industry-driven standards body, formed by major industry players like banks, brokers,
exchanges, funds and other financial entities.
www.fixtrading.org

What is FIX?
FIX is the de facto standard for ﬁnancial information exchange, and is widely supported in different platforms and
programming languages. It is Open Protocol and has been openly embraced and perfectioned by its community.
Latest protocol version to the date is FIX 5.0 Service Pack 2 .

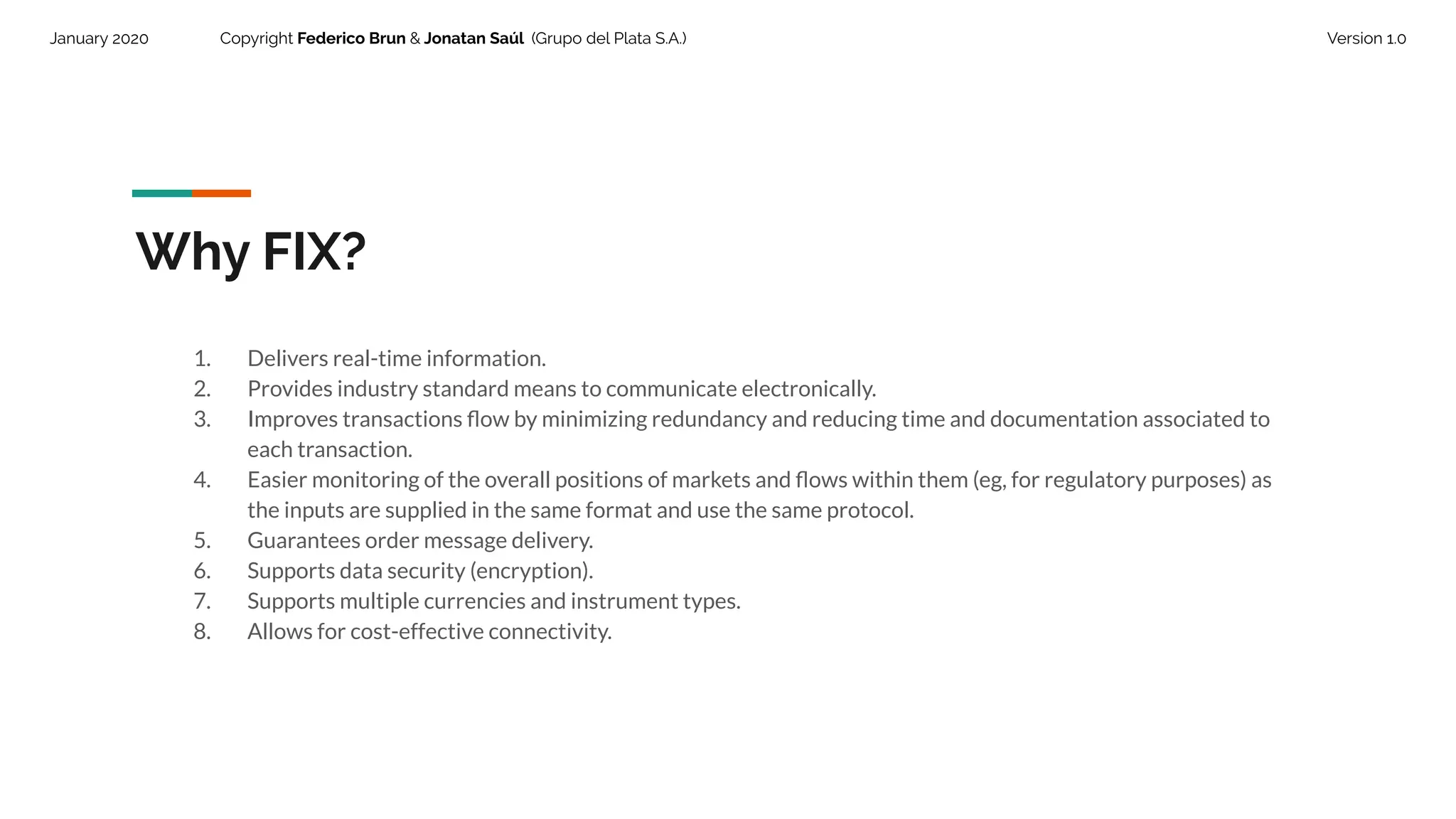

Why FIX?
1. Delivers real-time information.
2. Provides industry standard means to communicate electronically.
3. Improves transactions ﬂow by minimizing redundancy and reducing time and documentation associated to
each transaction.
4. Easier monitoring of the overall positions of markets and ﬂows within them (eg, for regulatory purposes) as
the inputs are supplied in the same format and use the same protocol.
5. Guarantees order message delivery.
6. Supports data security (encryption).
7. Supports multiple currencies and instrument types.
8. Allows for cost-effective connectivity.

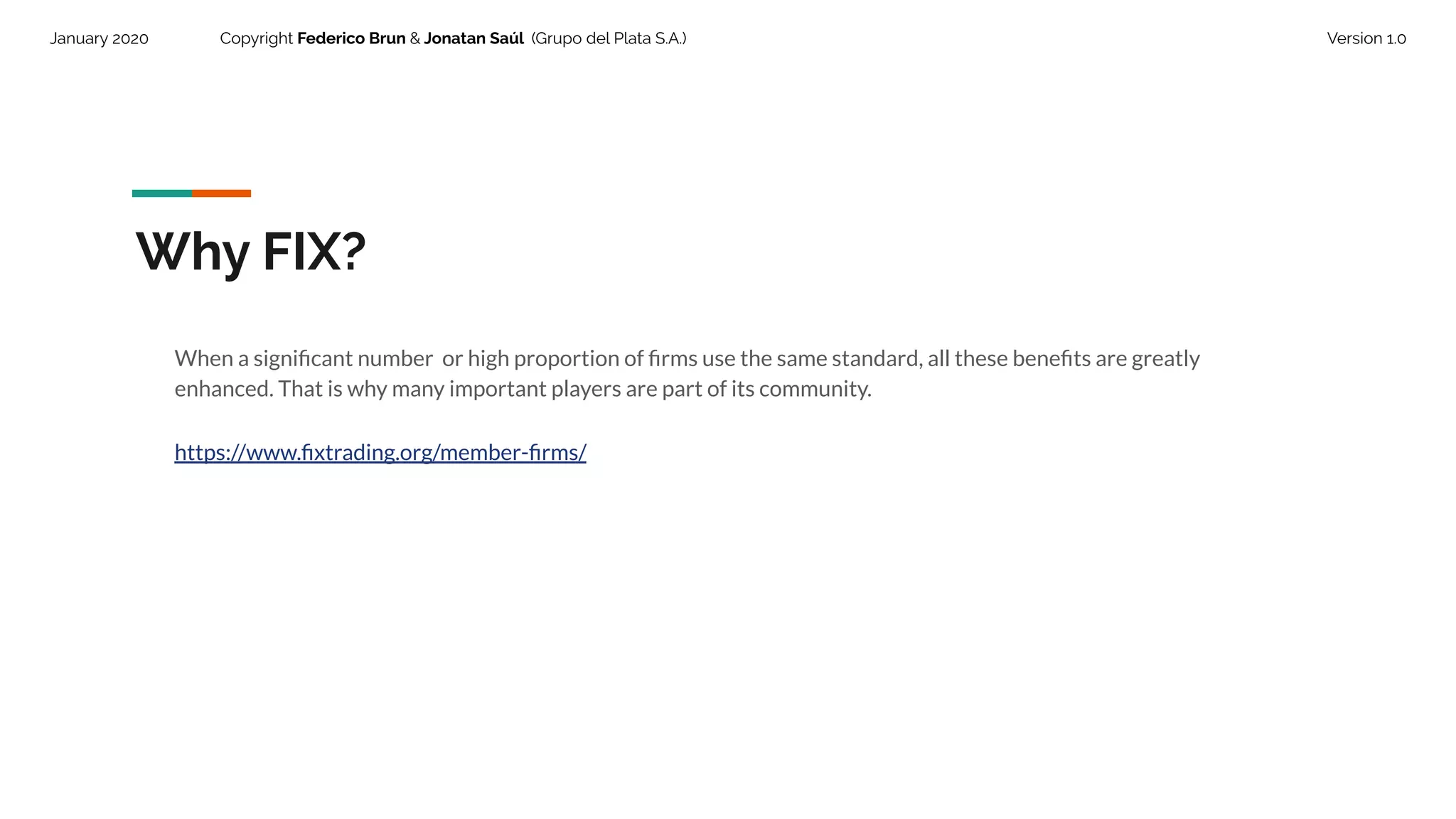

Why FIX?
When a significant number or high proportion of firms use the same standard, all these benefits are greatly
enhanced. That is why many important players are part of its community.
https://www.fixtrading.org/member-firms/

FIX History
1998
FIX 4.1
Version 4.1 is released and FIX
Committee Structure is
formalized. Fix is introduced in
Tokyo.
2000
FIX 4.2
Version 4.2 is released and
Asia Paciﬁc Committee
Structure is formalized.
1992
Fidelity-Salomon Pilot
FIX is developed as a bilateral
communications framework for
equity trading between Fidelity
Investments and Salomon
Brothers.
1995
FIX 2.7
During the New York
FIX General
Conference version
2.7 is released.
2006
FIX 5.0
Version 5.0 is
released and widely
adopted. Today it is
used with Service
pack (SP)

FIX Messages

At its core, the FIX protocol consists of a list of predeﬁned messages with a set of ﬁelds.
In order to understand a FIX message, a receiving party must have a dictionary to decode it.
This messages are exchanged following a proper format, which will be explained in further detail.
There are two categories of messages:
● Admin Messages (Session Messages)
● Application Messages

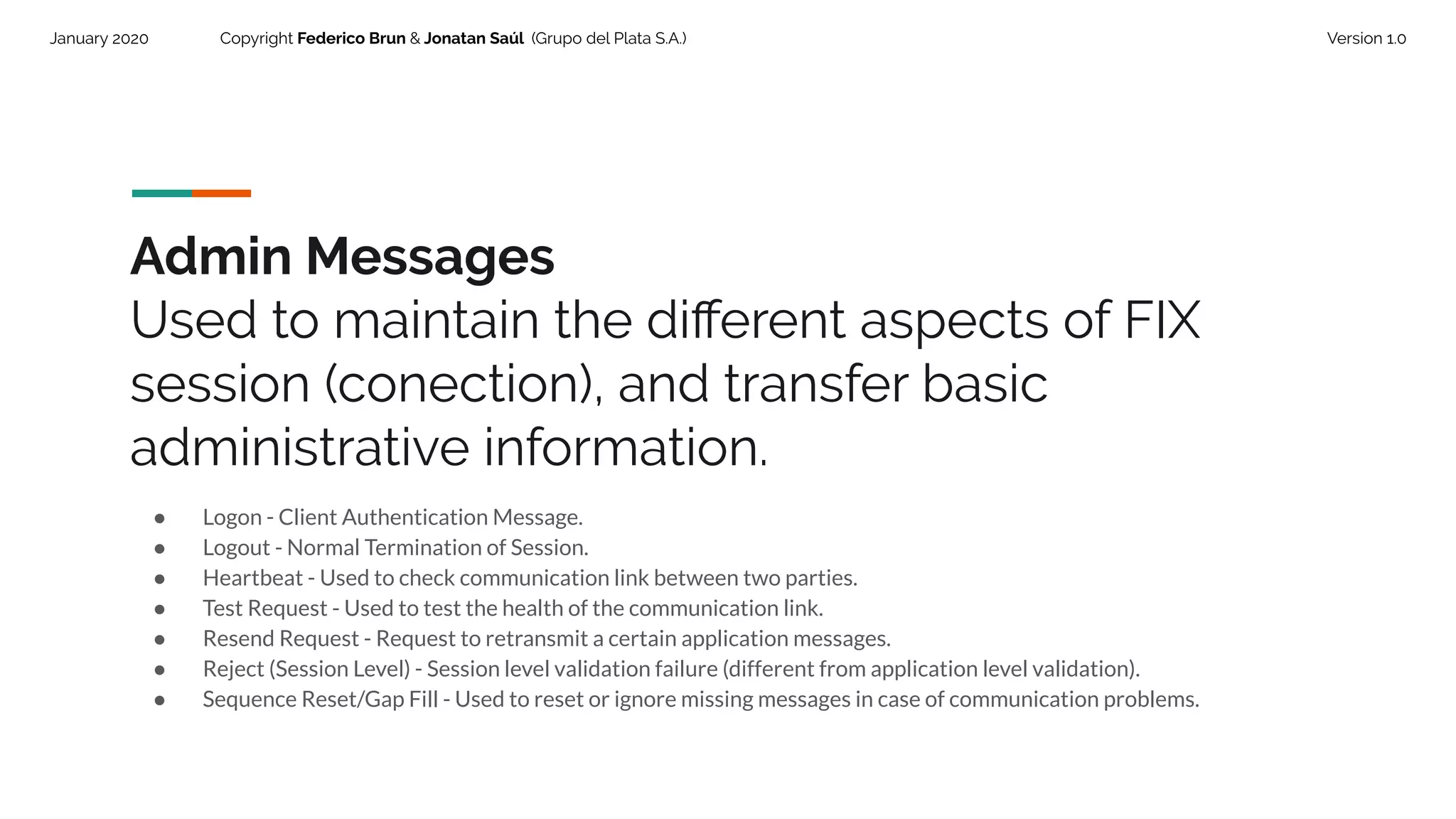

Admin Messages
Used to maintain the diﬀerent aspects of FIX
session (conection), and transfer basic
administrative information.
● Logon - Client Authentication Message.
● Logout - Normal Termination of Session.
● Heartbeat - Used to check communication link between two parties.
● Test Request - Used to test the health of the communication link.
● Resend Request - Request to retransmit a certain application messages.
● Reject (Session Level) - Session level validation failure (different from application level validation).
● Sequence Reset/Gap Fill - Used to reset or ignore missing messages in case of communication problems.

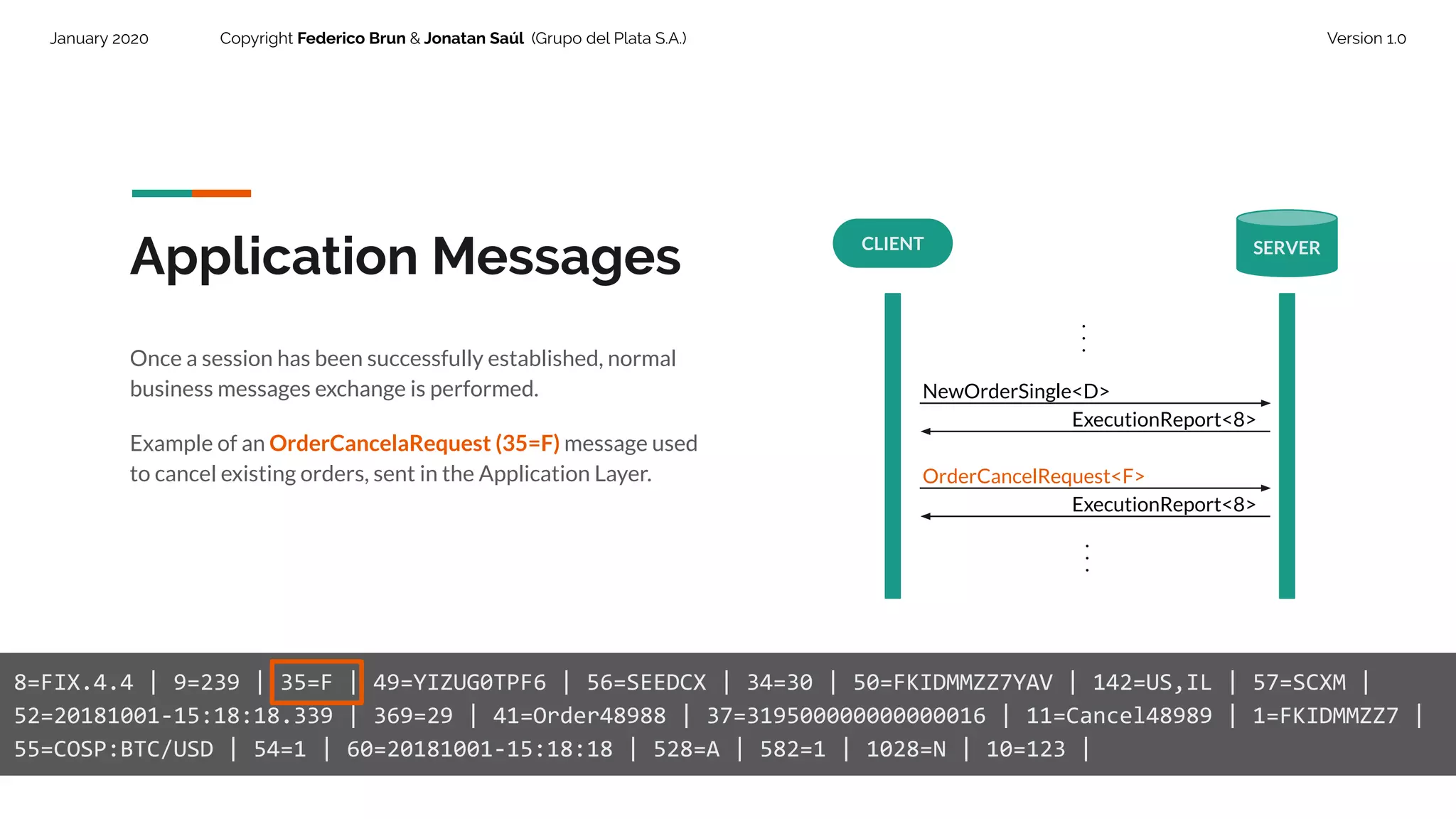

Application Messages
Used to transfer important business
information.
● Pre-trade messages:
○ IOIs, Quotes, News, Email, Market Data, Security Info, etc.
● Trade messages:
○ Single Orders, Basket/List Orders, Multi-leg orders, Executions, Order Cancel, Cancel/Replace, Status,
etc.
● Post-trade messages:
○ Allocations, Settlement Instructions, Positions Mgmt, etc.

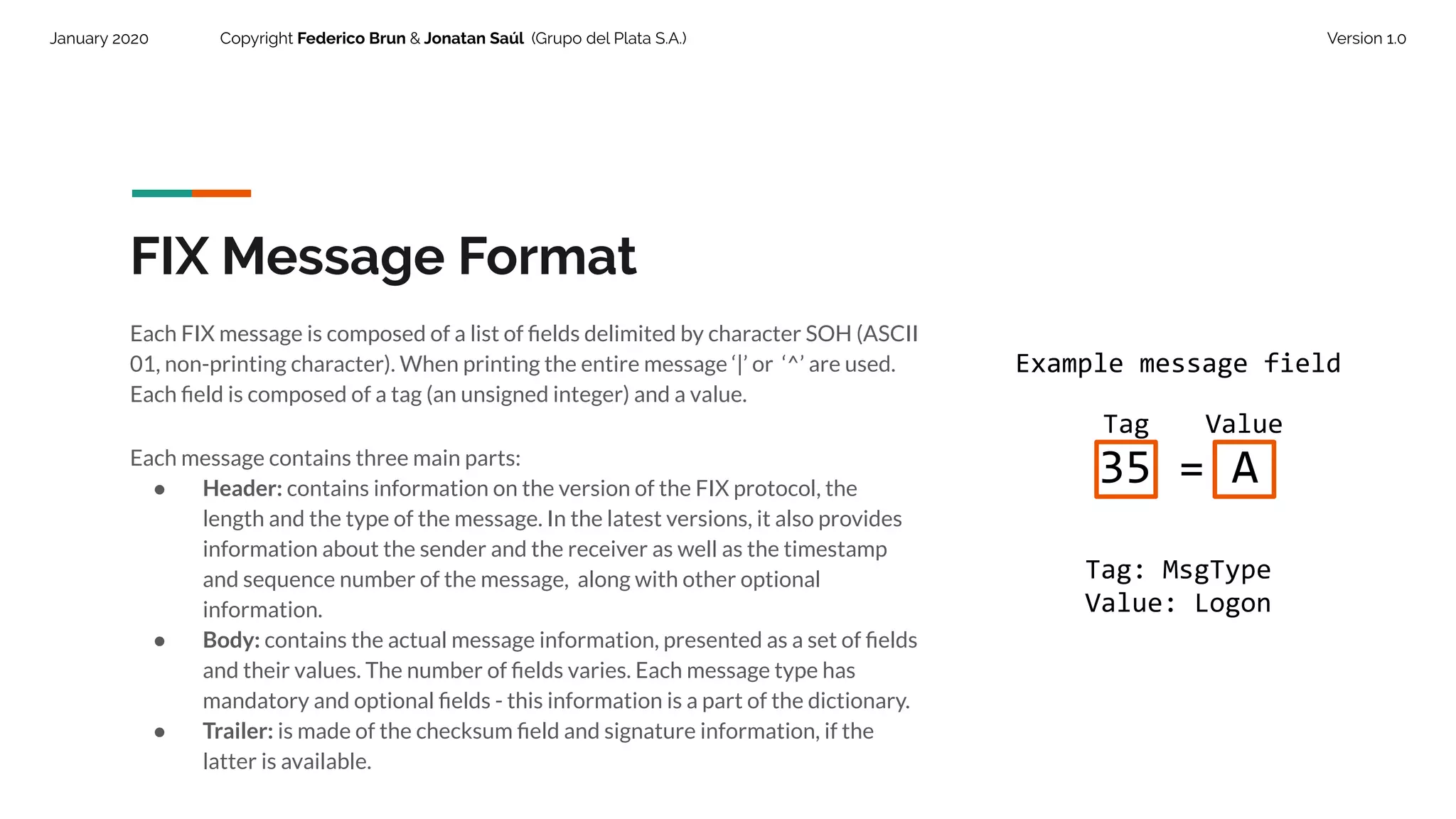

FIX Message Format
Each FIX message is composed of a list of fields delimited by character SOH (ASCII
01, non-printing character). When printing the entire message ‘|’ or ‘^’ are used.
Each field is composed of a tag (an unsigned integer) and a value.
Each message contains three main parts:
● Header: contains information on the version of the FIX protocol, the
length and the type of the message. In the latest versions, it also provides
information about the sender and the receiver as well as the timestamp
and sequence number of the message, along with other optional
information.
● Body: contains the actual message information, presented as a set of fields
and their values. The number of fields varies. Each message type has
mandatory and optional fields - this information is a part of the dictionary.
● Trailer: is made of the checksum field and signature information, if the
latter is available.
Example message field
35 = A
Tag: MsgType
Value: Logon
Tag Value

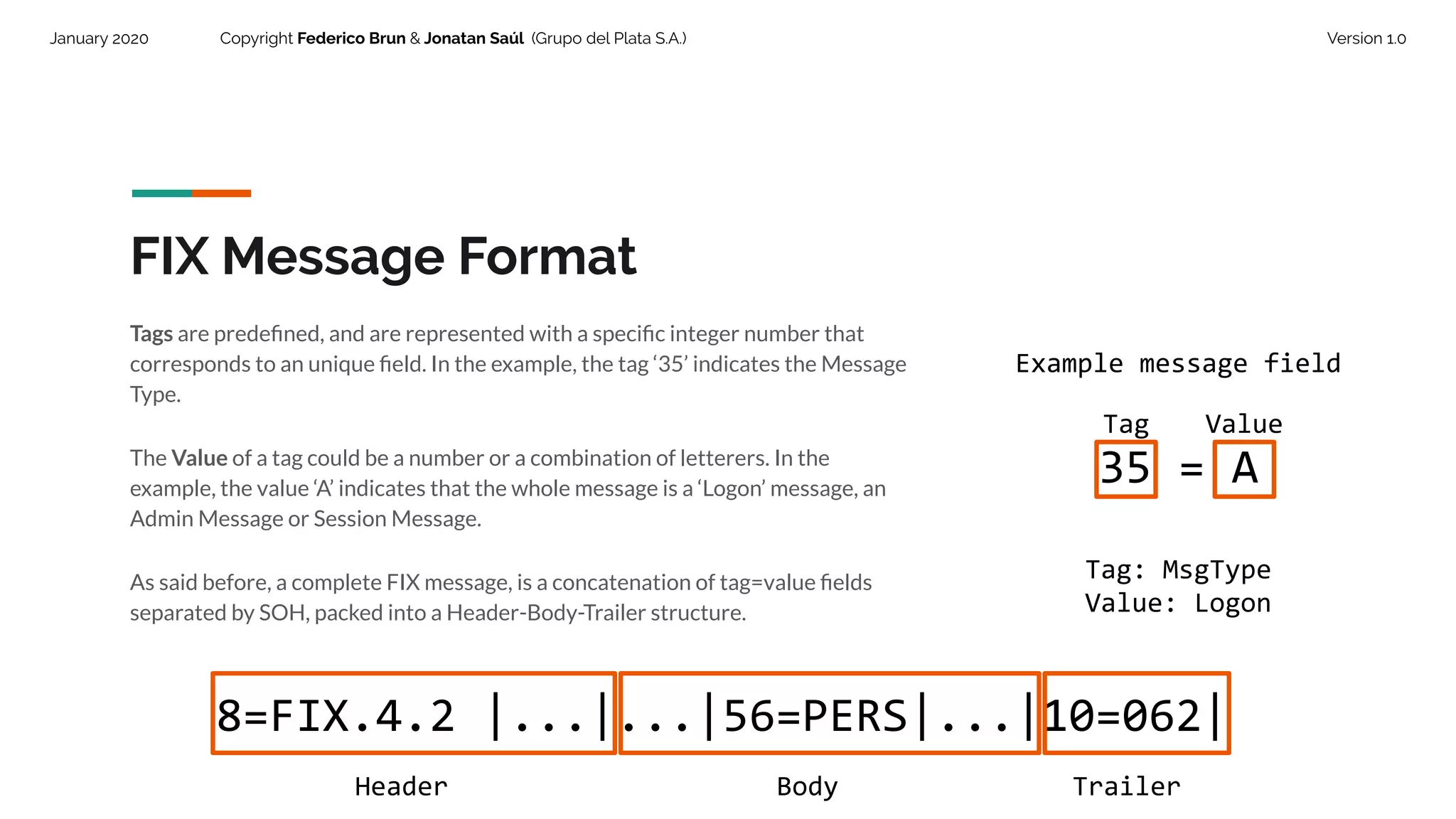

FIX Message Format
Tags are predefined, and are represented with a specific integer number that
corresponds to an unique field. In the example, the tag ‘35’ indicates the Message
Type.
The Value of a tag could be a number or a combination of letterers. In the
example, the value ‘A’ indicates that the whole message is a ‘Logon’ message, an
Admin Message or Session Message.
As said before, a complete FIX message, is a concatenation of tag=value fields
separated by SOH, packed into a Header-Body-Trailer structure.
8=FIX.4.2 |...|...|56=PERS|...|10=062|
Header Body Trailer
Example message field
35 = A
Tag: MsgType
Value: Logon
Tag Value

FIX Message Format
Up to FIX.4.4, the header contained three fields: 8 (BeginString), 9 (BodyLength) and 35 (MsgType).
From FIX.5.0, the header contains seven mandatory fields and one optional field: 8 (BeginString), 9 (BodyLength) and 35
(MsgType), 49 (SenderCompID), 56 (TargetCompID), 34 (MsgSeqNum), 52 (SendingTime) and 1128 (ApplVerID -
optional).
The content in the body of the message is specified by (tag 35, MsgType) message type defined in the header , and its
length depends on the message type.
The last field of the message is tag 10, FIX Message Checksum which is always expressed as a three-digit number; and
can contain signature information before it.
8=FIX.4.2 |...|...|56=PERS|...|10=062|
Header Body Trailer

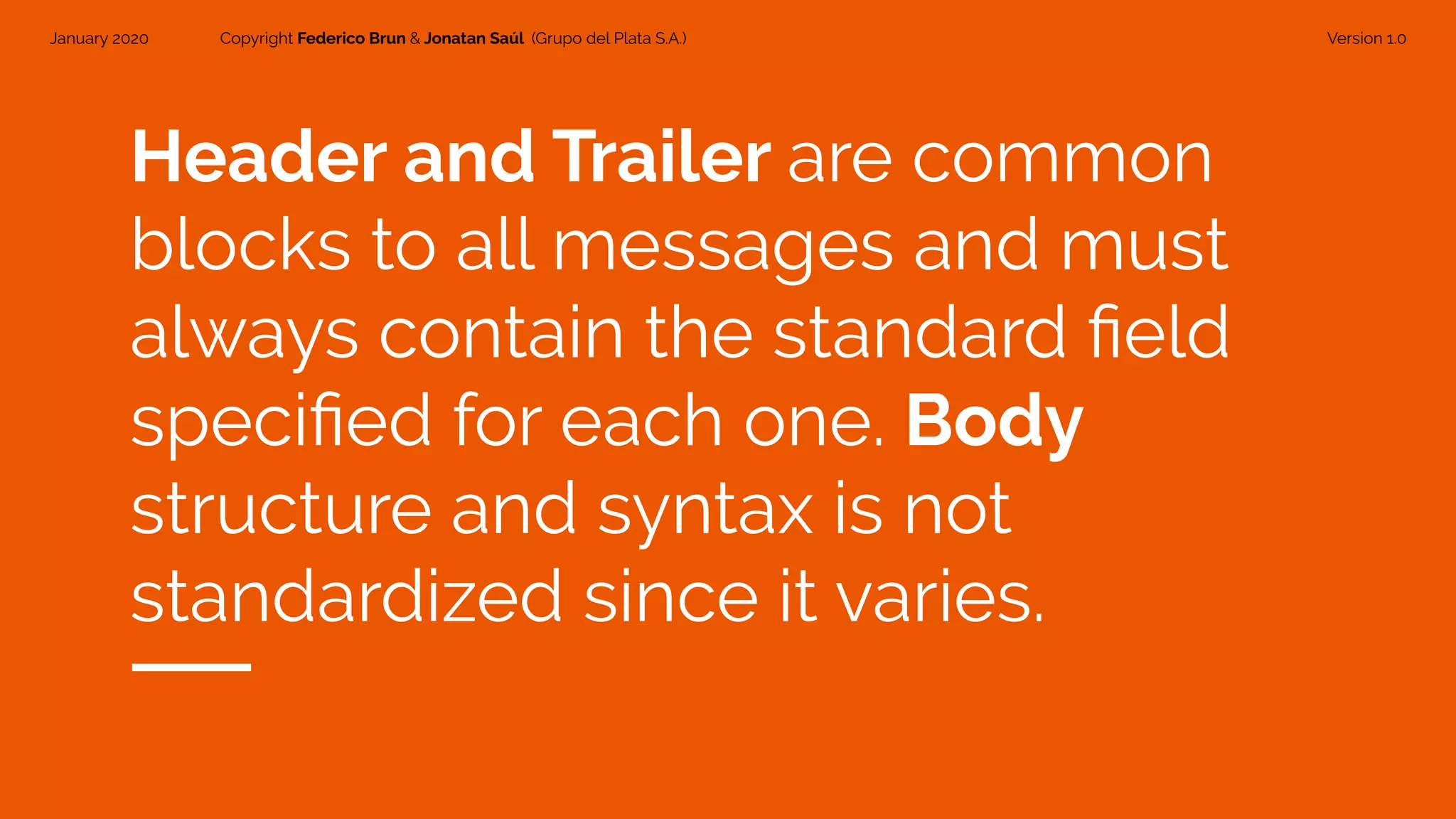

Header and Trailer are common
blocks to all messages and must
always contain the standard ﬁeld
speciﬁed for each one. Body
structure and syntax is not
standardized since it varies.

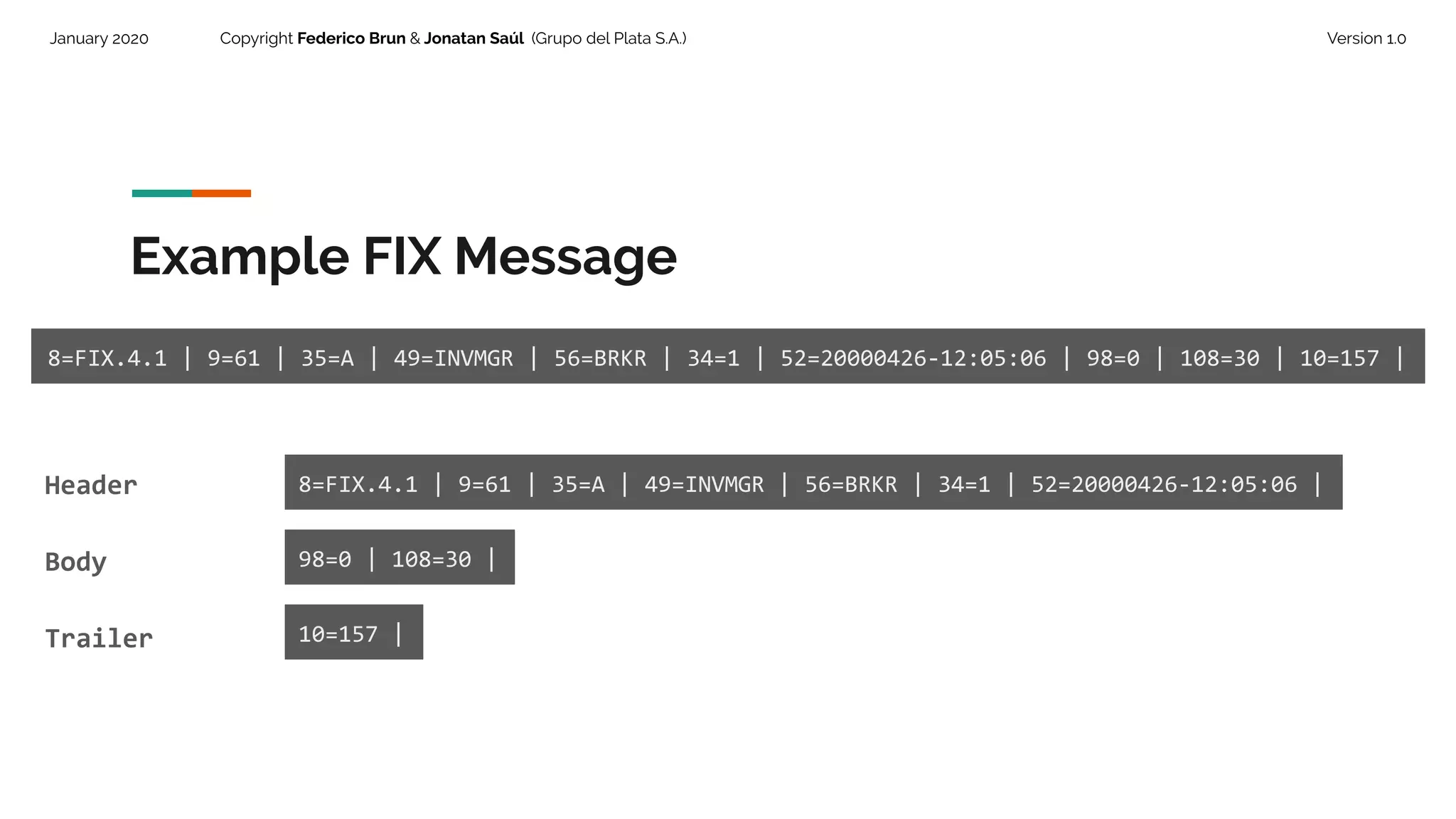

Example FIX Message
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |
Header 8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 |
Body 98=0 | 108=30 |
Trailer 10=157 |

Header.
The standard header must
contain the following ﬁelds.

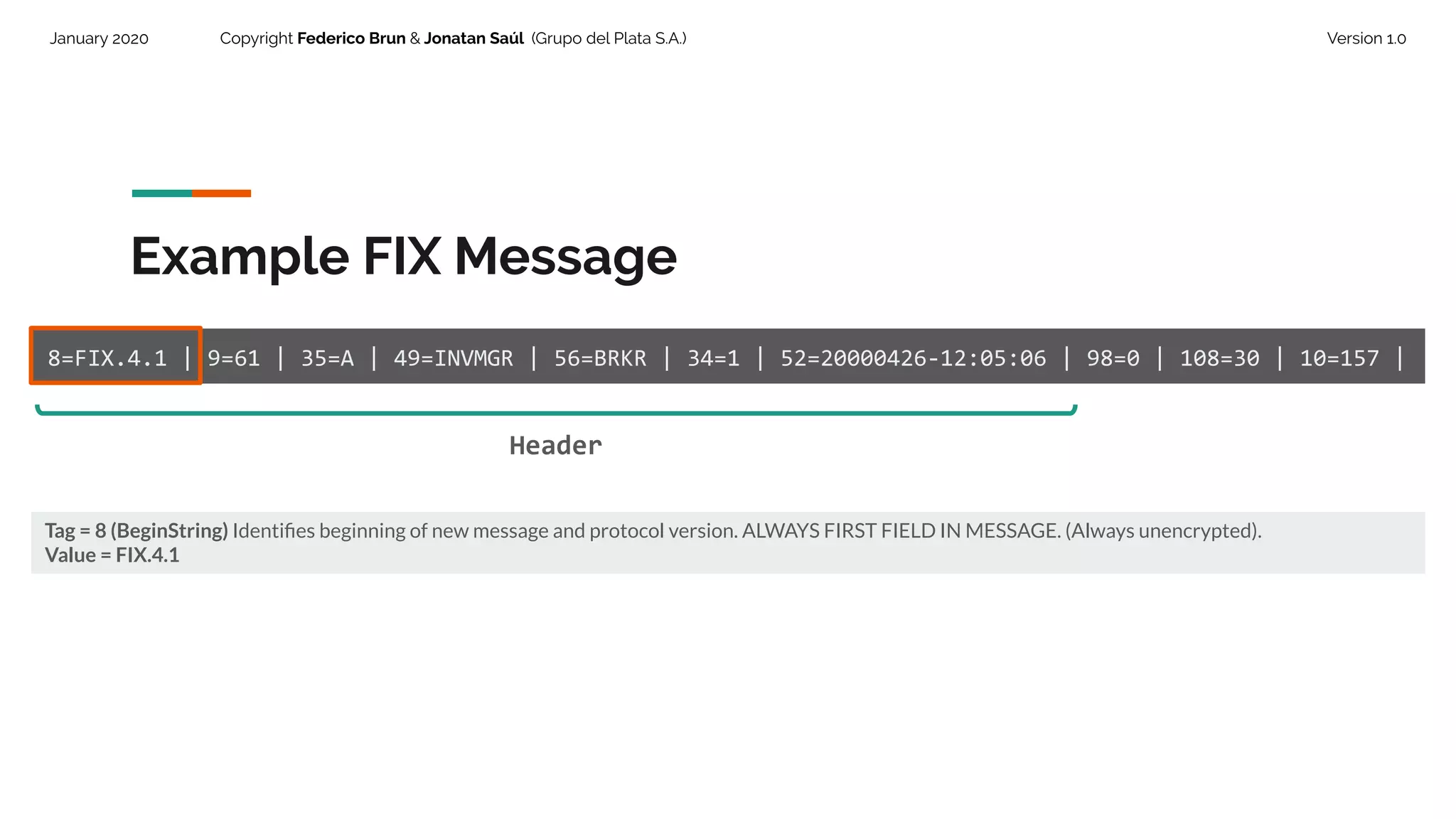

Example FIX Message
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |
Tag = 8 (BeginString) Identiﬁes beginning of new message and protocol version. ALWAYS FIRST FIELD IN MESSAGE. (Always unencrypted).
Value = FIX.4.1
Header

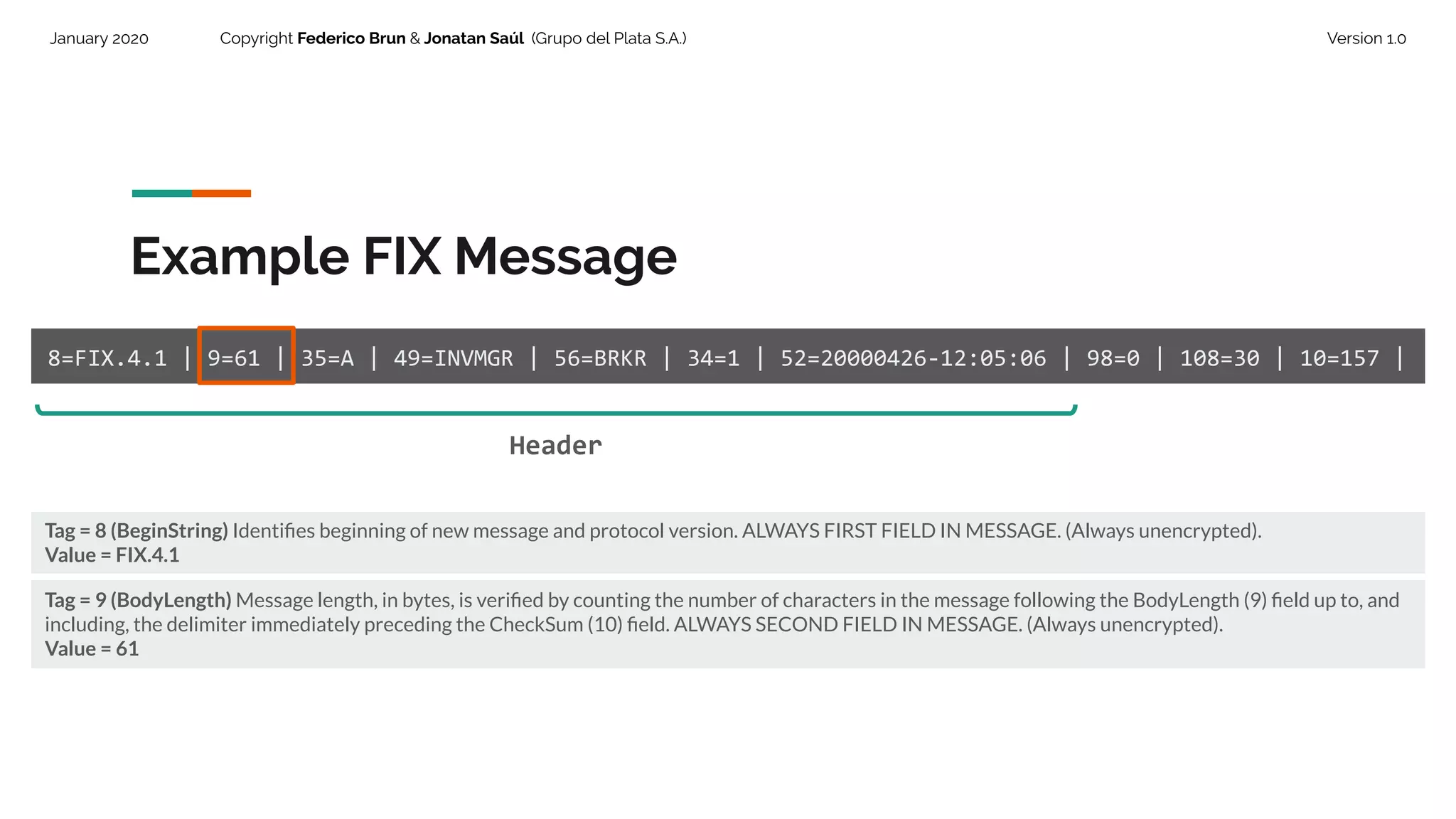

Example FIX Message
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |
Value = FIX.4.1
Tag = 9 (BodyLength) Message length, in bytes, is verified by counting the number of characters in the message following the BodyLength (9) field up to, and
including, the delimiter immediately preceding the CheckSum (10) field. ALWAYS SECOND FIELD IN MESSAGE. (Always unencrypted).
Value = 61
Header

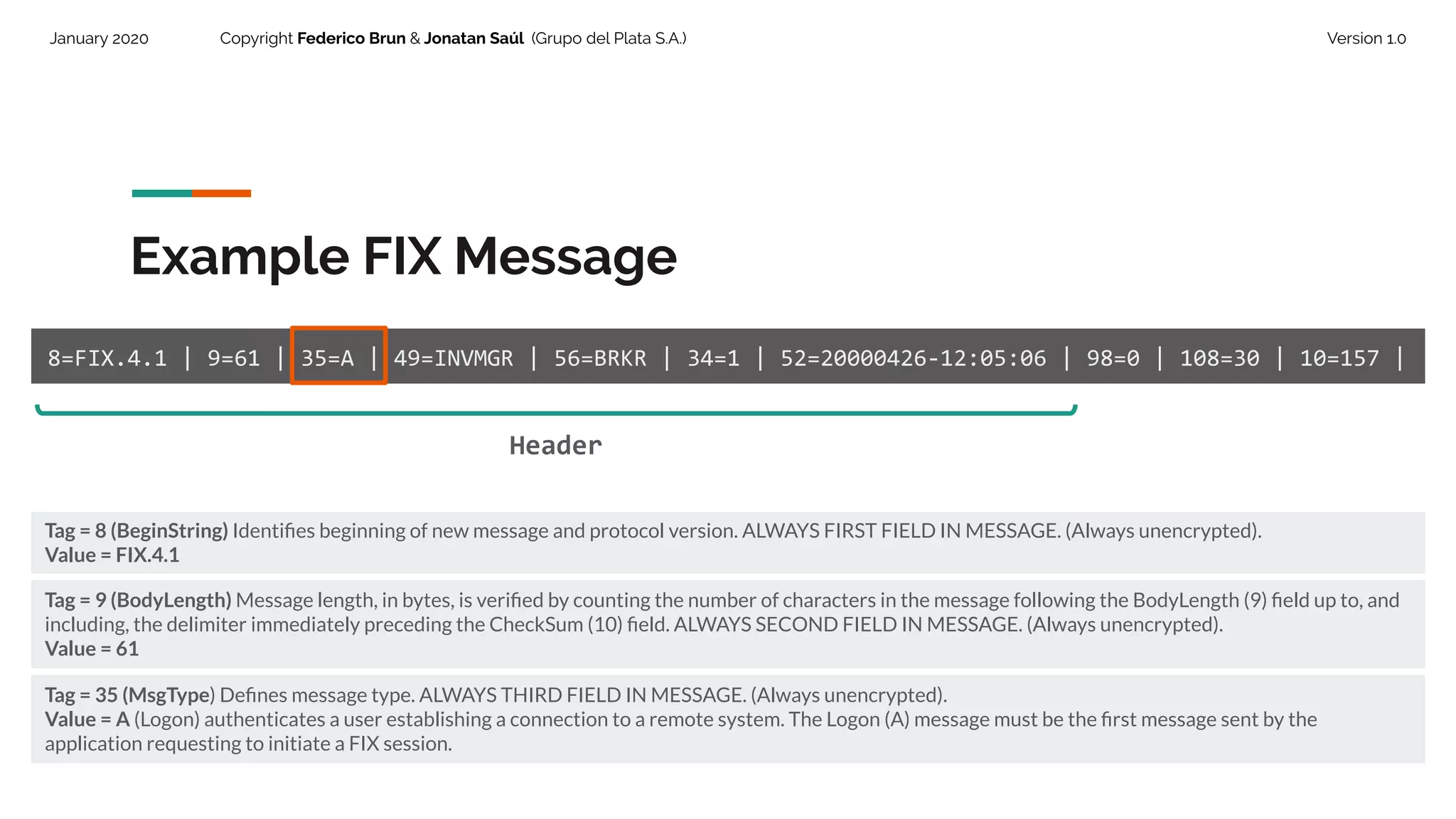

Example FIX Message
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |
Value = FIX.4.1
Tag = 9 (BodyLength) Message length, in bytes, is verified by counting the number of characters in the message following the BodyLength (9) field up to, and
including, the delimiter immediately preceding the CheckSum (10) field. ALWAYS SECOND FIELD IN MESSAGE. (Always unencrypted).
Value = 61
Tag = 35 (MsgType) Defines message type. ALWAYS THIRD FIELD IN MESSAGE. (Always unencrypted).
Value = A (Logon) authenticates a user establishing a connection to a remote system. The Logon (A) message must be the first message sent by the
application requesting to initiate a FIX session.
Header

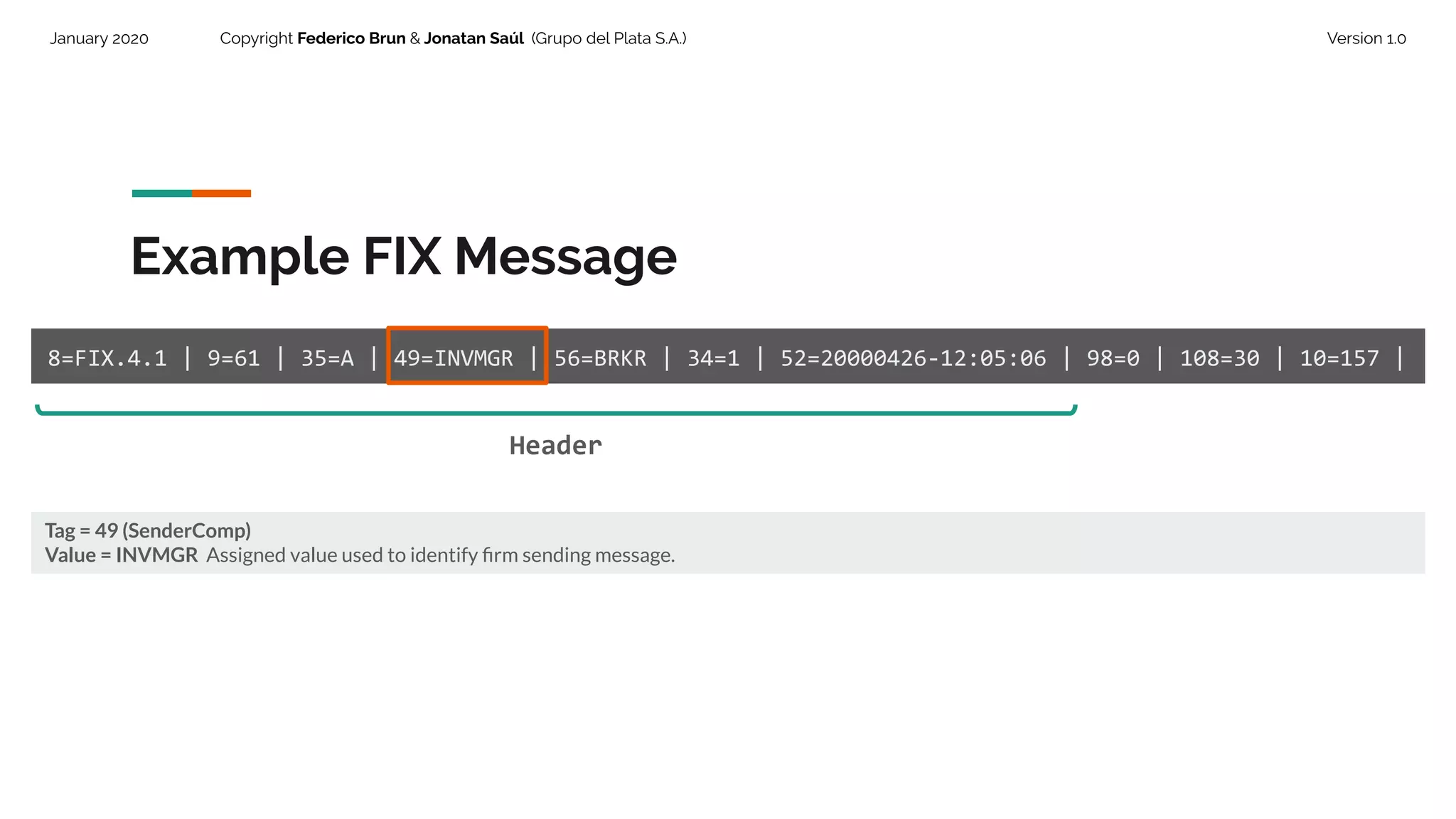

Example FIX Message
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |

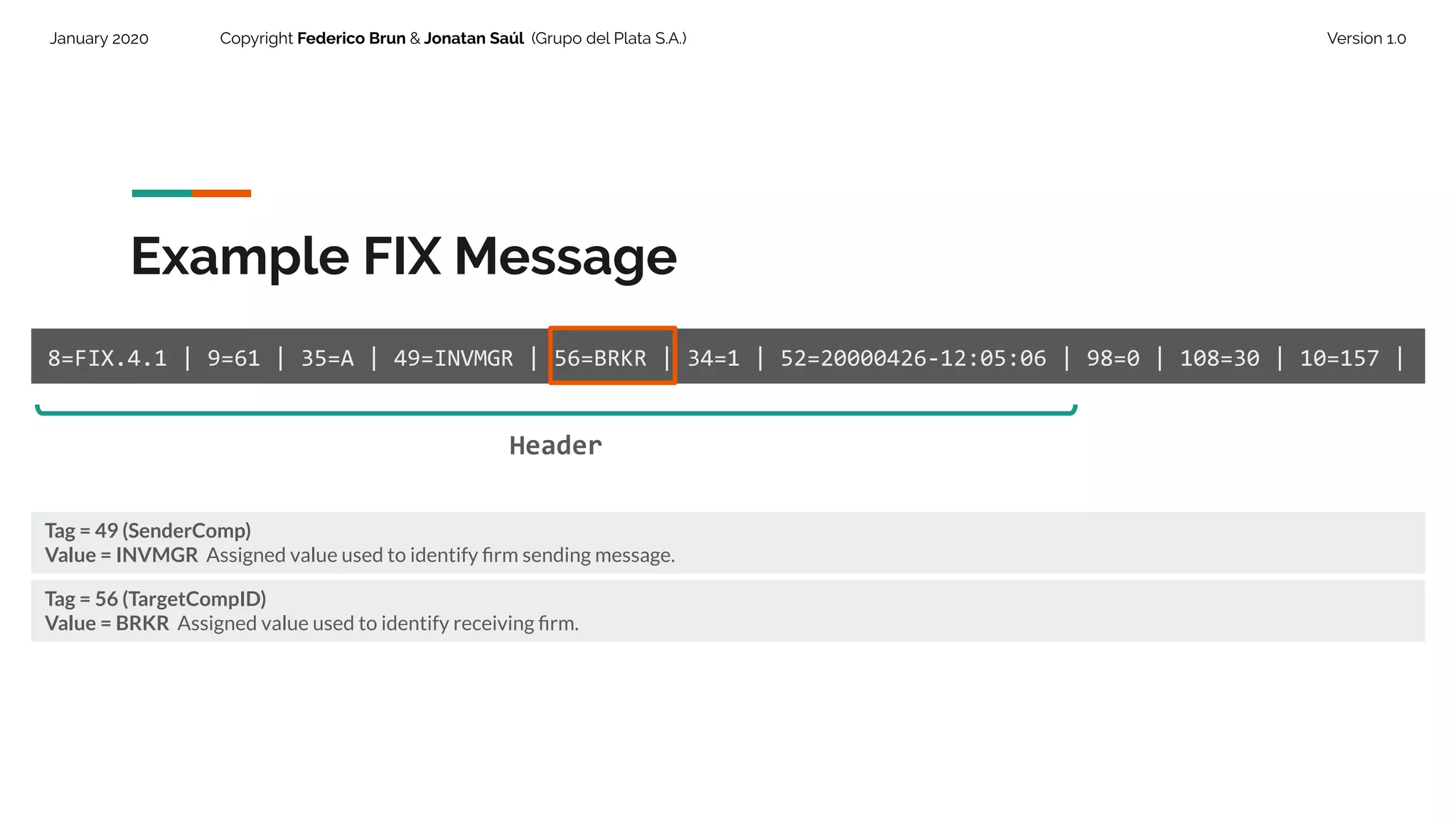

Tag = 49 (SenderComp)
Value = INVMGR Assigned value used to identify ﬁrm sending message.
Header

Example FIX Message
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |
Tag = 56 (TargetCompID)
Value = BRKR Assigned value used to identify receiving ﬁrm.
Header

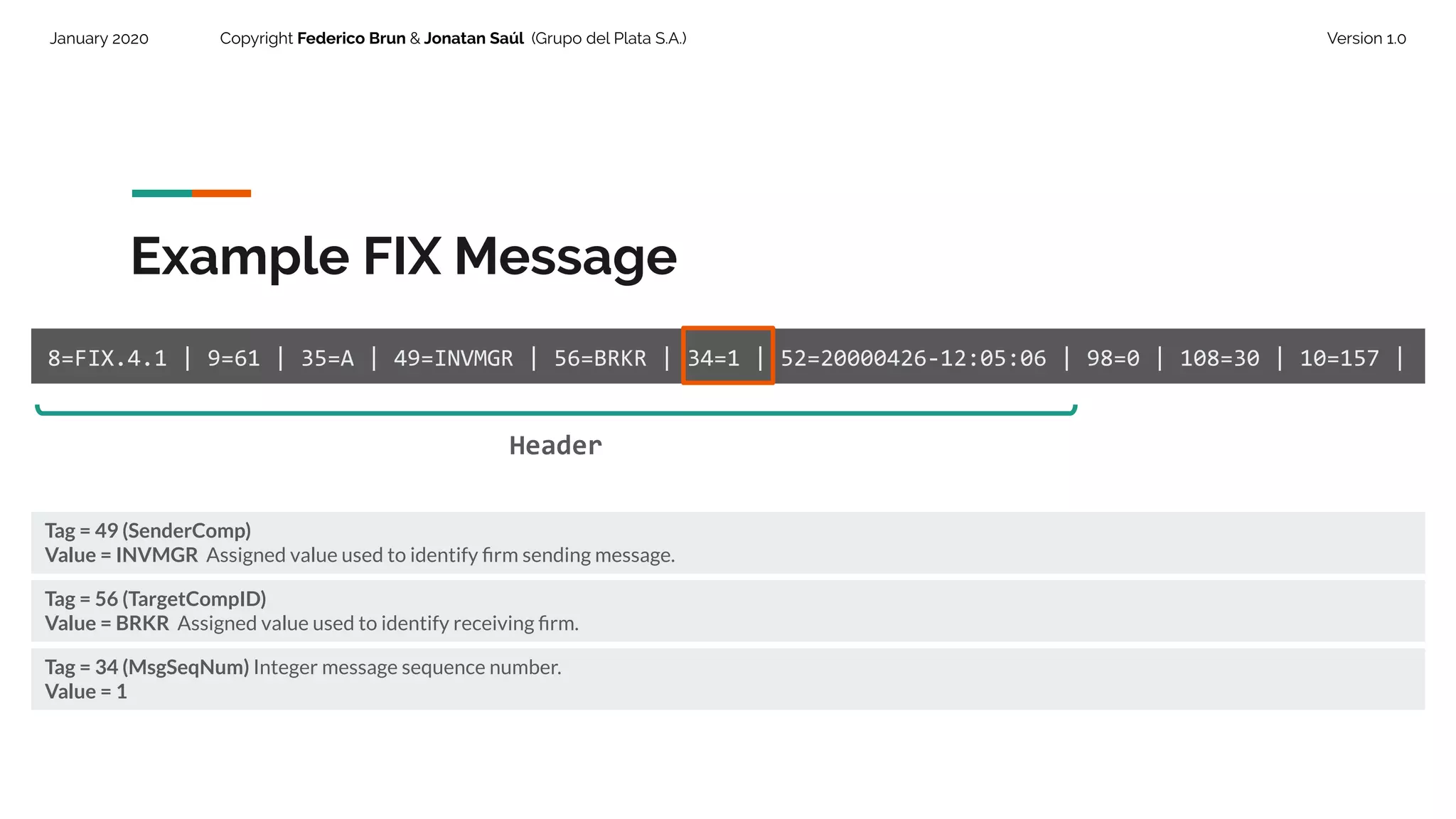

Example FIX Message
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |
Header
Tag = 34 (MsgSeqNum) Integer message sequence number.
Value = 1

Example FIX Message
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |
Header
Tag = 34 (MsgSeqNum) Integer message sequence number.
Value = 1
Tag = 52 (SendingTime) Time of message transmission (always expressed in UTC (Universal Time Coordinated, also known as "GMT").
Value = 20000426-12:05:06 (April 04 of 2000 at 12:05:06)

Body.
The content of this block is
variable and depends on
message type.

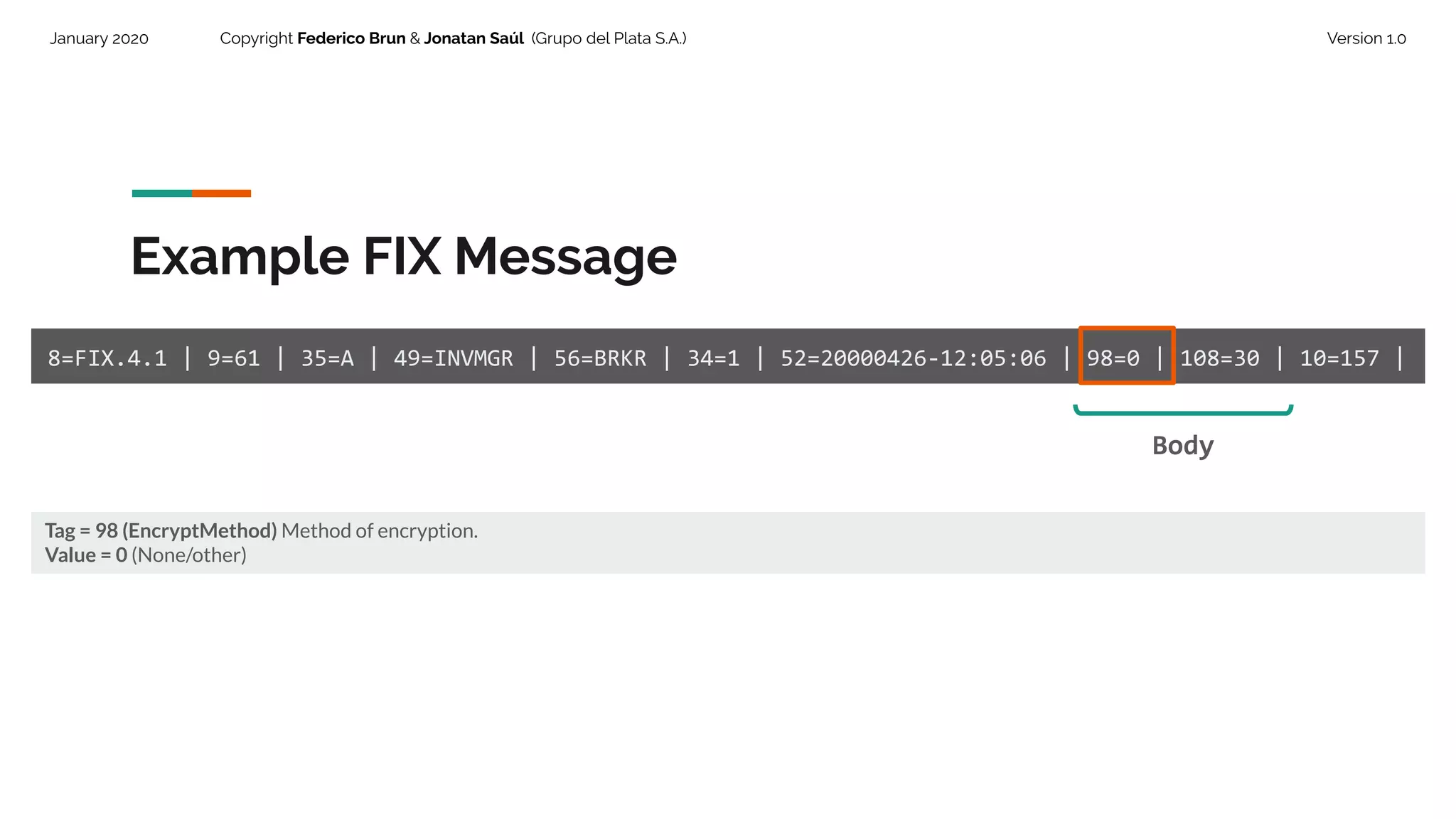

Tag = 98 (EncryptMethod) Method of encryption.
Value = 0 (None/other)
Example FIX Message
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |
Body

Tag = 98 (EncryptMethod) Method of encryption.
Value = 0 (None/other)

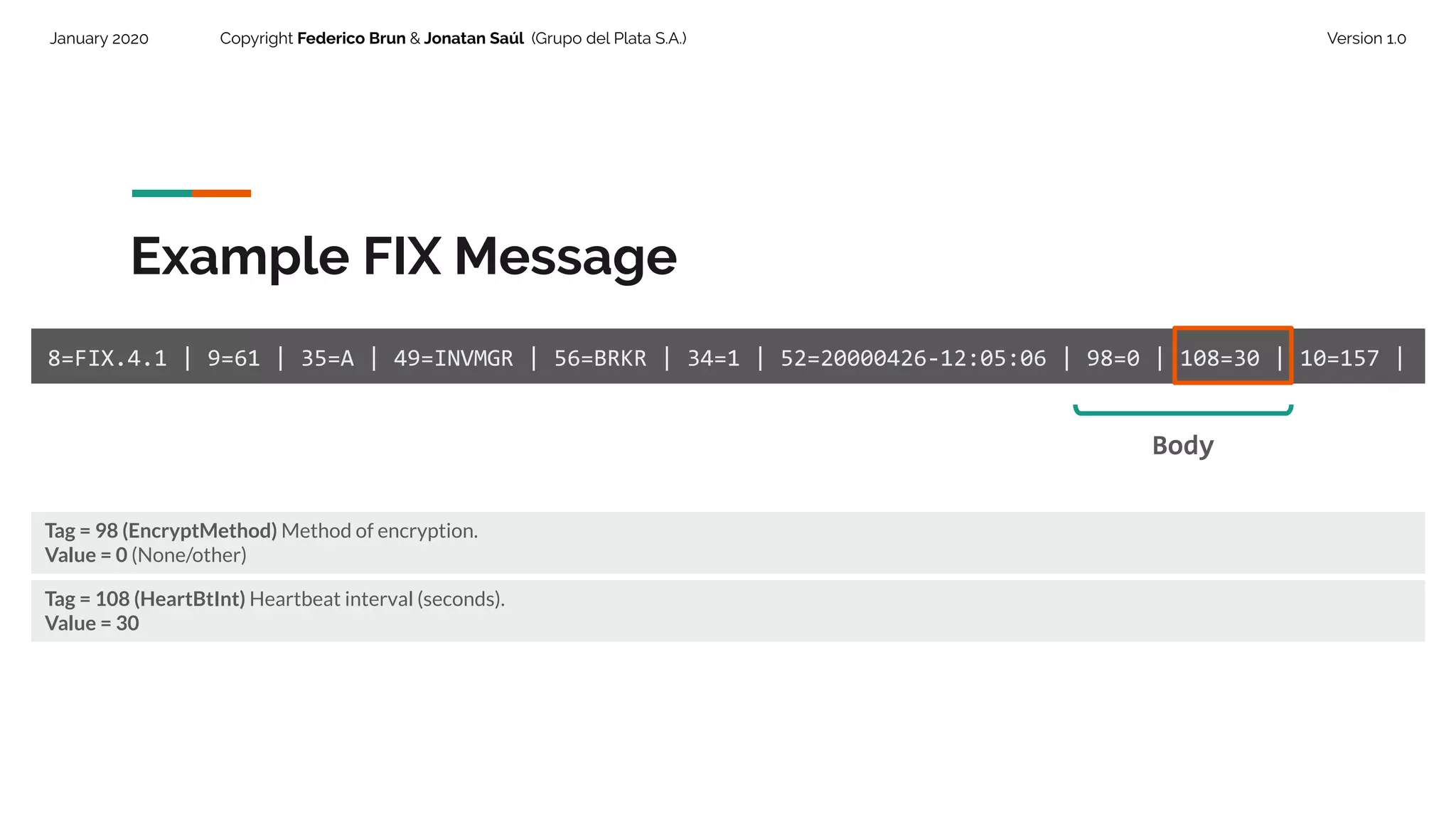

Example FIX Message
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |
Body
Tag = 108 (HeartBtInt) Heartbeat interval (seconds).
Value = 30

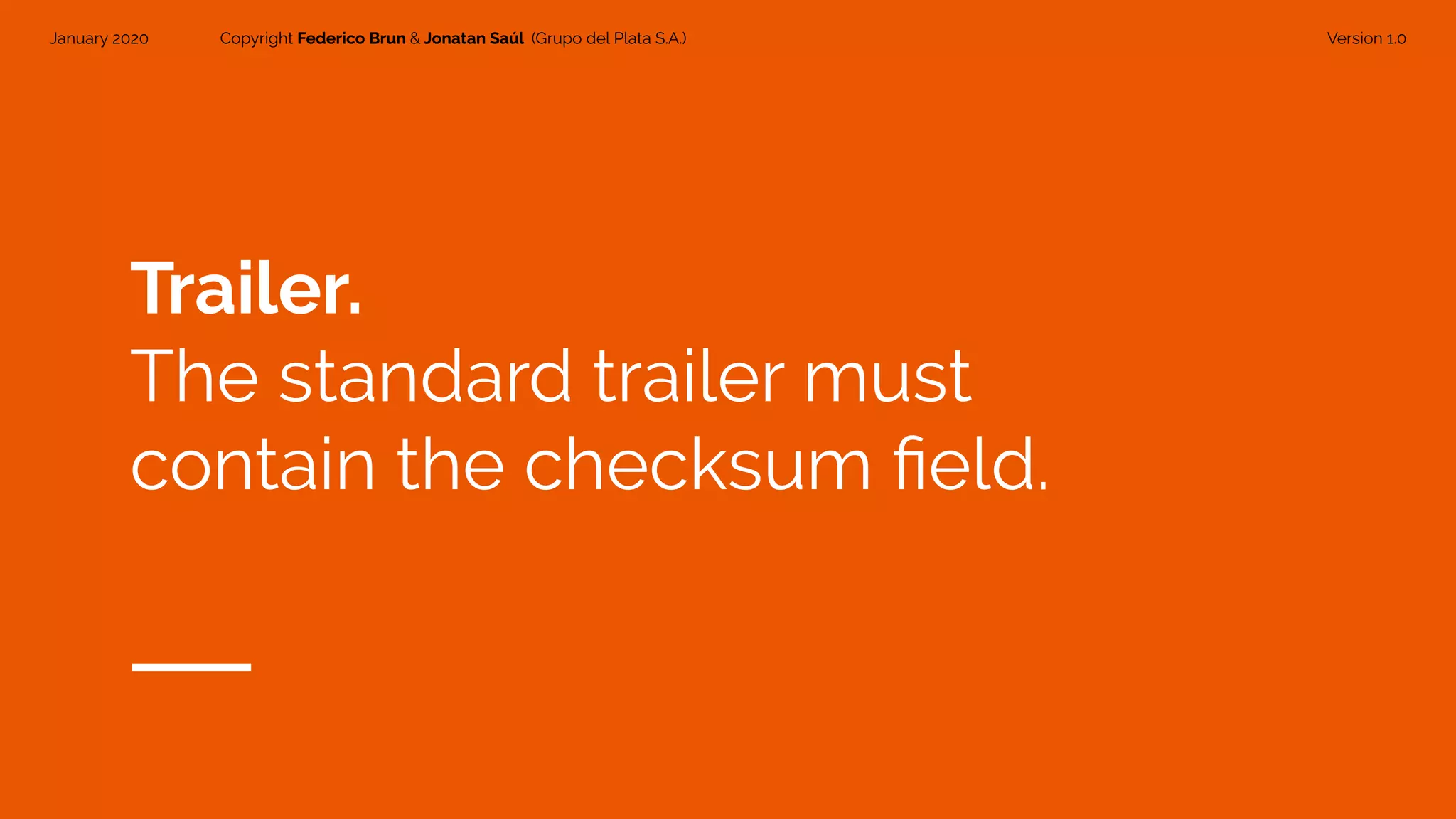

Trailer.
The standard trailer must
contain the checksum ﬁeld.

Example FIX Message
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |

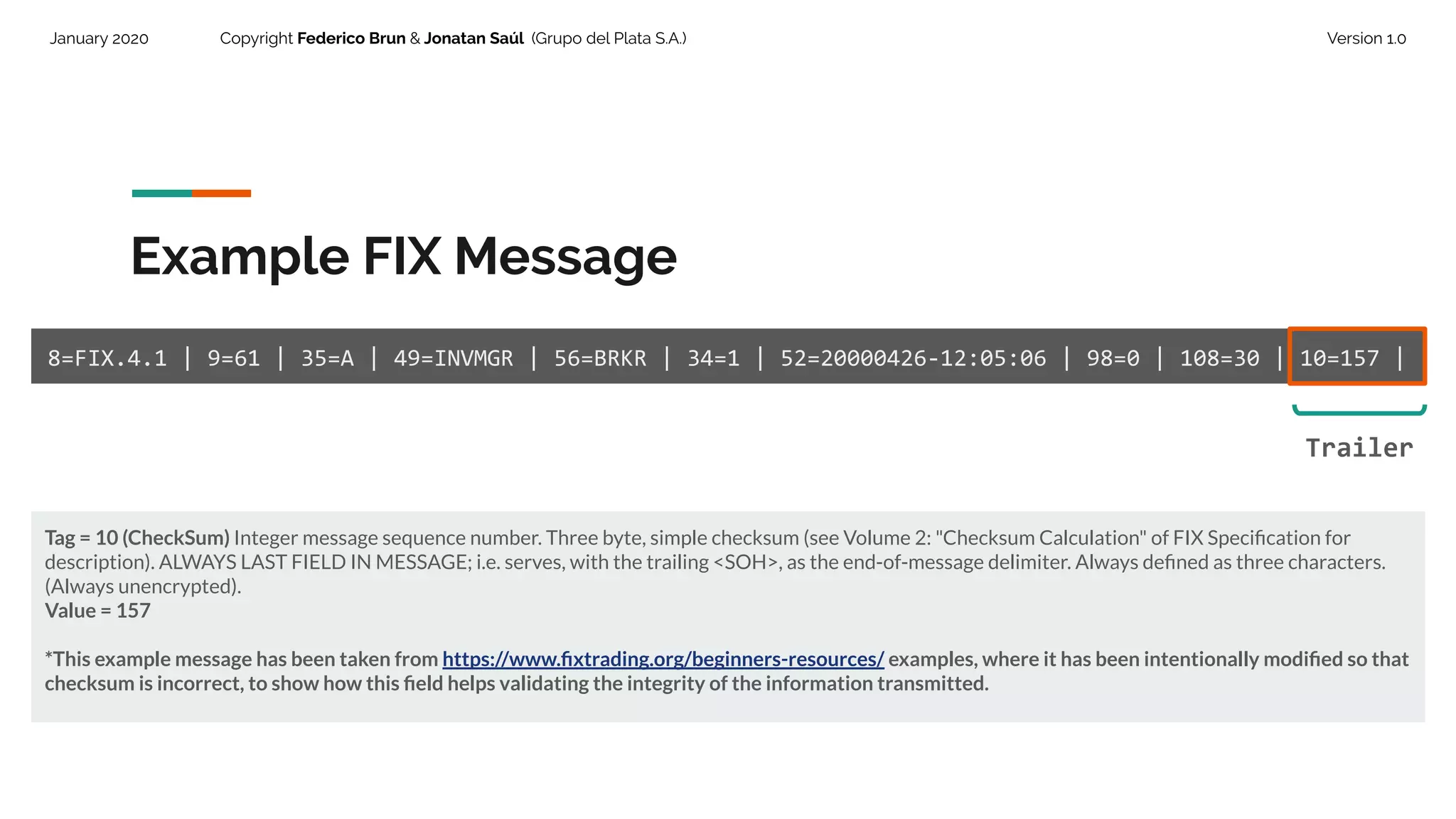

Tag = 10 (CheckSum) Integer message sequence number. Three byte, simple checksum (see Volume 2: "Checksum Calculation" of FIX Specification for
description). ALWAYS LAST FIELD IN MESSAGE; i.e. serves, with the trailing <SOH>, as the end-of-message delimiter. Always defined as three characters.
(Always unencrypted).
Value = 157
*This example message has been taken from https://www.fixtrading.org/beginners-resources/ examples, where it has been intentionally modified so that
checksum is incorrect, to show how this field helps validating the integrity of the information transmitted.
Trailer

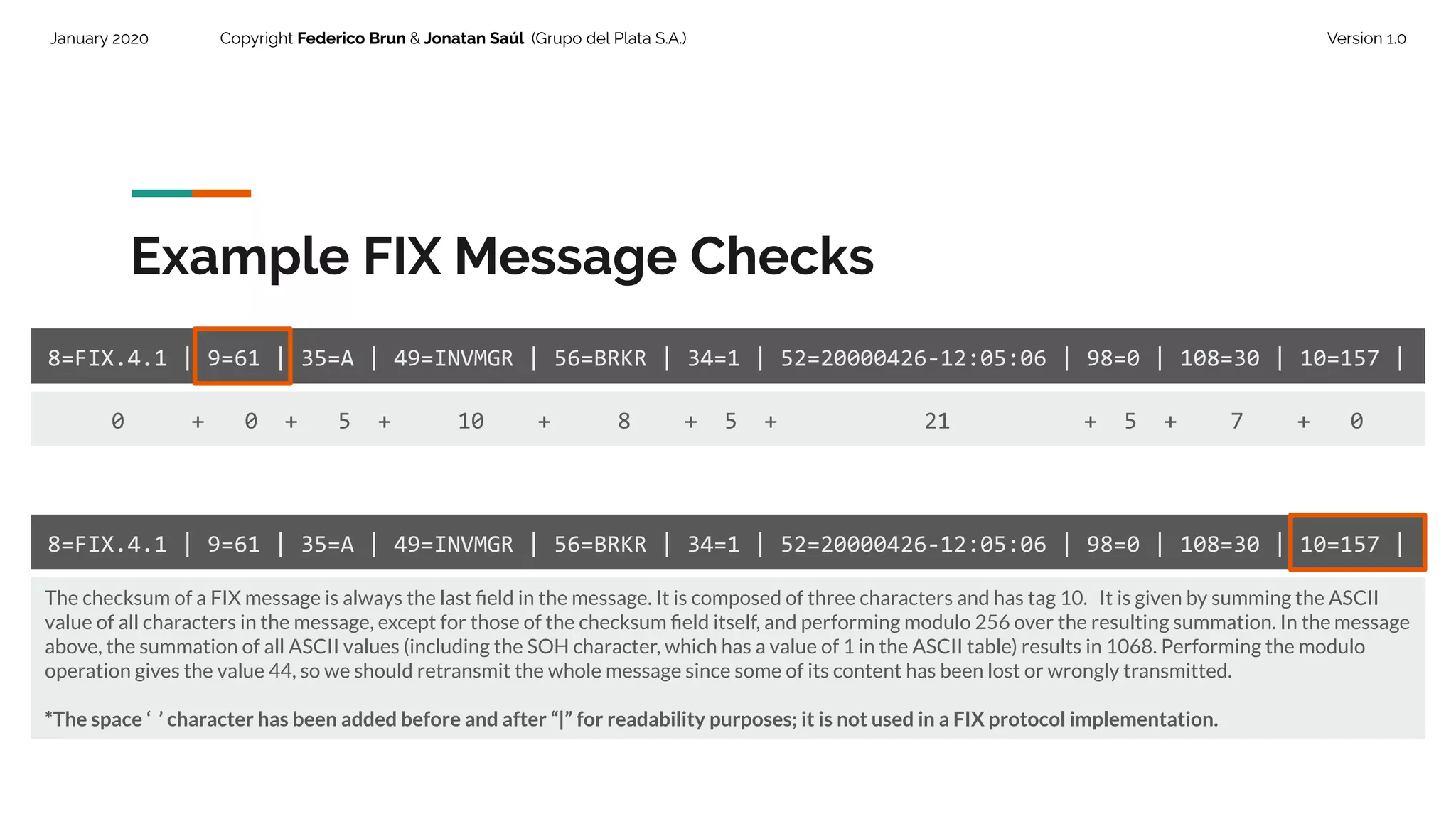

Example FIX Message Checks
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |
The checksum of a FIX message is always the last ﬁeld in the message. It is composed of three characters and has tag 10. It is given by summing the ASCII
value of all characters in the message, except for those of the checksum ﬁeld itself, and performing modulo 256 over the resulting summation. In the message
above, the summation of all ASCII values (including the SOH character, which has a value of 1 in the ASCII table) results in 1068. Performing the modulo
operation gives the value 44, so we should retransmit the whole message since some of its content has been lost or wrongly transmitted.
*The space ‘ ’ character has been added before and after “|” for readability purposes; it is not used in a FIX protocol implementation.
0 + 0 + 5 + 10 + 8 + 5 + 21 + 5 + 7 + 0
8=FIX.4.1 | 9=61 | 35=A | 49=INVMGR | 56=BRKR | 34=1 | 52=20000426-12:05:06 | 98=0 | 108=30 | 10=157 |

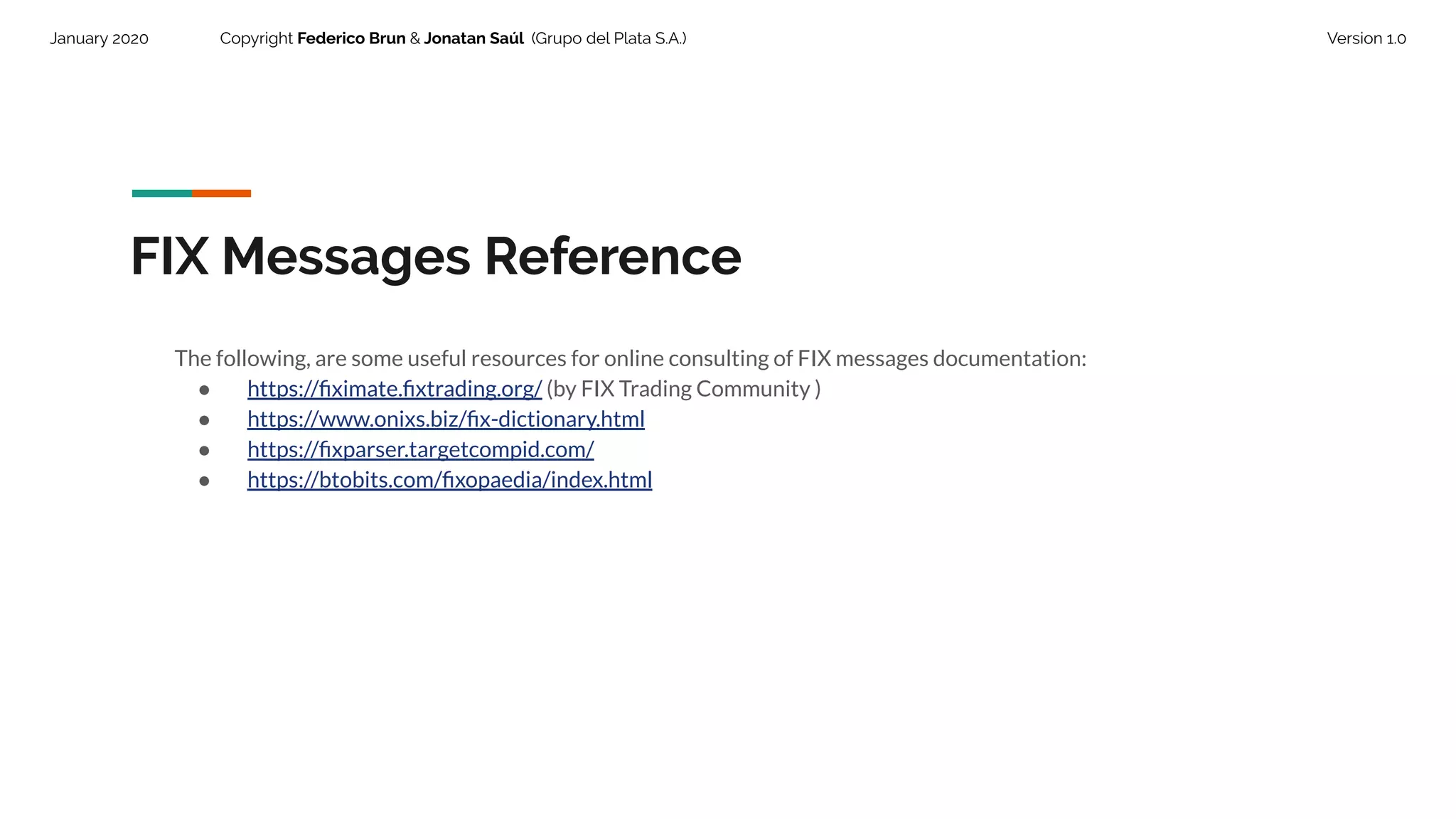

FIX Messages Reference
The following, are some useful resources for online consulting of FIX messages documentation:
● https://fiximate.fixtrading.org/ (by FIX Trading Community )
● https://www.onixs.biz/fix-dictionary.html
● https://fixparser.targetcompid.com/
● https://btobits.com/fixopaedia/index.html

FIX Protocol
Architecture

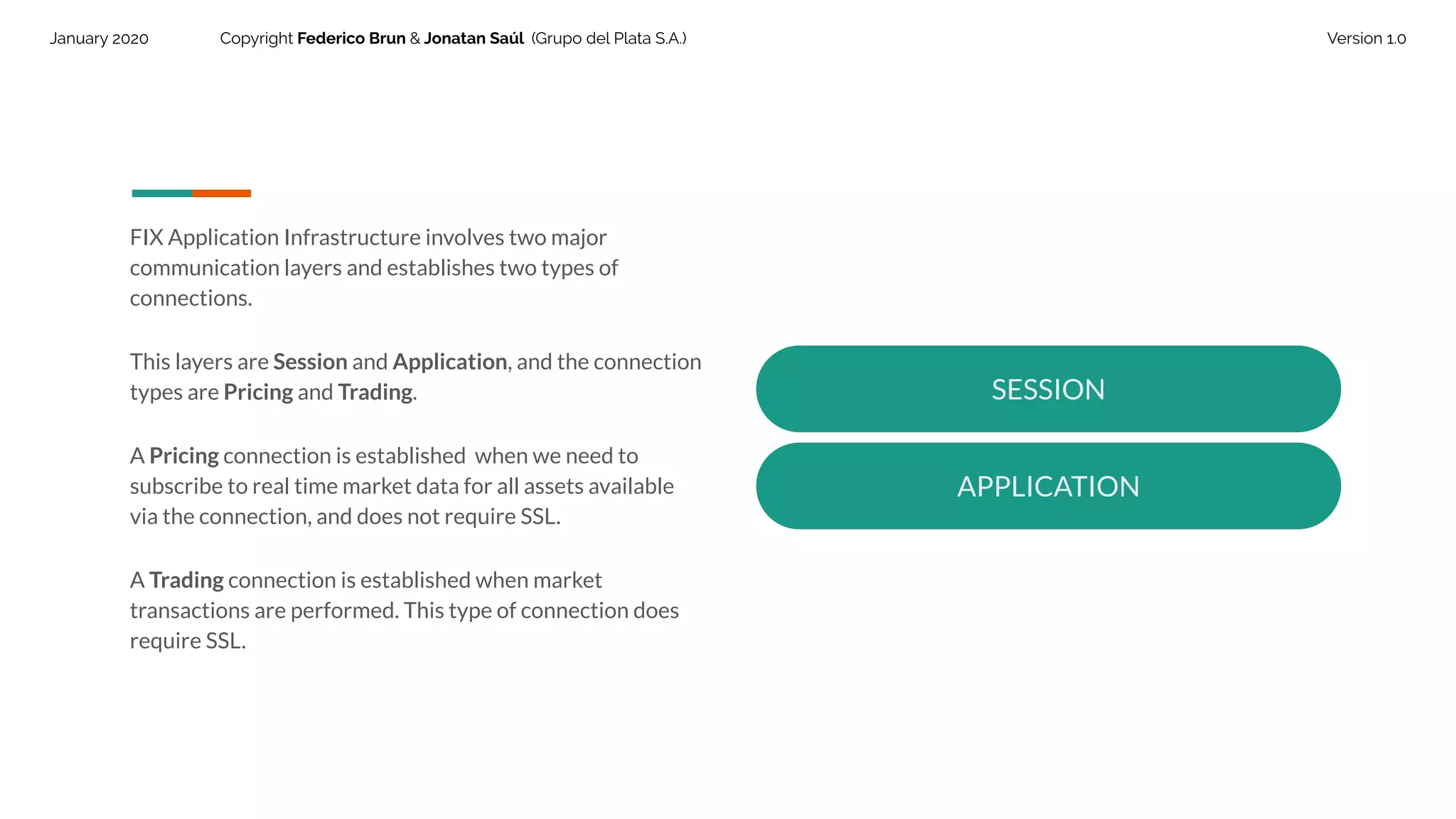

FIX Application Infrastructure involves two major
communication layers and establishes two types of
connections.
This layers are Session and Application, and the connection
types are Pricing and Trading.
A Pricing connection is established when we need to
subscribe to real time market data for all assets available
via the connection, and does not require SSL.
A Trading connection is established when market
transactions are performed. This type of connection does
require SSL.
SESSION
APPLICATION

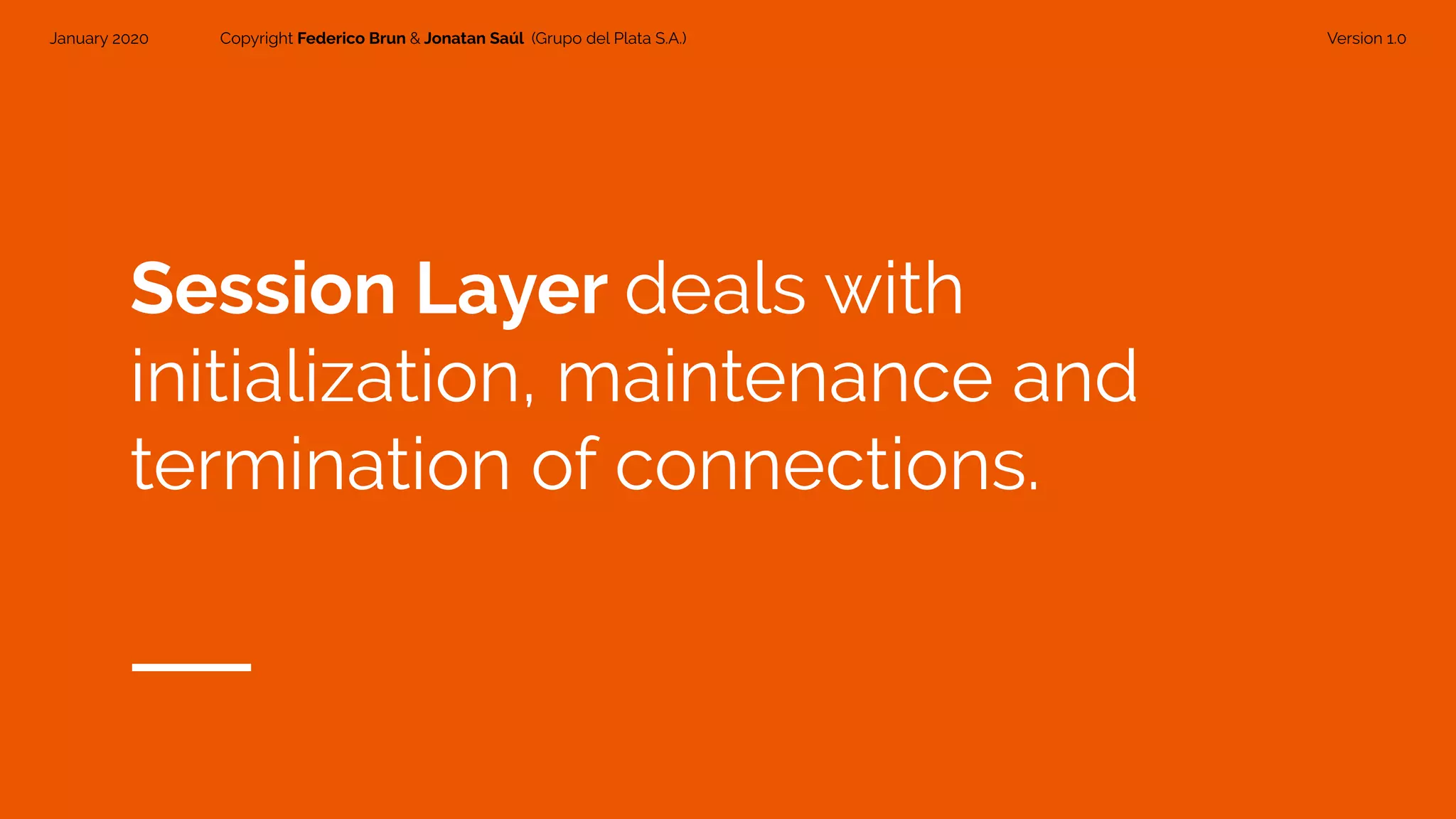

Session Layer deals with
initialization, maintenance and
termination of connections.

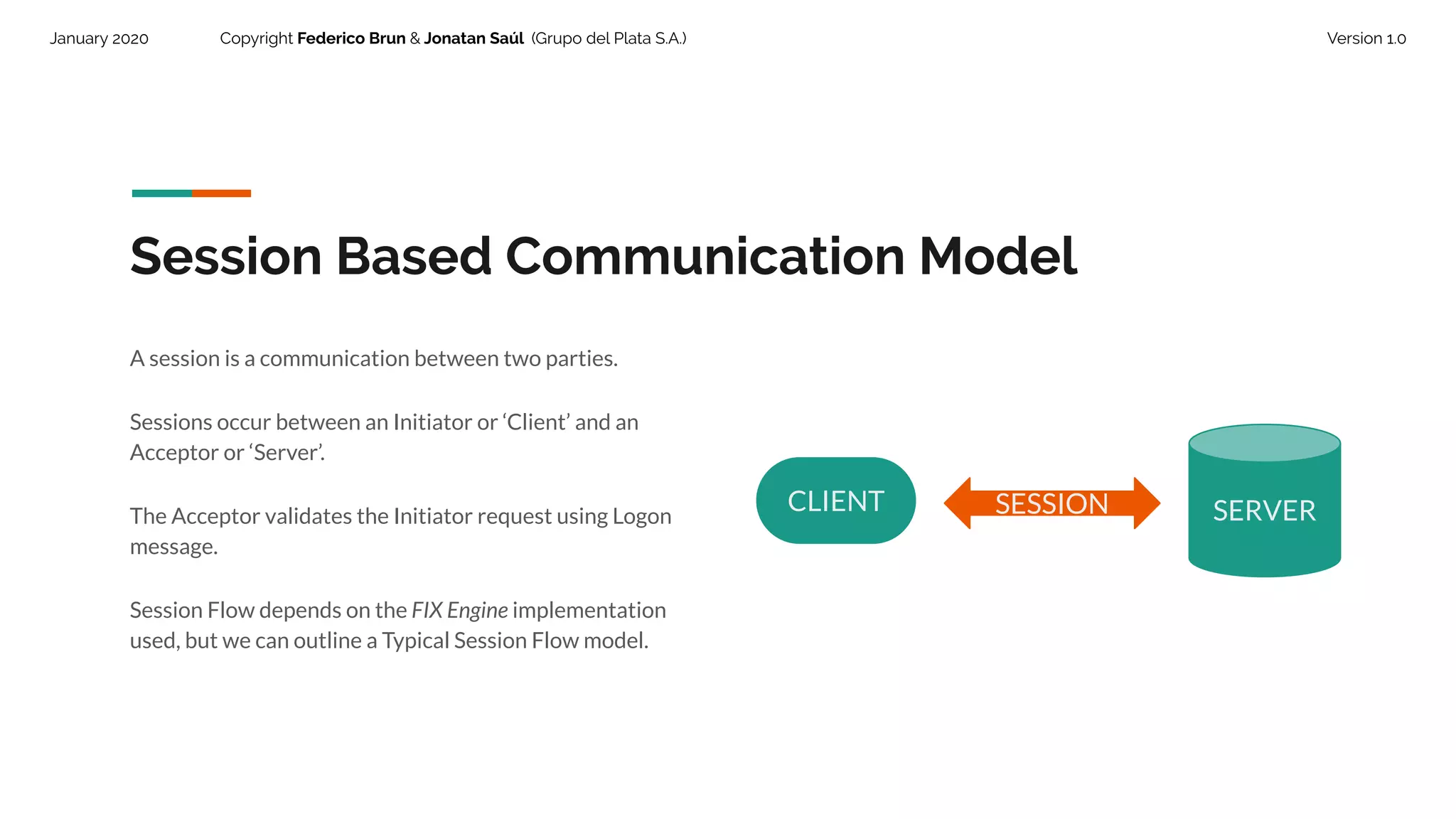

Session Based Communication Model
A session is a communication between two parties.
Sessions occur between an Initiator or ‘Client’ and an
Acceptor or ‘Server’.
The Acceptor validates the Initiator request using Logon
message.

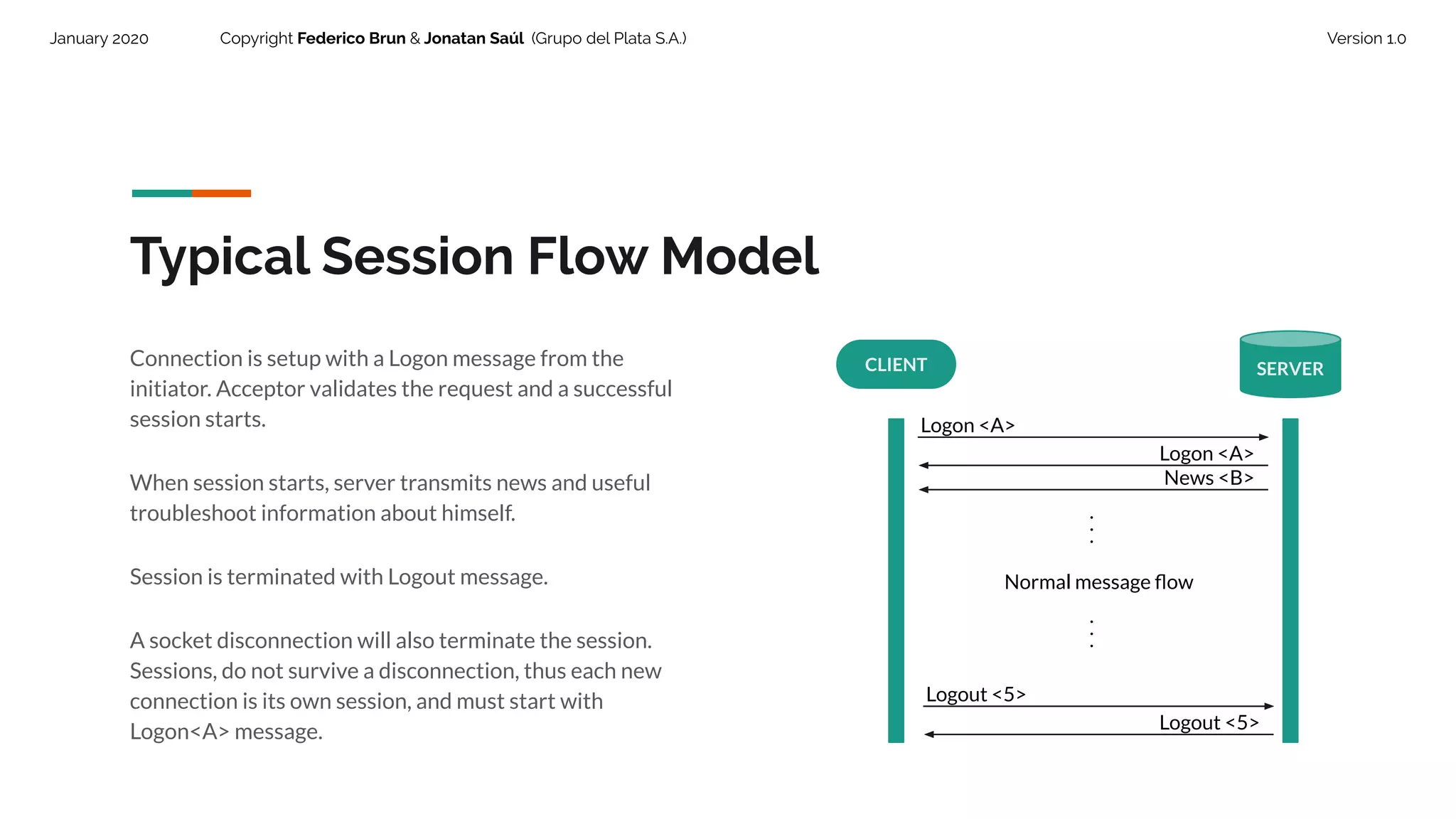

Session Flow depends on the FIX Engine implementation
used, but we can outline a Typical Session Flow model.
CLIENT SERVERSESSION

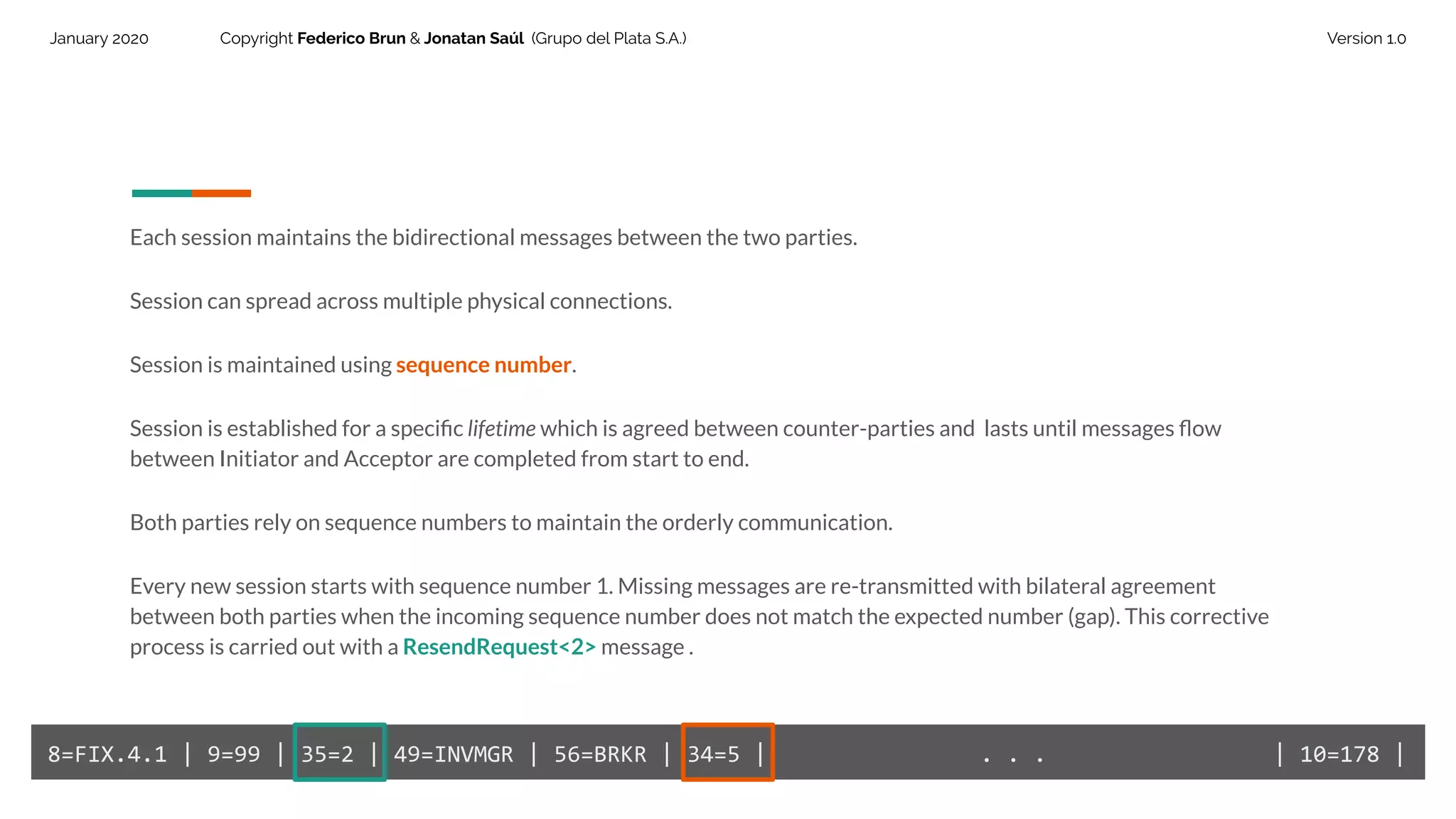

Each session maintains the bidirectional messages between the two parties.
Session can spread across multiple physical connections.
Session is maintained using sequence number.
Session is established for a speciﬁc lifetime which is agreed between counter-parties and lasts until messages ﬂow
between Initiator and Acceptor are completed from start to end.
Both parties rely on sequence numbers to maintain the orderly communication.
Every new session starts with sequence number 1. Missing messages are re-transmitted with bilateral agreement
between both parties when the incoming sequence number does not match the expected number (gap). This corrective
process is carried out with a ResendRequest<2> message .
8=FIX.4.1 | 9=99 | 35=2 | 49=INVMGR | 56=BRKR | 34=5 | . . . | 10=178 |

Typical Session Flow Model
CLIENT SERVER
Logon <A>
Logon <A>
...
Normal message ﬂow
...
Logout <5>
Logout <5>
Connection is setup with a Logon message from the
initiator. Acceptor validates the request and a successful
session starts.
When session starts, server transmits news and useful
troubleshoot information about himself.
Session is terminated with Logout message.
A socket disconnection will also terminate the session.
Sessions, do not survive a disconnection, thus each new
connection is its own session, and must start with
Logon<A> message.
News <B>

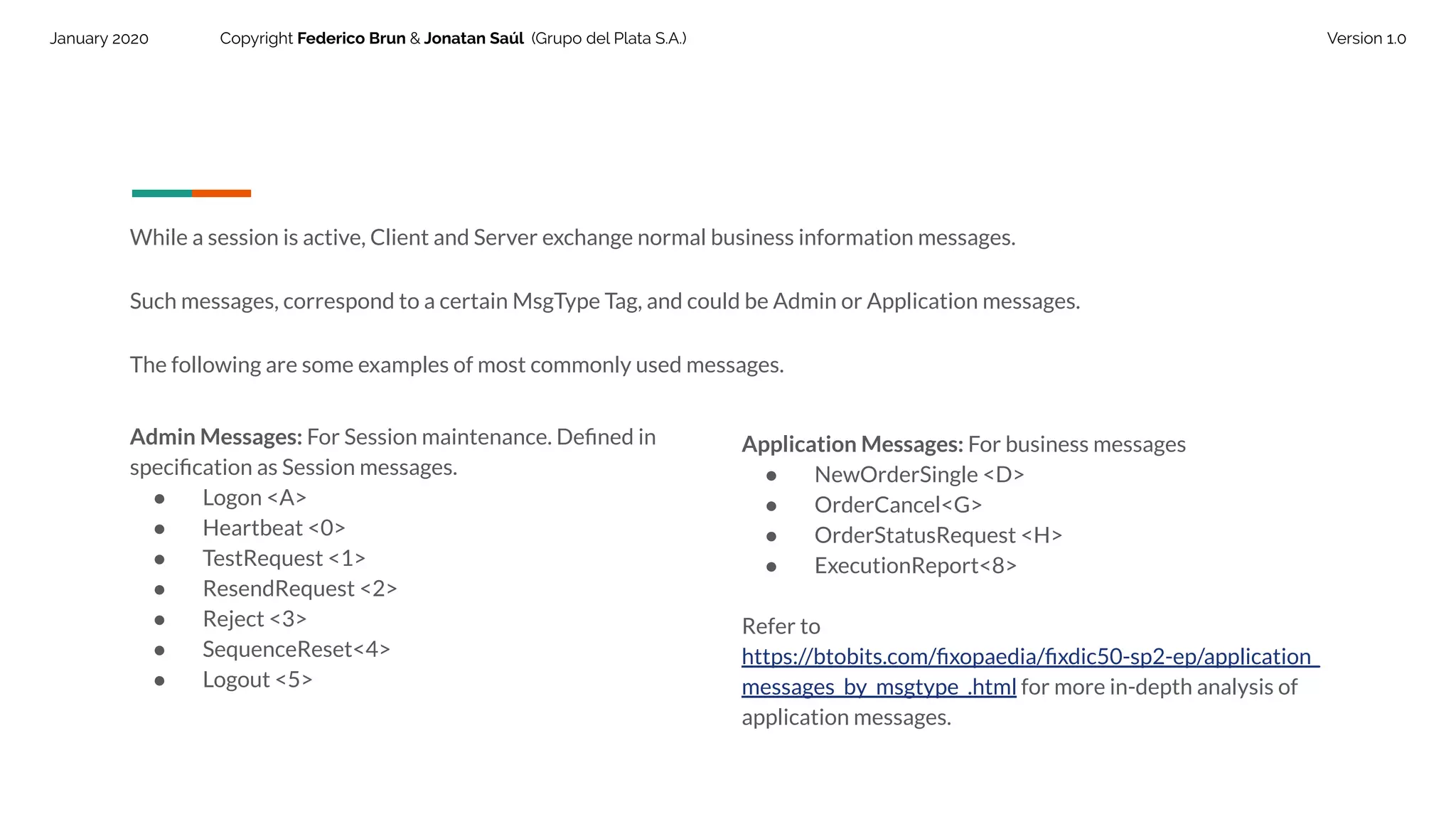

While a session is active, Client and Server exchange normal business information messages.
Such messages, correspond to a certain MsgType Tag, and could be Admin or Application messages.
The following are some examples of most commonly used messages.
Admin Messages: For Session maintenance. Defined in
specification as Session messages.
● Logon <A>
● Heartbeat <0>
● TestRequest <1>
● ResendRequest <2>
● Reject <3>
● SequenceReset<4>
● Logout <5>
Application Messages: For business messages
● NewOrderSingle <D>
● OrderCancel<G>
● OrderStatusRequest <H>
● ExecutionReport<8>
Refer to
https://btobits.com/fixopaedia/fixdic50-sp2-ep/application_
messages_by_msgtype_.html for more in-depth analysis of
application messages.

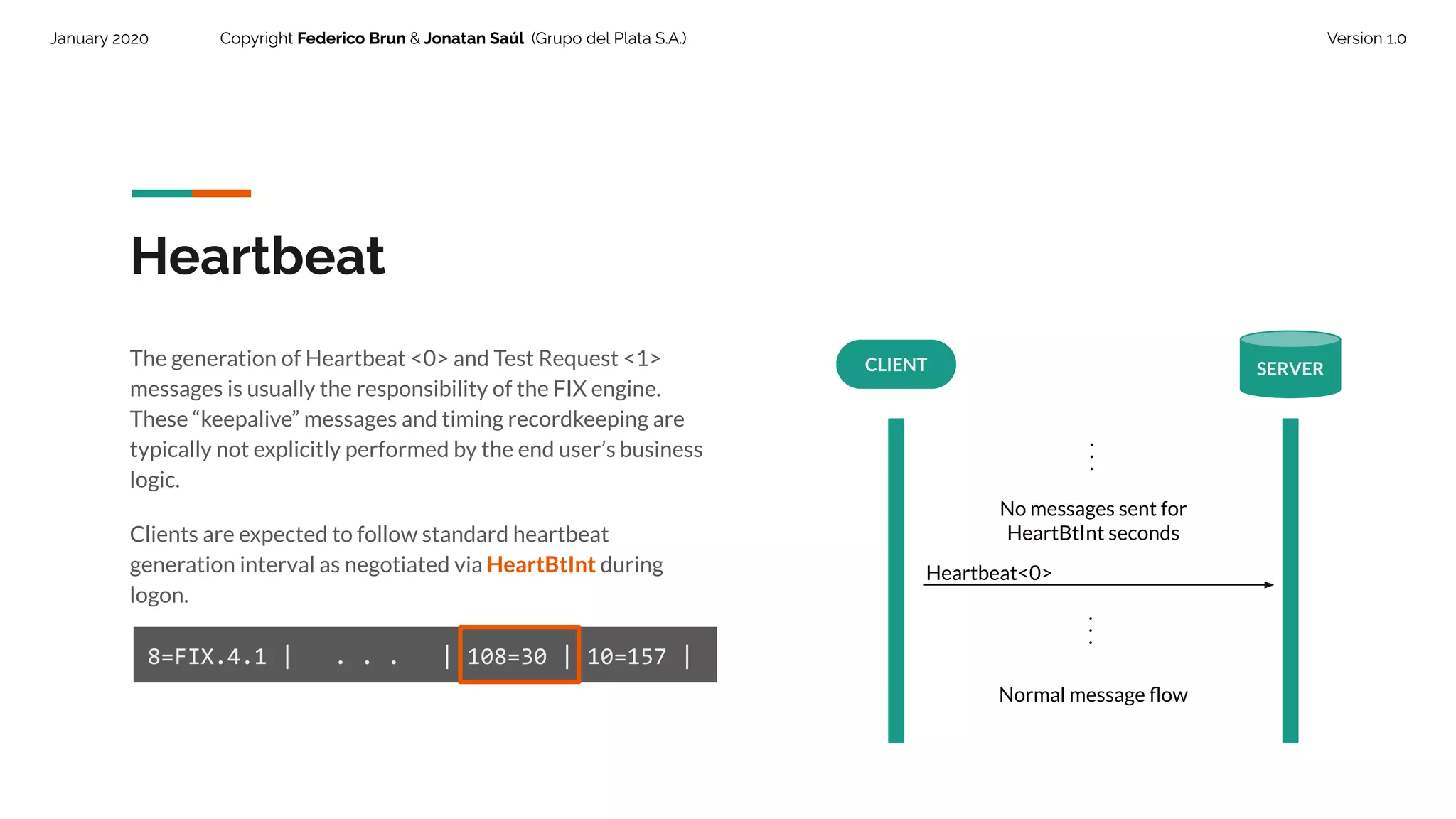

Heartbeat
CLIENT SERVER
...
No messages sent for
HeartBtInt seconds
Heartbeat<0>
The generation of Heartbeat <0> and Test Request <1>
messages is usually the responsibility of the FIX engine.
These “keepalive” messages and timing recordkeeping are
typically not explicitly performed by the end user’s business
logic.
Clients are expected to follow standard heartbeat
generation interval as negotiated via HeartBtInt during
logon.
8=FIX.4.1 | . . . | 108=30 | 10=157 |
...
Normal message ﬂow

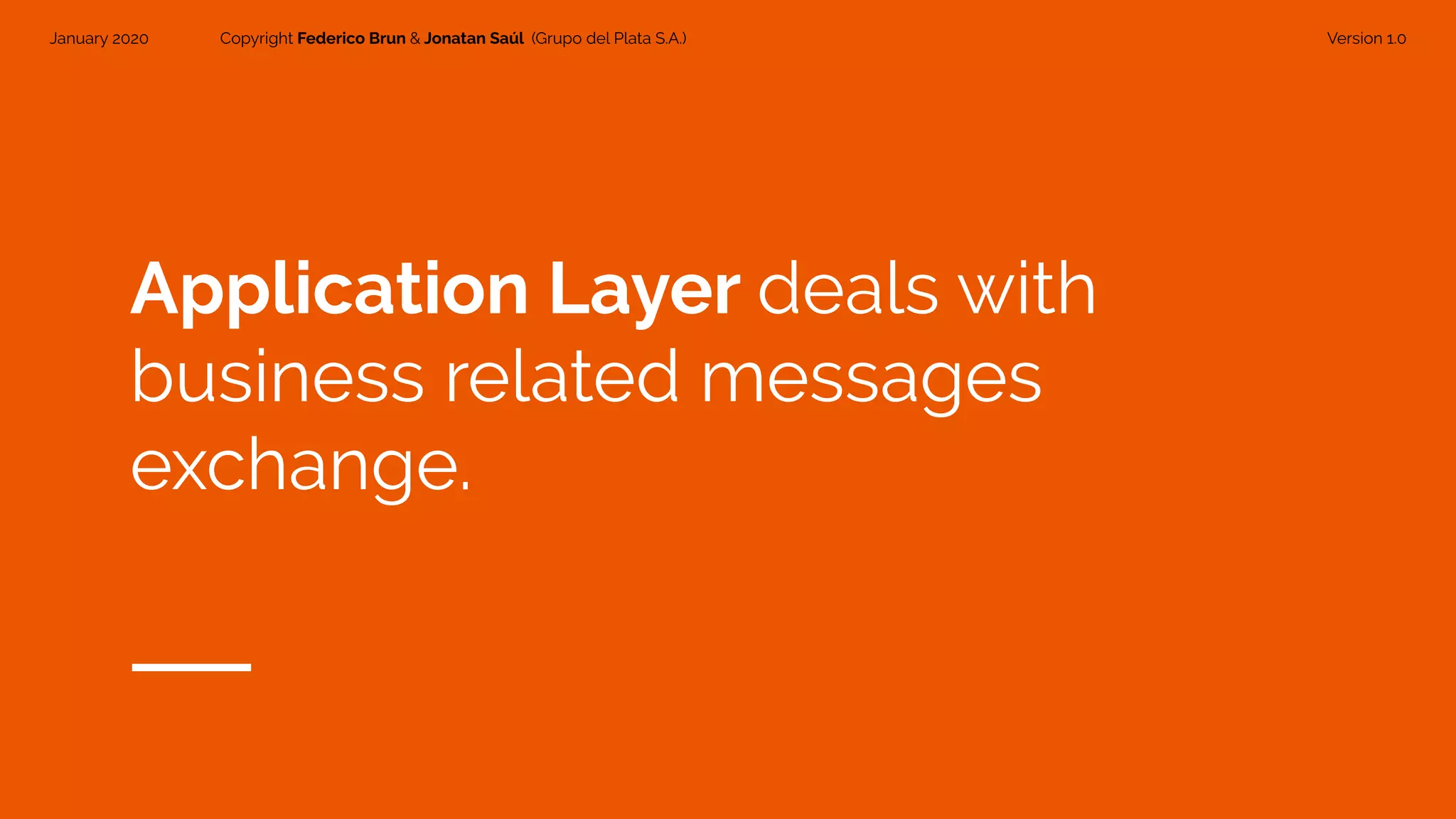

Application Layer deals with
business related messages
exchange.

Application Messages
Once a session has been successfully established, normal
business messages exchange is performed.
Example of an OrderCancelaRequest (35=F) message used
to cancel existing orders, sent in the Application Layer.
8=FIX.4.4 | 9=239 | 35=F | 49=YIZUG0TPF6 | 56=SEEDCX | 34=30 | 50=FKIDMMZZ7YAV | 142=US,IL | 57=SCXM |
52=20181001-15:18:18.339 | 369=29 | 41=Order48988 | 37=319500000000000016 | 11=Cancel48989 | 1=FKIDMMZZ7 |
55=COSP:BTC/USD | 54=1 | 60=20181001-15:18:18 | 528=A | 582=1 | 1028=N | 10=123 |
CLIENT SERVER
...
NewOrderSingle<D>
...
ExecutionReport<8>
OrderCancelRequest<F>
ExecutionReport<8>

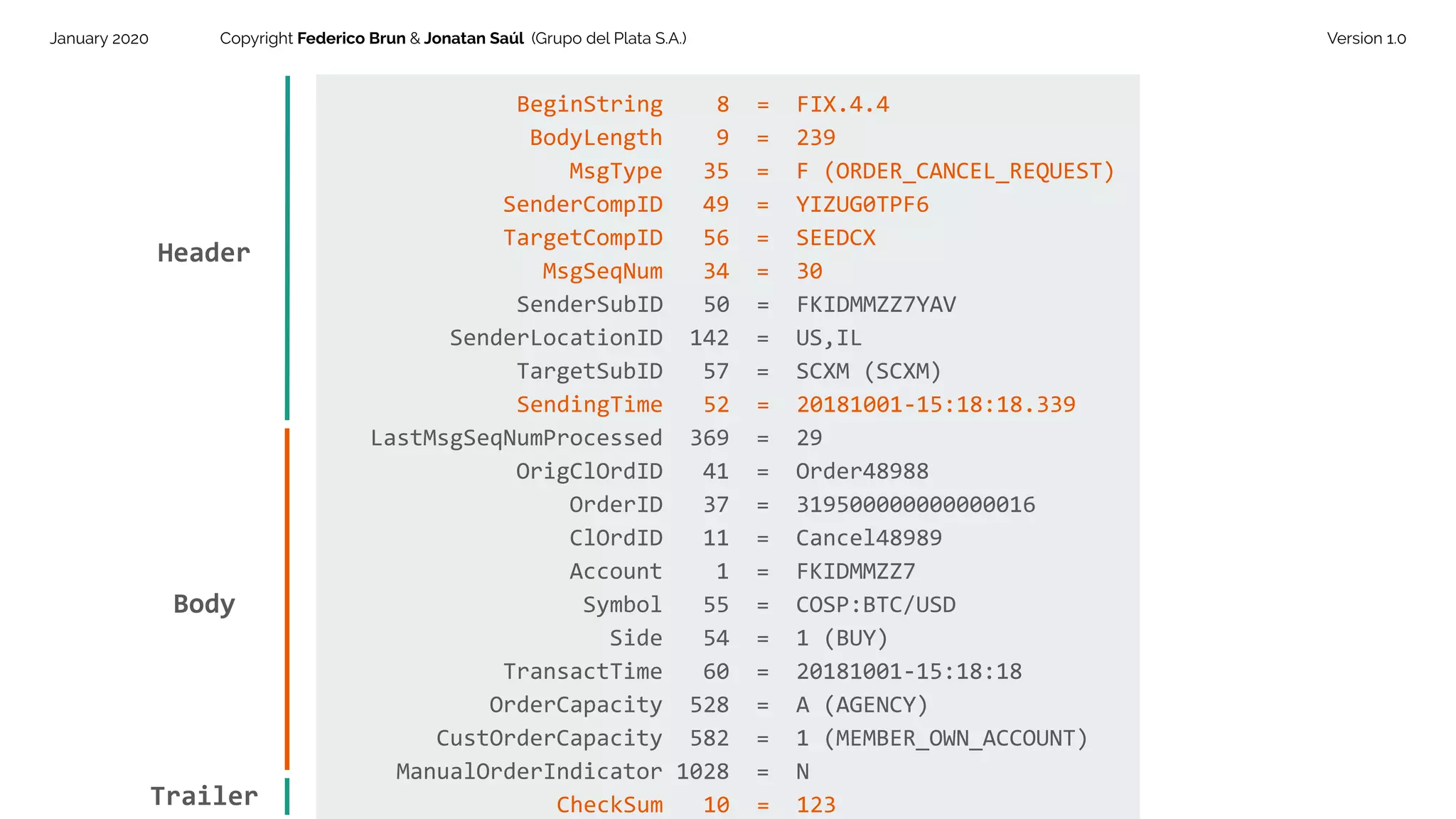

BeginString 8 = FIX.4.4
BodyLength 9 = 239
MsgType 35 = F (ORDER_CANCEL_REQUEST)
SenderCompID 49 = YIZUG0TPF6
TargetCompID 56 = SEEDCX
MsgSeqNum 34 = 30
SenderSubID 50 = FKIDMMZZ7YAV
SenderLocationID 142 = US,IL
TargetSubID 57 = SCXM (SCXM)
SendingTime 52 = 20181001-15:18:18.339
LastMsgSeqNumProcessed 369 = 29
OrigClOrdID 41 = Order48988
OrderID 37 = 319500000000000016
ClOrdID 11 = Cancel48989
Account 1 = FKIDMMZZ7
Symbol 55 = COSP:BTC/USD
Side 54 = 1 (BUY)
TransactTime 60 = 20181001-15:18:18
OrderCapacity 528 = A (AGENCY)
CustOrderCapacity 582 = 1 (MEMBER_OWN_ACCOUNT)
ManualOrderIndicator 1028 = N
CheckSum 10 = 123
Header
Body
Trailer

FIX Engines

FIX Engines are applications that stand alone and provide an interface to internal applications. It is
simply a piece of software that maintains a network connection, crates and parses messages, and
recovers if something goes wrong.
ApplicationInterface
NetworkInterface
Send
ReceiveParse
Create
Message
Definition
FIX ENGINE

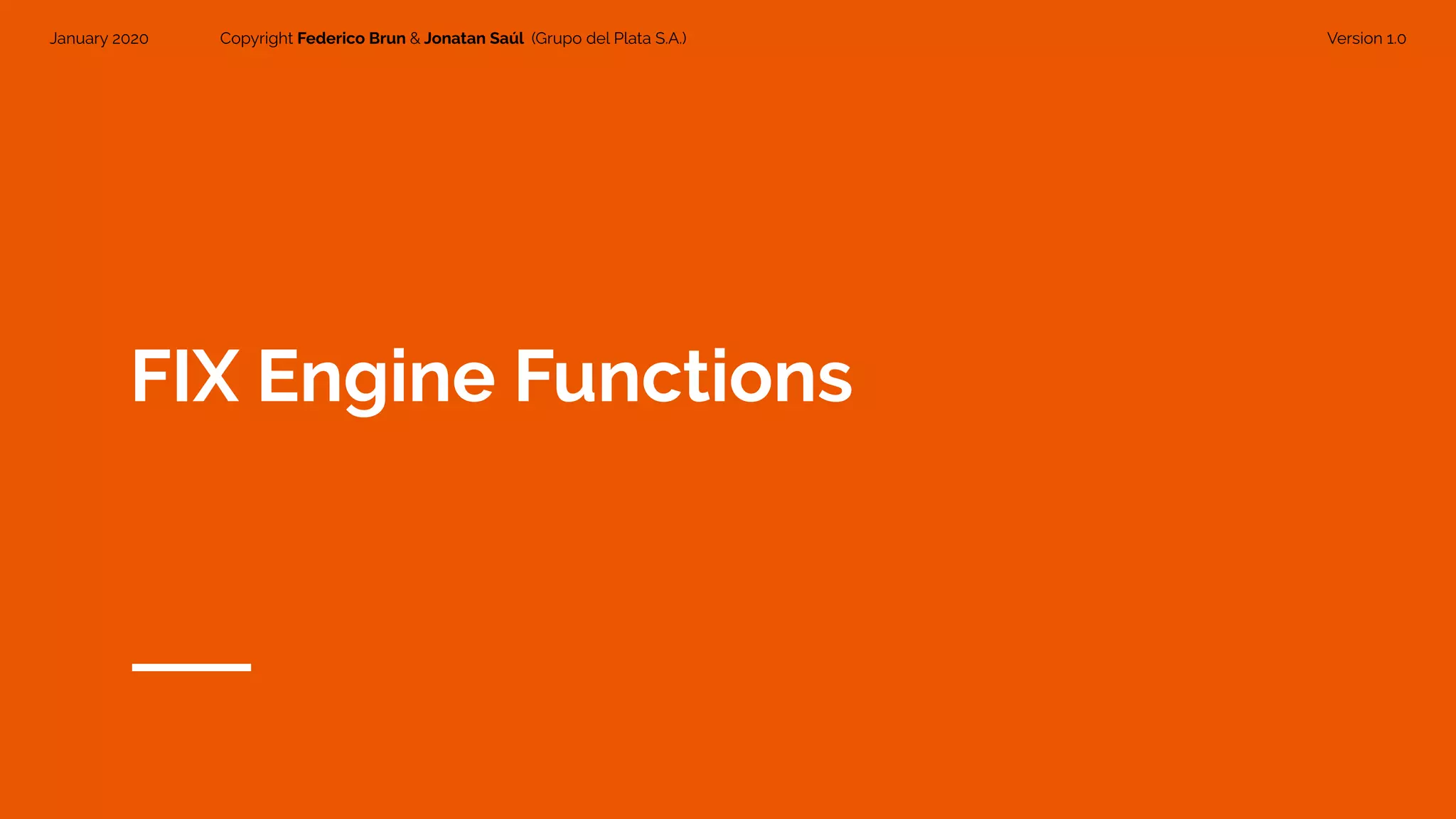

FIX Engine Functions

Session Initiation Functions
● Get conﬁguration details from session control database (IP address, port, CompID, etc).
● Determine last inbound/outbound sequence number, or set to 1 if ﬁrst session.
● Connect to internal business message “handlers”.
● Connect to FIX session counterparty.
● Generate random encryption key.
● Send Logon and perform Logon handshake.

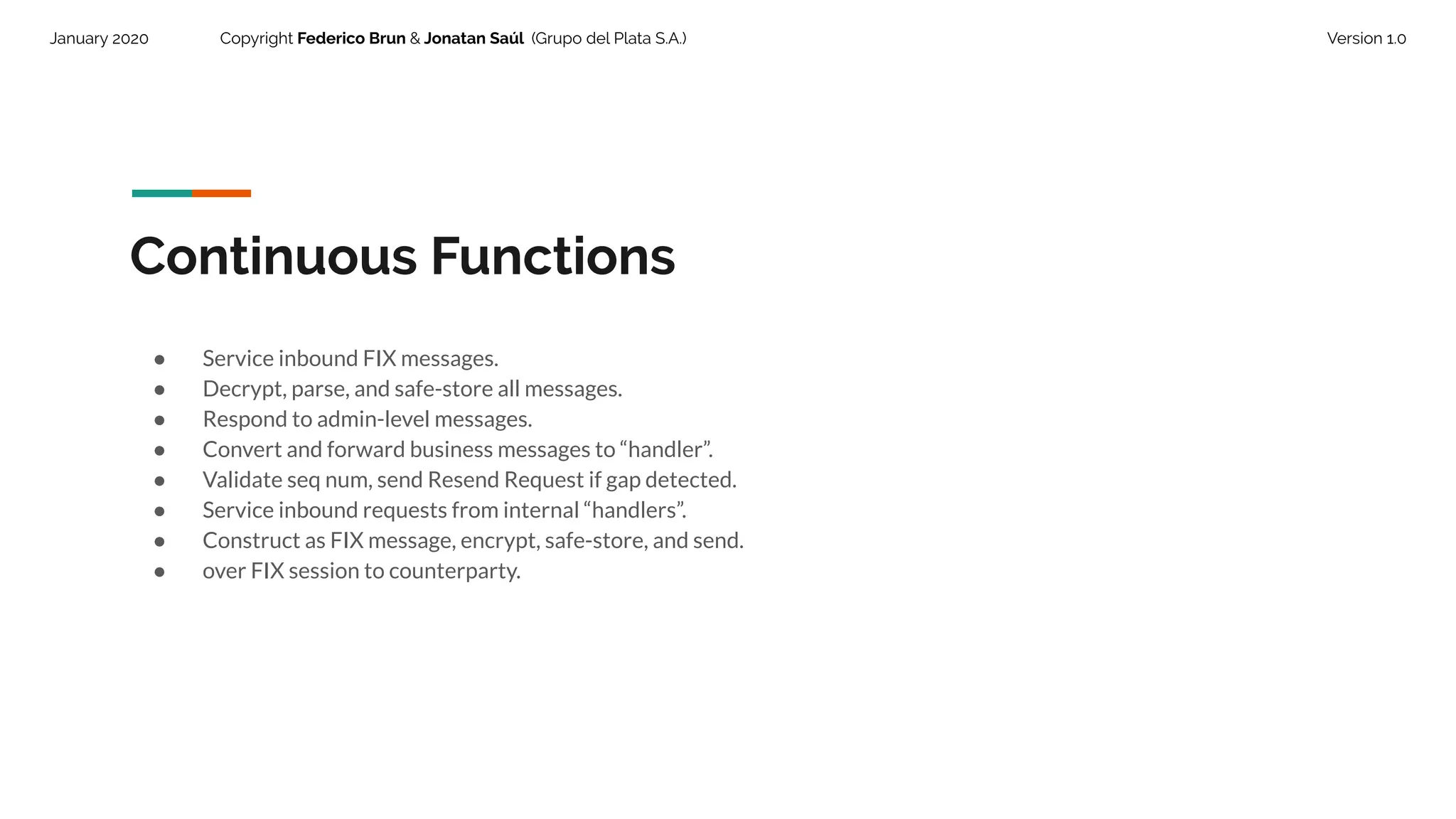

Continuous Functions
● Service inbound FIX messages.
● Decrypt, parse, and safe-store all messages.
● Respond to admin-level messages.
● Convert and forward business messages to “handler”.
● Validate seq num, send Resend Request if gap detected.
● Service inbound requests from internal “handlers”.
● Construct as FIX message, encrypt, safe-store, and send.
● over FIX session to counterparty.

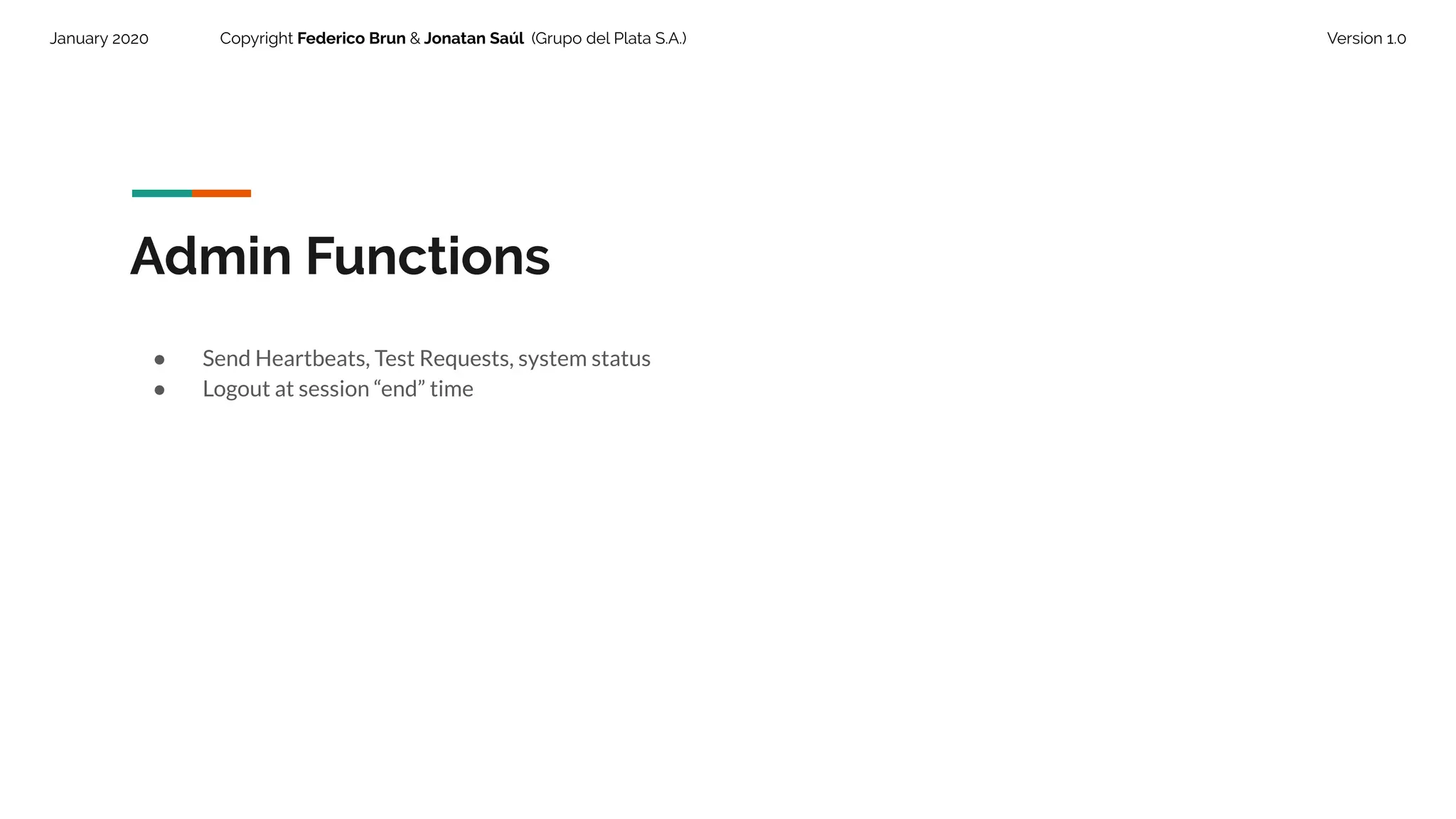

Admin Functions
● Send Heartbeats, Test Requests, system status
● Logout at session “end” time

Thank you.

Financial Information Exchange (FIX) Protocol Introduction Guide

In this document

More Related Content

What's hot

Similar to Financial Information Exchange (FIX) Protocol Introduction Guide

Recently uploaded

Financial Information Exchange (FIX) Protocol Introduction Guide
