1. Firearm

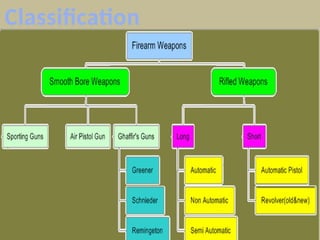

2. Classification

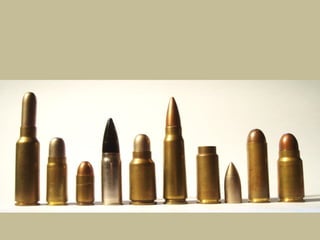

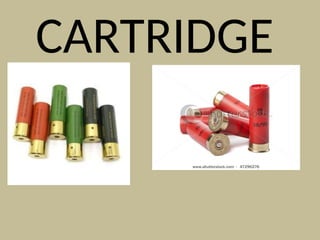

3. CARTRIDGE

5. 1.SHOTGUN CARTRIDGE
2.RIFLE CARTRIDGE

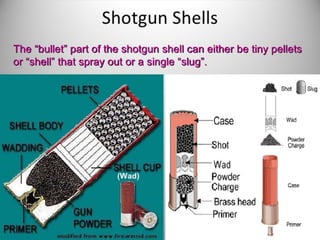

7. SHOTGUN CARTRIDGE
BASE IT CONSISTS OF A
METAL CYLINDER (brass)
WHICH IS CONTINUOUS
WITH A CARDBOARD OR
PLASTIC CYLINDER
THE CASE IS RIMMED
WHICH KEEPS THE CARTRIGE
CORRECTLY IN THE
CHAMBER AND FACILITATES
EXTRACTION.

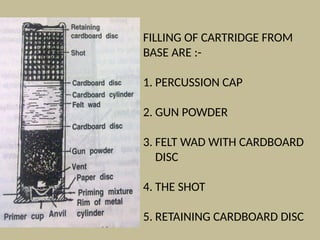

8. FILLING OF CARTRIDGE FROM
BASE ARE :-
1. PERCUSSION CAP
2. GUN POWDER
3. FELT WAD WITH CARDBOARD
DISC
4. THE SHOT
5. RETAINING CARDBOARD DISC

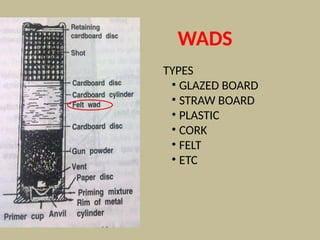

9. TYPES
• GLAZED BOARD
• STRAW BOARD
• PLASTIC
• CORK
• FELT
• ETC
WADS

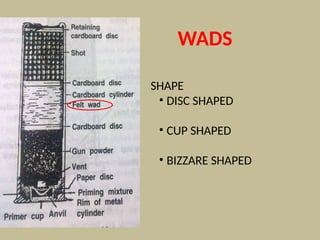

10. SHAPE
• DISC SHAPED
• CUP SHAPED
• BIZZARE SHAPED
WADS

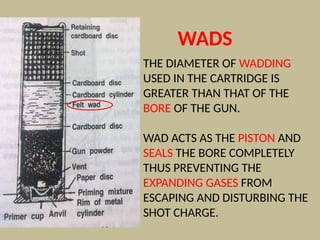

11. THE DIAMETER OF WADDING
USED IN THE CARTRIDGE IS
GREATER THAN THAT OF THE
BORE OF THE GUN.
WAD ACTS AS THE PISTON AND
SEALS THE BORE COMPLETELY
THUS PREVENTING THE
EXPANDING GASES FROM
ESCAPING AND DISTURBING THE
SHOT CHARGE.
WADS

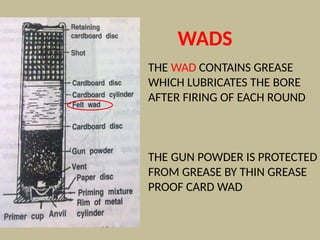

12. THE WAD CONTAINS GREASE
WHICH LUBRICATES THE BORE
AFTER FIRING OF EACH ROUND
THE GUN POWDER IS PROTECTED
FROM GREASE BY THIN GREASE
PROOF CARD WAD
WADS

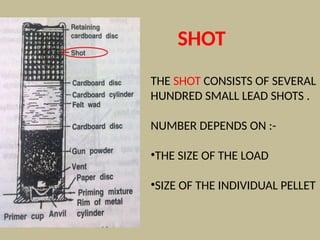

13. THE SHOT CONSISTS OF SEVERAL
HUNDRED SMALL LEAD SHOTS .
NUMBER DEPENDS ON :-
•THE SIZE OF THE LOAD
•SIZE OF THE INDIVIDUAL PELLET
SHOT

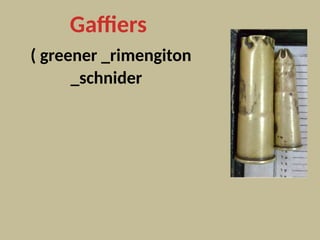

14. Gaffiers
( greener _rimengiton
_schnider

15. RIFLE CARTRIDGE

16. IT HAS A METAL CYLINDER
WITH A FLAT BASE WHICH
PROJECTS AS A RIM

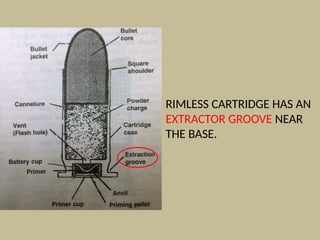

17. RIMLESS CARTRIDGE HAS AN
EXTRACTOR GROOVE NEAR
THE BASE.

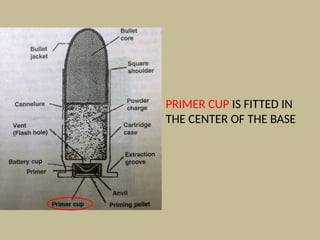

18. PRIMER CUP IS FITTED IN
THE CENTER OF THE BASE

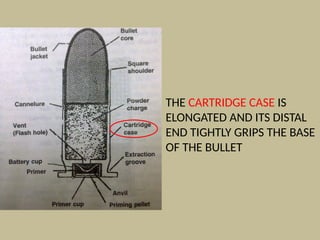

19. THE CARTRIDGE CASE IS
ELONGATED AND ITS DISTAL
END TIGHTLY GRIPS THE BASE
OF THE BULLET

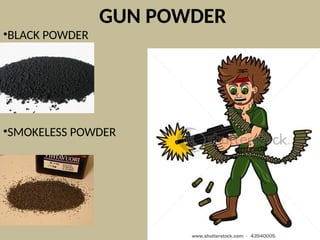

20. GUN POWDER
•BLACK POWDER
•SMOKELESS POWDER

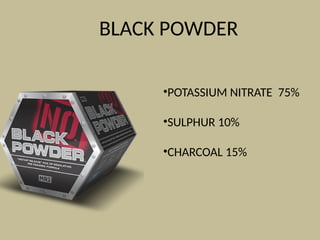

21. BLACK POWDER
•POTASSIUM NITRATE 75%
•SULPHUR 10%
•CHARCOAL 15%

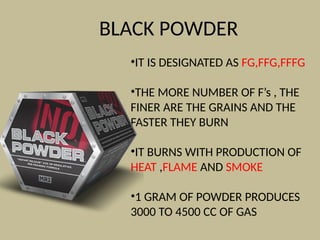

22. BLACK POWDER
•IT IS DESIGNATED AS FG,FFG,FFFG
•THE MORE NUMBER OF F’s , THE
FINER ARE THE GRAINS AND THE
FASTER THEY BURN
•IT BURNS WITH PRODUCTION OF
HEAT ,FLAME AND SMOKE
•1 GRAM OF POWDER PRODUCES
3000 TO 4500 CC OF GAS

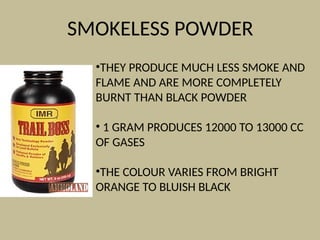

23. SMOKELESS POWDER
•THEY PRODUCE MUCH LESS SMOKE AND
FLAME AND ARE MORE COMPLETELY
BURNT THAN BLACK POWDER
• 1 GRAM PRODUCES 12000 TO 13000 CC
OF GASES
•THE COLOUR VARIES FROM BRIGHT
ORANGE TO BLUISH BLACK

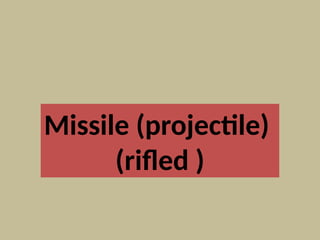

24. Missile (projectile)
(rifled )

25. BULLETS
THE TRADITIONAL BULLET IS MADE OF SOFT METAL AND HAS
A ROUNDED NOSE .
THE METAL USED IS LEAD
THE MISSILE IS THE COMMON BULLET USED IN PISTOLS AND
RIFLES.
IN PISTOL THE BULLET IS SHORT AND THE POINT IS ROUNDED
IN RIFLES THE BULLET IS ELONGATED AND POINTED

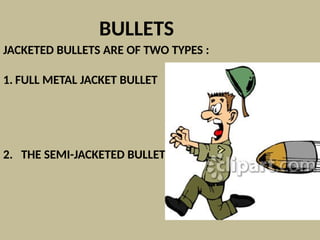

26. BULLETS
JACKETED BULLETS ARE OF TWO TYPES :
1. FULL METAL JACKET BULLET
2. THE SEMI-JACKETED BULLET

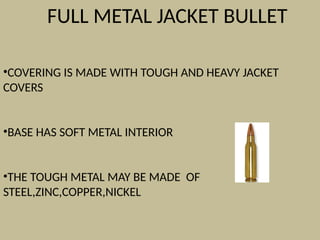

27. FULL METAL JACKET BULLET
•COVERING IS MADE WITH TOUGH AND HEAVY JACKET
COVERS
•BASE HAS SOFT METAL INTERIOR
•THE TOUGH METAL MAY BE MADE OF
STEEL,ZINC,COPPER,NICKEL

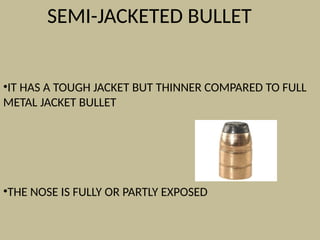

28. SEMI-JACKETED BULLET
•IT HAS A TOUGH JACKET BUT THINNER COMPARED TO FULL
METAL JACKET BULLET
•THE NOSE IS FULLY OR PARTLY EXPOSED

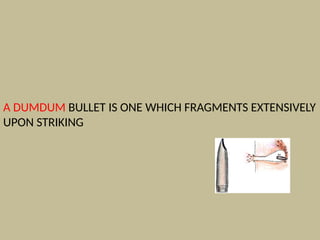

29. A DUMDUM BULLET IS ONE WHICH FRAGMENTS EXTENSIVELY
UPON STRIKING

30. Missile (projectile)
Non rifled

31. Wads (external _internal )
External
Internal

32. Shots
Sporting gun Greener gun Schneider

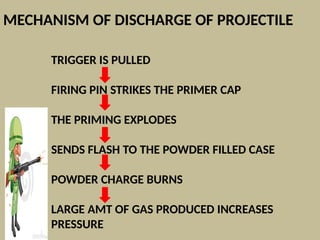

33. MECHANISM OF DISCHARGE OF PROJECTILE
TRIGGER IS PULLED
FIRING PIN STRIKES THE PRIMER CAP
THE PRIMING EXPLODES
SENDS FLASH TO THE POWDER FILLED CASE
POWDER CHARGE BURNS
LARGE AMT OF GAS PRODUCED INCREASES
PRESSURE

34. Firearm wound

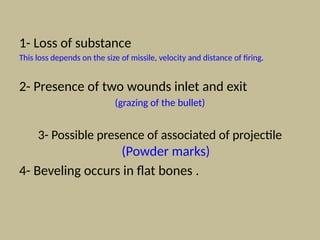

35. CHARACTERS OF FIREARM INJURIES (WOUND)

36. 1- Loss of substance
This loss depends on the size of missile, velocity and distance of firing.
2- Presence of two wounds inlet and exit
(grazing of the bullet)
3- Possible presence of associated of projectile
(Powder marks)
4- Beveling occurs in flat bones .

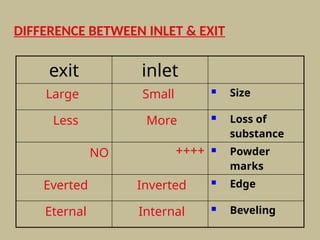

38. DIFFERENCE BETWEEN INLET & EXIT
exit inlet
Large Small  Size
Less More  Loss of
substance
NO ++++  Powder
marks
Everted Inverted  Edge
Eternal Internal  Beveling

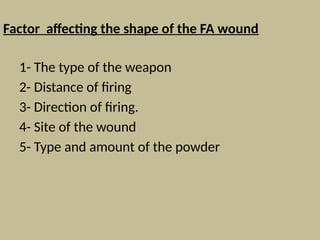

39. Factor affecting the shape of the FA wound
1- The type of the weapon
2- Distance of firing
3- Direction of firing.
4- Site of the wound
5- Type and amount of the powder

40. Estimation of the distance of firing:
1- In cases of short distance (near firing):
Powder marks
II- In cases of long distance (far firing):
• The estimation of distance is based on the extent
of dispersion of shots
• In cases of bullets it is estimated by the amount of
penetration

41. point blank firing (0-15)
• The inlet is cross shaped
• Everted
• Burnt (flam).
• Blackening (smoke)
• Tattooing (unburned particles).

43. In contact firing
• Burning take the shape of the muzzle,
• Minimal blackening and tattooing.
Why

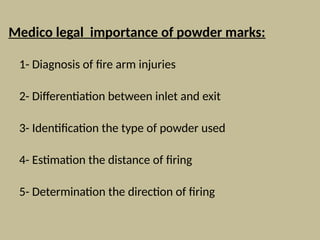

46. Medico legal importance of powder marks:
1- Diagnosis of fire arm injuries
2- Differentiation between inlet and exit
3- Identification the type of powder used
4- Estimation the distance of firing
5- Determination the direction of firing

47. Identification of the weapon used
• Finger prints
• Smell of burnt powder
• Type and bore compared with projectile
extracted form the victim
• Experimental examination of the suspected
weapon
• Empty cartridge at the scene of the crime

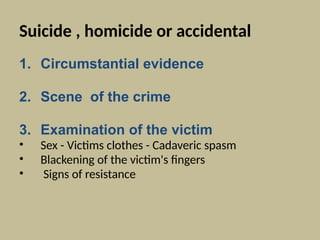

48. Suicide , homicide or accidental
1. Circumstantial evidence
2. Scene of the crime
3. Examination of the victim
• Sex - Victims clothes - Cadaveric spasm
• Blackening of the victim's fingers
• Signs of resistance

49. 4- Examination of the wound
• Site of the wound
• Number of wounds
• Distance of firing
5 -Examination of the weapon
• presence of the weapon
• Type of weapon Short – long
6- Examination of the suspected assailant

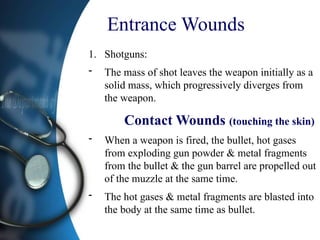

50. Entrance Wounds
1. Shotguns:
- The mass of shot leaves the weapon initially as a
solid mass, which progressively diverges from
the weapon.
Contact Wounds (touching the skin)
- When a weapon is fired, the bullet, hot gases
from exploding gun powder & metal fragments
from the bullet & the gun barrel are propelled out
of the muzzle at the same time.
- The hot gases & metal fragments are blasted into
the body at the same time as bullet.

51. Contact Wounds cont.
- Round or oval central defect with an ‘abrasion collar’
(where the bullet has abraded the skin surface as it
passes through it). The size of the defect is comparable
to the size of the muzzle opening or bore of
the weapon.
- “Pink/red” staining of the skin (due to carbon
monoxide laden gases producing
carboxyhaemoglobin)
- Gun powder blackening of the wound edges &
surrounding skin (from soot & unburned propellant
gases).
-Circular bruise over the skin due to muzzle impact.

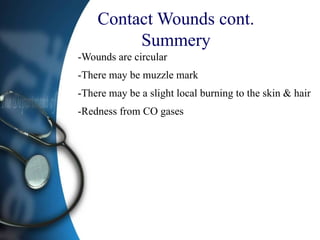

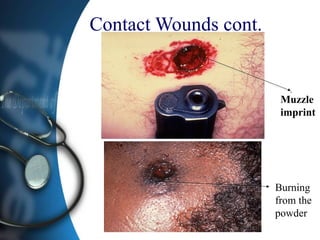

52. Contact Wounds cont.
Summery
-Wounds are circular
-There may be muzzle mark
-There may be a slight local burning to the skin & hair
-Redness from CO gases

53. Contact Wounds cont.
Muzzle
imprint
Burning
from the
powder

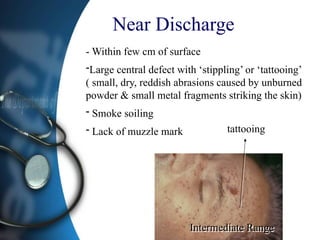

54. Near Discharge
- Within few cm of surface
-Large central defect with ‘stippling’ or ‘tattooing’
( small, dry, reddish abrasions caused by unburned
powder & small metal fragments striking the skin)
- Smoke soiling
- Lack of muzzle mark tattooing
Intermediate Range

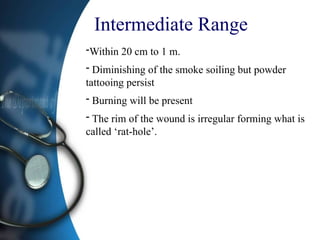

55. Intermediate Range
-Within 20 cm to 1 m.
- Diminishing of the smoke soiling but powder
tattooing persist
- Burning will be present
- The rim of the wound is irregular forming what is
called ‘rat-hole’.

56. Intermediate Range

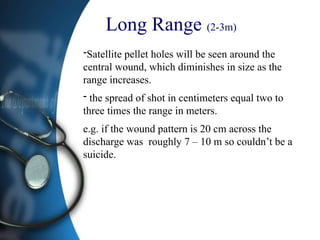

57. Long Range (2-3m)
-Satellite pellet holes will be seen around the
central wound, which diminishes in size as the
range increases.
- the spread of shot in centimeters equal two to
three times the range in meters.
e.g. if the wound pattern is 20 cm across the
discharge was roughly 7 – 10 m so couldn’t be a
suicide.

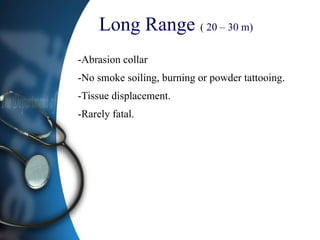

58. Long Range ( 20 – 30 m)
-Abrasion collar
-No smoke soiling, burning or powder tattooing.
-Tissue displacement.
-Rarely fatal.

59. Differences between shotgun &
rifles in entrance wound
Rifled weapons:
- show increased amount of tissue destruction due to the
high velocities involved.
-Usually have an entrance and exit wound unless bullet
has struck a bony area such as the skull.
-Estimation of firing range is more difficult than with
shotgun weapons, but in general , contact wounds show
similar features of powder stippling, blackening,
burning, tissue disruption, & carboxyhaemoglobin
formation.

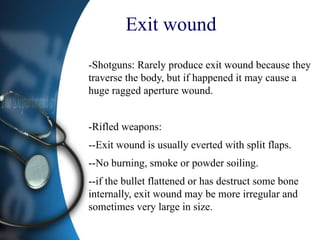

60. Exit wound
-Shotguns: Rarely produce exit wound because they
traverse the body, but if happened it may cause a
huge ragged aperture wound.
-Rifled weapons:
--Exit wound is usually everted with split flaps.
--No burning, smoke or powder soiling.
--if the bullet flattened or has destruct some bone
internally, exit wound may be more irregular and
sometimes very large in size.

61. Exit wound
Entrance Wound
Exit Wound
with split flaps

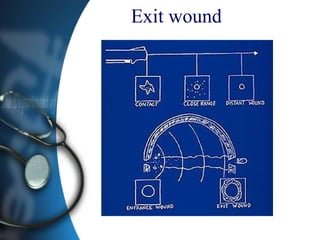

62. Exit wound

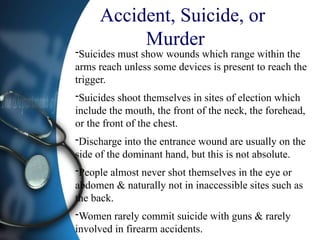

63. Accident, Suicide, or
Murder
-Suicides must show wounds which range within the
arms reach unless some devices is present to reach the
trigger.
-Suicides shoot themselves in sites of election which
include the mouth, the front of the neck, the forehead,
or the front of the chest.
-Discharge into the entrance wound are usually on the
side of the dominant hand, but this is not absolute.
-People almost never shot themselves in the eye or
abdomen & naturally not in inaccessible sites such as
the back.
-Women rarely commit suicide with guns & rarely
involved in firearm accidents.

64. Accident, Suicide, or
Murder
-‘A shot woman is a murdered woman until proved
otherwise’.
-Multiple firearm wounds suggest homicide, but this is
by no means inevitable.
-It’s unwise to state that a gunshot wound must have
been immediately fatal, unless destruction of brain
stem or heart or transection of the aorta has occurred.
-There are many instances of gross brain damage,
especially in the cerebrum, bring followed by
prolonged purposeful activity.
-In suicide weapon must be present, though it may be
at a distance from the body.

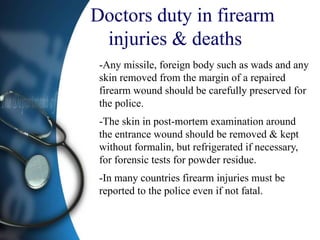

65. Doctors duty in firearm
injuries & deaths
-Any missile, foreign body such as wads and any
skin removed from the margin of a repaired
firearm wound should be carefully preserved for
the police.
-The skin in post-mortem examination around
the entrance wound should be removed & kept
without formalin, but refrigerated if necessary,
for forensic tests for powder residue.
-In many countries firearm injuries must be
reported to the police even if not fatal.
