The document describes using deep neural networks to find duplicate products in a large database. It discusses implementing a siamese network with contrastive loss to learn image representations and classify product pairs as duplicates. The model is improved through data cleaning with perceptual hashing, hyperparameter tuning, using recent papers' techniques like triplet loss and L2 normalization, and training on more data. While neural networks can solve complex problems, the author notes they still require interpretation and may try to cheat, so more testing is needed.

1. Finding needles in haystacks
with deep neural networks
1
Calvin Giles
calvin.giles@gmail.com
@calvingiles

2. 2
Calvin Giles
calvin.giles@gmail.com
@calvingiles

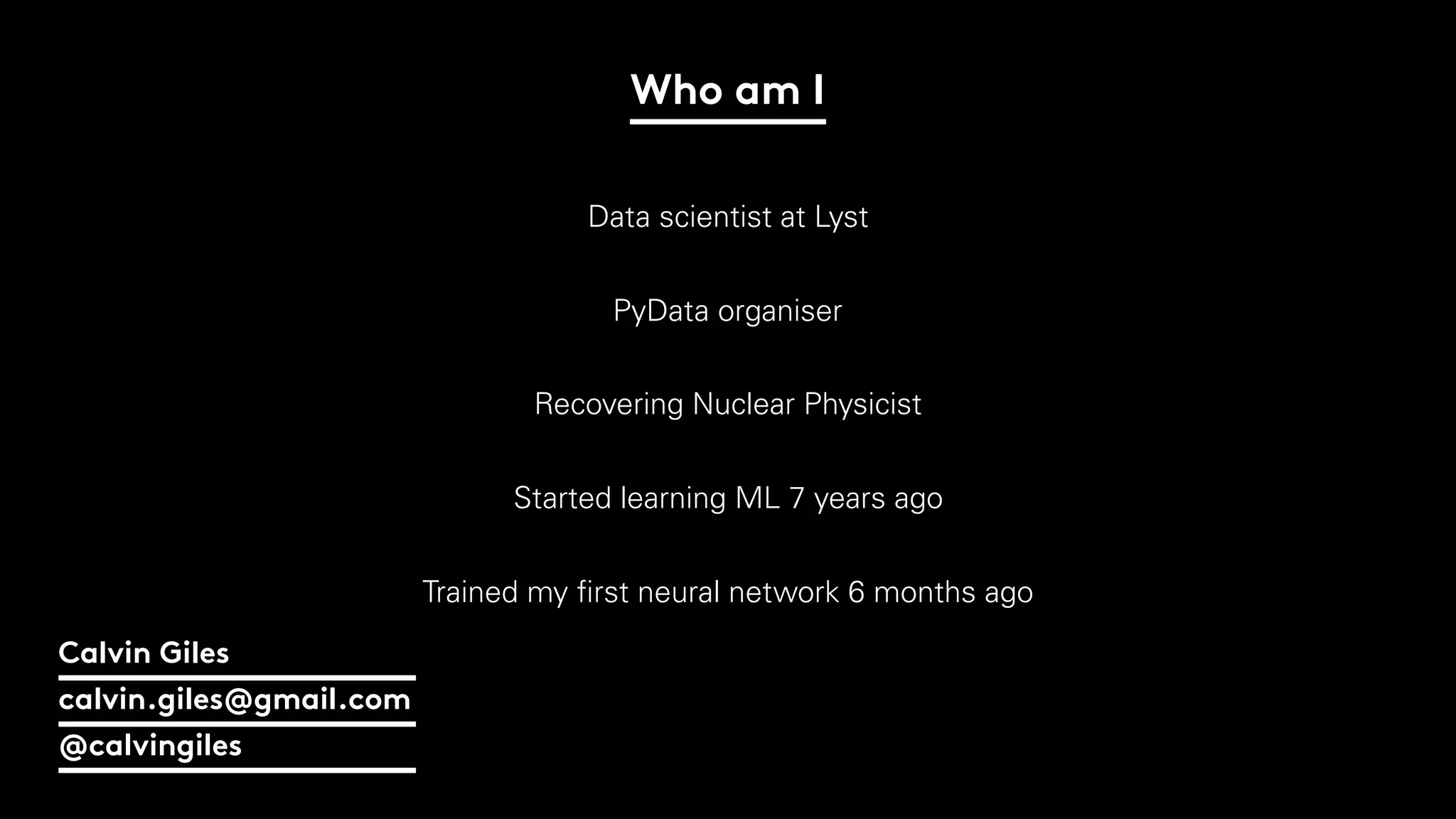

Who am I
Data scientist at Lyst
PyData organiser
Recovering Nuclear Physicist
Started learning ML 7 years ago
Trained my first neural network 6 months ago

3. Needles
We have 30 million products
in our database.
We would like to find pairs
of these products that are
the same.
3

4. Haystacks
A brute force search of our
database would find one
correct pair in every 1,000.
4

5. One product
Eight retailers
Users like duplicate grouping
Machine learning tasks are
easier on merged data
Why bother?
5

6. But first, a tangent into perspective…
(Or why some perspectives are better than others)
6

7. Get some perspective, the lazy way
7

8. Get some perspective, the lazy way
8
Step 1
Train a neural network for classification

9. Get some perspective, the lazy way
9
Step 1
Train a neural network for classification
Step 2
Label one example per class

10. Get some perspective, the lazy way
10
Step 1
Train a neural network for classification
Step 2
Label one example per class
Step 3
Train a simple model e.g. SVM

11. Get some perspective, the lazy way
11
Step 1
Train a neural network for classification
Step 2
Label one example per class
Step 3
Train a simple model e.g. SVM
Step 4
Label samples that confuse the model

12. Get some perspective, the lazy way
12
Step 1
Train a neural network for classification
Step 2
Label one example per class
Step 3
Train a simple model e.g. SVM
Step 4
Label samples that confuse the model
Step 5
Repeat steps 3 and 4 until bored

13. 13

14. 14

15. 15

16. 16

17. 17

18. Network structure
18

19. Network structure
19

20. Network structure
20
Network

21. Network structure
21
Network

22. Network structure
22
Network
Image A
representation

23. Network structure
23
Network
Image A
representation

24. Network structure
24
Network
Image A
representation
Image B
representation

25. Network structure
25
Network
Image A
representation
Image B
representation
Loss

26. Network structure
26
Network
Image A
representation
Image B
representation
Loss
Back propagate

27. Contrastive loss
27
(from http://docs.chainer.org/en/stable/reference/functions.html#chainer.functions.contrastive)

28. 28
(from http://docs.chainer.org/en/stable/reference/functions.html#chainer.functions.contrastive)
Contrastive loss

29. 29
(from http://docs.chainer.org/en/stable/reference/functions.html#chainer.functions.contrastive)
Contrastive loss

30. 30
(from http://docs.chainer.org/en/stable/reference/functions.html#chainer.functions.contrastive)
Contrastive loss

31. How to train a neural network for
duplicate detection
31

32. How to train a neural network for
duplicate detection
32
Step 1
Read a paper on face detection [Chorpa05]

33. How to train a neural network for
duplicate detection
33
Step 1
Read a paper on face detection [Chorpa05]
Step 2
Implement a siamese network

34. How to train a neural network for
duplicate detection
34
Step 1
Read a paper on face detection [Chorpa05]
Step 2
Implement a siamese network
Step 3
Watch the loss decrease

35. How to train a neural network for
duplicate detection
35
Step 1
Read a paper on face detection [Chorpa05]
Step 2
Implement a siamese network
Step 3
Watch the loss decrease
Step 4
Look at the results

36. 36

37. 37

38. 38
Cleaning with phash and corroboration

39. 39
Match visually identical images with phash
Cleaning with phash and corroboration

40. 40
Match visually identical images with phash
High false positives and false negatives
Cleaning with phash and corroboration

41. 41
Match visually identical images with phash
High false positives and false negatives
For a pair of products, consider the corroboration between multiple images
Cleaning with phash and corroboration

42. Now with a clean dataset
42

43. 43
Now with a clean dataset

44. Hyper-parameter tuning is important
44

45. Hyper-parameter tuning is important
45

46. That was an old paper
46

47. That was an old paper
47
Step 1
Read two recent papers on face detection [Wang14, Schroff15]

48. That was an old paper
48
Step 1
Read two recent papers on face detection [Wang14, Schroff15]
Step 2
Implement a triplet loss network

49. That was an old paper
49
Step 1
Read two recent papers on face detection [Wang14, Schroff15]
Step 2
Implement a triplet loss network
Step 3
Watch the loss decrease

50. That was an old paper
50
Step 1
Read two recent papers on face detection [Wang14, Schroff15]
Step 2
Implement a triplet loss network
Step 3
Watch the loss decrease
Step 4
Visualise the detected duplicates

51. That was an old paper
51

52. 52

53. 53

54. There must be a better way
54

55. 55
2 products, 2 dimensions

56. 56
2 products, 2 dimensions

57. 57
2 products, 2 dimensions

58. 58
2 products, 2 dimensions
+ Gradient Clipping

59. 59

60. 60

61. 61

62. 62

63. 63

64. 64

65. 65

66. 66

67. 67

68. 68

69. 69

70. 70
So, the model can describe a trivial
problem, can it handle more data?

71. 71
So, the model can describe a trivial
problem, can it handle more data?

72. 72
Remove any pairs nearer than .001

73. 73
Remove any pairs nearer than .001

74. 74
This is great, but all the cool kids*
are L2 norming their output
*[Chopra05, Wang14, Schroff15]

75. Network structure
75
Network
Image A
representation
Image B
representation
Loss

76. Network structure
76
Network
Image A
representation
Image B
representation
Loss
L2
L2

77. 77

78. Convolutional layers from ZfNet
pre-trained by Eddie and weights fixed
ReLU activation
78
224x224x3 (zero mean)
96C7S3:BN
256C5S2:BN
384C3
384C3
256C3

79. Fully connected MLP trained with
ReLU activation and contrastive loss
79
9216 (from ZfNet)
FC1024
FC128
MomentumSGD(.01, 0.9)
GradientClipping(.01)
WeightDecay(.01)

80. 80

81. 81

82. 82

83. 83
WIP

84. Neural networks can describe
arbitrarily complex functions
84

85. Neural networks can describe
arbitrarily complex functions
They will cheat
85

86. More data can be
unreasonably effective
86

87. More data can be
unreasonably effective
It will slow you down
87

88. Neural networks can be difficult to interpret
88

89. Neural networks can be difficult to interpret
This is not an excuse to not try
89

90. Neural networks are fun :-)
90

91. thank you

92. References
92
S Chopra, R Hadsell, and Y LeCun. Learning a Similarity Metric Discriminatively, with Application to Face Verification.
2005 IEEE Computer Society Conference on Computer Vision and Pattern Recognition (CVPR'05), 2005 vol. 1 pp. 539-546.
http://ieeexplore.ieee.org/lpdocs/epic03/wrapper.htm?arnumber=1467314
Jiang Wang, Yang song, Thomas Leung, Chuck Rosenberg, Jinbin Wang, James Philbin, Bo Chen, and Ying Wu. Learning
Fine-grained Image Similarity with Deep Ranking. 2014. http://arxiv.org/abs/1404.4661v1
Florian Schroff, Dmitry Kalenichenko, and James Philbin. FaceNet: A Unified Embedding for Face Recognition and
Clustering. 2015. http://arxiv.org/abs/1503.03832v3
