1. GLOBAL AUTOMOBILE MUSEUM, GREATER NOIDA
SUBMITTED BY: RAKTIM SAHA ROLL NO.: 26/AR/09 INSTITUTE OF ARCHITECTURE, H.N.G.U, PATAN

2. INTRODUCTION:
WHY MUSEUM?
•One man’s Trash may be other man’s treasure.
•They are built to collect, document, preserve interpret and exhibit some form of material evidence.
•A museum is a centre where people when visit can connect themselves to the past. Well a past in connection in details.
•The moment a neglected thing, substance etc. goes into a collection followed by showcasing and displaying of it, it enters a new and different category. A connection with any famous personalities can make any invaluable and make people imagine something invisible.
•It is showcases the heritage and contribution of the place as well country. WHY AUTOMOBILE?
•Fan following (Buddh International Circuit, Car Rallies, Vintage Car Shows/ Race, Auto Expo, Metro City etc.)
•No place to combine and see the above mentioned under one roof/venue.
•No place to nurture and inculcate talent who are interested in this field.
•There are various rallies, competitions held and many more. My purpose is to club it together and make consumers/ buyers/viewers etc. view it at one place with other activities.
•Make people aware that excessive use of transportation might impact environment and connecting to the human life cycle.
NEED FOR THE PROJECT:
•New Delhi hosts Annual Auto Expo once in two years. Pragati Maidan was the shortlisted venue for the this annual Expo, it has now been shifted to India Expo Mart, greater Noida due to improper management of human resources and crowd too. The viewers as well as the common businessman get to see it for few days. People don’t get enough exposure to view their products and observe the competitors properly. Also due to lack of awareness and more of crowd, the waiting seems endless which leads to less interaction space and time.
•A place/it can be a place or hub where automobile enthusiastic can become an integral part of this place. For example exploring new sectors of this field like Racing, Exhibitions, Seminars, and Conference etc.
•A tourist as well as business attraction spot that will help in enhancing job opportunities by inviting investors and tourist, being located in a metropolitan city.
•A centre for imparting the message of awareness regarding the alternative methods of running the four wheelers efficiently, use of alternate fuels (CNG, LPG, Hybrid and bio fuel). Various critical issues like constant carbon emission, traffic woes, alarming fuel prices, safety driving skills, awareness about various safety provisions within the car, car pooling etc.
•Provision of a proper habitat where buyers/investors/consumers are addressed regarding comparison, description (on the basis of needs, budget etc.). A timely devotion for the clients to guide him/her on the basis the above mentioned.

3. JUSTIFICATION OF THE SITE:
•The site being Rectangular, distributing the functions and services can set in smooth flow. It is surrounded mainly by institutional and commercial buildings; also institutional building in a radius of 10-15kms therefore it must attract surrounding crowd as well as outsiders from different places and countries.
•The site is well connected with main roads and runs parallel to the Noida-Greater Noida Expressway. Access to the site via Public Transportation is at hands reach with good frequency of UPSRTC State Buses, also autos, Vikrams, Rickshaws etc.
•The Buddh International Circuit and The India Expo Mart, Greater Noida which hosted the current International Auto Expo is just a 16 minutes drive from the site. Thus making it ideal for this purpose are at a accessible range.
•With the proposal of Upcoming International Airport in Greater Noida this site will be easily accessible via air.
•The Buddh Circuit Officials are in plans to set up the Upcoming Moto GP Race Track.
OBJECTIVES:
•To contribute to the advancement of knowledge in science and technology in the automobile sector.
•To cater the needs of the common public/mass who want to participate in automobile field but individuals actually cannot because of less awareness and lack of opportunities.
•To provide a platform for social, economic and professional development.
•To enhance the development into the automobile sector by promoting and exhibiting.
•To study the different aspects of site planning .
•To explore various forms of built spaces dealing with the visitor’s emotional state of mind.
•To explore various display techniques in museums and museum space creating.
•To explore various built forms by using hi-tech materials and techniques.
•To study proportional and incorporate it in the design.
•To analyze various activities dealing with positive interaction amongst the visitors.
DESIGN LIMITATION:
• The design is limited to the Indian Automobile sector by providing it a global platform.

4. BENEFITS TO THE SOCIETY:
• A place where people comes at par with the inventions, evolution over the time and how automobile has adapted science & technology comfortably.
• People (society) get more employment opportunities due to attractions of foreign as well as national investors.
• A perfect hub where talent can be nurtured, exchange of idea is done at mass level.
For example: - Vintage car rally
- Individual car manufacturer organised car races
- Exhibition showing how one can learn and save more
and something more value for money.
• A place for common public as well as for global public to explore the dictionary of automobile sector.
ARCHITECTURAL CHALLENGE:
•KNOWLEDGE (History, Evolution, Latest)
•INCULCATE and NURTURE TALENT
•IMPROVE AND INVITE INVESTORS AND VISITORS (National & Global Level)
•PRESERVE HISTORY
•MATERIAL USE (Interesting Building Form)
•ENERGY EFFICIENCY (Natural Lighting and Ventilation, Water Re-Use, LED Lighting)
•CONNECTIVITY FLOW  SURPRISES
•GENERATE CURIOSITY
MAJOR PROS AND CONS:
•The site chosen is not accessible easily by road media (public transport)
•With no divider in a 1-5kms radius distance, it is very difficult to change lanes if one wants to switch over.
•Public don’t entertain going towards this place except international events.
• The site chosen is closest to the Buddh International Circuit,.
• The site is 14.6kms i.e. 15mins drive from the Indian Expo Mart. India Expo Mart hosted the recently organized international Auto Expo which attracted 5.61 lakh crowd.
• It is surrounded mainly by institutional and commercial buildings; also institutional building in a radius of 10-15kms therefore it must attract surrounding crowd as well as outsiders from different places and countries.

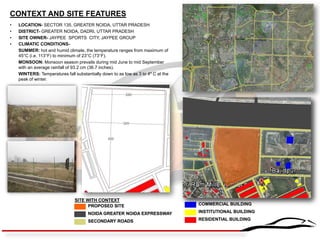

5. CONTEXT AND SITE FEATURES
•LOCATION- SECTOR 135, GREATER NOIDA, UTTAR PRADESH
•DISTRICT- GREATER NOIDA, DADRI, UTTAR PRADESH
•SITE OWNER- JAYPEE SPORTS CITY, JAYPEE GROUP
•CLIMATIC CONDITIONS-
SUMMER: hot and humid climate, the temperature ranges from maximum of 45°C (i.e. 113°F) to minimum of 23°C (73°F).
MONSOON: Monsoon season prevails during mid June to mid September with an average rainfall of 93.2 cm (36.7 inches).
WINTERS: Temperatures fall substantially down to as low as 3 to 4º C at the peak of winter.
PROPOSED SITE
SECONDARY ROADS
NOIDA GREATER NOIDA EXPRESSWAY
COMMERCIAL BUILDING
INSTITUTIONAL BUILDING
RESIDENTIAL BUILDING
SITE WITH CONTEXT

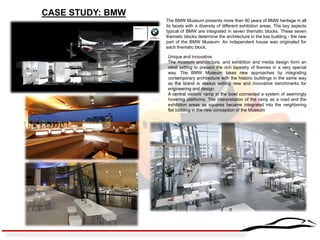

6. CASE STUDY: BMW
The BMW Museum presents more than 90 years of BMW heritage in all its facets with a diversity of different exhibition areas. The key aspects typical of BMW are integrated in seven thematic blocks. These seven thematic blocks determine the architecture in the low building - the new part of the BMW Museum: An independent house was originated for each thematic block.
Unique and innovative.
The museum architecture, and exhibition and media design form an ideal setting to present the rich tapestry of themes in a very special way. The BMW Museum takes new approaches by integrating contemporary architecture with the historic buildings in the same way as the brand is always setting new and innovative benchmarks for engineering and design.
A central visitors’ ramp in the bowl connected a system of seemingly hovering platforms. The interpretation of the ramp as a road and the exhibition areas as squares became integrated into the neighboring flat building in the new conception of the Museum

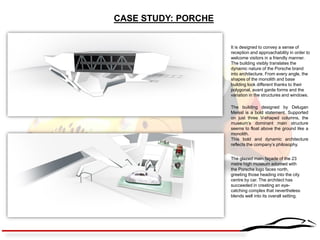

7. CASE STUDY: PORCHE
The building designed by Delugan Meissl is a bold statement. Supported on just three V-shaped columns, the museum’s dominant main structure seems to float above the ground like a monolith.
This bold and dynamic architecture reflects the company’s philosophy.
The glazed main façade of the 23 metre high museum adorned with the Porsche logo faces north, greeting those heading into the city centre by car. The architect has succeeded in creating an eye- catching complex that nevertheless blends well into its overall setting.
It is designed to convey a sense of reception and approachability in order to welcome visitors in a friendly manner.
The building visibly translates the dynamic nature of the Porsche brand into architecture. From every angle, the shapes of the monolith and base building look different thanks to their polygonal, avant garde forms and the variation in the structures and windows.

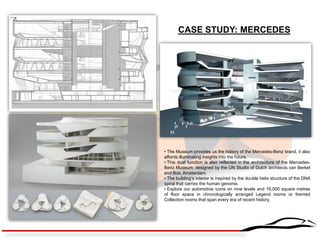

8. CASE STUDY: MERCEDES
• The Museum provides us the history of the Mercedes-Benz brand, it also affords illuminating insights into the future.
• This dual function is also reflected in the architecture of the Mercedes- Benz Museum, designed by the UN Studio of Dutch architects van Berkel and Bos, Amsterdam.
• The building’s interior is inspired by the double helix structure of the DNA spiral that carries the human genome.
• Explore our automotive icons on nine levels and 16,500 square metres of floor space in chronologically arranged Legend rooms or themed Collection rooms that span every era of recent history.

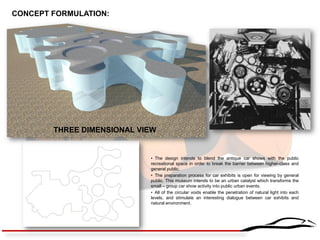

9. THREE DIMENSIONAL VIEW
• The design intends to blend the antique car shows with the public recreational space in order to break the barrier between higher-class and general public.
• The preparation process for car exhibits is open for viewing by general public. This museum intends to be an urban catalyst which transforms the small – group car show activity into public urban events.
• All of the circular voids enable the penetration of natural light into each levels, and stimulate an interesting dialogue between car exhibits and natural environment.
CONCEPT FORMULATION:

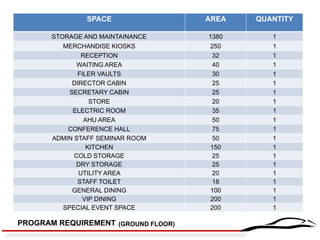

10. SPACE
AREA
QUANTITY
STORAGE AND MAINTAINANCE
1380
1
MERCHANDISE KIOSKS
250
1
RECEPTION
32
1
WAITING AREA
40
1
FILER VAULTS
30
1
DIRECTOR CABIN
25
1
SECRETARY CABIN
25
1
STORE
20
1
ELECTRIC ROOM
35
1
AHU AREA
50
1
CONFERENCE HALL
75
1
ADMIN STAFF SEMINAR ROOM
50
1
KITCHEN
150
1
COLD STORAGE
25
1
DRY STORAGE
25
1
UTILITY AREA
20
1
STAFF TOILET
18
1
GENERAL DINING
100
1
VIP DINING
200
1
SPECIAL EVENT SPACE
200
1
PROGRAM REQUIREMENT
(GROUND FLOOR)

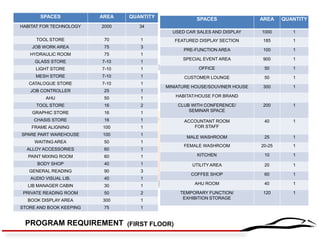

11. SPACES
AREA
QUANTITY
HABITAT FOR TECHNOLOGY
2000
34
TOOL STORE
70
1
JOB WORK AREA
75
3
HYDRAULIC ROOM
75
1
GLASS STORE
7-10
1
LIGHT STORE
7-10
1
MESH STORE
7-10
1
CATALOGUE STORE
7-10
1
JOB CONTROLLER
25
1
AHU
50
1
TOOL STORE
16
2
GRAPHIC STORE
16
1
CHASIS STORE
16
1
FRAME ALIGNING
100
1
SPARE PART WAREHOUSE
100
1
WAITING AREA
50
1
ALLOY ACCESSORIES
60
1
PAINT MIXING ROOM
60
1
BODY SHOP
40
1
GENERAL READING
90
3
AUDIO VISUAL LIB.
40
1
LIB MANAGER CABIN
30
1
PRIVATE READING ROOM
50
2
BOOK DISPLAY AREA
300
1
STORE AND BOOK KEEPING
75
1
PROGRAM REQUIREMENT
(FIRST FLOOR)
SPACES
AREA
QUANTITY
USED CAR SALES AND DISPLAY
1000
1
FEATURED DISPLAY SECTION
185
1
PRE-FUNCTION AREA
100
1
SPECIAL EVENT AREA
900
1
OFFICE
50
1
CUSTOMER LOUNGE
50
1
MINIATURE HOUSE/SOUVINER HOUSE
300
1
HABITAT/HOUSE FOR BRAND
CLUB WITH CONFERENCE/
SEMINAR SPACE
200
1
ACCOUNTANT ROOM
FOR STAFF
40
1
MALE WASHROOM
25
1
FEMALE WASHROOM
20-25
1
KITCHEN
10
1
UTILITY AREA
20
1
COFFEE SHOP
60
1
AHU ROOM
40
1
TEMPORARY FUNCTION/
EXHIBITION STORAGE
120
1

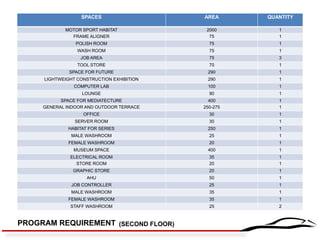

12. SPACES
AREA
QUANTITY
MOTOR SPORT HABITAT
2000
1
FRAME ALIGNER
75
1
POLISH ROOM
75
1
WASH ROOM
75
1
JOB AREA
75
3
TOOL STORE
70
1
SPACE FOR FUTURE
290
1
LIGHTWEIGHT CONSTRUCTION EXHIBITION
290
1
COMPUTER LAB
100
1
LOUNGE
90
1
SPACE FOR MEDIATECTURE
400
1
GENERAL INDOOR AND OUTDOOR TERRACE
250-275
1
OFFICE
30
1
SERVER ROOM
30
1
HABITAT FOR SERIES
250
1
MALE WASHROOM
25
1
FEMALE WASHROOM
20
1
MUSEUM SPACE
400
1
ELECTRICAL ROOM
35
1
STORE ROOM
20
1
GRAPHIC STORE
20
1
AHU
50
1
JOB CONTROLLER
25
1
MALE WASHROOM
35
1
FEMALE WASHROOM
35
1
STAFF WASHROOM
25
2
PROGRAM REQUIREMENT
(SECOND FLOOR)
