1. Republic of the Philippines
Department of Education
Region XI
Division of Davao City
Davao City
THIRD QUARTER SUMMATIVE TEST
GRADE 7 MATHEMATICS
SY 2021-2022
Name: _____________________________________________ Section: ___________________
Subject Teacher: ______________________________________ Date: _____________________
INSTRUCTION: Write the letter of the correct answer in your answer sheet. If the answer is not found
in the choices write letter E.
1. What is formed when two rays are joined and share a common endpoint?
A. Ray B. Angle C. Line D. Line Segment
2. What angle has a measurement of exactly 90°?
A. Straight B. Reflex C. Acute D. Right
3. What do you call an angle which measures 90.5°?
A. Obtuse B. Acute C. Right D. Straight
4. What is the measurement of ∠L if ∠K measures 53° and ∠L and ∠K are vertical angles? A.
127° B. 53° C. 37° D. 217°
For numbers 5-6, refer to the figure below.
5. What is the measurement of ∠1?
A. 57° B. 237° C. 123° D. 147°
6. What is the measurement of ∠3?
A. 237° B. 123° C. 57° D. 147°
7. What do you call those line in the same plane that do not intersect?
A. intersecting lines C. perpendicular lines
B. parallel lines D. transversal lines
8. Which of the following DOES NOT represent parallel lines?
A. windowpanes C. paper lines
B. pedestrian lane D. crossroad
9. The figure at the right consists of two parallel lines cut by a transversal,
what do you call the relationship of angles x and y?
A. Alternate interior angles C. Corresponding angles
B. Alternate exterior angles D. Same Side Interior Angles

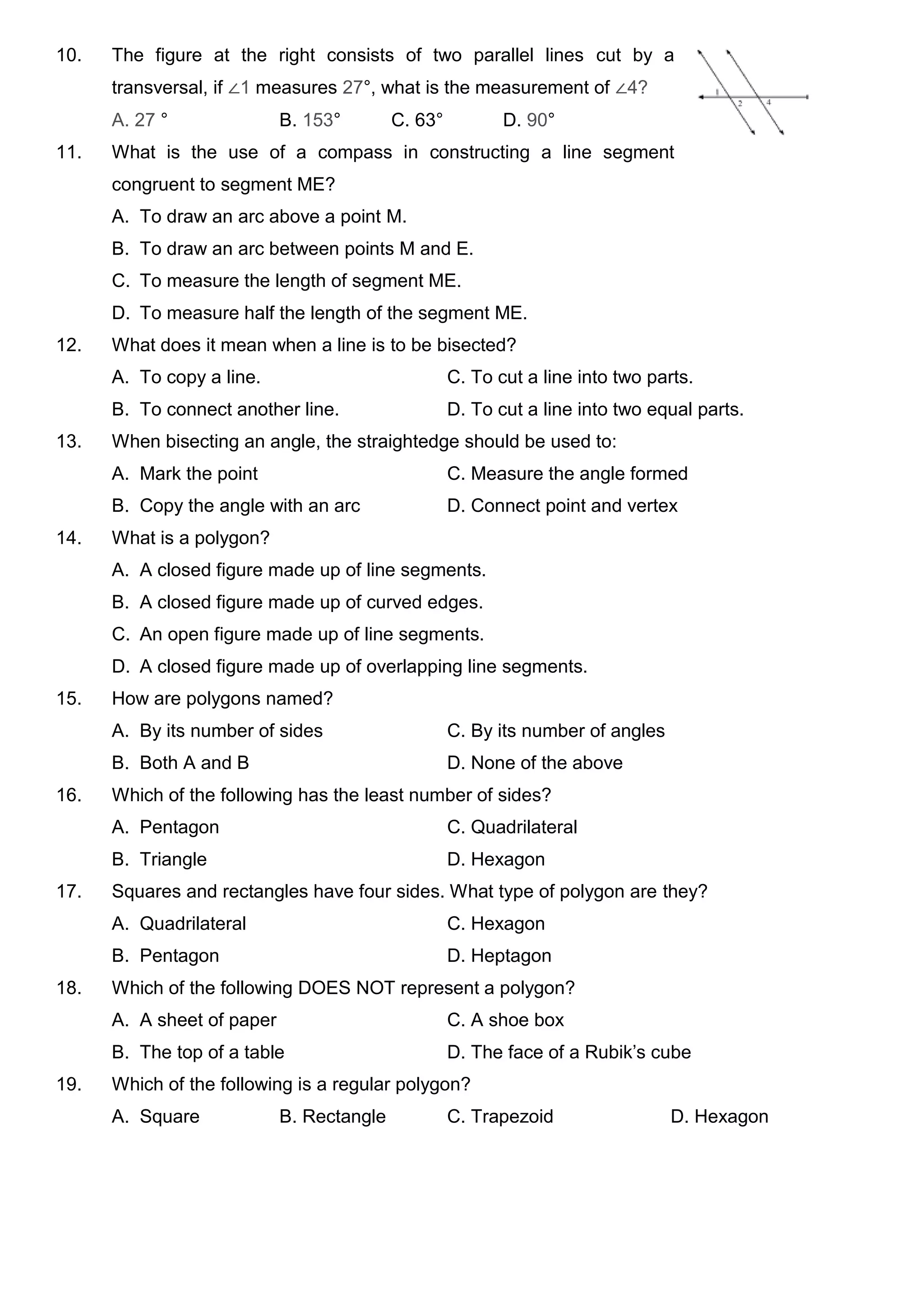

2. 10. The figure at the right consists of two parallel lines cut by a
transversal, if ∠1 measures 27°, what is the measurement of ∠4?
A. 27 ° B. 153° C. 63° D. 90°
11. What is the use of a compass in constructing a line segment
congruent to segment ME?
A. To draw an arc above a point M.
B. To draw an arc between points M and E.
C. To measure the length of segment ME.
D. To measure half the length of the segment ME.
12. What does it mean when a line is to be bisected?
A. To copy a line. C. To cut a line into two parts.
B. To connect another line. D. To cut a line into two equal parts.
13. When bisecting an angle, the straightedge should be used to:
A. Mark the point C. Measure the angle formed
B. Copy the angle with an arc D. Connect point and vertex
14. What is a polygon?
A. A closed figure made up of line segments.
B. A closed figure made up of curved edges.
C. An open figure made up of line segments.
D. A closed figure made up of overlapping line segments.
15. How are polygons named?
A. By its number of sides C. By its number of angles
B. Both A and B D. None of the above
16. Which of the following has the least number of sides?
A. Pentagon C. Quadrilateral
B. Triangle D. Hexagon
17. Squares and rectangles have four sides. What type of polygon are they?
A. Quadrilateral C. Hexagon
B. Pentagon D. Heptagon
18. Which of the following DOES NOT represent a polygon?
A. A sheet of paper C. A shoe box
B. The top of a table D. The face of a Rubik’s cube
19. Which of the following is a regular polygon?
A. Square B. Rectangle C. Trapezoid D. Hexagon

3. 20. What is the sum of the exterior angles of any polygon?
A. 90° B. 180° C. 270° D. 360°
21. What is the measure of angle 1 in the given illustration at the right?
A. 120° B. 130° C. 140° D. 150°
22. Is it possible for a regular polygon to have each of its
interior angles measure 142°?
A. Yes, it is a triangle.
B. No, it will be a concave polygon
C. Yes, by using the sum of interior angle formula to get the number of sides.
D. No, a regular polygon has equal angles. If each interior angle is 142°, it would have 9.47
sides, which is not an exact number of sides.
23. What is the measurement of each exterior angle of a regular hexagon if the sum of the
measures of the exterior angles of any polygon is equal to 360°?
A. 46° B. 56° C. 60° D. 66°
24. What is the value of x in the given triangle?
A. 35° B. 45° C. 55° D. 65°
25. What is the value of the fourth exterior angle x?
A. 35° B. 45° C. 55° D. 65°
26. What do you call a line which intersects a circle at two points?
A. Radius C. Secant
B. Minor Arc D. Tangent
27. Which of the following is true about a diameter?
A. It is less than a radius.
B. It is always in a horizontal position.
C. It divides the circle into two semicircles.
D. It has an endpoint located at the center and on the circle.
28. Father bought a Hola hoop for his youngest daughter. The diameter of the Hola hoop
measures 1 meter. In centimeters, what is the measurement of the radius of the Hola hoop?
A. 5 cm B. 50 cm C. 500 cm D. 5000 cm
29. How long is the diameter of a DCWD pipeline if it has a radius of 1.3 meters?
A. 1.3 m B. 2.3 m C. 2.5 m D. 2.6 m

4. For items 30-32 refer to diagram:
30. How many radii are there?
A. 1 B. 2 C. 3 D. 4
31. Which of the following is/are semi-circle/s?
I. arc EV II. arc OV III. Arc OE
A. I only B. II only C. III only D. I, II, and III
32. If LO measures 5 cm, what is the measurement of EV?
A. 2.5 cm B. 5.5 cm C. 5 cm D. 10 cm
33. Which of the following is NOT a tool in basic geometric construction of polygons?
A. Calculator B. compass C. Pencil D. Straightedge
34. Which of the following cannot be used as a straightedge?
A. Cover of a book C. Index Card
B. ID protector D. Flower Pot
35. In solving problems which of the following should not be done?
A. Make a plan to use in solving the problem.
B. Understand the problem by identifying what the problem is asking.
C. Solve immediately without understanding the problem to save time.
D. Check your answer if it makes sense.
36. The parking space of the ABC-Mall has a 540° total measure of interior angles. What is the
shape of the parking space?
A. Hexagon B. Quadrilateral C. Pentagon D. Triangle
37. In basic construction, what is an appropriate tool to make a circle?
A. Compass B, Protractor C. Ruler D. Pencil
38. Three interior angles of a pentagonal room measure 60°, 80°, and 90°, the other two angles
are equal. What is the measurement of the other two angles?
A. 90° B. 120° C. 180° D. 200°
39. A flag of a country is a regular polygon whose interior angles measure 60° each. What is the
shape of the flag?
A. Triangle B. Quadrilateral C. Hexagon D. Pentagon
40. Aling Marites has a pottery business. Most of her clients wanted pots which are regular
hexagon. What will be the measurement of each angle of the regular octagonal pots?
A. 135° B. 180° C. 120° D. 90°

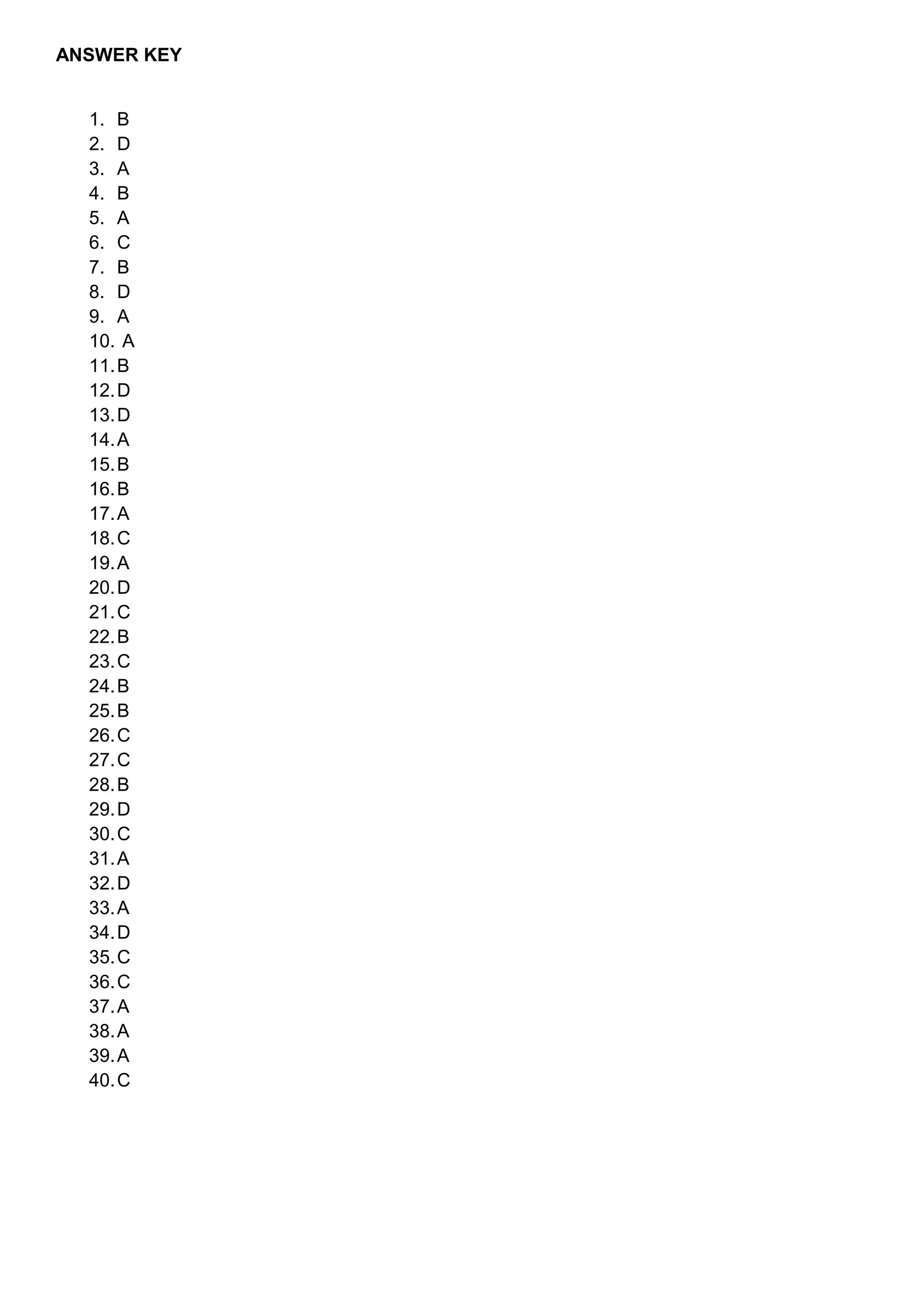

5. ANSWER KEY
1. B
2. D
3. A
4. B
5. A
6. C
7. B
8. D
9. A
10. A
11.B
12.D
13.D
14.A
15.B
16.B
17.A
18.C
19.A
20.D
21.C
22.B
23.C
24.B
25.B
26.C
27.C
28.B
29.D
30.C
31.A
32.D
33.A
34.D
35.C
36.C
37.A
38.A
39.A
40.C
