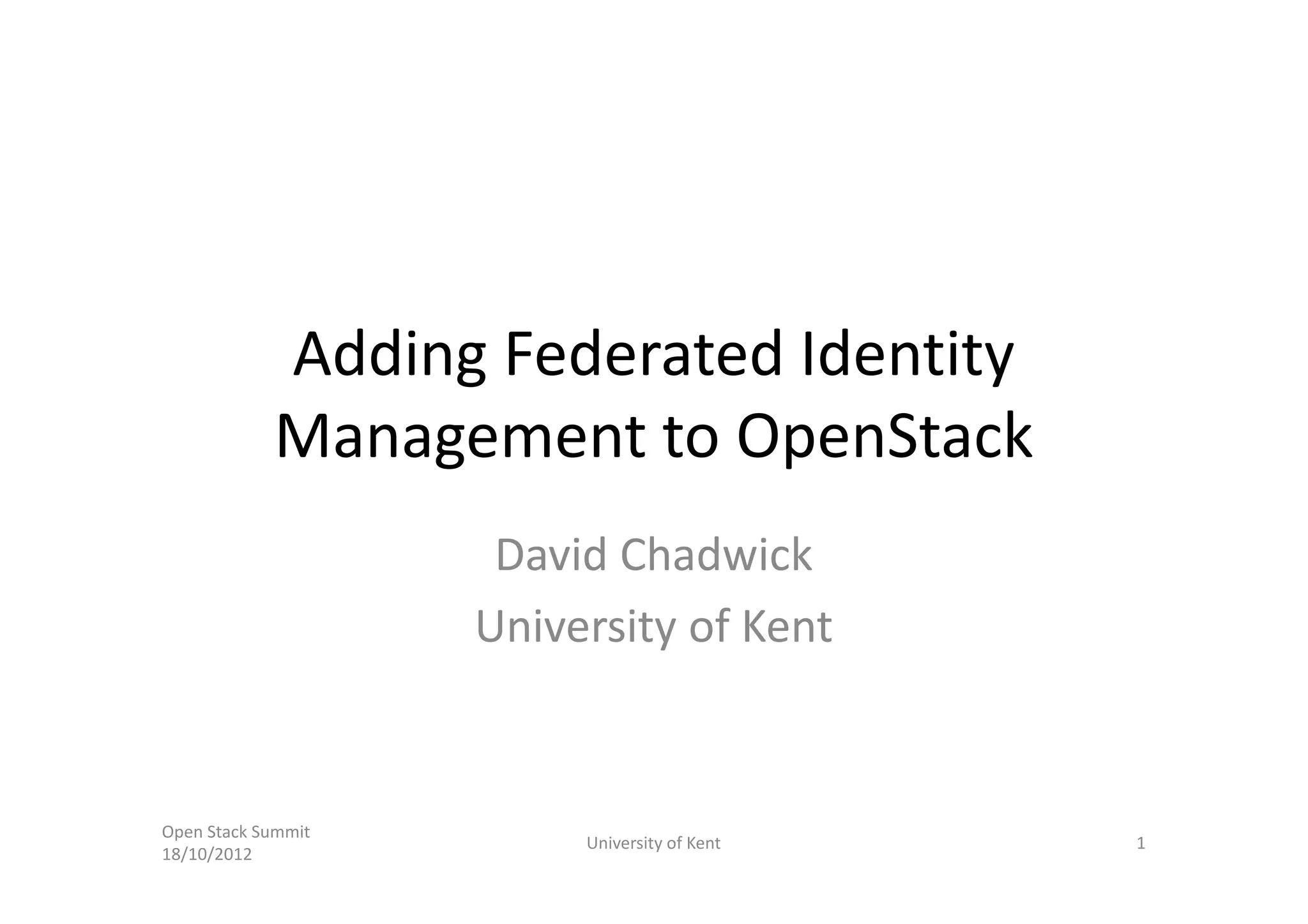

1. Adding Federated Identity
Management to OpenStack
David Chadwick
University of Kent
Open Stack Summit
University of Kent 1
18/10/2012

2. Why Do It?
• Makes it easier for users
– Less credentials to remember/manage
– Provides single sign on
• Makes it easier for system developers
– Don’t need to develop secure credential storage or
authentication mechanisms and protocols
• Provides much more flexibility
– Allows any type of authentication mechanism to be easily
incorporated since it is “out of scope” of the federation protocol
• Can make it more secure
– Users can have one set of strong credentials, so less likely to
share them, forget them etc.
– No longer a honeypot of credentials to be stolen by attackers
• Makes it easier for operations staff
– No need to register new users, replace lost or forgotten
credentials, remove old users
Open Stack Summit
University of Kent 2
18/10/2012

3. Limitations
• Still need a way to finely differentiate users for
authorisation purposes
• Still need to be able to ban abusive users
• Probably need to use a web browser for the
actual step of user authentication
• More steps involved in protocols, and in user
interface
• Most federated identity management systems
today are open to phishing attacks from evil
service providers who redirect user to a clone IdP
– Use zero knowledge proof authn mechanism
– Have intelligent client that does not require
redirection
Open Stack Summit
University of Kent 3
18/10/2012

4. Attribute
+ Authn
Attribute
DB
Authn
DB FIM Components
DB
Federation
IdP AA AS Directory
Service
RIS Credn
At AM CVS Validation
Ag Policy
OpenStack
User/ Gateway
Client
TIS TVS
Access
Control
Cloud Cloud Cloud
Authz Policy
Service
Provider 1
Open Stack Summit
Service
Provider 2
...
University of Kent
Service
Provider n
(PDP)
4
18/10/2012
Policy DB

5. Acronyms
• AA – Attribute Authority.
• AM – Attribute Mapper
• AS – Authentication Service.
• AtAg – Intelligent component of the client (Attribute
Aggregator)
• CSP – Cloud Service
• CVS – Credential Validation Service
• Dir – Directory Service
• IDP – Identity Provider
• OG – OpenStack Gateway (Currently the role played by
Keystone)
• PDP – Policy Decision Point
• RIS – Request Issuing Service
• TIS – Token Issuing Service
• TVS – Token Validation Service
Open Stack Summit
University of Kent 5
18/10/2012

6. Guiding Principles
• Keep it simple for CSPs
– Bulk of security done by OG (user authn and attribute validation)
• Each CSP keeps it existing tenants/accounts and roles for authz and trusts
OG to correctly issue them to users
– Are thousands of IdPs/AAs, millions of attributes so OG must map between these and
CSP tenants/roles
– Mapping must be configurable in OG, e.g. through policies or config files
• OG has a set of trust relationships with a set of external IdPs, ASs and AAs
– All IdP/AA issued attributes/roles must be globally identifiable so OG knows how to map
these into the local tenants/roles
• User knows which cloud service he wishes to use, so this is his first port of
call
– User does not need to know about OG. CSP can dynamically change OG. CSP can
dynamically change its role requirement policy
• Most IdPs rely on UN/PW so are open to phishing attacks
– Introduce an intelligent client which is not phishable. It performs a directory
lookup on the issuer in order to obtain its metadata and make a direct request
to it (research topic)
Open Stack Summit
University of Kent 6
18/10/2012

7. Single IdP, Simple Client
OG Internal Services
User Client CSP PDP Dir OG AM RIS CVS TIS TVS IDP
0 1
2
3
4
5
6 7
8
9
10
11
12 12
13
14
15
16 17
18
19
20
21
23 22
24 25
30 26
27
28
29 29
Open Stack Summit
University of Kent 7
18/10/2012

8. Next Steps
• Live Demo ?
• How to get public comment and feedback?
• How to incorporate this into future OpenStack
release ?
• Beta release is now available for testing and
feedback. Who would like a copy?
Open Stack Summit
University of Kent 8
18/10/2012

9. Step 0
C:Python27Scripts>python swift -F -A
http://persistence.kent.ac.uk:80/v2.0/ list textFiles
Ret
Open Stack Summit
University of Kent 9
18/10/2012

10. Step 6
C:Python27Scripts>python swift -F -A
http://persistence.kent.ac.uk:80/v2.0/ list textFiles
You have access to the following realm(s):
{ 0 } Kent Proxy Identity Service
{ 1 } Big Bank
Enter the number corresponding to the realm you
want to use:
Ret
Open Stack Summit
University of Kent 10
18/10/2012

11. Step 12
Open Stack Summit
18/10/2012
Ret
University of Kent 11

12. Step 19
C:Python27Scripts>python swift -F -A
http://persistence.kent.ac.uk:80/v2.0/ list textFiles
You have access to the following realm(s):
{ 0 } Kent Proxy Identity Service
{ 1 } Big Bank
Enter the number corresponding to the realm you
want to use: 1
You have access to the following tenant(s):
{ 0 } Visa User's Cloud Services
Enter the number corresponding to the tenant you
want to use:
Open Stack Summit Ret
University of Kent 12
18/10/2012

13. Step 29
C:Python27Scripts>python swift -F -A
http://persistence.kent.ac.uk:80/v2.0/ list textFiles
You have access to the following realm(s):
{ 0 } Kent Proxy Identity Service
{ 1 } Big Bank
Enter the number corresponding to the realm you want to use: 1
You have access to the following tenant(s):
{ 0 } Visa User's Cloud Services
Enter the number corresponding to the tenant you want to use: 0
August2012.txt
July2012.txt
September2012.txt
C:Python27Scripts>
Open Stack Summit
University of Kent 13
18/10/2012
Ret
