WSO2, founded in 2005, provides a complete SOA platform that is 100% free and open-source, built on Apache licensing, with a business model focused on training and support. The platform includes various tools such as an enterprise service bus, web services frameworks, data services, and governance solutions. WSO2 is expanding into cloud services and offers a comprehensive ecosystem for managing enterprise applications and SOA governance.

1. WSO2 SOA Platform
August 2009

2. Company
 Founded in 2005 by pioneers in XML and Web services
technologies & standards as well as open source
 Founders & leading contributors to all key Apache Web services
projects
 Offering complete SOA platform, 100% free and open source
under Apache license
 Business model based on providing training, consultancy and
support for the software
 Global company with offices in US, UK and Sri Lanka

3. SOA – Enterprise Expectations

4. SOA – WSO2 Platform - Today

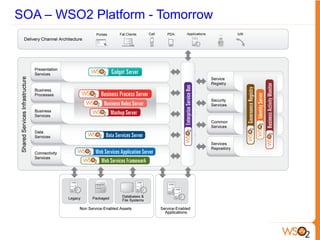

5. SOA – WSO2 Platform - Tomorrow

6. WSO2 Product Categorization

7. WSO2 Products & CCCG

8. Framework

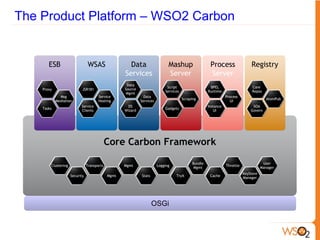

9. The Product Platform – WSO2 Carbon
ESB WSAS Data Mashup Process Registry
Services Server Server
Data
Script BPEL Core
Proxy JSR181 Source
Services Runtime Repos
Mgmt
Msg Service Data Process
Scraping AtomPub
Mediation Hosting Services UI
Service DS Instance SOA
Tasks Gadgets
Clients Wizard UI Govern
Core Carbon Framework
Bundle User
Clustering Transports Mgmt Logging Throttle
Mgmt Manager
KeyStore
Security Mgmt Stats TryIt Cache
Manager
OSGi

10. OSGi – The Dynamic Module System for Java
 Defines a way to create true modules and a way for
those modules to interact at runtime
 Modules(Bundles) in OSGi can be installed,updated and
uninstalled without restarting the JVM.

11.  Not just OSGi for componentizing a single product, but rather
entire middleware platform
 Even admin console is an OSGi powered framework – every
server component offers an admin UI component that fits into
the console
 Our “products” are now simply our choice about how you start
with this platform
 You can assemble your own product by downloading the Carbon core
and adding only the components you want
 OSGi powered framework for building SOA products
 And a collection of horizontal functionality

12. p2 Features and OSGi
 P2 is the OSGi provisioning system from Equinox
 Aka the Eclipse Update Manager core code
 Allows OSGi components to be grouped into “Features”
 Features live in a web repository
 Dependency management allows features to be
selectively installed and uninstalled
 Carbon p2 allows ESB (and other WSO2 products) to be
enhanced with additional features:
 e.g. Add Service Hosting, BPEL Server, Data Services, etc

13. Creating Services

14.  WSO2 Web Services Application Server
 A secure, reliable and transactional runtime for creating, consuming and
deploying JVM based Web services
 Powered by Apache Axis2/Java
 Alternative to traditional JEE Application Server
 Features
 Comprehensive, interoperable WS-* & REST support
 Policy guided configuration
 Clustering and high availability
 Registry integration for centralized management
 Lightweight graphical administration / monitoring console
 Eclipse plugins for easy development

16.  WSO2 Web Services Framework
 Tool for creating and consuming services in all major languages,
including Java, Jython, Javascript, JRuby, Spring, C, C++, PHP, Perl, &
Ruby
 Powered by Apache Axis2/Java and Axis2/C
 Features
 Comprehensive WS-* & REST support
 Policy guided configuration
 Designed for embedding / integration

18.  WSO2 Web Services Framework for C++
 Standards compliant, enterprise grade C++ library for providing and
consuming Web services in C++
 Extends WSO2 Web Services Framework for C which is based on
Apache Axis2/C
 Based on Apache Rampart/C, Apache Sandesha2/C and Apache
Savan/C
 WSO2 WSF/C++ 2.0 is coming up
 Features
 Comprehensive WS-* & REST support
 Policy guided configuration
 Designed for embedding / integration

19.  WSO2 Data Services
 Tool for exposing data as services and/or Web resources
 Empower DBAs to create services for managed data consumption
 Expose relational databases, CSV files, XLS files or LDAP data
 Features
 Declarative language for publishing data as services and/or resources
 Wizard UI for authoring
 Support for full WS-* security, reliability and more
 Caching, throttling, high availability

21. Connecting Services

22.  WSO2 Enterprise Service Bus
 Tool to enable loosely coupled service interactions
 Manage, route and transform messages and services
 Powered by Apache Synapse
 Features
 Configured via declarative XML language or graphical console
 Highly scalable execution with completely non-blocking behavior
 Easily extended in Java or scripting languages
 Support for timed/periodic job execution
 Support for wide range of protocols and formats including HTTP, JMS,
SMTP, FIX, AMQP, EDI and more
 Clustering and high availability
 Registry integration for centralized management
 Lightweight graphical administration / monitoring console

24. Composing Services

25.  WSO2 Mashup Server
 Tool for creating services by quickly mashing up existing services,
resources and data
 Mashups implemented in Javascript
 Features
 Compose services, feeds, Web pages and more using pure Javascript
logic
 Complete data binding to/from Javascript to XML Schema
 Automatic creation of WSDL
 Registry integration for centralized management
 Lightweight graphical administration / monitoring console

27.  WSO2 Business Process Server
 Tool for deploying, executing and managing business processes
 Powered by Apache ODE
 Features
 Complete support for WS-BPEL 2.0
 Complete support for WS-* and REST
 Lightweight graphical administration / monitoring console for managing
processes and process instances

29. Governing Your SOA

30.  WSO2 Registry
 Lightweight registry and repository for service metadata and all SOA
resources
 Governance framework for building customer-specific governance
features
 Features
 Simple, lightweight registry with 100% RESTful interface powered by
Atom and AtomPub
 Hierarchical authentication and authorization support
 Dependency management, Lifecycles and dashboard
 Highly extensible via media type specific handles and more
 Social features including tagging and rating of all resources
 100% integrated to all other products
 Local and remote access

32.  WSO2 Identity Server
 An open source Identity and Entitlement management server
 Features
 Support for user centric identity management with Information
Cards and OpenID
 Fine grained authorization with XACML
 Claim based Security Token Service
 Extension points for claim management
 Pluggable user store support

34. Deployment Scenarios

35. Deployment Scenarios

36. Product update schedule
Now
Core Carbon 2.0
WSAS 3.1
ESB 2.1
Governance Registry 3.0
Identity Server 2.0
August
BPS 1.1
Mashup Server 2.0
Data Services 2.1

37. WSO2 Business Activity Monitor
• Built-in support for recording runtime data from all WSO2
products
• Customized monitoring of business activities in SOA platform
• Easy to extend with customer logic to capture new data
• UI driven by Google Gadgets / Open Social container
• (Component of upcoming Gadget Server)
• 1.0 Release planned for early Fall 2009

38. WSO2 Gadget Server
• Expanding the WSO2 SOA Platform into the presentation layer
• Last mile functionality for enterprise applications
• Full portal-server like experience except powered by Google
Gadgets / Open Social container instead of legacy server-side
JSR-168 portlets
• Gadgets themselves stored in registry, enabling high degree of
flexibility for customer extensions
• Built on top of Apache Shindig and WSO2 Registry component
• 1.0 Release planned for early Fall 2009

39. WSO2 Futures
 Application Concept
 Business Activity Monitoring
 Gadget Server
 Rule Server
 Cloud

40. The next Wave

41. WSO2 and Cloud
Now

 AMI / VM versions of all WSO2 products
Q3 2009

 EC2 Auto-scale of WSO2 services based on Synapse
 Cloud Services and Cloud Service Gateway
 Cloud-based service accelerator and load-balancer
Q4 2009

 Auto-scale Carbon distribution available
 Multi-tenancy
 Governance As A Service

42. WSO2 Engagement Model

43. Summary
 A complete SOA platform
 Open Source and Apache Licensed
 Full support
 Training and Consultancy
 Development support and Quickstart
 24x7 production support with SLAs
 In production in companies ranging up to Fortune 500

44. More Info
 Corporate web site: http://wso2.com
 Developer portal: http://wso2.org
 Business development team: bizdev@wso2.com

45. The open source SOA
company
