This document discusses the embryology, structure, blood supply, nerve supply, and clinical importance of the external ear. It begins with the embryological development of the pinna from hillocks and branchial arches. It describes the normal anatomy of the pinna, external auditory canal, and tympanic membrane. It discusses common anatomical variations and clinical relevance. The document provides a detailed overview of the external ear's development and key structures.

1. DR MOHAMMED NISHAD N

2. CONTENTS
 EMBRYOLOGY
 ANOMALIES
 STRUCTURE
 BLOOD SUPPLY
 NERVE SUPPLY
 LYMPHATIC DRAINAGE
 CLINICAL & SURGICAL IMPORTANCE

3. EMBRYOLOGY
EXTERNAL EAR

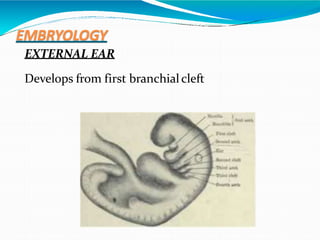

Develops from first branchialcleft

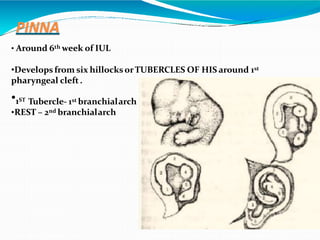

4. PINNA
• Around 6th week of IUL

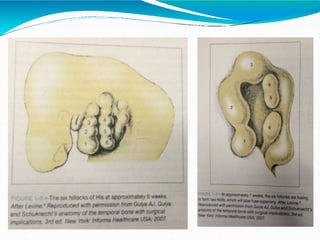

•Developsfrom six hillocksorTUBERCLES OF HIS around 1st
pharyngeal cleft.
•1ST Tubercle- 1st branchialarch
•REST – 2nd branchialarch

6. STRUCTURES DERIVED
1) Tragus
2) Crus of helix
3) Helix
4) Antihelix
5) Scapha &antitragus
6) Ear lobule

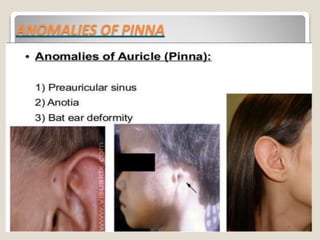

7. ANOMALIES OF PINNA

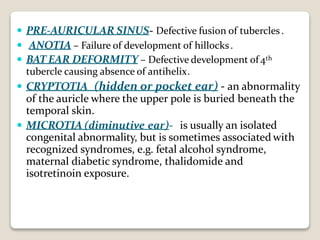

8.  PRE-AURICULAR SINUS- Defective fusion of tubercles.
 ANOTIA – Failure of development of hillocks.
 BAT EAR DEFORMITY – Defective development of4th
tubercle causing absence of antihelix.
 CRYPTOTIA (hidden or pocket ear) - an abnormality
of the auricle where the upper pole is buried beneath the
temporal skin.
 MICROTIA (diminutive ear)- is usually an isolated
congenital abnormality, but is sometimes associated with
recognized syndromes, e.g. fetal alcohol syndrome,
maternal diabetic syndrome, thalidomide and
isotretinoin exposure.

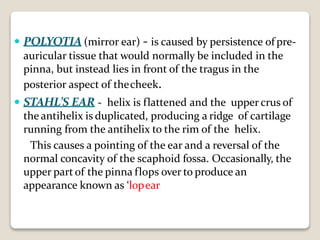

9.  POLYOTIA (mirror ear) - is caused by persistence of pre-
auricular tissue that would normally be included in the
pinna, but instead lies in front of the tragus in the
posterior aspect of thecheek.
 STAHL’S EAR - helix is flattened and the upper crus of
the antihelix is duplicated, producing a ridge of cartilage
running from the antihelix to the rim of the helix.
This causes a pointing of the ear and a reversal of the
normal concavity of the scaphoid fossa. Occasionally, the
upper part of the pinna flops over to produce an
appearance known as ‘lopear

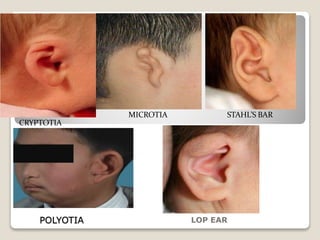

10. CRYPTOTIA
MICROTIA STAHL’S BAR
POLYOTIA LOP EAR

11. EXTERNAL AUDITORY CANAL

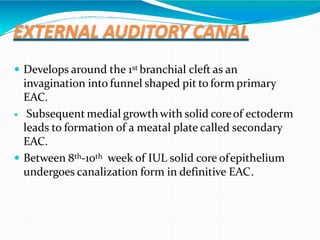

 Develops around the 1st branchial cleft as an
invagination into funnel shaped pit to form primary
EAC.
 Subsequent medial growthwith solid coreof ectoderm
leads to formation of a meatal plate called secondary
EAC.
 Between 8th-10th week of IUL solid core ofepithelium
undergoes canalization form in definitive EAC.

13. ANOMALIES OF EAC

14. TYMPANIC MEMBRANE

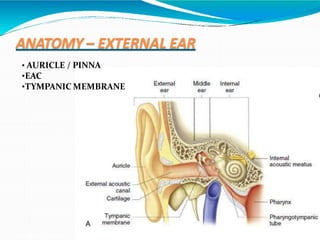

15. ANATOMY – EXTERNAL EAR
• AURICLE / PINNA
•EAC
•TYMPANIC MEMBRANE

17. PINNA
 Single sheet of yellow elasticfibrocartilage
 2 surfaces- medial(cranial) , lateral.
 Medial surface- convex
 Lateral surface- concave with folds &hollows.
AURICULAR CARTILAGE

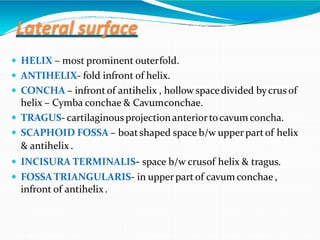

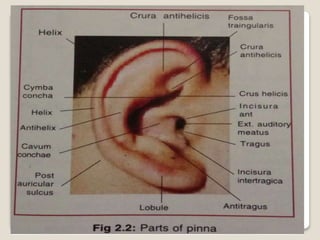

18. Lateral surface
 HELIX – most prominent outerfold.
 ANTIHELIX- fold infront of helix.
 CONCHA – infrontof antihelix , hollow spacedivided bycrus of
helix – Cymba conchae & Cavumconchae.
 TRAGUS- cartilaginousprojectionanteriortocavumconcha.
 SCAPHOID FOSSA – boatshaped space b/w upper partof helix
& antihelix .
 INCISURA TERMINALIS- space b/w crusof helix & tragus.
 FOSSATRIANGULARIS- in upperpart of cavum conchae ,
infront of antihelix.

19.  Cartilage – avascular , derives nutrients from perichondrium .
 2 LIGAMENTS –
- Anterior ligament
- Posterior ligament

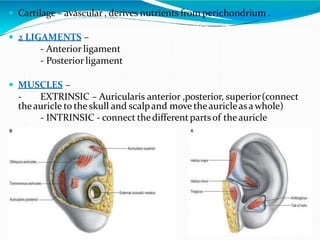

 MUSCLES –
- EXTRINSIC – Auricularis anterior ,posterior, superior(connect
theauricle to the skull and scalpand move theauricleasawhole)
- INTRINSIC - connect thedifferentpartsof theauricle

20. IMPORTANCE
 INCISURA TERMINALIS- This area is devoid of
cartilage , can be used for giving incision for
procedures in ear to avoid post- op
perichondritis .
 LATERAL SURFACE – Skin is firmly
adherent to perichondrium ; so
more prone for frost bite.
 MEDIAL SURFACE – More of subcutaneous
tissue , skin is loosely adherent to
underlying cartilage ; so cysts like
sebaceous cyst are common .

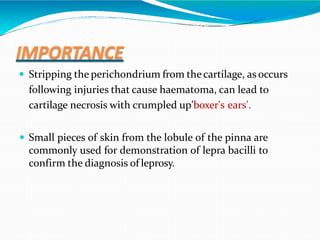

21. IMPORTANCE
 Stripping the perichondrium from thecartilage, as occurs
following injuries that cause haematoma, can lead to
cartilage necrosis with crumpled up'boxer's ears'.
 Small pieces of skin from the lobule of the pinna are
commonly used for demonstration of lepra bacilli to
confirm the diagnosis of leprosy.

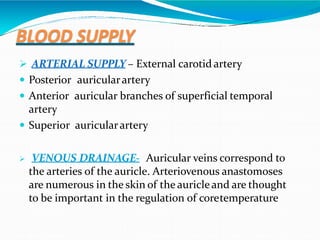

22. BLOOD SUPPLY
 ARTERIAL SUPPLY – External carotid artery
 Posterior auricularartery
 Anterior auricular branches of superficial temporal
artery
 Superior auricularartery
 VENOUS DRAINAGE- Auricular veins correspond to
the arteries of the auricle. Arteriovenous anastomoses
are numerous in the skin of the auricle and are thought
to be important in the regulation of coretemperature

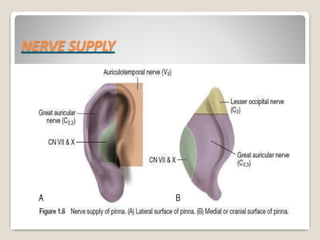

23. NERVE SUPPLY

25. LYMPHATIC DRAINAGE
 The posterioraspectof the pinnadrains to nodesat
the mastoid tip.
 The tragus and upperpartof the pinnadrain into pre-
auricular nodes
 The remainderof the pinnadrains toupperdeep
cervical lymph nodes.

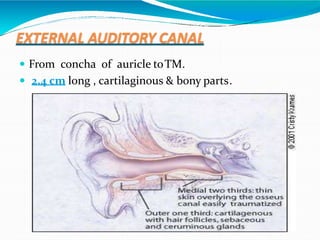

27. EXTERNAL AUDITORY CANAL
 From concha of auricle toTM.
 2.4 cm long , cartilaginous & bony parts.

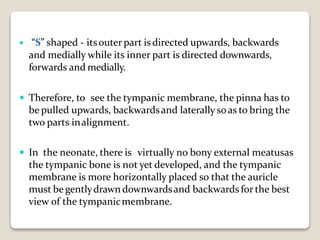

28.  “S” shaped - itsouterpart isdirected upwards, backwards
and medially while its inner part is directed downwards,
forwards and medially.
 Therefore, to see the tympanic membrane, the pinna has to
be pulled upwards, backwardsand laterally soas to bring the
two parts inalignment.
 In the neonate, there is virtually no bony external meatusas
the tympanic bone is not yet developed, and the tympanic
membrane is more horizontally placed so that the auricle
must be gentlydrawn downwardsand backwards for the best
view of the tympanicmembrane.

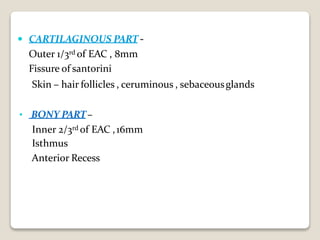

29.  CARTILAGINOUS PART -
Outer 1/3rd of EAC , 8mm
Fissure of santorini
Skin – hair follicles , ceruminous , sebaceousglands
• BONY PART–
Inner 2/3rd of EAC ,16mm
Isthmus
Anterior Recess

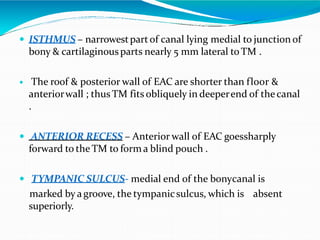

30.  ISTHMUS – narrowestpartof canal lying medial to junction of
bony & cartilaginousparts nearly 5 mm lateral toTM .
 The roof & posterior wall of EAC are shorter than floor &
anteriorwall ; thus TM fits obliquely in deeperend of thecanal
.

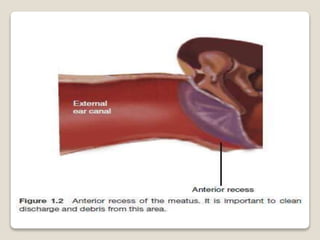

 ANTERIOR RECESS – Anterior wall of EAC goessharply
forward to the TM to forma blind pouch .
 TYMPANIC SULCUS- medial end of the bonycanal is
marked by agroove, the tympanicsulcus, which is absent
superiorly.

32. IMPORTANCE
• ANTERIOR RECESS- cmn site for foreign body impaction
lodgement.
• FURUNCULOSIS – outer cartilaginouscanal
• WAX - impaction (deafness,irritation , itching , otalgiaetc)

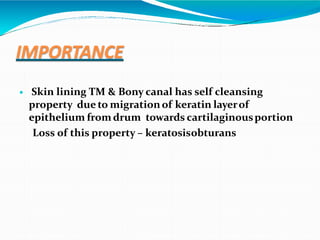

33. IMPORTANCE
 Skin lining TM & Bony canal has self cleansing
property due to migrationof keratin layerof
epithelium from drum towards cartilaginousportion
Loss of this property – keratosisobturans

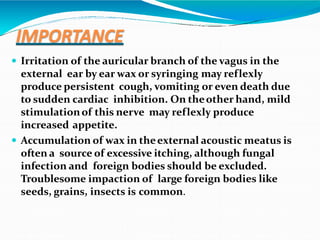

34. IMPORTANCE
 Irritation of the auricular branch of the vagus in the
external ear by ear wax or syringing may reflexly
produce persistent cough, vomiting or even death due
to sudden cardiac inhibition. On theother hand, mild
stimulationof this nerve may reflexly produce
increased appetite.
 Accumulation of wax in theexternal acoustic meatus is
often a source of excessive itching, although fungal
infection and foreign bodies should be excluded.
Troublesome impaction of large foreign bodies like
seeds, grains, insects is common.

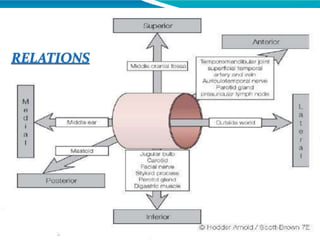

35. RELATIONS

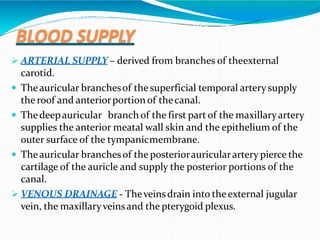

36. BLOOD SUPPLY
 ARTERIAL SUPPLY – derived from branches of theexternal
carotid.
 Theauricular branchesof the superficial temporal artery supply
the roof and anteriorportion of thecanal.
 Thedeepauricular branch of the first partof the maxillaryartery
supplies the anterior meatal wall skin and the epithelium of the
outer surface of the tympanicmembrane.
 Theauricular branchesof the posteriorauricularartery pierce the
cartilage of the auricle and supply the posterior portions of the
canal.
 VENOUS DRAINAGE - Theveinsdrain into theexternal jugular
vein, the maxillaryveinsand the pterygoid plexus.

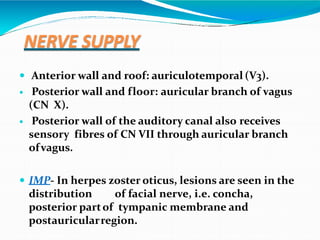

37. NERVE SUPPLY
 Anterior wall and roof: auriculotemporal (V3).
 Posterior wall and floor: auricular branch of vagus
(CN X).
 Posterior wall of the auditory canal also receives
sensory fibres of CN VII through auricular branch
ofvagus.
 IMP- In herpes zoster oticus, lesions are seen in the
distribution of facial nerve, i.e. concha,
posterior partof tympanic membrane and
postauricularregion.

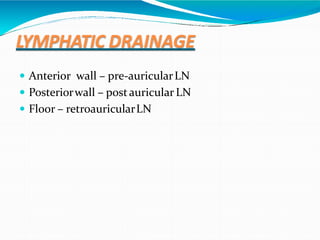

38. LYMPHATIC DRAINAGE
 Anterior wall – pre-auricularLN
 Posteriorwall – postauricular LN
 Floor – retroauricularLN

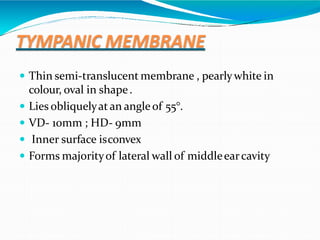

39. TYMPANIC MEMBRANE

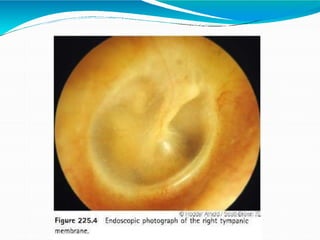

 Thin semi-translucent membrane , pearlywhite in
colour, oval in shape.
 Lies obliquelyatan angleof 55°.
 VD- 10mm ; HD- 9mm
 Inner surface isconvex
 Forms majorityof lateral wall of middleearcavity

43.  Peripheral part is thicker & rounded (except inupper
part ) - ANNULUSTYMPANICUS
 Annulus isattached at its circumference totympanic
sulcus which ends in a notch known as "NOTCH of
RIVINUS" in upperpart.
 MALLEOLAR FOLDS - anterior & posterior ;arising
from notch of rivinus to lateral surfaceof malleus .

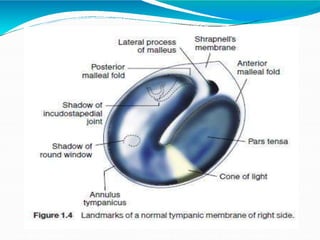

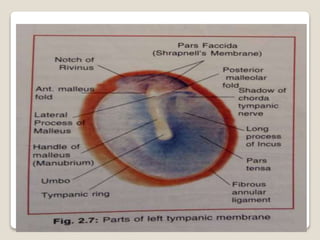

44. 2 PARTS

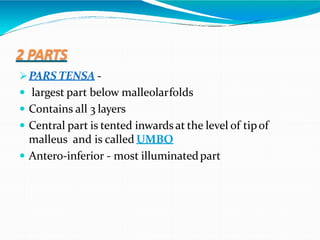

PARS TENSA -
 largest part below malleolarfolds
 Contains all 3 layers
 Central part is tented inwards at the level of tipof
malleus and is called UMBO
 Antero-inferior - most illuminatedpart

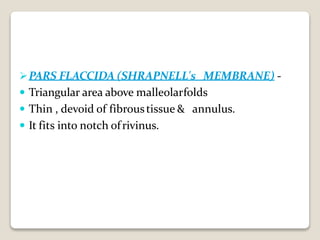

45. PARS FLACCIDA (SHRAPNELL's MEMBRANE) -
 Triangular area above malleolarfolds
 Thin , devoid of fibroustissue & annulus.
 It fits into notch ofrivinus.

46. 3 LAYERS
1) OUTER CUTICULAR/EPITHELIAL LAYER -
 It iscontinuouswith skin of EAC
2) MIDDLE FIBROUS LAYER -

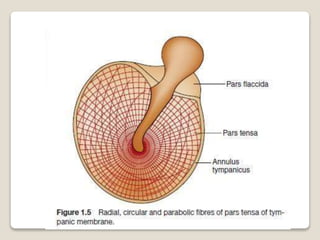

 The lamina propria of the pars tensa has radially oriented fibres in the
outer layers and circular, parabolic and transverse fibres in the deeper
layer.
 Thisarrangement probablyaccounts forthecomplex pattern of
tympanic membrane displacementduring sound stimulation.
 Radial fibres normally merge with annulustympanicus
 In the pars flaccida, the lamina propria is less marked and the
orientationof thecollagen fibres seems random.
3) INNER MUCOSAL LAYER -
 It is continuouswith middleear mucosa

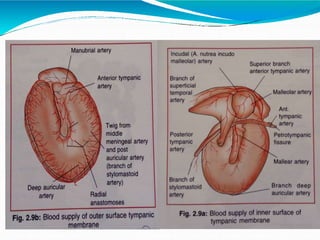

48. BLOOD SUPPLY

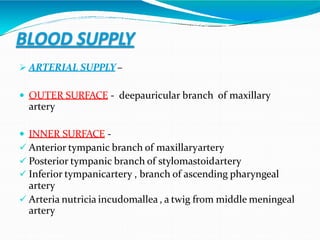

 ARTERIAL SUPPLY–
 OUTER SURFACE - deepauricular branch of maxillary
artery
 INNER SURFACE -
 Anterior tympanic branch of maxillaryartery
 Posterior tympanic branch of stylomastoidartery
 Inferior tympanicartery , branch of ascending pharyngeal
artery
 Arteria nutricia incudomallea , a twig from middle meningeal
artery

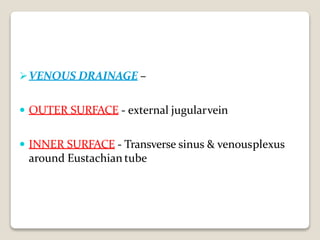

50. VENOUS DRAINAGE –
 OUTER SURFACE - external jugularvein
 INNER SURFACE - Transverse sinus & venousplexus
around Eustachian tube

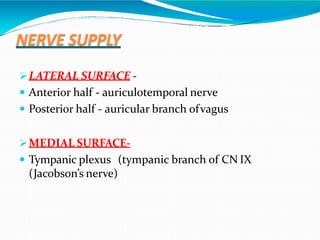

51. NERVE SUPPLY
LATERAL SURFACE -
 Anterior half - auriculotemporal nerve
 Posterior half - auricular branch ofvagus
MEDIAL SURFACE-
 Tympanic plexus (tympanic branch of CN IX
(Jacobson’s nerve)

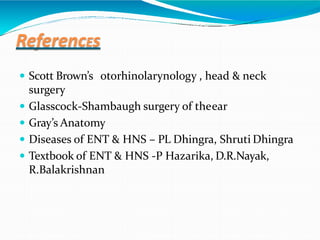

52. ReferencEs
 Scott Brown’s otorhinolarynology , head & neck
surgery
 Glasscock-Shambaugh surgery of theear
 Gray’s Anatomy
 Diseases of ENT & HNS – PL Dhingra, Shruti Dhingra
 Textbook of ENT & HNS -P Hazarika, D.R.Nayak,
R.Balakrishnan
