The document discusses system solutions for extensive green roofs. It provides details on six principles for extensive green roof builds that ensure drainage, water balance, vegetation adaptation, low maintenance, and long lifespan. Eight system build-up options are described that vary based on the type of plants used, roof pitch, and design goals. Benefits of extensive green roofs include energy savings, habitat creation, rainwater retention, dust and noise protection, and roof membrane protection.
Severe weather elements like harsh
temperatures, wind, sun and salt
are no match for Integrity windows
and doors. That’s why homeowners
in search of top performance and
stability turn to IMPACT. Integrity
IMPACT products help sustain the
structural quality of your home
with the beauty of Ultrex® pultruded
fiberglass, the perfect material
to stand up to the storm.
Integrity from Marvin® Windows
and Doors benefits from Marvin’s
heritage of excellence spanning
four generations of family
leadership dedicated to quality,
service, innovation and community.
Inside and out, Integrity’s All Ultrex
product series offers the strength
of Ultrex® pultruded fiberglass, a
material patented over 20 years
ago when Integrity pioneered
the fiberglass windows and door
category. We continue to be
industry leaders with durable,
stable, low-maintenance and
energy-efficient products. But the
real beauty of this product line is
that it’s as elegant as it is tough, with
sleek fiberglass construction in a
variety of popular styles.
Integrity Windows and Doors is part of the Marvin® family of brands. Employing the values and
commitment to quality that made Marvin the premier manufacturer of made-to-order windows
and doors, Integrity was created to set a new industry standard in performance and durability.
Founded in 1994, we introduced Ultrex® pultruded fiberglass — a revolutionary new construction
material. Today, Integrity is the largest manufacturer of Ultrex pultruded fiberglass products,
offering All Ultrex, Wood-Ultrex and IMPACT Products.
We know that you want to make your visions come to life while enhancing your home’s curb appeal.
That’s why we offer a myriad of special order color options in addition to the standard Euro-White.
Our paints are environmentally safe and durable, giving you many years of enjoyment.
Integrity windows and doors are made with Ultrex®, a pultruded fiberglass with a patented acrylic capping
that outperforms and outlasts vinyl, roll-form aluminum and other fiberglass composites. We use Ultrex
and our proprietary pultrusion process to manufacture high-demand windows and doors that endure all
elements without showing age or wear.
Though we are dedicated to leading the way in innovation, we never forget the cornerstones of our
business. We are highly selective in choosing our business partners — including independently-owned
dealers and distributors — to ensure our customers have the best experience possible. We use an efficient
manufacturing and delivery system so our products are received when expected. We create products
to be easily installed and operated with virtually no maintenance required.
Our values and work ethic are forged by the communities where we’re proud to make our quality products.
When you choose Integrity windows and doors, you support a small-town, family-owned and operated
company with deep roots in the community; some Marvin employees are fourth-generation, following the
family tradition. We share profits with our employees; we support our communities; we treat our dealers
and customers fairly and with respect.
At Integrity,
This document summarizes the features of Insul-Tec windows. It describes that Insul-Tec windows feature a welded mainframe with beveled curves for strength, a mortised sill dam wall for reduced leaks, and an integrated lift rail for a contemporary look. It also notes that Insul-Tec windows offer excellent air infiltration ratings to lower energy consumption and exceed Energy Star requirements when combined with their Heat Seal glass systems.
This company provides vibration isolation, noise control, and insulation products and services. It was established in 1983 and has locations in Massachusetts and Florida, employing 50 people. Its markets include marine, power generation, military, and various industrial sectors. It offers products like vibration isolators, exhaust silencers, and insulation materials to reduce noise and vibration on commercial vessels and in other applications. Services include specification review, drawings, analysis, and custom fabrication with short lead times.
Severe weather elements like harsh
temperatures, wind, sun and salt
are no match for Integrity windows
and doors. That’s why homeowners
in search of top performance and
stability turn to IMPACT. Integrity
IMPACT products help sustain the
structural quality of your home
with the beauty of Ultrex® pultruded
fiberglass, the perfect material
to stand up to the storm.
Integrity from Marvin® Windows
and Doors benefits from Marvin’s
heritage of excellence spanning
four generations of family
leadership dedicated to quality,
service, innovation and community.
Inside and out, Integrity’s All Ultrex
product series offers the strength
of Ultrex® pultruded fiberglass, a
material patented over 20 years
ago when Integrity pioneered
the fiberglass windows and door
category. We continue to be
industry leaders with durable,
stable, low-maintenance and
energy-efficient products. But the
real beauty of this product line is
that it’s as elegant as it is tough, with
sleek fiberglass construction in a
variety of popular styles.
Integrity Windows and Doors is part of the Marvin® family of brands. Employing the values and
commitment to quality that made Marvin the premier manufacturer of made-to-order windows
and doors, Integrity was created to set a new industry standard in performance and durability.
Founded in 1994, we introduced Ultrex® pultruded fiberglass — a revolutionary new construction
material. Today, Integrity is the largest manufacturer of Ultrex pultruded fiberglass products,
offering All Ultrex, Wood-Ultrex and IMPACT Products.
We know that you want to make your visions come to life while enhancing your home’s curb appeal.
That’s why we offer a myriad of special order color options in addition to the standard Euro-White.
Our paints are environmentally safe and durable, giving you many years of enjoyment.
Integrity windows and doors are made with Ultrex®, a pultruded fiberglass with a patented acrylic capping
that outperforms and outlasts vinyl, roll-form aluminum and other fiberglass composites. We use Ultrex
and our proprietary pultrusion process to manufacture high-demand windows and doors that endure all
elements without showing age or wear.
Though we are dedicated to leading the way in innovation, we never forget the cornerstones of our
business. We are highly selective in choosing our business partners — including independently-owned
dealers and distributors — to ensure our customers have the best experience possible. We use an efficient
manufacturing and delivery system so our products are received when expected. We create products
to be easily installed and operated with virtually no maintenance required.
Our values and work ethic are forged by the communities where we’re proud to make our quality products.
When you choose Integrity windows and doors, you support a small-town, family-owned and operated
company with deep roots in the community; some Marvin employees are fourth-generation, following the
family tradition. We share profits with our employees; we support our communities; we treat our dealers
and customers fairly and with respect.
At Integrity,
This document summarizes the features of Insul-Tec windows. It describes that Insul-Tec windows feature a welded mainframe with beveled curves for strength, a mortised sill dam wall for reduced leaks, and an integrated lift rail for a contemporary look. It also notes that Insul-Tec windows offer excellent air infiltration ratings to lower energy consumption and exceed Energy Star requirements when combined with their Heat Seal glass systems.
This company provides vibration isolation, noise control, and insulation products and services. It was established in 1983 and has locations in Massachusetts and Florida, employing 50 people. Its markets include marine, power generation, military, and various industrial sectors. It offers products like vibration isolators, exhaust silencers, and insulation materials to reduce noise and vibration on commercial vessels and in other applications. Services include specification review, drawings, analysis, and custom fabrication with short lead times.
IMPACT windows are engineered to remain airtight, watertight and secure even during driving rains and heavy
winds. Clean sightlines and generous proportions enhance any view and the rich wood interiors can be painted or stained to match any
interior. Standard or special sized products with matching transoms and picture units enable multiple configurations in certified factory
mulled assemblies. IMPACT windows are storm-ready when locked with no additional fasteners required.
The document provides information on various window and door systems from Everestmax, including sliding systems, shutters, fly nets, and profiles. It discusses features like insulation values, compatibility between systems, laminated color options, and integration of auxiliary profiles for special applications. Multiple systems are designed for robustness, durability, aesthetics, and high insulation performance.
Wood-Ultrex fiberglass doors from Integrity combine beauty and toughness. [1] They feature a durable Ultrex fiberglass exterior that resists damage and requires little maintenance paired with a rich wood or fiberglass interior. [2] Integrity doors are customizable with multiple exterior colors, hardware styles, and custom sizes. [3] They are built to perform in any climate.
Özgür Cam manufactures float glass through a process of floating molten glass on a bath of molten tin, producing transparent glass. This clean float glass can then undergo secondary processes to produce various glass solutions for industries like construction, automotive, energy and more. These include insulating glass units, laminated glass, tempered glass, and coated glass. One type is Helio blend-coloured float glass, used for sun control with various colour and reflection options. Isıcam units provide heat insulation by delaying heat transfer between indoors and outdoors when two panes of glass are sealed together. Isıcam Sinerji provides especially high insulation with the addition of Low-E coating on one pane of
This document provides information about insulated glass units (IGUs). It discusses that IGUs consist of multiple glass panes hermetically sealed with dry air or inert gas between. Key components of IGUs include spacers to separate the glass, desiccants to absorb moisture, and primary and secondary sealants. The document also outlines best practices for IGU production, including using the proper desiccant type and filling method, minimizing spacer joints, and controlling the production environment. Production steps and specifications for IGU properties are defined.
The document discusses various types of super insulated glass and window technologies that provide highly energy efficient building enclosures, including innovations like low-e coatings, multiple panes of glass, inert gas fills, and advanced framing materials that allow for ultra-low U-values. It also covers the history and evolution of glass and window technologies, important performance specifications, and considerations for sustainable product selection.
TechnologyThe heart of the UltraMaxx platform is Definity vinyl. This advanced vinylcompound is rugged, durable and virtually maintenance-free. The material’slow thermal conductivity makes it theperfect choice for window manufacturing.
Toughened or tempered glass is a type of safety glass that is stronger than regular glass. It is processed through controlled heating and rapid cooling, which puts the outer surfaces in compression and the inner surfaces in tension. This makes the glass stronger and causes it to break into small granular chunks instead of sharp shards if broken. Toughened glass is commonly used in automotive and building applications wherever strength, thermal resistance and safety are important, such as windows, doors, and furniture.
The document discusses the benefits and components of green roofs. Green roofs can reduce urban heat, lower energy costs, improve air and water quality, and provide habitat. They are composed of a waterproof membrane, drainage layer, insulation, filter fabric, growing medium and plants. Extensive green roofs are lighter weight and have shallow growing media while intensive roofs support deeper media and larger plants. Proper planning is needed to coordinate a green roof installation with other construction trades and address scheduling, access, and potential damage from other work.
This presentation gives a basic information about green roofing technology with easy English in a simple way. It has been used for conducting data about a study on "Assessing the awareness about green roofing technology and the effect of lecture on it. It is with minimum words and maximum content.
This document discusses different types of greenhouses based on their shape, use, construction, covering materials, and cost. It describes lean-to, even span, uneven span, ridge and furrow, and saw tooth greenhouse types. Components of greenhouses like side posts, curtain walls, sills, eaves, trusses, purlins, ridges, and sash bars are defined. Advantages of greenhouses include higher yields, reliability of crops, and year-round production. Limitations include high initial costs and need for constant maintenance. Gutter-connected greenhouses and low tunnels are also summarized.
Sustainable Facility Life Cycle ManagementTony Loup
Fluid applied membranes such as the Astec Re-Ply Roofing and Ceramic Coating Systems can have dramatic effects on both maintenance and capital expenditure budgets. This presentation shows how you can promote sustainable facility life-cycle management with products such as Astec.
- Green roofs originated in Germany in the 1960s and 1970s as a way to replace natural spaces lost to rapid urbanization. They provided benefits like stormwater retention and temperature regulation.
- German research in the 1970s and standards established in the 1980s helped establish green roofs as an industry. By the 1990s there were an estimated 160 million square feet of green roofs in Germany, 95% of which were extensive lightweight sedum roofs.
- Proper installation requires following manufacturer specifications and industry standards. Key components include a waterproof membrane, filter fabric, drainage layer, growth medium, and plants. Safety, positive drainage, and compliance with local building codes are also important considerations.
Welcome to Agrodome Projects LLP, your trusted modern agriculture partner in providing comprehensive turnkey solutions for greenhouse/polyhouse construction services. With years of specialization and a commitment to excellence, we deliver high-quality shaded net-house [ greenhouse ] structures meant for protected cultivation are specially designed to meet your specific needs. From concept to completion, our dedicated team handles every aspect of the project, ensuring seamless execution and superior results. Whether you're a small-scale grower/farmer or a large agricultural enterprise, count on us to deliver innovative solutions that maximize productivity and profitability. Experience the difference with Agrodome Projects LLP as your manufacturing partner in agricultural greenhouse structures for tissue culturing, vegetable/ fruit farming, curating nursery, flowers, herbs, capsicum, chilly etc. range of polyhouses.
As coberturas e fachadas mediterrânicas, vivas e produtivas promovem o bem estar e a qualidade de vida das populações e contribuem decisivamente para o aumento da resiliência das cidades. Por esta razão é essencial não apenas o conhecimento das soluções existentes que melhor se adaptam ao nosso clima, como ainda o desenvolvimento das competências técnicas essenciais para a boa implementação daquelas soluções. O enfoque deste Workshop está na demonstração da integração da dimensão verde nas cidades e das oportunidades de intervenção conducentes à melhoria do desempenho energético dos edifícios, à redução do “efeito ilha de calor”, à boa gestão das águas pluviais, à reciclagem de águas cinzentas, à melhoria da qualidade do ar, ao aumento da biodiversidade e à segurança alimentar das populações urbanas, sempre assentando nas melhores e mais adequadas tecnologias disponíveis.
Green roofs and façades are becoming increasingly recognised for their contribution to urban wellbeing. This contribution is becoming increasingly measurable, and is providing considerable economical and environmental benefits to individuals, communities and the urban environment. Cities all over the world are increasing their quota of green spaces and surfaces, finding it improves many of the urban performance indicators they have failed on in the recent past: their air quality ratings and their storm water management improve, their heat island effect decreases, social integration improves and health is more effectively restored... The Workshop provides an opportunity to share good practices in the built environment and aims to provide sufficient evidence for decision makers to gain courage and go for solutions that integrate this green, living dimension.
The Workshop’s target audience are all decision makers who influence the quality of the built environment.
O Workshop é dirigido a todos os decisores que influenciam a qualidade de construção do meio edificado
This document provides information on producing and marketing cover films for orchards and vineyards. It discusses global table grape production statistics by region. It then outlines the objectives of using cover films, which include better quality, protection from weather, more productivity, and the ability to advance or delay harvest times. Several tables show increased minimum and maximum harvests, productivity, and gross marketable production when using cover films compared to no cover. The document also discusses structure types, pest control, quality factors, and considerations for choosing cover films for different crops and cultivation objectives.
This document discusses green roofs and their benefits. It begins by defining green roofs as roofs covered in vegetation rather than just a waterproof membrane. There are two main types of green roofs - extensive and intensive. Extensive green roofs are lighter and require less maintenance while intensive green roofs can support a wider variety of plants. Green roofs provide multiple benefits such as absorbing rainwater, providing insulation, creating wildlife habitats, and reducing the urban heat island effect. They can also improve air quality, increase energy efficiency, and extend the lifespan of roofs. The document examines these benefits in further detail.
This document discusses protected cultivation, which involves growing plants under controlled environments using protected structures like greenhouses. It describes the advantages of protected cultivation as higher productivity, quality, pest control, and year-round production. The history of protected cultivation is outlined, dating back to Roman times. Modern greenhouses first appeared in Italy and Holland. The document then focuses on the history and development of greenhouses in India. Different types of protected structures are defined, and greenhouse types like ground-to-ground, gable, and quonset are described. Environmental control methods to regulate temperature, humidity, light, and CO2 are also summarized.
Plastic materials like polyethylene, acrylic/polyester, polyester, and fiberglass reinforced plastics are common cladding materials for greenhouses. Polyethylene is relatively short-lived but transmits 85-88% of sunlight. Acrylic/polyester combines weatherability and heat resistance but is susceptible to wind damage. Polyester has excellent transmittance and heat resistance but limited widths. Fiberglass reinforced plastics are more impact resistant than glass but proper installation is important. Shade nets made of plastic are also used as cladding to protect crops from weather.
Technical details of Energy Efficient HVAC Systemjayeshmahajan24
The document provides details on the design of an HVAC system for a commercial building. It discusses the indoor design conditions, daylight conditions, selection of double pane glass for the walls, use of autoclaved aerated concrete blocks and extruded polystyrene for the outer and inner walls. A hybrid VRF system is selected for cooling along with measures for indoor air quality, COVID-19 prevention, fan selection, basement design, fire safety systems and automation.
This document provides specifications for various greenhouse models designed for different climate types. It includes details on width, height, ventilation systems, and structural reinforcements. The greenhouses can be constructed from materials like plastic, metal sheets, and mesh to suit various crops and regions from tropical to cold climates.
IMPACT windows are engineered to remain airtight, watertight and secure even during driving rains and heavy
winds. Clean sightlines and generous proportions enhance any view and the rich wood interiors can be painted or stained to match any
interior. Standard or special sized products with matching transoms and picture units enable multiple configurations in certified factory
mulled assemblies. IMPACT windows are storm-ready when locked with no additional fasteners required.
The document provides information on various window and door systems from Everestmax, including sliding systems, shutters, fly nets, and profiles. It discusses features like insulation values, compatibility between systems, laminated color options, and integration of auxiliary profiles for special applications. Multiple systems are designed for robustness, durability, aesthetics, and high insulation performance.
Wood-Ultrex fiberglass doors from Integrity combine beauty and toughness. [1] They feature a durable Ultrex fiberglass exterior that resists damage and requires little maintenance paired with a rich wood or fiberglass interior. [2] Integrity doors are customizable with multiple exterior colors, hardware styles, and custom sizes. [3] They are built to perform in any climate.
Özgür Cam manufactures float glass through a process of floating molten glass on a bath of molten tin, producing transparent glass. This clean float glass can then undergo secondary processes to produce various glass solutions for industries like construction, automotive, energy and more. These include insulating glass units, laminated glass, tempered glass, and coated glass. One type is Helio blend-coloured float glass, used for sun control with various colour and reflection options. Isıcam units provide heat insulation by delaying heat transfer between indoors and outdoors when two panes of glass are sealed together. Isıcam Sinerji provides especially high insulation with the addition of Low-E coating on one pane of
This document provides information about insulated glass units (IGUs). It discusses that IGUs consist of multiple glass panes hermetically sealed with dry air or inert gas between. Key components of IGUs include spacers to separate the glass, desiccants to absorb moisture, and primary and secondary sealants. The document also outlines best practices for IGU production, including using the proper desiccant type and filling method, minimizing spacer joints, and controlling the production environment. Production steps and specifications for IGU properties are defined.
The document discusses various types of super insulated glass and window technologies that provide highly energy efficient building enclosures, including innovations like low-e coatings, multiple panes of glass, inert gas fills, and advanced framing materials that allow for ultra-low U-values. It also covers the history and evolution of glass and window technologies, important performance specifications, and considerations for sustainable product selection.
TechnologyThe heart of the UltraMaxx platform is Definity vinyl. This advanced vinylcompound is rugged, durable and virtually maintenance-free. The material’slow thermal conductivity makes it theperfect choice for window manufacturing.
Toughened or tempered glass is a type of safety glass that is stronger than regular glass. It is processed through controlled heating and rapid cooling, which puts the outer surfaces in compression and the inner surfaces in tension. This makes the glass stronger and causes it to break into small granular chunks instead of sharp shards if broken. Toughened glass is commonly used in automotive and building applications wherever strength, thermal resistance and safety are important, such as windows, doors, and furniture.
The document discusses the benefits and components of green roofs. Green roofs can reduce urban heat, lower energy costs, improve air and water quality, and provide habitat. They are composed of a waterproof membrane, drainage layer, insulation, filter fabric, growing medium and plants. Extensive green roofs are lighter weight and have shallow growing media while intensive roofs support deeper media and larger plants. Proper planning is needed to coordinate a green roof installation with other construction trades and address scheduling, access, and potential damage from other work.
This presentation gives a basic information about green roofing technology with easy English in a simple way. It has been used for conducting data about a study on "Assessing the awareness about green roofing technology and the effect of lecture on it. It is with minimum words and maximum content.
This document discusses different types of greenhouses based on their shape, use, construction, covering materials, and cost. It describes lean-to, even span, uneven span, ridge and furrow, and saw tooth greenhouse types. Components of greenhouses like side posts, curtain walls, sills, eaves, trusses, purlins, ridges, and sash bars are defined. Advantages of greenhouses include higher yields, reliability of crops, and year-round production. Limitations include high initial costs and need for constant maintenance. Gutter-connected greenhouses and low tunnels are also summarized.
Sustainable Facility Life Cycle ManagementTony Loup
Fluid applied membranes such as the Astec Re-Ply Roofing and Ceramic Coating Systems can have dramatic effects on both maintenance and capital expenditure budgets. This presentation shows how you can promote sustainable facility life-cycle management with products such as Astec.
- Green roofs originated in Germany in the 1960s and 1970s as a way to replace natural spaces lost to rapid urbanization. They provided benefits like stormwater retention and temperature regulation.
- German research in the 1970s and standards established in the 1980s helped establish green roofs as an industry. By the 1990s there were an estimated 160 million square feet of green roofs in Germany, 95% of which were extensive lightweight sedum roofs.
- Proper installation requires following manufacturer specifications and industry standards. Key components include a waterproof membrane, filter fabric, drainage layer, growth medium, and plants. Safety, positive drainage, and compliance with local building codes are also important considerations.
Welcome to Agrodome Projects LLP, your trusted modern agriculture partner in providing comprehensive turnkey solutions for greenhouse/polyhouse construction services. With years of specialization and a commitment to excellence, we deliver high-quality shaded net-house [ greenhouse ] structures meant for protected cultivation are specially designed to meet your specific needs. From concept to completion, our dedicated team handles every aspect of the project, ensuring seamless execution and superior results. Whether you're a small-scale grower/farmer or a large agricultural enterprise, count on us to deliver innovative solutions that maximize productivity and profitability. Experience the difference with Agrodome Projects LLP as your manufacturing partner in agricultural greenhouse structures for tissue culturing, vegetable/ fruit farming, curating nursery, flowers, herbs, capsicum, chilly etc. range of polyhouses.
As coberturas e fachadas mediterrânicas, vivas e produtivas promovem o bem estar e a qualidade de vida das populações e contribuem decisivamente para o aumento da resiliência das cidades. Por esta razão é essencial não apenas o conhecimento das soluções existentes que melhor se adaptam ao nosso clima, como ainda o desenvolvimento das competências técnicas essenciais para a boa implementação daquelas soluções. O enfoque deste Workshop está na demonstração da integração da dimensão verde nas cidades e das oportunidades de intervenção conducentes à melhoria do desempenho energético dos edifícios, à redução do “efeito ilha de calor”, à boa gestão das águas pluviais, à reciclagem de águas cinzentas, à melhoria da qualidade do ar, ao aumento da biodiversidade e à segurança alimentar das populações urbanas, sempre assentando nas melhores e mais adequadas tecnologias disponíveis.
Green roofs and façades are becoming increasingly recognised for their contribution to urban wellbeing. This contribution is becoming increasingly measurable, and is providing considerable economical and environmental benefits to individuals, communities and the urban environment. Cities all over the world are increasing their quota of green spaces and surfaces, finding it improves many of the urban performance indicators they have failed on in the recent past: their air quality ratings and their storm water management improve, their heat island effect decreases, social integration improves and health is more effectively restored... The Workshop provides an opportunity to share good practices in the built environment and aims to provide sufficient evidence for decision makers to gain courage and go for solutions that integrate this green, living dimension.
The Workshop’s target audience are all decision makers who influence the quality of the built environment.
O Workshop é dirigido a todos os decisores que influenciam a qualidade de construção do meio edificado
This document provides information on producing and marketing cover films for orchards and vineyards. It discusses global table grape production statistics by region. It then outlines the objectives of using cover films, which include better quality, protection from weather, more productivity, and the ability to advance or delay harvest times. Several tables show increased minimum and maximum harvests, productivity, and gross marketable production when using cover films compared to no cover. The document also discusses structure types, pest control, quality factors, and considerations for choosing cover films for different crops and cultivation objectives.
This document discusses green roofs and their benefits. It begins by defining green roofs as roofs covered in vegetation rather than just a waterproof membrane. There are two main types of green roofs - extensive and intensive. Extensive green roofs are lighter and require less maintenance while intensive green roofs can support a wider variety of plants. Green roofs provide multiple benefits such as absorbing rainwater, providing insulation, creating wildlife habitats, and reducing the urban heat island effect. They can also improve air quality, increase energy efficiency, and extend the lifespan of roofs. The document examines these benefits in further detail.
This document discusses protected cultivation, which involves growing plants under controlled environments using protected structures like greenhouses. It describes the advantages of protected cultivation as higher productivity, quality, pest control, and year-round production. The history of protected cultivation is outlined, dating back to Roman times. Modern greenhouses first appeared in Italy and Holland. The document then focuses on the history and development of greenhouses in India. Different types of protected structures are defined, and greenhouse types like ground-to-ground, gable, and quonset are described. Environmental control methods to regulate temperature, humidity, light, and CO2 are also summarized.
Plastic materials like polyethylene, acrylic/polyester, polyester, and fiberglass reinforced plastics are common cladding materials for greenhouses. Polyethylene is relatively short-lived but transmits 85-88% of sunlight. Acrylic/polyester combines weatherability and heat resistance but is susceptible to wind damage. Polyester has excellent transmittance and heat resistance but limited widths. Fiberglass reinforced plastics are more impact resistant than glass but proper installation is important. Shade nets made of plastic are also used as cladding to protect crops from weather.
Technical details of Energy Efficient HVAC Systemjayeshmahajan24
The document provides details on the design of an HVAC system for a commercial building. It discusses the indoor design conditions, daylight conditions, selection of double pane glass for the walls, use of autoclaved aerated concrete blocks and extruded polystyrene for the outer and inner walls. A hybrid VRF system is selected for cooling along with measures for indoor air quality, COVID-19 prevention, fan selection, basement design, fire safety systems and automation.
This document provides specifications for various greenhouse models designed for different climate types. It includes details on width, height, ventilation systems, and structural reinforcements. The greenhouses can be constructed from materials like plastic, metal sheets, and mesh to suit various crops and regions from tropical to cold climates.
Iris Polymers a renowned leader in manufacturing and exporting a wide stock of films that include UV Stabilized Green House Covering, Low Tunnel Films, Mulch Films, Silage film, Lamination Film, Shrink Films, Drainage Sheets, Pond Canal Reservoir Lining For Agriculture and Plant Protection Cover.
Row Covers; Gardening Guidebook for Kentucky ~ Kentucky State University ~ For more information, Please see websites below:
`
Organic Edible Schoolyards & Gardening with Children =
http://scribd.com/doc/239851214 ~
`
Double Food Production from your School Garden with Organic Tech =
http://scribd.com/doc/239851079 ~
`
Free School Gardening Art Posters =
http://scribd.com/doc/239851159 ~
`
Increase Food Production with Companion Planting in your School Garden =
http://scribd.com/doc/239851159 ~
`
Healthy Foods Dramatically Improves Student Academic Success =
http://scribd.com/doc/239851348 ~
`
City Chickens for your Organic School Garden =
http://scribd.com/doc/239850440 ~
`
Huerto Ecológico, Tecnologías Sostenibles, Agricultura Organica
http://scribd.com/doc/239850233
`
Simple Square Foot Gardening for Schools - Teacher Guide =
http://scribd.com/doc/239851110
This document provides an overview of green roofing, including its description, construction methods, layers, hydrologic cycle impacts, stormwater management benefits, costs and benefits. It discusses two main types of green roofs - extensive and intensive. Extensive roofs have shallow growing media and drought-resistant plants, while intensive roofs support a wider variety of plants and require deeper growing media. The key layers of a green roof are vegetation, growing media, drainage, root barrier, waterproof membrane and insulation. Green roofs can reduce stormwater runoff by absorbing and retaining rainfall, and help regulate urban temperatures through evapotranspiration. They provide environmental and economic benefits but also have higher initial costs than traditional roofs.
Insulation Job is done every industry But no one know about Actual Insulation job hazards and precautions . This slides explain the insulation job Hazards & precautions , type of insulation etc ..
The document discusses planning and design considerations for greenhouses. It covers site selection factors like solar exposure, drainage, wind protection and orientation. Greenhouse structural designs can be straight-sided walls with arched or gabled roofs, or hoop-style frames. Designs must withstand wind and snow loads. Covering materials are selected based on light transmission, durability, thermal properties and service life. The ideal covering transmits visible light, absorbs UV rays, reflects infrared to prevent overheating, is low-cost, and lasts 10-20 years.
The document discusses the benefits of exercise for mental health. Regular physical activity can help reduce anxiety and depression and improve mood and cognitive functioning. Exercise causes chemical changes in the brain that may help protect against mental illness and improve symptoms for those who already suffer from conditions like depression and anxiety.
This document lists the names of various cities and locations that the author visited while traveling at night, including European cities like Frankfurt, Bremerhaven, Hamburg, Berlin, Budapest, Cologne, London, Prague, Dresden, Salzburg; as well as global cities in Australia, Asia, and North America such as Sydney, Tokyo, Shanghai, Hong Kong, Kuala Lumpur, Las Vegas, Venice; and natural locations like the Alps and the Tower Bridge. The document does not provide any additional context around the travels.
Venecia es una ciudad ubicada en el noreste de Italia que se encuentra construida sobre más de 100 islas en una laguna del mar Adriático. Carece de puentes peatonales y el principal medio de transporte son los botes y góndolas. Es conocida por su arquitectura única de estilo gótico y renacentista, así como por ser una popular destino turístico debido a su pintoresca belleza acuática.
This document lists various natural and cultural World Heritage sites around the world including West Norwegian Fjords, Volcanoes of Kamchatka in Russia, Tikal in Guatemala, the Great Wall of China, Temple Nara in Japan, Teide National Park in Spain's Canary Islands, Te Wahipounamu in New Zealand, Brüssel Grand Place in Belgium, Segovia City in Spain, Rapa Nui National Park in Chile, Porta Nigra in Germany, Ordesa and Monte Perdido National Park in Spain, Mt Fuji in Japan, Mostar in Bosnia and Herzegovina, Mont St Michel in France, Medina of Tetouan in Morocco
The document lists and describes the world's happiest cities according to a survey, ranking Rio de Janeiro as #1 due to its association with dancing and the Carnaval festival. Sydney, Australia ranks #2 for its image as a place where people have barbecues. Barcelona ranks #3 for its culture, weather, and soccer. Amsterdam ranks #4 though its perceived happiness may be herbally induced. The other top cities are Melbourne, Madrid, San Francisco, Rome, Paris, and Buenos Aires, with brief descriptions of why each city made the list.
En Sun City, África del Sur, hay un impresionante complejo turístico construido en el cráter de un volcán extinguido que incluye el hotel de seis estrellas The Palace of The Lost City como su principal atracción.
Este documento lista lugares emblemáticos de España, incluyendo ciudades como Toledo, Sevilla y Barcelona; sitios naturales como los Picos de Europa y el Parque Nacional de Ordesa y Monte Perdido; y monumentos históricos como la Alhambra, el Monasterio de El Escorial y la Catedral de Santiago de Compostela.
Este documento lista los nombres de varios jardines, parques y lugares botánicos de diferentes países alrededor del mundo, incluyendo Austria, España, Francia, Suiza, Holanda, Portugal, Inglaterra, Rusia, Japón, Israel, Estados Unidos, Canadá, Brasil y Sudáfrica.
Travis Hills of MN Promotes Practices That Help Farms and Ecosystems Thrive, ...Travis Hills MN
Travis Hills of MN implements cutting-edge technology to enhance water efficiency by recycling clean water for irrigation. He advocates for responsible water management practices, reducing freshwater dependency in agricultural settings. Travis' initiatives support sustainable farming practices and ecosystem health, aligning with environmental sustainability goals.
Statewise Ramsar sites in India By B.pptxB. BHASKAR
Ramsar convention on wetlands and it's importance for conservation of diversity rich ecologically important wetlands of the member countries around the world.
Special focus on state wise Ramsar sites and wetlands of international importance in the India
Emerging Earth Observation methods for monitoring sustainable food productionCIFOR-ICRAF
Presented by Daniela Requena Suarez, Helmholtz GeoResearch Center Potsdam (GFZ) at "Side event 60th sessions of the UNFCCC Subsidiary Bodies - Sustainable Bites: Innovating Low Emission Food Systems One Country at a Time" on 13 June 2024
Monitor indicators of genetic diversity from space using Earth Observation dataSpatial Genetics
Genetic diversity within and among populations is essential for species persistence. While targets and indicators for genetic diversity are captured in the Kunming-Montreal Global Biodiversity Framework, assessing genetic diversity across many species at national and regional scales remains challenging. Parties to the Convention on Biological Diversity (CBD) need accessible tools for reliable and efficient monitoring at relevant scales. Here, we describe how Earth Observation satellites (EO) make essential contributions to enable, accelerate, and improve genetic diversity monitoring and preservation. Specifically, we introduce a workflow integrating EO into existing genetic diversity monitoring strategies and present a set of examples where EO data is or can be integrated to improve assessment, monitoring, and conservation. We describe how available EO data can be integrated in innovative ways to support calculation of the genetic diversity indicators of the GBF monitoring framework and to inform management and monitoring decisions, especially in areas with limited research infrastructure or access. We also describe novel, integrative approaches to improve the indicators that can be implemented with the coming generation of EO data, and new capabilities that will provide unprecedented detail to characterize the changes to Earth’s surface and their implications for biodiversity, on a global scale.
Trichogramma spp. is an efficient egg parasitoids that potentially assist to manage the insect-pests from the field condition by parasiting the host eggs. To mass culture this egg parasitoids effectively, we need to culture another stored grain pest- Rice Meal Moth (Corcyra Cephalonica). After rearing this pest, the eggs of Corcyra will carry the potential Trichogramma spp., which is an Hymenopteran Wasp. The detailed Methodologies of rearing both Corcyra Cephalonica and Trichogramma spp. have described on this ppt.
Exploring low emissions development opportunities in food systemsCIFOR-ICRAF
Presented by Christopher Martius (CIFOR-ICRAF) at "Side event 60th sessions of the UNFCCC Subsidiary Bodies - Sustainable Bites: Innovating Low Emission Food Systems One Country at a Time" on 13 June 2024
2. Reduction of
Energy Costs
New Habitat Rainwater
Retention
Protection of the
Roof Membrane

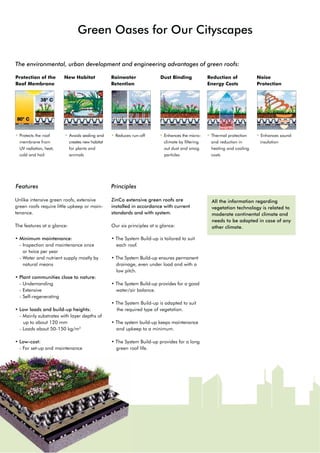

The environmental, urban development and engineering advantages of green roofs:
Green Oases for Our Cityscapes
warm
Dust Binding Noise
Protection
‡ Avoids sealing and
creates new habitat
for plants and
animals
‡ Reduces run-off ‡ Enhances the micro-
climate by filtering
out dust and smog
particles
‡ Enhances sound
insulation
‡ Thermal protection
and reduction in
heating and cooling
costs
‡ Protects the roof
membrane from
UV radiation, heat,
cold and hail
Features
Unlike intensive green roofs, extensive
green roofs require little upkeep or main-
tenance.
The features at a glance:
‡ Minimum maintenance:
- Inspection and maintenance once
or twice per year
- Water and nutrient supply mostly by
natural means
‡ Plant communities close to nature:
- Undemanding
- Extensive
- Self-regenerating
‡ Low loads and build-up heights:
- Mainly substrates with layer depths of
up to about 120 mm
- Loads about 50-150 kg/m2
‡ Low-cost:
- For set-up and maintenance
Principles
ZinCo extensive green roofs are
installed in accordance with current
standards and with system.
Our six principles at a glance:
‡ 7KH 6VWHP %XLOGXS LV WDLORUHG WR VXLW
each roof.
‡ 7KH 6VWHP %XLOGXS HQVXUHV SHUPDQHQW
drainage, even under load and with a
low pitch.
‡ 7KH 6VWHP %XLOGXS SURYLGHV IRU D JRRG
water/air balance.
‡ 7KH 6VWHP %XLOGXS LV DGDSWHG WR VXLW
the required type of vegetation.
‡ 7KH VVWHP EXLOGXS NHHSV PDLQWHQDQFH
and upkeep to a minimum.
‡ 7KH 6VWHP %XLOGXS SURYLGHV IRU D ORQJ
green roof life.
cold
All the information regarding
vegetation technology is related to
moderate continental climate and
needs to be adapted in case of any
other climate.
3. 3

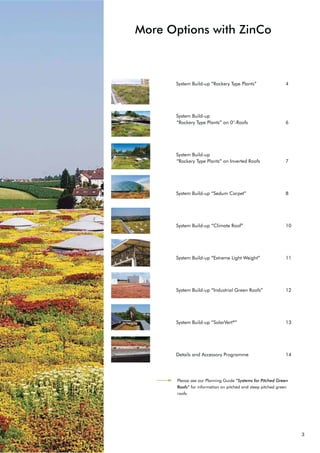

More Options with ZinCo
6VWHP %XLOGXS “Rockery Type Plants” 4
6VWHP %XLOGXS
“Rockery Type Plants” on 0°-Roofs 6
6VWHP %XLOGXS
“Rockery Type Plants” on Inverted Roofs 7
6VWHP %XLOGXS “Sedum Carpet” 8

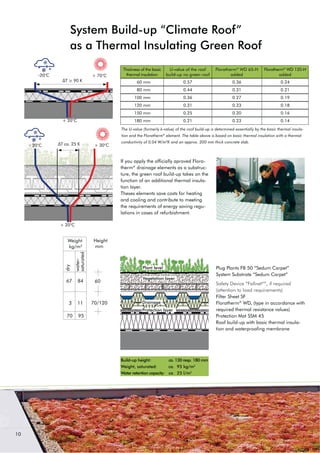

6VWHP %XLOGXS “Climate Roof” 10

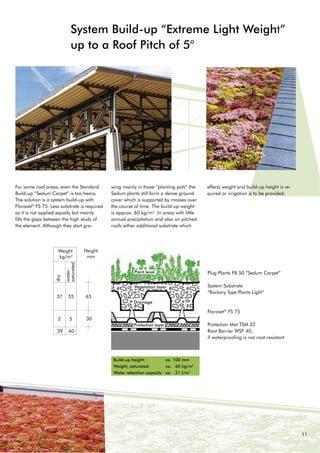

6VWHP %XLOGXS “Extreme Light Weight” 11

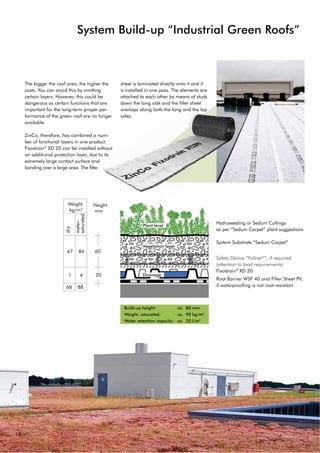

6VWHP %XLOGXS “Industrial Green Roofs” 12

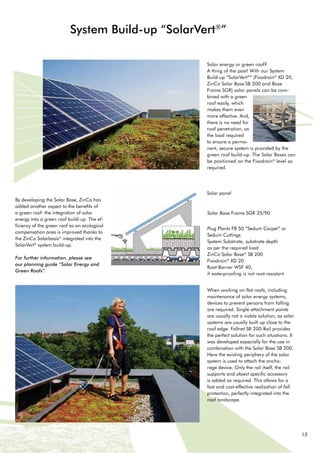

6VWHP %XLOGXS “SolarVert®
” 13

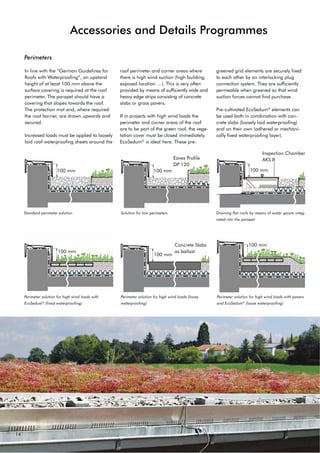

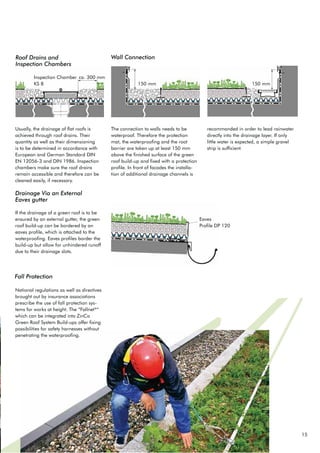

Details and Accessory Programme 14
Please see our Planning Guide “Systems for Pitched Green
Roofs” for information on pitched and steep pitched green
roofs.
4. 4

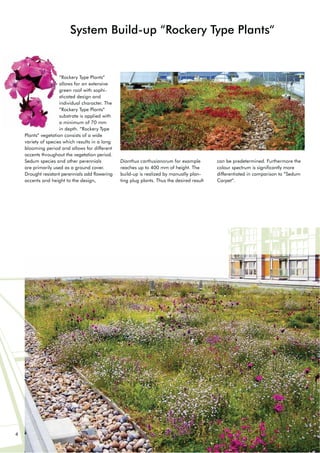

System Build-up “Rockery Type Plants“
“Rockery Type Plants“
allows for an extensive
green roof with sophi-
sticated design and
individual character. The
“Rockery Type Plants“
substrate is applied with
a minimum of 70 mm
in depth. “Rockery Type
Plants“ vegetation consists of a wide
variety of species which results in a long
blooming period and allows for different
accents throughout the vegetation period.
Sedum species and other perennials
are primarily used as a ground cover.
Drought resistant perennials add flowering
accents and height to the design,
Dianthus carthusianorum for example
reaches up to 400 mm of height. The
build-up is realized by manually plan-
ting plug plants. Thus the desired result
can be predetermined. Furthermore the
colour spectrum is significantly more
differentiated in comparison to “Sedum
Carpet“.
5. Pflanzebene
Vegetationstragschicht
Dränschicht
Schutzschicht
5
Plant level as per plant suggestions
“Rockery Type Plants”
System Substrate “Rockery Type Plants”
Safety Device “Fallnet®
”, if required
(attention to load requirements)
Filter Sheet SF
Floradrain®
FD 25-E
Protection Mat SSM 45
5RRW %DUULHU :6)
if waterproofing is not root-resistant
Build-up height: ca. 100 mm
Weight, saturated: ca. 110 kg/m2
Water retention capacity: ca. 36 l/m2
Weight Height
kg/m² mm
72 108
2 10 30
70 98 70
dry
water-
saturated
Botanical Name Common Name Height
(mm)
Blossom Blossom
Period (month)
Accent plants
(groups of 3,5, or 7)
Dianthus
carthusianorum
Clusterhead 400 red 6-9
Festuca Cinerea-Hybride %OXH IHVFXH 250-300 brown 6-7
Gypsophila repens
e.g. „Rosa Schönheit” %DE·V EUHDWK 100-150 rose 5-7
Helianthemum
nummularium
Sun rose 50-100 yellow 5-7
Koeleria glauca Large blue hair grass 450-500 bluish 6-7
Petrorhagia saxifraga Tunic flower 100-200 rose-white 6-9
Saponaria ocymoides Rock soapwort 150-200 rose 5-7
Satureja montana
ssp. illyrica
Winter savory 100-150 violet 8-9
Saxifraga paniculata Livelong saxifrage 200-250 white 6-7
Sempervivum-Hybriden Houseleek hybrids 100-200 red/rose 7-8
Cerastium arvense
“Compactum”
Field chickweed 50-100 white 5-6
Hieracium pilosella Mouseear hawkweed 150-200 yellow 5-7
Potentilla neumanniana Alpine cinquefoil 100-150 yellow 3-4
Prunella grandiflora Large self-heat 200 violet 6-8
Thymus doerfleri
“Bressingham Seedling” %UHVVLQJKDP WKPH 60-80 rose 5-7
Thymus serpyllum Wild thyme 50 violet 5-9
Plant Suggestions “Rockery Type Plants“
Filler Plants (minimum of four different Sedum varieties)
Additional Sedum varieties from the plant community “Sedum Carpet“ on page 9.
Plant level
Vegetation layer
Drainage
Protection layer
6. 6
System Build-up “Rockery Type Plants“ on 0°-Roofs
On 0°-roofs where deeper puddles
might remain, the standard System
%XLOGXS ´5RFNHU 7SH 3ODQWV´ LV WR EH
modified.
% LQVWDOOLQJ KLJKHU )ORUDVHW®
elements
(50 or 75 mm) the necessary distance
to the water level is ensured. The green
roof build-up will be somewhat higher
but not heavier as these elements are
made of extruded polystyrene hard foam
and therefore have a negligible weight.
The Protection Mat TSM 32 with its lower
retention capacity is sufficient, as water
from the puddles is made available to
the plants.
Build-up height: ca. 120 resp.150 mm
Weight, saturated: ca. 105 kg/m2
Water retention capacity: ca. 33 l/m2
Plant level “Rockery Type Plants”
System Substrate “Rockery Type Plants”
Safety Device “Fallnet®
”, if required
(attention to load requirements)
Filter Sheet SF
Floraset®
FS 50 or FS 75
Protection Mat TSM 32
5RRW %DUULHU :6)
if waterproofing is not root-resistant
(beneath the thermal insulation layer).
Weight
kg/m²
72 105
2 7
70 98
water-
saturated
dry
FS 50/FS 75
Height
mm
80
70
FS 75
Height
mm
50
FS 50
70
Plant level
Vegetation layer
Drainage
Protection layer
666666666666666666666666666666666666666666666666666666666666666666666666666666666
7. 7

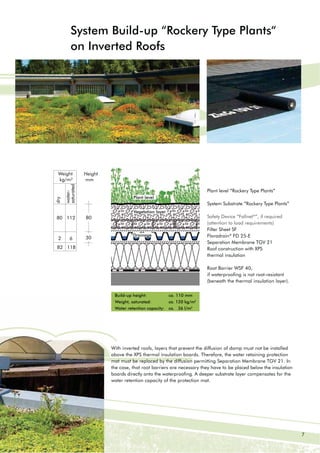

System Build-up “Rockery Type Plants“
on Inverted Roofs
Plant level “Rockery Type Plants”
System Substrate “Rockery Type Plants”
Safety Device “Fallnet®
”, if required
(attention to load requirements)
Filter Sheet SF
Floradrain®
FD 25-E
Separation Membrane TGV 21
Roof construction with XPS
thermal insulation
5RRW %DUULHU :6)
if waterproofing is not root-resistant
(beneath the thermal insulation layer).
Build-up height: ca. 110 mm
Weight, saturated: ca. 120 kg/m2
Water retention capacity: ca. 36 l/m2
With inverted roofs, layers that prevent the diffusion of damp must not be installed
above the XPS thermal insulation boards. Therefore, the water retaining protection
mat must be replaced by the diffusion permitting Separation Membrane TGV 21. In
the case, that root barriers are necessary they have to be placed below the insulation
boards directly onto the waterproofing. A deeper substrate layer compensates for the
water retention capacity of the protection mat.
Weight
kg/m²
82 118
2 6
80 112
water-
saturated
dry
Height
mm
30
80
Plant level
Vegetation layer
Drainage
8. 8

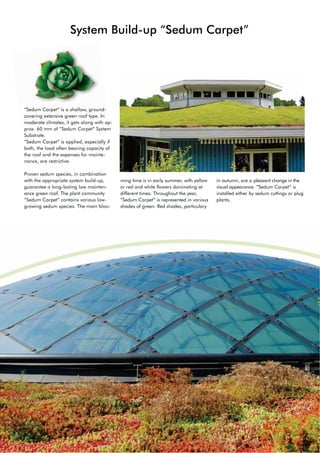

System Build-up “Sedum Carpet”
ming time is in early summer, with yellow
or red and white flowers dominating at
different times. Throughout the year,
“Sedum Carpet“ is represented in various
shades of green. Red shades, particulary
in autumn, are a pleasant change in the
visual appearance. “Sedum Carpet“ is
installed either by sedum cuttings or plug
plants.
“Sedum Carpet“ is a shallow, ground-
covering extensive green roof type. In
moderate climates, it gets along with ap-
prox. 60 mm of “Sedum Carpet“ System
Substrate.
“Sedum Carpet“ is applied, especially if
both, the load often bearing capacity of
the roof and the expenses for mainte-
nance, are restrictive.
Proven sedum species, in combination
with the appropriate system build-up,
guarantee a long-lasting low mainten-
ance green roof. The plant community
“Sedum Carpet“ contains various low-
growing sedum species. The main bloo-
8888888888888888888888888888888888888888888888888888888
9. 9

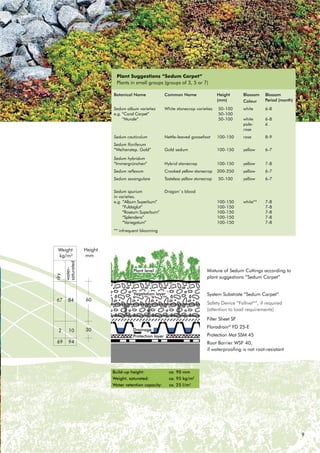

Build-up height: ca. 90 mm
Weight, saturated: ca. 95 kg/m2
Water retention capacity: ca. 25 l/m2
Mixture of Sedum Cuttings according to
plant suggestions “Sedum Carpet“
System Substrate “Sedum Carpet“
Safety Device “Fallnet®
”, if required
(attention to load requirements)
Filter Sheet SF
Floradrain®
FD 25-E
Protection Mat SSM 45
5RRW %DUULHU :6)
if waterproofing is not root-resistant
Plant Suggestions “Sedum Carpet“
Plants in small groups (groups of 3, 5 or 7)
Botanical Name Common Name Height
(mm)
Blossom
Colour
Blossom
Period (month)
Sedum album varieties
e.g. “Coral Carpet”
“Murale”
White stonecrop varieties 50-100
50-100
50-100
white
white
pale-
rose
6-8
6-8
6
Sedum cauticolum Nettle-leaved goosefoot 100-150 rose 8-9
Sedum floriferum
“Weihenstep. Gold” Gold sedum 100-150 yellow 6-7
Sedum hybridum
“Immergrünchen” Hybrid stonecrop 100-150 yellow 7-8
Sedum reflexum Crooked yellow stonecrop 200-250 yellow 6-7
Sedum sexangulare Tasteless yellow stonecrop 50-100 yellow 6-7
Sedum spurium
in varieties.
e.g. “Album Superbum”
“Fuldaglut”
“Roseum Superbum”
“Splendens”
“Variegatum”
** infrequent blooming
Dragon`s blood
100-150
100-150
100-150
100-150
100-150
white** 7-8
7-8
7-8
7-8
7-8
Weight
kg/m²
69 94
2 10
67 84
water-
saturated
dry
Height
mm
30
60
Plant level
Vegetation layer
Drainage
Protection layer
10. ¨7 FD .- 20°C + 30°C
+ 20°C
¨7 • .
+ 20°C
-20°C + 70°C
10
System Build-up “Climate Roof”
as a Thermal Insulating Green Roof
The U-value (formerly k-value) of the roof build-up is determined essentially by the basic thermal insula-
tion and the Floratherm®
element. The table above is based on basic thermal insulation with a thermal
conductivity of 0.04 W/m2
K and an approx. 200 mm thick concrete slab.
If you apply the officially aproved Flora-
therm®
drainage elements as a substruc-
ture, the green roof build-up takes on the
function of an additional thermal insula-
tion layer.
Theses elements save costs for heating
and cooling and contribute to meeting
the requirements of energy saving regu-
lations in cases of refurbishment.
3OXJ 3ODQWV )% ´6HGXP DUSHWµ
System Substrate “Sedum Carpet”
Safety Device “Fallnet®
”, if required
(attention to load requirements)
Filter Sheet SF
Floratherm®
WD, (type in accordance with
required thermal resistance values)
Protection Mat SSM 45
Roof build-up with basic thermal insula-
tion and waterproofing membrane
Plant level
Vegetation layer
Drainage
Protection layer
Weight
kg/m²
70 95
3 11
67 84
water-
saturated
dry
Height
mm
70/120
60
Build-up height: ca. 130 resp. 180 mm
Weight, saturated: ca. 95 kg/m2
Water retention capacity: ca. 25 l/m2
Thickness of the basic
thermal insulation
U-value of the roof
build-up no green roof
Floratherm®
WD 65-H
added
Floratherm®
WD 120-H
added
60 mm 0.57 0.36 0.24
80 mm 0.44 0.31 0.21
100 mm 0.36 0.27 0.19
120 mm 0.31 0.23 0.18
150 mm 0.25 0.20 0.16
180 mm 0.21 0.23 0.14
11. 11
System Build-up “Extreme Light Weight”
up to a Roof Pitch of 5°
3OXJ 3ODQWV )% ´6HGXP DUSHWµ
System Substrate
“Rockery Type Plants Light“
Floraset®
FS 75
Protection Mat TSM 32
5RRW %DUULHU :6)
if waterproofing is not root-resistant
For some roof areas, even the Standard
%XLOGXS ´6HGXP DUSHW´ LV WRR KHDY
The solution is a system build-up with
Floraset®
FS 75. Less substrate is required
as it is not applied equally but mainly
fills the gaps between the high studs of
the element. Although they start gro-
wing mainly in those “planting pots“ the
Sedum plants still form a dense ground
cover which is supported by mosses over
the course of time. The build-up weight
is approx. 60 kg/m2
. In areas with little
annual precipitation and also on pitched
roofs either additional substrate which
effects weight and build-up height is re-
quired or irrigation is to be provided.
Plant level
Vegetation layer
Drainage
Protection layer
Weight
kg/m²
39 60
2 5
37 55
water-
saturated
dry
Height
mm
30
65
Build-up height: ca. 100 mm
Weight, saturated: ca. 60 kg/m2
Water retention capacity: ca. 21 l/m2
12. 12
System Build-up “Industrial Green Roofs”
The bigger the roof area, the higher the
costs. You can avoid this by omitting
certain layers. However, this could be
dangerous as certain functions that are
important for the long-term proper per-
formance of the green roof are no longer
available.
ZinCo, therefore, has combined a num-
ber of functional layers in one product.
Fixodrain®
XD 20 can be installed without
an additional protection layer, due to its
extremely large contact surface and
bonding over a large area. The filter
Hydroseeding or Sedum Cuttings
as per “Sedum Carpet” plant suggestions
System Substrate “Sedum Carpet”
Safety Device “Fallnet®
”, if required
(attention to load requirements)
Fixodrain®
XD 20
5RRW %DUULHU :6) DQG )LOWHU 6KHHW 39
if waterproofing is not root-resistant
sheet is laminated directly onto it and it
is installed in one pass. The elements are
attached to each other by means of studs
down the long side and the filter sheet
overlaps along both the long and the top
sides.
Weight
kg/m²
68 88
1 4
67 84
water-
saturated
dry
Height
mm
20
60
Plant level
Drainage
Vegetation layer
Build-up height: ca. 80 mm
Weight, saturated: ca. 90 kg/m2
Water retention capacity: ca. 20 l/m2
13. 13
Solar energy or green roof?
A thing of the past! With our System
%XLOGXS “SolarVert®
” (Fixodrain®
XD 20,
=LQR 6RODU %DVH 6% DQG %DVH
Frame SGR) solar panels can be com-
bined with a green
roof easily, which
makes them even
more effective. And,
there is no need for
roof penetration, as
the load required
to ensure a perma-
nent, secure system is provided by the
JUHHQ URRI EXLOGXS 7KH 6RODU %DVHV FDQ
be positioned on the Fixodrain®
level as
required.
System Build-up “SolarVert®
”
% GHYHORSLQJ WKH 6RODU %DVH =LQR KDV
added another aspect to the benefits of
a green roof: the integration of solar
energy into a green roof build-up. The ef-
ficiency of the green roof as an ecological
compensation area is improved thanks to
the ZinCo Solarbasis®
integrated into the
SolarVert®
system build-up.
For further information, please see
our planning guide “Solar Energy and
Green Roofs”.
Solar panel
6RODU %DVH )UDPH 6*5
3OXJ 3ODQWV )% ´6HGXP DUSHWµ RU
Sedum Cuttings
System Substrate, substrate depth
as per the required load
=LQR 6RODU %DVH®
6%
Fixodrain®
XD 20
5RRW %DUULHU :6)
if waterproofing is not root-resistant
When working on flat roofs, including
maintenance of solar energy systems,
devices to prevent persons from falling
are required. Single attachment points
are usually not a viable solution, as solar
systems are usually built up close to the
URRI HGJH )DOOQHW 6% 5DLO SURYLGHV
the perfect solution for such situations. It
was developed especially for the use in
FRPELQDWLRQ ZLWK WKH 6RODU %DVH 6%
Here the existing periphery of the solar
system is used to attach the ancho-
rage device. Only the rail itself, the rail
supports and object specific accessory
is added as required. This allows for a
fast and cost-effective realization of fall
protection, perfectly integrated into the
roof landscape.
14. 14
Perimeters
In line with the “German Guidelines for
Roofs with Waterproofing”, an upstand
height of at least 100 mm above the
surface covering is required at the roof
perimeter. The parapet should have a
covering that slopes towards the roof.
The protection mat and, where required
the root barrier, are drawn upwards and
secured.
Increased loads must be applied to loosely
laid roof waterproofing sheets around the
roof perimeter and corner areas where
there is high wind suction (high building,
exposed location …). This is very often
provided by means of sufficiently wide and
heavy edge strips consisting of concrete
slabs or grass pavers.
If in projects with high wind loads the
perimeter and corner areas of the roof
are to be part of the green roof, the vege-
tation cover must be closed immediately.
EcoSedum®
is ideal here. These pre-
greened grid elements are securely fixed
to each other by an interlocking plug
connection system. They are sufficiently
permeable when greened so that wind
suction forces cannot find purchase.
Pre-cultivated EcoSedum®
elements can
be used both in combination with con-
crete slabs (loosely laid waterproofing)
and on their own (adhered or mechani-
cally fixed waterproofing layer).
Standard perimeter solution
100 mm 100 mm 100 mm
100 mm
100 mm
100 mm
Accessories and Details Programmes
Eaves Profile
DP 120
Inspection Chamber
$.6
Concrete Slabs
as ballast
Solution for low perimeters Draining flat roofs by means of water spouts integ-
rated into the parapet
Perimeter solution for high wind loads with
EcoSedum®
(fixed waterproofing)
Perimeter solution for high wind loads (loose
waterproofing)
Perimeter solution for high wind loads with pavers
and EcoSedum®
(loose waterproofing)
15. 15
Roof Drains and
Inspection Chambers
Wall Connection
The connection to walls needs to be
waterproof. Therefore the protection
mat, the waterproofing and the root
barrier are taken up at least 150 mm
above the finished surface of the green
roof build-up and fixed with a protection
profile. In front of facades the installa-
tion of additional drainage channels is
recommanded in order to lead rainwater
directly into the drainage layer. If only
little water is expected, a simple gravel
strip is sufficient.
Usually, the drainage of flat roofs is
achieved through roof drains. Their
quantity as well as their dimensioning
is to be determined in accordance with
European and German Standard DIN
EN 12056-3 and DIN 1986. Inspection
chambers make sure the roof drains
remain accessible and therefore can be
cleaned easily, if necessary.
National regulations as well as directives
brought out by insurance associations
prescribe the use of fall protection sys-
tems for works at height. The “Fallnet®
“
which can be integrated into ZinCo
*UHHQ 5RRI 6VWHP %XLOGXSV RIIHU IL[LQJ
possibilities for safety harnesses without
penetrating the waterproofing.
If the drainage of a green roof is to be
ensured by an external gutter, the green
roof build-up can be bordered by an
eaves profile, which is attached to the
waterproofing. Eaves profiles border the
build-up but allow for unhindered runoff
due to their drainage slots.
Drainage Via an External
Eaves gutter
Eaves
Profile DP 120
ca. 300 mm
150 mm150 mm
Fall Protection
Inspection Chamber
.6

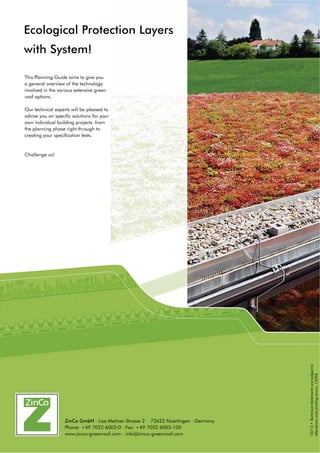

16. This Planning Guide aims to give you
a general overview of the technology
involved in the various extensive green
roof options.
Our technical experts will be pleased to
advise you on specific solutions for your
own individual building projects: from
the planning phase right through to
creating your specification texts.
Challenge us!
Ecological Protection Layers
with System!
‡7HFKQLFDOVWDWHPHQWVDUHVXEMHFWWR
alterationsandprintingerrors,12296
