Exhibitor is a tool developed by Netflix to manage ZooKeeper ensembles. It provides features like instance monitoring to restart ZooKeeper servers if they crash, log cleanup for older ZooKeeper versions, backup and selective restore of ZooKeeper data, rolling changes to ZooKeeper ensembles while maintaining quorum, and a visualizer to view the ZooKeeper namespace. Exhibitor configurations are shared across an ensemble from a centralized source like S3 or a file system. It also integrates with tools like Curator to update client configurations when the ensemble changes.

1. Exhibitor
Netflix’s ZooKeeper Management System
Jordan Zimmerman
Senior Platform Engineer
Netflix, Inc.
jzimmerman@netflix.com
@rangalt

2. The Problem

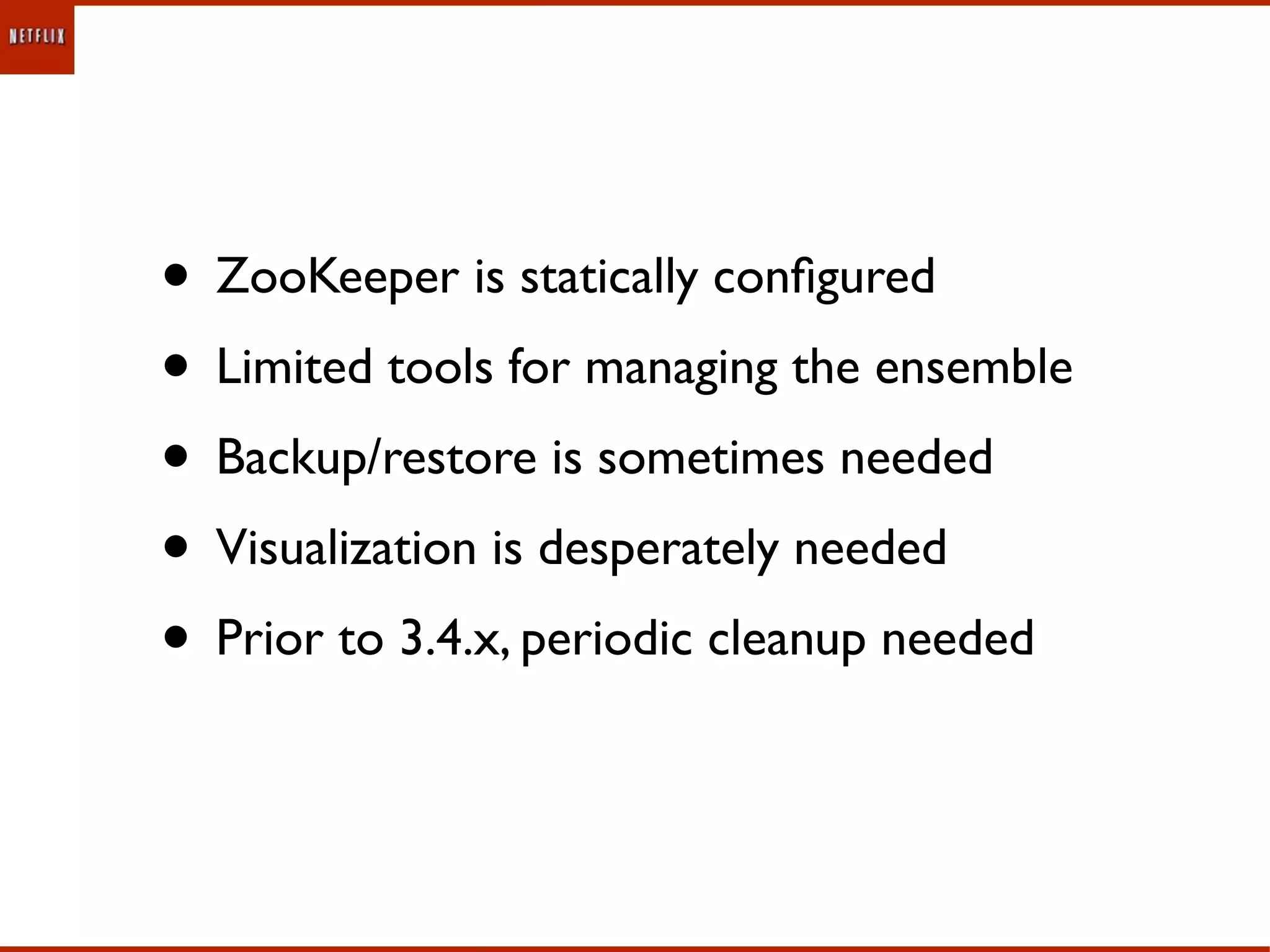

3. • ZooKeeper is statically configured
• Limited tools for managing the ensemble
• Backup/restore is sometimes needed
• Visualization is desperately needed
• Prior to 3.4.x, periodic cleanup needed

4. The Goal

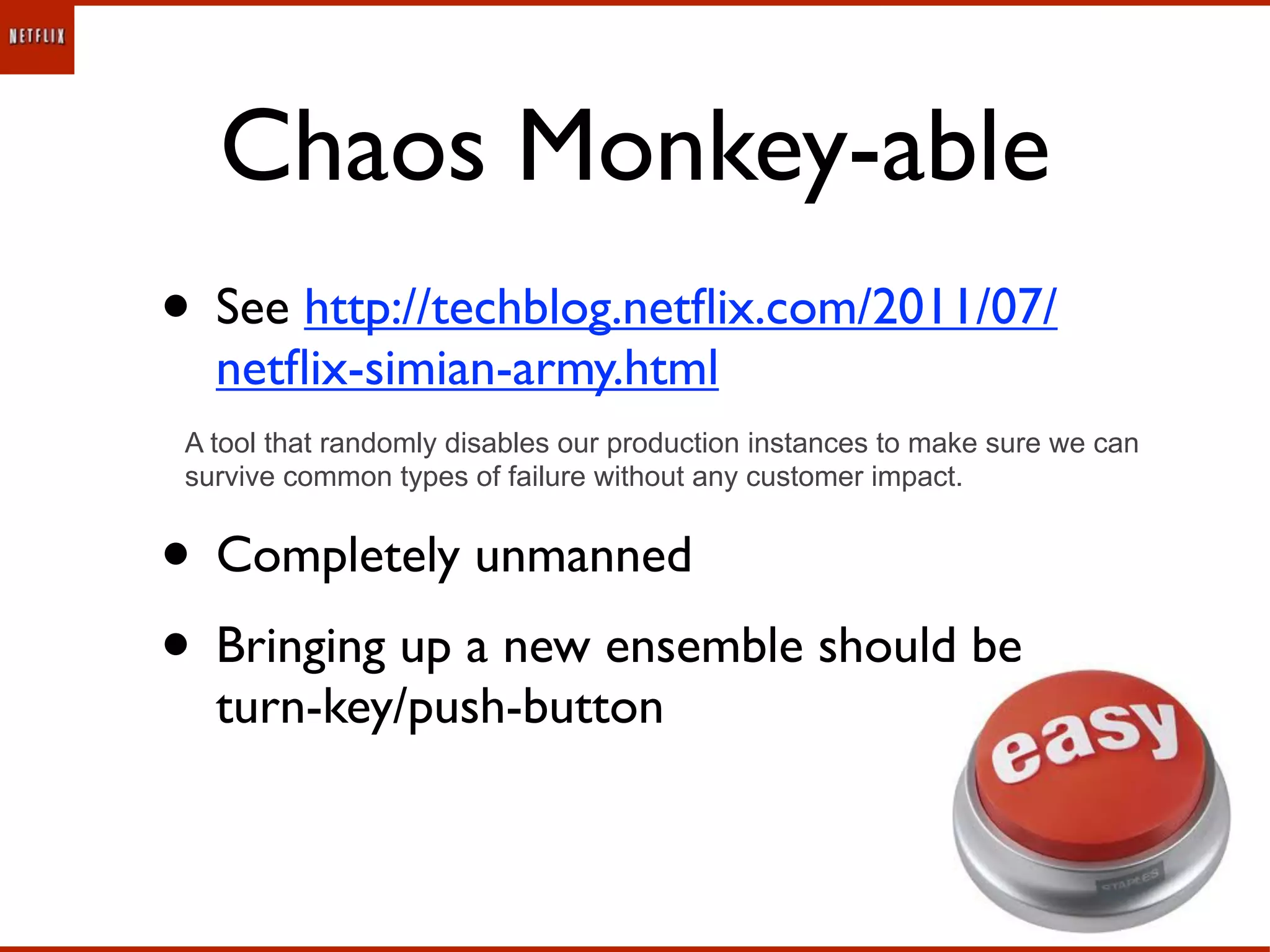

5. Chaos Monkey-able
• See http://techblog.netflix.com/2011/07/
netflix-simian-army.html
A tool that randomly disables our production instances to make sure we can
survive common types of failure without any customer impact.
• Completely unmanned
• Bringing up a new ensemble should be
turn-key/push-button

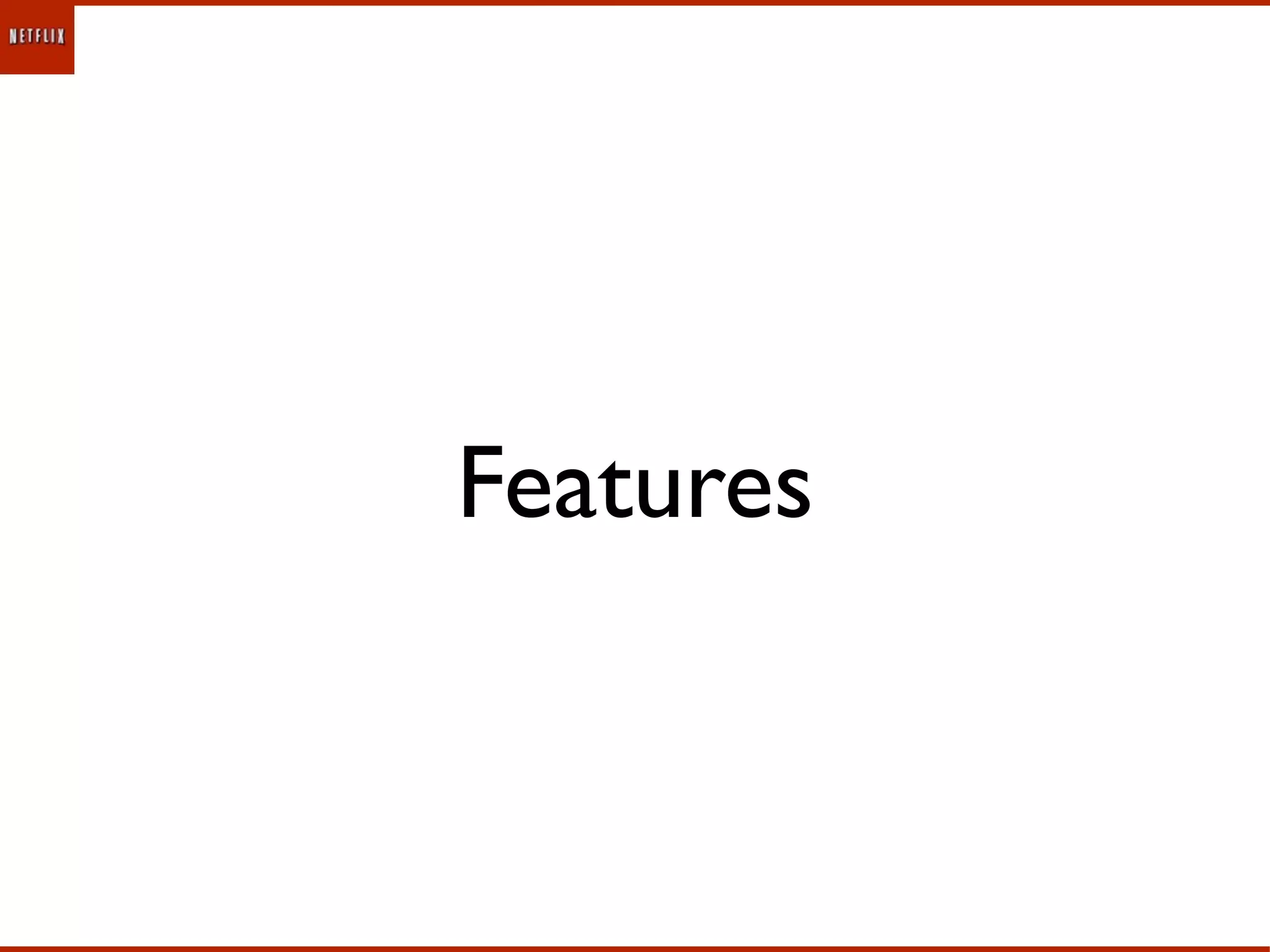

6. Features

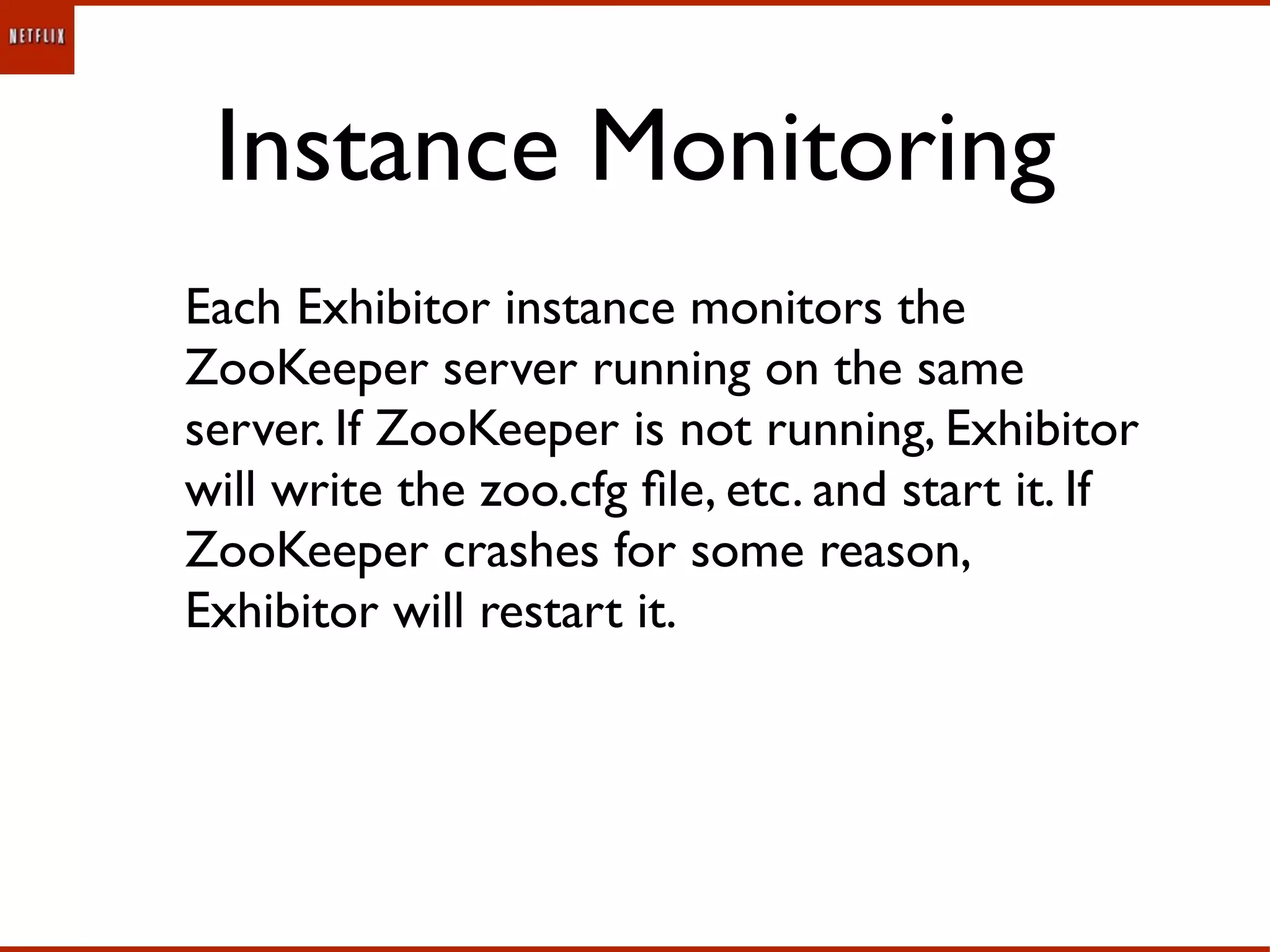

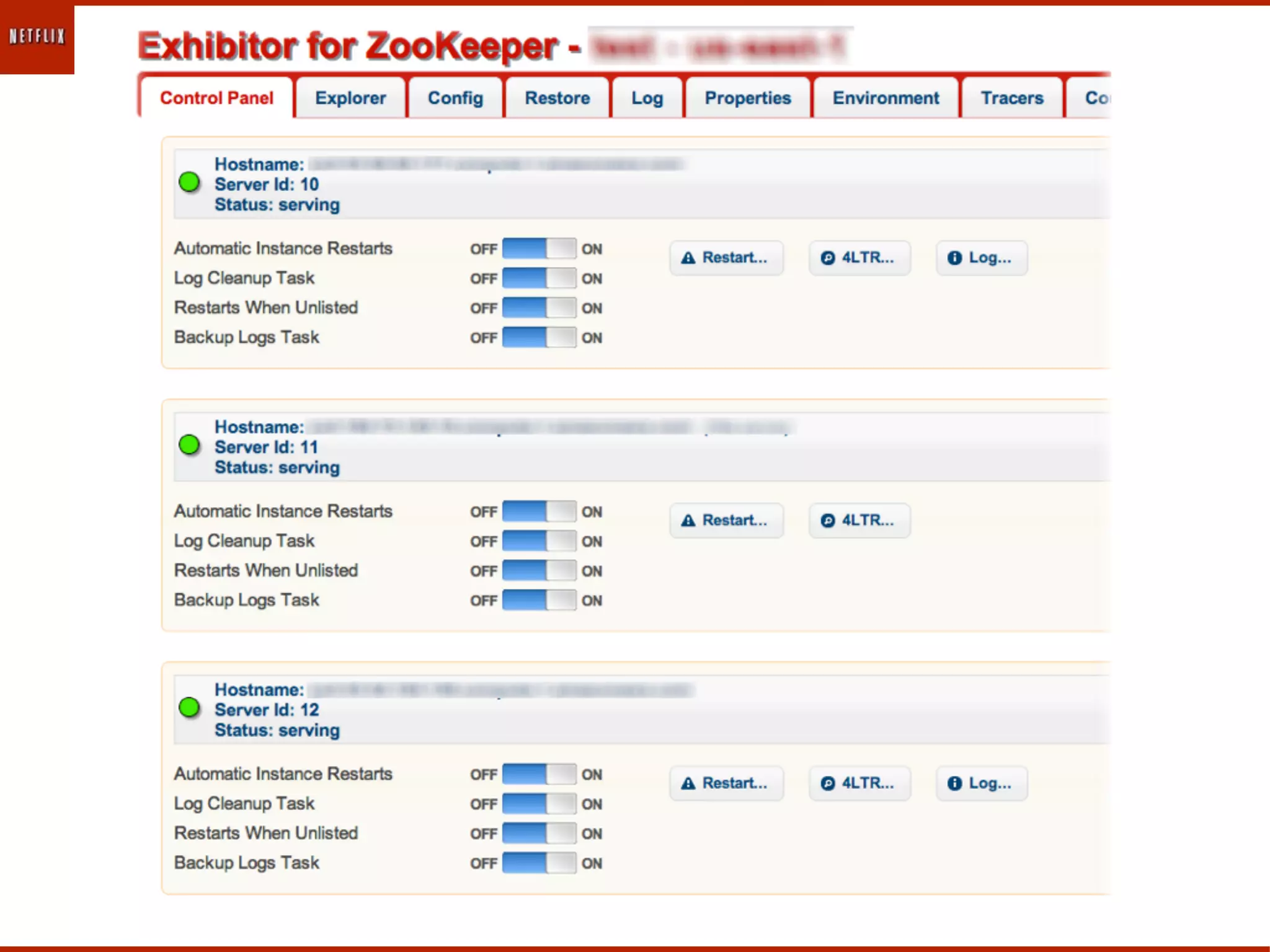

7. Instance Monitoring
Each Exhibitor instance monitors the
ZooKeeper server running on the same
server. If ZooKeeper is not running, Exhibitor
will write the zoo.cfg file, etc. and start it. If
ZooKeeper crashes for some reason,
Exhibitor will restart it.

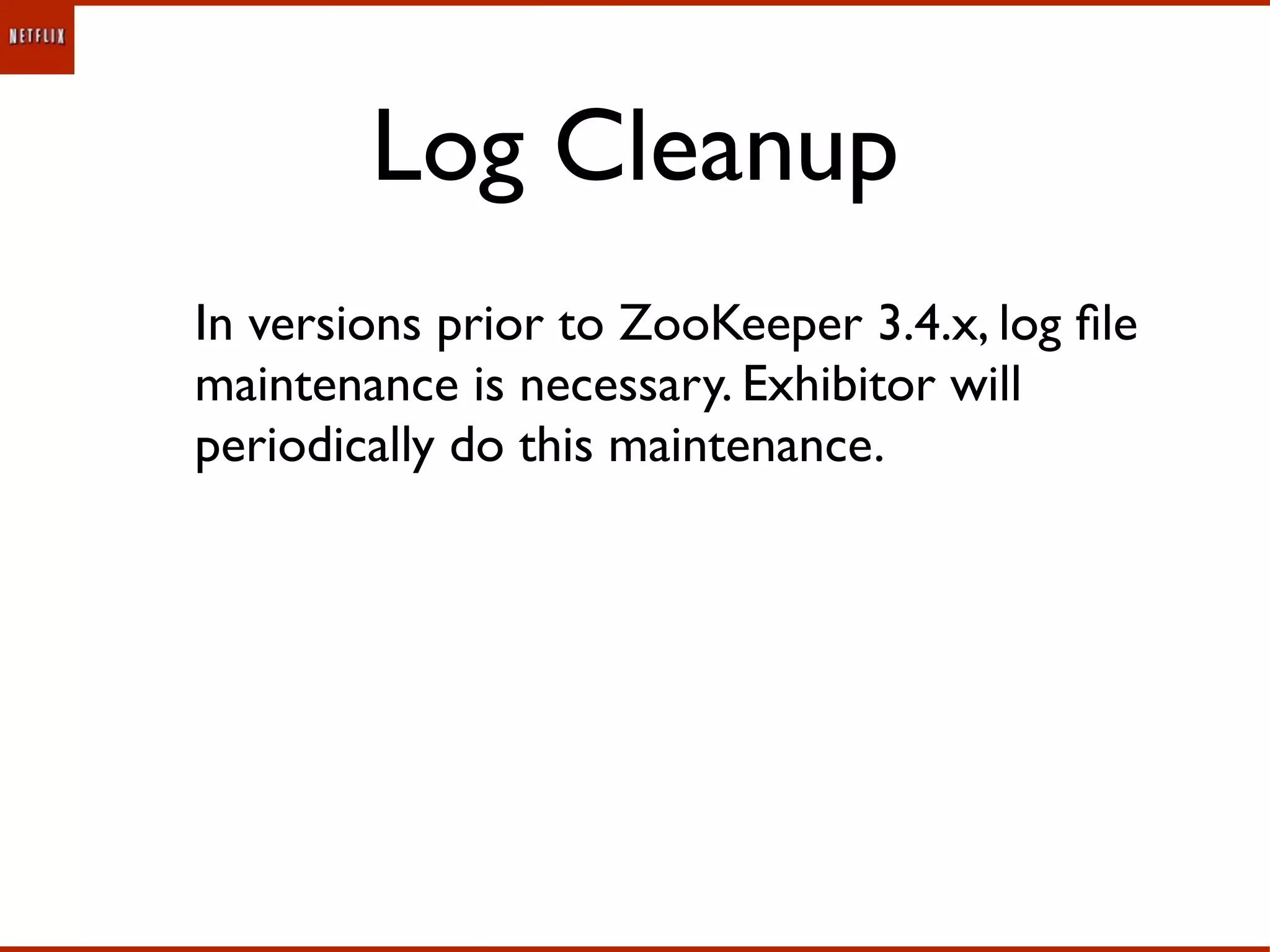

9. Log Cleanup
In versions prior to ZooKeeper 3.4.x, log file
maintenance is necessary. Exhibitor will
periodically do this maintenance.

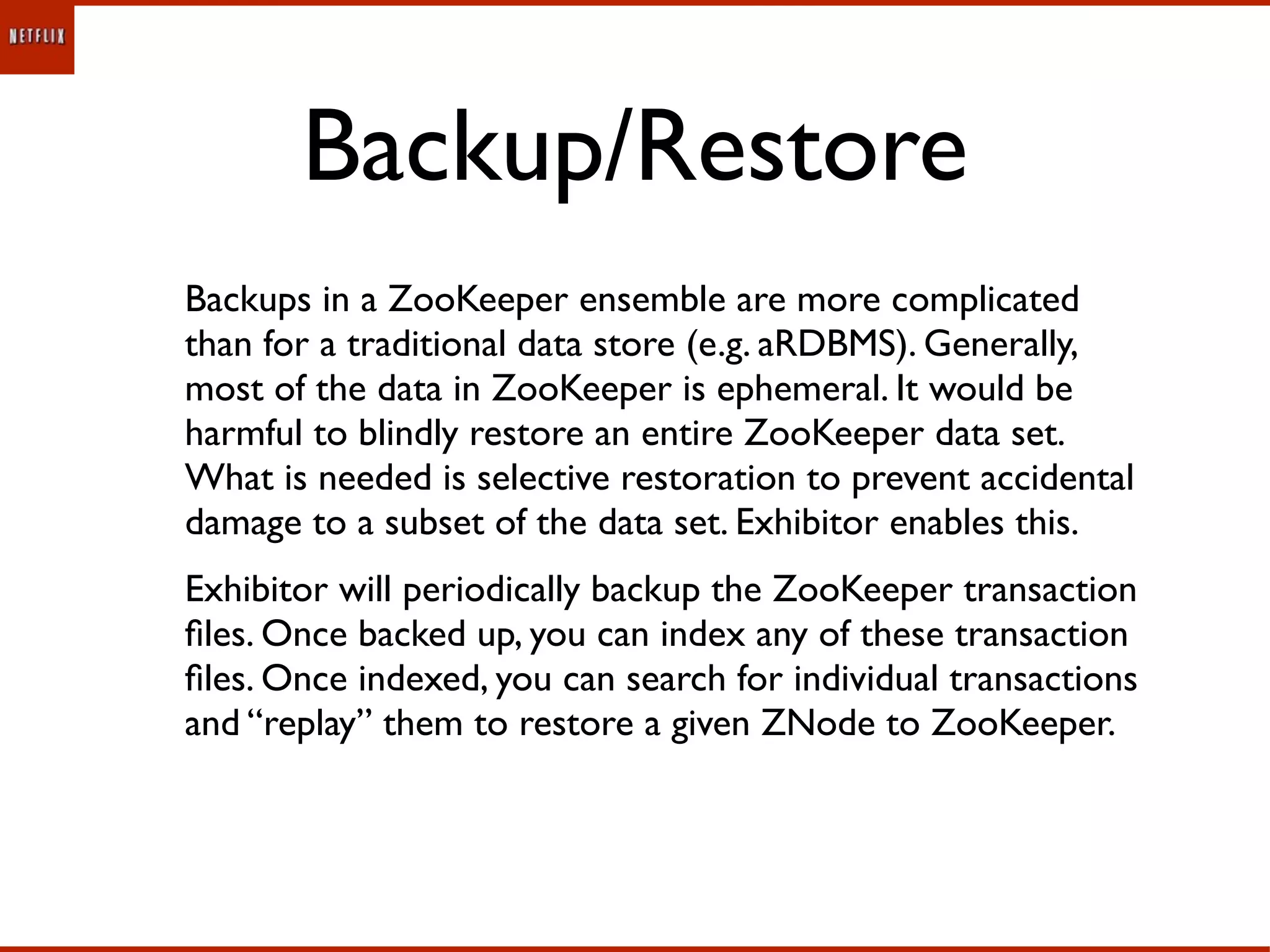

10. Backup/Restore
Backups in a ZooKeeper ensemble are more complicated
than for a traditional data store (e.g. aRDBMS). Generally,
most of the data in ZooKeeper is ephemeral. It would be
harmful to blindly restore an entire ZooKeeper data set.
What is needed is selective restoration to prevent accidental
damage to a subset of the data set. Exhibitor enables this.
Exhibitor will periodically backup the ZooKeeper transaction
files. Once backed up, you can index any of these transaction
files. Once indexed, you can search for individual transactions
and “replay” them to restore a given ZNode to ZooKeeper.

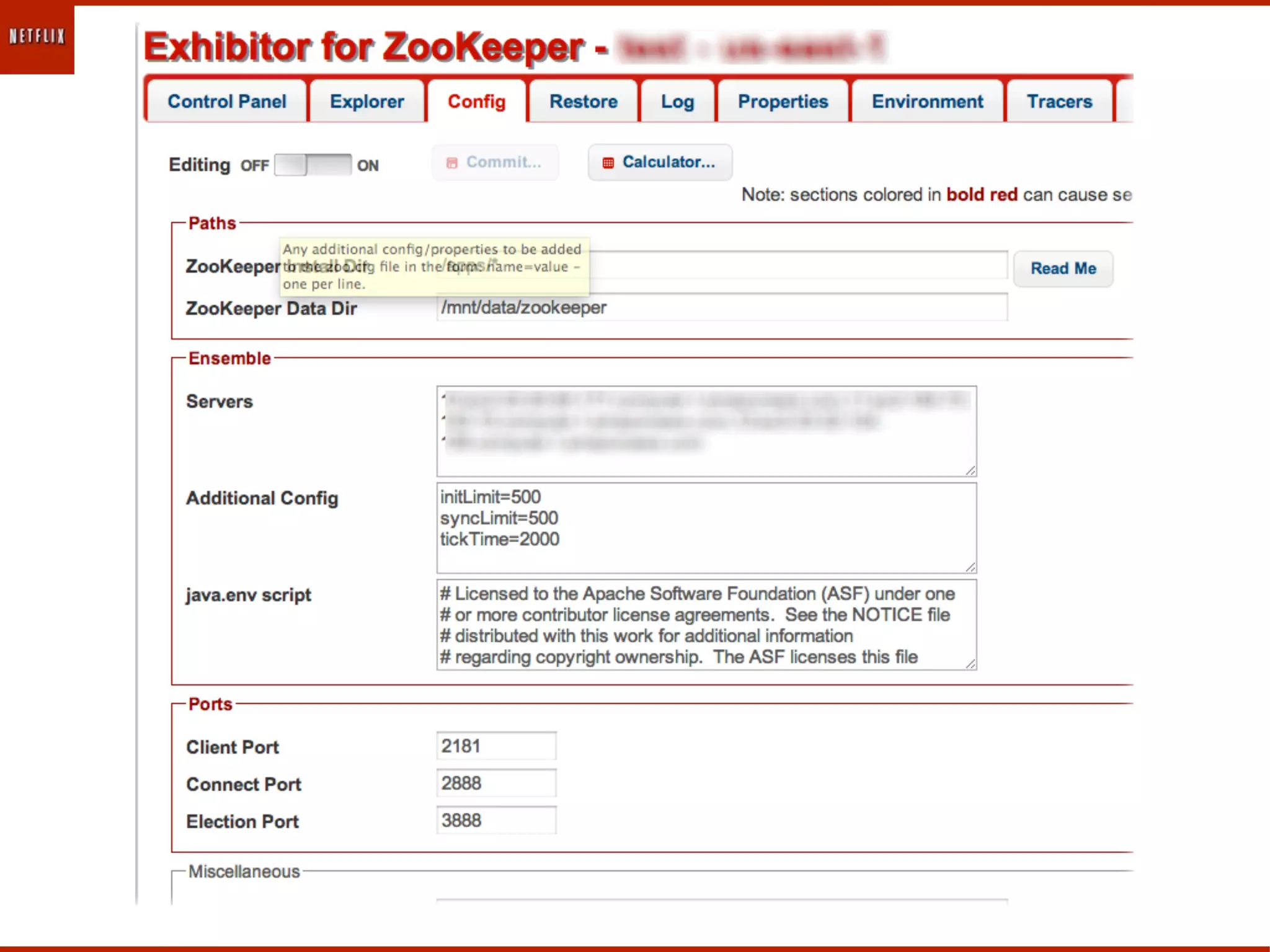

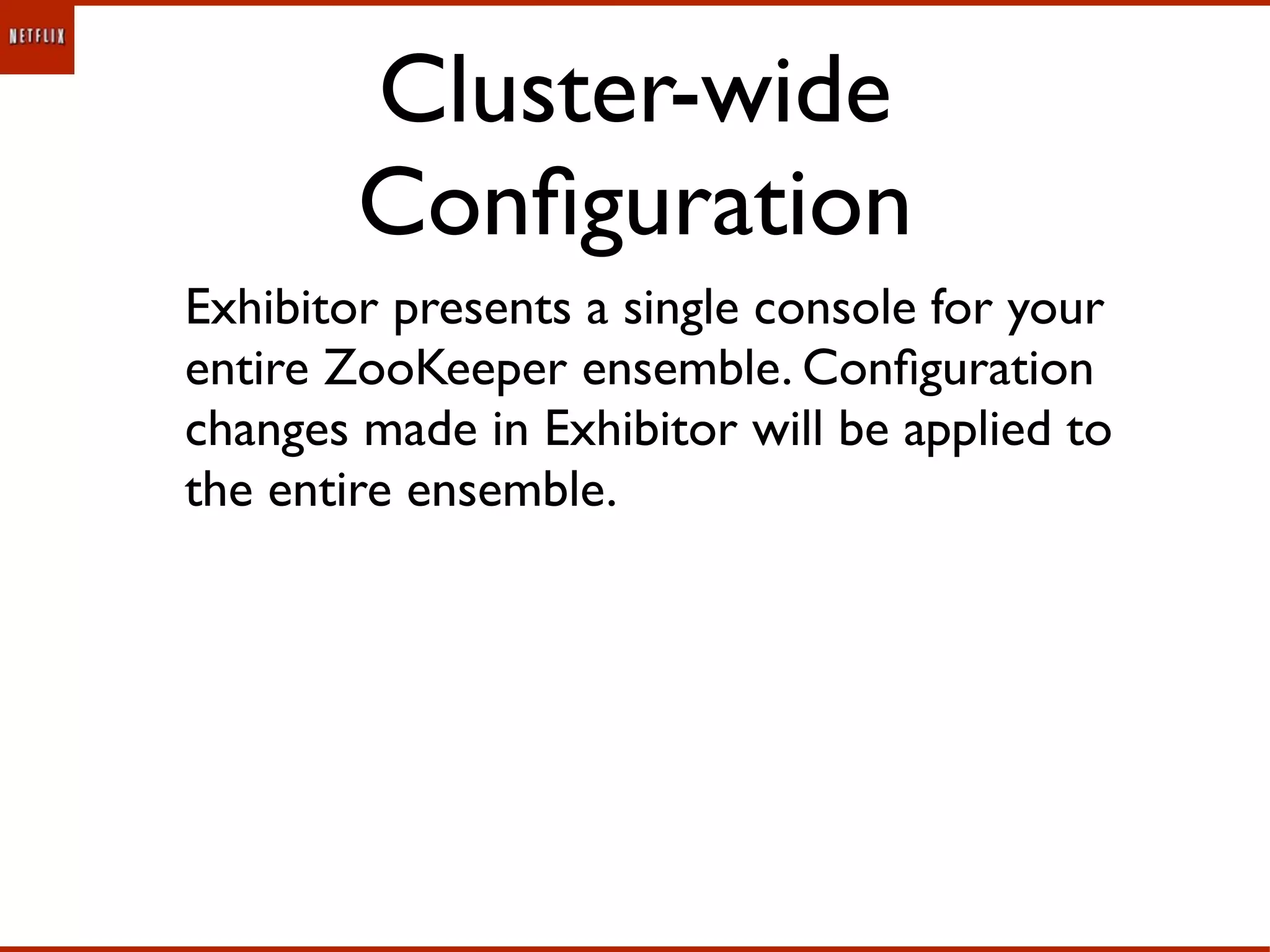

11. Cluster-wide
Configuration
Exhibitor presents a single console for your
entire ZooKeeper ensemble. Configuration
changes made in Exhibitor will be applied to
the entire ensemble.

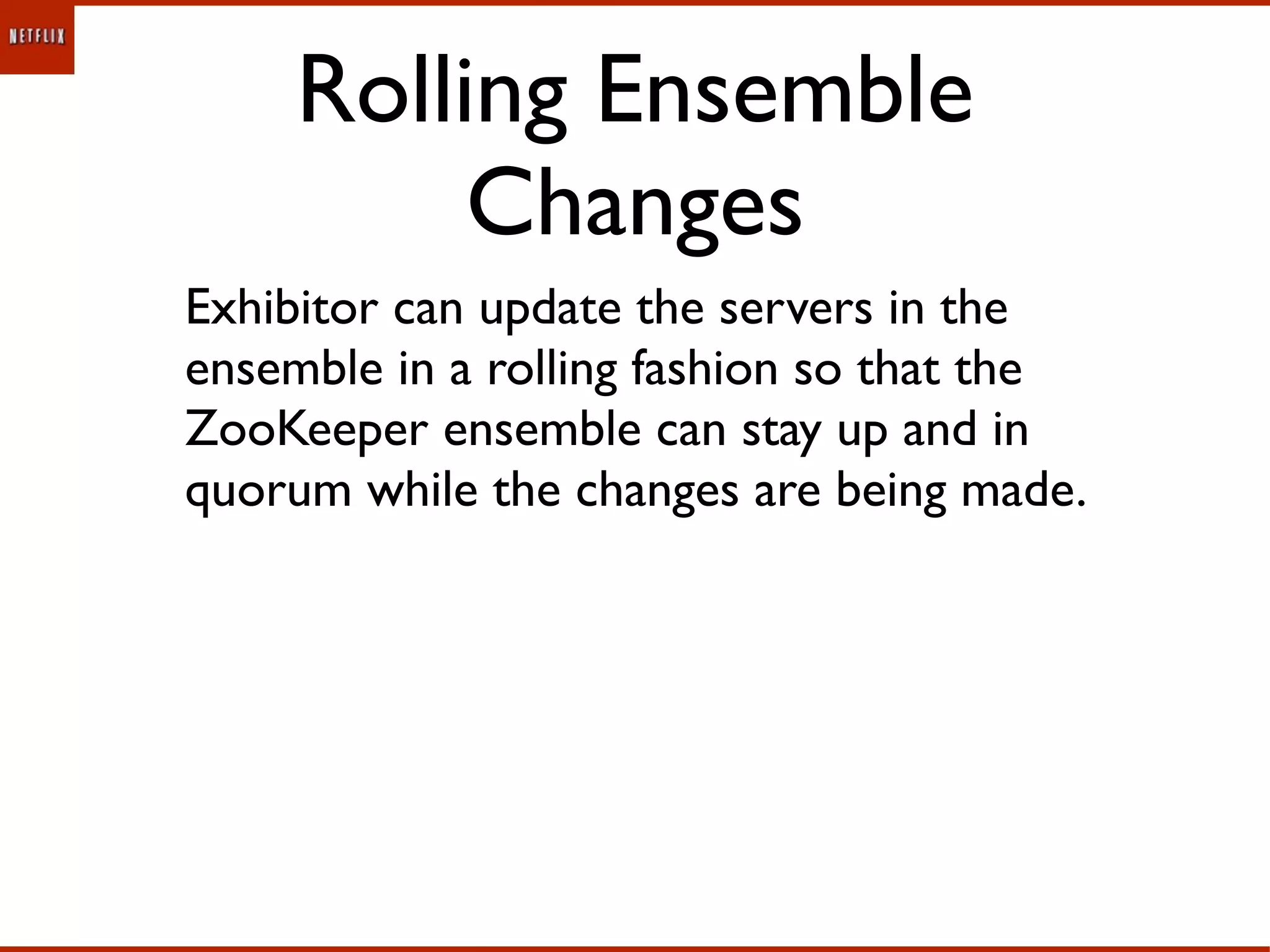

13. Rolling Ensemble
Changes
Exhibitor can update the servers in the
ensemble in a rolling fashion so that the
ZooKeeper ensemble can stay up and in
quorum while the changes are being made.

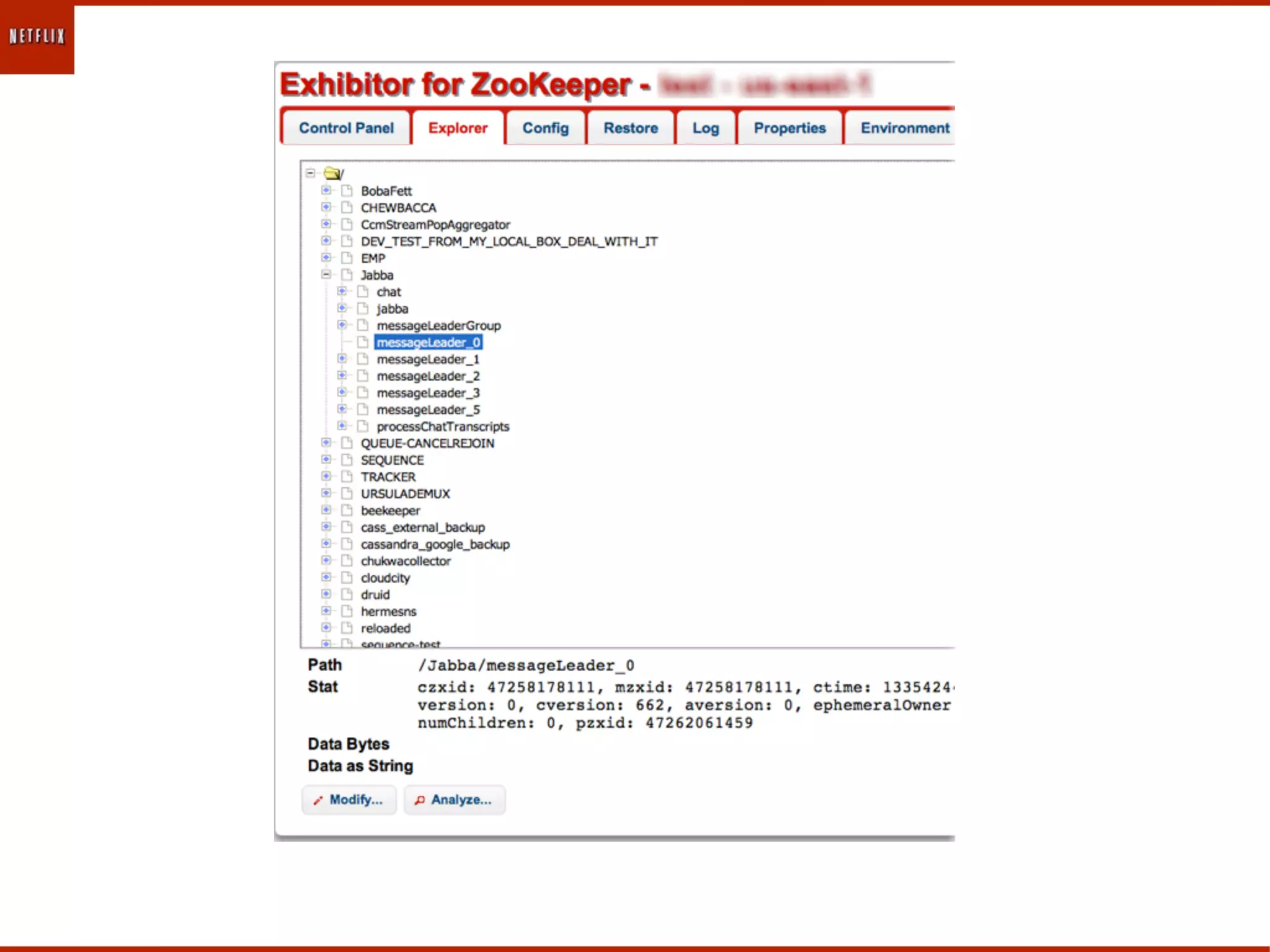

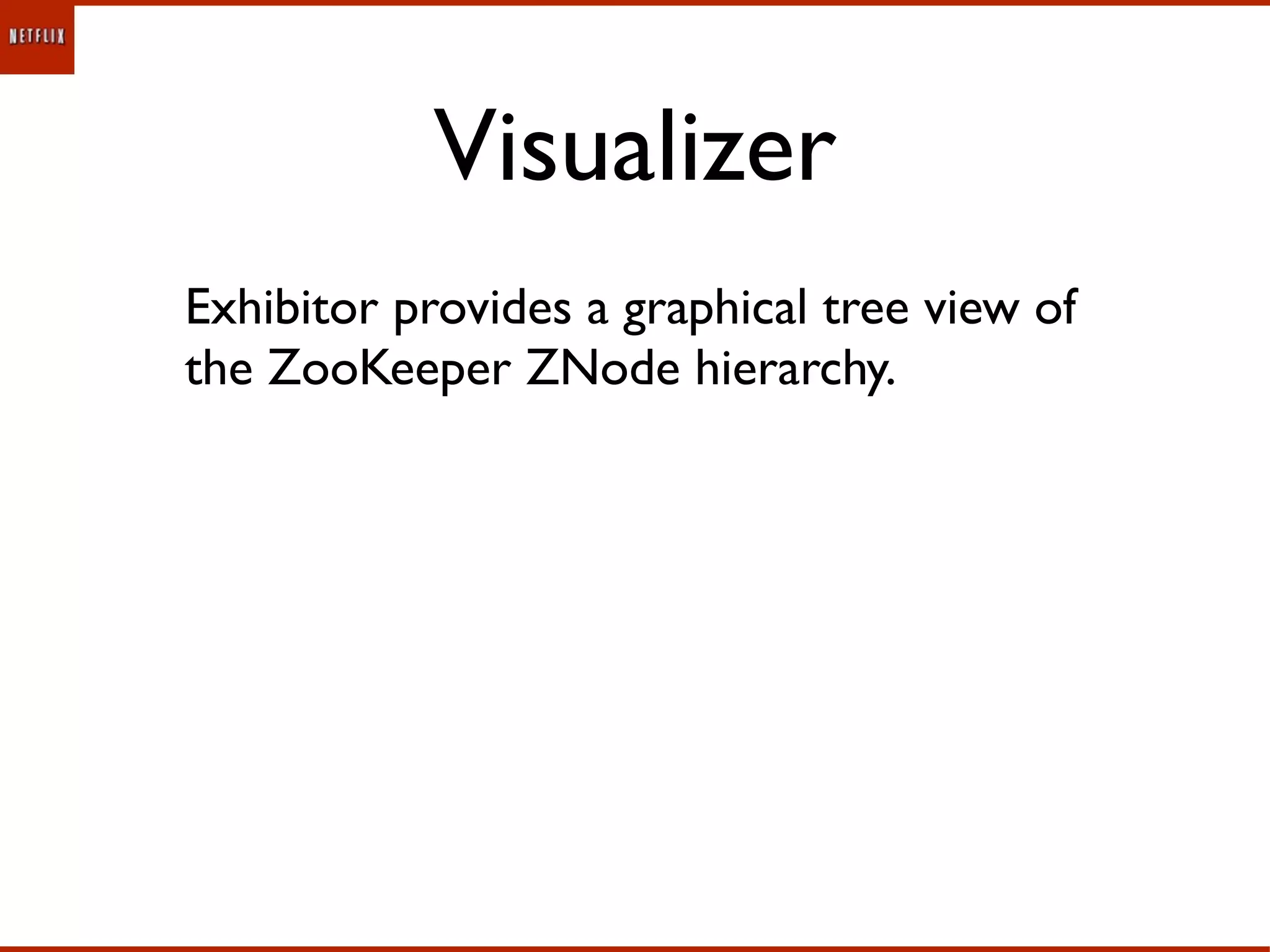

14. Visualizer
Exhibitor provides a graphical tree view of
the ZooKeeper ZNode hierarchy.

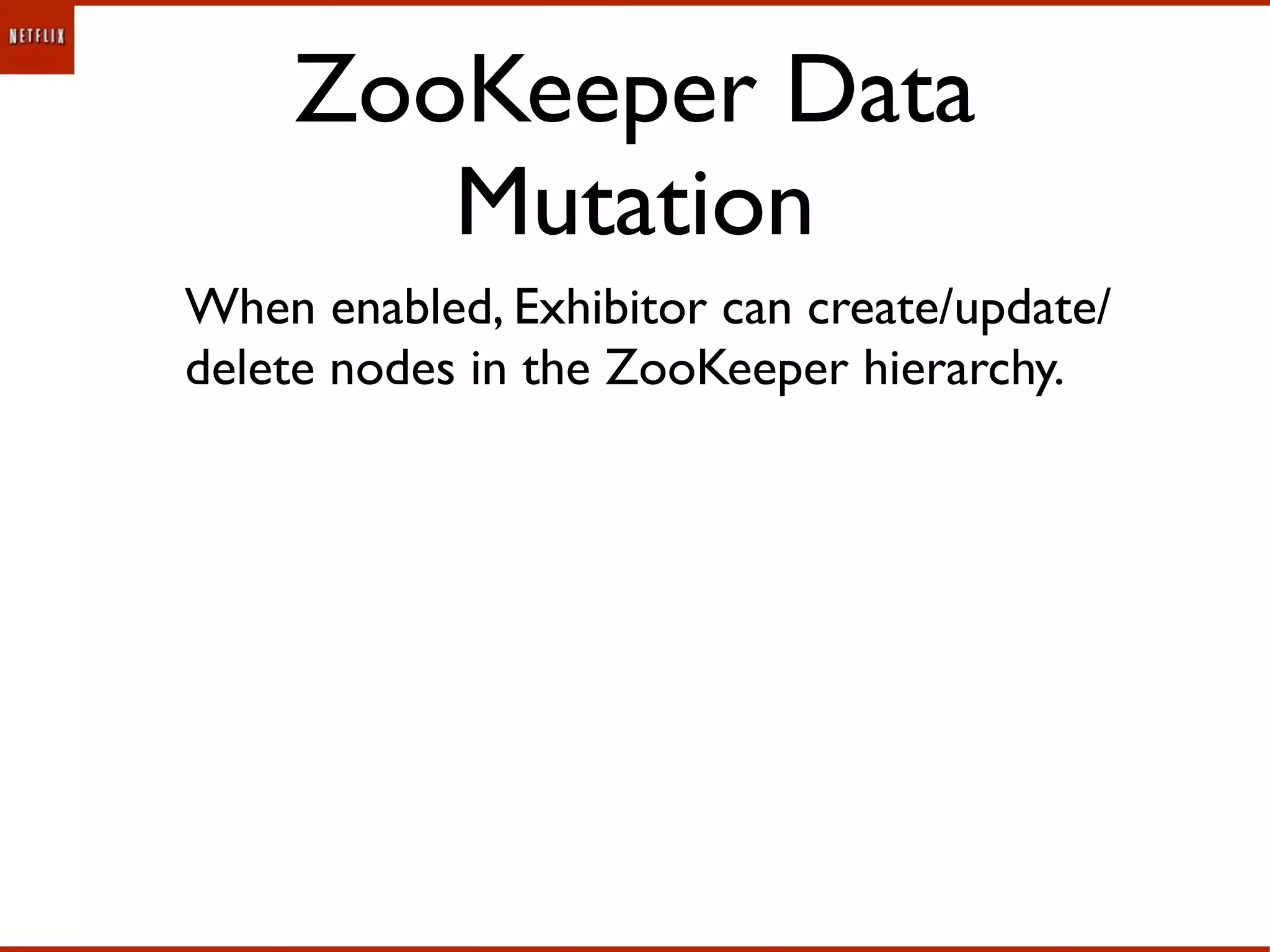

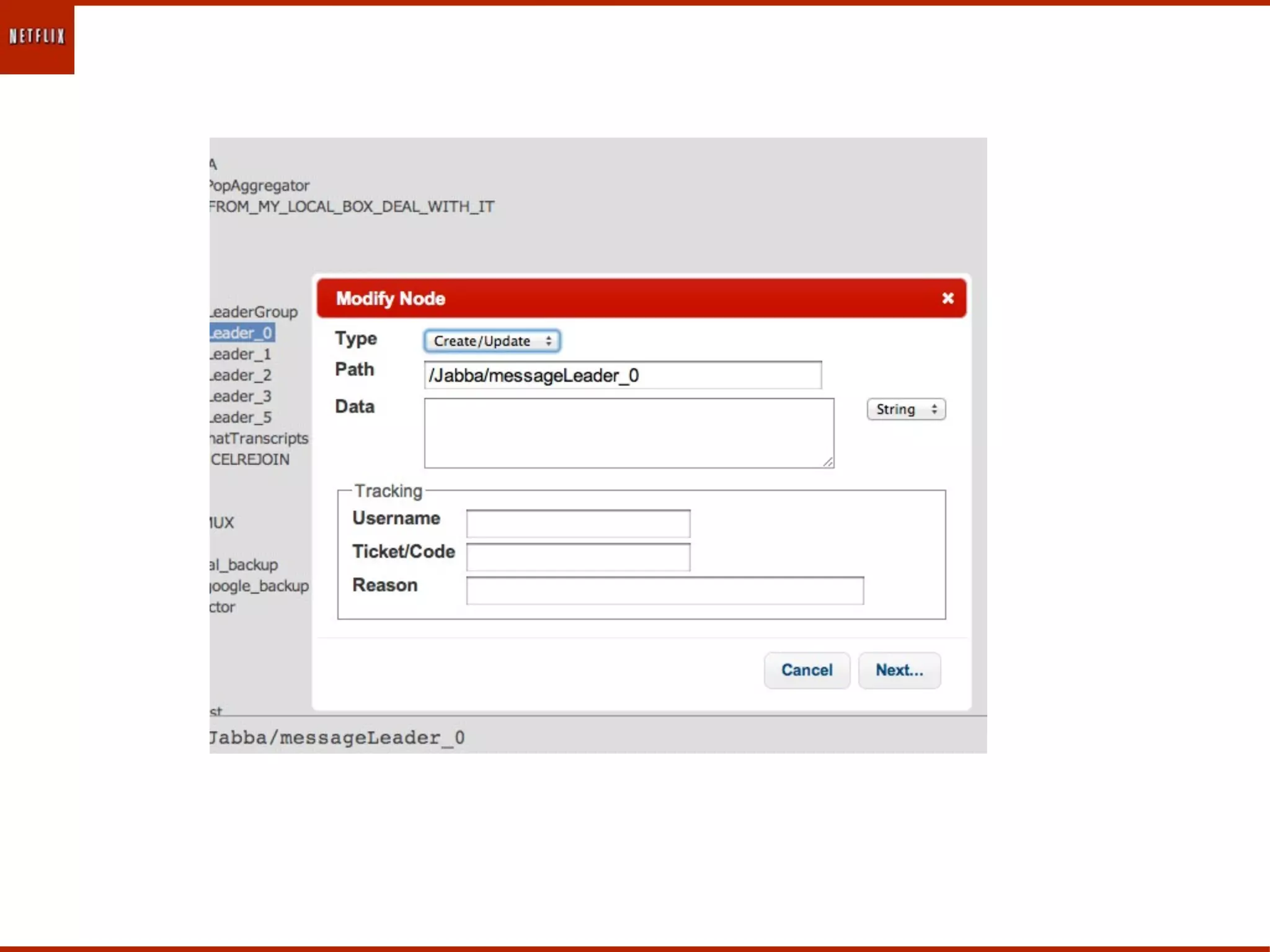

16. ZooKeeper Data
Mutation
When enabled, Exhibitor can create/update/
delete nodes in the ZooKeeper hierarchy.

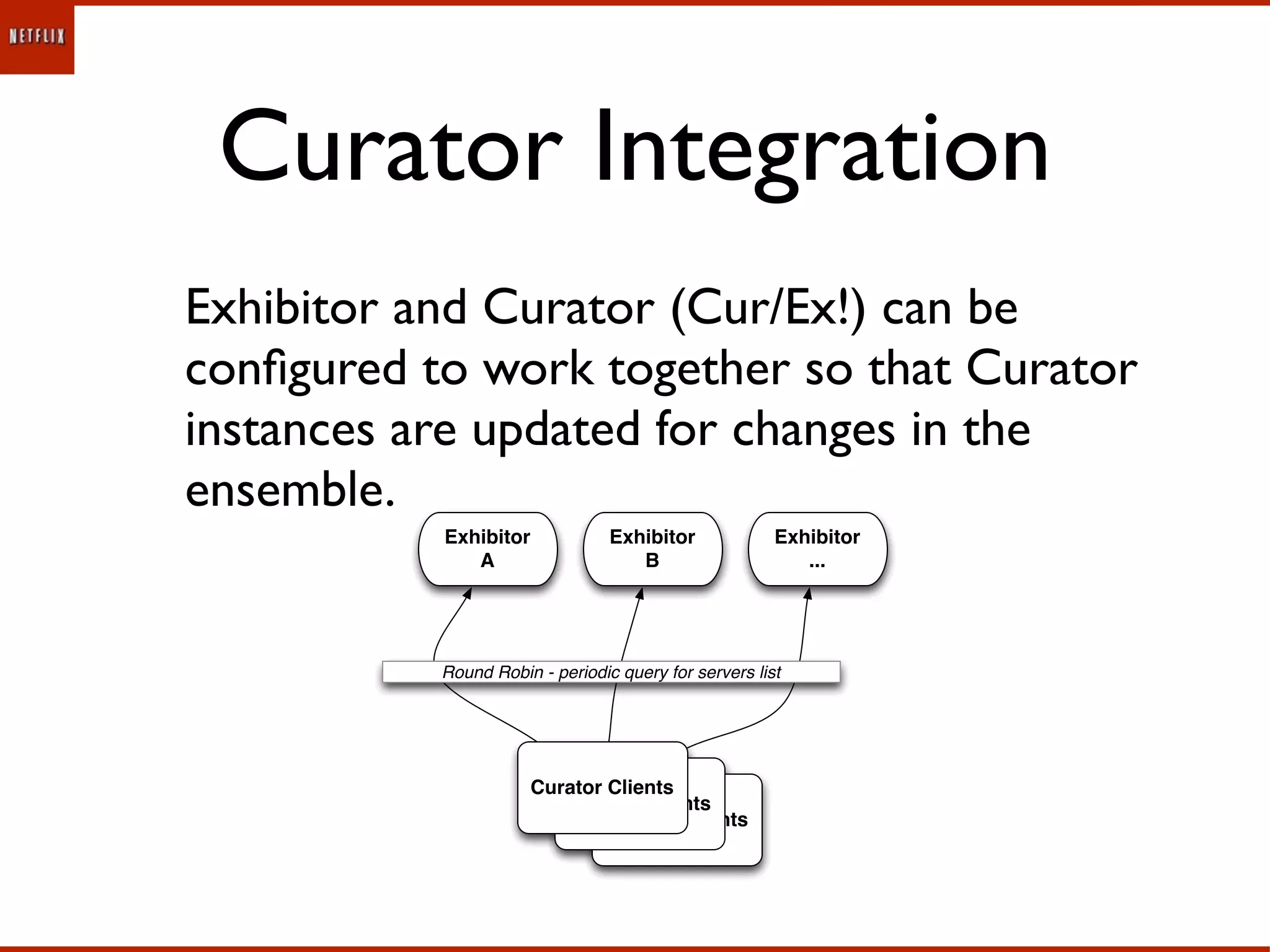

18. Curator Integration
Exhibitor and Curator (Cur/Ex!) can be
configured to work together so that Curator
instances are updated for changes in the
ensemble.
Exhibitor Exhibitor Exhibitor
A B ...
Round Robin - periodic query for servers list
Curator Clients
Curator Clients
Curator Clients

19. How it Works

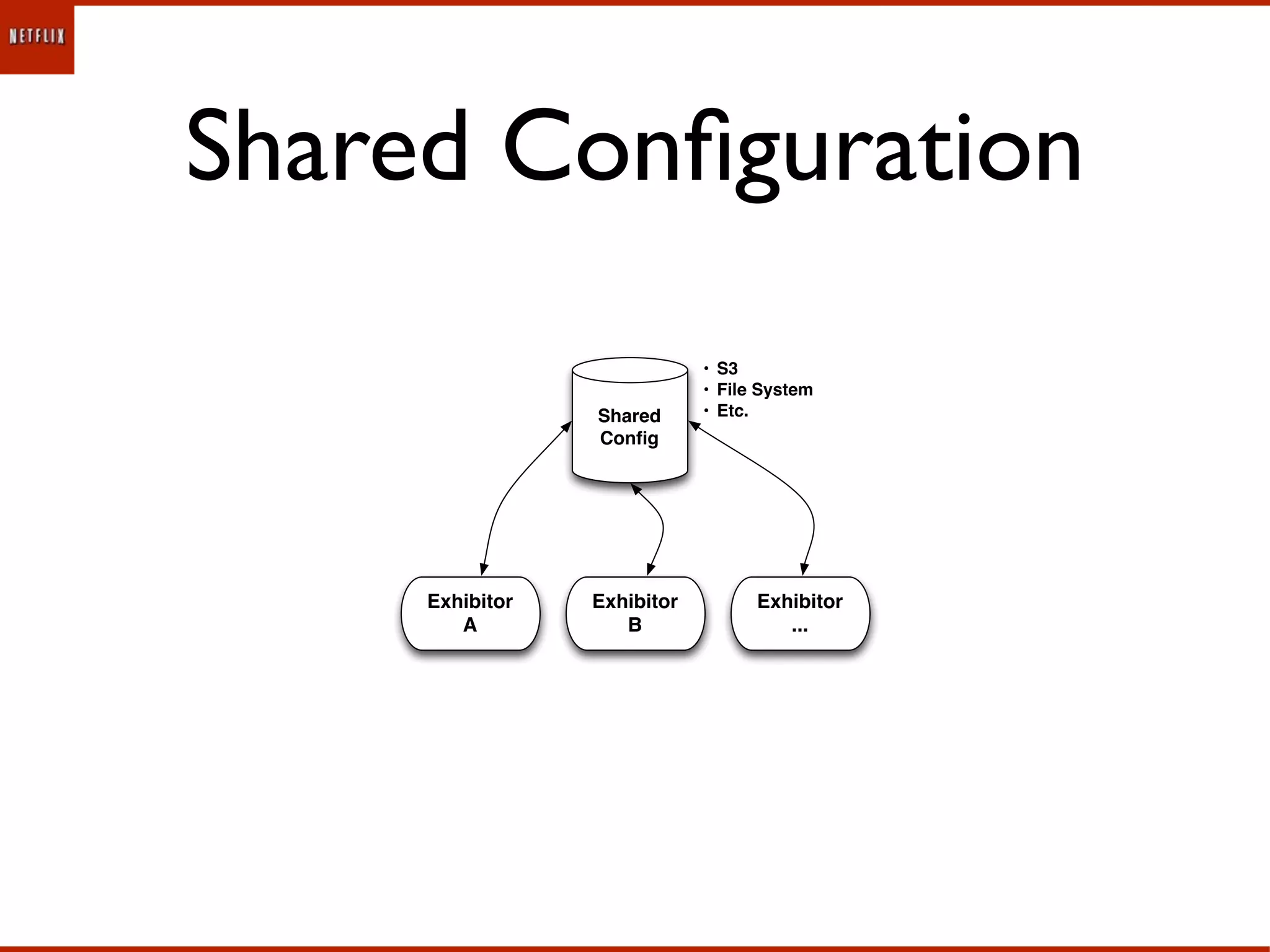

20. Shared Configuration
• S3
• File System
Shared • Etc.
Config
Exhibitor Exhibitor Exhibitor
A B ...

21. Coming Soon...

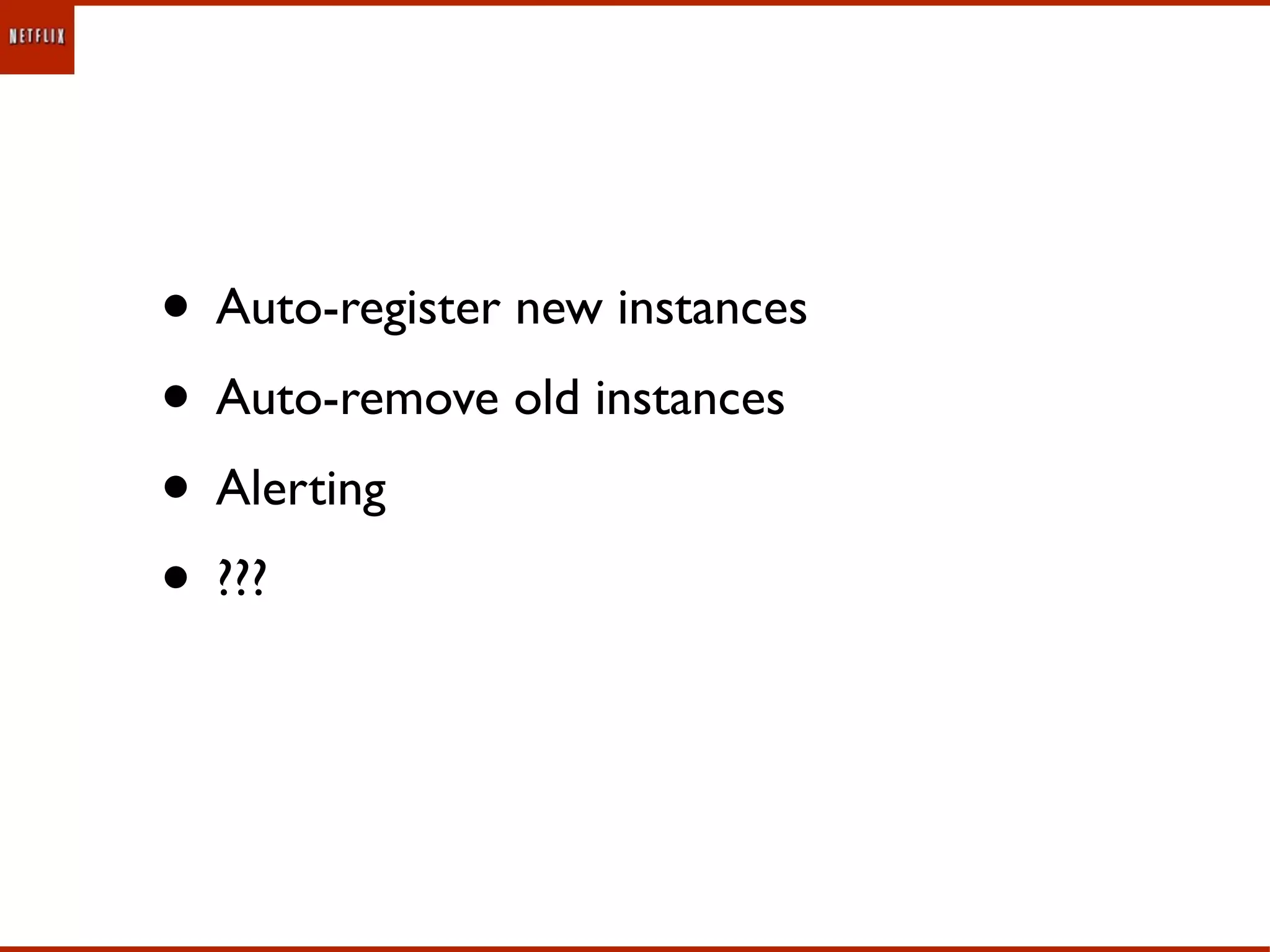

22. • Auto-register new instances
• Auto-remove old instances
• Alerting
• ???

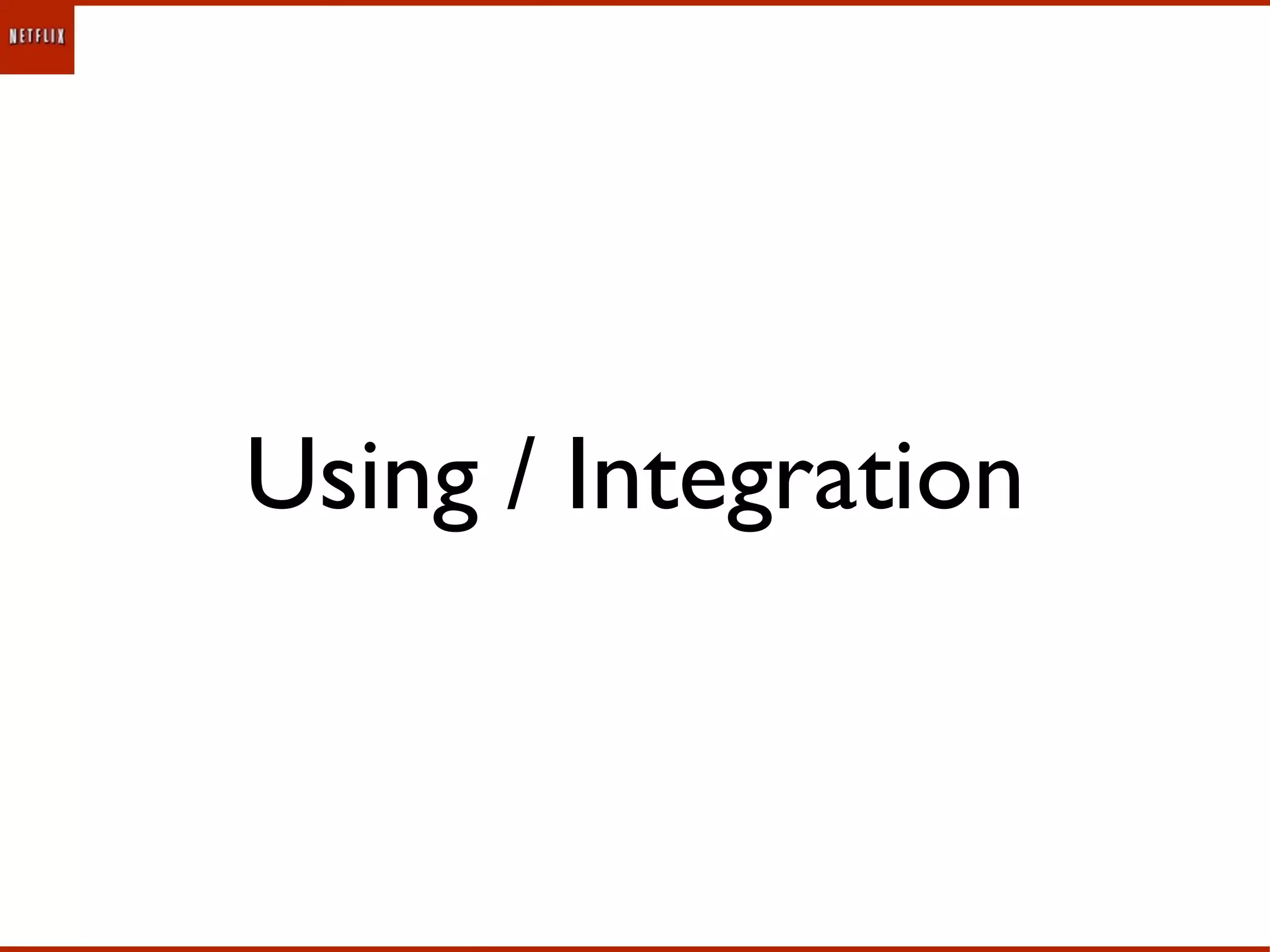

23. Using / Integration

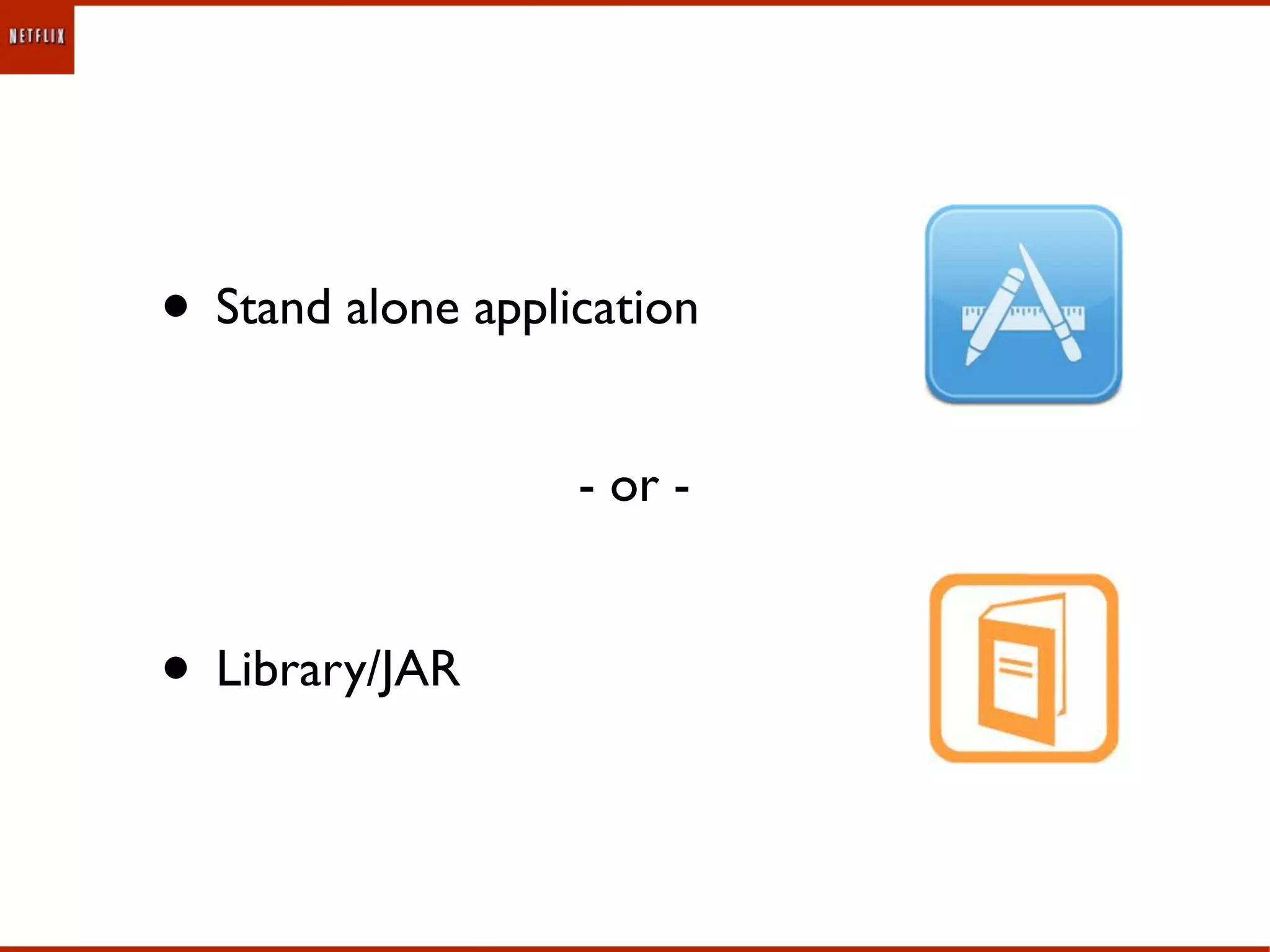

24. • Stand alone application
- or -
• Library/JAR

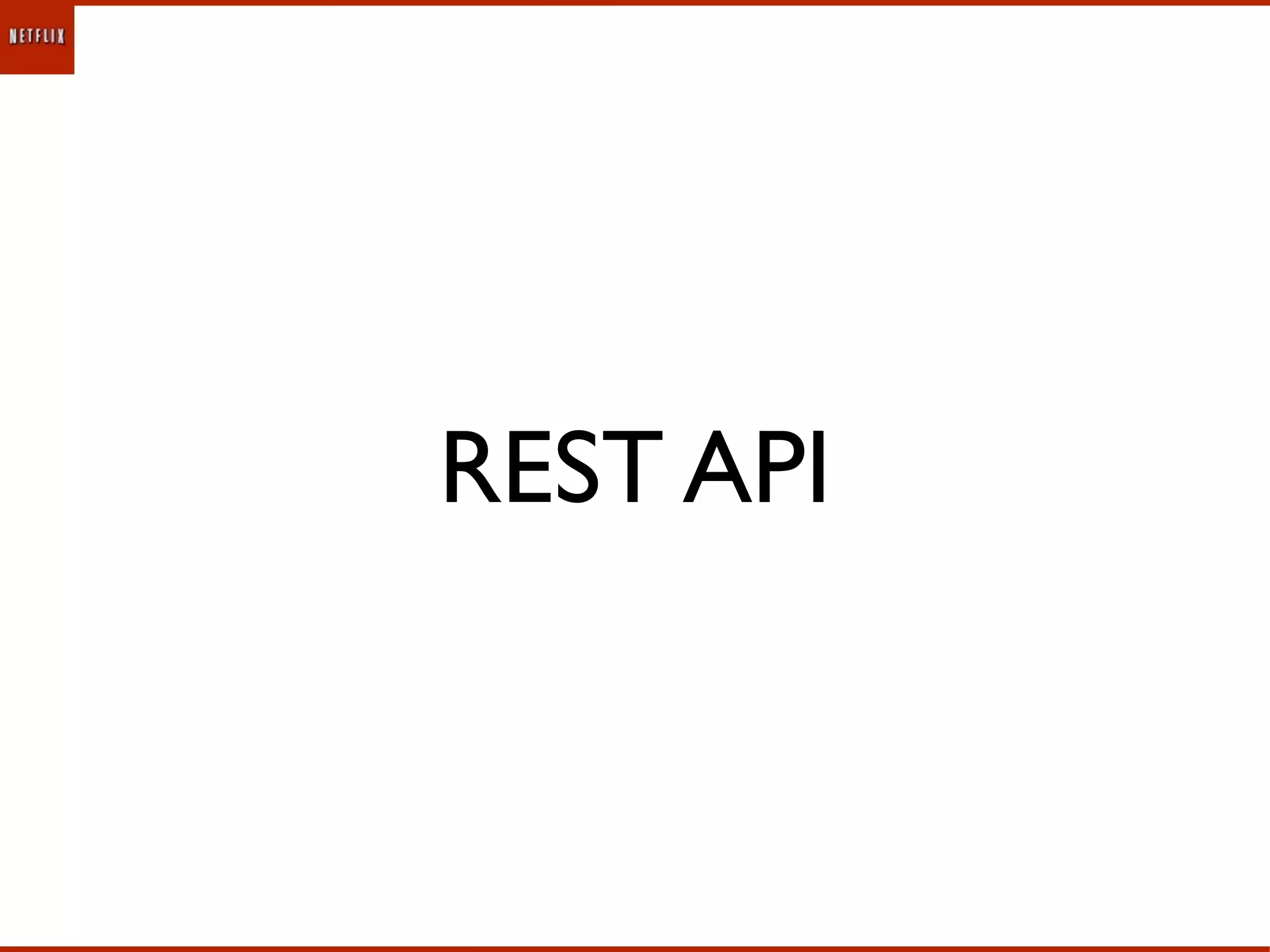

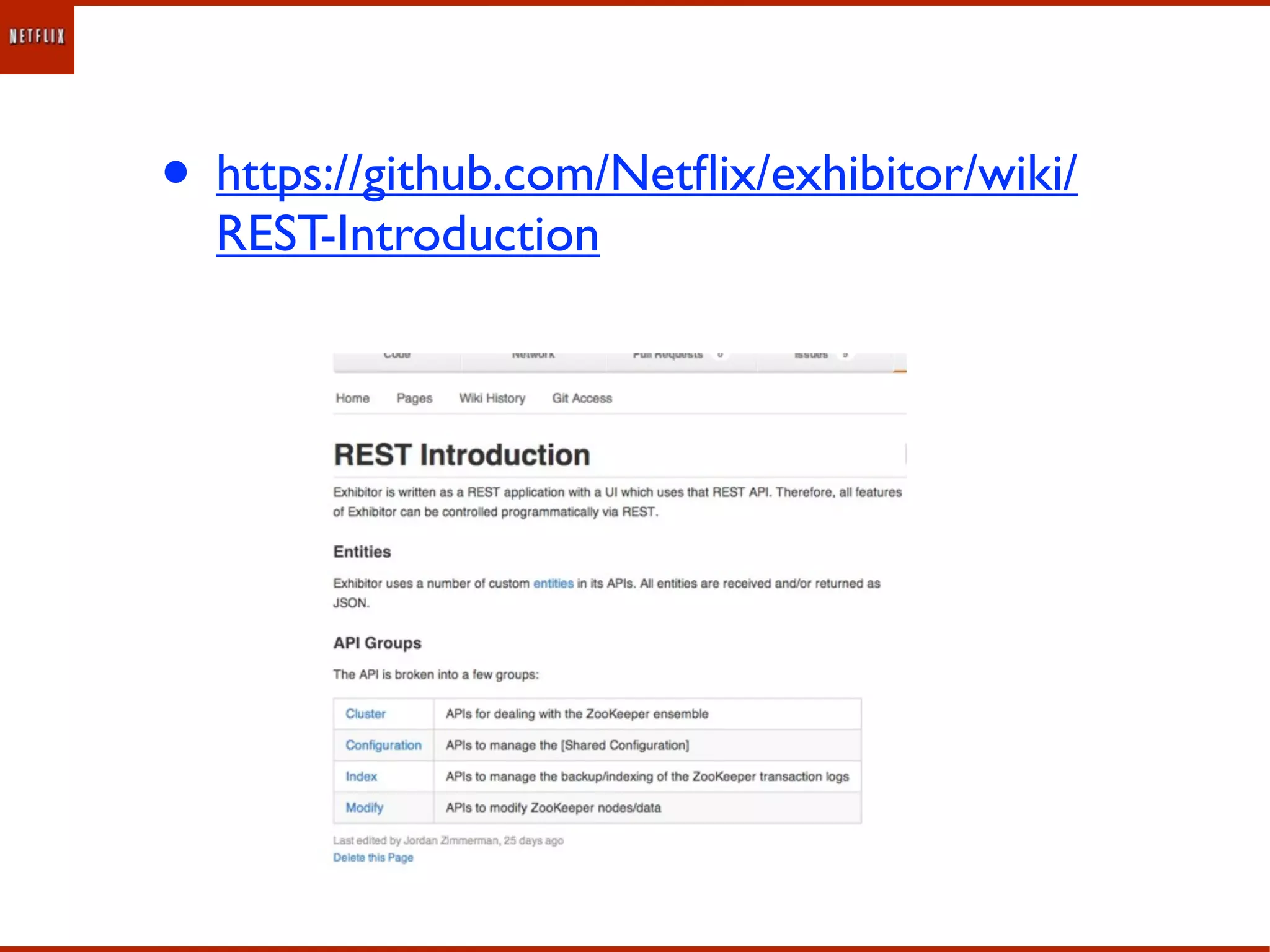

25. REST API

26. • https://github.com/Netflix/exhibitor/wiki/
REST-Introduction

27. Demos
Q&A
