This document discusses exception handling in Java. It defines exceptions as events that disrupt normal program flow and explains how Java uses try, catch, throw, throws and finally keywords to handle exceptions. It describes different types of exceptions like compile-time errors, runtime errors, checked exceptions and unchecked exceptions. The key aspects of exception handling mechanism are to find the problem, inform of the error, receive error information and take corrective actions. The document provides examples of exception handling code and explains concepts like multiple catch blocks and finally block.

2. Disclaimer:This presentation is prepared by trainees of baabtra
as a part of mentoring program. This is not official document of
baabtra –Mentoring Partner
Baabtra-Mentoring Partner is the mentoring division of baabte System Technologies Pvt . Ltd

3. Exception Handling
vineethmenon18@gmail.com

4. Exception Handling in Java
Types of Errors
1.Compile time
All syntax errors identified by java compiler.
No class file is created when this occurs.
So it is necessary to fix all compile time errors for successful
compilation.
Egs:
Missing of semicolon,
use of = instead of ==
4

5. Exception Handling in Java
2.Run time
Some pgms may not run successfully due to wrong logic or
errors like stack overflow.
Some of the Common run time errors are:
Division by 0
Array index out of bounds
Negative array size etc..
5

6. Exception Handling in Java
Exception is a condition caused by a run time error in the program.
When the java interpreter identifies an error such as division by 0
it creates an Exception object and throws it
Definition:
An exception is an event, which occurs during the execution of a
program, that disrupts the normal flow of the program's
instructions.
Is defined as a condition that interrupts the normal flow of
operation within a program.
6

7. Exception Handling in Java
Java allows Exception handling mechanism to handle various
exceptional conditions. When an exceptional condition occurs, an
exception is said to be thrown.
For continuing the program execution, the user should try to catch
the exception object thrown by the error condition and then display
an appropriate message for taking corrective actions. This task is
known as Exception handling
7

8. Exception Handling in Java
This mechanism consists of :
1. Find the problem(Hit the Exception)
2. Inform that an error has occurred(Throw the Exception)
3. Receive the error Information(Catch the Exception)
4. Take corrective actions(Handle the Exception)
8

9. Exception Handling in Java

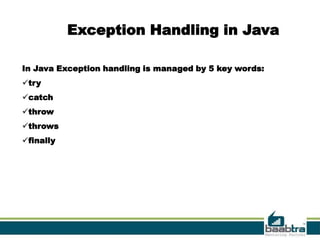

In Java Exception handling is managed by 5 key words:
try
catch
throw
throws
finally
9

10. Exception Handling in Java
In Java Exception handling is managed by 5 key words:
try
catch
throw
throws
finally
10

11. Exception Handling in Java

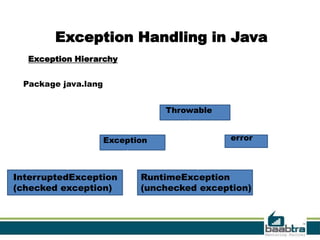

Exception Hierarchy
Package java.lang
Throwable
Exception error
InterruptedException RuntimeException
(checked exception) (unchecked exception)
11

12. Exception Handling in Java
 Unchecked exception:
 These exception need not be included in an
method’s throws list
 The compiler does not check to see if a method
handles or throws these exception
 these are subclasses of RuntimeException
 The compiler doesn't force client programmers
either to catch the exception or declare it in a
throws clause.
 Class Error and its subclasses also are unchecked.
 Checked exception:
 Must be included in an method’s throws list if that method can
generate one of those exceptions and does not handle it itself
 These exception defined by java.lang
12

13. Exception Handling in Java
Java’s unchecked RuntimeException subclasses defined in java.lang
Exception Meaning
ArithmeticException Arithmetic error, such as divide-by-zero
ArrayIndexOutOfBoundsException Array index is out-of-bounds
ArrayStoreException Assignment to an array element of an incompatible type
ClassCastException Invalid cast
EnumConstantNotPresentException An attempt is made to use an undefined enumeration
value
IllegalArgumentException Illegal argument used to invoke a method
IllegalMonitorStateException Illegal monitor operation, such as waiting on an unlocked
thread
IllegalStateException Environment or application is in incorrect state
IllegalThreadStateException Requested operation not compatible with current thread
state
IndexOutOfBoundsException Some type of index is out-of-bounds
NegativeArraySizeException Array created with a negative size
13

14. Exception Handling in Java

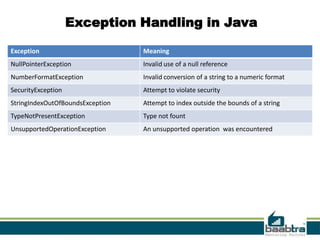

Exception Meaning
NullPointerException Invalid use of a null reference
NumberFormatException Invalid conversion of a string to a numeric format
SecurityException Attempt to violate security
StringIndexOutOfBoundsException Attempt to index outside the bounds of a string
TypeNotPresentException Type not fount
UnsupportedOperationException An unsupported operation was encountered
14

15. Exception Handling in Java
Java’s checked Exception defined in java.lang
Exception Meaning
ClassNotFoundException Class not found
CloneNotSupportedException Attempt to clone an object that does not implement the
Cloneable interface
IllegalAccessException Access to a class is denied
InstantiationException Attempt to create an object of an abstract class or
interface
InterruptedException One thread has been interrupted by another thread
NoSuchFieldException A requested field does not exist
NoSuchMethodException A requested method does not exist
15

16. Exception Handling in Java

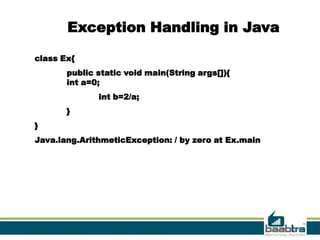

class Ex{
public static void main(String args[]){
int a=0;
int b=2/a;
}
}
Java.lang.ArithmeticException: / by zero at Ex.main
16

17. Exception Handling in Java

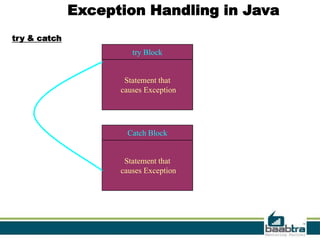

try & catch
try Block
Statement that
causes Exception
Catch Block
Statement that
causes Exception
17

18. Exception Handling in Java
try{
Statement:
}
catch(Exception-type e){
statement;
}
18

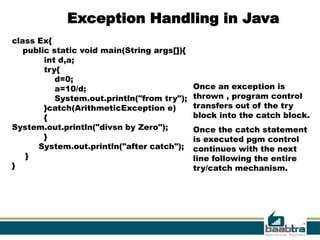

19. Exception Handling in Java
class Ex{
public static void main(String args[]){
int d,a;
try{
d=0;
a=10/d; Once an exception is
System.out.println("from try"); thrown , program control
}catch(ArithmeticException e) transfers out of the try
{ block into the catch block.
System.out.println("divsn by Zero"); Once the catch statement
} is executed pgm control
System.out.println("after catch"); continues with the next
} line following the entire
} try/catch mechanism.
19

20. Exception Handling in Java

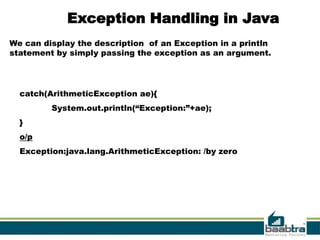

We can display the description of an Exception in a println
statement by simply passing the exception as an argument.
catch(ArithmeticException ae){
System.out.println(“Exception:”+ae);
}
o/p
Exception:java.lang.ArithmeticException: /by zero
20

21. Exception Handling in Java
Common Throwable methods
• getMessage(); All throwable objects can have an
associated error message. Calling this message will
return the message if one present.
• getLocalizedMessage(); gets the localized version of
error message.
• printStackTrace(); sends the stack trace to the system
console. This is a list of method calls that led to the
exception condition. It includes line number and file
names too. Printing of the stack trace is the default
behavior of a runtime exception when u don’t catch it
ourselves.
21

22. Exception Handling in Java
Multiple catch Statement
some cases, more than one exception could be raised by
a single piece of code.
such cases we can specify two or more catch
clauses, each catching a different type of exception.
when an exception thrown, each catch statement is
inspected in order, and the first one whose type matches
that of the exception is executed.
After 1 catch statement is executed, the others are
bypassed and execution continues after the try/catch
block.
22

23. Exception Handling in Java
class Ex{
public static void main(String
args[]){
int d,a,len;
try{
len=args.length;
a=10/len;
int c[]={1}; catch(ArithmeticException e){
c[10]=23; System.out.println("divsn by
} Zero"+e);
}
catch(ArrayIndexOutOfBoundsExcept
ion ae){
System.out.println("Array index"+ae);
}
System.out.println("after catch");
}
} 23

24. Exception Handling in Java
In multiple catch statement exception subclasses must come
before any of their superclasses.
Because a catch statement that uses a superclass will catch
exception of that type plus any of its subclasses.
Thus a subclass would never be reached if it came after its
superclass.
Further java compiler produces an error
unreachable code.
24

25. Exception Handling in Java
finally
It creates a block of code that will be executed after try/catch
block has completed and before the code following try/catch
block.
It will execute whether or not an exception is thrown
finally is useful for:
•Closing a file
•Closing a result set
•Closing the connection established with database
This block is optional but when included is placed after the last
catch block of a try
25

26. Exception Handling in Java
Form:
try
try block
{}
catch(exceptiontype e)
{}
finally
finally Catch block
{}
finally
26
