Enterprise communication using archiMate

This document provides an overview of a presentation on enterprise collaboration by Louw Labuschagne. Louw has over 18 years of experience in information management and has contributed to several standards and publications. The agenda includes discussing business context, the need for collaboration, business entities and lifecycles, the ArchiMate language, and examples of an organizational structure and a project to automate a vehicle asset finance division. The presentation also covers topics like enterprise architecture frameworks, the Zachman framework, and entity lifecycles.

Business◦
Related topics:
Enterprise Architecture•

Embed presentation

Downloaded 189 times
1 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m www.csInteractiveTraining.com Enterprise Collaboration Presented by Louw Labuschagne

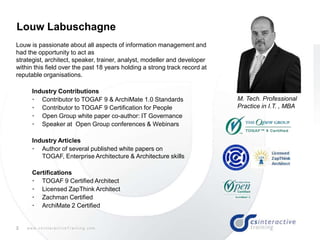

2 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Louw is passionate about all aspects of information management and had the opportunity to act as strategist, architect, speaker, trainer, analyst, modeller and developer within this field over the past 18 years holding a strong track record at reputable organisations. Industry Contributions • Contributor to TOGAF 9 & ArchiMate 1.0 Standards • Contributor to TOGAF 9 Certification for People • Open Group white paper co-author: IT Governance • Speaker at Open Group conferences & Webinars Industry Articles • Author of several published white papers on TOGAF, Enterprise Architecture & Architecture skills Certifications • TOGAF 9 Certified Architect • Licensed ZapThink Architect • Zachman Certified • ArchiMate 2 Certified Louw Labuschagne M. Tech. Professional Practice in I.T. , MBA

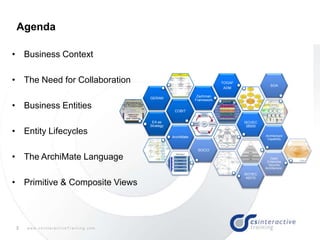

3 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Agenda • Business Context • The Need for Collaboration • Business Entities • Entity Lifecycles • The ArchiMate Language • Primitive & Composite Views EA as Strategy COBIT GERAM Zachman Framework TOGAF ADM ISO/IEC 38500 ArchiMate Architecture Capability SOA SOCCI ISO/IEC 42010 Open Enterprise Security Architecture
4 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Board of Directors Vehicle Asset Finance Business Information Management Dealer Call Centre Service Centre Processing Centre Document Filing Retail Banking Division Home Loans Division Shared Services Division Finance Internal Audit MIS & Fin Reporting Marketing HR Performance Management Learning & Development Enterprise Program Office Project Haraka ICT Strategy & Architecture Projects & Development IT Operations Organisational Structure

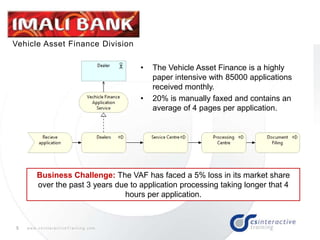

5 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m • The Vehicle Asset Finance is a highly paper intensive with 85000 applications received monthly. • 20% is manually faxed and contains an average of 4 pages per application. Vehicle Asset Finance Division Business Challenge: The VAF has faced a 5% loss in its market share over the past 3 years due to application processing taking longer that 4 hours per application.
6 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Key Issues within the VAF Process inefficiencies Ineffective manual work distribution methods result in bottlenecks and high lag times Data Quality Issues No control over the quality of data entering the processing channel System Inefficiencies Inability to systematically track where a transaction is in the process Deterioration in sales relationships Accountability for service breakdowns can‟t be identified (Blaming) Vehicle Asset Finance Division

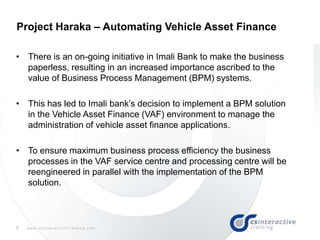

7 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m • There is an on-going initiative in Imali Bank to make the business paperless, resulting in an increased importance ascribed to the value of Business Process Management (BPM) systems. • This has led to Imali bank‟s decision to implement a BPM solution in the Vehicle Asset Finance (VAF) environment to manage the administration of vehicle asset finance applications. • To ensure maximum business process efficiency the business processes in the VAF service centre and processing centre will be reengineered in parallel with the implementation of the BPM solution. Project Haraka – Automating Vehicle Asset Finance
8 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Business Need
9 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m How would you solve the issues in the VAF Division? • Update the systems on a trial and error basis.. High Risk
10 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m • Appoint a professional person to help update the system.. How would you solve the issues in the VAF Division? Time consuming Expensive
11 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m • The current system reached end-of-life; Replace with a new system How would you solve the issues in the VAF Division? Decommission Build from scratch

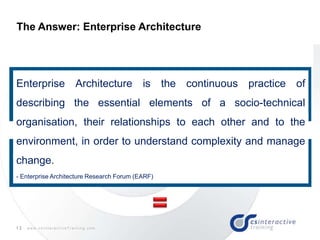

12 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Answer: Enterprise Architecture "If you get really honest and search all of history, seven thousand years of known history of humankind, to find how humanity has learned to cope with two things, complexity and change… there is one game in town, ARCHITECTURE.” John Zachman ISO/IEC 42010:2007 defines “architecture” as: “The fundamental organization of a system, embodied in its components, their relationships to each other and the environment, and the principles governing its design and evolution.” Enterprise Architecture is the continuous practice of describing the essential elements of a socio-technical organisation, their relationships to each other and to the environment, in order to understand complexity and manage change. - Enterprise Architecture Research Forum (EARF)

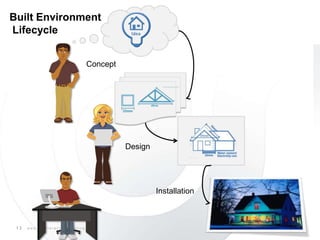

13 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Built Environment Lifecycle Concept Design Installation

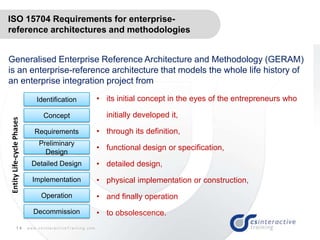

14 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m ISO 15704 Requirements for enterprise- reference architectures and methodologies • its initial concept in the eyes of the entrepreneurs who initially developed it, • through its definition, • functional design or specification, • detailed design, • physical implementation or construction, • and finally operation • to obsolescence. Generalised Enterprise Reference Architecture and Methodology (GERAM) is an enterprise-reference architecture that models the whole life history of an enterprise integration project from Identification Concept Requirements Preliminary Design Detailed Design Implementation Operation Decommission EntityLife-cyclePhases

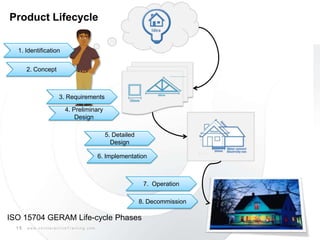

15 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Product Lifecycle 1. Identification 2. Concept 3. Requirements 4. Preliminary Design 5. Detailed Design 6. Implementation 7. Operation 8. Decommission ISO 15704 GERAM Life-cycle Phases

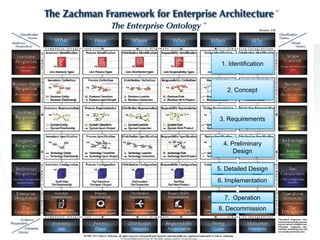

16 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Architecture 1. Identification 2. Concept 3. Requirements 4. Preliminary Design 5. Detailed Design 6. Implementation 7. Operation 8. Decommission

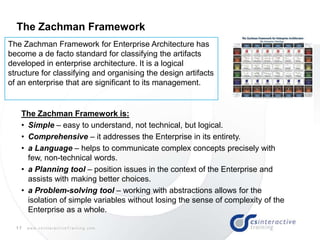

17 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Zachman Framework for Enterprise Architecture has become a de facto standard for classifying the artifacts developed in enterprise architecture. It is a logical structure for classifying and organising the design artifacts of an enterprise that are significant to its management. The Zachman Framework is: • Simple – easy to understand, not technical, but logical. • Comprehensive – it addresses the Enterprise in its entirety. • a Language – helps to communicate complex concepts precisely with few, non-technical words. • a Planning tool – position issues in the context of the Enterprise and assists with making better choices. • a Problem-solving tool – working with abstractions allows for the isolation of simple variables without losing the sense of complexity of the Enterprise as a whole. The Zachman Framework

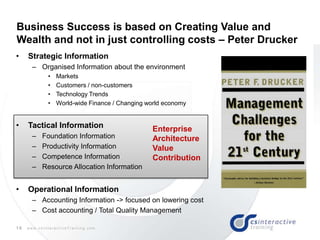

18 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m • Strategic Information – Organised Information about the environment • Markets • Customers / non-customers • Technology Trends • World-wide Finance / Changing world economy • Tactical Information – Foundation Information – Productivity Information – Competence Information – Resource Allocation Information • Operational Information – Accounting Information -> focused on lowering cost – Cost accounting / Total Quality Management Business Success is based on Creating Value and Wealth and not in just controlling costs – Peter Drucker Enterprise Architecture Value Contribution

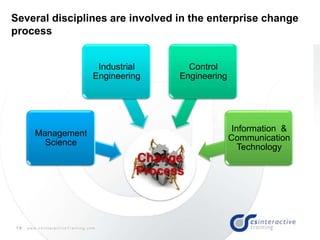

19 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Several disciplines are involved in the enterprise change process Change Process Management Science Industrial Engineering Control Engineering Information & Communication Technology
20 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Entity Life cycle

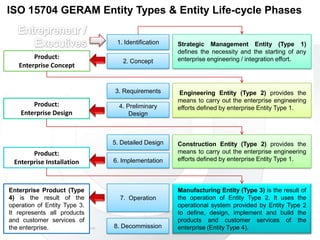

21 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Strategic Management Entity (Type 1) defines the necessity and the starting of any enterprise engineering / integration effort. Engineering Entity (Type 2) provides the means to carry out the enterprise engineering efforts defined by enterprise Entity Type 1. Construction Entity (Type 2) provides the means to carry out the enterprise engineering efforts defined by enterprise Entity Type 1. Manufacturing Entity (Type 3) is the result of the operation of Entity Type 2. It uses the operational system provided by Entity Type 2 to define, design, implement and build the products and customer services of the enterprise (Entity Type 4). ISO 15704 GERAM Entity Types & Entity Life-cycle Phases 1. Identification 2. Concept 3. Requirements 4. Preliminary Design 5. Detailed Design 6. Implementation 7. Operation 8. Decommission Product: Enterprise Concept Product: Enterprise Design Product: Enterprise Installation Enterprise Product (Type 4) is the result of the operation of Entity Type 3. It represents all products and customer services of the enterprise.
22 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Board of Directors Vehicle Asset Finance Business Information Management Dealer Call Centre Service Centre Processing Centre Document Filing Retail Banking Division Home Loans Division Shared Services Division Finance Internal Audit MIS & Fin Reporting Marketing HR Performance Management Learning & Development Enterprise Program Office Project Haraka ICT Strategy & Architecture Projects & Development IT Operations Strategic Management Entity (Type 1) defines the necessity and the starting of any enterprise engineering / integration effort. Construction Entity (Type 2) provides the means to carry out the enterprise engineering efforts defined by enterprise Entity Type 1. Engineering Entity (Type 2) provides the means to carry out the enterprise engineering efforts defined by enterprise Entity Type 1. Manufacturing Entity (Type 3) is the result of the operation of Entity Type 2. It uses the operational system provided by Entity Type 2 to define, design, implement and build the products and customer services of the enterprise (Entity Type 4). ISO 15704 GERAM Entity Types Engineering Entity (Type 2) provides the means to carry out the enterprise engineering efforts defined by enterprise Entity Type 1. Construction Entity (Type 2) provides the means to carry out the enterprise engineering efforts defined by enterprise Entity Type 1.
23 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Imali Bank Vehicle Asset Finance Electronic Application Service (i-VAF) • To optimise business processes i-VAF will provide full end-to-end management of each vehicle asset finance application. • i-VAF will provide full process and status visibility of application transactions at all interfacing points. – The visibility that is gained will enable continuous improvement to eliminate waste from processes and improve turnaround time and costs. – Quality assurance will be incorporated earlier in the lifecycle and feedback required during the process will be automated where necessary. – All manual forms and other supporting documentation related to applications will be electronically available and greatly reduce the need for paper. • i-VAF will provide the capability to allocate work based on business rules as well as re-prioritise and re-allocate work when required. – Full business activity monitoring will be available across the end-to-end vehicle asset finance application management process with service level agreements and escalation management. Enterprise Product (Type 4) is the result of the operation of Entity Type 3. It represents all products and customer services of the enterprise.
24 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Project Management Companywide IT Governance IT Engagement Model* Company strategy & operations Project plan Solution Architecture Enterprise architecture Alignment Coordination Business Linkage • Business sponsors for projects • Regular project reviews by company level office • Process owners • Incentives tied to company goals Architecture Linkage • Architect on projects • Project funding based on Architecture compliance • Architect training Project Level Company Level ITBusiness Alignment Linkage • Project Management Office • Business – IT relationship managers • Project manager training *Based on the model defined in Enterprise Architecture as Strategy (Ross, Weill & Robertson) ISO 38500:2008 ISO 21500:2012 ISO/IEC 20000: 2005

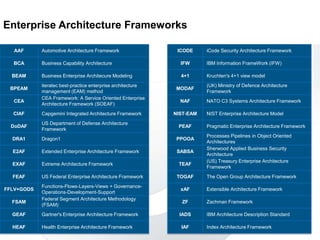

26 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m AAF Automotive Architecture Framework BCA Business Capability Architecture BEAM Business Enterprise Architecure Modeling BPEAM iteratec best-practice enterprise architecture management (EAM) method CEA CEA Framework: A Service Oriented Enterprise Architecture Framework (SOEAF) CIAF Capgemini Integrated Architecture Framework DoDAF US Department of Defense Architecture Framework DRA1 Dragon1 E2AF Extended Enterprise Architecture Framework EXAF Extreme Architecture Framework FEAF US Federal Enterprise Architecture Framework FFLV+GODS Functions-Flows-Layers-Views + Governance- Operations-Development-Support FSAM Federal Segment Architecture Methodology (FSAM) GEAF Gartner's Enterprise Architecture Framework HEAF Health Enterprise Architecture Framework Enterprise Architecture Frameworks ICODE iCode Security Architecture Framework IFW IBM Information FrameWork (IFW) 4+1 Kruchten's 4+1 view model MODAF (UK) Ministry of Defence Architecture Framework NAF NATO C3 Systems Architecture Framework NIST-EAM NIST Enterprise Architecture Model PEAF Pragmatic Enterprise Architecture Framework PPOOA Processes Pipelines in Object Oriented Architectures SABSA Sherwood Applied Business Security Architecture TEAF (US) Treasury Enterprise Architecture Framework TOGAF The Open Group Architecture Framework xAF Extensible Architecture Framework ZF Zachman Framework IADS IBM Architecture Description Standard IAF Index Architecture Framework

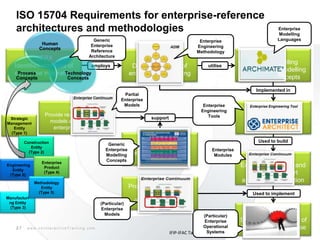

27 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m IFIP-IFAC Task Force, 1999) ISO 15704 Requirements for enterprise-reference architectures and methodologies GERA Identifies concepts of enterprise integration EEM Describe process of enterprise engineering EMLs Provide modelling constructs for modelling enterprise concepts EETs Support enterprise engineering GEMCs Define the meaning of enterprise modelling constructs PEMs Provide reusable reference models and designs of enterprise concepts EMs Enterprise designs, and models to support analysis and operationEMOs Provide implementable modules (human, process & technology) EOS Support the operation of the particular enterprise employs utilise Implemented in support Used to build Used to implement (Particular) Enterprise Operational Systems Human Concepts Technology Concepts Process Concepts Generic Enterprise Reference Architecture Enterprise Engineering Methodology Enterprise Modelling Languages Partial Enterprise Models Generic Enterprise Modelling Concepts Enterprise Modules (Particular) Enterprise Models Enterprise Engineering Tools Strategic Management Entity (Type 1) Construction Entity (Type 2) Engineering Entity (Type 2) Enterprise Product (Type 4) Manufacturi ng Entity (Type 3) Methodology Entity (Type 5) Enterprise Engineering Tool

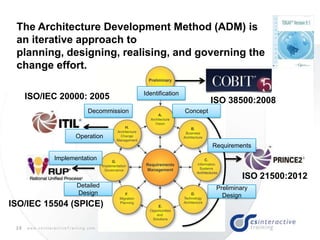

28 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Architecture Development Method (ADM) is an iterative approach to planning, designing, realising, and governing the change effort. ISO 38500:2008 ISO 21500:2012 ISO/IEC 15504 (SPICE) ISO/IEC 20000: 2005 Identification Concept Requirements Preliminary Design Detailed Design Implementation Operation Decommission
29 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m ArchiMate
30 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m ArchiMate 2 and the TOGAF® ADM • ArchiMate Core – Enables modeling of the architecture domains defined by TOGAF • Motivation Extension – Enables modeling of stakeholders, drivers for change, business goals, principles and requirements • Implementation and Migration Extension – Enables modeling of project portfolio management, gap analysis and transition and migration planning

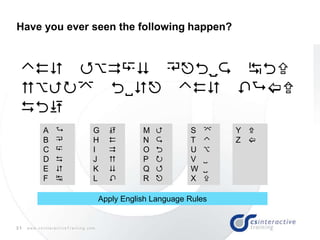

31 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Have you ever seen the following happen? THE QUICK BROWN FOX JUMPS OVER THE LAZY DOG A A B B C C D D E E F F M M N N O O P P Q Q R R G G H H I I J J K K L L S S T T U U V V W W X X Y Y Z Z Apply English Language Rules

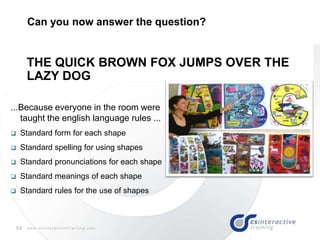

32 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Can you now answer the question? THE QUICK BROWN FOX JUMPS OVER THE LAZY DOG ...Because everyone in the room were taught the english language rules ...  Standard form for each shape  Standard spelling for using shapes  Standard pronunciations for each shape  Standard meanings of each shape  Standard rules for the use of shapes

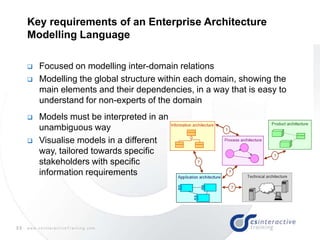

33 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Key requirements of an Enterprise Architecture Modelling Language  Focused on modelling inter-domain relations  Modelling the global structure within each domain, showing the main elements and their dependencies, in a way that is easy to understand for non-experts of the domain  Models must be interpreted in an unambiguous way  Visualise models in a different way, tailored towards specific stakeholders with specific information requirements

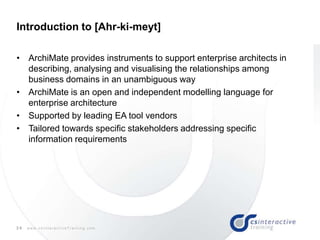

34 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Introduction to [Ahr-ki-meyt] • ArchiMate provides instruments to support enterprise architects in describing, analysing and visualising the relationships among business domains in an unambiguous way • ArchiMate is an open and independent modelling language for enterprise architecture • Supported by leading EA tool vendors • Tailored towards specific stakeholders addressing specific information requirements

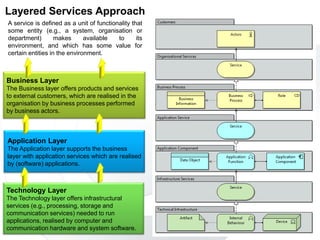

35 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Layered Services Approach Application Layer The Application layer supports the business layer with application services which are realised by (software) applications. Business Layer The Business layer offers products and services to external customers, which are realised in the organisation by business processes performed by business actors. Technology Layer The Technology layer offers infrastructural services (e.g., processing, storage and communication services) needed to run applications, realised by computer and communication hardware and system software. A service is defined as a unit of functionality that some entity (e.g., a system, organisation or department) makes available to its environment, and which has some value for certain entities in the environment.
36 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Language Elements • Behavioural or dynamic aspect – Behavioural concepts are assigned to structural concepts, to show who or what displays the behaviour • Structural or static aspect – Active structural elements • the business actors, application components and devices that display actual behaviour, i.e., the „subjects‟ of activity – Passive structural elements • i.e., the objects on which behaviour is performed • External view and an internal view – For the external users, only this external functionality, together with non-functional aspects such as the quality of service, costs etc., are relevant

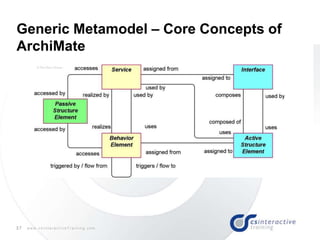

37 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Generic Metamodel – Core Concepts of ArchiMate
38 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m
39 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m

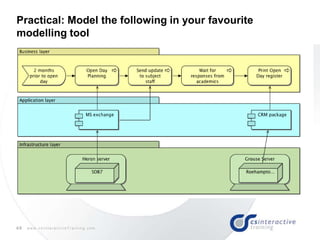

40 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Practical: Model the following in your favourite modelling tool

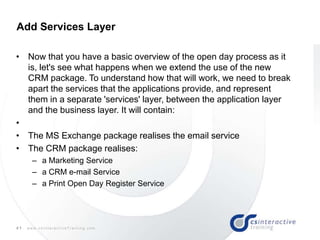

41 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m • Now that you have a basic overview of the open day process as it is, let's see what happens when we extend the use of the new CRM package. To understand how that will work, we need to break apart the services that the applications provide, and represent them in a separate 'services' layer, between the application layer and the business layer. It will contain: • • The MS Exchange package realises the email service • The CRM package realises: – a Marketing Service – a CRM e-mail Service – a Print Open Day Register Service Add Services Layer

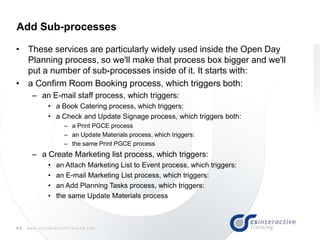

42 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m • These services are particularly widely used inside the Open Day Planning process, so we'll make that process box bigger and we'll put a number of sub-processes inside of it. It starts with: • a Confirm Room Booking process, which triggers both: – an E-mail staff process, which triggers: • a Book Catering process, which triggers: • a Check and Update Signage process, which triggers both: – a Print PGCE process – an Update Materials process, which triggers: – the same Print PGCE process – a Create Marketing list process, which triggers: • an Attach Marketing List to Event process, which triggers: • an E-mail Marketing List process, which triggers: • an Add Planning Tasks process, which triggers: • the same Update Materials process Add Sub-processes

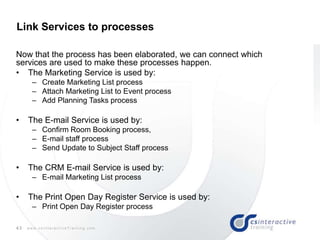

43 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Now that the process has been elaborated, we can connect which services are used to make these processes happen. • The Marketing Service is used by: – Create Marketing List process – Attach Marketing List to Event process – Add Planning Tasks process • The E-mail Service is used by: – Confirm Room Booking process, – E-mail staff process – Send Update to Subject Staff process • The CRM E-mail Service is used by: – E-mail Marketing List process • The Print Open Day Register Service is used by: – Print Open Day Register process Link Services to processes

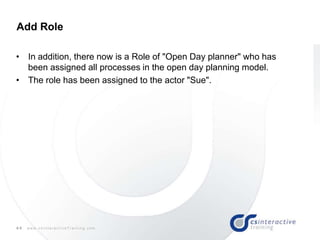

44 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m • In addition, there now is a Role of "Open Day planner" who has been assigned all processes in the open day planning model. • The role has been assigned to the actor "Sue". Add Role

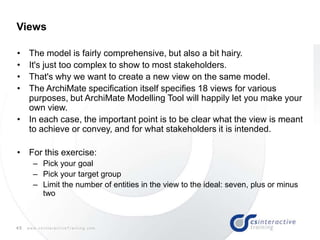

45 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m • The model is fairly comprehensive, but also a bit hairy. • It's just too complex to show to most stakeholders. • That's why we want to create a new view on the same model. • The ArchiMate specification itself specifies 18 views for various purposes, but ArchiMate Modelling Tool will happily let you make your own view. • In each case, the important point is to be clear what the view is meant to achieve or convey, and for what stakeholders it is intended. • For this exercise: – Pick your goal – Pick your target group – Limit the number of entities in the view to the ideal: seven, plus or minus two Views
46 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Architecture 1. Identification 2. Concept 3. Requirements 4. Preliminary Design 5. Detailed Design 6. Implementation 7. Operation 8. Decommission
47 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Zachman Framework  Row 2 – Conceptually define what the owners have in mind  Row 3 – How will the Enterprise concepts be realised systematically  Row 4 – Enterprise implementation based on general technology constraints  Row 5 –Specify the implementations to specific technology products  Row 6 – Functioning Enterprise 1 3 2 4 5 6  Row 1 – Boundaries of the Enterprise, what is included The Zachman Framework consists of a six by six matrix with each row representing a different perspective on the enterprise. Row 1 is the most abstract view, with each following row representing more detail and concrete views of the enterprise until Row 6 that are the functioning enterprise.

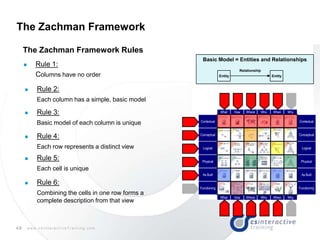

48 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Zachman Framework Contextual Conceptual Logical Physical As Built Functioning Contextual Conceptual Logical Physical As Built Functioning Why Why Who Who When When Where Where What What How How  Rule 2: Each column has a simple, basic model  Rule 3: Basic model of each column is unique  Rule 4: Each row represents a distinct view  Rule 5: Each cell is unique  Rule 6: Combining the cells in one row forms a complete description from that view Basic Model = Entities and Relationships Entity Relationship Entity  Rule 1: Columns have no order The Zachman Framework Rules
49 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Zachman Framework • External Requirements and Drivers • Business Function Modeling  Function/How List of processes the business perform High-level business functions  Data/What List of things important to the business  People/Who List of Organisations important to the business  Network/Where List of locations in which the business operates  Time/When List of events significant to the business 1  Motivation/Why List of business goals and strategies Row 1: Scope/Planner’s View

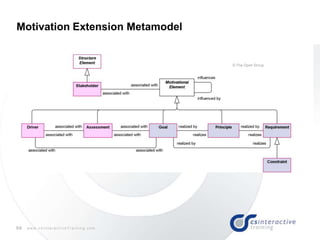

50 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Motivation Extension Metamodel

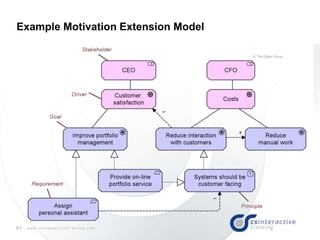

51 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Example Motivation Extension Model
52 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Zachman Framework • Business Process Models • Business Function Allocation • Elimination of Function Overlap and Ambiguity  Function/How Business processes  Data/What Business data  People/Who Roles and responsibilities in each process  Network/Where Locations related to each process  Time/When Events for each process and sequencing of integration and process improvements 2  Motivation/Why Policies, procedures and standards for each process Row 2: Enterprise Model/Designer’s View

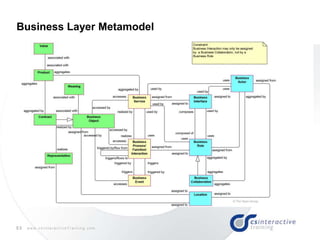

53 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Business Layer Metamodel

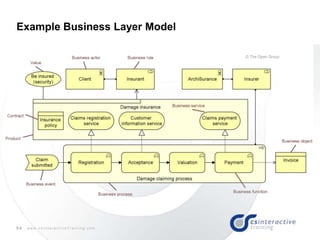

54 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Example Business Layer Model

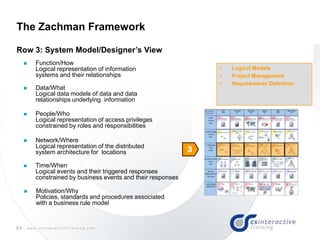

55 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Zachman Framework • Logical Models • Project Management • Requirements Definition  Function/How Logical representation of information systems and their relationships  Data/What Logical data models of data and data relationships underlying information  People/Who Logical representation of access privileges constrained by roles and responsibilities  Network/Where Logical representation of the distributed system architecture for locations  Time/When Logical events and their triggered responses constrained by business events and their responses 3  Motivation/Why Policies, standards and procedures associated with a business rule model Row 3: System Model/Designer’s View

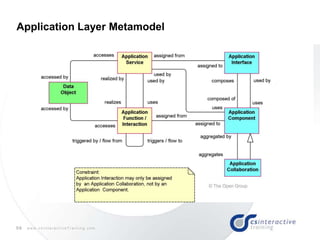

56 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Application Layer Metamodel

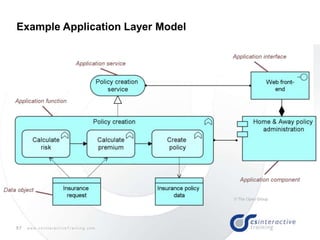

57 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Example Application Layer Model

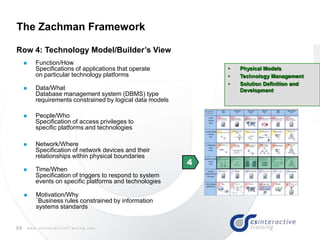

58 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Zachman Framework • Physical Models • Technology Management • Solution Definition and Development  Function/How Specifications of applications that operate on particular technology platforms  Data/What Database management system (DBMS) type requirements constrained by logical data models  People/Who Specification of access privileges to specific platforms and technologies  Network/Where Specification of network devices and their relationships within physical boundaries  Time/When Specification of triggers to respond to system events on specific platforms and technologies 4  Motivation/Why `Business rules constrained by information systems standards Row 4: Technology Model/Builder’s View

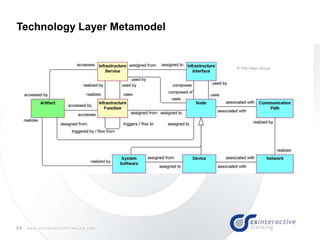

59 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Technology Layer Metamodel

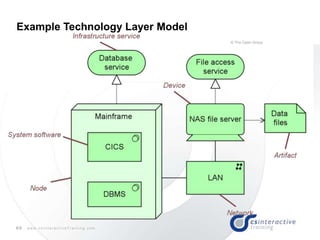

60 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Example Technology Layer Model

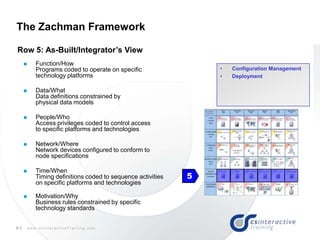

61 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Zachman Framework • Configuration Management • Deployment  Function/How Programs coded to operate on specific technology platforms  Data/What Data definitions constrained by physical data models  People/Who Access privileges coded to control access to specific platforms and technologies  Network/Where Network devices configured to conform to node specifications  Time/When Timing definitions coded to sequence activities on specific platforms and technologies 5  Motivation/Why Business rules constrained by specific technology standards Row 5: As-Built/Integrator’s View

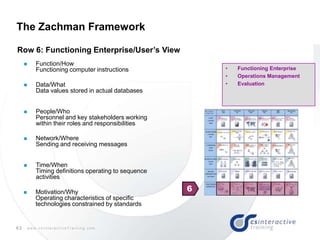

62 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m The Zachman Framework • Functioning Enterprise • Operations Management • Evaluation  Function/How Functioning computer instructions  Data/What Data values stored in actual databases  People/Who Personnel and key stakeholders working within their roles and responsibilities  Network/Where Sending and receiving messages  Time/When Timing definitions operating to sequence activities 6 Motivation/Why Operating characteristics of specific technologies constrained by standards Row 6: Functioning Enterprise/User’s View

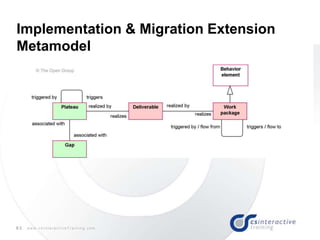

63 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Implementation & Migration Extension Metamodel

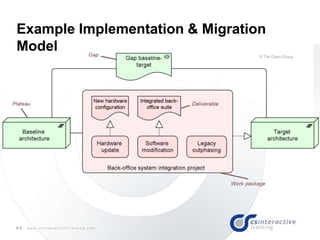

64 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Example Implementation & Migration Model
65 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m

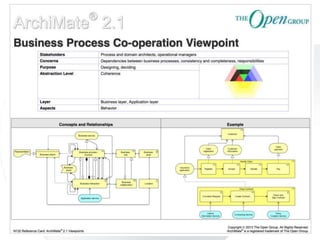

66 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m

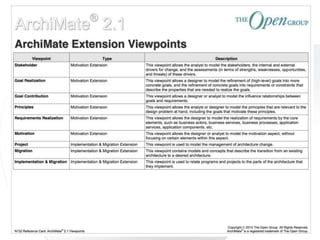

67 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m
68 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m

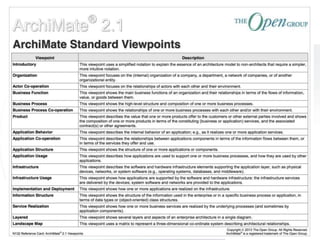

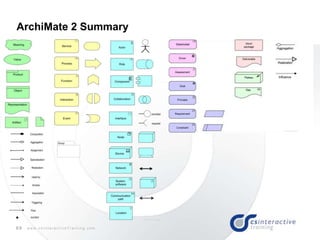

69 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m ArchiMate 2 Summary
75 w w w . c s I n t e r a c t i v e T r a i n i n g . c o m Business owners need to realise that their enterprise architecture design is a reflection of their business even if it is not intentional. If you don‟t care about your enterprise architecture then your design is telling people that you don‟t care about your business. — MARCO SUAREZ (SLIGHTLY ADAPTED)

More Related Content

PDF
Cloud architecture with the ArchiMate Language
byIver Band

PDF
ArchiMate technology layer - Simplify the models
byCOMPETENSIS

PPTX
Modeling TOGAF with ArchiMate
byIver Band

PDF
Enterprise Architecture using TOGAF 's ADM - Architecture Delivery Method (...
byChandrashekhar More

PDF
ArchiMate 3.0: A New Standard for Architecture
byIver Band

PPTX
Archimate - an introduction
byStefan Luyten

PPT
Archimate Introduction
byemergingpractices

PPTX
How to Articulate the Value of Enterprise Architecture
bycccamericas

Cloud architecture with the ArchiMate Language
byIver Band

ArchiMate technology layer - Simplify the models
byCOMPETENSIS

Modeling TOGAF with ArchiMate
byIver Band

Enterprise Architecture using TOGAF 's ADM - Architecture Delivery Method (...
byChandrashekhar More

ArchiMate 3.0: A New Standard for Architecture
byIver Band

Archimate - an introduction
byStefan Luyten

Archimate Introduction
byemergingpractices

How to Articulate the Value of Enterprise Architecture
bycccamericas


What's hot

PDF
Capability-based planning with TOGAF & ArchiMate
byAnastasios Papazoglou

PDF
ArchiMate application and data architecture layer - Simplify the models
byCOMPETENSIS

PDF
Archimate Viewpoints
byMaganathin Veeraragaloo

PPTX
ArchiMate introduction
byAshraf Fouad

PDF
Business Architecture as an Approach to Connect Strategy & Projects
byEnterprise Architects

PPTX
Introduction to Enterprise architecture and the steps to perform an Enterpris...
byPrashanth Panduranga

PDF
TOGAF 9.2 - Transforming Business
byReal IRM

PPTX
Intro to Enterprise Architecture (EA)
byFahmi Abdul Latip

PPT
Solution Architecture Concept Workshop
byAlan McSweeney

PPTX
IT4IT - The Full Story for Digital Transformation - Part 1
byMohamed Zakarya Abdelgawad

PDF
IT4IT™ - Managing the Business of IT
byThe Open Group SA

PPTX
IT4IT Overview (A new standard for IT management)
byCharles Betz

PDF
Effective Strategy Execution with Capability-Based Planning, Enterprise Arch...
byIver Band

PDF
From Business model to Capability Map
byCOMPETENSIS

PPT
Solution Architecture
byFirmansyahIrma1

PDF
ArchiSurance Case Study
byIver Band

PPT
What is the Value of Mature Enterprise Architecture TOGAF
byxavblai

PPT
Bridging enterprise-architecture and systems-thinking
byTetradian Consulting

PPTX
Enterprise Architecture, Project Management & Digital Transformation
byRiaz A. Khan, OpenCA, TOGAF

PDF
Request to Fulfill Presentation (IT4IT)
byRob Akershoek

Capability-based planning with TOGAF & ArchiMate
byAnastasios Papazoglou

ArchiMate application and data architecture layer - Simplify the models
byCOMPETENSIS

Archimate Viewpoints
byMaganathin Veeraragaloo

ArchiMate introduction
byAshraf Fouad

Business Architecture as an Approach to Connect Strategy & Projects
byEnterprise Architects

Introduction to Enterprise architecture and the steps to perform an Enterpris...
byPrashanth Panduranga

TOGAF 9.2 - Transforming Business
byReal IRM

Intro to Enterprise Architecture (EA)
byFahmi Abdul Latip

Solution Architecture Concept Workshop
byAlan McSweeney

IT4IT - The Full Story for Digital Transformation - Part 1
byMohamed Zakarya Abdelgawad

IT4IT™ - Managing the Business of IT
byThe Open Group SA

IT4IT Overview (A new standard for IT management)
byCharles Betz

Effective Strategy Execution with Capability-Based Planning, Enterprise Arch...
byIver Band

From Business model to Capability Map
byCOMPETENSIS

Solution Architecture
byFirmansyahIrma1

ArchiSurance Case Study
byIver Band

What is the Value of Mature Enterprise Architecture TOGAF
byxavblai

Bridging enterprise-architecture and systems-thinking
byTetradian Consulting

Enterprise Architecture, Project Management & Digital Transformation
byRiaz A. Khan, OpenCA, TOGAF

Request to Fulfill Presentation (IT4IT)
byRob Akershoek


Viewers also liked

PDF
An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...
byIver Band

PDF
Modeling Big Data with the ArchiMate 3.0 Language
byIver Band

PDF
Iasa UK Archimate Overview
byIasa UK

PDF
Removing the barriers to business transformation with ArchiMate
byCorso

PDF
Modeling the Backstory with the ArchiMate Motivation Extension
byIver Band

PDF
Modeling and Evolving a Web Portal with the TOGAF Framework and the ArchiMate...
byIver Band

PDF
ArchiMetal Case Study
byIver Band

PDF
Harnessing the Power of ArchiMate
byIver Band

PDF
What's New in ArchiMate® 3.0
byArchitecture Center Ltd

ODP
BDD with Behat Selenium, Sahi and Sauce
byShashikant Jagtap

PPTX
Microdata for Dummies
bygiurca

PPTX
Double Loop
byJessica Mauerhan

PPTX
Double Loop Learning--Purpose and Power--PNSQC 2014 - slides
byJean Richardson

PPTX
Extracting archimate views from custom ontological ea models
byMatteo Busanelli

PPT
Archimate Overview
byemergingpractices

PDF
Modeling ACORD with ArchiMate Case Study Views
byIver Band

PPTX
Foundations of enterprise architecture management and archi mate
byStefan Schindewolf

PDF
Modeling Microservices
bySander Hoogendoorn

PDF
Spring Framework 4.0 - The Next Generation - Soft-Shake 2013
bySam Brannen

PDF
Course Outline for SPSD (updated)
byKaran Girotra

An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...
byIver Band

Modeling Big Data with the ArchiMate 3.0 Language
byIver Band

Iasa UK Archimate Overview
byIasa UK

Removing the barriers to business transformation with ArchiMate
byCorso

Modeling the Backstory with the ArchiMate Motivation Extension
byIver Band

Modeling and Evolving a Web Portal with the TOGAF Framework and the ArchiMate...
byIver Band

ArchiMetal Case Study
byIver Band

Harnessing the Power of ArchiMate
byIver Band

What's New in ArchiMate® 3.0
byArchitecture Center Ltd

BDD with Behat Selenium, Sahi and Sauce
byShashikant Jagtap

Microdata for Dummies
bygiurca

Double Loop
byJessica Mauerhan

Double Loop Learning--Purpose and Power--PNSQC 2014 - slides
byJean Richardson

Extracting archimate views from custom ontological ea models
byMatteo Busanelli

Archimate Overview
byemergingpractices

Modeling ACORD with ArchiMate Case Study Views
byIver Band

Foundations of enterprise architecture management and archi mate
byStefan Schindewolf

Modeling Microservices
bySander Hoogendoorn

Spring Framework 4.0 - The Next Generation - Soft-Shake 2013
bySam Brannen

Course Outline for SPSD (updated)
byKaran Girotra


Similar to Enterprise communication using archiMate

PPTX
Enterprise Architecture & IT standards
byLouw Labuschagne

PPTX
Using SFIA as a basis for defining Enterprise Architecture skills
byLouw Labuschagne

PDF
The Role Of An Architect
byJennifer Wood

PDF
Actionable Architecture EA Summit (Singapore)
byMark Mamone

PDF
Building An Information Technology And Information Systems
byNicole Savoie

PPTX
Hk yeditepe university-systemsengg-seminar-102012
byHakan KIRAN

PDF
A framework for_enterprise_architecture_effectiveness
bybambangpadhi

PDF
Why Zachman Certification
byiCMG International

PDF
Module 1 Enterprise Architecture For Managers and IT Professionals
byMichael Cesino

PDF
A method to_define_an_enterprise_architecture_using_the_zachman_framework
bybambangpadhi

PPTX
Being in Charge of but not in Control over Technology Enabled Business Transf...
byMikkel Brahm

PPT
TASSCC Presentation.ppt
bypkumars

PPTX
1. Introduction to EA -Session1 .pptx
byMohammadMahdiKargar2

PDF
Enterprise Architecture – A Tool for Business Innovation Realization in the E...
bytheijes

PPTX
IndEA.pptx
byPrashant Singh

PDF
EA Doing The Right Things Right V1 Manageware
byManageware

PPTX
Technology Enabled Business Transformation (Nordea case)
byMikkel Brahm

PPTX
Enterprise Architecture basics
byMahdi Ameri

PDF
Enterprise architecture institutionalization_and_assessment
bybambangpadhi

PPTX
Saibm
byglennjcameron

Enterprise Architecture & IT standards
byLouw Labuschagne

Using SFIA as a basis for defining Enterprise Architecture skills
byLouw Labuschagne

The Role Of An Architect
byJennifer Wood

Actionable Architecture EA Summit (Singapore)
byMark Mamone

Building An Information Technology And Information Systems
byNicole Savoie

Hk yeditepe university-systemsengg-seminar-102012
byHakan KIRAN

A framework for_enterprise_architecture_effectiveness
bybambangpadhi

Why Zachman Certification
byiCMG International

Module 1 Enterprise Architecture For Managers and IT Professionals
byMichael Cesino

A method to_define_an_enterprise_architecture_using_the_zachman_framework
bybambangpadhi

Being in Charge of but not in Control over Technology Enabled Business Transf...
byMikkel Brahm

TASSCC Presentation.ppt
bypkumars

1. Introduction to EA -Session1 .pptx
byMohammadMahdiKargar2

Enterprise Architecture – A Tool for Business Innovation Realization in the E...
bytheijes

IndEA.pptx
byPrashant Singh

EA Doing The Right Things Right V1 Manageware
byManageware

Technology Enabled Business Transformation (Nordea case)
byMikkel Brahm

Enterprise Architecture basics
byMahdi Ameri

Enterprise architecture institutionalization_and_assessment
bybambangpadhi

Saibm
byglennjcameron


Recently uploaded

PDF
Top 5 Trusted Places to Buy LinkedIn Accounts in the USA.pdf
byBuy LinkedIn Accounts

PPT
Business Process outsourcing SMPBPO101_003 v2013 QCCI.ppt
bycmaranan

PDF
RI&E Checklist MKB (2026) – Voorbereiding, Toetsing & Plan van Aanpak PDF
byRIEklaar.nl

PDF
Laura Sergio - Specializing In Helping Small Businesses
byLaura Sergio

PDF
_The Ultimate Guide to Buying Twitter Accounts Safely.pdf
byp7u0tz3g7favwxkjrlwm

PDF
Botswana Diamonds plc Corporate Presentation Jan 2026
byJames AH Campbell

PDF
Dr. Michael T. Conner - Serves As CEO
byDr. Michael T. Conner

PDF
First Equity BOD New Copper Licences 26 Jan 2026
byJames AH Campbell

PDF
IFS state pension.pdf From IFS and Oxford
byHenry Tapper

PDF
Maksym Vyshnivetskyi: Управління якістю (UA)
byLviv Startup Club

PDF
Equinox Gold - January Investor Presentation.pdf
byEquinox Gold Corp.

DOCX
How to Choose the Best Site to Buy Old Facebook Accounts.docx
bybusiness by pvaisback

DOCX
Best 55 Sites for Buying Verified Venmo Accounts in 2026.docx
bymarketing

DOCX
Why Should I Buy Old Gmail Accounts_losangeless _______________.docx
byjoshuabellc7

DOCX
_Buy Old Gmail Accounts with Real Age and Trust with 2fa
bypvasmmpath

DOCX
Best Online Sources for Buying Verified PayPal Business Accounts.docx
bymarketing

PPTX
PDYN Investor Presentation - January 2026.pptx
byPalladyne AI

PDF
How to Buy Twitter Accounts_ A Step-by-Step Guide (2).pdf
byp7u0tz3g7favwxkjrlwm

DOCX
Proven Ways to Buy Verified PayPal Accounts in Los Angeles Safely.docx
byUsaservicepoint

PDF
Raman Bhaumik - A Licensed Pharmacist In Multiple States
byRaman Bhaumik

Top 5 Trusted Places to Buy LinkedIn Accounts in the USA.pdf
byBuy LinkedIn Accounts

Business Process outsourcing SMPBPO101_003 v2013 QCCI.ppt
bycmaranan

RI&E Checklist MKB (2026) – Voorbereiding, Toetsing & Plan van Aanpak PDF
byRIEklaar.nl

Laura Sergio - Specializing In Helping Small Businesses
byLaura Sergio

_The Ultimate Guide to Buying Twitter Accounts Safely.pdf
byp7u0tz3g7favwxkjrlwm

Botswana Diamonds plc Corporate Presentation Jan 2026
byJames AH Campbell

Dr. Michael T. Conner - Serves As CEO
byDr. Michael T. Conner

First Equity BOD New Copper Licences 26 Jan 2026
byJames AH Campbell

IFS state pension.pdf From IFS and Oxford
byHenry Tapper

Maksym Vyshnivetskyi: Управління якістю (UA)
byLviv Startup Club

Equinox Gold - January Investor Presentation.pdf
byEquinox Gold Corp.

How to Choose the Best Site to Buy Old Facebook Accounts.docx
bybusiness by pvaisback

Best 55 Sites for Buying Verified Venmo Accounts in 2026.docx
bymarketing

Why Should I Buy Old Gmail Accounts_losangeless _______________.docx
byjoshuabellc7

_Buy Old Gmail Accounts with Real Age and Trust with 2fa
bypvasmmpath

Best Online Sources for Buying Verified PayPal Business Accounts.docx
bymarketing

PDYN Investor Presentation - January 2026.pptx
byPalladyne AI

How to Buy Twitter Accounts_ A Step-by-Step Guide (2).pdf
byp7u0tz3g7favwxkjrlwm

Proven Ways to Buy Verified PayPal Accounts in Los Angeles Safely.docx
byUsaservicepoint

Raman Bhaumik - A Licensed Pharmacist In Multiple States
byRaman Bhaumik


Enterprise communication using archiMate

  • 1.
    1 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m www.csInteractiveTraining.com Enterprise Collaboration Presented by Louw Labuschagne
  • 2.
    2 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Louw is passionate about all aspects of information management and had the opportunity to act as strategist, architect, speaker, trainer, analyst, modeller and developer within this field over the past 18 years holding a strong track record at reputable organisations. Industry Contributions • Contributor to TOGAF 9 & ArchiMate 1.0 Standards • Contributor to TOGAF 9 Certification for People • Open Group white paper co-author: IT Governance • Speaker at Open Group conferences & Webinars Industry Articles • Author of several published white papers on TOGAF, Enterprise Architecture & Architecture skills Certifications • TOGAF 9 Certified Architect • Licensed ZapThink Architect • Zachman Certified • ArchiMate 2 Certified Louw Labuschagne M. Tech. Professional Practice in I.T. , MBA
  • 3.
    3 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Agenda • Business Context • The Need for Collaboration • Business Entities • Entity Lifecycles • The ArchiMate Language • Primitive & Composite Views EA as Strategy COBIT GERAM Zachman Framework TOGAF ADM ISO/IEC 38500 ArchiMate Architecture Capability SOA SOCCI ISO/IEC 42010 Open Enterprise Security Architecture
  • 4.
    4 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Board of Directors Vehicle Asset Finance Business Information Management Dealer Call Centre Service Centre Processing Centre Document Filing Retail Banking Division Home Loans Division Shared Services Division Finance Internal Audit MIS & Fin Reporting Marketing HR Performance Management Learning & Development Enterprise Program Office Project Haraka ICT Strategy & Architecture Projects & Development IT Operations Organisational Structure
  • 5.
    5 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m • The Vehicle Asset Finance is a highly paper intensive with 85000 applications received monthly. • 20% is manually faxed and contains an average of 4 pages per application. Vehicle Asset Finance Division Business Challenge: The VAF has faced a 5% loss in its market share over the past 3 years due to application processing taking longer that 4 hours per application.
  • 6.
    6 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Key Issues within the VAF Process inefficiencies Ineffective manual work distribution methods result in bottlenecks and high lag times Data Quality Issues No control over the quality of data entering the processing channel System Inefficiencies Inability to systematically track where a transaction is in the process Deterioration in sales relationships Accountability for service breakdowns can‟t be identified (Blaming) Vehicle Asset Finance Division
  • 7.
    7 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m • There is an on-going initiative in Imali Bank to make the business paperless, resulting in an increased importance ascribed to the value of Business Process Management (BPM) systems. • This has led to Imali bank‟s decision to implement a BPM solution in the Vehicle Asset Finance (VAF) environment to manage the administration of vehicle asset finance applications. • To ensure maximum business process efficiency the business processes in the VAF service centre and processing centre will be reengineered in parallel with the implementation of the BPM solution. Project Haraka – Automating Vehicle Asset Finance
  • 8.
    8 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m The Business Need
  • 9.
    9 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m How would you solve the issues in the VAF Division? • Update the systems on a trial and error basis.. High Risk
  • 10.
    10 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m • Appoint a professional person to help update the system.. How would you solve the issues in the VAF Division? Time consuming Expensive
  • 11.
    11 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m • The current system reached end-of-life; Replace with a new system How would you solve the issues in the VAF Division? Decommission Build from scratch
  • 12.
    12 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m The Answer: Enterprise Architecture "If you get really honest and search all of history, seven thousand years of known history of humankind, to find how humanity has learned to cope with two things, complexity and change… there is one game in town, ARCHITECTURE.” John Zachman ISO/IEC 42010:2007 defines “architecture” as: “The fundamental organization of a system, embodied in its components, their relationships to each other and the environment, and the principles governing its design and evolution.” Enterprise Architecture is the continuous practice of describing the essential elements of a socio-technical organisation, their relationships to each other and to the environment, in order to understand complexity and manage change. - Enterprise Architecture Research Forum (EARF)
  • 13.
    13 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Built Environment Lifecycle Concept Design Installation
  • 14.
    14 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m ISO 15704 Requirements for enterprise- reference architectures and methodologies • its initial concept in the eyes of the entrepreneurs who initially developed it, • through its definition, • functional design or specification, • detailed design, • physical implementation or construction, • and finally operation • to obsolescence. Generalised Enterprise Reference Architecture and Methodology (GERAM) is an enterprise-reference architecture that models the whole life history of an enterprise integration project from Identification Concept Requirements Preliminary Design Detailed Design Implementation Operation Decommission EntityLife-cyclePhases
  • 15.
    15 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Product Lifecycle 1. Identification 2. Concept 3. Requirements 4. Preliminary Design 5. Detailed Design 6. Implementation 7. Operation 8. Decommission ISO 15704 GERAM Life-cycle Phases
  • 16.
    16 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Architecture 1. Identification 2. Concept 3. Requirements 4. Preliminary Design 5. Detailed Design 6. Implementation 7. Operation 8. Decommission
  • 17.
    17 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m The Zachman Framework for Enterprise Architecture has become a de facto standard for classifying the artifacts developed in enterprise architecture. It is a logical structure for classifying and organising the design artifacts of an enterprise that are significant to its management. The Zachman Framework is: • Simple – easy to understand, not technical, but logical. • Comprehensive – it addresses the Enterprise in its entirety. • a Language – helps to communicate complex concepts precisely with few, non-technical words. • a Planning tool – position issues in the context of the Enterprise and assists with making better choices. • a Problem-solving tool – working with abstractions allows for the isolation of simple variables without losing the sense of complexity of the Enterprise as a whole. The Zachman Framework
  • 18.
    18 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m • Strategic Information – Organised Information about the environment • Markets • Customers / non-customers • Technology Trends • World-wide Finance / Changing world economy • Tactical Information – Foundation Information – Productivity Information – Competence Information – Resource Allocation Information • Operational Information – Accounting Information -> focused on lowering cost – Cost accounting / Total Quality Management Business Success is based on Creating Value and Wealth and not in just controlling costs – Peter Drucker Enterprise Architecture Value Contribution
  • 19.
    19 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Several disciplines are involved in the enterprise change process Change Process Management Science Industrial Engineering Control Engineering Information & Communication Technology
  • 20.
    20 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m The Entity Life cycle
  • 21.
    21 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Strategic Management Entity (Type 1) defines the necessity and the starting of any enterprise engineering / integration effort. Engineering Entity (Type 2) provides the means to carry out the enterprise engineering efforts defined by enterprise Entity Type 1. Construction Entity (Type 2) provides the means to carry out the enterprise engineering efforts defined by enterprise Entity Type 1. Manufacturing Entity (Type 3) is the result of the operation of Entity Type 2. It uses the operational system provided by Entity Type 2 to define, design, implement and build the products and customer services of the enterprise (Entity Type 4). ISO 15704 GERAM Entity Types & Entity Life-cycle Phases 1. Identification 2. Concept 3. Requirements 4. Preliminary Design 5. Detailed Design 6. Implementation 7. Operation 8. Decommission Product: Enterprise Concept Product: Enterprise Design Product: Enterprise Installation Enterprise Product (Type 4) is the result of the operation of Entity Type 3. It represents all products and customer services of the enterprise.
  • 22.
    22 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Board of Directors Vehicle Asset Finance Business Information Management Dealer Call Centre Service Centre Processing Centre Document Filing Retail Banking Division Home Loans Division Shared Services Division Finance Internal Audit MIS & Fin Reporting Marketing HR Performance Management Learning & Development Enterprise Program Office Project Haraka ICT Strategy & Architecture Projects & Development IT Operations Strategic Management Entity (Type 1) defines the necessity and the starting of any enterprise engineering / integration effort. Construction Entity (Type 2) provides the means to carry out the enterprise engineering efforts defined by enterprise Entity Type 1. Engineering Entity (Type 2) provides the means to carry out the enterprise engineering efforts defined by enterprise Entity Type 1. Manufacturing Entity (Type 3) is the result of the operation of Entity Type 2. It uses the operational system provided by Entity Type 2 to define, design, implement and build the products and customer services of the enterprise (Entity Type 4). ISO 15704 GERAM Entity Types Engineering Entity (Type 2) provides the means to carry out the enterprise engineering efforts defined by enterprise Entity Type 1. Construction Entity (Type 2) provides the means to carry out the enterprise engineering efforts defined by enterprise Entity Type 1.
  • 23.
    23 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Imali Bank Vehicle Asset Finance Electronic Application Service (i-VAF) • To optimise business processes i-VAF will provide full end-to-end management of each vehicle asset finance application. • i-VAF will provide full process and status visibility of application transactions at all interfacing points. – The visibility that is gained will enable continuous improvement to eliminate waste from processes and improve turnaround time and costs. – Quality assurance will be incorporated earlier in the lifecycle and feedback required during the process will be automated where necessary. – All manual forms and other supporting documentation related to applications will be electronically available and greatly reduce the need for paper. • i-VAF will provide the capability to allocate work based on business rules as well as re-prioritise and re-allocate work when required. – Full business activity monitoring will be available across the end-to-end vehicle asset finance application management process with service level agreements and escalation management. Enterprise Product (Type 4) is the result of the operation of Entity Type 3. It represents all products and customer services of the enterprise.
  • 24.
    24 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Project Management Companywide IT Governance IT Engagement Model* Company strategy & operations Project plan Solution Architecture Enterprise architecture Alignment Coordination Business Linkage • Business sponsors for projects • Regular project reviews by company level office • Process owners • Incentives tied to company goals Architecture Linkage • Architect on projects • Project funding based on Architecture compliance • Architect training Project Level Company Level ITBusiness Alignment Linkage • Project Management Office • Business – IT relationship managers • Project manager training *Based on the model defined in Enterprise Architecture as Strategy (Ross, Weill & Robertson) ISO 38500:2008 ISO 21500:2012 ISO/IEC 20000: 2005
  • 25.
    26 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m AAF Automotive Architecture Framework BCA Business Capability Architecture BEAM Business Enterprise Architecure Modeling BPEAM iteratec best-practice enterprise architecture management (EAM) method CEA CEA Framework: A Service Oriented Enterprise Architecture Framework (SOEAF) CIAF Capgemini Integrated Architecture Framework DoDAF US Department of Defense Architecture Framework DRA1 Dragon1 E2AF Extended Enterprise Architecture Framework EXAF Extreme Architecture Framework FEAF US Federal Enterprise Architecture Framework FFLV+GODS Functions-Flows-Layers-Views + Governance- Operations-Development-Support FSAM Federal Segment Architecture Methodology (FSAM) GEAF Gartner's Enterprise Architecture Framework HEAF Health Enterprise Architecture Framework Enterprise Architecture Frameworks ICODE iCode Security Architecture Framework IFW IBM Information FrameWork (IFW) 4+1 Kruchten's 4+1 view model MODAF (UK) Ministry of Defence Architecture Framework NAF NATO C3 Systems Architecture Framework NIST-EAM NIST Enterprise Architecture Model PEAF Pragmatic Enterprise Architecture Framework PPOOA Processes Pipelines in Object Oriented Architectures SABSA Sherwood Applied Business Security Architecture TEAF (US) Treasury Enterprise Architecture Framework TOGAF The Open Group Architecture Framework xAF Extensible Architecture Framework ZF Zachman Framework IADS IBM Architecture Description Standard IAF Index Architecture Framework
  • 26.
    27 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m IFIP-IFAC Task Force, 1999) ISO 15704 Requirements for enterprise-reference architectures and methodologies GERA Identifies concepts of enterprise integration EEM Describe process of enterprise engineering EMLs Provide modelling constructs for modelling enterprise concepts EETs Support enterprise engineering GEMCs Define the meaning of enterprise modelling constructs PEMs Provide reusable reference models and designs of enterprise concepts EMs Enterprise designs, and models to support analysis and operationEMOs Provide implementable modules (human, process & technology) EOS Support the operation of the particular enterprise employs utilise Implemented in support Used to build Used to implement (Particular) Enterprise Operational Systems Human Concepts Technology Concepts Process Concepts Generic Enterprise Reference Architecture Enterprise Engineering Methodology Enterprise Modelling Languages Partial Enterprise Models Generic Enterprise Modelling Concepts Enterprise Modules (Particular) Enterprise Models Enterprise Engineering Tools Strategic Management Entity (Type 1) Construction Entity (Type 2) Engineering Entity (Type 2) Enterprise Product (Type 4) Manufacturi ng Entity (Type 3) Methodology Entity (Type 5) Enterprise Engineering Tool
  • 27.
    28 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m The Architecture Development Method (ADM) is an iterative approach to planning, designing, realising, and governing the change effort. ISO 38500:2008 ISO 21500:2012 ISO/IEC 15504 (SPICE) ISO/IEC 20000: 2005 Identification Concept Requirements Preliminary Design Detailed Design Implementation Operation Decommission
  • 28.
    29 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m ArchiMate
  • 29.
    30 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m ArchiMate 2 and the TOGAF® ADM • ArchiMate Core – Enables modeling of the architecture domains defined by TOGAF • Motivation Extension – Enables modeling of stakeholders, drivers for change, business goals, principles and requirements • Implementation and Migration Extension – Enables modeling of project portfolio management, gap analysis and transition and migration planning
  • 30.
    31 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Have you ever seen the following happen? THE QUICK BROWN FOX JUMPS OVER THE LAZY DOG A A B B C C D D E E F F M M N N O O P P Q Q R R G G H H I I J J K K L L S S T T U U V V W W X X Y Y Z Z Apply English Language Rules
  • 31.
    32 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Can you now answer the question? THE QUICK BROWN FOX JUMPS OVER THE LAZY DOG ...Because everyone in the room were taught the english language rules ...  Standard form for each shape  Standard spelling for using shapes  Standard pronunciations for each shape  Standard meanings of each shape  Standard rules for the use of shapes
  • 32.
    33 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Key requirements of an Enterprise Architecture Modelling Language  Focused on modelling inter-domain relations  Modelling the global structure within each domain, showing the main elements and their dependencies, in a way that is easy to understand for non-experts of the domain  Models must be interpreted in an unambiguous way  Visualise models in a different way, tailored towards specific stakeholders with specific information requirements
  • 33.
    34 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Introduction to [Ahr-ki-meyt] • ArchiMate provides instruments to support enterprise architects in describing, analysing and visualising the relationships among business domains in an unambiguous way • ArchiMate is an open and independent modelling language for enterprise architecture • Supported by leading EA tool vendors • Tailored towards specific stakeholders addressing specific information requirements
  • 34.
    35 w ww . c s I n t e r a c t i v e T r a i n i n g . c o m Layered Services Approach Application Layer The Application layer supports the business layer with application services which are realised by (software) applications. Business Layer The Business layer offers products and services to external customers, which are realised in the organisation by business processes performed by business actors. Technology Layer The Technology layer offers infrastructural services (e.g., processing, storage and communication services) needed to run applications, realised by computer and communication hardware and system software. A service is defined as a unit of functionality that some entity (e.g., a system, organisation or department) makes available to its environment, and which has some value for certain entities in the environment.
