ENERGY CONSERVATION

1 2PROJECT:
JAN,2009

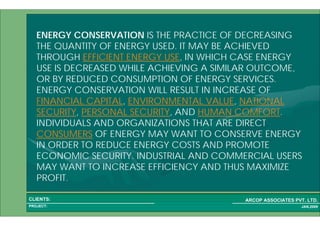

ENERGY CONSERVATION IS THE PRACTICE OF DECREASING
THE QUANTITY OF ENERGY USED. IT MAY BE ACHIEVED
THROUGH EFFICIENT ENERGY USE, IN WHICH CASE ENERGY
USE IS DECREASED WHILE ACHIEVING A SIMILAR OUTCOME,
OR BY REDUCED CONSUMPTION OF ENERGY SERVICES.
ENERGY CONSERVATION WILL RESULT IN INCREASE OF
FINANCIAL CAPITAL, ENVIRONMENTAL VALUE, NATIONAL
SECURITY, PERSONAL SECURITY, AND HUMAN COMFORT.
INDIVIDUALS AND ORGANIZATIONS THAT ARE DIRECT
CONSUMERS OF ENERGY MAY WANT TO CONSERVE ENERGY
IN ORDER TO REDUCE ENERGY COSTS AND PROMOTE
ECONOMIC SECURITY. INDUSTRIAL AND COMMERCIAL USERS
MAY WANT TO INCREASE EFFICIENCY AND THUS MAXIMIZE
PROFIT.

1 3PROJECT:
JAN,2009

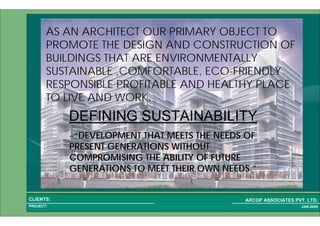

AS AN ARCHITECT OUR PRIMARY OBJECT TO
PROMOTE THE DESIGN AND CONSTRUCTION OF
BUILDINGS THAT ARE ENVIRONMENTALLY
SUSTAINABLE ,COMFORTABLE, ECO-FRIENDLY
RESPONSIBLE PROFITABLE AND HEALTHY PLACE
TO LIVE AND WORK.
DEFINING SUSTAINABILITY
––““DEVELOPMENT THAT MEETS THE NEEDS OFDEVELOPMENT THAT MEETS THE NEEDS OF
PRESENT GENERATIONS WITHOUTPRESENT GENERATIONS WITHOUT
COMPROMISING THE ABILITY OF FUTURECOMPROMISING THE ABILITY OF FUTURE
GENERATIONS TO MEET THEIR OWN NEEDS.GENERATIONS TO MEET THEIR OWN NEEDS.””

1 4PROJECT:
JAN,2009
DESIGN AND CONSTRUCTION PRACTICES THAT MEET
SPECIFIED STANDARDS, RESOLVING MUCH OF THE NEGATIVE
IMPACTS ON BUILDINGS ON THEIR OCCUPANTS AND ON THE
ENVIRONMENT.
WHAT IS GREEN BUILDING?
ENERGYMATERIAL
USE
WATER
MANAGEMENT
SITE
PLANNING
INDOOR
ENVIRONMENTAL
QUALITY
CONSIDER AND REDUCES ITS IMPACT ON
THE HUMAN HEALTH.
USE LESS ENERGY.
USE LESS WATER.
CONSIDERS THE LIFE CYCLE OF THE MATERIAL USED.
US/IG BUILDING
COUNCIL

1 5PROJECT:
JAN,2009

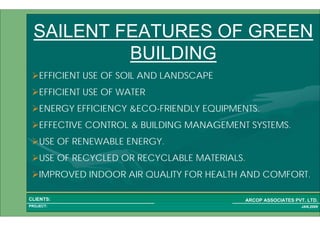

SAILENT FEATURES OF GREEN
BUILDING
EFFICIENT USE OF SOIL AND LANDSCAPE
EFFICIENT USE OF WATER
ENERGY EFFICIENCY &ECO-FRIENDLY EQUIPMENTS.
EFFECTIVE CONTROL & BUILDING MANAGEMENT SYSTEMS.
USE OF RENEWABLE ENERGY.
USE OF RECYCLED OR RECYCLABLE MATERIALS.
IMPROVED INDOOR AIR QUALITY FOR HEALTH AND COMFORT.

1 6PROJECT:
JAN,2009

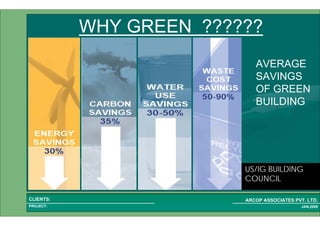

WHY GREEN ??????
AVERAGE
SAVINGS
OF GREEN
BUILDING
US/IG BUILDING
COUNCIL

1 7PROJECT:
JAN,2009

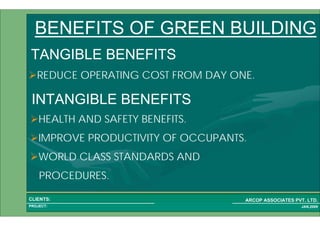

BENEFITS OF GREEN BUILDING
TANGIBLE BENEFITS
REDUCE OPERATING COST FROM DAY ONE.
INTANGIBLE BENEFITS
HEALTH AND SAFETY BENEFITS.
IMPROVE PRODUCTIVITY OF OCCUPANTS.
WORLD CLASS STANDARDS AND
PROCEDURES.

1 8PROJECT:
JAN,2009
VARIOUS GREEN RATING
SYSTEM
TERI-GRIHA (INDIA)
ECBC (ENERGY CONSERVATION BUILDING CODE)
GOVERNMENT OF INDIA.
IGBC – INDIAN GREEN BUILDING COUNCIL CURRENTLY
LEEDS IN TAKING INITIATIVES AND HELPING VARIOUS
INSTITUTIONS IN CONSERVING ENERGY THROUGH STANDARD
APPLIED PROCEDURES AND TECHNIQUES AND IS DIRECTLY
AFFILIATED WITH USGBC (UNITED STATES GREEN BUILDING
COUNCIL)

1 9PROJECT:
JAN,2009
GREEN BUILDING
RATING SYSTEM

1 10PROJECT:
JAN,2009

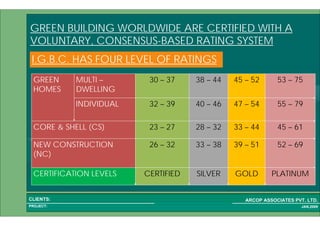

GREEN BUILDING WORLDWIDE ARE CERTIFIED WITH A
VOLUNTARY, CONSENSUS-BASED RATING SYSTEM
PLATINUMGOLDSILVERCERTIFIEDCERTIFICATION LEVELS
52 – 6939 – 5133 – 3826 – 32NEW CONSTRUCTION
(NC)
45 – 6133 – 4428 – 3223 – 27CORE & SHELL (CS)
55 – 7947 – 5440 – 4632 – 39INDIVIDUAL
53 – 7545 – 5238 – 4430 – 37MULTI –
DWELLING
GREEN
HOMES
I.G.B.C. HAS FOUR LEVEL OF RATINGS

1 11PROJECT:
JAN,2009
75796169TOTAL POINTS AVAILABLE
04040505Innovation & Design
Process
6
09101115Indoor Environmental
Quality
5
10131113Materials & Resources4
19201417Energy & Atmosphere3
23230606Water Efficiency2
10091413Sustainable Sites1
MULTI-
DWELLING
INDIVIDU
AL
GREEN HOMESCORE &
SHELL
(CS)
NEW
CONSTRUCTION
(NC)
CHAPTERSS.
No

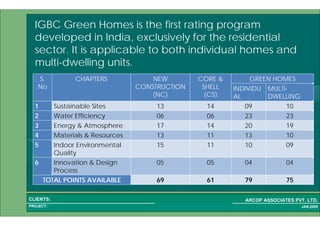

IGBC Green Homes is the first rating program
developed in India, exclusively for the residential
sector. It is applicable to both individual homes and
multi-dwelling units.

1 12PROJECT:
JAN,2009

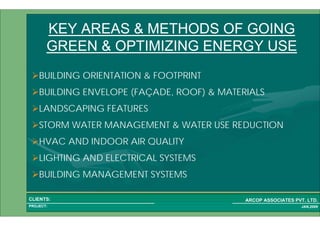

KEY AREAS & METHODS OF GOING
GREEN & OPTIMIZING ENERGY USE
BUILDING ORIENTATION & FOOTPRINT
BUILDING ENVELOPE (FAÇADE, ROOF) & MATERIALS
LANDSCAPING FEATURES
STORM WATER MANAGEMENT & WATER USE REDUCTION
HVAC AND INDOOR AIR QUALITY
LIGHTING AND ELECTRICAL SYSTEMS
BUILDING MANAGEMENT SYSTEMS

1 13PROJECT:
JAN,2009

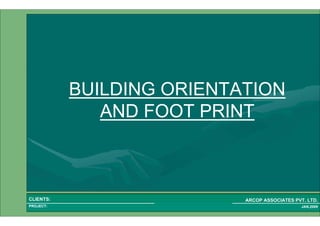

BUILDING ORIENTATION
AND FOOT PRINT

1 14PROJECT:
JAN,2009

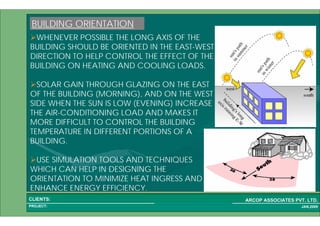

WHENEVER POSSIBLE THE LONG AXIS OF THE
BUILDING SHOULD BE ORIENTED IN THE EAST-WEST
DIRECTION TO HELP CONTROL THE EFFECT OF THE
BUILDING ON HEATING AND COOLING LOADS.
SOLAR GAIN THROUGH GLAZING ON THE EAST
OF THE BUILDING (MORNING), AND ON THE WEST
SIDE WHEN THE SUN IS LOW (EVENING) INCREASE
THE AIR-CONDITIONING LOAD AND MAKES IT
MORE DIFFICULT TO CONTROL THE BUILDING
TEMPERATURE IN DIFFERENT PORTIONS OF A
BUILDING.
USE SIMULATION TOOLS AND TECHNIQUES
WHICH CAN HELP IN DESIGNING THE
ORIENTATION TO MINIMIZE HEAT INGRESS AND
ENHANCE ENERGY EFFICIENCY.
BUILDING ORIENTATION

1 15PROJECT:
JAN,2009
BUILDING ENVELOPE
(FACADE ,ROOF) &
MATERIALS

1 16PROJECT:
JAN,2009

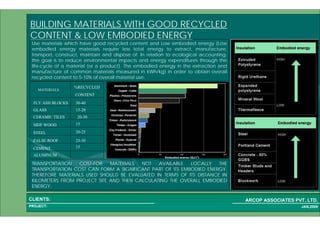

TRANSPORTATION COST-FOR MATERIALS NOT AVAILABLE LOCALLY THE
TRANSPORTATION COST CAN FORM A SIGNIFICANT PART OF ITS EMBODIED ENERGY.
THEREFORE MATERIALS USED SHOULD BE EVALUATED IN TERMS OF ITS DISTANCE IN
KILOMETERS FROM PROJECT SITE AND THEN CALCULATING THE OVERALL EMBODIED
ENERGY.
MATERIALS
%RECYCLED
CONTENT
FLY ASH BLOCKS 30-40
GLASS 15-20
CERAMIC TILES 20-30
MDF WOOD 15
STEEL 20-25
FALSE ROOF 25-30
CEMENT 15
ALUMINUM
BUILDING MATERIALS WITH GOOD RECYCLED
CONTENT & LOW EMBODIED ENERGY
Use materials which have good recycled content and Low embodied energy (Low
embodied energy materials require less total energy to extract, manufacture,
transport, construct, maintain and dispose of. In relation to ecological accounting,
the goal is to reduce environmental impacts and energy expenditures through the
life-cycle of a material (or a product). The embodied energy in the extraction and
manufacture of common materials measured in kWh/kg) in order to obtain overall
recycled content to 5-10% of overall material use.

1 17PROJECT:
JAN,2009
BLOCKS
FACE SIZE- 600X200
SLABS
FACE SIZE-600X600
THICKNESS RANGING FROM
75,100,125,150,200,230
SIZES:
THEIR USAGE BY THEMSELVES
CAN BRING DOWN THE A/C
HEAT LOAD BY 20-30%.
60% RECYCLE CONTENT
THE INSULATION PROPERTIES OF
THESE BLOCK ARE 5 TIMES MORE
THEN NORMAL BRICKS.

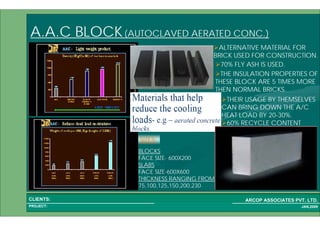

A.A.C BLOCK(AUTOCLAVED AERATED CONC.)
70% FLY ASH IS USED.
ALTERNATIVE MATERIAL FOR
BRICK USED FOR CONSTRUCTION.

1 18PROJECT:
JAN,2009

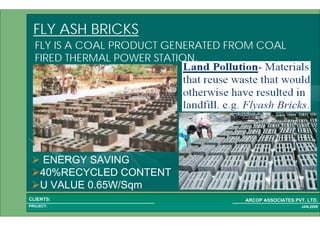

FLY ASH BRICKS
ENERGY SAVING
40%RECYCLED CONTENT
U VALUE 0.65W/Sqm
FLY IS A COAL PRODUCT GENERATED FROM COAL
FIRED THERMAL POWER STATION.

1 19PROJECT:
JAN,2009

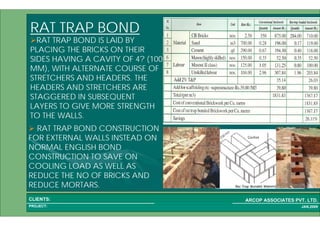

RAT TRAP BOND CONSTRUCTION
FOR EXTERNAL WALLS INSTEAD ON
NORMAL ENGLISH BOND
CONSTRUCTION TO SAVE ON
COOLING LOAD AS WELL AS
REDUCE THE NO OF BRICKS AND
REDUCE MORTARS.
RAT TRAP BOND
RAT TRAP BOND IS LAID BY
PLACING THE BRICKS ON THEIR
SIDES HAVING A CAVITY OF 4? (100
MM), WITH ALTERNATE COURSE OF
STRETCHERS AND HEADERS. THE
HEADERS AND STRETCHERS ARE
STAGGERED IN SUBSEQUENT
LAYERS TO GIVE MORE STRENGTH
TO THE WALLS.

1 20PROJECT:
JAN,2009

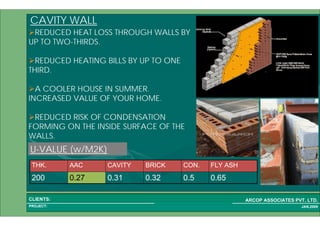

CAVITY WALL
REDUCED HEAT LOSS THROUGH WALLS BY
UP TO TWO-THIRDS.
REDUCED HEATING BILLS BY UP TO ONE
THIRD.
A COOLER HOUSE IN SUMMER.
INCREASED VALUE OF YOUR HOME.
REDUCED RISK OF CONDENSATION
FORMING ON THE INSIDE SURFACE OF THE
WALLS.
U-VALUE (w/M2K)
0.650.50.320.310.27200
FLY ASHCON.BRICKCAVITYAACTHK.

1 21PROJECT:
JAN,2009

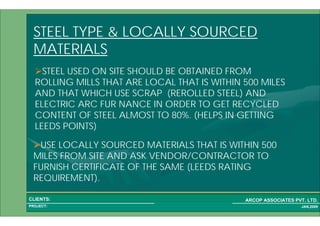

STEEL USED ON SITE SHOULD BE OBTAINED FROM
ROLLING MILLS THAT ARE LOCAL THAT IS WITHIN 500 MILES
AND THAT WHICH USE SCRAP (REROLLED STEEL) AND
ELECTRIC ARC FUR NANCE IN ORDER TO GET RECYCLED
CONTENT OF STEEL ALMOST TO 80%. (HELPS IN GETTING
LEEDS POINTS)
USE LOCALLY SOURCED MATERIALS THAT IS WITHIN 500
MILES FROM SITE AND ASK VENDOR/CONTRACTOR TO
FURNISH CERTIFICATE OF THE SAME (LEEDS RATING
REQUIREMENT).
STEEL TYPE & LOCALLY SOURCED
MATERIALS

1 22PROJECT:
JAN,2009

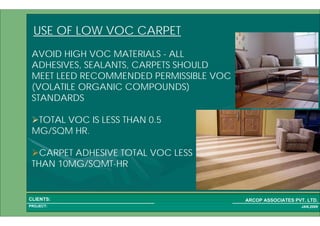

USE OF LOW VOC CARPET
TOTAL VOC IS LESS THAN 0.5
MG/SQM HR.
CARPET ADHESIVE TOTAL VOC LESS
THAN 10MG/SQMT-HR
AVOID HIGH VOC MATERIALS - ALL
ADHESIVES, SEALANTS, CARPETS SHOULD
MEET LEED RECOMMENDED PERMISSIBLE VOC
(VOLATILE ORGANIC COMPOUNDS)
STANDARDS

1 23PROJECT:
JAN,2009

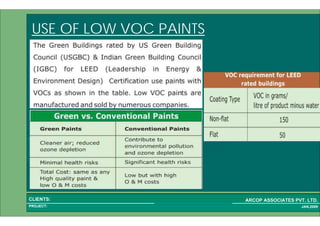

USE OF LOW VOC PAINTS

1 24PROJECT:
JAN,2009
ROOFING SYSTEM

1 25PROJECT:
JAN,2009

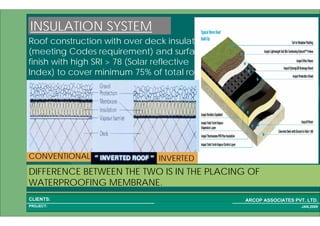

INSULATION SYSTEM
CONVENTIONAL
Roof construction with over deck insulation
(meeting Codes requirement) and surface
finish with high SRI > 78 (Solar reflective
Index) to cover minimum 75% of total roof
DIFFERENCE BETWEEN THE TWO IS IN THE PLACING OF
WATERPROOFING MEMBRANE.
INVERTED

1 26PROJECT:
JAN,2009
PROTECTION OF MEMBRANE FROM EXTREME
TEMPERATURE CYCLES & FROM MECHANICAL DAMAGES
ELIMINATION OF VAPOUR BARRIER
INSTALLATION SPEED INCREASED
MAINTENANCE COSTS REDUCED
INCREASE OF MEMBRANE LIFE.

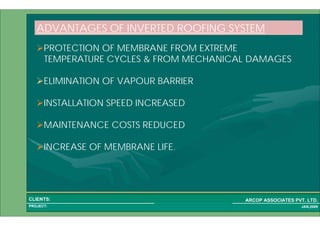

ADVANTAGES OF INVERTED ROOFING SYSTEM

1 27PROJECT:
JAN,2009

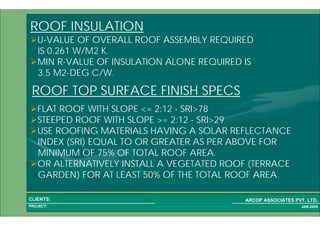

ROOF INSULATION
U-VALUE OF OVERALL ROOF ASSEMBLY REQUIRED
IS 0.261 W/M2 K.
MIN R-VALUE OF INSULATION ALONE REQUIRED IS
3.5 M2-DEG C/W.
ROOF TOP SURFACE FINISH SPECS
FLAT ROOF WITH SLOPE <= 2:12 - SRI>78
STEEPED ROOF WITH SLOPE >= 2:12 - SRI>29
USE ROOFING MATERIALS HAVING A SOLAR REFLECTANCE
INDEX (SRI) EQUAL TO OR GREATER AS PER ABOVE FOR
MINIMUM OF 75% OF TOTAL ROOF AREA.
OR ALTERNATIVELY INSTALL A VEGETATED ROOF (TERRACE
GARDEN) FOR AT LEAST 50% OF THE TOTAL ROOF AREA.

1 28PROJECT:
JAN,2009

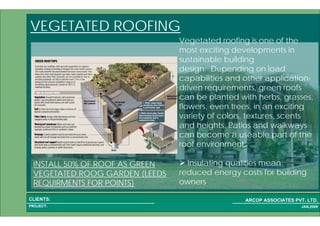

VEGETATED ROOFING
Vegetated roofing is one of the
most exciting developments in
sustainable building
design. Depending on load
capabilities and other application-
driven requirements, green roofs
can be planted with herbs, grasses,
flowers, even trees, in an exciting
variety of colors, textures, scents
and heights. Patios and walkways
can become a useable part of the
roof environment.
Insulating qualities mean
reduced energy costs for building
owners
INSTALL 50% OF ROOF AS GREEN
VEGETATED ROOG GARDEN (LEEDS
REQUIRMENTS FOR POINTS)

1 29PROJECT:
JAN,2009

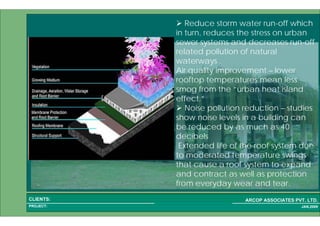

Reduce storm water run-off which
in turn, reduces the stress on urban
sewer systems and decreases run-off
related pollution of natural
waterways .
Air quality improvement – lower
rooftop temperatures mean less
smog from the “urban heat island
effect.”
Noise pollution reduction – studies
show noise levels in a building can
be reduced by as much as 40
decibels
Extended life of the roof system due
to moderated temperature swings
that cause a roof system to expand
and contract as well as protection
from everyday wear and tear.

1 30PROJECT:
JAN,2009
FACADE SYSTEM

1 31PROJECT:
JAN,2009

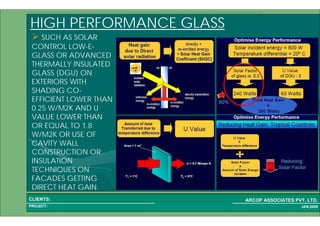

HIGH PERFORMANCE GLASS
SUCH AS SOLAR
CONTROL LOW-E-
GLASS OR ADVANCED
THERMALLY INSULATED
GLASS (DGU) ON
EXTERIORS WITH
SHADING CO-
EFFICIENT LOWER THAN
0.25 W/M2K AND U
VALUE LOWER THAN
OR EQUAL TO 1.8
W/M2K OR USE OF
CAVITY WALL
CONSTRUCTION OR
INSULATION
TECHNIQUES ON
FACADES GETTING
DIRECT HEAT GAIN.

1 32PROJECT:
JAN,2009

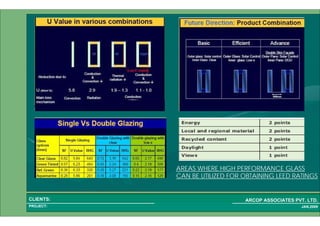

AREAS WHERE HIGH PERFORMANCE GLASS
CAN BE UTILIZED FOR OBTAINING LEED RATINGS

1 33PROJECT:
JAN,2009

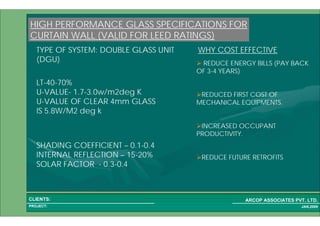

HIGH PERFORMANCE GLASS SPECIFICATIONS FOR
CURTAIN WALL (VALID FOR LEED RATINGS)
TYPE OF SYSTEM: DOUBLE GLASS UNIT
(DGU)
LT-40-70%
U-VALUE- 1.7-3.0w/m2deg K
U-VALUE OF CLEAR 4mm GLASS
IS 5.8W/M2 deg k
SHADING COEFFICIENT – 0.1-0.4
INTERNAL REFLECTION – 15-20%
SOLAR FACTOR - 0.3-0.4
REDUCE ENERGY BILLS (PAY BACK
OF 3-4 YEARS)
REDUCED FIRST COST OF
MECHANICAL EQUIPMENTS.
INCREASED OCCUPANT
PRODUCTIVITY.
REDUCE FUTURE RETROFITS
WHY COST EFFECTIVE

1 34PROJECT:
JAN,2009

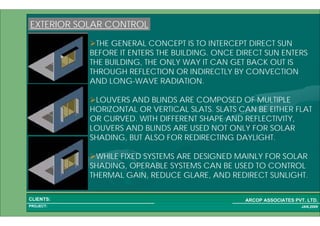

EXTERIOR SOLAR CONTROL
THE GENERAL CONCEPT IS TO INTERCEPT DIRECT SUN
BEFORE IT ENTERS THE BUILDING. ONCE DIRECT SUN ENTERS
THE BUILDING, THE ONLY WAY IT CAN GET BACK OUT IS
THROUGH REFLECTION OR INDIRECTLY BY CONVECTION
AND LONG-WAVE RADIATION.
LOUVERS AND BLINDS ARE COMPOSED OF MULTIPLE
HORIZONTAL OR VERTICAL SLATS. SLATS CAN BE EITHER FLAT
OR CURVED. WITH DIFFERENT SHAPE AND REFLECTIVITY,
LOUVERS AND BLINDS ARE USED NOT ONLY FOR SOLAR
SHADING, BUT ALSO FOR REDIRECTING DAYLIGHT.
WHILE FIXED SYSTEMS ARE DESIGNED MAINLY FOR SOLAR
SHADING, OPERABLE SYSTEMS CAN BE USED TO CONTROL
THERMAL GAIN, REDUCE GLARE, AND REDIRECT SUNLIGHT.

1 35PROJECT:
JAN,2009
OPERABLE SYSTEMS (WHETHER MANUAL OR
AUTOMATICALLY CONTROLLED) PROVIDE MORE FLEXIBILITY
BECAUSE THE BLINDS CAN BE RETRACTED AND TILTED,
RESPONDING TO THE OUTDOOR CONDITIONS.
LOUVERS AND BLINDS PERFORM WELL IN ALL CLIMATES.
FOR COMMERCIAL BUILDINGS IN HOT CLIMATES, THE
SYSTEM MAY BE MORE ENERGY-EFFICIENT IF PLACED ON
THE EXTERIOR OF THE BUILDING WHILE BLOCKING SOLAR
RADIATION. FOR BUILDINGS IN COLD CLIMATES, THE SYSTEM
CAN BE USED TO PROVIDE MORE DAYLIGHT AND ABSORB
SOLAR RADIATION.
SKETCHES OF VARIOUS EXTERIOR SHADING SYSTEMS
HORIZONTAL OVERHANG PROTECTS SOUTH FACADES
FROM HIGH-ANGLE SUN DURING THE DAY.

1 36PROJECT:
JAN,2009

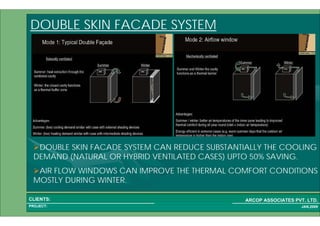

DOUBLE SKIN FACADE SYSTEM
DOUBLE SKIN FACADE SYSTEM CAN REDUCE SUBSTANTIALLY THE COOLING
DEMAND (NATURAL OR HYBRID VENTILATED CASES) UPTO 50% SAVING.
AIR FLOW WINDOWS CAN IMPROVE THE THERMAL COMFORT CONDITIONS
MOSTLY DURING WINTER.

1 37PROJECT:
JAN,2009
FACADE STRATEGIES

1 38PROJECT:
JAN,2009

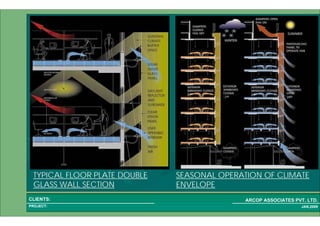

SEASONAL OPERATION OF CLIMATE
ENVELOPE
TYPICAL FLOOR PLATE DOUBLE
GLASS WALL SECTION

1 39PROJECT:
JAN,2009

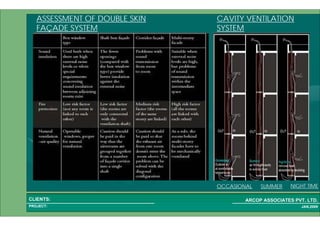

ASSESSMENT OF DOUBLE SKIN
FAÇADE SYSTEM
CAVITY VENTILATION
SYSTEM
SUMMER NIGHT TIMEOCCASIONAL

1 40PROJECT:
JAN,2009
LANDSCAPING, STORM
WATER MANAGEMENT ,
WATER USE REDUCTION &
WASTE WATER RECYCLING

1 41PROJECT:
JAN,2009

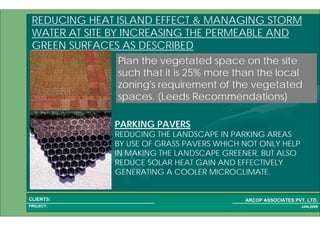

PARKING PAVERS
REDUCING THE LANDSCAPE IN PARKING AREAS
BY USE OF GRASS PAVERS WHICH NOT ONLY HELP
IN MAKING THE LANDSCAPE GREENER, BUT ALSO
REDUCE SOLAR HEAT GAIN AND EFFECTIVELY
GENERATING A COOLER MICROCLIMATE.
Plan the vegetated space on the site
such that it is 25% more than the local
zoning's requirement of the vegetated
spaces. (Leeds Recommendations)
REDUCING HEAT ISLAND EFFECT & MANAGING STORM
WATER AT SITE BY INCREASING THE PERMEABLE AND
GREEN SURFACES AS DESCRIBED

1 42PROJECT:
JAN,2009

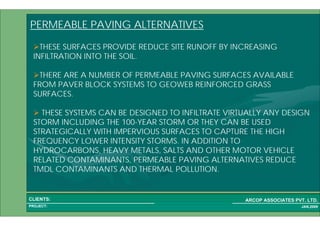

PERMEABLE PAVING ALTERNATIVES
THESE SURFACES PROVIDE REDUCE SITE RUNOFF BY INCREASING
INFILTRATION INTO THE SOIL.
THERE ARE A NUMBER OF PERMEABLE PAVING SURFACES AVAILABLE
FROM PAVER BLOCK SYSTEMS TO GEOWEB REINFORCED GRASS
SURFACES.
THESE SYSTEMS CAN BE DESIGNED TO INFILTRATE VIRTUALLY ANY DESIGN
STORM INCLUDING THE 100-YEAR STORM OR THEY CAN BE USED
STRATEGICALLY WITH IMPERVIOUS SURFACES TO CAPTURE THE HIGH
FREQUENCY LOWER INTENSITY STORMS. IN ADDITION TO
HYDROCARBONS, HEAVY METALS, SALTS AND OTHER MOTOR VEHICLE
RELATED CONTAMINANTS, PERMEABLE PAVING ALTERNATIVES REDUCE
TMDL CONTAMINANTS AND THERMAL POLLUTION.

1 43PROJECT:
JAN,2009
NATIVE & DRAUGHT TOLERANT LANDSCAPE PLANT: - WILL
REDUCE THE TIME AND MONEY SPENT ON IRRIGATION. THEY ARE
HARDY AND REQUIRE POOR TO AVERAGE SOILS THEREBY
REDUCING DEPENDENCE ON VALUABLE HUMUS.
LANDSCAPE LIGHTING VIA SOLAR POWER, SOLAR PANELS TO BE
KEPT ON UNUSABLE ROOFS OF THE BUILDINGS LIKE GENERATOR,
AND MAINTENANCE BLOCK. NON CRITICAL FUNCTIONS LIKE
LANDSCAPE LIGHTING, TELEPHONE BOOTHS, TO BE KEPT ON
SOLAR POWER.
DRIP IRRIGATION & WASTE RECYCLED WATER: - THEREBY
REDUCING WASTAGE OF PRECIOUS WATER RESOURCE AS WELL
AS WELL AS DEPENDENCE ON HUMAN RESOURCES,
MECHANICAL IRRIGATION SYSTEMS. TREATED WATER FROM
SEWAGE TREATMENT PLANT TO BE USED FOR ALL IRRIGATION
PURPOSES.

1 44PROJECT:
JAN,2009

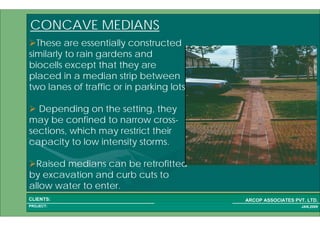

CONCAVE MEDIANS
These are essentially constructed
similarly to rain gardens and
biocells except that they are
placed in a median strip between
two lanes of traffic or in parking lots.
Depending on the setting, they
may be confined to narrow cross-
sections, which may restrict their
capacity to low intensity storms.
Raised medians can be retrofitted
by excavation and curb cuts to
allow water to enter.

1 45PROJECT:
JAN,2009

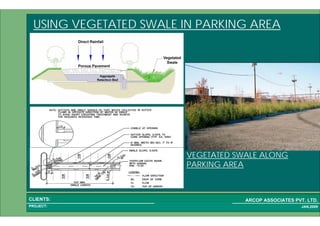

USING VEGETATED SWALE IN PARKING AREA
VEGETATED SWALE ALONG
PARKING AREA

1 46PROJECT:
JAN,2009

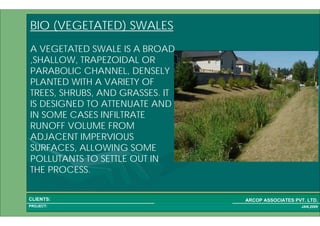

BIO (VEGETATED) SWALES
A VEGETATED SWALE IS A BROAD
,SHALLOW, TRAPEZOIDAL OR
PARABOLIC CHANNEL, DENSELY
PLANTED WITH A VARIETY OF
TREES, SHRUBS, AND GRASSES. IT
IS DESIGNED TO ATTENUATE AND
IN SOME CASES INFILTRATE
RUNOFF VOLUME FROM
ADJACENT IMPERVIOUS
SURFACES, ALLOWING SOME
POLLUTANTS TO SETTLE OUT IN
THE PROCESS.

1 47PROJECT:
JAN,2009

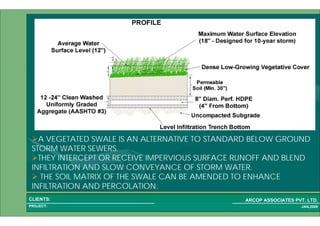

A VEGETATED SWALE IS AN ALTERNATIVE TO STANDARD BELOW GROUND
STORM WATER SEWERS.
THEY INTERCEPT OR RECEIVE IMPERVIOUS SURFACE RUNOFF AND BLEND
INFILTRATION AND SLOW CONVEYANCE OF STORM WATER.
THE SOIL MATRIX OF THE SWALE CAN BE AMENDED TO ENHANCE
INFILTRATION AND PERCOLATION.

1 48PROJECT:
JAN,2009

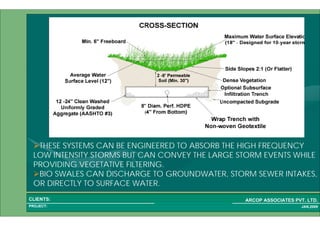

THESE SYSTEMS CAN BE ENGINEERED TO ABSORB THE HIGH FREQUENCY
LOW INTENSITY STORMS BUT CAN CONVEY THE LARGE STORM EVENTS WHILE
PROVIDING VEGETATIVE FILTERING.
BIO SWALES CAN DISCHARGE TO GROUNDWATER, STORM SEWER INTAKES,
OR DIRECTLY TO SURFACE WATER.

1 49PROJECT:
JAN,2009

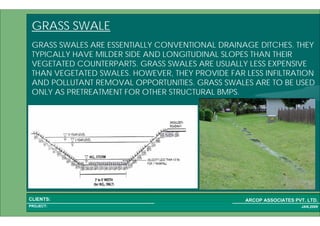

GRASS SWALE
GRASS SWALES ARE ESSENTIALLY CONVENTIONAL DRAINAGE DITCHES. THEY
TYPICALLY HAVE MILDER SIDE AND LONGITUDINAL SLOPES THAN THEIR
VEGETATED COUNTERPARTS. GRASS SWALES ARE USUALLY LESS EXPENSIVE
THAN VEGETATED SWALES. HOWEVER, THEY PROVIDE FAR LESS INFILTRATION
AND POLLUTANT REMOVAL OPPORTUNITIES. GRASS SWALES ARE TO BE USED
ONLY AS PRETREATMENT FOR OTHER STRUCTURAL BMPS.

1 50PROJECT:
JAN,2009
WET SWALE
WET SWALES ARE ESSENTIALLY LINEAR WETLAND CELLS. THEIR DESIGN OFTEN
INCORPORATES SHALLOW, PERMANENT POOLS OR MARSHY CONDITIONS
THAT CAN SUSTAIN WETLAND VEGETATION, WHICH IN TURN PROVIDES
POTENTIALLY HIGH POLLUTANT REMOVAL. A HIGH WATER TABLE OR
POORLY DRAINED SOILS ARE A PREREQUISITE FOR WET SWALES. THE
DRAWBACK WITH WET SWALES, AT LEAST IN RESIDENTIAL OR COMMERCIAL
SETTINGS, IS THAT THEY MAY PROMOTE MOSQUITO BREEDING IN THE
SHALLOW STANDING WATER. INFILTRATION IS MINIMAL.

1 51PROJECT:
JAN,2009

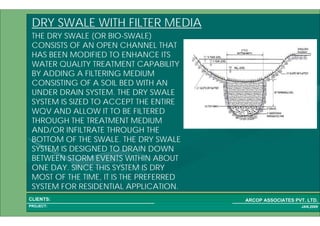

DRY SWALE WITH FILTER MEDIA
THE DRY SWALE (OR BIO-SWALE)
CONSISTS OF AN OPEN CHANNEL THAT
HAS BEEN MODIFIED TO ENHANCE ITS
WATER QUALITY TREATMENT CAPABILITY
BY ADDING A FILTERING MEDIUM
CONSISTING OF A SOIL BED WITH AN
UNDER DRAIN SYSTEM. THE DRY SWALE
SYSTEM IS SIZED TO ACCEPT THE ENTIRE
WQV AND ALLOW IT TO BE FILTERED
THROUGH THE TREATMENT MEDIUM
AND/OR INFILTRATE THROUGH THE
BOTTOM OF THE SWALE. THE DRY SWALE
SYSTEM IS DESIGNED TO DRAIN DOWN
BETWEEN STORM EVENTS WITHIN ABOUT
ONE DAY. SINCE THIS SYSTEM IS DRY
MOST OF THE TIME, IT IS THE PREFERRED
SYSTEM FOR RESIDENTIAL APPLICATION.

1 52PROJECT:
JAN,2009

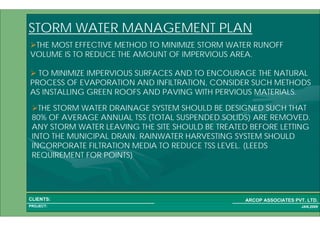

THE MOST EFFECTIVE METHOD TO MINIMIZE STORM WATER RUNOFF
VOLUME IS TO REDUCE THE AMOUNT OF IMPERVIOUS AREA.
TO MINIMIZE IMPERVIOUS SURFACES AND TO ENCOURAGE THE NATURAL
PROCESS OF EVAPORATION AND INFILTRATION, CONSIDER SUCH METHODS
AS INSTALLING GREEN ROOFS AND PAVING WITH PERVIOUS MATERIALS.
STORM WATER MANAGEMENT PLAN
THE STORM WATER DRAINAGE SYSTEM SHOULD BE DESIGNED SUCH THAT
80% OF AVERAGE ANNUAL TSS (TOTAL SUSPENDED SOLIDS) ARE REMOVED.
ANY STORM WATER LEAVING THE SITE SHOULD BE TREATED BEFORE LETTING
INTO THE MUNICIPAL DRAIN. RAINWATER HARVESTING SYSTEM SHOULD
INCORPORATE FILTRATION MEDIA TO REDUCE TSS LEVEL. (LEEDS
REQUIREMENT FOR POINTS)

1 53PROJECT:
JAN,2009
DO NOT USE POTABLE WATER FOR LANDSCAPE
IRRIGATION. USE RECYCLED WATER/STORM WATER.
INSTALL MOISTURE SENSOR ON PLANTS FOR WATER
CONSERVATION
USE RECYCLED WATER FOR HVAC SYSTEM
USE RECYCLED WATER FOR TOILET FLUSHING
MONITOR WATER CONSUMPTION THROUGH ON-LINE
CONTROLS
CAPTURE STORM WATER FROM IMPERVIOUS
AREAS OF THE BUILDING FOR GROUND
WATER RE-CHARGE OR REUSE.

1 54PROJECT:
JAN,2009
WATER EFFICIENCY

1 55PROJECT:
JAN,2009
WATER EFFICIENT LANDSCAPING:
LIMIT OR ELIMINATE THE USE OF POTABLE WATER FOR LANDSCAPE IRRIGATION.
REQUIREMENT
USE HIGH EFFICIENCY IRRIGATION TECHNOLOGIES
USE CAPTURED RAIN WATER OR RECYCLED RAIN WATER.
REDUCE POTABLE WATER CONSUMPTION BY 50%
USE ONLY CAPTURED RAIN WATER OR RECYCLED
RAIN WATER
DO NOT INSTALL POTABLE WATER IRRIGATION SYSTEM.
POTENTIAL TECHNOLOGIES & STRATEGIES
PERFORM SOIL /CLIMATE ANALYSIS TO DETERMINE
APPROPRIATE LANDSCAPE.
USE INDIGENOUS PLANTS
USE HIGH EFFICIENCY IRRIGATION SYSTEM.

1 56PROJECT:
JAN,2009

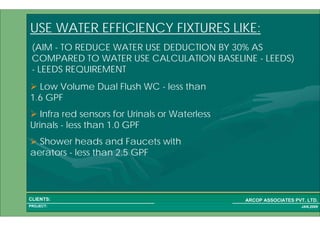

USE WATER EFFICIENCY FIXTURES LIKE:
Low Volume Dual Flush WC - less than
1.6 GPF
Infra red sensors for Urinals or Waterless
Urinals - less than 1.0 GPF
Shower heads and Faucets with
aerators - less than 2.5 GPF
(AIM - TO REDUCE WATER USE DEDUCTION BY 30% AS
COMPARED TO WATER USE CALCULATION BASELINE - LEEDS)
- LEEDS REQUIREMENT

1 57PROJECT:
JAN,2009

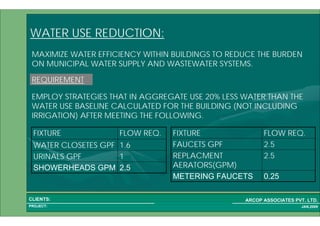

WATER USE REDUCTION:
MAXIMIZE WATER EFFICIENCY WITHIN BUILDINGS TO REDUCE THE BURDEN
ON MUNICIPAL WATER SUPPLY AND WASTEWATER SYSTEMS.
REQUIREMENT
EMPLOY STRATEGIES THAT IN AGGREGATE USE 20% LESS WATER THAN THE
WATER USE BASELINE CALCULATED FOR THE BUILDING (NOT INCLUDING
IRRIGATION) AFTER MEETING THE FOLLOWING.
2.5SHOWERHEADS GPM
1URINALS GPF
1.6WATER CLOSETES GPF
FLOW REQ.FIXTURE
0.25METERING FAUCETS
2.5REPLACMENT
AERATORS(GPM)
2.5FAUCETS GPF
FLOW REQ.FIXTURE

1 58PROJECT:
JAN,2009

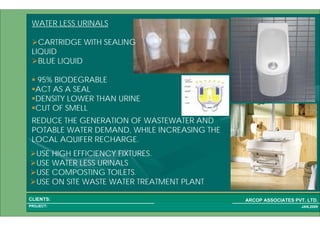

REDUCE THE GENERATION OF WASTEWATER AND
POTABLE WATER DEMAND, WHILE INCREASING THE
LOCAL AQUIFER RECHARGE.
WATER LESS URINALS
CARTRIDGE WITH SEALING
LIQUID
BLUE LIQUID
95% BIODEGRABLE
ACT AS A SEAL
DENSITY LOWER THAN URINE
CUT OF SMELL
USE HIGH EFFICIENCY FIXTURES.
USE WATER LESS URINALS
USE COMPOSTING TOILETS.
USE ON SITE WASTE WATER TREATMENT PLANT

1 59PROJECT:
JAN,2009
HVAC & INDOOR AIR QUALITY

1 60PROJECT:
JAN,2009

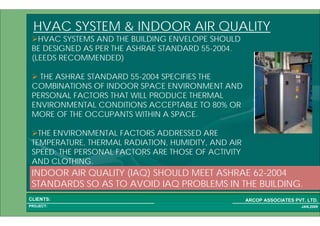

HVAC SYSTEM & INDOOR AIR QUALITY
HVAC SYSTEMS AND THE BUILDING ENVELOPE SHOULD
BE DESIGNED AS PER THE ASHRAE STANDARD 55-2004.
(LEEDS RECOMMENDED)
THE ASHRAE STANDARD 55-2004 SPECIFIES THE
COMBINATIONS OF INDOOR SPACE ENVIRONMENT AND
PERSONAL FACTORS THAT WILL PRODUCE THERMAL
ENVIRONMENTAL CONDITIONS ACCEPTABLE TO 80% OR
MORE OF THE OCCUPANTS WITHIN A SPACE.
THE ENVIRONMENTAL FACTORS ADDRESSED ARE
TEMPERATURE, THERMAL RADIATION, HUMIDITY, AND AIR
SPEED; THE PERSONAL FACTORS ARE THOSE OF ACTIVITY
AND CLOTHING.
INDOOR AIR QUALITY (IAQ) SHOULD MEET ASHRAE 62-2004
STANDARDS SO AS TO AVOID IAQ PROBLEMS IN THE BUILDING.

1 61PROJECT:
JAN,2009
VFDS FOR AHUS, CHILLER & CONDENSER WATER
PUMPS, CT FAN, RADIATOR FANS IN DG SETS WITH
FEEDBACK CONTROL AND VAV FOR AIR
DISTRIBUTION.

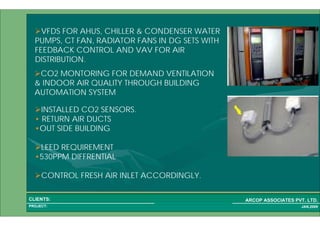

CO2 MONTORING FOR DEMAND VENTILATION
& INDOOR AIR QUALITY THROUGH BUILDING
AUTOMATION SYSTEM
INSTALLED CO2 SENSORS.
• RETURN AIR DUCTS
•OUT SIDE BUILDING
LEED REQUIREMENT
•530PPM DIFFRENTIAL
CONTROL FRESH AIR INLET ACCORDINGLY.

1 62PROJECT:
JAN,2009
DISTRICT COOLING SYSTEM

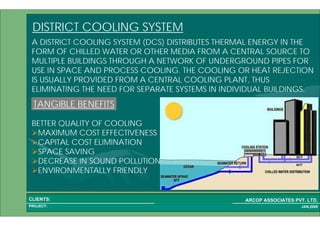

A DISTRICT COOLING SYSTEM (DCS) DISTRIBUTES THERMAL ENERGY IN THE
FORM OF CHILLED WATER OR OTHER MEDIA FROM A CENTRAL SOURCE TO
MULTIPLE BUILDINGS THROUGH A NETWORK OF UNDERGROUND PIPES FOR
USE IN SPACE AND PROCESS COOLING. THE COOLING OR HEAT REJECTION
IS USUALLY PROVIDED FROM A CENTRAL COOLING PLANT, THUS
ELIMINATING THE NEED FOR SEPARATE SYSTEMS IN INDIVIDUAL BUILDINGS.
TANGIBLE BENEFITS
BETTER QUALITY OF COOLING
MAXIMUM COST EFFECTIVENESS
CAPITAL COST ELIMINATION
SPACE SAVING
DECREASE IN SOUND POLLUTION
ENVIRONMENTALLY FRIENDLY

1 63PROJECT:
JAN,2009
EARTH AIR TUNNELS
USE OF EARTH TUNNELS BELOW
BASEMENT TO SUPPLY AIR AT 22 TO
25 DEG TO BE USED AS FRESH AIR
MAKEUP. THE REDUCTION IN A/C
LOAD DUE TO FRESH AIR SUPPLY AT
25 DEG.

1 64PROJECT:
JAN,2009
WIND CATCHERS

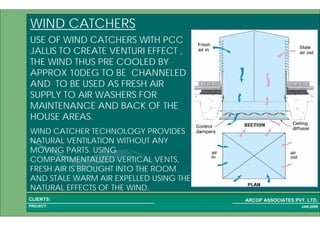

USE OF WIND CATCHERS WITH PCC
JALLIS TO CREATE VENTURI EFFECT ,
THE WIND THUS PRE COOLED BY
APPROX 10DEG TO BE CHANNELED
AND TO BE USED AS FRESH AIR
SUPPLY TO AIR WASHERS FOR
MAINTENANCE AND BACK OF THE
HOUSE AREAS.
WIND CATCHER TECHNOLOGY PROVIDES
NATURAL VENTILATION WITHOUT ANY
MOVING PARTS. USING
COMPARTMENTALIZED VERTICAL VENTS,
FRESH AIR IS BROUGHT INTO THE ROOM
AND STALE WARM AIR EXPELLED USING THE
NATURAL EFFECTS OF THE WIND.

1 65PROJECT:
JAN,2009
IN SUMMER MONTHS DOORS AND
WINDOWS ARE MORE LIKELY TO BE OPENED
AND THIS WILL AID CROSS FLOW
VENTILATION, WITH FRESH AIR COMING IN
THROUGH WINDOWS ON THE WINDWARD
SIDE OF THE BUILDING AND BE EXHAUSTED
THROUGH THE PASSIVE STACK ELEMENT.
WIND SYSTEM. WARM AIR WILL NATURALLY
RISE AND BE EXHAUSTED THROUGH THIS
PASSIVE STACK ELEMENT. IN ADDITION
NATURAL VENTILATION WILL BE AIDED BY
THE EXTERNAL WIND MOVEMENT, CREATING
A NEGATIVE OR SUCTION ZONE TO ONE
SIDE OF THE WIND SYSTEM AS WELL AS THE
BUILDING, WHICH HAS THE EFFECT OF
SLIGHTLY PRESSURIZING THE BUILDING.

1 66PROJECT:
JAN,2009
LIGHTING AND
ELECTRICAL SYSTEMS

1 67PROJECT:
JAN,2009

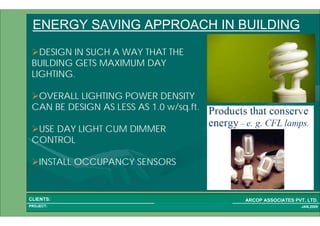

ENERGY SAVING APPROACH IN BUILDING
DESIGN IN SUCH A WAY THAT THE
BUILDING GETS MAXIMUM DAY
LIGHTING.
OVERALL LIGHTING POWER DENSITY
CAN BE DESIGN AS LESS AS 1.0 w/sq.ft.
USE DAY LIGHT CUM DIMMER
CONTROL
INSTALL OCCUPANCY SENSORS

1 68PROJECT:
JAN,2009

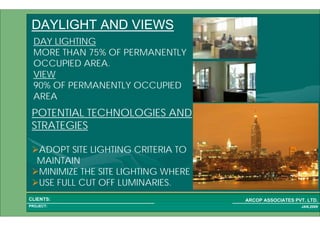

DAYLIGHT AND VIEWS
DAY LIGHTING
MORE THAN 75% OF PERMANENTLY
OCCUPIED AREA.
VIEW
90% OF PERMANENTLY OCCUPIED
AREA
POTENTIAL TECHNOLOGIES AND
STRATEGIES
ADOPT SITE LIGHTING CRITERIA TO
MAINTAIN
MINIMIZE THE SITE LIGHTING WHERE
USE FULL CUT OFF LUMINARIES.

1 69PROJECT:
JAN,2009
BUILDING MANAGEMENT
SYSTEMS

1 70PROJECT:
JAN,2009
BUILDING MANAGEMENT SYSTEM

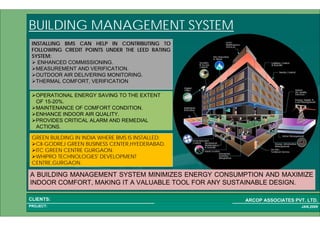

A BUILDING MANAGEMENT SYSTEM MINIMIZES ENERGY CONSUMPTION AND MAXIMIZE
INDOOR COMFORT, MAKING IT A VALUABLE TOOL FOR ANY SUSTAINABLE DESIGN.
OPERATIONAL ENERGY SAVING TO THE EXTENT
OF 15-20%.
MAINTENANCE OF COMFORT CONDITION.
ENHANCE INDOOR AIR QUALITY.
PROVIDES CRITICAL ALARM AND REMEDIAL
ACTIONS.
INSTALLING BMS CAN HELP IN CONTRIBUTING TO
FOLLOWING CREDIT POINTS UNDER THE LEED RATING
SYSTEM:
ENHANCED COMMISSIONING.
MEASUREMENT AND VERIFICATION.
OUTDOOR AIR DELIVERING MONITORING.
THERMAL COMFORT, VERIFICATION
GREEN BUILDING IN INDIA WHERE BMS IS INSTALLED:
CII-GODREJ GREEN BUSINESS CENTER,HYEDERABAD.
ITC GREEN CENTRE GURGAON.
WHIPRO TECHNOLOGIES' DEVELOPMENT
CENTRE,GURGAON.

1 71PROJECT:
JAN,2009
ANY QUESTIONS ??????

Energy Conservation Provisions in Building

More Related Content

What's hot

Viewers also liked

Similar to Energy Conservation Provisions in Building

Energy Conservation Provisions in Building
